Metabolic crosstalk between hydroxylated monoterpenes and salicylic acid in tomato defense response against bacteria

Abstract

Hydroxylated monoterpenes (HMTPs) are differentially emitted by tomato (Solanum lycopersicum) plants resisting bacterial infection. We have studied the defensive role of these volatiles in the tomato response to bacteria, whose main entrance is through stomatal apertures. Treatments with some HMTPs resulted in stomatal closure and pathogenesis-related protein 1 (PR1) induction. Particularly, α-terpineol induced stomatal closure in a salicylic acid (SA) and abscisic acid-independent manner and conferred resistance to bacteria. Interestingly, transgenic tomato plants overexpressing or silencing the monoterpene synthase MTS1, which displayed alterations in the emission of HMTPs, exhibited changes in the stomatal aperture but not in plant resistance. Measures of both 2-C-methyl-D-erythritol-2,4-cyclopyrophosphate (MEcPP) and SA levels revealed competition for MEcPP by the methylerythritol phosphate (MEP) pathway and SA biosynthesis activation, thus explaining the absence of resistance in transgenic plants. These results were confirmed by chemical inhibition of the MEP pathway, which alters MEcPP levels. Treatments with benzothiadiazole (BTH), a SA functional analog, conferred enhanced resistance to transgenic tomato plants overexpressing MTS1. Additionally, these MTS1 overexpressors induced PR1 gene expression and stomatal closure in neighboring plants. Our results confirm the role of HMTPs in both intra- and interplant immune signaling and reveal a metabolic crosstalk between the MEP and SA pathways in tomato plants.

Introduction

Understanding the defense signaling pathways in plants has led to the discovery of resistance-inducing compounds for the agrochemical sector (López-Gresa et al. 2018). These compounds may act directly as powerful antioxidants, antibacterial, or antifungal agents against the pathogen or act indirectly by activating the plant defense response. In addition to alkaloids and phenolics, some volatile organic compounds (VOCs) belong to this group of defensive molecules (Junker and Tholl 2013; Brosset and Blande 2022).

One of the most diverse types of VOCs is terpenoids, also known as isoprenoids, and includes a very extensive and varied set of molecules. They are formed from repeating units of 5-carbon (C5) isoprene building blocks—named isopentenyl diphosphate and dimethylallyl diphosphate—which are obtained from mevalonic acid (MVA) or methylerythritol phosphate (MEP) in the cytosol or plastids, respectively (Degenhardt et al. 2009). Particularly, monoterpenes consist of 2 isoprene units (C10) and can be modified with different functional groups, such as the addition of a hydroxyl to form the hydroxylated monoterpenes (HMTPs). Terpene synthases (TPSs) catalyze the synthesis of isoprenoids, being responsible for the diversity of terpenoids found in nature (Tholl and Lee 2011; Karunanithi and Zerbe 2019). The analysis of the updated tomato (Solanum lycopersicum) genome (2017 version of v. SL3.0) has revealed that there are 34 full-length TPS genes and 18 pseudo TPS genes. The biochemical analysis has identified the catalytic activities of all the enzymes encoded by all 34 TPS genes: an isoprene (C5) synthase, 10 exclusively or predominantly monoterpene (C10) synthases, 17 sesquiterpene (C15) synthases, and 6 diterpene (C20) synthases (Zhou and Pichersky 2020). Among TPSs, the recombinant protein of the monoterpene synthase MTS1 produces the monoterpenoid β-linalool but also the sesquiterpenoid β-nerolidol, generating its overexpression producing enhanced levels of linalool in tomato plants. This gene is induced by insects, wounding, and jasmonic acid (JA) treatment (Van Schie et al. 2007). Therefore, the defensive role of monoterpenes has been classically associated with plant–herbivore interaction, although the interest on its role in plant defense against pathogens is increasing (Vlot et al. 2021).

A nontargeted metabolomic analysis was performed using GC–MS to identify VOCs differentially emitted by Rio Grande (RG) tomato plants carrying the resistance to Pseudomonas syringae pathovar (pv.) tomato Pto gene, infected by an avirulent strain of P. syringae pv. tomato. The analysis of the specific volatilome from these plants, displaying the so-called effector-triggered immunity (ETI; Jones and Dangl 2006), revealed that the aroma characteristic of resistance includes (Z)-3-hexenol esters—including (Z)-3-hexenyl butanoate (HB)—as well as some HMTPs, such as α-terpineol, 4-terpineol, and linalool (López-Gresa et al. 2017). The defensive role of HB has already been demonstrated, since it produces stomatal closure and induces the defensive response, thus preventing the entry of bacteria (López-Gresa et al. 2018). This compound was patented (Lisón et al. 2018) for its potential uses in agriculture against biotic and abiotic stresses (Payá et al. 2020, 2024). However, the role of HMTPs in tomato immunity still remains unknown. In this respect, it is relevant to note that HMTPs, and particularly linalool, are synthesized through the MEP plastid pathway by the action of MTS1, which has been described to be induced during ETI in tomato plants (López-Gresa et al. 2017).

The defense response upon avirulent P. syringae pv. tomato infection also includes the activation of salicylic acid (SA) biosynthesis (Robert-Seilaniantz et al. 2011). This phytohormone is involved in different physiological and biochemical processes, and it is well characterized as a signaling molecule for the induction of different pathways that enhance in plant resistance (Klessig et al. 2018). This phenolic compound is biosynthesized in plants from phenylalanine through the route of the phenylpropanoids (PAL pathway) or from the isochorismate (IC pathway). Loss of function of some genes from both pathways results in an increased plant susceptibility to pathogens. Nevertheless, isochorismate synthase (ICS1) is the main enzyme of SA biosynthesis in biotic responses and produces 90% of its levels under biotic stress (Wildermuth et al. 2001). In plants, IC is conjugated to the amino acid L-glutamate to produce isochorismoyl-9-glutamate (IC-9-Glu) that can spontaneously break down into SA. Besides, EPS1 (ENHANCED PSEUDOMONAS SUSCEPTIBILITY 1), an IC-9-Glu pyruvoyl-glutamate lyase, enhances this process more effectively (Zeier 2021). To avoid the toxic effects caused by its accumulation, SA is chemically modified into different derivatives, through glycosylation, methylation, sulfonation, amino acid conjugation, and hydroxylation. Particularly, most of the SA present in the plant is glycosylated into SA 2-O-β-D-glucoside (SAG). In addition, SA can be methylated to form the volatile methyl salicylate (MeSA) or hydroxylated to form gentisic acid (GA) by the action of S5H (salicylic acid 5-hydroxylase; Bellés et al. 2006; Ding and Ding 2020; Payá et al. 2022).

The differential emission of HMTPs in an avirulent bacterial infection, as well as the observed induction of the monoterpene synthase MTS1 (López-Gresa et al. 2017), prompted us to delve into the possible defensive role of HMTPs in tomato plants. In this context, the general objective of this work is to study the defensive role and the mode of action of HMTPs, including the possible interrelation with SA, in the tomato–bacteria interaction.

Results

HMTPs activate the plant defense response

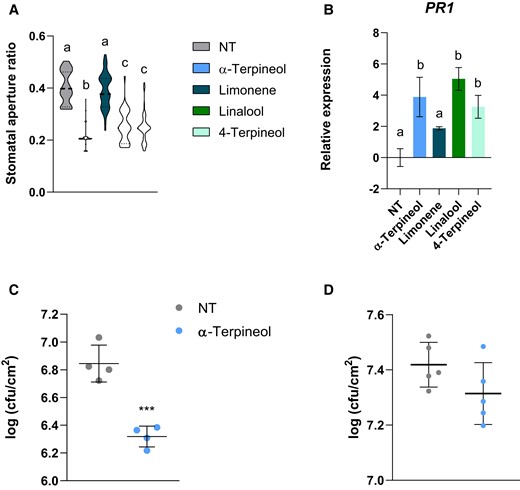

Stomata play a critical role in restricting bacterial invasion as part of the plant immune system (Underwood et al. 2007). In addition to biotic stress, stomata also respond to several volatile compounds, some of them with defensive activity (López-Gresa et al. 2018). In order to explore the defensive role of HMTPs whose differential emission is triggered by ETI, MoneyMaker (MM) tomato plants were treated with 5 µM α-terpineol, 4-terpineol, or linalool, and both stomata closure and expression of pathogenesis-related protein 1 (PR1), the main marker gene of SA-mediated plant response to biotrophic attack (Tornero et al. 1997), were analyzed. In addition, treatments with the non-HMTP limonene were also performed. As observed in Fig. 1A, a significant stomatal closure occurred in α-terpineol, 4-terpineol, and linalool but not in limonene-treated plants. In a similar manner, HMTP treatments also produced a significant induction of PR1 expression, while limonene had no significant effect (Fig. 1B). Our results appear to indicate that both stomatal closure and activation of PR1 are specifically triggered by the hydroxylated forms of monoterpenes, being α-terpineol selected for further studies, since it was the compound producing the highest stomatal closure.

To confirm the defensive role of α-terpineol, MM tomato plants were pretreated with 5 µM α-terpineol. This concentration was chosen according to the range of natural emission of HMTPs in wild type infected tomato plants. Then, pretreated tomato plants were subjected to P. syringae pv. tomato DC3000 (Pst) infection by immersion 1 d later (see Materials and methods). A significant induction of resistance was observed in α-terpineol-treated tomato plants after 24 h of bacterial inoculation, when compared with the nontreated plants (Fig. 1C). The efficacy of the pretreatment was also tested in the experiment, confirming the activation of PR1 by Western blot analysis (Supplementary Fig. S1).

To assess if the HMTP-mediated resistance was due to stomatal closure or PR1 induction, α-terpineol-pretreated plants were infected by bacterial infiltration (see Materials and methods). Through this infection method, bacteria bypass the stomatal immunity and the PR1 effect on plant defense could be independently evaluated. As Fig. 1D shows, resistance produced by α-terpineol lost statistical significance when bacteria were directly infiltrated in the plant, although a tendency to reduce the bacteria content was observed. These results indicate that the effect of α-terpineol on plant resistance is partially due to its capability to close the stomata.

α-Terpineol triggers stomatal closure in an SA/ABA-independent manner and SA-dependent plant resistance

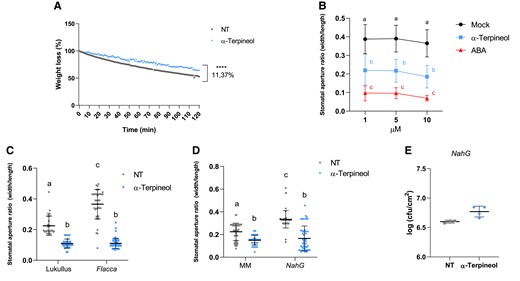

To better explore the function of α-terpineol in stomatal closure, weight loss was measured in tomato seedlings after water or α-terpineol treatments during 120 min (see Materials and methods). As shown in Fig. 2A, α-terpineol-treated plants statistically retained more water than nontreated plants, indicating an effective stomatal closure after the chemical treatment. We also compared the effect of α-terpineol with that produced by abscisic acid (ABA), the main phytohormone involved in stomata closure. We observed that treatments with α-terpineol, at a comparable range of concentrations as that used for ABA, can close stomata at a comparable range of concentrations as that used for ABA, although the observed effect was lower (Fig. 2B).

To test if the observed terpineol-induced stomatal closure is ABA or SA dependent, we measured the effect in tomato ABA-deficient flacca mutants (Bowman et al. 1984) and SA-deficient NahG transgenic plants (Brading et al. 2000). In addition to ABA, SA induces stomatal closure as a signaling molecule for plant defense responses to bacterial pathogens (Panchal and Melotto 2017), explaining the higher aperture ratio observed in nontreated flacca mutants and NahG transgenic plants. Terpineol treatments resulted in a significant stomatal closure in flacca and NahG (Fig. 2, C and D), thus indicating that the stomata closure effect of α-terpineol is SA and ABA independent.

To explore if the observed resistance upon α-terpineol treatment (Fig. 1C) was SA dependent, NahG tomato plants were pretreated with α-terpineol and then infected with Pst. As Fig. 2E shows, α-terpineol was unable to induce resistance in NahG tomato plants, thus indicating the effect of HMTPs on plant resistance is SA dependent.

Alteration of MTS1 gene expression levels affects stomatal closure but not Pst resistance

To provide genetic evidence confirming the observed defense-related effects triggered by HMTPs, tomato transgenic plants with altered levels of these volatiles were studied. Transgenic tomato plants overexpressing MTS1 were previously described (van Schie et al. 2007), and silenced MTS1 tomato plants were generated by following an RNAi strategy (see Materials and methods; Fig. 3A). Generated tomato line RNAi_MTS1 was characterized, and homozygous lines RNAi_MTS1 2.1 and RNAi_MTS1 5.1, both carrying 1 copy of the transgene, were selected for further studies. To characterize the response of RNAi_MTS1 tomato plants to bacterial infection, the MTS1 expression levels in mock-inoculated and Pst-infected plants were analyzed by RT-qPCR (Fig. 3B). As expected, a statistically significant reduction of MTS1 transcript was measured in Pst-infected RNAi_MTS1 leaves compared to corresponding infected wild-type RG.

To determine the emission of VOCs in both mock- and bacterial-infected 35S:MTS1 and RNAi_MTS1 transgenic plants, a monoterpenoid targeted analysis was performed. Figure 3C shows that the emission of monoterpenoid-type VOCs was statistically higher in the Pst-infected 35S:MTS1 transgenic plants compared to MM wild-type plants. These results confirm the function described for MTS1 as a monoterpene synthase and correspond with those previously described in which the basal levels of linalool reported in transgenic plants were higher than those in plants transformed with the empty vector (Van Schie et al. 2007). The chemical composition of RNAi_MTS1 (Fig. 3D) also confirms that the silencing of MTS1 upon a Pst infection causes a significant reduction of the HMTP emission, specifically linalool, terpinen-4-ol, and α-terpineol. Therefore, MTS1 overexpression or silencing in infected tomato plants produced an opposite HMTP emission.

To confirm the mode of action of HMTPs in the tomato defensive response, we checked the possible association between HMTP emission and stomatal closure. As shown in Fig. 4A, 35S:MTS1 transgenic plants displayed a lower ratio of stomatal aperture than the corresponding control plants. This result agrees with the stomatal closure observed with exogenous α-terpineol treatments (Fig. 1A), reaffirming the role of HMTPs in the regulation of stomatal closure. Also consistently, both transgenic lines silencing MTS1, with lower levels of HMTPs, displayed a higher aperture ratio than the wild-type RG plants (Fig. 4D). Thus, our results appear to indicate HMTPs can cause stomatal closure when provided exogenously but also when produced endogenously, probably being involved in stomatal immunity.

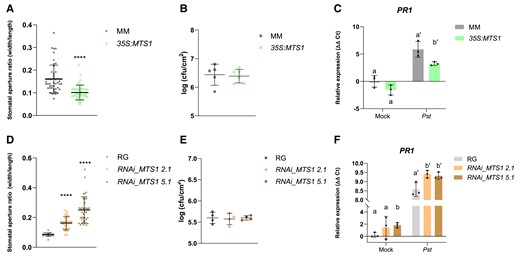

To test this possibility, a bacterial infection was carried out in both transgenic plants 35S:MTS1 and RNAi_MTS1 as well as in their corresponding MM and RG parentals. Surprisingly, as seen in Fig. 4B, the MTS1 overexpression line did not show enhanced resistance to Pst, despite having a lower stomata aperture ratio than their corresponding MM (Fig. 4A). Besides, RNAi_MTS1 tomato plants did not display a higher susceptibility (Fig. 4E) irrespective of the previously observed higher stomata aperture ratio (Fig. 4D). These results are also in contrast with those obtained after exogenous treatments (Fig. 1C).

The expression levels of the pathogenesis marker PR1 were measured in both infected transgenic plants. As shown in Fig. 4C, a statistically lower expression of PR1 was detected in 35S:MTS1 transgenic plants after Pst infection when compared to that observed in MM wild-type plants, which is in contrast with the previously observed HMTP-mediated PR1 induction (Fig. 1B). Contrarily, both RNAi_MTS1 lines showed statistical higher levels of PR1 expression upon Pst infection (Fig. 4F).

The induction of PR1 is SA dependent, being highly induced in tomato plants over accumulating this phenolic compound (Payá et al. 2022). In addition, we have observed that the effect of HMTPs on plant resistance is SA dependent (Fig. 2E). Therefore, the pattern of induction of PR1 and the lack of resistance phenotype in the transgenic plants with altered HMTP production suggest that the SA pathway could be affected under stress conditions in these transgenic plants.

Metabolic crosstalk between MEP and SA pathways in infected tomato plants

HMTPs are produced from precursors supplied by the plastidial MEP pathway. Interestingly, an intermediate of the MEP pathway, methylerythritol cyclodiphosphate (MEcPP), has been shown to transcriptionally activate ICS, which encodes the key enzyme of SA biosynthesis (Gil et al. 2005; Xiao et al. 2012). To study the possible competition for MEcPP to activate SA-mediated response or HMTP biosynthesis, measures of MEcPP levels were performed in 35S:MTS1 tomato plants upon Pst infection (Fig. 5A), observing a statistical reduction of this compound in 35S:MTS1 tomato plants. This reduction in MEcPP levels was accompanied by a significant reduction in the ICS expression in 35S:MTS1 infected tomato plants, when compared with the corresponding parental plants (Fig. 5B). The decrease in MEcPP levels and ICS expression caused by the overproduction of HMTPs (Fig. 3C) could be responsible for the observed lower levels of PR1 (Fig. 4C) and the absence of resistance in 35S:MTS1 tomato plants (Fig. 4B).

To better study this interaction between HMTPs and SA biosynthesis, a pharmacological approach was followed to alter the levels of MEcPP, 24 h before Pst infection. Specifically, we used fosmidomycin (FSM) to block the early steps of the MEP pathway by inhibiting the enzyme deoxyxylulose 5-phosphate reductoisomerase (DXR) and reducing MEcPP production.

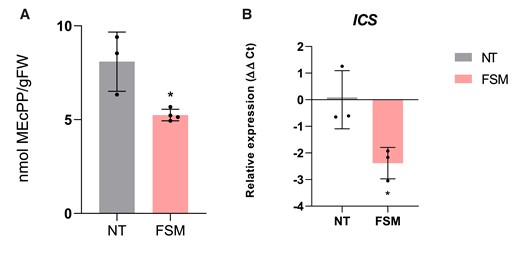

To confirm the inhibition of the MEP pathway, MEcPP levels were measured in Pst-infected tomato plants pretreated with FSM, observing a significant reduction of this compound in the pretreated leaves when compared with the corresponding nontreated plants (Fig. 6A). Then we studied the FSM inhibition effect of the MEP pathway on the ICS expression levels in Pst-infected tomato plants by RT-qPCR (Fig. 6B). Indeed, FSM application caused a statistical decrease in the ICS expression levels upon Pst infection, thus suggesting that the inhibition of the DXR enzyme blocked the MEcPP production and probably the transcriptional activation of ICS.

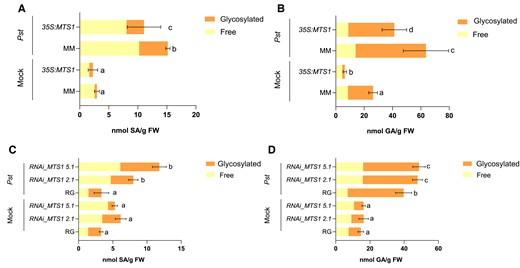

To confirm that regulation of ICS produces alterations in SA biosynthesis, we analyzed the levels of this phytohormone as well as its hydroxylated (GA) and methylated forms (MeSA), in both Pst-infected transgenic plants with altered MTS1 levels. Both GA and MeSA are involved in compatible interactions and in the activation of SAR response (Lowe-Power et al. 2016), respectively. Particularly, MeSA has been proposed as the mobile signal responsible for the SAR activation in Nicotiana tabacum cv. Xanthi plants (Park et al. 2007). As shown in Fig. 7, A and B, the levels of SA and GA were statistically lower in Pst-infected 35S:MTS1 tomato leaves when compared to its genetic background MM. A significant reduction in GA levels was also measured in mock conditions in these transgenic plants. In contrast, a significant higher SA and GA accumulation was measured in Pst-infected RNAi_MTS1 plants when compared with the corresponding parental plants (Fig. 7, C and D). Thus, the lower ICS induction observed in MTS1 overexpressing lines (Fig. 5B) associated with the lower levels of SA and GA (Fig. 7, A and B) and with the lower expression of PR1 upon bacterial infection (Fig. 4C). In a similar manner, an opposite MeSA emission was analyzed in 35S:MTS1 and RNAi_MTS1 tomato plants. While 35S:MTS1 tomato leaves showed a lower emission of volatile MeSA after infection, RNAi_MTS1 plants exhibited a higher production of MeSA compared to the corresponding wild type (Supplementary Fig. S2, A and D). Moreover, the expression levels of S5H, which is involved in the conversion of SA to GA (Payá et al. 2022), paired with the accumulation levels of these 2 phenolics in both infected transgenic plants. Thereby, 35S:MTS1 tomato leaves showed a statistical decrease in S5H expression levels while RNAi_MTS1 displayed a slightly significant S5H induction after bacterial infection compared to the parentals (Supplementary Fig. S2, B and E). Finally, since MEcPP has also been shown (Xiao et al. 2012) to transcriptionally activate HPL, a hydroperoxide lyase participating in the biosynthesis of green leaf volatiles (GLVs) such as Z-3-hexenal, levels of this volatile were also measured in both transgenic plants, observing the same of accumulation pattern observed for SA (Supplementary Fig. S2, C and F).

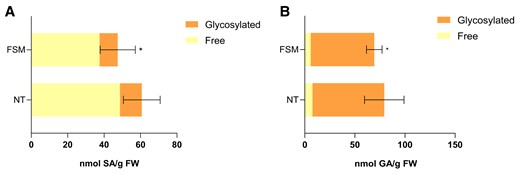

Furthermore, levels of SA and GA were also measured in tomato plants pretreated with FSM and infected with Pst, which displayed a lower activation of ICS (Fig. 6B). Also consistently, FSM-treated and infected tomato plants accumulated lower levels of SA (Fig. 8A) and GA (Fig. 8B), when compared with nontreated control plants infected with Pst. Once again, levels of accumulation of Z-3-hexenal associated with SA levels (Supplementary Fig. S3).

Both genetic and pharmacological approaches appear to indicate that there is a shared use of MEcPP by the MEP pathway, which leads to the production of HMTPs and the ICS transcriptional activation, which induces the SA biosynthesis, thus revealing a metabolic crosstalk between both pathways. These findings could explain the fact that, despite the observed statistical differences in HMTP emission and stomatal aperture ratios, none of the transgenic plants showed the expected phenotype of resistance (35S:MTS1) or susceptibility (RNAi_MTS1), since SA levels were inversely affected in these plants, thus confirming the existence of a negative crosstalk between HMTPs and SA during the bacterial infection.

HMTPs and SA balance in the defensive response of tomato plants against Pst

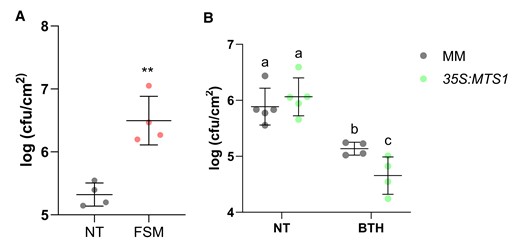

To verify the relevance of the MEP pathway and its connection with SA biosynthesis in plant resistance, FSM-pretreated tomato plants were infected with Pst and the bacterial growth was evaluated. As shown Fig. 9A, the number of colonies was statistically higher in FSM-treated plants with respect to the untreated ones. This result indicates that FSM treatments, which repressed ICS (Fig. 6B) and reduced SA accumulation (Fig. 8A), increase the susceptibility of tomato plants against Pst.

These treatments confirm the relation between the MEP pathway and SA biosynthesis and highlight the importance of HMTPs and SA in the plant resistance. These studies clarify the importance of the MEP pathway in the tomato resistance through MEcPP, a compound participating in both the transcriptional stimulation of ICS and the biosynthesis of HMTPs.

Finally, to confirm the role of HMTPs in plant defense against bacteria, treatments with the SA functional analog benzothiadiazole (BTH), used as chemical activator of plant resistance by activating SAR (Lawton et al. 1996), were carried out in the transgenic 35S:MTS1 tomato plants. Applications of 1 mM BTH in transgenic 35S:MTS1 plants rescued their SA deficiency, allowing HMTPs to produce a significant resistance when compared with corresponding treated parental, therefore mimicking HMTP treatments (Fig. 9B). This resistance was accompanied by a restored induction of PR1 expression in the 35S:MTS1 plants (Supplementary Fig. S4) when compared with those previously obtained (Fig. 4C).

HMTPs participate in the communication between tomato plants

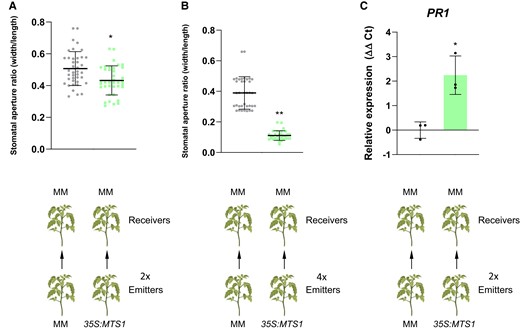

The role of VOCs, in intra- and intercommunication between plants, is well known (Baldwin et al. 2002; Zimmermann et al. 2009). VOCs are long-distance signals that can trigger systemic stress responses in distant plants. As Fig. 10 shows, when tomato plants (receivers) were cohabited with 35S:MTS1 plants, which overemit HMTPs (emitters; Fig. 3C), stomatal closure was observed in those receiver plants. Moreover, the observed effect occurred in a dose-dependent manner, since the stomata closure was less pronounced when 2 emitter plants were used (Fig. 10A) in comparison with the results obtained with 4 emitter plants (Fig. 10B). Besides, 35S:MTS1 emitter plants activated the plant defense response in the receiver plants, as levels of PR1 showed (Fig. 10C). Therefore, our results indicate that HMTPs may play an important role not only in the intra- but also in the interplant immune signaling.

Discussion

Terpenoids constitute a highly diverse class of chemical compounds, which are abundantly produced across the plant kingdom (Zhou and Pichersky 2020). Particularly, monoterpenes are implicated in the plant defense response, being their defensive role classically associated with several plant–herbivore interactions (Sharma et al. 2017), i.e. Arabidopsis thaliana–Myzus persicae (Aharoni et al. 2003). However, its role in plant defense against pathogens is earning interest (Vlot et al. 2021). In this sense, some HMTPs as α-terpineol, 4-terpineol, or linalool have been described as differentially emitted VOCs during ETI establishment triggered by Pst in tomato plants (López-Gresa et al. 2017). Here, we have studied the defensive role of these HMTPs and its convergence with the SA-mediated immunity in tomato plants.

Stomata participate in the gas exchange that allows transpiration and photosynthesis, being involved in plant immunity as these apertures act as entry point for pathogens to the vegetal tissue (Melotto et al. 2008). The activation of plant defense leads to the accumulation of the so-called pathogenesis-related (PR) proteins, being PR1 the conventional SA-related marker (Saijo and Loo 2020). We have observed that all the analyzed HMTP treatments provoked both stomatal closure and PR1 induction, unlike the nonhydroxylated limonene, thus pointing out the importance of the hydroxylation of monoterpenes for the activation of the plant defense response (Fig. 1, A to C). Interestingly, the α-terpineol-mediated disease resistance appeared to be due in part to its capability to close the stomata, since the resistance phenotype failed when bacteria were injected into the pretreated tomato plants (Fig. 1D). The importance of stomatal immunity in VOC-mediated resistance was also described by using (Z)-3-hexenyl butyrate, a volatile compound also emitted by tomato plants displaying ETI (López-Gresa et al. 2018).

To the best of our knowledge, HMTPs have not been reported as plant stomata closers. To date, previous research of Rai et al. (2003) indicated that volatile essential oils from Prinsepia utilis inhibit stomatal opening in Vicia faba. In particular, α-terpineol attracts a great interest as an antioxidant compound (Khaleel et al. 2018), being the most efficient volatile in terms of stomatal closure (Fig. 1A). To elucidate the defensive role of HMTPs, the capacity to activate plant resistance and the stomata closure process triggered by α-terpineol treatments were evaluated. This monoterpenoid induced PR1 expression (Fig. 1B) and tomato resistance against Pst (Fig. 1C), confirming its defensive role. Our results are in accordance with those previously described in A. thaliana, where a mixture of the monoterpenes α-pinene and β-pinene induced resistance (Riedlmeier et al. 2017), although their capacity to induce stomatal closure was not explored. In other studies, monoterpenes had already been associated with the defensive response such as geraniol and its potential antibacterial effects against Xanthomonas oryzae pv. oryzae, which causes rice bacterial blight (Kiyama et al. 2021).

The effective stomata closure after α-terpineol treatment was confirmed by the reduced loss of water observed in treated plants (Fig. 2A), being the α-terpineol active at concentrations similar to those used for ABA (Fig. 2B), a plant hormone with a central role in the regulation of stomatal movements under water-deficit conditions (Hsu et al. 2021). Unexpectedly, the observed stomata closure occurred in a SA- and ABA-independent manner (Fig. 2, C and D), of these 2 positive regulators of the stomatal immunity (Melotto et al. 2006, 2017; Su et al. 2017). Similar results were previously described for oxylipins, which participate in the stomatal immunity in an ABA-independent process (Montillet et al. 2013), or for the (Z)-3-hexenyl butyrate, a volatile compound also emitted by tomato plants displaying ETI, which has been described to close stomata in a SA- and ABA-independent manner (Payá et al. 2003; López-Gresa et al. 2018). Our results reinforce the existence of ABA-independent pathways in stomatal immunity. Contrary to the stomata closure mode of action, we have observed that HMTPs induced resistance in a SA-dependent manner, since α-terpineol treatments were unable to induce resistance in NahG tomato plants (Fig. 2E). Similar results were previously described in Arabidopsis plants, where the SA-impaired mutants sid2-1, eds1-2, and npr1-1 did not display enhanced resistance upon treatments with volatile pinenes, thus indicating that both SA signaling and biosynthesis are required for monoterpenoid-induced resistance (Riedlmeier et al. 2017).

In addition to the pharmacological approaches, the capacity of HMTPs to induce resistance was analyzed in transgenic plants with altered levels of MTS1 expression. For this purpose, we used the previously described 35S:MTS1 plants (Van Schie et al. 2007), which overemit HMTPs, and we generated RNAi_MTS1 plants with reduce emission levels of HMTPs (Fig. 3). Surprisingly, levels of emission of HMTPs did not correspond with plant resistance (Fig. 4, B and E), although the capacity of the HMTPs to regulate stomata was maintained in these transgenic plants (Fig. 4, A and D). Therefore, our results appeared to indicate the ability of HMTPs to confer resistance was not only due to stomatal closure. Expression levels of pathogenesis marker PR1 were measured, observing a reverse association between HMTP emission and the expression of this defense marker gene (Fig. 4, C and F). These results suggested that HMTPs somehow alter PR1 expression and, therefore, the SA-mediated response.

In Arabidopsis, there appears to be a relationship between monoterpenes and both SA biosynthesis and signaling. Specifically, pinene-induced resistance was described to be dependent of SA biosynthesis and signaling (Riedlmeier et al. 2017). In addition, CSB3, which encodes a 1-hydroxy-2-methyl-2-butenyl 4-diphosphate synthase participating in the MEP pathway, is expressed constitutively in healthy plants and shows repression in response to bacterial infection, being described as a point of metabolic convergence between MEP and SA-mediated disease resistance to biotrophic pathogens (Gil et al. 2005). Finally, the MEP pathway is connected to SA through ICS expression by the retrograde signaler MEcPP. This compound is a precursor of isoprenoids, which elicits the expression of selected stress-responsive nuclear-encoded plastidial proteins such as ICS, the main producer of SA (Xiao et al. 2012).

Accordingly, we observed that 35S:MTS1 transgenic plants displayed lower levels of MEcPP accumulation (Fig. 5A), a reduced induction of ICS (Fig. 5B), lower levels of SA (Fig. 7A), and therefore lowered PR1 activation (Fig. 4C) upon Pst infection. Conversely, higher levels of SA (Fig. 7C) and enhanced PR1 expression (Fig. 4F) were detected in RNAi_MTS1 plants. Unlike Arabidopsis and MM tomato plants, RG tomato plants did not display SA accumulation upon Pst infection. These results agree with those previously described (López-Gresa et al. 2017), thus revealing differences between tomato and Arabidopsis signaling defense.

SA levels in 35S:MTS1 and RNAi_MTS1 could explain our observed phenotypes in tomato MTS1 transgenic plants, since neither an enhanced resistance nor a susceptibility was obtained (Fig. 4, B and E), probably due to the alteration of the MEP pathway. In the case of 35S:MTS1 plants, the constitutive promoter would cause a depletion of MEP pathway precursors, which are routed into the biosynthesis of monoterpenes. Therefore, a lower amount of MEcPP could act as retrograde signal, reducing the ICS transcriptional activation. On the contrary, an accumulation of the MEP precursors, including MEcPP, occurs in RNAi_MTS1 plants and ICS is then induced. The absence of phenotype in both cases account for the important role of both SA and HMTPs in tomato defense against bacteria.

To further confirm this last idea, we performed a pharmacological approach. Application of FSM, an inhibitor that targets the second enzyme of the MEP pathway reducing the levels of the final products (Laule et al. 2003; Di et al. 2022), was used to test the impact of eliminating both monoterpenoids and the transcriptional regulation of ICS in the defensive response. After FSM treatment, infected tomato plants displayed a downregulation of ICS (Fig. 6B), lower levels of SA (Fig. 8A), and consequently a higher susceptibility (Fig. 9A), confirming the connection between the MEP pathway and SA-mediated defense.

In conclusion, MEcPP is revealed as a key metabolite in tomato defense against biotic stress since it is necessary for monoterpenoid biosynthesis and positively regulates ICS expression. The lower levels of MEcPP detected in 35S:MTS1 confirmed this biosynthetic crosstalk (Fig. 5). In addition, the hypersusceptibility phenotype observed in tomato plants after treatments with FSM (Fig. 9A), as well as the enhanced resistance of 35S:MTS1 plants after BTH treatments against Pst (Fig. 9B), indicates that both HMTPs and SA are required for resistance induction in tomato plants. Furthermore, the biosynthetic regulation of both pathways mediated by MEcPP is key in the context of the defensive response and must be fine-tuned to optimize defense and fitness.

Finally, we have observed that 35S:MTS1 tomato plants induce stomata closure and PR1 expression in neighbor receiving tomato plants, thus indicating that HMTPs play an important role in interplant communication (Fig. 10). Similar results were observed in Arabidopsis, since monoterpenes contributed to defense-related plant-to-plant communication (Riedlmeier et al. 2017). MeSA and nonanal are VOCs that have also been described to trigger plant defense (Shulaev et al. 1997; Yi et al. 2009). However, since 35S:MTS1 tomato plants emitted lower levels of MeSA (Supplementary Fig. S2A), the induction of plant defense in receiving plants is probably due to the HMTPs, reinforcing their role in the defense-related plant communication.

In summary, by using pharmacological and genetical approaches, we have demonstrated that HMTPs play an important defensive role in tomato, contributing to stomatal closure and the activation of the defense response not only within the plant but also in the neighboring plants, therefore acting as signal molecules for intra- and interplant communication. Moreover, our results have revealed a metabolic crosstalk between MEP and SA pathways, occurring through MEcPP competition.

Materials and methods

Vector construction and tomato transformation

In order to generate the MTS1-silenced transgenic tomato (S. lycopersicum) plants, the method described by Waterhouse and Helliwell (2003) was followed. Briefly, a selected 407 bp sequence of MTS1 was amplified from the full-length cDNA clone using the forward primer 5′-GGCTCGAGTCTAGAATGGTTTCAATATTGAGTAAC-3′, which introduced restriction sites XhoI and XbaI, and the reverse primer 5′-CCGAATTCGGATCCCTCCTCATAATTTGCATAATTTCATC-3′, which added restriction sites BamHI and EcoRI. The PCR product was first cloned in the pGEM-T Easy Vector (Promega) and sequenced. After digestion with the appropriate restriction enzymes and purification, the 2 MTS1 fragments were subcloned into the pHANNIBAL vector in both the sense and antisense orientations. Finally, the constructs in pHANNIBAL were subcloned as a NotI flanked fragment into a binary vector pART27 to produce highly effective intron-containing “hairpin” RNA-silencing constructs. This vector carries the neomycin phosphotransferase gene (NPT II) as a transgenic selectable marker.

The transformed LBA4404 Agrobacterium tumefaciens carrying pART27-MTS1 was cocultured with tomato RG cotyledons to generate the RNAi MTS1-silenced transgenic tomato plants (RNAi_MTS1). The explant preparation, selection, and regeneration methods followed those published by Ellul et al. (2003). The tomato transformants were selected in kanamycin-containing medium and propagated in soil. RG tomato wild-type plants regenerated in vitro from cotyledons under the same conditions as the transgenic lines were used as controls in subsequent analyses. The transgenic plants generated in this study have been identified and characterized in our laboratory and are to be used exclusively for research purposes.

Plant material and growth conditions

For the purposes of this study, we used different tomato genotypes: (i) NahG (Brading et al. 2000) and its parental MM (kindly provided by Prof. Jonathan Jones, The Sainsbury Laboratory, Norwich, United Kingdom); (ii) 35S:MTS1 (Van Schie et al. 2007) and the parental MM with the empty vector pGreen (gently provided by Prof. Schuurink, Swammerdam Institute for Life Sciences, Department of Plant Physiology, University of Amsterdam, The Netherlands); (iii) flacca mutants and its parental Lukullus (Bowman et al. 1984; all of them kindly provided by Dr. Jorge Lozano, Instituto de Biología Molecular y Celular de Plantas UPV-CSIC, Valencia, Spain); and (iv) RNAi_MTS1 plants generated in our laboratory and its parental RG that contain the Pto resistance gene (a gift from Dr. Selena Giménez, Centro Nacional de Biotecnología, Madrid, Spain). A mixture of sodium hypochlorite:distilled H₂O (1:1) was used for the sterilization and sequential washings of 5, 10, and 15 min for the total removal of hypochlorite. Seeds germinated were placed in 12-cm-diameter pots with vermiculite and peat. The greenhouse conditions were the following: a relative humidity of 50 approximately and a 16/8-h (26 °C) light/dark photoperiod.

HMTP treatments and interplant communication

Treatments were carried out in 4-wk-old tomato plants. Tomato plants were placed into 121-L methacrylate chambers containing hydrophilic cotton buds soaked with 5 μM monoterpenoid in 0.05% (v/v) Tween-20 or distilled water. Methacrylate chambers were hermetically sealed during 24 h. For spray treatments, tomato plants were pretreated by spray with 2 mM monoterpenoid with 0.05% (v/v) Tween-20 or distilled water.

For interplant communication assays, 2 or 4 emitter plants were cohabitated with 2 receiver plants in the mentioned methacrylate chambers for 24 h. Plant material was only collected from the MM wild-type receiver plants.

Inhibitors and BTH treatments

Twenty-eight-day-old MM plants were sprayed with 50 µM FSM in 0.05% (v/v) Silwet detergent solution. One millimolar of BTH was applied 24 h before the infection with 0.05% (v/v) Silwet detergent solution.

Bacteria inoculation and cfu determination

The bacterial strain used in this study was P. syringae pv. tomato DC3000 with deletions in genes avrPto and avrPtoB (Pst; Lin and Martin 2005; Ntoukakis et al. 2009). Bacterial growth conditions and plant inoculation were performed as previously described (López-Gresa et al. 2018). Briefly, bacterial inoculation was carried out in 4-wk-old tomato plants by immersion or infiltration. Tomato plants were dipped into the bacterial suspension with an optical density of 0.1 at 600 nm containing 0.05% Silwet L-77. To carry out bacterial infiltration experiments, each leaflet of the 3rd and 4th leaves was inoculated with a needleless syringe by pushing the bacterial suspension into different sites of the leaflet's abaxial side.

Briefly, for cfu measurements, 3 leaf disks (1 cm² each) were grounded and serial dilutions of the infected tissue were cultured on King's B agar medium Petri dishes containing rifampicin. cfu were counted after incubation at 48 h at 28°C.

Stomatal aperture

For the observation of aperture ratio, stomatal samples were imprinted with a layer of nail polish in the abaxial part of the leaves, and the epidermis peels were placed on slides for their observation with a Leica DC5000 microscope (Leica Microsystems S.L.U.). In total, 50 stomata of each condition were analyzed using the NIH's ImageJ software. Several pictures were taken from different regions of the tomato leaves. Stomatal aperture ratio was calculated as width/length.

Weight loss experiments

Around 15 to 25 tomato plants were germinated in watered paper in Petri dishes in an in vitro chamber for 10 d, and then they were transferred to a MS Petri dish containing a sterile piece of hydrophilic cotton with enough α-terpineol to give us a final concentration of 5 µM α-terpineol, considering the whole volume of the dish. Plants were maintained for 24 h in this treatment and then transferred outside the dish to an empty opened dish at room temperature that was left in a precision balance scale. The weight loss was monitored and registered every minute for 3 h, and then a final measure was performed after 24 h in order to leave the plants dry out completely.

RNA isolation and RT-qPCR analysis

The RNA extraction and conversion to cDNA of tomato leaves were carried out using column kit based on silica membranes (Macherey-Nagel GmbH, Germany) following the manufacturer's protocol. cDNA from a microgram of RNA was obtained using a PrimeScript RT reagent kit (Perfect Real Time, Takara Bio Inc., Otsu, Shiga, Japan) following its instructions. qPCRs were performed as previously described (Campos et al. 2014). In each plate of a 96-well plate, a reaction took place in a final volume of 10 µL. SYBR R Green PCR Master Mix (Applied Biosystems) was used as the fluorescence marker and actin gene as the endogenous reference gene. The RT-qPCR primers were designed using the online service Primer3 (http://primer3.ut.ee/) and are listed in Supplementary Table S1.

SA and GA measurements

For the extraction of SA and GA, 0.5 g of frozen homogenized leaves was resuspended in methanol that contained 25 mM o-anisic acid as internal standard. The supernatant, after a 10-min centrifugation and 10-min sonication, was divided into 2 Eppendorf tubes and dried using a nitrogen flow. For the analysis of total and glycosylated SA and GA, the protocol described by Vázquez Prol et al. (2021) was carried out. Quantification of SA and GA was obtained using a calibration curve based on the internal standard.

GC–MS

For the analysis of VOCs, a mix of 1 mL of CaCl₂ 6 M and 100 µL of 750 mM EDTA at a pH of 7.5 was added to 100 mg of pulverize tomato leaves in a 10-mL glass vial. The vials were airtight sealed and sonicated for 5 min. Volatile compound extraction was performed by head-space solid-phase microextraction (HS-SPME; López-Gresa et al. 2017). Enhanced ChemStation software (Agilent) was the program used to obtain and analyze the chromatograms and mass spectra, which has its own database to compare the different ion and retention times with pure compounds. Quantification of monoterpenes was performed elaborating a method in Agilent using the most abundant ion and retention time and calculating the area on the chromatogram. For VOC quantification, the following m/z quantifier ions and retention times were used: (i) α-terpineol: 93/121 and 30.6 min; (ii) linalool: 55/43 and 27.02 min; and (iii) 4-terpineol: 93/111 and 30.2 min.

MEcPP measurements

MEcPP was quantified according to the protocol described in Baidoo et al. (2014) with minor modifications. One hundred milligrams of frozen homogenized tissue was extracted in 13 mM ammonium acetate buffer (pH 5.5). The extract was dried under a nitrogen steam and resuspended in the UPLC mobile phase (73% acetonitrile/27% 50 mM ammonium carbonate in water [v/v]).

MEcPP quantification was performed using a Orbitrap Exploris 120 mass spectrometer coupled with a Vanquish UHPLC System (Thermo Fisher Scientific, Waltham, MA, United States). LC was carried out by reverse-phase ultraperformance liquid chromatography using a BEH Amide column (1.7 µm particle size, dimensions 2.1 × 150 mm; Waters Corp.)

Samples were run in isocratic mode for 14 min. The flow rate was 0.2 mL/min, and the injection volume was 5 µL. The column temperature was set at 30°C.

Ionization was performed with heated electrospray ionization (H-ESI) in positive mode. Samples were acquired in full scan mode (resolution set at 120,000 measured at full width at half maximum). Methionine sulfone and D4-succinic acid were used as internal standards. For absolute quantification, a calibration curve was performed with MEcPP chemical standard. Data processing was performed with TraceFinder software (Thermo Scientific, Waltham, MA, United States).

Western blot

Protein extracts for immunodetection experiments were prepared from MM plants treated and nontreated with α-terpineol for 24 h. Material (100 mg) for direct Western blot analysis was extracted in Laemmli buffer (125 mM Tris-HCl, pH 6.8, 4% [w/v] SDS, 20% [v/v] glycerol, 2% [v/v] 2-mercaptoethanol, and 0.001% [w/v] bromophenol blue), and proteins were run on a 14% SDS–PAGE gel and analyzed by immunoblotting. Proteins were transferred onto Immobilon-P membranes (Millipore) and probed with antirabbit peroxidase (Jacksons). Immunodetection of defensive protein PR1 was performed using antiPR1 antibody. Antibodies were used at a 1:20,000 dilution. Detection was performed using the ECL Advance Western Blotting Chemiluminiscent Detection Kit (GE Healthcare). Image capture was done using the image analyzer LAS3000, and quantification of the protein signal was done using Image Gauge V4.0 software.

Statistical analysis

The statistical analysis of 2 or more variables was carried out using Student's t test or analysis of variance, respectively, employing GraphPad Prism9 software. For t test analyses, P < 0.05, P < 0.01, P < 0.001, and P < 0.0001 correspond to *, **, ***, and ****, respectively. For ANOVA analyses, a P < 0.05 was considered statistically significant and indicated with different letters.

Accession numbers

Sequence data from this article can be found in the GenBank/EMBL data libraries under the following accession numbers: Y08804 (PR1b1), Solyc03g080190 (S5H), AY840091 (MTS1), and ICS (Solyc06g071030).

Acknowledgments

We would like to thank the IBMCP Metabolomics Platform (Valencia, Spain), especially Teresa Caballero, for her excellent technical support in VOC quantification.

Author contributions

M.P.L.-G. and P.L. designed the research. J.P.-P., S.M., E.K.-P., C.P., and L.C. performed the research. A.E.-R. contributed to the new analytic tools. M.R.-C., I.R., J.M.B., J.P.-P., M.P.L.-G., and P.L. analyzed and discussed the data. J.P.-P., M.P.L.-G., and P.L. wrote the paper and incorporated the input of the rest of the authors.

Supplementary data

The following materials are available in the online version of this article.

Supplementary Figure S1. Western blot analysis of PR1 (14 kDa) accumulation in tomato leaves after 24 h of α-terpineol treatments.

Supplementary Figure S2. Changes in the MeSA content, the relative expression levels of the tomato S5H gene, and the Z-3-hexenal content in plants with alterations in MTS1 upon bacterial infection.

Supplementary Figure S3. Changes in the Z-3-hexenal content in plants treated with inhibitors of the of the MEP pathway.

Supplementary Figure S4. Effect of BTH treatments in the resistance of 35S:MTS1 transgenic plants.

Supplementary Table S1. Primer sequences used for RT-qPCR analyses.

Funding

This work was supported by grant PID2020-116765RB-I00 funded by MCIN/AEI/10.13039/501100011033/ and grant PROMETEU/2021/056 by Generalitat Valenciana. C.P. was a recipient of a predoctoral contract of the Generalitat Valenciana (ACIF/2019/187), and J.P.-P. is a recipient of a JAEINT_21_02081 of the Consejo Superior de Investigaciones Científicas and a predoctoral contract of the Ministerio de Universidades (FPU21/00259).

Data availability

All data are incorporated into the article and its online supplementary material.
