PRGdb: a bioinformatics platform for plant resistance gene analysis

ABSTRACT

PRGdb is a web accessible open-source (http://www.prgdb.org) database that represents the first bioinformatic resource providing a comprehensive overview of resistance genes (R-genes) in plants. PRGdb holds more than 16 000 known and putative R-genes belonging to 192 plant species challenged by 115 different pathogens and linked with useful biological information. The complete database includes a set of 73 manually curated reference R-genes, 6308 putative R-genes collected from NCBI and 10463 computationally predicted putative R-genes. Thanks to a user-friendly interface, data can be examined using different query tools. A home-made prediction pipeline called Disease Resistance Analysis and Gene Orthology (DRAGO), based on reference R-gene sequence data, was developed to search for plant resistance genes in public datasets such as Unigene and Genbank. New putative R-gene classes containing unknown domain combinations were discovered and characterized. The development of the PRG platform represents an important starting point to conduct various experimental tasks. The inferred cross-link between genomic and phenotypic information allows access to a large body of information to find answers to several biological questions. The database structure also permits easy integration with other data types and opens up prospects for future implementations.

INTRODUCTION

In their constant struggle for survival, plants have developed a wide range of defence mechanisms to protect themselves against the attack of pathogens. While some of these resistance strategies rely on simple physical or chemical barriers, more sophisticated biochemical mechanisms based on gene-for-gene interactions between plants and their infectious agents have been reported (1).

Plant disease resistance genes (R-genes) play a key role in recognizing proteins expressed by specific avirulence (Avr) genes of pathogens (2). R-genes originate from a phylogenetically ancient form of immunity that is common to plants and animals. However, the rapid evolution of plant immunity systems has led to enormous gene diversification (3,4). Although little is known about these agriculturally important genes, some fundamental genomic features have already been described. It has been recently shown that proteins encoded by resistance genes display modular domain structures and require several dynamic interactions between specific domains to perform their function. Some of these domains also seem necessary for proper interaction with Avr proteins and in the formation of signalling complexes that activate an innate immune response which arrests the proliferation of the invading pathogen (5).

R-genes can be functionally grouped in five distinct classes based on the presence of specific domains (6,7): the CNL class comprises resistance genes encoding proteins with at least a coiled-coil domain, a nucleotide binding site and a leucine-rich repeat (CC-NB-LRR); the TNL class includes those with a Toll-interleukin receptor-like domain, a nucleotide binding site and a leucine-rich repeat (TIR-NB-LRR); the RLP class, acronym for receptor-like protein, groups those with a receptor serine–threonine kinase-like domain, and an extracellular leucine-rich repeat (ser/thr-LRR); the RLK class contains those with a kinase domain, and an extracellular leucine-rich repeat (Kin-LRR); the ‘Others’ class includes all other genes which have been described as conferring resistance through different molecular mechanisms, e.g. mlo and asc-1 (8,9).

Although many R-genes have been isolated to date, the exact reason why proteins exert their resistance function is still unknown. This is also due to the fact that single R-genes have evolved through a range of evolutionary mechanisms. The main models reported are positive, diversifying and balancing selection (10). Different mechanisms of mediation such as intra and interlocus sequence exchanges, insertion of transposon elements and base methylation changes have been shown to be involved in this process (11,12). Furthermore, resistance can be overcome through a co-evolution process between plant and pathogen, which is why advances in knowledge in this research field are required. This complex phenomenon requires an increase of research effort. New findings are expected for this genes family using bioinformatics supports. In fact, the peculiar features of R-genes, above described, make them ideal candidates to benefit of these tools. However, extrapolated specific data from automated database can present great difficulties. Sequence redundancy, annotation errors, irrelevant sequences contamination, can invalidate this task. Thus, a dedicated repository of the R-gene family can be useful to highlight gene diversification process, to discover new resistance capacity and to elucidate mechanisms of interaction between pathogens and their plant hosts.

In this study we present the plant resistance gene database (PRGdb), which is the first comprehensive bioinformatics resource dedicated to known and predicted plant disease resistance genes. This resource aims to provide scientists working in this field of research a comprehensive, up-to-date collection of manually curated R-genes extracted from the literature as well as an unprecedented set of more than 16 000 novel potential R-genes discovered among several plant species using an in-house developed bioinformatics pipeline. To share this resource with the scientific community, we designed and implemented a web interface that is freely accessible at http://www.prgdb.org. Since the PRG database can easily integrate external information, we do invite researchers interested in providing PRG data to contact us.

RESULTS

PRG data and tools

Semi-automated approach towards the creation of a comprehensive R-gene catalogue

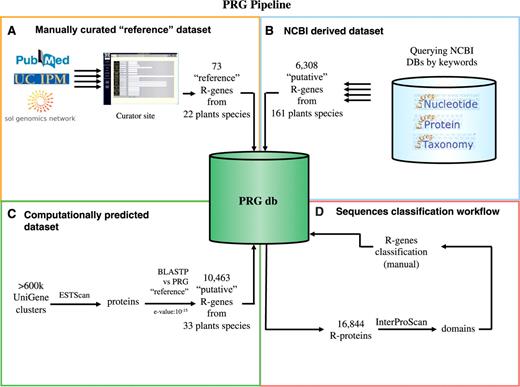

To our knowledge, the PRG database represents the first collection of resistance genes publicly available to the scientific community. The complete dataset contains a total of 16 846 sequences obtained through a combination of manually curated and computational approaches, as shown in Figure 1.

First, we used a manual curation approach by searching the primary literature to identify a total of 73 R-genes isolated from 22 plant species interacting with 31 pathogens (Figure 1A). This represents the largest manually curated dataset published so far for plant disease resistance genes. Hence we refer to it from hereon as our ‘reference’ dataset (Table 1). A list of literature sources for each characterized gene is provided at home page by clicking ‘see references’.

These genes have been mostly isolated from the Solanaceae family (33 genes) (7,13), although others have been studied in other plants, such as Arabidopsis thaliana (21 R-genes) (14), Oryza sativa (rice, four R-genes) (15,16), Phaseulus vulgaris (bean, one R-genes) (17), Glicine max (soybean, two R-genes) (18), Zea mais (mais, two R-genes) (19) and Hordeum vulgare (barley, three R-genes) (8,20,21), Cucumis melo (melon, two R-genes) (22), Lactuca sativa (lettuce, one R-genes) (23), Beta vulgaris (beet, one R-genes) (24) Linum usatissimum (linum, three R-genes) (25–27). Data related to these genes, such as nucleotide and protein sequences, genomic location, known genetic markers and relevant information about resistance to specific diseases and pathogens, were gathered from the literature and several publicly available resources such as NCBI nucleotide, NCBI taxonomy (28) and SOL network databases (29), and manually inserted into the PRG database through a web-based system. This dataset was used both to retrieve all putative R-gene sequences from NCBI database and to build up an R-gene prediction system.

In this way, a set of 6308 annotated R-genes from 161 plants was obtained automatically using an NCBI query (see Methods section) (Figure 1B). Information such as nucleotide and protein sequences, genomic locations and structural information were automatically retrieved and imported into the PRG database. Since these genes could have been annotated in NCBI as R-genes from other predictive tools, we will refer to them from here on as ‘putative R-Genes collected from NCBI’.

Furthermore, we were able to computationally predict novel ‘putative’ R-genes from the UniGene dataset, using a home-made developed bioinformatic pipeline, Disease Resistance Analysis and Gene Orthology, (DRAGO, see ‘Methods’ section) (Figure 1C). A total of 604 981 non-redundant Unigene transcript sequences expressed in 33 different plants were translated into 488 250 potential protein sequences. Finally, a total of 10 463 sequences were identified as ‘putative R-Genes predicted from NCBI UniGene’ based on their sequence similarity and protein domain composition and imported into the PRG database.

These three distinct approaches yielded a total of 16 844 protein sequences annotated in our database as potential plant resistance genes. Of 194 plant species analyzed, 172 contained sequences related to resistance genes. A complete list of retrieved plants is available on the PRG web site under the ‘plant search’ section. In this section all putative resistance genes are divided by plant species to allow specific searches to be conducted.

PRG web interface

The PRG data is stored in a MySQL database and is freely accessible through a web interface at the address: http://www.prgdb.org. The PRG web site was designed to provide plant researchers with user-friendly tools to retrieve relevant information in our complete R-gene catalogue. Researchers interested only in the manually curated ‘reference’ dataset can search it by a combination of controlled key terms provided, such as reference R-gene name, Avr gene name, plant species, pathogen species and disease name.

The complete dataset of 16 844 R-genes comprising all the three different categories described in this article (such as ‘reference’ R-genes, putative R-Genes collected from NCBI, putative R-Genes predicted from NCBI UniGene) can be accessed through several entry points:

• Searching by single or combined query fields provided in the homepage, such as sequence category, one or more resistance domain types, plant species and pathogen species;

• Searching by sequence comparison against a local database of R-gene sequences through the BLAST algorithm; both nucleotide and amino acid sequences are allowed;

• Choosing a plant species by clicking on the image provided in the ‘plant search’ section;

• Choosing a pathogen species by clicking on the image provided in the ‘pathogen search’ section.

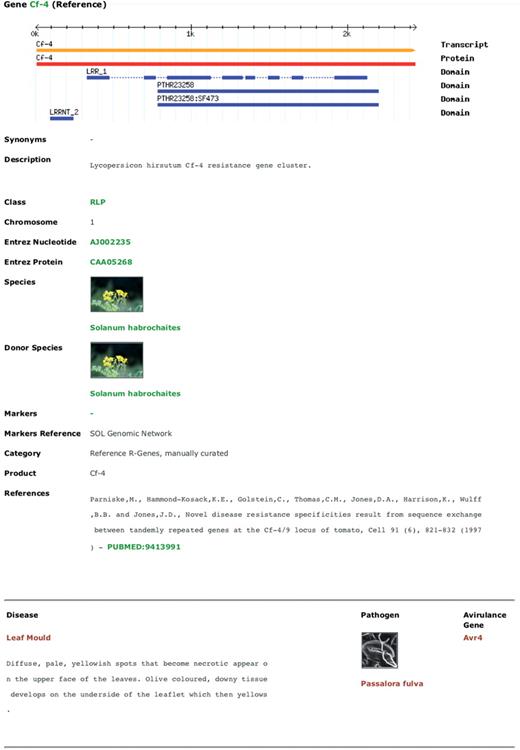

Each of these queries generates a list of resistance genes that meet the search criteria. By clicking on a gene name, information regarding the gene of interest is visualized in a specific page including gene name, genome locations, known genetics markers, external links to several public resources and to Pubmed, transcript sequence, protein sequence, domains, as well as curated information related to the diseases and the plant–pathogen interactions. Moreover, a picture showing the gene structure is generated dynamically using BioPerl's Bio-Graphics module (Figure 2).

Mining PRG data

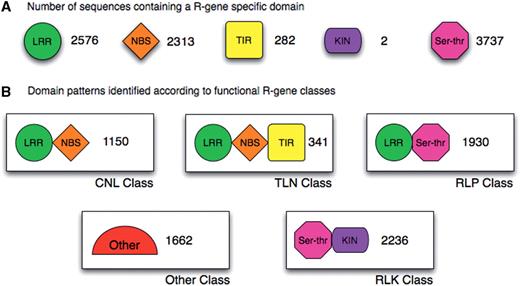

In order to further verify whether the sequences retrieved using the approaches described above were plausible candidates to exert the resistance function, we inspected them for the presence of specific R-protein signatures using InterProScan and the InterPro database. Based on these results, we proceeded to assign each sequence to one of the four already known R-gene classes. A schematic view of the single domains predicted and of four major classes identified is shown in Figure 3A and B. Of all the 16 885 sequences, the following were assigned to known classes: 1150 to CNL, 341 to TNL, 1930 to RLP and 2236 to RLK, while other proteins fall in new putative classes.

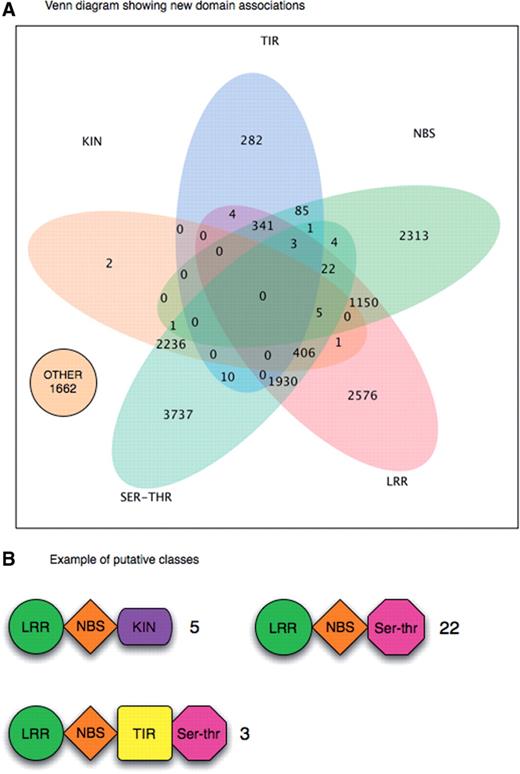

Mining the protein domain data highlighted the fact that quite a substantial number of genes do not fall within existing classes, as some of them present new domain combinations which had not yet been described in previous studies. A further class called “other” had to be included to represent sequences with specific roles in plant defence mechanisms: sequences in this class are not classifiable as they do not contain any specific R-protein domain. The PRG database allowed us to search new combinations of resistance gene domains, thus discovering new putative R-gene classes. Figure 4A shows a statistical Venn in which are showed all R-gene classes according with new and known conserved domain combination. Moreover, Figure 4B shows three examples of hitherto undescribed protein classes: the first class contains four Arabidopsis sequences (At.66955, F10C21.20, T1E4.9, WRKY19) with typical CNL class domains as well as a kinase domain. The second consists of 22 sequences with typical CNL class domains and a Ser–Thr domain. The third class contains two Poplar Unigene PHT16062 and the Arabidopsis RPP1 gene structured like a typical TNL class with the addition of a Ser–Thr domain.

DATA SOURCES AND ANALYSIS PIPELINE

PRG site architecture and implementation

PRG data are stored within a relational database management system, MySQL (http://www.mysql.com). Our bioinformatics software is written in Perl and uses the Bioperl toolkit (30). The website was developed using the PHP language (http://www.php.net) and the Apache web server (http://www.apache.org). The annotation pipeline runs on a Linux cluster running the Gentoo Linux distribution (http://www.gentoo.org) and the PBS scheduling system (http://www.openpbs.org).

Automatic download of plant resistance genes

We developed a Perl script to automatically download known R-genes from NCBI using the following query: plants AND (‘disease resistance gene’ OR ‘disease resistance protein’) NOT bacteria NOT virus. The data obtained were parsed and used to populate the PRG database.

Disease Resistance Analysis and Gene Orthology pipeline

Unigene sequences from 33 plant species were translated into potential protein sequences using the ESTScan program, version 3.0.2 (31), with default parameters and coupled with the Arabidopsis thaliana codon usage/log odds probability matrices. The resulting translations were subsequently checked for sequence homology with at least one resistance protein contained in the ‘reference’ dataset using the BLAST algorithm with a stringent e-value cut-off of 1 × 10⁻¹⁵.

Domain analysis of selected sequences was performed using InterProScan version 3.0.2 (32), with standard options and last InterPro database release. Genes were divided into five already known classes according to their domains and gene structure. The resulting set of sequences was loaded into the PRG database.

The goodness of Disease Resistance Analysis and Gene Orthology (DRAGO) predictor was evaluated running the pipeline on the hand-curated dataset. The comparisons showed a perfect match between reference genes manual classification and DRAGO prediction.

DISCUSSION

Despite a large amount of experimental data produced in recent years (ESTs, whole genome sequences, gene expression data), progress in understanding the function of R-genes has been slow for several reasons: the lack of a reference set of sequences to be used as a model for R-gene studies; the genomic feature of R-genes that usually cluster in genomic regions with a high number of homologues and pseudo genes; the difficulties in performing plant-pathogen interaction studies (33).

The main aim of PRGdb is to provide tools to support research in this field. We have developed an exhaustive plant community database, providing data for extensive studies. As of July 2009 the database contained 16 844 annotated sequences, comprising 73 reference genes and several thousand related sequences. The data quality is very high and is guaranteed by combining a large-scale automated approach and manual annotation. In particular, our in-depth review of the literature was fundamental to update and organize the current R-gene panorama and create a robust basis to perform in silico analysis. Rapid scientific progress makes information updates difficult and R-gene reviews can lack a number of cloned R-genes (7,34). The development of a PRG platform represents an important starting point to conduct various experimental tasks. The inferred cross-link between genomic and phenotypic information allows the creation of a resource to perform multidisciplinary studies merging queries between disparate resources. Moreover, several questions can be addressed by comparative analysis of gene patterns in closely related organisms.

Our prediction pipeline called DRAGO was built to offer end-users a flexible user-friendly tool to explore known and novel disease resistance genes. We were able to assign to know classes ∼40% of retrieved sequences. Large genomes annotation display that a high number of genes with coding domains characteristic of plant resistance proteins is not yet characterized (14,35). Our prediction tool allowed us to observe unknown combinations of resistance domains, thus discovering new putative R-gene classes.

Plant–pathogen interaction of R-genes works not only by single gene-for-gene interaction but also by activating proteins, disrupting or modifying the stable conformation of the R-gene receptor surface. The complex signal transduction system is often driven by different protein classes (36). For these reasons our pipeline fished all possible sequences involved in the disease resistance process according to this hypothesis.

In conclusion, a database and a public web interface regarding an important class of genes across hundreds of species was developed on the basis of a novel, specific prediction pipeline. Information about the gene structure, domains and organization of R-genes was obtained and made available through a user-friendly interface. Inference of gene function is a long arduous task, a process which we aim to simplify by starting from a strong knowledge base using the PRG platform. It is hoped the PRG database will provide a new perspective on the analysis of R-genes by tapping into a large, unbiased but curator driven, survey of these proteins.

FUNDING

Ministry of Education, University and Research (GenoPOM Project); Ministry of Agricultural, Food and Forestry Policies (Agronanotech Project). Funding for open access charges: Department of Soil, Plant, Environment and Animal Production Sciences, University of Naples ‘Federico II’, via Universitá 100, 80055, Portici, Italy.

Conflict of interest statement. None declared.

ACKNOWLEDGEMENTS

The authors would like to thank Dr Gianpiero Lago for system support and Dr Vincenza Maselli for useful suggestions for improving PRGdb; Mark Walters for editing the manuscript Contribution no. 202 from the DISSPAPA.
