The Genomes On Line Database (GOLD) in 2009: status of genomic and metagenomic projects and their associated metadata

Project type distribution^a

Archaea: 179

Genome: 169

Transcriptome: 0

Resequencing: 0

Uncultured: 9

Bacteria: 4184

Genome: 4097

Transcriptome: 4

Resequencing: 35

Uncultured: 14

Eukarya: 1280

Genome: 804

EST/Transcriptome: 344

Resequencing: 45

Uncultured: 1

Available at: http://www.genomesonline.org/project_type_distribution.cgi.

The current Sequencing Status distribution tallied by domain is shown in Table 2. The Sequencing Status designations and current tallies are as follows:

Complete: DNA sequencing has been completed; 288 projects in addition to the 1100 already published.
Draft: a draft sequence has been deposited in a public repository; 1164 projects.
In progress: the DNA sequence has been received by the sequencing center but there is not yet public data release; 442 projects.
Awaiting DNA: an organism selection has been made, but the DNA has not yet arrived at the DNA sequencing center; 236 projects.
Targeted: a project has been identified but further work has not yet begun; 527 projects.

Table 2.

Project status distribution^a

Archaea: 179

Complete: 74

Draft: 16

In Progress: 17

Awaiting DNA: 7

Targeted: 1

Bacteria: 4184

Complete: 1151

Draft: 950

In Progress: 414

Awaiting DNA: 142

Targeted: 517

Eukarya: 1280

Complete: 159

Draft: 178

In progress: 46

Awaiting DNA: 73

Targeted: 9

Available at: http://genomesonline.org/sequencing_status_distribution.cgi.

The distributions of all projects by Project Type and by Sequencing Status are now dynamically tracked with every GOLD update and can be viewed online through the main page at: http://www.genomesonline.org/gold.cgi.

Metagenome projects

The past 2 years have seen a growing number of metagenomic projects added to GOLD, and the expectation is that this trend will continue, reinforced by further advances in the sequencing technology. The database currently reports 200 distinct metagenomic projects, embracing 453 samples.

During curation, careful attention is paid to ensure that project names follow the standardized schema previously described (4). All the metagenome projects are classified under three major categories: environmental (137 projects), endobiotic or host-associated (53 projects) and synthetic (10 samples) (Figure 1C). A project classification schema is also under development and will soon be released from the database. A prototype of this classification has already been adopted by the Integrated Microbial Genomes with Microbiome Samples (IMG/M) database (13) and is available for browsing online (http://img.jgi.doe.gov/cgi-bin/m/main.cgi?section=TaxonList&page=taxonListPhylo&domain=*Microbiome&genome_type=metagenome). A hierarchical classification scheme with all the metagenome projects captured in GOLD will soon be available from the database.

Metadata

The genome/metagenome associated metadata have also undergone significant expansion in GOLD during the last 2 years. The number of metadata categories has increased from two in the previous release to six in GOLD v.3: (i) organism information; (ii) project information; (iii) sequencing information; (iv) environmental metadata; (v) host metadata; and (vi) organism metadata. Likewise, the number of metadata fields assigned to those categories has grown from 56 to 135.

The current status of the different fields and the number of projects with associated data for each of the corresponding fields is shown in Table 3. Some of the metadata fields are populated for all or most of the projects, while other fields (particularly newer ones) are yet to be curated for the majority of the projects. Although the number of metadata fields is expected to continue to grow, the current list has already been put to use in microbial comparative analysis systems such as the Integrated Microbial Genomes IMG (14) and IMG/M (13).

Particularly important developments currently underway involve the integration and mapping of several of the available metadata fields in GOLD to well-developed publicly available metadata ontologies and control vocabularies such as ‘Habitat-Lite’ (15) and others.

Table 3.

Metadata categories and fields

1. Organism information	Type	No. of projects	2. Project information	Type	No. of projects
1. GOLD display name	FT	5843	1. GOLD project ID	ID	5843
2. NCBI project Name	FT	3408	2. GCAT ID	ID	5843
3. Common name	FT	364	3. NCBI project ID	ID	3600
4. Domain	CV	5843	4. IMG ID	ID	1664
5. Phylum	CV	5665	5. Cross reference ID	ID	204
6. Class	CV	5379	6. Greengenes ID	ID	1994
7. Order	CV	5608	7. 16S ID	ID	17
8. Family	CV	5396	8. NCBI archive ID	ID	15
9. Genus	CV	5570	9. Short read archive ID	ID	117
10. Species	CV	3856	10. Project type	CV	5843
11. Strain	FT	4748	11. Project status	CV	5843
12. Serovar	FT	384	12. Availability	CV	5843
13. NCBI taxon ID	ID	5699	13. Contact name	FT	4210
14. Culture collection ID	FT	1711	14. Contact email	FT	3480
15. Type strain	CV	1970	15. Contact link	URL	1034
16. Biosafety level	ID	260	16. Funding program	CV	1612
17. Organism comments	FT	11	17. Proteomics data	FT	2
			18. Proteomics Link	URL	2
3. Sequencing information			19. Transcriptomics Data	FT	14
1. Sequencing Status	CV	3870	20. Transcriptomics Link	URL	5
2. Sequencing quality	CV	321	21. Locus Tag	FT	1286
3. Seq status link	URL	800	22. GC percent	FT	2380
4. Library method	FT	134	23. Chromosome count	ID	1259
5. Number of reads	FT	173	24. Plasmid count	ID	1223
6. Vector	FT	65	25. Completion date	ID	1155
7. Assembly method	FT	368	26. Publication	CV	1154
8. Sequencing depth	FT	1277	27. Project description	FT	205
9. Gene calling method	FT	263	28. Project relevance	CV	10 396
10. Contig count	FT	583	29. Funding center	CV	4450
11. Estimated size	FT	2780	39. Sequence data	ID	2794
12. Gene count	FT	1993	31. Database	CV	5101
13. Sequencing country	CV	5802
			6. Organism metadata
4. Environmental metadata			1. Oxygen requirement	CV	3797
1. Isolation site	FT	3188	2. Cell shape	CV	3710
2. Source of isolate	FT	609	3. Motility	CV	3435
3. Method of isolation	FT	141	4. Sporulation	CV	2610
4. Isolation comments	FT	134	5. Temperature Range	CV	4422
5. Collection date	FT	426	6. Temperature optimum	ID	1319
6. Isolation country	CV	1345	7. Salinity	CV	131
7. Isolation Pubmed ID	ID	104	8. pH	ID	180
8. Geographic iocation	FT	2138	9. Cell diameter	FT	68
9. Latitude	FT	769	10. Cell length	FT	56
10. Longitude	FT	768	11. Color	CV	44
11. Altitude	FT	16	12. Gram staining	CV	4229
12. Depth	FT	193	13. Biotic relationships	CV	4244
			14. Symbiotic physical interaction	CV	135
5. Host metadata			15. Symbiotic relationship	CV	182
1. Host name	FT	2029	16. Symbiont name	FT	156
2. Host gender	FT	219	17. Cell arrangement	CV	1897
3. Host race	FT	3	18. Diseases	CV	5303
4. Host age	FT	143	19. Habitat	CV	7214
5. Host health	FT	363	20. Metabolism	CV	21
6. Host medication	FT	2	21. Phenotypes	CV	3345
7. Primary body sample site	CV	1643	22. Energy source	CV	1439
8. Body sample subsite	CV	533
9. Body product	CV	412
10. Additional body sample site	CV	18

1. Organism information	Type	No. of projects	2. Project information	Type	No. of projects
1. GOLD display name	FT	5843	1. GOLD project ID	ID	5843
2. NCBI project Name	FT	3408	2. GCAT ID	ID	5843
3. Common name	FT	364	3. NCBI project ID	ID	3600
4. Domain	CV	5843	4. IMG ID	ID	1664
5. Phylum	CV	5665	5. Cross reference ID	ID	204
6. Class	CV	5379	6. Greengenes ID	ID	1994
7. Order	CV	5608	7. 16S ID	ID	17
8. Family	CV	5396	8. NCBI archive ID	ID	15
9. Genus	CV	5570	9. Short read archive ID	ID	117
10. Species	CV	3856	10. Project type	CV	5843
11. Strain	FT	4748	11. Project status	CV	5843
12. Serovar	FT	384	12. Availability	CV	5843
13. NCBI taxon ID	ID	5699	13. Contact name	FT	4210
14. Culture collection ID	FT	1711	14. Contact email	FT	3480
15. Type strain	CV	1970	15. Contact link	URL	1034
16. Biosafety level	ID	260	16. Funding program	CV	1612
17. Organism comments	FT	11	17. Proteomics data	FT	2
			18. Proteomics Link	URL	2
3. Sequencing information			19. Transcriptomics Data	FT	14
1. Sequencing Status	CV	3870	20. Transcriptomics Link	URL	5
2. Sequencing quality	CV	321	21. Locus Tag	FT	1286
3. Seq status link	URL	800	22. GC percent	FT	2380
4. Library method	FT	134	23. Chromosome count	ID	1259
5. Number of reads	FT	173	24. Plasmid count	ID	1223
6. Vector	FT	65	25. Completion date	ID	1155
7. Assembly method	FT	368	26. Publication	CV	1154
8. Sequencing depth	FT	1277	27. Project description	FT	205
9. Gene calling method	FT	263	28. Project relevance	CV	10 396
10. Contig count	FT	583	29. Funding center	CV	4450
11. Estimated size	FT	2780	39. Sequence data	ID	2794
12. Gene count	FT	1993	31. Database	CV	5101
13. Sequencing country	CV	5802
			6. Organism metadata
4. Environmental metadata			1. Oxygen requirement	CV	3797
1. Isolation site	FT	3188	2. Cell shape	CV	3710
2. Source of isolate	FT	609	3. Motility	CV	3435
3. Method of isolation	FT	141	4. Sporulation	CV	2610
4. Isolation comments	FT	134	5. Temperature Range	CV	4422
5. Collection date	FT	426	6. Temperature optimum	ID	1319
6. Isolation country	CV	1345	7. Salinity	CV	131
7. Isolation Pubmed ID	ID	104	8. pH	ID	180
8. Geographic iocation	FT	2138	9. Cell diameter	FT	68
9. Latitude	FT	769	10. Cell length	FT	56
10. Longitude	FT	768	11. Color	CV	44
11. Altitude	FT	16	12. Gram staining	CV	4229
12. Depth	FT	193	13. Biotic relationships	CV	4244
			14. Symbiotic physical interaction	CV	135
5. Host metadata			15. Symbiotic relationship	CV	182
1. Host name	FT	2029	16. Symbiont name	FT	156
2. Host gender	FT	219	17. Cell arrangement	CV	1897
3. Host race	FT	3	18. Diseases	CV	5303
4. Host age	FT	143	19. Habitat	CV	7214
5. Host health	FT	363	20. Metabolism	CV	21
6. Host medication	FT	2	21. Phenotypes	CV	3345
7. Primary body sample site	CV	1643	22. Energy source	CV	1439
8. Body sample subsite	CV	533
9. Body product	CV	412
10. Additional body sample site	CV	18

Abbreviations for field types: ID, identity number; FT, free text; CV, control vocabulary; URL, uniform resource locator.

Table 3.

Open in new tab Download slide

Metadata categories and fields

1. Organism information	Type	No. of projects	2. Project information	Type	No. of projects
1. GOLD display name	FT	5843	1. GOLD project ID	ID	5843
2. NCBI project Name	FT	3408	2. GCAT ID	ID	5843
3. Common name	FT	364	3. NCBI project ID	ID	3600
4. Domain	CV	5843	4. IMG ID	ID	1664
5. Phylum	CV	5665	5. Cross reference ID	ID	204
6. Class	CV	5379	6. Greengenes ID	ID	1994
7. Order	CV	5608	7. 16S ID	ID	17
8. Family	CV	5396	8. NCBI archive ID	ID	15
9. Genus	CV	5570	9. Short read archive ID	ID	117
10. Species	CV	3856	10. Project type	CV	5843
11. Strain	FT	4748	11. Project status	CV	5843
12. Serovar	FT	384	12. Availability	CV	5843
13. NCBI taxon ID	ID	5699	13. Contact name	FT	4210
14. Culture collection ID	FT	1711	14. Contact email	FT	3480
15. Type strain	CV	1970	15. Contact link	URL	1034
16. Biosafety level	ID	260	16. Funding program	CV	1612
17. Organism comments	FT	11	17. Proteomics data	FT	2
			18. Proteomics Link	URL	2
3. Sequencing information			19. Transcriptomics Data	FT	14
1. Sequencing Status	CV	3870	20. Transcriptomics Link	URL	5
2. Sequencing quality	CV	321	21. Locus Tag	FT	1286
3. Seq status link	URL	800	22. GC percent	FT	2380
4. Library method	FT	134	23. Chromosome count	ID	1259
5. Number of reads	FT	173	24. Plasmid count	ID	1223
6. Vector	FT	65	25. Completion date	ID	1155
7. Assembly method	FT	368	26. Publication	CV	1154
8. Sequencing depth	FT	1277	27. Project description	FT	205
9. Gene calling method	FT	263	28. Project relevance	CV	10 396
10. Contig count	FT	583	29. Funding center	CV	4450
11. Estimated size	FT	2780	39. Sequence data	ID	2794
12. Gene count	FT	1993	31. Database	CV	5101
13. Sequencing country	CV	5802
			6. Organism metadata
4. Environmental metadata			1. Oxygen requirement	CV	3797
1. Isolation site	FT	3188	2. Cell shape	CV	3710
2. Source of isolate	FT	609	3. Motility	CV	3435
3. Method of isolation	FT	141	4. Sporulation	CV	2610
4. Isolation comments	FT	134	5. Temperature Range	CV	4422
5. Collection date	FT	426	6. Temperature optimum	ID	1319
6. Isolation country	CV	1345	7. Salinity	CV	131
7. Isolation Pubmed ID	ID	104	8. pH	ID	180
8. Geographic iocation	FT	2138	9. Cell diameter	FT	68
9. Latitude	FT	769	10. Cell length	FT	56
10. Longitude	FT	768	11. Color	CV	44
11. Altitude	FT	16	12. Gram staining	CV	4229
12. Depth	FT	193	13. Biotic relationships	CV	4244
			14. Symbiotic physical interaction	CV	135
5. Host metadata			15. Symbiotic relationship	CV	182
1. Host name	FT	2029	16. Symbiont name	FT	156
2. Host gender	FT	219	17. Cell arrangement	CV	1897
3. Host race	FT	3	18. Diseases	CV	5303
4. Host age	FT	143	19. Habitat	CV	7214
5. Host health	FT	363	20. Metabolism	CV	21
6. Host medication	FT	2	21. Phenotypes	CV	3345
7. Primary body sample site	CV	1643	22. Energy source	CV	1439
8. Body sample subsite	CV	533
9. Body product	CV	412
10. Additional body sample site	CV	18

1. Organism information	Type	No. of projects	2. Project information	Type	No. of projects
1. GOLD display name	FT	5843	1. GOLD project ID	ID	5843
2. NCBI project Name	FT	3408	2. GCAT ID	ID	5843
3. Common name	FT	364	3. NCBI project ID	ID	3600
4. Domain	CV	5843	4. IMG ID	ID	1664
5. Phylum	CV	5665	5. Cross reference ID	ID	204
6. Class	CV	5379	6. Greengenes ID	ID	1994
7. Order	CV	5608	7. 16S ID	ID	17
8. Family	CV	5396	8. NCBI archive ID	ID	15
9. Genus	CV	5570	9. Short read archive ID	ID	117
10. Species	CV	3856	10. Project type	CV	5843
11. Strain	FT	4748	11. Project status	CV	5843
12. Serovar	FT	384	12. Availability	CV	5843
13. NCBI taxon ID	ID	5699	13. Contact name	FT	4210
14. Culture collection ID	FT	1711	14. Contact email	FT	3480
15. Type strain	CV	1970	15. Contact link	URL	1034
16. Biosafety level	ID	260	16. Funding program	CV	1612
17. Organism comments	FT	11	17. Proteomics data	FT	2
			18. Proteomics Link	URL	2
3. Sequencing information			19. Transcriptomics Data	FT	14
1. Sequencing Status	CV	3870	20. Transcriptomics Link	URL	5
2. Sequencing quality	CV	321	21. Locus Tag	FT	1286
3. Seq status link	URL	800	22. GC percent	FT	2380
4. Library method	FT	134	23. Chromosome count	ID	1259
5. Number of reads	FT	173	24. Plasmid count	ID	1223
6. Vector	FT	65	25. Completion date	ID	1155
7. Assembly method	FT	368	26. Publication	CV	1154
8. Sequencing depth	FT	1277	27. Project description	FT	205
9. Gene calling method	FT	263	28. Project relevance	CV	10 396
10. Contig count	FT	583	29. Funding center	CV	4450
11. Estimated size	FT	2780	39. Sequence data	ID	2794
12. Gene count	FT	1993	31. Database	CV	5101
13. Sequencing country	CV	5802
			6. Organism metadata
4. Environmental metadata			1. Oxygen requirement	CV	3797
1. Isolation site	FT	3188	2. Cell shape	CV	3710
2. Source of isolate	FT	609	3. Motility	CV	3435
3. Method of isolation	FT	141	4. Sporulation	CV	2610
4. Isolation comments	FT	134	5. Temperature Range	CV	4422
5. Collection date	FT	426	6. Temperature optimum	ID	1319
6. Isolation country	CV	1345	7. Salinity	CV	131
7. Isolation Pubmed ID	ID	104	8. pH	ID	180
8. Geographic iocation	FT	2138	9. Cell diameter	FT	68
9. Latitude	FT	769	10. Cell length	FT	56
10. Longitude	FT	768	11. Color	CV	44
11. Altitude	FT	16	12. Gram staining	CV	4229
12. Depth	FT	193	13. Biotic relationships	CV	4244
			14. Symbiotic physical interaction	CV	135
5. Host metadata			15. Symbiotic relationship	CV	182
1. Host name	FT	2029	16. Symbiont name	FT	156
2. Host gender	FT	219	17. Cell arrangement	CV	1897
3. Host race	FT	3	18. Diseases	CV	5303
4. Host age	FT	143	19. Habitat	CV	7214
5. Host health	FT	363	20. Metabolism	CV	21
6. Host medication	FT	2	21. Phenotypes	CV	3345
7. Primary body sample site	CV	1643	22. Energy source	CV	1439
8. Body sample subsite	CV	533
9. Body product	CV	412
10. Additional body sample site	CV	18

Abbreviations for field types: ID, identity number; FT, free text; CV, control vocabulary; URL, uniform resource locator.

NEW DEVELOPMENTS

New user interface implementing new technologies

The burgeoning array of new types of data recorded in GOLD necessitated a major revamping of the graphical user interface. The GOLD tables have been visually enhanced using advanced graphical technologies such as EXT JS JavaScript library for the grids, the Yahoo User Interface Library for the pie charts and data tables, the Google Maps API for geographical location display, Google MarkerClusterer for improved visual display of multiple map locations, and the JavaScript Object Notation (JSON) data format for rapid data loading.

On the main page (http://www.genomesonline.org/gold.cgi), three links have been added to connect to new pages displaying the current distribution of projects by type, sequencing status and phylogeny (Figure 2, right). On each of these new pages, the same technologies are used to convey key breakdown data in a visually intuitive manner. Below the links, the Google map is displayed showing all projects individually or in clusters (Figure 2, left). Clicking on a project displays information about the collection location, an image (if available), and a link to the project's GOLD CARD page.

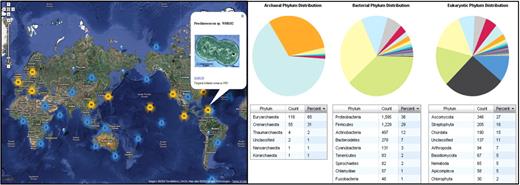

Figure 2.

Graphical displays in GOLD. (Left) Geographical display of the collection location for organisms and environmental samples. Click on a project to view the detailed information window showing the name of the project, an image (if available), a GOLD CARD link, and a short description identifying the location. (Right) Phylogenetic distribution of archaeal, bacterial and eukaryotic projects with accompanying data tables.

The same entry page provides access to the enhanced tables for the five major GOLD project categories (published complete genomes, archaeal ongoing genomes, bacterial ongoing genomes, eukaryotic ongoing genomes and metagenomes). Each table displays information for 12 primary metadata fields for each project. By default, projects are sorted by GOLDSTAMP ID, sequential numbers assigned in sequence as projects are entered in GOLD. To sort by the data in any other column, click the column header. To display advanced options, mouse over the column header and click to open the dropdown list. These options enable you to sort in ascending or descending order, to show/hide different columns and to filter the projects displayed based on data in that column.

The Search GOLD page has been completely rewritten. There are currently four tab pages, each corresponding to a different search mode and each offering new capabilities for more effective searching. The first tab, the basic search, provides commonly used Boolean queries for the most frequently searched fields in three main data categories. The Advanced Search tab offers a more extended list of search criteria from eight major data categories. The Metadata Search tab can be used to query the database metadata and view the results in tables and graphical displays of statistics and rankings. A fourth tab that is currently under development, Custom (SQL) Search, will enable users to construct and execute their own SQL queries. The aforementioned interface technologies are also employed here to provide an enhanced visual display of the search results and enable further manipulations. The user can export the search results to a Microsoft^® Excel file or redirect them to the metadata analysis page. At that page, charts and statistics can be derived from the breakdown of the search results based on more than 40 metadata fields.

Finally, the GOLD CARD page has also been extensively redesigned, making for more intuitive navigation (Figure 3). Genome project data are now organized into seven major categories for easier access. Google map location and images of the organism(s) are provided when available. Empty data rows can be hidden by clicking the arrow located at the upper right corner of the card. The GOLD CARD page complies with the GSC standards (5) and provides IDs and links for all the compliant data fields. The list of metadata fields provided by GOLD, now more than 100, includes those currently part of the MIGS specifications plus many more that are now candidates for inclusion in the MIGS list.

The prefix in the GOLDSTAMP identifier assigned to each project encodes additional project information: Gc, GOLD complete; Gi, GOLD incomplete; Gm, GOLD metagenome; Ge, GOLD EST; Gr, GOLD resequencing; and Gt, GOLD transcriptome.

Figure 3.

The GOLD CARD page. The GOLD CARD Page with the list of available metadata organized into six major categories. The corresponding MIGS/MIMS IDs are also shown for each GOLD field.

Open in new tab Download slide

Metadata collection and management system

The number of genome projects initiated is increasing exponentially, bringing with it an exponential increase in the task of curating the GOLD data. To help cope with this flood, a new project management system (IMG-GOLD) was created to interface between GOLD and the Integrated Microbial Genomes (IMG) system (14). IMG is a widely used community resource for comparative analysis of publicly available genome data. The Expert Review version of IMG (IMG ER) (16) allows users to enter their own genome sequence data sets so that they can review and curate the annotations prior to their public release. Metadata accompanying those genome data sets are now captured via the IMG ER submission site (http://img.jgi.doe.gov/submit) and recorded in the new IMG-GOLD system (http://img.jgi.doe.gov/gold). IMG-GOLD now serves not only as the database underlying GOLD, but also as the source of metadata for IMG and IMG ER (and their metagenome counterparts, IMG/M and IMG/M ER). An example of how the metadata from GOLD can support and be presented through a metagenome analysis system, such as IMG/M (13), is presented in Supplementary Data (Supplementary Data). We anticipate that similar data exchange and interoperability between GOLD and other analytical systems, such as RAST (17) and CAMERA (18), will be developed in the near future.

Other systems already powered by GOLD include the NIH-funded Human Microbiome Project Catalog (HMPC) provided through the Data Analysis and Coordination Center (DACC) (http://www.hmpdacc.org/). DACC connects directly to the GOLD database and accesses the HMP-specific data subset. To enable monitoring of the status of an HMP genome project, a new set of attributes and data types were added to GOLD and the already-existing controlled vocabularies were expanded. The HMPC page enables the DACC collaborators to choose and view targeted genome strains for sequencing. However, the community can also use this page to query the reference genomes and return profuse metadata.

IMG-GOLD also provides a web-based data entry mechanism that enables genome project submitters and curators to create/update/delete GOLD genome projects, provide associated metadata and create/edit controlled vocabularies for new metadata attributes. For users who prefer to provide metadata in file format, preformatted Excel spreadsheets are provided on the GOLD site (http://genomesonline.org/Project_submission.htm) for both genome and metagenome projects.

Data availability

All GOLD data are available according to the Creative Commons License of Attribution-NonCommercial-ShareAlike (http://creativecommons.org/licenses/by-nc-sa/2.5/). All of the available metadata types in GOLD can be downloaded to an Excel file to facilitate wider distribution and use of the data.

OVERVIEW STATISTICS

Several different types of statistics, related to each of the data fields, can be derived using GOLD's advanced search engine, the new metadata search capability, and the data download capability. In addition, graphical overviews for specific data types are provided via the ‘Gold Statistics’ link on the database home page (http://genomesonline.org/gold_statistics.htm). This feature is supported for the data fields discussed in the following paragraphs.

Evolution of genome projects

Genome project tracking in GOLD has been steadily increasing over time with an average 2.25-fold increase every 2 years for the past 12 years (Figure 1A). The microbial genome projects have been carrying the majority of that increase. This systematic and comprehensive genome project tracking can help addressing two major questions: (i) where and how numerous are the remaining gaps in sequencing along the bacterial and archaeal branches of the tree of life, and (ii) how accurately can we predict the number of genome projects that will be sequenced over the next 3–5 years?

Table 4 addresses the first question by reporting the taxonomic distribution of genome projects, showing for each taxon the number of genome projects compared with the total number of described taxonomic units (filtering out the environmental and the unknown entries). In effect, it identifies the taxonomic groups in each domain of life for which there are no currently registered genome projects. These taxonomic groups should eventually become targets for new sequencing projects. Further, we hope that the availability of this systematic project monitoring will not only help identify the next sequencing targets, but also help the sequencing centers to avoid unnecessary redundancy and duplication of efforts.

Table 4.

Taxonomic distribution of genome projects^a

Domain	Phyla	Class	Order	Family	Genus
Archaea: 179	5/5	9/9	24/26	24/26	85/109
Bacteria: 4184	27/29	45/47	234/281	234/281	730/1930
Eukarya: 1280	29/55	80/188	350/6288	350/6288	536/47906

Domain	Phyla	Class	Order	Family	Genus
Archaea: 179	5/5	9/9	24/26	24/26	85/109
Bacteria: 4184	27/29	45/47	234/281	234/281	730/1930
Eukarya: 1280	29/55	80/188	350/6288	350/6288	536/47906

Available at: http://genomesonline.org/phylogenetic_distribution.cgi.

For each taxon, the number with genome projects (bold) compared to the total number of identified taxons according to NCBI's; Taxonomy.

Table 4.

Taxonomic distribution of genome projects^a

Domain	Phyla	Class	Order	Family	Genus
Archaea: 179	5/5	9/9	24/26	24/26	85/109
Bacteria: 4184	27/29	45/47	234/281	234/281	730/1930
Eukarya: 1280	29/55	80/188	350/6288	350/6288	536/47906

Domain	Phyla	Class	Order	Family	Genus
Archaea: 179	5/5	9/9	24/26	24/26	85/109
Bacteria: 4184	27/29	45/47	234/281	234/281	730/1930
Eukarya: 1280	29/55	80/188	350/6288	350/6288	536/47906

Available at: http://genomesonline.org/phylogenetic_distribution.cgi.

For each taxon, the number with genome projects (bold) compared to the total number of identified taxons according to NCBI's; Taxonomy.

Table 5 attempts to address the second question which is what is the anticipated growth of the microbial genome projects over the next 5 years? Following a very conservative estimate we would expect to see three times increase in the number of the complete and 10 times in the number of the draft microbial genome projects that have been sequenced during the last 15 years. However, if we extrapolate a linear increase in the number of finished and draft genomes based on Figure 1A, those predictions would be realized within the next 3 years.

Table 5.

Predicted increase of microbial genome sequencing projects

	1995–2009	2010–2015
Finished	1000	3000
Draft	1100	11 000
Genes	7.5 million genes	56 million genes

	1995–2009	2010–2015
Finished	1000	3000
Draft	1100	11 000
Genes	7.5 million genes	56 million genes

Table 5.

Predicted increase of microbial genome sequencing projects

	1995–2009	2010–2015
Finished	1000	3000
Draft	1100	11 000
Genes	7.5 million genes	56 million genes

	1995–2009	2010–2015
Finished	1000	3000
Draft	1100	11 000
Genes	7.5 million genes	56 million genes

Sequencing centers

Four major sequencing centers account for about 50% of the 5843 sequencing projects currently monitored in GOLD (Figure 1B), a situation that has not changed over the last 2 years. However, when considering only archaeal and bacterial projects, the two leading sequencing centers (JGI and JCVI) now represent a smaller share: about 35%, compared to more than half 2 years ago. The fact that a much larger community is now carrying out these projects compared to 2 years ago also reflects the increasing democratization of the sequencing technology.

Phylogenetic distribution

The sampling bias favoring three major bacterial lineages—Proteobacteria, Firmicutes and Actinobacteria—has decreased only slightly during the last couple of years (Figure 1D). The above three lineages now comprise 80% of all genome projects compared to 82% 2 years ago. This small shift is due mostly to large-scale sequencing efforts, such as the GEBA and HMP, which target previously neglected phylogenetic lineages. Clearly, there remains much room for improvement here, and further progress can be expected if similar large-scale biodiversity sequencing efforts continue.

FUTURE DIRECTIONS

The challenges facing GOLD have increased dramatically as GOLD continues to evolve from a genome/metagenome project monitoring system into a universal genome project core catalog/indexer charged with the task of providing data interconnectivity, exchange and dissemination. In this new role, GOLD is required to efficiently store, process and automatically track metadata that is rapidly increasing in scope and complexity. All the while, there is a great expectation for GOLD to pioneer future genomic standards.

To meet these challenges will require the creation of a shared genome project conceptual model and a database schema to handle the genome-project-associated metadata. The genome/metagenome data continue to be somewhat structured and hierarchical, but the rich associated metadata information becoming available requires the creation of a ‘Genome Project Ontology’ for effective management. Incorporation of other available ontologies, such as existing medical and environmental ontologies, is part of the immediate plan.

Furthermore, numerous other bioinformatics databases and researchers will need to acquire and/or synchronize with GOLD data. To address their needs, GOLD will provide access for client programs via web services using SOAP, GOLDXML and other RESTful technologies, as well as communicate with subscribers via RSS feeds. To further increase community access to GOLD, a GOLD-wiki site will be established where genome project curators can contribute additional project information using various media-rich data formats. We also plan to employ data warehousing tools to facilitate reporting and analysis of the GOLD data on the statistics page, thereby eliminating the need for the manual creation of Excel charts that become quickly outdated. To improve data mining, the GOLD search engine will provide an advanced query mechanism wherein the search criteria available will depend on the meta-properties of the input objects.

DATABASE AVAILABILITY

GOLD can be accessed at: http://www.genomesonline.org/.

Further comments and feedback are welcome at: [email protected].

SUPPLEMENTARY DATA

Supplementary Data are available at NAR Online.

ACKNOWLEDGEMENTS

We would like to thank Merry Youle for her excellent editorial assistance. GOLD has been maintained and developed mostly based on the volunteer work of its small team. We are grateful to all the colleagues who kindly provide information for the more accurate monitoring of the genome projects and particularly to Michelle Giglio and Heather Huot from University of Maryland. The support of Rashida Lathan, Stella Proukaki and Tatiana Drakakis is especially acknowledged. The full list of all contributors is available at: (http://www.genomesonline.org/acknowledgments.html).

FUNDING

The US Department of Energy's Office of Science, Biological and Environmental Research Program; and by the University of California, Lawrence Berkeley National Laboratory under Contract No. DE-AC02-05CH11231, Lawrence Livermore National Laboratory under Contract No. DE-AC52-07NA27344; and Los Alamos National Laboratory under Contract No. DE-AC02-06NA25396. Funding for open access charge: Department of Energy.

Conflict of interest statement. None declared.

REFERENCES

Kyrpides

Genomes OnLine Database (GOLD 1.0): a monitor of complete and ongoing genome projects world-wide

Bioinformatics

(

1999

)

773

–

774

Bernal

Ear

Kyrpides

Genomes Online Database (GOLD): A Monitor pf genome projects world-wide

Nucleic Acid Res.

(

2001

)

126

–

127

Liolios

Tavernarakis

Hugenholtz

Kyrpides

The Genomes On Line Database (GOLD) v.2: a monitor of Genome Projects world-wide

Nucleic Acid Res.

(

2006

)

D332

–

D334

Liolios

Mavromatis

Tavernarakis

Kyrpides

The Genomes OnLine Database (GOLD) in 2007: status of genomic and metagenomic projects and their associated metadata

Nucleic Acid Res.

(

2007

)

D475

–

D479

Field

Garrity

Gray

Morrison

Selengut

Sterk

Tatusova

Thompson

Allen

Ashburner

, et al.

Towards a richer description of our complete collection of genomes and metagenomes: the “Minimum Information about a Genome Sequence” (MIGS) specification

Nat. Biotechnol.

(

2008

)

541

–

547

Benson

Karsch-Mizrachi

Lipman

Ostell

Wheeler

GenBank

Nucleic Acids Res

(

2007

)

D21

–

D25

Kulikova

Akhtar

Aldebert

Althorpe

Andersson

Baldwin

Bates

Bhattacharyya

Bower

Browne

, et al.

EMBL Nucleotide Sequence Database in 2006

Nucleic Acids Res.

(

2007

)

D16

–

D20

Okubo

Sugawara

Gojobori

Tateno

DDBJ in preparation for overview of research activities behind data submissions

Nucleic Acids Res.

(

2006

)

–

Birney

Hudson

Green

Gunter

Eddy

Rogers

Harris

Ehrlich

Apweiler

Austin

, et al.

Prebublication data sharing

Nature

(

2009

)

461

168

–

170

10.

Kyrpides

Fifteen years of microbial genomics: meeting the challenges and fulfilling the dream

Nat. Biotechnol.

(

2009

)

627

–

632

11.

Garrity

Field

Kyrpides

Standards in genomic sciences

Stand. Genomic Sci.

(

2009

)

–

12.

Dawyndt

Vancanneyt

DeMeyer

Swings

Knowledge accumulation and resolution of data inconsistencies during the integration of microbial information sources

IEEE Transactions on Knowledge and Data Engineering

(

2005

)

1111

–

1126

13.

Markowitz

Ivanova

Szeto

Palaniappan

Chu

Dalevi

Chen

IMA

Grechkin

Dubchak

Anderson

, et al.

IMG/M: a data management and analysis system for metagenomes

Nucleic Acids Res.

(

2008

)

D534

–

D538

14.

Markowitz

Szeto

Palaniappan

Grechkin

Chu

Chen

I-MA

Dubchak

Anderson

Lykidis

Mavromatis

, et al.

The Integrated Microbial Genomes (IMG) system in 2007: data content and analysis tool extensions

Nucleic Acids Res.

(

2008

)

D528

–

D533

15.

Hirschman

Clark

Cohen

Mardis

Luciano

Kottmann

Cole

Markowitz

Kyrpides

Morrison

, et al.

Habitat-Lite: a GSC case study based on free text terms for environmental metadata

OMICS

(

2008

)

129

–

136

16.

Markowitz

Mavromatis

Ivanova

Chen

I-MA

Chu

Kyrpides

Expert IMG ER: a system for microbial genome annotation expert review and curation

Bioinformatics

(

2009

)

2271

–

2278

17.

Meyer

Paarmann

D'Souza

Olson

Glass

Kubal

Paczian

Rodriguez

Stevens

Wilke

, et al.

The metagenomics RAST server – a public resource for the automatic phylogenetic and functional analysis of metagenomes

BMC Bioinformatics

(

2008

)

386
