Chromosomal-level assembly of Juglans sigillata genome using Nanopore, BioNano, and Hi-C analysis

Abstract

Background

Juglans sigillata, or iron walnut, belonging to the order Juglandales, is an economically important tree species in Asia, especially in the Yunnan province of China. However, little research has been conducted on J. sigillata at the molecular level, which hinders understanding of its evolution, speciation, and synthesis of secondary metabolites, as well as its wide adaptability to its plateau environment. To address these issues, a high-quality reference genome of J. sigillata would be useful.

Findings

To construct a high-quality reference genome for J. sigillata, we first generated 38.0 Gb short reads and 66.31 Gb long reads using Illumina and Nanopore sequencing platforms, respectively. The sequencing data were assembled into a 536.50-Mb genome assembly with a contig N50 length of 4.31 Mb. Additionally, we applied BioNano technology to identify contacts among contigs, which were then used to assemble contigs into scaffolds, resulting in a genome assembly with scaffold N50 length of 16.43 Mb and contig N50 length of 4.34 Mb. To obtain a chromosome-level genome assembly, we constructed 1 Hi-C library and sequenced 79.97 Gb raw reads using the Illumina HiSeq platform. We anchored ~93% of the scaffold sequences into 16 chromosomes and evaluated the quality of our assembly using the high contact frequency heat map. Repetitive elements account for 50.06% of the genome, and 30,387 protein-coding genes were predicted from the genome, of which 99.8% have been functionally annotated. The genome-wide phylogenetic tree indicated an estimated divergence time between J. sigillata and Juglans regia of 49 million years ago on the basis of single-copy orthologous genes.

Conclusions

We provide the first chromosome-level genome for J. sigillata. It will lay a valuable foundation for future research on the genetic improvement of J. sigillata.

Data Description

Background

Walnut is an important nut fruit with high nutritive value and is grown in temperate climates. The 2 most widely cultivated species of walnuts for commercial nut production in the world are the English or Persian walnut (Juglans regia) and the iron walnut (Juglans sigillata). J. regia is the globally cultivated well-known species, but J. sigillata (NCBI:txid224355) is still mostly unknown in Western scientific research despite being grown for its nuts in Yunnan province, China [1, 2], for many centuries. In southwest China, J. sigillata is an important edible nut crop and is also cultivated for its wood. The name refers to the many seal-like depressions (sigillatae) in the shell, and with its thick shell the species has been termed the “iron walnut” [2]. It is commonly distributed in the eastern Himalayas and western China, especially Yunnan, both in the wild and in cultivation. No less than 80 authorized or approved cultivars of J. sigillata have been produced after successful implementation of grafting technology, such as "Yangpao," "Santai," and "Xixiang" [3]. China is the largest producer of walnuts in the world, producing nearly half of the global walnut supply in 2017 [4]. Domestically, Yunnan is the nation's number 1 walnut producer, its acreage and yield making up >2,860,000 hectares and 945,330 tones, accounting for one-half and one-fourth, respectively, of China's crop in 2016 [5].

All species of the genus Juglans are diploid with 2n = 2x = 32 chromosomes [6]. J. regia is a sister member of J. sigillata in section Dioscaryon Dode. It is native to the mountainous regions of central Asia, but it has become the most widespread tree nut cultivated in the world [7]. Although walnut has been cultivated for centuries, walnut breeding has only started recently and only a few systematic molecular studies on walnut have been reported [8]. Because of its commercial value and acreage, far more gene sequences are available for J. regia than J. sigillata and other members of the same genus. A team from the University of California–Davis sequenced the Persian walnut variety "Chandler" in 2016 [9]. In this study the iron walnut variety "Yangpao" was used for the genome sequencing because it is one of the most popular varieties in Yunnan. Walnut genome sequence information obtained here might be beneficial for accelerating its rate of breeding and variety improvement.

Sampling and sequencing

All samples at the vegetative growth stage were collected from a J. sigillata specimen collected in Guangming town, Yangbi Yi autonomous county, Yunnan province, China. For sequencing on the Oxford Nanopore GridION X5, genomic DNA was isolated and extracted from leaves of a single plant using the Plant Genomic DNA kit (Qiagen, Hilden, Germany) based on the manufacturer's instructions. The DNA sample was further purified using a Zymo Genomic DNA Clean and Concentrator-10 column (Zymo Research, Irvine, CA, USA). The purified DNA was then prepared for sequencing following the protocol provided with the genomic sequencing kit SQK-LSK108 (Oxford Nanopore Technologies [ONT], Oxford, UK). Single-molecule real-time sequencing of long reads was conducted on a GridION X5 platform (ONT, Oxford, UK) with 16 flow cells [10]. A total of 66.31 Gb of raw data (4.14 Gb per cell) with an average pass read length of 15.60 kb was generated after quality filtering, the longest of which was 283 kb (Supplementary Table S1). Compared with other sequencing platforms, Nanopore sequencing has more advantages in read length. In addition, a separate paired-end DNA library with an insert size of 400 bp was constructed and sequenced using the Illumina HiSeq X Ten platform to enable a genome survey and genome accuracy correction, and a total of 37.99 Gb of raw data were produced (Supplementary Table S2).

Genome survey

The genome size of J. sigillata was estimated by the k-mer method [11] using sequencing data from the Illumina DNA library. Quality-filtered reads were subjected to 17-mer frequency distribution analysis using the Jellyfish program (Jellyfish, RRID:SCR_005491) [11]. The genome size (G) of J. sigillata was estimated using the following formula: G = (N_k-mer−N_{error_k-mer})/D, where N_k-mer is the number of k-mers, N_{error_k-mer} is the number of k-mers with the depth of 1, and D is the k-mer depth. The count distribution of 17-mers followed a Poisson distribution, with the highest peak occurring at a depth of 51 (Supplementary Table S3 and Fig. S1). The estimated genome size was ~618,792,510 bp. And the heterozygosity of the genome was evaluated using the Arabidopsis thaliana genome data fitting method [12, 13]. From this the heterozygosity rate of the J. sigillata genome was estimated to be ~1.0% (Supplementary Fig. S2), which is a moderate level among the related species (Table 1 and Additional File 1).

Genome assembly

ONT long reads were corrected with Canu v1.6 (Canu, RRID:SCR_015880) [14] (overlapper = mhap utgReAlign = true corMinCoverage = 5 minReadLength = 2000 minOverlapLength = 1000) and assembled with WTDBG v1.2.8 (WTDBG, RRID:SCR_017225) [15] (–tidy-reads 5000 -fo dbg -k 0 -p 21 -S 3 –rescue-low-cov-edges); the initial assembly was ~531.62 Mb in length, with a contig N50 size of 4.25 Mb (Supplementary Table S4). Nanopolish 0.11.0 (Nanopolish, RRID:SCR_016157) used the quality-controlled Nanopore sequencing reads for improving the assembled genome [16]. After that, the assembly contigs were polished twice with Pilon 1.22 (Pilon, RRID:SCR_014731) using Illumina whole-genome shotgun data [17]. After 2 rounds of Pilon polishing, the corrected genome was ~536.50 Mb in size, with a Contig N50 size of 4.31 Mb (Supplementary Table S5).

Scaffolding with BioNano optical mapping

The purifed genomic DNA of J. sigillata was embedded in an agarose layer, digested with Nt.BspQI enzyme, and labeled. The molecules were counterstained using the protocol provided with the SaphyrPrep Reagent Kit (BioNano Genomics, San Diego, CA, USA). Samples were then loaded into SaphyrChips and imaged on a Saphyr imaging instrument (BioNano Genomics). After filtering using a molecule length cut-off of <150 kb, a molecule SNR of <2.75, a label SNR (signal-to-noise ratio) of <2.75, and a label intensity of >0.8, 149.64 Gb of BioNano clean data were obtained, with the N50 size of the labeled single molecules being 264.04 kb (Supplementary Table S6).

A molecular quality report was generated by aligning the BioNano library sequences to the Nanopore genome assembly, yielding a map rate of 80.7%. Using the Nanopore genome assembly data as a reference, a reference genome assembly was conducted on the basis of the clean BioNano data. A genome map consisting of 824 consensus maps was assembled, yielding a genome size of 570.94 Mb with an N50 size of 9.94 Mb. To obtain a longer scaffold, the de novo assembly of Nanopore reads was then mapped to the BioNano single-molecule genomic map using the Bionano Access 1.1.2 and Bionano Solve 3.2 hybrid-scaffolding pipeline with hybrid scaffolding parameters (non-haplotype without extend and split). After scaffolding, the contig assembly contained 899 scaffolds with a scaffold N50 of 9.94 Mb, gap number was 177, and the proportion of gaps accounted for 6.03% of the whole genome.

To fill the gaps in the scaffolds, the pipline [23] (-minMatch 8 -sdpTupleSize 8 -minPctIdentity 75 -bestn 1 -nCandidates 10 -maxScore -500 –noSplitSubreads) was used to map the Nanopore long reads to the genome assembly scaffolding with BioNano optical mapping. Reads from the Illumina DNA library (400 bp) were then aligned against the genome assembly using the BWA (BWA, RRID:SCR_010910) and the genome was polished using Pilon 1.22 once again with default parameters, yielding a final draft genome of ~574.62 Mb, with only 164 gaps, gap length for 5.65% of the genome, and contig and scaffold N50 sizes of 4.34 and 16.43 Mb, respectively (Supplementary Table S7). Because of the advantages of Nanopore sequencing technology and BioNano sequencing technology, the assembly quality of the J. sigillata genome assembly is currently far superior to reference genomes of its close relatives (Table 1).

Genome quality evaluation

To assess the completeness of the assembled J. sigillata genome, we performed BUSCO (BUSCO, RRID:SCR_015008) analysis [24] by searching against the embryophyta BUSCO (version 3.0). Among 1,440 total BUSCO groups searched, 1,341 and 19 BUSCO core genes were completed and partially identified, respectively, leading to a total of 93.1% BUSCO genes in the J. sigillata genome (Supplementary Table S8). In concert we checked whether the high duplication rate (10.5%) indicated allelic duplications in the assembled genome, using BWA to align and counting up the coverage statistics from the Illumina short reads [25]. The sequencing coverage of the duplicated genes is almost the same as that of single-copy genes (Supplementary Fig. S3), showing that these duplicated genes likely exist as independent and distinct copies in the genome.

Chromosome assembly using Hi-C data

To further generate a chromosomal-level assembly of the genome, we took advantage of sequencing data from the Hi-C library [26, 27]. We performed quality control of Hi-C raw data using HiC-Pro v. 2.8.0 (HiC-Pro, RRID:SCR_017643) [28]. First, we used bowtie2 v. 2.2.5 (Bowtie, RRID:SCR_005476) [29] to compare the raw reads to the draft assembled sequence, and then low-quality reads were filtered out to build raw inter/intra-chromosomal contact maps. Our final valid data set was 21.31 Gb (37.13×), accounting for 28.46% of the total Hi-C sequencing data. We then used the LACHESIS pipeline (LACHESIS, RRID:SCR_017644) [30] to scaffold the J. sigillata genome to 16 pseudochromosomes with length ranging from 10.00 to 55.29 Mb. The total length of pseudochromosomes consisted of 93.0% of all genome sequences (Supplementary Fig. S4, Supplementary Table S9).

Genome annotation

To identify known transposable elements (TEs) in the J. sigillata genome, RepeatMasker (RepeatMasker, RRID:SCR_012954) [31] was used to screen the assembled genome against the Repbase (v. 22.11) [32] and Mips-REdat libraries [33]. In addition, de novo repeat annotation was performed using RepeatModeler v. 1.0.11 (RepeatModeler, RRID:SCR_015027) [28]. The combined results of the homology-based and de novo predictions indicated that repeated sequences account for 50.06% of the J. sigillata genome assembly, with long terminal repeats accounting for the greatest proportion (21.42%) (Supplementary Table S10 and Fig. 1).

Homology-based non-coding RNA annotation was performed by mapping plant ribosomal RNA (rRNA), microRNA, and small nuclear RNA genes from the Rfam database (release 13.0) [34] to the J. sigillata genome using BLASTN (BLASTN, RRID:SCR_001598) [35] (E-value ≤ 1e−5). tRNAscan-SE v1.3.1 (tRNAscan-SE, RRID:SCR_010835) [36] was used (with default parameters for eukaryotes) for transfer RNA (tRNA) annotation. RNAmmer v1.2 [37] was used to predict rRNAs and their subunits. These analyses identified 311 microRNAs, 807 tRNAs, 151 rRNAs, and 1,171 small nuclear RNAs (Supplementary Table S11).

To annotate genes in the J. sigillata genome, gene prediction was performed with homology-based, de novo, and transcriptome sequencing-based methods. For homology-based predictions, protein sequences from 5 species (A. thaliana, Elaeis guineensis, Olea europaea, J. regia, Populus trichocarpa) were mapped onto the J. sigillata genome using tBLASTn with an E-value of 1e−5; the aligned sequences and the corresponding query proteins were then filtered and passed to GeneWise v2.4.1 (GeneWise, RRID:SCR_015054) [38] to search for accurately spliced alignments. For the de novo predictions, we first randomly selected 1,000 full-length genes from the homology-based predictions to train model parameters for Augustus v3.0 (Augustus: Gene Prediction, RRID:SCR_008417) [39], Genemark [40], and GlimmerHMM (GlimmerHMM, RRID:SCR_002654) [41]. Augustus v3.0, Genemark, and GlimmerHMM were then used to predict genes based on the training set. We also used next-generation sequencing transcriptome short reads aligned on the J. sigillata genome using the TopHat (TopHat, RRID:SCR_013035) package [42]. Finally, EVidenceModeler v1.1.1 [43] was used to integrate the predicted genes and generate a consensus gene set. Genes with TEs were discarded using the TransposonPSI [44] package. Low-quality genes consisting of <50 amino acids and/or exhibiting premature termination (by aligning codons 1 by 1, the fragments with termination codons in the middle) were also removed from the gene set, yielding a final set of 30,387 genes. The final set's average transcript length, average CDS length, exon number per gene, average exon length, and average intron length were 4687.32 bp, 1257.18 bp, 5.49, 228.82 bp, and 763.25 bp, respectively (Supplementary Table S12 and Fig. 1).

The annotations of the predicted genes of J. sigillata were screened for homology against the Uniprot database (accessed 31 January 2018), KEGG database (accessed 87 July 2018), and InterPro database (5.21–60.0) using BLASTX (E value setting of 1e−5, coverage ≥50%, and identity ≥30% in BLAST v. 2.7.1+) [45], KAAS [46], and InterProScan package (release 5.2–45.0) [47]. In total, most (30,339) of the 30,387 genes were annotated by ≥1 database, representing 99.8% of the total genes (Supplementary Table S13).

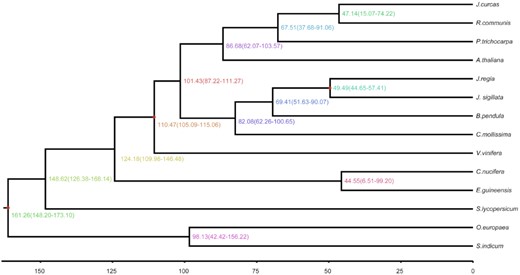

Phylogenetic tree construction and divergence time estimation

The detected J. sigillata genes were clustered in families using the OrthoMCL (v2.0.9) pipeline (OrthoMCL DB: Ortholog Groups of Protein Sequences, RRID:SCR_007839) [48], with an E-value cutoff of 1e−5, and Markov chain clustering with a default inflation parameter in an all-to-all BLASTP analysis of entries for 13 species (A. thaliana, B. pendula, Castanea mollissima, Cocos nucifera, E. guineensis, Jatropha curcas, J. regia, O. europaea, P. trichocarpa, Ricinus communis, Sesamum indicum, Solanum lycopersicum, Vitis vinifera). Gene family clustering identified 16,438 gene families containing 26,539 genes in J. sigillata. Of these, 141 gene families were unique to J. sigillata (Supplementary Table S14). Phylogenetic analysis was performed using 296 single-copy orthologous genes from common gene families found by OrthoMCL [43]. We codon-aligned each gene family using Mafft (MAFFT, RRID:SCR_011811) [49] and curated the alignments with Gblocks v0.91b (Gblocks, RRID:SCR_015945) [50]. Phylogeny analysis was performed using RAxML (RAxML, RRID:SCR_006086) v 8.2.11 [51] with the GTRGAMMA model and 100 bootstrap replicates. We then used MCMCTREE as implemented in PAML v4.9e (PAML, RRID:SCR_014932) [52] to estimate the divergence times of J. sigillata from the other plants. The parameter settings of MCMCTREE were as follows: clock = 2, RootAge ≤ 1.8, model = 7, BDparas = 110, kappa_gamma = 62, alpha_gamma = 11, rgene_gamma = 25.427, and sigma2_gamma = 11.03. In addition, the divergence times of V. vinifera (110–124 million years ago [Mya]) and A. thaliana (53–82 Mya) were used for fossil calibrations. The phylogenetic analysis showed that J. sigillata, J. curcas, and B. pendula diverged from a common ancestor ~69.41 Mya. The estimated divergence time of J. sigillata and J. regia was 49.49 Mya (Fig. 2).

Genes under positive selection

J. sigillata is an important cultivated tree that can be found growing on mountain slopes in southern China and in the Yunnan-Guizhou Plateau [53]. To evaluate adaptive evolution in the J. sigillata genome, we performed analysis to identify genes that are under positive selection. According to the neutral theory of molecular evolution [54], the ratio of nonsynonymous substitution rate (Ka) and synonymous substitution rate (Ks) of protein-coding genes can be used to identify genes that show signatures of natural selection. We calculated average Ka/Ks values and conducted the branch-site likelihood ratio test using Codeml implemented in the PAML package (PAML, RRID:SCR_014932) [52] to identify positively selected genes in the J. sigillata lineage. Twenty-five genes with signatures of positive selection were identified (P ≤ 0.05), of which 20 genes could be annotated with potential functions in the Swissprot database (Additional File 2). Gene ontology (GO) analysis using the DAVID program [55] (P ≤ 0.05) showed that 6 of these genes were related to chloroplast activity or function, and these 6 genes were ultraviolet-B receptor UVR8 (UVR8), carbamoyl-phosphate synthase large chain (CARB), PsbP domain-containing protein 6 (PPD6), probable N-acetyl-gamma-glutamyl-phosphate reductase (At2g19940), β-carotene isomerase D27(D27), and omega-amidase (NLP3). UVR8 is a photoreceptor for ultraviolet-B. Upon ultraviolet-B irradiation, UVR8 undergoes an immediate switch from homodimer to monomer, which triggers a signaling pathway for ultraviolet protection [56]. CARB is involved in arginine biosynthesis, and required for mesophyll development [57]. PPD6 is an important protein involved in the redox regulation of photosystem II [58]. D27 is an iron-binding protein that localizes in chloroplasts, required for the biosynthesis of strigolactones [59]. NLP3, involved in the metabolism of asparagine, probably also closely coupled with glutamine transamination in the methionine salvage cycle, can use α-ketosuccinamate and α-hydroxysuccinamate as substrates, producing, respectively, oxaloacetate and malate, or α-ketoglutaramate, producing α-ketoglutarate [60]. In conclusion, the functions of these genes ae closely related to systems including chloroplast defense mechanisms, photosynthesis, and amino acid metabolism, which might help J. sigillata adapt to the strong ultraviolet and high-altitude environment of the Yunnan plateau.

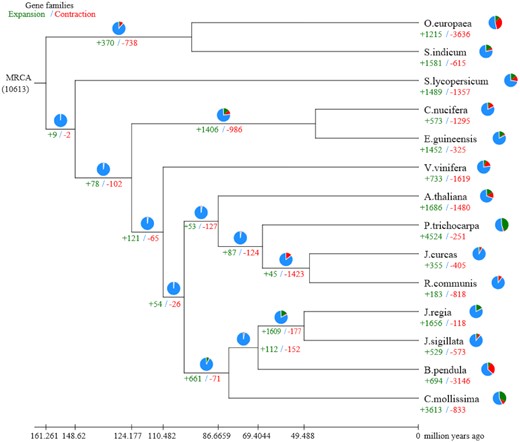

Gene family expansion and contraction analysis

To understand the relationships of the J. sigillata gene families with those of other plants, we performed a systematic comparison of genes among different species. The protein-coding genes of 13 genomes, namely, A. thaliana, B. pendula, C. nucifera, C. mollissima, E. guineensis, J. curcas, J. regia, O. europaea, P. trichocarpa, R. communis, S. indicum, S. lycopersicum, andV. vinifera, were used for the comparison. Gene loss and gain are among the primary reasons for functional changes. To gain greater insights into the evolutionary dynamics of the genes, we determined the expansion and contraction of the orthologous gene clusters in these 14 species with CAFE software (CAFE, RRID:SCR_005983) [61]. This approach revealed 529 expanded gene families and 573 contracted gene families in the J. sigillata lineage (Fig. 3, Additional File 3). Furthermore, the enrichment pipeline software clusterProfiler [62] (clusterProfiler, RRID:SCR_016884) was used to test the statistical enrichment of expanded and contracted gene families in KEGG and GO pathway analysis. Pathways with Q-value < 0.05 (Q-values are the name given to the adjusted P-values found using an optimized false discovery rate approach [63]) were considered to be significantly enriched. There were no statistically significant enrichments in KEGG and GO analysis of the contracted gene families (Q-value > 0.05). The expanded gene families were enriched for 87 significant (Q-value < 0.05) GO terms at level 4 (Additional File 3). The significantly enriched KEGG pathways included “plant-pathogen interactions” (65 [12.29%]), “mRNA surveillance pathway” (44 [8.31%]), “Phospholipase D signaling pathway” (31 [5.86%]), “Fc gamma R-mediated phagocytosis” (31 [5.86%]), and “cAMP signaling pathway” (31 [5.86%]) (Additional File 3 and Supplementary Fig. S5).

Conclusion

This article reports a chromosome-level reference genome sequence of J. sigillata using multiple types of sequencing data and assembly technologies. The assembled highly accurate genome will provide a valuable resource for studying the species' evolutionary history, genetic changes, and associated biological phenomena, such as genetic load and selection pressures that occurred during severe bottlenecks or other unknown historical events. The J. sigillata genome lays a solid foundation for additional genomic studies in nut crops and related species, as well providing valuable resources for plant breeders.

Availability of Supporting Data and Materials

The raw sequence data and J. sigillata genome data have been deposited in the Short Read Archive under NCBI BioProject ID PRJNA509030. The genome assembly, annotations, and other supporting data are available via the GigaScience database GigaDB [64].
