Bromeliads going batty: pollinator partitioning among sympatric chiropterophilous Bromeliaceae

Abstract

Pollinators can be a limited resource and natural selection should favour differences in phenotypic characteristics to reduce competition among plants. Bats are important pollinators of many Neotropical plants, including the Bromeliaceae; however, the pre-pollination mechanisms for isolation among sympatric bat-pollinated bromeliads are unknown. Here, we studied the mechanisms for reproductive segregation between Pitcairnia recurvata, Pseudalcantarea viridiflora, Werauhia noctiflorens and W. nutans. The study was conducted at Los Tuxtlas Biosphere Reserve, in Veracruz, Mexico We carried out ex situ and in situ manual pollination treatments to determine the breeding system by assessing fruiting and seedling success and sampled bat visitors using mist-nets and infrared cameras. We determined the nocturnal nectar production pattern, estimating the energetic content of this reward. All four bromeliads are self-compatible, but only P. recurvata appears to require pollinators, because the physical separation between anthers and stigma prevents self-pollination, it is xenogamous and presents a strictly nocturnal anthesis. The bats Anoura geoffroyi, Glossophaga soricina and Hylonycteris underwoodi are probable pollinators of three of the studied bromeliads. We did not record any animal visiting the fourth species. The flowering season of each species is staggered throughout the year, with minimal overlap, and the floral morphology segregates the locations on the body of the bat where the pollen is deposited. The most abundant nectar per flower is provided by P. viridiflora, but P. recurvata offers the best reward per hectare, considering the density of flowering plants. Staggered flowering, different pollen deposition sites on the body of the pollinator and differences in the reward offered may have evolved to reduce the competitive costs of sharing pollinators while providing a constant supply of food to maintain a stable nectarivorous bat community.

Introduction

Zoophilous pollination has been important for the evolution and diversification of angiosperms (Hu et al. 2008), with nearly 90 % of the extant angiosperms presenting this form of pollination (Ollerton et al. 2011). However, many plant species use a variety of different animals as pollinators (Waser et al. 1996; Ollerton et al. 2009). The structure of plant–pollinator communities is variable and depends on the composition of local pollinator fauna and on ecological interactions among coexisting plant species, which may in turn be subject to temporal change (Burkle and Alarcón 2011; Wolowski et al. 2017). The attempt to predict the main pollinators of a flowering plant in different ecological scenarios has raised questions regarding the validity of the ‘pollination syndrome’ concept (i.e. the entirety of floral traits associated with the attraction of, and effective pollination by, a functional group of pollinators; Fenster et al. 2004; also see Rosas-Guerrero et al. 2014; Ashworth et al. 2015), mainly because it could overlook other floral visitors and the role they play in the plant’s reproduction.

Sympatric flowering species must frequently share pollinators (see Mitchell et al. 2009). Pollinators can be a limited resource for the sexual reproduction of a plant, and such sharing could decrease individual reproductive success (Armbruster and Herzig 1984; Campbell 1985) through the effects of different forms of competition (Waser 1978). Evolution should favour adaptations that act to reduce heterospecific pollen deposition (Ashman and Arceo-Gómez 2013) as well as pollen misplacement during the visits to foreign stigmas (male fitness component; Morales and Traveset 2008; Muchhala et al. 2010). In this sense, sharing pollinators could promote a divergence in phenotypic characteristics related to attracting pollinators (Feinsinger 1987; Muchhala and Thomson 2012). However, pollinator sharing could also be advantageous to the plant community, since co-flowering plants could attract and maintain local populations of pollinators over the course of the year (facilitation; Schemske 1981; Moeller 2004; Ghazoul 2006; Sargent and Ackerly 2008).

The factors that influence plant–pollinator interactions may vary temporally and spatially, but the most common outcome of pollinator sharing among zoophilous plants is a reduction in conspecific pollen deposition (Morales and Traveset 2008). Several factors may reduce the costs of sharing pollinators among plants, including different microhabitat preferences (i.e. Kay 2006), staggered phenology (Feinsinger 1978; Lobo et al. 2003; Araujo et al. 2004;,Aizen and Vázquez 2006; Kudo 2006), daily partitioning of floral rewards (i.e. Stone et al. 1998; Ramalho et al. 2014) and different pollinator foraging periods (Armbruster and Herzig 1984; Raine et al. 2007; Hoehn et al. 2008; Franco et al. 2011). Moreover, different floral morphologies in plants that share pollinators act to produce differential pollen placement on the body of the pollinator (Heinrich 1976; Armbruster et al. 1994; Kay 2006; Botes et al. 2008) while other plants may encourage the visit of different pollinator species, but from the same functional group (i.e. different species of bees), each of them probably with slightly different visitation behaviour, a characteristic that may account for their differential role in the overall pollination of the plant species (Missagia et al. 2014; Ramalho et al. 2014).

Bats are important pollinators of many tropical and subtropical plant families (Tschapka and Dressler 2002; Fleming et al. 2009) that possess flowers well adapted to pollination by these animals (von Helversen 1993; von Helversen and Winter 2003). Bats may be considered as highly effective pollinators, since they can transfer greater quantities of pollen than most other flower visitors, such as hummingbirds (Muchhala and Thomson 2010). However, since they often also ingest pollen and frequently visit several plant species during a foraging bout (i.e. Heithaus et al. 1975), their efficiency as pollinators may sometimes be limited (Fleming and Sosa 1994). Hence, sympatric chiropterophilous plants employ various strategies to reduce the cost of sharing the local bat pollinators. These include a staggered flowering phenology (Sazima et al. 1999; Lobo et al. 2003; Cummings et al. 2014), differing times of anthesis through the night (Howell 1977) and differences in floral morphology and subsequent pollen placement on the body of the bat (Tschapka et al. 2006; Muchhala and Potts 2007; Muchhala 2008; Muchhala and Thomson 2012; Stewart and Dudash 2015, 2017). Other strategies include a different nectar production schedule (Heithaus et al. 1975; Fleming et al. 1996) or dissimilar energetic qualities of the nectar (Tschapka 2004).

Bromeliaceae is an almost exclusively Neotropical plant family (Benzing 2000), comprising >3900 species (Gouda et al. 2018). The main pollinators in this family are hummingbirds (Krömer et al. 2006), but chiropterophily seems to have evolved multiple times within the family. Three genera (Pseudalcantarea, Stigmatodon and Werauhia) might even be completely bat-pollinated (Aguilar-Rodríguez et al. 2019). Members of the Glossophaginae subfamily (Phyllostomidae), especially the bat genus Anoura, are frequently reported as pollinators of these bromeliads (Aguilar-Rodríguez et al. 2019).

Many bromeliad species are sympatric and share pollinators (i.e. Sazima et al. 1996; Varassin and Sazima 2000; Wendt et al. 2008). However, pollinator sharing in chiropterophilous bromeliads has only been studied in two genera in Brazil (Alcantarea and Vriesea; Martinelli 1994; Sazima et al. 1995, 1999; Wendt et al. 2008). These studies found that some bat-pollinated bromeliad species share only one or two bat species as pollinators, but they did not investigate in detail the pollination ecology of the studied species, other than the probable role of staggered phenology.

The aim of this paper is to study the floral phenology, pollinators and floral rewards of four sympatric bromeliads, which belong to three different genera Pitcairnia, Pseudalcantarea and Werauhia. The characteristics of the putative pollination syndrome of these species are reminiscent to chiropterophily, suggesting that all of them might be bat-pollinated. We therefore predict that bats are the pollinators of these bromeliads, and that they will possess similar adaptations in order to attract the animals (absence of ethological isolation; Grant 1994; Baack et al. 2015). We expect that these species would possess similar strategies reported for other chiropterophilous plants to decrease pollinator competition, such as staggered flowering or mechanical isolation (i.e. deposition of pollen on different parts of the body of the bat as a result of different floral morphology). Moreover, if the bromeliads share a flowering period, nightly separation of the time of anthesis (Howell 1977) could promote partitioning of the resident bat pollinators.

Methods

Study site

This work was conducted from August 2014 to March 2016, in the state of Veracruz, Mexico, at two sites in the Ejido Adolfo Ruiz Cortines (18°32′03.55″N, 95°08′18.54″W, 1034 m a.s.l. and 18°32′40.04″N, 95°09′2.20″W, 1082 m a.s.l.), located in the Los Tuxtlas Biosphere Reserve on the south-eastern slopes of the San Martín Tuxtla Volcano (San Andrés Tuxtla municipality). In both sites, all the studied bromeliad species occur naturally and in proximity to each other. Average annual temperature is 18 °C and average annual rainfall is ~4000 mm (Soto 2004). The rainy and hot season occurs from June to October, while windy and colder weather is frequent from December to February. The original vegetation is a humid montane forest within a matrix of secondary vegetation, which is now surrounded by a matrix of secondary vegetation, as well as by agricultural cropland and cattle pastures (Castillo-Campos and Laborde 2004). One of the studied species (Werauhia noctiflorens) is very rare, and thus some individuals had to be translocated from other forest fragments near the study sites. These were placed on tree trunks at a height of ~1.50 m, which is similar to that of other individuals that have been found. Some individuals of Pseudalcantarea viridiflora and Werauhia nutans were relocated at a lower height in order to facilitate the study. At around 20 m from the first study site, we placed a ‘plant house’ with a mesh, in order to isolate some bromeliad individuals from pollinators while still exposing the plants to the same environmental conditions of light, temperature and humidity.

Studied species

Pitcairnia recurvata is a terrestrial bromeliad from the Pitcairnioideae subfamily, which reaches a height of ~0.8–2 m (Espejo-Serna et al. 2005). It has zygomorphic flowers with a curved corolla and whitish petals. This species is widely distributed and abundant in the study area (Fig. 1A). Pseudalcantarea viridiflora is an epiphyte of ~0.65–1 m in height (Krömer et al. 2012), the leaves of which form a medium-sized tank for water storage. Its flowers are actinomorphic, presenting a helicoiform and subsessile corolla with greenish petals (Fig. 1B). Werauhia noctiflorens is an epiphytic bromeliad of up to 0.70–0.90 m that also has a medium sized tank (Krömer et al. 2007), but zygomorphic cup-like flowers with white to green petals (Fig. 1C). Finally, W. nutans is a small epiphytic bromeliad, which reaches ~0.30–0.60 m in height (Espejo-Serna et al. 2005) and also has a zygomorphic cup-like corolla with white to green petals (Espejo-Serna et al. 2005) (Fig. 1D). These four bromeliads show many floral characteristics generally found in chiropterophilous bromeliads (e.g. whitish to greenish corollas, faint odour, crepuscular anthesis and hexose-rich nectar; Krömer et al. 2007, 2008; Aguilar-Rodríguez et al. 2019).

Phenology and anthesis

We monitored flowering in the four species through bimonthly visits to the study site during 2014 and 2015. The in situ experiments and pollinator assessment were conducted during the flowering peak of each species. For each species, we monitored at least 10 individuals from development of the floral buds to appearance of the fruit capsules. We marked all observed plants, as well as their buds, with a permanent marker on the floral bracts. We recorded changes in flower morphology, time of anthesis (i.e. at full opening of the corolla, with the gynoecium completely turgid, so that the flower can receive a visit from a pollinator), flower senescence and time of anther dehiscence (Martinelli 1994; Cascante-Marín et al. 2005). Furthermore, to estimate the duration of stigma receptivity, we recorded changes in the colour of the stigma and turgidity of the style by adding drops of hydrogen peroxide every 2 h after the beginning of the anthesis, until there was no perceivable bubble formation on the stigma surface (Martén-Rodríguez and Fenster 2008).

Breeding system

To assess the breeding system of the four bromeliads, we performed four standard pollination treatments with at least 10 flowers per treatment per species. The individuals of the epiphytic species were planted in pots with gravel and placed in a ‘plant house’ in order to exclude all visitors. For P. recurvata, we covered the stigma in the field using small plastic tubes (drinking straw pieces) of ~2 cm in length [seeSupporting Information—Fig. S1], which were attached to the style with cotton thread at both ends (Aguilar-Rodríguez et al. 2014). The treatments were (i) spontaneous self-pollination (a non-manipulated flower), (ii) self-pollination, (iii) cross-pollination (see details in Aguilar-Rodríguez et al. 2014) and (iv) a control treatment (flowers exposed to pollinators) as a reference.

We quantified the number of fruits developed in order to calculate the fruiting success (fruit set) of each treatment, and then manually counted the number of seeds produced. The fruit capsules from P. recurvata contain many small seeds (~2000–3000), which makes manual counting impractical. In order to estimate the number of seeds for each treatment only in this species, we therefore used seed mass as a surrogate of seed set (Martén-Rodríguez and Fenster 2008) by using an analytical lab balance (Model: Pioneer PA124, readability: 0.1 mg, repeatability: 0.1 mg; Ohaus, USA) to weigh 1000 seeds in g (from 30 different Control fruits, from 10 individuals), and then use this value to estimate the number of seeds in the fruits of P. recurvata. We only weighted the seeds by themselves, without any adjacent tissue from the fruit capsule.

Since the preliminary exploration of the data suggested a non-normal distribution, a Kruskal–Wallis test with Tukey type comparisons (Dunn’s method) was used to assess differences between fruit and seed set from different treatments in all of the species (Paggi et al. 2007; Schmid et al. 2011a). Any treatment that produced no fruit as a result was excluded from the analysis. Due to stochastic events during the fieldwork, including poor climatic conditions as well as some human interference with the studied individuals, the final number of manipulated flowers was unbalanced among treatments and species. For all analyses, we used SigmaPlot ver. 12 and Statistica version 7.

To determine the self-compatibility of each species, we used the index of self-incompatibility (ISI; dividing the mean seed set of Autogamy by the mean seed set of Xenogamy). In this index, values between 0.30 and 1.00 denote self-compatibility (Zapata and Arroyo 1978; Wendt et al. 2001; Kamke et al. 2011). To determine if any of the bromeliads suffered from limited pollen supply, the pollen limitation index (PLI) was calculated as shown in Larson and Barret (2000) and Becker et al. (2011). Negative values denote pollen limitation, i.e. more seeds in the Control fruits than in the Xenogamy fruits.

Nectar

The nectar production pattern during anthesis was determined for each bromeliad species. We used microcapillary tubes (10 and 80 µL) to extract the accumulated nectar from a flower every 2 h, beginning 2 h after anthesis and continuing until production decreased to zero. We also measured nectar sugar concentration using a hand-held refractometer (Model HRT32, range: 0–32 %, weight/weight, precision: 0.2 %; A. Krüss Optronic, Germany). To obtain the total nectar volume per flower, we summed the partial nectar volumes (Tschapka and von Helversen 2007) and also calculated the quantity of sugar contained in the nectar, using conversion tables (Kearns and Inouye 1993; Galetto and Bernardello 2005).

While this approach does not assess the non-sugar constituents of the nectar (Inouye et al. 1980), the quantity of sugar in the nectar is a close approximation of the energetic value of the reward offered by each species to their pollinators. To include plant density, we calculated the relative abundance of the four studied bromeliads by counting the flowering individuals in five randomly selected plots each of 20 m × 10 m (200 m² per plot, modified from Krömer and Gradstein 2003) in natural forest fragments of the study area. Furthermore, we counted the flowering individuals in four transects of 2 m × 20 m (200 m² per transect) along a trail that delimits the community of Ejido Adolfo Ruiz Cortines. We only counted epiphytic species growing below 5 m in height on the trees, and only those for which we could determine the species. The obtained density values were multiplied by the mean mg of diluted sugar produced by species (transformed to kJ with a conversion factor of 15.91 kJ; Winter et al. 1993), and then divided by the number of days among subsequent flowers in the same individual, calculated for each species (see data in the ‘Results’ section below), assuming that each bromeliad species produces one flower per night on average, in order to facilitate comparisons among the four species.

Due to the wet climatic conditions that prevailed during most of this study, the nectar measurements for P. viridiflora, W. noctiflorens and W. nutans were taken in a greenhouse in Xalapa, Veracruz, under similar conditions of humidity and light. All plants were moved into the plant house several weeks before the beginning of flowering in order to facilitate acclimation and reduce the stress for the plants. No further treatments were applied to these plants. We compared the nectar volume and mg of diluted sugar of the nectar between species, using a Kruskal–Wallis test (Fleming et al. 1996).

Capturing and recording pollinators

To identify the potential pollinators of the bromeliads, we captured bats (authorized under permit number 01953/14 from the Secretaría del Medio Ambiente y Recursos Naturales) using two mist-nets (6 × 2.6 m and 12 × 2.6 m). The nets were set up close to flowering individuals (Martinelli 1994; Kaehler et al. 2005; Tschapka and von Helversen 2007) or along trails potentially used by bats as flight paths (Wilson et al. 1996), including the trail in which the number of flowering bromeliads was quantified.

At least one net was kept in close proximity (1–1.5 m) to the flowering bromeliads every night. We avoided netting during the full moon (Morrison 1978) and for more than three consecutive nights. After 2 h without capture, trapping was stopped (Santos-Moreno et al. 2010). Sampling effort was quantified as suggested by Straube and Bianconi (2002) in m² h⁻¹. In order to increase the sample size for potential bat visitor species, we also used a harp-trap in the entrance of a cave that serves as a roost for many bat species.

All captured bats were identified using the keys provided in Medellín et al. (2008) and Reid (2009) and subsequently released. We followed the taxonomical classification of Simmons (2005), Mantilla-Meluk and Baker (2010) and Cirranello et al. (2016). For all bats, we registered sex, age, weight (g) and forearm length (mm).

We searched for pollen carried in the fur of the bats, especially on the head, back or breast areas, as well as on the wings (Caballero-Martínez et al. 2009). We then collected the visible pollen with a moist brush and rinsed the bristles in 2 mL Eppendorf tubes with at least 1.5 mL of 70 % ethanol (Voigt et al. 2009). We took a reference sample from the anthers of each bromeliad species. We used a microscope at ×100 and ×400 (Zeiss, Germany, Model: 426126) for comparing pollen with the samples taken from the bodies of the bats (Herrera and Martínez-del-Río 1998; Muchhala and Jarrín-V 2002). We analysed the samples using presence/absence categories (Voigt et al. 2009). For this, we agitated each vial in order to resuspend the grains, extracted six drops and analysed these under the microscope. For each drop, we counted the pollen grains using the ‘scan’ technique (Caballero-Martínez et al. 2009) and thus determined the frequency of bromeliad pollen. The bromeliad pollen could be easily distinguished from the pollen of other families present in the samples, but it is difficult with some genera at subfamily level (Silva et al. 2016; Souza et al. 2017). In this case, the only overlapping species from the same genus were both species of Werauhia, and no bat was captured at that moment. Each sample was categorized as positive for bromeliad pollen when we found at least three bromeliad pollen grains in the examined drops (Heithaus et al. 1975). Finally, we summed all of the positive samples and calculated the percentage of bromeliad pollen presence.

We directly observed flowers (of each species) for at least 12 h during daylight (early morning to late afternoon), to check for diurnal floral visitors as possible pollinators. In addition, we recorded the nocturnal floral visitors of the four bromeliads in the field, using an infrared-sensitive camera (DCR-SR65; Sony Corporation, Japan) with an infrared light (HVL-HILR; Sony Corporation, Japan), as well as a modified Go Pro Hero 3 cam (Go Pro Inc., USA) with attached infrared LED lights. The cameras were placed on a tripod at a height of 1.3–1.5 m from the ground, and ~1–1.5 m from the open flower. Due to the unfavourable weather conditions during most of the fieldwork, as well as technical constraints, the cameras only recorded for 3–3.5 h per night. However, this period encompassed at least the first peak of nectarivorous bat activity during the night (Heithaus et al. 1974, 1975; Quesada et al. 2003), 3 h after sunset (typically from 1900 to 2200 h).

We considered a floral visitor, in its broadest meaning, to be any animal that could make contact with the floral parts (sensuSchmid et al. 2011b); however, in order to be considered a legitimate pollinator, an animal had to make physical contact with the reproductive parts of the flower. By introducing the head into the corolla, bats tend to make contact with the anthers and stigma (see Slauson 2000). For each group of animals, we determined the frequency of visits (in visits per flower per hour; Schmid et al. 2011a), the number of legitimate visits and the behaviour during each visit (approach, number of flowers visited and the sequence on the inflorescence, taking of rewards other than nectar; Montalvo and Ackerman 1986; Martinelli 1994). The duration of 10 randomly selected hovering visits to each bromeliad species was evaluated using the program Adobe Premiere CS5 (Adobe Systems Incorporated, USA), by reducing the original speed of the recordings to 10–13 % of normal speed. We determined the duration by quantifying the number of frames where the mouthparts were in the corolla. We inferred the bat species recorded in the videos based on the relative size of the bats in relation to the flower, in addition to visible morphological characteristics, such as the presence of an uropatagium, and their behaviour during the visit (to differentiate frugivorous, non-hovering species from nectarivorous species that approach flowers by hovering flight; Fischer 1994).

Results

Phenology and anthesis

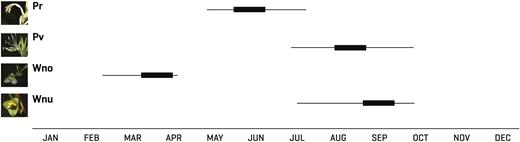

The flowering peaks of the studied species presented little overlap, although it is possible to find individuals of three species flowering during the rainy season (June to October) (Fig. 2). The first species to flower was W. noctiflorens, beginning at the end of February and extending into March–April. Some individuals of W. nutans began to flower between March and April, particularly at higher elevations (1220 m a.s.l.), but the main flowering period for this species began in June and lasted until October. Pitcairnia recurvata initiated flowering in mid-May and flowered until mid-July. Flowering in P. viridiflora began at the end of July and lasted until October, but most individuals flowered during September. Over the 2 years of observation, the flowering period remained largely constant for most species, with the exception of W. nutans, for which the period varied over several months between years.

Pitcairnia recurvata individuals presents 26 ± 9.05 flowers (coefficient of variation (CV): 34.08 %; range: 14–46 flowers, n = 34 individuals) over its flowering time, producing one (maximum three) flower every 1.53 ± 0.73 days. Time of anthesis in this species is around 2100 h, which is one and a half hours after sunset at the time of flowering. The upper petal protrudes above the two others, and the stamina hang down, with the style, situated in parallel to the lower petals. The stigma seems to already be receptive by the time the petals open completely. No conspicuous floral scent was perceived. A newly opened flower prevents self-pollination by maintaining a distinct separation between the stigma and the anthers. The style withers at around 0600 h, hanging even lower than the stamina when newly opened. At this time, 9–10 h after anthesis, the stigma points downwards and this spatial arrangement again prevents any contact with the anthers.

The inflorescence of P. viridiflora presents 15.40 ± 3.44 flowers, (CV: 22.34 %; range: 10–22 flowers, n = 10 individuals), producing one (maximum two) flower every 2.09 ± 1.20 days. The flower opens at around 1900 h, ~20 min before sunset. Pollen is already available at the time of the anthesis, and some grains are already deposited on the surface of the still unreceptive stigma. Stigma receptivity begins 20–30 min later when the stigma gets visibly wet. The floral parts lose turgidity (especially the style), and the stigma becomes dark in color at 15–17 h after anthesis.

An inflorescence of W. noctiflorens presents a total of 6.73 ± 1.67 flowers (CV: 24.81 %; range: 3–9 flowers, n = 15 individuals), producing one (maximum two) flower every 1.21 ± 0.42 days. The time of anthesis is around 1800 h, nearly 30 min before sunset during peak flowering. Dehiscence of anthers occurs rapidly following anthesis, while the stigma is receptive between 20 and 30 min after anthesis, as shown by the wet appearance of the stigma. A ‘sweat-like’ odour is slightly noticeable with the beginning of anthesis, but it only is highly perceptible at ~2 h after anthesis. The corolla closes at around 0600 h, nearly 12 h after anthesis. At this time, with the petals already closed, the stigma touches the anthers.

Werauhia nutans presents 8.02 ± 2.62 flowers per inflorescence (CV: 32.66 %; range: 3–14 flowers, n = 45 individuals), producing one flower every 3.87 ± 1.21 days, which opens at around 1940 h, nearly 10–15 min after sunset. As with the flowers of W. noctiflorens, dehiscence of anthers occurs right after the anthesis, followed by stigma receptivity <30 min after. Only a faint odour is perceptible throughout the night. The flowers close 10–12 h later, contacting the stigma as in W. noctiflorens.

Breeding system

We found that all four bromeliad species are self-compatible, producing seeds regardless of the origin of the experimentally provided pollen (self- or cross-pollination; seeSupporting Information—Table S1) (ISI > 0.30). The results indicate that, in any case, there was no difference in seed sets among treatments, including the natural seed set of a flower exposed to natural pollinators (P. recurvata: H = 1.275, df = 2, P = 0.529; P. viridiflora: H = 5.904, df = 3, P = 0.116; W. noctiflorens: H = 5.223, df = 3, P = 0.156; W. nutans: H = 0.959, df = 3, P = 0.811). However, the natural fruit set of all species does not reach 80 %, regardless of their self-compatibility. Pitcairnia recurvata seems to depend on the visit of a pollinator to produce seeds and develop fruits. Interestingly, the PLI indicates that P. recurvata is not pollen limited, as with W. nutans, but P. viridiflora and W. noctiflorens seem to be limited (positive values in PLI). Table 1 summarizes the results of the pollination experiments designed to determine the breeding systems of the four bromeliads.

Nectar

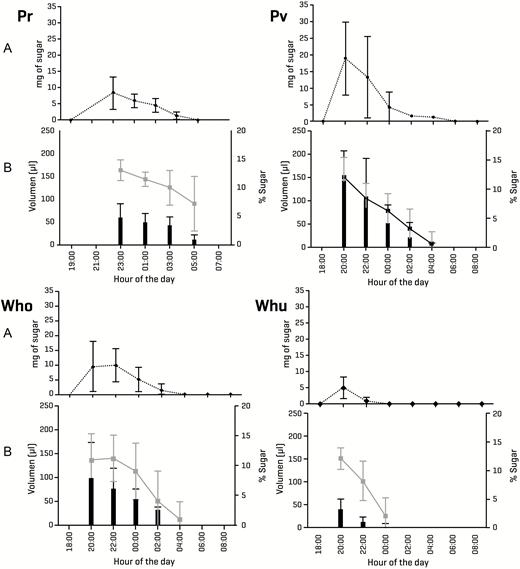

Nectar production varies highly among the four studied bromeliad species. The overall pattern shows that the highest nectar volume and concentration both occur in the early hours of the evening, following anthesis. Even in P. viridiflora and in both Werauhia species, which all open their flowers during the afternoon, nectar production is strictly nocturnal (Fig. 3).

Although there are significant differences in the nectar traits among the four species (Table 2; seeSupporting Information—Table S1), the overall values are broadly similar among most species. Pseudalcantarea viridiflora and W. noctiflorens produce nectar in similar quantity and of comparable quality, while P. recurvata shows values that fall in between those of the former two species. In contrast, W. nutans plants produce nectar in the lowest quantity and of the lowest quality (less volume, extremely dilute and therefore with a very low sugar content).

The density of the four bromeliad species in their natural habitat differed widely. Pitcairnia recurvata has a density of 1011 individuals per ha, while P. viridiflora has 106 individuals per ha. The most abundant species is W. nutans, with 1439 individuals per ha, and the least abundant is W. noctiflorens, with 50 individuals per ha. Considering these data, the estimated values for energy density in the habitat are as follows: P. recurvata offers ~212.76 kJ ha⁻¹ day⁻¹; P. viridiflora: 16.60 kJ ha⁻¹ day⁻¹; W. noctiflorens: 23.19 kJ ha⁻¹ day⁻¹; and W. nutans: 74.32 kJ ha⁻¹ day⁻¹.

Capture and recording of bats

We captured 144 bat individuals, distributed in 19 species belonging to three families, with a sampling effort of 53 757 m² h⁻¹ over 33 nights, and one night of harp-trapping over 4 h. These nights were distributed over the peak of the flowering season for each species (August–September for P. viridiflora and W. nutans, June for P. recurvata, and March for W. noctiflorens). The bat species captured were: Momoopidae: Mormoops megalophylla (1 individual), Pteronotus parnellii (1); Phyllostomidae: Anoura geoffroyi lasiopyga (7), Artibeus jamaicensis (6), Artibeus aztecus (1), Artibeus toltecus (59), Carollia sowelli (11), Desmodus rotundus (20), Diphylla ecaudata (2), Glossophaga soricina (8), Hylonycteris underwoodi (1), Sturnira hondurensis (10); Vespertilionidae: Bauerus dubiaquercus (2), Eptesicus furinalis (1), Myotis cf. auriculus (1), Myotis cf. californicus (4), Myotis elegans (1), Myotis keaysi (2) and Myotis nigricans (6).

We found pollen on the fur and/or wings of A. geoffroyi, G. soricina and H. underwoodi. These three species belong to the specialized nectarivorous Glossophaginae subfamily of the Phyllostomidae and were captured during the flowering of P. recurvata and P. viridiflora. No nectarivorous bat was captured during the flowering of W. noctiflorens, although visits to the plant were recorded with the camera (see Table 3). The pollen from both species was easily distinguishable between them by using the reference pollen collected directly from flowering plants. In addition, at the site, the flowering of both bromeliads did not overlap. Anoura geoffroyi individuals were captured during the flowering of both P. recurvata and P. viridiflora. At P. recurvata, three out of five of the captured individuals carried abundant pollen on the dorsal region (Fig. 4A). During the flowering of P. viridiflora, the pollen loads were less conspicuous and found on the back and wings of two bats. Glossophaga soricina was only captured during the flowering of P. viridiflora, and pollen was mainly carried on its uropatagium (Fig. 4B). Hylonycteris underwoodi was caught only on one night during the flowering of P. viridiflora, with a low quantity of pollen found on its uropatagium. The three A. geoffroyi individuals captured during the flowering of P. recurvata carried 2883 ± 0.002 pollen grains, all from P. recurvata. In addition, one A. geoffroyi carried pollen from P. viridiflora (15 grains, 75 % of the total grains identified). Of the eight individuals of G. soricina that carried pollen, only 30.77 % (12.63 ± 17.03 grains) came from P. viridiflora, meaning 70 % of the pollen grains were not from a member of the Bromeliaceae family (being P. viridiflora and W. nutans the only nocturnal bromeliads flowering at the site, with pollen grains easily discernible between them). In the samples of H. underwoodi, only three pollen grains could be identified, two of which corresponded to P. viridiflora.

A total of 131 h of video recordings were made in order to identify the pollinators of the four bromeliads. Based on the captured bats and the morphological characteristics of the recorded individuals, we suggest the possible pollinator species of the three bromeliads that received bat visits (Table 3; seeSupporting Information—Video S1–S3).

Anoura geoffroyi was the only pollinator registered for P. recurvata in 41 h of recordings. During a visit, the bat first touches the distal part of the flower (the tip of the corolla), initially making contact with the stigma. Later, by following the corolla tube to reach the nectar at the base of the flower, it makes contact with the anthers with the upper portion of the head and in the nototribical portion of the body (Fig. 5A). When leaving, the bat drops from the flower, moving the whole inflorescence as a consequence. The whole visit takes less than a second.

We recorded the smaller bat species, either G. soricina or H. underwoodi, visiting P. viridiflora over 32 h of recordings, with the former of the two bat species the most likely visitor on most occasions according to our captures. These smaller bats approach the flower by hovering and push the whole inflorescence during its visit, which lasts around 1 s (Table 3). As a result of this movement, the uropatagium touches both the stigma and the anthers (Fig. 5A). Occasionally, the bats also hang down from the flowers after arriving; extracting the nectar and licking the pollen adhered to the wings before leaving (Fig. 5B).

We recorded probably A. geoffroyi visiting W. noctiflorens during this flowering period, in 28 h of recordings. During these visits, the bat approaches the flower and inserts its whole head into the corolla. Its forehead and cheeks thus make contact with the stigma and anthers (Fig. 5C). After about half a second, it pushes back its body and leaves the flower. The probable site where the pollen would adhere to this bat would therefore be on the forehead. The bat A. geoffroyi performed legitimate visits to both P. recurvata and W. noctiflorens (Table 3) in almost every approach, probably pollinating the flowers, whereas the smaller bats that visited P. viridiflora sometimes failed to pollinate it.

No bats were recorded visiting W. nutans in over 30 h of recordings. At least half of the recording effort for this species was made after the flowering period of P. viridiflora. Recordings covering flowers of W. nutans and P. viridiflora with the same camera failed to show any legitimate pollinator of W. nutans.

Many Halictidae bees have been recorded visiting the anthers of P. recurvata during the morning following anthesis; however, most of the stigmas had pollen at that time and the bees made only sporadic contact with the stigmas, some even trying to collect pollen from them. Considering that both Werauhia species close their corolla at sunrise, and that senescence changes the orientation of the stigma in both P. recurvata and P. viridiflora, in addition to our observations regarding the duration of stigma receptivity, diurnal floral visitors can be ruled out as pollinators of any of the studied bromeliads.

Discussion

The four studied bromeliads occur sympatrically and share nocturnal flowering habits, with three of them confirmed as pollinated by bats, and one seemed to rely in selfing more than in the visit of pollinators as a reproductive system. Even considering that all species are self-compatible (ISI = ~0.90; Ferrer et al. 2009), they seem to have evolved different strategies to decrease competition for their bat pollinators, including a staggered flowering season, different pollen placement sites on the bodies of the bats and differences in the nectar offered as a reward. It is interesting, considering that at least the most frequent pollinators of P. viridiflora, small-sized nectarivorous bats, may be absent as a frequent visitor for either W. noctiflorens and the pollinator-dependent P. recurvata. Competition for pollinators occurs when at least one species suffers decreased reproduction because of sharing pollinators (Waser 1978), and the mechanisms that lead to this include a preference of pollinators for one plant species over the other, or interspecific pollen transfer (Morales and Traveset 2008). Sympatric bromeliads may segregate its flowering through the year to avoid competition, but floral morphology coupled with nectar offering might play an important role as well.

These differences could reflect the dependence of each bromeliad species on its pollinators. In an assemblage of sympatric bromeliads, pollen deposition could be important to the segregation of species (Wendt et al. 2001, 2008; Palma-Silva et al. 2015). Post-pollination barriers in Bromeliaceae are less effective among closely related species or even between species with ‘wet stigmas’ (Matallana et al. 2016), making the strategies to avoid competition and pollen misplacement to foreign stigmas very important to the overall fitness of the species. Self-compatibility is ancestral in Bromeliaceae (Wolowski and Freitas 2015) and an evolutionary reversal from self-crossing is unlikely in most angiosperms (Igic et al. 2008). In this sense, it can be expected that all of the studied species are self-compatible (but see Encholirium spp. in Christianini et al. 2013 and Hmeljevski et al. 2017).

While it is self-compatible, P. recurvata seems to be a facultative xenogamous species, as it seems to lack a mechanism for self-pollination (also see Table 1). This species presents a distinctive spatial separation between anthers and the stigma. This herkogamy prevents nocturnal self-pollination (P. A. Aguilar-Rodríguez, pers. obs.). By the time the floral parts lose their turgor, the stigma is already covered by pollen as a result of pollinator visitation. However, even in the morning, the stamina loses turgor later than the style, conserving the herkogamy even longer through the morning.

The results indicate that P. recurvata experienced no pollen limitation, and pollination in this species may thus be non-restricted at our study site, even if the species seems to be pollinator dependent. Furthermore, this species might occasionally experience self-pollination via geitonogamy since, on some nights, individual plants produced two or even three flowers simultaneously. We consider that P. recurvata is adapted to bat pollination (see also Pitcairnia albiflos; Wendt et al. 2001), taking into account the time of anthesis that excludes diurnal nectar thieves (see Christianini et al. 2013; Marques et al. 2015; Aguilar-Rodríguez et al. 2016; Queiroz et al. 2016) and the energetically high reward that may promote reliable bat visitation. The presence of diurnal floral visitors that are detrimental to the fitness of the plant, e.g. by wasting pollen (Thomson and Wilson 2008), might have reinforced the strong adaptation of P. recurvata towards chiropterophily. In addition, the reduction in nectar volume over the course of the night, also found in other chiropterophilous species from other families (Fleming et al. 2009), prompts a higher number of flower visits in order to meet the energetic needs of the bats (Howell 1979; Tschapka and von Helversen 2007).

Both Pseudalcantarea and Werauhia are genera that could be exclusively bat-pollinated (see Tschapka and von Helversen 2007 and Aguilar-Rodríguez et al. 2014 for other examples in these genera), but the species studied so far (including the ones in this study) are facultative autogamous, capable of self-pollination, which might serve as a strategy to guarantee reproduction (Stebbins 1957; Kennedy and Elle 2008; Busch and Delph 2012). Self-crossing may contribute to reproductive isolation by reducing heterospecific pollen transfer/deposition among species (Fishman and Wyatt 1999; Wendt et al. 2002; Matallana et al. 2010), since the deposition of pollen has important implications for overall fitness (Matallana et al. 2010; Ashman and Arceo-Gómez 2013).

Nevertheless, there are differences in terms of the time at which self-pollination occurs during anthesis. Both Werauhia species self-pollinate at the end of the anthesis when the corolla closes early in the morning. In the event of any cross-pollen grains reaching the stigma during the night, the pollen tubes will already have grown and reached the ovules (Martinelli 1994; Matallana et al. 2016). In contrast, P. viridiflora flowers usually already show their own pollen at the proximal portion of the stigma prior to anthesis, so it is less probable that they receive any other conspecific pollen before self-pollination occurs. This results in at least some ovules, that otherwise would have been available for cross-pollination, being self-pollinated (Lloyd 1992). This is important because Werauhia species and P. viridiflora fruit production via self-pollination occur at different moments of the floral lifespan, although this has a similar effect on the seed set since W. noctiflorens and P. viridiflora are both pollen limited at the study site. This limitation might be due to the lack of sufficient conspecifics in the vicinity to produce maximum seed set (through some form of self-depression; Lloyd 1992). However, many factors can cause pollen limitation, e.g. pathogens, nectar thieves, herbivory and seed predation (Gómez et al. 2010), being nectar thieves and herbivores quite common in P. viridiflora. In addition, quantifying pollen limitation at seed set may underestimate the strength of this phenomenon, since the cross-pollination treatments with supplemented pollen of various individuals could cause the plant to assign resources to the seeds of best quality (Gómez et al. 2010; Harder and Aizen 2010). For instance, Werauhia gladioliflora seems not to be pollen limited and is very abundant in a habitat with numerous bat pollinators (Cascante-Marín et al. 2005; Tschapka and von Helversen 2007).

A staggered flowering pattern could represent a diffuse facilitation between co-flowering plants that share a limited number of pollinators, since a constant supply of food can help to maintain a stable pollinator community (Feinsinger 1987; Cortés-Flores et al. 2017) and bat-pollinated species present longer flowering periods than species with other pollinators (see Cortés-Flores et al. 2017). Allochronic isolation among co-flowering plants is likely to occur in communities under strong pollen limitation (Devaux and Lande 2009) and two of the studied species (W. noctiflorens and P. viridiflora) are separated by several months in their flowering peaks.

Different floral designs in chiropterophilous plants produce differing patterns of pollen deposition on their bat pollinators (e.g. Stewart and Dudash 2016), which is crucial for correct pollen transfer (Stewart and Dudash 2017). Since the floral morphology of P. viridiflora is very different from that of Werauhia, there is a mechanical isolation between these genera: Werauhia deposits pollen on and receives pollen from the forehead of the bats, whereas P. viridiflora utilizes the uropatagium (see Fig. 5) or the wings (as evidenced by the captured individual of A. geoffroyi).

Werauhia nutans, a very abundant species with no pollen limitation, may be synchronopatric with other chiropterophilous species by using self-pollination and clonal reproduction as its principal reproductive strategies. Only W. nutans has a major overlap with all other species, since some individuals flower early in the year, being synchronopatric with the last flowering individuals of W. noctiflorens. Later in summer, W. nutans flowering overlaps strongly with the end of the flowering season of P. viridiflora. However, no nectarivorous bats were captured nearby any flowering plant of W. nutans, neither recorded, even if similar sampling effort were used for each species. Since no bat visits were recorded in W. nutans, we have no direct evidence for competition between these species, although it is likely to exist. Based on floral morphology, pollen deposition on W. nutans should correspond to the pattern in W. noctiflorens, and thus there is no guarantee of mechanical isolation among these closely related species. Competition mediated by pollinators may potentially also influence self-pollination in a species sharing pollinators with other species (Mitchell et al. 2009 and references therein), favouring the self-compatible breeding system (Fishman and Wyatt 1999). This is consistent with its relatively small floral parts in relation to other members of the genus, which may favour self-pollination (Jarne and Charlesworth 1993), as well as the poor nectar reward offered by individual plants. Both W. noctiflorens and P. viridiflora have a higher nectar production than W. nutans, and bats might therefore favour the former species, even where W. nutans is highly abundant. The nectar volume of <60 μL per night in W. nutans is extremely low for bat-pollinated bromeliads and might not entirely cover the energetic cost for a visiting bat. We suggest that W. nutans largely favours self- over cross-pollination, and saves resources by producing less nectar than the other, more bat-dependent species. Perhaps the occasional visit by bats, which we did not observe in this study, is sufficient to maintain the genetic variability within the population.

One of the main questions resulting from our results is about why, at first glance, the small nectarivorous bats are absent from the recordings of both P. recurvata and W. noctiflorens, but frequently recorded as visitors of P. viridiflora. Both A. geoffroyi and G. soricina visit many flowering species (Sánchez-Casas and Álvarez 2000; Caballero-Martínez et al. 2009), but the ‘core nectarivorous bats’ at higher elevations are comprised by the genus Anoura (Fleming et al. 2009). We know, at least, that G. soricina and H. underwoodi are present during September–October because of our mist-netting trapping results, and that A. geoffroyi is present almost year around. Comparing the video recordings from P. viridiflora from Los Tuxtlas with recordings of the same species being visited by A. geoffroyi in another location in central Veracruz, Mexico (P. A. Aguilar-Rodríguez et al., unpubl. data), we discarded that the bats recorded visiting P. viridiflora during this study were Anoura, and likely, either G. soricina or the less abundant H. underwoodi.

Mechanical isolation and time of anthesis might play roles in partitioning of the nectarivorous bat species between P. recurvata and P. viridiflora in the studied area. The nectar extraction efficiency of G. soricina is reduced when this species visits flowers with a nectar tube (González-Terrazas et al. 2012; see also Tschapka et al. 2015), and the corolla morphology of P. recurvata contrasts with the open corolla of P. viridiflora that exposes the nectar to any floral visitor (Fig. 1A and B). The floral morphology of P. recurvata alone could at least limit this bat from utilizing this bromeliad. Indeed, when the nectar production of P. viridiflora decreased later at night, G. soricina exhibited a perching behaviour on the inflorescence (Fig. 5B), which might reflect the increased efforts of this species to access the nectar deep down in the calyx. On the other hand, environmental conditions have an effect on the presence and activity patterns of pollinators (Sánchez-LaFuente et al. 2005). The larger Anoura species are particularly well adapted to the nocturnal climatic conditions at higher elevations (Soriano et al. 2002). This also may allow A. geoffroyi to visit P. recurvata flowers that open late at night, in contrast to other bromeliads that are crepuscular (see Aguilar-Rodríguez et al. 2016, 2019), like P. viridiflora. Other explanation could be the specific nectar requirements for each bat species in relation to the nectar offered by the different bromeliads and the competition with other bats for it. It is notable that, taken together the density of plants and the amount of nectar produced, P. recurvata offers ~10 times more energy in its nectar than W. noctiflorens and P. viridiflora, even though these present a high sugar production per flower (Table 2). Being more abundant and growing in clumps, P. recurvata might be a more reliable and less competed nectar source for a bigger nectarivorous bats (and hence, with bigger energetic demands) than P. viridiflora.

A total of seven chiropterophilous bromeliads occur in the humid montane forest of the San Martín Tuxtla volcano (including W. gladioliflora, W. nocturna and W. vanhyningii; Espejo-Serna et al. 2005; Krömer et al. 2013). Together with chiropterophilous plants of other families, e.g. Marcgravia mexicana (Marcgraviaceae), Mucuna argyrophylla (Leguminosae) and Solandra maxima (Solanaceae) (CONANP 2006; P. A. Aguilar-Rodríguez, pers. obs.), these bromeliad species may provide nectar throughout the year as food for a local nectarivorous bat community, which comprises at least three species at the studied site (but see Coates et al. 2017). Anoura geoffroyi seems to be present in the area for most of the year, using the numerous caves for roosting. The presence of G. soricina was confirmed for 2–3 months of the year only, but this species could migrate to different altitudes (McGuire and Boyle 2013). In contrast, H. underwoodi is a rare species, the ecology of which is poorly known (Jones and Homan 1974), but it seems to prefer foraging in the canopy during the rainy season, and in the understory during the dry season (Samudio 2002), making it difficult to obtain reliable data for this species.

In conclusion, the studied bromeliads are self-compatible species that, at least three of them, used nectarivorous bats as pollinators. One of these bromeliads, P. recurvata, needs bat visitation to develop fruits, and accordingly, this species produces the best nectar reward in the habitat in comparison to the other bromeliads. Meanwhile, W. nutans seems to rely on self-pollination and cloning as a reproductive strategy, producing a poor nectar reward at individual plant level, compared to the other species. Taken all this into account, these bromeliads have developed different strategies to share (W. noctiflorens, P. recurvata) and partition (P. viridiflora, P. recurvata) nectar feeding bats as pollinators in the humid montane forest of San Martín Tuxtla volcano, therefore reducing the competition for its pollinators. These strategies include floral morphology, staggered flowering and differences in nectar quantity and quality. This study furthers our understanding of this highly adaptable plant family (Givnish et al. 2007) that possesses a remarkable variety of strategies with which to exploit its pollinators. Time of anthesis, floral morphology and nectar traits seem to be crucial characteristics to determine the main pollinators in Bromeliaceae, highlighting the importance to describe the natural history of the studied plant species, and the variations among sympatric species.

Sources of Funding

This work was supported by the Consejo Nacional de Ciencia y Tecnología (CONACYT) (grant number 362134 awarded to P.A.A.-R.).

Contributions by the Authors

P.A.A.-R., M.C.M.G., T.K. and J.G.G.-F. designed the research and experiments. P.A.A.-R. and M.C.M.G. conducted the field-work and analysed data. P.A.A.-R., M.C.M.G., T.K., J.G.G.-F. and M.T. wrote the manuscript.

Conflict of Interest

None declared.

Supporting Information

The following additional information is available in the online version of this article—

Figure S1. Flower of Pitcairnia recurvata with the stigma covered with a piece of drinking straw. After removal, the style and stigma showed no alteration, and returned to its natural position. In addition, the flower has been emasculated by removing the anthers.

Table S1. Data for the number of seeds per treatment and the nectar measurements, per bromeliad species.

Video S1. Bat visiting a flower of Pitcairnia recurvata, ca. 10 % of original speed.

Video S2. Bat visiting a flower of Pseudalcantarea viridiflora, ca. 10 % of original speed.

Video S3. Bat visiting a flower of Werauhia noctiflorens, ca. 10 % of original speed.

Acknowledgements

We are grateful to J. L. Libreros, E. F. Ventura, P. Díaz, Z. Vallado and E. Pantoja for the help during the fieldwork. To the group ‘Los Clarines’, especially D. G. Limón and family. To L. Ruiz and H. P. Hernández for preparing the photo plates and videos. To A. P. Vovides and S. Galicia for the help to identify the pollen, and O. Sánchez and R. Menchaca for lending lab materials and equipment, as well as a place to store the bromeliads. We thank also to an anonymous reviewer who helped improve the manuscript. The collection permit (SGPA/DGVS/01953/14) was issued by the Secretaría de Medio Ambiente y Recursos Naturales.
