Computational elucidation of nonverbal behavior and body language in music therapy

Abstract

Music therapy has shown efficacy in serious and chronic conditions, mental disorders, and disabilities. However, there is still much to explore regarding the mechanisms through which music interventions exert their effects. A typical session involves interactions between the therapist, the client, and the musical work itself, and to help address the challenges of capturing and comprehending its dynamics, we extend our general computational paradigm (CP) for analyzing the expressive and social behavioral processes in arts therapies. The extension includes bodily and nonverbal aspects of the behavior, offering additional insights into the client's emotional states and engagement. We have used this version of the CP, which employs AI pose estimation technology, image processing, and audio analysis, to capture therapy-related psychometrics and their intra- and inter-session analysis. The CP is applied in a real-world proof-of-concept study, and the results enable us to pinpoint meaningful events and emergent properties not captured by the human eye, complementing the therapist's interpretations. The resulting data may also be useful in other scientific and clinical areas.

Introduction

Music therapy is an arts-based approach used across diverse populations and age groups to address a range of medical situations and enhance well-being. It has been found to be beneficial in various serious and chronic conditions, illnesses, mental disorders, and disabilities. Research has shown its efficacy and potential for inducing therapeutic and psychosocial effects in these contexts (1–19). Moreover, engagement with music has been recognized as a means to improve the quality of life and one's overall well-being, not only for patients but also for healthy individuals. The positive effects of music extend beyond clinical settings, are utilized for research and practice in the social sciences, and offer opportunities to understand and empower individuals, groups, communities, and societies (20–29). Despite the extensive use and positive outcomes associated with music therapy, there is still much to explore and uncover regarding the underlying behavioral mechanisms through which music interventions exert their effects, and on a minute-by-minute micro level (30). Further research is clearly needed in order to gain a deeper understanding of how and why music therapy works in different contexts. This knowledge can help refine and enhance the effectiveness of music interventions (31–33).

The clinical setting in music therapy is a complex environment, where various elements, including the therapist, the client, and the musical work itself, interact dynamically. This interplay involves intricate and simultaneous expressive and social musical, verbal, and gestural behavioral processes that can be challenging to capture and comprehend. Often, these processes are perceived subjectively and interpreted by music therapists, primarily through verbal descriptions, which can influence subsequent analyses and understanding.

To address these challenges and enhance our understanding of arts therapies, a general computational paradigm (CP) has been developed and applied to the art and music modalities (34–37). This CP offers a way to overcome barriers in arts-based fields, by providing a rigorous and quantitative framework for tracking, analyzing, and documenting the actions during the sessions and the underlying dynamic processes. It also enables researchers to conduct exploratory investigations for individuals and collectives, as well as test hypotheses, generate new hypotheses, and discover knowledge grounded in empirical evidence.

Earlier versions of the CP focus on the creation work itself, i.e. the musical work. Here, we expand the CP to address the bodily and nonverbal aspects of the client's behavior. Body language capture and analysis can provide valuable insights into a client's emotional state, engagement, and responses (38–45) during the therapeutic process (46, 47), thus potentially enhancing the understanding of the processes involved in music therapy interventions, and eventually also the effectiveness thereof. For example, a relaxed posture and open gestures may indicate a sense of comfort and receptiveness, while tense muscles, limited movement, or a closed-up posture may suggest anxiety, suspicion, or resistance. All these involve observing and interpreting nonverbal cues such as body movements, gestures, and postures in relation to interventions during the sessions, highly elusive tasks for the human eye (and memory), and hence very difficult to analyze and document.

Here, we focus on the computerized identification, quantification, and notation of the client's bodily and nonverbal states and events of interest and in a real-life situation, that is, the automatic capturing of therapy-related psychometrics, their intra- and inter-session analysis, and the production of concise graphical representation. Related work on computerized analysis of body language in a real-world setting is relatively scarce and mainly focuses on other fields, such as psychotherapy, human–robot interaction, and psychiatry (48–50). Past attempts to represent music therapy sessions graphically were done through manual extraction, transcription, and notation from the session's recording (51–56), where in (54) bodily gestures include hands use and head and torso movements manually identified from a minute-long video.

With the new method at hand, we conducted a real-world proof-of-concept experiment, where subjects underwent one-on-one hour-long sessions with a music therapist, with the goal of enhancing their improvisational creativity and expressivity on a piano keyboard. See the experimental setup in Fig. 1A. Utilizing the method, we are able to pinpoint unusual and meaningful events and identify their exact time of occurrence during the session. It also enables us to identify emergent properties that signify higher-level behavior, which in general cannot be gleaned from mere examination of low-level events, that is, to discover patterns of behavior within a session or across sessions.

Behaviors of interest include torso positions—notably, shoulder and hand poses, as well as the use of the piano keyboard, which manifest levels of expressiveness and openness (43, 54). For example, when improvising with the hands in the same place on the keyboard the hands are “closed” in the same direction vector, while if the left hand is deep into the low keys and the right hand is on the highest keys, the hands are wide open forming a wide-angle “open” posture. Hands use is also of interest. Playing the piano with one hand or with two can help indicate as to the physical state of the client (e.g. cannot play with one of the hands) or the emotional state (e.g. does not want to with both hands or is intimidated by doing so) (53, 54). Putting focus on this behavior enables in depth understanding of the connection between the client and the instrument. Additional postures of interest are of the head tilt-up, straight, or down, which exposes the neck area to different degrees, signifying various levels of confidence or stiffness, and emotion recognition (38, 57). Body self-touch, that is, contact of one's hands on self's body for a light and brief touch or for an extended duration, e.g. facial touching or arm patting, can indicate levels of discomfort or stress and self-comfort moves (58, 59). Uneasiness may also be manifested by standing and walking away from piano keyboard (47, 60).

The kind of rigorous depiction of the session's occurrences that we make possible could lead to defining a potential domain-specific language for similar dynamic analysis in various other areas.

Materials and methods

The computational method

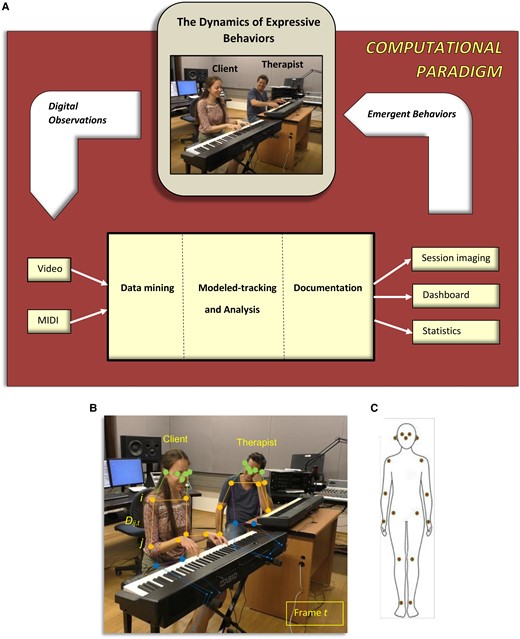

Previous versions of the CP focus on the musical work (34–37), and here, we report on its expansion to handle the body language of the client (see Fig. 1A). We model the system for tracking the psychometrics of interest, which are defined in Table 1. These include body, head and torso poses, self-touch, hands use, and silence and playing epochs (on a piano) all of which have expressive and clinical meaning and importance as summarized in Table 1.

Overview

The inputs to the system are video and musical instrument data interface (MIDI) recordings of the music-based interventions sessions and the musical data therein. Using AI pose estimation algorithms that are deep neural network (DNN) based, we are able to generate a multijoint skeleton of the client and therapist entities from the video recordings (see Fig. 1B and C). Neural network is a broad term referring to a computational model inspired by the human brain's neural structure. It typically consists of layers of interconnected nodes (neurons), including an input layer, one or more hidden layers, and an output layer. A DNN specifically implies a neural network with a more significant number of hidden layers, making it “deep.” It enables the network to capture increasingly complex patterns and enhancing accuracy by modeling intricate relationships, and in tasks like pose estimation, to deduce spatial relationships and positions with advanced pattern recognition.

Here, we employ the bottom-up method, where each body joint is evaluated first and then they are arranged to compose a unique pose, and use the High-Resolution Net (HRNet) neural network (61), which is characterized by maintaining high-resolution representations when estimating postures, trained over the Common Objects in Context dataset (62). HRNet's architecture consists of parallel high-to-low-resolution subnetworks with repeated information exchange across multiresolution subnetworks (see (61) for further details).

The video input data are frame-based; that is, around 180k video frames (with a frequency of 50 frames per second) are generated from a video-recorded session of around an hour. The tools we have developed for mining the data include data processing, selection, and translation (see Fig. 2A). We also have synchronized the playing epochs recorded via MIDI with the video's frames, in order to extract the piano-playing segments, as well as the silence segments. As shown in Fig. 2B, we then computationally track, extract, and analyze the client's bodily behavior, e.g. body language and postures of interest, from the data about the joints and by using image processing techniques. For identifying body poses, we have defined measurements that include the many-to-many distances between the joints (from each joint to every other joint) and then document the extracted bodily features in a graphical representation for the full session. See, for example, the graphs in Figs. 3 and 4, which depict the metrics over time. In addition, we have developed a dashboard tool for interactively analyzing the sessions imaged, as displayed in Fig. S1 and Video S1. An example of the metrics quantification is given in Table 2.

Detailed description

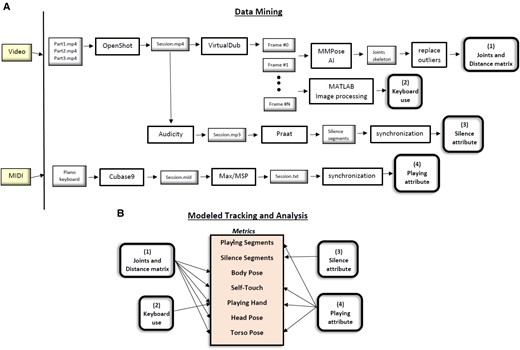

The computational components of the method, as shown in Fig. 2A and B, are now described in detail:

The data mining procedures (see Fig. 2A):

1. Joints and distance matrix: The camera (Panasonic full HD HC-V785) stores the video recording of a typical 50-min-long session as three part mp4 files (with a maximum length of 4.2 MB, i.e. 22:40 min recorded time enabled for each file). These are merged into a single file using the OpenShot (63) software. This file in an input file to VirtualDub (64), which outputs the video as individual frames with a frequency of 50 frames per second, that is, one video frame every 20 ms, resulting in 150K frames for the typical 50-min session (depending, of course, on its actual length). These frames are the input to the MMPose (65) package, which outputs the estimation of the client and therapist's pose, as skeleton joint structures for each frame (see Fig. 1B). The skeleton's joints that are scarcely and illogically displaced by MMPose, named here as outliers, are replaced by the preceding 20 milli frame's joints. From these joints, the many-to-many matrix of the distances between the 17 joints is then computed for each frame: nose, eyes, ears, shoulders, elbows, wrists, hips, knees, and ankles (see Fig. 1C for the joint scheme).

2. Keyboard use: An indication of the client's keyboard use for each frame is estimated using MATLAB's image processing package (66) for computing the percentage of the “white” keys’ pixels (white and its adjacent red, green and blue tones) and in which part of the keyboard. When the keyboard is played on or being touched, the number of identified white pixels decreases as the client's hand(s) occlude the keys.

3. Silence attribute: The silence epochs are extracted by first translating the video recording into mp3 audio file (using the Audacity software (67)) and then using the Praat package (68) to identify the silences. The silence segments are synchronized with the video frames timeline, marking those where silence is detected.

4. Playing attribute: Actual playing is identified by first recording the session using Cubase (69) and then using the Max/MSP software package (70) to translate the MIDI file format into a regular text file for further manipulation. These data are synchronized temporally with the video frames, marking the frames in which the client was actually using the keyboard and playing.

The modeled tracking and analysis procedure (see Fig. 2B and Tables 1 and 2):

• Playing segments—determined by procedure (4).

• Silence segments—determined by procedure (3).

• Body pose—determined by computing joints distance from sitting position.

• Self-touch—determined by computing the spatial position of the wrists in relation to the body parts, derived from the distance matrix (1) and playing attribute (4) (this is necessary since there can be states where the client in engaged both in playing and self-touch).

• Playing hand—determined by computing the spatial wrist position in relation to the keyboard, as derived from the distance matrix (1) and playing attribute (4).

• Head pose—determined by the computation of angles of the head's joints in space (nose, ears), and evaluating the head tilt.

• Torso pose—determined by the distances between the shoulders and the elbows from the distance matrix (1), as well as whether the client is playing (4) and whether the playing is with both hands.

Experimental design

The one-on-one study included a music therapist playing on a piano keyboard and a participant playing on a separate keyboard. Each one of the four subjects participated in six sessions of ∼50 min long, each of which began and ended with a free improvisation. In between, the subjects were given exercises and tasks by the therapist, to execute alone or accompanied by him, with the aim of improving their creativity and expressivity.

An open discussion was held after each improvisatory exercise, in order to gain insight into the creative and expressive processes that took place during the improvisation. See the detailed and formal protocol in Fig. S2.

The sessions were not defined to the subjects as therapeutic. However, they did carry a flow similar to music therapy sessions and thus served as a good model to simulate the musical, verbal, and gestural occurrences that are typical in musical therapy sessions. The participants were healthy/normal subjects, 22- to 35-y-old females, having had college-level musical education as well as several years of piano training, and modest experience in improvisation. The musical instrument used by the participants was a Casio MIDI piano keyboard controller (PX-160) and a pedal (sp-3).

Ethics declaration

The research protocols were reviewed and approved by the Weizmann Institute's Bioethics and Embryonic Stem Cell research Oversight Committee and Bar-Ilan University's Ethics Committee. All participants signed a written informed consent. Informed consent was obtained to publish the information/image(s) in an online open access publication. All methods were performed in accordance with the relevant guidelines and regulations.

Results

Our extended CP is applied in a proof-of-concept study showing its feasibility on two subjects, referred to as Subject A and Subject B. The body language of a client relevant to music therapy (46, 47, 53, 54) is carefully considered and learned idiosyncratically and is then used as a point of reference to other sets of information (e.g. the music that the client makes, the themes that s/he brings up), and in comparison between different points of time during the clinical process. We demonstrate how we obtain new empirical insights, compare the quantitative results with the therapist's notes, and generate hypotheses relating to the emotional states of the client, for which further clinical validation is described in the Discussion section. We first exemplify the analysis of the subjects’ body positions in single specific sessions that can be clinically indicative and useful to the music therapist (intra-session analysis), and then demonstrate how the method can be used to compare the body positions between sessions and between subjects (inter-session analysis).

Intra-session analysis (micro-analysis)

The occurrences captured and analyzed for Subjects A and B in several sessions are depicted in Figs. 3 and 4, respectively, and the total statistics are summarized in Table 2. The first session of Subject A was characterized by openness in playing with both hands in open torso form, during a significant part of the session, i.e. 16%. Adding to this was the head pose, in an up pose for 4% of the time, and talking or playing (not silent) around 83% of the session. Such data are useful for music therapists to understand in what emotional state the client was in this session, to use it as baseline for further sessions, or to cross examine it with his or her subjective impressions. The music therapist noted on this session that he felt the client was “afraid of how her music will sound” and “that it won't turn out well” (see Fig. S3). The body position data, on the contrary, indicated openness, which can challenge the music therapist's subjective feelings and enable other competing clinical hypotheses to surface.

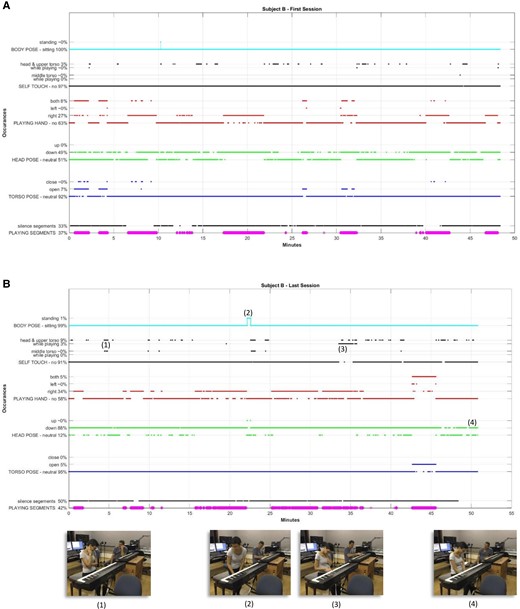

Subject B's last session was in a down head pose in an extremely significant part of the session (88%) and playing mostly with the right hand. She was also engaged in self-touch 9% of the time, touching either her head, upper, or middle torso, with about a third of this time carried out while playing. A notable occurrence is the Subject B standing and walking away from the keyboard for a period of around a minute (as was also revealed by the interactive dashboard tool exemplified in Fig. S1 and Video S1). The subject played with both hands during her last improvisation, at time 42 min in an open torso form. Following that, and proceeding until the end of the session, she was engaged in a conversation. Put together, these data portrays the possible uneasiness of the client was during the session. This hypothesis can then be examined in comparison with the same measures in other sessions, to see whether they are consistent, notably with the first baseline session. The music therapist can use this information to explicitly ask the client if she felt uneasy for any reason, and if so to see whether this could, or should, be discussed and in future sessions, and possibly take appropriate steps to alleviate it.

Inter-session analysis (macro-analysis)

As shown in Fig. 3, Subject A rose five times during the last session. Playing was carried out with both hands in an open torso pose for about 20% of the session time. The significant silence during these periods manifested relative slow playing. These numbers are different from the baseline measures in the first session and could allow the music therapist to examine whether goals such as increasing vitality and boldness were achieved in the sessions. In his notes on the last session (Fig. S3), the music therapist indeed refers to some improvement that the client reported of, though with a great deal of reservation. Had he shown her the data from her body position analysis, it could have added impetus and validity to her feeling.

Subject B's last session shows an increase in some metrical measures as compared to her first (Fig. 4). In the first session, self-touch was present to a lesser extent than in the last session, as well as the down head pose, playing with a single hand, and silence segments. This could alert the music therapist to a regression in the uneasiness of the client that was noted in the first session. It should also be interpreted in the context of other measures that might have changed during the following sessions, such as increases in creative explorations, which might, at first, affect one's (bodily) comfort (71, 72). Music therapists could use such information as a basis for a dialogue with the client, in which such issues can be clarified.

In addition to inter-session comparison, some behavioral attributes repeating themselves may point to personal patterns and characteristics (73, 74), as given in the last two columns of Table 2, averaging the emerged metrics. Subject B was less talkative than Subject A, as manifested from both the silence and playing segments. Notable bodily occurrences that were more intensive for Subject B and less so for Subject A, are self-touch, down head pose, and playing with one hand. Such personal patterns can be reflected to the client, who might not be aware of them, and thereafter, decided whether they should be treated (increased, diminished) as part of the process.

Discussion

To address the challenges that the dynamic environment of music therapy imposes on understanding its effects, in this paper we have expanded our CP (34–37) to track, analyze, and document the bodily and nonverbal behavior of the client. Adding to these is imaging the session in a graphical format and gearing its notated and concise reporting toward the development of a domain-specific language, aimed at conveying and disseminating these understandings. That is, when a commonly accepted language is adopted within a specific area of expertise, it opens up abundant avenues for communication and comprehension among experts and communities within the pertinent fields of that domain.

Comparing the model's results with the written notes of the therapist (Fig. S3) shows that the method makes it possible to capture and analyze phenomena missed by the human eye (e.g. self-touch and head pose). Whereas the therapist's evaluation of the sessions is usually qualitative, we enable an objective, quantitative measurement of psychometrics, which complements the therapist's notes and thus provides additional and often novel insights. In way of extending our current reporting, we describe further validation steps for the behavioral metrics in studies described in detail in Experiment S1, which mainly upscale the number of clients, music therapists, and sessions investigated. Upon their further validation, the metrics may facilitate a quantitative assessment of progress or regression of a client and may be considered as idiosyncratic “behavioral markers,” e.g. in identifying turning points (75–77).

We have illustrated the feasibility and advantages of our method. Nevertheless, issues that further need to be addressed are the acceleration of some computational aspects of the technology, since the AI component of pose estimation is still time- and space-consuming. In addition, for applying the approach in a real-world clinical setting, the therapist may need to assimilate it as part of the session and the client's evaluation process, and the client, to consent to be videoed.

The system is flexible, in that in enables different therapists to ask it to focus and analyze those bodily expressions they find important, thus tailoring it for different clinical scenarios and therapeutic approaches. This causes us to believe that the method can be utilized in other therapy fields, such as art therapy and psychotherapy.

Capturing bodily and nonverbal occurrences, in addition to the rigorous enablement of tracking and documenting the art and musical work itself (34–37), meets the challenge of investigating the first two components in the triangular relations of “client—musical work—therapist.” Potential avenues for future work include the interaction between the therapist and client, e.g. their bodily synchronization, additional nonverbal metrics, e.g. facial expressions, and the expansion of the CP to be used in more complex music therapy settings that involve choice of various playing instruments.

Conclusion

Our method provides a useful framework for understanding and analyzing the complex dynamics within the clinical setting. It offers a means to quantitatively track and document expressive and social behavioral processes, facilitating empirical investigations and knowledge discovery. Through intra-/local-/micro-analysis and inter-/global-/macro-analysis, researchers can gain a deeper understanding of the therapeutic process and its underlying mechanisms, with possible applicability in other relevant fields too.

Supplementary Material

Supplementary material is available at PNAS Nexus online.

Funding

This research was supported by the Ministry of Science and Technology Israel, and partially supported by the Israeli Council for Higher Education via the Weizmann Data Science Research Center.

Author Contributions

B.S. was involved in initiation, development and data curation, and writing—original draft. B.S., A.V., and D.H. were involved in conceptualization, formal analysis, and writing—review and editing.

Data Availability

Due to ethical restrictions imposed by the institutional review board, the authors cannot deposit the data publicly. However, all approved data and materials are within the manuscript and the Supplementary Material file.
