A statistical study of giant molecular clouds traced by ¹³CO, C¹⁸O, CS, and CH₃OH in the disk of NGC 1068 based on ALMA observations

Abstract

We present 1|${^{\prime\prime}_{.}}$|4 (98 pc) resolution ALMA observations of ¹³CO(J = 1–0), C¹⁸O(J = 1–0), CS(J = 2–1), and CH₃OH(J_K = 2_K–1_K) molecular rotational lines in the central 1΄ (4.2 kpc) diameter region of NGC 1068 to study the physical and chemical properties of giant molecular clouds (GMCs) and to test whether these GMC-scale properties are linked to the larger-scale galactic environment. Using the derived ¹³CO cube, we have identified 187 high-significance (>8 σ) GMCs by employing the CLUMPFIND algorithm. The molecular gas masses of GMCs (⁠|$M_{\rm ^{13}CO}$|⁠), derived from the ¹³CO data, range from 1.8 × 10⁴ M_⊙ to 4.2 × 10⁷ M_⊙. A mass function of GMCs in NGC 1068 has been obtained for the first time at ∼100 pc resolution. We find the slope of the mass function γ = −1.25 ± 0.07 for a mass range of |$M_{\rm ^{13}CO} \ge 10^{5}$| M_⊙. This is shallower than the GMCs in the disk regions of the Milky Way, M 51, and NGC 300. Further, we find that the high mass cut-off of the GMC mass function occurs at |$M_{\rm ^{13}CO} \sim 6 \times 10^{7}$| M_⊙, which is an order of magnitude larger than that in the nuclear bar region of M 51, indicating that the more massive clouds dominate the mass budget in NGC 1068. The observed C¹⁸O(J = 1–0)/¹³CO(J = 1–0) intensity ratios are found to be fairly uniform (0.27 ± 0.05) among the identified GMCs. In contrast, the CH₃OH(J_K = 2_K–1_K)/¹³CO(J = 1–0) ratios exhibit striking spatial variation across the disk, with the smallest values around the bar-end (<0.03), and larger ratios along the spiral arms (∼0.1–0.2). We find that GMCs with detectable methanol emission tend to have systematically larger velocity widths than those without methanol emission, suggesting that (relatively weak) shocks are responsible for the enhancement of the CH₃OH/¹³CO ratios of GMCs in the disk of NGC 1068.

1 Introduction

The study of the nature and evolution of the interstellar medium (ISM) is one of the indispensable steps for understanding the physical processes that govern star formation in the universe, because stars are formed in and return to it. The molecular medium, which is a dense and cold phase of the ISM, is the very site and material of star formation. The molecular medium in the Milky Way and galaxies shows a wide range of physical scales, from sub-parsec scale to a few hundred parsec scale. They are referred to as cores, clumps, giant molecular clouds (GMCs), and giant molecular associations (GMAs; Scoville & Sanders 1987; Rand & Kulkarni 1990). In the Milky Way, 90% of molecular gas is in the form of GMCs with a size of 20 pc or larger and a typical mass of ∼4 × 10⁵ M_⊙, and massive stars are formed as a cluster in such GMCs (Scoville & Sanders 1987; Lada & Lada 2003; Scoville 2013). The physical and chemical properties of GMCs are greatly influenced by massive stars, owing to their stellar winds and supernovae in the final stage; for example, the surrounding ISM is compressed by them and new stars are formed there. Hence, it is essential to study the physical and chemical properties of GMCs, because these key processes will be imprinted into them.

Classically, it is well known that the molecular clouds follow scaling relations such as the size–line width relation, also known as Larson's law (Larson 1981; Solomon et al. 1987; Rosolowsky et al. 2008; Bolatto et al. 2008), and star formation laws, such as the Schmidt–Kennicutt law (the S–K law hereafter; Schmidt 1959; Kennicutt 1998; Kennicutt & Evans 2012). These are considered to be universal, even in a high-redshift starburst galaxy—see Swinbank et al. (2015) for Larson's law, and Hatsukade et al. (2015) for the S–K law in the lensed starburst galaxy SDP.81 at z = 3.1. However, recent studies suggest that such universality breaks down at some spatial scales and/or environments. For instance, the S–K law is shown to be valid only at scales larger than that of the GMCs; i.e., the breakdown of the S–K law occurs at ≲80 pc in the GMCs of M 33 (Onodera et al. 2010). The size–line width relations are found to be different in the inner few 100 pc regions of the Milky Way and galaxies such as NGC 253—see, e.g., Leroy et al. (2016) and references therein; see also Utomo et al. (2015) for the absence of such clear size–line width correlation for the GMCs in NGC 4526, an early-type galaxy. Hughes et al. (2010) have reported that some of the GMC properties in the Large Magellanic Cloud (LMC), such as the CO surface brightness, can vary depending on the local environments, including the stellar mass surface density. Based on the PdBI Arcsecond Whirlpool Survey (PAWS), an extensive imaging survey of GMCs in M 51 (Schinnerer et al. 2013), the environmental dependence of the GMC mass spectrum has also been reported (Colombo et al. 2014). All this recent progress is motivating us to conduct wider surveys of GMCs with a sufficiently high angular resolution (e.g., Leroy et al. 2016).

These previous studies of GMCs in galaxies are mainly based on ¹²CO observations. The ¹²CO emission is a bright, well-established proxy of the whole molecular gas, which is crucial for a statistical study of extragalactic GMCs. It is primarily very optically thick and molecular gas masses are derived by using a CO-to-H₂ conversion factor. It has been suggested that CO-to-H₂ conversion factors in galaxies can vary by a factor of 10 or more depending on the environments of molecular clouds (see Bolatto et al. 2013 for a recent review), which can therefore introduce environment-dependent uncertainties. The isotopologue of CO, ¹³CO, gives another empirical measure of molecular gas mass, and extensive studies have been made using single-dish telescopes (e.g., Aalto et al. 1995; Tosaki et al. 2002; Matsushita et al. 2010; Tan et al. 2011; Vila-Vilaro et al. 2015). However, only limited measurements of ¹³CO have been made so far for high-resolution, interferometric studies of extragalactic GMCs/GMAs (e.g., Helfer & Blitz 1995; Papadopoulos et al. 1996; Aalto et al. 1997, 2010; Kikumoto et al. 1998; Matsushita et al. 1998; Meier & Turner 2004; Schinnerer et al. 2010; Pan et al. 2015; Alatalo et al. 2016; Watanabe et al. 2016; König et al. 2016). This is particularly true for “statistical” studies of physical properties of GMCs in the disk regions using ¹³CO; for example, 25 GMCs were identified in M 64 based on 3|${^{\prime\prime}_{.}}$|5 or 75 pc resolution ¹³CO(J = 1–0) observations using the Berkeley–Illinois–Maryland Association (BIMA) array, which shows a different size–line width relationship from Larson's law (Rosolowsky & Blitz 2005). Hirota et al. (2011) conducted ∼50 pc resolution ¹³CO(J = 1–0) imaging of the northern spiral arm segment of IC 342 with the Nobeyama Millimeter Array and revealed that dissipation of excess kinetic energy of GMCs is a required condition for the onset of massive star formation based on 26 ¹²CO-identified GMCs. A significant development of such studies is highly expected in the ALMA era.

GMC-scale chemical properties of extragalactic molecular clouds are also expected to bring a new insight into the study of activities in galaxies. In the Galactic star-forming regions, chemical evolution and spatial variation are found on core and clump scales (i.e., a few parsec or smaller), and it has been suggested that these chemical properties are intimately connected to star formation and associated processes such as outflows and resultant shocks (e.g., Bachiller & Pérez Gutiérrez 1997; Sakai et al. 2007; Ohashi et al. 2014). However, it is yet unexplored whether any chemical variation and evolution of ISM on a GMC scale (approximately a few tens to hundreds of parsec) exists in disk regions of galaxies: Watanabe et al. (2016) studied chemical properties of five GMAs traced by C¹⁸O at ∼300 pc resolution using Combined Array for Research in Millimeter-wave Astronomy (CARMA), but the sensitivity and angular resolution are both not yet sufficient to address the variation of chemical properties and its link to the environment. Most of the high-resolution interferometric multi-molecule observations of galaxies have been mainly made in the nuclear regions of active galactic nuclei (AGNs) such as the circumnuclear disks (CNDs) of NGC 1068 (e.g., Krips et al. 2011; García-Burillo et al. 2014; Viti et al. 2014; Takano et al. 2014; Nakajima et al. 2015) and NGC 1097 (Martín et al. 2015), the nuclear regions of star-forming galaxies (Meier & Turner 2005; Meier et al. 2015), and (ultra) luminous infrared galaxies (e.g., Martín et al. 2011; Sakamoto et al. 2013, 2014; Saito et al. 2015; Costagliola et al. 2015; Tunnard et al. 2015; Lindberg et al. 2016).

Here we present high-resolution (1|${^{\prime\prime}_{.}}$|4 or 98 pc at a distance of 14.4 Mpc: Tully 1988; Bland-Hawthorn et al. 1997) and sensitive ¹³CO(J = 1–0), C¹⁸O(J = 1–0), CS(J = 2–1), and CH₃OH(J_K = 2_K–1_K) imaging of the central 1΄ (4.2 kpc) diameter region of NGC 1068, one of the nearest Seyfert/starburst hybrid galaxies in the local universe. We selected this galaxy because we found evidence for striking spatial variation of molecular line distributions among molecular species including ¹³CO, C¹⁸O, CS, HC₃N, CH₃CN, and CH₃OH across the starbusting spiral arms in our previous (Cycle 0) ALMA observations (Takano et al. 2014).

Among these molecular lines, we focus on ¹³CO, C¹⁸O, CS, and CH₃OH lines, and new observations were made during the ALMA Cycle 2 operation. The angular resolution and sensitivity have been improved significantly compared with pre-ALMA ¹³CO and C¹⁸O observations (e.g., Helfer & Blitz 1995; Papadopoulos et al. 1996; Krips et al. 2011) and the ALMA Cycle 0 measurement (Takano et al. 2014). In particular, the noise level is improved by a factor of 6–10: 1 σ = 1.1–1.7 mJy beam⁻¹ for a velocity resolution of ∼19 km s⁻¹ in Takano et al. (2014), whereas the new observations reach a noise level of 0.6 mJy beam⁻¹ for a velocity resolution of 1.5 km s⁻¹; see section 2 for details. This significant improvement of sensitivity allows us to conduct the first extensive statistical study of physical and chemical properties of GMCs, including methanol in disk regions of galaxies.

Methanol is formed by hydrogenation of CO on the surface of dust grains in low-temperature conditions, ∼10–15 K (e.g., Watanabe et al. 2003), and comes into a gas phase due to relatively weak shocks (Bachiller et al. 1995; Viti et al. 2011; Flower & Pineau des Forêts 2012). Therefore, methanol can be regarded as a tracer of weak shocks in the molecular medium. Methanol emission has been detected using interferometers in the central region of the star-forming galaxy IC 342 (Meier & Turner 2005), Maffei 2 (Meier & Turner 2012), the interacting galaxies VV 114 (Saito et al. 2015, 2017), NGC 4038 (Ueda et al. 2017), and a spiral arm in M 51 (Watanabe et al. 2016); no ≤100 pc resolution observations in disk regions of galaxies have been reported so far.

With these improved ALMA data sets, our goals are (1) to study the physical and chemical properties of giant molecular clouds (GMCs) based on the ¹³CO-selected cloud catalog, and (2) to test whether these GMC-scale properties are linked to the larger-scale galactic environment. Note that we focus on the properties of GMCs in the spiral arms and inter-arm regions in this study: specifically, 5΄ < r < 30΄ or 350 pc < r < 2.1 kpc from the nucleus (see subsection 3.3). This is because our selection criteria for clumps using ¹³CO(J = 1–0) emission are not optimized for clouds in the CND. The impact of the AGN on the surrounding dense molecular medium—physical and chemical properties of GMCs in the CND of NGC 1068—will be reported in a forthcoming paper.

The paper is organized as follows. The ALMA observations and data reduction procedures are described in section 2. After the data presentation and flux comparison with the previous single-dish measurements, in section 3 we outline the methodology of cloud identification, and then the derived GMC catalog is presented along with the derivation of physical quantities of GMCs. In section 4, we discuss the physical and chemical properties of GMCs and their possible dependence on environment. The outcomes of this study are summarized in section 5. The data products of this study, including the FITS file of the ¹³CO data cube, will be publicly available from a dedicated web page.¹

2 Observations and data reduction

The central ∼1΄ diameter region of NGC 1068 was observed using the Band 3 receiver on ALMA with the 2SB dual-polarization setup, as a Cycle 2 early science program (Project code = 2013.0.00060.S; PI name = T. Tosaki).

The central frequencies of four spectral windows, spw0, spw1, spw2, and spw3, were tuned to 110.000 GHz, 109.174 GHz, 97.174 GHz, and 96.741 GHz, respectively. Each spectral window has a bandwidth of 1.875 GHz with 3840 channels, giving a total frequency coverage of 7.5 GHz and a spectral resolution of 0.488 MHz. This configuration allows us to simultaneously observe the J = 1–0 lines of ¹³CO (the adopted rest frequency f_rest = 110.201353 GHz; Lovas 1992) and C¹⁸O (109.782160 GHz) in the upper sideband (USB), and the J = 2–1 line of CS (97.980968 GHz) and J_K = 2_K–1_K group lines of CH₃OH (96.74142 GHz)² in the lower sideband (LSB), along with other rarer species such as HNCO and HC₃N (not presented in this paper).

The ALMA observations were taken during three separated periods with six execution blocks in total. Table 1 summarizes the details of the ALMA observations. Bright quasars including J0108+0135, J0224+0659, J0238+1636, J0241–0815, and J0423–0120 were observed to calibrate pass-band characteristics, and Mars, Uranus, and Neptune were used as primary flux calibrators. The resultant accuracy of the absolute flux scale is reported to be better than 10% according to the ALMA Technical Handbook.³

Calibration of the raw visibility data was conducted using the Common Astronomy Software Applications (CASA; McMullin et al. 2007; Petry & CASA Development Team 2012). Version 4.3.1 of the program was used for the first two data sets, whereas the remaining four data sets were processed using the version 4.2.2 pipeline.

The image reconstruction from the calibrated visibilities and deconvolution were done with the task CLEAN in CASA version 4.5.0. After the initial imaging with natural weighting, we determined the line-free channels and then continuum emission was subtracted from the visibilities using the task uvcontsub. In order to obtain a similar beam size for the target lines with different frequencies, i.e., ¹³CO(J = 1–0) and C¹⁸O(J = 1–0) in the USB, and CH₃OH(J_K = 2_K–1_K) and CS(J = 2–1) in the LSB, we created images using Briggs weighting with different robust parameters: robust = 0.4 for ¹³CO and C¹⁸O, 0.2 for CS, and 0.1 for CH₃OH. These parameters give the native beam sizes of 1|${^{\prime\prime}_{.}}$|39 × 1|${^{\prime\prime}_{.}}$|09, 1|${^{\prime\prime}_{.}}$|33 × 1|${^{\prime\prime}_{.}}$|06, 1|${^{\prime\prime}_{.}}$|38 × 1|${^{\prime\prime}_{.}}$|12, and 1|${^{\prime\prime}_{.}}$|39 × 1|${^{\prime\prime}_{.}}$|12 for ¹³CO, C¹⁸O, CS, and CH₃OH, respectively. The CLEANed images were then finally convolved to a circular Gaussian with the FWHM of 1|${^{\prime\prime}_{.}}$|4, giving a spatial resolution of 98 pc at the adopted distance of NGC 1068 (14.4 Mpc).

Regarding the deconvolution, we employed the multi-scale CLEAN algorithm; the conventional CLEAN algorithm models an image by a sum of point sources (i.e., Gaussians with a single FWHM value), whereas the multi-scale CLEAN algorithm models an image by a collection of multiple Gaussians with different spatial scales. This method is known to recover a higher fraction of flux for extended emission than the conventional CLEAN algorithm (Cornwell 2008; Rich et al. 2008). We adopted multiscale = [0, 10, 25] with cell = ‘0.25arcsec’ in the task CLEAN, specifying spatial scales of the synthesized beam size (i.e., the scale used in the conventional CLEAN) of 2|${^{\prime\prime}_{.}}$|5 and 6|${^{\prime\prime}_{.}}$|25. This setup roughly corresponds to the scales of a point source (i.e., the beam size), the beam size ×2, and the beam size ×5, which are recommended in the CASA guide.⁴

The resultant 1 σ noise levels in the channel maps, which are measured in the line-free channels, are 0.64, 0.61, 0.59, and 0.70 mJy beam⁻¹ for ¹³CO, C¹⁸O, CS, and CH₃OH, respectively, at a velocity resolution of 1.5 km s⁻¹.

3 Results

3.1 Global distributions of molecular emission lines

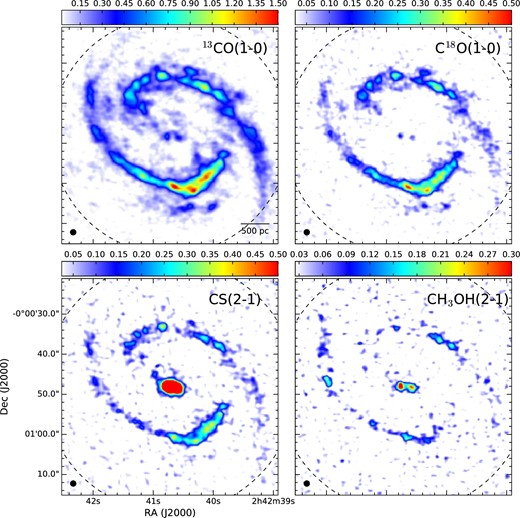

The total integrated intensity maps of ¹³CO(J = 1–0), C¹⁸O(J = 1–0), CS(J = 2–1), and CH₃OH(J_K = 2_K–1_K) emission lines are displayed in figure 1. We computed 0th moment images of these molecular lines by using the CASA task immoments, over a velocity range of V_LSR = 955–1315 km s⁻¹ without any clipping to obtain these images.

We detected all four emission lines in the CND and the starburst ring or tightly winding two-armed spirals. In particular, the high dynamic range (∼72 in the channel maps) ¹³CO image, which is produced with a wide range of baseline lengths (see table 1, corresponding to 5.5 kλ–290 kλ), excellent UV coverage accomplished with multiple configuration observations with 30–40 antennas, and the multi-scale CLEAN algorithm implemented in CASA, successfully reveals detailed sub-structures of spiral arms and faint clouds in the inter-arm regions, which are similar to recent fully sampled sensitive ¹²CO observations of M 51 (Koda et al. 2009; Schinnerer et al. 2013) and often reproduced in state-of-the-art numerical simulations (e.g., Baba et al. 2013).

The emission lines of ¹³CO and C¹⁸O in the CND are relatively weak, whereas we find striking peaks in CS and CH₃OH, as pointed out by the previous ALMA Cycle 0 observations (Takano et al. 2014). The positions of peak intensities in the ¹³CO, C¹⁸O, and CS maps are similar to each other, whereas the distribution of prominent CH₃OH peaks is significantly different from these three lines. This point will be discussed more quantitatively in subsection 4.4.

3.2 Comparison of flux with single-dish telescopes

The ¹³CO(J = 1–0) flux obtained from ALMA was compared with those from single-dish telescopes [Nobeyama Radio Observatory (NRO) 45 m and Institut de Radioastronomie Millimétrique (IRAM) 30 m] to estimate the recovery fraction of the total line flux.

First, the ¹³CO(J = 1–0) data cube was convolved to 16΄, the beam size of the NRO 45 m telescope at 110 GHz. We then obtained a spectrum at the position of the nucleus, which was the pointing position of the 45 m telescope observation, and the velocity-integrated flux was computed. The resultant ¹³CO(J = 1–0) flux is 18.8 Jy km s⁻¹. On the other hand, an NRO 45 m telescope measurement gives a ¹³CO(J = 1–0) flux of 8.9 ± 0.2 K km s⁻¹ in the main-beam temperature scale (S. Takano et al. in preparation), corresponding to a flux density of 22.5 ± 0.51 Jy km s⁻¹. If we consider the absolute flux calibration accuracy of the NRO 45 m telescope (typically ±15%, e.g., Yoshida et al. 2015) and ALMA (±5%, the ALMA Technical Handbook⁵), the ratio of these two flux measurements is (18.8 ± 0.9)/(22.5 ± 3.4) = 0.84 ± 0.13.

Similarly, we then compare the ALMA flux with that using the IRAM 30 m telescope in the same manner: the ALMA ¹³CO cube was convolved to 21΄, the 30 m beam size at 110 GHz, and we obtained a spectrum at the center to compute the integrated intensity. It was found to be 37.2 ± 1.86 Jy km s⁻¹, whereas the IRAM 30 m measurement gave 13.10 ± 0.24 K km s⁻¹ (Aladro et al. 2015) or 57.0 ± 1.0 Jy km s⁻¹. Again, considering a typical absolute calibration accuracy of the IRAM 30 m telescope (∼±10%, EMIR Users Guide⁶), the fraction of the recovered flux is then (37.2 ± 1.9)/(57.0 ± 5.7) = 0.65 ± 0.07.

These two measurements of the recovered flux ratios, i.e., ALMA/45 m = 84% ± 13% and ALMA/30 m = 65% ± 7%, suggest that the overall ¹³CO flux seems to be recovered in these ALMA observations, despite lack of Atacama Compact Array (ACA, or Morita Array) measurements. Note that almost all single-dish fluxes are claimed to be recovered in the ALMA Cycle 0 observations of CO(J = 3–2) in NGC 1068 without ACA measurements (García-Burillo et al. 2014).

Although the difference between the recovered flux ratios of ALMA/45 m and ALMA/30 m is not significant, such a difference can indeed happen, if we recall the spatial extent of the ¹³CO(J = 1–0) emission in the central region of NGC 1068 and the difference of the NRO 45 m and IRAM 30 m beam sizes; a significant fraction of ¹³CO(J = 1–0) emission comes from the starburst ring with a diameter of ∼30΄, and the IRAM 30 m beam (21΄) can couple with the emission from the starburst ring. Such extended emission tends to be resolved out by interferometric observations, giving a smaller recovered flux for IRAM measurements. On the other hand, the beam size of NRO 45 m observations (16΄) is significantly smaller than the size of the starburst ring, and it mainly catches the ¹³CO(J = 1–0) emission in the CND, which is spatially compact (<4΄), resulting in a higher recovered flux ratio. By adding ACA (including total power array) measurements to our ALMA data in the near future, we will be able to obtain fully sampled ¹³CO (and other molecular lines) data sets to confirm such estimations quantitatively.

In any case, we suggest that the missing flux (if any) will have a rather minor impact on the following analysis, because we mainly focus on the clumpy structures, i.e., GMCs, in this region.

3.3 Cloud identification using ¹³CO data cube

We applied the CLUMPFIND algorithm (Williams et al. 1994; Rosolowsky & Blitz 2005) to the ¹³CO(J = 1–0) data cube in order to decompose the ¹³CO emission into discrete clouds and measure their physical properties. We adopted a peak threshold of 8 σ (5.12 mJy beam⁻¹) and a contour increment of 4 σ. This resulted in the detection of 265 clumps. After excluding clumps with the derived clump diameter smaller than 1|${^{\prime\prime}_{.}}$|4 (i.e., the CLEAN beam), we constructed a catalog of clouds containing 187 individual clumps in the observed field of NGC 1068.

In this study, we adopted a fairly high cut-off level (i.e., a threshold of 8 σ and a contour increment of 4 σ), for the following reasons. First, one of the goals of this study is to measure much weaker emission lines from rarer species such as C¹⁸O and methanol, so the base GMC sample using ¹³CO should be detected in high signal-to-noise ratios (S/N). Secondly, another goal is to study the GMC mass spectrum in this region, and in order to compare with the previous studies, the molecular gas mass range of our prime interest is ∼10⁴ M_⊙ or larger (see subsection 4.2); the adopted threshold of 8 σ corresponds to a molecular gas mass of ∼1.7 × 10⁴ M_⊙ (for a cloud with a size comparable to the beam size), and therefore the high cut-off is sufficient for this purpose, too. Lastly, the CLUMPFIND algorithm was originally implemented for high S/N data, and some issues are known when applying it to data with a low dynamic range (Rosolowsky & Blitz 2005; Sheth et al. 2008). By setting such a high threshold, we can construct a robust GMC catalog that is less affected by software issues. It should also be emphasized that high velocity resolution (1.5 km s⁻¹) is essential for the study of molecular gas in the disk region of galaxies because the line widths of molecular clouds in the galactic disks can be just a few km s⁻¹, as shown in the later sections. We also note that because of the high S/N of GMCs, the accuracy of the positions of the identified GMCs will be significantly better than the beam size θ_beam [as it scales as ∝ θ_beam/(S/N)].

The choice of the analysis algorithms, i.e., CPROPS (Rosolowsky & Leroy 2006) and dendrogram (Rosolowsky et al. 2008), can be another issue (e.g., Donovan Meyer et al. 2013). Intensity-based approaches, rather than decomposing the emission into clumps, have also been proposed (Sawada et al. 2012; Hughes et al. 2013; Leroy et al. 2016). Detailed analysis of clump identification and/or intensity-based characterization of ¹³CO-identified cloud properties down to the sensitivity limit (e.g., 5 σ or less) with multiple-algorithm and approach comparison is beyond the scope of this paper, and such analysis will be presented elsewhere.

3.4 Physical properties and molecular line ratios of the identified clouds

The derived physical parameters of GMCs, i.e., position in the 3D cube (dRA, dDec, and velocity), peak flux of ¹³CO emission, cloud radius, and velocity width [the full width at half maximum or FWHM of the ¹³CO(J = 1–0) spectrum] of 187 GMCs are listed in table 2, along with the molecular gas mass estimated from the ¹³CO emission and virial mass. Note that the cloud position, dRA and dDec, means the angular distance from the center of the field of view, [RA(J2000.0) = 2^h42^m40|${^{s}_{.}}$|7, Dec(J2000.0) = − 0°0΄47|${^{\prime\prime}_{.}}$|9].

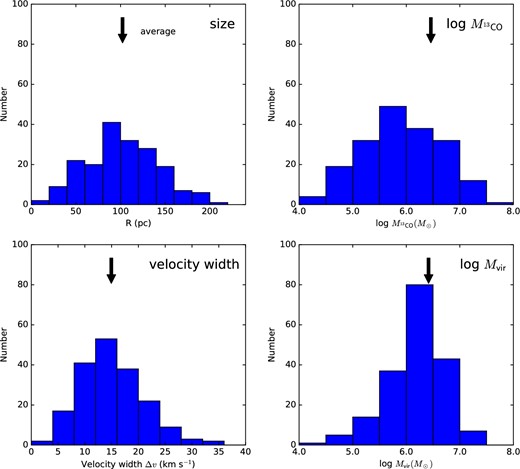

Figure 2 shows histograms of the size, velocity width, molecular gas mass (⁠|$M_{^{13}{\rm CO}}$|⁠), and virial mass for the identified clouds. The averaged size and velocity width of the identified clouds are 102 pc and 14.9 km s⁻¹, respectively. These values are slightly larger than the typical values for GMCs in the Milky Way (Sanders et al. 1985), and smaller than those of GMAs in other galaxies (e.g., Rand & Kulkarni 1990; Muraoka et al. 2009). We refer to the identified clouds as GMCs.

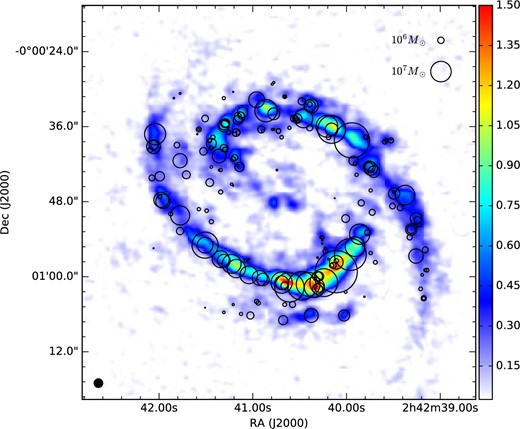

We show the identified clouds on the ¹³CO integrated intensity map in figure 3. The identified clouds are located in the 5΄ < r < 30΄ or 350 pc < r < 2.1 kpc region from the nucleus. Note that no GMCs were identified in the central region including the CND under our criterion, although we do detect significant (>5 σ) ¹³CO emission in the CND. The physical properties of GMCs in the CND, which are expected to be impacted by activities from the central AGN, will be reported in a separate paper. Although a number of clouds are overlapped in this two-dimensional view, figure 4 gives a clearer three-dimensional view of the positions of the identified clouds. In figures 3 and 4, the sizes of the symbols are proportional to their molecular gas mass |$M_{^{13}{\rm CO}}$|⁠. Although most GMCs are located on the starburst ring, some GMCs are also seen outside of the ring. We find a wide range of GMC masses on the starburst ring, whereas GMCs outside the ring are predominantly less massive.

Table 3 shows the intensities of ¹³CO(J = 1–0), C¹⁸O(J = 1–0), CS(J = 2–1), CH₃OH(J_K = 2_K–1_K), and the virial parameters for each GMC. These molecular line intensities in table 3 are derived from the integrated intensity over pixels of each GMC. Respectively, 187, 182, and 121 GMCs with peak intensities of larger than 3 σ are detected for C¹⁸O, CS, and CH₃OH. Figure 5 shows histograms of the line intensity ratios for the GMCs. The histograms of integrated intensity ratios show that C¹⁸O/¹³CO and CS/¹³CO have a single-peaked distribution. The CS/¹³CO ratios show a similar trend to the C¹⁸O/¹³CO ratios, although their scatter is larger than the C¹⁸O/¹³CO ratios. On the other hand, CH₃OH/¹³CO shows a widespread distribution (≤0.01 to 0.1–0.2). Table 4 shows the averaged values and ranges of intensity ratios and virial parameters for these clouds together with their physical properties.

Here we mention the possible systematic uncertainties of these physical quantities. The molecular gas mass estimated from ¹³CO, |$M_{\rm ^{13}CO}$|⁠, can have two possible error sources: the ¹³CO fractional abundance, [H₂]/[¹³CO], and the adopted excitation temperature T_ex. The adopted ¹³CO fractional abundance (Dickman 1978) is based on the measurements of GMCs in the Galactic disk regions, and hence it is not trivial to determine if such a value is applicable to the starburst ring of NGC 1068. Future direct estimation of the ¹³CO fractional abundance will be necessary. Regarding the excitation temperature of ¹³CO, it is thought to be reliable because this is based on the measurements of ¹³CO J = 3–2 and 1–0 lines in the starburst ring (Nakajima et al. 2015). Nevertheless, some cloud-to-cloud variation of T_ex may exist, depending on the star-forming activities of each cloud. For instance, some spatial variation of the CO(J = 3–2)/CO(J = 1–0) ratios has been reported across the starburst ring of NGC 1068 (García-Burillo et al. 2014), implying a possible variation of physical parameters. Again, we may need additional observations such as J = 2–1 and/or 3–2 of ¹³CO with a similar angular resolution to make accurate measurements of T_ex for individual clouds in the future.

4 Discussion

4.1 Comparison with GMCs in the Milky Way and local galaxies

The size–velocity width relation of identified GMCs is shown in figure 6, which also shows the correlation of molecular clouds in the Milky Way [Sanders et al. 1985, based on ¹²CO(J = 1–0)], cores/clumps in the Galactic star-forming region W 51 [Parsons et al. 2012, ¹³CO(J = 3–2)], and GMCs/GMAs in local galaxies including LMC [Fukui et al. 2008, ¹²CO(J = 1–0)], M 33 [Onodera et al. 2012, ¹²CO(J = 1–0)], M 51 [Colombo et al. 2014, ¹²CO(J = 1–0)], and M 83 [Muraoka et al. 2009, ¹²CO(J = 3–2)]. Figure 6 demonstrates that Larson's relation observed with ¹³CO in the central region of NGC 1068 exhibits overall agreement with those measured with ¹²CO in local spiral galaxies (e.g., Gratier et al. 2012; Donovan Meyer et al. 2013; Rebolledo et al. 2015). We found a trend for the GMCs with a large velocity width in NGC 1068 similar to GMCs in the Milky Way, though the scatter is large. One possible cause of this scatter could be an effect of size overestimation for small GMCs due to the spatial resolution in the CLUMPFIND algorithm. We also note that ¹²CO emission tends to trace the outskirts of GMCs better than ¹³CO, so the extents of GMCs defined in ¹²CO and ¹³CO could be different. A high cut-off level of cloud identification in ¹³CO may also give a smaller cloud size than ¹²CO measurements, although these effects are not clearly evident in this figure.

Figure 7 shows the correlation between LTE mass (⁠|$M_{\rm ^{13}CO}$|⁠) and virial mass of the identified GMCs. The virial masses in NGC 1068 are proportional to |$M_{\rm ^{13}CO}$| as well as those of GMCs in the Milky Way (W 51), LMC, M 33, and M 83, although M_vir is slightly larger than |$M_{^{13}{\rm CO}}$|⁠. This suggests that most of the observed GMCs traced by ¹³CO are self-gravitating, as found in recent high-resolution interferometric ¹²CO observations of GMCs in local galaxies (e.g., Donovan Meyer et al. 2012, 2013; Rebolledo et al. 2012, 2015; Colombo et al. 2014; Utomo et al. 2015; Faesi et al. 2016).

4.2 Mass function of GMCs in the disk of NGC 1068

In the case of GMCs in the inner disk of the Milky Way, γ is know to be in the range from −1.6 (Williams & McKee 1997) to −1.9 (Heyer et al. 2001). However, recent statistical studies of GMCs in the outer disk of the Milky Way and local galaxies such as LMC, M 33, M 51, and NGC 4526 suggest that the shape of the GMC mass function can vary depending on the environment, i.e., the regions where GMCs reside (e.g., Rosolowsky 2005; Wong et al. 2011; Gratier et al. 2012; Colombo et al. 2014; Utomo et al. 2015), and theoretical studies of such environmental dependence will bring an insight into the formation processes of molecular clouds (e.g., Inutsuka et al. 2015). Because all of these studies are based on ¹²CO measurements in quiescent and relatively moderate star-forming galaxies, it is of interest to test whether the GMC mass function derived from ¹³CO in more actively star-forming regions gives a similar slope or not.

Figure 8 shows the derived LTE mass function in an integral form for the identified 187 GMCs in the central ∼4 kpc region of NGC 1068. Note that the mass threshold of our GMC sample, ∼1.7 × 10⁴ M_⊙, corresponds to >8 σ in the ¹³CO data cube. Therefore we comfortably safe to discuss the slope of the mass function above ∼10⁴ M_⊙ here.

The derived slope of the mass function for GMC (M > 10⁵ M_⊙) in the disk of NGC 1068, γ = −1.25 ± 0.07, is significantly shallower than those of Galactic GMCs (γ = −1.6, Williams & McKee 1997; γ = −1.9, Heyer et al. 2001) and the disk GMCs in M 51 (γ = −1.8 to −2.5, Colombo et al. 2014) and NGC 300 (γ = −1.8, Faesi et al. 2016), indicating that the more massive clouds dominate the mass budget in NGC 1068 than these disk GMCs. Furthermore, although we observed a cut-off of the mass function at the high mass end, as in the case of GMCs in the Milky Way and other local galaxies such as M 51, the measured maximum mass, M₀ ∼ 6 × 10⁷ M_⊙, is one order of magnitude larger than that in the nuclear bar region of M 51 (a shallow slope, γ ∼ −1.3, similar to NGC 1068, and a sharp high-mass cut-off above M₀ ∼ 5.5 × 10⁶ M_⊙ are reported in Colombo et al. 2014). Presumably the presence of such more massive GMCs in NGC 1068 than the Milky Way and M 51 could be a driver of intense starburst there: the elevated star formation activities in the starburst ring of NGC 1068 (Σ_SFR ∼ 1– 2 M_⊙ yr⁻¹ kpc⁻², Tsai et al. 2012), which is significantly larger than those in the spiral arms of M 51 (mostly Σ_SFR ∼ a few × 10⁻¹ M_⊙ yr⁻¹ kpc⁻² or less, e.g., Watanabe et al. 2016), could be caused by such a difference in the GMC mass function.

4.3 Spatial distribution of virial parameters

Figure 9 displays the positions of the GMCs along with their virial parameters. We find that the supercritical GMCs, i.e., |$M_{\rm ^{13}CO}/M_{\rm vir} > 1$|⁠, are preferentially found on the starburst ring, while the subcritical GMCs are mainly located both inside and outside of the ring. These are consistent with the trend of GMAs in M 83 based on ¹²CO(J = 3–2) which trace dense gas (Muraoka et al. 2009). It is remarkable that these trends have also been found by observations of ¹³CO(J = 1–0), which is an optically thin molecular mass tracer, on GMC scales. Such environmental difference depending on the location of GMCs, i.e., whether on-arm or inter-arm, has been reported by ¹²CO-based statistical studies of GMCs in IC 342 (Hirota et al. 2011), M 51 (Colombo et al. 2014), and local spiral galaxies such as NGC 6946 and M 101 (e.g., Rebolledo et al. 2015). Our result suggests that GMCs outside the starburst ring in NGC 1068 are not gravitationally bound, giving an insight into the formation mechanism of GMCs, especially in the inter-arm regions.

4.4 GMC-scale variation of molecular line properties and their link to the larger-scale environments in NGC 1068

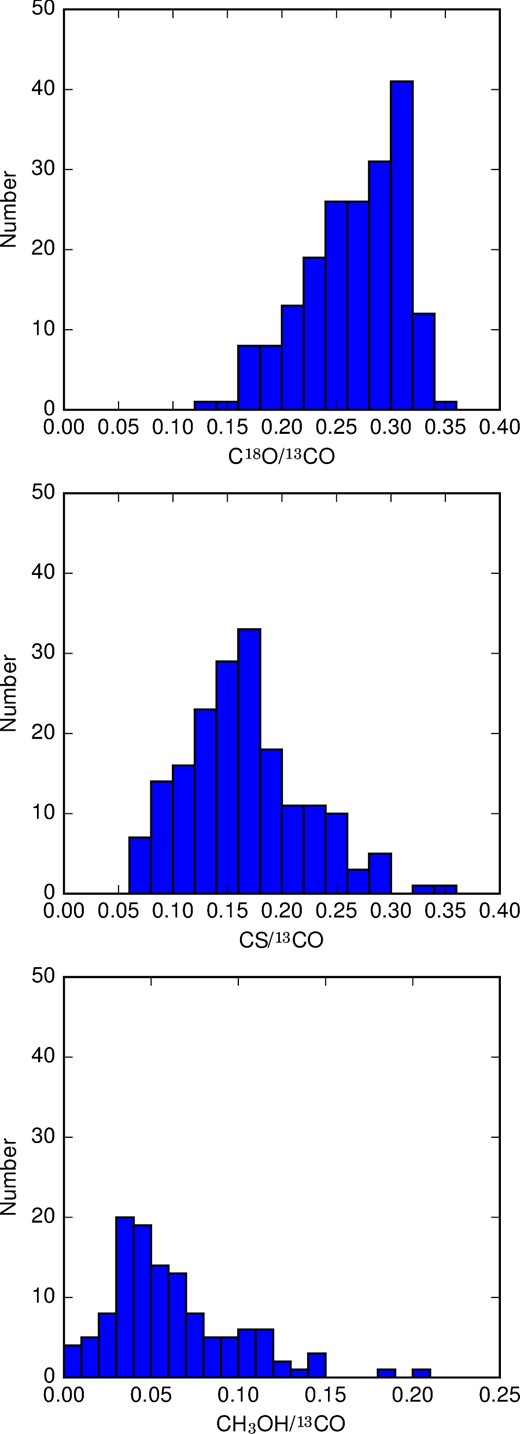

In subsection 3.4, we showed that the histograms of C¹⁸O/¹³CO and CS/¹³CO integrated intensity ratios (hereafter referred to as ratios) have a single-peaked distribution, while the histogram of CH₃OH/¹³CO ratios exhibits a widely scattered distribution (figure 5). In order to test if these molecular line ratios follow any trend with other physical quantities, the line ratios are plotted against the molecular gas masses and virial parameters of each GMC (figure 10). We find the C¹⁸O/¹³CO ratios are mostly uniform regardless of the molecular gas masses and virial parameters (the top panels of figure 10), whereas the CS/¹³CO ratios show a positive trend with the gas mass and virial parameters as shown in the middle panels of figure 10. On the other hand, the CH₃OH/¹³CO ratios exhibit different behavior from the C¹⁸O/¹³CO and CS/¹³CO ratios; they show significantly larger scatters, and no clear systematic tendency was found. We then display the spatial distributions of these molecular line ratios in figure 11, in order to see whether any connection exists between the GMC-scale molecular line ratios and larger-scale environments such as spiral arms and circumnuclear starburst regions. In this figure, the size of each circle is proportional to the ratios of each molecule with respect to ¹³CO. It is very clear that the diameters of the circles representing the C¹⁸O/¹³CO and CS/¹³CO ratios are almost uniform across the starburst ring, as expected from the narrow variation of the ratio (figure 5). On the other hand, in the top panel of figure 11, the circle diameters vary significantly from cloud to cloud in the CH₃OH/¹³CO map. The CH₃OH/¹³CO ratios are smallest around the bar-end, and become larger along the spiral arms. That is, importantly, we find systematic spatial variations of the CH₃OH/¹³CO ratios across the starburst ring of NGC 1068 on a GMC scale.

Here we discuss the possible physical and chemical processes that govern the observed behaviors of these molecular line ratios.

4.4.1 C¹⁸O/¹³CO ratios: uniformity among GMCs

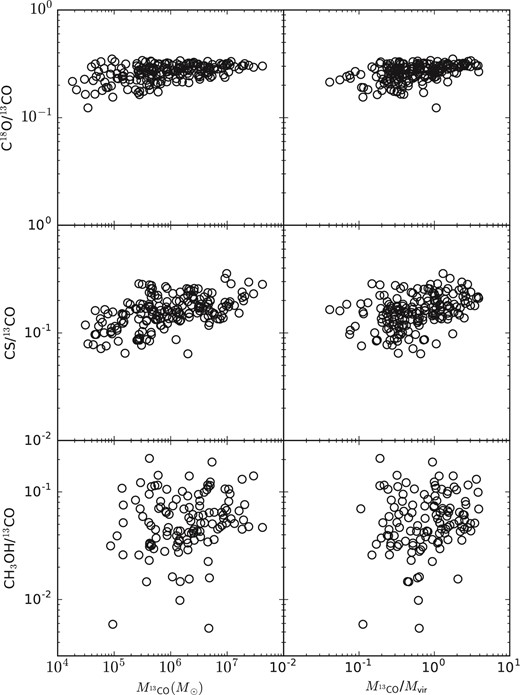

The C¹⁸O/¹³CO ratios (the top panels of figure 10) are found to be mostly uniform regardless of the molecular gas mass and virial parameter, as expected from figure 5, demonstrating that the C¹⁸O/¹³CO ratios are almost within a factor of two. The average value of the C¹⁸O/¹³CO ratios is 0.27 ± 0.05, as summarized in table 4. This value is similar to other high-resolution (GMC- or GMA-scale) extragalactic C¹⁸O/¹³CO ratios such as in NGC 6946 (Meier & Turner 2004), IC 342 (Meier & Turner 2005), and M 51 (Watanabe et al. 2016); see also the top panel of figure 12, summarizing these extragalactic, GMC-/GMA-scale C¹⁸O/¹³CO ratio measurements. Note that the 10 pc-scale measurements of C¹⁸O/¹³CO ratios of GMCs in LMC reveal significantly lower values than these galaxies (<0.1, Nishimura et al. 2016). This could presumably be due to the selective far-UV dissociation of C¹⁸O (van Dishoeck & Black 1988), which is indeed observed in the Orion-A giant molecular cloud (Shimajiri et al. 2014). However, the observed spatial uniformity of the C¹⁸O/¹³CO ratios indicate that such isotope-selective photodissociation, which is expected to be significant in GMCs on spiral arms (where intense starbursts occur) and less significant in inter-arm GMCs, plays only a negligible role in these measured GMC-scale C¹⁸O/¹³CO ratios.

Because both C¹⁸O and ¹³CO J = 1–0 lines are considered to be optically thin, the ratio can be regarded as the [C¹⁸O]/[¹³CO] fractional abundance ratio in the 0th approximation. In the Milky Way, the [C¹⁸O]/[¹³CO] abundance ratio is known to be ∼1/7–1/8 (Henkel & Mauersberger 1993). Owing to the different production processes of C¹⁸O (it comes from short-lived massive stars during an early phase of a starburst event, Prantzos et al. 1996) and ¹³CO (produced later on in intermediate-mass stars, Wilson & Matteucci 1992; Meier & Turner 2004 and references therein), it is suggested that GMCs preferentially forming massive stars can display elevated C¹⁸O abundance with respect to ¹³CO (Henkel & Mauersberger 1993; Meier & Turner 2004; König et al. 2016). The measured C¹⁸O/¹³CO ratio or [C¹⁸O]/[¹³CO] abundance ratio of 0.27 or ∼1/4 is larger than that in the Galactic GMCs by a factor of two, and may be a reflection of the ongoing dusty starburst activities in the observed spiral arms of NGC 1068. Surprisingly, an extremely elevated [C¹⁸O]/[¹³CO] abundance ratio of close to unity has been reported in the gravitationally magnified submillimeter galaxy (i.e., a dusty extreme starburst galaxy) SMM J2135−0102 at z = 2.325, indicating the presence of intense star formation preferentially biased to high-mass stars (Danielson et al. 2013). Increasing the measurements of C¹⁸O and ¹³CO lines in various environments will be crucial to understanding and establishing the [C¹⁸O]/[¹³CO] abundance ratio as a tool for studying the evolution of galaxies near and far in the ALMA era.

4.4.2 CS/¹³CO ratios: tracing a variation of dense gas fraction among GMCs?

In the middle panels of figure 10, we find a trend of CS/¹³CO ratios with respect to the molecular gas mass and virial ratios; massive GMCs and supercritical GMCs tend to show higher CS/¹³CO ratios, whereas smaller CS/¹³CO ratios are found among less massive or subcritical GMCs.

CS/¹³CO ratios can be regarded as a proxy of dense gas fraction, because CS traces significantly denser molecular gas than ¹³CO owing to its higher critical density [n_crit ∼ 10⁵ cm⁻³ for CS(J = 2–1)]. Therefore, the relationship between these line ratios and GMC masses suggest that more massive GMCs form dense molecular gas more efficiently than less massive ones. This is in fact exactly what we found in M 33; i.e., more massive GMCs tend to show higher ¹²CO(J = 3–2)/¹²CO(J = 1–0) line ratios, which can be interpreted as another indicator of dense gas fraction for relatively quiescent disk regions (Onodera et al. 2012).

4.4.3 Spatial variation of CH₃OH/¹³CO ratios: caused by mild shocks along spiral arms?

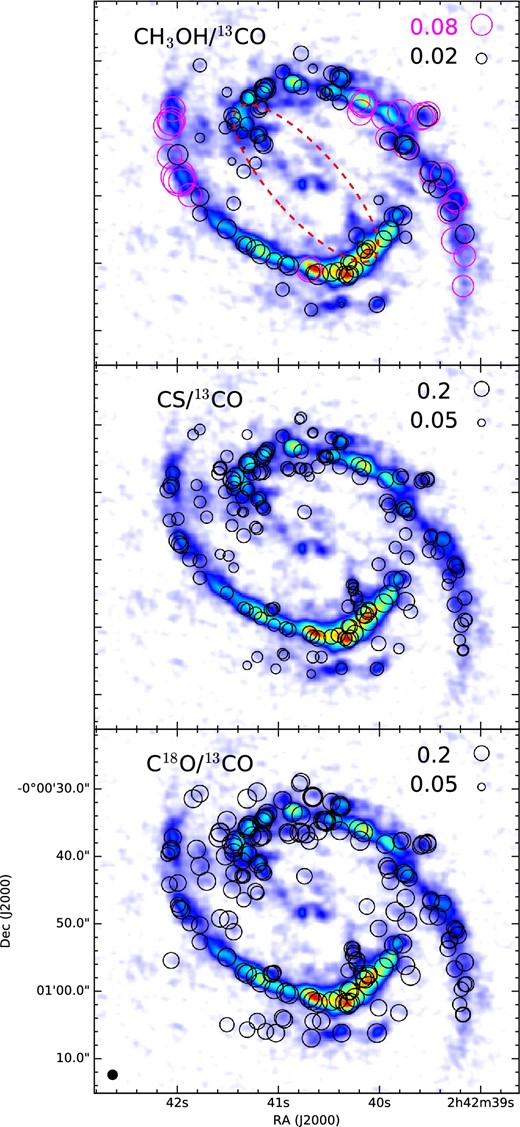

In figure 11, we find that the CH₃OH/¹³CO ratios are smallest around the bar-end, and become larger along the spiral arms; i.e., we find systematic spatial variations of the CH₃OH/¹³CO ratios across the starburst ring of NGC 1068 on a GMC scale. In fact, similar tendencies have been reported in the central regions of IC 342 and Maffei2: the distribution of CH₃OH is spatially anticorrelated with those of ¹³CO and C¹⁸O (Meier & Turner 2005, 2012), giving a coherent view with our findings.

Here, we discuss the origin of the observed systematic spatial variation of CH₃OH/¹³CO ratios across the starburst ring in NGC 1068. If we consider the direction of the galactic rotation in the disk of NGC 1068 (gas particles go around counterclockwise), we can say that the CH₃OH/¹³CO ratios become larger in the upstream side, and then are decreasing in the downstream direction. Two possibilities are the following: (1) GMCs with different line ratios are produced locally, and (2) GMCs with high line ratios in the upstream side of spiral arms travel along the arms, and then the line ratios are gradually decreasing.

The chemical timescale of CH₃OH formation and destruction is known to be 10⁵ yr (Nomura & Millar 2004). The distance of the starburst ring/spiral arms from the nucleus is approximately 20΄–30΄ (1.6–2.4 kpc), and therefore the dynamical timescale (i.e., the time necessary for one rotation) is (5–7) × 10⁷ yr if we adopt a circular rotation velocity of 200 km s⁻¹ at this radius (Schinnerer et al. 2000). Two distinct GMCs with high and low CH₃OH/¹³CO line ratios are separated by ∼0.5 rotation, and it takes approximately ∼10⁷ yr to travel between these two positions. This timescale is significantly longer than the chemical formation/destruction timescale of 10⁵ yr. We therefore conclude that scenario (1) is more likely than (2); i.e., GMCs with different chemical properties are locally formed in different places.

What is the cause of such local GMC variation in methanol intensity with respect to ¹³CO? One possible cause is the local difference of either shock strength or dust temperature. CH₃OH is suggested to be a tracer of mild shock, because its gas-phase abundance is enhanced in a moderately intense shock whereas it is destroyed under strong shock environments (Viti et al. 2011). Shock strengths should be stronger in the bar-end than spiral arms because the bar-end is the orbit-crowding region of two types of gas motion, x₁ and x₂ orbits (e.g., Athanassoula & Bureau 1999). Although shock is expected along the spiral arms (spiral shock waves: Fujimoto 1968; Roberts 1969; see also Baba et al. 2013 for a recent theoretical view on such spiral shocks), it can be rather milder than that in the bar-end. It is expected that the shock in the bar-end is so strong that methanol molecules are destroyed, although no significant SiO emission is reported around the bar-end of NGC 1068 (García-Burillo et al. 2010), in spite of the fact that SiO is a tracer of strong shock.

Can we see a possible link between the shock strengths and methanol abundance enhancement? One hint can be drawn from the comparison of the CH₃OH/¹³CO ratios and velocity widths of GMCs, because the velocity widths are dominated by internal turbulent velocities (although systematic velocity gradient such as disk rotation should be appropriately modeled for accurate analysis). In figure 12, the CH₃OH/¹³CO integrated intensity ratios of GMCs are plotted against the velocity widths of GMCs in the central ∼4 kpc region of NGC 1068, along with the C¹⁸O/¹³CO and CS/¹³CO ratios. The CH₃OH/¹³CO ratios in local galaxies including IC 342 (Meier & Turner 2005, 2012; ∼100 pc resolution), M 51 (Watanabe et al. 2016; ∼200 pc), and LMC (Nishimura et al. 2016; ∼10 pc, upper limits only) are also shown for comparison. We find no clear trend between CH₃OH/¹³CO ratios and velocity widths of clouds, implying that the correlation between shock and methanol abundance is not very obvious: presumably, a putative correlation may be weakened due to the fact that strong shock is not preferable for methanol. In fact, no clear correlation between star formation activities and enhancement of methanol was found in our previous ALMA study of NGC 1068 (Takano et al. 2014), implying that strong shocks caused by successive supernovae in active starburst regions are not responsible for the enhanced methanol emission.

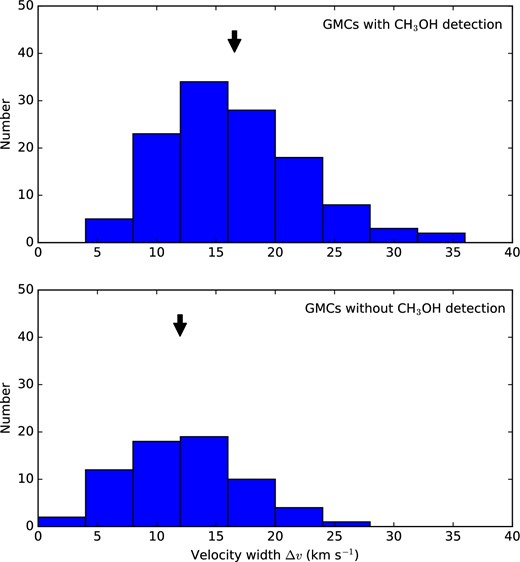

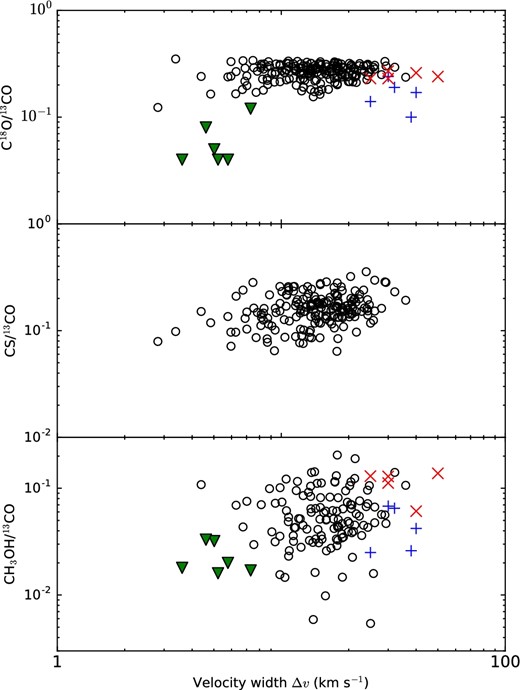

Another test to address the link between methanol abundance and shock is to compare the velocity widths of GMCs with and without methanol detection: figure 13 shows histograms of line widths of GMCs with and without detection of methanol. The mean and standard deviation are 16.56 km s⁻¹ and 5.61 km s⁻¹ for methanol-detected GMCs respectively, and 11.97 km s⁻¹ and 4.87 km s⁻¹ for methanol-lacking GMCs, suggesting that methanol-detected GMCs seem to have larger velocity widths. In fact, a two-sample Kolmogorov–Smirnov test gives a p value of less than 10⁻⁵; i.e., the hypothesis that these two samples originate from the same distribution is rejected with >99.9%. The comparison of these two histograms suggests that the GMCs with methanol emission tend to have larger velocity line widths than those without methanol emission. This implies that methanol emission originates from shocks, which are ubiquitous in spiral arms, regardless of the intensity of star formation activities there. We therefore suggest that spiral shocks associated with spiral arms are responsible for the presence of methanol emission in the spiral arms in NGC 1068 and other galaxies such as M 51.

Next, we consider the role of different temperatures as a driver of methanol abundance variation among the GMCs. It is known that the yield of the methanol molecule becomes maximum around a dust temperature of 15 K, and it decreases at higher dust temperatures (≥20 K: Watanabe et al. 2003). This means that only the molecular (and dust) clouds staying at a low temperature (≤20–30 K) for a chemical timescale can enhance the abundance of CH₃OH. Therefore, we can hypothesize that the temperature of gas and dust around the bar-end is significantly high (≥30 K), which is the cause of the low CH₃OH/¹³CO ratio. It is natural to expect that massive star formation heats the ISM: in fact, the measured star formation rates in the bar-end region are more than twice as high as those in the spiral arms (Tsai et al. 2012).

With these pieces of evidence and implications, we can draw a scenario as follows. Methanol comes into the gas phase by mild shock when molecular gas is accumulated and compressed along the spiral arms and bar-end. In the bar-end, however, more active massive star formation occurs and therefore the gas/dust temperature becomes higher than that in the spiral arms. The production of methanol is then suppressed in the bar-end. In this way, we observe a low CH₃OH/¹³CO ratio in the bar-end, whereas elevated CH₃OH/¹³CO ratios were found along the spiral arms.

In order to verify this scenario quantitatively, we need to determine the spatial distribution of gas and dust temperatures along the starbursting spiral arms, which is not yet available. Future ALMA observations will play a role in conducting such studies.

5 Summary

We present a statistical study of physical and chemical properties of giant molecular clouds (GMCs) in the central 1΄ (4.2 kpc) region of NGC 1068, based on 1|${^{\prime\prime}_{.}}$|4 (98 pc) resolution ALMA observations of ¹³CO(J = 1–0), C¹⁸O(J = 1–0), CS(J = 2–1), and CH₃OH(J_K = 2_K–1_K). The observed region contains both active galactic nuclei and extended active star-forming regions, which do not exist in Galactic disks; this allows us to address the question of whether these extreme activities will have significant impact on the physical and chemical properties of the ISM on a GMC scale.

High-sensitivity ALMA observations allowed us to produce three-dimensional data cubes of these molecular lines with a high spectral resolution (1.5 km s⁻¹), which is essential for a study of GMC-scale molecular gas in the disk regions of galaxies.

The major outcomes of this study are summarized as follows.

• A high dynamic range (72) ¹³CO(J = 1–0) spectral data cube, produced with a wide range of baseline lengths (5.5 kλ–290 kλ) and multi-scale CLEAN, reveals detailed sub-structures of spiral arms and faint clouds in the inter-arm regions.

• We have identified 187 high significance GMCs from the ¹³CO(J = 1–0) cube by employing the CLUMPFIND algorithm with a high level threshold (8 σ) and an increment (4 σ) in order to ensure reliable decomposition of the ¹³CO(J = 1–0) emission into individual clouds. This is one of the largest samples of GMCs in galaxies constructed based on ¹³CO(J = 1–0) emission.

• We find that the cataloged GMCs tend to follow the known size to line width relation of the Galactic (i.e., non-starbursting) GMCs. The molecular gas masses of GMCs, |$M_{\rm ^{13}CO}$|⁠, derived from the ¹³CO data, range from 1.8 × 10⁴ M_⊙ to 4.2 × 10⁷ M_⊙, and their ratios to the virial masses M_vir; i.e., virial parameters, M_13CO/M_vir, show that the super-critical GMCs (i.e., M_13CO/M_vir > 1) are preferentially found on the starburst ring, while the sub-critical GMCs are mainly located both inside and outside the ring.

• A mass function of GMCs, |$N(M^{\prime }>M) = N_0 [(\frac{M}{M_0})^{\gamma +1} \,\,-1]$|⁠, in the central ∼4 kpc region of NGC 1068 has been obtained for the first time at ∼100 pc resolution. We find the slope of the mass function γ = −1.25 ± 0.07 for a mass range of M ≥ 10⁵ M_⊙. This is shallower than the Galactic GMCs (γ = −1.6 to −1.9) and GMCs in the disk regions of M 51 (γ = −1.8 to −2.5) and NGC 300 (γ = −1.8), presumably caused by the presence of more massive clouds in the massive end of the mass function in NGC 1068. A large maximum mass, M₀ = (5.92 ± 0.63) × 10⁷ M_⊙, also supports this view.

• The observed C¹⁸O(J = 1–0)/¹³CO(J = 1–0) intensity ratios are found to be fairly uniform (0.27 ± 0.05) among the identified GMCs. In contrast, the CH₃OH/¹³CO ratios exhibit striking variation across the disk, with the smallest values around the bar-end (<0.03), and becoming larger along the spiral arms (∼ 0.1–0.2).

• Conceivable causes that may govern the variation of CH₃OH/¹³CO ratios across the disk of NGC 1068 have been investigated. We find that GMCs with methanol emission tend to have systematically larger velocity widths than those without methanol emission. We suggest that relatively weak shocks, which are ubiquitous in disk regions, i.e., spiral shocks, are responsible for the enhancement of the CH₃OH/¹³CO ratios of GMCs in the disk of NGC 1068.

Finally, we stress that our study demonstrates the power of ALMA, which relates the GMC-scale physical and chemical properties to the larger-scale environment of galaxies. Chemical properties revealed by ALMA will be an indispensable tool for studying the physical processes of galaxy evolution near and far by its unprecedentedly high angular resolution and sensitivity.
