Proofreading exonuclease on a tether: the complex between the E. coli DNA polymerase III subunits α, ε, θ and β reveals a highly flexible arrangement of the proofreading domain Open Access

Abstract

A complex of the three (αεθ) core subunits and the β₂ sliding clamp is responsible for DNA synthesis by Pol III, the Escherichia coli chromosomal DNA replicase. The 1.7 Å crystal structure of a complex between the PHP domain of α (polymerase) and the C-terminal segment of ε (proofreading exonuclease) subunits shows that ε is attached to α at a site far from the polymerase active site. Both α and ε contain clamp-binding motifs (CBMs) that interact simultaneously with β₂ in the polymerization mode of DNA replication by Pol III. Strengthening of both CBMs enables isolation of stable αεθ:β₂ complexes. Nuclear magnetic resonance experiments with reconstituted αεθ:β₂ demonstrate retention of high mobility of a segment of 22 residues in the linker that connects the exonuclease domain of ε with its α-binding segment. In spite of this, small-angle X-ray scattering data show that the isolated complex with strengthened CBMs has a compact, but still flexible, structure. Photo-crosslinking with p-benzoyl-L-phenylalanine incorporated at different sites in the α-PHP domain confirm the conformational variability of the tether. Structural models of the αεθ:β₂ replicase complex with primer-template DNA combine all available structural data.

INTRODUCTION

The replicative DNA polymerases that synthesize the bulk of chromosomal DNA invariably contain two active sites. Primer DNA is extended processively by incorporation of nucleotides at the polymerase site, while mismatched nucleotides that are incorporated infrequently are removed at the 3′–5′ (proofreading) exonuclease site. In all proofreading polymerases, the two sites are spatially separated, so a mechanism is required to transfer the primer-template DNA from one site to the other when the polymerase needs to transit between the polymerization and proofreading modes (1).

The 17-subunit DNA polymerase III holoenzyme (Pol III HE) is the chromosomal replicase in Escherichia coli, and is composed of 10 different proteins (1). The three-subunit catalytic core contains one each of the α (1160 residues; 130 kDa), ε (243 residues; 27 kDa) and θ (8.8 kDa) subunits encoded by the dnaE, dnaQ and holE genes, respectively. The α subunit contains the polymerase active site (2,3), the ε subunit is responsible for the 3′–5′ proofreading exonuclease activity (4) and the θ subunit has no identified enzymatic activity (5). The αεθ core complex is active alone as a proofreading DNA polymerase, and co-purification of these three subunits demonstrates their tight physical association (6,7). Direct interactions between ε and α (8) and ε and θ (5) have been demonstrated, but no interaction has been detected between α and θ.

The αεθ core complex of E. coli DNA Pol III has proven unsuitable for X-ray crystallography, probably because crystallization is impeded by the highly flexible polypeptide linker connecting the globular N-terminal domain of ε with its C-terminal peptide that binds to α (9). The complex is also not amenable to detailed NMR studies because of its high molecular mass. However, 3D structures of subdomains of the complex have been determined by X-ray crystallography and in solution by NMR spectroscopy.

Two crystal structures of α have been reported: of a C-terminally truncated version (α917) of E. coli α (10) and of full-length Thermus aquaticus (Taq) α (11). Crystal structures are also available of the N-terminal globular domain of E. coli ε (ε186; Figure 1A), both alone (12) and in complex with HOT, the phage P1 homolog of θ (13,14). In addition, the structure of the ε186:θ complex was determined by NMR spectroscopy (15,16). Full-length ε includes an additional C-terminal segment of 57 residues, in the following referred to as εCTS (Figure 1A). Residues near the C terminus of the εCTS are known to be responsible for binding of α (9,17,18). The binding site of ε has been shown to be within the first 320 residues of α (19), which includes the N-terminal 270-residue PHP domain (20) (Figure 1C and D). Residues 190–212 of the εCTS had earlier been predicted to comprise an interdomain ‘Q-linker’ sequence (21). Solution NMR showed that residues in the εCTS are flexible and that those around the Q-linker (residues between Thr183 and Thr201, at least) remain so even in the context of the 165 kDa αεθ core complex. Moreover, the ε186 domain does not interact, even weakly, with α (9).

The homodimeric β₂ sliding clamp is responsible for processivity of DNA synthesis by the bacterial replisome. The β₂ dimer forms a donut-shaped structure (22) that encircles (23) and slides on double-stranded (ds) DNA. Each protomer of β₂ has a binding site for penta- or hexa-peptide clamp-binding motifs (CBMs) that are found in many proteins, including the δ subunit of the seven-subunit Pol III clamp loader and all five E. coli DNA polymerases (I–V) (24), among others (25). The interaction of CBMs with the β₂ sliding clamp provides a specific way of recruiting requisite enzymes to 3′ ends of primer-template DNAs, and the Pol III α subunit has two CBMs: one is at the C-terminus and may be involved in polymerase recycling during lagging-strand replication; the other is an internal site that ensures processivity of the replicase (25,26).

In the present work, we identified the exact site and mode of binding of ε on α by determining the crystal structures of constructs where residues 209–243 and 200–243 of εCTS were fused to the N-terminus of the PHP domain of α (residues 1–270, referred to as α270) via a nine-residue linker that had been shown in another context to be flexible (27,28). A fortuitous PCR-generated mutation in α270, Leu21Pro, enabled crystallization. As the binding site of ε on α turned out to be far from the active site of the polymerase, we further investigated the tether between the N-terminal proofreading domain of ε and the C-terminal α-binding peptide. Building a model of the αεθ:β₂ complex with primer-template DNA using this new information and published crystal and NMR structures of the various protein components indicates that the tether is sufficiently long to bring the exonuclease domain of ε closer to the active site of the α polymerase subunit when proofreading is required. The model positions two CBMs on the separate subunits of the β₂ clamp, one being the internal CBM of α and the other the weakly binding CBM just beyond the C-terminus of the exonuclease domain of ε (25). Mutations of both CBMs for tighter binding to β produced an αεθ:β₂ complex that was stable enough to be isolated chromatographically and used to collect small-angle X-ray scattering (SAXS) data that are consistent with the model. NMR measurements showed that the tether in the εCTS is nevertheless still flexible in a similar complex. In agreement with the model, p-benzoyl-L-phenylalanine (Bpa) residues site-specifically incorporated in α270 were found to afford photo-crosslinking to the εCTS, in particular at sites located closer to the active site of the polymerase. The remote attachment site of ε on α via a long flexible tether suggests that the mechanism for transition between polymerization and proofreading modes in Pol III is fundamentally different from those in other polymerases whose structures in both modes are known or can be reliably modeled (29,30).

MATERIALS AND METHODS

The ¹⁵N- and ¹⁵N/¹³C-labeled amino acids and a mixture of ¹⁵N/¹³C-labeled amino acids were from Cambridge Isotope Laboratories (Andover, MA, USA). p-Benzoyl-L-phenylalanine (Bpa) was from Peptech (Burlington, MA, USA). All other standard reagents required for cell-free protein synthesis were as described previously (31,32). New plasmids for overproduction of proteins or their cell-free synthesis were derivatives of the T7 promoter vectors pETMCSI, pETMCSII or pETMSCIII (33) and were constructed by standard methods, usually involving restriction digestion of PCR products and their insertion between corresponding sites in appropriate vectors (see Supplementary Methods for full details). Inserts in all plasmids were confirmed by nucleotide sequence determination.

In vivo protein expression and purification

The Pol III subunits α, θ (9), α_L and ε_L (25) and the β₂ sliding clamp (34) were purified as described. The α_Lε_Lθ core complex was isolated essentially as described for wild-type core (25,35). ¹⁵N-ε_L, ¹⁵N,¹³C-ε186 and ¹⁵N,¹³C-ε193 were expressed in vivo in M9 minimal medium containing ¹⁵NH₄Cl and/or ¹³C-glucose; ¹⁵N,¹³C-ε186, ¹⁵N,¹³C-ε193 and their complexes with θ were purified essentially as described for ε186 and the ε186:θ complex, respectively (36). The εCTS–α270 fusion proteins (constructs A; Figure 1C) and His₆-α_GL (Figure 1D) were expressed in vivo and purified as described in Supplementary Methods. BpaRS was as described (31). Protein concentrations were determined spectrophotometrically using calculated values (37) of ε₂₈₀.

Isotope labeling of α270 and α270 or εCTS in the α270:εCTS complex

Plasmid pKO1367 was used at a concentration of 16 µg ml⁻¹ for cell-free synthesis of α270-His₆ in 0.6 ml reaction mixtures at 30°C overnight. Five ¹⁵N-labeled α270-His₆ samples were prepared following the combinatorial labeling scheme and reaction conditions described previously (32,38–40). The soluble fraction of α270-His₆ was purified using ProPur IMAC Mini Ni-spin columns (Nalgene Nunc, USA), and the purified protein was dialysed against 2l of NMR buffer (20 mM Tris.HCl, pH 7.0, 150 mM NaCl, 1 mM EDTA, 1 mM dithiothreitol) and concentrated to a final volume of about 0.2 ml using Millipore Ultra-4 centrifugal filters (MWCO 10 kDa). D₂O was added to a final concentration of 10% (v/v) prior to NMR measurements. In the same way, five samples of combinatorially ¹³C- and uniformly ¹⁵N-labeled α270-His₆ were made by cell-free synthesis, using the requisite mixtures of isotope labeled amino acids (41). For improved sensitivity in the NMR experiments, two 0.6 ml reactions were pooled for each sample. Uniformly ¹³C/¹⁵N-labeled α270-His₆ was made by cell-free synthesis in two 0.6 ml reactions, using a mixture of labeled amino acids as described (42).

Plasmid pKO1422 was used at 16 µg ml⁻¹ for cell-free synthesis of εCTS (Figure 1B). All samples of the α270-His₆:εCTS complex were purified and prepared for NMR as described above for α270-His₆. One set of five samples contained combinatorially ¹⁵N-labeled α270 in complex with unlabeled εCTS; they were made by cell-free synthesis of εCTS in the presence of the combinatorially ¹⁵N-labeled α270-His₆ samples described above. A second set of five samples contained combinatorially ¹⁵N-labeled εCTS in complex with unlabeled α270-His₆; the εCTS was produced by cell-free synthesis in the presence of unlabeled α270-His₆, which had itself been synthesized in a separate cell-free reaction. A third set of five samples contained combinatorially ¹³C- and uniformly ¹⁵N-labeled εCTS in the presence of separately purified and unlabeled α270-His₆. Cell-free synthesis of these five samples used two 0.6 ml reaction mixtures.

NMR spectroscopy

All NMR spectra were recorded at 25°C using Bruker 600 and 800 MHz NMR spectrometers equipped with cryoprobes, using 200 µl solutions in 3 mm sample tubes. ¹⁵N-HSQC spectra used t_1max = 32 ms, t_2max = 102 ms and total recording times of 1–13 h. 2D HN(CO) spectra and 3D HN(CO)CA and HNCA spectra were recorded in 20–24 h per spectrum. D₂O was added to all samples to a final concentration of 10% (v/v) prior to NMR measurements.

Crystallography

The εCTS₃₅–α270(L21P) and εCTS₄₄–α270(L21P) proteins were concentrated to 9.5–10 mg ml⁻¹, respectively, by precipitation with ammonium sulfate (0.35 g ml⁻¹); the pellets were dissolved in and extensively dialysed against 10 mM Tris.HCl (pH 7.6), 1 mM EDTA, 1 mM dithiothreiotol, 0.1 M NaCl. The crystals used for data collection were grown at 4°C in sitting drops with 4.5 µl of protein mixed with an equal volume of reservoir solution of 0.1 M Tris (pH 8.4), 0.2 M MgCl₂, 3 mM tris(carboxyethyl)phosphine (TCEP), 16% (w/v) PEG 3350. Rectangular prisms 300–400 µm in length appeared within 3–4 days. They were cryoprotected by two transfers (5 min each) in reservoir solution supplemented with 15% (w/v) PEG 400 before being frozen for data collection at 100 K. X-ray data were collected on Beamline MX1 [εCTS₃₅–α270(L21P)] or MX2 [εCTS₄₄–α270(L21P)] at wavelengths of 0.96858 and 0.95369 Å, respectively.

The structure of εCTS₃₅–α270(L21P) was solved at 1.7 Å resolution by molecular replacement, using the corresponding domain from the reported structure of E. coli α917 (10) as starting model to calculate phase information. The structure of εCTS₄₄–α270(L21P) was subsequently solved at 2.15 Å resolution using the refined structure of εCTS₃₅–α270(L21P) as starting model. Final models were obtained following cycles of refinement using REFMAC (43) and manually building using COOT (44). Data collection and refinement statistics are given in Supplementary Table S1.

DNA templates for site-directed Bpa mutants of α270

For site-specific incorporation of the unnatural amino acid Bpa into α270, amber stop codons were engineered at the corresponding sites of the dnaE(1–270) gene; primers used are listed in Supplementary Methods. The first five amber mutations were created by the Phusion site-directed mutagenesis kit (Finnzymes, Finland), and the genes were inserted between the NdeI and EcoRI sites of the T7 promoter vector pRSET-6b (45). The resulting plasmids pKO1481–1485 have the codons of Pro4, Asp25, Asp75, Gln106 and Lys229, respectively, replaced by amber codons and were used as DNA templates in cell-free synthesis reactions. Linear templates for cell-free synthesis of additional amber mutants (codons for Arg175, Tyr234 and Gln237) were generated by strand overlap PCR as described (46) using Vent DNA polymerase with outside primers and pairs of mutagenic primers (see Supplementary Methods). The PCR products were separately purified from an agarose gel using NucleoSpin Extract II kits (Macherey-Nagel, Germany). T7 promoter and terminator sequences were appended in two further separate PCR reactions (50 µl each) (46) with a mixture of 20–30 ng of purified PCR products from the previous step. Mixing of two sets of primer pairs in approximately equimolar ratio, removal of the residual primers by the NucleoSpin kit, denaturation at 95°C (5 min) and reannealing at room temperature (5 min) yielded DNA with complementary 8-nucleotide overhangs suitable for cyclization by the intrinsic ligase activity of the cell-free extract.

Complexes of Bpa mutants of α270 and the εCTS

Cell-free reactions were as described (31,32), with added Bpa (1 mM) and BpaRS (4–15 µM), as required. Plasmid templates pSH1017, pKO1367 and pKO1422 were used at 16 µg ml⁻¹ for production of ε, α270-His₆ and εCTS₅₉ (Figure 1B), respectively. The reannealed amber mutant PCR products described above were used as template at ∼10 µg ml⁻¹. The protein complex between α270-His₆ (Bpa mutants or wild-type) and the εCTS were made by simultaneous cell-free synthesis of the two proteins in the same reaction mixtures. The α270-His₆:ε:θ was produced by making ε in the presence of purified α270-His₆ and θ or by co-synthesis of α270-His₆ and ε in the presence of separately purified θ. The complex of α270 with εCTS-Bpa-His₆ was made by cell-free co-synthesis of these partner proteins in the same reaction mixture. The reaction mixtures were then clarified by centrifugation (100 000 g, 1 h) at 4°C. The supernatants were loaded onto ProPur IMAC Mini Ni-spin columns and the complexes were partially purified by virtue of the C-terminal His₆-tag of α270. The purified complexes were concentrated to ∼0.1 ml using Millipore Ultra-4 centrifugal filters (MWCO 10 kDa), replacing the buffer with 10 mM sodium phosphate (pH 6.8), 100 mM NaCl, 1 mM dithiothreitol for photo-crosslinking experiments.

Photo-crosslinking and LC-MS/MS analysis of crosslinked adducts

The isolated wild-type and Bpa-containing protein complexes (5–8 mg ml⁻¹) were irradiated at 312 nm for 1 min using a Mini UV transilluminator system BTS 20 M (GAS700X) (UVItec, UK) and subsequently analysed by SDS-PAGE. The photo-crosslinked α270:ε or α270:εCTS adducts were analysed by LC-ESI-ion trap mass spectrometry/mass spectrometry (LC-MS/MS) using a described protocol for in-gel trypsin digestion of gel-fractionated proteins (47). The solution containing the tryptic peptides that diffused from the gel pieces was desalted using C18 Zip-tips (Millipore), dried in a desiccator and dissolved in 20 µl of 15% acetonitrile/1% formic acid for LC-MS/MS analysis using an Agilent 6530 Accurate Mass Q-TOF LC/MS.

Preparation of the His₆-α_GL:¹⁵N-ε_L:θ complex and titration with β₂

A mixture of 11.0 mg of purified His₆-α_GL, 2.7 mg θ and 5.6 mg ¹⁵N-ε_L was treated at 0°C for 1 h, then dialysed against 50 mM HEPES-KOH (pH 7.5), 300 mM NaCl, 20 mM imidazole, 5% (v/v) glycerol (buffer A). The sample (10 ml) was separated from excess θ and ε_L on a 5 ml Ni-NTA column in buffer A (eluted in a linear 20–500 mM imidazole gradient). The His₆-α_GL:¹⁵N-ε_L:θ complex was concentrated to 100 µM in NMR buffer using Millipore Ultra-15 centrifugal filters (MWCO 10 kDa) and stored at −80°C. Sample purity was assessed by 15% SDS-PAGE. ¹⁵N-HSQC spectra were recorded before and after addition of concentrated β₂ (separately dialysed in NMR buffer) to 50, 100, 150, 200, 300 and 400 µM (as dimer).

The His₆-α_GL:¹⁵N-ε_L:θ:β₂ complex was separately isolated from a mixture of 100 µM His₆-α_GL:¹⁵N-ε_L:θ and 400 µM β₂ by gel filtration (Supplementary Figure S1). The protein complex was concentrated to about 40 µM in NMR buffer using Millipore Ultra-4 centrifugal filters (MWCO 10 kDa) and stored at −80°C.

NMR titration of ¹⁵N,¹³C-ε:θ complexes with β₂

Complexes of ¹⁵N,¹³C-ε186 and ¹⁵N,¹³C-ε193 with purified unlabeled θ were dialysed into NMR buffer and concentrated using Amicon Ultra-4 centrifugal filters (MWCO 10 kDa, Millipore). Resonances in the ¹⁵N-HSQC spectra of ε186 and ε193 in the two complexes with θ were assigned by reference to previous assignments of ε186 in ε186:θ (BioMagRes database entry: bmrb6184), our ε assignments in the αεθ complex (9) and new experimental data for residues Ala188, Gln182–Ala186 and Thr193 obtained from 2D HN(CO) spectra and 3D HN(CO)CA and HNCA spectra. Phe187 was assigned through combinatorial labeling with ¹⁵N and ¹⁵N/¹³C to identify the Ala186–Phe187 dipeptide. The assignment of resonances in the CBM of ε193 (Gln-Thr-Ser-Met-Ala-Phe) were confirmed using cell-free residue-specific ¹⁵N-labeling of wild-type and two CBM mutants of ε193, that is, ε_L193 (CBM: QLSLPL) and ε_Q193 (CBM: ATSMAF) (25), with these six amino acids, and of ε_L with ¹⁵N-Leu, all in the presence of excess unlabeled θ.

NMR titration of the ¹⁵N,¹³C-ε186: θ complex (100 µM) with β₂ was made by recording of ¹⁵N-HSQC spectra before and after progressive addition of concentrated purified β₂ to 100, 200, 300 and 400 µM, whereas the ¹⁵N,¹³C-ε₁₉₃:θ complex (34 µM) was similarly titrated with 34 and 68 µM β₂. Spectra were also recorded of the ¹⁵N-Gln, Thr, Ser, Met, Ala, Phe labeled ε193:unlabeled θ (27 µM) sample with and without added β₂ at 30 µM.

Small-angle X-ray scattering

A mixture of the α_Lε_Lθ core (1 mg) and β₂ (2 mg) was dialysed into buffer C (50 mM Tris.HCl pH 7.6, 1 mM EDTA, 1 mM dithiothreitol, 10% v/v glycerol) containing 100 mM NaCl. The stoichiometric α_Lε_Lθ:β₂ complex was separated from excess β₂ by anion exchange chromatography on a MonoQ 5/50 GL column (GE Healthcare) using a gradient of 0.1–1.0 M NaCl in buffer C, concentrated to 2.15 mg ml⁻¹ using an Amicon Ultra 0.5 ml centrifugal concentrator (Millipore) and stored frozen at −80°C. SDS-PAGE was used to confirm the presence of all four subunits.

Scattering data were recorded on the SAXS/WAXS beamline at the Australian Synchrotron. The complex was analysed by size-exclusion chromatography-coupled small-angle X-ray scattering (SEC-SAXS). The complex was dialysed into 50 mM Tris.HCl pH 8.0, 0.1 M NaCl, 1 mM EDTA, 1 mM TCEP, 5% (v/v) glycerol and 70 µl were injected at 0.5 ml min⁻¹ onto a Wyatt WTC-030S5 SEC column (7.8 × 300 mm) equilibrated at 12°C in the same buffer. A₂₈₀ of the eluate was monitored immediately prior to its passage through a quartz capillary that was illuminated by a collimated 11 keV X-ray beam, λ = 1.127 Å. Scattering from the sample was measured by a Pilatus 1 M detector (Dectris, Switzerland) that recorded 2D scattering images in 2 s exposures from a position 3349 mm behind the sample. For all the frames used for the data analysis, no protein damage induced by X-rays was observed. Scattering from the eluate was stable as averaged from 10 exposures prior to and after elution of protein, to give the buffer scattering. Following radial averaging and buffer subtraction, the radii of gyration, R_g, of five exposure bins were determined by Guinier analysis using AUTORG (48) and plotted against elution volume. Sample scattering was averaged across the region of R_g stability, which corresponded to the main UV absorption peak in the elution profile and encompassed 20 exposures. The scattering pattern was truncated within the range 0.012 ≤ Q ≤ 0.16 Å⁻¹. The theoretical SAXS patterns, radii of gyration and envelope volumes of various atomic models were calculated using CRYSOL (49), for comparison with experimental results.

RESULTS

Cell-free but not in vivo expression of the PHP domain of α yields correctly folded protein

As full-length E. coli α is prone to proteolysis and is unsuitable for crystallization (10), we studied the interaction between domains of α and ε. It had been shown that the N-terminal 320-residue fragment of α binds ε (19), but the PHP domain of α defined subsequently ends already at residue 270 (10). However, a soluble construct comprising the N-terminal 270 residues (α270) produced in vivo appeared to be unfolded as indicated by the ¹⁵N-HSQC NMR spectrum of a ¹⁵N-labeled sample (Supplementary Figure S2A). In contrast, samples made by cell-free protein synthesis routinely showed a chemical shift dispersion characteristic of a well-structured globular domain (Supplementary Figure S2B). Therefore, we subsequently produced all samples of α270 by cell-free synthesis.

Coarse mapping of the interface between α270 and the εCTS by NMR

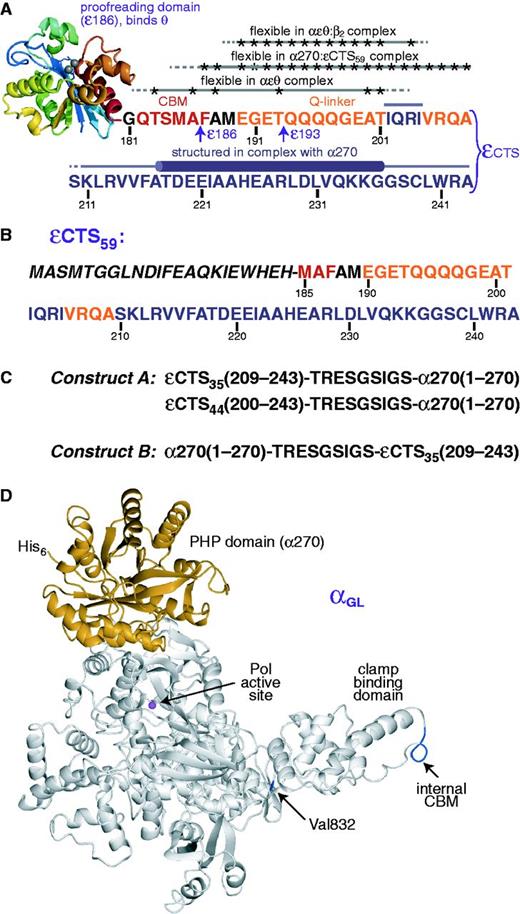

Expression of a construct comprising the flexible 59 C-terminal residues of ε preceded by a 22-residue tag (εCTS₅₉; Figure 1B) in the presence of ¹⁵N-labeled α270 led to a soluble complex that retained the overall chemical shift dispersion of α270 with some significant chemical shift changes, as expected for specific binding (Supplementary Figure S3A).

We also used NMR spectroscopy to map the binding site of the εCTS on α270. As the stability and concentration of α270 samples was insufficient for conventional triple-resonance NMR experiments, combinatorial labeling was used to obtain resonance assignments (38,39). Five samples were prepared, in which different residues of α270 were labeled with ¹⁵N in different combinations (Supplementary Figure S4A and Supplementary Data), allowing the residue-type identification of the ¹⁵N-HSQC cross-peaks. In addition, five samples were prepared with combinatorial ¹³C-labeling and uniform ¹⁵N-labeling. 2D HN(CO) NMR spectra of these samples provided the residue-type information of the preceding amino acid for each ¹⁵N-HSQC cross-peak (Supplementary Figures S3B and Supplementary Data) (50). In combination, the 10 samples provided sequence-specific resonance assignments for 50 ¹⁵N-HSQC cross-peaks arising from amino acid pairs that are unique in the sequence of α270 (Supplementary Table S2).

A second set of five combinatorially ¹⁵N-labeled samples of α270 was prepared in complex with unlabeled εCTS₅₉ and ¹⁵N-HSQC spectra were recorded (data not shown). Significant chemical shift changes occurred throughout the α270 domain, but the two largest were observed for amides within 15 Å of its N- and C-terminal ends (Supplementary Figure S3). This indicated that in contrast to α270, a fusion construct of it with the εCTS could be a stable, well-folded protein.

The ¹⁵N-HSQC spectrum of the ¹⁵N-εCTS₅₉ construct in complex with unlabeled α270 displayed many narrow lines, indicating that much of it is highly mobile and not tightly interacting with α270. For resonance assignments, εCTS₅₉ in the complex with unlabeled α270 was combinatorially ¹⁵N-labeled (Supplementary Figure S5A) and, in a second set of five samples, labeled combinatorially with ¹³C and uniformly with ¹⁵N. 3D HNCA and HN(CO)CA experiments with the second set were used to assign most of the flexible amino acid residues in the εCTS₅₉ construct. Like 2D HN(CO) experiments, the 3D HN(CO)CA spectra of the combinatorially labeled samples identified for each ¹⁵N-HSQC cross-peak the amino acid-type of the preceding residue. In addition, the HN(CO)CA spectra delivered its Cα chemical shift which, together with the HNCA spectrum, provided more secure resonance assignments than could have been obtained from a single uniformly ¹⁵N/¹³C labeled sample. The final resonance assignments corresponded to the segment from Phe187 to Ala209. In addition, two-thirds of the residues of the non-native N-terminal 22-residue tag of the εCTS₅₉ construct were assigned in the complex (Supplementary Table S3). The narrow line widths and random coil chemical shifts of these residues indicate high flexibility as expected. Most notably, no signals could be observed for the C-terminal segment (Ser210 to Ala243) of the εCTS, except for the amides of Glu221 and Gly237, indicating immobilization by tight association with α270. The delineation of the flexible residues in the εCTS was used to design fusion constructs of the εCTS with α270.

Crystal structures of intramolecular α270–εCTS complexes

The α270 domain was fused to the εCTS (residues 209–243) via a nine-residue linker, where the εCTS was N-terminal of α270 in construct A and C-terminal of α270 in construct B (Figure 1C). To assess the impact of the fusion on the structural integrity of α270, we compared the ¹⁵N-HSQC spectra of selectively ¹⁵N-alanine labeled samples of constructs A and B with corresponding spectra of the similarly ¹⁵N-alanine labeled non-covalent α270:εCTS₅₉ complex. All samples were readily produced in soluble form by cell-free synthesis. The NMR spectrum of construct A was much more similar to the spectrum of the α270:εCTS₅₉ complex than the spectrum of construct B (Supplementary Figure S6A and Supplementary Data), suggesting that construct A is a stable intramolecular α270:εCTS complex.

Both constructs were expressed in vivo, and could be purified in soluble form for use in crystallization trials, but neither yielded crystals. Crystals were obtained, however, for a variant of construct A that contained a fortuitous point mutation in the α270 domain, Leu21Pro. Some of the cross-peaks were broad or missing from the ¹⁵N-HSQC spectrum of the ¹⁵N-alanine labeled mutant protein, suggesting conformational exchange broadening of some of the NMR signals (Supplementary Figure S6C and Supplementary Data). The crystal structure, however, shows no evidence of conformational heterogeneity, which may be explained by crystal contacts involving Pro21 leading to preferential crystallization of a particular conformer; in all four molecules in the asymmetric unit, Pro21 makes a crystal contact with an alanine residue.

The 1.70 Å crystal structure of the α(Leu21Pro) mutant of construct A was solved by molecular replacement using the α270 domain from the structure of α917 (PDB: 2HQA) (10) as starting model (Supplementary Table S1). The four molecules in the unit cell show a maximum Cα RMSD of 0.284 Å in pairwise alignments, and in all four the structure is fully ordered from Lys211 of εCTS (numbered throughout as in full-length ε) through the linker region and the entire α-PHP domain to the final residue, Thr270. In one of the monomers, the backbone and side chain Cβ of Ser210 is also ordered, and in another Lys211 has alternate side chain conformations.

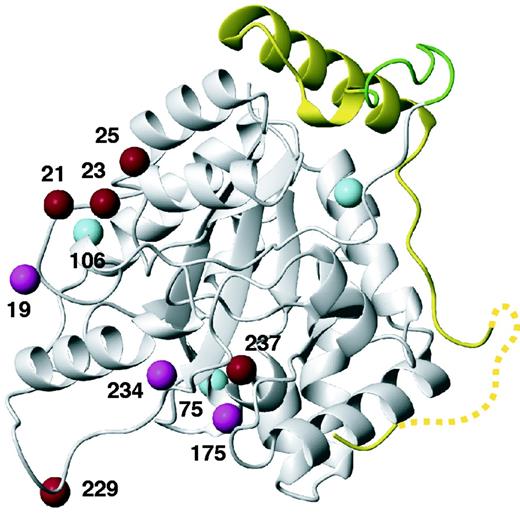

The refined structure of the εCTS₃₅–α270 protein shows the εCTS assuming an extended structure across one face of α270, followed by an α-helix. The C-terminal residues that follow are located in a pocket formed by α270 and the α-helix of the εCTS (Figure 2). The εCTS portion is fully structured and in contact with α between residues Lys211 and the C-terminus of ε; electrostatic and H-bonded contacts between α and ε are listed in Supplementary Table S4, and these are complemented by a much larger number of hydrophobic interactions. Although it is engaged in crystal contacts, the linker peptide connecting the εCTS with the α270 domain is solvent exposed, so that the structure of the complex is unlikely to be affected by its length or conformation. The mutated residue Pro21 of α270 is far removed from the εCTS binding region on the opposite face of the PHP domain (Figure 2A) that is in closer proximity to the polymerase active site in the α917 structure (10).

To confirm the NMR data that εCTS in complex with α270 is indeed unstructured in the linker preceding Ala209, we made a longer type A fusion construct commencing at Ala200 (i.e., εCTS₄₄–α270), crystallized it under similar conditions, and solved its structure at 2.15 Å (Supplementary Table S1). In two of the four chains in the asymmetric unit, residues preceding Lys211 were still disordered, but in one of the other two, weak electron density was interpreted as the tetrapeptide segment Ile202–Ile205 that has additional interactions with the region around His183 and Asp252 of α270 (Figure 2 and Supplementary Table S4), and Ser210 was also fully ordered. Because the Val206–Ala209 segment is disordered, we are unable to tell if this εCTS tetrapeptide derives from the same molecule to which it is bound, or from a neighboring molecule in the crystal lattice, and the NMR data show that this segment is inherently flexible in solution. Although it seems probable that these additional interactions are rather transient in the context of the full αεθ core complex, they nevertheless indicate where in space the flexible segment of ε (between Ala188 and Ala209) is likely to reside, at least in the closed form of the αεθ:β₂ complex during DNA synthesis (25).

The PHP domain of α in the crystal structures of construct A and in α917 (10) is fully conserved structurally, except around the site of the Leu21Pro mutation, with a backbone RMSD of 0.532 Å over 253 Cα atoms. This allows straightforward modeling of the εCTS onto the structure of α917. As discussed in detail below (see also Supplementary Movie S1), the C-terminus of ε binds to α in a position that would place the extended peptide segment immediately preceding the C-terminal helix of ε and the exonuclease active site far from that of the polymerase. Its unusually remote location raises questions about how the N-terminal exonuclease domain of ε gains access to a mismatched primer terminus when proofreading is required. Thus, we sought to obtain further information about the location in the complex with α of the linker peptide that extends in ε from the CBM (i.e., from Ala188) to the structured part in the crystal structures above.

Photo-crosslinking to localize the flexible peptide segment of the εCTS on α270

In agreement with the NMR evidence for high mobility of residues prior to Ala209, the crystal structures of εCTS in the two type A constructs showed consistent electron density only from Lys211 onwards. To explore the location of the flexible residues of the Q-linker, we introduced the unnatural amino acid p-benzoyl-L-phenylalanine (Bpa) at different sites in α270, using the orthogonal Methanococcus jannaschii system developed by P.G. Schultz and co-workers, where the site of Bpa incorporation is encoded by an amber stop codon (51). The purification of the mutants was facilitated by producing the protein in a cell-free system, which relied on purified plasmid DNA with amber stop codons, purified Bpa-tRNA synthetase and a total tRNA preparation that contained the amber suppressor tRNA (31). Most Bpa mutants were produced in yields of up to 1.5 mg ml⁻¹ in 7 h without evidence of truncation at the amber stop codon (Supplementary Figure S7A). Full-length proteins were readily purified using a Ni-NTA spin column, as all α270 mutants carried a C-terminal His₆-tag. The production of the Ala25Bpa mutant, which was initially expressed in low yields, was improved dramatically by using the optimized (52) amber suppressor tRNA^opt and doubling the amount of total tRNA (31).

Cell-free expression of ε in the presence of the purified Bpa mutants of α270 and of separately purified θ produced stable soluble complexes that could be purified as shown previously for wild-type α (9). Similarly, soluble complexes of the α270 Bpa mutants with the εCTS₅₉ construct were obtained by cell-free co-expression of the α270 mutants and of εCTS₅₉ (Supplementary Figure S7B and Supplementary Data).

UV irradiation (312 nm, 1 min) effects photo-crosslinking of Bpa to nearby residues (<3 Å) (53). SDS-PAGE revealed crosslinking with full-length ε when Bpa was located in positions 19, 21, 23, 25 and 229 of α270, but no crosslinks were observed with Bpa at positions 4, 75 and 106 (Supplementary Figure S7B and data not shown). Mass spectrometric analysis of in-gel tryptic digests confirmed that the crosslinks were with the εCTS rather than the globular N-terminal domain of ε. Additional experiments were carried out with the εCTS₅₉ construct to eliminate the need to exclude binding to the N-terminal domain of ε. Bpa mutants at positions 175, 229, 234 and 237 displayed crosslinks with εCTS₅₉ (Figure 3; Supplementary Figure S7C). The wide distribution of crosslinking sites across the surface of α270 confirms the NMR observation of high flexibility in the linker segment of ε before the C-terminal α270-binding region. Most interestingly, the Lys229Bpa mutant readily crosslinked with a peptide segment preceding Gln196 in εCTS₅₉ (Supplementary Figure S8), although Lys229 is located on the opposite face of the PHP domain compared to the binding site of the C-terminus of ε. Therefore, the Q-linker region of the εCTS readily wraps around the PHP domain of α but is not poised for specific binding interactions with the PHP domain.

Photo-crosslinking experiments between α270 and the εCTS were also conducted with an εCTS construct that was extended at its C-terminus by Bpa-His₆. MS analysis of a tryptic in-gel digest of the cross-linked complex revealed linkage to the segment of residues Ala31–Lys52 in α (data not shown). This result is in agreement with the crystal structure, which positions the peptide linker between the εCTS and α270 within 11 Å of the peptide identified by MS.

The εCTS Q-linker remains flexible in the αεθ:β₂ complex

The ε subunit harbors a CBM immediately following the exonuclease domain (i.e., residues 182–187) (25), and α also contains a CBM between residues 920 and 924 (24). Although each binding interaction is individually weak, the cooperativity of binding of α to one subunit of the β₂ dimer and of ε to the other maintains the integrity of the αεθ:β₂ replicase complex with DNA during highly processive DNA replication (25). The questions remain whether such a binding arrangement is compatible with the available structural information on the replisome subunits and whether the εCTS can accommodate this arrangement. To investigate the structural confinement of the εCTS in the αεθ:β₂ complex, we studied the NMR spectrum of the α_GLε_Lθ:β₂ complex, where α_GL and ε_L are mutants of α and ε with improved binding affinities to β₂ (Figure 1A and D); in addition to strengthening mutations in the CBM (as in α_L) (25,26), α_GL also contains an additional mutation (Val832Gly; spq-2) (25,54) that by itself strengthens binding of αεθ to β₂ (S.J. and Thitima Urathamakul, unpublished). For example, a peptide with an optimized CBM as in ε_L interacts about 500-fold more strongly with β₂ than the wild-type CBM of ε (25), while the α_L mutations (A921L, M923L) in the CBM of α strengthen binding to β₂ 120-fold (26). For NMR measurements, α_GLε_Lθ was made with uniformly ¹⁵N-labeled ε_L and mixed with a 3-fold excess of β₂; the stoichiometric α_GLε_Lθ:β₂ complex was stable enough to be isolated by gel filtration (Supplementary Figure S1).

The molecular mass of the α_GLε_Lθ and α_GLε_Lθ:β₂ complexes is so high (165 and 245 kDa, respectively) that only highly mobile peptide segments can generate cross-peaks in ¹⁵N-HSQC spectra. Remarkably, almost all the cross-peaks that could be observed for the α_GLε_Lθ complex (Figure 4A and Supplementary Figure S5B) could also be observed in the presence of β₂ (Figure 4B and C), although with generally decreased intensity as expected for the slower overall tumbling rate of the α_GLε_Lθ:β₂ complex (Supplementary Figure S9). The peaks did not arise from complexes with sub-stoichiometric amounts of β₂, as they were observed even in the presence of an excess of β₂. Assignments for many of these resonances (residues Glu190–Thr201 and Arg204) were obtained by comparison with spectra of α270 in complex with ¹⁵N-labeled εCTS (Figure 4B), and indicate that the Q-linker is clearly still mobile when the CBM of ε is tied to the β₂ clamp.

The ε subunit interacts with β₂ only through the CBM

Identification of the role of the CBM just following the structured domain of ε in DNA replication (25), when combined with the structure of the εCTS in complex with the α-PHP domain (Figure 2) enables us to position the proofreader between the β₂ clamp and PHP domain of α in the αεθ:β₂:DNA complex in the polymerization mode of DNA synthesis (25). We have previously shown by NMR that ε186 does not interact, even weakly, with α (9), and we now asked if ε contains a second site for interaction with β₂ that orients it precisely in the αεθ:β₂ complex. To do this, we made a new truncated version of ε we call ε193 (residues 2–193), that contains all of the structured exonuclease domain and the CBM (Figure 1A). We first used cell-free synthesis to prepare, in the presence of excess unlabeled θ, a sample of ε193 (27 µM) that was ¹⁵N-labeled only with amino acids that comprise the CBM (Gln, Thr, Ser, Met, Ala and Phe), and assigned these residues in the ¹⁵N-HSQC spectrum of the whole ε193 protein as described in Materials and Methods section. Addition of β₂ to 30 µM led to disappearance of signals corresponding to all residues of the CBM (Gln182–Phe187), but no significant changes to the spectrum of the structured proofreading domain or of Ala188 and Thr193 in the region beyond the CBM (Figure 5). These data are the first to directly show the interaction of the CBM in ε with β₂ at single-residue resolution.

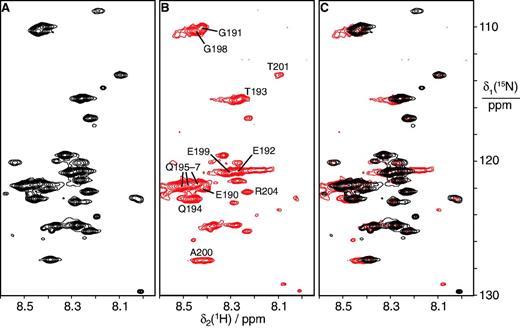

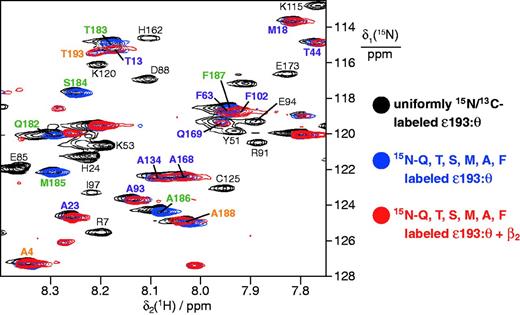

We also isolated the complex of uniformly in vivo¹⁵N,¹³C-labeled ε193 with unlabeled θ, and recorded its ¹⁵N-HSQC spectra (at 34 µM) in the absence and presence of β₂ at 34 and 68 µM (data not shown). Once again, the only cross-peaks broadened beyond detection in the ε193 spectrum were those in the region of the CBM; peaks throughout the remainder of the spectrum did not shift and were only broadened at the highest concentration of β₂, consistent with the exonuclease domain being freely mobile in the complex with β₂, except in the CBM that interacts directly with the clamp. In further support of the conclusion that ε contains no site of interaction with β₂ beyond the CBM, we were unable to detect any significant changes in the ¹⁵N-HSQC spectrum of ¹⁵N,¹³C-ε186:θ (100 µM) on addition of up to 400 µM β₂.

Structural modeling of the Pol III replicase complex in the polymerization mode

The 3D structures of many components of the Pol III replicase complex are known from different bacterial sources, including three crystal structures of Pol III α: of E. coli α917 (10), and of full-length Taq α alone (11) and in complex with primer-template DNA (55). The DNA-free protein structures are remarkably similar and reveal an open state that closes on binding primer-template DNA (discussed in 25). In addition, the crystal structures of an E. coli β₂:dsDNA complex (23), ε186 (12) and the ε186:HOT complex (13,14) are known, as well as the NMR structure of the ε186:θ complex (16).

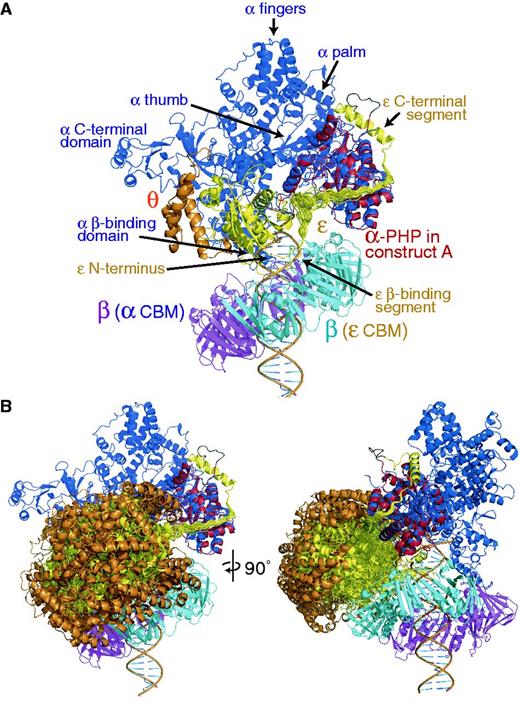

Combining these atomic-resolution structures with the present structure of the α270:εCTS complex and the identification of CBMs in α (24,26) and ε (25), we initially built a compact model of the replicase complex in the polymerization mode with the ε186 and θ domains in available space between the β clamp and the β-binding domain of α (Figure 6A, Supplementary Movie S1 and Supplementary Pymol Session File S1; model building is described in Supplementary Methods). This model fulfils all the known restraints, including the current results that the Q-linker region in ε is flexible and at least transiently close to Lys229 in α (Figure 3), and that residues 202–205 of ε are transiently close to His183 and Asp252 of α (Figure 2). In the model, the CBMs of α and ε bind to different subunits of β₂ and the exonuclease domain of ε readily approaches the DNA, while the conformational space available to the Q-linker of ε is sufficiently large to allow high mobility (Figure 6A). Since we have been unable to detect an additional point of contact of ε with either α (9) or β (above), it may be that either (i) the globular ε186 domain remains mobile in the complex (it can still rotate in its position in this model without clashing with β₂ or α) or it is held in a fixed position through transient electrostatic contacts with the double-stranded portion of the primer-template DNA. Its precise position could potentially be defined by further crosslinking studies, but we note that as with our Bpa data, all crosslinking methods are inherently unsuitable for precise definition of positions of components of intrinsically dynamic complexes; they demonstrate where subunits can be, not where they necessarily are.

A third possibility is that the exonuclease domain remains much more freely mobile in the complex during DNA synthesis, and is reoriented to an appropriate position during proofreading. The structured region of ε186 ends at Gly180 and Gln182, the first residue of the CBM, is bound in the protein-binding groove of β₂. Although the closeness of these residues restricts the space that can be occupied by εθ, it is still possible for εθ to rotate away from α:β₂ to produce less compact and more mobile structures.

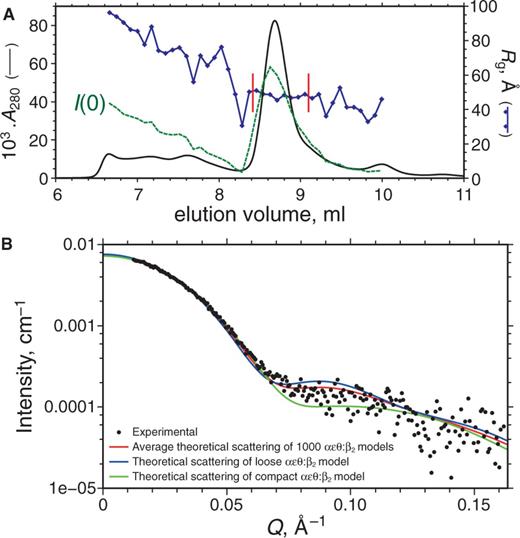

Assessment of structural models using SAXS data

The α_Lε_Lθ:β₂ complex, with both the CBMs in α and ε strengthened, has been observed to be stable by ESI-MS under native conditions (25), and as with the corresponding complex containing α_GL, it can be isolated chromatographically (see Supplementary Methods). To assess whether the α_L subunit in this stabilized replicase complex has a closed structure similar to that in our model (Figure 6A) even in the absence of primer-template DNA, we collected real-time gel-filtration SAXS data on the α_Lε_Lθ:β₂ complex at a synchrotron source (Figure 7) and compared it with predicted scattering curves for various structural models.

Analysis of the data showed good agreement with the overall dimensions of an initial docking model with a closed α conformation, but indicated too compact packing of the εθ subunits to the α chain (Figure 7B). An ensemble of 1000 alternate structures was generated by allowing free rotation around the backbone dihedral angles of Gly180–Gln182 in ε while disallowing steric clashes with α:β₂ (Figure 6B, Supplementary Movie S2 and Supplementary Pymol Session File S2). Averaging over the ensemble resulted in a markedly improved fit of the SAXS data at Q-values in the range of 0.07–0.12 Å⁻¹ (Figure 7), which suggests that εθ is not restrained in a single conformation in the stabilized αεθ:β₂ complex, at least in the absence of primer-template DNA.

DISCUSSION

The crystal structure of the α270:εCTS complex solved in the present work allows, for the first time, the building of informed models of the αεθ:β₂ replicase complex with primer-template DNA in the polymerization mode (Figure 6A). The high-affinity binding site of the εCTS on the PHP domain of α turned out to be surprisingly remote from the active site of the polymerase. The long Q-linker of ε was found to be highly mobile even in the context of the αεθ:β₂ complex, readily accommodating a conformation that allows the CBM located in ε near the C-terminus of the globular exonuclease domain (25) to bind to the well-established protein-binding site of β. It is intriguing to speculate that the exonuclease could swing a long distance from the DNA when its CBM is released from the β₂ clamp. Release of the ε CBM from β₂ would be a requirement for entry of other β-binding proteins, including repair and translesion polymerases (56) into the replicase complex, and might also occur in the transition from polymerization to proofreading modes (25). The distance between the polymerase and exonuclease active sites in all model structures in Figure 6 is >70 Å (average of 92.3 Å for the ensemble in Figure 6B); that this distance is so large suggests it is very likely that the ε–β contact is broken during transition to the proofreading mode, to allow α to assume a more open structure and access of ε to the mismatched primer terminus. To compensate for the loss of binding affinity of the CBM, the conformational change in α could expose a cryptic-binding site for the ε186 domain (or θ), such that the exonuclease site is appropriately positioned for proofreading. In this scenario, binding of ε186:θ to either the β₂ clamp or to α would present a switch between the two modes that is fundamentally different from that observed in simpler polymerases with an integrated proofreading domain, where the transition between polymerization and proofreading modes requires protein-mediated transfer of the 3′ end of the primer over a distance of 20–30 Å between the polymerase and exonuclease active sites (29,30). In contrast, repositioning of the exonuclease domain of Pol III over a sufficiently large distance is perfectly conceivable, as the ε186 domain does not interact to any appreciable degree with the εCTS, α or, as shown here, to β (9). Proofreading would still require disengagement of the mismatched primer-template from the polymerase active site and sliding back of the ds DNA portion through the β₂ clamp to allow access of the 3′ primer terminus to the exonuclease active site.

On a technical note, cell-free protein synthesis proved to be a decisive tool in this project, as α270 folded into a defined conformation when expressed by cell-free synthesis but not when it was produced in vivo. Furthermore, overexpression of full-length ε in vivo leads to insoluble protein, which in the past could only be solubilized by a denaturation and refolding protocol (57). Cell-free synthesis of ε in the presence of its natural-binding partners θ and α, however, circumvented this problem, readily yielding the stable ternary αεθ complex (9). Similarly, εCTS₅₉ when expressed by itself was insoluble, but soluble complexes with α270 and mutants thereof were readily obtained by cell-free synthesis. Furthermore, this approach allowed efficient ¹⁵N-labeling of individual proteins in selective (58,59) and combinatorial (38,39) labeling schemes, providing a route to NMR resonance assignments of samples of limited solubility and stability. Finally, the cell-free approach is uniquely suited for the incorporation of unnatural amino acids (31), in the present work affording the facile incorporation of the unnatural amino acid Bpa for photo-crosslinking. This method may present a useful tool to probe structures of larger replisomal complexes in the future.

CONCLUSION

The extraordinarily long flexible tether by which the globular domain of the proofreading exonuclease is attached to the polymerase subunit raises the expectation of large conformational changes involved in the transition from the polymerization to the proofreading mode. Future studies may attempt to probe this by single-molecule fluorescence resonance energy transfer (FRET) experiments.

ACCESSION NUMBERS

Protein Data Bank: The coordinates and structure factors of α270:εCTS_209–243 and α270:εCTS_200–243 fusion proteins have been deposited with accession numbers 4GX8 and 4GX9, respectively.

FUNDING

Australian Research Council [DP0984797 to N.E.D., T.H., K.O. and M.T., DP0877658 to N.E.D. and A.J.O., FT0990287 to A.J.O., FT0991709 to T.H., DP120100561 to T.H. and G.O.]. Funding for open access charge: University of Wollongong.

Conflict of interest statement. None declared.

ACKNOWLEDGEMENTS

We thank Prof. P. Schultz for the gene of the Bpa-tRNA-synthetase, Drs Nigel Kirby, Haydyn Mertens and Adrian Hawley for help with SAXS experiments (SAXS/WAXS beamline) and Dr David Jacques for help with X-ray data collection (beamlines MX1 and MX2) at the Australian Synchrotron, Victoria, Australia.
