Spectroscopic identification of rapidly rotating red giant stars in APOKASC-3 and APOGEE DR16

ABSTRACT

Rotationally enhanced red giant stars are astrophysically interesting but rare. In this paper, we present a catalogue of 3217 active red giant candidates in the APOGEE DR16 (Apache Point Observatory Galactic Evolution Experiment – Data Release 16) survey. We use a control sample in the well-studied Kepler fields to demonstrate a strong relationship between rotation and anomalies in the spectroscopic solution relative to typical giants. Stars in the full survey with similar solutions are identified as candidates. We use vsini measurements to confirm that 50 ± 1.2 per cent of our DR16 candidates are rotationally enhanced (vsini > 5 km s⁻¹), compared to 4.9 ± 0.2 per cent in the Kepler control sample. In both, the Kepler control sample and a control sample from DR16, we find that there are 3–4 times as many giants rotating with intermediate velocities of 5 < vsini < 10 km s⁻¹ compared to velocities of vsini > 10 km s⁻¹, the traditional threshold for rapid rotation for red giants. The vast majority of intermediate rotators are not spectroscopically anomalous. We use binary diagnostics from APOGEE and Gaia to infer a binary fraction of 73 ± 2.4 per cent among the confirmed rotationally enhanced giants in DR16. We identify a significant bias in the reported metallicity for DR16 candidates with complete spectroscopic solutions, with a median offset of −0.37 dex in [M/H] from a control sample. As such, up to 10 per cent of stars with reported [M/H]<−1 are not truly metal poor. Finally, we use Gaia data to identify a subpopulation of main-sequence photometric binaries erroneously classified as giants.

1 INTRODUCTION

Rotational enhancement in low-mass giant stars is a sign of a star with an unusual history. For stars born below the Kraft break (T_eff < 6250 K; M < 1.3 M_⊙, Kraft 1967), the convective envelope is deep enough that magnetized winds form, which carry away angular momentum. These low-mass stars rotate slowly, even on the main sequence. Even higher mass stars that leave the main sequence rotating more rapidly experience magnetic braking when they become giants with deep surface convection. Furthermore, all giants expand and slow down through angular momentum conservation. The net effect is that the bulk of red giants are very slow rotators, typically with undetected rotation rates (de Medeiros, Da Rocha & Mayor 1996).

Yet we know rapidly rotating red giants exist, as there are several ways in which rapid rotation manifests itself. Rotational broadening of spectral lines corresponding to vsini > 10 km s⁻¹ is the typical threshold adopted in the literature to designate rapid rotation in red giants (e.g. Tayar et al. 2015). Tayar et al. (2015) also identified a cohort of intermediately rotating red clump (RC) stars with 5 < vsini < 10 km s⁻¹ which are still rotationally enhanced compared to the typical rotation speed of giants (vsini < 1 km s⁻¹, de Medeiros et al. 1996; Carlberg et al. 2011). With the advent of large time-domain surveys, star-spot modulation can also be used to infer rotation periods for giants (e.g. García et al. 2014c). Magnetic activity, caused by a rotationally driven, convective dynamo in the giant’s envelope results in star-spots (e.g. Yadav et al. 2015), thus rotational modulation in its light curve (e.g. Mathur et al. 2014). Position in a Hertzsprung-Russell (HR) diagram can also indicate binary interaction and current rapid rotation. For example, there is a field turnoff related to the finite age of the Galaxy, and a corresponding minimum effective temperature in the red giant branch (RGB). Stars cooler than this locus, sometimes referred to as sub-subgiants, are preferentially active stars, and frequently interacting binaries (Geller et al. 2017a , b; Leiner, Mathieu & Geller 2017; Leiner et al. 2022). Stars with typical evolutionary histories are either completely absent or nearly so in these domains.

Still, each of these detection methods have their shortfalls. In principle, rotation in the form of vsini can be measured directly from spectra. However, the large majority of giants are slow rotators, and adding rotation as an additional degree of freedom in spectroscopic fitting pipelines is computationally expensive for a quantity that is an upper limit for the vast majority of the sample. Furthermore, rotationally enhanced red giants have spectra that can be difficult to fit with conventional methods. Time-domain surveys are biased towards higher amplitude spot modulation and can miss lower amplitude modulation from targets with moderate rotational enhancement. Such low-amplitude rotators should exist but are likely to be missed in photometric surveys. Lastly, it is not guaranteed that all or most rotationally enhanced red giants are photometrically distinct from their slow-rotating counterparts. New diagnostics are needed to extract the underlying population of rotationally enhanced red giants.

As such, the census of rapidly and intermediately rotating red giants is largely incomplete. The majority of the effort in understanding rotational enhancement in giants has been directed towards rapid rotators, but their expected occurrence rates remain uncertain due to the broad range of values from observations. Massarotti et al. (2008) found a 0.3 per cent rotation fraction from 761 Hipparcos giants. Carlberg et al. (2011) found that 2.2 per cent of their sample of roughly 1300 K giants was rapidly rotating. Daher et al. (2022) found that 0.8 per cent–3.5 per cent, depending on the threshold, of 79 308 field giants rapidly rotate. In the Kepler field, where the stars are well characterized, Tayar et al. (2015) identified 10 rapidly rotating stars (0.5 per cent) in a sample of 1950 red giants with asteroseismic detections in the first iteration of the APOGEE-Kepler Asteroseismic Science Consortium (APOKASC-1) catalog (Pinsonneault et al. 2014), Ceillier et al. (2017) measured surface rotation periods for 361 (2 per cent) rapidly rotating and active red giants from a sample of 17 377 red giants, and, most recently, Gaulme et al. (2020) identified 370 (out of 4500; 8 per cent) red giants, some single, some in binaries, displaying rotational modulation in their light curves. Selection effects in samples, differences in the definition of what constitutes a rapid rotator, and true differences in distinct stellar populations, likely account for this dispersion. Furthermore, the bulk of the above studies on rapidly rotating red giants have been done on targets in the Kepler field, which we cannot assume is a representative sample of the entire Galaxy.

Knowing the true underlying population of rapidly and intermediately red giants is desirable for a variety of reasons. First, binary interaction is the dominant cause of spin-up in red giants (Carlberg et al. 2011). Main-sequence mergers can produce blue stragglers, which tend to rotate more rapidly than old field stars (see e.g. Peterson, Carney & Latham 1984, for blue stragglers in M67). Subgiant mergers with stellar or planetary companions will also produce fast spinning stars (e.g. Leiner et al. 2017). Both are a natural source for rotationally enhanced single giants. On the lower giant branch, the time-scale for tidal synchronization is shorter than the evolutionary time-scale, so close binaries will be tidally synchronized (Zahn 1977; Verbunt & Phinney 1995). This produces much more rapid rotation than expected from single star expansion and angular momentum conservation. Even on the lower main sequence, tidal synchronization with a binary companion is a significant contributor to rotational enhancement (Zahn & Bouchet 1989). Not only are these interesting systems in their own right, enabling the study of, for example, synchronization time-scales and formation channels of white dwarf–white dwarf binaries/supernova type Ia progenitors, but they also allow us to calibrate uncertain binary interaction and population synthesis models, such as merger rates and the physics of mass transfer (e.g. Leiner & Geller 2021). Additionally, a large sample of rapidly rotating red giants, the majority of which we expect to be in binaries, allows us to probe activity metrics in binaries, the demographics of active giants (e.g. Gaulme et al. 2020), and the types of evolutionary tracks which populate non-standard parts of the HR diagram (e.g. Leiner et al. 2022).

The trouble lies in finding large samples of rapidly and intermediately rotating red giants. Typical studies of rotationally enhanced red giants only yield tens to hundreds of stars. This makes sense given the initial sample sizes. But in larger stellar samples, on the order of hundreds of thousands of stars, we want to be able to easily identify the thousands of expected rotationally enhanced red giants without searching for rotation signatures giant by giant. Furthermore, rapid rotation, and the activity caused by it, is known to degrade data quality. It can suppress asteroseismic signals (e.g. García et al. 2010; Tayar et al. 2015; Mathur et al. 2019; Gaulme et al. 2020), add extra modulation to light curves (e.g. Mathur et al. 2014), and prevent good fits to spectra due to the dramatically different temperatures of spotted and non-spotted surfaces (Cao & Pinsonneault 2022). Rapid rotators produce data that may not survive quality cuts, leading to an underestimate of their true numbers. It is unclear whether intermediate rotators, while still being spun-up in some way, are active or suppress seismology. Nevertheless, to get a true representative sample from a large stellar population, we need to be able to find rapid and intermediate rotators even among stars with poor quality data.

Data Release 16 (DR16) from the Apache Point Observatory Galactic Evolution Experiment (APOGEE, Majewski et al. 2017; Wilson et al. 2019; Ahumada et al. 2020) contains high-resolution (R of 22 500) infrared spectra for over 437 445 nearby stars. This survey is ideal for locating a large data set of active, evolved stars. The manner in which stellar spectra are fit in this survey results in natural bins by which we can sort stars and search for spectroscopic anomalies indicating rotation.

In this study, we explore whether we can use anomalies in spectroscopic solutions to preferentially identify rotationally enhanced giants. We define rotational enhancement as vsini > 5 km s⁻¹ and further subdivide this category into rapid rotators and intermediate rotators. We use the well-studied Kepler field to infer a census of rapid and intermediate rotators, use asteroseismic data to distinguish between different evolutionary states, and demonstrate that our technique recovers the majority of rapidly rotating targets in that sample. We describe the catalogues from which we draw our data in Section 2. We then evaluate the efficacy of each spectroscopic criterion at identifying rapid and intermediate rotators in Section 3. Having defined new spectroscopic criteria to quickly identify rotationally enhanced red giants, we construct a DR16 catalogue of several thousand rotationally enhanced red giant candidates and validate them with vsini measurements, which we discuss in Section 4. Section 5 discusses the implications of a large population of rapidly and intermediately rotating red giants, biases in our selection criteria, and how adaptable the criteria are for other data releases and other spectroscopic surveys. Finally, we summarize our results in Section 6.

2 DATA

For photometric and spectroscopic identification of red giants as well as independent confirmation of rotation, we drew data from several sources. In each subsection, we first describe each respective catalogue and then describe how we use it to identify rotationally enhanced giants.

2.1 APOGEE DR16

APOGEE uses an automated pipeline to infer stellar parameters from target’s spectra. The APOGEE Stellar Parameter and Chemical Abundances Pipeline (ASPCAP; Nidever et al. 2015; García Pérez et al. 2016) extracts stellar parameters in two parts. First, the code ferre (Allende Prieto et al. 2006) matches the input spectrum to the best-fitting template from a grid of dwarf and giant synthetic spectra, by minimizing χ² and returning estimates for stellar parameters. This is an 8D fit to get log g, T_eff, carbon abundance, nitrogen abundance, overall metal abundance, α-element abundance, microturbulent velocity, and either vsini or macroturbulent velocity for dwarfs and giants respectively. In the former case, mactroturbulent velocity is assumed to be negligible and in the latter, vsini is fixed at 1.5 km s⁻¹.

Synthetic spectral grids cover G-M type giants and F-M dwarfs, with the giant grids spanning −0.5< log g < 4.5 (cgs), depending on spectral type, and the dwarf grids spanning 2.5 < log g < 5.5 (Jönsson et al. 2020). Stars can be fit using multiple grids, where the model yielding the lowest χ² gets adopted. Due to the overlap in log g between the dwarf and giant grids, some stars will be fit with both giant and dwarf template spectra. In these instances, the goodness-of-fit is not only important for determining stellar parameters but also evolutionary state. Spectra that cannot be fit at this stage trigger the appropriate quality control flag and the pipeline returns no solution. Stars with no solution make up the first category of possible pipeline outcomes.

Log g and T_eff estimates from the ferre fit are then calibrated against independent measures of the same parameters in the second step of the fitting process. For giants, the calibrations come from asteroseismology for log g and trends in photometric estimates for T_eff for stars with minimal reddening. Spectra without the calibrated stellar parameters we dub partial solutions, the second category of possible pipeline outcomes, whereas spectra that have both the initial ferre fits and the calibrated stellar parameters we deem complete solutions, the third category of possible pipeline outcomes.

We might expect rotationally enhanced giants to preferentially fall into the first two categories because rotation, especially rapid rotation, can cause a non-uniform surface temperature, especially in active, cool stars with large spot filling factors, making a single-temperature solution difficult (Cao & Pinsonneault 2022). However, rotation still affects data quality even among stars with complete solutions. ASPCAP does not include rotation as a free parameter when fitting the spectra of giants. The derived stellar parameters are then strongly perturbed by excess line broadening, which can be artificially produced by correlated changes in effective temperature, surface gravity, and elemental abundances. Rapidly rotating giants whose spectra are fit without rotation as a free parameter have artificially high surface gravity (Thompson et al. 2019) and artificially low effective temperatures (Dixon, Tayar & Stassun 2020). We expect these effects to be strongest in the most rapidly rotating giants.

Among the stars with complete solutions, we still need a tool to preferentially identify rotationally enhanced red giants. To construct this tool, two pieces are essential: a definition for characteristic properties of typical red giants and a method for identifying outliers. Conveniently, DR16 gives us the definition of a typical red giant due to the inclusion of a means to spectroscopically separate first-ascent RGB stars from RC stars. This is possible because there are systematic surface gravity and temperature offsets between the two populations.

From stellar theory, we expect there to be a mapping between mass, metallicity, α-enrichment, and the location of the RGB on an HR diagram. DR16 defined the mean locus of the RGB using a reference temperature, T_ref, which represents the expected effective temperature for an average red giant of a given mass and metallicity (Jönsson et al. 2020). The carbon-to-nitrogen ratio [C/N] can be used as a proxy for mass due to the mass dependency of the first dredge-up (Iben 1964; Sweigart & Gross 1978). Holtzman et al. (2018) found this reference temperature by fitting the average T_eff of red giants in the APOKASC-2 catalogue (Pinsonneault et al. 2018). The difference between the star’s uncalibrated spectroscopic T_eff and T_ref is then used to calculate a reference number based on the temperature difference and a star’s total, uncalibrated metallicity [M/H]. If a star’s uncalibrated [C/N] is less than the reference number, then it is classified as an RGB star.

Combining the [C/N] dependence with the reference temperature (equations 10 and 11 in Holtzman et al. 2018), we can write the condition for separating RGB stars from RC stars as

where T_{eff, spec} is the uncalibrated spectroscopic effective temperature and

for uncalibrated values of log g, [C/N], and [M/H]. If ΔT is negative, the star is on the RGB. This evolutionary state separation only is calibrated to the lower giant branch, for 2.38 < log g < 3.5. However, to capture the sub-subgiants, which are active subgiants and giants, we must extend the range of log g to 3.85. We do not have to worry about contamination from true subgiants, however, because they tend to be hotter and will not scatter into the sub-subgiant domain.

To understand the origin of the rotational enhancement we must assess binarity. Radial velocity (RV) variations suggest the presence of a companion. Since we expect most of the rotationally enhanced giants to be close, interacting binaries, the RV amplitudes should be high, so we can adopt a more lax criterion, requiring at least two visits instead of more visits. We define as binaries those stars which have a scatter around the average heliocentric velocity, VSCATTER, greater than 3*VERR_MED, the average measurement error of the heliocentric velocity. This criterion does not exclusively identify close binaries, however. We deem close binaries those stars with at least two APOGEE visits where VSCATTER > 10*VERR_MED. This choice is comparable to a ΔRV_max of 1 km s⁻¹, the threshold adopted in Moe, Kratter & Badenes (2019) and Daher et al. (2022).

Lastly, ASPCAP provides a lengthy list of quality control flags to indicate any issues with the fit. in the instance of rapid rotation, ASPCAP will return SUSPECT_BROAD_LINES,ROTATION_WARN, or ROTATION_BAD. We include these flags in our final catalogue of rotationally enhanced giants.

2.2 APOKASC-3 and rapidly rotating red giant catalogues from Kepler

We need a control sample containing well-studied, well-characterized stars in which we can test various rotation diagnostics. Any of the three criteria which is particularly good at identifying rotationally enhanced giants in the control sample can then be applied to the entire DR16 catalogue, picking out stars which are most likely to be rotationally enhanced instead of searching for rotation giant by giant.

The APOKASC-3 catalogue (Pinsonneault et al., in preparation) is an ideal sample to use as our control because it combines the IR spectroscopy of APOGEE with high cadence photometry from Kepler for 23 363 stars observed by both surveys. For our purposes, the key advantages of this over other public catalogues (Pinsonneault et al. 2018; Yu et al. 2018) is that the full set of giants has been studied for both seismology and rotation, and all of the giants in the Kepler fields targeted by APOGEE are included. The APOGEE survey selected giants in the field based on colour and magnitude cuts, and as a result the sample is not biased toward asteroseismic detections. This is important, because rapid rotators are selected against in purely asteroseismic samples (Tayar et al. 2015; Gaulme et al. 2020).

Giants in APOKASC-3 are selected for having log g < 3.6 and T_eff < 6000 K. We verify the spectroscopic identification of giants with Gaia photometry. Additionally, for any target which did not have a complete solution, giants can only be selected from Gaia photometry. Giants are defined as having a de-reddened Gaia B_P − R_P colour > 0.9 and de-reddened, absolute Gaia G-band magnitude < 0.3  + 3.4 * Gaia colour. This is a strict photometric cut and it does remove the blue end of the clump, but we are not losing many giants after the photometric cut. In total, there are 15 220 giants.

We use these giants as our control sample, testing the efficacy of each spectroscopic criterion at picking out rapid and intermediate rotators. To do this, we need a uniform measure of rapid and intermediate rotation. In short, we measure vsini for all giants in APOKASC-3 and use this as our sole criterion for deciding whether a giant is rotationally enhanced, the details of which are in Section 3.4. However, the method to measure vsini we use only works for stars with a best-fitting template spectrum, meaning stars with no spectroscopic solution are not included in the sample of rapid and intermediate rotators. In this instance, we cross-match the 32 giants with no solution to various catalogues of rapidly rotating red giants in Kepler as well as Gaia. We check the Gaulme et al. (2020) binary catalogue and extract orbital periods and/or rotation velocities at the target’s equator, where measured, for stars which appear in that catalogue. If a star only has a measured rotation period and no other indicators of rotation, we calculate rotation speed using the radii from Berger et al. (2020). Any speed > 10 km s⁻¹ is considered rapid. Then, we check the Ceillier et al. (2017) catalogue of red giants with measured surface rotation periods and extract a rotation period for the one star, KIC 7531136, in our sample which appears in this catalogue. From this rotation period and a radius estimate (Berger et al. 2020), we infer a rotation speed of 16 km s⁻¹. Stars which appeared in any of these catalogues, and had measured orbital periods or v sini > 10 km s⁻¹ where applicable, were designated as rapid rotators. We maintain the 10 km s⁻¹ threshold for these measurements of equatorial rotation speed to be conservative.

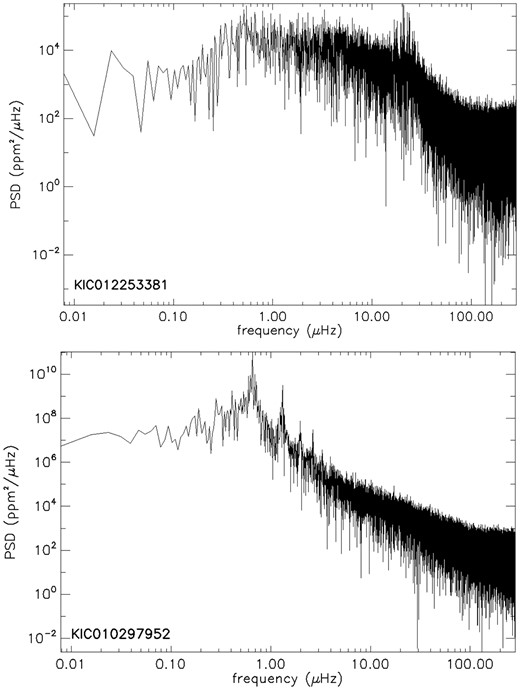

We also inspect their light curves. Using the Kepler KEPSEISMIC¹ light curves and power spectrum densities calibrated by the KADACS pipeline (García et al. 2011, 2014b; Pires et al. 2015), we inspect the stars’ power spectra for rotation signatures. While the presence of a high-amplitude peak at low frequency along with its harmonics in some cases can provide an estimate of the surface rotation period of a star (e.g. Santos et al. 2019, 2021), the modulation can come from a nearby star polluting the Kepler light curve as also explained in Ceillier et al. (2017) and Colman et al. (2017). The cross-check with the APOGEE data should allow us to discard those cases. If the analysis from both instruments yield a fast rotation, we can consider that this star has a high surface rotation rate. However, we should be cautious that cases of pollution by a nearby star can occur in Kepler data. An example of a high-amplitude, low-frequency peak is shown in the lower panel of Fig. 1 compared to a giant exhibiting normal oscillation modes shown in the top panel. Any star which displays a rotation peak in its power spectrum we deem rotationally enhanced.

Finally, we check the Set of Identifications, Measurements and Bibliography for Astronomical Data (SIMBAD²) database for signs of variability and any other information on the nature of the star. Stars which were labelled as rotational or ellipsoidal variables, as well as eclipsing binaries, were designated as rotationally enhanced.

2.3 Gaia

For stars without complete spectral solutions and as an additional check for stars with complete spectroscopic solutions, we photometrically identified the giants using Gaia. All stars in our sample are found in Gaia DR2 (Gaia Collaboration 2016, 2018b). We choose to use DR2 to remain consistent with the Bailer-Jones et al. (2018) distance estimates. Since the photometry is used only for a coarse sorting of evolutionary states, APOGEE giants are bright and 2.9 kpc away on average, so zero-point issues are not as large, and DR3 results agree well on average with DR2, we find DR2 to be sufficient. We de-redden our stars using the same methods as Godoy-Rivera, Pinsonneault & Rebull (2021) based on the process described in Gaia Collaboration (2018), where extinction coefficients depend on both the Gaia B_P − R_P colour and A_V. We obtain A_V for both the APOKASC-3 and for the entire APOGEE DR16 sample by integrating over 3D dust maps using the python package mwdust (Bovy et al. 2016). We use the combined dust maps of Marshall et al. (2006) and Green et al. (2019). When converting from A_V to Gaia-band extinctions, we do not adopt any of the singular values from the literature because the conversion factor for each band depends on the temperature of the star. Instead, we iteratively solve for the conversion factors following the methods in Godoy-Rivera et al. (2021). Once stars are placed on the Gaia colour–magnitude diagram (CMD), we then make a cut on the upper bound of the main sequence, separating the dwarfs below from the red giants above. The exact slope of this line is not important; the line simply must exclude the main sequence. As such, the cuts made for the APOKASC-3 data differ from those made for the APOGEE data due to the larger colour range spanned by the main sequence in APOGEE. Examples of our cuts are shown in Figs 3 and 11.

With the recently released spectra from Gaia DR3 we can also verify rotation and binarity for a subset of APOKASC-3 and DR16 giants bright enough to be in the sample. The parameter v_Broad captures the total line broadening due to rotation (v sini), macroturbulence (v_macro), and other sources. Macroturbulence in a cool giant is on the order of 2–3.5 km s⁻¹, so in principle, in the instance of a rapid rotator, rotation is the dominant source of broadening (Doyle et al. 2014; Frémat et al. 2023). In the case of intermediate rotators, the contribution to V_Broad by macroturbulence and vsini is comparable. If we treat v_Broad as a proxy for vsini, however, we significantly overestimate the number of rapid rotators. At a 10 km s⁻¹ threshold in v_Broad, which Frémat et al. (2023) claims is comparable to vsini for cool giants with 10.5 < G_RVS magnitude < 11.5, we find that ∼ 40 per cent of APOKASC-3 giants and DR16 giants with the appropriate magnitude are ‘rapidly rotating.’ As such, we do not use v_Broad to draw conclusions about the rates of rapid and intermediate rotation in giants. Phillips et al. (2024) see that there is good agreement between vsini and v_Broad above 20 km s⁻¹ (see their fig. 7), so we adopt this as our threshold for rapid rotation exclusively for giants without a spectroscopic solution, where we have limited additional constraints on rotational enhancement and no way to measure vsini.

Gaia also lets us probe binarity. High values (> 1.4) of the renormalized unit weight error (RUWE) often indicate the presence of a wide binary companion, which impacts the astrometric solution (Belokurov et al. 2020; Stassun & Torres 2021; Kervella, Arenou & Thévenin 2022). Adopting a less conservative cut, we label as binaries all targets with RUWE > 1.2. DR3 also contains the non-single star catalogue, which contains targets with complete binary classifications. More broadly, we can also find RV variable stars using the criteria laid out in Katz et al. (2023). While binarity alone does not imply rapid rotation, binarity can suggest the origins of rotation. Binary rapid and intermediate rotators are likely tidally synchronized, whereas single rapid and intermediate rotators could be mergers.

3 SPECTROSCOPIC SELECTION CRITERIA

The aim of this work is threefold: to develop a set of spectroscopic criteria which could identify, with high fidelity, rotationally enhanced red giants in the full APOGEE DR16 catalogue, identify which giants are rotationally enhanced among those selected by these criteria, and understand the potential binary origins of the rotational enhancement. Natural spectroscopic categories to search for these giants arise from the steps ASPCAP takes to process spectra. ASPCAP assesses the quality of the spectra as they travel through the pipeline, rejecting spectra outright and returning no solution, performing an initial fit and rejecting spectra whose fits do not pass quality control, and finally doing a calibrated fit to spectra which do not trigger any quality control flags. Below, using the APOKASC3 catalogue, we assess how well each spectroscopic category, those with no, partial, and complete solutions, preferentially picks out rapidly and intermediately rotating giants. We also discuss the binary properties of each category.

3.1 Anomalously cool stars with complete spectroscopic solutions

The evolutionary state separator (equations 1 and 2), besides being able to isolate the RGB from the RC, provides a novel way to quickly identify stars with stellar properties which significantly deviate from those of standard red giants. A temperature offset relative to the mean locus is a useful figure of merit. The position of a red giant in the HR diagram is predicted to be a nearly vertical line close to the Hayashi track. The zero-point is a function of the mass and heavy element content, and the difference between clump and giant is nearly constant. As a result, correcting for these zero-point differences produces two distinct temperature domains – for clump and giant – that are useful evolutionary state diagnostic. The abundances and log g are observables in APOGEE, and the mass is correlated with [C/N]. As a result, we can measure the temperature offset using a star’s [C/N] ratio, metallicity, and surface gravity. It is valid only for giants with 2.3 < log g < 3.5 (Jönsson et al. 2020) due to the narrow log g spanned by RC stars (see discussion in, e.g. Girardi 2016). Because of the evidence that the reported log g measurements for rapidly rotating giants are higher than the the giants’ true surface gravity (Thompson et al. 2019), we examine this figure of merit for the full sample down to log g  = 4.5. The vast majority of anomalously cool stars have 2.3 < log g < 3.85 (bottom panel of Fig. 2). This higher upper limit introduces minimal contamination from dwarfs. Stars with spectroscopic temperatures at least 3σ cooler (ΔT < −287 K) than the mean locus of red giants of equivalent mass and metallicity we deem anomalously cool. For the few stars in our sample with total metallicity [M/H] < −1, we only deem them anomalously cool if they satisfy the metallicity-dependent criterion described in Section 4. With the inclusion of the metal-poor giants which are anomalously cool, our anomalously cool sample consists of 71 giants.

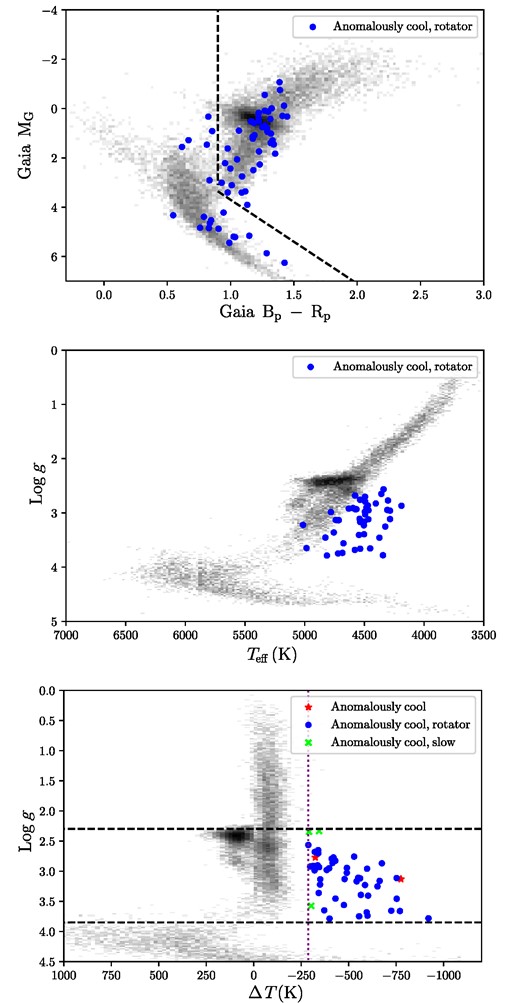

The top panel of Fig. 2 shows where the rotationally enhanced giants from the anomalously cool sample fall in a Gaia CMD. The plotted stars are indistinguishable from standard red giants despite their spectroscopic anomalies. Anomalously cool stars are not actually cooler than a typical red giant, however; they are not particularly red. Their cooler spectroscopic temperatures are a byproduct of how ASPCAP handles rotationally enhanced, potentially active stars.

Thirteen of our targets that were spectroscopically classified as giants are actually dwarfs, as inferred from Gaia astrometry and photometry (Fig. 2). The cause is a rare failure mode in the APOGEE pipeline, which considers both dwarf and giant solutions for a subset of the data. In some cases, both fits were poor, but the giant solution had a slightly better goodness of fit. For both the APOKASC-3 sample and the full DR16 sample, we use a Gaia CMD cut to remove such stars from our sample. There are an additional eight stars which are too blue to be giants. We make a cut at B_P − R_P of 0.9 to remove these targets. This leaves us with 50 targets.

While these remaining stars appear as normal red giants in a Gaia CMD, when we examine them in log g–T_eff space, we begin to see some differentiation from typical red giants. The middle panel of Fig. 2 shows that the majority of anomalously cool stars are cooler than the red edge of the RGB.

The separation between typical red giants and rotationally enhanced red giants is best seen if instead of T_eff, we plot ΔT versus log g. The bottom panel of Fig. 2 shows the two distinct populations. As expected, RC stars fall to the left of the ΔT  = 0 line, while the RGB stars are clustered to the right, occupying a narrow range between 0 and −200 K. Notably, the anomalously cool stars span a range of roughly 800 K.

The majority of anomalously cool giants are rotationally enhanced. Of 50 anomalously cool stars, 45 of them (90 per cent) are confirmed rotators, with 31 having vsini > 10 km s⁻¹ and 14 having 5 < vsini < 10 km s⁻¹. Only 4 stars (8 per cent) can be confirmed as true slow rotators due to their low vsini measurements. The remaining 1 star (2 per cent) does not have enough information to classify it as true slow rotators or rotationally enhanced. All data used to select and verify rotation in these targets are compiled in a table released with this paper. Table 1 lists the column names.

Table 2 lists the binary fraction of this sample from four separate measures. We expect the majority of these targets to be tidally synchronized binaries. While just about 75 per cent of the rapidly rotating giants do have a close binary companion, the Poisson errors are large. For the intermediate rotators, the close binary fraction is 100 per cent, which is surprising since the tidally synchronized systems should have the largest spin-up. However, the Poisson errors are large and the close binary fraction for rapid and intermediate rotators agrees within 1σ. It is possible that the inclination of the rapidly rotating systems is low. We also see that about 10 per cent of giants have a wide binary companion, as determined from Gaia RUWE. Even when the RUWE binary detection limit is set at 1.4, the wide binary fraction is still non-zero. This is surprising since a companion at a distance cannot spin-up a star. While most of the targets caught by this criterion are binaries, we see that they are not exclusively close, tidally synchronized systems like we expected.

3.2 Stars with partial spectroscopic solutions

These spectra were high enough quality that the ferre code could generate an initial fit but not high enough quality to support the subsequent calibrated line fitting. Quality is assessed in several ways. Stars with too low signal-to-noise (< 50), too high of a χ² (χ²/(signal-to-noise/100)² > 50), too much variation between photometric and spectroscopic temperatures (> 1000 K discrepancy) from the ferre fit, or with spectral lines that are more than twice the width of the template spectrum due to rotational broadening or line blending from double-lined spectroscopic binaries, all get flagged as bad.

Rotation can affect these spectra in two ways, first causing line broadening captured by the rotation flag mentioned above. Second, it can trigger the colour–temperature flag either due to activity-induced temperature gradients on a star’s surface, which are difficult to capture with a single spectroscopic temperature, or due to the presence of a binary companion, where, again, a single temperature cannot accurately reflect the combined light of the binary. While rotation is not the sole cause of poor fits, we want to quantify how significant of a role it plays in triggering the quality flags.

We identify 684 stars in APOKASC-3 with partial spectroscopic solutions. Though we have an initial guess at the stars’ spectral parameters, we choose to identify red giants by their position on a Gaia CMD for greater accuracy. Fig. 3 shows the CMD of this sample compared to the entire APOKASC-3 catalogue. The vast majority of these stars are dwarfs, so we impose a cut at a Gaia B_P − R_P of 0.9 mag (T_eff ≈ 5450 K) to eliminate hot stars and a cut near the base of the RGB to eliminate dwarfs and subgiants. All stars which fall above the dividing line are selected as red giants, a population of 95 in total. Table 3 lists the properties of these stars included in the table released with this paper. Note that these stars are not photometric outliers, instead lying well within the RGB.

Of our 95 giants, 63 (66 per cent) are rapid rotators, with 52 having vsini > 10 km s⁻¹ and 11 with 5 < vsini < 10 km s⁻¹. Some of the remaining giants are indeed rapid rotators – they have triggered the ROTATION_BAD flag -– but we do not measure a vsini, so they do not contribute to the count. Though this criterion requires more work in separating out the red giants, the high fraction of rotationally enhanced giants it identifies, even greater than the anomalously cool stars, makes it a good tool to target rotationally enhanced giants.

The binary fraction of this sample is listed in Table 4. We did not expect a single binary configuration to explain the rapid and intermediate rotation of these systems like we did for the anomalously cool giants. Giants with partial solutions span the RGB and clump and a star’s position on the giant branch changes its likelihood of being in a close, tidally synchronized system. The higher wide binary fraction is surprising, though giants at the tip of the giant branch can interact with stars at a larger separation. Even when the RUWE binary detection limit is set at 1.4, the wide binary fraction is still around 10 per cent.

3.3 Stars with no spectroscopic solution

ASPCAP was unable to obtain solutions for some targets. Rotation could contribute to the poor quality for the same reasons outlined above, noisy spectra from activity, or combined spectral features from two stars in a binary.

The lack of spectroscopic information about these stars makes them the most difficult to study but points to the usefulness of the APOKASC-3 catalogue. We still have the light curves of these stars to search for rotation signatures. However, we are limited by which of these targets show up in other surveys because we need external information in order to classify each star first as a red giant and then as a rapid or intermediate rotator.

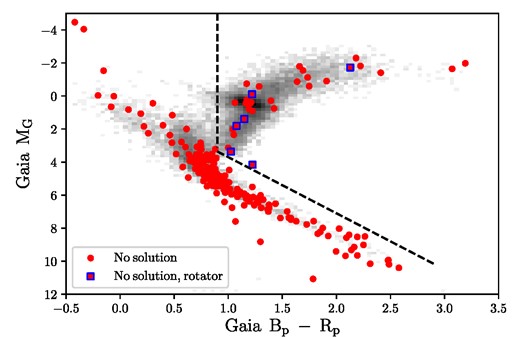

There are 232 stars in APOKASC-3 without a spectroscopic solution. Table 3 lists the properties of these stars included in the table released with this paper. Cross matching with Gaia to photometrically separate the red giants from main-sequence stars, we end up with 32 giants. Their locations on a Gaia CMD is shown in Fig. 4. These stars do not appear to be photometric outliers, lying well within the RGB. Since these stars lack spectroscopic solutions, thus lack a best-fitting template spectrum, we cannot measure their vsini. However, Gaia reports a v_Broad measurement for 18 targets, none of which are rapid rotators at the 20 km s⁻¹ threshold we adopt exclusively for this category of giant. Six targets are known rotational variables, so there are rotationally enhanced giants in this category. However, a uniform assessment of rotational enhancement for this sample is difficult; these giants require significant follow-up.

These stars are difficult to characterize because they lack APOGEE stellar parameters and RV data. There are also very few of them. As such, we do not report binary fractions for giants in this category. While these stars may still contribute significantly to the total population of rotationally enhanced giants, a proper characterization, including an assessment of binarity, is needed.

3.4 Rotational enhancement in the complete set of APOKASC-3 giants

To assess the yields and completeness of the criteria, we must know what the true underlying population of rapid and intermediate rotators is in the APOKASC-3 sample. Measurements of vsini can automatically confirm whether a star is rapidly or intermediately rotating. Using the same methods as in Tayar et al. (2015), Dixon et al. (2020), and Daher et al. (2022), we determine vsini by cross-correlating the combined DR16 spectra for 15 220 giants with their respective best-fitting template and an artificially broadened version of that template. This only works for stars with a best-fitting template spectrum. We cannot estimate vsini for stars with no spectroscopic solution. While Tayar et al. (2015) adopt 10 km s⁻¹ as their threshold for rapid rotation, they find that stars with 5 < vsini < 10 km s⁻¹ are rotationally enhanced, likely from binary interaction. The same is seen more broadly in the field in Daher et al. (2022). As such, we adopt 5 km s⁻¹ as the threshold for rotational enhancement but maintain a distinction between stars with v > 10 km s⁻¹ and those with 5 < vsini < 10 km s⁻¹. We employ the same photometric cuts as for stars identified by our spectroscopic selection criteria: Gaia B_P − R_P colour > 0.9 mag and absolute Gaia G-band magnitude > 0.3  + 3.4*(de-reddened B_P − R_P).

Because the APOKASC-3 giants span the giant branch and the clump, a constant vsini threshold for rapid rotation corresponds to vastly different rotation periods depending on the star’s radius. As such, we break down the rapid rotators by their evolutionary state. Upper giant branch stars are defined as giants with log g < 2.3 or, for giants without complete solutions, Gaia B_P − R_P colour > 1.5 mag. For giants on the lower giant branch we separate the first-ascent giants from the clump using seismically determined evolutionary states. For stars lacking seismology we adopt the spectroscopic evolutionary state determined in DR16. Table 5 shows the breakdown of rapid and intermediate rotators by evolutionary state as well as their respective binary fractions from Gaia and APOGEE data.

We demonstrated that our spectroscopic selection criteria have a high purity but we still need to assess completeness. Our method selects for stars with rotation, or activity, substantial enough to produce anomalies in the spectroscopic solution. Furthermore we focus on the lower RGB, where these anomalies are the largest. Slower rotators, or those in other regimes, will not be detected with our technique.

In APOKASC-3, we detect 151 stars with vsini > 10 km s⁻¹, and our spectroscopic criteria combined capture 85 (56 per cent) of them. However, on the lower RGB, where our anomalously cool and partial solution criteria are most sensitive, we capture 33 (80 per cent) of the 41 confirmed lower RGB rapid rotators. Still, we see rapid rotators outside the evolutionary states where we are sensitive. Of the 67 stars we do not recover, 19 are confirmed on the upper RGB, 8 are on the lower RGB, and the remaining 40 are either in the clump or were a combination of first-ascent and clump giants. Fig. 5 shows that our spectroscopic selection criteria are efficient in recapturing the rapid rotators with v > 10 km s⁻¹.

We observe 595 giants with 5 < vsini < 10 km s⁻¹. Our results are consistent with Tayar et al. (2015), who found that stars with vsini in this range significantly outnumbered the traditional rapid rotators. Even when binaries are targeted first and then rotational enhancement is assessed, the trend holds (Daher et al. 2022). The vast majority of these targets are found in the clump or the upper RGB, seen most clearly in the bottom panel of Fig. 6. As such, we reach the same conclusions as Tayar et al. (2015), namely that these stars are interacting, and likely merging, on the upper RGB and retaining enhanced rotation in the clump as a result. This is supported by the low binary fraction of these intermediate rotators in the clump. Because the majority of these targets do not live on the lower RGB, where our criteria are most sensitive, we only recover 26 of these rotators.

Two things are apparent. The first is that our spectroscopic selection criteria preferentially pick out the most rapidly rotating giants, suggesting that higher rotation speeds are needed to induce spectroscopic anomalies. The second is that population of rotationally enhanced giants is far larger than we expected. Ultimately, 4.9 per cent of the APOKASC-3 catalogue is rapidly rotating at the 5 km s⁻¹ threshold, implying a previously unidentified population of giants in the Kepler field which have likely experienced binary interaction.

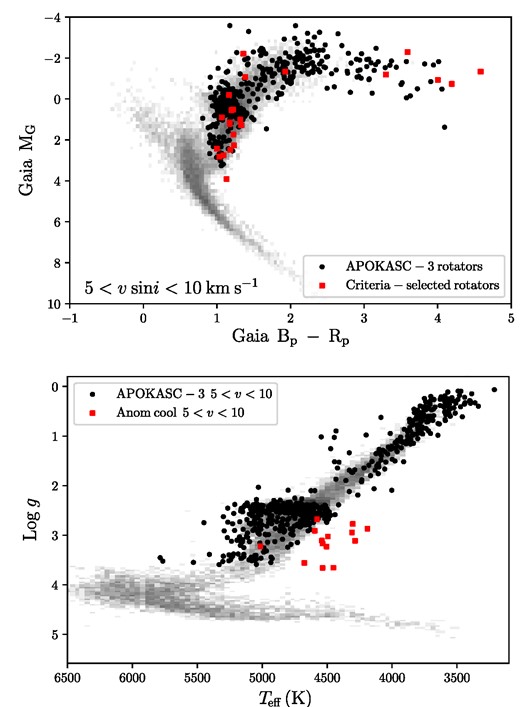

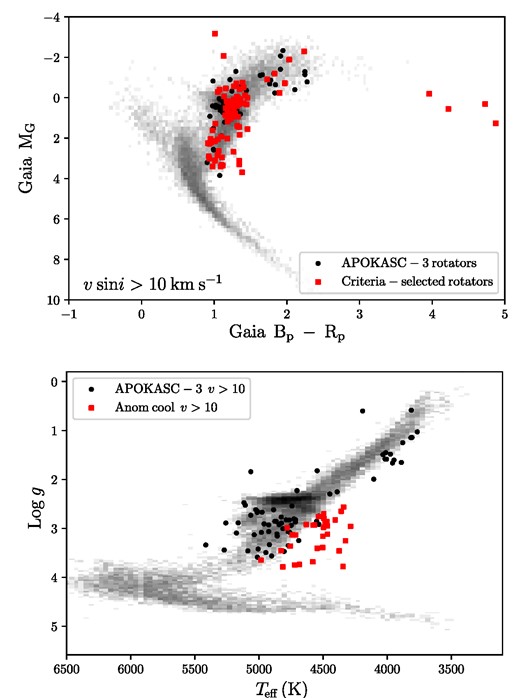

As an aside, we call attention to the population of rotators to the left of the giant branch in Figs 5 and 6. These stars occupy a well-defined region of log g–T_eff space, namely 2.3 < log g < 3.85 and 5300–6000 K. There are only a few stars in this region because we impose a photometric cut at Gaia B_P − R_P  = 0.9. Without this cut, this region is much more populated with rapid and intermediate rotators. These stars are likely crossing the Hertzsprung gap. We suggest using these spectroscopic log g and T_eff criteria for identifying these targets in APOGEE.

3.5 Binary origins of rotation in APOKASC-3

The binary fraction of giants should change as a function of evolutionary state (Badenes et al. 2018; Price-Whelan et al. 2020). As giants expand up the RGB, systems which were tidally synchronized on the lower RGB should merge on the upper RGB. This then leads to a lower binary fraction in the clump. This is mostly reflected in the binary fractions in the entire set of APOKASC-3 rotators; the binary fraction are comparable between the lower and upper RGB but overall lower in the clump.

The giants with partial solutions reflect this distribution of binaries, which makes sense since these giants span the RGB and clump. The anomalously cool giants have higher binary and close binary fractions, suggesting that most of these stars are in close binaries on the lower RGB.

4 ROTATIONALLY ENHANCED RED GIANTS IN APOGEE DR16

4.1 Assembling the catalogue

Our total candidate list contains 6593 targets, including 1484 anomalously cool giants, 1733 giants with partial solutions, and 3376 giants with no solution. We discuss each category below and follow up with vsini confirmation in Section 4.2.

To apply the anomalously cool criterion to the entire APOGEE DR16 sample, we must impose an additional cut that was not necessary in the APOKASC-3 sample due to it being an older population. Some young stellar objects (YSOs) fall in the same log g range as the lower giant branch, but have lower effective temperatures. The YSO population is very cleanly separated from the red giants, as shown in Fig. 9, and we can remove them with a simple T_eff cut at 4000 K and below.

We must also make corrections to account for the different metallicity ranges covered by DR16 and APOKASC-3. The evolutionary state classifier, which provides the basis for finding anomalously cool stars, was calibrated to the Kepler field, where metallicity extends down to [M/H] of −2.46, with the vast majority of stars having metallicity above −0.5. There is therefore no guarantee that the Kepler relationships will extrapolate to the low-metallicity regime.

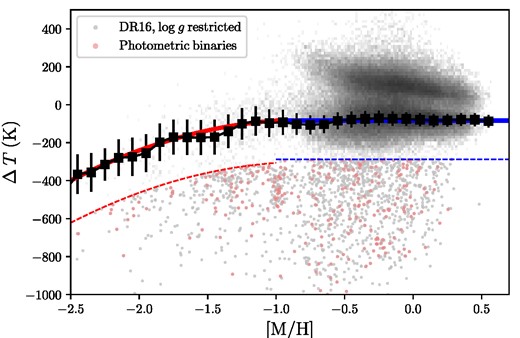

We see that they do not. Fig. 7 shows the distribution of all stars in DR16 with 2.3 < log g < 3.85 in ΔT–metallicity space. By definition, all RGB stars have ΔT < 0. Down to [M/H] of about −1 RGB stars tend to lie in an even distribution centered on ΔT = −83.6K. At lower metallicity, the RGB stars trend downward in ΔT.

To identify anomalously cool stars at low metallicity, we first bin the stars with metallicity between −2.4 and −1 in increments of 0.1 dex and iteratively reject stars which are more than 3σ from the median ΔT in each bin. Here-, σ represents the absolute median deviation. RC stars have ΔT values above zero, and could in principle bias the results. This contamination is mitigated by the usage of median statistics and by stellar population effects. The majority of core He burning stars in this metallicity domain are hotter than 6000 K and therefore outside of the domain considered here. We then fit a second-order polynomial to the medians of each bin, the solid red line in Fig. 7. To align the median lines of the red giants above and below [M/H]  = −1, we apply an offset of  + 3.24 K to the polynomial. Finally, we define a boundary at 3σ to isolate the anomalously cool stars. The dashed lines in Fig. 7 represent the 3σ boundary, below which all stars are flagged as anomalously cool. Above [M/H] of −1, the line is fixed at −287 K, and below it is metallicity dependent. We discuss the metallicity dependence of our yields in Section 4.2.

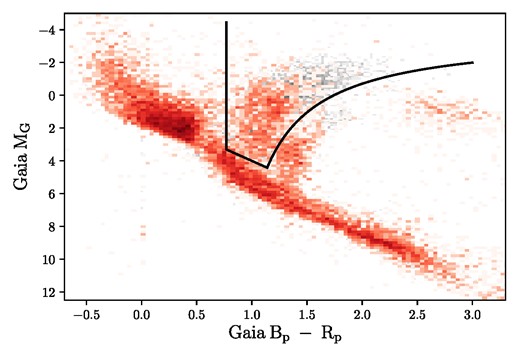

We then remove 310 candidates that are not giants by excluding all targets with absolute Gaia G-band magnitude M_G > 1  + 3*Gaia B_P − R_P and Gaia B_P − R_P > 0.77 mag. As in the APOKASC-3 sample, these stars lie along the photometric binary sequence, and we believe that they represent a failure mode where the combined light of two stars contributing significant flux yields inaccurate stellar parameters. In total, our anomalously cool sample consists of 1484 giants. Like the APOKASC-3 sample, these stars are not actually redder than typical giants. A Gaia CMD of the anomalously cool stars and a subset of the entire DR16 sample (Fig. 8) shows that most stars fall comfortably on the lower RGB. We note that this list includes 82 targets that we could not verify as giants because of either very large formal A_V values or unreliable distances. Table 6 lists the column names of the table containing the properties of these giants.

Active field giants are preferentially found on the lower RGB. Many active giants are in synchronized binaries, and while synchronization time-scales increase steeply with orbital period, evolutionary time-scales decrease with luminosity. On the upper RGB, stars do not have enough time to synchronize with their companion before coming into contact. Observations of active giants confirm this. RS CVn type variables, a binary where the primary is an active giant or subgiant, live predominantly on the lower RGB with orbital periods mostly below the synchronization limit of 20 d (fig. 7 in Leiner & Geller 2021). Since we expect many of our targets to be active giants in binaries, RS CVn candidates, they should fall in the same CMD location as the RS CVns. We can see from the overlap of our targets with the blue distribution in Fig. 8, the CMD location of a sample of about 550 known RS CVns, that they do.

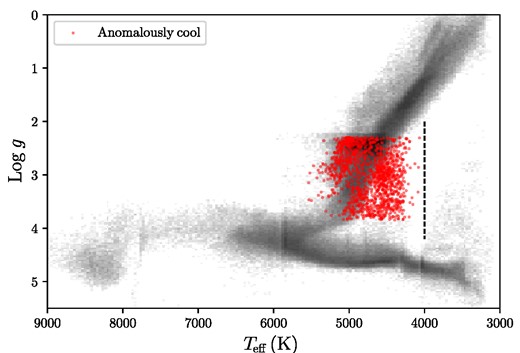

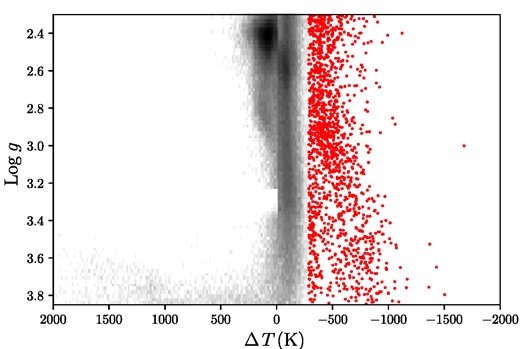

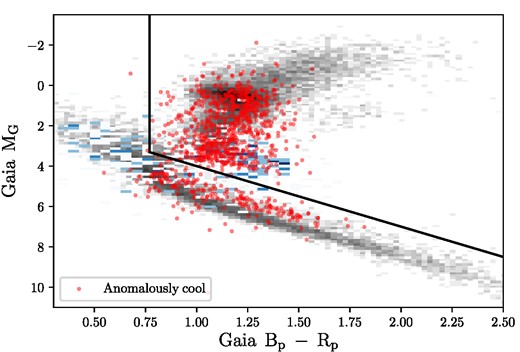

In spectroscopic parameter space, our DR16 sample looks like the APOKASC-3 sample. Fig. 9 shows that these stars, mostly, but not completely, stand out from typical red giants. In log g–ΔT space, these stars are completely isolated from the rest of the DR16 giants, shown in Fig. 10. Like the APOKASC-3 anomalously cool sample, the majority of stars have temperature offsets between −1000 and −287 K, though there are some which extend to higher offsets. The value of ΔT does not correlate with the rotation speed, so it remains unclear as to why some stars have such large T_eff offsets from a typical red giant.

Stars with partial spectroscopic solutions are more difficult to identify because they are not isolated to one evolutionary state. There are 31 821 stars spread out across a Gaia CMD (Fig. 11). To isolate the stars along the RGB, we start with the stars with the best characterized photometry, excluding any target with an A_V > 1. We then impose three cuts: a cut at a Gaia B_P − R_P of 0.77 to exclude hot main-sequence stars, a diagonal cut at the turn-off, the same as in the anomalously cool sample, to exclude the main sequence, and a cut along the red edge of the RGB to exclude YSOs. In total, we identify 1733 rotationally enhanced giant candidates. Table 7 lists the properties of these targets we include in the catalogue released with the paper. Combining the targets identified by both spectroscopic criteria, our main catalogue ultimately contains 3217 rotationally enhanced giant candidates.

In the pre-print version of this manuscript, we had identified a group of 340 luminous giants in the top-right section of Fig. 11 which were very red. We flagged these targets as peculiar and invited follow-up. We have since learned that the vast majority of these stars had incorrect Gaia parallaxes and are actually members of the Large and Small Magellanic clouds. When their photometry is corrected with the distance and reddening appropriate for the clouds, they fall on the upper giant branch.

There are 3376 stars with no spectroscopic solution, selected via the same photometric cuts as the stars with partial solutions. In APOKASC-3, we did not have a uniform, definitive means to assess the fraction of these stars which exhibit rapid or intermediate rotation. Quality control is difficult for stars with no spectroscopic solution, so we do not include these in our main sample. However, we do include the APOGEE IDs of targets in a separate table, as these targets likely contain some rapid and intermediate rotators.

4.2 Confirming rotational enhancement

Because the field stars in DR16 are less well-characterized than those in the Kepler field, we take a more careful approach when identifying the rotationally enhanced giants by extracting vsini. The ASPCAP (García Pérez et al. 2016) pipeline has been applied successfully in the characterization of large samples of giants; however, it does not currently have a prescription to measure rotational velocity in spectra simultaneously with other stellar parameters. To obtain rotational velocity estimates from APOGEE H-band spectra we modify the existing ASPCAP pipeline, which includes seven dimensions including microturbulence, [C/M], [N/M], [alpha/M], [M/H], surface gravity, and effective temperature, with a fit for macroturbulence. We use a fiducial value of 2 km s⁻¹ in microturbulence and replace this dimension with surface rotation (sampled at v sini of 1.5, 3.0, 6.0, 12.0, 24.0, 48.0, and 96.0 km s⁻¹) in our modified 7D fit. We use stellar atmospheres from MARCS with the same extent in metallicity, chemical abundances, and effective temperatures as in the ASPCAP pipeline; we kept the grid spacing similar in most dimensions but reduced it from 0.25 to 0.5 dex in others for computational purposes, which does not significantly impact stars with S/N > 70 (García Pérez et al. 2016). Combined spectra from APOGEE DR17 were continuum normalized simultaneously with the synthetic spectra and fit with ferre,³ a least-squares fitting spectra analysis code. Stellar parameters were obtained through the unconstrained optimization by quadratic approximation algorithm and errors were estimated through inversion of the curvature matrix (García Pérez et al. 2016).

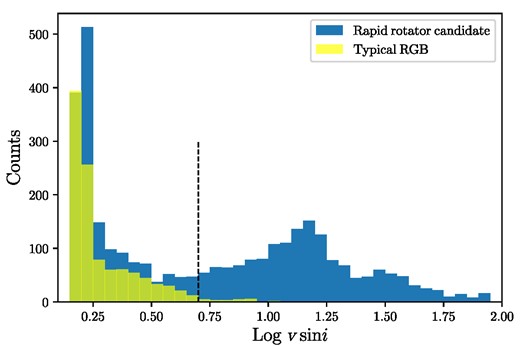

We compare our measured log vsini from our sample to a subset of 1021 regular APOGEE red giants on the lower RGB in Fig. 12. Two things are apparent. The first is that the regular stars rarely exceed a log vsini of 0.7 (v in km s⁻¹); they are true slow rotators as expected. The second is that there is a break in the distribution of log vsini at 0.7 instead of 1, as we would expect if the threshold for rapid rotation were 10 km s⁻¹. Instead, this gap suggests that the distinct population of rotationally enhanced giants starts at 5 km s⁻¹, consistent with Tayar et al. (2015). As such, we adopt log vsini of 0.7 as our threshold for rotational enhancement in the vsini we measure ourselves. For the values reported by APOGEE, we maintain the 10 km s⁻¹ threshold.

Using vsini from APOGEE, our measured vsini, and Gaia v_Broad, we confirm rotation in 1598 (50 per cent) stars, with 1188 having vsini > 10 km s⁻¹ and 410 having 5 < vsini < 10 km s⁻¹. Given that we have no constraint on the inclinations of these systems, some stars will be true rapid or intermediate rotators with low vsini. For example, 15 per cent of stars with random inclinations have sini < 0.5. Rapid rotation could still induce spectroscopic anomalies even if the star is viewed pole-on – a large star-spot filling fraction from stellar activity, for example. Correcting for random inclination effects, our data corresponds to a true rotational enhancement fraction of 65 per cent.

Like our test sample from the APOKASC-3 catalogue, the vast majority of these stars have vsini > 10 km s⁻¹, further supporting that, at least in DR16, significant rotation is needed in order to induce spectroscopic anomalies. Based on the yield from the anomalously cool stars in APOKASC-3, we expect 979 anomalously cool giants to have vsini > 10 km s⁻¹. In DR16, we find 541 (55 per cent). Furthermore, in APOKASC-3, both criteria recover 56 per cent of the total number of giants rotating with at least 10 km s⁻¹. Based on this yield, our catalogue captures 1188 (66 per cent) of the expected 1802 giants with vsini > 10 km s⁻¹.

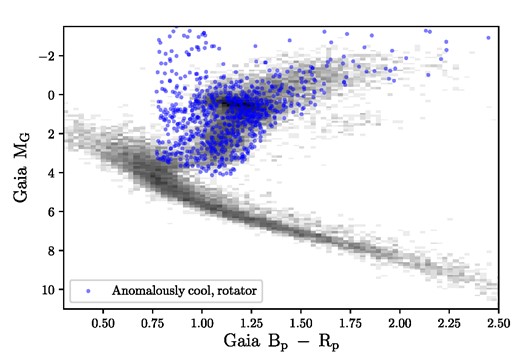

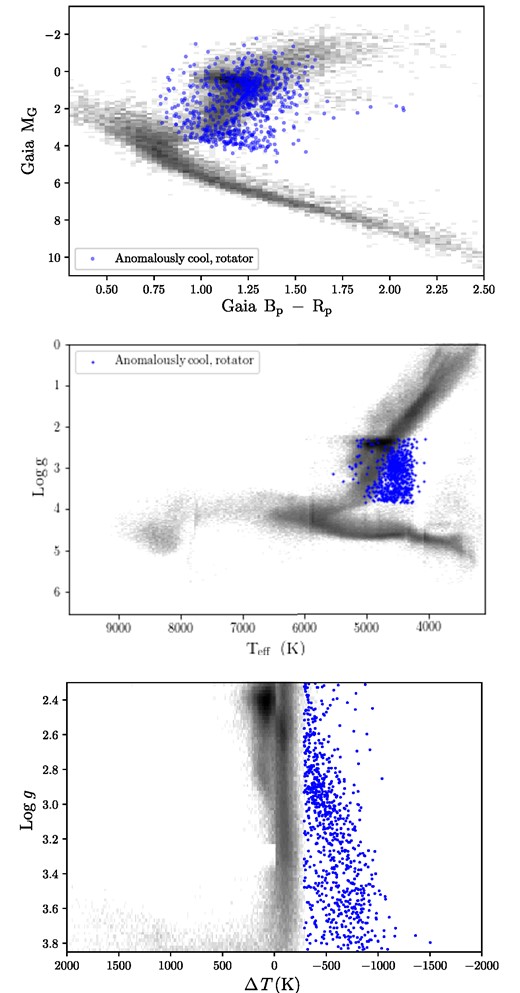

Fig. 13 shows the observed properties of the anomalously cool, rotationally enhanced giants. The anomalously cool rotators do not favour a particular range in log g nor do they cluster around a particular ΔT_eff. Like the APOKASC-3 sample, most rotators are cooler than the giants, but not entirely separated from the giant branch. The same is true in the Gaia CMD. The rapid and intermediate rotators fall on the lower giant branch, though their median color is 0.13 mag redder than the non-rotating, metal-rich stars. This could be due to spots. The rotationally enhanced giants with partial solutions also fall predominantly on the lower giant branch, as shown in Fig. 14, completely indistinguishable from typical giants.

We know from the APOKASC-3 sample that our spectroscopic criteria preferentially identify rotators with vsini > 10 km s⁻¹ and that the number of rotators with 5 < vsini < 10 km s⁻¹ far outnumbers those with vsini > 10 km s⁻¹. While this could be a population effect, it is important to see if the same pattern is observed in the field. We use the same control sample as above, randomly selected from lower giant branch stars (with 2.3 < log g < 3.6) that we photometrically confirm as giants. Among these 1021 giants, we recover the same general trends of rapid rotation as the APOKASC-3 sample, even when the APOKASC-3 sample is restricted to the same log g, though at half the same absolute rate. 2 per cent (18/1021) of the DR16 control sample rotates with 5 < vsini < 10 km ⁻¹, compared to 4 per cent in the APOKASC-3 sample, and 0.4 per cent (4/1021) of the DR16 control rotates with vsini > 10 km s⁻¹, compared to 1 per cent in the APOKASC-3 sample.

There is also a striking trend with metallicity, but not in the direction we might expect. Fig. 15 shows that the fraction of anomalously cool giants where we confirm rotational enhancement is half to a quarter of the rates for higher metallicity stars. There are several things at play here. The first is that there is a metallicity offset of −0.37 dex between the median [M/H] of all anomalously cool giants and a random sample of ‘regular’ giants. This suggests that in addition to a lower T_eff and a higher log g, ASPCAP also returns lower [M/H].

The second is that the anomalously cool criterion catches more metal-poor stars than metal-rich stars. Fig. 7 shows that the scatter in ΔT below [M/H] of −1 is much larger. As such, the anomalously cool criterion captures 18 per cent of all metal-poor giants compared to just 1.5 per cent of metal-rich giants. If we correct for the −0.37 dex metallicity offset, the fraction of anomalously cool, metal-poor giants drops to 9 per cent. This implies two things. The first is that 10 per cent of metal-poor giants are false positives; it is a result of a poor fit that the metallicity is low. The second is that the temperature errors on the low–metallicity stars are larger than for those with high metallicity. This is reflected in the distribution of ΔT values shown in Fig. 7. The anomalously cool criterion is defined to be a 3σ deviation from the median values of each metallicity bin. However, when we fit a Gaussian distribution to the ΔT values of giants in each metallicity bin below −1, we see non-Gaussian tails and large scatter such that the 3σ boundary to separate the anomalously cool giants is on average only 1.14 standard deviations from the peak. As such, if there are large temperature errors in for these metal-poor giants, ΔT is larger and we mistakenly flag more of the population as anomalously cool. Furthermore, since there is such a broad scatter in ΔT among the rapid and intermediate rotators and the false positives, there is no way we could have defined a boundary where rotationally enhanced giants are preferentially identified.

The third is that there are also just fewer rotationally enhanced giants at lower metallicity. The drop in the rapid and intermediate rotator fraction at low-metallicity results from the combination of a fewer rapid and intermediate rotators and a higher fraction of the overall metal-poor giant population being deemed anomalously cool. The numerator is small and the denominator is large compared to the metal-rich giants.

4.3 The origin of rotational enhancement

To begin to understand the origin of rotational enhancement in our sample, we search for binary companions among our rapid and intermediate rotators. We see the same general trends as in the APOKASC-3 sample. The anomalously cool giants have a higher binary fraction than the giants with partial solutions and the majority of the anomalously cool binaries are close. However, the giants with partial solutions show lower binary fractions across all measures. We also find that about 20 per cent of stars have a wide binary companion, comparable to what we find in APOKASC-3 but still higher than anticipated. We discuss this further in Section 5. Table 8 lists the binary fractions of this sample.

We suspect that the remaining giants which had enough data to assess binarity but had no indication of a companion are merger products. They occupy the same space as the binary rapid and intermediate rotators in a Gaia CMD, and those with complete spectroscopic solutions are indistinguishable from binaries in log g–T_eff space. Among the stars with complete spectroscopic solutions the fraction of single rotationally enhanced giants is strongly metallicity-dependent. Below [M/H] of −1, 36 per cent of rotationally enhanced giants are single, compared to 7 per cent at high metallicity, after correcting for the metallicity bias. This is not a byproduct of ASPCAP, as Carlberg et al. (2011) also found that their population of single rapidly rotating K giants had lower [Fe/H] metallicity (0.6 dex on average) than their slowly rotating counterparts. Several things could lead to this. These giants could be merger products, either with a stellar or substellar companion. Since the close binary fraction is higher at low metallicity and there is evidence that the period distribution of those binaries is also metallicity-dependent (Moe et al. 2019), a merger scenario makes sense. Low-metallicity stars are also subject to less mass loss, which would weaken magnetic breaking on the main sequence and keep the star spinning more rapidly as it evolved to the giant branch. Also, we are subject to small number statistics here as there are only 11 single rapid rotators with [M/H] < −1.

5 DISCUSSION

Individual samples of rapidly rotating red giants typically contain on the order of tens to hundreds of stars (e.g. Tayar et al. 2015; Ceillier et al. 2017; Gaulme et al. 2020). With APOGEE, we can extract samples an order of magnitude larger (e.g. Daher et al. 2022). With our new spectroscopic criteria, we have created an sample of 1598 rotationally enhanced giants. We also provide a comparably sized cohort of stars (3376 targets) without spectroscopic solutions. With independent validation, this group would yield a significant increase in the rapidly rotating population. While the stars in this catalogue are interesting in their own right, we have also uncovered many unforeseen but interesting results during the catalogue assembly process.

The first is that the population of rotationally enhanced red giants is far larger than we previously thought. With approximately 10 per cent of giants expected to interact at some point on the RGB (Carlberg et al. 2011; Tayar et al. 2015; Badenes et al. 2018), finding that 4.9 per cent of APOKASC-3 giants and 2.5 per cent of DR16 giants rotate with at least 5 km s⁻¹ implies that the number of true rotationally enhanced giants in APOGEE DR16 is about 7000, given the approximately 280 000 giants in this data release. This is seen in Daher et al. (2022) as well. No one criterion will capture all of these rotators, especially since we are not sensitive to the majority of them. By definition, the anomalously cool criterion is only sensitive to the lower RGB. While giants with partial solutions span the giant branch, they make up a minority of giants in all of DR16. Furthermore, the bulk of these rotators, especially those at the 5 km s⁻¹ threshold do not even appear to be spectroscopically anomalous, and there are ∼ 4 times as many stars rotating at the 5 km s⁻¹ threshold compared to the 10. Without measuring their vsini, we would not know that they are rotationally enhanced.

These stars can only be identified if rotation is included as a free parameter in the giant grids used in ASPCAP. This is a computationally expensive task, however, there are two strong reasons to do this. The first, is that there are tens of thousands of post-interaction red giants in the field that are currently undetected. Finding these giants completes the census of interacting binaries, allowing us to better constrain the relative rates and outcomes of different types of binary interaction. The second is that including rotation in our independent spectroscopic fits allowed us to obtain fits for giants where ASPCAP could not find solutions, and it improved the fits for stars where ASPCAP could find solutions. We saw shifts in the stellar parameters returned by ASPCAP for the anomalously cool stars to more realistic values, such as increase in [M/H] and decreases in log g. Including rotation for the giants not only enables more accurate fits, it also enables more fits in the first place.

Furthermore, measuring vsini for all giants ensures a uniform assessment of rotation. Aggregating rapid and intermediate rotators from different surveys, or searching for rotators using a variety of techniques, leads to complicated selection functions and biases that are difficult to correct for. For example, identification of rotationally enhanced giants from rotational modulation is biased towards higher spot amplitudes, and the telescope with which a star is observed leads to a bias in rotation periods; TESS is biased to short periods whereas Kepler can detect longer periods. A lack of uniform measures of rotation make it difficult to assess completeness.

The biases might also not be what one might think. This leads to the second surprising result. We thought that our spectroscopic selection criteria, especially the anomalously cool stars, would almost exclusively pick out tidally synchronized binaries. They instead yielded a mix of systems. While we found that the majority of giants in our spectroscopically selected APOKASC-3 and DR16 samples are rotationally enhanced giants in binaries, the close binary fraction for these giants was lower overall than anticipated. This is the opposite of what one would expect. The fraction of longer period binaries, probed by RUWE and the less strict APOGEE RV criterion, are also non-negligible. Rapid rotation in a giant with a distant companion is difficult to explain, since there is no interaction to cause spin-up. However, three-body interactions could explain these systems if instead, the distant companion was actually a tertiary and the rapid or intermediate rotator resulted from a merger of the inner binary. It is outside the scope of this paper to investigate the feasibility and expected rates of three-body interactions producing these systems. We present it here as a possible solution.

While our criteria are effective at finding rotationally enhanced giants, we have learned that we cannot use these criteria to preferentially identify rotationally enhanced giants of a singular origin. To pick out just the tidally synchronized systems, the contact binaries, or the merger products, for example, one would need a vsini measurement as well as a careful selection function to isolate stars in particular regions of the HR diagram or spectroscopic stellar parameter space.

However, using vsini to identify rapid and intermediate rotators has its shortcomings too. Fixed values of vsini do not correspond to the same rotation periods due to the factor of 10 change in radius between the lower and upper plus the inclination angle varies between stars. The convective overturn time-scales also increase as a star moves up the giant branch meaning that comparable vsini values in stars do not necessarily imply comparable levels of activity. Furthermore, ASPCAP can return spuriously high vsini measurements for more slowly rotating, but equal mass (comparable luminosity) binary stars due to the confusion between orbital and rotation period (Simonian, Pinsonneault & Terndrup 2019). While we do not expect this to be a significant source of contamination, we still must be aware of it.

Nevertheless, this catalogue is a unique grouping of rotationally enhanced giants whose rotation originates from a variety of sources. There are likely RS CVn variables, merger products, and synchronized binaries. The catalogue could be searched for cataclysmic variables or non-interacting compact object companions. The merger and binary populations taken individually can probe a variety of interesting astrophysics. For example, a comparison between the number of mergers seen versus how many we would expect to see based on the time it takes to spin-down post-merger can calibrate spin-down models. The properties of the binary systems, such as their mass and period distributions, can be compared to known binary distributions, like the ones in Moe & Di Stefano (2017). For stars with seismology, the internal structure of interacting or post-interaction giants can be assessed, or, masses derived from binary systems can calibrate asteroseismic scaling relations (e.g. Beck et al. 2022, 2023). While assembling this catalogue has revealed more about the underlying population of rotationally enhanced giants, the catalogue itself is a useful resource for studying en masse giants with unique evolutionary histories.

Beyond what can be done with this catalogue, is the question of whether the same or similar criteria can be applied to subsequent APOGEE data releases or other large spectroscopic surveys. In principle they can, but how well the criteria perform depends on the quality of the spectra and the performance of the processing pipelines.

In APOGEE DR17 (Abdurro’uf et al. 2022), the anomalously cool criterion is still valid, but it is not as good at capturing rapidly or intermediately rotating red giants. The T_ref calculation for DR17 is

using the stellar parameters derived in DR17. When we take our sample of 178 APOKASC-3 targets and see if we can identify them as spectroscopic outliers using DR17 parameters, we cannot recapture the sample. 37 stars have log g and T_eff outside the range where the anomalously cool criterion is valid. Of the 95 stars with stellar parameters in the range where we can calculate temperature offsets, about half appear anomalously cool. The last 46 stars have no spectroscopic solution, but 35 of them were confirmed rotators. In DR17, selecting giants with no spectroscopic solution could yield a high-fidelity sample of rotationally enhanced giants. We cannot study stars with partial solutions in DR17 because these types of stars do not exist in DR17. All stars that had initial ferre fits were pushed through the pipeline; they had complete fits. A combination of giants with no spectroscopic solution and anomalously cool giants should recover roughly one-third of the expected population of rotationally enhanced giants in DR17. In DR17 ASPCAP did a better job of getting more accurate stellar parameters for rotationally enhanced giants.

Regardless of the criterion adopted to find rotationally enhanced red giants in a particular spectroscopic survey, it is promising that this analysis is possible at all. Being able to exploit lower quality data and systematic errors in a pipeline to find astrophysically interesting stars helps maximize the utility of the survey.

The existence of lower quality data also means that there are gains to be made in processing the spectra. We are able to fit all but 29 of them. Allowing rotation to be a free parameter changes the other stellar parameters as well. The median log g in our sample is higher by 0.13 dex and the median [Fe/H] is lower by 0.25 dex compared to our independent spectral fits. The independent fits shifted the median T_eff colder by about 150 K, opposite of the direction we expect. However, this may be explained by the presence of star-spots. While a spot analysis (Cao & Pinsonneault 2022) is not included in this work, we expect many of these stars to be active, and the presence of spots could further bring down T_eff.

Moving forward, spectroscopic identification through vsini measurements or photometric detection through spot modulation seem to be the most promising means for identifying rotationally enhanced giants, and in particular, rapid rotators. The disagreement between v_Broad and vsini makes Gaia v_Broad difficult to use. Furthermore, less than 500 giants in our sample had Gaia v_Broad measurements. Rotation periods from TESS offer a promising means to find rapid rotators, especially with a new pipeline which can extract rotation periods longer than the 13.7 d limit imposed by TESS’s 27 d viewing window (Claytor et al. 2022).

6 CONCLUSIONS

For giants born below the Kraft break, rotational enhancement can be a direct consequence of binary interaction. These products of interaction produce sets of astrophysically interesting systems which follow evolutionary tracks often not accessible in single star evolution, including evolved blue stragglers, merger products, active giants, and contact binaries, to name a few. In this paper, we have identified a large cohort of rapid and intermediate candidates selected from evolved, cool giants in APOGEE.

We find that the three spectroscopic categories of giants with no solution, giants with partial solutions, and giants with complete solutions, created as APOGEE assesses the quality of its spectra, make natural and efficient groups for identifying rotationally enhanced giants. Anomalously cool giants with complete solutions and giants with partial solutions are particularly good at preferentially identifying rotationally enhanced giants, with rotator fractions of 90 per cent and 78 per cent, respectively, in our APOKASC-3 control sample (Figs 2 and 3). The majority of these stars rotate with vsini > 10 km s⁻¹. This makes sense since we are targeting the biggest spectroscopic outliers and we know that rapid rotation can change reported stellar parameters like log g (Thompson et al. 2019) and T_eff (Dixon et al. 2020). The rotator fraction at the >5 km s⁻¹ threshold drops to 55 per cent and 45 per cent in our DR16 catalogue, which, while still high, could result from population differences between the Kepler field, which is old and above the plane, and general field stars. The difference could also result from the different ways we measure vsini in the two populations, though we detect no systematic biases in our vsini measurements in the APOKASC-3 field.

We also discovered two failure modes of ASPCAP. In both the APOKASC-3 and DR16 samples 15 per cent of stars identified as anomalously cool giants were actually main-sequence photometric binaries based on their Gaia photometry (Figs 2 and 9). For stars where both dwarf and giant template spectra were fit, the giant templates fit these spectra slightly better. For stars at the base of the giant branch we recommend photometric verification of stars selected to be spectroscopic giants.

The second failure mode is a metallicity bias. We found two issues with this low-metallicity population. The first is that the median [M/H] for the anomalously cool giants is 0.37 dex lower than the median for ‘normal’ red giants. As a result, intrinsically higher metallicity stars, which are more common, scatter into the poorly populated metal-poor domain, artificially inflating the apparent fraction of metal-poor rotators. Correcting for this offset resulted in a 10 per cent reduction in the total number of low-metallicity giants. The second is that large random errors in temperature for metal-poor stars make our spectroscopic temperature anomaly an ineffective diagnostic of rapid rotation there, resulting in a large number of false positives. The net result is that our method does not yield strong results about rotational enhancement in the metal-poor domain.

In assessing the completeness of our spectroscopic selection criteria, we measure vsini for all of the giants in APOKASC-3. This revealed a population of giants rotating with 5 < vsini < 10 km s⁻¹ that was almost four times larger than those with vsini > 10 km s⁻¹. This is not a population effect. In a control sample of ‘normal’ DR16 giants we find the same relative rates of rotational enhancement at the 5 and 10 km s⁻¹ threshold. Our criteria are largely insensitive to these stars (Fig. 6), meaning that giants which are rotationally enhanced fly under the radar due to their lack of spectroscopic anomalies.

We therefore recommend that current and future spectroscopic surveys include rotation as a free parameter in their solutions for cool evolved stars. It is a computationally expensive task, but the payoff is a census of interacting and post-interaction binaries on the order of 10 000. vsini is the only way to have a uniform measure of rotation, as we cannot guarantee rotation periods from TESS for all of these targets. Gaia is not helpful here either because there are v_Broad measurements for only some DR16 giants and it is only sensitive down to 10 km s⁻¹. Furthermore, our criteria are mostly sensitive to rapid rotation on the lower RGB. It is only with vsini measurements for all giants that we can find the rotators on the upper RGB and in the clump.

Lastly, vsini measurements for all giants lets us first identify the rapid and intermeidate rotators and then assess the binary origins of their rotation. This is important because our spectroscopic selection criteria do not actually isolate the systems we thought they would. We expected to almost exclusively capture tidally synchronized binaries on the lower RGB, but the close binary fraction was only about two-thirds in the APOKASC-3 sample. This means that our criteria identify giants with a variety of binary origins. To select rapid and intermediate rotators that have particular features, like those which are just tidally synchronized, just RS CVns, or just merger products, more careful consideration must be given to where those systems would cluster in a CMD or in spectroscopic parameter space.

Rotational enhancement in giants is more common than we expected. We have shown this by producing a large catalogue of both single and binary rotationally enhanced red giants that are not exclusively variable. We have shown how to exploit pipeline failure modes to find astrophysically interesting systems quickly and with high fidelity, and we have shown that the prevalence of binary interaction in low-mass giants is much greater than previously thought. Measurements of vsini are good ways to find interacting and post-interaction binaries. With subsequent APOGEE data releases and the wealth of stellar spectra from the fifth iteration of the Sloan Digital Sky Survey (SDSS-V), we are poised to fill in gaps in the census of rapidly rotating red giants if rotation is included for all giants when fitting spectra. An accurate census and careful characterization of these systems are critical for concretely testing predictions from binary population synthesis, probing mass transfer physics and common envelope evolution, and generally exploring the effects of binary interaction on evolved stars.

ACKNOWLEDGEMENTS

RAP would like to thank Diego Godoy-Rivera for providing the de-reddening scripts and for guidance on how to process the Gaia photometry. She also thanks Noah Downing for figuring out that most of the peculiarly red luminous giants with partial solutions are members of the LMC and SMC. SM acknowledges support from the Spanish Ministry of Science and Innovation (MICINN) with the Ramón y Cajal fellowship no. RYC-2015-17697, grant nos PID2019-107187GB-I00 and PID2019-107061GB-C66, and through AEI under the Severo Ochoa Centres of Excellence Programme 2020–2023 (CEX2019-000920-S).

DATA AVAILABILITY

The catalogue of rapidly rotating stars we identify in APOKASC-3 and APOGEE DR16, as well as the stellar parameters we use to identify them, are all available in tables released with this paper.
