Parameter dependency on the public X-ray reverberation models kynxilrev and kynrefrev

ABSTRACT

We present a comparative study of the constrained parameters of active galactic nuclei (AGN) made by the public X-ray reverberation model kynxilrev and kynrefrev that make use of the reflection code xillver and reflionx, respectively. By varying the central mass (M_BH), coronal height (h), inclination (i), photon index of the continuum emission (Γ), and source luminosity (L), the corresponding lag-frequency spectra can be produced. We select only the simulated AGN, where their lag amplitude (τ) and M_BH follow the known mass-scaling law. In these mock samples, we show that τ and h are correlated and can possibly be used as an independent scaling law. Furthermore, h (in gravitational units) is also found to be positively scaled with M_BH, suggesting a more compact corona in lower-mass AGN. Both models reveal that the coronal height mostly varies between ∼5 and 15 r_g, with the average height at ∼10 r_g and can potentially be found from low- to high-mass AGN. Nevertheless, the kynxilrev seems to suggest a lower M_BH and h than the kynrefrev. This inconsistency is more prominent in lower-spin AGN. The significant correlation between the source height and luminosity is revealed only by kynrefrev, suggesting the h–L relation is probably model-dependent. Our findings emphasize the differences between these reverberation models that raises the question of biases in parameter estimates and inferred correlations.

1 INTRODUCTION

Active galactic nuclei (AGNs) are the compact, high-energy regions at the centres of galaxies that are powered by accretion of gas onto the central supermassive black hole. Matter in the surrounding areas are influenced by the strong gravitational field, hence forming an accretion disc. In the standard accretion disc scenario, the disc itself emits the optical/UV photons (Shakura & Sunyaev 1973). These photons are upscattered by the high-energy electrons inside the corona, boosting the energy of the seed photons up to X-rays (George & Fabian 1991; Fabian et al. 2000).

The coronal X-rays that illuminate the disc are reprocessed via, e.g. photoionization, fluorescence, Auger process and resonant trapping, and Compton scattering, whose resulting features are imprinted in the reflection spectra (Fabian et al. 2000; Reynolds & Nowak 2003). The reflection X-rays lead to a time delay, or reverberation lags, as they travel a longer distance to the observer compared to the direct continuum X-rays. The reverberation lags are then related to the distance between the corona and the accretion disc, hence can be used to probe the geometry and properties of the system (Uttley et al. 2014; Cackett, Bentz & Kara 2021). McHardy et al. (2007) reported the first hint of the X-ray reverberation taking place in the AGN Ark 564. The first robust detection of X-ray reverberation was in the AGN 1H 0707-495, where the high-frequency (short time scales) soft lags of ∼30 s between the light curves in the reflection-dominated and continuum-dominated bands were discovered (Fabian et al. 2009). Thereafter, the reverberation lags have been discovered in several AGNs, for example, MCG-6-30-15 and Mrk 766 (Emmanoulopoulos, McHardy & Papadakis 2011), RE J1034 + 396 (Zoghbi & Fabian 2011) and Ark 564 (Kara et al. 2013), increasing the amount of data so the parameter relations can be systematically analyzed.

De Marco et al. (2013) investigated the relation between the black hole mass and the amplitude of the X-ray reverberation lags measured in the soft (Fe-L) band. They found that the lags scale with the mass. This scaling relation derived in the Fe-L band can also extrapolate to lower-mass AGNs, suggesting that the accretion process is independent of the central mass (Mallick et al. 2021). Kara et al. (2016) performed a global look on the discovered X-ray reverberating AGN and reported that the lags measured in the Fe-K band were also correlated with the mass. The lag-mass scaling relation was further confirmed by Hancock, Young & Chainakun (2022), where the covering fraction that was possibly induced by the motion of non-uniform orbiting clouds was also found to be inversely correlated with the photon index and the flux of the X-ray continuum.

Modelling of the reverberation lags has been performed independently under different geometries such as the lamp-post coronal source (Cackett et al. 2014; Emmanoulopoulos et al. 2014; Chainakun & Young 2015; Epitropakis et al. 2016; Caballero-García et al. 2018; Ingram et al. 2019) and the extended corona environment (Wilkins et al. 2016; Chainakun & Young 2017; Chainakun et al. 2019; Hancock, Young & Chainakun 2023; Lucchini et al. 2023). Meanwhile, the public models for the X-ray reverberation lags, kynxilrev and kynrefrev¹ models, were developed (Caballero-García et al. 2018) based on the kyn model² previously developed by Dovčiak, Karas & Yaqoob (2004a) and Dovčiak et al. (2004b). The kynxilrev and kynrefrev models compute the reverberation time lags under the lamp-post assumption by using the ionized X-ray reflection from the xillver (García & Kallman 2010; García et al. 2013, 2014) and reflionx (Ross, Fabian & Young 1999; Ross & Fabian 2005) table models, respectively. Thus far, xillver and reflionx have been the most widely used X-ray reflection models (Bambi et al. 2021).

While both reflection models are generally comparable, the xillver model uses more updated atomic composition data of the accretion disc in calculating the photon-disc interaction and corresponding X-ray reflection. The main differences between the spectra from both models are likely in the soft (≲1 keV) band, especially when the photon index of the X-ray continuum is low (García et al. 2013). Instead of focusing on the time-average spectrum, the aim of this work is to investigate the differences between the kynxilrev and kynrefrev models in explaining the X-ray timing data. The mock AGN samples are produced following the current trend of the lag-mass scaling relation as reported by De Marco et al. (2013). The results are compared between those simulated from the kynxilrev and kynrefrev models. We test whether the results from both models are consistent in determining the key parameters of the system such as the coronal height and luminosity.

More specific details of the kynxilrev and kynrefrev models as well as the parameters investigated here are described in Section 2. Section 3 presents how the lag-frequency spectra are generated and further selected by matching the observational trend of the lag-mass scaling relation. In Section 4, we investigate the obtained parameters and existing correlations that can be derived when using kynxilrev and kynrefrev models, and highlight the differences between the results from both models. The discussion and conclusion towards the model dependence is given in Section 5.

2 X-RAY REVERBERATION MODELS

kynxilrev and kynrefrev is the X-ray reverberation coding model related to the kyn package (Dovčiak et al. 2004a; Dovčiak et al. 2004b; Caballero-García et al. 2018) that can calculate the frequency-dependent time lags by using the energy-integrated X-ray spectrum from the xillver (García & Kallman 2010; García et al. 2013) and reflionx (Ross et al. 1999; Ross & Fabian 2005) models. We use reflionx.mod as the reflionx table model, and specifically employ xillverD-5.fits for the xillver reflection model.

The incident angle of the X-rays irradiating the disc has a significant impact on the rest-frame reflection spectrum. While reflionx assumes an isotropic point source situated above a semi-infinite slab of cold gas, xillver assumes that the coronal X-rays illuminate the disc with an incident angle of 45 degrees (see e.g. Dauser et al. 2013 and discussion in Bambi et al. 2021). Furthermore, most of the solar abundances of the elements (e.g. C, O, Ne, Mg, and Fe) used in xillver are lower than those in reflionx (García et al. 2013). This is because reflionx adopted the elemental solar abundances from Morrison & McCammon (1983), while the xillver model calculated the X-ray reprocessing on the accretion disc following the photoionization routines from xstar code (Kallman & Bautista 2001), which adopted the abundances of the elements from Grevesse & Sauval (1998). Among the widely utilized reflection models, xillver is probably the most sophisticated one. The xstar code incorporated by xillver contains the most comprehensive atomic data base for the detailed treatment of the radiative transfer to model photoionized X-ray reflection spectra. xillver also enhances, in particular, the thorough calculation of the K-shell photoabsorption of prominent ions such as N and O (Kallman et al. 2004; García et al. 2005, 2009, 2013; Bambi et al. 2021).

The kynxilrev and kynrefrev models are based on the assumption of the lamp-post coronal geometry (i.e. the corona is an isotropic point source located on the rotational axis of the black hole and produces a flash power-law radiation). The accretion disc is given to be optically thick and geometrically thin that obeys the standard model of Novikov & Thorne (1973). The inner edge of the accretion disc is set to be equivalent to the innermost stable circular orbit (ISCO) while the outer edge is fixed at 1000 r_g. Note that, throughout this work, the geometrical units of distance and time of r_g = GM_BH/c² and t_g = GM_BH/c³ are used, where G is the gravitational constant, M_BH is the black hole mass and c is the speed of light. The disc has a constant density profile, while the ionization state of the disc is allowed to vary with the incident flux. The X-ray continuum is given in terms of a cut-off power law with the photon index Γ. The high-energy cut-off is fixed at 300 keV.

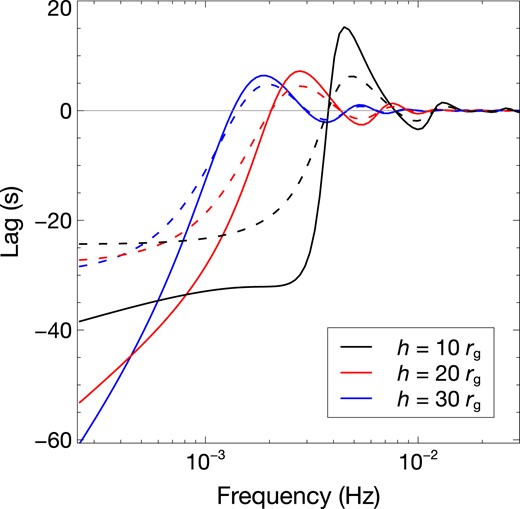

The frequency-dependent Fe-L lags are calculated using the energy bands of 0.3–0.8 and 1–4 keV. In the standard Fourier technique (Nowak et al. 1999), the cross-spectrum C(f) = S*(f)H(f) is firstly computed, where S(f) and H(f) are the Fourier forms of the soft and hard-band light curves. The symbol * represents the complex conjugate of the soft component. Next the lags are computed via the argument of the cross-spectrum (i.e. the phase difference) in the Fourier space: τ = arg C(f)/(2πf). Note that the phase difference is defined over −π to π, so the phase wrapping occurs and the lag profile begins to fluctuate around 0 at the frequencies of f ≥ 1/2τ. Furthermore, we set the parameter xsw = 16 (default value) in both kynxilrev and kynrefrev models, meaning that the rebinning is done in real and imaginary parts before the lags are computed and further diluted by the primary spectra with respect to the given (observed) energy band.

The spin parameter of the black hole, if not stated, is fixed at a = 1. The free parameters investigated here are the black hole mass (M_BH), the coronal height (h), the inclination (i), the photon index of the primary continuum (Γ) and the observed 2–10 keV luminosity in the units of the Eddington luminosity (L/L_Edd). We vary M_BH in the range of 10⁵–|${10^9 \, \mathrm{M}_\odot }$|⁠, which also covers the low mass AGN as investigated in Mallick et al. (2021). The coronal height h is varied in the range of 2–30 r_g, while the inclination i is between 15° and 75°. The photon index Γ and the luminosity L are varied between 1.8 and 3.0 and 0.001–0.5 L_Edd, respectively. These parameter ranges are presented in Table 1. Note that we focus on the case when the inner disc is fixed at ISCO, but we also try to vary the inner radius (the result is presented in Appendix  A). The rand() is used to generate the random integer with the seed generated by srand(time(0)) so that it returns a different sequence of random numbers each time it is executed.

3 LAG-MASS SCALING RELATION AND DATA SIMULATIONS

The studies on the observational surveys of the reverberation lags revealed that the AGN with a higher mass seems to exhibit larger reverberation lags while the observed frequencies of the lags are lower (e.g. De Marco et al. 2013; Kara et al. 2016; Hancock et al. 2022). Here, the lag-frequency spectra in the Fe-L band of the mock AGN samples are generated using the kynxilrev and kynrefrev models, by varying the parameters shown in Table 1. The examples of the lag-frequency spectra simulated from both models are presented in Fig. 1. The negative lags are defined as the soft band lagging behind the hard band. As expected, the maximum amplitude of the lag increases with the coronal height. The phase wrapping also occurs at lower frequencies for higher source height. Furthermore, it can be seen that the phase-wrapping frequencies from both models are quite consistent, but, for each source height, the lag amplitude of the kynxilrev model is smaller than that from the kynrefrev. This is expected since the reflection spectrum from the xillver model is more absorbed at low energies (García et al. 2013), so the soft lags from the kynxilrev is more diluted than the kynrefrev model. The dilution effects reduce the amplitude of the lags without affecting the phase wrapping (see Wilkins & Fabian 2013; Kara et al. 2014; Chainakun et al. 2023, for discussion on intrinsic lags and dilution).

From the mass-scaling law, we know the lag amplitude (τ_obs) and the particular frequency (ν_obs) at which we expect to see the lags for a given black hole mass. Therefore, the simulated lag spectra are screened in order to check if they are consistent with the mass-scaling law suggested by De Marco et al. (2013):

where τ_obs is the lag amplitude, ν_obs is the frequency where the lags are seen and M₇ is |$M_{\rm BH}/10^7 \, \mathrm{M}_\odot$|⁠.

To sort the simulated lag amplitude (τ_sim) and frequency (ν_sim) that match τ_obs and ν_obs, the lag spectra are binned using the bin size comparable to those typically used in the timing analysis of the AGN such as 1H0707–495 and IRAS 13224–3809 (Caballero-García et al. 2018, 2020). Then, τ_sim is determined from the frequency bin that is before the phase wrapping occurs. The central frequency of that bin is used as a proxy for ν_sim. Then, for a given M_BH, we check for the consistency between the observed and the simulated lag values, by allowing ∼20 per cent and 2 per cent of the deviations between τ_sim and τ_obs, and between ν_sim and ν_obs, respectively. The effects of this allowed uncertainty are also investigated. All simulated spectra whereby phase wrapping occurs at frequencies below ν_obs are excluded. Only the samples that are consistent with the observed mass-scaling relation are included as the mock AGN samples for further analysis.

The fluctuations along the accretion disc that propagate inwards on longer time scales than those from the inner disc reflection can produce the positive hard lags at relatively low frequencies (Kotov, Churazov & Gilfanov 2001; Arévalo & Uttley 2006). We note that De Marco et al. (2013) identified the value of the soft lag and the associating frequency from the amplitude and the frequency of the minimum point in the negative-lag profile, which is possible since the positive and negative lags can be clearly distinguished from the observed data. Here, we model only the negative reverberation lags so the minimum point as in De Marco et al. (2013) cannot be easily identified (i.e. we do not know the amount of the competing positive lags and the highest frequencies where they are possibly dominated). Instead, we choose to determine the value of the soft lag from the frequency bin just before the phase wrapping to ensure that the clean reverberation signature is probed. Nevertheless, for the accepted AGN data, the frequency bin where the lag is seen must also match the frequency bin reported by De Marco et al. (2013). This further ensures that our mocked data have both lag amplitude and the corresponding frequency following the mass-scaling law. An uncertainty due to the effect of the positive hard lags is also discussed in Appendix  B.

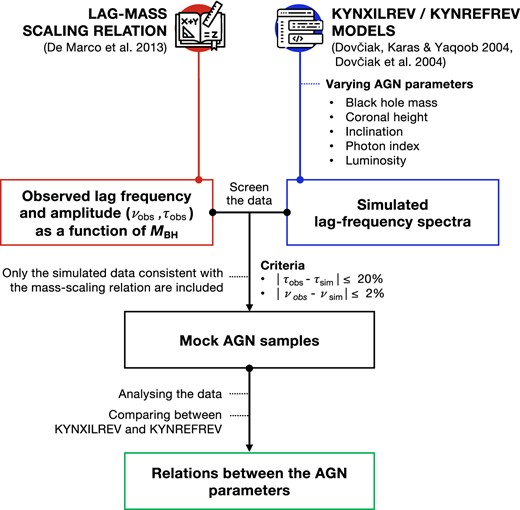

The flowchart illustrating the overall workflow of this work is presented in Fig. 2. After the mock AGN samples that obey the mass-scaling law are obtained, the parameters derived from the kynxilrev and kynrefrev models are compared. While we perform 25 000 simulations of the lag frequency spectra, there are ∼117 (115) of them produced from kynxilrev (kynrefrev) that fit in the lag-mass scaling relation and are accepted under our criteria. The correlations between the parameters implied from both models are then investigated. Finally, we allow the lag-mass scaling relation to deviate from the current trend and see its global effect on the parameters of the system.

4 RESULTS

Once the mock AGN samples that match the mass-scaling law are gathered, the relations of their obtained parameters including τ, M_BH, h, i, Γ, and L are analysed. Fig. 3 illustrates the relations between the observed lags and other parameters, comparing between what was derived by kynxilrev and kynrefrev models. The moderate monotonic correlation between τ and h is significant (p < 0.05), with the Spearman’s rank correlation coefficient of r_s = 0.39 and 0.33 for kynxilrev and kynrefrev, respectively. However, the kynxilrev model suggests more solutions towards lower lags and lower source height that can still follow the mass-scaling law. The lags are found to correlate with the luminosity only when using the kynrefrev model, where r_s = 0.55. There is no correlation between the lags and inclination, and between the lags and photon index of the X-ray continuum from either kynxilrev or kynrefrev model.

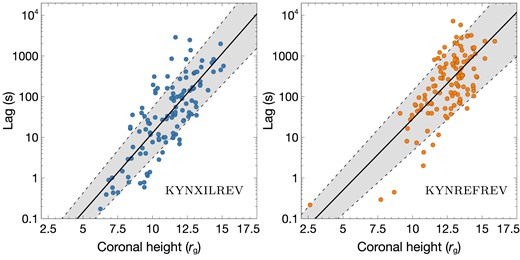

The τ–h relation shown in Fig. 3 suggests that, in addition to the black hole mass, the observed lags also depend on the height of the corona which varies in all AGN. We then derive the τ–h relation by performing linear regression fitting to the data obtained from kynxilrev and kynrefrev models. The fitting results are presented in Fig. 4. We find that the τ–h relation can be written in the form of

for kynxilrev and kynrefrev models with corresponding R² = 0.63 and 0.53, respectively. Note that R² is the coefficient of determination that represents the variation from the true values of a dependent variable as predicted by the regression model (R² = 1 is a perfect fit). The uncertainty of each model coefficient is estimated from the 1–σ standard error calculated by taking the square root of the diagonal elements of the obtained covariance matrix.

Then, we investigate whether the lag-mass scaling relation prefers any specific value of the black hole spin. The spin parameters are varied to be a = 0, 0.5, and 1 for both models. Note that other parameters are uniformly varied within the range specified in Table 1, and only the samples that are consistent with the mass-scaling law are included in the analysis.

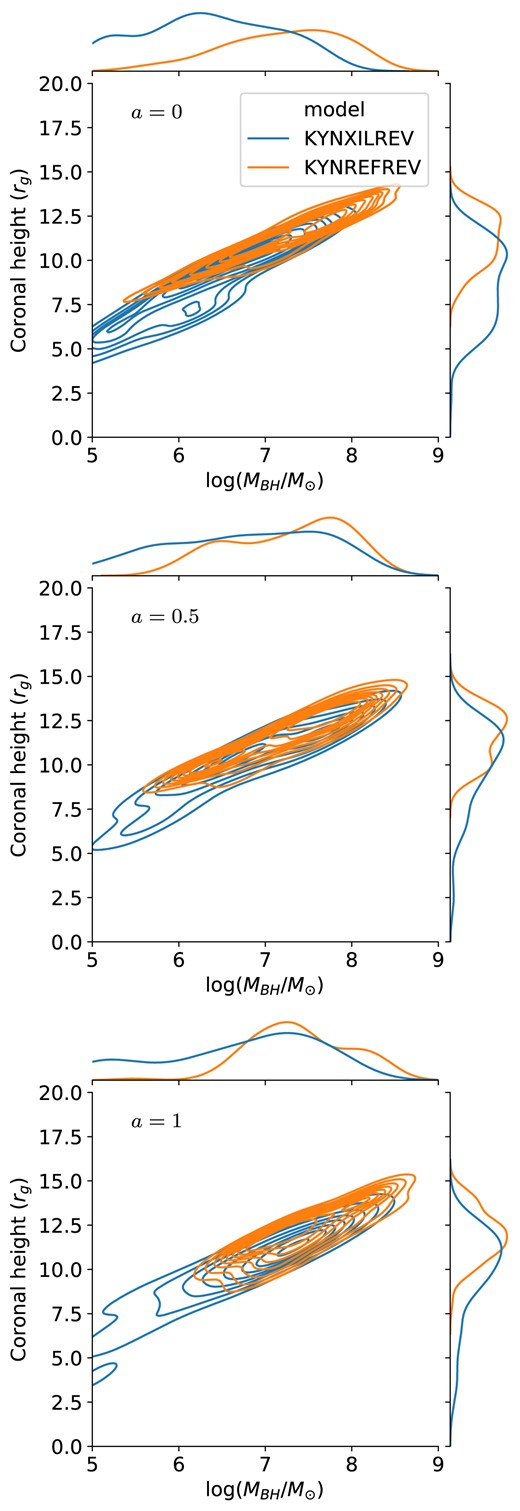

Fig. 5 represents the h–M_BH distribution in the cases of low, medium, and high spin, derived from the layered kernel density estimate (KDE) in seaborn (Waskom 2021). The KDE plot illustrates the smoothed-density distribution of the data using the Gaussian kernel with the contour lines to reveal the cluster and trend of the scattered data points. Interestingly, the solutions of low, medium and high spin are all possible. Nevertheless, when a = 0 (upper panel), the kynxilrev provides more samples at lower masses of M_BH ≲ 6.5 M_⊙, while the kynrefrev model provides more samples at higher masses of M_BH ≳ 7.5 M_⊙. This can lead to a bias due to the choice of the model used in determining the black hole mass and the coronal height in AGN that host a low-spin black hole. Even though the preferred solutions of h and M_BH for both models become more consistent in the cases of a = 0.5 and 1, the tendency that the kynxilrev suggests the lower mass and lower source height is still noticeable. Despite this, both models strongly suggest the correlation between h and M_BH, regardless of the black hole spin.

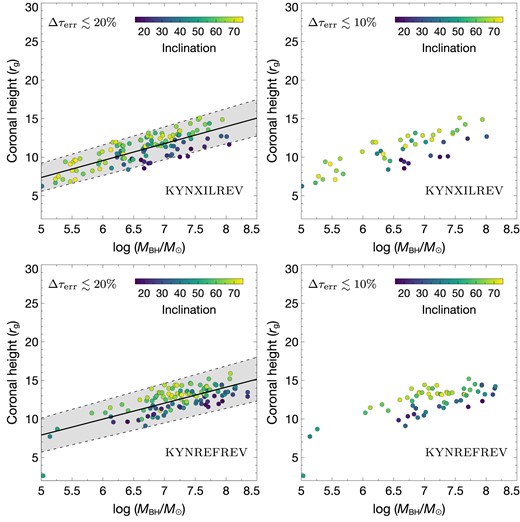

The scatter plots for the simulated data showing the relation between h, M_BH, and i when a = 1 are presented in Fig. 6. Here, we also illustrate how the choice of the acceptable errors, Δτ_err, affects the results. When Δτ_err decreases, the number of the solutions decreases which is expected, since, in doing this, we accept only the mock samples that show more alignment with the observed scaling relation. By changing the threshold to accept the amplitude of the lag from 20 to 10 per cent, the number of sets of parameters produced from kynxilrev (kynrefrev) that are accepted decreases from ∼117 (115) to 47 (59). In any case, both kynxilrev and kynrefrev show a similar trend where the corona tends to be located at a higher gravitational height for a larger M_BH. Interestingly, this suggests that we can perhaps establish the h–M_BH scaling relation as what is done for the lag–M_BH relation. We then fit the h–M_BH data with a linear model. For kynxilrev and kynrefrev models, the best-fitting h–M_BH relations are

where the obtained R² is 0.64 and 0.54, respectively. However, the coronal height and the black hole mass are limited at high ends to be h ≲ 15 r_g and M_BH ≲ 10^8.5 M_⊙. The models with higher values of the coronal height than ∼15 r_g produce the lags which are too long and the phase-wrapping also occurs at too low frequencies that do not fit in the mass scaling relation. Note that we also investigate the case when the disc is truncated before the ISCO (see Appendix  A).

According to Fig. 6, the inclination can be expected in the complete given range of 15–75°, with small inclinations (20–30°) commonly found in M_BH ≳ 10^6.5 M_⊙. Although the higher inclinations (≥70°) appear throughout the entire range of the mass for the kynxilrev, they seem to be rarely found in kynrefrev and only appear when M_BH ∼ 10⁷ M_⊙. The trend of the mock samples remain almost the same even when the acceptable uncertainty, e.g. Δτ_err, is changed and is not too small or too large. Therefore, from now on we evaluate and show the results by fixing the acceptable uncertainty at 20 per cent.

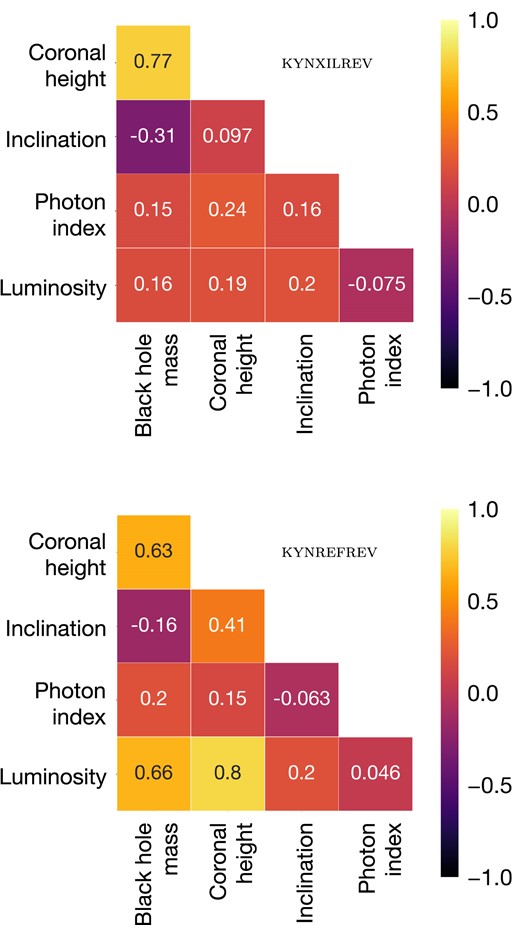

Overall correlations between each AGN parameter are presented in Fig. 7. Both kynxilrev and kynrefrev reveal a strong monotonic correlation between h and M_BH, with the Spearman’s rank correlation coefficient r_s ∼ 0.6–0.8. The inclination is moderately correlated with the height (r_s = 0.41) for the kynrefrev model, while this correlation is not observed when using kynxilrev. Notably, the luminosity also shows a high correlation with the coronal height only in the case of kynrefrev model (r_s = 0.80), while the kynxilrev model does not reveal this correlation. An increasing trend of L with M_BH is also seen only in kynrefrev data.

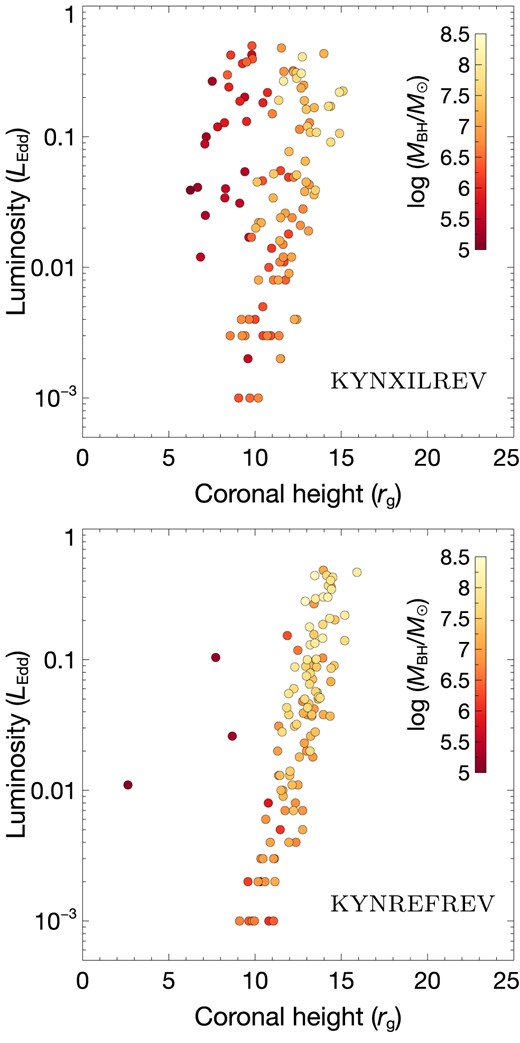

The distinct results of the L–h–M_BH relation obtained from both models are illustrated in Fig. 8. The mock data from kynxilrev appear to be more scattered with the additional data of M_BH ≲ 10⁶ M_⊙ compared to those from the kynrefrev. These low-mass data from the kynxilrev model also correspond to relatively low source height and high luminosity, occupying the region in the parameter space where we find less solutions if using the kynrefrev model. Comparing to Fig. 6, these data are subjected to have high inclinations as well.

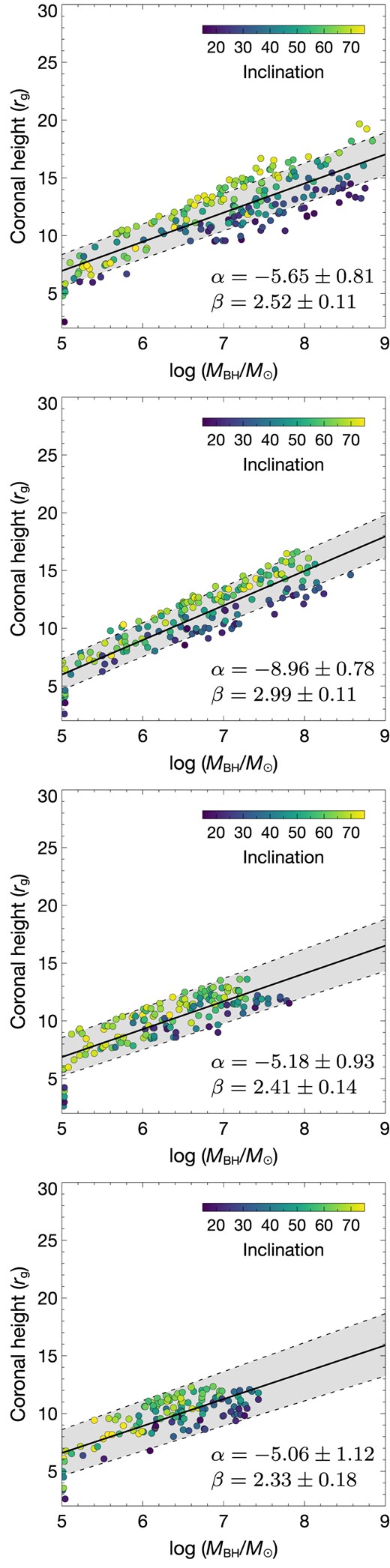

Furthermore, we investigate the effects when the slope of the observed lag-mass scaling relation (i.e. the coefficients on equation 1) are deviated from the current trend. We adjust the slope of the τ–M_BH profile to be ±10 per cent and ±20 per cent from the recent one and generate new mock AGN samples that follow the new τ–M_BH relation. The results are shown in Fig. 9. It is clear that h and M_BH is still correlated in all cases. A larger number of higher-mass AGN possessing larger coronal height is expected if the coefficient of the lag–mass relation decreases. In other words, more solutions with higher h (up to ∼20 r_g) can be found only when the data lies in the trend that has smaller coefficients than the observed one. By assuming the relation in the form of h = α + βlog (M_BH/M_⊙), we see that α vary approximately between −9 and −5 while β changes between 2.3 and 3. For a fixed mass, varying the slope of the lag-mass scaling law may represent the case when one looks at a particular AGN that exhibits different time lags as observed in different observations (see e.g. Alston et al. 2020 in the case of IRAS 13224–3809 where the lags and the inferred coronal heights are varied across different observations).

5 DISCUSSION AND CONCLUSION

The X-ray reverberation lags in AGN were found to scale with the BH mass (De Marco et al. 2013; Kara et al. 2016; Hancock et al. 2022). By investigating Fe-L lags, De Marco et al. (2013) found that the lags roughly lie within the light crossing time for a distance of 6 r_g. Kara et al. (2016) analyzed the lags measured in the Fe-K band and found that the observed lags lie in the range of time scales corresponding to the light crossing distance of ∼1–9 r_g. These previous studies suggest that the distances associated with X-ray reverberation are small, consistent with the inner disc reflection framework. However, the observed lag amplitudes are usually smaller than the intrinsic value due to the dilution effects caused by the cross-contamination of primary and reflection flux in the energy bands of interest (e.g. Kara et al. 2013; Wilkins & Fabian 2013; Chainakun & Young 2015). The true light travel distance then must be larger than those derived by converting the observed lags directly to the distance. Here, we follow the lag-mass scaling relation presented in De Marco et al. (2013) and generate mock AGN samples for testing the consistency between the kynxilrev and kynrefrev in explaining these data. Both models suggest that the observed lags are mass-dependent and can be triggered by a compact lamp-post source lying within h ≲ 15 r_g.

The fact that the correlation coefficient between the lags and the mass is not intrinsically equal to 1 suggests that the lags must depend on other parameters as well. In addition to the black hole mass, it is likely that the observed lags also depend on the coronal height which is not the same in all AGN. The τ–h scaling relation is suggested either when using kynrefrev or kynxilrev model (Fig. 4 and equations 3–4). The slope of the τ–h fits from both models are comparable. Major differences between the kynxilrev and kynrefrev models are their underlying reflection spectra, xillver and reflionx respectively, where the reflection spectra employed by kynxilrev were reported to exhibit a higher level of absorption particularly in the soft energy range of ∼0.3–0.8 keV (García et al. 2013; Caballero-García et al. 2018). Despite this, both models still consistently infer the monotonic correlation between the coronal height in the gravitational units and the central mass. In fact, the height and the mass are correlated such that they can also be used as another independent scaling law (Fig. 6 and equations 5–6).

The results suggest that, by analyzing the Fe-L lags alone, the black hole spin cannot be well constrained. There is no preferred value of the black hole spin since the derived solutions from both models can match the mass-scaling law whether the black hole is non-, moderately-, or maximally spinning. This is probably because the lag-frequency spectrum has a subtle change with the spin (Cackett et al. 2014). Even if this is the case, the kynxilrev model seems to provide more solution towards lower h and lower M_BH especially for a low-spin AGN.

Since the kynxilrev model has more dilution, one would expect that this model requires longer intrinsic lags and higher coronal heights to explain the observed data. However, kynxilrev allows smaller values of height compared to kynrefrev. This is because, for a fixed coronal height, the reverberation lag from kynxilrev is smaller than that from kynrefrev, but their phase wrapping occurs at the same frequency (Fig. 1). When the kynxilrev model requires a higher source height to explain the lags, the phase-wrapping also shifts to lower frequencies than that from the kynrefrev model, thus it no longer matches the mass scaling relation.

Alston et al. (2020) simultaneously fit the lag-frequency spectra in 16 XMM-Newton observations of IRAS 13224–3809 using the kynrefrev model. While the variation of coronal height in IRAS 13224-3809 was found to be h ∼ 6–20 r_g, the majority of the obtained heights were found to be h ≲ 13 r_g. Note that the h–M_BH relation obtained when the slope of the lag-mass scaling law is varied can show how much the coronal height can change for a fixed mass. Given the IRAS 13224-3809 mass of log (M_BH/M_⊙) ∼ 6.38 (Alston et al. 2020), their upper limit of the height is roughly consistent with our possible heights at that particular mass. Caballero-García et al. (2020) investigated the combined spectral-timing data of IRAS 13224-3809 and found that, for the maximally spinning case, the source height could vary between ∼3–10 r_g. Recently, Mankatwit et al. (2023) utilizes a random forest regressor machine-learning model to investigate the X-ray reverberation lags due to the lamp-post corona in IRAS 13224-3809 and 1H 0707-495 using the response functions from the kynxilrev model. Their constrained heights were also varied between 5 and 18 r_g. Following the current lag-mass scaling relation, it is rare that the AGN would occupy the lamp-post corona at a distance larger than ∼15 r_g. Otherwise, the coefficients of the mass scaling law needs to deviate from the current trend by about 20 per cent (Fig. 9).

De Marco et al. (2013) also investigated whether the lag time scales show some dependence on the source luminosity. They found a less significant correlation between the Fe-L lags and either the 2–10 keV or bolometric luminosity. Here, the significantly strong or even moderate correlations between the lags and the L cannot be observed. In fact, our results suggest that we should not expect to see the correlations between the lags and either Γ or i too (Fig. 3). This means that L, Γ and i are not the key parameters that could place constraints on the lags and the disc-corona geometry in AGN. By using the Fe-K lags instead, Kara et al. (2016) found that the coronal height is correlated with the Eddington ratio, with the Spearman’s rank correlation coefficient r_s = 0.61. Here, we found a strong correlation between the source height and the source luminosity (r_s = 0.80), but only when using the kynrefrev model (Fig. 8). This leads us to question if there really is a true correlation between the source geometry and luminosity, or if it is dependent on the choice of the reflection and reverberation models.

The extended study from Mallick et al. (2021) included more samples of low-mass AGNs (M_BH < 3 × 10⁶ M_⊙) to the mass-scaling investigation. The equation of the lag-mass scaling is suggested to be comparable to those of De Marco et al. (2013), confirming that the soft lag amplitude in higher-mass AGN can be scaled with the mass to infer the lags in lower-mass AGN. Furthermore, they found that the corona extends at an average height of ∼10 r_g on the symmetry axis. Our results suggest that the coronal height at ∼10 r_g can potentially be found from low-mass to high-mass end of AGN (Fig. 6) either using kynxilrev or kynrefrev. The deviation of the lag-mass equations comparing between De Marco et al. (2013) and Mallick et al. (2021) should be within the ±20 per cent of the lag variations allowed in this work (see Fig. 9), so our results should still be representative either for the samples of low- or high-mass AGN in previous literature.

Our obtained h–M_BH relation suggests that the corona in lower-mass AGN tends to be more compact than the corona in higher-mass AGN. Although timing analysis under the lamp-post assumption successfully determines the coronal geometry (Caballero-García et al. 2018), it may prefer higher source heights compared to the method using the time-averaged spectra (Alston et al. 2020; Chainakun et al. 2022; Jiang et al. 2022). The real corona should extend and different parts may vary differently. The extended corona was suggested in many studies to have an ability to influence the time-lag spectra that can explain the data (Wilkins et al. 2016; Chainakun & Young 2017; Hancock, Young & Chainakun 2023; Lucchini et al. 2023). In this case, the same corona geometry can produce different reverberation lag amplitudes by varying its properties such as the optical depth (Chainakun et al. 2019) and the propagating fluctuations inside the corona (Wilkins et al. 2016), or by assuming different disc geometry (Taylor & Reynolds 2018; Kawamura, Done & Takahashi 2023). Adjusting these are not possible for the current kynxilrev and kynrefrev models.

Futhermore, Wilkins et al. (2020) developed a modified xillver model referred to as xillverRR to study the returning radiation that can cause extra reverberation delays due to secondary or even higher order reflections. The results show that, for the black hole with the spin a = 0.998 and the corona at h = 5 r_g, almost 40 per cent of the photons will experience the returning process. The returning fraction will decrease as the X-ray source height increases, with the crucial point at h = 10 r_g where the photons are more likely to travel directly to the observer. Both kynxilrev and kynrefrev do not take into account the extra time delays due to the returning radiation. This can lead to an uncertainty in the measurement of the coronal height especially at h ≲ 5 r_g where the returning radiation should play an important role. As for that, the obtained source height at h ≲ 5 r_g could, in fact, be smaller if we consider the effect of the returning radiation. However, this effect will similarly apply to both models, by mainly adding extra light-travel time so it should not change the comparative results between both models.

Furthermore, the effects of non-uniform orbiting clouds that introduce the covering fraction (Hancock et al. 2022) and extra dilutions that may occur due to environmental absorption (Parker et al. 2021) are not taken into account in calculating the lags. A recent study by Jaiswal et al. (2023) suggested that the effect of the scattering of the disc emission by the broad line region on the time delay is quite similar to the effect of increasing the X-ray source height. Again, the non-quantitative comparison of kynxilrev and kynrefrev should still be valid since all these effects will similarly apply over both models.

In conclusion, the maximum coronal height inferred by kynrefrev and kynxilrev models that assumes a lamp-post model for a distant observer is likely limited at h ≲ 15–20 r_g. This should be true for any newly discovered AGN if their lags and mass follows the current scaling-relation trend. The average source height at h ∼ 10 r_g can be found either in low or high mass AGN. Our results reveal that there is a high chance that the lower-mass AGN has a more compact corona located at a lower height on the symmetry axis. As for that, the h–M_BH scaling relation may be valid whether the coronal height is implied using kynrefrev or kynxilrev model. However, the differences of both models in explaining the X-ray timing data are clearly seen. There is an inconsistency that the kynxilrev suggests a greater number of possible solutions with low M_BH and low h than the kynrefrev, especially for the low spinning black hole. Last but not least, the kynrefrev models suggest a moderate monotonic correlation between the luminosity and the coronal height while the kynxilrev does not. Therefore, when analysing a large number of data or observations, the derived parameter correlations may be model-dependent.

ACKNOWLEDGEMENTS

This work was supported by the NSRF via the Program Management Unit for Human Resources & Institutional Development, Research and Innovation (grant number B16F640076). KK acknowledges the support from the Institute for the Promotion of Teaching Science and Technology (IPST) of Thailand. PC thanks for the financial support from Suranaree University of Technology (grant number 179349). We thank the anonymous referee for their comments which improved the clarity of the paper.

DATA AVAILABILITY

The reverberation models including the kynxilrev and kynrefrev used in the simulation process are under the kynreverb package, available in https://projects.asu.cas.cz/stronggravity/kynreverb. The simulated and analysed data underlying this article will be shared upon reasonable request to the corresponding author.

Footnotes

References

APPENDIX A: VARIABLE INNER-DISC RADIUS

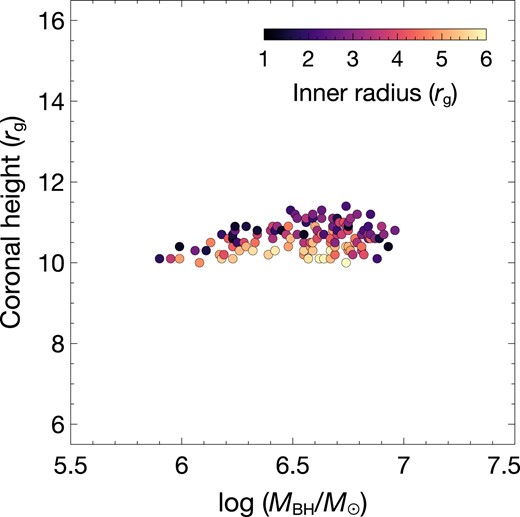

We further investigate the case of a variable inner-disc radius. We fix a = 1, i = 45°, Γ = 2.0 and L/L_Edd = 0.1 while randomly vary the truncation radius of the disc. Other parameters, including M_BH and h, are allowed to vary in the range given in Table 1. The result is shown in Fig. A1. While the lag is driven mostly by the distance between the corona and the disc, a larger truncation radius results in a larger distance for the coronal photons to travel to the inner edge of the disc, hence producing a longer lag. Therefore, if the disc is allowed to be truncated, there is a chance to get lower values of the height for a given mass, as can be seen in a clear separation of color in the h–M_BH relation. There is only a minority of the data that show higher coronal heights for a truncated disc compared to when the disc is fixed to ISCO. This inconsistency should arise due to the fact that we allow some threshold levels of the lag amplitude. However, the accreting supermassive black holes in AGN are mostly rapidly spinning, and we do not expect the AGN disc to be significantly truncated since the broad emission lines are often observed Reynolds (2021).

APPENDIX B: SOURCES OF UNCERTAINTY

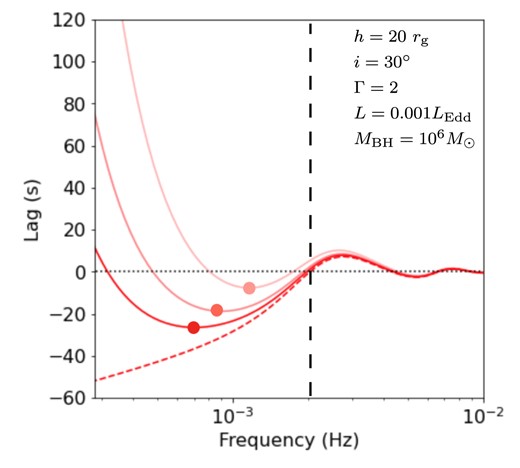

We note an effect of the positive hard lags due to the inward propagation of fluctuations in the disc (Arévalo & Uttley 2006) that may contribute to the uncertainty in our results. The observed reverberation lags further away from the phase wrapping towards lower frequencies will be likely more affected by the propagating-fluctuation lags that operate on relatively long time scales. In Fig. B1, we show how this competing process can affect the reverberation lags at frequencies where we expect to see the reverberation lags. A full modelling of the disc-propagating fluctuations could be an option, but it may lead to a significantly larger set of parameters. In Fig. B1, the amplitude and frequency of the reverberation lag at the minimum point move closer to the phase wrapping frequency if the disc propagating-fluctuation signals become stronger. Also, if the coronal height increases, the phase wrapping point will move towards lower frequencies. The reason why large distances (e.g. h ≳ 20 r_g) between the lamp-post source and the disc do not explain the observations is probably because their phase wrapping frequencies are too low. Unless the true positive lags are known, there is always uncertainty in determining the exact frequency and amplitude of the minimum point in the negative-lag profiles. Nevertheless, these uncertainties may be compensated more or less by (1) allowing some threshold levels of the lag amplitude and (2) investigating the cases when the mass scaling relation deviates from the current observed trend (Fig. 9). Therefore, the results here should still be reliable and representative of the overall parameter relations.
