On the origin of the lump in circumbinary discs Free

ABSTRACT

1 INTRODUCTION

In the attempt to understand the final stages prior to merger of binary black holes (BBHs), numerical studies have addressed the problem of circumbinary accretion flows, taking the form of a disc, around a central BBH. Thanks to these studies, a global picture of the accretion structures under such circumstances has emerged, including a cavity and two streams feeding the individual BHs (MacFadyen & Milosavljevic 2008; Shi et al. 2012; Noble et al. 2012, D’Orazio, Haiman & MacFadyen 2013; Gold et al. 2014; Shi & Krolik 2015, Ragusa, Lodato & Price 2016; Tiede et al. 2020; Armengol et al. 2021; Tiede et al. 2021; Liu 2021; Franchini et al. 2022). In addition to those, the most surprising feature is certainly an overdensity, localized radially and azimuthally, which is found to orbit at the Keplerian period at the circumbinary disc inner edge, while being swept off by the spiral waves associated to the binary and therefore to the binary orbital period. This feature has been dubbed a ‘lump’ by Shi et al. (2012), a name which refers to the aforementioned structure but does not refer to the physical phenomenon that causes it. The lump has the potential to produce a strong modulation of the electromagnetic flux in inclined binary systems, either directly by thermal emission or by modulating the accretion rate which then translates into a modulation in the accretion luminosity. It is therefore of main interest to understand its origin, formation, and growth mechanisms.

While our work focuses on BBHs, it is worth mentioning that other lump-like structures have been seen in numerical simulations across the mass domain of binary systems and also hinted at in observations of closer systems such as protoplanetary discs. Indeed, unlike BH accretion discs, which are point-like sources (except for close-by supermassive black holes imaged with the interferometric Event Horizon Telescope, to some extent) and make the direct observation of this lump feature impossible, protoplanetary (more specifically, transition) discs could be imaged with very high resolution thanks to the Atacama Large Millimeter/submillimeter Array (ALMA) and offered details on disc non-axisymmetries. Among those, various observations revealed ‘horseshoe’ features (van der Marel et al. 2013, 2020) which somehow resemble the lump feature and could possibly correspond to the same structure. In those cases, mechanisms have been proposed (see e.g. Lyra & Lin 2013) but, as of now, none have yet prevailed. It has been proposed that those horseshoe features originate from a vortex trapping the dust/ice particles (van der Marel et al. 2016, 2021; Fuente et al. 2017). Some scenarii invoke the indirect influence of a planetary companion (e.g. Lyra et al. 2009a) and indeed, the accretion flows around binaries of any type share similarities. By looking at the problem from a stronger gravity point of view, we aim to see what similitudes and differences we get and how it can help us cross the gap of lump formation across the masses of binaries. Those will be discussed in more details in Section 6.

In numerical simulations of BBHs, lumps were found in equal-mass and in unequal-mass binaries. Counter-intuitively, they were found to weaken with a decreasing mass ratio (D’Orazio et al. 2013; Farris et al. 2014; Noble et al. 2021). This result indicates that the nature of the lump is not associated to the native asymmetry introduced by an asymmetric BH mass distribution.

As the lump has been found to become the most prominent feature of the simulation, being a few times denser than its surroundings (Shi et al. 2012; Noble et al. 2012; D’Orazio et al. 2013), a phenomenological scenario of the lump feeding has been presented in Shi et al. 2012 and further in D’Orazio et al. 2013, assuming the asymmetry has been triggered numerically (Shi et al. 2012; D’Orazio et al. 2013). Both studies linked the lump growth to the disc eccentricity and to the dynamics of the streams, which consist in a runaway process increasing the asymmetry between azimuthally opposed regions. In this scenario, D’Orazio et al. (2013) attribute the influence of the mass ratio on the lump to the torques being reduced as the mass ratio q decreases, creating weaker shocks and smaller overdensities. More recently, Noble et al. (2021) investigated the impact of the disc magnetization: the lump is prone to form with and without magnetic fields, although, under the circumstances studied in Noble et al. (2021) (a magneto-rotational unstable disc with initially poloidal magnetic fields), magnetization weakens the lump. It is of main importance to note that, to date, the simplest physical frame to observe the lump is made of hydrodynamics with an isothermal equation of state and Newtonian gravity associated to the central binary (e.g. MacFadyen & Milosavljevic 2008; Tiede et al. 2021). Without a theoretical basis for the formation of the lump, one would need to perform a numerical experiment for each set of parameters (e.g. fluid initial conditions) and physical processes in order to see if the symmetry is broken in this particular case, and to what extent. Although lump formation appears to be a non-linear process and simulations will be needed to estimate its amplitude (and to ray trace the system’s photons to the observer to produce synthetic observables), capturing the essence of this phenomenon will allow us to somehow restrict the parameter space, in addition to providing a deeper knowledge on accreting BBHs.

In equal-mass binaries of any eccentricity, the natural symmetry of the system is the m = 2 azimuthal symmetry. This lump feature was therefore a surprise for the reason that it develops not only in unequal-mass binaries but also in the equal-mass case, and with even larger amplitude, as mentioned above. In a recent paper focused on potential observables from the circumbinary disc around BBHs (Mignon-Risse, Varniere & Casse, in preparation), we – like many others (e.g. Shi et al. 2012; Noble et al. 2012) – reported a symmetry breaking with respect to this natural m = 2 symmetry. There is no straightforward explanation for this behaviour. For instance, in Günther & Kley 2002, the asymmetry was small after 90 orbital periods and the authors attributed it to the numerical method (in particular, the matrix inversion associated to their implicit viscosity). In this paper, we propose to use the q = 1 case as a way to probe the lump formation, because any asymmetry becoming qualitatively significant will help us in understanding the origin of the lump.

The paper is organized as follows. In Section 2, we focus on the natural m = 2 symmetry of accreting equal-mass BBHs, while its symmetry breaking is addressed in Section 3. In Section 4, we propose and test a (magneto)hydrodynamical instability, the Rossby Wave Instability (RWI), as a possible origin for the growth of the asymmetry and subsequent lump formation. After showing that the RWI is indeed at work in those simulations, we extend our scope to the unequal-mass case in Section 5. We discuss the comparison with other works carried out in the protoplanetary context in Section 6. We present our conclusions in Section 7.

2 EQUAL-MASS BINARIES AS INHERENTLY SYMMETRIC SYSTEMS

In this section, we present the physical system under study and show how it is, on the theoretical side, as well as on the numerical side, a fundamentally symmetric problem.

2.1 Natural symmetries and initial conditions

When looking at an equal-mass binary in Newtonian gravity, there is a natural symmetry in the system. Indeed, their gravitational potential respects an m = 2 symmetry, and this for any eccentricity. This stays true when incorporating the GR effect as a background analytical metric of a binary black hole. This symmetry can easily be seen on the radial derivative of the lapse scalar, shown in Fig. 1, which is the equivalent to the radial gravitational acceleration. To emphasize the symmetry, we overlay the contours on top of the colour map, with the black circles representing the position of the BHs. Far from the BBH, the radial derivative of the lapse approaches spherical symmetry – it appears as axisymmetrical in the orbital plane of the BHs. Nevertheless, as in the Newtonian case, it transitions from spherical symmetry to azimuthal m = 2 symmetry as the distance to the BBH decreases. Hence, the native symmetry of the gravitational effects is an m = 2 symmetry.

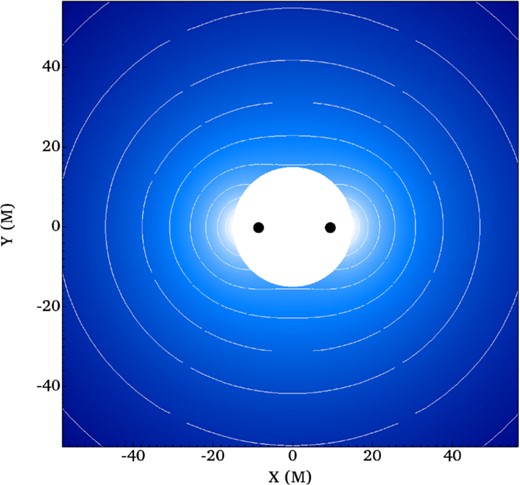

Figure 1.

Map (and contours) of the radial derivative of the lapse scalar α from the BBH approximate metric at t = 0. This is the equivalent of the radial gravitational acceleration. Distances are given in units of M. The m = 2 symmetry is visible.

Open in new tabDownload slide

In order to explore the origin of the late asymmetry seen in previous simulations (e.g. MacFadyen & Milosavljevic 2008), we need our initial conditions to preserve the natural symmetry of the system and verify that they do not introduce any asymmetry with respect to the m = 2. In a nutshell, our initial conditions are those of a disc around a single BH, they are therefore axisymmetric. The density ρ obeys a radially decreasing power law of index −3/4 with an hyperbolic tangent function to set an outer disc radius around 1000 M, and is equal to 1 at about 20 M. The pressure is linked to the density via a polytropic equation of state. The radial velocity is set to zero and the azimuthal velocity is set so as to oppose the (GR equivalent of the) centrifugal acceleration to the gravitational acceleration diminished by the pressure gradient acceleration. The orbital separation is kept fixed, at b = 20 M, similar to e.g. Shi et al. (2012), Noble et al. (2012, 2021). Overall, these initial conditions are fully axisymmetric.

The numerical grid is axisymmetric as well. Our runs are two-dimensional in the (r, ϕ) plane. Therefore, the grid is adapted to conserving any azimuthal symmetry within the code’s accuracy. The grid covers radii [15, 1500] M (for the equal-mass run) and azimuthal angles [0, 2π] with 784 × 400 cells. Gradient-null boundary conditions are set in the radial direction. Moreover, no material is allowed to enter the grid at the outer radial boundary.

Overall, the physical system under study and its numerical translation at t = 0 respect an m = 2 symmetry.

2.2 Early stage and preserved symmetry

This symmetry is actually preserved in the early stage of the simulation as shown on Fig. 2, which depicts the density map (and two black holes) after about 40 orbits of the binary. For clarity, we only show a zoom in the inner 400 M of the simulation. Another way to visualize the symmetry is presented in Fig. 3 which shows the evolution of the density for a 1D cut through the centre of mass as a function of the radius and time (here, taken for ϕ = 0 and ϕ = π to get both sides of the disc). This last visualization is useful to observe any periodic feature, the propagation of waves and, in our case, the eventual loss of symmetry as a function of time.

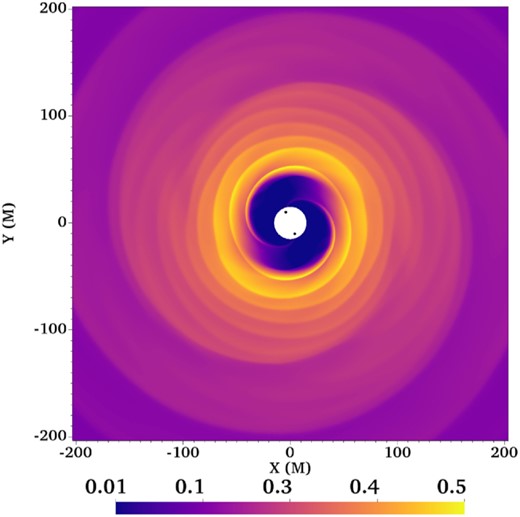

Figure 2.

Density map at t = 24 000 M (≈40 P_orb) in the q = 1 run, when the system is qualitatively symmetric. Distances are given in units of M. The BBH is located within the inner boundary of the grid.

Open in new tabDownload slide

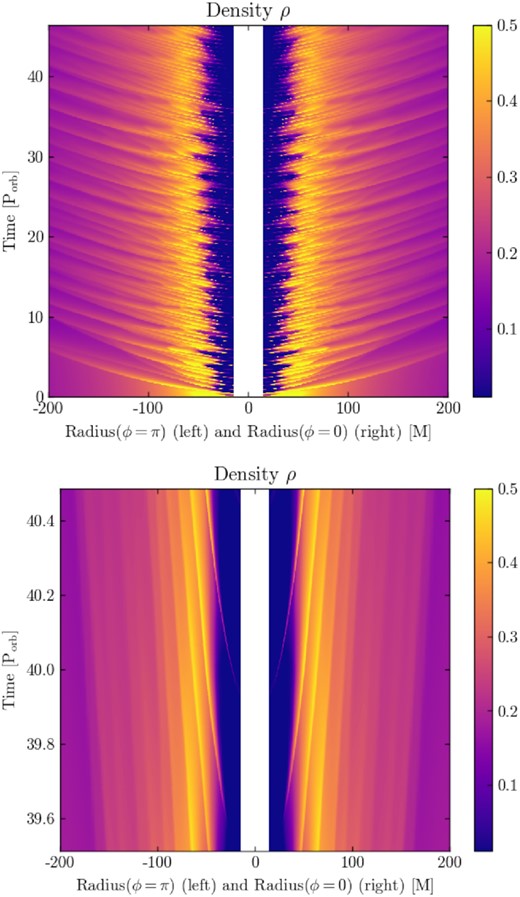

Figure 3.

Radius-time map of the density (linear scale, code units) in the q = 1 run from t ≈ 0 to |$t\,{\approx }\,45\, \mathrm{P_{orb}}$| (top panel) and temporal zoom around |$t\,{\sim }\,68\, \mathrm{P_{orb}}$| (bottom panel). Distances are given in units of M. Two-arm spiral waves appear as diagonal lines of enhanced density launched from the binary and connect to the binary as streams. The two sides are qualitatively similar.

Open in new tabDownload slide

First of all, the inner region below r ≈ 2b is briskly cleared of material, forming a low-density cavity, as reported previously in the literature (e.g. Artymowicz & Lubow 1994 MacFadyen & Milosavljevic 2008; Hirsh et al. 2020). From t = 0 to ∼50 P_orb, the density obtained along the ϕ = 0 and ϕ = π directions is qualitatively similar, indicating that if asymmetries are present, they are negligible (e.g. D’Orazio et al. 2013). Outgoing spiral waves appear as overdense diagonal lines travelling away from the BBH. Accretion onto the BBH occurs via two identical streams. Those appear as the filaments connecting the circumbinary disc to the innermost boundary of the grid in Fig. 3.

To sum up, we showed that the equal-mass BBH is inherently symmetric, from its theoretical model to the numerical experiment meant to study it. For about 50 P_orb, the system preserves its native azimuthal m = 2 symmetry.

3 Breaking the symmetry: from m = 2 to m = 1

While we have seen that the m = 2 symmetry of the system is kept for more than 40 orbits of the binary, the previous works cited above have shown that one lump or one azimuthal overdensity (attributed to an m = 1 structure; see Shi et al. 2012) appears in the later stage of similar simulations. Here, we aim to study the rise and growth of the deviation from the natural m = 2 symmetry in our equal-mass binary simulation in the hope to garner clues on its origin.

3.1 Deviation from the m = 2 symmetry

While Fig. 3 showed that the density was qualitatively similar, as we are trying to find how that symmetry gets broken in later stages of the simulation, we need a more quantitative way to look at the deviation. In order to do that, we follow the evolution of the maximal deviation from the m = 2 symmetry as a function of time. To do so, we first compute the maximal value of the density for all azimuthal angles, denoted max (ρ(ϕ)). For each angle ϕ between 0 and π, we compute the difference max (ρ(ϕ)) − max (ρ(ϕ + π)), which should be identically zero if the m = 2 symmetry of the system was perfectly conserved. Finally, we take the maximal value of this quantity with respect to ϕ to collapse the array to one value that can be followed as function of time. This allows us to identify the largest deviation from m = 2 symmetry in each snapshot.

Top panel of Fig. 4 shows the evolution of the aforementioned quantity, that we will now refer to as ‘maximal density asymmetry’, as a function of time. We see that for the first 2 orbits, the density distribution follows the m = 2 symmetry at a precision below 10⁻⁵ which could be related to the numerical precision of the metric used here (Mignon-Risse et al., in preparation). Then, for more than 20 orbital periods, the maximal density asymmetry stays of the order of 10⁻³, hence, its lack of detectability on the snapshots of the early phase of the simulation. But, after about 30 orbits, the maximal density asymmetry starts to increase exponentially. Indeed, the curve can be fitted between ≈30 and ≈60 orbital periods, in semi-log by a function of type |$10^{\mathrm{a}t+\mathrm{b^{\prime }}}$| shown by the red line. Hence, this proves that, starting from a small and nearly constant value, the maximal density asymmetry grows exponentially with time in our simulation. After roughly 60 orbital periods, it saturates around 0.1–0.3. For comparison, the inner edge of the circumbinary disc before symmetry breaking has densities of 0.5–1. Thus, after growing exponentially, the asymmetry we report becomes quantitatively important and the system now strongly deviates from its natural m = 2 symmetry.

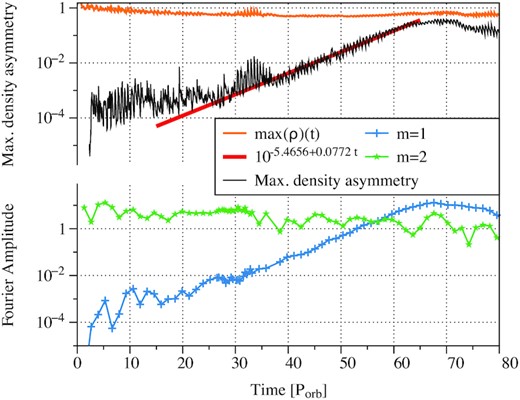

Figure 4.

Top panel: measure of the deviation with respect to the natural m = 2 symmetry (q = 1) in the density distribution computed as max (max (ρ(ϕ)) − max (ρ(ϕ + π))). This quantity is referred to as the ‘maximal density asymmetry’ in the main text. The red line is a fit by an exponential function. One might expect the m = 2 natural symmetry of the system to be conserved, hence, the plotted quantity would be of the order of the code precision. For comparison, the maximal density in the simulation is shown in orange as a function of time. Bottom panel: evolution of the two modes dominating at the end of the simulation: m = 2 in green, m = 1 in blue.

Open in new tabDownload slide

Alternatively to this view, we perform a Fourier analysis and plot the evolution of the modes that eventually dominate at the end of the simulation in the bottom panel of Fig. 4. We perform the Fourier analysis on the region located between radii 15 M (the innermost boundary of the simulation box) and 175 M. While all cells are not at the exact same time in such a GR simulation, we checked that the lapse derivative (which controls the time dilation) in the region of the circumbinary disc edge – where the lump appears – is weak enough to explore the possibility of a Fourier analysis (e.g. Casse et al. 2017).

The nearly constant forcing of the m = 2 mode, visible in the bottom panel of Fig. 4, comes from the binary. Meanwhile, the amplitude of the m = 1 increases exponentially, in agreement with the previous study on the maximal density asymmetry shown in the top panel of the same Figure. Eventually, the m = 1 mode becomes the dominant one and saturates after roughly 60 orbital periods, coexisting with the m = 2.

3.2 The m = 1 asymmetry, or lump

Similarly to previous studies, our simulation shows that a density asymmetry with respect to the m = 2 symmetry becomes significant after a few tens orbits, while also quantifying its growth and when it starts. We can now focus on the 2D picture of this asymmetry, namely its features and how the system evolves as it appears.

In order to show how the growing deviation from the m = 2 symmetry translates visually, we plot in the top panel of Fig. 5, the continuation of Fig. 3 in the stage where the asymmetry becomes visible. Around 60 P_orb. when the maximal density asymmetry reaches about 0.1 (i.e. |$25{{\ \rm per\ cent}}$| of the maximal density in the simulation at that time), we start to see that the filaments are not in sync for both phases but alternate, as expected from an odd azimuthal mode (see bottom panel of Fig. 4). This is even clearer on Fig. 6, which shows the inner regions of the density map in the asymmetric epoch. Indeed, we can see that the so-called lump (Shi et al. 2012) is visually consistent with an azimuthal overdensity on top of the earlier spiral structure seen of Fig. 2. It is also shown, in the bottom panel of Fig. 5, that the m = 2 spiral waves are deviated from their original trajectory (they do not follow diagonal lines) around the lump location in the (r, t) −plane, as compared to Fig. 3.

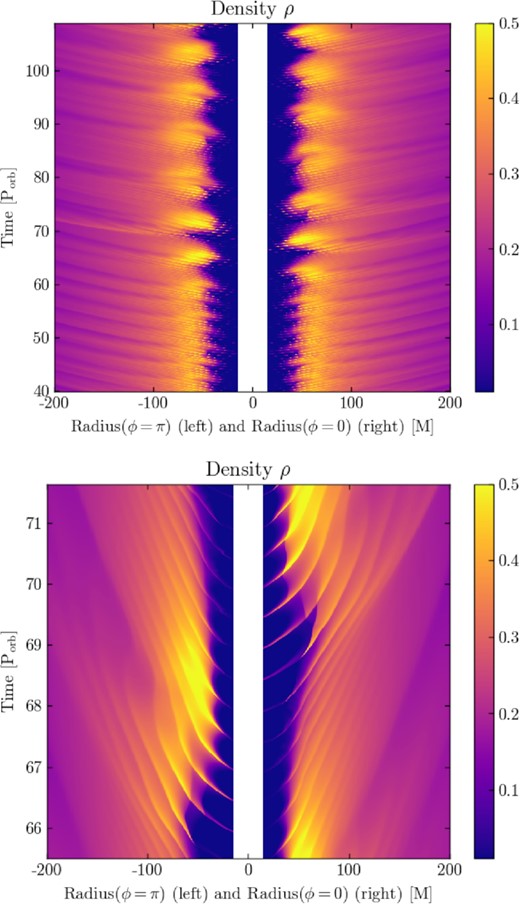

Figure 5.

Top panel: radius-time map of the density (linear scale) in the q = 1 run, from |$40\, \mathrm{P_{orb}}$| to |$110\, \mathrm{P_{orb}}$|⁠. The m = 2 symmetry breaking becomes visible after t ≈ 57 P_orb. Then, the lump appears as the m = 1 dense spot, first visible on one side then on the other as it orbits around the circumbinary disc. The period associated with the lump is longer than the period of the spiral waves, i.e. longer than the semi-orbital period. Bottom panel: temporal zoom over roughly one lump’s period and that the m = 2 spiral waves are deviated from their original trajectory (they do not follow diagonal lines) at the lump location in the (r, t) −plane, as compared to Fig. 3.

Open in new tabDownload slide

Figure 6.

Density map at t = 38 000 M c⁻¹ (≈63 P_orb) in the q = 1 run. The BBH is located within the inner boundary of the grid. The lump is visible as the densest region in the bottom panel. This structure is reminiscent of the behaviour of the RWI (see fig. 2 of Varniere, Vincent & Casse 2020).

Open in new tabDownload slide

Knowing that the lump structure is an m = 1, we can use Fig. 5 to see the periodicity at which the lump is orbiting. We see that it is larger than the (semi-orbital) period of the spiral waves seen from the start of the simulation. Moreover, outgoing spiral waves associated with the lump feature are visible: they are emitted at the lump location and their periodicity appears to be the same as the lump’s. Hence, confirming the presence of two structures in the disc, the original spiral with an m = 2 symmetry and the lump. This is especially seen as the stream closer to the lump is stronger than the one at the opposite phase.

The qualitative picture depicted above – cavity, streams, lump – is consistent with the numerous numerical studies of circumbinary discs as presented in the introduction. Nevertheless, one thing that was not mentioned previously is how the m = 1 structure of Fig. 6 is reminiscent of the m = 1 structure seen at the inner edge of single black hole discs in simulations focused on the development of the Rossby Wave Instability (RWI; see for example fig. 2 of Varniere et al. 2020). This motivated us to assess whether the RWI could be responsible for the lump.

4 THE RWI AS A POSSIBLE ORIGIN FOR THE LUMP

While there is a long history of detecting this lump in circumbinary discs, there was little progress in uncovering the physical mechanism giving it rise. Following on the visual similitude between the density map in Fig. 6 and the previous work on the Rossby Wave Instability, we investigate whether it could be responsible for breaking this symmetry and causing the formation of the lump.

The RWI has been found to occur in various astrophysical systems, from galactic discs (Lovelace & Hohlfeld 1978) to accretion discs around black holes and protoplanetary discs (e.g. Varniere & Tagger 2006); for a review, we refer the reader to Lovelace & Romanova (2014). One of the needed characteristics in common to a lot of those systems is the existence of a sharp disc edge, such as the one occurring naturally at the innermost stable circular orbit of discs around single BHs. Since the circumbinary disc also possesses a sharp inner edge, it seems natural to look if the RWI could develop there as well, especially as the behaviour of the inner region of the circumbinary disc, shown in Fig. 6 is in qualitative agreement with the presence of the RWI.

Indeed, we reported in Section 2, a symmetry breaking with respect to the m = 2 mode in equal-mass binaries and the further exponential growth of the maximal density asymmetry, leading to a strong m = 1 mode. Such an exponential growth is consistent with the presence of an instability. Therefore, in this section, we address the possibility that the RWI is developing in this system by first looking at its criterion, then by searching for vortices as they are a distinct feature of this instability.

4.1 Basics of the RWI

The development of the RWI is associated with large-scale spiral density waves and Rossby waves emitted away from the vortensity extremum region, inside which a Rossby vortex will form. As long as the criterion is fulfilled, the instability will grow exponentially with time and gas will concentrate in the vortex region. Such accretion onto the Rossby vortices has been invoked as a possible mechanism for planet formation within protoplanetary discs and could explain here the creation of the massive lump. While the early dominant mode of the RWI depends on local conditions and excitation (Casse et al. 2017), it tends to cascade towards lower m modes and often the m = 1. Hence, the development of the RWI will eventually break the m = 2 axisymmetry.

While it was first difficult to find extrema in vorticity, it was shown that they are naturally present at the ISCO of black hole accretion discs due to GR effects (e.g. Vincent et al. 2013), or in a density bump (see Falanga et al. 2007 for an application to the flares of Sagittarius A*) making those discs locally unstable to the RWI. Here, we show that an extremum of vortensity can also naturally appear at the inner edge of the circumbinary disc.

4.2 Is the instability criterion fulfilled?

In order to investigate whether the RWI indeed develops in our simulation, we first need to show that the instability criterion is fulfilled. As no GR equivalent to the Newtonian criteria presented in equation (2) has been derived yet, we use a similar approach as in Casse & Varniere (2018) and compute the vortensity using the velocity |$\tilde{v}^2_\phi = v^\phi v^ig_{\phi i} \approx (v^\phi)^2\gamma _{\phi \phi }$| since γ_ϕϕ is the dominant component of the spatial metric in the ϕ direction at the location of the lump.

Contrary to the previous work on the RWI, we have a fully 2D system and a radial cut does not give the full representation of the criteria, so we first show on Fig. 7, the vortensity in the (r, ϕ) plane (top panel, with the contours of log (ρ) overplotted) and the more typical 1D radial plot, but for various azimuthal angles (bottom panel), at t = 32 000 M (≈53 P_orb). We plotted the vortensity for azimuthal angles between 0 and π because, at this stage, the system is still close to the m = 2 symmetry, as visible on the top panel (⁠|$5\text{--10}\,{{\ \rm per\ cent}}$|⁠). Both of those representations of the vortensity show that the edge of the circumbinary disc, i.e. the outermost radius of the cavity shown as the red-coloured region in the top panel, is a region of high vortensity variation over a small radial extent. The bottom panel exemplifies, for three azimuths: ϕ = 0, ϕ = π/3, and ϕ = 2π/3, how the extremum in vortensity behaves along the edge of the cavity. It is worth noting the different behaviour when crossing a stream, indeed the vortensity both meets a positive and a negative local extremum. This is visible at ϕ = 0 on the bottom panel of Fig. 7.

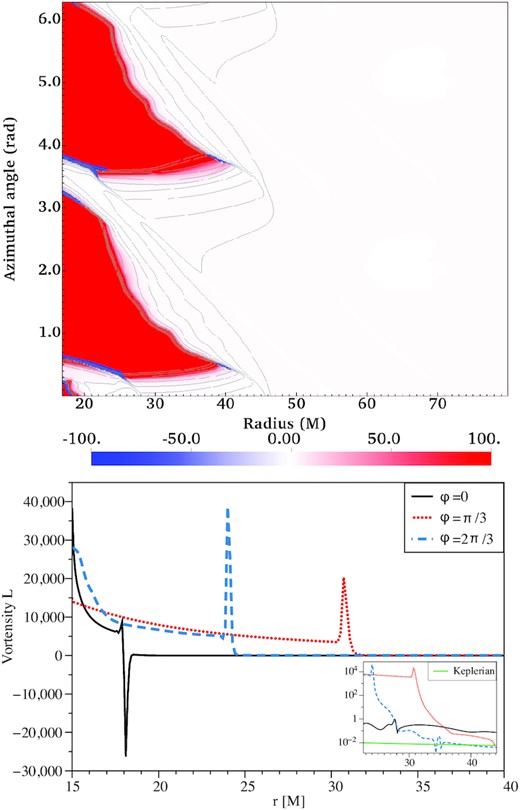

Figure 7.

Top panel: (r, ϕ)-map of the vortensity at time 32 000 M (≈53 P_orb) for q = 1, with the radius in units of M. The contours of log (ρ) are overplotted in grey. The red-coloured region corresponds to the cavity. Bottom panel: radial profile of the vortensity in linear scale and in logarithmic scale in the zoom-in view for three azimuthal angles: ϕ = 0, π/3, 2π/3 drawn from the top panel plot. Extrema of the vortensity are visible at all azimuthal angles but various radii, following the inner edge of the circumbinary disc. It is therefore unstable to the RWI. The ϕ = 0 vortensity profile crosses one of the two streams (see the top panel). For reference, we plot the Keplerian profile of the vortensity around a single object of mass M in green in the zoom-in view.

Open in new tabDownload slide

We showed that the RWI instability criterion is fulfilled in the q = 1 simulation for nearly all azimuthal angles along the edge of the cavity/circumbinary disc, hence giving strength to the notion that the RWI is responsible for the long-lived lump that appears after the stabilization of the cavity. Moreover, as the cavity is continually being carved by the presence of the binary, even as accretion is trying to fill it, the inner edge of the circumbinary disc remains sharp and prone to the RWI.

4.3 Can we detect vortices at the circumbinary edge?

The most unique characteristic of the RWI is the formation of long-lived vortices. Hence, after showing that the criterion of the instability is fulfilled, finding those vortices near the edge of the cavity/circumbinary disc would make the RWI a very likely candidate for the creation of the lump.

When looking at a disc with a large azimuthal velocity, it is difficult to clearly see vortices as each vortex is a perturbation of the overall large velocity field. In order to overcome that, we choose to plot the |$\boldsymbol{ v}$|ⁱ(t) − |$\boldsymbol{ v}$|ⁱ(t = 0) vectors instead, emphasizing the vortices’ presence even in early times when the m = 1 mode is weaker than the m = 2, hence emphasizing that it is the same phenomenon which also occurs at later times. Fig. 8 shows the density map of the inner cavity and circumbinary disc with the velocity field |$\boldsymbol{ v}$|ⁱ(t) − |$\boldsymbol{ v}$|ⁱ(t =  0) vectors overlaid to show the vortices’ presence near the edge. For visibility and easier identification of the vortices, we visualize the velocity field on Fig. 8 with a slightly higher resolution run than exposed otherwise. In the top panel, two azimuthally opposed vortices are visible, at locations [ −50, 40] (indicated by the light-grey box, for visualization purposes) and [50, −40], which is right beyond the maximal radial extent of the precessing circumbinary disc edge. They are symmetric because the snapshot is taken at ≈33 P_orb, which is still in the early stage of the RWI growth, and before the merging of the vortices in a dominant m = 1 mode as displayed in the bottom panel. Moreover, they are not just velocity features: the density field around those is increasingly affected with time, as illustrated in the zoom-in view of the bottom panel, where the density contour is overlaid in blue. The presence of vortices strongly suggests the development of the RWI in our simulation with the merging of the vortices into an m = 1 dominant mode.

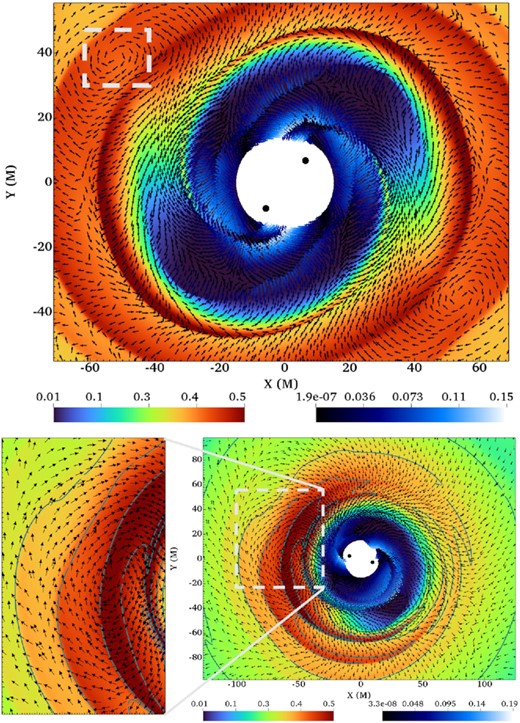

Figure 8.

Top panel: The vector field |$\boldsymbol{ v}$|ⁱ(t) − |$\boldsymbol{ v}$|ⁱ(t = 0) is overlaid on top of the density map at t ≈ 20 000 M c⁻¹ (≈33 P_orb) in the high-resolution version of run q = 1. The left colourbar refers to the density and the right colourbar to the velocity, both in code units. Distances are in units of M. It exhibits two vortices symmetric with respect to the BBH; one is indicated by the light-grey box. The presence of long-lived vortices is typical of the RWI (Lovelace & Romanova 2014) and displayed by very few other instabilities. Bottom panel: focus on the lump and vortex region at t ≈ 39 200 M c⁻¹ (≈65 P_orb), i.e. during the asymmetric epoch when the m = 1 mode reached saturation. Density contours are overlaid in blue to show how the density distribution is affected by the RWI vortex. Let us note that, because of the nearly constant m = 2 forcing by the binary sweeping through the vortex, the density maximum is not necessarily located in the vortex.

Open in new tabDownload slide

Thanks to the presence of vortices along the edge of the circumbinary disc, and their subsequent merging into a strong m = 1 mode, we propose the RWI as a model for the formation and continual feeding of the lump in circumbinary discs. The exact density maximum is not necessarily found at the location of the vortex because of the region is being continuously swept off by the m = 2 spiral waves excited by the binary. However, the vortex indeed orbits at the local Keplerian period, as was already reported for the lump in the literature and in contrast with the m = 2, whose period is the binary orbital period. In the q = 1 case, the seed for the instability is numerical and likely associated with the BBH approximate metric in the present case, for which any operation involving the metric deals with numbers close to machine precision. Such a numerical seed has been invoked as well in the literature to explain the asymmetry of the streams as well as has been proposed to be at the origin of a runaway process resulting in the lump formation (Shi et al. 2012; D’Orazio et al. 2013). Nevertheless, we have followed the development of the RWI in our simulation from a slight asymmetry to the binary m = 2 to a strong m = 1 vortex accumulating matter similarly to what is seen at the edge of planet gaps or dead zones in protoplanetary discs (Varniere & Tagger 2006), with the difference that the density maximum is not necessarily located in the vortex here because of the strong density fluctuations carried by the spiral waves sweeping through it. None the less, the major point is that the overdensity dubbed lump needs the m = 1 to exist, even though it is not always at the same location because of the spiral waves.

5 EXTENSION TO ASYMMETRIC MASS RATIOS

Up to now, we have focused on the symmetric case q = 1 where there is an unexpected transition from the system native m = 2 symmetry to an m = 1 mode. We used this break of symmetry to help us identify its origin as the development of the RWI at the edge of the circumbinary disc. The q ≠ 1 systems lack this initial symmetry and we therefore expect the natural asymmetry of the system to help in seeding the instability. Hence, we check for the presence of the RWI for a few q ≠ 1 cases. To do so, we perform a similar study as in Section 4, namely we address the presence of vortensity extrema as diagnostics of a RWI-unstable state. Once we saw that the criterion was indeed fulfilled in those cases, we looked for the presence of vortices close to the circumbinary disc inner edge.

In the following, we consider three mass ratios: q = 0.5, q = 0.3, and q = 0.1 to explore the impact of the initial asymmetry on the existence of RWI and its ability to create an azimuthal overdensity consistent with the lump. As we have seen earlier, the RWI tends to evolve near sharp edges, so as the first direct impact of the mass ratio on the growth of the RWI, we look at the evolution of the radial profile of the density in the perpendicular direction to the cavity edge in order to probe the compared circumbinary disc inner edge sharpness. Fig. 9 shows the profiles for q = [1, 0.5, 0.3, 0.1] with the radius for each simulation normalized to the radius of their disc edge, so that we can compare the sharpness of the edge. We see that the q = 1 case has the sharpest edge, namely the strongest gradient, and hence is more favourable to the RWI. Hence, while we expect the RWI to also appear for all the q values presented here, the growth rate of the instability will likely decrease with q and there might be a value of q small enough that the edge of the circumbinary disc is not sharp enough to launch the RWI. The value of q where this happens will depend strongly on the equation of state and magnetic field strength. Looking for this value is beyond the scope of this paper, which is aiming at understanding the origin of the lump.

Figure 9.

Sharpness of the radial profile of the density as a function of the mass ratio, for q = [1, 0.5, 0.3, 0.1] in black, red, blue, and green, respectively.

Open in new tabDownload slide

Thanks to these density profiles, we have seen that not all mass ratios might be able to fulfil the criteria of the RWI. We now look at it in more detail and plot the counterpart of Fig. 7 for q ≠ 1. Fig. 10 shows the vortensity maps in the q = [0.5, 0.3, 0.1] runs (from top to bottom) with the contours of log (ρ) in overlay. Because of the asymmetric mass ratio, the two opposed cavities are different as they form, in even less than one orbital time-scale, and plotting the vortensity at the symmetric epoch as for q = 1 is not possible. The red regions correspond to the cavity, which look increasingly asymmetric as q decreases from 0.5 to 0.1, nevertheless, a vortensity radial extremum is present at the location of the circumbinary disc inner edge. For conciseness, we do not display the radial profile of the vortensity as in the bottom panel of Fig. 7, especially as similar peaks as in the q = 1 case are obtained. One major difference is that they do not appear for every value of the azimuthal angle ϕ, unlike the q = 1 case. Indeed, as shown in Fig. 10, a density radial extremum (one way to produce a vortensity extremum) is not present at all azimuthal angles, especially for q = 0.3 and q = 0.1. Since the RWI criterion relies on the vortensity extremum, our results indicate that while the circumbinary disc edge is RWI-unstable, the azimuthal size of this unstable region decreases with q, starting from 2π in the q = 1 case. A weakening of the lump with a decreasing mass ratio was actually observed in the literature (D’Orazio et al. 2013; Noble et al. 2021). This work suggests that, indeed, as a result from the reduced azimuthal range of unstable regions to the RWI, the growth rate is reduced as the mass ratio decreases.

Figure 10.

From top to bottom: map in (r, ϕ) of the vortensity for q = [0.5, 0.3, 0.1], with the radius in units of M. The contours of log (ρ) are overplotted in grey. The red-coloured region corresponds to the cavity.

Open in new tabDownload slide

As a last diagnostic of the development of the RWI, we look for vortices in the different q ≠ 1 runs with Fig. 11. This figure is similar to Fig. 8 but for q = [0.5, 0.3, 0.1] (from top to bottom), with the major difference being much earlier in time, meaning after just a few orbits instead of a few tens of orbits. We see that indeed, vortices become visible roughly after the cavity has been cleared, for any of the q values that we simulated. This figure also illustrates how the density distribution is visibly affected in the region where vortices are found (this is also the case for q = 1 but less visible on Fig. 8).

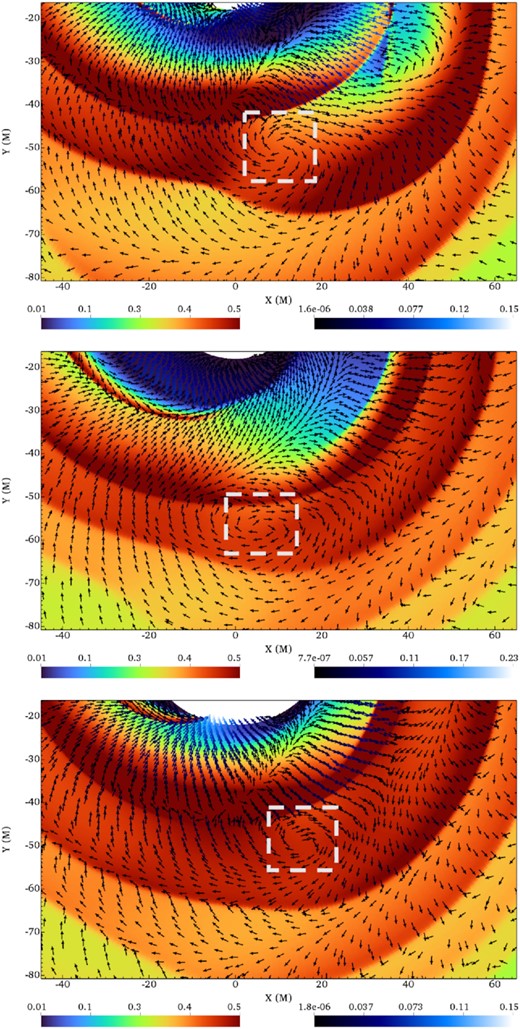

Figure 11.

Similar to Fig. 8 for different mass ratios. From top to bottom: density maps for q = 0.5 (t = 4000 M ≈7 P_orb), q = 0.3 (t = 12 000 M ≈20 P_orb), q = 0.1 (t = 4000 M ≈7 P_orb). The velocity vectors are overplotted. Vortices, indicated by light-grey boxes, are observed for every value of q from 0.1 to 1. The left colourbar refers to the density and the right colourbar to the velocity, both in code units.

Open in new tabDownload slide

We have shown that, for q between 1 and 0.1, the edge of the circumbinary disc is unstable to the RWI and exhibits vortices that eventually merge into a dominant m = 1 mode close to the location where the lump, defined as the overdensity feature, is. In those cases as in the q = 1 case, the lump orbits together with the m = 1 vortex of the RWI. As few instabilities can produce vortices, this is a strong tie between the existence of the lump and the RWI.

6 DISCUSSION: ‘LUMP’ BEYOND BINARY BLACK HOLE SYSTEMS

As may be noticeable, we have not invoked any GR effect in our previous interpretation that the RWI is taking place in circumbinary discs around BBHs and is reponsible for the so-called lump feature. More specifically, the RWI is caused by the disc sharpness sculpted by the binary torques, an effect already present qualitatively in Newtonian gravity (e.g. Artymowicz & Lubow 1994). Hence, it is reasonable to compare the present BBH circumbinary disc with other systems where GR is unimportant. Therefore, in this section, we discuss how the ‘horseshoe’ features in protostellar and protoplanetary discs, somewhat similar to the present lump under study, could be linked to vortices and to the RWI. We also analyse how the results of our simulations compare with numerical studies undertaken in that field.

As already mentioned in the introduction, other systems than BBHs have displayed non-axisymmetric features resembling the lump: protoplanetary discs observed with ALMA exhibiting a horseshoe feature. In that context, the RWI has been widely studied, first because it forms vortices able to trap efficiently dust particles (e.g. Meheut et al. 2012) that can further accrete to reach planet masses, and second because the merger of those vortices may explain the horseshoe feature. In that case, the RWI can be either triggered at the border of the dead zone (Varniere & Tagger 2006; Lyra et al. 2008; Lyra et al. 2009b) or at the edge of a gap cleared by a Jupiter-mass planet (Lyra et al. 2009a), i.e. for q values much smaller than 0.1. It should be kept in mind that the link between the observed non-axisymmetries and the RWI is not firmly established though. The presence of long-living vortices via the RWI has remained debated in this particular context as was questioned their survival in 3D simulations (see Meheut et al. 2010), for viscous discs (with an α–viscosity parameter (Shakura & Sunyaev 1973) larger than a given value, e.g. 10⁻⁴ in Ataiee et al. 2013, who used a planet-induced gap to trigger the RWI), or after suffering the drag force backreaction from the dusty planetary embryo (Inaba & Barge 2006, see Lyra et al. 2008) – a concern that does not apply to the BBH system under study here. Alternatively, considering a pre-existing dust trap, Owen & Kollmeier (2017) claim that the accretion luminosity liberated during planet formation through pebble accretion in the trap makes the disc locally unstable to the baroclinic instability (e.g. Klahr & Bodenheimer 2003; Lesur & Papaloizou 2010), producing vortices as well. In summary, the ability of the RWI to produce long-living vortices in planet-forming discs, and that those are responsible for some of the non-axisymmetries of transition discs observed with ALMA, remains uncertain.

For the few aforementioned studies which focused on binaries (star-planet systems), the mass ratio considered is somewhat smaller than here, resulting in different configurations than the one we are focusing on (e.g. with a gap drawn by the planetary companion rather than a central cavity in the middle of a circumbinary disc). Considering mass ratios up to q = 0.2, Ragusa et al. (2017) and Calcino et al. (2019) studied the formation of non-axisymmetries in the circumbinary disc around a star-planet system, using dusty smoothed-particle hydrodynamical simulations, and reported an azimuthal overdensity. They do not find vortical motions in the azimuthal overdensity, which is consistent with the present study since the overdensity does not always coincide with the Rossby vortex because of the strong spiral wave forcing. It is also worth mentioning here that we had to perform a higher resolution run to clearly see the vortices in the simulation’s outputs, especially at early times (Fig. 8). None the less, Ragusa et al. (2017) find vorticity extrema at the disc edge, but do not display the vortensity (vorticity divided by the surface density), while we find that the density decreases abruptly at the disc edge and contributes largely to the vortensity gradient (see e.g. Fig. 9), so the absence of RWI in their simulation is not so clear. Going to even higher mass ratios, with q ranging from 0.4 and 1, the simulations of Mösta, Taam & Duffell (2019) exhibit a lump and vortensity extrema at the disc edge, although the authors do not explore a relation with the RWI. Hence, although the physical explanation behind the resemblance between the lump and the horseshoe feature remains uncertain, this work has made a step forward by establishing a plausible link between the lump and a Rossby vortex.

7 CONCLUSIONS

In this paper, we investigate the origin of the symmetry breaking and subsequent overdensity or azimuthal m = 1, dubbed ‘lump’, in circumbinary discs around BBHs, using GRHD 2D simulations with a BBH approximate metric. First of all, we used the symmetric mass ratio case as a singular case in which no symmetry breaking is naively expected. We have shown that, after a few tens of orbits of the BBH, the system becomes increasingly asymmetric, resulting in a lump feature, as found in numerous studies (e.g. Shi et al. 2012). We further showed that this asymmetry increase is exponential. The same conclusions are reached with a Fourier analysis: the mode m = 2 associated with the spiral waves is forced by the binary all along the simulation, while an m = 1 arises exponentially and eventually dominates. Therefore, this m = 1 asymmetry labelled lump in the literature, is consistent with an instability.

As a possible origin for this instability, we looked at the RWI (Lovelace & Hohlfeld 1978; Lovelace et al. 1999), a (magneto)hydrodynamical instability which develops at the last stable orbit of single BH accretion discs and in the dead zone of protoplanetary discs. The RWI is characterized by an instability criterion requiring an extremum of vortensity (vorticity divided by the surface density) and by the presence of vortices. Those vortices were invoked in the literature as a way for planetesimals to grow in mass in protoplanetary discs. Analysing the equal-mass case simulation, we found the RWI criterion to be fulfilled once the cavity forms, together with the presence of vortices. Here, the vortices merge into a single vortex which allows the mass growth of the lump and orbits in Keplerian motion as well, while it is swept off by spiral waves continuously. The torques exerted by the binary cause the spiral waves and the cavity clearing as well so that it is not possible to completely disentangle the m = 2 and m = 1 modes in BBHs. Those results show that the sharp edge of circumbinary discs around BBHs is prone to the development of the RWI, which is a plausible cause for the exponential growth of the asymmetry which appears eventually as the feature dubbed lump.

Finally, we have extended this study to unequal-mass BBHs down to q = 0.1. It had been shown by D’Orazio et al. (2013) and Noble et al. (2021) that the lump amplitude decreases with a decreasing mass ratio. Here, we explain this trend by the circumbinary disc edge being less sharp as the mass ratio decreases, and therefore less prone to the development of the RWI. Following the same principle, we expect the same to be true when relaxing the circular-orbit hypothesis if it causes the edge of the disc to lose its sharpness as was shown in Noble et al. (2012). Indeed, when they accounted for the BBH inspiral their disc edge became shallower and they found that the lump weakened. As another limitation of our work, we have considered non-eccentric binaries. In the literature, the lump, as an overdensity feature, is less visible for eccentric binaries although the symmetry breaking still occurs for equal-mass binaries (see e.g. Mösta et al. 2019; Ragusa et al. 2021; Siwek et al. 2022). None the less, a vortensity extremum is reported in Mösta et al. (2019) for an eccentricity parameter of 0.6, suggesting that even in this case, the RWI could be responsible for the symmetry breaking.

Since the RWI has been found in 2D/3D hydrodynamical/magnetic studies, for various equations of state – just like the lump feature –, if the lump is caused by the RWI, it should be a robust feature of circumbinary discs around BBHs. Therefore, modulations of the EM flux associated to the lump are promising to allow us to distinguish BBH systems from single BHs. Nevertheless, some parameters (e.g. the mass ratio) can affect its amplitude. Moreover, the thermodynamics should influence the disc sharpness, the vortex location along with it and the lump period as well, consequently. Switching from the hydrodynamical to the magnetic case, the RWI criterion changes (see Section 4.1), modifying as well the location of the vortex and the lump’s period. Those aspects are beyond the scope of this paper, whose objective was to explore a possible cause for the symmetry breaking that ultimately leads to the creation of a single azimuthal overdensity known as the lump.

As already mentioned, the physics invoked in this paper is not specific to the BBH metric. Neither the formation of a lump (see e.g. Shi et al. 2012) nor the development of the RWI (Meheut et al. 2010) require GR effects (see Section 6). Very importantly for the development of the RWI, a circumbinary disc cavity is also expected to form around binary protostars (Artymowicz & Lubow 1994; Bate 1997), forming a circumbinary disc sharp edge. As the lump or at least the asymmetry has been found in numerical studies of T-tauri star systems (Günther & Kley 2002), protobinary systems (Bonnell & Bate 1994), and, more generally, any system whose gravitational influence was treated in Newtonian gravity (e.g. MacFadyen & Milosavljevic 2008; Shi et al. 2012; D’Orazio et al. 2013; Ragusa et al. 2016; Miranda, Muñoz & Lai 2017; Calcino et al. 2019; Ragusa et al. 2020; Tiede et al. 2021), we suggest the possibility that the present conclusions could be extended to any circumbinary disc orbiting a q ≥ 0.1 (and perhaps below 0.1) binary system.

ACKNOWLEDGEMENTS

RMR thanks Léna Arthur for visualization python scripts. RMR acknowledges funding from Centre National d'Etudes Spatiales (CNES) through a postdoctoral fellowship. This work was supported by CNES, focused on Athena, the LabEx UnivEarthS, ANR-10-LABX-0023 and ANR-18-IDEX-000, and by the ‘Action Incitative: Ondes gravitationnelles et objets compacts’ and the Conseil Scientifique de l’Observatoire de Paris. The numerical simulations we have presented in this paper were produced on the platform dante (AstroParticule & Cosmologie, Paris, France) and on the high-performance computing resources from Grand Equipement National de Calcul Intensif (GENCI) - Centre Informatique National de l'Enseignement Supérieur (CINES, grant A0100412463). RMR would like to acknowledge networking support by the European Cooperation in Science and Technology (COST) Action GWverse CA16104.

DATA AVAILABILITY

The data that support the findings of this study are available from the corresponding author, RMR, upon request.
