Kuiper belt analogues in nearby M-type planet-host systems Free

Abstract

We present the results of a Herschel survey of 21 late-type stars that host planets discovered by the radial velocity technique. The aims were to discover new discs in these systems and to search for any correlation between planet presence and disc properties. In addition to the known disc around GJ 581, we report the discovery of two new discs, in the GJ 433 and GJ 649 systems. Our sample therefore yields a disc detection rate of 14 per cent, higher than the detection rate of 1.2 per cent among our control sample of DEBRIS M-type stars with 98 per cent confidence. Further analysis however shows that the disc sensitivity in the control sample is about a factor of two lower in fractional luminosity than for our survey, lowering the significance of any correlation between planet presence and disc brightness below 98 per cent. In terms of their specific architectures, the disc around GJ 433 lies at a radius somewhere between 1 and 30 au. The disc around GJ 649 lies somewhere between 6 and 30 au, but is marginally resolved and appears more consistent with an edge-on inclination. In both cases the discs probably lie well beyond where the known planets reside (0.06–1.1 au), but the lack of radial velocity sensitivity at larger separations allows for unseen Saturn–mass planets to orbit out to ∼5 au, and more massive planets beyond 5 au. The layout of these M-type systems appears similar to Sun-like star + disc systems with low-mass planets.

1 INTRODUCTION

It is now well established that planet formation processes are robust, and proceed around stars of a wide range of masses. At the higher mass end, planets have been discovered around evolved stars with masses up to three times the Sun's (e.g. Setiawan et al. 2005; Johnson et al. 2007b; Reffert et al. 2015). At the lower mass end, the results have been equally impressive, with planets discovered around objects 10 times less massive than the Sun, and whose luminosity is a 1000 times weaker (e.g. Gillon et al. 2016; Anglada-Escudé et al. 2016). This wide mass range provides a unique way to study planet formation processes, and has shown that while the occurrence rate of giant planets increases towards higher mass stars (Johnson et al. 2007a, 2010a; Reffert et al. 2015), the converse is true for the frequency of Earth to Neptune-mass planets (Mulders, Pascucci & Apai 2015).

In tandem with these searches, observations that seek to detect the building blocks of these planets have also been conducted. These mid and far-infrared (far-IR) surveys detect ‘debris discs’, the collections of small dust particles that are seen to orbit other stars (the ‘dust’ comprises various constituents, such as silicates, ice, and organic compounds). Since their discovery in the 1980’s, a growing body of evidence has shown that they can be interpreted as circumstellar discs made up of bodies ranging from ∼μm to many km in size; while the observations only detect μm to mm-size particles, the lifetime of these particles is commonly shorter than the age of the host star, leading to the conclusion that they must be replenished through the collisional destruction of a mass reservoir of larger planetesimals (e.g. Backman & Paresce 1993). For main-sequence stars, this paradigm is generally accepted, so in terms of the dust having an origin in collisions between larger bodies, debris discs can be genuinely thought of as analogues of the Solar system's Asteroid and Kuiper belts. A key unknown is how the planetesimals acquire high enough relative velocities for their collisions to be destructive; while it is possible that planets excite these velocities (Mustill & Wyatt 2009), it may be a natural outcome upon emergence from the gas rich phase of evolution, or the planetesimals may ‘stir’ themselves (e.g. Kenyon & Bromley 2004), in which case planets are not necessarily needed in order for debris discs to exist.

However, it is well known that the Solar system planets play an important role in sculpting the Asteroid and Kuiper belts, two examples being the presence of the Kirkwood gaps and the capture of Pluto into 2:3 mean motion resonance by Neptune (Malhotra 1993). In attempts to make analogous link in other planetary systems, hypotheses that connect the properties of the discs and planets have been developed, and vary in complexity. The most basic is that some systems are simply ‘better’ at forming large bodies (whether those bodies be planetesimals or planets), and more detailed models suggest that the outcomes depend on whether planetary instabilities occurred (Raymond et al. 2011). As with planets, merely detecting these belts is challenging, so quantifying the connection between the planets and discs in these systems is typically limited to searching for correlations between their basic properties (such as disc brightness, e.g. Bryden et al. 2009; Kóspál et al. 2009; Wyatt et al. 2012; Marshall et al. 2014; Moro-Martín et al. 2015; Wittenmyer & Marshall 2015). Ultimately, these searches yielded a significant correlation between the presence of radial velocity planets and the brightness of debris discs around Sun-like stars (Matthews et al. 2014). This trend is unfortunately not strong, so while splitting the sample to look for trends among sub-samples (e.g. as a function of planet mass) yields tentative trends (e.g. Wyatt et al. 2012) it also lowers the significance. Thus, while there is evidence that some Sun-like stars are indeed better at forming discs and planets than other, the origin of this correlation remains unclear.

In the case of low-mass stars, the challenge of finding connections between the planet and disc populations is even greater; for discs at the typical radial distances of a few tens of astronomical units, the low stellar luminosities do not heat the dust to temperatures greater than about 50 K. While the Stefan–Boltzmann law therefore limits the luminosity of these discs, the low temperatures further hinder detection because discoveries must be made at far-IR and millimeter wavelengths (e.g. Lestrade et al. 2006, 2012). Thus, it is not particularly surprising that efforts to discover debris discs around late-type stars at mid-infrared wavelengths have often been unsuccessful (e.g. Gautier et al. 2007; Avenhaus, Schmid & Meyer 2012). Further, the sensitivity of surveys is normally such that the non-detections are not sufficiently constraining to rule out discs that have similar properties to those that are known to orbit Sun-like stars (Gautier et al. 2007; Morey & Lestrade 2014).

In this paper, we present far-IR Herschel¹ (Pilbratt et al. 2010) observations that aim to detect Kuiper belt analogues around a sample of 21 nearby late K and M-type stars that host planets discovered by the radial velocity technique. The primary aim is to search for a correlation between the presence of planets and the brightness of discs, and secondary aims are to detect new discs that may be amenable to further detailed investigation, and to obtain more sensitive observations than were possible with larger surveys. We present the sample and observations in Section 2, discuss the results in Section 3, and summarize and conclude in Section 4.

2 SAMPLE AND OBSERVATIONS

Our sample comprises nearly all low-mass planet-host stars within 20 pc. Most stars are M spectral type, but we include three that are late K types (GJ 370, GJ 9425, and GJ 9482). Not all systems in the final sample were known to host planets at the time the observations were proposed (2011 September), but some in which planets were subsequently discovered were observed by the volume-limited DEBRIS Key Programme (Matthews et al. 2010). The final sample has 21 stars, 16 of which were observed by Herschel in this programme, and which are listed in Table 1. Five more targets, GJ 15 A, GJ 581, GJ 687, GJ 842, and GJ 876, were observed by the DEBRIS survey so are also included in our sample (see Lestrade et al. 2012, for results for GJ 581).

The sample does not include the planet host Proxima Centauri (Anglada-Escudé et al. 2016), as it was not observed by Herschel. While it has been suggested to host excess emission arising from a debris disc (Anglada et al. 2017), these observations use the Atacama Large Millimeter Array (ALMA) and this system is therefore not easily integrated into our sample. Two of our targets are possible wide binaries; GJ 15 A (NLTT 919) is a common proper motion pair at a projected separation of 35 arcsec with NLTT 923 (Gould & Chanamé 2004), and GJ 676 A has a wide common proper motion companion (GJ 676 B) at a projected separation of 50 arcsec (Poveda et al. 1994). We do not expect the planetary systems to be affected seriously by these companions, so retain them in our sample.

The targets were observed using the Photodetector Array Camera and Spectrometer (PACS, Poglitsch et al. 2010), using the so-called ‘mini-scan map’ mode. A series of ten parallel scans with a separation of 4 arcsec are taken to make a single map, which is repeated six times to build up the signal. One such sequence corresponds to a single observation ID number, or ObsID. The observatory is then rotated by 40°, and the sequence repeated, to provide some robustness to striping artefacts and low-frequency noise. The total integration time for each source is 56 min. For our observations, the noise level at 100 |$\mu$|m was typically 1 mJy, while observations carried out by DEBRIS (integration time of 15 min) had fewer repeats and a noise level nearer 2 mJy. The images used in the analysis are the standard ‘level 2.5’ observatory products obtained from the Herschel Science Archive,² which combine the two observing sequences (ObsIDs) into a single image.

Photometry F_obs for each source was extracted using point spread function (PSF) fitting. Observations of the calibration star γ Dra, again level 2.5 observatory products, were used as PSFs, which were rotated to a position angle appropriate for each observation. The fitting was done at 100 and 160 |$\mu$|m simultaneously, so the four free parameters in each fit were a position common to both wavelengths, and two fluxes (i.e. F₁₀₀ and F₁₆₀). Uncertainties σ₁₀₀ and σ₁₆₀ were estimated by measuring the flux in apertures at hundreds of random locations near the centre of the images; this method was found to be more reliable and provide more realistic flux distributions than attempting to fit PSFs at random locations. The apertures were chosen to be those optimal for source extraction (5 and 8 arcsec for 100 and 160 |$\mu$|m, respectively, derived using calibration observations). In the case of GJ 649, there is evidence that the source (i.e. disc) is marginally resolved (see Fig. 1), so the flux for this source at 100 |$\mu$|m is measured using an aperture radius of 10 arcsec, and the uncertainty estimated as above but with 10 arcsec apertures. The results of the source extraction are summarized in Table 2, and the results for a few problematic sources are described in more detail below.

To assess whether each star shows the IR excess that is indicative of a debris disc requires an estimate of the flux density expected from the stellar photosphere F_⋆ at the PACS wavelengths. These estimates are made by fitting stellar photosphere models to optical and near-IR photometry. The method has been described elsewhere, and, for example, has been used for the DEBRIS survey and shown to provide photospheric fluxes that are sufficiently precise that the detection of excesses is limited by the Herschel photometry, not the photosphere models (i.e. σ_obs > σ_⋆, Kennedy et al. 2012a, b). While photospheric models for late-type stars are less precise than for earlier types (e.g. because of uncertain molecular opacity), the flux of many of our target stars is predicted to be near our noise level and the models are not a limiting factor. The photospheric predictions at 100 and 160 |$\mu$|m are given in Table 2.

The significance of any excess is then given in each PACS bandpass by |$\chi = (F_{\rm obs} - F_\star ) / \sqrt{\sigma _{\rm obs}^2 + \sigma _\star ^2}$|⁠, where χ > 3 is taken to be a significant excess. To summarize the observational results; in addition to the disc known to orbit GJ 581, we find two new systems that show strong evidence for IR excesses: GJ 433 and GJ 649, whose images are shown in Fig. 1.

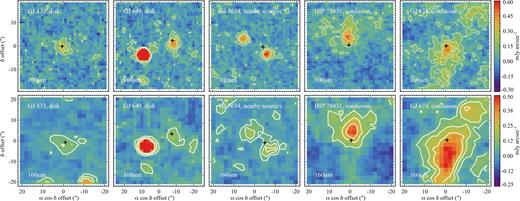

Several other targets were also found to have emission at or near the source position, but in these cases we do not believe the emission to be associated with the star in question. These are shown in Fig. 1.

• GJ 3634: A bright (∼14 mJy) source is seen 6 arcsec SW of the expected position of GJ 3634. This offset is larger than expected given the ∼2 arcsec 1σ pointing accuracy of Herschel³and our small sample size. By comparing the positions of several other sources detected in the 100 |$\mu$|m PACS image with the (optical) DSS2 plates,⁴ we found that three were almost perfectly coincident. Thus, we conclude that the 6 arcsec offset seen is real, and that the PACS detection near GJ 3634 is not associated with this star.

• HIP 79431: Extended structure is seen to the North of the stellar position, but the peak is 5 arcsec away. Only one low signal-to-noise ratio source was seen to be common between the PACS and DSS2 images, with perfect coincidence. The background as seen in IRAS and WISE images is complex and variable. We conclude that the large offset and high background mean that the detected source is unlikely to be associated with HIP 79431.

• GJ 674: The background level around GJ 674 is significantly above zero. At 100 |$\mu$|m the flux in the image peaks at the position of GJ 674, but if a point source with the photospheric flux of GJ 674 is subtracted the background becomes uniform. Thus, we conclude that the image shows emission from the star GJ 674 superimposed on a non-negligible background, and that there is no evidence for excess emission from the star itself.

3 DISCUSSION

Our survey finds two new excess detections, around the stars GJ 433 and GJ 649. We first consider these detections as part of our sample, and then take a closer look at the architecture of these two systems in more detail.

3.1 Planet–disc correlation

One of our goals was to test for a correlation between the brightness of debris discs around low-mass stars and the presence of planets. That is, all stars may host debris discs, but we can detect only those above a given dust level, so we cannot test for a correlation between the ‘existence’ of planets and discs. The same is true for planet detection of course, so we are in fact testing for a correlation between discs above a given brightness threshold and planets above a given semimajor axis versus mass threshold (acknowledging that the star-to-star sensitivity also varies). These thresholds are discussed below.

A significant correlation has been seen among Sun-like stars that host radial velocity planets (Matthews et al. 2014), and tentative evidence that this trend is stronger for stars that host low-mass planets was found among a small sample of nearby stars (Wyatt et al. 2012; Marshall et al. 2014). No clear trends were seen in the volume-limited DEBRIS FGK-type sample considered by Moro-Martín et al. (2015), illustrating the tentative nature of the latter trend, and that samples that do not specifically target planet-host stars suffer from small numbers of planet hosts that limit the power to discover trends.

Here, our sample comprises 21 planet-hosting low-mass stars that were observed in search of IR excesses by Herschel, for which three were found to host discs. Thus, our detection rate is 14 per cent, but clearly suffers from a small number of detections. As a control sample, we consider the volume-limited DEBRIS M-type sample, which comprises 89 nearby stars (Phillips et al. 2010). Of these, two were discovered to host debris discs; the planet host GJ 581 (Lestrade et al. 2012) and the third star in the very wide Fomalhaut triple system, Fomalhaut C (Kennedy et al. 2014). We remove GJ 581 and the four other planet-host stars from this sample, leaving 84 stars with one disc detection, a rate of 1.2 per cent.

A Fisher's exact test to determine whether these two populations could arise from the same underlying distribution yields a p-value of 0.025, thus showing reasonable evidence that the planet-host stars have a tendency to have more detectable (i.e. brighter) debris discs. The Fomalhaut system is known to be relatively young, at 440 Myr (Mamajek 2012); if we were to assume that all of the planet host systems are older than this and exclude Fomalhaut C from the control sample the p-value decreases to 0.01. However, we cannot be sure that the planet-host stars are all older than the Fomalhaut system, since for example GJ 674 may also be a relatively young system (Bonfils et al. 2007).

Thus, we find suggestive evidence that debris discs are more easily detected around M-type stars that also host planets. A further consideration however is whether the observations are biased towards detections for the planet-host sample. This might be expected given that our noise level is about half that of the DEBRIS observations of the control sample, but might also be balanced by the fact that all DEBRIS M-type stars are within 10 pc, and thus on average closer than our planet-host stars.

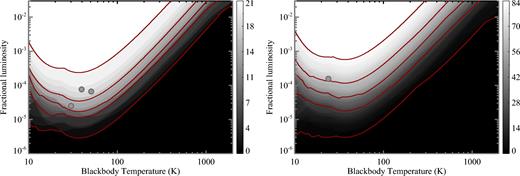

The relative sensitivities for the two samples is shown in Fig. 2, where the grey-scale shows the number of systems for which discs at a given temperature and above a certain fractional luminosity (⁠|$f = L_{\rm {\rm disc}}/L_\star$|⁠) could have been detected. The lowest red contour shows the maximum sensitivity (discs that could have been detected around only one star), the highest shows the level above which discs could have been detected around all stars, and the intermediate contours show where discs could have been detected around 25, 50, and 75 per cent of systems. By comparing the red contours, it can be seen that our observations could typically detect discs that are a factor of two to three lower in fractional luminosity than those observed by DEBRIS (as expected from observations that are 2–3 times deeper). While the three discs around planet-host stars could have been detected around 75 per cent of our sample, they could only have been detected around about 30 per cent of the DEBRIS sample. Thus, the evidence for any correlation between planets and debris disc brightness is weaker than suggested by the p-value above.

The significance of the p-value may be further reduced by future radial velocity observations, because an implicit assumption is that the stars in the control sample do not host planets in a similar parameter space range as those around our planet-host sample. This is unlikely to be true because not all systems in our control sample will have been observed in search of planets, and our control sample is best termed ‘stars with no known planets’. If any of the systems in the control sample that do not host discs were in fact found to host planets, the significance of our result would decrease further. If however Fomalhaut C were found to host a planet (and a search may be well motivated by our results), the significance would increase.

As noted earlier, it is not yet known whether M-type stars host a disc population that is the same or different to those that orbit Sun-like stars, and a major problem is that obtaining comparably sensitive observations is challenging. This sensitivity difference can be seen by comparing the contours in the right-hand panel of Fig. 2 with those in fig. 4 of Sibthorpe et al. (2017), which shows the sensitivity for FGK-type stars observed as part of the DEBRIS survey (and for which an FGK-type disc detection rate of 17 per cent was obtained). The 50 per cent contour for our survey is at best about f = 5 × 10⁻⁶, an order of magnitude better than achieved by DEBRIS for M-type stars. In comparison, our survey is about midway between the two in terms of sensitivity. Therefore, with the caveats that the number of detections is small, and that the results could be biased by a planet-disc correlation, the fact that we have here obtained a disc detection rate similar to that seen for Sun-like stars suggests that in surveys of equal sensitivity in fractional luminosity the disc detection rate among Sun-like and M-type stars should be approximately the same.

3.2 A marginally resolved disc around GJ 649

GJ 649 (HIP 83043, BD+25 3173, LHS 3257) was reported to host a planet with a minimum mass similar to Saturn's, in an eccentric 598 d (1.1 au) orbit (Johnson et al. 2010b). The age of the star is uncertain, though it was classed as a member of the ‘old disc’ (as opposed to the young disc or halo) based on kinematics (Leggett 1992), and noted to be among the 20 per cent most chromospherically active early M-type stars (Johnson et al. 2010b). Using constraints from the disc temperature and Herschel images, we can therefore build a picture of the system's architecture.

The flux density distribution for GJ 649 is shown in Fig. 3. The excess flux above the photosphere is modelled using a modified blackbody function, where the disc spectrum is divided by |$\lambda /210\,\mu {\rm m}$| beyond 210 |$\mu$|m. This steeper long-wavelength spectral slope approximates the poor efficiency of dust emission at wavelengths longer than the grain size, though in this case is not constrained and included simply in order to make the extrapolations to millimeter wavelengths more realistic. The main point to take away from this figure is that the dust thermal emission is very cold, so could not have been detected in the WISE observations at 22 |$\mu$|m. The best-fitting disc temperature is 50 K with f = 7 × 10⁻⁵, but is uncertain because the 160 |$\mu$|m observation is not formally a 3σ detection of the disc (i.e. Table 2 shows that χ₁₆₀ for GJ 649 is 2.9). The non-detection of an excess at 22 |$\mu$|m means that the temperature cannot be significantly more than 100 K.

Given a stellar luminosity of 0.044 L_⊙ the best-fitting temperature of 50 K corresponds to a radial distance of 6 au if the disc material behaves as a blackbody, while a temperature of 100 K yields a distance of about 2 au. Given that most debris discs are composed of dust small enough to have super-blackbody temperatures, the disc around GJ 649 would be expected to be larger than blackbody estimates, by a factor of several at least (e.g. Rodriguez & Zuckerman 2012; Booth et al. 2013; Pawellek et al. 2014; Morales et al. 2016). This factor was found to be 6–20 for GJ 581 (Lestrade et al. 2012), with the large uncertainty arising because the disc radius depends on the square of the temperature. At a distance of 10.4 pc (Lindegren et al. 2016), the GJ 649 disc may therefore have an angular diameter large enough to be resolved. This extent may be confirmed by the Herschel images, which at 100 |$\mu$|m show some extended residual emission after PSF subtraction (see Fig. 4). The fact that these residuals are extended in a non-axisymmetric pattern suggests that the disc may be nearer to edge-on than face-on, as might be expected given in the case of a planet detection with the radial velocity technique. Given that most of the residual contours are only 1σ however, we consider that these residuals provide circumstantial evidence that the disc is resolved, in which case the disc diameter would be similar to the PACS beam size of 6 arcsec. We therefore conclude that the disc radius could lie in the range 2–50 au, but is more likely to be a few tens of au.

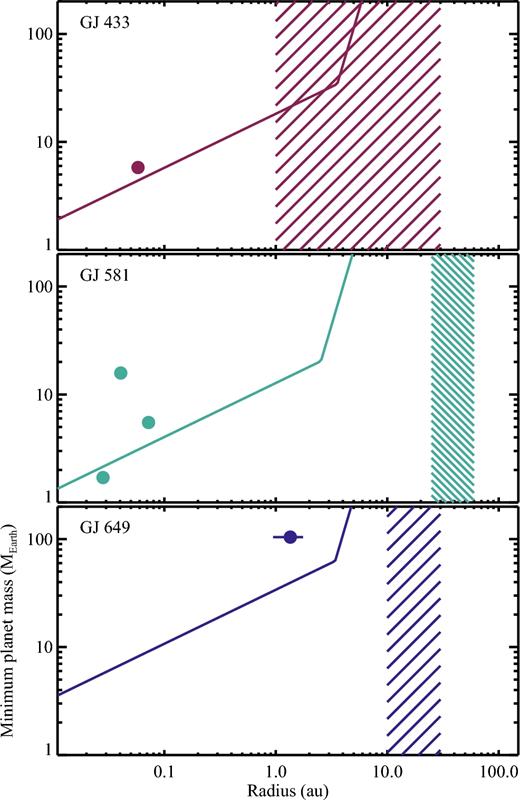

The system layout is shown in Fig. 5, where the planet GJ 649 b is indicated by the dot, and the error bar indicates the range of radii covered by the eccentric orbit. The solid line shows limits estimated based on the radial velocity residuals once the best-fitting planet orbit is subtracted,⁵ indicating that planets more massive than Saturn that orbit beyond about 5 au would not have been detected. The range of estimated disc locations is shown by the hatched region, where we have taken the marginally resolved image to indicate that the disc has a radius between 10–30 au. The basic conclusion is that while the separation between the planet and disc is probably large, it is possible that this gap is occupied by one or more undetected planets. A further conclusion is that lower mass planets at smaller radii could have been detected, though the sensitivity is a factor of two poorer than for the other systems discussed below.

3.3 An unresolved disc around GJ 433

GJ 433 (HIP 56528, LHS 2429) was reported to host a low-mass planet GJ 433 b (M sin i = 5.8 M_⊕) on a 7.4 d period at 0.058 au (Delfosse et al. 2013). They detected an additional significant signal with a much longer period of 10 yr (3.6 au), but based on the variation of activity indices on a similar time-scale (Gomes da Silva et al. 2011), concluded that a magnetic cycle of the star was a more likely origin. The same signals were recovered by Tuomi et al. (2014), who considered the second signal to be a candidate planet. Given the uncertain nature of the outer planet, we do not include it here. The age of GJ 433 is uncertain, but the dynamical, X-ray, and Ca ii emission properties show that the star is not young (Delfosse et al. 2013).

As above we can constrain the disc location relative to the planet's, but in the case of GJ 433 there is no clear evidence that the disc is resolved with Herschel. The best-fitting disc temperature is 30 K (see Fig. 3, but again the temperature is poorly constrained by a weak detection at 160 |$\mu$|m, and could be as warm as 100 K. The fractional luminosity is also poorly constrained, but is approximately 2.5 × 10⁻⁵. For the stellar luminosity of 0.033L_⊙, a disc temperature range from 100 to 30 K yields a blackbody radius range of about 1 to 16 au, or about 0.2 to 3.5 arcsec diameter at the 9.1 pc distance of the system. As for GJ 649, the disc structure as seen at 100 |$\mu$|m can constrain the disc extent to less than the PACS beam size, but as with GJ 649 only limits the disc radius to less than about 30 au, and does not constrain the inclination or position angle.

The system layout is shown in Fig. 5. While the observational limits on the disc radius are poor, a radius of 1 au would make GJ 433 host to an unusually small disc (Wyatt et al. 2007), so it seems most likely that the disc extent is similar to that expected for GJ 649. If this is indeed the case, there is again space for undetected planets in the region between the known planet and the disc.

3.4 Summary of system architectures

Fig. 5 summarises the architecture of the planet-host systems in our sample, and includes the multiplanet system GJ 581. The number of planets residing in this system is contentious, and stellar activity has been proposed as the cause of some of the periodic signals seen; here, we show the three planets proposed by Robertson et al. (2014), and the hatched disc region shows the extent of the disc derived by Lestrade et al. (2012). As with GJ 433 and GJ 649, there is space for undetected planets in the intervening region.

Given the lack of strong evidence for any correlation between the presence of planets and debris disc brightness, we should not necessarily expect clear trends when looking at plots such as Fig. 5. We might however note trends that are glossed over by a simple disc brightness metric, such as tendencies for systems to show particular architectures or scales. Again noting that a disc as small as 1 au around GJ 433 would be very unusual, the radii of the discs is consistent with being a few tens of au. However, this size is also inferred for the disc that orbits Fomalhaut C (Kennedy et al. 2014), so there is no evidence that this preference is related to the presence of planets. Indeed, this radius range is also preferred for discs around FGK-stars, independent of whether planets are known (Sibthorpe et al. 2017).

There is no obvious link between the discs and the layout of the planets that orbit closer in, but in each case there remains room in the detection space for sizeable planets that reside between the known planets and the disc, but that could not have been detected with the current RV observations. In this regard, the M-type planet + disc systems appear to be analogues of Sun-like planet + disc systems such as HD 20794, HD 38858, and 61 Vir (Wyatt et al. 2012; Kennedy et al. 2015). This similarity may however simply reflect that detecting long period planets takes time, and that small debris discs grind down to undetectable levels more rapidly than large ones, and that these biases are present regardless of the mass of the host star. That is, there may be differences in the architectures of planetary systems across different spectral types, but that this difference is in the type or existence of planets that reside near 10 au. For further discussion of planet formation scenarios, we refer the reader to Wyatt et al. (2012), Kennedy et al. (2015), and Marino et al. (2017).

The very cool disc temperatures shown in Fig. 3 make it clear that progress in our understanding of these discs, and the links with the planets, can only be made by far-IR and millimeter-wave observations. The present observations are hindered by the low spatial resolution of Herschel, which means that we are constrained to estimating disc locations. With no far-IR missions on the near horizon, and an expectation of sub-mJy disc flux densities, observations with the ALMA are the main avenue for progress. These will be challenging, but necessary to obtain further discoveries, and in cases such as GJ 433, GJ 581, and GJ 649 could provide higher resolution images that instead of yielding disc location estimates, will allow the discussion of disc structure.

4 CONCLUSIONS

This paper presents the results of a Herschel survey of 21 nearby late-type stars that host planets discovered by the radial velocity technique. These observations were obtained with the aim of discovering new debris discs in these systems, and in search of any correlation between planet presence and disc brightness.

We report the discovery of two previously undetected discs, residing at a few tens of au around the stars GJ 433 and GJ 649. The disc around GJ 649 appears marginally resolved and more consistent with being viewed edge-on. Despite uncertainty in their radii these discs orbit well beyond the known planets, and it is possible that other as-yet undetected planets reside in the intervening regions. The layout of these systems therefore appears similar to star + disc systems around Sun-like stars such as HD 20794, HD 38858, and 61 Vir. Estimating the ages of M-type stars is challenging, but neither star shows evidence of youth, so there is no evidence that the ages of these stars are special compared to the rest of the sample.

Including the previously known disc around GJ 581, our sample comprises three planet hosts with discs, a detection rate of 14 per cent. While this rate is higher than for a control sample of M-type stars without reported planets observed by the DEBRIS survey (1 out of 84 stars), the difference is significant only at 98 per cent confidence. This evidence is further shown to be optimistic, because the observations of the planet-host sample were somewhat more sensitive to debris discs than those in the control sample, and because not all systems in the control sample have been searched for planets (or reported not to have planets above some detection threshold).

Though this survey represents an improvement over previous surveys of M-tye stars, the fractional luminosity sensitivity achieved remains about a factor of three poorer than similar surveys of Sun-like stars. Nevertheless, the fact that we find discs around 14 per cent of M-type stars, in comparison to 17 per cent of Sun-like stars, provides circumstantial evidence that there is no difference in their disc populations.
