T. H. Randriamampandry, F. Combes, C. Carignan, N. Deg, Estimating non-circular motions in barred galaxies using numerical N-body simulations, Monthly Notices of the Royal Astronomical Society, Volume 454, Issue 4, 21 December 2015, Pages 3743–3759, https://doi.org/10.1093/mnras/stv2147
- Share Icon Share
Abstract
The observed velocities of the gas in barred galaxies are a combination of the azimuthally averaged circular velocity and non-circular motions, primarily caused by gas streaming along the bar. These non-circular flows must be accounted for before the observed velocities can be used in mass modelling. In this work, we examine the performance of the tilted-ring method and the diskfit algorithm for transforming velocity maps of barred spiral galaxies into rotation curves (RCs) using simulated data. We find that the tilted-ring method, which does not account for streaming motions, under-/overestimates the circular motions when the bar is parallel/perpendicular to the projected major axis. diskfit, which does include streaming motions, is limited to orientations where the bar is not aligned with either the major or minor axis of the image. Therefore, we propose a method of correcting RCs based on numerical simulations of galaxies. We correct the RC derived from the tilted-ring method based on a numerical simulation of a galaxy with similar properties and projections as the observed galaxy. Using observations of NGC 3319, which has a bar aligned with the major axis, as a test case, we show that the inferred mass models from the uncorrected and corrected RCs are significantly different. These results show the importance of correcting for the non-circular motions and demonstrate that new methods of accounting for these motions are necessary as current methods fail for specific bar alignments.
INTRODUCTION
The rotational velocities obtained from gas observations are one of the most commonly used tools to study the mass distributions of spiral galaxies. It is often assumed that the gaseous motions are purely circular due to their low velocity dispersions. However, the presence of a galactic bar will induce non-circular motions due to the streaming along the bar. Since bars account for two-thirds of nearby galaxies (e.g. de Vaucouleurs et al. 1991; Eskridge et al. 2000; Knapen, Shlosman & Peletier 2000; Whyte et al. 2002; Marinova & Jogee 2007; Menéndez-Delmestre et al. 2007; Barazza, Jogee & Marinova 2008; Aguerri, Méndez-Abreu & Corsini 2009; Marinova et al. 2009; Méndez-Abreu, Sánchez-Janssen & Aguerri 2010; Masters et al. 2011), it is important to properly account for these motions.
The study of the mass distribution is done by comparing the observed RC with the expected contributions from the gas, stars and dark matter (DM), assuming axisymmetry, and that the gas is in circular motions (e.g. de Blok et al. 2008). For the DM component, an empirical or theoretical density profile is used. There are several DM density profiles suggested in the literature. The two most commonly used are the Navarro, Frenk and White (NFW) profile (Navarro, Frenk & White 1996) derived from cosmological simulations with a central cusp and the isothermal (ISO) model (see e.g: Carignan 1985; Carignan & Freeman 1985) with a central flat core (see also; Einasto 1969; Burkert 1995; Kravtsov et al. 1998), a more general form of the DM density profile is also given by Blais-Ouellette, Amram & Carignan (2001). Alternative model such as the Modified Newtonian Dynamics (MOND; Milgrom 1983a,b,c) do not have a DM component. Milgrom (1983a) stipulated that there is no need for a DM halo to explain the flatness of galaxies’ rotation curves (RCs) if the law of gravity is modified below a critical acceleration a0. A comparison between ISO DM models and MOND models, for a sample of dwarf and spiral galaxies, is given in Randriamampandry & Carignan (2014) but a larger sample is needed before a final conclusion can be made.
In order to distinguish between both these and other models, RCs that represent the gravitational potential are necessary. RCs are often derived from observed velocity maps of gas using the tilted-ring method (Rogstad, Lockhart & Wright 1974). This method divides the velocity map into co-centred rings and infers a variety of kinematic parameters, including the circular velocities. It has been implemented in the gipsy (Allen et al. 2011) task rotcur (Begeman 1989). Unfortunately, rotcur does not correct for the non-circular motions. There are other methods that have been developed to account for these motions (eg: Oh et al. 2008, Trachternach et al. 2008), including the publicly available diskfit code (Spekkens & Sellwood 2007). diskfit creates physical models from the observed rotation velocities and extract the non-circular motions using a χ2 minimization technique (for more details see http://www.physics.rutgers.edu/∼spekkens/diskfit/). diskfit has proven to be able to detect weak bars (Kuzio de Naray et al. 2012). It was specifically designed to fit a non-axisymmetric flow pattern to two-dimensional velocity maps (Spekkens & Sellwood 2007). However, it is well known that the diskfit bar flow algorithm fails when the bar is almost parallel to the major or minor axis because of the degeneracy of the velocity components (Sellwood & Sánchez 2010).
Dicaire et al. (2008) used numerical models with pure rotation and compared the known circular velocities with the observed rotational velocities. They found that if a bar is perpendicular to the major axis of a galaxy, the measured rotational velocities and thus the mass is overestimated and the contrary if the bar is parallel to the major axis.
We propose an alternate method to account for non-circular motions using N-body simulations. A grid of models with different bar orientations, strengths and bulge-disc-halo compositions is generated. RCs from images of these models are made using rotcur, which are then compared to the RCs calculated from the gravitational potential and its derivatives. This comparison gives the corrections necessary for non-circular motions. To get the corrected RC for a real galaxy, the best corresponding model from the grid of simulations is selected and the corrections derived from the simulation are applied to the actual galaxy's RC derived from rotcur.
The paper is organized as follows: Section 2 describes the details of both the numerical simulations and the rotcur and diskfit algorithms. Section 3 compares the RCs derived from the simulations using rotcur and diskfit to the RC obtained from the gravitational potential. In Section 4, we describe our new method of correcting RCs and use NGC 3319 as a test case to show the importance of properly accounting for non-circular motions in mass models. Finally, in Section 5 we present our conclusions.
DATA ANALYSIS
N-body simulations
We use a series of spiral galaxy simulations, with different Hubble types, Sa, Sb, Sd, fitted to observed rotation velocities (cf. Chilingarian et al. 2010) and different radial distributions of DM, with either a core or a cusp in the centre, and different dark-to-visible mass ratios (maximum disc or not). They give a range of rotation velocities with various shapes, rising more or less slowly with radius. We do not vary the total mass of the galaxies, since only the shapes of the rotation velocities are important, and masses can be varied by a change of units. It is acknowledged that there is a mass and size evolution along the Hubble sequence (see e.g. van der Wel et al. 2014), and that late-type spiral galaxies are lighter and smaller, but these can be taken into account afterwards through rescaling. For all galaxy models, the total mass inside 35 kpc is 2.4 1011 M⊙, with 75 per cent in DM and 25 per cent in baryons, for the standard model (based on the ΛCDM cosmology) and equality between baryons and DM for the maximum disc model.
We have used two different simulation codes, in order to test that our assumptions are not biasing the results. In both kinds of simulations, the runs are fully self-consistent, with live dark haloes. The first code is based on a 3D particle-mesh and the fast Fourier transform (FFT) technique to solve the Poisson equation, and the gas is represented by sticky particles (FFT-sticky particles: see Combes 2011 for more details). We also ran a set of simulations using the Tree-SPH (smoothed particle hydrodynamics) code used in the Galmer project (Di Matteo et al. 2007). More details on these simulations including the hydrodynamics, star formation, and feedback can be found in Appendix A. The total number of particles is 240k in the FFT-sticky code and 480k in the Tree-SPH code.
These produced different outputs for the gas particle distributions, but the effects of the bar on the observed velocity maps were the same. Since the conclusions are the same, we will primarily examine the results for the FFT-stickly particles simulations and the results for the Tree-SPH runs can be found in Appendix B.
For the initial conditions of the galaxies of different Hubble types, we have followed the procedure described by Di Matteo et al. (2007). The halo and the optional bulge are modelled as a Plummer sphere, and the stellar and gaseous discs follow a Miyamoto–Nagai density profile.
The mass and characteristic radii of all components in the seven initial conditions, are displayed in Table 1. The standard model (-st) has a disc dominated by DM, with a central core. An NFW model, with a cusp and a central concentration of c = 8 has been run (-nfw), then a maximum disc model (-dmx) with equal mass between baryons and DM within the optical disc. The initial rotational velocities, corresponding to the main variations of the parameters, are displayed in Fig. 1.

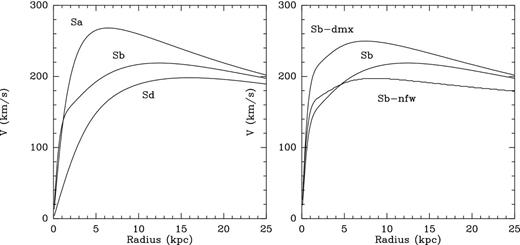

Initial RCs of the various models, described in Table 1. The left-hand plot compares the various morphological types, and the right-hand plot the various DM distributions.
Initial conditions for the various components (bulge, disc, halo and gas) of the different models used. All models are normalized to giant galaxies to explore the different shapes. Dwarfs can be obtained through rescaling (see text).
Model . | Mb . | rb . | Md . | rd . | Mh . | rh . | Mgas . | rgas . |
---|---|---|---|---|---|---|---|---|
. | (1010 M⊙) . | (kpc) . | (1010 M⊙) . | (kpc) . | (1010 M⊙) . | (kpc) . | (1010 M⊙) . | (kpc) . |
gSa | 4.6 | 2 | 6.9 | 4 | 11.5 | 10 | 1.3 | 5 |
gSb-st | 1.1 | 1 | 4.6 | 5 | 17.2 | 12 | 0.9 | 6 |
gSb-dmx | 2.2 | 1 | 9.2 | 5 | 11.4 | 12 | 0.9 | 6 |
gSb-nfw | 1.1 | 1 | 4.6 | 5 | 17.2 | 12 | 0.9 | 6 |
gSd-st | 0 | – | 5.7 | 6 | 17.2 | 15 | 1.7 | 7 |
gSd-dmx | 0 | – | 11.4 | 6 | 11.4 | 15 | 1.7 | 7 |
gSd-nfw | 0 | – | 5.7 | 6 | 17.2 | 15 | 1.7 | 7 |
Model . | Mb . | rb . | Md . | rd . | Mh . | rh . | Mgas . | rgas . |
---|---|---|---|---|---|---|---|---|
. | (1010 M⊙) . | (kpc) . | (1010 M⊙) . | (kpc) . | (1010 M⊙) . | (kpc) . | (1010 M⊙) . | (kpc) . |
gSa | 4.6 | 2 | 6.9 | 4 | 11.5 | 10 | 1.3 | 5 |
gSb-st | 1.1 | 1 | 4.6 | 5 | 17.2 | 12 | 0.9 | 6 |
gSb-dmx | 2.2 | 1 | 9.2 | 5 | 11.4 | 12 | 0.9 | 6 |
gSb-nfw | 1.1 | 1 | 4.6 | 5 | 17.2 | 12 | 0.9 | 6 |
gSd-st | 0 | – | 5.7 | 6 | 17.2 | 15 | 1.7 | 7 |
gSd-dmx | 0 | – | 11.4 | 6 | 11.4 | 15 | 1.7 | 7 |
gSd-nfw | 0 | – | 5.7 | 6 | 17.2 | 15 | 1.7 | 7 |
Initial conditions for the various components (bulge, disc, halo and gas) of the different models used. All models are normalized to giant galaxies to explore the different shapes. Dwarfs can be obtained through rescaling (see text).
Model . | Mb . | rb . | Md . | rd . | Mh . | rh . | Mgas . | rgas . |
---|---|---|---|---|---|---|---|---|
. | (1010 M⊙) . | (kpc) . | (1010 M⊙) . | (kpc) . | (1010 M⊙) . | (kpc) . | (1010 M⊙) . | (kpc) . |
gSa | 4.6 | 2 | 6.9 | 4 | 11.5 | 10 | 1.3 | 5 |
gSb-st | 1.1 | 1 | 4.6 | 5 | 17.2 | 12 | 0.9 | 6 |
gSb-dmx | 2.2 | 1 | 9.2 | 5 | 11.4 | 12 | 0.9 | 6 |
gSb-nfw | 1.1 | 1 | 4.6 | 5 | 17.2 | 12 | 0.9 | 6 |
gSd-st | 0 | – | 5.7 | 6 | 17.2 | 15 | 1.7 | 7 |
gSd-dmx | 0 | – | 11.4 | 6 | 11.4 | 15 | 1.7 | 7 |
gSd-nfw | 0 | – | 5.7 | 6 | 17.2 | 15 | 1.7 | 7 |
Model . | Mb . | rb . | Md . | rd . | Mh . | rh . | Mgas . | rgas . |
---|---|---|---|---|---|---|---|---|
. | (1010 M⊙) . | (kpc) . | (1010 M⊙) . | (kpc) . | (1010 M⊙) . | (kpc) . | (1010 M⊙) . | (kpc) . |
gSa | 4.6 | 2 | 6.9 | 4 | 11.5 | 10 | 1.3 | 5 |
gSb-st | 1.1 | 1 | 4.6 | 5 | 17.2 | 12 | 0.9 | 6 |
gSb-dmx | 2.2 | 1 | 9.2 | 5 | 11.4 | 12 | 0.9 | 6 |
gSb-nfw | 1.1 | 1 | 4.6 | 5 | 17.2 | 12 | 0.9 | 6 |
gSd-st | 0 | – | 5.7 | 6 | 17.2 | 15 | 1.7 | 7 |
gSd-dmx | 0 | – | 11.4 | 6 | 11.4 | 15 | 1.7 | 7 |
gSd-nfw | 0 | – | 5.7 | 6 | 17.2 | 15 | 1.7 | 7 |
Snapshots
The snapshots from the FFT-sticky particles simulation were extracted from the data using a projection code specifying the inclination angle and the position angle (PA) and deriving the radial velocity of the gas particles at each point of a data cube. The data cube has three axes, the first and second axis are the right ascension and declination and the third axis is the velocity in km s−1. Each cubes have 50 channels with a 12.5 km s−1 velocity resolution. The cube is then transformed into a fits file. The projection angle PA was varied between 10 to 180 deg in order to cover a wide range of intrinsic bar orientations for all the snapshots.
We select the snapshots where the bar has reached a quasi-stationary state (most of the gas have been converted into stars), but is still strong enough, and there is enough gas remaining in the disc to sample the rotation velocities with gas only. Indeed, the simulations do not take into account gas accretion form the cosmic filaments, and the gas density is progressively reduced by star formation.
Measuring the rotational velocities
Using the tilted-ring method with rotcur
The data cubes extracted from the simulation snapshots were analysed with the Groningen Image Processing System (gipsy: http://www.astro.rug.nl/∼gipsy/) software. The task rfits was used to convert the fits file into a gipsy format, then the fits headers were changed using fixhed. The following parameters were modified in the header; the axis and the pixel size which is necessary before extracting the velocity fields. The task momnt was used to produce the moment maps, and the rotation velocities were derived using rotcur. The expansion velocity is fixed to zero for all the models. We choose an inclination angle of 60 deg which is suitable for the kinematical studies. The systemic velocity ( Vsys) and PA are fixed using the following values: Vsys = 0.0 km s−1 and PA = 0.0 deg during the fitting procedures.
The process of deriving the RCs includes three steps; first, the PA and inclination are held fixed using the optical values and the systemic velocity and position centre (Xpos and Ypos) are allowed to vary; secondly, the systemic velocity and the kinematic centre are held fixed and the PA and inclination are let free to vary; finally, all the above parameters are fixed and the average values are used to derive the RCs.
Using the diskfit bisymmetric model
diskfit (Spekkens & Sellwood 2007) is specifically designed to correct the non-circular flows due to bars. It creates physical models from the observed velocity fields and extracts the velocities and other parameters from the model velocity map. diskfit also uses a bootstrap method to estimate the uncertainty on the parameters and uses all the data during the fitting procedures.
RESULTS AND DISCUSSIONS
Results using rotcur
The results for the FFT-sticky particles code for three different bar orientations are shown in Figs 2 –4 for the gSa, gSb and gSd models, respectively. The snapshots were taken at the following epoch T = 700 Myr for gSa, T = 700 Myr for gSb and T = 900 Myr for gSd. The intensity maps of the particles, which show the orientations of the bar (MOMENT0 maps) are shown in the left-hand panels and the velocity fields with isovelocity contours (ΔV = 50 km s−1) (MOMENT1 maps) are shown in the middle. The axes of the moment maps are in arcsec. A distance of 16.5 Mpc is adopted to convert from arcsec to parsec scale for all the models. Comparison between the expected RCs and the measured RCs using rotcur are shown in the right-hand panels. The expected RCs are presented as continuous lines and the RCs derived using rotcur as black circles.

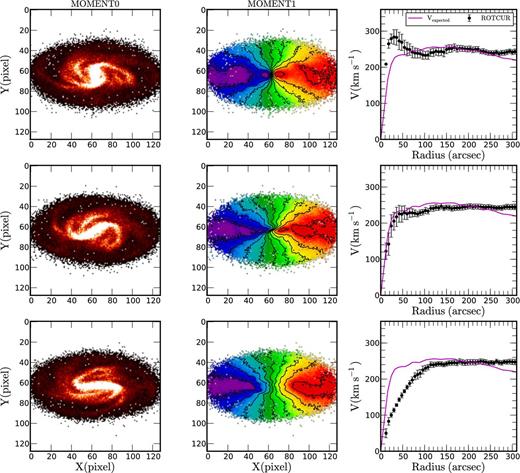

Three different bar positions for the model gSa (FFT-sticky particles, T = 700 Myr) Top panel: the bar is perpendicular to the major axis, middle panel: intermediate position and bottom panel: parallel to the major axis. The first column is the moment0 map, second column the moment1 map superposed with the isovelocity contours and the third column the comparison between the expected velocities shown as a continuous line and the measured rotation velocities derived using rotcur (black points). The axes of the moment maps are in pixels (1 pixel = 5 arcsec).

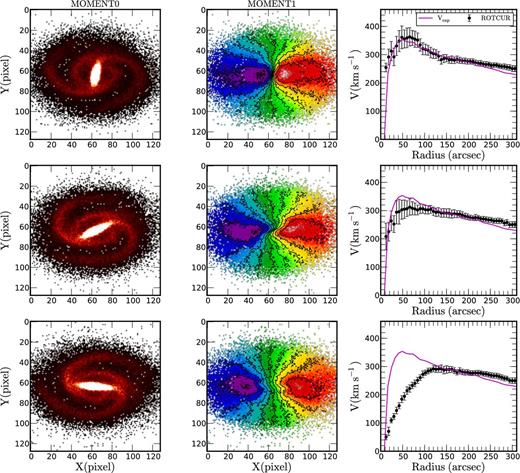

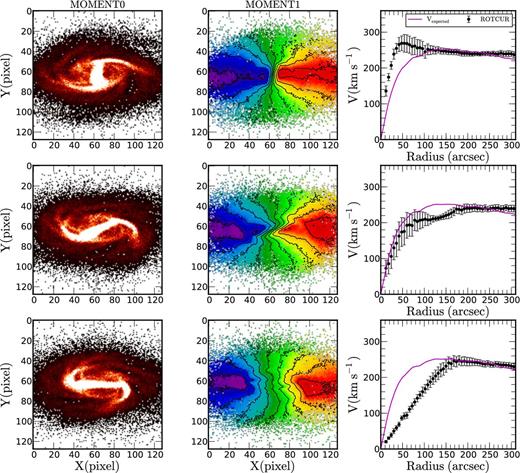

Three different bar positions for the model gSb (FFT-sticky particles, T = 700 Myr see Fig. 2 for details).

Three different bar positions for the model gSd(FFT-sticky particles, T = 900 Myr see Fig. 2 for details).
rotcur overestimates the rotation when the bar is perpendicular to the major axis except for the gSa model for which most of the mass comes from the bulge component. The top panels of Fig. 2 shows that the measured rotation velocities using rotcur and the expected rotation velocities are in good agreement even if the bar is perpendicular with the major axis. This is probably because the higher velocity due to the gas streaming motion along the bar is compensated by the contribution from the bulge. The differences between the measured rotation velocities and those expected from the gravitational potential are the largest when the bar is aligned with the major axis. Fig. 5 shows a comparison between the expected rotation velocities from the total mass of the galaxy and the average rotation velocities (obtained using rotcur) for four snapshots. The rotation velocities of 12 simulated galaxies with different bar orientations were extracted and averaged for each snapshot (PA varies between 0 and 180 in steps of 15 deg). The error bars are the 1σ standard deviations. In the top-left panel, the bar starts to form but its effect on the derived rotation velocities is small. The two bottom panels present larger error bars, with a maximum of 60 km s−1 in the inner regions.

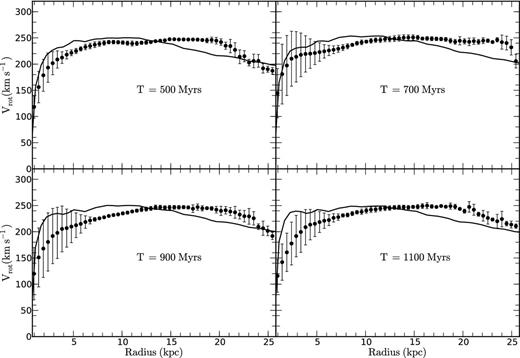

Standard gSb galaxy model: comparison between the expected RCs calculated from the gravitational potential as continuous lines and the average RCs for different bar orientations as filled circles with the 1σ error bars. The RCs of 12 simulated galaxies with different bar orientations were extracted and averaged for each snapshot (PA varies between 0 and 180 deg with a step of 15 deg). The epochs of the snapshots are shown on the graph.
The average RCs derived from the snapshots with the strongest bars (see Table 2 for the epochs) for all the models are shown in Fig. 6. The top panel is the gSa model with an ISO DM halo. The average of the measured RCs seems to be lower compared to the expected rotation velocities calculated from the gravitational potential. The error bars are larger in the inner parts of the modelled galaxies which implies that the differences between the rotation velocities are only due to the bar orientations. These error bars represent the variation of the derived RCs compared to the mean RCs. The gSb model (FFT-sticky) is shown in the middle panel. On the left is the model with the ISO DM halo, in the middle the maximum disc model and on the right, the NFW model. The gSd model is presented in the bottom panel; the standard model on the left, the maximum disc model in the middle and the NFW model on the right.
The maximum departure from the average rotation velocities (maximum standard deviation) for each model, are given in Table 2. The first column is the name of the model, the second column the epoch corresponding to the strongest bar and the last column the maximum deviation from the mean velocity.
Maximum departure from the average velocity (i.e. maximum deviation) for the snapshots with the strongest bars.
Model . | Epochs . | Maximum deviation . |
---|---|---|
. | (Myr) . | (km s−1) . |
gSa-st | 800 | 60.72 |
gSb-st | 1000 | 51.45 |
gSb-dmx | 600 | 53.45 |
gSb-nfw | 900 | 52.09 |
gSd-st | 1000 | 57.27 |
gSd-dmx | 700 | 68.48 |
gSd-nfw | 900 | 25.80 |
Model . | Epochs . | Maximum deviation . |
---|---|---|
. | (Myr) . | (km s−1) . |
gSa-st | 800 | 60.72 |
gSb-st | 1000 | 51.45 |
gSb-dmx | 600 | 53.45 |
gSb-nfw | 900 | 52.09 |
gSd-st | 1000 | 57.27 |
gSd-dmx | 700 | 68.48 |
gSd-nfw | 900 | 25.80 |
Maximum departure from the average velocity (i.e. maximum deviation) for the snapshots with the strongest bars.
Model . | Epochs . | Maximum deviation . |
---|---|---|
. | (Myr) . | (km s−1) . |
gSa-st | 800 | 60.72 |
gSb-st | 1000 | 51.45 |
gSb-dmx | 600 | 53.45 |
gSb-nfw | 900 | 52.09 |
gSd-st | 1000 | 57.27 |
gSd-dmx | 700 | 68.48 |
gSd-nfw | 900 | 25.80 |
Model . | Epochs . | Maximum deviation . |
---|---|---|
. | (Myr) . | (km s−1) . |
gSa-st | 800 | 60.72 |
gSb-st | 1000 | 51.45 |
gSb-dmx | 600 | 53.45 |
gSb-nfw | 900 | 52.09 |
gSd-st | 1000 | 57.27 |
gSd-dmx | 700 | 68.48 |
gSd-nfw | 900 | 25.80 |
Bisymmetric model results using diskfit
An input parameter file is used to run diskfit. This file includes the following: a fits file that contains the velocities which are used to derive the kinematics; the initial values for the PA of the disc and bar, the systemic velocity, the axis ratio and the kinematic centre. These parameters can be fixed or let free to vary. For a complete list of parameters, the reader is advised to look at the original paper of Spekkens & Sellwood (2007) and the diskfit manual.
The results for the gSb model (T = 700 Myr) using the bisymmetric model is shown in Fig. 7 for three different bar orientations. Top panel shows the bar perpendicular to the major axis, middle panel shows the bar in an intermediate position and on the bottom panel the bar is parallel to the major axis. The first column is the moment0 map, second column the moment1 map superposed with the isovelocity contours and the third column the comparison between the expected velocities shown as a continuous lines and the diskfit results. The mean circular velocity Vt is shown as black circles, the tangential component of non-circular motion V2,t as blue diamonds, radial components of the non-circular motion V2,r as red squares and the expected circular velocity Vexpected as a continuous magenta lines. Φb is the bar PA in degrees obtained from diskfit. diskfit is able to reproduce the expected velocities calculated from the gravitational potential and its derivatives when the bar is in intermediate positions but runs into difficulties when the PA of the bar Φb is parallel or perpendicular to the major axis. This shows that diskfit produces very large values for the rotation velocities and the error bars when the bar is perpendicular with the major axis because of the degeneracy in the model parameters (Sellwood & Sánchez 2010).

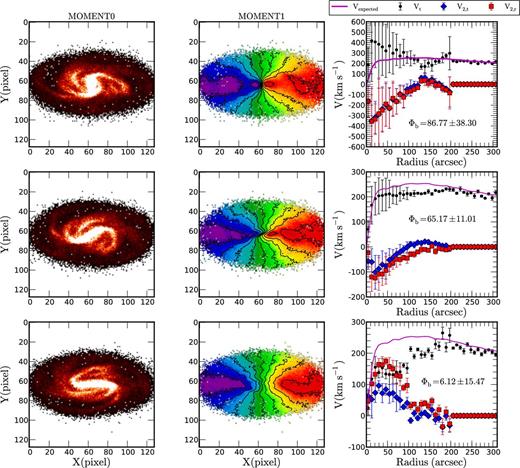

diskfit results using the bisymmetric model (m = 2) for the gSb model (T = 700 Myr). Top panel: the bar is perpendicular to the major axis, middle panel: intermediate position and bottom panel: parallel to the major axis. The first column is the moment0 map, second column the moment1 map superposed with the isovelocity contours and the third column the comparison between the expected velocities shown as a continuous line and the and the diskfit results. The mean circular velocity Vt is shown as black circles, the tangential component of non-circular motion V2,t as diamonds, radial components of the non-circular motion as squares and the expected circular velocity Vexpected as a continuous lines. Φb is the bar PA in degrees obtained from diskfit. The axes of the moment maps are in pixels (1 pixel = 5 arcsec).

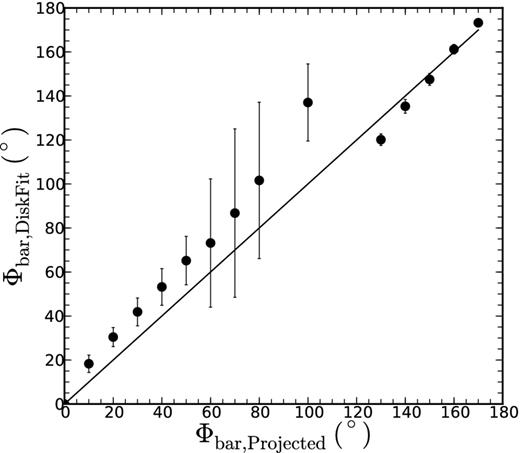

Fig. 8 compares the projected PA of the bar Φb,projected and those obtained using diskfit. diskfit gives higher values as compared to the expected PA of the bar Φb and run into difficulty when the bar is close to 90 deg.

Comparison between the projected bar PAs and those obtained from diskfit.
This is the reason why a different approach is needed when the bar is aligned with the major or minor axis. Here, we propose to use N-body simulations of barred galaxies to estimate the non-circular motions.
TEST CASE : NGC 3319
diskfit and rotcur are both very successful methods for deriving RCs from velocity maps. However, Section 3 uses simulations to show that both methods fail at recovering the true RC when a bar is aligned with the major or minor axis of an image. An alternate approach may be to use simulations to correct the RCs for non-circular motions. This will avoid many of the issues with either rotcur or diskfit. We illustrate this method using NGC 3319, which has its bar aligned with the major axis, as a test case. NGC 3319 is a gas-rich barred spiral galaxy classified as SBcd(rs) by de Vaucouleurs et al. (1991) at a distance of 14.3 Mpc (Sakai et al. 1999). We compare the inferred mass profile for the uncorrected and corrected RCs and show that the conclusions about the dark halo structure vary greatly. While our method still needs refinement, this result clearly demonstrates the importance of taking into account non-circular motions.
Observations and data reduction
The H i observations were obtained using the C configuration of the Very Large Array for a total observing time of 5.75 h on-source. Details of the observations are presented in Moore & Gottesman (1998). The raw data were retrieved from the archive, edited and calibrated using the standard National Radio Astronomical Observatory (NRAO) Astronomical Image Processing System (AIPS) packages. Data cubes were then obtained and cleaned with the AIPS task imagr using robust0 weighting, which optimizes sensitivity and spatial resolution. 1031+561 is the phase and amplitude calibrator and 3C286 the flux calibrator. The C array data provide the proper spatial resolution for mass model analysis. The data cubes have 64 channels with 10.33 km s−1 velocity resolution and 16 arcsec angular resolution, which corresponds to a linear physical resolution of ∼1 kpc at the adopted distance of 14.3 Mpc. The moment maps were extracted from the data cubes using the AIPS task momnt. Fig. 9 shows four different maps for NGC 3319. The WISEW1 image is shown at the top left. This band is essentially free from dust extinction and gives the best representation of the stellar content of the galaxy. The moment0 map (H i gas distribution) is at the top-right, the moment1 map (velocity field) at the bottom-left and the moment2 map (velocity dispersion) in the bottom-right panel.

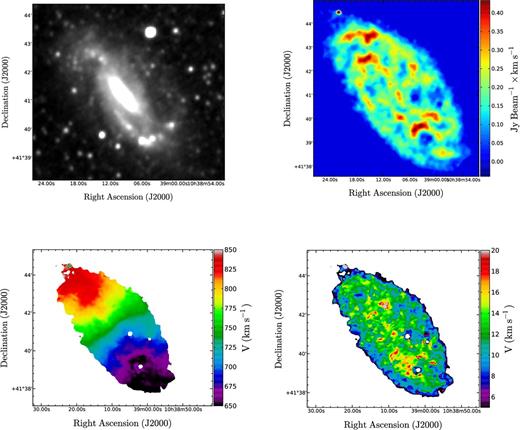

This figure shows several maps of NGC 3319. The top-left panel shows the WISEW1 band (3.4 μm) image, where the bar and spiral arms are clearly seen; the moment0 map (H i distribution) is shown in the top-right panel, the moment1 map (H i velocity field) in the bottom-left panel and the moment2 map (H i velocity dispersion) in the bottom-right corner.
The tilted-ring method, implemented in the gipsy task rotcur, is used to derive the RC. The moment1 velocity map was used as input for rotcur. The tilted-ring analysis was done in three steps.
The PA and inclination angle (i) were fixed using the values of 37o and 58o found by Moore & Gottesman (1998) in order to estimate the systemic velocity and the kinematical centre. Our measured rotation centre and systemic velocity of 742 ± 2 km s−1 are consistent with (Moore & Gottesman 1998, see their table 3).
The systemic velocity and the rotation centre were kept fixed using the values obtained in the first step and the PA and inclination were allowed to vary to investigate their variation as a function of radius.
Finally in the final step, the kinematical parameters were all fixed and only the rotation velocities were derived.
The results from the tilted-ring analysis are presented in Fig. 10. The variation of the inclination as a function of radius is shown in the top panel, the PA in the middle panel and the RCs in the bottom panel. The results from the receding half is presented as red squares, those from the approaching half as blues circles and those obtained using both halves as black diamonds.

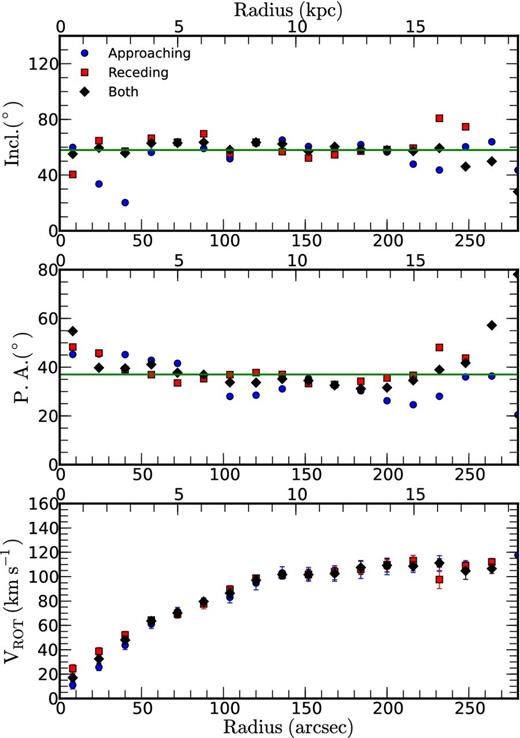

Tilted-ring model results obtained with the gipsy task rotcur. The variation of the inclination as a function of radius is shown in the top panel and the PA variation in the middle panel. The RC presented in the bottom panel was obtained with all the kinematical parameters, including PA and the inclination, kept fixed to their average values. The results from the receding side are presented as red squares, those from the approaching side as blue circles and from both sides as black diamonds. The lines correspond to PA = 37° and i = 58°.
Model-based correction to the RC
As discussed in Section 3, the RC is underestimated when the bar is aligned with the major axis because of the gas streaming along the bar. Therefore, the effects of those non-circular motions need to be estimated, and a correction needs to be applied to the RC before it can be used for the mass models.
We introduce the following step to correct the RCs for the non-circular motion induced by the bar.
The correction is derived from the differences between the expected RC of the model, which is calculated from the true gravitational potential of the modelled galaxy, and the observed RC measured using the tilted-ring method (rotcur)
The correction is scaled in terms of velocity using the Vmax ratio, i.e. (|$\frac{V_{{\rm max}, {\rm object}}}{V_{{\rm max}, {\rm model}}}$|) and in terms of radius using the ratio between the disc scalelengths, i.e. (|$\frac{R_{{\rm d}, {\rm object}}}{R_{{\rm d}, {\rm model}}}$|) before being used to correct the RC of an actual galaxy.
The modelled galaxy (model) and the actual galaxy (object) should have similar bar properties, the distance also have to be taken into account.

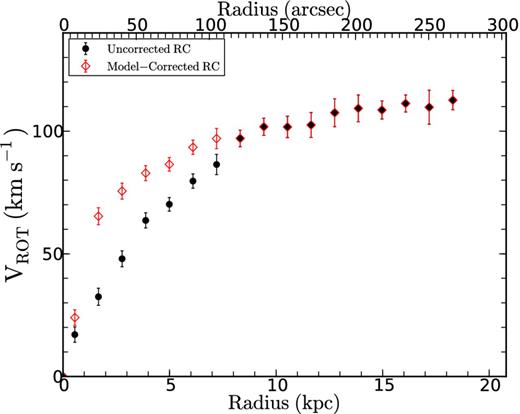

To apply the corrections, the data from the model were normalized by the optical scalelength in radius and by the maximum velocity in velocities using the steps described above. The data are then extrapolated to obtain the correction at a given radius. The distance of NGC 3319 is used to convert from angular scale into physical scale. Comparison between the corrected and uncorrected RC is shown in Fig. 11.

Despite the fact that NGC 3319 is classified as an SBcd galaxy, the gSb model presented at the bottom panel of Fig. 3 is used to derive the corrections. This is because the gSd model does not have a bulge component (see Table 1) and that the bulge-to-disk (B/D) ratio of the gSb model obtained from the ratio between the bulge mass and disc mass given in Table 1Mb/Md = 0.239 is very similar to the B/D = 0.24 of NGC 3319 estimated from the 3.6 μm surface brightness profile.
In this illustrated test case, we do not pretend to accurately correct for the non-circular motions induced by the bar. In the continuation of this work, we intend to match even more accurately the simulated galaxies to the actual galaxies. However, we think that the gSb simulation used is close enough to NGC 3319 to show clearly how not taking into account the effect of bars can lead to deriving very different parameters for the derived DM component. We still have to investigate if it is the best way to scale the model to the actual galaxies. However, this is surely close enough to serve the purpose of this study.
Mass model
DM halo component
The distribution of DM is characterized by a density profile. The observationally motivated pseudo-ISO halo and the cosmologically motivated NFW (Navarro et al. 1996) profiles are widely used. The mass model is done by comparing the observed RCs with the quadratic sum of the luminous and DM components using a χ2 minimization technique. The mass models were carried out using the gipsy tasks rotmas and rotmod.
The pseudo-ISO DM halo model.
We can describe the steepness of the inner slope of the mass density profile with a power law ρ ∼ rα. In the case of the ISO halo, where the inner density is an almost constant density core, α = 0.
The NFW DM halo model.
Luminous matter components
Gas contribution.
The contribution from the gas is estimated from the moment0 maps. The task ellint is used to compute the H i gas density profile using the kinematic parameters obtained with rotcur. ellint divides the moment0 map into concentrated rings and estimates the density for each ring. The output from ellint is then used in rotmod to calculate the gas contribution in the mass model, assuming an infinitely thin disc. The profile was multiplied by 4/3 to take into account the primordial helium contribution.
Stellar contribution.
The SPITZER 3.6 μm surface brightness profile is used to calculate the stellar contribution. Near-infrared probes most of the emission from the old stellar disc population. It is also less affected by dust and therefore represents the bulk of the stellar mass. The data were retrieved from the SPITZER archive. After the foreground stars were removed, the images were fitted with concentric ellipses using the ellint task in gipsy. The results were then converted into a surface brightness profile in mag arcsec−2 using the method in Oh et al. (2008).
The bulge–disc decomposition.
The surface brightness profile in Fig. 12 clearly shows that this galaxy has a bulge in the centre, thus a bulge–disc decomposition is needed to better constraint the contribution from the stellar component.

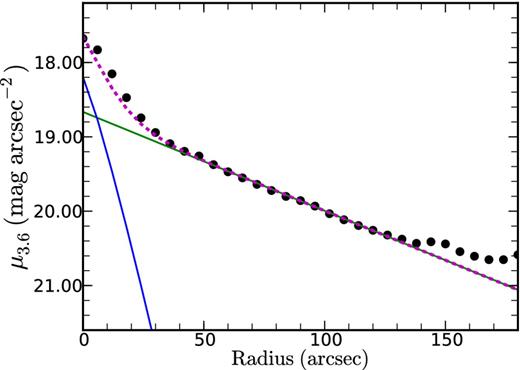

Bulge–disc decomposition, the green line is the best fit for the disc, the blue for the bulge and the dashed magenta line the sum of the contribution from both components.
Mass-to-light ratio.
The mass-to-light ratio (ϒ*) for the IRAC1 band is normally derived using the J-K colour (see de Blok et al. 2008; Oh et al. 2008). However, this method gives a higher mass-to-light ratio for the disc component than the bulge component which is unphysical. de Denus-Baillargeon et al. (2013) uses chemo-spectrophotometric galactic evolution models to constrain the mass-to-light ratio of nearby galaxies as function of radius. We use their results to estimate the mass-to-light of NGC 3319. NGC 3319 and NGC 2403 have the same morphological type (SBcd) and similar maximum velocity but NGC 3319 has a larger bulge compared to NGC 2403. The values used for the mass model are given in Table 3.
Results for the ISO and NFW DM halo models using the uncorrected and corrected RCs.
Halo model . | Params . | Uncorrected RC . | Corrected RC . |
---|---|---|---|
ISO | ρ0 | 5.55 ± 0.99 | 74.08 ± 15.15 |
Rc | 6.91 ± 1.11 | 1.34 ± 0.16 | |
ϒd | 0.25 | 0.25 | |
ϒb | 0.40 | 0.40 | |
|$\chi ^{2}_{{\rm r}}$| | 1.35 | 0.75 | |
NFW | c | 0.43 ± 0.01 | 5.18 ± 0.73 |
R200 | 147.25 ± 11.00 | 56.46 ± 3.44 | |
ϒd | 0.25 | 0.25 | |
ϒb | 0.40 | 0.40 | |
|$\chi ^{2}_{{\rm r}}$| | 3.24 | 1.44 |
Halo model . | Params . | Uncorrected RC . | Corrected RC . |
---|---|---|---|
ISO | ρ0 | 5.55 ± 0.99 | 74.08 ± 15.15 |
Rc | 6.91 ± 1.11 | 1.34 ± 0.16 | |
ϒd | 0.25 | 0.25 | |
ϒb | 0.40 | 0.40 | |
|$\chi ^{2}_{{\rm r}}$| | 1.35 | 0.75 | |
NFW | c | 0.43 ± 0.01 | 5.18 ± 0.73 |
R200 | 147.25 ± 11.00 | 56.46 ± 3.44 | |
ϒd | 0.25 | 0.25 | |
ϒb | 0.40 | 0.40 | |
|$\chi ^{2}_{{\rm r}}$| | 3.24 | 1.44 |
Notes: ϒd is the mass-to-light ratio for the stellar disc and ϒb for the bulge. The central DM density ρ0 is given in units of 10−3 M⊙ pc−3; Rc and R200 are in kpc.
Results for the ISO and NFW DM halo models using the uncorrected and corrected RCs.
Halo model . | Params . | Uncorrected RC . | Corrected RC . |
---|---|---|---|
ISO | ρ0 | 5.55 ± 0.99 | 74.08 ± 15.15 |
Rc | 6.91 ± 1.11 | 1.34 ± 0.16 | |
ϒd | 0.25 | 0.25 | |
ϒb | 0.40 | 0.40 | |
|$\chi ^{2}_{{\rm r}}$| | 1.35 | 0.75 | |
NFW | c | 0.43 ± 0.01 | 5.18 ± 0.73 |
R200 | 147.25 ± 11.00 | 56.46 ± 3.44 | |
ϒd | 0.25 | 0.25 | |
ϒb | 0.40 | 0.40 | |
|$\chi ^{2}_{{\rm r}}$| | 3.24 | 1.44 |
Halo model . | Params . | Uncorrected RC . | Corrected RC . |
---|---|---|---|
ISO | ρ0 | 5.55 ± 0.99 | 74.08 ± 15.15 |
Rc | 6.91 ± 1.11 | 1.34 ± 0.16 | |
ϒd | 0.25 | 0.25 | |
ϒb | 0.40 | 0.40 | |
|$\chi ^{2}_{{\rm r}}$| | 1.35 | 0.75 | |
NFW | c | 0.43 ± 0.01 | 5.18 ± 0.73 |
R200 | 147.25 ± 11.00 | 56.46 ± 3.44 | |
ϒd | 0.25 | 0.25 | |
ϒb | 0.40 | 0.40 | |
|$\chi ^{2}_{{\rm r}}$| | 3.24 | 1.44 |
Notes: ϒd is the mass-to-light ratio for the stellar disc and ϒb for the bulge. The central DM density ρ0 is given in units of 10−3 M⊙ pc−3; Rc and R200 are in kpc.
Results
The mass model results for the uncorrected and corrected RCs are presented in Fig. 13 for the ISO and NFW models. The observed RC is shown as filled black circles with error bars, the gas contribution as dashed green lines, the stellar disc contribution as dashed red lines, the stellar bulge contribution as long-dashed blue lines and the contribution from the DM haloes as dashed magenta lines. The continuous lines are the best-fitting models to the RC. Table 3 summarizes the results for the ISO and NFW models. The columns are described as follows, the first column is the type of DM halo used, the second column gives the parameters of the fits, the third and fourth columns are the results. For the ISO models, the DM halo is much more centrally concentrated when the corrected RC is used with an RC ∼ 1 kpc compared to ∼5 kpc for the uncorrected RC and a much larger ρ0 (see Table 3 for details). It is clear that the corrected and uncorrected RC give very different results for the DM parameters which shows the importance of those corrections for non-circular motions. The same is true for the NFW models where the concentration index c is five times larger when the corrected RC is used and R200 much smaller. Both the ISO and NFW models give very good fits to the corrected RC with smaller |$\chi ^{2}_{{\rm r}}$|. This confirms that the parameters of the DM halo are strongly affected by the non-circular motions induced by the bar, especially when the bar is aligned with the major axis. A large portion of the mass will be missed if the RC is not corrected and different conclusions could be drawn from the DM parameters. The difference between the uncorrected and corrected RC is still significant even after the bulge component has been taken into account. This is a clear demonstration that corrections must be applied to the observed RC so that it really represents the dynamical mass of barred systems.

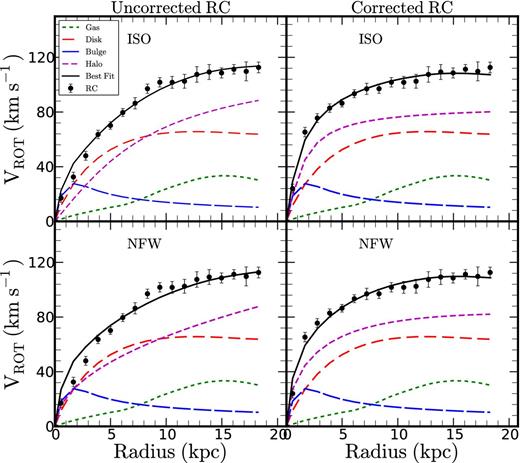

Mass models using ISO DM halo model (top) and NFW DM halo model (bottom) for the uncorrected (left) and model-corrected (right) RCs. Lines and symbols are shown on the top-left corner of the first panel.
SUMMARY
We have presented the analysis of snapshot observations of N-body/hydrodynamic simulations of barred spiral galaxies with different bar strengths and orientations to quantify the non-circular motions induced by a bar. In the simulations, the bar forms naturally due to gravitational instabilities. Therefore, snapshots of simulated galaxies spanning a wide range of bar strengths and bar orientations can be extracted and analysed. Several models with different morphological types and DM halo distributions are analysed.
The results from the tilted-ring method using rotcur show that the rotational velocities are largely underestimated if the bar is parallel to the major axis and overestimated if the bar is perpendicular except for an Sa galaxy which has an important central bulge for both simulations. This is consistent with Dicaire et al. (2008). This corresponds to the elongated orbits of the gas along the bar, which enhance the velocities at pericentre and reduce them at apocentre. Part of the gas and dust are moving alongside the bar which increases the measured circular velocity when the bar is parallel to the major axis and decreases it if the bar is aligned with the minor axis. The effect is smaller when the bar is in an intermediate position.
We also use diskfit for our analysis. diskfit is specifically designed to fit non-axisymmetric distortions from 2D velocity maps (Spekkens & Sellwood 2007). However, diskfit works only when the bar is not aligned with the symmetry axes of the projected galaxy, and strong distortions are seen in the velocity field.
Sellwood & Sánchez (2010) noted that the circular velocity is biased low when the bar is parallel to the major axis (apocentre) since the gas follows an elliptical pattern and that the circular speed should be higher when the bar is aligned with the minor axis.
The test case in Section 4 shows that the distribution of mass in NGC 3319 is very affected by the non-circular motions induced by the bar. For example, the central DM core is much more compact when the corrected RC is used. The ISO and NFW results are very different in all cases for the corrected and uncorrected RCs.
For future work, snapshot observations with different bar strengths and orientations will be studied to estimate the corrections that need to be applied to the observed rotation velocities of a sample of barred galaxies with a variety of bar strength and bar orientation. A sample of barred galaxies with different bar sizes and orientations will be selected and modelled. This will help us to compare the results from the observations and the simulations for the individual galaxies. The main aim of this future work is to try to match as closely as possible the parameters of the model and the parameters of the galaxies, especially those of the bar. In particular, we will try to closely match the DM halo-to-luminous disc ratios.
We thank the anonymous referees for the comments and suggestions. CC's work is based upon research supported by the South African Research Chairs Initiative (SARChI) of the Department of Science and Technology (DST), the SKA SA and the National Research Foundation (NRF); ND and TR's work is supported by an SARChI's South African SKA Fellowship. We thank T. Jarrett for the WISE image.
REFERENCES
APPENDIX A: NUMERICAL DETAILS ABOUT THE SIMULATIONS
The first simulation was done with a 3D particle-mesh code, based on FFT, with a useful grid of 1283. The algorithm of James (1977) is used to suppress the Fourier images, and gain a factor of 8 in memory. A total number of particles of 240 000 is distributed on the grid, and the density is computed with the cloud in cell algorithm. The gas is represented by sticky particles, colliding with inelastic collisions. At each encounter, the relative velocity of the clouds is multiplied by 0.65 in the radial direction, and 1 in the tangential direction, which keeps the angular momentum conserved.
The star formation is assumed to follow a Schmidt law, with exponent n = 1.4, and a density threshold. It is calibrated for a gas consumption time-scale of 5 Gyr. We do not assume instantaneous recycling, but take into account a continuous mass-loss, across Gyr (Jungwiert, Combes & Palouš 2001). The mass-loss by stars is distributed through gas on neighbouring particles, with a velocity dispersion of 10 km s−1, to schematize the feedback energy.
The RCs are fitted to the observed typical curves for these Hubble types. For these giant spiral galaxies, the total mass inside 35 kpc is 2.4 1011 M⊙, with 75 per cent DM and 25 per cent baryons, for the standard model, and almost equality between baryons and DM for the disc-dominated (dmx) model. According to the Hubble types, Sa, Sb, Sd, the B/D ratio is varied.
Similar simulations with Tree-SPH have also been run, with the same initial conditions (cf. Di Matteo et al. 2007). In this code, gravitational forces are calculated using a hierarchical tree method (Barnes & Hut 1986) and gas evolution is followed by means of SPH (Lucy 1977; Gingold & Monaghan 1982). Gravitational forces are calculated using a tolerance parameter θ = 0.7 and include terms up to the quadrupole order in the multipole expansion. A Plummer potential is used to soften gravitational forces, with same softening lengths for all particle types, of 250 pc. The code and the various validation tests were described in Semelin & Combes (2002). In this study, we use the ISO gas phase (gas temperature of 104 K), adopted for the GalMer runs (Chilingarian et al. 2010). To capture shocks a conventional form of the artificial viscosity is used, with parameters α = 0.5 and β = 1.0 (Hernquist & Katz 1989). Because of the short cooling time of disc gas, fluctuations in the gas temperature are quickly radiated away, so that simulations employing an ISO equation of state are justified.
Star formation and continuous stellar mass-loss, together with supernovae feedback are taken into account. We parametrized the star formation efficiency for an SPH particle as |$\frac{{\rm d}M_{{\rm gas}}}{{\rm d}t M_{{\rm gas}}} = C \rho ^{1/2}$|, with the constant C chosen such that the unperturbed giant disc galaxies form stars with a gas depletion time-scale of 2 Gyr. This is equivalent to a Kennicutt–Schmidt law of exponent 1.5.
To avoid to form too small stellar particles, we adopt the method of hybrid particles, where progressively the gas particles contain a stellar fraction for a certain time-scale, until the remaining gas fraction falls below 5 per cent. Then the particle is transferred to the stellar component, and the gas is distributed over neighbouring hybrid particles.
The stellar feedback is implemented both with stellar mass-loss, and through supernovae. It is assumed that a percentage of 1 per cent of the young stellar population is becoming a supernova, i.e. all stars more massive than 8 M⊙, and the assumption of instantaneous recycling. The released mass also enriches the metallicity of the surrounding gas.
The stellar mass-loss at each time step, is accounted for by the method described by Jungwiert et al. (2001), and allows a more progressive metal enrichment of the interstellar medium.
APPENDIX B: RESULTS FROM THE SPH SIMULATION
The dynamics of the gas in disc galaxies are very complex systems and difficult to reproduce in numerical simulations. Therefore, to test the influence of our assumptions on the gas treatment on our results, we have considered the same simulations, with the same initial conditions, but run with the Tree-SPH code, used in the GalMer data base (cf. Chilingarian et al. 2010). The main features of the SPH-tree code for this particular simulation and also our treatment of star formation and feedback, are described in the Appendix A. The gas, which was considered essentially as an ensemble of dense clouds, dissipating their kinetic energy in collisions, is now considered as a fluid with pressure forces and shocks. The simulations have twice more particles, and the softening length is twice smaller, so that the spatial resolution of the hydrodynamic is larger. The velocity maps and other results from the GalMer project are publicly available and can be downloaded from their website (http://galmer.obspm.fr/; Chilingarian et al. 2010). Figs B1 and B2 display the results with the Tree-SPH code for the gSa and gSb galaxies, corresponding to Figs 2 and 3 with the FFT-sticky particles code. The gas behaviour is different, as expected, but the global feature due to the bar, the perturbations of the RC, are similar. For the orientation where the bar is parallel to the line of sight, the discrepancy between the true circular velocity and the ‘observed’ rotational velocity is even larger, since the spatial resolution is higher. In the FFT-sticky particles simulations, the high-velocity gradient was a bit smoothed out. This is less visible, when the bar is perpendicular to the line of sight, which is a configuration reducing the ‘observed’ velocity gradient. Therefore, this shows that using different simulation codes does not affect our results.

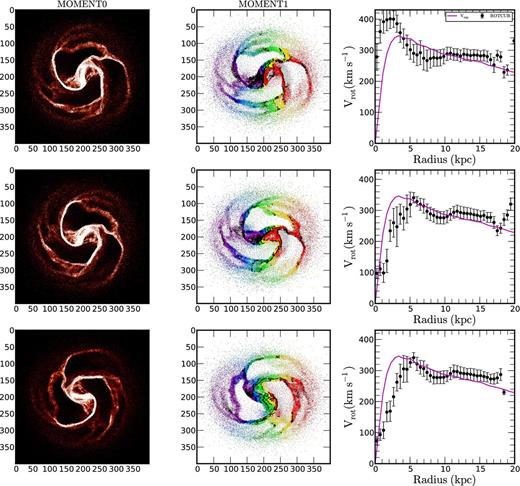

Three different bar positions for the model gSa (SPH simulation, T = 200 Myr). Top panel: the bar is perpendicular to the major axis, middle panel: intermediate position and bottom panel: parallel to the major axis. The first column is the moment0 map, second column the moment1 map superposed with the isovelocity contours and the third column the comparison between the expected RCs shown as a continuous line and the measured rotational velocities derived using rotcur (black points).

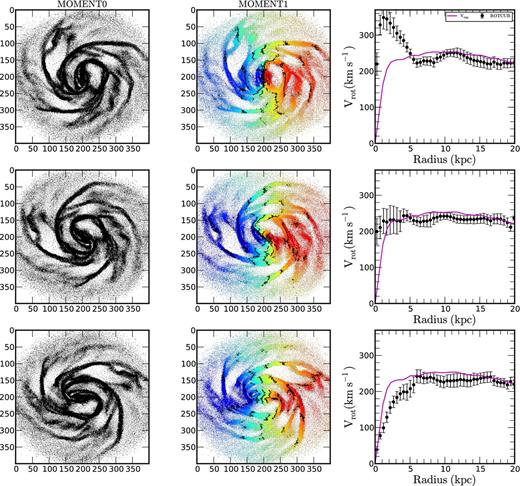

Three different bar positions for the model gSb (SPH simulation, T = 400 Myr see Fig. B1 for details).
