Guidance for Studies Evaluating the Accuracy of Sputum-Based Tests to Diagnose Tuberculosis Free

Abstract

For decades, sputum smear microscopy has been used as the initial test to detect active tuberculosis (TB). Despite its ubiquity, microscopy is suboptimal because it has low sensitivity, high interoperator variability, is largely unhelpful in extrapulmonary and childhood TB, and does not detect drug resistance [1–7].

Xpert MTB/RIF (Xpert; Cepheid, Sunnyvale, CA) overcame some shortcomings of sputum smear microscopy, based on its increased sensitivity and simultaneous detection of resistance to rifampicin [8]. Xpert is recommended by the World Health Organization (WHO) to be used as the initial test rather than microscopy for all persons with signs and symptoms of TB [9], and there has been substantial uptake by high burden countries [10].

However, 2 major barriers remain. First, Xpert is primarily suited for placement at the district hospital level or higher, which are above the subdistrict location where most smear microscopy is performed [11]. There remains no single rapid, accurate, and robust TB diagnostic test suitable for use at the subdistrict location. Second, in all but a very few high TB burden countries, the high cost of the instruments and maintenance and the costs of cartridges have prevented full adoption of this test (ie, its use as an initial test for all patients presenting with signs and symptoms of active TB) [12].

In an ideal setting, sputum would be replaced by a specimen that is easier to collect with less variability in quality (considerations for developing biomarker-based assays using nonsputum specimens are outlined further in the paper by Drain et al in this series [13]). However, sputum is likely to remain a crucial specimen for the immediate future because (1) currently no accurate nonsputum biomarker-based tests are available for TB, and (2) even if accurate nonsputum biomarker-based tests become available, drug-resistance testing will likely remain a necessity but may not be feasible with tests that are not based on pathogen deoxyribonucleic acid (DNA). Decentralized testing for TB also remains a priority in many settings because most TB patients present at primary care centers, specimen transport is challenging, and pretreatment loss to follow-up is common if there are diagnostic delays [14]. Thus, the development of a rapid, accurate, and simple smear-replacement test that can be implemented where patients first present for diagnosis remains a high priority [15]. Such a test should facilitate the initiation of appropriate treatment during the same clinical encounter or the same day.

In 2014, the WHO and partners developed target product profiles (TPPs) for new TB diagnostics, describing the minimal and optimal performance and operational characteristics of tests for high-priority needs, including a smear-replacement test that could be used in microscopy centers [15]. Microscopy centers are defined here as primary healthcare centers with attached peripheral laboratories with minimal infrastructure, and they are typically present at the subdistrict level, although microscopy may be done throughout a tiered network. At a minimum, a suitable test should (1) have high (>98%) specificity so that positive results can be used to rule-in TB, (2) have a higher sensitivity than sputum smear microscopy (>60% for smear-negative TB) to enable earlier detection of pulmonary TB, (3) be robust enough for use in microscopy centers (or comparable basic healthcare facilities) under challenging environmental conditions (temperature, humidity, dust, limited infrastructure), (4) be simple enough to be performed by healthcare workers with minimum training, and (5) have low cost (<$6 per test) to enable large-scale use. In an ideal setting, such a test should (1) have even higher (>95%) sensitivity, (2) cost less (<$4 per test), and (3) permit the monitoring of treatment response and drug-susceptibility testing (DST) [14] (see detailed discussion of this topic in the paper by Georghiou et al in this series [16]). Several emerging technologies (Table 1 [17]) have the potential to meet the need of a smear-replacement test, but developing a simple, affordable instrument that can meet the needs in microscopy centers remains challenging [18].

The goal of this article is to provide guidance for studies evaluating the diagnostic accuracy of sputum-based tests to diagnose TB. Although the main focus is on the evaluation of decentralized technologies, many considerations apply equally to more centralized testing systems. We summarize our recommendations in Table 2.

GENERAL STUDY DESIGN CONSIDERATIONS

To obtain unbiased and precise estimates of sensitivity and specificity, clinical studies evaluating diagnostic test accuracy should use a cross-sectional or cohort study design, enrolling a sufficient number of consecutive or randomly selected patients requiring TB evaluation (Figure 1). However, before undertaking resource-intensive prospective evaluations, case-control studies using banked specimens from well characterized cohorts and/or studies involving negative sputum specimens spiked with known numbers of Mycobacterium tuberculosis (MTB) bacilli may be performed first. It is important to note that case-control studies should avoid comparing severe cases to healthy controls that can result in overestimations of test accuracy (spectrum bias). Although such “proof-of-concept” studies are not a major focus of this document, investigators should be aware that these types of studies can play an important role in the early assessment of smear-replacement tests, particularly if they include head-to-head studies against assays with well established performance characteristics. If banked specimens are processed and stored appropriately, these specimens can be used to evaluate DNA-based tests. Once promising smear-replacement tests have been identified, they should be evaluated in clinical studies using fresh specimens collected and processed under routine conditions.

Figure 1.

Precision of accuracy estimates as function of sample size. The lines show the precision of accuracy estimates as a function of sample size, when sensitivity (blue line) and specificity (red line) are fixed at the minimum targets (60% sensitivity among smear-negatives, 98% specificity) established by the target product profile (TPP). The y-axis shows total width of the 95% confidence interval (CI) (ie, upper limit of the 95% CI minus the lower limit of the 95% CI) for sensitivity and specificity for a given sample size. The x-axis shows the number of smear-negative tuberculosis (TB) cases and non-TB cases needed to achieve a given precision for sensitivity and specificity, respectively. Sensitivity among smear-negative TB patients is shown here, rather than overall sensitivity, because (1) sensitivity for detecting this group is a crucial performance target in the TPP and (2) this group represents a small subset of all patients enrolled and thus drives sample size needs. Studies of novel smear-replacement tests should aim to enroll ≥60 smear-negative, culture-positive TB patients [23]. Assuming 30% smear-negative, culture-positive TB prevalence, 200 culture-positive TB cases (assuming no losses or exclusions) would be required to obtain a sensitivity estimate with a 24% 95% CI width. This figure also shows that increasing the sample size beyond 60 smear-negative culture-positive TB cases, yields diminishing returns in terms of narrowing the CI width.

Open in new tabDownload slide

POPULATION AND SETTING

The target population for initial accuracy studies of a new smear-replacement test should be adults self-presenting with respiratory symptoms suggestive of TB (ie, passive case finding), including people living with HIV (PLHIV). For patients without HIV, cough ≥2 weeks is used to identify patients with suspected TB [19, 20], whereas less stringent criteria (cough of any duration, fever, night sweats, or weight loss) is used for PWH and other high-risk groups [21]. Adults with suspected pulmonary TB represent the optimal initial study population because (1) the reference standard (culture) has good sensitivity in this patient group, (2) it represents the largest proportion of the target population to which the test would later be applied in practice, and (3) sufficient volume of sputum can usually be obtained from such patients. Patients in whom TB has already been diagnosed by another test or who have already started on TB treatment should be excluded, because enriching with patients that are positive by sputum smear microscopy or Xpert will lead to overestimates of sensitivity of the test under investigation.

Children and patients with extrapulmonary and early-stage TB are other important patient groups in whom accuracy needs to be determined, typically in separate and subsequent studies. Because they may have low numbers of bacilli in respiratory secretions or other specimens, sensitivity of a test is commonly lower than that obtained when testing sputum from adults with respiratory symptoms. Early-stage TB may also be encountered, for example, due to early presentation of patients to diagnostic clinical services or because patients were identified during screening or active case finding. For example, one important use for this will likely be the case when a smear-replacement test is used as the confirmatory test for those who are asymptomatic but screen positive by chest x-ray in an outreach setting.

Sensitivity of sputum-based tests depends on the bacillary burden of MTB in sputum specimens, and therefore presenting sensitivity estimates separately by smear status is essential to gauge performance in the most difficult-to-diagnose patients and to estimate the potential incremental yield over conventional sputum smear microscopy [22]. Providing accuracy estimates for PWH, children, or patients with early disease separately is also important (even if numbers are small), to allow inclusion in meta-analyses. Studies focusing specifically on these patient groups are also needed as a next step, once performance in adults with respiratory symptoms has been established.

In addition to the case-finding strategy (passive vs active case finding), test sensitivity is also influenced by the recruitment setting (community, clinic, hospital), which reflects the spectrum of TB disease severity in a population; pauci-bacillary TB will be more prevalent among patients undergoing clinic- or community-based case finding, relative to patients requiring hospitalization or self-presenting to clinics for respiratory symptoms. In an ideal setting, initial studies of novel smear-replacement tests will recruit patients self-presenting to primary healthcare centers with TB symptoms, to help ensure that the patient spectrum reflects both the case-finding strategy and clinical setting of intended test use. Pulmonary TB patients diagnosed in the outpatient setting, and especially during active case finding, tend to be relatively early in their disease process and thus have low bacillary burdens, a scenario that tends to drive down investigational test sensitivity compared with culture but augment incremental yield over sputum smear microscopy [24]. In addition, lower TB prevalence in the outpatient setting means that high assay specificity is critical to ensure that test positive predictive value remains sufficiently high. To facilitate assessment of patient spectrum, we recommend reporting, for each patient recruitment site, TB prevalence and proportion of TB cases that were smear-negative, culture-positive [22].

The site of patient recruitment may be different from the site where testing is conducted, but close attention must then be paid to appropriate sample transport to avoid high contamination rates. Initial data are usually best generated via testing in controlled laboratory settings, eg, in a few reference laboratories, to assess diagnostic accuracy under “ideal” conditions in a controlled environment (temperature, humidity, dust), stronger infrastructure (electricity, connectivity), and experienced staff (eg, with prior training on use of molecular methods and good laboratory practices to prevent cross-contamination events). Reference laboratories also typically allow easier access to optimal reference standard testing, facilities for resolution of discordant results, and the ability to test a large number of specimens in a standardized manner. While data from testing in settings of intended use are also critical to ensure consistent performance under more challenging conditions, this might only be possible in later implementation studies.

INDEX TEST

Clear reporting of how the index test (the test under investigation) is performed is essential, as is clear reporting on indeterminate and invalid results or instrument failures. Certain considerations may be important depending on the specifics of the index test. If a test can process a large sputum input volume, it may be important to allow 1 complete specimen to be tested by that test (ie, no “sharing of that specimen” with other technologies), because this may enable high sensitivity that would not be captured otherwise. A test that incorporates simultaneous DST also requires additional considerations (eg, low limit of detection for DST resistance targets) as discussed in “Paper 5” in this series [16]. If the assay readout is not automated and requires a degree of subjective interpretation, prespecification of cutoffs for positivity and blinding of readers to other test results are essential, and interreader reliability needs to be assessed.

REFERENCE STANDARD AND COMPARATORS

We recommend using at least 1 automated liquid culture as the primary reference standard for diagnostic accuracy studies of smear-replacement tests (please refer to discussion on this in “Paper 1” of this series [25]), and all those who received the index test should also receive the same reference standard to avoid partial or differential verification bias. It is important to acknowledge (1) that there can be large variability of bacillary load between specimens and even within specimens and (2) that even culture is not a perfect reference standard and thus that, because new assays are becoming increasingly more sensitive, false-negative culture results need to be considered—in particular after lengthy specimen transport or overly harsh decontamination of specimens.

Steps that can be taken to reduce the risk of bias due to limitations of the reference standard are as follows: (1) rigorous implementation of the reference standard, including quality control and quality assurance; (2) aiming for liquid culture contamination rates between 8% and 15% and monitoring these during the study; and (3) using more than a single culture per patient (ideally from multiple specimens obtained on different days) to define the reference standard. A clinical or composite reference standard may also be considered to supplement analyses based on culture, and this is particularly pertinent for pediatric and extrapulmonary TB (see further discussion on this topic in the paper in this series by Drain et al [13]).

Steps that can be taken to understand discordant (index-test-positive, culture-negative) results include the following: (1) thorough in silico analyses and exclusivity studies before study initiation; (2) following-up patients to uncover subsequent culture conversion and examination of alternative diagnoses; (3) environmental testing during the study to assess potential for cross-contamination; (4) sequencing of amplicons to detect potential nonspecific amplification; (5) rigorous assessment of prior treatment for TB; and (6) exploration of other patient- and setting-specific characteristics that may lead to false-positive results. Please see more detailed elaborations of these concepts in the accompanying glossary.

Accuracy estimates will vary between studies not only due to variation in patient spectrum but also as procedures for culture and microscopy vary [26]. For example, sensitivity estimates for the index test will decrease when using liquid rather than solid culture, with increasing number of cultures done, increasing number of specimens on which culture is performed, and increasing number of days on which specimens are obtained. In addition, estimates of sensitivity of the new test among smear-negative patients will be lower when (1) using a more sensitive process for smear analysis (ie, using fluorescence microscopy instead of Ziehl-Neelsen), (2) using multiple smears to classify a patient as smear negative (instead of a single smear), and (3) highly proficient operators are preparing and reading the smears.

In a diagnostic test accuracy study, the reference standard is not a comparator but the method used to determine true disease status, which allows measuring the accuracy of the index test (and accuracy of comparators). Smear microscopy or Xpert or other approved and well studied tests can be utilised as comparator tests. The sensitivity of sputum smear microscopy and Xpert observed in a given study provides a good indication of the studies’ patient spectrum. Inclusion of a comparator test also allows for an evaluation of the incremental yield and stratification of sensitivity by the comparator test. Having comparative data on Xpert is extremely useful given the large amount of data available on its diagnostic accuracy. Showing similar or better sensitivity than Xpert, even on a relatively small number of patients, is stronger evidence for good performance than a larger study without this comparator. Comparing the accuracy of multiple index tests that were evaluated in different studies is usually problematic because of variation of the patient spectrum unless the varying patient spectrum between studies can be understood through testing with a comparator test such as Xpert (as discussed in section on “Population and Setting”) [27].

FLOW AND SPECIMEN ISSUES

For sputum, the fact that there is important variability (day-to-day, specimen-to-specimen, within-specimen) needs to be taken into consideration when designing the specimen flow of a study. It is important to include a sample flow diagram as part of reporting (see Figure 2 as an example). Testing with the index test on one specimen and comparator test on another specimen (possibly from another day) can make interpretation of results difficult given the sample-to-sample variability. At best this will result in increased random error (“noise”) or at worst in bias if the difference between the specimens is systematic. Performing the index test, the comparator, and 1 culture on the same specimen facilitates interpretation of results and can provide the most direct evidence on comparative accuracy, but the large specimen volume requirement and difficulty encountered in splitting viscous samples can make this approach impractical. The sensitivity of a test is partly dependent on the number of bacilli per specimen volume so sputum input volume is also an important parameter. Thus, comparing sensitivity of one test on a native sputum specimen to the sensitivity of another test on a concentrated pellet from a higher input volume is rarely appropriate.

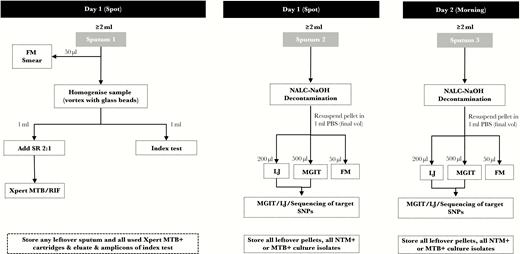

Figure 2.

Example of a sample flow diagram for diagnostic accuracy studies a smear-replacement tests. This figure shows an example sputum specimen flow diagram. Studies evaluating the diagnostic accuracy of novel sputum-based tuberculosis (TB) diagnostics should include sputum specimen flow diagrams in their reporting to allow readers to contextualize accuracy estimates. Flow diagrams should include when sputum was collected (spot vs morning), sputum processing methods, and the type and number of TB tests performed from a single specimen. In this hypothetical study, 3 sputum specimens were collected from all patients (2 spot specimens on day 1 and 1 morning specimen on day 2). Sputum 1 underwent fluorescence microscopy (FM) smear before undergoing glass bead homogenization. The homogenized sample was then split for Xpert MTB/RIF testing and the index test. Sputum 2 and 3 undergo identical processing methods and TB testing (FM smear, solid culture, liquid culture); Mycobacterium tuberculosis (MTB) culture isolates are then sequenced for target single nucleotide polymorphisms (SNPs). LJ, Lowenstein-Jensen; MGIT, Mycobacterial Growth Indicator Tube liquid culture; NTM, nontuberculous mycobacteria; PBS, phosphate-buffered saline; SR, Xpert sample reagent.

Open in new tabDownload slide

With regard to sputum specimen flow, there are at least 4 different approaches that can be used to achieve the goal of performing more than 1 test (ie, index test, reference test, and in some instances a comparator test) (see Table 3). One option is to apply the index test and comparator test on 2 separate native sputum specimens, allocated through a randomization scheme. This approach completely retains the challenging sputum matrix and thus applicability of data with regards to the intended use. However, this approach requires a very large sample size to yield precise comparative results to account for the potentially large sample-to-sample variability described above. This approach also requires at least 3 specimens (one each for the index test, comparator, and reference standard) and thus usually 2 patient visits.

Alternatively, a participant’s sputum specimen can be split physically into 2 or more portions for testing [28, 29]. This will often only be possible in a laboratory. The “splitting” procedure used should be carefully considered, and the methods should be described in detail. Three options are as follows: (1) split an unhomogenized native sputum specimen and allocate aliquots randomly to different assays; (2) split a homogenized native sputum specimen and allocate aliquots to different assays; or (3) split a concentrated, decontaminated specimen. Testing a native sputum specimen is in line with the intended use of a smear-replacement test on an unprocessed specimen. However, due to within-specimen heterogeneity, the number of bacilli may differ substantially between different aliquots derived from a single specimen, and a larger sample size would be required to compensate for the resulting increase in random error (similar to testing 2 separate specimens). The high viscosity of sputum may make it necessary to homogenize specimens (eg, by vortexing with glass beads) to facilitate physical splitting, and it has the additional advantage of rendering aliquots more homogenous and reducing random variability [30]. On the other hand, homogenization affects the matrix and thus potentially affects assay performance characteristics, and it can introduce contamination.

Testing a decontaminated specimen has the advantage that the specimen is well homogenized and thus random error is minimal. However, a decontaminated specimen does not pose the same challenges to an assay (in terms of matrix) as a native sputum specimen and does not represent the intended use case defined in the TPP. If comparative testing is done on the pellet, it must be combined with evidence to show that the index test also performs well when testing is done from a native sputum specimen.

We suggest that the approach of first homogenizing a native sputum specimen followed by physical splitting and testing represents a good balance of various considerations, and we recommend this option under most circumstances (see Figure 2). However, beyond the study validity and applicability considerations discussed above, other factors also need to be taken into account when making a choice for the sample flow, eg, feasibility of multiple patient visits, available funding, other available data on index test, etc. Aiming to perform the index test, comparator and reference standard on the same sputum specimen introduces another design challenge, namely that of specimen volume. More specifically, specifying a higher minimum volume requirement as a participation eligibility criterion may allow for more tests to be done on a single specimen, but this may lead to exclusion of patients who cannot produce a high-volume specimen, which in turn can affect generalizability. We recommend that initial studies ensure sufficient volume to allow index test and comparator tests as well as reference tests to be performed on the same specimen. Subsequent studies should include all patients who can provide a specimen (irrespective of volume) to assess accuracy in patients who are only able to provide low-volume specimens.

KEY ISSUES BEYOND ACCURACY

High diagnostic accuracy—and the data demonstrating it—are necessary but insufficient for a test to be supported by policy [31] and to have an impact on patient health, population health, and health system functioning. This explains the additional criteria included in the original TPP [15]. Indeed, although stakeholders rated sensitivity as the most important test attribute in the smear-replacement TPP, stakeholders also focused on the following TPP attributes: simple maintenance/calibration; reagent kit storage/stability; simple specimen preparation steps; and time to results [32]. Other key supporting elements around a test include comprehensive training materials, maintenance and support systems, quality assurance, and connectivity, because policymakers are looking at the practicality of adopting an entire test ecosystem, not simply a single test [33]. Cost, ease of use, and biosafety considerations are also essential components of the TPP and need to be assessed as well, as are other attributes such as infrastructure requirements, availability of other assays to use on the same instrument (for multidisease testing), and an instrument’s physical footprint among others. The current article provides guidance for the assessment of test accuracy. Standard approaches are also required to assess other attributes such as biosafety requirements, cost, durability, ease of maintenance, and connectivity—these issues are discussed briefly in the TPP [15], but best practices around their application in study settings need to be further refined.

Another important area (outside of the remit of this piece) is to assess delivery models for new diagnostic tests using implementation research and to assess a new test’s potential impact on patient-relevant outcomes through modeling and pragmatic clinical trials [34]. The impact of a new test will vary depending on (1) the existing standard of care for testing, (2) the functioning of the health system in which the test is introduced, and (3) how the new test is implemented [35–37]. For example, empirical therapy partially compensates for the insufficient sensitivity of sputum smear microscopy, at least in patient groups where treatment thresholds are low [38]. In settings where empirical treatment is common, product innovations (such as novel diagnostics more sensitive than smear) may have a less-than-expected impact. Studies evaluating novel smear-replacement tests should report the impact of empirical treatment by including the number of patients diagnosed with TB by the index test (and not the comparator test) who were treated empirically and the time to definitive TB diagnosis. Likewise, delays in TB treatment initiation and/or high rates of pretreatment losses to follow-up may undermine the impact of novel diagnostics. The introduction of new tests may allow changes in how care is delivered (eg, “same-day test-and-treat” may become more feasible than with smear microscopy), but if such changes are not implemented, impact will be blunted. Implementation science research is needed to identify how health systems should best adapt their workflow—linking more sensitive and rapid tests to TB treatment initiation and completion—to realize the full potential of these tests on important clinical and public health outcomes [39, 40].

CONCLUSIONS

This article provides guidance for diagnostic test accuracy studies of sputum smear-replacement tests. We address key study design considerations with regards to the study population, reference standard, use of comparators, and issues related to the complexity of sputum as a specimen matrix. Considering this guidance will (1) facilitate study planning, (2) improve study quality, consistency, and comparability, and (3) ultimately support policy development and scale-up of new smear-replacement tests.
