Spectral intertwining relations in exactly solvable quantum-mechanical systems

Abstract

In exactly solvable quantum-mechanical systems, ladder and intertwining operators play a central role because, if they are found, the energy spectra can be obtained algebraically. In this paper, we propose the spectral intertwining relation as a unified relation of ladder and intertwining operators in a way that can depend on the energy eigenvalues. It is shown that the spectral intertwining relations can connect eigenfunctions of different energy eigenvalues belonging to two different Hamiltonians, which cannot be obtained by previously known structures such as shape invariance. As an application, we find new spectral intertwining operators for the Hamiltonians of the hydrogen atom and the Rosen–Morse potential.

1. Introduction

What is an important structure commonly found in exactly solvable quantum-mechanical systems? The concept of ladder operators is of great interest in this question because, since Dirac’s use [1], it has played a central role in quantum mechanics. As is well known, a ladder operator |$D$| for a Hamiltonian |$H$| is a linear operator that satisfies the commutation relation

\begin{matrix} [H, D] & = ε D, \end{matrix}

(1)

\begin{matrix} H D ψ_{n} & = D H ψ_{n} + [H, D] ψ_{n} \\ = (E_{n} + ε) D ψ_{n}, \end{matrix}

(2)

which shows that |$D\psi_n$| is an eigenfunction with energy |$E_n+\varepsilon$|⁠. (Note: In this paper, we focus only on bound states, so that the energy eigenfunctions |$\psi_n$| and energy eigenvalues |$E_n$| are discretized and labeled by integers |$n$|⁠. We assign |$0$| to the ground state and |$1,2,\ldots$| to the excited states, unless otherwise noted.) Hence, for any |$n$|⁠, there exists an integer |$m$| such that |$\psi_{n+m} \propto D\psi_n$| and |$E_{n+m} = E_n + \varepsilon$|⁠. Since it follows that, if |$m=1$|⁠, |$\psi_n\propto D^n\psi_0$| and |$E_n = E_0 + n\varepsilon$|⁠, ladder operators allow us to construct the full energy spectrum for the bound states algebraically (Fig. 1). However, we notice that the commutation relation (1) always leads to equally spaced energy spectra, while almost all the systems that we know of have energy spectra that are not equally spaced. This motivates us to extend the commutation relation (1) in a way to enable us to construct unequally spaced energy spectra algebraically. A remarkable formulation for such ladder operators has been proposed as the closure relation [2–4], which is the double commutation relation for a Hamiltonian and a function called a sinusoidal coordinate. Given a sinusoidal coordinate, creation/annihilation operators for energy eigenstates can be constructed from it, and the energy spectra generated by them become unequally spaced in general, as shown in Fig. 2.

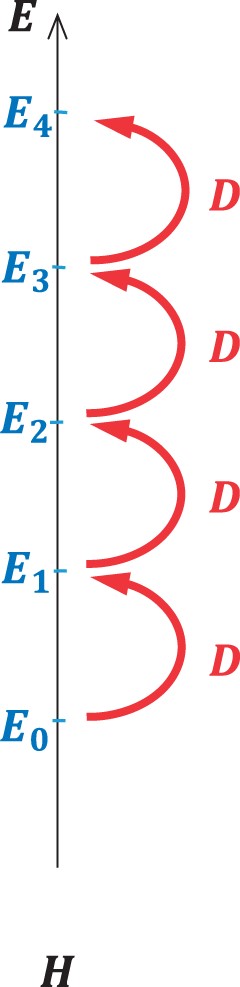

Fig. 1.

The ladder structure corresponding to the commutation relation (1). The energy spectrum is equally spaced.

Open in new tab Download slide

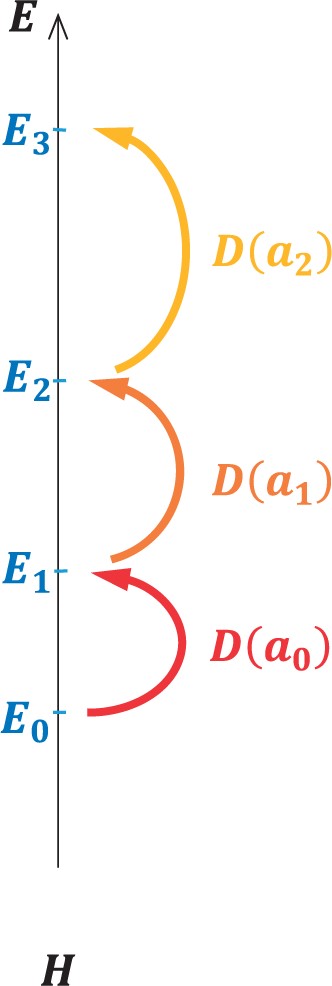

Fig. 2.

The ladder structure corresponding to the commutation relation (1). The energy spectra can be unequally spaced in general.

Open in new tab Download slide

In this paper we also study intertwining operators in the context of quantum mechanics; they have already been studied in many areas of mathematics and physics. An intertwining operator |$D$| in quantum mechanics is a linear operator that satisfies the intertwining relation

\begin{matrix} H_{1} D & = D H_{2}, \end{matrix}

(3)

where |$H_1$| and |$H_2$| are two different Hamiltonians. From this relation, it can be found that for an eigenfunction |$\psi_{2,n}$| for |$H_2$| obeying |$H_2\psi_{2,n} = E_{2,n} \psi_{2,n}$|⁠,

\begin{matrix} H_{1} (D ψ_{2, n}) & = D (H_{2} ψ_{2, n}) = E_{2, n} (D ψ_{2, n}), \end{matrix}

(4)

which shows that |$D\psi_{2,n}$| is an eigenfunction for |$H_1$|⁠. Thus the intertwining operator |$D$| maps eigenfunctions for |$H_2$| into eigenfunctions for |$H_1$|⁠, as shown in Fig. 3.

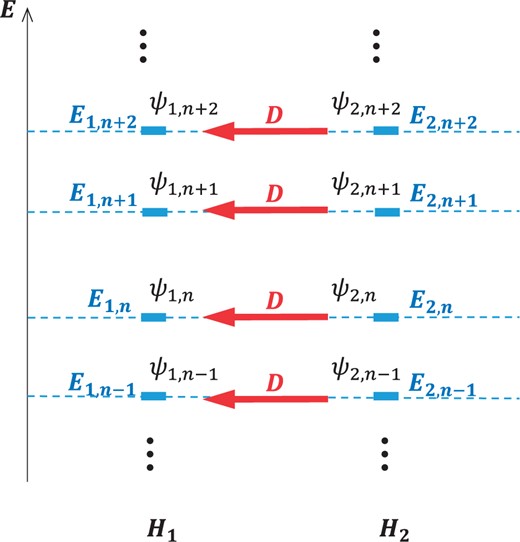

Fig. 3.

A sketch of the intertwining relation (3). The operator |$D$| connects eigenfunctions for |$H_2$| into eigenfunctions for |$H_1$| at the same energy level.

Open in new tab Download slide

The two concepts of ladder and intertwining operators are basically different. However, when a Hamiltonian is parametrized by a parameter or a set of parameters, we can organize the two concepts in a unified way as spectral intertwining operators. The linear operators connect eigenfunctions of different eigenvalues between two different Hamiltonians, as shown in Figs. 4 and 5. In this paper, we point out that the presence of spectral intertwining operators is important for quantum-mechanical systems being exactly solvable. In supersymmetric quantum mechanics [5], spectral intertwining operators have already been studied as shape invariance [6]. In supersymmetric quantum mechanics, two supersymmetric Hamiltonians are related to each other by the intertwining relations

$A diagram describing how the spectral intertwining operators $D(\nu)$ satisfying Eq. (B.1) map energy eigenfunctions for $H(\nu_i)$, where $\nu_i= f(f(\cdots f(f(\nu_0))\cdots))$ for $i=1,2,\ldots$. Since the shifts of energy eigenvalues depend only on $\nu$, all the arrows between $H(\nu_{i-1})$ and $H(\nu_i)$ are parallel.$

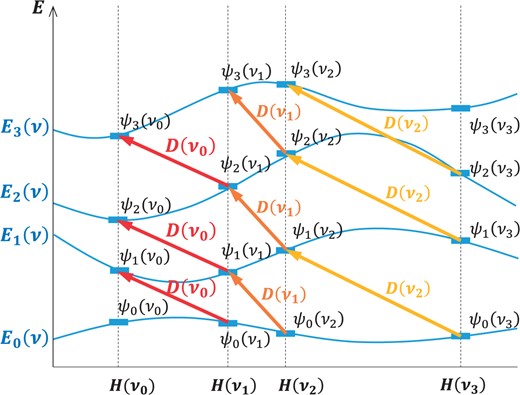

Fig. 4.

A diagram describing how the spectral intertwining operators |$D(\nu)$| satisfying Eq. (B.1) map energy eigenfunctions for |$H(\nu_i)$|⁠, where |$\nu_i= f(f(\cdots f(f(\nu_0))\cdots))$| for |$i=1,2,\ldots$|⁠. Since the shifts of energy eigenvalues depend only on |$\nu$|⁠, all the arrows between |$H(\nu_{i-1})$| and |$H(\nu_i)$| are parallel.

Open in new tab Download slide

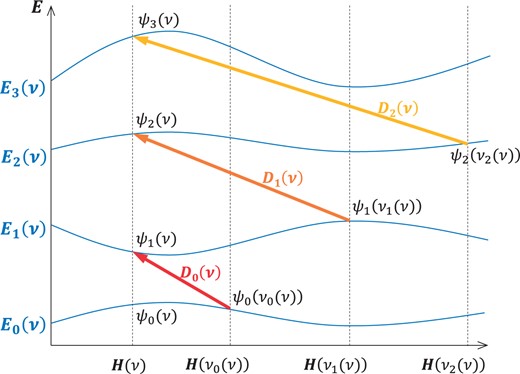

$A diagram describing how the spectral intertwining operators $D_n(\nu)$ act on the energy eigenfunctions $\psi_n\left(\nu_n(\nu)\right)$ for $H\left(\nu_n(\nu)\right)$ for $n=0,1,2,\ldots$.$

Fig. 5.

Open in new tab Download slide

\begin{matrix} H_{+} a^{†} & = a^{†} H_{-}, & H_{-} a & = a H_{+}, \end{matrix}

(5)

where |$a^\dagger, a$| are intertwining operators (called supercharges since |$a^\dagger$| (⁠|$a$|⁠) maps eigenfunctions for |$H_-$| (⁠|$H_+$|⁠) into eigenfunctions for |$H_+$| (⁠|$H_-$|⁠) at the same energy level). In addition, when two Hamiltonians have shape invariance, the energy spectrum of the system can be solved exactly by using the supercharges in combination with shape invariance (see Sect. B.1 for details). In the past, many exactly solvable quantum-mechanical systems have been studied by means of shape invariance (see, e.g., Ref. [7]). While the shape invariance is very powerful to construct exactly solvable quantum-mechanical models, it is important to obtain other concepts to characterize such models. Very recently, a coupled system in supersymmetric quantum mechanics was studied in Ref. [8], where the authors discussed the underlying structure for operators that connect eigenstates between two sectors.

In previous works, the operators explained above have been formulated in |$n$|-independent ways. They have a merit that one does not have to know the |$n$|-dependence of the eigenfunctions and eigenvalues. In contrast, we dare to formulate them in an |$n$|-dependent way in the present paper because this could allow us to study as many examples as possible or to find new examples that have never been elucidated. We attempt to make a formulation for spectral intertwining operators. Actually, we show several examples in Sect. 3. Previously known formulations such as the closure relation and shape invariance are discussed in the appendices, which will illuminate how special they are in our |$n$|-dependent formulation.

This paper is organized as follows: In the next section, we propose the spectral intertwining relations. In Sect. 3, as an example, we show spectral intertwining relations for several Hamiltonians such as the hydrogen atom (Coulomb potential) and the Rosen–Morse potentials. It is known that the Coulomb and Rosen–Morse potentials admit spectral intertwining operators associated with the shape invariance. However, the spectral intertwining operators that we obtain are different from them. Section 4 is devoted to a summary and discussion. In Appendix A, we consider the one-parameter representation for ladder operators, which leads to a modification of the commutation relation (1) in a natural way. Several examples that fit into the modified commutation relation are also given. In Appendix B, we discuss the case in which a Hamiltonian is parametrized and a spectral intertwining relation is introduced. It is also shown that the relation introduced can be found in supersymmetric quantum mechanics with shape invariance.

2. Spectral intertwining relation

When a Hamiltonian |$H(\nu)$| is parametrized by a parameter |$\nu$| (or a set of parameters), the Schrödinger equation is given by

\begin{matrix} H (ν) ψ_{n} (ν) & = E_{n} (ν) ψ_{n} (ν) . \end{matrix}

(6)

For such a Hamiltonian, we propose a spectral intertwining relation as the |$n$|-dependent commutation relation

\begin{matrix} H (ν) D_{n} (ν) & = D_{n} (ν) (H (ν_{n} (ν)) + ε_{n} (ν_{n} (ν))) \\ + Q_{n} (ν_{n} (ν)) (H (ν_{n} (ν)) - E_{n} (ν_{n} (ν))), \end{matrix}

(7)

where |$\nu$| and |$n$| are parameters, |$Q_n\left(\nu_n(\nu)\right)$| are some operators, and |$\varepsilon_n\left(\nu_n(\nu)\right)$|⁠, |$E_n\left(\nu_n(\nu)\right)$|⁠, and |$\nu_n(\nu)$| are constants depending on |$\nu$| and |$n$|⁠. We call |$D_n(\nu)$| a spectral intertwining operator.

\begin{matrix} H (ν) D_{n} (ν) ψ_{n} (ν_{n} (ν)) & = (E_{n} (ν_{n} (ν)) + ε_{n} (ν_{n} (ν))) D_{n} (ν) ψ_{n} (ν_{n} (ν)), \end{matrix}

(8)

\begin{matrix} ψ_{n + m} (ν) & \propto D_{n} (ν) ψ_{n} (ν_{n} (ν)), \end{matrix}

(9)

\begin{matrix} E_{n + m} (ν) & = E_{n} (ν_{n} (ν)) + ε_{n} (ν_{n} (ν)), \end{matrix}

(10)

when |$\|D_n(\nu)\psi_n\left(\nu_n(\nu)\right)\|<\infty$| and |$D_n(\nu)\psi_n\left(\nu_n(\nu)\right)\neq0$|⁠. If |$m=1$| for all |$n$|⁠, as before, we get the diagram shown in Fig. 5. (For nontrivial examples of |$m\neq1$|⁠, see Ref. [4].) As mentioned in the previous section, these operators connect eigenfunctions of different eigenvalues between two Hamiltonians. The difference from the previous ones is that such spectral intertwining operators depend not only on |$\nu$|⁠, which parametrizes the theories, but also on |$n$|⁠, which parametrizes the eigenfunctions and eigenvalues. In the next section, we provide some examples of Hamiltonians that admit such spectral intertwining operators.

3. Examples of the spectral intertwining relation

In this section, we give examples of the spectral intertwining relations of the hydrogen atom and the Rosen–Morse potentials. Although these models have shape invariance, the spectral intertwining relations cannot be derived from it.

3.1. Hydrogen atom

The Hamiltonian is parametrized by the mass |$m$| and the coupling constants |$g$| and |$\ell$| as

\begin{matrix} H (m, g, ℓ) & \equiv \frac{1}{2 m} [- \frac{1}{r^{2}} \frac{d}{d r} (r^{2} \frac{d}{d r}) + \frac{ℓ (ℓ + 1)}{r^{2}} - \frac{2 g}{r}], & 0 & \leq r < \infty, \end{matrix}

(11)

which recovers the radial part of the Schrödinger equation for the hydrogen atom if |$m=m_e$|⁠, |$g=m_eg_0$|⁠, and |$\ell=0,1,2,\ldots$|⁠. Since the Hamiltonian depends on |$m$|⁠, |$g$|⁠, and |$\ell$|⁠, the eigenfunctions and eigenvalues also depend on them in general. In the present case, we have

\begin{matrix} ψ_{n} (g, ℓ) & = C_{g, n, ℓ} r^{ℓ} \exp (- \frac{g r}{n + ℓ + 1}) L_{n}^{2 ℓ + 1} (\frac{2 g r}{n + ℓ + 1}), \end{matrix}

(12)

\begin{matrix} E_{n} (m, g, ℓ) & = - \frac{g^{2}}{2 m (n + ℓ + 1)^{2}}, n = 0, 1, \dots, \end{matrix}

(13)

where |$C_{g,n,\ell}$| are normalization constants and |$L_n^\alpha(\xi)$| are the associated Laguerre functions in |$\xi$|⁠.

In a heuristic way, we are able to find the operator

\begin{matrix} D_{n} (g, ℓ) & \equiv r \frac{d}{d r} - \frac{g r}{n + ℓ + 2} + n + ℓ + 2, \end{matrix}

(14)

which satisfies the spectral intertwining relation

\begin{matrix} H (m, g, ℓ) D_{n} (g, ℓ) & = D_{n} (g, ℓ) H (m, g_{n} (g, ℓ), ℓ) + 2 (H (m, g_{n} (g, ℓ), ℓ) + \frac{g_{n} (g, ℓ)^{2}}{2 m (n + ℓ + 1)^{2}}), \end{matrix}

(15)

where

\begin{matrix} g_{n} (g, ℓ) & = g \frac{n + ℓ + 1}{n + ℓ + 2} . \end{matrix}

(16)

This relation fits into the spectral intertwining relation (7) with

\begin{matrix} ε_{n} (m, g_{n} (g, ℓ), ℓ) & = 0, & Q_{n} (m, g_{n} (g, ℓ), ℓ) & = 2, & E_{n} (m, g_{n} (g, ℓ), ℓ) & = - \frac{g_{n} (g, ℓ)^{2}}{2 m (n + ℓ + 1)^{2}} . \end{matrix}

(17)

|$D_n(g,\ell)$| maps an eigenfunction |$\psi_n\left(g_n(g,\ell),\ell\right)$| into an eigenfunction |$\psi_{n+1}(g,\ell)$|⁠. Since we are now interested in the Hamiltonian |$H(m,g,\ell)$|⁠, we obtain

\begin{matrix} ψ_{n + 1} (g, ℓ) & \propto D_{n} (g, ℓ) ψ_{n} (g_{n} (g, ℓ), ℓ) . \end{matrix}

(18)

\begin{matrix} H (m, g, ℓ; α r) & = \frac{1}{α^{2}} H (m, α g, ℓ; r) = H (α^{2} m, α g, ℓ; r) . \end{matrix}

(19)

\begin{matrix} ψ_{n} (g, ℓ; α r) & \propto ψ_{n} (α g, ℓ; r) . \end{matrix}

(20)

Since the rescaling of the coordinate |$r$| can be represented by the operator |$S(\alpha) = \exp\left[(\ln \alpha) r d/dr\right]$|⁠, we have

\begin{matrix} S (α) ψ_{n} (g, ℓ; r) & = ψ_{n} (g, ℓ; α r) . \end{matrix}

(21)

Combining Eqs. (18), (20), and (21) with |$\alpha_n(\ell) g\equiv g_n(g,\ell) = (n+\ell+1)/(n+\ell+2)g$|⁠, we obtain

\begin{matrix} ψ_{n + 1} (g, ℓ) & \propto D_{n} (g, ℓ) S (α_{n} (ℓ)) ψ_{n} (g, ℓ) . \end{matrix}

(22)

Since we have

\begin{matrix} H (m, g, ℓ) D_{n} (g, ℓ) & = D_{n} (g, ℓ) H (m, α_{n} (ℓ) g, ℓ) \\ + 2 (H (m, α_{n} (ℓ) g, ℓ) - E_{n} (m / α_{n} (ℓ)^{2}, g)), \end{matrix}

(23)

\begin{matrix} H (m, α_{n} (ℓ) g, ℓ) S (α_{n} (ℓ)) & = α_{n} (ℓ)^{2} S (α_{n} (ℓ)) H (m, g, ℓ) = S (α_{n} (ℓ)) H (m / α_{n} (ℓ)^{2}, g, ℓ), \end{matrix}

(24)

the composite operator

\begin{matrix} {\tilde{D}}_{n} (g, ℓ) & \equiv D_{n} (g, ℓ) S (α_{n} (ℓ)) \end{matrix}

(25)

satisfies the spectral intertwining relation

\begin{matrix} H (m, g, ℓ) {\tilde{D}}_{n} (g, ℓ) & = {\tilde{D}}_{n} (g, ℓ) H (m / α_{n} (ℓ)^{2}, g, ℓ) \\ + 2 S (α_{n} (ℓ)) (H (m / α_{n} (ℓ)^{2}, g, ℓ) - E_{n} (m / α_{n} (ℓ)^{2}, g)) . \end{matrix}

(26)

We have found that the system of the hydrogen atom possesses the spectral intertwining relations (15) and (26), which are related to the parameters |$\ell$|⁠, |$g$|⁠, and |$m$|⁠. These operators had already been found in Refs. [9–13] as part of the dynamical group |$O(4,2)$|⁠, but they have not been viewed as spectral intertwining operators before.

3.2. Rosen–Morse potential

The 1D Hamiltonian with the spherical (or trigonometric) Rosen–Morse potential is given by

\begin{matrix} H_{sph.} (g, ℓ) & = - \frac{d^{2}}{d x^{2}} + \frac{ℓ (ℓ + 1)}{\sin^{2} x} - 2 g \cot x, & 0 & \leq x \leq π, \end{matrix}

(27)

where |$0\leq \ell$| and |$0\leq g$| are parameters. The eigenfunctions and eigenvalues are given by

\begin{matrix} ψ_{n} (g, ℓ; x) & = C_{g, ℓ, n} (\sin x)^{n + l + 1} e^{- \frac{g}{n + ℓ + 1} x} P_{n}^{(a_{+} (g, ℓ, n), a_{-} (g, ℓ, n))} (i \cot x), \end{matrix}

(28)

\begin{matrix} E_{n} (g, ℓ) & = + (n + ℓ + 1)^{2} - {(\frac{g}{n + ℓ + 1})}^{2}, \end{matrix}

(29)

where |$C_{g,\ell,n}$| are the normalization constants, |$P_n^{(\alpha,\beta)}(\xi)$| are the Jacobi functions in |$\xi$|⁠, and |$a_{\pm}(g,\ell,n)$| are

\begin{matrix} a_{\pm} (g, ℓ, n) & = - (n + ℓ + 1) \pm i \frac{g}{n + ℓ + 1} . \end{matrix}

(30)

The spectral intertwining operators are given by

\begin{matrix} D_{n} (g, ℓ) & = \frac{{\tilde{a}}_{+} - {\tilde{a}}_{-}}{2 i} \sin x + \frac{{\tilde{a}}_{+} + {\tilde{a}}_{-}}{2} \cos x - \sin x \frac{d}{d x}, \end{matrix}

(31)

where

\begin{matrix} {\tilde{a}}_{\pm} (g, ℓ, n) & = a_{\pm} (g_{n} (g, ℓ), ℓ, n) = a_{\pm} (g \frac{n + ℓ + 1}{n + ℓ + 2}, ℓ, n), & g_{n} (g, ℓ) & \equiv g \frac{n + ℓ + 1}{n + ℓ + 2} . \end{matrix}

(32)

They satisfy the spectral intertwining relation

\begin{matrix} H_{sph.} (g, ℓ) D_{n} (g, ℓ) & = D_{n} (g, ℓ) (H_{sph.} (g_{n} (g, ℓ), ℓ) + 2 (n + ℓ + 1) + 1) \\ - 2 \cos x (H_{sph.} (g_{n} (g, ℓ), ℓ) - E_{n} (g_{n} (g, ℓ), ℓ)), \end{matrix}

(33)

which fits into Eq. (7) by setting

\begin{matrix} ε_{n} (g_{n} (g, ℓ), ℓ) & \equiv 2 (n + ℓ + 1) + 1, & Q_{n} (g_{n} (g, ℓ), ℓ) & \equiv - 2 \cos x . \end{matrix}

(34)

Next, we consider the 1D Hamiltonian with the hyperbolic Rosen–Morse potential

\begin{matrix} H_{hyp.} (g, ℓ) & = - \frac{d^{2}}{d x^{2}} + \frac{ℓ (ℓ + 1)}{\sinh^{2} x} - 2 g \coth x, & 0 & \leq x < \infty, \end{matrix}

(35)

where |$0\leq \ell$| and |$(\ell+1)^2\leq g$| are parameters. The eigenfunctions and eigenvalues are given by

\begin{matrix} ψ_{n} (g, ℓ; x) & = C_{g, ℓ, n} (\sinh x)^{n + ℓ + 1} e^{- \frac{g}{n + ℓ + 1} x} P_{n}^{(b_{+} (g, ℓ, n), b_{-} (g, ℓ, n))} (\coth x), \end{matrix}

(36)

\begin{matrix} E_{n} (g, ℓ) & = - (n + ℓ + 1)^{2} - {(\frac{g}{n + ℓ + 1})}^{2}, \end{matrix}

(37)

where |$C_{g,\ell,n}$| are the normalization constants and |$P_n^{(\alpha,\beta)}(\xi)$| are the Jacobi functions in |$\xi$|⁠. We note that the system (35) has finitely many discrete eigenstates |$\psi_n(g,\ell;x)$| with |$0 \leq n < \sqrt{g}-\ell-1$|⁠. For the hyperbolic potential, |$b_{\pm}$| are given by

\begin{matrix} b_{\pm} (g, ℓ, n) & = - (n + ℓ + 1) \pm \frac{g}{n + ℓ + 1} . \end{matrix}

(38)

The spectral intertwining operators are given by

\begin{matrix} D_{n} (g, ℓ) & = \frac{{\tilde{b}}_{+} - {\tilde{b}}_{-}}{2} \sinh x + \frac{{\tilde{b}}_{+} + {\tilde{b}}_{-}}{2} \cosh x - \sinh x \frac{d}{d x}, \end{matrix}

(39)

where

\begin{matrix} {\tilde{b}}_{\pm} (g, ℓ, n) & = b_{\pm} (g_{n} (g, ℓ), ℓ, n) = b_{\pm} (g \frac{n + ℓ + 1}{n + ℓ + 2}, ℓ, n), & g_{n} (g, ℓ) & \equiv g \frac{n + ℓ + 1}{n + ℓ + 2} . \end{matrix}

(40)

They satisfy the spectral intertwining relation

\begin{matrix} H_{hyp.} (g, ℓ) D_{n} (g, ℓ) & = D_{n} (g, ℓ) (H_{hyp.} (g_{n} (g, ℓ), ℓ) - 2 (n + ℓ + 1) - 1) \\ - 2 \cosh x (H_{hyp.} (g_{n} (g, ℓ), ℓ) - E_{n} (g_{n} (g, ℓ), ℓ)), \end{matrix}

(41)

which fits into Eq. (7) by setting

\begin{matrix} ε_{n} (g_{n} (g, ℓ), ℓ) & \equiv - 2 (n + ℓ + 1) - 1, & Q_{n} (g_{n} (g, ℓ), ℓ) & \equiv - 2 \cosh x . \end{matrix}

(42)

It is known that these Rosen–Morse potentials have shape invariance, which leads to the spectral intertwining relation with respect to |$\ell$|⁠. In contrast, here, we have obtained the spectral intertwining relation with respect to |$g$| and |$\ell$|⁠, which cannot be derived from shape invariance.

4. Summary and discussion

In this paper we have considered the question of what is an important structure commonly found in exactly solvable quantum-mechanical systems. For a parametrized Hamiltonian, we have proposed the spectral intertwining relation (7). Since it is formulated in an |$n$|-dependent way, the spectral intertwining relations can connect eigenfunctions between two different Hamiltonians. It is emphasized that each of the spectral intertwining relations (15), (26), (33), and (41) connects two different Hamiltonians, which cannot be obtained by shape invariance. Thus, our formulation can deal with many examples, including previously known ones, and can connect many models in a wider frame.

It has been thought that ladder and intertwining operators premise the (dynamical) symmetry of a system, so that they have been studied in algebraic ways. For example, shape invariance in supersymmetric quantum mechanics can be interpreted by means of extended Lie algebras [14,15]. Hence, as it was pointed out in Refs. [9–13] that the spectral intertwining operators for the hydrogen atom are part of the dynamical group |$O(4,2)$|⁠, we expect that the spectral intertwining relation (7) is in general related to some sort of symmetry of a system. To see this, it would be interesting to lift a quantum system to a spacetime with Bergmann structure in higher dimensions [16–19], where the Schrödinger symmetry in the original quantum system can be found explicitly as part of the conformal symmetry in the lifted spacetime. Some other lifts have also been studied in Refs. [20,21]. In this way, the spectral intertwining relation (7) would be of interest from a geometric point of view.

Acknowledgements

The authors would like to thank Masato Nozawa and Satoru Odake for useful comments. This work was supported in part by JSPS KAKENHI Grant No. JP14J01237 (T.H.) and Grants-in-Aid for Scientific Research (No. 15K05055 and No. 25400260 (M.S.)) from the Ministry of Education, Culture, Sports, Science and Technology (MEXT) in Japan.

Appendix A. One-parameter representation of ladder operators

In this section, we consider how to modify the commutation relation (1). In order to organize unequally spaced energy spectra, we make the ladder operators depend on the energy level |$n$|⁠, which can be done with the commutation relation

\begin{matrix} [H, D (a)] & = ε (a) D (a) + Q (a) (H - E (a)), \end{matrix}

(A.1)

where |$a$| is a parameter, |$\varepsilon(a)$| and |$E(a)$| are real constants for every |$a$|⁠, and |$Q(a)$| is a linear operator depending on |$a$|⁠. We note that, if |$D(a)$| and |$\varepsilon(a)$| are independent of the parameter |$a$| and |$Q(a)\equiv 0$|⁠, it recovers the commutation relation (1).

Given a linear operator |$D(a)$| satisfying the commutation relation (A.1) for a Hamiltonian |$H$|⁠, we set |$a=a_n$| so as to satisfy

\begin{matrix} E_{n} & = E (a_{n}), & D_{n} & = D (a_{n}), & ε_{n} & = ε (a_{n}), & n & = 0, 1, 2, \dots, \end{matrix}

(A.2)

\begin{matrix} H D_{n} ψ_{n} & = (E_{n} + ε_{n}) D_{n} ψ_{n}, & n & = 0, 1, 2, \dots, \end{matrix}

(A.3)

which shows that |$D_n\psi_n$| is an eigenfunction with energy |$E_n + \varepsilon_n$|⁠. Hence, for any |$n$|⁠, there exists an integer |$m$| such that |$\psi_{n+m}\propto D_n\psi_n$| and |$E_{n+m} = E_n + \varepsilon_n$|⁠; i.e., |$D_n$| acts as a ladder operator for an eigenfunction |$\psi_n$|⁠. We should note that the value |$a_n$| must be chosen appropriately so as to satisfy the condition (A.3). If the value |$a_n$| is not appropriate, |$D_n\psi_n$| does not become an eigenfunction in general. If |$m=1$| for all |$n$|⁠, the energy spectrum can be constructed entirely in the manner shown in Fig. 2, and we obtain, for |$n=1,2,\ldots$|⁠,

\begin{matrix} ψ_{n} & \propto D_{n - 1} \dots D_{0} ψ_{0}, & E_{n} & = E_{0} + \sum_{i = 0}^{n - 1} ε_{i}, \end{matrix}

(A.4)

where we emphasize again that each |$a_i$| satisfies the condition (A.3), i.e., |$E(a_i)=E_i$||$(i=0,1,2,\ldots)$|⁠. Thus it is sufficient to obtain the eigenfunction |$\psi_0$| for the ground state to construct the full energy spectrum.

It should also be noted that, if the energy eigenstates are degenerate, additional quantum numbers should be introduced. Accordingly, spectral intertwining operators can have several parameters. For example, if there exists a linear operator |$K$| that commutes with a Hamiltonian |$H$|⁠, |$[H,K]=0$|⁠, the commutation relation (A.1) can be modified to

\begin{matrix} [H, D (a, b)] & = ε (a, b) D (a, b) + Q_{1} (a, b) (H - E (a)) + Q_{2} (a, b) (K - λ (b)) . \end{matrix}

(A.5)

A.1. Harmonic oscillator in one dimension

The Schrödinger equation for a harmonic oscillator in one dimension is given by the Hamiltonian

\begin{matrix} H_{HO} & \equiv - \frac{1}{2 m} \frac{d^{2}}{d x^{2}} + \frac{1}{2} m ω^{2} x^{2}, & - \infty & < x < \infty, \end{matrix}

(A.6)

where |$m>0$| and |$\omega$| are the mass and frequency, respectively. The eigenfunctions and eigenvalues are given by

\begin{matrix} ψ_{n} & = C_{n} \exp (- \frac{m ω x^{2}}{2}) H_{n} (\sqrt{m ω} x), \end{matrix}

(A.7)

\begin{matrix} E_{n} & = (n + \frac{1}{2}) ω, n = 0, 1, 2, \dots, \end{matrix}

(A.8)

\begin{matrix} a_{\pm} & \equiv \mp \sqrt{\frac{1}{2 m ω}} (\frac{d}{d x} \mp m ω x), \end{matrix}

(A.9)

which satisfy the commutation relations

\begin{matrix} [H_{HO}, a_{\pm}] & = \pm ω a_{\pm} . \end{matrix}

(A.10)

It is well known that the commutation relations (A.10) are derived from |$H_\text{HO}=(a_+a_-+1/2)\omega$| and the Heisenberg algebra |$[a_-,a_+]=1$|⁠. Using the Heisenberg algebra, it is also shown that the linear operators |$\hat{D}_\pm \equiv \mp a_\pm a_\pm$| satisfy |$[H_\text{HO},\hat{D}_\pm] = \pm 2\omega \hat{D}_\pm$|⁠, which shows that |$\hat{D}_\pm$| are ladder operators that map |$\psi_n$| into |$\psi_{n\pm2}$|⁠. As differential operators, they are explicitly written as

\begin{matrix} {\hat{D}}_{\pm} & \equiv x \frac{d}{d x} \mp m ω x^{2} \pm \frac{H_{HO}}{ω} + \frac{1}{2}, \end{matrix}

(A.11)

where |$H_\text{HO}$| is the Hamiltonian (A.6). Since |$H_\text{HO}$| is replaced by the energy eigenvalue |$E_n$| when |$\hat{D}_\pm$| act on an eigenfunction |$\psi_n$|⁠, |$\hat{D}_\pm$| may be expressed as first-order operators in the form

\begin{matrix} D_{n}^{(\pm)} & \equiv x \frac{d}{d x} \mp m ω x^{2} \pm (n + \frac{1}{2}) + \frac{1}{2}, \end{matrix}

(A.12)

where |$n$| is an integer. |$D_\pm(n)$| satisfy the commutation relations

\begin{matrix} [H_{HO}, D_{n}^{(\pm)}] & = \pm 2 ω D_{n}^{(\pm)} + 2 (H_{HO} - E_{n}), \end{matrix}

(A.13)

which fit into the commutation relation (A.1).

In the process from Eqs. (A.11) to (A.12) the second-order operators |$\hat{D}_\pm$| were transformed into the first-order operators |$D_n^{(\pm)}$| by replacing the Hamiltonian |$H_\text{HO}$| with the eigenvalues |$E_n$|⁠. In return for this, |$D_n^{(\pm)}$| came to depend on |$n$|⁠. They are, of course, just different representations. However, when we want to get expressions of ladder operators as differential operators, the latter is more useful in a generic case. To show this, we review Odake and Sasaki’s construction for ladder operators [2–4] in the next subsection.

A.2. Odake and Sasaki’s construction for ladder operators

It was shown in Refs. [2–4] that one can construct ladder operators for a Hamiltonian |$H$| if there exists a function |$\eta$|⁠, called a sinusoidal coordinate, which satisfies the closure relation

\begin{matrix} [H, [H, η]] & = [H, η] R_{1} (H) + η R_{0} (H) + R_{- 1} (H), \end{matrix}

(A.14)

where |$R_0(H)$|⁠, |$R_1(H)$|⁠, and |$R_{-1}(H)$| are polynomials in |$H$|⁠. Given a sinusoidal coordinate |$\eta$|⁠, the ladder operators are formally provided¹ by

\begin{matrix} {\hat{D}}_{\pm} & \equiv [H, η] - η α_{\mp} (H) + \frac{R_{- 1} (H)}{α_{\pm} (H)}, \end{matrix}

(A.15)

\begin{matrix} [H, {\hat{D}}_{\pm}] & = {\hat{D}}_{\pm} α_{\pm} (H), \end{matrix}

(A.16)

which leads to the commutation relation |$[H,\hat{D}_\pm] \psi_n= \alpha(E_n)\hat{D}_\pm \psi_n$| for an eigenfunction |$\psi_n$| with energy |$E_n$|⁠, i.e., |$H\psi_n=E_n\psi_n$|⁠. Thus |$\hat{D}_\pm$| are ladder operators that change the energy eigenvalues from |$E_n$| to |$E_n+\alpha_\pm(E_n)$|⁠. It is worth commenting that ladder operators constructed from a sinusoidal coordinate have nothing to do with shape invariance (see also Sect. B.1), so that they cannot factorize the Hamiltonian in general.

It is difficult in general to express the ladder operators (A.15) as differential operators because they consist of the fractional terms |$R_{-1}(H)/\alpha_\pm(H)$|⁠, and |$\alpha_\pm(H)$| are not necessarily polynomials in |$H$|⁠. To obtain expressions as differential operators, we take the same procedure as that from Eqs. (A.11) to (A.12); namely, replace the Hamiltonian |$H$| by the energy eigenvalues |$E_n$|⁠. Actually, when the ladder operators |$\hat{D}_\pm$| act on an eigenfunction |$\psi_n$| with energy |$E_n$|⁠, i.e., |$H\psi_n=E_n\psi_n$|⁠, they are realized by

\begin{matrix} {\hat{D}}_{\pm} ψ_{n} & = ([H, η] - η α_{\mp} (E_{n}) + \frac{R_{- 1} (E_{n})}{α_{\pm} (E_{n})}) ψ_{n}; \end{matrix}

(A.17)

hence we obtain

\begin{matrix} D_{\pm} (E_{n}) & \equiv [H, η] - η α_{\mp} (E_{n}) + \frac{R_{- 1} (E_{n})}{α_{\pm} (E_{n})} . \end{matrix}

(A.18)

Using these expressions, we can explicitly check that |$D_\pm(E_n)$| satisfy the commutation relations

\begin{matrix} [H, D_{\pm} (E_{n})] & = α_{\pm} (E_{n}) D_{\pm} (E_{n}) + Q (n) (H - E_{n}), \end{matrix}

(A.19)

with some operator |$Q(n)$|⁠. Thus, we find that ladder operators constructed from a sinusoidal coordinate fit into the commutation relation (A.1) by replacing the Hamiltonian with the energy eigenvalues. Moreover, Eq. (A.18) allows us to express the ladder operators as differential operators.

Calogero–Sutherland model

For example, we shall look at the Calogero–Sutherland model [22,23] for a single particle, which is a particular case of the Pöschl–Teller potential [24]. The Hamiltonian is given by

\begin{matrix} H_{CS} (g) & = - \frac{1}{2} [\frac{d^{2}}{d x^{2}} - \frac{g (g - 1)}{\sin^{2} x}] \\ = - \frac{1}{2} (\frac{d}{d x} + \frac{g}{\tan x}) (\frac{d}{d x} - \frac{g}{\tan x}) + \frac{g^{2}}{2}, \end{matrix}

(A.20)

where |$g>0$| and |$0<x<\pi$|⁠. The eigenfunctions and eigenvalues are given by

\begin{matrix} ψ_{n} (g) & = C_{n} (\sin x)^{g} P_{n}^{(g - 1 / 2, g - 1 / 2)} (\cos x), \end{matrix}

(A.21)

\begin{matrix} E_{n} (g) & = \frac{1}{2} (n + g)^{2}, n = 0, 1, \dots, \end{matrix}

(A.22)

where |$C_n$| are normalization constants and |$P_n^{(\alpha,\beta)}(\xi)$| are the Jacobi polynomials in |$\xi$|⁠. In Ref. [3], it was shown that the sinusoidal coordinate is given by |$\eta=\cos x$|⁠, and the closure relation (A.14) becomes

\begin{matrix} [H_{CS}, [H_{CS}, \cos x]] & = [H_{CS}, \cos x] + \cos x (2 H_{CS} - \frac{1}{4}), \end{matrix}

(A.23)

where |$R_1=1$|⁠, |$R_0=2H_\text{CS}-1/4$|⁠, and |$R_{-1}=0$|⁠, which leads to |$\alpha_\pm(H_\text{CS})=1/2\pm\sqrt{2H_\text{CS}}$|⁠. Hence, the ladder operators (A.15) are given by

\begin{matrix} {\hat{D}}_{\pm} & = \sin x \frac{d}{d x} \pm \cos x \sqrt{2 H_{CS}}, \end{matrix}

(A.24)

where we have used the fact that |$[H_\text{CS},\cos x]= (\sin x) d/dx + (\cos x)/2$|⁠. Replacing the Hamiltonian by the eigenvalues (A.22), we obtain the ladder operators

\begin{matrix} D_{\pm} (E_{n}) & = \sin x \frac{d}{d x} \pm (n + g) \cos x . \end{matrix}

(A.25)

Since |$D_\pm(E_n)$| satisfy the commutation relation (A.19) with |$\alpha_\pm(E_n)=1/2\pm (n+g)$| and |$Q(n)=2\eta =2\cos x$|⁠, they change the eigenvalues from |$E_n$| to |$E_{n \pm 1}$|⁠.

Appendix B. Intertwining operators and parameter shifting

We consider Eq. (6). Since the parameter |$\nu$| can be thought of as parametrizing theories, we may consider the intertwining relation (3) with |$H_1=H(\nu_1)$| and |$H_2=H(\nu_2)$| for two values |$\nu_1$| and |$\nu_2$|⁠. More generally, it is reasonable to consider a one-parameter family of intertwining operators |$D(\nu)$| depending on |$\nu$| by setting |$\nu_1=\nu$| and |$\nu_2=f(\nu)$|⁠, where |$f(\nu)$| is a function of |$\nu$|⁠. The function |$f(\nu)$| describes how the parameter |$\nu$| in eigenfunctions and eigenvalues is shifted. Thus, the intertwining relation (3) is modified to the relation

\begin{matrix} H (ν) D (ν) & = D (ν) (H (f (ν)) + ε (f (ν))), \end{matrix}

(B.1)

\begin{matrix} H (ν) (D (ν) ψ_{n} (f (ν))) & = (E_{n} (f (ν)) + ε (f (ν))) D (ν) ψ_{n} (f (ν)), \end{matrix}

(B.2)

\begin{matrix} ψ_{n + m} (ν) & \propto D (ν) ψ_{n} (f (ν)), \end{matrix}

(B.3)

\begin{matrix} E_{n + m} (ν) & = E_{n} (f (ν)) + ε (f (ν)) . \end{matrix}

(B.4)

Thus, we call such operators that connect eigenfunctions between two Hamiltonians spectral intertwining operators.

Like ladder operators, spectral intertwining operators are also useful to construct full or partial energy spectra. For instance, if |$m=1$|⁠, |$D(\nu_0)$| connects |$\psi_n(f(\nu_0))$| to |$\psi_{n+1}(\nu_0)$|⁠, as shown in Fig. 4. Hence, |$\psi_n(\nu_0)$| for |$n=1,2,\ldots$| are constructed from |$\psi_0(\nu_n)$| by

\begin{matrix} ψ_{n} (ν_{0}) & \propto D (ν_{0}) D (ν_{1}) D (ν_{2}) \dots D (ν_{n - 1}) ψ_{0} (ν_{n}), & n & = 1, 2, \dots, \end{matrix}

(B.5)

where |$\nu_n=f(\nu_{n-1})=f(f(\nu_{n-2})) = f(f(\cdots f(f(\nu_0))\cdots))$|⁠. The energy spectrum is given by

\begin{matrix} E_{n} (ν_{0}) & = E_{0} (ν_{n}) + \sum_{i = 1}^{n} ε (ν_{i}), & n & = 1, 2, \dots . \end{matrix}

(B.6)

In this way, the full energy spectrum can be constructed if the eigenfunctions for the ground states |$\psi_0(\nu)$| are obtained for all |$\nu$|⁠.

B.1. Shape invariance in supersymmetric quantum mechanics

In supersymmetric quantum mechanics [5], two Hamiltonians are related to each other by the intertwining relations (5). Moreover, if the two Hamiltonians are parametrized by a common parameter |$\nu$| and have the shape invariance [6]

\begin{matrix} H_{-} (ν) & = H_{+} (f (ν)) + ε (f (ν)), \end{matrix}

(B.7)

such a system becomes exactly solvable (see, e.g., Ref. [7] for a review of supersymmetric quantum mechanics). We show this in terms of spectral intertwining operators.

Substituting Eq. (B.7) into the intertwining relations (5), we obtain

\begin{matrix} H_{+} (ν) a^{†} (ν) & = a^{†} (ν) (H_{+} (f (ν)) + ε (f (ν))), \end{matrix}

(B.8)

\begin{matrix} H_{+} (ν) a (f^{- 1} (ν)) & = a (f^{- 1} (ν)) (H_{+} (f^{- 1} (ν)) - ε (ν)), \end{matrix}

(B.9)

which fit into the spectral intertwining relation (B.1).

References

[1]

Dirac

P. A. M.

The Principles of Quantum Mechanics

(

Oxford University Press

Oxford, UK

1930

Google Scholar

Google Preview

OpenURL Placeholder Text

WorldCat

[2]

Odake

and

Sasaki

Phys. Lett. B

641,

112

(

2006

) [arXiv:quant-ph/0605221]. (

https://doi.org/10.1016/j.physletb.2006.08.017

)

Crossref

Search ADS

[3]

Odake

and

Sasaki

J. Math. Phys.

47,

102102

(

2006

) [arXiv:quant-ph/0605215]. (

http://dx.doi.org/10.1063/1.2349485

)

Crossref

Search ADS

[4]

Odake

J. Math. Phys.

57,

113503

(

2016

) [arXiv:1606.02836 [math-ph]]. (

http://dx.doi.org/10.1063/1.4966985

)

Crossref

Search ADS

[5]

Witten

Nucl. Phys. B

188,

513

(

1981

). (

http://dx.doi.org/10.1016/0550-3213(81)90006-7

)

Crossref

Search ADS

[6]

Gendenshtein

Pis’ma Zh. Eksp. Teor.

38,

299

(

1983

[7]

Cooper

Khare

and

Sukhatme

Phys. Rep.

251,

267

(

1995

) [arXiv:hep-th/9405029]. (

https://doi.org/10.1016/0370-1573(94)00080-M

)

Crossref

Search ADS

[8]

Bodmann

B. G.

Williams

C. L.

Pandya

N. N.

and

Kouri

D. J.

arXiv:1701.02767v1 [math-ph].

[9]

Musto

Phys. Rev.

148,

1274

(

1966

). (

http://dx.doi.org/10.1103/PhysRev.148.1274

)

Crossref

Search ADS

[10]

Pratt

R. H.

and

Jordan

T. F.

Phys. Rev.

148,

1276

(

1966

). (

http://dx.doi.org/10.1103/PhysRev.148.1276

)

Crossref

Search ADS

[11]

Malkin

I. A.

and

Man’ko

V. I.

JETP Lett.

146

(

1966

[12]

Barut

A. O.

and

Kleinert

Phys. Rev.

156,

1541

(

1967

). (

http://dx.doi.org/10.1103/PhysRev.156.1541

)

Crossref

Search ADS

[13]

Barut

A. O.

and

Kleinert

Phys. Rev.

157,

1180

(

1967

). (

http://dx.doi.org/10.1103/PhysRev.157.1180

)

Crossref

Search ADS

[14]

Balantekin

A. B.

Phys. Rev.A

57,

4188

(

1998

) [arXiv:quant-ph/9712018]. (

https://doi.org/10.1103/PhysRevA.57.4188

)

Crossref

Search ADS

[15]

Gangopadhyaya

Mallow

J. V.

and

Sukhatme

U. P.

Phys. Rev.A

58,

4287

(

1998

). (

http://dx.doi.org/10.1103/PhysRevA.58.4287

)

Crossref

Search ADS

[16]

Duval

Burdet

Künzle

H. P.

and

Perrin

Phys. Rev. D

31,

1841

(

1985

). (

http://dx.doi.org/10.1103/PhysRevD.31.1841

)

Crossref

Search ADS

[17]

Duval

Horváthy

P. A.

and

Palla

Phys. Lett. B

325,

(

1994

) [arXiv:hep-th/9401065]. (

https://doi.org/10.1016/0370-2693(94)90068-X

)

Crossref

Search ADS

[18]

Duval

Horváthy

P. A.

and

Palla

Phys. Rev. D

50,

6658

(

1994

) [arXiv:hep-th/9404047]. (

http://dx.doi.org/10.1103/PhysRevD.50.6658

)

Crossref

Search ADS

[19]

Cariglia

Duval

Gibbons

G. W.

and

Horváthy

P. A.

Ann. Phys.

373,

631

(

2016

) [arXiv:1605.01932 [hep-th]]. (

https://doi.org/10.1016/j.aop.2016.07.033

)

Crossref

Search ADS

[20]

Karamatskou

and

Kleinert

Int. J. Geom. Methods Mod. Phys.

11,

1450066

(

2014

). (

http://dx.doi.org/10.1142/S0219887814500662

)

Crossref

Search ADS

[21]

Cariglia

Ann. Phys.

362,

642

(

2015

) [arXiv:1506.00714 [math-ph]]. (

https://doi.org/10.1016/j.aop.2015.09.002

)

Crossref

Search ADS

[22]

Calogero

J. Math. Phys.

12,

419

(

1971

). (

http://dx.doi.org/10.1063/1.1665604

)

Crossref

Search ADS

[23]

Sutherland

Phys. Rev.A

1372

(

1972

). (

http://dx.doi.org/10.1103/PhysRevA.5.1372

)

Crossref

Search ADS

[24]

Pöschl

and

Teller

Z. Phys.

83,

143

(

1933

). (

http://dx.doi.org/10.1007/BF01331132

)

Crossref

Search ADS

We point out here that the derivation of Eq. (A.16) is independent of the fact that |$\eta$| is a function, which implies that if the closure relation (A.14) is satisfied for a linear operator |$\eta$|⁠, then |$\hat{D}_\pm$| provide higher-order ladder operators.

This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted reuse, distribution, and reproduction in any medium, provided the original work is properly cited.

Download all slides

Month:	Total Views:
June 2017	43
July 2017	55
August 2017	9
September 2017	2
October 2017	13
November 2017	20
December 2017	13
January 2018	20
February 2018	12
March 2018	14
April 2018	16
May 2018	8
June 2018	6
July 2018	10
August 2018	12
September 2018	10
October 2018	1
November 2018	7
December 2018	11
January 2019	12
February 2019	10
March 2019	6
April 2019	14
May 2019	12
June 2019	11
July 2019	16
August 2019	10
September 2019	17
October 2019	17
November 2019	7
December 2019	6
January 2020	24
February 2020	6
March 2020	7
April 2020	1
May 2020	5
June 2020	13
July 2020	8
August 2020	5
September 2020	19
October 2020	6
November 2020	16
December 2020	4
January 2021	9
February 2021	13
March 2021	14
April 2021	30
May 2021	8
June 2021	9
July 2021	2
August 2021	4
September 2021	12
October 2021	8
November 2021	9
December 2021	7
January 2022	4
February 2022	10
March 2022	1
April 2022	2
May 2022	2
June 2022	9
July 2022	15
August 2022	8
September 2022	6
October 2022	6
November 2022	16
December 2022	11
January 2023	12
February 2023	5
March 2023	4
April 2023	4
May 2023	2
June 2023	11
July 2023	15
August 2023	6
September 2023	4
October 2023	2
November 2023	3
December 2023	11
January 2024	6
February 2024	3
March 2024	3
April 2024	10
May 2024	10
June 2024	17
July 2024	12
August 2024	6
September 2024	13
October 2024	6
November 2024	3
December 2024	6
January 2025	4
February 2025	7
March 2025	14
April 2025	6
May 2025	3

Article Contents

Spectral intertwining relations in exactly solvable quantum-mechanical systems

Abstract

1. Introduction

2. Spectral intertwining relation

3. Examples of the spectral intertwining relation

3.1. Hydrogen atom

3.2. Rosen–Morse potential

4. Summary and discussion

Acknowledgements

Appendix A. One-parameter representation of ladder operators

A.1. Harmonic oscillator in one dimension

A.2. Odake and Sasaki’s construction for ladder operators

Calogero–Sutherland model

Appendix B. Intertwining operators and parameter shifting

B.1. Shape invariance in supersymmetric quantum mechanics

References

Citations

Views

Altmetric

Email alerts

Astrophysics Data System

Citing articles via

Latest

Most Read

Most Cited

Article Contents

Spectral intertwining relations in exactly solvable quantum-mechanical systems Open Access

Abstract

1. Introduction

2. Spectral intertwining relation

3. Examples of the spectral intertwining relation

3.1. Hydrogen atom

3.2. Rosen–Morse potential

4. Summary and discussion

Acknowledgements

Appendix A. One-parameter representation of ladder operators

A.1. Harmonic oscillator in one dimension

A.2. Odake and Sasaki’s construction for ladder operators

Calogero–Sutherland model

Appendix B. Intertwining operators and parameter shifting

B.1. Shape invariance in supersymmetric quantum mechanics

References

Citations

Views

Altmetric

Email alerts

Astrophysics Data System

Citing articles via

Latest

Most Read

Most Cited

This Feature Is Available To Subscribers Only

Spectral intertwining relations in exactly solvable quantum-mechanical systems
