Fault-Controlled Magma Ascent Recorded in the Central Series of the Rum Layered Intrusion, NW Scotland Open Access

Abstract

The Palaeogene layered ultrabasic intrusion of the Isle of Rum forms the hearth of the Rum Igneous Centre in NW-Scotland. The regional Long Loch Fault, which is widely held to represent the feeder system to the layered magma reservoir, dissects the intrusion and is marked by extensive ultrabasic breccias of various types. Here we explore the connection between the layered ultrabasic cumulate rocks and breccias of central Rum that characterize the fault zone (the ‘Central Series’) and evaluate their relationship with the Long Loch Fault system. We show that fault splays in the Central Series define a transtensional graben above the Long Loch Fault into which portions of the layered units subsided and collapsed to form the extensive breccias of central Rum. The destabilization of the cumulate pile was aided by intrusion of Ca-rich ultrabasic magmas along the faults, fractures and existing bedding planes, creating a widespread network of veins and dykelets that provided a further means of disintegration and block detachment. Enrichment in LREE and compositional zoning in intra cumulate interstices suggest that the collapsed cumulates were infiltrated by relatively evolved plagioclase-rich melt, which led to extensive re-crystallization of interstices. Clinopyroxene compositions in Ca-rich gabbro and feldspathic peridotite veins suggest that the intruding magma was also relatively water-rich, and that pyroxene crystallized dominantly below the current level of exposure. We propose that the Long Loch Fault opened and closed repeatedly to furnish the Rum volcano with a pulsing magma conduit. When the conduit was shut, pressure built up in the underlying plumbing system, but was released during renewed fault movements to permit dense and often crystal-rich ultrabasic magmas to ascend rapidly from depth. These spread laterally on arrival in the shallow Rum magma reservoir, supplying repetitive recharges of crystal-rich magma to assemble the rhythmic layering of the Rum layered intrusion.

INTRODUCTION

A central theme in igneous petrology concerns the processes that modify magmas during magma storage, transport and differentiation. Key questions for petrologists relate to how magmas are fed into, and aggregate within, shallow crustal magma reservoirs and plutons and how crustal plutons grow (laterally and vertically). Moreover, the relative roles of distinct magma chamber processes that drive magma diversification such as crystal settling vs in situ crystallization vs post-cumulus replacement reactions remain contentious (e.g. Brown, 1956,;Donaldson, 1974, 1976,;Irvine, 1980,;Bédard et al., 1988,;Emeleus et al., 1996,;Irvine et al., 1998,;Holness, 2007,;Marsh, 2013, 2015,; Latypov, 2015,;Leuthold et al., 2015, 2014,;Cashman et al., 2017). This makes it desirable to learn more about the range of processes that operate in crustal magma reservoirs in order to improve our understanding of magma-storage and supply in ancient, as well as in active volcanic systems. In particular, the link between tectonic movements of the Earth’s crust and magmatism has been discussed from several perspectives, but detailed application to individual volcanic systems is often not straightforward (e.g. van Wyk de Vries & Merle, 1998,;Holohan et al., 2008,;Mathieu & van Wyk de Vries, 2011,;Allan et al., 2012,;Cooper et al., 2012,;Upton, 2013,;Hodgson & Young 2016,;Trippanera et al., 2018).

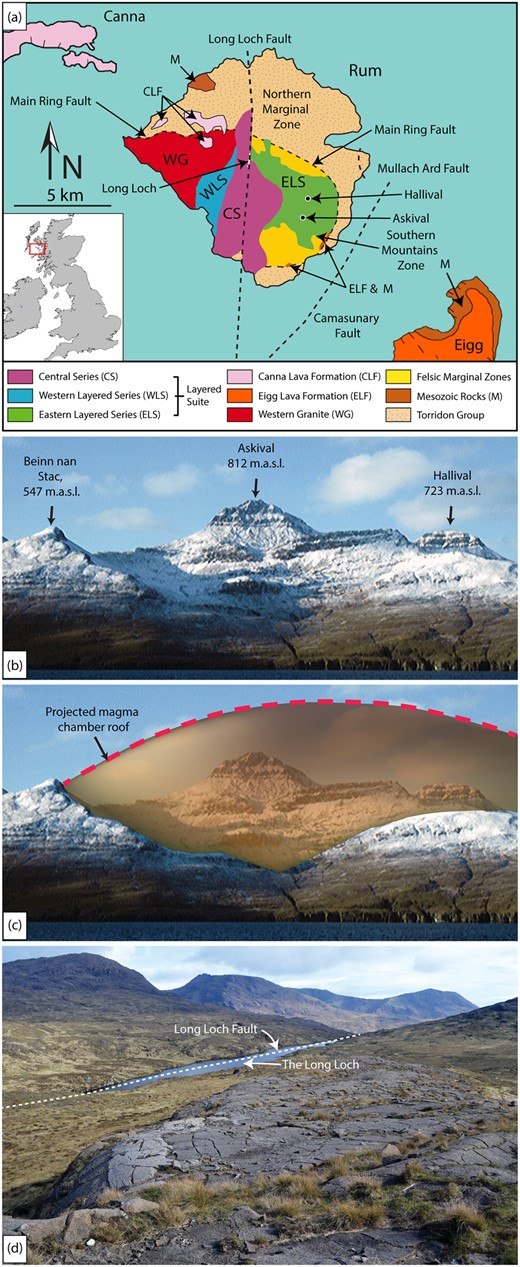

The Isle of Rum is an iconic site for igneous petrology as it hosts the famed layered ultrabasic Rum Layered Intrusion or Suite. The Layered Suite is widely known for the sixteen repetitive (rhythmic) macro units in the Eastern Layered Series that each grade upwards from peridotite to feldspar-rich gabbro or troctolite (Brown, 1956,;Emeleus et al., 1996,;Emeleus, 1997,;Emeleus & Troll, 2008, 2014). The Rum Layered Intrusion is divided into three major portions or ‘Series’, termed the Eastern Layered Series (ELS), the Western Layered Series (WLS), and the Central Series (CS), which make up the ‘layered suite’ (Fig. 1). Overall the layered ultrabasic Suite comprises ∼60% peridotite, up to ∼25% feldspar-rich gabbro (troctolite and allivalite) and ∼15% of feldspathic peridotite and gabbro plugs. Igneous layering is common throughout the Rum Layered Suite and is developed right up to its margins, although intrusion breccias and later marginal gabbros frequently obscure the contact relationships (e.g. Greenwood et al., 1990,;Emeleus, 1997,;Petronis et al., 2009). The peridotites and troctolites of the Rum Layered Suite are usually layered on a centimetre to decimetre scale, which has been interpreted to imply a multitude of small to medium recharge and mixing events (e.g. Emeleus & Troll, 2014,;Hepworth et al., 2017). Overall lateral variations in peridotite vs troctolite within the Eastern Layered Series appear to reflect a more olivine-rich mineral assemblage toward the centre of the pluton (Emeleus et al., 1996). This is in line with structural field data and magnetic fabric information that have been interpreted to indicate central down-throw or sagging towards the Long Loch Fault to accommodate the successive magma recharges (Volker, 1983,;Volker & Upton, 1990,;O’Driscoll et al., 2007b). The N–S striking Long Loch Fault (LLF) traverses Rum and exposes a chaotic set of igneous breccias (the Central Series) that have previously been proposed to represent the formerly prime conduit for the Rum Igneous Centre as a whole (McClurg, 1982,;Emeleus et al., 1996,;Emeleus, 1997,;O’Driscoll et al., 2007b,;Emeleus & Troll, 2008, 2014,;Petronis et al., 2009; Fig. 1a and d). The detailed relationship of these breccias with the Long Loch fault and the rhythmically layered Eastern and Western Series is, however, not yet fully resolved (Emeleus et al., 1996,;Emeleus and Troll, 2014) and forms the main target of the current work.

The abundant and diverse ultrabasic breccias of the Central Series have been discussed for well over 50 years (Wadsworth, 1961, 1992,;Donaldson, 1975,;McClurg, 1982,;Volker, 1983,;Emeleus et al., 1996). While most workers agree that the Central Series is linked to the Long Loch Fault, two mechanisms of breccia formation have been proposed (1) the Central Series was created by wholesale subsidence of layered ultrabasic units during movement along an active Long Loch fault (e.g. Wadsworth, 1961, 1992), or alternatively, (2) breccias were created by intrusion of new material along the active Long Loch Fault, thereby separating the Western and Eastern Layered Series and brecciating the existing layered suite along the divide (e.g. Donaldson, 1975,;McClurg, 1982,;Volker & Upton, 1990). The second concept would have involved pulses of intrusive uplift followed by partial collapse once the intrusive pressure subsided.

In this paper, we offer an interpretation of the relationship between the Long Loch Fault and the Central Series in order to explain the emplacement processes of the Rum Igneous Complex and in particular that of the Rum Layered Series. We seek to demonstrate that regional tectonics, via the Long Loch Fault, have played a crucial role in the siting of the Rum magma chamber system and, we argue, also in modulating magma influx into the active magma reservoir at the time of formation. To do so we provide new field data, structural observations and models, petrographic observations, whole-rock and trace-element compositional data, mineral data, estimates of crystallization pressures, and magmatic H₂O contents combined with available information to develop an overall model for the formation of the Rum Igneous Centre.

METHODS

Structural analysis and 3D modelling

In order to discern the major structural features, attitudes of layering, fault orientations, and lithological variations were recorded in the field. To better visualize the recorded geological structures, the structural data collected during our work and that of Emeleus (1997) were processed in 3 D with the Midland Valley/Petex Ltd software package MOVE™ (www.mve.com). Structural features were projected onto a DEM (Digital Elevation Model) of Rum’s topography (OS sheet NM39, 10 m accuracy, OS OpenData is free to use under the Open Government Licence, OGL) and extrapolated as down-dip planes for 500 m The structural features recorded in the field were also integrated with information from satellite imagery (source: Esri, DigitalGlobe) and the satellite images were processed in Esri ArcGIS^® by manual drawing of polylines onto observed lineaments. The lineaments were then imported into MOVE™, where the ‘Line to Strike’ conversion tool was used to provide a large set of structural information. Several of the peridotite and gabbro plugs are reported as more or less vertical sheet intrusions or pipes (Holness, 1999,;Holness et al., 2012), which allowed for analyses of their shape-preferred orientation (SPO). The shapes of vertical to sub-vertical plugs on the Rum map (Emeleus, 2004) were drawn manually as polygons in Esri ArcGIS^®, then imported into the open source image analysis software ImageJ (Schneider et al., 2012), and converted into a binary image. Plug shapes were analysed with ImageJ and their preferred orientation obtained with the software CSDcorrections version 1.55 (Higgins, 2000;,Higgins, 2002). Horizontal gabbro and peridotite sheets were excluded from the SPO analysis.

Electron probe micro analysis

Representative samples of the Central Series rocks were collected and include feldspathic peridotite (dykes and veins), gabbro veins and the ’pebbly’ peridotite, to complement previously published petrographic observations and geochemical data. The collected samples were used to prepare polished thin sections, which were analysed using the field emission electron probe micro-analyser (FEG-EPMA) JXA-8530F JEOL HYPERPROBE at Uppsala University. The instrument was used in Electron Dispersive Spectroscopy (EDS) mode to identify mineral phases and in Wavelength Dispersive Spectroscopy (WDS) mode for quantitative geochemical analysis of individual mineral grains. The electron beam was set to 15·0 kV and 10 nA for olivine and pyroxene, with a diameter of 2 µm. A beam diameter of 5 µm was employed for plagioclase. The FEG-microprobe is equipped with five spectrometers for WDS analysis using different crystals. Spectrometers one and two used TAP crystals to analyse Na, Al and Si, Mg. Spectrometers three and four used PETJ crystals to analyse Ca, Mn, K, Ba and Ti. Spectrometer five utilized a LIFH crystal to analyse Fe, Va, Ni and Cr. The built-in PRZ correction was implemented during all measurements. The Na and Ca distribution in interstitial plagioclase of three samples was analysed using 800 × 800 µm WDS element maps. For the maps the electron beam was set to 15·0 kV and 4 nA with 100 ms dwell time and the composition was analysed every µm in the map area. The following calibration and standards were used during analysis: pyrophanite for Mn and Ti, magnesium oxide for Mg, albite for Na, orthoclase for K, baryte for Ba, aluminium oxide for Al, fayalite for Fe, nickel oxide for Ni, chromium oxide for Cr, and wollastonite for Ca and Si. Uncertainties: SiO₂, Al₂O₃, MgO and CaO ≤ 1·5% s.d., FeO ≤ 2·2% s.d., Na₂O in plagioclase and clinopyroxene ≤ 4·5% s.d., and minor elements ≤ 10% s.d. (see Barker et al., 2015). All major element mineral data collected during this study are provided in Supplementary Table 1; supplementary data are available for downloading at http://www.petrology.oxfordjournals.org.

Fourier transform infrared spectroscopy (FTIR)

To estimate the water content of a magma, the H₂O-content in nominally anhydrous clinopyroxene can be used (e.g. Nazzareni et al., 2011,;Okumura, 2011,;Weis et al., 2015). Infrared (IR) spectra identify OH-vibrational bands in the minerals, and together with compositional data from microprobe analysis, the partition coefficient between H₂O and the magma can be established. These data were then employed to obtain an estimate of the water content of the magma from which the mineral (e.g. pyroxene) crystallized (O’Leary et al., 2010,;Nazzareni et al., 2011,;Weis et al., 2015).

Seven large clinopyroxene crystals from three gabbro vein samples were prepared for analysis as described in Weis et al. (2015). The water content was analysed using both sample compartment of an Equinox 55 spectrometer as well as a Bruker Hyperion 2000 microscope equipped with a NIR source (halogen lamp), a CaF₂ beam-splitter, a wire-grid polarizer (KRS-5) and an InSb detector at the Natural History Museum, Stockholm. For each crystal a polarized IR spectrum over the range 2000 to 5000 cm^-1 was measured along the directions of the main refractive indices (α, β and γ) to obtain the total absorbance: A_α+A_β+A_γ=A_total. A_α and A_γ were measured on the (010) crystal face and A_β on (100). Crystal thickness varied between 110 and 900 μm for both the (100) and (010) faces. Cracks and inclusions in the crystals were avoided by using small apertures (100 to 400 μm) for masking during the analysis. For each individual spectrum, 128 scans were performed and subsequently averaged. No significant differences between the analyses in the sample compartment and microscope measurements were observed. The individual IR spectra were viewed in the Peakfit^® software and were baseline corrected. By using the integrated area under the corrected OH-bands, the corresponding water contents were calculated.

To derive the water content of the magma from which the analysed pyroxenes crystallized, the EMPA data of the pyroxenes and the equation by O’Leary et al. (2010,) (lnD = -4·2(±0·2) + 6(±0·5)^VI[Al³⁺]-1(±0·2)[Ca²⁺]) were used to determine mineral/melt partition coefficient for water between clinopyroxene and its host magma. The overall error for the magmatic water contents is similar to the IR-analysis (±20%) (Libowitzky & Rossman, 1997,;Weis et al., 2015) (Table 1).

XRF and ICP-MS analyses

Whole-rock samples were powdered in an agate ball mill and analysed with X-ray fluorescence spectroscopy (XRF) at the University of Bergen, Norway, on a Phillips PW1404 instrument. High Resolution Inductively Coupled Plasma Mass Spectrometry (HR-ICP-MS) was employed for trace element analysis using a Thermo Scientific Element2 HR-ICP-MS instrument. Sample powder aliquots of 100 mg were dissolved for ICP-MS analyses in acid (4 mL sub-boiled 22 M HF and 3 mL 14 M HNO₃) in PTFE screw-top beakers. The samples were completely digested after 48 h at a temperature of 120 °C. 1 mL monitor solution with 10 ppm Re, 5 ppm In and 2·5 ppm Tl was added to the sample solution, and dried to evaporate HF and extract Si as SiF4. Residues were dissolved again in 5 mL 14 M HNO₃ acid at 130 °C. For the ICP-MS measurements 1 mL solution was then diluted with ultrapure 18.2 MQ water to 50 mL 2% HNO₃. Calibration curves using geological reference materials were produced with data from the Geological and Environmental Reference Materials (GeoReM) database (www.georem.mpch-mainz.gwdg.de). Good linearity was attained for most analytes, e.g. R²>0·998 for rare earth elements (REE) and high field-strength elements (HFSE). Standards BIR-1 and AGV-2 were used to monitor analytical accuracy; deviations from the standards values were generally <5%. For full details on sample preparation and data calibration see Meyer & van Wijk (2015).

THE RUM IGNEOUS CENTRE

Geological setting

During the early Palaeogene several large volcanoes formed in the present-day NW-British Isles. These, together with associated basalt lava fields and dyke swarms, constitute the British and Irish Palaeogene Igneous Province (BIPIP) (Bell & Williamson, 2002,;Emeleus & Bell, 2005,;Preston, 2009). The province includes the well-known igneous centres, Ardnamurchan, Mull, Rum, Skye, Slieve Gullion and the Mourne Mountains, whose study gave rise to some fundamental concepts in igneous petrology and volcanology, such as cone sheets, ring-dykes and cauldron subsidence and magma types (Bailey et al., 1924,;Richey, 1961,;Le Bas, 1971,;Emeleus & Bell, 2005). Many of the BIPIP volcanic complexes had an initial felsic volcanic phase, but subsequent intrusions generally shifted towards extensive mafic magmatism (Walker, 1975,;Gamble, 1979,;Kerr et al., 1999,;Troll et al., 2000, 2004; Meade et al., 2014).

The main tectonic features relevant to the BIPIP include several NE–SW-trending terranes that are separated by large bounding faults (e.g. Emeleus & Bell, 2005,;Hopper et al., 2014,; Horni et al., 2017). Rum is situated in the northernmost Hebridean terrane, whose major lithological units are Mesozoic strata and Neoproterozoic Torridonian sandstone overlying Archaean and Palaeoproterozoic Lewisian gneiss basement (e.g. Park et al., 2002,;Emeleus & Bell, 2005). Palaeogene tectonic stresses in the BIPIP left a set of NNE–SSW and NW–SE-trending strike-slip faults associated with a N–S regional compression, in addition to swarms of NW–SE-trending regional dykes that reflect an earlier NE–SW extensional regime (Jolly & Sanderson, 1995,;Macdonald et al., 2009, 2015,;Cooper et al., 2012,;Hopper et al., 2014). Palaeogene tectonics were probably controlled by interaction of pre-existing structures with those formed during: (1) Atlantic rifting, (2) the arrival of the Iceland plume, and (3) far-field hinterland tectonics (England, 1988,;Lawver & Muller, 1994,;Meyer et al., 2007,;Cooper et al., 2012,; Horni et al., 2017).

The Rum Igneous Centre, dated at 60·53 ± 0·08 (U–Pb) Ma (Hamilton et al., 1998), appears to be the earliest of all the central-type, sub-volcanic complexes of the Hebrides. Although picritic magmas played some part in other centres (e.g. Skye and Mull) the Rum Central Complex is singular in that such magmas apparently played a dominant role and reached near-surface levels over (inferentially) many thousands of years (Emeleus, 1997,;Upton et al., 2002,;Emeleus & Troll, 2014).

The Rum Igneous Centre grew on a horst that separated two Mesozoic basins of the Hebridean Terrane (Emeleus, 1997). Magma upwelling at Rum initially produced a silicic collapse caldera with associated eruptions of rhyodacite ash-flows and emplacement of shallow-level micro-granites (Emeleus, 1997,;Troll et al., 2000,;Donaldson et al., 2001,;Petronis et al., 2009). The silicic magmas were generated by partial melting of country rocks during ascent of mafic magma (Troll et al., 2004,;Meyer et al., 2009,;Nicoll et al., 2009), and these early silicic events are commonly summarized as Stage 1. Stage 2, focuses on the layered ultrabasic pluton that commenced with intrusion of basaltic dykes and cone-sheets, followed by emplacement of the main ultrabasic Layered Suite (Emeleus et al., 1996,;Emeleus & Troll, 2008, 2014) (Fig. 1). In addition, emplacement of the Layered Suite caused deformation of the Western Granite (WG) where anisotropy of magnetic susceptibility and palaeomagnetic measurements indicate that the microgranite has been tilted by ∼14^o to the northwest (Petronis et al., 2009).

The shallow emplacement level of the Rum Igneous Complex is indicated by the ‘plutonic’ cumulate sequences lying next to the Stage 1 extrusive rhyodacites (Emeleus, 1997,;Holness, 1999,;Holness & Isherwood, 2003,;Troll et al., 2008). Indeed, a volcanic superstructure had long been postulated (e.g. Brown, 1956). This is because the layered units are dominantly composed of olivine and calcic plagioclase crystallized from basaltic magmas, even though pyroxene, sodic plagioclase, magnetite etc. would have been significant components of such magmas. The scarcity of lower temperature residual fractions from the layers led Brown (1956,) to postulate the growth of a basaltic volcano above the layered units. Vigorous erosion soon set in after magmatism ceased (Emeleus, 1997,;Chambers et al., 2005,;Troll et al., 2008). Evidence for fast erosion is found in NW Rum where the Western Granite and sandstones of the Torridon Group are overlain by basaltic lavas of the Canna Lava Formation (≤59 Ma) and their intercalated fluviatile conglomerates that contain clasts (cobbles) derived from contemporaneous erosion of the Rum pluton (e.g. Emeleus, 1985, 1997,;Emeleus & Troll, 2008). Erosion was probably aided by displacement along local fault systems, like the Camasunary fault (Fig. 1a.), which had a history of activity starting already in the Mesozoic, and the Long Loch Fault, on which ≥750 m of post-magmatic lateral offset is recorded (Emeleus, 1997) (Fig. 1a and d), and may indicate dissection of the volcano during its growth. The geology of the Isle of Rum thus records the remarkable history of a fault-centred Palaeocene volcanic system from initial up-doming and anatexis to its closing stages dominated by erosion and decay (Emeleus, 1997,;Emeleus & Troll, 2011, 2014).

The layered ultrabasic pluton

The external boundaries of the Eastern, and part of the Western Layered Series are controlled by the Main Ring Fault (Brown, 1956,;Emeleus et al., 1996), which defines an ovoid ∼8 km E–W by ∼4 km N–S in map view. A pronounced positive Bouguer gravity anomaly over Rum was initially interpreted as indicating a steep-sided, approximately cylindrical body, of dense ultrabasic rock extending to a depth of ∼16 kilometres (McQuillin & Tuson, 1963,;Emeleus et al., 1996). Alternatively, if a tabular or disc-shaped body with a narrower feeder is assumed (mushroom-geometry) to explain the gravity anomaly, a higher proportion of dense peridotite would be required at depth than what is presently exposed in outcrops (Emeleus et al., 1996,;Emeleus, 1997). Albeit representing slightly different stratigraphic levels that are now separated by the Central Series, the Eastern and Western Layered Series are widely regarded as lateral equivalents of a formerly continuous cumulate pile that formed in a shallow crustal magma chamber, (Wadsworth, 1961, 1992,;Donaldson, 1975,;Emeleus et al., 1996,;Emeleus, 1997). The long axis of the Central Series coincides with the N–S Long Loch Fault (Fig. 2), which extends beyond Rum southwards to at least the nearby Camasunary fault and is part of the wider tectonic framework of the region (c.f. England, 1988,;Smith, 2012). It continued to undergo right-lateral movement after magmatism on Rum had ceased (Emeleus, 1997). These fault movements along the Long Loch Fault during the Palaeogene probably played a crucial role in injection and replenishment of magmas into shallow crustal reservoirs (Donaldson, 1975; Emeleus, 1997,;O’Driscoll et al., 2007b,;Petronis et al., 2009,;Emeleus & Troll, 2014).

The Eastern Layered Series is formed by a prominent succession of sixteen mostly gently-dipping layers of mafic and ultrabasic rocks that amount to ∼750 m of total thickness (Brown, 1956,;Emeleus, 1997). The ultrabasic portions consists of peridotite that grades upward into olivine-plagioclase troctolites (the so-called allivalite of Harker, 1908; Brown, 1956; Wager & Brown, 1968), or into anorthosite or gabbroic cumulates. ‘Allivalite’ (named after Hallival mountain) is a local term describing a dominantly olivine-plagioclase rock with >50 modal % plagioclase that is ≥An₈₀ (c.f. Harker, 1908,;Brown, 1956), but we follow Bédard et al. (1988) and the IUGS nomenclature and we now employ the more familiar term troctolite in this account. Moreover, we refer to olivine–plagioclase rocks as feldspathic peridotites and to olivine-dominated rocks as peridotite. Successive layers of troctolite and feldspathic peridotite or peridotite may be separated by thin (millimetre scale) chrome–spinel seams (locally refered to as ‘chromitite’). Traditionally the layered units are envisaged as having crystallized from discrete pulses of basaltic magma that precipitated chrome–spinel first, followed by olivine and then plagioclase to progressively form a typical ‘unit’, but more recent work suggests that stratiform Cr-spinel seams may have formed from reactive lateral melt migration that may have exploited lateral boundaries between successive cumulate units (c.f. Brown, 1956,;O’Driscoll et al., 2009, 2010,;Leuthold et al., 2015,;Hepworth et al., 2020b). Moreover, the layered units of the ELS tend to become more feldspathic (i.e. with decreasing thickness ratio of peridotite: troctolite) as traced eastwards away from the supposed Central Series feeder zone (see Fig. 5 of Volker & Upton, 1990). Although the processes by which one of the typical layered units (peridotite with overlying troctolite) remain conjectural, Volker & Upton (1990) suggest that the olivine-laden magmas deposited a high proportion of their crystal load close to the feeder zone.

The Western Layered Series is ∼500 m thick and is composed of feldspathic peridotite that is at least in part underlain by layered gabbro (Wadsworth, 1961, 1992,;Emeleus, 1997). Large-scale layering is less obvious in the Western Layered Series compared with the Eastern Layered Series, but small-scale layering marked by crystal laminations and variations in size and abundances of olivine and plagioclase is frequently present. Importantly, rocks of the upper Western Layered Series are virtually indistinguishable in the field from the Eastern Layered Series west of Barkeval (Fig. 2; Emeleus et al., 1996). Notably, a remarkable type of crescumulate was first described from the Western Layered Series and called ‘harrisite’ (Harker, 1908,;Wager et al., 1960). It occurs in both peridotite and olivine gabbro layers, and is composed of dendritic olivine crystals up to 1 m in length (Harker, 1908,;Wadsworth, 1961,;Wager & Brown, 1968,;Donaldson, 1974, 1976). The harrisitic textures of the Western Layered Series probably grew in short-lived periods of tranquillity from crystal-poor, high-Mg magma and crystal growth times were short, perhaps on the order of days or even less (Wager et al., 1960,;Wadsworth, 1961,;Donaldson, 1982,;O’Driscoll et al., 2007a). The distinctive skeletal olivines that define harrisites are attributed to rapid crystallization from supersaturated high-Mg magma (Fig. 3). Once crystallization commenced, growth on the existing substrate was dominant, forming complex ‘crystal gardens’ on the magma chamber floor (Donaldson, 1974, 1976,;O’Driscoll et al., 2007a). In addition, platy harrisitic olivines present in layered peridotites on the southern slopes and east of Ard Nev probably broke off from the harrisite crystal gardens during times of increased turbulence or convective motion in the reservoir and are locally arranged in imbricate geometry (Emeleus et al., 1996,;O’Driscoll et al., 2007a,;Emeleus & Troll, 2008, 2014). This provides a sense of flow direction of the magma and mushes in this part of the Central Series, recording dominantly an inward flow, i.e. toward the centre of the pluton (O’Driscoll et al., 2007b). There have also been observations of harrisite in intrusive sheets and veins in both the Eastern Layered Series and the Central Series (e.g. Donaldson, 1982,; Hepworth et al., 2017, 2020b).

The layered rocks of Rum have traditionally been interpreted in terms of magmatic sedimentation within a larger crustal magma reservoir and are regarded as classic magma chamber floor cumulates (e.g. Brown, 1956,;Emeleus et al., 1996,;Emeleus, 1997). Layering is widely demonstrated by mineral lamination, modal mineralogy and grain size. Structures that indicate slumping and load deformation, as well as cross-bedding, are common, e.g. in Units 13 and 14 of the Eastern Layered Series, and a multitude of small but dynamic events is thus recorded in the Layered Suite (Holness et al., 2012,;Emeleus & Troll, 2014,;Hepworth et al., 2017, 2020b).

Several sheet-like intrusions of gabbros and feldspathic peridotite occur within the layered rocks. For instance, the bytownite gabbro (‘eucrite’) of Unit 9 has been shown to be a later intrusion (Bédard et al., 1988,;Holness et al., 2007). In addition, a number of plugs as well as crystal-rich picrite dykes intrude the Rum Layered Suite (e.g. Upton et al., 2002,;Holness et al., 2012), which underline the importance of frequent small-volume recharge events. Moreover, evidence for reactive liquid flow (c.f. Irvine, 1980,;Holness 2007), i.e. movement of high-temperature interstitial melts and fluids in the cumulate pile and reaction with crystals, is widespread. This process locally caused considerable modification of the original textures, crystal compositions, and rock compositions (e.g. Butcher, 1985,;Bédard et al., 1988,;Holness 2007,;Holness et al., 2007,;O’Driscoll et al., 2010,;Leuthold et al., 2014, 2015,; Hepworth et al., 2020a, 2020b).

The Central Series

The intensely brecciated Central Series, first defined by McClurg (1982,), is separated from the Eastern and Western Layered Series along steep brecciated marginal zones that are usually only a few hundred metres wide. At its northern end, the Central Series covers a tract of relatively low ground (Fig. 1d), reflecting its greater susceptibility to glacial erosion, probably as a result of the faulted and comparatively weaker and often altered nature of its rocks (Emeleus 1996). The igneous breccias of the Central Series contain blocks and clasts of olivine-rich peridotites, feldspathic peridotites and troctolite of up to house-size (Figs 4 and 5) (Wadsworth, 1961, 1992,;McClurg, 1982,;Volker & Upton, 1990,;Emeleus et al., 1996). The breccias are highly heterogeneous with respect to the relative abundances of matrix and clasts and range in texture from matrix-supported to clast-supported (e.g. Wadsworth, 1961,;Donaldson, 1975,;Volker & Upton, 1990). Breccia blocks also vary in shape from angular to partly rounded and some breccia clasts have been deformed into lenticular or sigmoidal shapes, while others appear to have been rigid as recorded by soft-sediment deformation (Figs 4–6) (Brown, 1956,;Wadsworth, 1961,;Emeleus, 1997). Accordingly, some clasts and blocks were derived by brittle fracturing and collapse of lithified roof and wall lithologies to the Central Series, while others represent contorted crystal-mushes that were still ductile on final emplacement (Figs 4–6; Donaldson, 1975,;McClurg, 1982,;Wadsworth, 1992,;Emeleus et al., 1996,;Emeleus, 1997,;Emeleus & Troll, 2008, 2014). Although many of the clasts in the Central Series were mechanically coherent, cumulus material has also locally migrated down-slope as viscous parcels or tongues of mushy material (Fig. 6), implying that reworking/mobilization of unconsolidated crystal mushes occurred in addition to brittle disintegration of already solidified cumulate units. In the central portion of the Central Series, a rock made of well-sorted centimetre-sized rounded to angular pebbles of peridotite in feldspathic peridotite crops out in elongate outcrops and transport and size-sorting of clasts appears to have played a role in its formation (see also below).

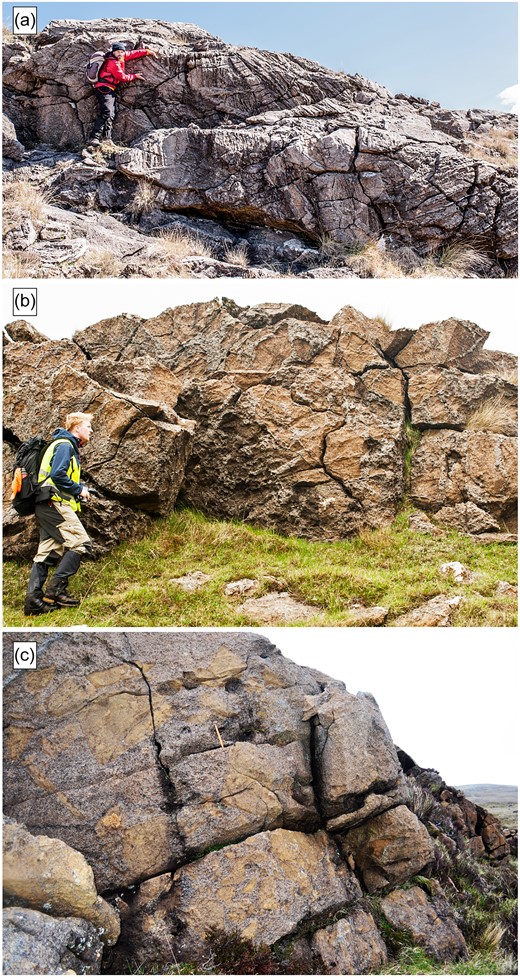

The dip of layering in individual blocks in the Central Series breccias ranges from steep to shallow and although uniform within blocks, it appears random on outcrop scale. Individual blocks or clasts often record complex events (e.g. intermittent crystal accumulation, in situ crystal growth and subsequent replacement reactions), while layered structures in the enclosing peridotite matrix usually record disturbance due to subsidence of blocks into ductile crystal mushes (e.g. Fig. 6a and b). Throughout the Central Series, troctolites are also strongly deformed with common folding, evidence of fault drag and boudinage structures (Volker, 1983). An overall assessment by Wadsworth (1992) led him to suggest that generation of the breccias was accompanied by repeated subsidence events.

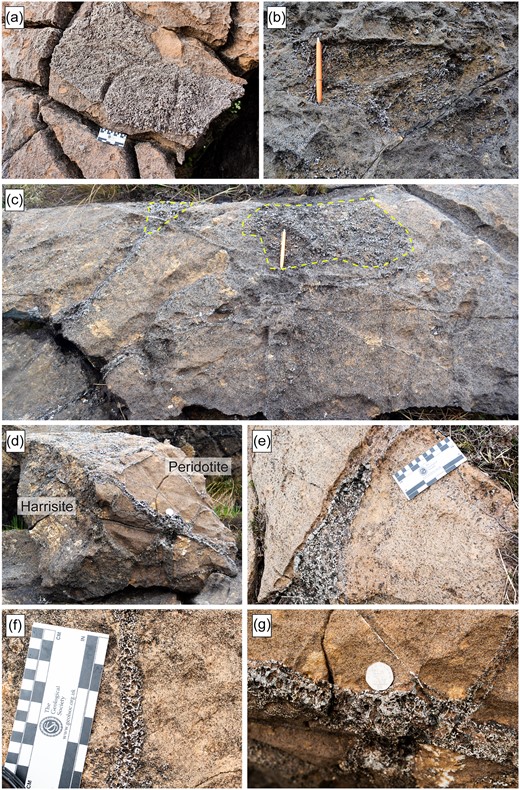

Major intrusive components in the Central Series, besides the plugs (see below), are the abundant millimetre to decimetre thick veins and dykelets of feldspathic peridotite and gabbro. These are extremely widespread in the Central Series and range from concordant with layering to transgressive with respect to layering. They locally reach an abundance that can be viewed as ‘pervasive infiltration’ (Fig. 3d), suggesting incipient brecciation that likely also promoted rock-disintegration within the Central Series. The lack of chilled contacts to the veins implies that the Central Series rocks were still hot when intrusion of the veins and dykelets took place (c.f. Marsh, 1981). The intrusive feldspathic peridotite veins, dykes and pods commonly show harrisitic textures in the Central Series (Fig. 3), which contrasts with the primarily layer-bound occurrence of harrisite in the Western and Eastern Layered Series (e.g. O’Driscoll et al., 2007a,;Hepworth et al., 2017, 2020b). Breccia matrix compositions are variable and range from pyroxene-rich (up to 40% modal) to olivine-rich (up to 30% modal); but feldspathic peridotite is predominant, with 40–50% plagioclase (Donaldson, 1975; Volker & Upton, 1990). Wadsworth (1992) identified the matrix rocks as poorly compacted cumulates (i.e. meso-cumulates) with a significant percentage of intercumulus material. There are numerous internal intrusive contacts among the breccias and shearing is commonly present close to the marginal breccias, where vertical fabrics have been imposed on dunitic peridotite wall-rocks up to 20 m away from the margins of the Central Series (Volker, 1983).

In an attempt to place the observations in a stratigraphical context, Wadsworth (1961) and later McClurg (1982) and (Volker, 1983) divided the Central Series into four stratigraphic sub-units (compare Fig. 2). (1) The Outer Breccia (or Lag Sleitir Breccia), (2) the An Dornabac member, (3) the Long Loch member, and (4) the Ruinsival stratigraphic members. While an element of in-situ stratigraphy is possible, we argue that these observed stratigraphic units in the Central Series probably reflect inherited successions linked to the Eastern and Western Layered Series that broke apart during activity along the Long Loch Fault and may therefore contain layered segments that are no longer preserved in either the Eastern or the Western layered intrusions (Volker & Upton, 1990). Arguments against an in situ stratigraphy in the Central Series, include: (1) the larger and steeply inclined masses of layered troctolite south of the Long Loch that closely resemble troctolite in the higher units in the Eastern Layered Series (McClurg, 1982); Emeleus et al., 1996; Emeleus, 1997); (2) the An Dornabac Member of the Central Series shows striking similarities with the Ard Mheall Member of the Western Layered Series (Wadsworth, 1992); (3) faulted walls that leave steep-sided escarpments on the margins of the Central Series (Emeleus, 1997); (4) slump-structures are common at certain horizons in the Eastern Layered Series (e.g. units 7 and 14, Brown, 1956,;Emeleus et al., 1996,;Emeleus, 1997) and in combination with common flat-lying overfolds in the Eastern Layered Series troctolites, and with the thin, attenuated and wispy feldspathic peridotite layers, evidence for transport of material towards the intrusion centre is widely indicated (c.f. Volker, 1983,;Renner & Palacz, 1987,;Emeleus & Troll, 2014). This inference is consistent with the magmatic fabric interpretation in the Eastern Layered Series and that of the Western Granite (O’Driscoll et al., 2007b,;Petronis et al., 2009) and also with the major disruption of incompletely-consolidated cumulates in the Eastern Layered Series observed on Trollaval’s westernmost slopes (Volker & Upton, 1990). There, units high in the cumulate succession reveal increasingly steep westward dips (up to 80^o), which culminate in broke-off troctolite layers that appear to have collapsed into the Central Series (Volker & Upton, 1990); (5) Finally, the comparable eastward flexure towards the Central Series present in the Western Layered Series (e.g. north of Loch an Dornabac). This flexure displays layer dips that increase to >40^o towards the Central Series and grades into a zone of large angular mega-blocks in the adjacent portion of the Central Series that are derived from several lithological units (McClurg, 1982,;Wadsworth, 1992,;Mattsson, 2014). Intrusion by upwelling crystal-rich mafic magmas, now represented by veins and dykelets, probably acted as lubricant and aided disintegration of formerly coherent cumulates (Donaldson, 1974).

A number of remarkable petrographic features exist in the Central Series. These include olivines that are frequently dark brown to black due to a multitude of small (5–10 micron) opaque inclusions or lamellae. Slow annealing in a system that experienced persistent cooling and re-heating has been shown to be a possible cause for this phenomenon (c.f. Haggerty & Baker, 1967,;D’Oriano et al., 2013,;Ejima et al., 2015), consistent with repeated magma recharge into the Central Series. Another notable feature is the ‘poikilo-macro-spherulitic feldspar’ textures from, for example, the Dornabac area of the Central Series, that were originally interpreted to represent the result of the emplacement of a batch of magma consisting of olivine crystals with ‘basalt’ melt in between (i.e. a slurry), from which the melt solidified in the spaces between the olivines. However, the nucleation rate of new plagioclases was very low, making for a restricted number of nuclei, thus promoting the branching of growing interstitial crystals (Donaldson et al., 1973). The examples from An Dornabac comprise massive radial and braid-like growths of calcic, often bytownitic plagioclase that is poikilitically enclosing olivines. Like the harrisite olivines, these textures are now recognised in many places over the Central Series and beyond. Notably, however, some workers have described an association with intruded feldspathic peridotite veins and dykelets (Volker, 1983,;Mattsson, 2014) (Fig. 7e and f). Despite olivine composing ∼60% of the rocks in the Central Series, the poikilitic feldspars radiate outwards in semi-symmetrical patterns, and up to diameters of ∼1 m. The crystals are typically linked as twins and form meshes of planar stellate structures that range from patchy to radiating (Donaldson et al., 1973). At several sites in the Central Series, crystal gardens of ‘poikilo-macro-spherulitic feldspar’ textures have seemingly grown from a substrate upward (Fig. 7). The radiating and branching nature of the plagioclase crystals seen here on Rum remains enigmatic. The possibility exists that some of these textures may also reflect local recrystallization due to, for example, fluids and heat that percolated upwards through the cumulate pile to crystallize poikilo-macro spherulites.

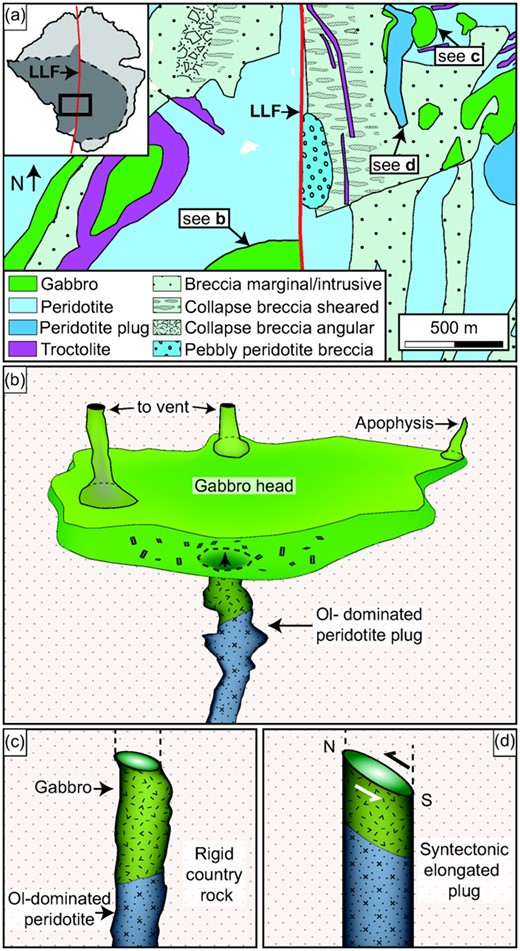

There are about 40 peridotite, gabbro and/or dolerite plugs on Rum and traditionally they have been divided into those penetrating the Layered Series and those outside the pluton (Emeleus, 1997). In map-view, specific plugs tend to vary in shape from circular to elongate in N–S direction, and there are three end-member types that can be distinguished: (1) Plugs with simple circular plan that suggest simple cylindrical conduit plugs, (2) elongate (i.e. syntectonic) plugs and tongues parallel to faults, and (3) mushroom-style gabbro intrusions (Fig. 8). Of the olivine–gabbro plugs and sheets intruding the Central Series (Fig. 2), the largest is the semi-circular Glen Harris gabbro, which demonstrates that basaltic magmas occurred throughout the evolution of the Rum Layered Suite (c.f. Nicoll et al., 2009). The Glen Harris gabbro plug also records post-solidification offset along the Long Loch Fault of ∼750 m (Fig. 2). The Papadil plug has a peridotite core surrounded by a gabbro shell (c.f. Holness et al., 2012), whilst the Ruinsival plug is dominated by feldspathic peridotite. The Barkeval plug is heterogeneous and is generally poorly-layered peridotite with an approximately 80 m wide marginal zone of heterogeneous feldspathic peridotite near Barkeval summit (Volker & Upton, 1990). Whereas the peridotitic and gabbroic plugs cutting the ultramafic complex lack discernible thermal aureoles, those in the north cutting the Torridonian sandstones, generated marked thermal aureoles (Holness, 1999,;Holness et al., 2012). The outcrops of the northern plugs present cross-sections of near-vertical conduits through which ultramafic magmas flowed for periods of up to several months, presumably supplying surface eruptions (Holness, 1999,;Holness et al., 2012). Some of these plugs are themselves cumulates, reflecting terminal consolidation conditions following cessation of magma supply (Holness et al., 2012).

Structural relationships between the Central Series and the Long Loch Fault

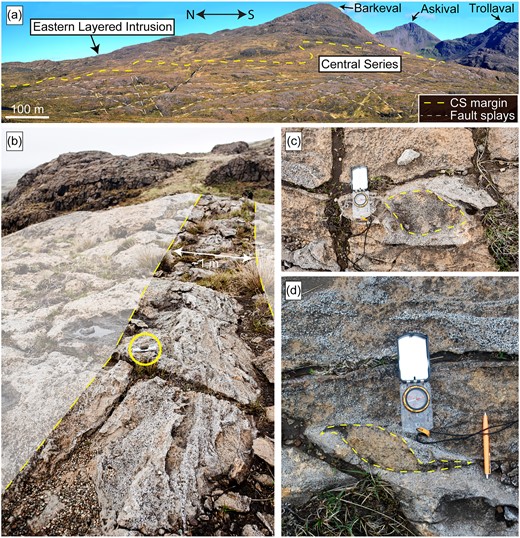

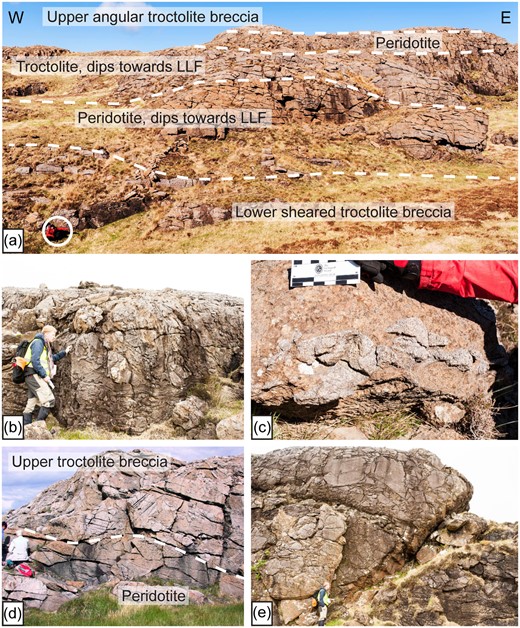

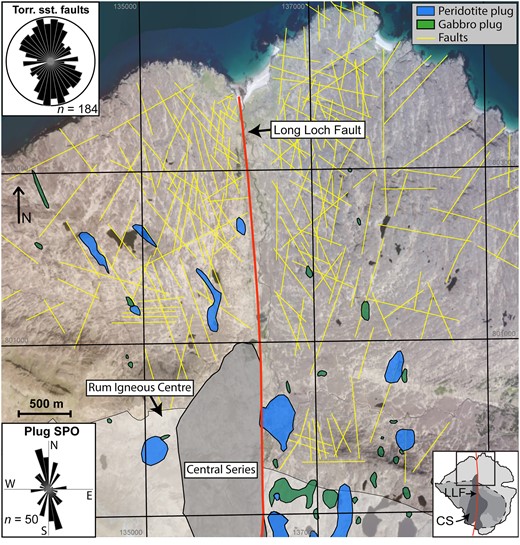

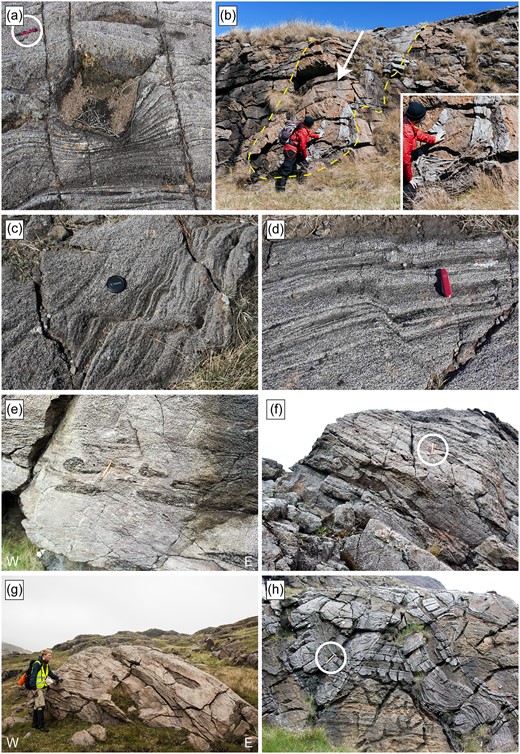

Fault splays and lenses in connection to the Long Loch Fault are common in the Central Series, as are faults within breccia blocks and breccia mélanges (Figs 4, 5, 6 and 9). Many fault splays are expressed as straight furrows (up to several metres wide) or as terraces between outcrops (Fig. 9) and are considered to signify displacement and dilation, as well as intrusion by feldspathic peridotite (now removed by erosion). Notably, steeply dipping feldspathic peridotite veins are commonly parallel to fault splays, while shallowly dipping veins frequently reflect layering-parallel veins and dykelets in clasts and blocks of the Central Series. However, significant dilation appears to be lacking in some late faults that visibly displace troctolite units. The traces of the dilated faults grade in some instances into shear zones intruded by feldspathic peridotite and these show frequent shear indicators, such as sigmoidal shaped clasts (Fig. 9c and d). The fault splays generally dip steeply towards the Long Loch Fault and have numerous intersections that create fault-bounded slivers and lenses (Figs 9 and 10), defining a concentrically grading (‘onion skin style’) graben geometry in map view that shows progressively bigger fault lenses away from the central fault zone (Fig. 10). Blocks within these fault lenses frequently record highly variable dips between blocks, indicating that raft-like ‘mega-blocks’ or slabs have collapsed into the Long Loch Fault graben in an oblique to normal fashion (sliding), and a rotational movement can be demonstrated for several medium to large blocks in the field (e.g. Figs 4 and 5). Furthermore, steeply inward-dipping rock faces on the western side of the Long Loch valley suggest a steep overall dip of the Long Loch Fault towards the west (Emeleus, 1997). Fault splays in the western Central Series are dominantly NW-striking, and, moreover, a shear zone in the Glen Harris gabbro in the southern Central Series strikes parallel to several fault splays in the western Central Series. Persistence of faulting during Central Series evolution is emphasized by the observation that faulting in the Ruinsival area pre-dated intrusion of late-stage gabbro (Volker, 1983). The trend of most major structures in the Central Series is broadly N–S, consistent with the orientation of the Long Loch Fault. In addition, tectonic lineaments (assumed to represent faults) in the Central Series are clearly traceable in satellite imagery and can be divided on the basis of different trends (1) NW–SE, (2) NNE–SSW, and (3) NE–SW into three groups (Fig. 10a and b). A dominantly NW–SE trend is, in turn, inferred from peridotite and gabbro plugs in the Torridonian sandstone north of the Central Series that also appear to be fault-controlled (Fig. 11). East and south of An Dornabac, a large slab composed of layered peridotite and troctolite (Fig. 5a), dips ∼30° to the ESE and is cut by frequent fault splays and by veins of feldspathic peridotite. In the northwestern breccia zone, structures are more chaotic with steep and shallow layering recorded in the breccia blocks (with dips ranging from 18° to 77°), but with a dominant dip towards the NNE. On the top of An Dornabac ridge, a widespread breccia overlies a large internally coherent troctolite and peridotite slab. Shearing is recorded at the base of this slab and provides evidence for dynamic movement of the slab as a whole, and indicates derivation from the Western Layered Series (Wadsworth, 1992). The sliding of the slab into the Long Loch Fault graben was followed by major deposition of an angular block mélange that deposited broken-off rock debris on top of the slab (Fig. 5d and e). On the eastern side of the Central Series, the collapse breccias dip with variable inclinations (ranging between 25° to 60°), but with an overall dip-direction towards the WNW and a tendency of steepening towards the Long Loch Fault. The Central Series margin with both the Eastern and Western Layered Series displays intrusion breccias at several localities (Fig. 4b), whereas collapse and slump breccias are very common in the axial central portion of the Central Series (Fig. 4a). The eastern and western margins of the Central Series thus broadly mirror each other.

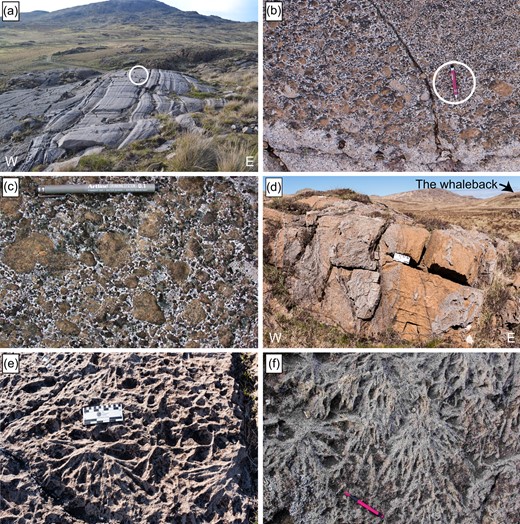

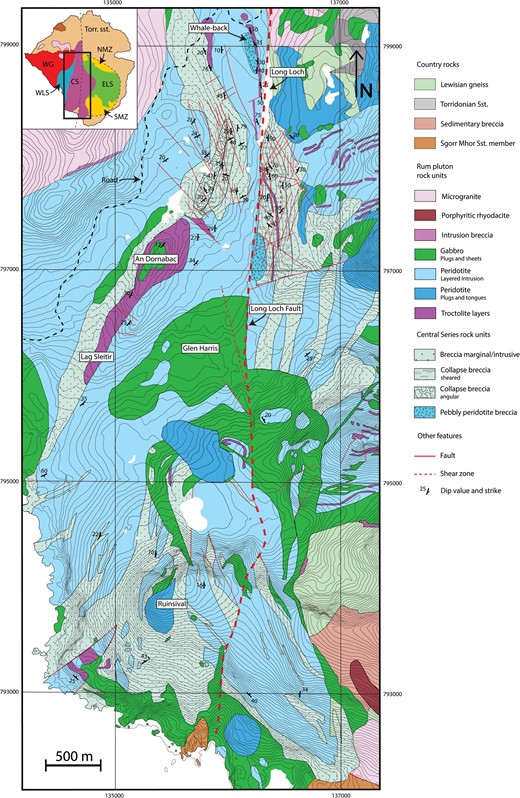

A well-exposed N–S ridge (informally known as the ‘whale-back’; Emeleus & Troll, 2014), located NW of the Long Loch (see Figs 2 and 7a), displays modally layered troctolites traceable for over 500 m The ‘whale-back’ exposes an abrupt contact between well-layered troctolite and a massive conglomerate-like micro-breccia comprised of partly rounded and in part angular clasts of dunite in a feldspathic peridotitic matrix, with clast sizes up to ∼10 cm across that we refer informally to as the ‘pebbly’ peridotite (Fig. 7b and c). The basal contact to the ‘pebbly’ peridotite micro-breccia is dipping at ∼30° and it appears that the ‘pebbly’ peridotite covered a pre-existing topography at the chamber floor. The rocks show normal modal grading over the next few metres away from the contact until they become millimtre-sized individual olivine crystals, which probably represent the suspended smallest fragments that were deposited last. Notably, all outcrops of the ‘pebbly’ peridotite are dominated by dunite clasts and are positioned in the main topographical low of the Central Series. We therefore deduce that the ‘pebbly’ peridotite was deposited into an intra magma-chamber depression or graben above the Long Loch Fault. The sorting and erosion of individual olivine grains and pebble-sized peridotite fragments may be explained by gravitational settling into topographic lows in the pluton and the progressively smaller clasts in the ‘pebbly’ peridotite might reflect several stages of reworking and transport (Fig. 7b) (Mattsson, 2014). This region was marked by upwelling at the active feeder zone(s) along the Long Loch Fault and was probably influenced by sliding of mega-blocks and slabs at the roof and margins of the Central Series, creating repeated turbulent currents in the magma reservoir (c.f. Wager & Deer, 1939,;Wager, 1963,;Wager & Brown, 1968,;Emeleus et al., 1996,;Marsh, 1996).

Lithologies of the Central Series

The lithologies of the Central Series range from dunitic peridotites through feldspathic peridotites to troctolites, wehrlites and gabbros (Fig. 12) (McClurg, 1982,;Volker & Upton, 1990,;Emeleus, 1997). Previously reported olivine compositions throughout the Layered Suite are Fo_93–68 (Donaldson, 1975,;Dunham & Wadsworth, 1978,;Kitchen, 1985,;Emeleus, 1997,;Upton et al., 2002,;Fig. 13), while those for the Central Series are Fo_89–74 (see Emeleus, 1997). The Mg# in clinopyroxenes in the Central Series is Mg#_86–79 and overlaps with Mg#_90–74 for the Layered Series as a whole. The reported anorthite (An) content in plagioclase in the Central Series is An_85–61, which compares to An_89–61 within the Layered Suite overall (Donaldson, 1975; Dunham & Wadsworth, 1978; Emeleus, 1997; Upton et al., 2002). Olivines in peridotite and dunitic peridotite clasts in the Central Series breccias (Fo_89–81) and in the ‘pebbly’ peridotite (Fo_87–84), however, have generally higher magnesium content than the troctolites (Fo_85–78; Wadsworth, 1992; Table 2), while olivines in the numerous plagioclase-rich veins and dykelets lie within the range seen in the Central Series peridotite clasts (Fo_85–83) (Wadsworth, 1961, 1992; McClurg, 1982; Volker, 1983; Emeleus et al., 1996; Emeleus, 1997). Interstitial plagioclase in poikilo-macro-spherulite textured peridotites displays compositional zoning. In contrast, feldspar in the ‘pebbly’ peridotite interstices is largely un-zoned (Fig. 14). The late gabbro veins have olivine with a range of Fo_83–77 and thus represent somewhat more evolved basaltic magmas that also recharged the Central Series, showing that both primitive and more evolved magmas replenished the Rum system via the Central Series (Fig. 13c; Table 2). In addition, hydrous minerals, such as kaersutitic amphibole and phlogopite are more abundant in the Central Series, whereas they are in the Eastern Layered Series (c.f. Brown, 1956,;Volker, 1983) (Fig. 15). The Central Series rocks are in general much more deuterically altered than the Eastern Layered Series and phlogopite, biotite, and kaersutite have frequently formed from breakdown of clinopyroxene and olivine, and constitute overgrowth rims on oxides (c.f. Donaldson, 1975). Notably, the Eastern Layered Series olivine is commonly fresh and unaltered whereas that in the Central Series displays often distinct alteration (serpentinization) in the fractures in, and boundaries between, the olivine crystals (Fig. 15). Hydrous phases usually occur in association with harrisite textures, poikilo-macro-spherulites and the common replacement ‘fingers’ in the Central Series (Donaldson et al., 1973,;Donaldson, 1975,;Butcher et al., 1985,;Emeleus, 1997,;Holness, 2005,;Holness & Winpenny, 2009). On Rum, olivine is often replaced by mica next to intruding feldspathic peridotite veins, which together with interstitial amphibole (e.g. tremolite), and the occurrence of chlorite probably indicates a water-rich nature to the intruded feldspathic peridotite magma(s). These hydrous magmas then reacted with the pre-existing and often feldspar-rich cumulates (Donaldson, 1975).

Pyroxene composition and barometry

The clinopyroxenes in the Central Series record a range of Mg#_86–79 (Donaldson, 1975,;Dunham & Wadsworth, 1978,;McClurg, 1982,;Emeleus, 1997,;Upton et al., 2002; this study) and are diopsides grading to augites according to the scheme of Morimoto (1988). The larger clinopyroxene phenocrysts from the gabbro veins are zoned and the rims have marginally lower Mg# (Mg#_84–79) compared to the cores (Fig. 12). To constrain the volcanic supply system to the Rum Igneous Complex, clinopyroxene barometry was employed, which uses major element clinopyroxene mineral data (from EMP). We applied the Nimis (1995) geobarometer, as modified by Putirka (2008, eqn. 32b) to gabbro veins and feldspathic peridotite dyke samples. This barometer estimates pressure of clinopyroxene crystallization on the basis of the cation fractions in the clinopyroxene unit cell. Equation 32b accounts also for H₂O content of the parent magma as well as temperature of crystallization (Putirka, 2008). The H₂O content was set to 2·5 wt % and the temperature input was set to 1200º C, following crystallization temperature estimates of the Central Series breccia matrix by Donaldson (1975). The standard error of estimate (SEE) for this barometer is ±260 MPa (Putirka, 2008).

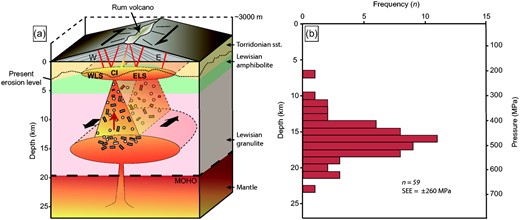

Pyroxene phenocrysts from the gabbro veins (n = 37) yield crystallization pressures of between 280 and 600 MPa (SEE ±260 MPa), corresponding to between c.10 to 20 km depth. Clinopyroxene in feldspathic peridotite dykes (up to 1 mm in diameter; n = 22) crystallized at pressures between 180 and 650 MPa (SEE ±260 MPa), corresponding to a depth range of ∼6–22 km assuming mafic rock as the dominant overburden lithology. Allowing for the relatively large uncertainties, it is noteworthy that none of the calculated clinopyroxene crystallization pressures show a shallow depth of equilibration and all sample groups record pressures >10 km. Therefore, many of the clinopyroxene crystals may not have formed in situ, but were probably brought in with migrating magma as crystal cargo (Fig. 16).

Magmatic water contents in the Central Series

All analysed clinopyroxenes showed absorption maxima at 3630, 3530, and 3460 cm^-1 in the IR spectra, corresponding to the typical vibrational bands expected for OH in diopside (e.g. Skogby, 2006). The OH band at around 3630 cm^-1 is prominent for Eǀǀα and Eǀǀβ, while the two bands around 3530 and 3460 cm^-1 dominate for Eǀǀγ. This infra-red pleochroic behaviour is typical for clinopyroxene OH bands (e.g. Beran, 1976) and thus excludes the influence of possible OH-bearing impurities (e.g. hydrous minerals, melt/fluid inclusions). No hydrogen diffusion profiles were observed in the analysed clinopyroxene crystals. The analysis on pyroxene crystals from the gabbro veins (n = 7) yielded 295–336 ppm H₂O in the crystals. When converted to magma H₂O contents, following the procedure in O’Leary et al. (2010) and Weis et al. (2015), the original water content of the gabbro vein magma is calculated to range between 2·0 and 3·4 wt % (±0·6) H₂O (Table 1), which is remarkably high for regular North Atlantic Igneous Province (NAIP) magmas (but compare Gillis et al., 2014a).

Major and trace elements

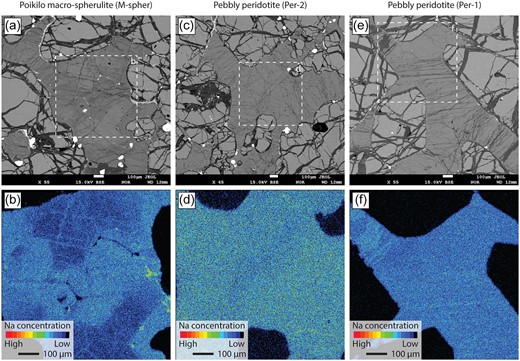

The rocks of the Central Series range from dunitic peridotite to gabbro and the breccia matrix compositions also range from peridotite to gabbro. The Central Series cumulates are all relatively primitive, with high Mg# (>80) for the peridotites, and >75 for the gabbros (c.f. Gillis et al., 2014a,;Nozaka et al., 2017). The higher Mg# values in the poikilo-macro-spherulitic peridotites are coupled with lower Ca# relative to those from e.g. bulk rocks from the Eastern Layered Series peridotites. This can potentially be explained by subtraction (fractionation) of plagioclase with little to no accompanying clinopyroxene. Alternatively, later addition of evolved (low Ca) plagioclase-rich liquid into the cumulate pile could have occurred, which would be consistent with relatively high average REE concentrations for these samples compared to other samples from the Layered Suite (Fig. 17a and b). With the exception of one significantly more evolved dyke (Dyke-RM2), the feldspathic peridotite dykes (e.g. samples Har-dyke 1 A and 1B; Table 3) have similar Mg# and Ca#s to the most evolved Central Series gabbro. The intruding feldspathic peridotite veins and dykelets have high MgO contents (Fig. 13a and b). The REE pattern for the feldspathic peridotite veins and dykelets relative to MORB shows close resemblance to the primitive ‘Transitional-to-Enriched’ type tholeiitic basalts of the NAIP with a maximum enrichment in Nd, but a small depletion of La with respect to Ce and Nd (Fig. 13d). The komatiitic nature of the feldspathic peridotite dykes and veins as well as their REE patterns lie between average NAIP basalt and the basaltic dykes of Rum on the one side, and the Rum cumulate compositions on the other, which points to a degree of melt loss from these compositions (c.f. Holness et al., 2007,;Leuthold et al., 2014, 2015). However, the REE pattern of the Central Series cumulate peridotites are somewhat enriched in LREE relative to the Eastern Layered Series peridotites, which have convex REE curves with Eu peaks. The REE concentrations of the Central Series peridotites are more similar to those of the Eastern Layered Series troctolites (plagioclase-rich cumulate) than to their peridotites (Fig. 17b). Additionally, the higher concentrations of REE within the gabbroic veins in the Central Series (up to 3 x chondritic for the HREE, compared to about 1·5 x in the cumulate peridotites) are in part a reflection of a melt fraction present, but probably also indicate that the Central Series gabbros likely crystallized from more REE-enriched and thus more evolved melts than did, for example the ELS cumulates.

DISCUSSION

Three-dimensional geometry of the Central Series

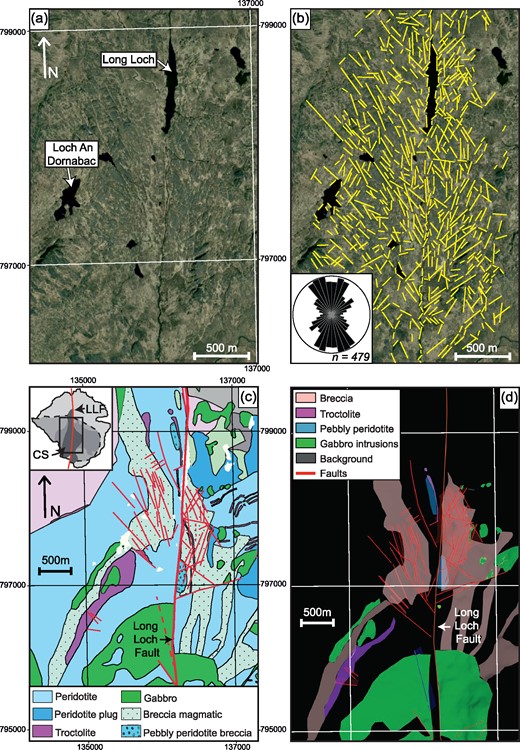

The 3 D-projection in connection with structural and lineament observations in the Central Series imply that strike-slip movement was a key factor during formation of the Central Series. When reconstructing post-magmatic right-lateral fault movement along the Long Loch Fault, the fault splay patterns and the main rock-types of the Western and Eastern Central Series broadly link up (Fig. 10), and define the shape of a transtensional graben structure. These structures presumably converge to a ‘master’ strike–slip fault at depth and the observed arrangement of fault splays and plugs inside the Central Series and in the Torridonian sandstone north of the Central Series define the Long Loch Fault as the former focal zone of magma upwelling for the Rum Layered Suite (Figs 10 and 11). This is in line with studies elsewhere which suggested that tectono-magmatic interactions in strike–slip settings generate conjugate fracture/fault patterns and usually a transtensional basin (c.f. Girard & van Wyk de Vries, 2005,;Holohan et al., 2008,;Mathieu & van Wyk de Vries, 2011,;Mathieu et al., 2011). These inferences support the concept that the Long Loch Fault modulated magma ascent into the Rum magma reservoir (c.f. Donaldson, 1975,;Emeleus 1996;Fig. 18), and points to the fault system as the key to understanding the pulsatory (or rhythmic) emplacement of the Layered Suite.

The magma compositions of the Central Series

The Central Series cumulates are compositionally similar to the rocks exposed in the Eastern and Western Layered Series and the clasts in the Central Series breccias are probably dominantly derived from these units (Fig. 13). However, wehrlite cumulates described by Volker & Upton (1990) on Ruinsival are unique within the Layered Suite, and either represent materials (variably sized blocks) derived from now eroded layers higher up in the Layered Series or reflect replacement of interstitial melt similar to what has been proposed, for example the vertical wehrlite pipes of Unit 9 of the Eastern Layered Series (e.g. Leuthold et al., 2014).

The low REE abundances of the peridotites, troctolites, gabbros and poikilo-macro-spherulitic plagioclase peridotites relative to NAIP basalts and basaltic dykes on Rum, attest to the olivine-rich and adcumulus nature of these rocks, reflecting the expulsion of intercumulus melt (c.f. Meyer et al., 2009). The intruding gabbro and feldspathic peridotite veins and dykelets compositionally overlap with the cumulates of the Layered Suite for major elements, but also extend to higher alkalinity and REE concentrations in whole rocks and to lower Fo content in olivine (Fig. 13), which is indicative of more evolved magma that arrived from depth. The pyroxenes in these veins record variable crystallization pressures (depths) in the crust below the evolving Rum Igneous Complex (Fig. 16), suggesting a system of holding chambers or melt pockets existed at depth from which the intrusive pulses where supplied, similar perhaps to what is seen today for many Icelandic volcanoes (c.f. Emeleus & Troll 2014). When considering the trace element pattern further, the cumulate nature of the Central Series samples is emphasised by the lower concentrations relative to common NAIP lavas and also relative to the basaltic cone sheets on Rum (see Emeleus, 1997), which are likely to represent the residual basaltic magmas expelled from the Rum reservoir system. To then explain the observed trace element patterns of the Central Series veins and dykelets, we must consider that they were either losing melt during final emplacement or have picked up previously solidified minerals at depth (Fig. 13b). The REE patterns for the Eastern Layered Series peridotite cumulates can be reproduced with a Rayleigh fractionation model from a primary melt compositionally identical to the feldspathic peridotite dykes (Fig. 17b) (for full descriptions regarding the model calculation, see Meyer et al., 2009). Furthermore, the relatively low concentration of LREEs in olivine implies that fractionation of olivine was unlikely to have contributed to the enriched trace-element pattern of the Central Series cumulate peridotites and instead supports post-cumulus interaction with LREE-rich melts (c.f. Meyer et al., 2009).

Pyroxenes in the Central Series veins and dykelets indicate that at least some of the recharge magma in the Central Series was H₂O-rich with up to 3·5 wt % H₂O, which is consistent with textural and mineralogical observations that show that the Central Series rocks carry more hydrous minerals than those in the other layered Series (Donaldson et al., 1973,;Donaldson, 1975,;Fig. 15). As a comparison, the water content in Icelandic and NAIP magmas ranges up to ∼1·1 wt % H₂O (Jamtveit et al., 2001,;Nichols et al., 2002), which compares to a range of up to 1·5 wt % H₂O for ocean island basalts and up to 1·0 wt % H₂O for MORB (see Kovalenko et al., 2007,;Weis et al., 2015). In other parts of the Rum igneous complex, alteration phases have been considered to indicate hydrothermal activity involving external fluids (e.g. Greenwood et al., 1992,;Holness & Winpenny, 2009). However, on the basis of δ¹⁸O ratios Greenwood et al. (1992) and Emeleus (1997) argued that circulating meteoric water had interacted with the Layered Suite mainly at its borders and considerably less so in the central parts of the pluton (see also Kitchen, 1985). This accords with Donaldson's (1975) conclusion that hydrous recharge magmas, rising from depth, were generally responsible and probably the main cause for the more abundant hydrous mineral phases in the Central Series relative to most other portions of the Rum Layered Suite.

Fluid-rock interaction in the Central Series

Modification of the cumulate pile in the Eastern Layered Series by reactive liquid flow locally caused modification of primary compositions and textures (e.g. Butcher, 1985,;Bédard et al., 1988,;Holness et al., 2007,;O’Driscoll et al., 2010,;Leuthold et al., 2014, 2015, Hepworth et al. 2020b). In the Central Series rocks we observe re-crystallization, hydrous mineral rim-growth and replacement of pre-existing mineral phases (Figs 12, 14 and 15), all of which are indicative of reaction with hydrous melt (c.f. Beard et al., 2004). Extensive reaction in the Central Series cumulates was most probably enabled by the hydrous veins and dykelets of feldspathic peridotite and gabbro that formed a dense network in the Central Series by exploiting weaker pathways, such as pre-existing layering and fractures related to the graben-forming transtensional stresses (c.f. McClurg, 1982,;Volker, 1983,;Butcher et al., 1985,;Mattsson, 2014). Fracturing may also have been aided by fluid or vapour exsolution during ascent of the magma that promoted fracture dilation. Additionally, the poikilo-macro-spherulitic feldspar texture is now recognised throughout the Central Series and might occur especially intensely in close association with the veins (Fig. 7e and f). The zonation of the plagioclase interstices in the poikilo-macro spherulites is a possible indication of relatively evolved plagioclase-rich melt being present or migrating through the Central Series cumulates (Fig. 14a and b). This idea of an evolved liquid is supported by the trace-element pattern of the poikilo-macro-spherulite textured peridotites, which are enriched in LREE, especially in La (Fig. 17b) (c.f. Reiners, 1998,;Lissenberg et al., 2013).

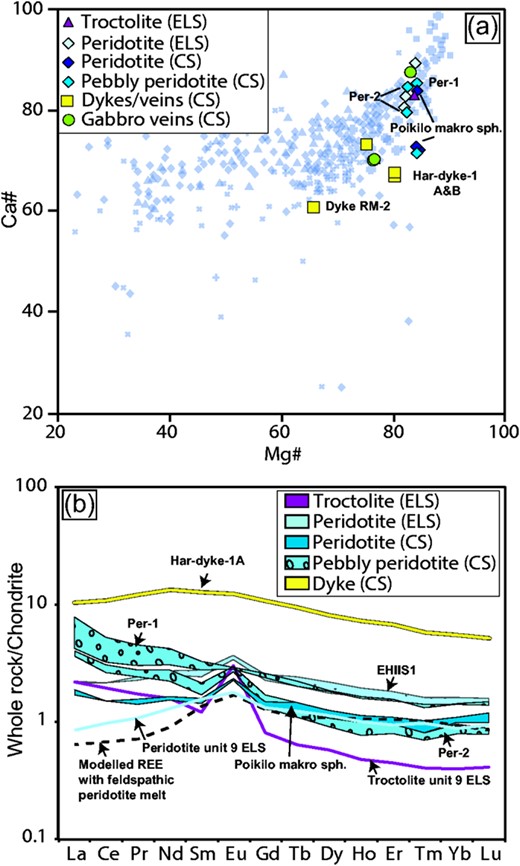

Furthermore, the ‘pebbly’ mass-flow-style peridotites are more LREE-enriched than the Central Series peridotites with zoned interstitial minerals (Fig. 17b), which is consistent with the observation that the ‘pebbly’ peridotite micro-breccia is a mix of older olivine-rich cumulate fragments and a Central Series plagioclase-rich matrix that likely represents an evolved recharge melt. These clasts (‘pebbles’) were deposited in the deepest part of the Rum reservoir, which was on or close to the magmatic feeder zone (the Long Loch Fault), the site of the most intense recharge injections (Fig. 18).

The harrisite olivines in the feldspathic peridotite of the Central Series were previously considered to represent a supersaturated filter-pressed residual liquid from lower in the cumulate pile which could have brought about reactive liquid flow (see Wadsworth, 1961, 1992,, p. 791;Donaldson, 1982,;Volker & Upton, 1990). Moreover, the komatiitic composition of the feldspathic peridotite dykes and veins indicates that the harrisite crystallization in the Central Series was probably aided by the loss of evolved melt and by fluid exsolution due to decompression on ascent and by replenishing magmas entering a cooler environment at shallower crustal levels (see Figs 13, 17).

Feeding the Rum Layered Suite

While Tait (1985) concluded that magma replenishments at Rum comprised picritic melts from which olivine crystallized, Gibb (1976) held the view that the recharge magmas were highly olivine-phyric (picritic). The question of crystallization in layered intrusions has by now become part of a much wider discussion (Huppert & Sparks, 1981,;Marsh, 1996, 2013, 2015,;Latypov, 2015) and although crystal-poor replenishing magmas have been considered for Rum by some workers (e.g. Huppert & Sparks, 1981,;O’Driscoll et al., 2007a), the picrite dykes described, for example, by Upton et al. (2002) contain different populations of large olivine and a deeper origin is implied (see also Emeleus et al., 1996,;Meyer et al., 2009,;Hughes et al., 2016). This is consistent with our analysed pyroxene crystals, which crystallized at between 180 and 650 MPa (6–22 km), and hence significantly below the emplacement level of the current Rum exposures (Fig. 16). Unfortunately, no olivine barometer exists at present, but noteably, deep (mid-crustal) depth of crystallization has recently been determined for clinopyroxene samples of several historical eruptions in Iceland (c.f. Keiding & Sigmarsson 2012,;Neave et al., 2019) and we therefore argue that the layered peridotites of the Eastern and Western Layered Series were at least in part assembled through gravitational deposition from crystal-rich recharge magmas. This is in line with the observation that the layered units of the ELS tend to become more olivine-rich closer to the Central Series feeder zone (Volker & Upton, 1990), implying proximal olivine deposition in respect to the Central Series feeder zone, while plagioclase +/-pyroxene may have preferentially been settled at greater distances from the central feeder zone. It may be that each newly arrived low viscosity magma batch, intruded above its compacting predecessor as the latter became depleted of its residual (basaltic) magma. This observation may hint at settling of crystal cargo near the recharge site and also led to new crystallization due to decompression and consequent supersaturation of the replenishing magma in olivine. Floor subsidence may have played a role too at this stage, as indicated by e.g. tilted layers on Trollaval (Volker & Upton, 1990). An analogous, but smaller-scale, demonstration of this phenomenon may be exhibited in the Younger Giant Dyke at Tuttutooq, South Greenland, where the peridotite:troctolite ratio decreases from the intrusion centre to the distal parts (Upton, 2013). Notably, the layered cumulates on Rum became inclined towards the conduit as a result of compaction and likely subsidence (downward collapses). This was aided by creep and slumping of the unconsolidated olivine cumulus, recorded by contorted and slumped layering (e.g. as seen on Trollaval, Volker, 1983,;Volker & Upton, 1990).

On Rum, crystal-rich mafic and ultramafic magma, thus, intruded periodically through opening segments of the Long Loch Fault and recharged the shallow Rum magma chamber. Incoming crystals as well as crystals that formed in situ then gradually accumulated at the chamber floor until a new larger influx started a new unit (or cycle) of cumulates. For each replenishment, we envisage that resident and some of the recharge magma have likely been expelled to the surface. Waning of each magma influx accompanied collapse of the layered cumulate units and the crystal mush into the graben above the Long Loch Fault (Figs 4, 5, 6).

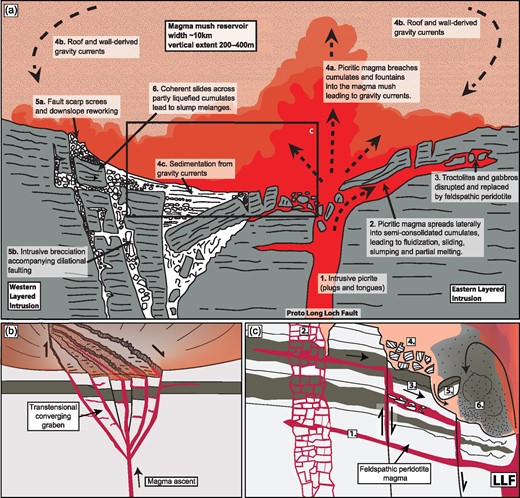

Considering all the evidence, we suggest that the Central Series operated like a valve-like conduit, undergoing successive dilations and closures that regulated influx of magma into the shallow magma chamber from a deeper reservoir. Indeed, McQuillin & Tuson (1963) suggested on the basis of the large positive Bouguer anomaly that a mafic ultramafic body extends down to ∼16 km depth on the basis of a positive Bouguer anomaly over the Layered Series. Remarkably, the average crystallization depth of our Central Series pyroxene crystals is ∼16 km (Fig. 16), which provides support that a deeper mid to lower-crustal storage reservoir existed and fed the shallow-level Rum chamber.

The pulsing of magma into the shallow Rum magma reservoir was inferentiallly caused by the magma-induced transtensional tectonic regime of the Long Loch Fault (c.f. Figs 10 and 11), permitting magma ascent during fault movement. The reasons for the postulated rhythmic fault movements of the Long Loch Fault probably relate to lithospheric stresses acting on the region in Palaeocene times. These influences include the North Atlantic tectonic regime linked to the Iceland plume (c.f. Poore et al., 2009,;Lovell, 2010,; Horni et al., 2017) and possibly also the interaction of the North Atlantic tectonic regime with far-field tectonic stresses caused by, for example, the Alpine orogeny (e.g. Cooper et al., 2012,;Anderson et al 2016). This likely resulted in episodic stress release and associated fault activity in the region. The tectono-magmatic evidence presented above also implies that the seismicity of Long Loch Fault controlled magma ascent and triggered down-slope mass-flow of crystal mushes within the Rum magma reservoir (Figs 5 and 6). Such migration of olivine-rich cumulus would have contributed to the dominantly peridotitic nature of the Central Series. When episodic magma influx waned, subsidence and collapse of broken material along the Long Loch Fault would have shut the magma conduit. In between fault movements, magma pressure then built up again in the deeper system, before being released by fault movements and associated conduit opening, during which rapid ascent of primitive, and in part crystal-rich magma was probably promoted. This allowed dense and crystal-rich picrite magmas to ascend (c.f. Upton et al., 2002,;Manconi et al., 2009,;Allan et al., 2013). The ascending magma would then have spread out laterally on arrival in the shallow Rum chamber, likely in sill-like fashion, which may be the reason for the repeated truncation of growth of some harrisite crystal gardens (see Donaldson, 1975,;Gibb, 1976,;O’Driscoll et al., 2007a, Hepworth et al. 2020b). Lateral magma movement was terminated by, for example, the Main Ring Fault or by ductile country rocks, as seen in the two marginal zones and at Harris Bay (see Emeleus & Troll, 2008, 2011, 2014). In addition, the liberation of water as magma migrated towards the surface and within the Rum magma system would have produced high fluid contents in the Central Series, assisting fracturing and rock disintegration during replenishment episodes in a style akin to ‘magma fracking’ (c.f. Boorman et al., 2003). The phenomenon of volatile loss and associated high fluid pressure in the Central Series is probably reflected in the harrisite textures of the feldspathic peridotite veins (Fig. 3), where volatile exsolution and migration from the veins would have raised the liquidus in the system and thus induced rapid crystallization onto existing nucleii (e.g. Sparks & Pinkerton, 1978). Furthermore, within the blocks and matrix of the Central Series, widespread formation of poikilo-macro-spherulitic feldspar textures occurred in many places and is associated with increased deuteric alteration (c.f. Donaldson et al., 1973), implying that hydrous fluids and magmas played a considerable role during their formation and thus during considerable intervals of the lifetime of the Central Series. In addition, intruding feldspathic peridotite would also have partially melted and/or reacted with cumulate layers in the Central Series region (c.f. Leuthold et al., 2014), facilitating slab detachment and collapse towards the feeder zone once recharge pressure subsided (Figs 5 and 6). Widespread slump and shear structures indicate mechanical instability of already solidified cumulate units and crystal mushes (Fig. 6a, c, and d) (c.f. Emeleus, 1997,;Emeleus & Troll, 2014).

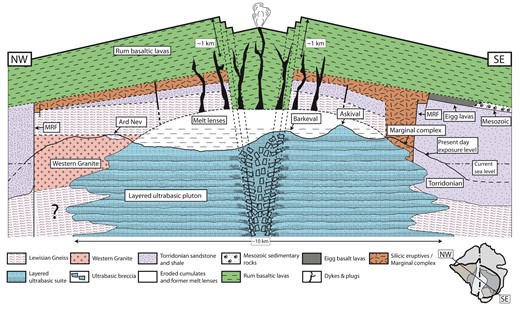

Building the Rum edifice

The nature of the roof over the Layered Series remains uncertain (Walker, 1975,;Donaldson, 1983,;Chambers et al., 2005,;Troll et al., 2008,;Emeleus & Troll, 2014). The present erosion level of the Layered Series lies at shallow plutonic (i.e. sub-volcanic) levels (c.f. Donaldson, 1983,;Emeleus, 1997,;Troll et al., 2008,;Macdonald et al., 2013) and Figs 18 and 19 present a schematic reconstruction of the volcano and its sub-surface anatomy that is based on the assumption that most of the layered units crystallized from sheet-like magma bodies. The premises on which Figs 18 and 19 are based are as follows: (1) Erosion and major landslips accompanied episodic diapiric uplift associated with magma emplacement (c.f. Emeleus, 1996, 1997,;Troll et al., 2000) and stripped almost all early Palaeocene lavas and Mesozoic strata, plus a great thickness (up to 2 km) of Torridonian strata. Rapid erosion left the lowermost Torridonian and the underlying Lewisian exposed above the magma reservoir at the onset of silicic caldera-style volcanism (Stage 1, Emeleus et al., 1996,;Emeleus & Troll, 2011, 2014). (2) Thus, at the onset of Stage 2, the roof overlying the mafic/ultramafic complex comprised some Lewisian and lower Torridonian rocks and some minor downfaulted Jurassic strata and early Palaeocene plateau lavas, plus caldera-fill breccias and silicic extrusive and intrusive rocks (Troll et al., 2000, 2004). (3) Following Brown (1956,), crystallization of each layered unit ended with expulsion of residual basalt magma, which eventually generated a basaltic volcano above (Dunham, 1970,;Emeleus, 1997,;Troll et al., 2008). Dykes within the Eastern and the Western Layered Series are scarce. An explanation for their virtual absence from the layered units may be that magma expulsion was accomplished via dykes from the Central Series that would then have been part of the now eroded volcanic superstructure. Evidence for this basaltic edifice is now preserved in the basaltic clasts in conglomerates interbedded with the Canna lavas in NW Rum (Emeleus, 1985) and in form of meta-basalt (beerbachite) xenoliths in the layered suite (e.g. Emeleus & Troll, 2008). Thus combined with the close spatial, temporal and compositional linkage between the plugs and the Central Series, plus the evidence that the plugs supplied surface activity (Holness et al., 2012), leads us to propose that the Central Series acted as an intermittent magmatic conduit for the Rum intrusion. Inferentially, the faulting recorded in the Central Series and along the Long Loch Fault (Figs 10 and 11), almost inevitably, would have had a surface expression, and we suggest that the overlying volcano could have displayed a volcano-rift system or surface graben (Fig. 19) (Upton, 2004). The erupted lavas probably constructed a low-angled shield- or ridge-type volcanic edifice. The pulsatory nature of magma ascent that generated the Rum Layered Suite would have been reflected in the growth of the overlying volcano, with eruption cycles separated by extended periods of quiescence on perhaps a decadal timescale (e.g. Emeleus & Troll, 2014). Erosional degradation of the volcano may have already taken place during its construction. Evidence from fluvial deposits in western Rum, Canna and northern Skye points to rapid erosion rates that un-roofed the Rum Central Complex shortly after its emplacement (Dunham & Emeleus, 1967,;Emeleus, 1985,;Emeleus & Bell, 2005,;Troll et al., 2008).

Summary and concluding remarks

The Rum Igneous Centre, noted amongst the BIPIP volcanoes because of its rhythmic ultrabasic character (Emeleus & Bell, 2005), represents a shallow-crustal magma-holding chamber. Shallow magma storage and heat-loss resulted in large-scale deposition of antecryst and newly formed olivine populations, together with variable amounts of plagioclase (e.g. Brown, 1956,;Emeleus et al., 1996). Residual magmas that erupted would probably have been olivine-depleted (low Mg-basalts or hawaiites). The Rum Central Series (e.g. McClurg, 1982), has been relatively neglected by researchers, partly because of its relative inaccessibility but primarily because of its extreme complexity. It however reveals a remarkable testimony to the dynamics within magma reservoirs in active tectonic settings that are periodically replenished over periods of time that may vary from hours to days to thousands of years (c.f. Allan et al., 2013). Coinciding with the Long Loch Fault zone, it provides dramatic evidence of a highly dynamic fault-controlled tectono-magmatic system. Trans-tensional faulting within the Central Series permitted intermittent extraction and ascent of buoyant magma from a deeper crystal mush system to intrude the upper crust and to erupt at its surface. Each eruptive event was succeeded by the draw-back of cooler, crystal-rich residual magmas. Each withdrawal caused fault-drag of ductile side-walls and the collapse of layered rock masses (on all scales), together with olivine-rich slurries. The breccias in the Central Series are attributed to (1) slumping and re-deposition of solidified cumulate materials from the Eastern and Western Layered Series during active periods of the Long Loch Fault, and (2) to disruption of earlier cumulates as well as of unconsolidated mush by recharging pulses of picritic to evolved basaltic magmas that rose along the Long Loch feeder zone. The floor of the reservoir experienced numerous influxes, ultimately giving rise to a range of breccia-types that include infiltration breccias, slide and rotated breccia blocks, debris-flow breccias, ‘conglomeratic’ units, and notably enormous raft-like polylithic ‘mega-blocks’ up to hundreds of metres across that are now embedded within the Central Series breccia mélange. Fault movement and associated earthquakes as well as magma recharge would have induced gravitational collapses of parts of the Rum reservoir and conduit system. Collapse involved normal faulting of mechanically coherent marginal rocks, sagging of still ductile cumulates, and the down-slope avalanching of incoherent crystal-liquid mushes and large slabs of variously solidified cumulate materials. The widespread feldspathic peridotite veins in the Central Series record simultaneous intrusive activity and melt migration, as do the many gabbro and peridotite plugs. Therefore, a combination of repeated injections and associated structural collapses can account for the formation of the Central Series (Figs 18 and 19). We envisage that movements along the Long Loch Fault were episodic and occurred when accumulated extensional strain exceeded the strength of the local country-rock. Pulses of primitive to evolved hydrous basaltic magmas moved through the Long Loch Fault feeder system, probably controlled by fault movements and likely separated by times of inactivity. This would have allowed pressure to build up and differentiation to more evolved basaltic magmas with relatively higher H₂O contents in the deeper (mid- to lower-crustal) magma plumbing system. Major fault movements would then have allowed volatile-rich and at times crystal-rich magmas to rapidly ascend into the shallow-level Rum magma reservoir where much of the crystal cargo was ultimately deposited. This post-eruptive aftermath left an exceedingly chaotic mélange now exposed in the hearth of the early Palaeocene Rum volcano. Ascent of primitive high-magnesium and transitionally alkaline basalt magmas that were fed laterally into shallow-crustal sill-like intrusions to either side of the this active fault zone are now seen in the more ordered sequences of the Eastern and Western Layered Series and may be thought of as the essentially undisturbed parts of the chamber. The Long Loch Fault was therefore critical in placing geological control on the location of the Rum volcano and for creating a channelway for the rhythmically layered character of its Layered Suite as well as for the chaotically disrupted materials composing the Central Series.

Acknowledgements

We dedicate this article to the memory of Charles Henry Emeleus (September 4, 1930 – November 11, 2017), who over six decades, contributed much to mapping and understanding of the geology and petrology of Rum, to mentoring the many undergraduate and doctoral students who have worked there, and to promoting public interest in its geological history. He will be missed dearly. Our understanding of the geology of Rum and the Central Series has also profited greatly from discussions with J. Bédard, S. Burchardt, A. Butcher, G. P. Black, M H. P. Bott, G. M. Brown, M. Cheadle, J. Davidson, A. C. Dunham, J. Faithfull, M. Forster, A. Fowler, K. Goodenough, R. Greenwood, L. Hepworth, E.P. Holohan, M. Holness, R. H. Hunter, J. Leuthold, D. Jerram, D. Kitchen, J. McClurg, F. C. Meade, I. Meighan, G.R. Nicoll, P. J. Nicholson, B. O’Driscoll, R. Renner, R. Sides, M. Smith, S. R. Tait, F. J. Tepley, J. Volker, J. Wadsworth and I. M. Young. The authors are also grateful for field work and logistical support by J. Volker, J. McClurg, G.R. Nicoll, E.P. Holohan and S. Burchardt, and for help with figure drafting from K. Thomaidis and H. Geiger. The authors are also grateful to J. Gamble, R. Latypov and D. Jerram for constructive journal reviews and to M. Wilson and T. E. Waight for the editorial handling of the manuscript. Our work on Rum has been made possible through the help and encouragement of the past and present scientific and estate staff of the Nature Conservancy Council and Scottish Natural Heritage, on and off the island. The authors acknowledge the use of the Move SoftwareSuite granted by Midland Valley’s Academic Software Initiative/Petroleum Experts.

FUNDING

Financial support by the Swedish Science Foundation (Vetenskapsrådet), Uppsala University, and the Clough Fund of the Geological Society of Edinburgh are gratefully acknowledged.

SUPPLEMENTARY DATA

Supplementary data are available at Journal of Petrology online
