The spatial structure and dynamical state of the open cluster NGC 2112

Abstract

1 Introduction

NGC 2112 (l = 205.°87, b = −12.°62) is a nearby open cluster with an age of ∼1.8 Gyr (Carraro et al. 2008; Kharchenko et al. 2013; Haroon et al. 2017),¹ located at a distance of ∼700–1000 pc (Richtler & Kaluzny 1989; Carraro et al. 2008; Kharchenko et al. 2013; Haroon et al. 2017) in the anti-center direction of the Galaxy. Our previous work shows that NGC 2112 may contain more than 700 member stars covering a wide range of star masses (Gao 2018b). This indicates that NGC 2112 is one of the few rich and old open clusters in the solar neighborhood. NGC 2112 is therefore an important target for understanding the dynamical evolution of old open clusters. However, NGC 2112 suffers from heavy field star contamination (Richtler & Kaluzny 1989; Brown et al. 1996; Carraro et al. 2008). This makes it difficult to investigate the spatial structure and dynamical state of this cluster. Previous investigations led to discrepant results. Kharchenko et al. (2013) determined a core radius of |${2{^{\prime }_{.}}4}$| and a cluster radius of |${37{^{\prime }_{.}}2}$| for the cluster. Haroon, Ismaill, and Elsanhoury (2017) estimated a core radius of |${5{^{\prime }_{.}}1}\pm {0{^{\prime }_{.}}5}$| and a limiting radius of |${13{^{\prime }_{.}}9}\pm {1{^{\prime }_{.}}3}$| for the cluster. They also estimated a relaxation time of ∼22 Myr for the cluster, which is much shorter than the cluster’s age (∼1.8 Gyr). This indicates that NGC 2112 is currently at an advanced state of dynamical evolution, and mass segregation should have occurred within the cluster. However, there is no clear evidence for the existence of mass segregation within NGC 2112. To investigate the spatial structure and dynamical state of NGC 2112, reliable cluster members are in great request.

For a long time it was not easy to segregate cluster members in NGC 2112 due to the lack of proper motions or radial velocities. Fortunately, the second Gaia data release (Gaia DR2) provides astrometric and photometric data for about 1.3 billion objects (Gaia Collaboration 2016, 2018), which are highly suitable for the studies of open clusters (Cantat-Gaudin et al. 2018; Gao 2018b, 2019b). Cantat-Gaudin et al. (2018) have determined 705 bright cluster members (G < 18 mag) for NGC 2112 using an unsupervised method (UPMASK). They also determined the distance and mean proper motion of the cluster. Unfortunately, their member list cannot be used to investigate the spatial structure and dynamical state of this old cluster due to the lack of faint members with G > 18 mag. This is because faint, low-mass members dominate the outer regions of this relaxed cluster (see subsection 3.1).

This paper aims to investigate the spatial structure and dynamical state of NGC 2112 based on Gaia Early Data Release 3 (Gaia EDR3). Gaia EDR3 provides improved astrometry and photometry for about 1.5 billion sources (Gaia Collaboration 2020). We will use the Density-Based Spatial Clustering of Applications with Noise (DBSCAN) (Ester et al. 1996) algorithm to identify reliable cluster members within a large field around the cluster. DBSCAN is an unsupervised clustering algorithm and has been used to identify cluster members of open clusters (Gao 2014; Bhattacharya et al. 2017; Castro-Ginard et al. 2018; Xu et al. 2019). The remainder of this paper is constructed as follows. In section 2 we identify cluster members using DBSCAN. In section 3 we investigate the spatial structure and dynamical state of NGC 2112. The last section summarizes the main conclusions of this work.

2 Data and method

2.1 Sample stars

Gaia EDR3 provides 5D astrometric parameters (positions, parallax, and proper motions) and magnitudes in three bands (G, BP, and RP) for about 1.5 billion sources (Gaia Collaboration 2021). In order to identify cluster members in NGC 2112, we must first select appropriate sample stars in Gaia EDR3. Based on Gaia DR2 data, Cantat-Gaudin et al. (2018) have determined a mean parallax of ϖ = 0.877 ± 0.003 mas and a mean proper motion of (μ_αcos δ, μ_δ) = (−2.713 ± 0.009, 4.270 ± 0.009) mas yr⁻¹ for NGC 2112. Based on this information, we extract sample stars using the following criteria: (1) the stars must lie within a radius of 1.°5 from the cluster center; (2) the stars must have parallaxes between 0.4 and 2.0 mas; (3) the stars must lie in the proper motion range of −6 < μ_αcos δ < 0 and 0 < μ_δ < 6 mas yr⁻¹; and (4) the stars must have magnitudes in three bands. The selection radius (1.°5) is about 6.5 times as large as the limiting radius of the cluster (Haroon et al. 2017). This allows us to identify cluster members up to ∼25 pc from the cluster center, assuming a cluster distance of 940 pc (Carraro et al. 2008). The parallax and proper motion criteria allow us to reject as many field stars as possible. This will greatly enhance the clustering performances of DBSCAN. Finally, we obtain 9135 sample stars, each of which has astrometric and photometric data.

2.2 Method

Based on Gaia DR2 data, we have obtained 740 likely members within a 20′ radius of NGC 2112 using a Gaussian Mixture Model (GMM) clustering method (Gao 2018b) . However, the GMM method cannot identify more cluster members within a larger field around the cluster, because it is model-dependent and sensitive to sample stars (Gao 2018a). As a model-independent method, DBSCAN is able to discover clusters with arbitrary shape in large data sets based on two input parameters: the search radius (Eps) and the minimum number of points (MinPts) within Eps (Ester et al. 1996). Another advantage of DBSCAN is that no prior knowledge about clusters is required (Ester et al. 1996). This allows us to identify cluster members in NGC 2112 from a large number of sample stars in a more robust manner. DBSCAN can divide a given set of data points into three types: core points, border points, and noise points (Ester et al. 1996), and the former two have higher average densities than the latter one. In this paper, the core points and border points are regarded as likely cluster members, and the noise points are considered as field stars.

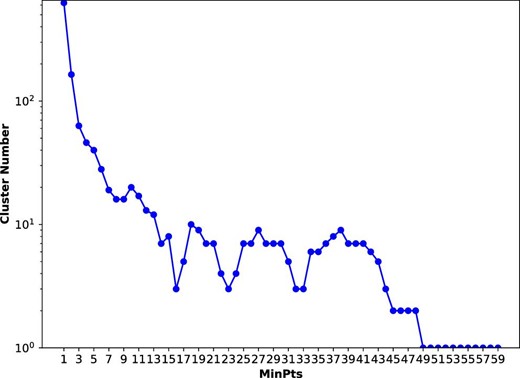

Fig. 1.

Cluster number as a function of MinPts for the sample stars in the field of NGC 2112. (Color online)

Open in new tabDownload slide

2.3 Likely cluster members

Based on the appropriate input parameters, DBSCAN can find 865 core members and 328 border members within a radius of 1.°5 from the cluster center (see table 1). The core members can be regarded as the most probable cluster members, because they are identified as core points by DBSCAN. The border members, which are identified as border points, are more likely to be cluster members than field stars (noise points). Figure 2 shows the spatial positions of the 1193 likely cluster members. We find that the core members are significantly more centrally concentrated than the border members. It is found that the outer regions of NGC 2112 exhibit a slightly elongated shape, which roughly distributes along the cluster orbit (see figure 11 in subsection 3.3). Based on the 1193 likely members, we estimate the position of the cluster center using the Mean Shift method (Comaniciu & Meer 2002), which can find the central position for the densest region in the cluster (see figure 2). Our results (205.878, −12.619) are consistent with those obtained by Cantat-Gaudin et al. (2018). Figures 3 and 4 show the color–magnitude diagrams (CMDs) and proper motions of the 1193 likely cluster members, respectively. Compared with our previous work (Gao 2018b), the present work identifies more cluster members within a larger cluster-centric radius of 1.°5. This helps to improve our understanding of the spatial structure and dynamical state of the cluster.

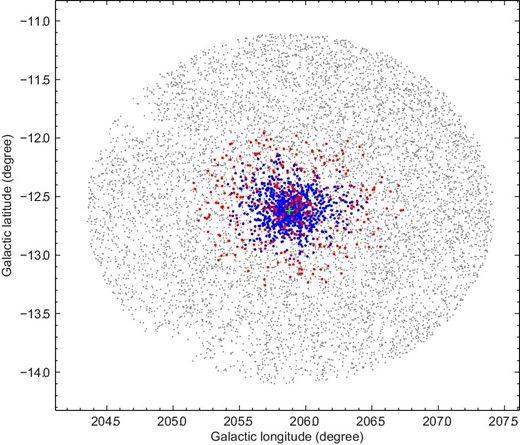

Fig. 2.

Positions of the 1193 likely cluster members in NGC 2112. The blue and red dots indicate the core and border members, respectively, and the gray dots indicate the field stars (noise points). The green plus is the new estimate (205.878, −12.619) for the cluster center based on the Mean Shift method. (Color online)

Open in new tabDownload slide

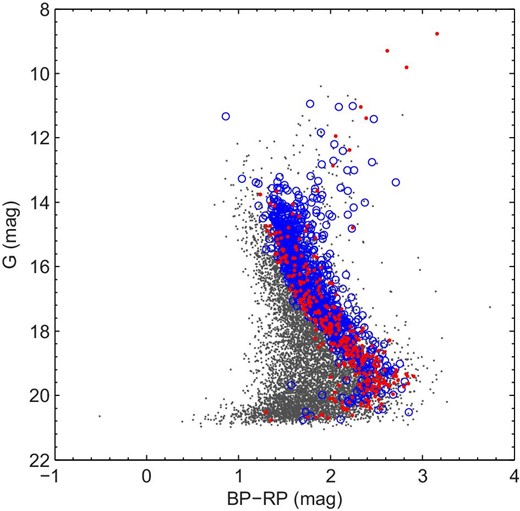

Fig. 3.

CMDs of the core members (blue circles), border members (red dots), and field stars (gray dots). (Color online)

Open in new tabDownload slide

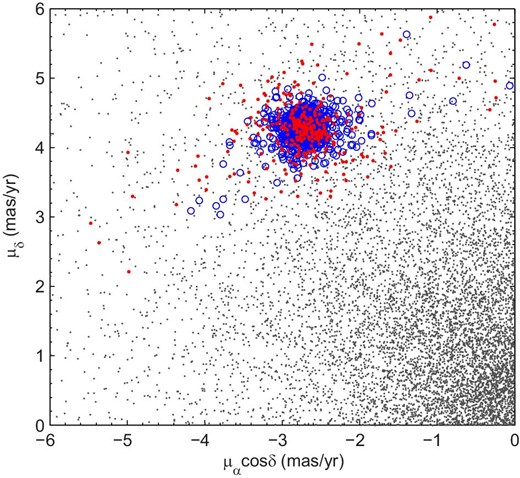

Fig. 4.

Proper motions of the core members (blue circles), border members (red dots), and field stars (gray dots). (Color online)

Open in new tabDownload slide

3 Fundamental properties of the cluster

3.1 Spatial structure and dynamical state

Based on DBSCAN, we have obtained 1193 likely cluster members, including 865 core members and 328 border members. The CMDs in figure 3 show that there is a clear lack of bright stars (G < 15 mag) for the border members as compared to the core members. The cumulative distribution functions (CDFs) show that the core members are, on average, brighter than the border members (see figure 5). The CMDs and CDFs indicate that clear mass segregation has occurred within the cluster. Mass segregation is expected to occur in relatively old clusters, which have enough time to reach a state of energy equipartition (Binney & Tremaine 1987). The typical relaxation time of an open cluster with 1000 members is less than 0.1 Gyr (Bonatto & Bica 2003; Chen et al. 2004). Even for a rich cluster with 10000 members, the relaxation time is shorter than 1 Gyr (Bonatto & Bica 2003). This indicates that the observed mass segregation within NGC 2112 is the result of dynamical relaxation. The elongated shape of NGC 2112 (see figure 2) may be the result of external tidal perturbations (Chen et al. 2004; Sánchez & Alfaro 2009; Vicente et al. 2016).

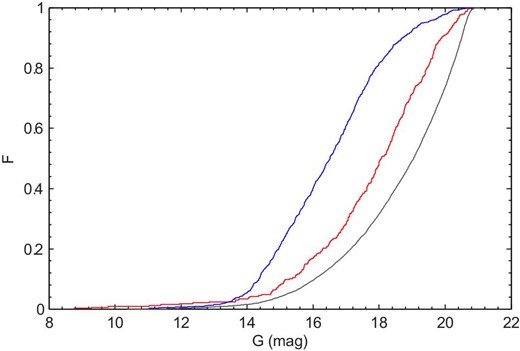

Fig. 5.

CDFs of the core members (blue curve), border members (red curve), and field stars (gray curve). (Color online)

Open in new tabDownload slide

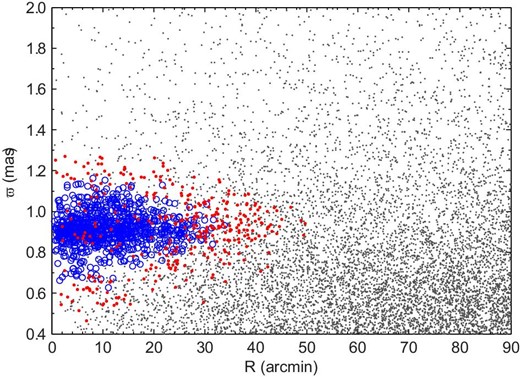

Fig. 6.

Distance to the cluster center (R) as a function of the parallax (ϖ) for the likely cluster members. The blue circles and red dots indicate the core members and border members, respectively, and the gray dots indicate field stars. (Color online)

Open in new tabDownload slide

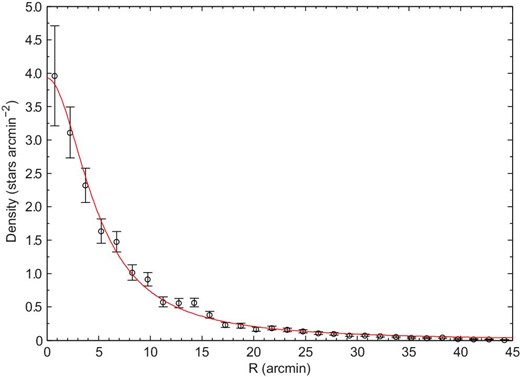

Fig. 7.

RDP of the likely cluster members within 40′ of the cluster center. The error bars denote the 1σ Poisson errors, and the solid line is the King profile (King 1962).

Open in new tabDownload slide

A mean parallax of NGC 2112 is also estimated based on the 182 bright core members with G < 15 mag, because these stars have relatively precise Gaia parallaxes. Using the same Monte-Carlo method, we obtain a mean parallax of |$\overline{\varpi } = 0.903 \pm 0.003\:$|mas (see figure 8), which is slightly larger than that (0.877 ± 0.003 mas) determined by Cantat-Gaudin et al. (2018). It has been shown that Gaia EDR3 parallaxes have a relatively low zero-point offset (Stassun & Torres 2021; Zinn 2021). Based on the mean parallax, we determine the cluster distance to be D = 1108 ± 3 pc without taking into account the zero-point offset in the parallaxes. Our result is consistent with the value (940 ± 70 pc) derived by Carraro et al. (2008) within the 3-sigma uncertainty interval. Our result is also consistent with the distance (∼994–1241 pc) in Cantat-Gaudin et al. (2018). Using the same method and sample stars, we estimate a mean proper motion of (−2.715 ± 0.005, 4.275 ± 0.005) mas yr⁻¹, which agrees well with the result obtained by Cantat-Gaudin et al. (2018).

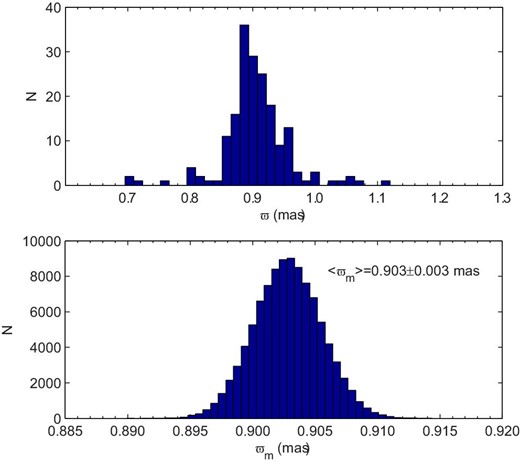

Fig. 8.

Gaia parallaxes of the 182 core members (top panel) and Monte Carlo simulations (100000 times) of their median parallax (bottom panel). (Color online)

Open in new tabDownload slide

3.2 Initial mass

To estimate the initial mass, we adopt γ = 0.62, t₀ = 3.3 (Yeh et al. 2019), M_c = 858 ± 12 M_⊙, and t = 1.8 ± 0.3 Gyr (Carraro et al. 2008) in this work. Finally, we obtain an estimate of M_ini = (2.2 ± 0.5) × 10⁴ M_⊙ by taking into account the uncertainties of the parameters. This implies that NGC 2112 may have lost more than |$90\%$| of its initial mass.

3.3 Galactic orbit of the cluster

The obtained distance, proper motions and radial velocity allow us to calculate the orbit of NGC 2112. In this paper, we determine the orbit parameters of the cluster using the galpy python package (Bovy 2015). To do this, the MWPotential2014 model is adopted to describe the Milky Way’s gravitational potential (Bovy 2015). The solar distance to the Galactic center and the circular velocity at the Sun are set to R_⊙ = 8.0 kpc and V_LSR = 220 km s⁻¹, respectively (Bovy & Tremaine 2012). We adopt the solar motion (U_⊙, V_⊙, W_⊙) = (11.1, 12.24, 7.25) km s⁻¹ derived by Schönrich et al. (2010). The orbit is followed backwards for a time interval of 6 Gyr, which is larger than the age of the cluster. The apogalactic (R_a) and perigalactic (R_p) distances are determined to be 12.028 and 8.913 kpc, respectively. Figure 9 shows that NGC 2112 has a confined box-type orbit (8.913 ≤ R ≤ 12.028 kpc). We find that the cluster has an orbit eccentricity of e ∼ 0.149 (see figure 10), and its maximum distance from the Galactic plane is about Z_max ∼ 0.274 kpc (see figure 9). NGC 2112 is currently at its maximum height on the Galactic plane, because the Z-component of its velocity is close to zero (∼−1.5 km s⁻¹). The orbit parameters suggest that NGC 2112 is a typical thin-disc cluster orbiting well outside the solar circle. We also plot the projected cluster orbit and 2D density map of the sample stars (see figure 11). NGC 2112 appears to have a clear core–halo structure, and its elongated shape roughly distributes along the cluster orbit.

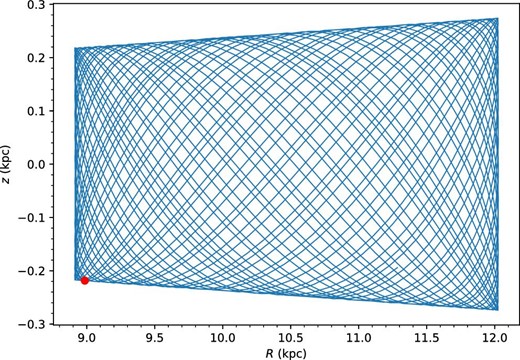

Fig. 9.

2D side view of the cluster’s orbit; the red dot is the current position of the cluster. (Color online)

Open in new tabDownload slide

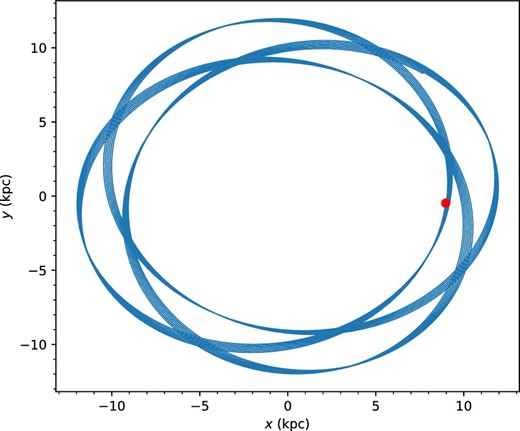

Fig. 10.

2D top view of the cluster’s orbit; the red dot is the current position of the cluster. (Color online)

Open in new tabDownload slide

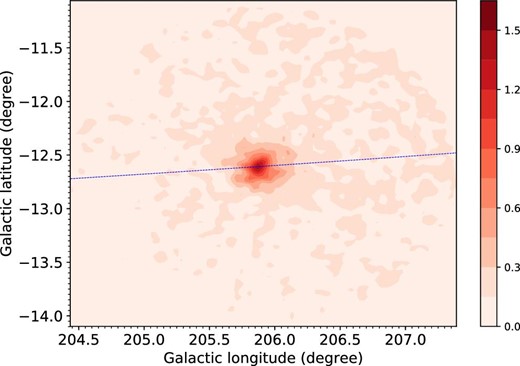

Fig. 11.

2D density map of the sample stars; the blue dashed line is the projected orbit. (Color online)

Open in new tabDownload slide

4 Conclusions and discussions

NGC 2112 is an important target for studying the dynamical evolution of open clusters in the solar neighborhood. This paper investigates the spatial structure and dynamical state of NGC 2112 using Gaia EDR3 data. For this purpose, we identify 1193 likely cluster members within 1.°5 of the cluster using DBSCAN clustering. We confirm that DBSCAN can find reliable cluster members in noisy environments (heavy field star contamination). Therefore, our method, in principle, can also be used to investigate other open clusters.

We find that clear mass segregation has occurred within the cluster due to dynamical relaxation. We also find that NGC 2112 has an extended halo and exhibits a slightly elongated shape (see figure 11), which may be caused by external tidal perturbations. The distance of the cluster is estimated to be 1108 ± 3 pc, which is consistent with the photometric distance obtained by Carraro et al. (2008). We determine a mean cluster radius of 40′ (∼12.9 pc) and a core radius of |${4{^{\prime }_{.}}8}\pm {0{^{\prime }_{.}}2}$| (∼1.5 pc) for NGC 2112. The central concentration parameter of the cluster is determined to be ∼0.92, indicating that NGC 2112 is at an advanced state of dynamical evolution. We estimate a total mass of 858 ± 12 M_⊙ within the cluster radius. However, it is probably a lower limit, because the cluster radius may be underestimated (see figure 6) and the total mass is sensitive to the cluster radius (see equation 3). We find that NGC 2112 may have an initial mass of (2.2 ± 0.5) × 10⁴ M_⊙. This indicates that NGC 2112 may have lost more than |$90\%$| of its initial mass. The high initial mass and compact spatial structure may explain why NGC 2112 has survived to its present age (∼1.8 Gyr). We calculate the Galactic orbit of NGC 2112 based on the obtained distance and kinematical data. The orbit parameters show that NGC 2112 belongs to the thin-disc population.
