Abstract

Waseda University Nasu telescope array is a spatial fast Fourier transform interferometer consisting of eight linearly aligned antennas with 20 m spherical dishes. This type of interferometer was developed to survey transient radio sources with an angular resolution as high as that of a 160 m dish and a field of view as wide as that of a 20 m dish. We have been performing drift-scan-mode observations, in which the telescope scans the sky around a selected declination as the Earth rotates. The black hole X-ray binary V404 Cygni underwent a new outburst in 2015 June after a quiescent period of 26 yr. Because of the interest in black hole binaries, a considerable amount of data on this outburst at all wavelengths was accumulated. Using the above telescope, we had been monitoring V404 Cygni daily from one month before the X-ray outburst, and two radio flares at 1.4 GHz were detected on 2015 June 21.73 and June 26.71. The flux density and timescale of the flares were 313 ± 30 mJy and 1.50 ± 0.49 d, 364 ± 30 mJy and 1.70 ± 0.16 d, respectively. We also confirmed the extreme variation of the radio spectra within a short period by collecting other radio data observed with several radio telescopes. Such spectral behavior is considered to reflect the change in the opacity of the ejected blobs associated with these extreme activities in radio and X-ray. Our 1.4 GHz radio data are expected to be helpful for studying the physics of the accretion and ejection phenomena around black holes.

1 Introduction

The Nasu telescope array operates as a spatial fast Fourier transform (FFT) interferometer. In this scheme, an antenna array and an FFT processor produce a direct image of an arriving radio source. A number of topics dealt with here have been reviewed by Thompson et al. (2017). The idea of a spatial FFT interferometer was proposed in 1984 and demonstrated using an eight-element test telescope at the campus of Waseda University (Daishido et al. 1984, 1987). Afterwards, two 8 × 8 pilot two-dimensional (2D) arrays were constructed; the larger one (overall size 20 m × 20 m) was designed for surveying transient radio sources, and the smaller one (1.2 m × 1.2 m) was designed for observing cosmic microwave background fluctuations (Asuma et al. 1991; Daishido et al. 1991). The larger array, consisting of 8 × 8 dishes of 2.4 m diameter, was used to study the direct imaging scheme by observing bright radio sources. By executing a 2D spatial FFT of the signals from each antenna element, we were able to obtain 8 × 8 pixel images of the sky every 50 ns (Nakajima et al. 1993; Otobe et al. 1994). We have also developed a large-scale interferometric array consisting of eight linearly aligned antennas with 20 m spherical dishes at the Jiyu-Gakuen Nasu Farm (Daishido et al. 2000). Using this Nasu telescope array, we have been searching for transient radio sources, such as an unknown strong flare lasting for a few days (Niinuma et al. 2007).

V404 Cygni is known for exhibiting extremely bright and variable activity, which was detected by the X-ray satellite Ginga in 1989 (Makino 1989). It was first reported as the bright X-ray nova GS 2023+338; however, subsequent investigations showed that V404 Cygni was in an outburst state, and consequently is the optical counterpart of an X-ray source (Marsden 1989). V404 Cygni is considered to be a binary system containing a stellar-mass black hole that is the closest to us among all such known systems. The binary system has a ∼10 M⊙ black hole and a ∼1 M⊙ companion with an orbital period of 6.5 d. Later radio parallax measurements determined its distance to be ∼2.4 kpc (Miller-Jones et al. 2009).

On 2015 June 15, V404 Cygni went into outburst again. Gamma-ray bursts from V404 Cygni were first detected by Swift/BAT (Barthelmy et al. 2015) and also reported by MAXI (Negoro et al. 2015). These early alerts triggered follow-up observations at all wavelengths. Independently of this, using the Waseda University Nasu telescope array, we had been monitoring V404 Cygni daily from one month before the outburst. We were therefore able to observe a sudden increase in activity in V404 Cygni at 1.4 GHz. Immediately after the observations, we reported preliminary results in two short notes (Tsubono et al. 2015a, 2015b).

Here, we first describe the Nasu telescope array, which was constructed on the basis of the novel idea of using a spatial FFT interferometer, and then we report our observations of the V404 Cygni outburst. Finally, we discuss the physical implications of our data, considered along with other observational results.

2 Spatial FFT interferometer

Suppose that incident radio waves arrive at antennas placed at equally spaced grid points in a plane. By spatially Fourier transforming the electric field sampled by each antenna, we can obtain a map of the incident field in k-space. Thus, the combination of an antenna array and a real-time spatial FFT processor acts as a digital lens, which produces a direct image of the incoming waves. We call this type of detector a spatial FFT interferometer. This type of interferometer is suitable for surveying transient radio sources.

2.1 Principle of spatial FFT interferometer

Assume that an infinite number of antennas are distributed continuously on an x–y plane, and then a plane radio wave arrives at the antenna plane. The electric field on the antenna located at |$\boldsymbol{r}$| is written in the form
(1)
where |$\boldsymbol{E_0}$|⁠, |$\boldsymbol{k_0}$|⁠, and ω0 are the amplitude of the electric field, the wavenumber vector and the angular frequency of the incident wave, respectively. Note that |$\boldsymbol{E}$|⁠, |$\boldsymbol{E_0}$|⁠, |$\boldsymbol{k_0}$|⁠, and |$\boldsymbol{r}$| are all two-dimensional vectors on the x–y plane. If we execute the Fourier transformation of |$\boldsymbol{E}(\boldsymbol{r},t)$| with respect to the spatial coordinate |$\boldsymbol{r}$|⁠, we obtain
(2)
Therefore, by finding the peak of |$\widetilde{\boldsymbol{E}}$| in |$\boldsymbol{k}$|-space, we can determine the direction |$\boldsymbol{k_0}$| of the incident wave. Figure 1 illustrates the peaks appearing in |$\boldsymbol{k}$|-space originating from the incident waves from (a) a point source and (b) two independent sources. The incident angle θ with respect to the vertical axis is calculated from the relation
(3)
where λ0 is the wavelength of the incident wave.

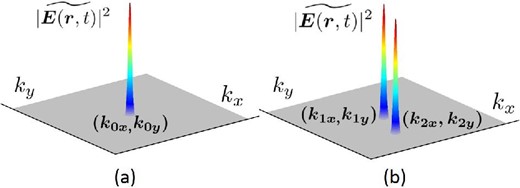

(a) Image on the $\boldsymbol{k}$-plane formed by a point source in the $\boldsymbol{k_0}$ direction. (b) Images formed by two independent point sources. (Color online)
Fig. 1.

(a) Image on the |$\boldsymbol{k}$|-plane formed by a point source in the |$\boldsymbol{k_0}$| direction. (b) Images formed by two independent point sources. (Color online)

Open in new tabDownload slide
If the distribution of antennas is finite, the δ-function in equation (2) is replaced by a broadened function. For simplicity, let the antennas be distributed inside the area |x| ≤ b/2 and |y| ≤ b/2; then equation (2) with a definite integral interval yields a spatial frequency response function with bandwidth
(4)
From equation (3), we can derive the angular resolution as
(5)
More practically, if the antennas are distributed discretely, not continuously, on the grid points with equal intervals d, the sampling theorem implies that the output of equation (2) has a periodic pattern with interval
(6)
Thus, if the incident angle θ satisfies |θ| ≪ 1, the field of view is given by
(7)

As described above, the angular resolution is given by the overall size of the antenna array, while the field of view is determined by the spacing between the antenna elements. We can thus design the configuration of the spatial FFT interferometer appropriately according to the purpose of the observation.

Most of the traditional Fourier synthesis telescopes in use today were designed to obtain fine images of radio sources using a relatively small number of antennas by choosing minimum-redundancy baselines or an arbitrary configuration of antennas. They are indirect imaging systems that use correlators and integrators. On the other hand, the spatial FFT interferometer, in which each antenna element is fixed in the maximum redundancy position, generates real-time images of radio sources at the Nyquist sampling rate. Moreover, an N-element spatial FFT interferometer requires Nlog2N multipliers, while an N-element Fourier synthesis interferometer requires N(N − 1) correlators. This means that the spatial FFT type is more economical than the correlator type when the number of elements N is large (Daishido et al. 1984).

2.2 Nasu telescope array

The Nasu telescope array is located at the Jiyu-Gakuen Nasu Farm in Tochigi Prefecture, 160 km north of Tokyo, at latitude |${36}^\circ {55^{\prime }41{_{.}^{\prime\prime}}3}$| N and longitude |$139^{\circ }{58^{\prime }54{_{.}^{\prime\prime}}3}$| E. The telescope is a one-dimensional array of eight antennas with a spacing of 21 m, aligned from east to west (E–W). The main part of each antenna is a spherical dish with a diameter of 20 m. A photograph of the 20 m antennas is shown in figure 2. The radius of curvature and the aperture diameter are both 20 m; that is, each antenna is a 60° spherical cap. For an incoming radio wave, the spherical surface of the main reflector and a Gregorian sub-reflector form a focal point at the input of the feed horn (see figure 3). The asymmetrical 3D surface of the sub-reflector was specially designed to compensate for the aberrations caused by the spherical reflector (Daishido et al. 2000).

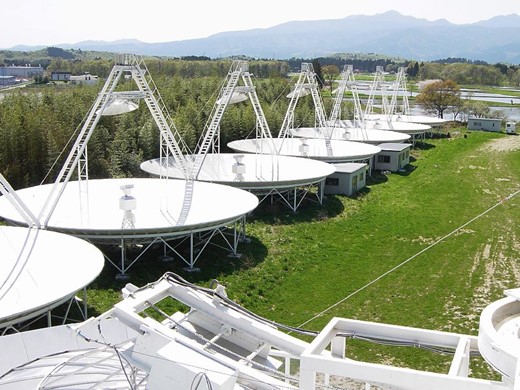

Nasu telescope array with 20 m spherical antennas at the Jiyu-Gakuen Nasu Farm. (Color online)
Fig. 2.

Nasu telescope array with 20 m spherical antennas at the Jiyu-Gakuen Nasu Farm. (Color online)

Open in new tabDownload slide

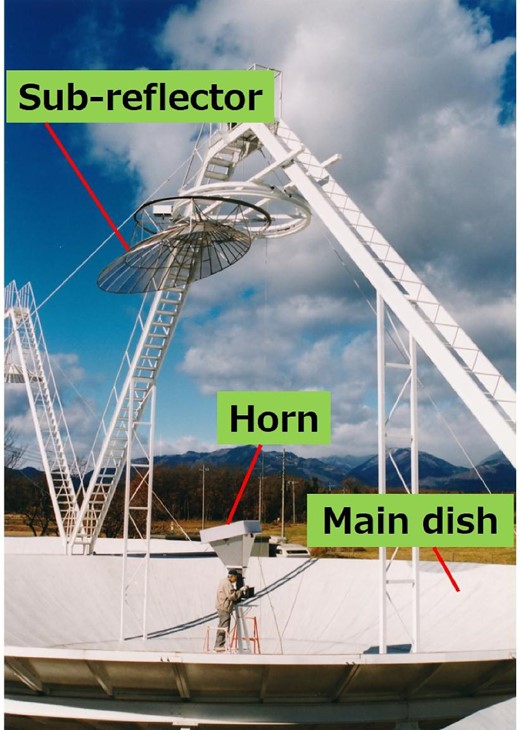

Principal parts of each antenna: main dish, sub-reflector, and feed horn. (Color online)
Fig. 3.

Principal parts of each antenna: main dish, sub-reflector, and feed horn. (Color online)

Open in new tabDownload slide

The main dish is fixed on the ground, whereas the sub-reflector and feed horn can be moved mechanically. The sub-reflector is located 5° from the vertex axis of the spherical reflector, and thus the elevation angle is fixed at 85°. By rotating the sub-reflector synchronously with the feed horn in azimuth, the antenna covers the sky area in a declination zone of 32° ≤ δ ≤ 42°, which is 7.0% of the entire sky.

A block diagram of the Nasu telescope array, including the data processing system, is shown in figure 4. The detector system operates at a center frequency of 1.415 GHz with a bandwidth of 20 MHz. The front-end signal from each feed horn is fed into an HEMT low-noise amplifier with a noise temperature of ∼40 K. After being filtered within a 1.405–1.425 GHz bandwidth and amplified by 40 dB, the signal is downconverted to 20 MHz by a complex mixer with two 1.415 GHz references in quadrature. The complex signal is sampled by an eight-bit analog-to-digital converter every 50 ns. The digitized signal is subsequently processed by an FPGA-based processor. The phase fluctuation arising from the temperature-dependent delay in the transmission line is compensated for by the phase equalizer. The eight-channel complex signal x(n) (n = 0, 1, …, 7) is then spatially Fourier transformed to obtain X(k) as
(8)
Finally, the time-averaged vector amplitude
(9)
is calculated and sent to the storage device.

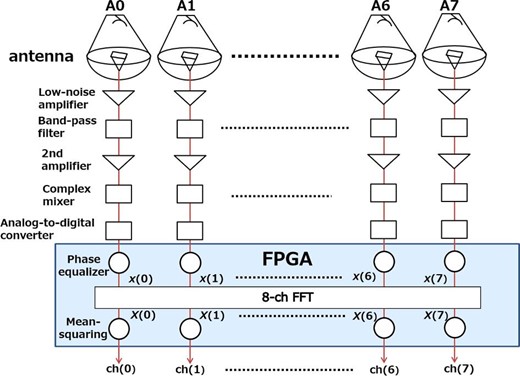

Block diagram of the Nasu telescope array including the data processing system. (Color online)
Fig. 4.

Block diagram of the Nasu telescope array including the data processing system. (Color online)

Open in new tabDownload slide

The main parameters of the Nasu telescope array are summarized in table 1.

Table 1.
Open in new tab

Main parameters of the Nasu telescope array.

LocationLatitude |$36^{\circ }{55^{\prime }41{_{.}^{\prime\prime}}3}$| N
Longitude |$139^{\circ }{58^{\prime }54{_{.}^{\prime\prime}}3}$| E
Number of antennasEight with 21 m spacing (E–W)
Main reflectorFixed 20 m spherical dish
Sub-reflectorAsymmetrical Gregorian type
Angular resolution0|${{_{.}^{\circ}}}$|1 (E–W)
Field of view (HPBW)0|${{_{.}^{\circ}}}$|8
Declination coverage32° ≤ δ ≤ 42°
Frequency range1.415 ± 0.01 GHz
Nyquist frequency20 MHz
LocationLatitude |$36^{\circ }{55^{\prime }41{_{.}^{\prime\prime}}3}$| N
Longitude |$139^{\circ }{58^{\prime }54{_{.}^{\prime\prime}}3}$| E
Number of antennasEight with 21 m spacing (E–W)
Main reflectorFixed 20 m spherical dish
Sub-reflectorAsymmetrical Gregorian type
Angular resolution0|${{_{.}^{\circ}}}$|1 (E–W)
Field of view (HPBW)0|${{_{.}^{\circ}}}$|8
Declination coverage32° ≤ δ ≤ 42°
Frequency range1.415 ± 0.01 GHz
Nyquist frequency20 MHz
Table 1.
Open in new tab

Main parameters of the Nasu telescope array.

LocationLatitude |$36^{\circ }{55^{\prime }41{_{.}^{\prime\prime}}3}$| N
Longitude |$139^{\circ }{58^{\prime }54{_{.}^{\prime\prime}}3}$| E
Number of antennasEight with 21 m spacing (E–W)
Main reflectorFixed 20 m spherical dish
Sub-reflectorAsymmetrical Gregorian type
Angular resolution0|${{_{.}^{\circ}}}$|1 (E–W)
Field of view (HPBW)0|${{_{.}^{\circ}}}$|8
Declination coverage32° ≤ δ ≤ 42°
Frequency range1.415 ± 0.01 GHz
Nyquist frequency20 MHz
LocationLatitude |$36^{\circ }{55^{\prime }41{_{.}^{\prime\prime}}3}$| N
Longitude |$139^{\circ }{58^{\prime }54{_{.}^{\prime\prime}}3}$| E
Number of antennasEight with 21 m spacing (E–W)
Main reflectorFixed 20 m spherical dish
Sub-reflectorAsymmetrical Gregorian type
Angular resolution0|${{_{.}^{\circ}}}$|1 (E–W)
Field of view (HPBW)0|${{_{.}^{\circ}}}$|8
Declination coverage32° ≤ δ ≤ 42°
Frequency range1.415 ± 0.01 GHz
Nyquist frequency20 MHz

2.3 Data analysis

The directivity of the spatial FFT interferometer is determined by the configuration of the antenna array. On the basis of the characteristics of the directivity pattern, two analysis methods have been developed: one is direct imaging and the other is correlation analysis.

2.3.1 Directivity patterns

In a spatial FFT interferometer, each ch(k) in equation (9) has its own directivity pattern, which we will derive here. First, neglecting the curvature of the antenna dish, we can obtain the directivity FC of a single round dish for an incoming electric wave |$e^{i\boldsymbol{k_0r}}$| as
(10)
where a is the radius of the dish. Next, the array factor FA for N-element linearly aligned antennas with an equal spacing of |$\boldsymbol{d}$| is calculated as
(11)
where we defined the modified incident direction κ0 as |$\kappa _0=\frac{N\boldsymbol{k_0d}}{2\pi }$|⁠. Then we can obtain the following normalized directivity pattern G(k) for each ch(k) (k = 0, 1, 2, …, N − 1):
(12)
Assuming that N = 8, |$\boldsymbol{k_0}$| is parallel to |$\boldsymbol{d}$| and d = 2a, the antenna pattern G(k) as a function of κ0 is shown in figure 5.

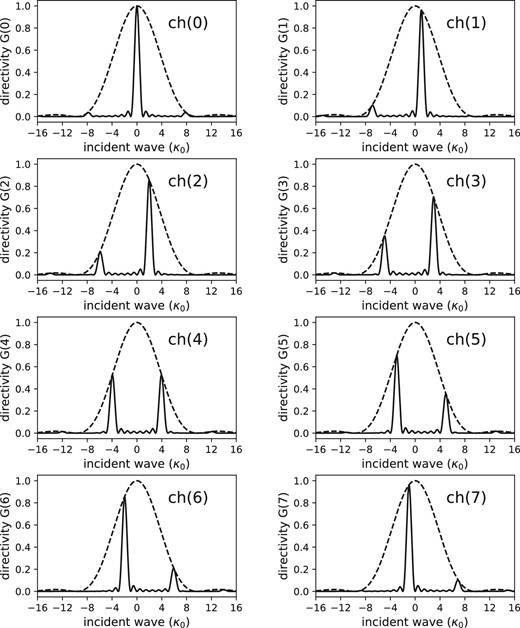

Normalized directivity pattern G(k) for each ch(k) (k = 0, 1, 2, …, 7) as a function of κ0. We assume here that $\boldsymbol{k_0}$ is parallel to $\boldsymbol{d}$ and d = 2a. The solid line shows the antenna pattern for each ch(k) and the broken line shows that of a single dish.
Fig. 5.

Normalized directivity pattern G(k) for each ch(k) (k = 0, 1, 2, …, 7) as a function of κ0. We assume here that |$\boldsymbol{k_0}$| is parallel to |$\boldsymbol{d}$| and d = 2a. The solid line shows the antenna pattern for each ch(k) and the broken line shows that of a single dish.

Open in new tabDownload slide

2.3.2 Direct imaging

A direct image can be obtained by making a contour map on the array block of ch(k) in equation (9). Figure 6 shows an example of a direct image obtained from the bright radio source 4C 33.57 (1.1 Jy at 1.4 GHz; Condon et al. 1998). As shown in figure 6a, the same two sets of ch(k) reduce the complexity of the folded pattern arising from the Fourier transformation. Furthermore, we can obtain a clearer image, as shown in figure 6b by masking the unnecessary part of the array before making the contour map.

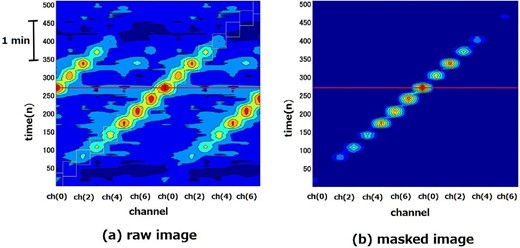

Example of direct image produced by the bright radio source 4C 33.57 (1.1 Jy at 1.4 GHz). The integration time of ch(k) is 0.6 s. (a) Raw image appearing in the same two sets of ch(k). (b) Masked view of the same image. (Color online)
Fig. 6.

Example of direct image produced by the bright radio source 4C 33.57 (1.1 Jy at 1.4 GHz). The integration time of ch(k) is 0.6 s. (a) Raw image appearing in the same two sets of ch(k). (b) Masked view of the same image. (Color online)

Open in new tabDownload slide

In principle, the direct imaging of a radio source shows intensity variations with a short duration. For this purpose, however, an accurate calibration of the image is crucial, although the optimum method that should be used is still under investigation. Nevertheless, we can apply direct imaging to distinguish artificial noise, such as radio-frequency interference, from genuine astronomical radio signals. Direct imaging cannot be applied to very faint radio sources.

2.3.3 Correlation analysis

As shown in figure 5, each ch(k) has its own antenna pattern. We can therefore find signals buried in an output stream by using correlation analysis or a pattern-matching method. This technique is a very powerful tool in the data analysis of gravitational waves, especially for the chirp waves generated by a binary coalescence (Abbott et al. 2016). In correlation analysis, the observed signal-to-noise ratio (SNR) for each ch(k) is formulated as follows (see, for example, Creighton et al. 2011):
(13)
In our case, |$\tilde{x}(f)$| is the Fourier transform of ch(k) with respect to time t, |$\hat{s}(f)$| is the normalized Fourier transform of the antenna pattern with respect to time t, and Pone(f) is the one-sided power spectral density of ch(k). This expression is essentially a noise-weighted correlation of the anticipated wave form with the actual data.

An example of three hours of data analyzed by the pattern-matching method is shown in figure 7. The upper figure shows the raw data of ch(0). The middle figure shows the reduced SNR of the eight-channel output data. SNR peaks larger than 7 are marked with a small circle, and the values shown at the peaks are the observed SNR. The lower figure shows the expected flux density of the radio sources listed in the NVSS catalog, taking account of the difference in the declinations between the source and the antenna positions. We obtained good agreement between the expected and observed source distributions and their intensities.

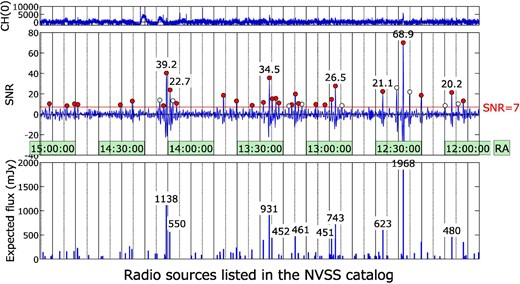

Example of three hours of data analyzed by the pattern-matching method. The upper figure shows the raw data of ch(0). The middle figure shows the combined SNR of the eight-channel output data. SNR peaks larger than 7 are marked with a small circle; the figures by the peaks are the observed SNR. Peaks with an open circle show the side lobe from strong sources. The lower figure shows the expected flux density of the radio sources listed in the NRAO VLA Sky Survey (NVSS) catalog (Condon et al. 1998) taking account of the difference in the declinations between the source and the antenna position. (Color online)
Fig. 7.

Example of three hours of data analyzed by the pattern-matching method. The upper figure shows the raw data of ch(0). The middle figure shows the combined SNR of the eight-channel output data. SNR peaks larger than 7 are marked with a small circle; the figures by the peaks are the observed SNR. Peaks with an open circle show the side lobe from strong sources. The lower figure shows the expected flux density of the radio sources listed in the NRAO VLA Sky Survey (NVSS) catalog (Condon et al. 1998) taking account of the difference in the declinations between the source and the antenna position. (Color online)

Open in new tabDownload slide

The observed one-sigma noise level was ∼20 mJy when the averaging time of ch(k) was 0.6 s. Thus, this method is effective even for rather weak radio sources.

3 Observations and results for V404 Cygni

The Nasu telescope array started an observation run on 2015 May 18, monitoring the sky region inside the declination zone of 33|${{_{.}^{\circ}}}$|8 ± 0|${{_{.}^{\circ}}}$|4 in the drift-scan mode, in which the telescope scans the sky around a selected declination as the Earth rotates. V404 Cygni is located at |${20^{\rm h}24^{\rm m}03{_{.}^{\rm s}}83}$| in right ascension (RA) and 33|${{_{.}^{\circ}}}$|9 in declination (Dec); thus, this source was within our survey area.

Figure 8 shows the daily records of the one-hour SNR data calculated by the correlation analysis method. In the plot, the horizontal axis shows the RA of the target sky region. Four days of data from 2015 June 19 to 22 are plotted here to demonstrate how to find substantial changes in the brightness among the daily records. On 2015 June 21, 17:24 UT, we found a significant peak at a position near V404 Cygni, although on June 20, 17:28 UT, we could not observe any noticeable signal in the vicinity. A nearby radio source, QSO J2025+337, whose flux density is 1268 mJy at 1.4 GHz, was chosen as a calibrator (Condon et al. 1998). The calibrated flux density of the detected signal on June 21 was 313 ± 30 mJy (Tsubono et al. 2015a). Since the center position of V404 Cygni and the calibrator is almost on the observation line, the difference in directivity was not considered here. The daily variation of the detected flux density during the two months from 2015 May 18 (MJD 57160) to July 18 UT (MJD 57221), which includes the period of the V404 Cygni outburst, is plotted in figure 9. Except for the 10 d from 2015 June 21 (MJD 57194) to June 30 UT (MJD 57203), the detected signal was below the detection limit.

Daily records of the one-hour SNR data from 2015 June 19 to June 22. An enlarged view of part of the figure is also shown. Peaks with an open circle show the side lobe from strong sources. On June 21, 17:24 UT, we found a significant peak at a position near V404 Cygni, although on June 20, 17:28 UT, we could not observe any noticeable signal in the vicinity. A nearby radio source, QSO J2025+337, was chosen as a calibration star, whose flux density is 1268 mJy at 1.4 GHz (Condon et al. 1998). (Color online)
Fig. 8.

Daily records of the one-hour SNR data from 2015 June 19 to June 22. An enlarged view of part of the figure is also shown. Peaks with an open circle show the side lobe from strong sources. On June 21, 17:24 UT, we found a significant peak at a position near V404 Cygni, although on June 20, 17:28 UT, we could not observe any noticeable signal in the vicinity. A nearby radio source, QSO J2025+337, was chosen as a calibration star, whose flux density is 1268 mJy at 1.4 GHz (Condon et al. 1998). (Color online)

Open in new tabDownload slide

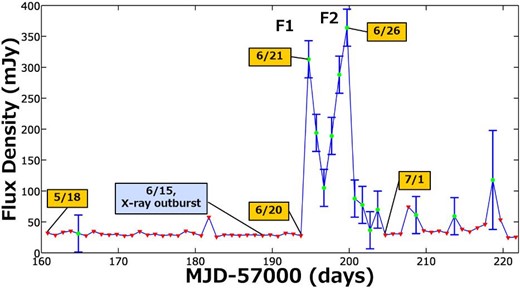

Daily variation of the detected flux density around V404 Cygni during the two months from 2015 May 18 (MJD 57160) to July 18 UT (MJD 57221), including the period of the V404 Cygni outburst. Except for the 10 d from June 21 (MJD 57194) to June 30 UT (MJD 57203), the detected signal was below the detection limit (filled red triangle). These detection limits can sometimes be high, mainly due to bad weather at the observation site. The date of the X-ray outburst is also shown here. (Color online)
Fig. 9.

Daily variation of the detected flux density around V404 Cygni during the two months from 2015 May 18 (MJD 57160) to July 18 UT (MJD 57221), including the period of the V404 Cygni outburst. Except for the 10 d from June 21 (MJD 57194) to June 30 UT (MJD 57203), the detected signal was below the detection limit (filled red triangle). These detection limits can sometimes be high, mainly due to bad weather at the observation site. The date of the X-ray outburst is also shown here. (Color online)

Open in new tabDownload slide

On 2015 June 21, 17:24 UT, we found a significant peak of 313 ± 30 mJy at the position of V404 Cygni. Then, the observed flux density decreased to 105 ± 30 mJy on June 23, 17:17 UT. However, the flux density recovered from that point and increased to 364 ± 30 mJy on June 26, 17:05 UT. On June 27, 17:01 UT, we observed fast decay of the intensity (Tsubono et al. 2015b). After this rapid decay, the flux density seemed to slowly decay. These characteristics appeared to be similar to those of the radio decay curve reported for the 1989 outburst of V404 Cygni (Han & Hjellming 1992).

4 Discussions

As mentioned in section 1, Barthelmy et al. (2015) and Negoro et al. (2015) reported that Swift-BAT and MAXI-GSC captured the huge X-ray outburst, which preceded the radio outburst, in the black hole X-ray binary object V404 Cygni. After this X-ray observation, and in response to the alert about its detection, follow-up observations were performed by ground-based telescopes, including not only radio telescopes but also other telescopes such as optical telescopes. On the other hand, fortunately, we had been monitoring the region at a declination line of 33|${{_{.}^{\circ}}}$|8 ± 0|${{_{.}^{\circ}}}$|4, at which V404 Cygni is located, every day since 2015 May 18, which was almost one month before the X-ray outburst and during which time V404 Cygni was in the quiescent state in the 1.4 GHz radio band.

Although an accurate understanding of the flux increase in the flaring phase of non-thermal synchrotron emission is essential for investigating the coupling between the accretion state and the jet ejection mechanism, which is one of the most important questions, it is quite difficult to obtain early-stage information of the flare, especially for radio observation, not only at higher frequencies but also at lower frequencies. Because of their smaller field of view (FoV), most radio telescopes have not performed unbiased surveys, but have carried out follow-up observations of transient phenomena triggered by X-ray/γ-ray observations by all-sky monitoring satellites.

As shown in figure 9, it was revealed that the radio behavior of this source was clearly very quiescent around 2015 June 15 when the first X-ray outburst was recognized in this object. It is easy to specify the date on which the radio outburst occurred at 1.4 GHz with a time resolution of 1 d. This daily light curve clearly shows two radio outbursts at 2015 June 21.73 (the first flare: F1) and 26.71 (the second flare: F2). In order to estimate the timescale of the flares, we performed structure function analysis (e.g., Simonetti et al. 1985). The first-order structure function SF(τ) is
(14)
where S is the observed flux density, and τ is the time lag. SF(τ) derived from the daily light curve at 1.4 GHz gives us a characteristic timescale of ∼3 d, which is thought to be corresponding to the approximate duration of each individual flare, i.e., F1 and F2. For a more quantitative estimation of the timescale of F1 and F2, we fitted a function of double exponential form to the time profile of a single flare (Abdo et al. 2010):
(15)
where Fb is a baseline level of light curve in the quiescent state, Fc is an amplitude coefficient, t0 is the estimated time of the flare peak, tr and td are e-folding times in the rise and decay phase, respectively. Here, we define the duration of the individual flare as Tflare (≡ tr + td), and Tflare of F1 and F2 derived from the well-fitted results with equation (15) are 1.50 ± 0.49 d and 1.70 ± 0.16 d, respectively. Surprisingly, the flux density of F1 drastically increased by more than ten times within a day compared to that in the quiescent state (e.g., 2015 June 20.73). On the other hand, it is difficult to understand the situation in which td of F2 is clearly shorter than tr in the framework of the synchrotron regime. Therefore, the flux peak at 1.4 GHz in F2 possibly appeared between June 25.71 and 26.71.
T  flare suggests that the size of the emitting region where both radio outbursts occurred is estimated to be R < ∼ 3.9 × 1015 cm, which is derived from the light-crossing time (R < cΔt) under the assumption of non-relativistic phenomena. Other radio follow-up observations with high time resolution but short duration clearly revealed intraday variability from this object (e.g., Gandhi et al. 2017; Tetarenko et al. 2017, 2019) especially at higher radio frequencies (>10 GHz). Tetarenko et al. (2017, 2019) reported that the radio fluxes at higher frequencies showed high variability for a few hours in both outbursts (i.e., F1 and F2). However, the variabilities seen at lower frequencies of less than a few GHz seem to be much slower compared to those seen at higher frequencies. Based on the magnetic field strength B discussed in Chandra and Kanekar (2017), the timescale of synchrotron cooling at 1.4 GHz should be
(16)
where γ is the Lorentz factor of the electron and δ is the Doppler factor of a moving blob. This timescale is a thousand times longer than Tflare for both F1 and F2. Therefore, adiabatic expansion (van der Laan 1966) is considered to be one of the most dominant cooling mechanisms that can explain the cooling timescale of these outbursts. Figure 10 compares radio spectra in the quiescent phase (phase 1) and outburst phases (phases 2 and 3) by using archived data obtained within a couple of hours, including our 1.4 GHz observation, as shown in table 2. The time evolution of the radio spectra between the quiescent phase and the outbursts can be seen in this figure. Although the peak frequency (νp) in phase 1 is located higher than ∼10 GHz, νp in phases 2 and 3 is located at around a few GHz. Such a change in spectral features possibly caused by non-thermal jet ejection is similar to that of the outburst detected in blazars at millimeter to sub-millimeter wavelengths (e.g., León-Tavares et al. 2011), but the timescale was much shorter (i.e., within several days) compared to the extragalactic phenomena that occur in the vicinity of supermassive black holes. Additionally, in phase 3, double peaks at ∼1 GHz and ∼5 GHz are clearly seen. On 2015 June 26, a flux density of 364 ± 30 mJy at 1.4 GHz was measured by the Nasu telescope. As seen in the phase 3 line of figure 10, this Nasu data point at 1.4 GHz together with the nearby RATAN one at 2.3 GHz are strong support for the double-peak hypothesis. As also discussed in Chandra and Kanekar (2017), there is a possibility that this double-peak spectrum implies a mixture of multiple synchrotron blobs ejected by outbursts. Actually, a very long baseline interferometry follow-up observation carried out immediately after the X-ray outburst directly revealed the ejection of multiple non-relativistic jets and changing jet orientations (Miller-Jones et al. 2019). It is thought that the νp of ∼2 GHz in phase 2 shows the turnover due to synchrotron self absorption (SSA) of the non-thermal blob associated with the first 1.4 GHz outburst seen in figure 9, which is probably related to the X-ray outburst detected on 2015 June 15. Then, it shifted to ∼1 GHz because of the change in the opacity of the ejected blob. The other νp of ∼4 GHz reflecting SSA turnover due to a possibly newly ejected blob associated with the second radio outburst occurred on June 26 (i.e., in phase 3).

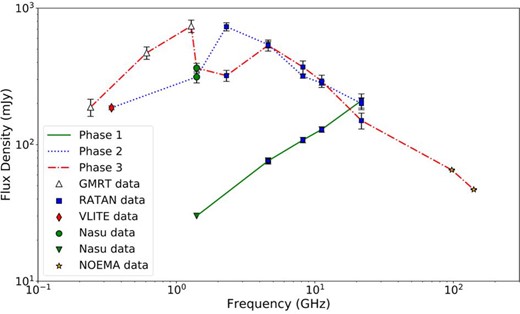

Radio spectra of V404 Cygni in the quiescent (phase 1; solid line) and outburst phases (phases 2 and 3: dotted and dashed lines, respectively) at 1.4 GHz. Each color indicates radio spectra obtained in different phases. The filled green triangle shows an upper limit for the 1.4 GHz radio flux density in phase 1. Additionally, the filled red diamond shows the 0.34 GHz radio flux density, but it was obtained more than 10 hr later compared to the other radio flux densities in phase 2. (Color online)
Fig. 10.

Radio spectra of V404 Cygni in the quiescent (phase 1; solid line) and outburst phases (phases 2 and 3: dotted and dashed lines, respectively) at 1.4 GHz. Each color indicates radio spectra obtained in different phases. The filled green triangle shows an upper limit for the 1.4 GHz radio flux density in phase 1. Additionally, the filled red diamond shows the 0.34 GHz radio flux density, but it was obtained more than 10 hr later compared to the other radio flux densities in phase 2. (Color online)

Open in new tabDownload slide
Table 2.
Open in new tab

Multi-frequency radio data in the quiescent and outburst phases.*

νSS  err
Epoch(GHz)(mJy)(mJy)DateRef.
Phase 11.4<30—2015-Jun-18.73(1)
4.67642015 Jun 18.95(2)
8.210852015 Jun 18.95(2)
11.212962015 Jun 18.95(2)
21.7210252015 Jun 18.95(2)
Phase 20.3418662015 Jun 22.54(3)
1.4313302015 Jun 21.73(1)
2.3730502015 Jun 21.94(2)
4.6540302015 Jun 21.94(2)
8.2317102015 Jun 21.94(2)
11.2282102015 Jun 21.94(2)
21.7200202015 Jun 21.94(2)
Phase 30.24188272015 Jun 26.89(4)
0.61470492015 Jun 26.89(4)
1.28739772015 Jun 26.89(4)
1.4364302015 Jun 26.71(1)
2.3320302015 Jun 26.93(2)
4.6534502015 Jun 26.93(2)
8.2370402015 Jun 26.93(2)
11.2292302015 Jun 26.93(2)
21.7150202015 Jun 26.93(2)
97.565.20.22015 Jun 26.93(5)
140.546.90.32015 Jun 26.93(5)
νSS  err
Epoch(GHz)(mJy)(mJy)DateRef.
Phase 11.4<30—2015-Jun-18.73(1)
4.67642015 Jun 18.95(2)
8.210852015 Jun 18.95(2)
11.212962015 Jun 18.95(2)
21.7210252015 Jun 18.95(2)
Phase 20.3418662015 Jun 22.54(3)
1.4313302015 Jun 21.73(1)
2.3730502015 Jun 21.94(2)
4.6540302015 Jun 21.94(2)
8.2317102015 Jun 21.94(2)
11.2282102015 Jun 21.94(2)
21.7200202015 Jun 21.94(2)
Phase 30.24188272015 Jun 26.89(4)
0.61470492015 Jun 26.89(4)
1.28739772015 Jun 26.89(4)
1.4364302015 Jun 26.71(1)
2.3320302015 Jun 26.93(2)
4.6534502015 Jun 26.93(2)
8.2370402015 Jun 26.93(2)
11.2292302015 Jun 26.93(2)
21.7150202015 Jun 26.93(2)
97.565.20.22015 Jun 26.93(5)
140.546.90.32015 Jun 26.93(5)

*Column 1: The state of source activity. Column 2: Observed frequencies in units of of GHz. Columns 3 and 4: Flux densities and errors, in units of mJy. Column 5: Date on which each datum was obtained. Here we assume that radio data at low frequencies obtained within several hours show the same behavior. Column 6: References: (1) our observation; (2) Trushkin, Nizhelskij, and Tybulev (2015); (3) Kassim et al. (2015); (4) Chandra and Kanekar (2017); (5) Tetarenko et al. (2015).

Table 2.
Open in new tab

Multi-frequency radio data in the quiescent and outburst phases.*

νSS  err
Epoch(GHz)(mJy)(mJy)DateRef.
Phase 11.4<30—2015-Jun-18.73(1)
4.67642015 Jun 18.95(2)
8.210852015 Jun 18.95(2)
11.212962015 Jun 18.95(2)
21.7210252015 Jun 18.95(2)
Phase 20.3418662015 Jun 22.54(3)
1.4313302015 Jun 21.73(1)
2.3730502015 Jun 21.94(2)
4.6540302015 Jun 21.94(2)
8.2317102015 Jun 21.94(2)
11.2282102015 Jun 21.94(2)
21.7200202015 Jun 21.94(2)
Phase 30.24188272015 Jun 26.89(4)
0.61470492015 Jun 26.89(4)
1.28739772015 Jun 26.89(4)
1.4364302015 Jun 26.71(1)
2.3320302015 Jun 26.93(2)
4.6534502015 Jun 26.93(2)
8.2370402015 Jun 26.93(2)
11.2292302015 Jun 26.93(2)
21.7150202015 Jun 26.93(2)
97.565.20.22015 Jun 26.93(5)
140.546.90.32015 Jun 26.93(5)
νSS  err
Epoch(GHz)(mJy)(mJy)DateRef.
Phase 11.4<30—2015-Jun-18.73(1)
4.67642015 Jun 18.95(2)
8.210852015 Jun 18.95(2)
11.212962015 Jun 18.95(2)
21.7210252015 Jun 18.95(2)
Phase 20.3418662015 Jun 22.54(3)
1.4313302015 Jun 21.73(1)
2.3730502015 Jun 21.94(2)
4.6540302015 Jun 21.94(2)
8.2317102015 Jun 21.94(2)
11.2282102015 Jun 21.94(2)
21.7200202015 Jun 21.94(2)
Phase 30.24188272015 Jun 26.89(4)
0.61470492015 Jun 26.89(4)
1.28739772015 Jun 26.89(4)
1.4364302015 Jun 26.71(1)
2.3320302015 Jun 26.93(2)
4.6534502015 Jun 26.93(2)
8.2370402015 Jun 26.93(2)
11.2292302015 Jun 26.93(2)
21.7150202015 Jun 26.93(2)
97.565.20.22015 Jun 26.93(5)
140.546.90.32015 Jun 26.93(5)

*Column 1: The state of source activity. Column 2: Observed frequencies in units of of GHz. Columns 3 and 4: Flux densities and errors, in units of mJy. Column 5: Date on which each datum was obtained. Here we assume that radio data at low frequencies obtained within several hours show the same behavior. Column 6: References: (1) our observation; (2) Trushkin, Nizhelskij, and Tybulev (2015); (3) Kassim et al. (2015); (4) Chandra and Kanekar (2017); (5) Tetarenko et al. (2015).

5 Conclusion

We used the Nasu telescope array, which is a spatial FFT interferometer, to carry out daily monitoring of radio transient phenomena by drift-scan observation. This telescope makes it possible to perform observation of all right ascensions with a sensitivity of a few tens of mJy at a specific declination with a positional uncertainty of ±0|${{_{.}^{\circ}}}$|4 over a day. On the other hand, no other radio observatory allows us to conduct wide-field daily monitoring with higher sensitivity, especially in the East Asian region. Therefore, it is complementary to other radio telescopes, which can conduct not only monitoring of specific objects with high time resolution or high angular resolution, but also unbiased surveys with large FoV in other regions (e.g., CHIME/FRB Collaboration 2018).

As a successful demonstration, our daily monitoring with the Nasu telescope from one month before the outburst of V404 Cygni occurred in 2015 June allowed us to capture the detailed behavior, which showed an abrupt change in flux density caused by an outburst in the 1.4 GHz radio band. The radio light curve showed two huge outbursts that occurred during a period of 10 d, and at least the 1.4 GHz flux density during one of the two outbursts increased by more than ten times within a day, compared to the quiescent state. We have also confirmed the extreme variation of radio spectra within the short period mentioned above by collecting other radio data observed at several radio observatories. Such spectral behaviors are considered to reflect the change in the opacity of the ejected blobs associated with radio and X-ray outbursts.

Although there is room to improve the calibration issues, which is crucial for accurate measurement of the amplitude and position of radio transients, as mentioned in Thompson et al. (2017), this new type of wide-field radio telescope realized by adopting a spatial FFT technique is one of the most promising key techniques in the era of “time-domain and multi-messenger astronomy.”

Acknowledgements

We are grateful to the anonymous referee, whose suggestions improved our paper substantially. This work was supported in part by the Cooperative and Supporting Program for Research and Education in Universities of the National Astronomical Observatory of Japan (NAOJ) and by Japan Society for the Promotion of Science (JSPS) KAKENHI Grant Numbers JP15K05029 (K.T.), JP18H03721 (K.N.), and JP15H00784 (K.N.). We thank Dr. Trushkin for providing us with their RATAN-600 data.

References

Abbott

B. P.
 et al. .
2016
,
Phys. Rev. Lett.
,
116
,
061102

Crossref
Search ADS
PubMed


Abdo

A. A.
 et al. .
2010
,
ApJ
,
722
,
520

Crossref
Search ADS


Asuma

K.
,
Iwase
S.
,
Nishibori
K.
,
Nakajima
J.
,
Otobe
E.
,
Tuchiya
A.
,
Watanabe
N.
,
Daishido
T.

1991
, in
ASP Conf. Ser. 19, Proc. 131st IAU Colloq.
,
Radio interferometry: Theory, techniques, and applications
, ed.
Cornwell
T. J.
,
Parley
R. A.
 (
San Francisco
:
ASP
),
90

Google Scholar

OpenURL Placeholder Text



Barthelmy

S. D.
,
D’Ai
A.
,
D’Avanzo
P.
,
Krimm
H. A.
,
Lien
A. Y.
,
Marshall
F. E.
,
Maselli
A.
,
Siegel
M. H.

2015
,
GCN Circ.
,
17929
,
1



Chandra

P.
,
Kanekar
N.

2017
,
ApJ
,
846
,
111

Crossref
Search ADS


CHIME/FRB Collaboration
,
2018
,
ApJ
,
863
,
48

Crossref
Search ADS


Condon

J. J.
,
Cotton
W. D.
,
Greisen
E. W.
,
Yin
Q. F.
,
Perley
R. A.
,
Taylor
G. B.
,
Broderick
J. J.

1998
,
AJ
,
115
,
1693

Crossref
Search ADS


Creighton

J. D. E.
,
Anderson
W. G.

2011
,
Gravitational-Wave Physics and Astronomy
(
Weinheim
:
Wiley-VCH
),
ch. 7

Google Scholar

Crossref
Search ADS



Daishido

T.
 et al. .
1991
, in
ASP Conf. Ser., 19, Proc. 131st IAU Colloq., Radio interferometry: Theory, techniques, and applications
, ed.
Cornwell
T. J.
,
Parley
R. A.
 (
San Francisco
:
ASP
),
86

Google Scholar

OpenURL Placeholder Text



Daishido

T.
 et al. .
2000
,
Proc. SPIE
,
4015
,
73

Crossref
Search ADS


Daishido

T.
,
Asuma
K.
,
Nishibori
K.
,
Inoue
S.

1988
, in
IAU Symp. 129, The Impact of VLBI on Astrophysics and Geophysics
, ed.
Reid
M. J.
,
Moran
J. M.
 (
Dordrecht
:
Kluwer Academic Publishers
),
531

Google Scholar

Crossref
Search ADS



Daishido

T.
,
Ohkawa
T.
,
Yokoyama
T.
,
Asuma
K.
,
Kikuchi
H.
,
Nagane
K.
,
Hirabayashi
H.
,
Komatsu
S.

1984
, in
Indirect Imaging: Measurement and Processing for Indirect Imaging
, ed.
Roberts
J. A.
 (
Cambridge
:
Cambridge University Press
),
81

Google Scholar

OpenURL Placeholder Text



Gandhi

P.
 et al. .
2017
,
Nature Astron.
,
1
,
859

Crossref
Search ADS


Han

X.
,
Hjellming
R. M.

1992
,
ApJ
,
400
,
304

Crossref
Search ADS


Kassim

N. E.
 et al. .
2015
,
Astronomer’s Telegram
,
7728
,
1



León-Tavares

J.
,
Valtaoja
E.
,
Tornikoski
M.
,
Lähteenmäki
A.
,
Nieppola
E.

2011
,
A&A
,
532
,
A146

Crossref
Search ADS


Makino

F.

1989
,
IAU Circ.
,
4782



Marsden

B. G.

1989
,
IAU Circ.
,
4783



Miller-Jones

J. C. A.
 et al. .
2019
,
Nature
,
569
,
374

Crossref
Search ADS
PubMed


Miller-Jones

J. C. A.
,
Jonker
P. G.
,
Dhawan
V.
,
Brisken
W.
,
Rupen
M. P.
,
Nelemans
G.
,
Gallo
E.

2009
,
ApJ
,
706
,
L230

Crossref
Search ADS


Nakajima

J.
 et al. .
1993
,
PASJ
,
45
,
477



Negoro

H.
 et al. .
2015
,
Astronomer’s Telegram
,
7646
,
1



Niinuma

K.
 et al. .
2007
,
ApJ
,
657
,
L37

Crossref
Search ADS


Otobe

E.
 et al. .
1994
,
PASJ
,
46
,
503



Simonetti

J. H.
,
Cordes
J. M.
,
Heeschen
D. S.

1985
,
ApJ
,
296
,
46

Crossref
Search ADS


Tetarenko

A. J.
 et al. .
2017
,
MNRAS
,
469
,
3141

Crossref
Search ADS


Tetarenko

A. J.
 et al. .
2019
,
MNRAS
,
482
,
2950

Crossref
Search ADS


Tetarenko

A.
,
Sivakoff
G. R.
,
Bremer
M.
,
Miller-Jones
J. C.
,
Mooley
K.
,
Fender
R.
,
Staley
T.
,
Anderson
G.

2015
,
Astronomer’s Telegram
,
7740
,
1



Thompson

A. R.
,
Moran
J. M.
,
Swenson
G. W.

2017
,
Interferometry and Synthesis in Radio Astronomy
, 3rd ed. (
Berlin
:
Springer
),
200

Google Scholar

Crossref
Search ADS



Trushkin

S. A.
,
Nizhelskij
N. A.
,
Tybulev
P. G.

2015
,
Astronomer’s Telegram
,
7667
,
1



Tsubono

K.
,
Aoki
T.
,
Asuma
K.
,
Daishido
T.
,
Kida
S.
,
Nakajima
H.
,
Niinuma
K.
,
Takefuji
K.

2015a
,
Astronomer’s Telegram
,
7701
,
1



Tsubono

K.
,
Aoki
T.
,
Asuma
K.
,
Daishido
T.
,
Kida
S.
,
Nakajima
H.
,
Niinuma
K.
,
Takefuji
K.

2015b
,
Astronomer’s Telegram
,
7733
,
1



van der Laan

H.

1966
,
Nature
,
211
,
1131

Crossref
Search ADS

© The Author(s) 2020. Published by Oxford University Press on behalf of the Astronomical Society of Japan.
This article is published and distributed under the terms of the Oxford University Press, Standard Journals Publication Model (https://dbpia.nl.go.kr/journals/pages/open_access/funder_policies/chorus/standard_publication_model)
Subject
radio continuum: stars X-rays: binaries instrumentation: interferometers stars: black holes stars: individual
Issue Section:
Paper
Download all slides
