An unbiased spectral line survey observation toward the low-mass star-forming region L1527

Abstract

An unbiased spectral line survey toward a solar-type Class 0/I protostar, IRAS 04368+2557, in L1527 has been carried out in the 3 mm band with the Nobeyama 45 m telescope. L1527 is known as a warm carbon-chain chemistry (WCCC) source, which harbors abundant unsaturated organic species such as C_nH (n = 3, 4, 5, …) in a warm and dense region near the protostar. The observation covers the frequency range from 80 to 116 GHz. A supplementary observation has also been conducted in the 70 GHz band to observe fundamental transitions of deuterated species. In total, 69 molecular species are identified, among which 27 species are carbon-chain species and their isomers, including their minor isotopologues. This spectral line survey provides us with a good template of the chemical composition of the WCCC source.

1 Introduction

In the last decade, it has been established that the chemical composition of low-mass protostellar sources shows significant diversity, even if their evolutionary stages are similar to one another (e.g., Sakai & Yamamoto 2013; Watanabe et al. 2012). One distinct case is hot corino chemistry characterized by rich saturated complex organic molecules (COMs) in a hot region around a protostar (e.g., Cazaux et al. 2003; Sakai et al. 2006; Öberg et al. 2011; Taquet et al. 2015; Codella et al. 2016). A representative hot corino source is IRAS 16293−2422 in Ophiuchus (e.g., Cazaux et al. 2003; Bottinelli et al. 2004; Kuan et al. 2004). Recent ALMA observations revealed that saturated COMs such as HCOOCH₃, (CH₃)₂O, and even glycolaldehyde are abundant in the innermost part of the protostellar core having a temperature higher than 100 K (e.g., Jørgensen et al. 2012, 2016; Favre et al. 2014; Oya et al. 2016, 2018). On the other hand, the warm carbon-chain chemistry (WCCC) is characterized by high abundances of carbon-chain molecules and related species concentrated around a protostar (e.g., Sakai et al. 2008b, 2009a, 2010a; Hirota et al. 2010). A prototypical source is IRAS 04368+2557 in L1527 in the Taurus molecular cloud. In WCCC, unsaturated hydrocarbons such as carbon-chain molecules and their isomers are efficiently produced in the gas phase in a lukewarm region around a protostar (T ∼ 30 K and R ∼ 1000 au). Their production is triggered by sublimation of CH₄ from grain mantles.

Hot corino chemistry and WCCC show exclusive nature: carbon-chain molecules are deficient in the hot corinos, while COMs are deficient in the WCCC sources (Sakai et al. 2008b; Sakai & Yamamoto 2013; Lefloch et al. 2018). It is proposed that this chemical variation would originate from the duration time of the starless core phase after shielding the interstellar UV radiation from outside of the parent molecular cloud (Sakai et al. 2009a; Sakai & Yamamoto 2013). If the duration time is long enough for the gas-phase formation of CO from carbon atoms, CO is adsorped onto dust grains rather than C atoms, resulting in the formation of CH₃OH through a series of reactions with the H atoms on the dust surface (e.g., Watanabe & Kouchi 2002; Soma et al. 2015). COMs are thought to be formed on dust surfaces as in the case of CH₃OH, or by subsequent gas-phase reactions starting from sublimated CH₃OH (e.g., Garrod & Herbst 2006; Vasyunin & Herbst 2013; Balucani et al. 2015; Soma et al. 2018). On the other hand, if the duration time of the starless core phase is close to the free-fall time (i.e., the core collapse starts just after the UV shielding), the C atom still survives in the gas phase without being converted to CO, and can be depleted onto dust grains. This situation leads to the efficient production of CH₄ on dust surfaces by hydrogenation of the C atom (Aikawa et al. 2008). After the onset of star formation, molecules in dust mantles are released into the gas phase, and chemical diversity emerges in the gas phase.

A detailed understanding of the origin and the fate of the chemical diversity is of great interest to astrochemistry in relation to the origin of the solar system. As the first step toward this goal, it is important to reveal the chemical compositions of representative low-mass protostellar sources in an unbiased way. Although spectral line survey observations toward the hot corino source IRAS 16293−2422 have been conducted not only with single-dish telescopes but also with interferometers (Caux et al. 2011; Jørgensen et al. 2016; Ligterink et al. 2017), no spectral line survey observations toward WCCC sources have been reported except for that recently published by Lefloch et al. (2018) (see below). With this in mind, we conducted an unbiased spectral line survey toward the prototypical WCCC source L1527 in the 3 mm band with the Nobeyama 45 m telescope (hereafter referred to as NRO 45 m), as part of the legacy project of the Nobeyama Radio Observatory. Here, we report the whole result of the survey. The presence of highly unsaturated hydrocarbons is the most characteristic feature of interstellar chemistry. Hence, revealing the whole chemical composition of the WCCC source and its comparison with other sources such as starless cores showing cold carbon-chain chemistry [e.g., TMC-1 (CP); Kaifu et al. 2004] will give us valuable information on the formation of these molecules in space.

As an independent study, a similar spectral line survey observation toward this source was also carried out with the IRAM 30 m telescope, as part of the ASAI (Astrochemical Surveys At Iram) program. Its summary result has recently been reported (Lefloch et al. 2018), although detailed data exploitation has not been presented. The ASAI survey almost covers the frequency range of our survey in the 3 mm band with a larger beam size by a factor of 1.5. Nevertheless, independent spectral line surveys with different telescopes are always important for the fundamental sources such as L1527, because they give opportunities to confirm the consistency of the results, and also provide additional information such as the source sizes by taking advantage of the different beam sizes. Here, we report the results of our spectral line survey with NRO 45 m.

2 Observation

The spectral line survey observations of L1527 were carried out with NRO 45 m during the seasons from 2006 to 2012. The frequency range was from 79.8 GHz to 116.8 GHz. The observed position was (α_J2000.0, δ_J2000.0) = (⁠|${4^{\rm h}39^{\rm m}53{^{\rm s}_{.}}89}$|⁠, |${26^{\circ}03^{\prime }11{^{\prime\prime}_{.}}0}$|⁠), which is the position of the protostar (Sakai et al. 2008b). In this observation, we used the SIS mixer receivers, S80 and S100, simultaneously from 2006 to 2008, while we employed the dual-polarization side-band-separating (2SB) SIS receiver T100H/V (Nakajima et al. 2008) from 2009 to 2012. The system temperatures varied from 250 to 350 K in the former and from 150 to 250 K in the latter. The intensity scale was calibrated by using the chopper-wheel method, and the calibration uncertainty is estimated to be better than 20%. The telescope pointing was checked once every 1 to 1.5 hr by observing the nearby SiO maser sources (NML-Tau and Ori-KL). The pointing accuracy was ensured to be better than 6″. The main-beam efficiency (η_mb) at 86 GHz was 0.43 from 2006 to 2008, 0.49 in 2009, and 0.42 from 2010 to 2012, as reported on the NRO website. The antenna temperature (⁠|$T_\mathrm{A}^*$|⁠) is converted to the main-beam brightness temperature (T_mb) by |$T_\mathrm{mb}=T_\mathrm{A}^*/\eta _\mathrm{mb}$|⁠. The beam size was 19″ at 86 GHz and 15″ at 110 GHz. A position switching mode with the off-position (α_J2000.0, |$\delta _{\mathrm{J}2000.0}) = ({4^{\rm h}42^{\rm m}35{^{\rm s}_{.}}9},\ {25^{\circ}53^{\prime }23{^{\prime\prime}_{.}}3}$|⁠, which is free from the emission of CO isotopologue lines, was employed in all the observations.

Before 2010, we used a bank of acousto-optical radio spectrometers (AOSs), whose bandwidth, resolution, and channel spacing are 250 MHz, 250 kHz, and 125 kHz, respectively. In 2011–2012, we used a bank of autocorrelators, SAM45 (Spectral Analysis Machine for the 45 m telescope), whose bandwidth, resolution, and channel spacing were set to be 1 GHz, 244 kHz, and 244 kHz, respectively. The frequency resolution corresponds to the velocity resolution of ∼0.8 km s⁻¹ at 90 GHz. This resolution is larger than the typical line width in this source (∼0.5–0.8 km s⁻¹). Nevertheless, we chose this resolution to cover the whole 3 mm band within the limited observation time. Although the lines are partly frequency-diluted, the integrated intensity is reliable.

In addition to the observations in the 3 mm band, a supplementary observation was conducted in the 4 mm band with NRO 45 m from 2012 February to April. This observation mainly aims to investigate the deuterium fractionation of some fundamental molecular species. Thus, only selected lines were observed. The 2SB SIS mixer receiver T70H/V was used as the front end with a typical system noise temperature of 200–300 K. The back end was SAM45, whose resolution was set to be 60.1 kHz. The beam size was 22″ at 75 GHz. The main-beam efficiency at 75 GHz was 0.45.

3 Results

3.1 Overall results

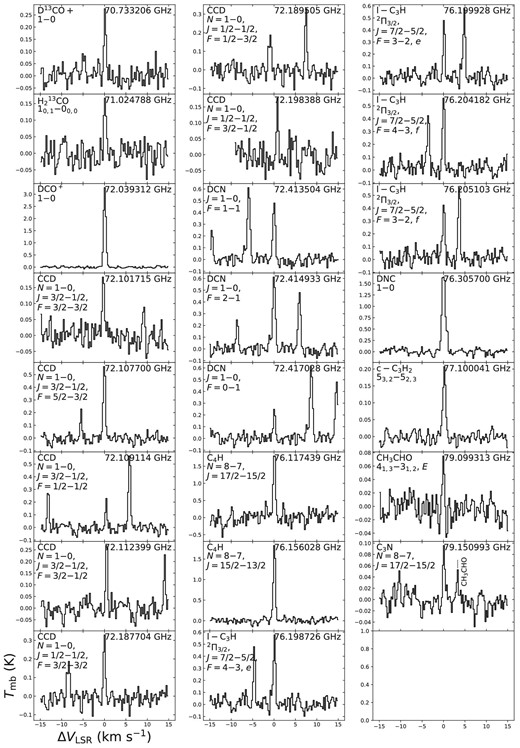

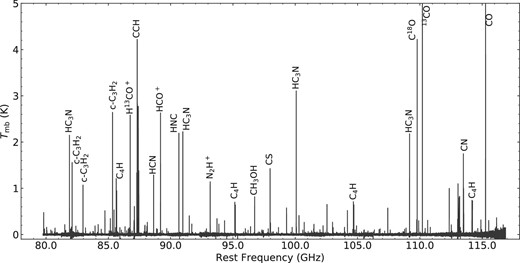

Figure 1 is an overview of the observed spectrum in the 3 mm band, while figure 2 shows it in more detail. Figure 3 shows the spectra of the supplementary observation in the 70 GHz band. Typically, the rms noise at the native spectral resolution ranges from 5 to 15 mK in T_mb in the 3 mm band. This rms noise level is similar to or even better

than that of the spectral line survey toward the outflow shocked region L1157 B1, which was also conducted with NRO 45 m as part of the legacy project of the Nobeyama Radio Observatory (Sugimura et al. 2011; Yamaguchi et al. 2012). The detected lines are identified on the basis of spectral line databases, the Cologne Database for Molecular Spectroscopy managed by the University of Cologne (CDMS: Müller et al. 2001, 2005) and the Submillimeter, Millimeter, and Microwave Spectral Line Catalog provided by Jet Propulsion Laboratory (JPL: Pickett et al. 1998). A line detection criterion is that the peak intensity of the line exceeds four times the rms noise level at its expected frequency. In total, 243 emission lines and one absorption line (CH₃OH 3_1,3–4_1,4, A⁺ at 107.01 GHz) are detected in the frequency range from 79.8 to 116.9 GHz (figures 1 and 2). Hence, the line density is 6.5 GHz⁻¹ with this sensitivity. From the detected emission lines, 69 molecular species are identified in the 3 and 4 mm bands, among which 37 species are isotopologues. These numbers are higher than those of L1157 B1 (line density: 3.4 GHz⁻¹, detected species: 47 species, including 15 isotopologues). This clearly shows the chemical complexity of L1527. The detected molecules are summarized in table 1.

In this survey, c-C₃D is detected for the first time in interstellar clouds. Although c-C₃D is detected with a signal-to-noise (S/N) ratio higher than 4σ, the velocity resolution is not high enough to determine the line parameters by Gaussian fits. C₂O, C₃S, C₆H, HCNO, HCO|$_2^+$|⁠, C₄D, C₂H₃CN, and CH₂DOH are tentatively detected with an S/N ratio higher than 3σ. In addition, CC¹³CCH, l-C₃D and CH₃CCD are also tentatively detected, because multiple lines are marginally seen. Among the tentatively detected species in this survey, the detections of C₆H, HCNO, HCO|$_2^+$|⁠, C₄D, and l-C₃D have already been reported by the higher sensitivity observations (Sakai et al. 2007, 2008a, 2009b; Marcelino et al. 2009).

For unidentified lines with an S/N ratio higher than 4 σ, we carefully inspect whether they are also detected in the ASAI survey, and find that none of them have corresponding features in the ASAI data. Most of the unidentified lines that appear only in this survey are likely spurious lines, which are mainly caused in the AD converters of the autocorrelators during the period of our observations. Significant features of such spurious lines are shown in some panels of figure 2. In the frequency range observed only with NRO 45 m, two lines are unidentified, and they should be verified in future observations. The intensity, line-of-sight velocity, and FWHM line width of the detected lines are determined by a single Gaussian fit. If the line profile is blended with multiple lines such as nearby hyperfine components, multiple Gaussian functions are employed to determine the line parameters. For the hyperfine components of N₂D⁺ and CH₂CN, we assume that the line width and the line-of-sight velocity are identical among all the components, and that the intensities are proportional to the line strengths, because the hyperfine splittings are too small to fit them independently (figure 4). Tables 2 and 3 present lists of the line parameters of the identified molecular lines including tentatively detected ones and unidentified lines. Note that some of the hyperfine components of CCD show significant offsets in ΔV_LSR (table 3). This is probably because of insufficient accuracy in the rest frequencies listed in CDMS (see the Appendix).

As listed in table 1, 27 species are carbon-chain species and their isomers. For saturated molecules, the most fundamental species, CH₃OH and CH₃CHO, which are already detected in many cold starless cores (e.g., Kaifu et al. 2004; Vastel et al. 2014; Soma et al. 2018), are detected. However, larger complex organic molecules such as (CH₃)₂O and HCOOCH₃ are not detected in this survey, while spectral lines of these species are detected in the 3 mm band with peak intensities of a few 10 mK or stronger toward the hot corino sources such as IRAS 16293−2422 and NGC1333 IRAS4A (e.g., Caux et al. 2011; Bottinelli et al. 2004). A deficiency of complex organic molecules in L1527 was also reported on the basis of high sensitivity observations (Sakai et al. 2008c).

3.2 Column densities and rotation temperatures

The partition function is numerically calculated from energies and degeneracies of the rotational levels, which are taken from the spectroscopy databases CDMS and JPL. The beam-filling factor is not included for simplicity. This assumption is reasonable especially for carbon-chain molecules, because distributions of carbon-chain molecules such as CCH and C₄H are reported to be extended over 20″–40″ (Sakai et al. 2010a), which is comparable to or larger than the typical beam size of the observation (∼20″). Uncertainties of the derived column densities include the rms noise, the fitting error, and the intensity calibration uncertainty of 20%. Table 4 shows the column densities and the rotation temperatures derived by the above analysis. The large uncertainty for C₃N originates from large scattering of the data due to the poor S/N ratios.

For molecules for which only one transition line or multiple lines with almost the same upper-state energies are detected, the column densities are derived under the LTE assumption with excitation temperatures of 10 K and 15 K. The range of excitation temperature is chosen on the basis of the rotation temperatures derived for other molecules in the above analysis. The column densities thus evaluated are summarized in table 5. A change in the temperature by 5 K does not result in a substantial change in the column density (∼20% or less for most of the species). Optical depths of the lines are also listed in table 5. Most of them are less than 1. Hence, the column densities are reasonably estimated. An exception is the HCCNC case. The column density of HCCNC changes by a factor of 2 between 10 K and 15 K. This is likely due to the relatively high upper-state energy of the detected line (J = 10–9; E_u = 26 K). Moreover, if we employ the J = 9–8 line (E_u = 21 K) tentatively detected with the 3σ confidence level, the column density is derived to be about a half of that from the J = 10–9 line, assuming the excitation temperature of 10 K or 15 K. The column density of HCCNC therefore has a relatively large uncertainty.

It should be noted that some molecules having an extended distribution might have the excitation temperatures less than 10 K, because of contributions from less dense and colder parts. However, the excitation temperature of 5 K does not cause a substantial change in the column density (∼20% or less) or the optical depth (0.4 or less) for most of the species. For DNC and H¹³CO⁺, the column densities become ∼2 times higher and optical depths becomes ∼2, if the excitation temperature is 5 K.

The low excitation temperature indicates that the emissions are not truly in the LTE condition, but are sub-thermally excited. To examine whether LTE is a good approximation for this observation, we compare the derived column densities with those obtained with the non-LTE radiative transfer code RADEX (van der Tak et al. 2007). Simple molecules such as C¹⁸O, CS, SO, HC¹⁵N, HC¹⁸O⁺, and CCH are examined, for which the collisional cross-sections are available. As summarized in table 6, the column densities derived by RADEX and those derived by the LTE analysis agree within the error over a range of n(H₂) = 3 × 10⁵–3 × 10⁶ cm⁻³ and T_k = 10–30 K except for CS. The difference in the column density of CS is about a factor of 2, which does not change the conclusion of the discussion in subsection 4.2 (see figures 5 and 6). Yoshida et al. (2015) reported the column density of c-C₃H₂ with RADEX by using the NRO 45 m and the IRAM 30 m telescopes, which differ from those derived with LTE by only 20%. Larger molecules tend to exist in the denser part of the cloud, and hence, the non-LTE effect could be smaller than the above cases. The non-LTE effect on isotopic ratios is also negligible, because uncertainties of the derived column densities are mostly caused by assumptions of temperature and H₂ density, and their effects are canceled out in the ratios. Thus, we employ the results obtained with LTE in the following analysis and discussions.

The spectral lines of CO, ¹³CO, CS, HCO⁺, HCN, and HNC are optically thick, judging from the isotopologue lines. Hence, the column densities of these molecules shown in table 5 are derived from the isotopologue lines, assuming the following isotopic ratios in the local interstellar matter (ISM): ¹²C/¹³C =60, ¹⁶O/¹⁸O =560, and ³²S/³⁴S =22 (Lucas & Liszt 1998; Wilson & Rood 1994; Chin et al. 1996). As discussed later (sub-subsection 4.1.2), the ¹²C/¹³C ratios of carbon-chain molecules are higher than the local ISM value. However, we here employ the standard values for the above fundamental species. Although the optical depths of C¹⁸O and H¹³CO⁺ lines are also high, the derived column densities are consistent with those derived from the C¹⁷O, ¹³C¹⁸O, and HC¹⁸O⁺ lines (¹⁸O/¹⁷O =3.2; Wilson & Rood 1994).

Molecules which have the ortho and para species due to symmetry of a molecular structure are analyzed separately under the assumption of the same rotation temperatures, if the lines of both species are detected. Free parameters for the fit are the total column density, the rotation temperature, and the ortho-to-para ratio. For l-C₃H₂, c-C₃H₂, C₄H₂ and CH₂CO, the ortho-to-para ratios are derived to be 2.81 ± 0.14, 2.2 ± 0.3, 3.2 ± 0.2, and 3.2 ± 1.2, respectively. c-C₃H₂ shows an ortho-to-para ratio lower than 3, probably because an optically-thick ortho line is used for the evaluation. For molecules for which only ortho lines are detected, we assume the statistical ortho-to-para ratios: 3 for H₂¹³CO, H₂CS, NH₂D, c-H₂C₃O, c-¹³CCCH₂ and CH₂CN, and 2 for D₂CO and c-C₃D₂. For CH₃CCH and CH₃CN, the A and E states caused by the internal rotation are analyzed separately under the assumption of the identical rotation temperature. The A/E ratios are derived to be 0.98 ± 0.14 and 1.07 ± 0.02 for CH₃CCH and CH₃CN, respectively. For CH₃CHO and CH₃OH, the A/E ratio is assumed to be 1, because only one line of the A state is detected. The column densities shown in tables 4 and 5 represent the total column densities. The error of the column density of NH₂D is large because of the poor S/N ratio of the detected line.

We derive the upper limit to the column densities for important undetected species, OCS, HCOOCH₃, and (CH₃)₂O, to compare them with those derived in IRAS 16293−2422. A spectral line for which the highest S/N ratio is expected in the observed frequency range (i.e., J = 7–6 at 85.14 GHz for OCS, 4₁₄–3₁₃, EE at 99.32 GHz for (CH₃)₂O, and 9₀₉–8₀₈, A at 100.68 GHz for HCOOCH₃) is used for the evaluation for each species. The 3σ upper limit is derived from the rms noise under the assumption of the line width of 1.0 km s⁻¹, as shown in table 5.

In order to derive the beam-averaged fractional abundances of molecules relative to H₂ [X = N/N(H₂)], we evaluate the beam-averaged column density of H₂, N(H₂), from the C¹⁷O data. The N(H₂) value is derived to be (8.2 ± 1.6) × 10²² cm⁻² by assuming the rotation temperature of 15 K and the N(C¹⁷O)/N(H₂) ratio of 2.6 × 10⁻⁸ (Jørgensen et al. 2002). Note that this ratio is derived from the C¹⁷O and dust continuum observations, and is lower than the ratio reported by Frerking, Langer, and Wilson (1982). The fractional abundances of molecules are listed in table 7. Here, we adopt the column densities derived with the excitation temperature of 15 K for the species listed in table 5.

4 Discussion

4.1 Isotopic ratios

4.1.1 Deuterated species

Since we detect 12 deuterated species with reasonably good S/N ratios, we here derive their abundance ratio relative to the normal species, as summarized in table 8. For the isotopic species, we adopt the same rotation temperatures as those for the normal species. For molecules for which the rotation temperatures are not derived by the fit, the ratios are derived by assuming the excitation temperature of 15 K. Note that the results do not change within the error limits, even if we adopt the excitation temperature of 10 K. The D/H ratio (i.e., what fraction of the hydrogen atom is replaced by the deuterium atom in the species of interest) is not the same as the abundance ratio, when the molecular species contains multiple equivalent H or D atoms. The D/H ratios translated from the derived abundance ratios are also shown in table 8.

The abundance ratios derived in this study are consistent with the previous reports, as shown in table 8. Carbon-chain molecules (CCH and HC₃N) and standard species (HCN, HCO⁺, N₂H⁺, and HNC) show moderate D/H ratios of ∼0.04–0.05. Note that the D/H ratios of HCO⁺ and HNC can be regarded as an upper limit and lower limit, respectively. The H¹³CO⁺ and DNC lines could be optically thick, if we adopt an excitation temperature lower than 10 K. To overcome this situation, using the double isotope species such as DN¹³C to evaluate the D/H ratio would be preferable. CH₂DCCH is statistically favored by a factor of 3, because there are three equivalent hydrogen atoms in the methyl group to be deuterated. Thus, the [CH₂DCCH]/[CH₃CCH] ratio of 0.141 means a similar level of deuterium fractionation to the other carbon-chain species, when the statistical weight is considered.

The moderate D/H ratio observed in this study is consistent with the interpretation reported by Sakai et al. (2009b) and Sakai and Yamamoto (2013). In the WCCC sources, the starless-core phase would be shorter than the chemical timescale of the C-to-CO conversion (∼10⁶ yr). The starless-core phase is not long enough for deuterium transfer reactions and CO depletion onto dust grains to occur. Thus, the D/H ratios should be relatively low in the WCCC sources (Sakai et al. 2009b). This is in contrast to the hot corino sources, which is thought to be a consequence of a longer cold starless-core phase with a high degree of CO depletion. In fact, the [CCD]/[CCH] ratio is reported to be 0.18 in the hot core source IRAS 16293−2422 (van Dishoeck et al. 1995), which is much higher than that in L1527 (0.037).

On the other hand, the D/H ratios of c-C₃D₂, D₂CO, and HDCS are found to be high in comparison with those of other species. This trend is seen in other low-mass star-forming regions, as described below. The [HDCS]/[H₂CS] ratio is 0.29, which is much higher than the abundance ratios of the other species. The D/H ratio is still as high as 0.14, in which the statistical weight of 2 due to the two equivalent hydrogen atoms is taken into account. The high [HDCS]/[H₂CS] ratio (0.29) is previously reported in the evolved starless core, Barnard 1, and is higher than the D/H ratios of the other molecules observed in this source (Marcelino et al. 2005). Marcelino et al. (2005) reproduced the high abundance ratio of HDCS in their steady-state gas-phase chemical model.

The derived [D₂CO]/[H₂CO] ratio of 0.014 is also high, because the D/H ratio (⁠|$\sqrt{[\mbox{D}_2\mbox{CO}]/[\mbox{H}_2\mbox{CO}]}$|⁠) is as high as 0.12. The high [D₂CO]/[H₂CO] ratio is often revealed in many low-mass star-forming regions including L1527 (e.g., Roberts & Millar 2007; Parise et al. 2006). Parise et al. (2006) reported the [D₂CO]/[H₂CO] ratio in L1527 (0.44), while Roberts and Millar (2007) reported the [D₂CO]/[H₂CO] ratio of 0.016. Our result is close to the result found by Roberts and Millar (2007). Several mechanisms in both the gas-phase and the solid-phase are proposed to account for the high D₂CO abundance. Taquet, Ceccarelli, and Kahane (2012) modeled the high D/H ratio, considering the abstraction and substitution of H by a D atom on the grain surface (e.g., H₂CO + D → HDCO + H; HDCO + D → D₂CO + H). Roueff et al. (2007) suggested that the D/H ratio of formaldehyde is related to the deuterium fractionation through CH|$_3^+$| (i.e., |${\mbox{CH}_3^+}+\mbox{HD}\rightarrow \mbox{CH}_2\mbox{D}^+ +\mbox{H}_2+390\:\mbox{K}$|⁠) in their steady-state gas-phase model, because CH₃ produced from CH|$_3^+$| reacts with O atoms to form formaldehyde.

The derived [c-C₃D₂]/[c-C₃HD] ratio of 0.11 in L1527 is higher than the [c-C₃HD]/[c-C₃H₂] ratio (0.044). The [c-C₃HD]/[c-C₃H₂] ratio of 0.044 is even lower than that of other molecules, when the equivalent two H atoms in c-C₃H₂ are considered. Since the abundance ratio of a doubly deuterated species, [XD₂]/[XHD], should be statistically 4 times lower than that of the singly deuterated one, [XHD]/[XH₂], this result means that c-C₃HD is more readily deuterated than c-C₃H₂. On the other hand, Spezzano et al. (2013) reported that the [c-C₃D₂]/[c-C₃HD] ratio is comparable to the [c-C₃HD]/[c-C₃H₂] ratio in the starless cores L1544 and TMC-1C, although the errors of the ratios are large. They concluded that the observed D/H ratios can be explained by simple gas-phase reactions (e.g., the successive deuteration of c-C₃H₂ by the reaction with H₂D⁺, D₂H⁺, and D|$_3^+$|⁠). However, the situation can be different in L1527, because the overabundance of c-C₃D₂ relative to c-C₃HD cannot be explained by considering only a single formation pathway. Hence, the result is puzzling, and chemical models may need to be revisited.

Note that the anomalous D/H ratios may also be related to the large beam size of the single-dish telescope. Recently, K. Yoshida et al. (in preparation) have conducted high angular resolution observations of D₂CO and H₂CO in L1527 with ALMA, revealing their different distributions: the normal species mainly resides in the protostar position, whereas the deuterated species mainly resides in the outer envelope. The D/H ratios derived from the single-dish observations may therefore suffer from systematic errors caused by the simplified assumption of the same emitting region and the same excitation temperature. Thus, observations with high spatial resolution are needed to solve the origin of the high D/H ratios of some molecules in this source.

4.1.2 ¹³C-substituted species

In this survey, the ¹³C species of CO, C¹⁸O, CN, HCO⁺, DCO⁺, HNC, HCN, CCH, c-C₃H₂, HC₃N, and H₂CO are detected. Among them, we derive the ¹²C/¹³C ratios for the cases that the column densities of the corresponding normal species are reasonably determined without suffering from the high optical depth problem. The ratios for C¹⁸O, CN, CCH, HC₃N, and c-C₃H₂ are summarized in table 9. For molecules for which the rotation temperatures are not derived by the fit, the ratios are derived by assuming the excitation temperature of 15 K. Note that the results do not change within the error limits, even if the excitation temperature of 10 K is adopted.

Recent studies revealed that the ¹²C/¹³C ratios of molecules produced from C⁺ in the starless cores (TMC-1, L1521E, L1521B, and L134N) and L1527 are significantly higher than the elemental ¹²C/¹³C ratio in the local interstellar medium (60–70; Lucas & Liszt 1998; Milam et al. 2005). In L1527, CCH, HC₃N and c-C₃H₂ show dilution of ¹³C species except for HCC¹³CN and c-CC¹³CH₂ (Sakai et al. 2010b; Araki et al. 2016; Taniguchi et al. 2016b; Yoshida et al. 2015). For CCH, the dilution is confirmed in this survey, where the column density of the normal species is derived from the optically-thin hyperfine components (J = 3/2–1/2, F = 1–1; τ = 0.14, and J = 3/2–1/2, F = 1–0; τ = 0.13). On the other hand, the derived ¹²C/¹³C ratios of HC₃N are much less accurate than the reported values, because the sensitivity of this survey is not as good as the previous work (Araki et al. 2016). The derived ¹²C/¹³C ratios of c-C₃H₂ are 1.5 times lower than those reported by Yoshida et al. (2015). This discrepancy would originate from the limited numbers of detected lines. Yoshida et al. (2015) used 41 lines including optically thin lines in 1.3–3 mm bands to derive the column density of the normal species, while only seven lines are detected in this survey. Moreover, some of them are relatively optically thick. The optically-thick lines suppress the column density of the normal species, which would make the ¹²C/¹³C ratio low.

The above situation is different from a high [¹²CO]|$/$|[¹³CO] ratio caused by the isotope selective photodissociation (e.g., Visser et al. 2009). This mechanism enhances the ¹³C⁺ abundance, and subsequently decreases the ¹²C/¹³C ratio in various molecules formed from ¹³C⁺ (enrichment of the ¹³C species). This is opposite to our observational trend. Thus, this mechanism seems unimportant in this source. It is also suggested that a high [¹²CO]/[¹³CO] ratio in the gas phase is caused by the difference of the binding energy between ¹³CO and ¹²CO (Smith et al. 2015; Jørgensen et al. 2018). This can cause the lower abundance of ¹³C⁺ relative to ¹²C⁺, resulting in lower abundances of the ¹³C species of various molecules. However, the dilution of the ¹³C species are widely found even in cold clouds, and this mechanism seems less important than the mechanism mentioned in the above paragraph.

The derived [CN]/[¹³CN] ratio (61 ± 17) is also comparable to the elemental ratio. In diffuse clouds, dilution of ¹³C⁺ is not significant due to high temperature. If CN produced in this earlier phase of molecular cloud evolution still remains, the ¹²C/¹³C ratio of CN is close to 60–70. The derived ¹²C/¹³C ratio of CN is consistent with the possible formation pathway of HC₃N: C₂H₂ + CN → HC₃N + H (K. Fukuzawa & Y. Osamura 1996;¹ D. E. Woon & E. Herbst 1996;² Woon & Herbst 1997; Takano et al. 1998). In the formation reaction of HC₃N, the C–N bond in CN is considered to be preserved. Thus, the [HC₃N]/[HCC¹³CN] ratio would be similar to the [CN]/[¹³CN] ratio of 61. This expectation is now verified in L1527 by the [HC₃N]/[HCC¹³CN] ratios of 49 ± 15 (this study) and 64.2 ± 1.1 (Araki et al. 2016).

4.1.3 ¹⁵N-substituted species

The ¹⁵N species of CN, HCN, and HNC are detected in this survey. The ¹⁴N/¹⁵N ratios of the three species are consistent with one another within the error, as shown in table 10. Sources where the ¹⁴N/¹⁵N ratios of CN, HCN, and HNC are derived are limited to Barnard 1 and the protocluster OMC-2 FIR4. In both sources, the ¹⁴N/¹⁵N ratios of the above three species are comparable to one another (Daniel et al. 2013; Kahane et al. 2018), and the ratios are similar to those derived in L1527 (table 10). This result is consistent with the astrochemical models, which predict that the molecules bearing the nitrile functional group (-CN) have a common fractionation process (e.g., Rodgers & Charnley 2008). On the other hand, the ¹⁴N/¹⁵N ratio of CN is reported to be significantly higher than that of HCN in the starless core L1544 (Hily-Blant et al. 2013a, 2013b). This report contradicts our result in L1527. Further observations are thus needed to solve this discrepancy.

Araki et al. (2016) reported that the ¹⁴N/¹⁵N ratio of HC₃N is 338 ± 12 in L1527. If HC₃N is produced from the reaction mentioned above (C₂H₂ + CN → HC₃N + H), the ¹⁴N/¹⁵N ratios of HC₃N and CN should be similar. On the other hand, the ¹⁴N/¹⁵N ratio of CN (230 ± 80) is derived to be lower than that of HC₃N. However, the error of this study is large, and is a target for future observations.

4.2 Comparison with other sources

4.2.1 TMC-1

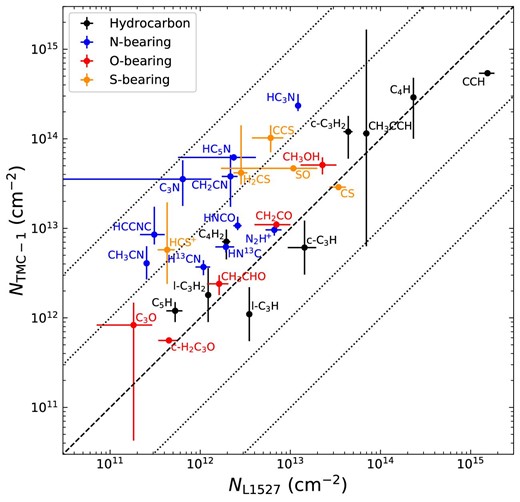

In figure 5, the column densities of molecules derived in this study in L1527 are compared with those reported for TMC-1, which is the representative carbon-chain rich starless core. Basically, the column densities are well correlated between the two sources. We note the following trends.

1. The column density ratios (N_TMC-1/N_L1527) of the nitrogen-bearing species (e.g., HC₃N and HC₅N) and the sulfur-bearing species (e.g., CCS and H₂CS) are higher than those of the hydrocarbons.

2. For C_nH, longer chain molecules have relatively low N_TMC-1/N_L1527 ratios. For instance, the column densities of CCH and c/l-C₃H are higher than those in TMC-1, while the column densities of C₄H and C₅H are lower. This trend is more significant in longer chains as reported by Sakai et al. (2008b). Note that Araki et al. (2017) reported that C₇H and C₆H₂ are the exception: relative abundances of C₇H and C₆H₂ in L1527 compared to TMC-1 are higher than those of C₆H and C₄H₂, respectively.

The characteristics of WCCC, which are originally suggested by Sakai et al. (2008b), are further confirmed. In WCCC, carbon-chain molecules are efficiently regenerated from CH₄, which is sublimated from the grain mantle after the onset of star formation. Longer chains tend to be deficient in comparison with TMC-1, because they are produced more slowly than shorter chains. The formation timescale of N-bearing chains can also be long due to slow neutral–neutral reactions, suppressing the abundances of HC_nN and other N-bearing species in WCCC sources relative to the carbon-chain molecules. S-bearing species can remain deficient, if sulfur is still depleted on dust grains.

As for COMs, the column density ratios relative to CH₃OH in L1527 and TMC-1 are compared in table 11. The column densities in TMC-1 are taken from Soma et al. (2018). The column density ratios in L1527 are almost comparable to those in TMC-1, suggesting that, unlike the hot corino case, the formation of COMs is inefficient. This is consistent with the WCCC mechanism (e.g., Sakai & Yamamoto 2013).

4.2.2 IRAS 16293−2422

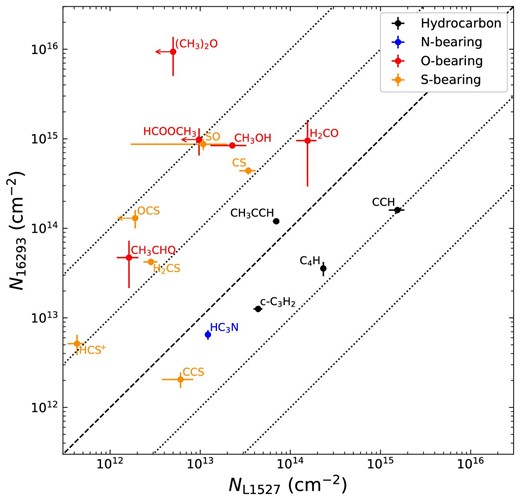

Figure 6 shows the correlation plot of the column densities derived in L1527 and those in IRAS 16293−2422. This source is known to be a binary source, and the chemistry of each component has been studied by interferometoric observations (e.g., Jørgensen et al. 2016). However, we here discuss the beam-averaged column densities at the protostellar core scale (a few 1000 au) for a fair comparison with our line survey result for L1527 at a similar size scale. The beam-averaged column densities (beam size ∼11″–28″) of CH₃CHO, HCOOCH₃, and (CH₃)₂O in IRAS 16293−2422 are derived from the data reported by Cazaux et al. (2003) by using a least-squares method, under the assumption of the LTE condition. For other species, the beam-averaged column densities are derived from the spectral line survey observation in 0.9–3 mm bands (TIMASSS; Caux et al. 2011) with the same method as for L1527 described in section 3. We note the following trends.

1. The column density ratios (N₁₆₂₉₃/N_L1527) of the carbon-chain related molecules, CCH, C₄H, HC₃N, and c-C₃H₂, are around 0.1–1.

2. On the other hand, the column density ratios of the CH₃OH, H₂CO, and CH₃CHO are higher than ∼10. Complex organic molecules such as HCOOCH₃ and (CH₃)₂O, which are characteristic species to hot corino sources, are not detected in L1527. The upper limits of HCOOCH₃ and (CH₃)₂O in L1527 suggest that these species are significantly less abundant than in IRAS 16293−2422 by two orders of magnitude or more. Table 11 shows the column density ratios of COMs relative to CH₃OH in L1527 and IRAS 16293−2422. The ratios of HCOOCH₃ and (CH₃)₂O relative to methanol in IRAS 16293−2422 are much higher than those derived toward L1527, indicating the efficient production of COMs in the hot corino. The ratio of the column density of H₂CO in L1527 relative to that in IRAS 16293−2422 is higher than the corresponding ratios of COMs [CH₃CHO, HCOOCH₃, and (CH₃)₂O] relative to CH₃OH. The high abundance of H₂CO relative to CH₃OH in L1527 is consistent with the fast contraction scenario in WCCC, because the timescale for the formation of CH₃OH on dust grains is longer than that of H₂CO (Taquet et al. 2012). On the other hand, CH₃CHO shows a similar ratio among the three sources shown in table 11. This result implies that CH₃CHO may not be enhanced by the hot corino chemistry.

3. The column density ratios of the S-bearing species are around 10–100 except for CCS. CCS is efficiently produced during chemically young cold-core phase (Suzuki et al. 1992), and is not enhanced by the activity of the central protostar (Hirota et al. 2010). The faster contraction timescale in L1527 may result in the higher abundance of “remnant” CCS in comparison with other S-bearing species.

As shown in figure 6, the N₁₆₂₉₃/N_L1527 ratios range from 10²–10³ (COMs) to 0.1 (carbon-chain molecules). Chemical difference with such a high dynamic range in the column density ratio (⁠|$\gtrsim \!3$| orders of magnitude) is noteworthy. For instance, Watanabe et al. (2012) conducted a spectral line survey toward the Class 0–I protostar R CrA IRS7B, revealing a higher abundance of CCH and lower abundances of CH₃OH and SO₂ in comparison with IRAS 16293−2422. The dynamic range of the column density ratios is 2–3 orders of magnitude, which is lower than the case between L1527 and IRAS 16293−2422. Watanabe et al. (2012) concluded that R CrA IRS7B is a source with a mixture of hot corino chemistry and WCCC or a source under a strong influence of the external UV radiation. The higher dynamic range of the column density ratios shown in figure 6 further confirms that the hot corinos such as IRAS 16293−2422 and the WCCC sources such as L1527 are the two distinct cases in chemical composition.

The full chemical composition of sources can be characterized without any preconception only by an unbiased spectral line survey with high sensitivity that can detect not only the major species but also the minor species such as the COMs and carbon-chain molecules. Since unbiased spectral line survey observations toward low-mass star-forming regions have been carried out only toward a few representative sources such as IRAS 16293−2422, R CrA IRS7B, and L1527, those toward other low-mass star-forming regions are of particular importance in understanding the origin of the chemical diversity.

Acknowledgments

The authors thank Cecilia Ceccarelli and Bertrand Lefloch for valuable discussions, particularly for communication of the ASAI data prior to publication, and Sheng-Yuan Liu for valuable comments. The authors are grateful to the Nobeyama Radio Observatory (NRO) staff for great support in the observations with the 45 m telescope. The Nobeyama Radio Observatory is a branch of the National Astronomical Observatory of Japan, National Institutes of Natural Sciences. K. Y. acknowledges the RIKEN Junior Research Associate Program and the Japan Society for the Promotion of Science (JSPS) fellowship. This study is supported by Grant-in-Aids from the Ministry of Education, Culture, Sports, Science, and Technology of Japan (Nos. 21740132, 23740142, 25400223, 16H03964, and 25108005). N. S. and S. Y. acknowledge financial support by JSPS and Ministry of Foreign Affairs and International Development (MAEDI) under the Japan-France integrated action program.

Appendix.

Observed frequencies of the N = 1–0 transition of CCD

Some of the hyperfine components of the CCD N = 1–0 transition are observed with slightly different frequencies from those reported in CDMS, as can be seen in figure 3 (e.g., the top middle panel). The observed frequencies are summarized in table 12. The rest frequencies reported in CDMS may be inaccurate, because they are calculated based on the laboratory measurements of the higher N transitions (Bogey et al. 1985; Vrtilek et al. 1985). The accurate rest frequencies need to be determined in future laboratory experiments.
