High-definition fiber tractography for the evaluation of perilesional white matter tracts in high-grade glioma surgery Free

Abstract

Conventional white matter (WM) imaging approaches, such as diffusion tensor imaging (DTI), have been used to preoperatively identify the location of affected WM tracts in patients with intracranial tumors in order to maximize the extent of resection and potentially reduce postoperative morbidity. DTI, however, has limitations that include its inability to resolve multiple crossing fibers and its susceptibility to partial volume effects. Therefore, recent focus has shifted to more advanced WM imaging techniques such as high-definition fiber tractography (HDFT). In this paper, we illustrate the application of HDFT, which in our preliminary experience has enabled accurate depiction of perilesional tracts in a 3-dimensional manner in multiple anatomical compartments including edematous zones around high-grade gliomas. This has facilitated accurate surgical planning. This is illustrated by using case examples of patients with glioblastoma multiforme. We also discuss future directions in the role of these techniques in surgery for gliomas.

Diffusion magnetic resonance imaging (MRI) is an imaging modality that utilizes diffusion of water to characterize microscopic structures in the brain. It provides a noninvasive way to estimate diffusivity (ie, diffusion coefficient) that quantifies the speed of diffusion of water in tissues. A lower diffusion coefficient may be due to increased cellularity that restricts diffusion, whereas a high diffusion coefficient may indicate free water diffusion in an edematous condition. The diffusion coefficient estimated using diffusion MRI is often referred to apparent diffusion coefficient (ADC)¹ since it measures the ensemble diffusion coefficients appearing from the underlying complex biological environment. Studies have shown a correlation between ADC and tumor cellularity,^2–4 indicating its potential as a disease biomarker.

It is noteworthy that ADC may not be the same in all directions. To model this anisotropic diffusion, a model-based approach called diffusion tensor imaging (DTI)⁵ was introduced. It models diffusion as a Gaussian distribution, thereby allowing quick estimation of the diffusivity in all directions. Several indices have been developed that were based on the tensor model. Fractional anisotropy (FA) measures how diffusivity differs in different directions.^6,7 Higher anisotropy values suggest organized diffusion of water down the axons in a certain direction (eg, as may occur with fibers in the corpus callosum). A higher FA value therefore indicates good fiber integrity.⁸ Mean diffusivity (MD) is an average measurement of the diffusivity based on DTI. Many studies have used MD as a way to measure ADC and correlate it with tumor cellularity.^9–15 In addition to ADC and FA measurements, the axonal directions derived from the tensor can be used to track the fiber pathways creating diagrams or reconstructions termed “tractography.”

DTI-based tractography has been used in multiple studies, including those pertaining to intracranial mass lesions.^16–18 Tractography can provide qualitative and quantitative information regarding potentially affected white matter (WM) tracts around an intracranial lesion. The qualitative information refers to the reconstruction of the WM tracts around an intracranial lesion that, for example, can be visually analyzed to see obvious discontinuity or change in direction of the tracts to select the safest operative trajectory to the lesion.¹⁹ Quantitative information refers to indices such as FA and ADC, which can be evaluated for a perilesional area in relation to the contralateral homologous unaffected area in the brain. The changes in quantitative indices from DTI (such as FA) may reflect changes in the integrity of fibers,⁸ whereas ADC of tumors may indicate differences in their cellularity.¹³

The tractography data from DTI is meant to facilitate maximal tumor resection while minimizing postoperative deficit because a greater extent of resection (EOR) is associated with an improved survival time for patients with glioblastoma multiforme (GBM).^20,21 Despite its widespread clinical use, DTI and diffusivity-based measurements have several limitations. A tensor model cannot describe multiple fiber conditions, and therefore the estimation of the axonal direction is inaccurate in the crossing fiber regions.^22,23 As mentioned above, the diffusivity measured by diffusion MRI is an average measurement of the underlying diffusion environment. This implies that the partial inclusion of fast or slow diffusion will change the ADC. A simple tensor model cannot effectively distinguish between these heterogeneous components (in terms of the speed of diffusion) within a voxel, leading to the so-called “partial volume effect.”²³ An example of this effect is a cerebral tumor with surrounding edema, which can have increased or decreased ADC within the lesion (not specific to the cellularity of the tumor).^18,23,24 Similarly, the indices derived from DTI, such as FA, can be affected by the crossing fiber conditions or partial volume effects^23,25,26 in the edematous zone around the gliomas.The underestimated FA can therefore lead to premature termination of the fiber tracking and potential incomplete reconstruction of a perilesional tract.

These limitations compromise the utility of DTI in the evaluation of edematous WM around the high-grade gliomas, which is potentially detrimental to the surgical goal of achieving maximal tumor resection while minimizing any postoperative deficit.^20,21 Advanced WM imaging techniques, such as high-definition fiber tractography (HDFT), are needed to achieve this surgical goal. Advanced WM imaging techniques overcome the limitations of DTI-based fiber tractography by using (i) a model-free approach to resolve the crossing fibers and (ii) a density-based (as opposed to diffusivity-based) index such as quantitative anisotropy (QA) that is more resistant to the partial volume effects.^27,28 Density-based indices measure the quantity of water undergoing diffusion through the WM tracts rather than the velocity of diffusion.²⁸

In this article, we initially review the clinical use of DTI with cerebral neoplasms. This is followed by a discussion of recent preliminary studies in this patient group involving comparison of the qualitative tractography data in the perilesional edematous zones derived from advanced WM imaging techniques with that from conventional DTI. We also demonstrate the application of HDFT for cerebral neoplasms by presenting illustrative cases. In particular, we show its utility with respect to obtaining accurate qualitative data for the perilesional WM tracts around GBMs located in multiple anatomical compartments. We also discuss future directions with respect to the role of HDFT, including the resection of low-grade gliomas (LGG).

Diffusion Tensor Imaging and Cerebral Neoplasms

Owing to its practicability and short acquisition time, DTI is the standard tool in most institutions for preoperative assessment of perilesional WM tracts around gliomas.²⁹ The data from DTI can be incorporated into the neuronavigation devices that guide safe surgical resection and potentially minimize postoperative morbidity.³⁰ Similarly, DTI has been used as a research tool for evaluating the perilesional zone around gliomas, particularly to distinguish infiltration from edema. These studies have relied on the reduction in FA in these zones, with the assumption that this is attributable to both increased extracellular water and axonal disorganization caused by infiltration of the tumor beyond its detectable margin.^24,31,32 A previous study had demonstrated reduction in the FA values beyond the edematous zone in the normal-appearing WM area adjacent to gliomas, implying potential tumoral infiltration.²⁴ Although the reduction in FA may be helpful for potentially delineating the tumor margins, DTI has not been used to this effect in the clinical setting. Further, the difficulty in depicting WM tracts accurately in the perilesional area around gliomas using DTI³³ is related to this decrease in the anisotropy. This is unsurprising because tractography reconstructions or the qualitative data are derived from quantitative measures of anisotropy such as FA.

The limitations of DTI, particularly with respect to the crossing and kissing fibers, restrict its use in the evaluation of tumors located close to anatomically complex fiber bundles(eg, optic radiation [OR])³⁴ and thereby reduce its overall utility in different anatomical compartments.

Qualitative Data From Advanced White Matter Imaging Techniques and Perilesional White Matter Tracts Around Gliomas

Beyond Diffusion Tensor Imaging

To overcome the limitations of DTI, more complex models have been developed and discussed in recent review papers.^27,35,36 These techniques, categorized into model-free and model-based methods, aim to resolve the crossing fibers and quantify diffusion characteristics. The model-based methods assume a diffusion model to derive orientation-related or diffusivity-related parameters.³⁷ These parameters may facilitate fiber tracking and further quantitative analysis. The model-free methods use an orientation distribution function (ODF) to describe the diffusion distribution. The peak orientations on the ODF can be used as the fiber orientation for further fiber tracking.³⁸ ODF estimation requires signal responses at different diffusion sampling directions. This leads to high angular resolution diffusion imaging (HARDI),²² a sampling strategy that acquires diffusion images using multiple diffusion sampling directions (usually >100) at the same diffusion gradient strength. Another ODF estimation approach makes use of both multiple diffusion sampling directions and gradient strengths. This is enabled by methods such as diffusion spectrum imaging (DSI)^39,40 and generalized Q-sampling imaging (GQI).⁴¹ GQI has been shown to improve the depiction of crossing fibers^42–44 and provides directional and quantitative information about the crossing fibers. It is not surprising, therefore, that the advanced WM imaging techniques are being increasingly applied for evaluation of perilesional WM tracts around gliomas.^33,34,45,46

Recent Literature

Three recent research papers are noteworthy for demonstrating the advantages of advanced WM imaging algorithms for depicting perilesional WM tracts around gliomas, while carrying out a comparison with DTI.^33,34,45 Zhang et al demonstrated the differences between GQI-based tractography and DTI for preoperative mapping of WM tracts in peritumoral edema occurring in 5 patients. They demonstrated that GQI-based tractography could fully display existing intact fibers in the edematous zone compared with DTI, in which the same fiber tracts were incomplete, missing, or ruptured.³³ In at least one of the cases, missing fibers, seen on DTI in the edematous zone reappeared after lesionectomy and resolution of the edema.³³ This indicated that the missing fibers were not visualized because of partial volume artifact rather than true axonal loss. GQI, in contrast, is less susceptible to partial volume effect and therefore may faithfully reveal the tract integrity.

In another study, HARDI-compressed sensing (CS) technique-based fiber tractography was compared with DTI for evaluating WM tracts around gliomas located in the language-related areas in 6 patients,⁴⁵ (2 of whom had GBMs). Using the HARDI-CS algorithm, more compact language fiber bundles were demonstrated, compared with DTI in all cases. Specifically in 3 cases, HARDI-CS was able to demonstrate fiber bundles in the orientations consistent with neuroanatomical knowledge in the edematous peritumoral region, which could not be visualized with DTI. Ability of DTI to demonstrate proper curvature of the tract was also compromised in 4 cases. The use of HARDI-CS-based tractography was advocated for larger tumors with significant peritumoral edema. An additional advantage was related to a shorter acquisition time for this sequence at 15 minutes per patient, making it more clinically accessible.⁴⁵ A further study from the same group compared HARDI-CS with DTI-based tractography of the OR in 8 patients with temporal lobe gliomas.³⁴ Four of the 8 patients had GBM. The OR was displayed more conclusively in all patients when compared with DTI. This advantage was highlighted for high-grade glioma cases with significant perilesional edema, larger size, or closer proximity to the reconstructed tract.³⁴ These preliminary studies demonstrated the advantages of using advanced techniques for evaluating WM tracts around high-grade gliomas associated with significant edema. This is particularly applicable for cases requiring reconstruction of complex fiber bundles, such as the OR or arcuate fasciculus (AF).

Application of High-definition Fiber Tractography With Gliomas

General Information

HDFT⁴⁶ addresses the limitations of DTI by using DSI for acquisition,³⁹ GQI for fiber orientation estimation,⁴¹ a generalized deterministic fiber-tracking method,²⁸ and other innovations.⁴⁷ We have reported its use in anatomical studies on several tracts including corticospinal tract (CST),⁴⁷ middle longitudinal fascicle,⁴³ and AF⁴⁸ as well as clinical studies concerning its utility for surgical planning involving tumors and CMs.^19,46 One of the key advantages for using HDFT is the ability to obtain accurate qualitative data in terms of reconstructing multiple perilesional WM tracts in a 3-dimensional fashion around mass lesions, which assisted in accurate surgical planning.^19,46 The accuracy of reconstructed perilesional WM tracts in the perilesional zone is evaluated in light of their consistency with the known locoregional neuroanatomy. In a recent study,¹⁹ the utility of HDFT was demonstrated through illustration of the precise spatial relationship of CMs with multiple perilesional WM tracts, which was helpful for surgical trajectory planning. We further showed the occurrence of disruption and/or displacement around the CMs.¹⁹ These changes were supported by the QA, which is an anisotropy index derived from the ODF.

The extent of perilesional edema associated with gliomas is greater than that with CMs, leading to further diffusion disturbance as observed with DTI. In our clinical experience, however, this greater extent of perilesional edema has not been prohibitive with respect to obtaining accurate qualitative tractography data for surgical planning. This is demonstrated by case examples below describing application of HDFT with GBMs located in multiple anatomical compartments, including for reconstruction of complex fiber bundles. Potential explanations relate to the QA, which serves as a reliable stopping criterion for fiber tracking and therefore accurately demonstrates endpoint connectivity between cortical and subcortical regions.³³ QA, as a directionally specific quantitative measure overcomes some of the limitations of FA, and therefore DTI, in demonstrating multiple crossing fibers. This is linked to QA being less sensitive than FA to partial volume effects, as demonstrated in our recent study.²⁸ Similarly, its resistance to partial volume effects leads to better qualitative tractography data in perilesional edematous zones.

Illustrative Cases With Glioblastoma Multiforme

Supplementary material, Figs S1–S4 demonstrate depiction of WM tracts via fiber dissection and HDFT reconstructions in nonpathological brains).

Motor System

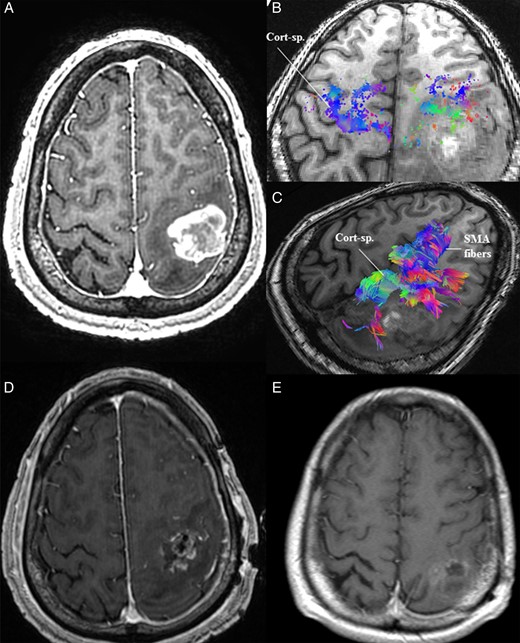

Case 1: A 54-year-old male presented with complaints of right upper extremity weakness, numbness, and a single partial seizure (see Supplementary material, Fig. S1). On examination, he was found to have minimal weakness in his right upper and lower limbs. MRI of the brain demonstrated a left frontoparietal lesion around the central sulcus, located predominantly in the postcentral gyrus (Fig. 1). HDFT was used to preoperatively demonstrate the location of the anteriorly displaced CST in the perilesional edematous zone. The tumor was resected via image-guided left frontoparietal craniotomy and cortical/subcortical mapping of the motor tract. Postoperatively, the patient had no neurological deficits.

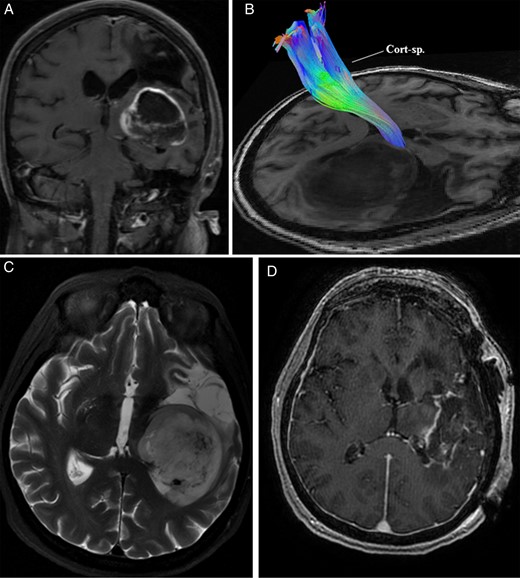

Case 2: A 67-year-old female presented with a recent history of worsening right-sided hemiparesis leading to difficulty with ambulation. A decade ago, she had suffered a middle cerebral artery territory infarction leading to longstanding hemiparesis. MRI of the brain demonstrated a left-sided basal ganglia mass. Preoperative HDFT showed an anteromedially displaced CST coursing through the perilesional area (Fig. 2). The lesion was resected via an image-guided left frontotemporoparietal craniotomy with adjunctive use of intraoperative electrical stimulation of the motor fibers. Consistent with the HDFT, the electrical stimulation in the anteromedial and deeper aspects of the tumor led to a positive response for the internal capsule. A residual cuff of tumor was left along this margin to avoid worsening her motor function. Postoperatively, her neurological function was stable.

Visual System

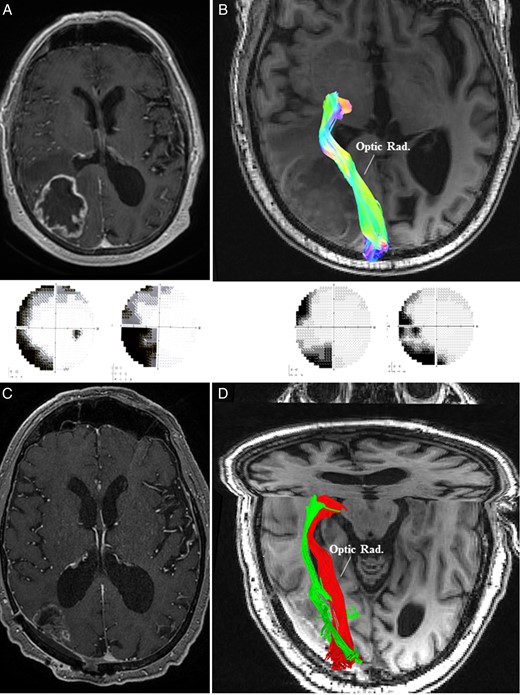

Case 3: A 65-year-old male presented with a history of confusion and visual disturbance (left-sided incongruous homonymous hemianopia) (see Supplementary material, Fig. S2). MRI of the brain revealed a right-sided parieto-occipital lesion. A preoperative HDFT demonstrated medially and inferiorly displaced OR in the perilesional edematous area. The tumor was resected via an image-guided right parieto-occipital craniotomy with particular attention to the deeper, medial, and inferior aspects of the tumor adjacent to the atrium, where the OR was identified preoperatively. Postoperatively, the visual field deficit improved (Fig. 3), corresponding to the improvement in the configuration of the OR.

Language System

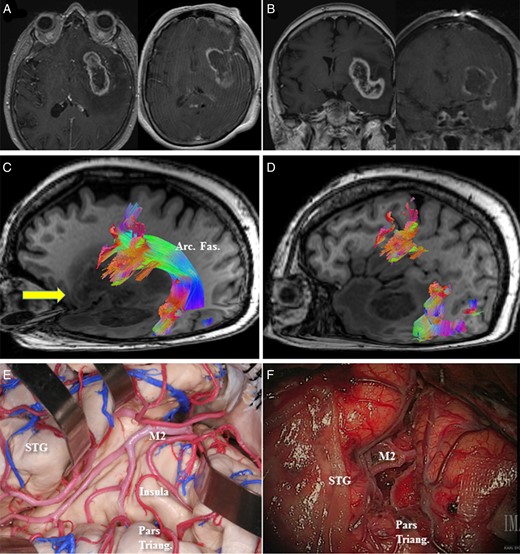

Case 4: A 69-year-old female presented with speech difficulty and confusion lasting several weeks (see Supplementary material, Fig. S3). On examination, she had mild expressive dysphasia. MRI of the brain (Fig. 4) revealed a left-sided insular lesion extending to the fronto-orbital opercula and left temporal lobe with associated perilesional edema and contrast enhancement. Preoperative HDFT was performed to identify the cortical endpoints of the AF, both at the frontal and temporal regions (Fig. 4). Interestingly, both the uncinate and inferior fronto-occipital fascicles were not visualized due to potential disruption by the tumor. Given the degree of mass effect, perilesional swelling, and potential length of surgery, a decision was made to not perform intraoperative language mapping. The patient underwent an image-guided left frontotemporal craniotomy involving wide opening of the sylvian fissure and identification of the lateral lenticulostriate arteries. Most of the tumor, including its temporal lobe extension, was removed through a transsylvian approach. Additionally, a small corticotomy was made in the left fronto-orbital region to remove the fronto-orbital extension. The location of the entry point was based on preoperative information from the HDFT study, which had identified the frontal origin of AF as being posterior to the area of the corticotomy. Postoperatively, there was no worsening of her speech.

Limbic System

Case 5: A 68-year-old male presented with a history of cognitive disturbances and left-sided hemineglect syndrome lasting several weeks (see Supplementary material, Fig. S4). Examination revealed a left-sided hemineglect syndrome. MRI of the brain showed a posterior right cingulate (Fig. 5) lesion extending towards the isthmus and the parahippocampal gyrus. HDFT demonstrated disruption of the posterior right cingulum, inferolateral displacement of the forceps major, and lateral displacement of the OR in the edematous area. An image-guided posterior interhemispheric approach was performed to resect the tumor involving the cingulate gyrus and the medial aspect of the encysted atrium. The lateral aspect of the atrium and adjacent OR were carefully preserved. Postoperatively, there was marked improvement in the patient's hemineglect syndrome.

Limitations and Future Directions

Limitations

All tractography studies have reproducibility issues, at least in part due to their reliance on the operator's expertise in terms of selecting the regions of interest and segmentation of the obtained tracts. Although automated techniques may reduce this bias, manual tractography still remains the best approach for demonstrating the orientation of the affected perilesional WM tracts for surgical trajectory planning. Qualitative data from tractography-based studies with DTI or advanced WM imaging techniques need interpretation with a sound knowledge of fiber tract anatomy.^18,19 This is paramount in the setting of mass lesions because an abnormal trajectory of a fiber may be either technical in origin or real.¹⁸ A criticism has been the scanning time with the advanced techniques. A current trend in the diffusion field is to use fast scanning sequences,⁴⁹ which have substantially reduced the scanning time to 10–15 minutes. Despite this reduction, the scanning time may limit its extensive use in the clinical setting and lead to a potential compromise of the accuracy related to possible patient discomfort or movement.

It is noteworthy that experience with advanced WM imaging techniques is preliminary in both the research and the clinical areas. The majority of the experience has been acquired with DTI. Even with conventional DTI, its use in the clinical setting (eg, in the resection of a neoplasm) is dependent upon its availability and the preference of the institution and the surgeon.

A recent review assessed whether image-guided surgery, including DTI neuronavigation among other modalities, offered any advantage in terms of improving the EOR or reducing adverse events in high-grade glioma surgery.⁵⁰ Data were examined with respect to 238 patients undergoing surgery with the aid of DTI neuronavigation. Although the extent of resection was increased with DTI neuronavigation, the evidence was judged as being very low quality using the grades of recommendation, assessment, development and evaluation criteria.⁵⁰ There was no clear evidence of improvement in overall survival using DTI neuronavigation. Overall, there was poor evidence that DTI neuronavigation increased the percentage of patients with high-grade glioma who had complete tumor resection as evaluated by the postoperative MRI. There was similarly a theoretical concern about the reporting of adverse events in the examined studies.⁵⁰ This highlights the need to evaluate the utility of tractography-based data from DTI or advanced WM imaging techniques in surgery for gliomas using well-designed studies.

Future Directions

To reduce the subjectivity of interpreting qualitative data, the use of a combined qualitative and quantitative approach may be helpful,¹⁹ as was validated in CMs using overall and perilesional mean QA for the affected tracts. Our current approach in an ongoing study involves applying similar methodology to characterize changes in the perilesional WM tracts around high-grade gliomas. This approach can potentially provide information on the integrity of a fiber tract of interest, with possible implications for prognostication and neurological recovery. Currently, diffusion phantom studies are also being carried out to develop more robust quantitative metrics, which may better characterize the morphology of perilesional WM tracts adjacent to gliomas in the future.

Beyond surgical planning, the utility of HDFT in terms of reducing adverse events associated with a potentially increased EOR will need further evaluation. In view of the preliminary accuracy of cortical termination points from HDFT,⁴⁶ its correlation with functional MRI¹⁹ data and results from the intraoperative WM stimulation for cerebral lesion are being examined at our institution. This will pave the way for a potential clinical study in which the data from HDFT-based tractography may be used to guide surgical resection, without intraoperative subcortical WM stimulation, in a cohort of patients with GBM. The outcome will need evaluation in terms of assessing potential morbidity associated with the surgical resection and EOR. The obvious difficulty in setting up well-designed clinical studies in this setting relate to patient outcome being dependent upon multiple factors, including the eloquence of the perilesional anatomy.

The application of data derived from advanced WM imaging techniques to enable maximal safe resection of LGGs will also need to be explored. Increasing the EOR in LGGs has been shown to improve overall survival and malignant progression-free survival.⁵¹ Traditional imaging modalities used for preoperative and intraoperative surgical guidance have typically utilized fluid-attenuated inversion recovery sequences. Currently, cortical and subcortical stimulation mapping is an invaluable intraoperative tool for maximizing the EOR and maintaining functional integrity.^52–54 HDFT may be used in combination with subcortical stimulation to potentially maximize the EOR while preserving neural function.

Another potential future application may be the use of advanced WM imaging techniques in distinguishing infiltration from edema around gliomas. Most of the current focus has been directed towards obtaining tractography reconstructions for the WM tracts around these lesions to enable safer surgical planning. With increasing application of HDFT and other such imaging techniques in the future, quantitative measures will need validation in terms of their ability to distinguish reliably between unaffected WM tracts and affected and potentially infiltrated tracts.

Conclusion

In this article, we have briefly mentioned the clinical use of DTI in cerebral neoplasms. Recent preliminary studies in this patient group, using advanced WM imaging techniques, have demonstrated the superiority of qualitative WM tractography data in the perilesional edematous zone relative to the information from conventional DTI. The ability to demonstrate neuronatomically complex fiber bundles in the perilesional edematous zone around high-grade gliomas in a 3-dimensional manner using HDFT is clearly useful in neurosurgery. Future studies will need to be correlated with functional imaging modalities and intraoperative WM stimulation.

Funding

The study was supported by the Copeland Fund of The Pittsburgh Foundation.

Acknowledgments

We are grateful to Deepa Krishnaswamy and Emily Braun for helping with collection of imaging files.

Conflict of interest statement. None to declare.
