Evaluating cosmological biases using photometric redshifts for Type Ia Supernova cosmology with the Dark Energy Survey Supernova Program

ABSTRACT

1 INTRODUCTION

Type Ia Supernovae (SNe Ia) are standardizable candles used as a key cosmological probe to measure the distance–redshift relation and understand the nature of dark energy. In order to precisely constrain the dark energy equation-of-state parameter w, the largest SN surveys and compilations to date such as Pantheon+ (Brout et al. 2022) have relied on access to spectroscopy of the live SN to confirm the type of the SN, as well as of the host galaxy to obtain an accurate redshift. Recent cosmological analyses such as the Dark Energy Survey 5-yr SN analysis (DES-SN5YR; Vincenzi et al. 2024; DES Collaboration 2024) have shown that a transition to photometric classification immensely boosts our statistical constraining power without introducing significant systematic uncertainty. Upcoming surveys such as the Vera Rubin Observatory Legacy Survey of Space and Time (LSST; Ivezić et al. 2019) and the Nancy Grace Roman Space Telescope High-Latitude Time-Domain Survey (henceforth Roman; Spergel et al. 2015; Hounsell et al. 2018; Rose et al. 2021) are poised to observe multiple orders of magnitude more supernovae than our current largest compilations. As it becomes impossible to spectroscopically follow-up every SN or its host galaxy, photometric classification will increase the number of cosmologically suitable SNe. However, cosmological analyses with these next-generation data sets will still be limited if they rely on spectroscopic redshifts (spec-z) from host galaxies. Therefore, efforts to develop the usability of photometric redshifts (photo-z) for Ia cosmology, either from the SN, the host galaxy, or a combination of the two, will be critical to optimize the potential of Stage IV Dark Energy experiments.

Photometric redshift estimation is an area of active research, as other key cosmological probe analyses already require redshifts for hundreds of millions of galaxies for which it is impossible to obtain spectroscopic redshifts. In weak gravitational lensing, these efforts are focused on characterizing the redshift distributions of source and lens galaxy samples in several tomographic bins, i.e. |$n(z)$|⁠, to extreme precision, for example using Self-Organizing Map photo-z (SOMPZ; Buchs et al. 2019; Myles et al. 2021). Other photometric redshift estimates are primarily concerned with the performance of individual galaxy redshift estimates. Several data-driven approaches make use of machine-learning methods to learn the mapping between colours and redshift (e.g. Carrasco Kind & Brunner 2013; Sadeh, Abdalla & Lahav 2016; De Vicente, Sánchez & Sevilla-Noarbe 2016), while others rely on templates of galaxy SEDs to find the best fit redshift (e.g. Benítez 2000; Feldmann et al. 2006; Brammer, van Dokkum & Coppi 2008). Each method is sensitive to different systematics that affect the precision and accuracy of the final redshift estimates for different galaxy populations to varying degrees. Each photo-z estimate can be given as a fully descriptive probability distribution function (PDF) but are frequently simplified to a point estimate (mean or mode) and a Gaussian uncertainty.

Previous analyses have illustrated the potential for using photometric redshifts for Type Ia Supernova cosmology. Chen et al. (2022) performed an analysis using a subset of the DES-SN5YR sample containing SNe with redMaGiC (a selection of Luminous Red Galaxies; Rozo et al. 2016) host galaxies. These galaxies have particularly well-constrained photometric redshifts, with |$\frac{\sigma _{z}}{1+z} \lt 0.02$|⁠, but comprise only |$\sim$|6 per cent of the DES-SN5YR sample. Using this sample of |$\sim$|125 SNe, they found that using the redMaGiC host galaxy photo-z directly in place of the spectroscopic redshift results in a w-shift of |${\sim} 0.005$|⁠, and this result was validated with consistent results from detailed catalogue-level simulations. However, this analysis did not model the effects of core-collapse contamination. redMaGiC host galaxies are expected to have low to zero rates of core-collapse supernovae, as they are old, passive galaxies, compared to the star-forming galaxies that core-collapse progenitors occur in (Irani et al. 2022). This analysis was further simplified by restricting the sample host galaxies to a single type, reducing the need for modelling dependencies between the SN and host-galaxy properties. Ruhlmann-Kleider, Lidman & Möller (2022) present an analysis using a combined sample of the spectroscopic Joint Light-curve Analysis SN Ia sample and the 3-yr photometric SuperNova Legacy Survey SN Ia sample. Using a mixture of spectroscopic and photometric redshifts, they found that while a naive analysis with photometric redshifts and contamination leads to biased matter density (⁠|$\Omega _{\textrm {M}}$|⁠) for a Flat-|$\Lambda$|CDM model, the bias can be corrected with an appropriately modelled magnitude bias correction computed for selection effects.

An alternative to directly using the host-galaxy photo-z is to infer the photo-z from the supernova light curve. This can be done by extending the SALT (Spectral Adaptive Light-curve Template; Guy et al. 2010) SN light curve model-fitting framework such that the SN redshift is floated, rather than fixed in the fit. These estimates are greatly improved by optionally including a prior on the redshift from a host-galaxy photo-z estimate (SN+host photo-z: Kessler et al. 2010; Palanque-Delabrouille et al. 2010; Dai et al. 2018). This photo-z approach has two unique benefits: (i) it combines information from two independent photo-z estimates, whereas other probes rely on a single galaxy photo-z and are thus more vulnerable to catastrophic outliers, and (ii) the redshift covariance is propagated to the other SALT fitted parameters. This inferred photo-z method was applied to the extended DES-SN5YR sample classified without redshifts from Möller et al. (2024). They used host photo-z priors only when available and evaluated the biases of this mixed sample. Using simulations they found structured offsets in redshift and SALT2 parameter estimation that can be minimized by binning. However, they did not evaluate the impact on cosmology. Mitra et al. (2023) presented an analysis using a set of mock-data simulated LSST SNe from the Deep Drilling Fields and found that supplementing the subset of SNe with spec-z with SN+host photo-z increases the |$w_{0}w_{a}$| figure-of-merit by 50 per cent. In particular, this helps extend the upper limit of the redshift range of usable SNe, as obtaining spectroscopy becomes less feasible for fainter sources. While this LSST analysis included a statistical+systematic covariance matrix including calibration uncertainties, it did not include non-Ia contaminants or intrinsic scatter systematics.

In this work, we present an evaluation of cosmological biases for the Flat-wCDM model using data from the DES-SN5YR photometrically classified SN sample and SN+host galaxy photometric redshifts. We also present an implementation of SN+host photo-z that utilizes a full photo-z estimate PDF from the host galaxy rather than a point estimate with Gaussian uncertainty. To better evaluate our methodology, we focus solely on the subset of DES-SN5YR SNe with host spectroscopic redshifts and thus do not evaluate the statistical impact of a 5YR sample that includes events without a spectroscopic redshift. For the anchoring low-z sample we use spectroscopic redshifts only.

The outline of the paper is as follows. In Section 2, we detail the DES-SN5YR photometric supernova sample, the anchoring low-z sample, and the associated host-galaxy photometric redshift estimates and properties used for the analysis. In Section 3, we detail the catalogue-level simulations used to validate the analysis and compute bias corrections for cosmology. In Section 4, we describe the analysis framework and cosmological parameter inference formalism. In Section 5, we present the results of the analysis for simulations and data. Finally, we discuss future prospects in Section 6 and conclude in Section 7.

2 DATA

2.1 The Dark Energy Survey

We use data from the DES Supernova Program, which observed for five seasons with the Dark Energy Camera (DECam; Flaugher et al. 2015) on the 4 m Blanco telescope at Cerro Tololo Inter-American Observatory in Chile. DES consists of two programs: a wide field survey optimized for weak gravitational lensing, galaxy clustering, and galaxy cluster cosmology, and a time-domain survey primarily for SN cosmology. The ten SN fields lie within the footprint of the wide field but were observed with a much higher cadence to detect transients. For both programs, raw images were pre-processed by the DES Data Management team (Morganson et al. 2018) to produce calibrated images and catalogues.

2.1.1 DES SN data

The DES SN fields consist of ten 2.7 square degree fields, which were observed in the griz filters at a cadence of |${\sim} 7$| d. Of these ten fields, two ‘deep’ fields (X3, C3) were observed to a single-visit depth of 24.5 mag in each band, and eight ‘shallow’ fields (X1, X2, C1, C2, E1, E2, S1, S2) were observed to a depth of 23.5 mag. To identify transient candidates, images were processed through DIFFIMG (Kessler et al. 2015), the DES difference imaging pipeline. Imaging artefacts were further removed using the AUTOSCAN algorithm (Goldstein et al. 2015). A candidate light curve was stored and updated if there were at least two detections within 1 arcsec, separated by at least 1 but not more than 30 d (Kessler et al. 2015). Several further cuts are made on light-curve quality with the following requirements: (i) at least two bands with at least one detection with SNR > 5; (ii) at least one observation before five days after B-band peak.

While DIFFIMG delivered real-time SN photometry with |${\sim} 2~{{\ \rm per\ cent}}$| precision, our DES-SN5YR cosmology analysis includes a more precise Scene Modelling Photometry (SMP; Holtzman et al. 2008, Astier et al. 2013, Brout et al. 2019), simultaneously modelling the time-varying SN flux and the static host-galaxy flux. With SMP, 19 706 transient candidates were analysed. Sánchez et al. (2024) provides further details on the DES-SN5YR photometry. Corrections for Differential Chromatic Refraction (Filippenko 1982), which causes wavelength-dependent effects on the SN PSF shapes and positions, were computed for the DES-SN5YR sample (Lee et al. 2023) but are not included here, as they are a subdominant effect on distance measurements.

Host galaxies are assigned based on the Directional Light Radius method (Sullivan et al. 2006, Gupta et al. 2016) using a deep host galaxy library built from coadds (Wiseman et al. 2020; Qu et al. 2024). While the DES-SN3YR cosmological analysis (DES Collaboration 2019) relied on a subset of spectroscopically typed SNe (⁠|${\sim} 200$|⁠), the DES-SN5YR cosmological analysis (DES Collaboration 2024) uses a sample of photometrically classified SNe (⁠|${\sim} 1600$|⁠). These SNe comprise the DES-SN5YR cosmology sample and are selected using only their light curves and host-galaxy spectroscopic redshifts using SuperNNova (Möller & de Boissière 2020; Möller et al. 2022). For host galaxy spectroscopic redshifts, DES relied on a partner program (OzDES) on the Anglo-Australian Telescope (AAT; Lidman et al. 2020) using the AAOmega spectrograph. Details of the spectroscopic follow-up program are provided in Smith et al. (2020).

To evaluate cosmological biases, we start with the cosmological sample from Vincenzi et al. (2024) and restrict the sample for this analysis to SNe whose host galaxies: (i) have available spectroscopic redshifts (as a ‘truth’ point of comparison) and (ii) have available photometric redshifts (described in Section 2.3).

2.2 Low-z SN samples

To measure cosmological parameters, we anchor the Hubble diagram with external low-z SN samples. We use 76 SNe from several smaller samples (CSP; Krisciunas et al. 2017; CfA3; Hicken et al. 2009; CfA4; Hicken et al. 2012) and 123 SNe from the Foundation sample (Foley et al. 2018), totalling 199. For each of these low-z samples, we use the spec-z rather than a photo-z, as spectroscopic redshifts are expected to be readily available for such samples even for next generation surveys.

2.3 Host galaxy photometric redshifts

To estimate host galaxy photo-z, we use |$griz$| photometry from the wide-field program rather than the deeper SN-field photometry. Additional near-infrared (NIR) photometry (⁠|$JHKs$|⁠) has been used in a small subset of fields for photo-z training (Hartley et al. 2022), but we do not use the NIR photometry in our analysis. While SN contamination can potentially bias the photometry, the |$\sim$| month long transient duration is small compared to the 30 months of co-added images.

We use host galaxy photo-z estimates from three different methods to capture some of the diversity of photo-z algorithms, as each approach is sensitive to different systematics. We focus on (i) Self-Organizing Map |$p(z)$| (SOMPZ; Buchs et al. 2019, Myles et al. 2021), (ii) Bayesian photo-z (BPZ; Benítez 2000), and (iii) Directional Neighbourhood Fitting (DNF; De Vicente et al. 2016). For SOMPZ, we consider both point estimates with Gaussian uncertainty, as well as the full PDF [|$p(z)$|]. For BPZ and DNF, we consider only the point estimates with Gaussian uncertainty.

Because of efforts from wide field static science probes, these host-galaxy photometric redshifts are available from the Y3GOLD ‘value-added’ catalogue (Sevilla-Noarbe et al. 2021) and for the simulated galaxy catalogues we use to build our host-galaxy library (see Section 3.2). Of the initial 19 706 transient candidates, 13 793 have available host-galaxy photo-z.

To evaluate the performance of photometric redshift point estimates, we consider the following standard metrics:

• photo-z bias: |$\Delta z \equiv z_{\textrm {photo}}-z_{\textrm {spec}}$|

• photo-z scatter (Normalized Mean Absolute Deviation):

  $$\begin{eqnarray} \sigma _{\rm NMAD} \equiv 1.48 \times \textrm {Median}\left(\frac{\left| \Delta z-\overline{\Delta z} \right|}{1+z_{\textrm {spec}}}\right) \end{eqnarray}$$

  (1)

• fraction of outliers |$\eta$| with |$\left|\Delta z\right| \gt 0.1$|

2.3.1 Self-Organizing Map |$p(z)$| (SOMPZ)

SOMPZ is one of three independent photo-z methods used as part of the overall DESY3 3 × 2 pt analysis redshift scheme, along with clustering redshifts (Gatti et al. 2022) and shear ratios (Sánchez et al. 2022). The SOMPZ method leverages information from subsamples of galaxies with deep 8-band photometry (from the DES deep fields; Hartley et al. 2022) and secure redshifts (from public and private spectroscopic and many-band photometric catalogues) to determine the |$n(z)$| of a broader source galaxy sample with only wide field photometry in (g)riz. A self-organizing map is constructed for both the wide field photometry and deep field photometry; i.e. each galaxy is assigned a phenotype based on its colours. A synthetic source injection software (BALROG; Everett et al. 2022) is used to inject simulated deep field galaxies into real wide field images. These wide-deep pairings are then used to weight the secure redshift information and constrain the |$n(z)$| to 0.01 on the mean redshift in four tomographic bins. Further details of the method are provided in Myles et al. (2021). This method is designed specifically to precisely calibrate the overall redshift distribution of a galaxy sample to weak lensing cosmology requirements, rather than to constrain an individual galaxy point estimate or |$p(z)$| PDF. As an example, the DESY3 SOMPZ analysis was restricted to riz fluxes due to constraints on using g-band data specific to the DES lensing analysis.

For each individual galaxy, we assign the weighted wide field |$p(z)$| for the assigned phenotype, i.e. galaxies in the same SOM cell will have the same |$p(z)$|⁠. We use the SOMPZ estimates for the DESY3 weak lensing source galaxy catalogue. Both the SOMPZ |$p(z)$| and point estimates are considered in our analysis, but performance metrics are given only for point estimates. In the left panel of Fig. 1 we show the redshift bias and scatter for the SOMPZ point estimates on the subset of Y3GOLD galaxies also detected as SN candidate hosts. The median photo-z bias across redshift bins is 0.023 and the median photo-z scatter is 0.071. The outlier fraction is 0.337.

Figure 1.

Top panels: host-galaxy photo-z versus spectroscopic redshifts for the |$\sim 14\,000$| SN candidate host galaxies identified in Y3GOLD. Bottom panels: binned redshift bias (⁠|$\overline{\Delta z}$|⁠) in dotted line and redshift scatter in dashed-dotted line for the three photo-z estimates used as host-galaxy priors for the photo-z in this analysis: SOMPZ (left), DNF (middle), BPZ (right).

Open in new tabDownload slide

2.3.2 Directional Neighbourhood Fitting photo-z (DNF)

To estimate photometric redshifts, the DNF machine-learning algorithm (De Vicente et al. 2016) combines a neighbourhood fitting (NF) estimator with a modified neighbourhood metric (directional neighbourhood). In brief, the NF approach allows the algorithm to not only identify galaxies with similar observables (i.e. magnitudes) as neighbours, but also galaxies with similar relative observables (i.e. colours). The directional neighbourhood is defined as the product of the Euclidean and Angular Neighbourhoods, i.e. the Euclidean distance and angle between vectors in multimagnitude space. DNF combines these concepts and constructs the best-fitting hyperplane to the directional neighbourhood of a given galaxy to produce a photo-z|$p(z)$|⁠. The redshift bias and scatter are shown in the centre panel of Fig. 1 and the median bias and scatter across redshift are 0.000 and 0.020, respectively. The outlier fraction is 0.106. By these established metrics, DNF outperforms both SOMPZ and BPZ, although works such as Schmidt et al. (2020) emphasize that photo-z metrics should be specific to a given science case. We note that the training sample used for the DES DNF estimates include OzDES spec-z, which were primarily obtained for SN candidate host galaxies. The negligible bias reported here is therefore likely attributable to the overlap between our SN host galaxies and the DNF training sample, rather than a direct measure of the algorithm’s performance.

2.3.3 Bayesian Photometric Redshifts (BPZ)

BPZ is a template-fitting photo-z estimator that produces point estimates and Bayesian posteriors (Benítez 2000). The redshift posterior is obtained by calculating the |$\chi ^2$| likelihood of a set of galaxy photometry given a galaxy template at a given redshift and marginalizing over six base galaxy model templates. A magnitude-dependent luminosity prior is applied for each galaxy based on the redshift-evolving luminosity functions for elliptical, spiral, and star-burst galaxies. The estimates used for this analysis are taken from the DES Y3GOLD catalogue, and further details on the DES-specific code and calibration are found in Hoyle et al. (2018). The redshift bias and scatter are shown in the right panel of Fig. 1 and the median bias and scatter across redshift are −0.002 and 0.041, respectively. The outlier fraction is 0.191.

3 SIMULATIONS

To validate our analysis and to calculate bias corrections for known selection effects in our sample, we use catalogue-level simulations generated with the SuperNova ANAlysis Software (snana; Kessler et al. 2009) and orchestrated with the pippin (Hinton & Brout 2020) software. As we include a full treatment of core-collapse contamination in the analysis, the simulations are also used to train the photometric classifier, as well as to model the core-collapse likelihood (see Section 4.3).

3.1 Simulation overview

We generate a modified version of the simulations built for the main DES-SN5YR analysis (Kessler et al. 2019; Vincenzi et al. 2021; DES Collaboration 2024). An overview of the simulation process is as follows: first, a time-varying source SED is generated based on the SALT3 (Guy et al. 2007, 2010; Kenworthy et al. 2021) spectro-photometric light-curve model, and cosmological and astrophysical effects are applied (redshift, cosmological dimming, lensing, extinction, peculiar velocities). The top-of-atmosphere SEDs are integrated across survey filters to obtain the observed fluxes. Second, measurement noise is added according to the survey observing conditions (PSF, sky noise, zero-points). Lastly, the detection trigger is applied based on survey characteristics such as detection efficiency versus SNR.

To model the parent populations (SN stretch and colour) as a function of host-galaxy stellar mass, we use the parameters from the main DES-SN5YR analysis (Vincenzi et al. 2024), which are obtained following the method described in Popovic et al. (2021). To model the intrinsic scatter |$\sigma _{\rm int}$|⁠, i.e. the post-standardization scatter in Hubble residuals, we use a dust-based model (Brout & Scolnic 2021) with parameters constrained with the dust2dust software (Popovic et al. 2023). This results in fitted distributions of intrinsic colour |$c_{\rm int}$|⁠, intrinsic colour–luminosity relation |$\beta _{\rm int}$|⁠, and extinction model parameters (⁠|$R_\mathrm{ V}$| and |$E(B-V)$|⁠) for high and low mass galaxies. The modelling is done separately for both the low-z and DES samples.

For non-Ia SN populations, we use templates, rates, and luminosity functions for simulations as detailed in Vincenzi et al. (2021, 2023). These include peculiar SN Ia populations (91bg-like, Iax; Kessler et al. 2019 and references therein) and core-collapse SNe (stripped-envelope, hydrogen-rich; Vincenzi et al. 2019).

SN host galaxies are simulated and associated using a galaxy catalogue (or host-galaxy library; HOSTLIB) which contains at minimum a galaxy redshift and is detailed in the following section.

3.2 Host galaxy library

The nominal DES-SN5YR analysis uses a HOSTLIB built with data (Qu et al. 2024) which contains all the galaxies detected using deep coadds (Wiseman et al. 2020). In this work, we instead use a simulation-based HOSTLIB which allows us to consider multiple photo-z algorithms without having to rerun photo-z estimation codes. To accurately capture the multidimensional relationship between galaxy colours, magnitudes, and photo-z performance, we rely on the Buzzard suite of N-body simulations (DeRose et al. 2019, 2022) to generate our host-galaxy library. This set of N-body simulations was designed to mock the DESY3 source and lens galaxy samples and SOMPZ, DNF, and BPZ have previously been run on the resulting catalogue photometry. As a result, we do not need to analytically model the photo-z performance ourselves. We use the v0.25 SOMPZ run on Buzzard v2.0.0 and use one million random galaxies and their properties from the catalogue for the simulation HOSTLIB. We do not include host galaxy flux contribution to the SN Poisson noise.

To model SN dependencies on host galaxy properties, we focus on the host galaxy stellar mass. We use the Buzzard host galaxy photometry and follow the Spectral Energy Distribution fitting method from Sullivan et al. (2010), following templates and assumptions made as in DES Collaboration (2024), to fit masses for the simulation HOSTLIB. We also associate SNe with their host galaxies as a function of host galaxy stellar mass based on the weighting map from Vincenzi et al. (2021) and Wiseman et al. (2021).

3.3 Redshift efficiency

Because we require both a host spec-z to evaluate biases as well as a host photo-z, we pay careful attention to model the efficiency of obtaining both redshifts. Normally the redshift efficiency would be more lax (i.e. be efficient to fainter magnitude) for photo-z than for spec-z. However, because we require a photo-z from the wide-field Y3GOLD catalogue, which is shallower than the DES-SN survey, our photo-z efficiency is actually stricter (i.e. drops off at brighter magnitude) than the spec-z efficiency. While the spec-z efficiency is typically modelled with a ‘host efficiency’ map (Vincenzi et al. 2021), here the photo-z efficiency is determined by the magnitude distribution of simulated Buzzard galaxies combined with the depth of the Y3GOLD catalogue. In other words, the photo-z efficiency is built into the simulations by the availability of photo-z for galaxies in Buzzard and we do not explicitly model a spec-z efficiency.

In Fig. 2, we show the r-band magnitude distribution for the host galaxies in the DES-SN5YR sample (solid histogram) compared to the magnitude distribution for DES-SN5YR hosts which are also detected in Y3GOLD (dashed histogram). This illustrates how the sample used for this analysis is skewed brighter than the nominal DES-SN5YR SN sample due to the requirement of wide field detection for photo-z. In Sections 4.4 and 4.6, we discuss our ability to effectively model and correct for this distribution difference.

Figure 2.

r-band magnitude distributions for host galaxies of the final DES-SN5YR SN sample (bold solid line; DES Collaboration 2024) and the DES-SN5YR host galaxies which are detected in the Y3GOLD catalogue (solid line).

Open in new tabDownload slide

4 ANALYSIS

Here, we detail the analysis pipeline from light-curve fitting (Section 4.1) to final cosmology constraints (Section 4.8).

4.1 Light-curve fitting

To measure SN distances, we use the SALT3 light-curve model framework (Kenworthy et al. 2021), based on SALT2 (Guy et al. 2010), to fit for standardization parameters. The model is parametrized by the following parameters: z (redshift), |$x_{0}$| or |$m_{x}$| (overall amplitude, with |$m_{x} = -2.5\log _{10}(x_{0})$|⁠), |$t_{0}$| (time of peak brightness), |$x_{1}$| (stretch), and c (colour). To obtain the distance modulus |$\mu$|⁠, we use the Tripp estimator (Tripp 1998):

where M is the absolute magnitude of a SN Ia with |$c=0$|⁠, |$x_1=0$|⁠, |$\alpha$|⁠, |$\beta$| are coefficients parametrizing the stretch-luminosity and colour–luminosity relations, and |$\delta \mu _{\textrm {bias}}$| is the bias correction applied to distances (see Section 4.6). The last term, |$\delta \mu _{\textrm {host}}$|⁠, is a correction for additional host-galaxy property and SN Ia property dependencies, where here we use host-galaxy stellar mass |$M_*$|⁠. This correction is defined as a step function:

where |$\gamma$| is the size of the ‘mass step,’ and |$10^{10}\, {\rm M}_{\odot }$| is the location of the ‘mass step’ (Kelly et al. 2010; Lampeitl et al. 2010; Sullivan et al. 2010). For light-curve fitting, we use the implementation in snana, which uses a |$\chi ^{2}$| minimization to obtain best-fitting parameters and uncertainties.

4.2 SN+host photometric redshifts

For this analysis, we do not use the host galaxy photo-z directly in place of the spec-z but rather to help inform a photo-z fitted from the SN light-curve. The SALT light-curve model framework can be extended to include a fitted photometric redshift from the SN photometry; i.e. by floating the redshift rather than fixing it in the fit (Kessler et al. 2010). A host galaxy redshift prior can also be provided to improve the redshift estimates. Previous studies (Mitra et al. 2023) have included Gaussian host galaxy redshift priors (Graham et al. 2018), with the median or average of the PDF as the mean of the Gaussian, and the RMS as the width of the Gaussian. Here, we also implement in the snana framework the ability to use a full host galaxy photo-z PDF as a prior, which should provide a more principled estimate of uncertainties and better encapsulate the degeneracies endemic to photo-z estimation. These PDFs are read and stored in the format of 11 quantiles in 10 per cent probability bins, to optimally preserve information and minimize storage space (Malz et al. 2018). We consider the |$p(z)$| only for SOMPZ redshift estimates, as they were previously saved in the Y3 processing and did not need to be recomputed. We include a photo-z variant where the SOMPZ |$p(z)$| is approximated by a Gaussian to study the impact on the final SN+host photo-z estimate. For BPZ and DNF, we consider only point estimates with Gaussian uncertainties and refer to the final photo-z estimates as SN+BPZ (Gaussian) prior and SN+DNF (Gaussian) prior.

We note a subtlety related to the implementation of this photo-z fitting in snana; if the SED model range does not extend sufficiently into bluer wavelengths, this may cause filter dropouts at high redshift. This can result in artificially small |$\chi ^2$| values that cause low redshift SNe to be pathologically fit with high redshift values. To avoid this problem, we use the SALT3 extended wavelength model with fit range 2000–13000 |$\mathring{\rm A}$| and linear extrapolation to zero flux at |$\lambda = 500\,\mathring{\rm A}$|⁠.

In Fig. 3, we show the SN+host photo-z estimates plotted against true spectroscopic redshifts. We show the redshift bias and scatter for each SN+host photo-z variant in dotted and dashed-dotted line in the bottom panels. We also show the binned redshift scatter for each host-galaxy photo-z prior (without SN information) in dashed-dotted line in the bottom panels. Except for the case of SN+DNF prior, the redshift scatter obtained from host galaxy photometry only is reduced by |${\sim} 50~{{\ \rm per\ cent}}$| when adding SN information. This indicates that adding SN data significantly improves the photo-z estimate. In the SN+DNF case, the redshift scatter is not improved from the DNF host galaxy photo-z because the host photo-z information is much more precise compared to the SN.

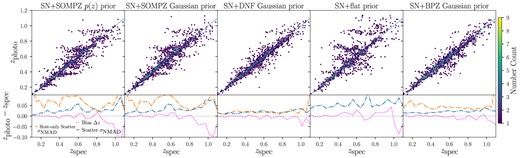

Figure 3.

Top panels: SN+host photo-z estimates versus true spectroscopic redshifts. A one-to-one relation is given in dashed line. Bottom panels: the dotted lines show the binned redshift bias (⁠|$\overline{\Delta z}$|⁠) and the dashed-dotted lines show the redshift scatter (defined in Section 2.3) across redshift bins for each SN+host photo-z variant. Fig. 1 shows the equivalent for host only photo-z. The host only redshift scatter from Fig. 1 is plotted in dashed-dotted lines for comparison.

Open in new tabDownload slide

The best performing variant by the photo-z bias and scatter metrics is SN+DNF prior with the median redshift bias and scatter across redshift bins being −0.003 and 0.019, respectively. We also find that the final SN+host photo-z is not significantly improved by using the full SOMPZ |$p(z)$| prior compared to a Gaussian approximation. We discuss other potential uses for the |$p(z)$| information in Section 6. In particular, we note that the SN+SOMPZ |$p(z)$| prior, SN+SOMPZ Gaussian prior, and SN z fit with flat prior show a redshift-dependent bias at |$z \gtrsim 0.8$|⁠, which may be caused by asymmetric migration due to the redshift cut at |$z=1.2$| such that events with |$z_{\textrm {photo}} \lt z_{\textrm {spec}}$| remain in the sample but events with |$z_{\textrm {photo}} \gt z_{\textrm {spec}}$| are rejected.

4.3 Sample selection

To select our sample, we apply standard cosmological quality cuts as follows:

• fitted colour |$\left| c \right| \lt 0.3$|⁠;

• fitted stretch |$\left| x_1 \right| \lt 3.0$|⁠;

• fitted stretch uncertainty |$\sigma _{x_1} \lt 1.0$|⁠;

• fitted |$t_0$| uncertainty |$\sigma _{t_0} \lt 2.0$| days.

In Table 1, we show the number of SNe remaining after sequentially applying each cut and for different host-galaxy photo-z priors. In brackets, we show the percentage of SNe lost from each cut. We note that the spec-z sample is not exactly identical to the main DES-SN5YR sample, due to several differences including (i) requiring host photo-z, (ii) requiring photo-z fit convergence, and (iii) using an extended SALT3 model for light-curve fitting (see Section 4.2) to be consistent with the photo-z cases.

4.4 Data and simulation comparison

In Fig. 4, we show the distributions comparing simulations and data for fitted SALT3 light-curve parameters and their uncertainties, normalized to the number of SNe in the data. We also compare the distributions for simulations and data for host-galaxy properties in Fig. 5. The agreement in host magnitude in particular illustrates that the ‘photo-z selection function’ is sufficiently reproduced, although the fainter tails for the simulation redshift and |$m_x$| distributions also indicate that this modelling can be improved. We emphasize that correctly modelling and propagating the relationship between galaxy properties and redshift biases is a crucial component of the analysis. In Fig.  A1, we show the equivalent light-curve parameter comparison plots for when the redshift is floated simultaneously with varying host-galaxy priors. We manually scale down the simulated total number of SNe, as well as the rate of core-collapse contamination, to better match the data, as we are unable to replicate the same values from first principles alone.

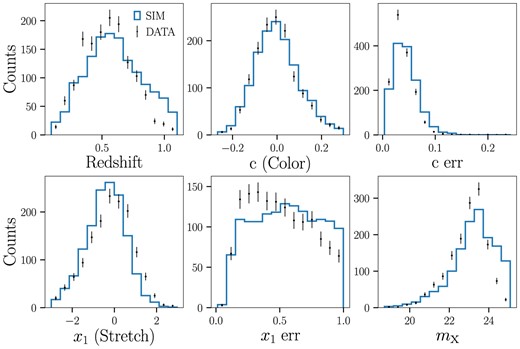

Figure 4.

Distributions of spec-z, fitted SN light-curve parameters using spec-z (c, |$x_1$|⁠, |$m_\mathrm{ B}$|⁠), and their errors for data (points) and simulations (histogram). The simulation histograms are normalized to the number of data points.

Open in new tabDownload slide

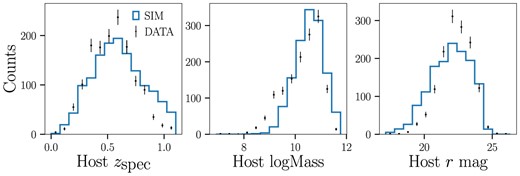

Figure 5.

Distributions of SN host-galaxy properties for data (points) and simulations (histogram).

Open in new tabDownload slide

4.5 SN classification

To classify our supernova sample, we use the photometric classifier SuperNNova (SNN, Möller & de Boissière 2020), a recurrent neural network trained on simulated light curves. Previous analyses have rigorously evaluated the performance of SNN for the DES-SN5YR analysis, with a prediction of less than 1.5 per cent contamination in the final sample (Vincenzi et al. 2021; Möller et al. 2022). We train a model of SNN on our nominal Ia and non-Ia simulated light curves as detailed in Section 3.1.

4.6 BEAMS with bias corrections

We use an extension of the Bayesian Estimation Applied to Multiple Species (BEAMS; Kunz, Bassett & Hlozek 2007), BEAMS with Bias Corrections (BBC; Kessler & Scolnic 2017) to address core-collapse contaminants and to correct for known selection effects and Malmquist bias for our SN sample. The BEAMS method incorporates probabilistic information from a photometric classifier to marginalize over core-collapse contamination. In the BEAMS framework, the likelihood is modelled with two terms, one for the SN Ia population (modelled analytically), and one for core-collapse contaminants (empirically modelled using simulations; see Section 3.1). Using SNN, each SN in the sample is assigned a probability of being a Ia, with zero being non-Ia and one being likely-Ia. These probabilities are then used to weight contributions to the Hubble diagram.

BBC extends the BEAMS framework and incorporates the method from Marriner et al. (2011) to determine standardization nuisance parameters in a cosmology-independent way. The BBC fit determines global nuisance parameters (⁠|$\alpha$|⁠, |$\beta$|⁠, |$\gamma$|⁠, |$\sigma _{\rm int}$|⁠) and also determines bias-corrected distances in redshift bins to create a binned Hubble diagram. When including systematic uncertainties, an unbinned Hubble diagram approach results in smaller uncertainties than a binned approach (Brout et al. 2022; Kessler, Vincenzi & Armstrong 2023), but for a statistical uncertainty only approach, there is no difference. As we do not include a full systematic covariance matrix in this analysis, we use the binned BBC approach rather than unbinned or re-binned.

For bias corrections, BBC applies a distance correction based on the true and measured distances for a large set of survey-specific simulations [|$\delta \mu _{\rm bias}$| in equation (2)]. We use the BBC-4D framework (Popovic et al. 2021), which computes the bias corrections in bins of {|$z, x_1, c, \log {M_*}$|} to be compatible with dust-based models. In our analysis, we use the respective measured redshift in each case (e.g. spec-z, SN+SOMPZ Gaussian prior, SN+DNF Gaussian prior, etc.) to compute the corrections. The bias corrections for the low-z sample are computed separately following Scolnic et al. (2018), Kessler et al. (2019), and DES Collaboration (2024). We also compute the bias correction |$\sigma _{\rm int}$| separately by sample to prevent an overinflated |$\sigma _{\rm int}$| for the low-z and Foundation samples, which use spec-z.

4.7 Distance uncertainties

The individual distance modulus uncertainty for a SN in BBC (with the i index ignored for clarity) is given by Kessler & Scolnic (2017) and Brout et al. (2022):

The light-curve fit parameter uncertainty |$\sigma _{\rm SALT3}^2$| is given by:

where C is the fitted covariance matrix for the light-curve parameters. |$\sigma _{\mu }^{\textrm {vpec}}$| is the contribution from the peculiar velocity uncertainty |$\sigma _{\textrm {vpec}}$| given by:

as explained in Davis et al. (2011), and |$\sigma _{\mu }^z$| is the contribution from the redshift uncertainty |$\sigma _z$|⁠. We set |$\sigma _{\mu }^z = 0$|⁠, as |$\sigma _z$| already inflates uncertainties on |$m_x, x_1$|⁠, and c when redshift is floated in the light-curve fit; therefore its inclusion causes an overestimated uncertainty due to the correlated colour error (see Chen et al. 2022 appendix A.1 for details). The |$f(z, c, M_*)$| error scaling factor is introduced following the original BBC and determined from simulations such that rms(⁠|$(\mu -\mu _{\rm true})/\sigma _{\mu }) = 1$| in {|$z, c, M_*$|} bins. The |$f(z, c, M_*)$| scaling is needed because the naively computed uncertainty does not account for Malmquist bias that removes faint events and thus reduces the scatter (and uncertainty) at higher redshifts.

We do not include an error floor term |$\sigma _{\rm floor}^2 (z,c,M_*)$| that was included in the main DES-SN5YR analysis. We discuss the subtleties related to this distance uncertainty error scaling when using photo-z in Section 5. Details concerning the justification and implementation of the error corrections can be found in Kessler & Scolnic (2017) and Vincenzi et al. (2024).

4.8 Cosmological parameter inference

To constrain cosmological parameters, the |$\chi ^2$| of the SN likelihood is given as

where |$\Delta \mu$| is the data vector of distance measurements |$\lbrace \mu _{\textrm {obs,}i}-\mu _{\textrm {theory,}i}(\Omega _M, w)\rbrace _{i=1,...,N_{\textrm {SNe}}}$| and |$C_{\rm stat}$| is the statistical-only uncertainty covariance matrix as defined in DES Collaboration (2024).

We use the ‘wfit’ |$\chi ^{2}$| minimization program as implemented in snana with a prior from the Cosmic Microwave Background R-shift parameter, which is derived from simulations with the same underlying cosmology as our simulated samples. We fix the R-shift parameter uncertainty to |$\sigma _\mathrm{ R} = 0.006$| following the constraining power of Planck Collaboration VI (2020).

5 RESULTS

We perform an identical analysis following the framework presented in Section 4 using spectroscopic redshifts and using photometric redshifts, where the photo-z variations are:

• SN + SOMPZ |$p(z)$| prior;

• SN + SOMPZ Gaussian prior;

• SN + DNF Gaussian prior;

• SN + BPZ Gaussian prior;

• SN + flat prior.

To isolate the biases that result from using photo-z, we consider the difference in constraints on w when using photo-z and spec-z defined as:

where |$w_{\textrm {spec-z}}$| is the constraint obtained using spectroscopic redshifts and |$w_{\textrm {photo-z}}$| is the constraint obtained using a given photometric redshift variant.

We note that the set of SNe used to obtain |$w_{\textrm {spec-z}}$| and |$w_{\textrm {photo-z}}$| are not identical (see Table 1). We choose not to use a uniform SN sample across photo-z variations, as in the future we will not have spec-z for all SNe and therefore will not be able to approximate a selection based on which SNe would pass cuts when using spec-z. Instead, we take a realistic approach and allow each redshift case to be selected by our conventional cuts (see Table 1). In other words, when calculating |$\Delta w$| values the spec-z sample size is fixed to the larger value while the photo-z sample sizes vary.

To validate our analysis methods, we verify with simulations that when using spec-z with identically generated bias corrections, we recover the true cosmology of |$w=-1$| to within 0.01. In Section 5.1, we discuss the impact of using photo-z on the SN light-curve parameters and BBC nuisance parameters. In Section 5.2, we present results for simulations and in Section  5.3 we present results for data. In Section 5.4, we describe subtleties related to error scaling for distance modulus uncertainties.

5.1 Impact on light curve and nuisance parameters

In Fig. 6, we show how fitted light-curve parameters, their errors, and their covariances, are changed as a function of the photo-z bias for the entire data sample. In Table 2, we show the fitted BBC nuisance parameters |$\alpha ,\beta ,\gamma$|⁠, and |$\sigma _{\rm int}$| for each redshift case, for data and simulations. The errors for data are given from the BBC fit, while the errors for simulations are given as the standard deviation of the 25 simulation instances. The true input |$\alpha$| and |$\gamma$| are 0.145 and 0 respectively, while the input |$\beta$| is not comparable with the fitted |$\beta$| (see Popovic et al. 2023 for further explanation on the difference between |$\beta _{\mathrm{ SN}}$| and |$\beta _{\rm SALT}$|⁠).

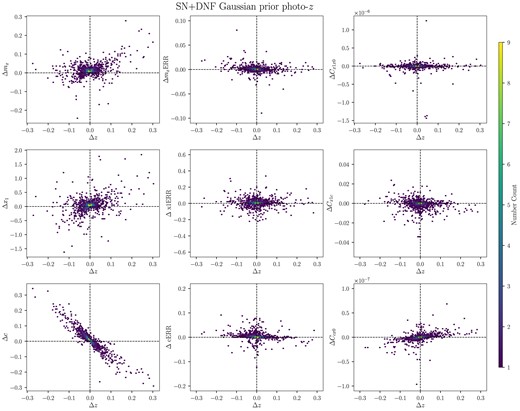

Figure 6.

Bias in fitted light-curve parameters (⁠|$m_x, x_1, c$|⁠), their errors (⁠|$m_x$|ERR, |$x_1$|ERR, cERR), and their covariances (⁠|$C_{x1,x0}, C_{x1,\mathrm{ c}}, C_{\mathrm{ c},x0}$|⁠) as a function of z bias in the data using SN+DNF Gaussian prior photo-z.

Open in new tabDownload slide

Most notably, biases in redshift (⁠|$\Delta z$|⁠) are strongly correlated with biases in SN colour (⁠|$\Delta c$|⁠). As a result, the colour–luminosity relation |$\beta$| is also biased with respect to the values obtained using spec-z. As explained in Chen et al. (2022), these effects do not cause a bias in cosmology because the |$\Delta \mu$| calculated from |$\Lambda$|CDM for small |$\Delta z$| values is roughly equal to |$-\beta \Delta c$| such that SNe are self-corrected toward the fiducial cosmology (see also section 5.3 of Mitra et al. 2023). However, this effect is not propagated to uncertainty in nuisance parameters and may lead to a drastically underestimated error on |$\beta$| as is seen for the data. Further, the recovered |$\beta$| is consistent across each redshift case in the simulations but fluctuates in the data.

We recover a mass step |$\gamma$| (⁠|${\sim} 0.03$|⁠) in the data nearly consistently across redshift cases, whereas in the simulations, we recover a mass step consistent with zero for each redshift. This is consistent with what is seen in the DES-SN5YR analysis, indicating that a dust-based intrinsic scatter model alone is not sufficient to completely explain the mass step (see also Wiseman et al. 2022; Kelsey et al. 2023). We also note that |$\alpha$| is consistent between redshift cases in the simulations, but biased by |${\sim} 0.02$| when using photo-z for the data.

For both data and simulations, the intrinsic scatter is notably increased when using photo-z. While this is an indication that our method of accounting for redshift uncertainty contribution to distance uncertainties could be improved, we leave this investigation to future work.

5.2 Cosmology results from simulations

For the spec-z and each photo-z case, we generate 25 statistically independent Hubble diagrams with bias corrected distances, with |$\sim$|1450 SNe in the simulated samples. In the top panels of Fig. 7, we show one of the 25 Hubble diagrams when using spec-z and the SN+DNF prior photo-z, which has the lowest redshift scatter. In the bottom panel, we plot the binned and unbinned Hubble residuals, the difference between our measured distances and distances from the best-fitting wCDM cosmology, as a function of redshift. The spec-z case has Hubble scatter, i.e. the rms scatter of the Hubble residuals, of 0.152 while the SN+DNF prior photo-z has Hubble scatter 0.176. The Hubble diagrams for the remaining photo-z cases are shown in Fig.  B1, along with the Hubble scatter in each panel. We find that the Hubble scatter is larger than the spec-z case across each photo-z method as expected.

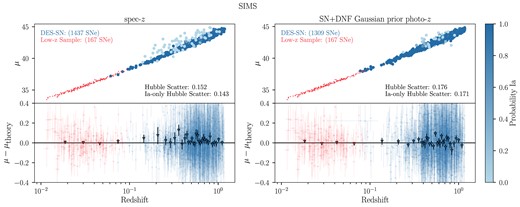

Figure 7.

Hubble diagram from analysing simulated data (upper panels) and Hubble residuals (lower panels; w.r.t a flat |$\Lambda$|CDM cosmology) using spec-z (left) and SN+DNF prior photo-z (right). DES SNe are shown in blue and low-z SNe are shown in red. The Hubble residual means in redshift bins are overplotted in the lower panels as triangles. The DES-SN sample is colour coded by probability of being an SN Ia as given by SNN.

Open in new tabDownload slide

We provide a summary of the resulting |$\Delta w$| values (with respect to spec-z) in Table 3 for simulations including non-Ia SNe (Ia+CC, middle section) and for Ia-only simulations (right section). Each |$\Delta w$| value is averaged over the 25 statistically independent realizations of the simulation. The robust standard deviation (RSD; |$1.48\times \rm Median(\left| \Delta w \right|)$|⁠) and standard error (RSD/|$\sqrt{25}$|⁠) of the |$\Delta w$| values are also given for each case. We also report the average uncertainty on w, |$\sigma _w$|⁠, as a point of comparison for the significance of the given |$\Delta w$| values. We find |$\Delta w$| values |$\lt |0.01|$| for each photo-z method. In particular, SN+DNF prior, SN+SOMPZ |$p(z)$| and SN+SOMPZ Gaussian prior are able to recover the true w to |$-0.003 \pm 0.002$|⁠, |$-0.007 \pm 0.003$|⁠, and |$-0.006 \pm 0.002$| respectively. We further discuss in Section 5.3 why SN+flat prior and SN+BPZ prior are disfavoured despite their small |$\Delta w$| values.

Given that the SN+SOMPZ |$p(z)$| and SN+SOMPZ Gaussian prior estimates have higher redshift scatter as seen in Fig. 3, it is somewhat unexpected that their use results in a small bias. SOMPZ estimates are also calibrated specifically to provide unbiased redshift distributions for wide tomographic bins (and as such the |$p(z)$| for individual galaxies are principled but wide). Our ability to infer unbiased cosmology using SOMPZ estimates in our current framework, which requires a point estimate redshift, is of note. We discuss further potential applications for |$p(z)$| in Section 6. We also note that using SN+SOMPZ |$p(z)$| and SN+SOMPZ Gaussian prior result in significantly more lost events compared to the other photo-z cases.

5.2.1 Photometric classification

To understand the interacting effects of photometric classification with photo-z, we consider simulations in which each SN is classified perfectly, i.e. cosmology is constrained only using SNe Ia. For simulations containing only SNe Ia, the |$\Delta w$| values shift only marginally compared to simulations with both Ia+CC, on average across cases by |$-0.0008$|⁠. While the |$\Delta w$| values for Ia+CC sims are consistently larger than for Ia only sims, the shifts are small and comparable to those reported in DES Collaboration (2024). In Fig. 8, we show the |$\Delta w$| values and their standard errors for the Ia+CC sims and Ia only sims for each photo-z variant. In each case, except for SN+flat prior, the change in |$\Delta w$| with and without CC SNe are within |$1 \sigma$| of each other, showing that core-collapse contamination is a minor systematic, even when combined with photometric redshifts.

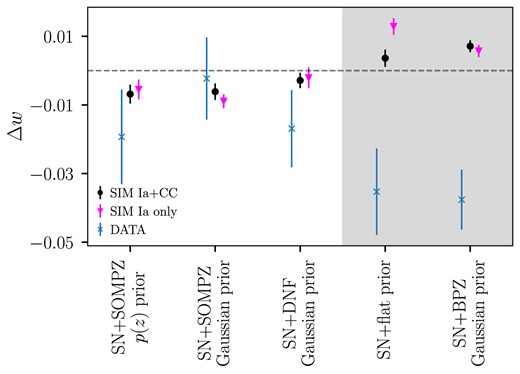

Figure 8.

|$\Delta w = w_{\textrm {photo-z}}-w_{\textrm {spec-z}}$| values for simulations with Ia+CC SNe (circle) and Ia Only (triangle) with the standard error on |$\Delta w$|⁠. |$\Delta w$| values for data are shown as X’s with standard deviation (RSD in Table 3) from 25 instances of simulations. The greyed area indicates photo-z cases which have significantly discrepant results between the simulations and data.

Open in new tabDownload slide

5.3 Cosmology results from data

Using the same analysis pipeline as the simulations, we generate Hubble diagrams and fit cosmology using the data set described in Section 2. We show the Hubble diagrams for spec-z and SN+DNF photo-z in the top panels of Fig. 9 and Hubble residuals as a function of redshift in the bottom panels. Hubble diagrams for the remaining photo-z cases are given in Fig.  B2. As we do not have truth values for classification in the data, the Ia-only subsample is defined as SNe having SNN probability of being a Ia |$\gt 0.5$|⁠.

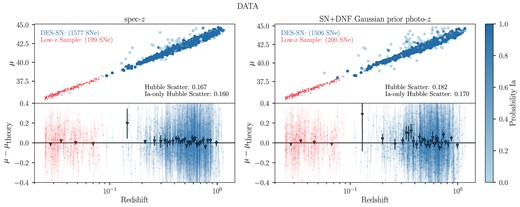

Figure 9.

Same as Fig. 7 but for data.

Open in new tabDownload slide

The Hubble scatter across each photo-z case is larger than the spec-z case as expected from simulations. However, the Hubble scatter for the spec-z case is 0.167, 0.015 larger than the sims (0.152) and 0.017 larger for the Ia-only scatter (0.160 versus 0.143). This trend in Hubble scatter is not seen coherently for each photo-z case, where the scatter is larger in only two out of five cases in the data compared to the sims.

We find |$\Delta w$| values of |$-0.019$| and |$-0.002$| for SN+SOMPZ |$p(z)$| prior and SN+SOMPZ Gaussian prior respectively and |$-0.017$| for SN+DNF prior. In Fig. 8, we show the data |$\Delta w$| values with an uncertainty which is given by the standard deviation of 25 |$\Delta w$| values from simulations. The data |$\Delta w$| values are consistent with simulations to |${\sim} 1\sigma$| for these three redshift cases and subdominant to the overall uncertainty on w.

However, our data results for SN+flat prior and SN+BPZ prior are significantly discrepant with our simulation results. We are unable to attribute this to any particular cause but note that (i) |$\sigma _{\rm int}$| is higher for these two cases across data and simulations than the others and (ii) the redshift scatter and outlier rate are higher in the simulations than the data. The largest differences between each of these photo-z cases are in the Hubble residuals for redshift bins at |$z \lt 0.3$|⁠, but there are no clear trends in either the simulations or data that explain the final |$\Delta w$| discrepancies. We also note that unlike in the simulations, using SN+SOMPZ |$p(z)$| prior and SN+SOMPZ Gaussian prior estimates do not result in a significantly smaller final sample.

For the data, the final percentage of low probability Ia SNe is slightly higher when using an SN+host photo-z compared to when using spec-z. As the probabilities remain the same regardless of the redshift source, this can be likely be attributed to the fact that a floated redshift in the light-curve fit allows for a greater diversity of events, including core-collapse SNe, to have a converging fit. These core-collapse SNe are then fit with high |$x_1$| values outside of the allowed range and subsequently cut (see Table  C1). Oddly, this is the opposite of the trend present in the simulations, where the SN+host photo-z cases have significantly reduced contamination (as seen in Fig. 7 right panel versus left panel). As the resulting |$\Delta w$| values for the sims are very minimally affected despite the greater difference in final core-collapse contamination fraction, we leave resolution of this discrepancy to future studies.

5.4 Error scaling for distance modulus uncertainties

In Section 4.7, we describe the multiplicative error scaling term introduced in the original BBC framework to address naively overestimated distance uncertainties. Recent analyses such as DES Collaboration (2024) and Brout et al. (2022) have also included an additive (in quadrature) term |$\sigma _{\rm floor}^2 (z,c,M_*)$| in |$\sigma _{\mu }^2$|⁠, which is intended to allow for additional scatter beyond those computed in |$\sigma _{\textrm {SALT3}}$|⁠. However, we find that the inclusion of this additive term results in a BBC reduced |$\chi ^2$| significantly |$\lt 1$|⁠. The inclusion of the error floor results in overestimated uncertainties, which we hypothesize could be due to the fact that bias corrections are computed at the measured redshift rather than the true redshift, which may cause redshift bin migrations and therefore mismeasured error scaling factors from BBC. As we are able to recover the input cosmology with reduced |$\chi ^2 \sim 1$| with only the multiplicative error scaling and without the additive error floor, we leave investigation of this subtlety to future work.

6 DISCUSSION

While there are clear benefits to expanding the size of our usable SN samples using photometric redshifts for SN Ia cosmology, this approach also presents new systematics to understand and quantify. Here, we have developed efforts showing that true cosmological parameters can be estimated using photometrically classified SNe with photo-z for a cosmological analysis. We use realistic simulated photo-z, photometric classification to address non-Ia contaminants, and a dust-based intrinsic scatter model. In this section we detail further work that is needed to rigorously measure unbiased cosmological parameters in a completely photometric analysis.

6.1 Systematic uncertainties

In this work, we have focused primarily on the recovery of unbiased cosmological parameters relative to those inferred with spec-z by considering |$\Delta w$| values. However, future cosmological analyses will require a full accounting of systematics (calibration, intrinsic scatter model, etc.) using a statistical+systematic covariance matrix (Conley et al. 2011) as in DES Collaboration (2024).

More realistic redshift systematics tests and systematic variations for a covariance matrix will rely on a systematic uncertainty quantification from a given photo-z algorithm. One such example is the rigorously quantified sources of uncertainty from SOMPZ, which include contributions from shot noise and sample variance, inherent SOMPZ method uncertainty, redshift sample uncertainty, photometric calibration uncertainty, and synthetic source injection method uncertainty (Table 2, Myles et al. 2021). As the uncertainties are given on the mean of each of four tomographic bins, one can interpolate across the sample redshift range to consider a redshift-dependent bias for individual host galaxies. However, other photo-z algorithms tend to include only statistical uncertainties with less obvious or explicit choices for systematic variations. We emphasize that it is most important to understand any redshift-dependent systematics, as they can be highly degenerate with cosmological constraints. Future cosmological analyses will require detailed studies of the modelling choices for systematics beyond a 1D analytic description of photo-z bias.

×While here we study the primary effect of using photo-z on the Hubble diagram, there are several second order systematics that are also reliant on redshifts and will require further study for an entirely photometric SN cosmology analysis. Two of the leading systematic uncertainties in the main DES-SN5YR analysis are those of SN intrinsic scatter and SN correlations with their host galaxies. In this work we relied on only one realization of a dust-based intrinsic scatter model with parameters constrained using spectroscopic redshifts. As these parameters are constrained using SN colour, Hubble residuals, and Hubble scatter, using photo-z for the SN light-curve fit may cause biases which will need to be further studied. While here we have used host galaxy stellar masses obtained using host galaxy photometry with spectroscopic redshifts, future studies may require more detailed consideration of how galaxy mass estimates may be biased by using photo-z instead, as these effects also propagate to the SN intrinsic scatter model.

6.2 Future work

As described in Section 4.6, we use a binned Hubble diagram for this analysis, i.e. bias-corrected distances are determined in redshift bins. Brout, Hinton & Scolnic (2021) and Kessler et al. (2023) have shown that an unbinned Hubble diagram and covariance matrix (for spectroscopically confirmed samples) or re-binned Hubble diagram (for photometrically confirmed samples) result in a |$1.5\times$| smaller systematic uncertainty compared to a binned Hubble diagram. However, previous work (Mitra et al. 2023) has shown that using an unbinned Hubble diagram with photometric redshifts results in smaller uncertainties but unresolved cosmological biases. This outstanding issue must be addressed in order to take advantage of the so-called data ‘self-calibration’ which allows for the most robust results with a given data set.

More realistic redshift systematics tests aWhile analyses with spectroscopic redshifts have treated redshift uncertainties as negligible, a crucial component that has not yet been fully developed is the treatment of redshift uncertainties when they are non-negligible, as is the case for photometric redshifts. In this analysis we discuss the use of host galaxy photo-z PDFs as priors in the SN+host redshift fit, but each SN is ultimately placed on the Hubble diagram with a single redshift without its (non-Gaussian) redshift uncertainties accounted for in the cosmology fit. Roberts et al. (2017) presents a potential resolution to this using a hierarchical Bayesian framework inspired by the BEAMS formalism that marginalizes over redshift uncertainties to simultaneously address photometric classification, host misassociation, and photometric redshifts.

Ruhlmann-Kleider et al. (2022) investigate two other potential methods for propagating redshift uncertainties to cosmology: (i) refitting individual photometric redshifts simultaneously with cosmology and (ii) sampling from the redshift probability distribution and propagating to the cosmology fit |$\chi ^2$| values. For a flat |$\Lambda$|CDM model, they find that sampling the redshift resolution function reduces bias in |$\Omega _\mathrm{ M}$| to |$0.3\sigma$| as long as the sample is bias corrected accounting for photo-z bias and core-collapse contamination. They also conclude that propagating the redshift resolution to the cosmological likelihood is likely a method of secondary importance for reducing biases compared to (i) containing CC contamination to below the few percent level, (ii) relying on spectroscopic redshifts at |$z \lt 0.5$|⁠, as redshift biases lead to stronger shifts in luminosity distances at low-z, and (iii) ensuring bias corrections include photo-z modelling.

As shown in Section 4.2, the use of the full |$p(z)$| as a prior for a SN+host photo-z was not more informative than a prior approximated as a Gaussian. Future analyses could consider developing the cosmological framework required to use a |$p(z)$| as the final redshift information on the Hubble diagram, rather than solely as a prior. This could involve computing a weighted distance contribution at various sampled redshifts from a PDF, similar to Ruhlmann-Kleider et al. (2022), but would also likely require the development of an emulator or rapid light-curve fitting for computational feasibility in order to calculate distances at multiple redshifts for thousands of supernovae.

In this study, we have limited our sample to SNe with spec-z available; if this requirement is lifted, a larger cosmological DES-SN sample can be built using photo-z only, as investigated in Möller et al. (2024). We estimate this could comprise a sample size of at least |${\sim} 2200$| SNe after cosmological cuts, compared to the |${\sim} 1600$| in the DES-SN5YR photometric sample. While here we have used all photo-zs available without having to rerun algorithms, an alternative approach to using photo-z for SN cosmology could be to subselect a sample with higher precision photo-z only, such as by introducing a cut on the photo-z uncertainty. Subsamples of SNe may also have overlapping information from many-band photometric surveys with high-quality, many-band photo-z for a subsample of SNe. Recent and upcoming surveys with Euclid and Roman will provide additional information in NIR bands, which can also be used to drastically improve photo-z estimates. The performance of other photometric redshift algorithms beyond those considered in this work should also be investigated, e.g. from Qu & Sako (2023), which uses a convolutional neural network to estimate photo-z PDFs from SN light curves without host information.

Here, we have focused on a cosmological SN sample which is entirely reliant on photometric redshifts, but in the future it will likely be more realistic and ideal to use a combination of spec-z when available and photo-z when not (at higher redshifts). This will require careful attention to the modelling of spectroscopic and photometric redshift efficiencies and study of the impact of the redshift cutoff at which spec-z are available. Preliminary analyses have indicated that no redshift-dependent bias is present, which is particularly relevant for constraints of evolving dark energy, such as with the |$w_{0}w_{a}$| parametrization (Mitra et al. 2023). Future analyses will require a more detailed investigation of potential biases when considering models beyond wCDM.

7 CONCLUSION

In this work, we have shown that SN+host photo-z are sufficient for an unbiased Type Ia Supernova cosmology analysis. Using 1577 SNe from the DES-SN5YR photometrically classified sample and fitting photo-z from the SN light-curve with host-galaxy priors, we obtain |$\pm \Delta w$| values as low as 0.01 and consistently subdominant to the overall w uncertainty. With SN+host photo-z estimates using SOMPZ and DNF priors we are able to obtain w estimates consistent with those obtained using spec-z within uncertainties. We also show, using simulations, that our analysis methods are robust. We present the first efforts toward understanding host-galaxy photo-z modelling and algorithm related systematics in preparation for future SN Ia cosmology analyses to be done with photometric redshifts and highlight remaining open questions to be addressed in upcoming works.

ACKNOWLEDGEMENTS

Author contributions: RC developed and performed the analysis and wrote the manuscript. DS, MV, ER, JM, RK, and BP assisted in developing the project and provided useful discussion and insight. MSa and MSm served as internal reviewers. All authors contributed to this paper and/or carried out infrastructure work that made this analysis possible. Additional highlighted contributions include: Construction and validation of the DES-SN5YR data and Hubble diagram : AM, BP, BS, CL, DB, DS, GQ, JL, LG, MSa, MSm, MSu, PA, PW, MV. Contributed to the internal review process : AM, CL, HQ, JL, LG, MSa, MSm, MSu, PW, TD. Development and/or maintenance of software : PA, RK. The remaining authors have made contributions to this paper that include, but are not limited to, the construction of DECam and other aspects of collecting the data; data processing and calibration; developing broadly used methods, codes, and simulations; running the pipelines and validation tests; and promoting the science analysis.

This material is based upon work supported by the U.S. Department of Energy, Office of Science, Office of Workforce Development for Teachers and Scientists, Office of Science Graduate Student Research (SCGSR) program. The SCGSR program is administered by the Oak Ridge Institute for Science and Education for the DOE under contract number DE-SC0014664.

DS is supported by Department of Energy grant DESC0010007, the David and Lucile Packard Foundation, the Templeton Foundation, and Sloan Foundation. LG acknowledges financial support from the Spanish Ministerio de Ciencia e Innovación (MCIN) and the Agencia Estatal de Investigación (AEI) 10.13039/501100011033 under the PID2020-115253GA-I00 HOSTFLOWS project, from Centro Superior de Investigaciones Científicas (CSIC) under the PIE project 20215AT016 and the program Unidad de Excelencia María de Maeztu CEX2020-001058-M, and from the Departament de Recerca i Universitats de la Generalitat de Catalunya through the 2021-SGR-01270 grant.

This paper has gone through internal review by the DES collaboration. Funding for the DES Projects has been provided by the U.S. Department of Energy, the U.S. National Science Foundation, the Ministry of Science and Education of Spain, the Science and Technology Facilities Council of the United Kingdom, the Higher Education Funding Council for England, the National Center for Supercomputing Applications at the University of Illinois at Urbana-Champaign, the Kavli Institute of Cosmological Physics at the University of Chicago, the Center for Cosmology and Astro-Particle Physics at the Ohio State University, the Mitchell Institute for Fundamental Physics and Astronomy at Texas A&M University, Financiadora de Estudos e Projetos, Fundação Carlos Chagas Filho de Amparo à Pesquisa do Estado do Rio de Janeiro, Conselho Nacional de Desenvolvimento Científico e Tecnológico and the Ministério da Ciência, Tecnologia e Inovação, the Deutsche Forschungsgemeinschaft and the Collaborating Institutions in the DES.

The Collaborating Institutions are Argonne National Laboratory, the University of California at Santa Cruz, the University of Cambridge, Centro de Investigaciones Energéticas, Medioambientales y Tecnológicas-Madrid, the University of Chicago, University College London, the DES-Brazil Consortium, the University of Edinburgh, the Eidgenössische Technische Hochschule (ETH) Zürich, Fermi National Accelerator Laboratory, the University of Illinois at Urbana-Champaign, the Institut de Ciències de l’Espai (IEEC/CSIC), the Institut de Física d’Altes Energies, Lawrence Berkeley National Laboratory, the Ludwig-Maximilians Universität München and the associated Excellence Cluster Universe, the University of Michigan, NFS’s NOIRLab, the University of Nottingham, The Ohio State University, the University of Pennsylvania, the University of Portsmouth, SLAC National Accelerator Laboratory, Stanford University, the University of Sussex, Texas A&M University, and the OzDES Membership Consortium.

Based in part on observations at Cerro Tololo Inter-American Observatory at NSF’s NOIRLab (NOIRLab Prop. ID 2012B-0001; PI: J. Frieman), which is managed by the Association of Universities for Research in Astronomy (AURA) under a cooperative agreement with the National Science Foundation.

Based in part on data acquired at the AAT, under program A/2013B/012. We acknowledge the traditional owners of the land on which the AAT stands, the Gamilaraay people, and pay our respects to elders past and present.

The DES data management system is supported by the National Science Foundation under Grant Numbers AST-1138766 and AST-1536171. The DES participants from Spanish institutions are partially supported by MICINN under grants ESP2017-89838, PGC2018-094773, PGC2018-102021, SEV-2016-0588, SEV-2016-0597, and MDM-2015-0509, some of which include ERDF funds from the European Union. IFAE is partially funded by the CERCA program of the Generalitat de Catalunya. Research leading to these results has received funding from the European Research Council under the European Union’s Seventh Framework Program (FP7/2007-2013) including ERC grant agreements 240672, 291329, and 306478. We acknowledge support from the Brazilian Instituto Nacional de Ciência e Tecnologia (INCT) do e-Universo (CNPq grant 465376/2014-2).

This work was completed in part with resources provided by the University of Chicago’s Research Computing Center.

DATA AVAILABILITY

Data used in this article is publicly available from the DES-SN5YR Data Release (Sánchez et al. 2024) on Github (‘github.com/des-science/DES-SN5YR’).

REFERENCES

APPENDIX A: SIMULATION AND DATA COMPARISONS FOR PHOTO-z

Following Section 4.4, we show comparison plots of light-curve parameters between the simulations and data when redshift is fit jointly using different host-galaxy photo-z priors.

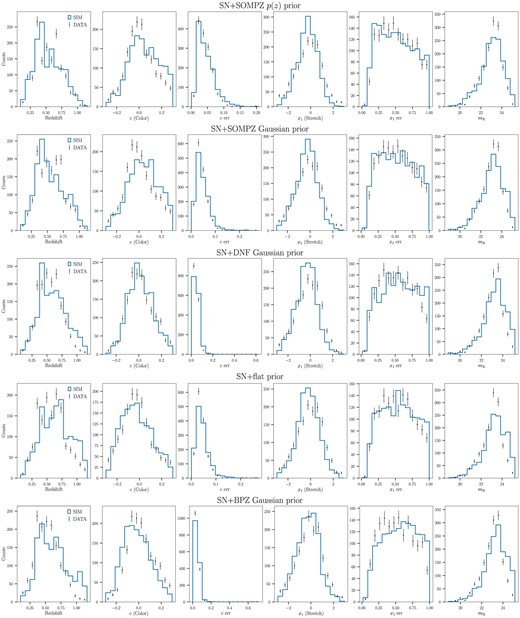

Figure A1.

Comparison of fitted SN light-curve parameters and their errors, as in Fig. 4.

Open in new tabDownload slide

APPENDIX B: HUBBLE DIAGRAMS

Here, we present the Hubble diagrams for each photo-z case for simulations and data as detailed in Section 5.

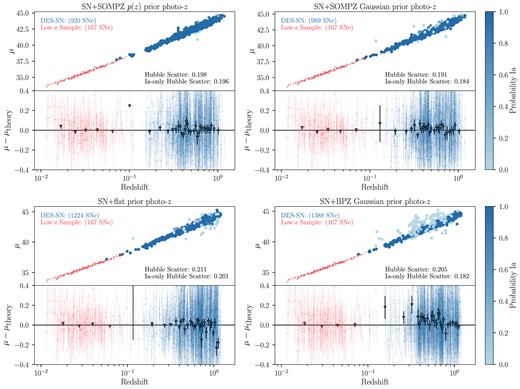

Figure B1.

Simulation Hubble diagrams for each redshift variant. Each point is shaded by the probability of being a Ia as given by SNN.

Open in new tabDownload slide

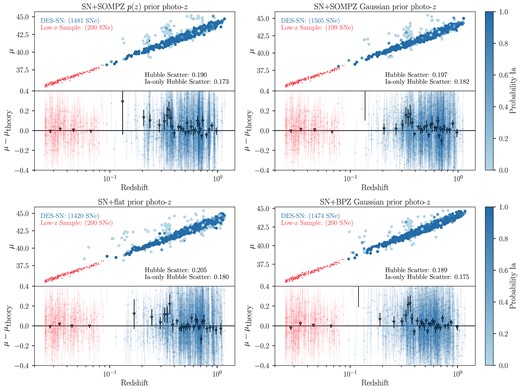

Figure B2.

Data Hubble diagrams for each redshift variant. Each point is shaded by the probability of being a Ia as given by SNN.

Open in new tabDownload slide

APPENDIX C: EFFECTS OF SELECTION CUTS ON CORE-COLLAPSE CONTAMINATION

We present a version of Table 1 which shows the percentage of SNe with PIa |$\gt 0.5$| after each subsequent cut.
