The infalling elliptical galaxy M89: the chemical composition of the AGN disturbed hot atmosphere

ABSTRACT

The chemical enrichment of X-ray-emitting hot atmospheres has hitherto been primarily studied in galaxy clusters. These studies revealed relative abundances of heavy elements that are remarkably similar to Solar. Here, we present measurements of the metal content of M89 (NGC 4552), an elliptical galaxy infalling into the Virgo cluster with a ∼10 kpc ram-pressure stripped X-ray tail. We take advantage of deep Chandra and XMM–Newton observations, and with particular attention to carefully modelling the spectra, we measure the O/Fe, Ne/Fe, Mg/Fe, Si/Fe, and S/Fe ratios. Contrary to previous measurements in galaxy clusters, our results for the hot atmosphere of M89 suggest super-Solar abundance ratios with respect to iron (i.e. α/Fe > 1), similar to its stellar components. Our analysis of the active galactic nucleus (AGN) activity in this system indicates that the AGN-induced outflow could have facilitated the stripping of the original galactic atmosphere, which has been replaced with fresh stellar mass-loss material with super-Solar α/Fe abundance ratios. Additionally, we report a new fitting bias in the RGS data of low-temperature plasma. The measured O/Fe ratios are >1σ lower in multitemperature models than a single temperature fit, leading to discrepancies in the calculations of supernova fractions derived from the metal abundances.

1 INTRODUCTION

Massive galaxies, galaxy groups, and galaxy clusters are pervaded by hot X-ray-emitting diffuse gas, which contains 80 per cent of the total baryonic matter of the Universe (for a recent review, see e.g. Werner & Mernier 2020). Since the ∼7 keV K-shell Fe emission lines were discovered in intracluster medium (ICM) X-ray spectra in the late 1970s (Mitchell et al. 1976; Serlemitsos et al. 1977), the hot plasma pervading the Universe is known to be enriched with heavy elements.

Through decades, it has been debated if the main enrichment mechanisms of the hot atmospheres in such systems are internal (e.g. stellar winds at galactic scale) or external (gas inflows from the intergalactic medium). Measurements of heavy elements play a crucial role in answering this question. The observations show that the spatial metal distribution does not follow the galaxy distribution, and the metal distribution in cluster outskirts is remarkably uniform (Werner et al. 2013; Urban et al. 2017), indicating significantly homogeneous gas formation. Furthermore, there is no apparent dependency of metal abundances on the mass of the galaxy cluster (de Plaa et al. 2017; Mernier et al. 2018a; Truong et al. 2019). In line with the observations, simulations indicate (Biffi et al. 2017) that the enrichment of the ICM was completed at z ∼ 2–3 (10–12 billion years ago), which is the epoch of peak star formation and active galactic nuclei (AGNs) activity (Madau & Dickinson 2014; Hickox & Alexander 2018).

The chemical enrichment of the Universe on the largest scales occurred at early times when energetic AGN feedback outflows expelled the metals to the intergalactic medium. Later, the enriched and mixed atmosphere gas was externally accreted and heated by clusters, galaxy groups, and galaxies to form the present atmospheres (for a recent review, see e.g. Mernier & Biffi 2022).

Measurements of abundance ratios of light α elements (e.g. O, Ne, Mg, Si, and S), mostly produced by core-collapse supernovae (SNcc), and heavy Fe-peak elements (e.g. Ca, Cr, Mn, Fe and, Ni), mainly produced by Type Ia supernovae (SNIa), can be used to understand the chemical enrichment histories of different systems. Mernier et al. (2016) analysed central chemical composition of 44 systems using XMM–Newton EPIC and RGS observations. They found the chemical composition in their samples to be very similar to our Solar system (i.e. α/Fe ratio is ∼1 Solar). Similarly, by utilizing the high-resolution Hitomi SXS and XMM–Newton RGS observations, Simionescu et al. (2019) found Solar abundance ratios in the Perseus cluster. These and other studies (e.g. de Grandi & Molendi 2009; Hitomi Collaboration 2017) indicate that the relative abundances of supernova products have Solar ratios from cores to the outskirts. These remarkable discoveries strongly suggest that the hot plasma pervading our Universe has become chemically well-mixed, achieving Solar composition through continuous inflows and outflows.

In cluster galaxies, the chemical composition of hot atmospheres and the stellar population are considered to be decoupled. The externally accreted hot gas has Solar abundance ratios (i.e. α/Fe ≈ 1), while the stars have super-Solar abundance ratios (i.e. α/Fe > 1) (Conroy, Graves & van Dokkum 2013). The origin of the decoupling is that the elliptical (i.e. early-type) galaxies are considered to have had rapid and intense star formation very early in cosmic history, with a star formation peak around z ∼ 3 (Thomas et al. 2010). As a result, considering SNcc products formed earlier in the cosmic time, SNcc products have been locked in stars before the star-forming gas in such a galaxy has been polluted by SNIa products that are dominantly produced later in the cosmic time.

Although the hot galaxy atmospheres consist mainly of externally accreted and heated gas, internal sources also produce a large amount of hot gas. Internal sources of hot gas in elliptical galaxies are the thermalized stellar mass-loss products (Mathews 1990; Mathews & Brighenti 2003). In a case without any external inflow of Solar gas, stellar wind-originated gas with super-Solar abundance ratios might dominate the galaxy’s atmosphere over time. However, Mernier et al. (2022) recently showed that NGC 1404, an infalling elliptical galaxy experiencing such an accretion cut-off, has Solar abundance ratios, which means internally produced hot gas has not dominated the overall composition in that system. Still, in the current picture of hot gas replenishment in elliptical galaxies, enrichment processes have not been tested in a system that might also undergo a significant loss of its original atmosphere due to internal mechanisms like AGN activity.

M89 (a.k.a. NGC 4552) is an excellent target to examine the hot gas replenishment processes due to stellar mass-loss products. M89 is a massive elliptical galaxy experiencing AGN activity, oscillating inside the gravitational potential well of the Virgo cluster. Because of its motion, any gas inflow with Solar abundance ratios onto the galaxy is stopped (Gunn & Richard 1972). Moreover, due to the AGN activity, it is possible that the galaxy might have lost a portion of its original atmosphere with Solar abundance ratios. Therefore, due to its exceptional dynamics, a dedicated enrichment study on M89 has the potential to provide new constraints on the chemical enrichment of the Universe. The galaxy is located 350 kpc (72 arcmin) east of the central dominant galaxy of the cluster (NGC 4486, a.k.a. M87). Chandra images in the 0.5–2.0 keV band (Fig. 1) show two ring-like structures approximately ∼1.3 kpc away from the centre of the galaxy, which is associated with the LINER type AGN in its centre (Machacek et al. 2006b). Moreover, it shows a ∼10 kpc X-ray tail at its south, along the motion direction, associated with the ram-pressure stripping of the galaxy’s hot atmosphere (Machacek et al. 2006a). Notably, the α/Fe ratios in the stellar content of M89 are higher than the average ratios in ellipticals with similar mass. Lonoce, Feldmeier-Krause & Freedman (2021) measured the abundance values within 0.975r_e with 10 symmetric galactocentric bands, where the 1D extraction corresponds to ∼38.4 arcsec. From this study, stars in M89 have O/Fe ratios of |$3.02_{-0.17}^{+0.15}$| and Mg/Fe ratios of |$1.92_{-0.15}^{+0.16}$|⁠.

The origin of the hot atmosphere of M89 can be investigated via the abundance ratios in the system. Previous abundance ratio measurements of M89 were first conducted by Ji et al. (2009). They analysed M89 within a sample of 10 elliptical galaxies and found Solar abundance ratios for Mg/Fe and Si/Fe and sub-Solar for O/Fe in a circular region of 1 arcmin radius. However, their measurement assumes only a single-temperature model, which is known to result in unreliable measurements in cool systems (kT ≲ 2–3 keV) due to the so-called Fe bias (Buote & Fabian 1998; Buote 2000; Gastaldello et al. 2021). The ‘Fe bias’ is an underestimation of Fe abundance when a spectrum containing multiple temperature components is estimated with a single-temperature model. Given that multitemperature components are inevitable in the spectrum of a galaxy’s atmosphere due to issues such as projection effects and cooling in the galaxy’s core, we can assume that such measurements need to be revisited. Furthermore, Ji et al. (2009) reported unusually high abundances in M89, findings that were not corroborated by the CHEERS (the CHEmical Evolution RGS Sample) catalogue (Mernier et al. 2016; de Plaa et al. 2017 ). In the CHEERS study, they found super-Solar O/Fe and Si/Fe ratios and Solar Ne/Fe using single-temperature models. Although necessary to understand chemical enrichment processes as a whole, studies based on a sample of several systems at once are, by nature, much less suited to investigate individual outliers.

In this paper, we revisit this elliptical galaxy with a detailed and comprehensive analysis. In particular, taking advantage of XMM–Newton and Chandra observations, we investigate the chemical enrichment of M89 for the first time by presenting the O/Fe, Ne/Fe, Mg/Fe, Si/Fe and S/Fe abundance ratios in the core and the tail of M89. Moreover, to comprehensively explore how the dynamical processes within M89 may influence its chemical enrichment history, we analyse the shock properties exhibited by the ‘hourglass’ structure within M89, which is caused by the nuclear activity of the central AGN.

The structure of this paper is as follows. Section 2 describes the data reduction and region selection. The spectral modelling is described in Section 3. Section 4 presents the abundance ratio results, supernova contribution fractions derived from the ratios, the systematic uncertainties in the measurement, and the properties of AGN-induced nuclear outburst. We discuss the possible chemical enrichment history of M89 in Section 5. Finally, Section 6 summarizes the results and conclusions. Throughout the paper, we assume the standard ΛCDM cosmology with H₀ = 70 km s|$^{-1}\,$| Mpc⁻¹, Λ₀ = 0.73, and q₀ = 0. All the abundances are expressed using the proto-Solar values of Lodders, Palme & Gail (2009), and for simplicity, the values are referred to as ‘Solar’ throughout the paper. Unless stated otherwise, all uncertainties are expressed in the 1σ credible interval.¹

2 DATA REDUCTION AND REGION SELECTION

2.1 Chandra X-ray observatory

For our study, we used all available archival Chandra observations of M89 with a total cleaned exposure of 201 ks (see Table 1). All observations were performed using the Advanced CCD Imaging Spectrometer array with ACIS-S (chip S3) in the aim point. Since the desired area of M89 does not overlap with other chips, we limited the analysis to the S3 chip. All observations were processed using standard CIAO 4.15.1 (Fruscione et al. 2006) procedures and current calibration files (CALDB 4.10.4).

Chandra observations were reprocessed and filtered for VFAINT events using the chandra_repro script and deflared using the lc_clean algorithm within the deflare routine. Individual OBSIDs were further reprojected to the same tangent point. These reprojected event files were then merged. The images were extracted in the 0.7–1.1 keV and 0.5–2.0 keV bands and exposure-corrected using weighted exposure maps (the weighting was computed using make_instmap_weights.² procedure assuming an absorbed vgadem model with kT ≈ 0.64 keV; derived after our spectral modelling).

Chandra X-ray images of M89 in the 0.7–1.1 keV and 0.5–2.0 keV bands are shown in Fig. 1. The ram-pressure stripped tail of ∼10 kpc is clearly visible. In the central region, we can see the diffuse emission from the galaxy along with two ring-like structures associated with AGN-driven weak shocks.

Chandra spectral files were extracted using the specextract script. When extracting spectra, we used stowed spectral files obtained using the blanksky script for background subtraction for all extraction regions. The reason for choosing stowed spectral files rather than the blank-sky data set is because stowed files only account for the instrumental background and thus allow for more accurate modelling of the sky background components. This is particularly crucial for low-temperature background components that are comparable to the temperature structure of M89. Robustly constraining the background components is essential for accurate abundance measurements, as further explained in Section 3.2. In Section 4, we compare our results obtained from the stowed spectral files and blank-sky data set. The background files were reprojected onto the observations, filtered for VFAINT events, and the background spectra were scaled to match the particle background of the observations in the 9–12 keV energy range.

2.2 XMM–Newton

We used the single XMM-Newton observation listed in Table 1. Reduction of the EPIC and RGS data is done by using the XMM-Newton Science Analysis System (SAS v20.0.0), along with the integrated extended source analysis software (esas v9.0³) package.

2.2.1 EPIC

Following the standard procedure, the calibrated photon event files of MOS and pn data were created using emchain and epchain, respectively. Then, in order to exclude the soft proton (SP) contamination, we used mos-filter and pn-filter, which call the task espfilt to create good time intervals (GTI). We kept the single, double, triple, and quadruple events in the MOS data (pattern ≤ 12). Due to the charge transfer inefficiency problems for double events of pn, we kept the single events only (pattern = 0). After the filtering, the exposure time has decreased from 44.3 ks to a net 24.3 ks due to the heavy contamination by flares. A combined exposure-corrected image is merged with the combimage task and presented in Fig. 1. Point sources were detected and removed by the CIAO algorithm wavdetect. The Point-Spread Function (PSF) map of EPIC was created using the dmimgcalc tool for the purpose of the wavdetect algorithm. We generated corresponding PSF maps with a size of 9 arcsec, roughly equivalent to a 0.50 Encircled Energy Fraction (ECF) on-axis. After performing the point source detection, we see that the only resolved and detected point sources are located outside the central region of the galaxy. In Section 4, we discuss variations in results obtained from background spectra with different sizes of removed point sources.

We processed the XMM–Newton–EPIC data by using mos-spectra and pn-spectra tasks, which call the evselect, rmfgen, and arfgen tasks to extract the spectra and generate RMFs and ARFs, respectively.

2.2.2 RGS

We used the SAS task rgsproc to process the RGS data. The RGS1 and RGS2 data were filtered with the same GTI file for MOS1. To reduce the instrumental line broadening due to the slit-less nature of the gratings, we included 90 per cent of the PSF along the cross-dispersion direction (xpsfincl = 90), which corresponds to a spatial width of ∼0.8 arcmin. We combined the RGS1 and RGS2 spectra with rgsproc task and fitted the first-order and second-order data simultaneously.

2.3 Region selection

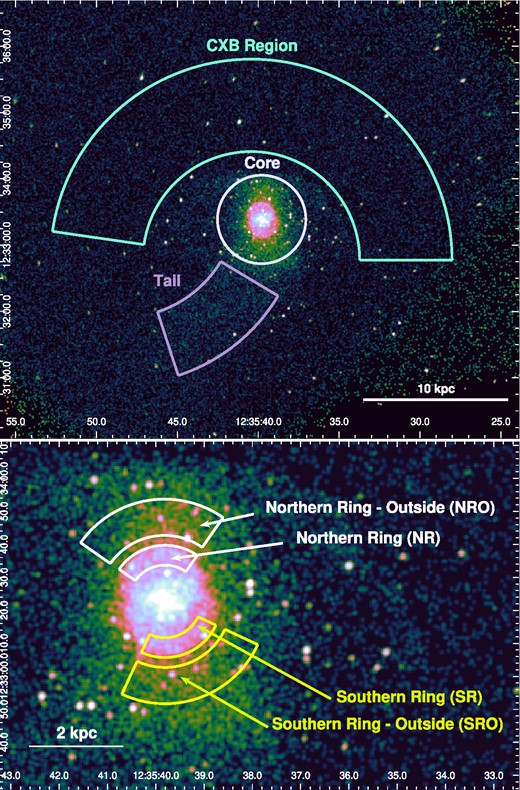

The emission of the hot atmosphere of M89 is, apart from the cosmic X-ray background, highly contaminated also by the ICM emission of the Virgo cluster. In order to properly estimate the abundance of chemical elements in M89, it is critical to describe this background emission well. Furthermore, the central active galactic nucleus (AGN) can also contribute to the observed spectrum and can only be properly spatially excluded using Chandra data. For these reasons, we adopted the following approach and extracted spectra from multiple regions.

First, to investigate the chemical composition of the disturbed hot gas of M89, we extracted a spectrum from a circular region at its centre with a 40 arcsec radius (Core region), presented in Fig. 2. The size of this region is selected to correspond to the galaxy core and also, considering the relatively short clean exposure time of XMM–Newton, to be large enough to have a sufficient number of counts so that the abundances can be constrained robustly. For Chandra data, the circular region with a 1.5 arcsec radius corresponding to the central AGN was excluded. In order to investigate the elemental structure of the escaped gas, we also created a Tail region enclosing the galaxy’s X-ray tail.

In order to model the Virgo ICM and the cosmic X-ray background (CXB) robustly, we created an arc-shaped region (CXB Region) in front of the galaxy along the direction of the motion of M89. The CXB region (see Fig. 2) and the Core or Tail region are modelled simultaneously by linking the joint background parameters. The modelling procedure is further explained in Section 3.

To describe the time-variability and spectral properties of the central AGN, we extracted Chandra spectra from a circular region with a 1.5 arcsec radius centred at the bright central point source (AGN Region).

Additionally, in order to examine the dynamics of the AGN-induced shock, we created region pairs encompassing each shock ring individually in annular sections with the inner and outer radii of 11 and 17 arcsec, respectively, while the outside regions of the rings are present in annular sections of inner and outer radii of 30 and 31 arcsec centred around the central AGN. For the northern ring, the annular sections northern ring (NR) and northern ring–outside (NRO) regions extend from 55° to 145°. The southern ring (SR) and southern ring—outside (SRO) regions extend from 245° to 335° (see Fig. 2). These regions are used to investigate the temperature discrepancy present across the rim of the shock, which enables us to determine the shock Mach number.

3 SPECTRAL ANALYSIS

Modelling of Chandra and XMM–Newton data is done separately. However, data from individual Chandra observations as well as individual XMM–Newton–EPIC detector (MOS1, MOS2, and pn) data are fitted simultaneously. Both EPIC and ACIS-S data are fitted within the 0.55 − 7 keV energy range. The 0.55 keV limit is chosen to avoid biases caused by the oxygen K-edge. In the case of RGS data, we chose the interval 8–27 Å. We used optimal binning by Kaastra & Bleeker (2016) for ACIS-S, EPIC, and RGS data.

The spectral modelling was performed using the Levenberg-Marquardt algorithm and Cash statistics (Cash 1979) within PyXspec v2.1.0 (Xspec 12.12.1; Arnaud 1996). After finding the best-fitting values, parameter uncertainties were estimated from posterior distributions obtained from an MCMC simulation. The complete scheme of our modelling is presented in Fig. 3.

3.1 Emission from galaxy core and tail

There are three main sources of X-ray emission that originate inside M89. Therefore, the following components are present in the Core and Tail regions exclusively: the first is the hot atmosphere that we are probing, which is assumed to be a thermal plasma in collisional ionization equilibrium (CIE). The other two are the AGN component and the emission from Low-Mass X-ray Binaries (LMXBs).

The AGN component is represented by a power-law model powerlaw with a photon index Γ of ∼1.8, derived from the Chandra/ACIS-S spectrum (further described in Section 3.3). The integrated LMXB emission is reproduced by a powerlaw with a photon index fixed to 1.56 (Irwin, Athey & Bregman 2003; Su et al. 2017). As for the hot atmosphere, we tested three different models to represent the thermal emission component: single temperature (1T vapec), double temperature (2T vapec), and finally, multitemperature, using the Gaussian distribution of emission measure (vgadem). All the above-mentioned emission components are absorbed by the interstellar medium of our Galaxy, which is represented by the phabs model with a fixed value of N_H ≈ 1.36 × 10²⁰ cm⁻² (HI4PI Collaboration et al. 2016) and our model is corrected for the redshift value of z = 0.000113, taken from the Nasa Extragalactic Data base. The total model representing the X-ray emission from the Core and Tail regions is as follows

3.1.1 vgadem

As discussed in previous studies (see e.g. Mernier et al. 2015, Werner et al. 2006), a model employing the Gaussian distribution of temperatures improves statistics significantly for cluster cores. For the galaxy core, especially for our region that encircles a relatively wide area with presumably different temperatures, we employ the same model. In this analysis, we also tried single-temperature (1T) and double-temperature (2T) models to represent the thermal emission, and the results are presented in Section 4.

3.2 Background modelling for EPIC and ACIS-S

Unlike some of the previous abundance measurements of M89 (Ji et al. 2009), which subtracted background spectra, we carefully applied customized modelling for all of the background components. This approach has been shown to provide more reliable measurements compared to subtracting a local background spectrum (see relevant discussions in e.g. Mernier et al. 2015; Zhang et al. 2018, 2020). In particular, de Plaa et al. (2007) reported that any small inaccuracies in the background spectra, which are highly probable when extracting spectra from a rigid background, can lead to inaccuracies in the temperature profile of an extended source. Therefore, because line emissivities depend on the temperature of the plasma at fixed abundances, the assumed temperature significantly affects the abundance determination. To avoid such inaccuracies in our abundance measurements, we chose to model the background components for both EPIC and ACIS-S.

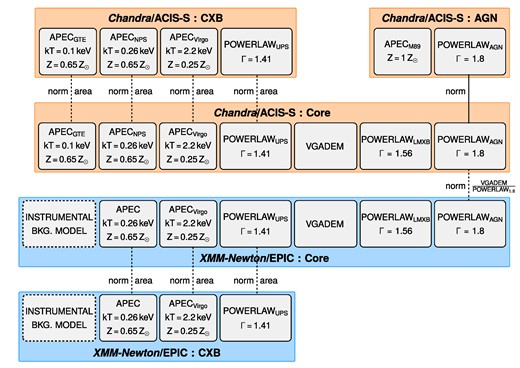

Background effects that are not galaxy-originated are modelled by linking the parameters of the region of interest (Core or Tail region) and CXB region for the shared background emission components. The background components that are shared with the region of interest and CXB regions are the Virgo ICM, unresolved point sources (UPS), Galactic thermal emission (GTE) and North Polar Spur (NPS) emissions. NPS is a structure in the Milky Way that emits both X-ray and radio emission, which is argued to be originated from a nearby supernova explosion (e.g. Berkhuijsen 1971), or that it is a remnant of an explosion or a starburst at the galactic centre (e.g. Sofue 1994). It is located at the northeastern edge of the Galactic bubble, with the brightest ridge at (l, b) ∼ (30°, 20°). As the Virgo cluster is in the vicinity of the NPS, we expect our observation to be affected by this emission. To model the background emission present in both the Core and CXB regions, we used the following model:

The NPS was modelled with an absorbed apec component (⁠|$kT_{\text{NPS}} = 0.26\,$| keV, Z_NPS = 0.65 Solar; Willingale et al. 2003), where the absorption hydrogen density column was set to the half of the value measured by HI4PI Collaboration et al. (2016) because the NPS emission is expected to lie behind at least 50 per cent of the line-of-sight Galactic column density (Willingale et al. 2003). The ICM emission from the Virgo cluster is represented by an absorbed apec component (⁠|$kT_{\text{Virgo}} = 2.2\,$| keV, Z_Virgo = 0.25 Solar) taken from Machacek et al. (2006a) and checked independently for the CXB region by a separate ICM emission model. To account for the hard X-ray emission produced by UPS, we used a powerlaw component with photon index frozen to Γ = 1.41 (De Luca & Molendi 2004), which represents well the contribution of background AGNs. The other two conventionally modelled background components of local hot bubble (LHB) and the Galactic thermal emission (GTE) were also added, however, LHB could not have been constrained in both EPIC and ACIS-S, while the GTE could have been constrained only in the ACIS-S data. This is expected as we only included data above 0.55 keV, the contribution of LHB and GTE is expected to be sub-dominant, and the NPS and Virgo ICM are significantly dominant in M89 spectra. Moreover, the apec model (⁠|$kT_{\text{NPS}} = 0.26\,$| keV) that reproduces the NPS is expected to represent the LHB and GTE emission components which have a similar temperature structure. Soft GTE emission in ACIS-S data is modelled with an apec component with the same abundance value and absorption hydrogen density column with the NPS component (⁠|$kT_{\text{GTE}} = 0.1\,$| keV, Z_GTE = 0.65 Solar).

For testing purposes, we also tried removing the NPS component and instead having LHB and GTE components solely. However, this representation gave a significantly poorer fit.

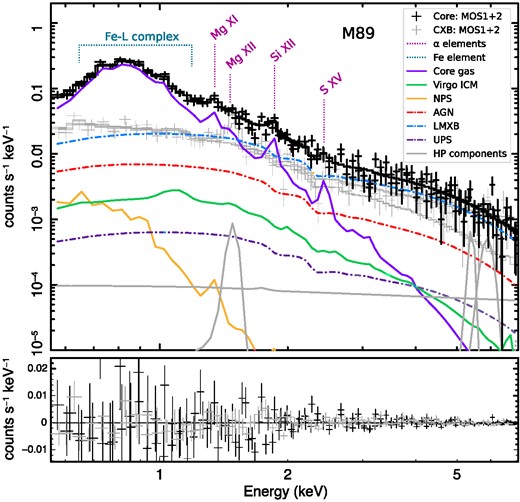

Spectra from the regions of interest (Core and Tail regions) and the CXB region were fitted simultaneously, and normalizations of all of their common components (NPS, Virgo, and UPS) were tied by a scaling factor compensating the differences in effective areas between those regions, assuming that the Virgo ICM and NPS emission do not vary between the two regions. This approach was applied separately to XMM–Newton/EPIC and Chandra/ACIS-S data.

For XMM–Newton–EPIC data, there are also non-X-ray background components which should be modelled. HP background creates fluorescence emission lines in the spectra, even when the filter wheel is closed. The instrumental HP background is represented by a series of Gaussian lines and one broken power law, unconvolved by the auxiliary response file, with values obtained by fitting the filter wheel closed (FWC) data, taken from Breuer et al. (in preparation). Because the HP background varies differently across the instrument, its modelling is done for the Core and CXB regions separately with different normalization values.

The instrumental background model is further combined with the source model using a constant factor, which is allowed to vary during the fitting⁴. Instrumental background modelling is done separately for the Core and CXB region spectra.

3.3 AGN treatment approach

Due to the spatial resolution of the XMM–Newton observation, we were not able to detect and remove the central AGN region from our spectra for the XMM–Newton–EPIC data. Therefore, we were required to reproduce the AGN emission in our model. Thanks to the excellent spatial resolution of the Chandra X-ray observatory, we were able to extract a 1.5 arcsec circular region covering the AGN from the Chandra/ACIS-S data. By fitting the spectra of this region alone, we estimated the photon index of the powerlaw model that is to reproduce the central AGN emission. We use this model in the XMM–Newton/EPIC and Chandra/ACIS-S fittings for the Core region.

Using the central AGN region (1.5 arcsec), we investigated the emission from the central AGN and its variability within four individual Chandra observations. All observations were simultaneously fitted with an absorbed powerlaw model with an additional thermal component, apec, representing the CIE emission from this region:

The apec abundance was fixed to Solar and the temperatures and normalizations were for all observations tied with respect to the first one. All other parameters (powerlaw photon index and normalization) were untied within observations and left free during the fitting.

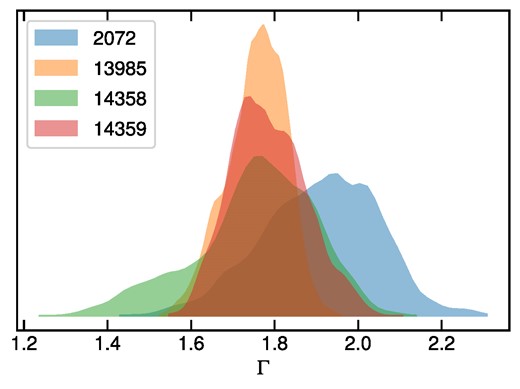

Photon indices of the powerlaw component for individual Chandra observations were consistent within uncertainties (Fig. 4) so we stacked their posterior distributions resulting in a final value of |$1.79^{+0.13}_{-0.11}$|⁠. The normalizations of the powerlaw component varied slightly within individual observations, but the differences between individual OBSIDs were of a factor of ∼2 at most. The total unabsorbed power-law flux averaged over individual OBSIDs was estimated to |$F_{2-10 \: \text{keV}} = (1.7 \pm 0.1) \times 10^{-14} \: \text{erg} \, \text{cm}^{-2} \, \text{s}^{-1}$|⁠. Assuming the distance of 15.9 Mpc (Tully et al. 2013), this corresponds to a resulting AGN luminosity of L_2–10 keV = (5.5 ± 0.3) × 10³⁸ ergs⁻¹.

As the central AGN emission can not be spatially resolved and excluded with XMM–Newton, we instead constrain the contribution of the central AGN emission. For Chandra data, we fitted the central Core region (in this case, including the central point source) simultaneously with the AGN region, and we tied the normalizations of their powerlaw components, assuming that all emission of the AGN lies within the central 1.5 arcsec region.⁵ For the Core region, we then expressed the powerlaw normalization as a constant ratio with respect to the normalization of the main thermal emission component (vgadem), which was allowed to vary. This ratio was then assumed to be the same for XMM–Newton data, and the uncertainty was propagated by fitting the Chandra spectra simultaneously with that of XMM–Newton. We note that, in general, the contribution of the AGN can be time-variable and the ratio of thermal to AGN components can vary from observation to observation. Still, we believe that this represents a better approach than fitting the AGN powerlaw component from XMM–Newton data alone. For comparison, we performed the spectral fitting for XMM–Newton data also without the AGN powerlaw component. In this case, statistical uncertainties were larger. In Fig. 5, we present MOS spectra of the Core and CXB regions with all emission components.

3.4 RGS analysis

The RGS data is expected to contain very limited background contamination after the standard background template derived from CCD9 was subtracted, which registers the least source events. Therefore, we fitted RGS data without any background components.

We tried several fitting combinations of (1) including the second order spectra or restricting to the first order exclusively; (2) testing 1T, 2T, Gaussian temperature distribution (vgadem). The complete results are presented in Section 4 and further demonstrated in Appendix  A.

4 RESULTS

Abundance ratios in the Core region were obtained by separate modelling of XMM–Newton/EPIC, XMM–Newton/RGS and Chandra/ACIS-S spectra. In addition to the iron (Fe), the magnesium (Mg), silicon (Si), and sulphur (S) abundances were allowed to be free in the EPIC CCDs. The neon (Ne) abundance was initially left free to vary for both the EPIC and ACIS-S models, but it could only be constrained using ACIS-S data, so ultimately neon was set free in the ACIS-S model and fixed relative to iron (Fe) in the EPIC model. For RGS, the oxygen (O), neon (Ne), magnesium (Mg), and iron (Fe) were the free abundance parameters. First, we see that fitting with the addition of second-order RGS spectra gives better statistics, also making the results from the different temperature models more consistent with each other. In each of these fits, all the other elements were tied to Fe except He, which was fixed to be Solar.

After performing our multitemperature modelling, we measured indications for possible super-Solar abundance ratios (i.e. α/Fe > 1) of Ne/Fe, Mg/Fe, Si/Fe, and S/Fe in ACIS-S and EPIC data. As for RGS measurements, Mg/Fe is also super-Solar, however, the O/Fe and Ne/Fe ratios are found to be sub-Solar and Solar, respectively, within uncertainties.

Additionally, we performed tests on the removal of point sources from the CXB region spectra of EPIC using PSF maps with sizes of 20 arcsec, approximately corresponding to a 0.75 ECF. We see that the elemental abundance and abundance ratio results remain consistent even with the application of larger point source masks.

We also tested the differences obtained from the blank-sky data set instead of stowed spectral files. After performing the spectral fit, we observed that the results are comparable, although uncertainties increase with the background-removed blank-sky spectra.

EPIC studies of M89 were previously conducted by Ji et al. (2009), as also stated in Section 1. They utilized a single-temperature model, i.e. wabs × (vapec  + powerlaw), and subtracted a local background spectrum. Although they investigated a region with a similar size (1 arcmin), we observe that none of our individual abundances from multitemperature models agree with their single-temperature results. This is expected, because of the ‘Fe bias’ as explained in Section 1. Similarly, although we found super-Solar Mg/Fe, Si/Fe, and S/Fe, they reported Solar ratios.

When we also conducted a single-temperature modelling, we observed that only our individual Mg and Si abundance measurements agree with their results, which were |$0.46_{-0.10}^{+0.11}$| and |$0.44_{-0.12}^{+0.13}$| Solar, respectively. We also note that the previous versions of AtomDB (Smith et al. 2001; Foster et al. 2012) before the update of AtomDB 3.0.9 in 2020 suffered from the interpolation issue.⁶ This issue involved discrepancies caused by the interpolation of (v)apec between its pre-calculated spectra (Mernier et al. 2020), which has now been fixed. Therefore, the possible reasons for the discrepancy, even in the single-temperature model, are (i) the use of outdated spectral codes and data bases by Ji et al. (2009), (ii) differences in the subtraction of background spectra, which could create biases in abundance measurements (see de Plaa et al. 2007), and (iii) differences in modelling the AGN and LMXB components, which might not be well-described by the single powerlaw model in Ji et al. (2009).

Moreover, their RGS analysis suggests individual abundances around 4–5 Solar. These values are highly unusual considering the highest recurrently and robustly reported elemental abundances are around ∼2 Solar (e.g. Centaurus Cluster; Matsushita et al. 2007; Sanders et al. 2016; Fukushima, Kobayashi & Matsushita 2022).

In the CHEERS catalogue, de Plaa et al. (2017) showed that M89 has an O/Fe ratio of 2.0 ± 0.6, which is the highest O/Fe ratio observed in the whole sample. They also showed Ne/Fe  = 1.1 ± 0.7, and subsequent work by Mernier et al. (2016) indicates Si/Fe  = |$1.4_{-0.7}^{+5.3}$|⁠. The main difference between our sub-Solar O/Fe ratio and their super-Solar measurement is the choice of the model: we used a multitemperature model with Gaussian distribution of emission measure while de Plaa et al. (2017) assumed single-temperature plasma. Therefore, we suspect that in the analysis of low-temperature M89 RGS spectra, the choice of modelling (single-T versus multi-T) may have a considerable impact on the O/Fe ratio and its interpretation. In our results, we see that the O/Fe ratio changes >1σ between single temperature to vgadem model, which is presented in Fig. 6. The differences between the CHEERS results and ours may also be attributed to the use of the AtomDB data base and vgadem/vapec plasma codes in our study, whereas they employed the SPEXACT data base and cie plasma code.

The complete list of parameters for EPIC, RGS, and ACIS-S obtained from different multitemperature models is presented in Table 2. In the following sections, we first describe the fitting biases. Then, we present the chemical composition results within the Core and Tail regions.

4.1 Systematic uncertainties

In order to investigate the differences in abundance estimates between single and multitemperature models, we refit our data from all three instruments with the same modelling scheme, changing only the M89 hot gas emission component: the single-temperature (vapec), double-temperature (vapec + vapec) and multitemperature with Gaussian distribution of emission measure (vgadem). The resulting temperatures and abundances derived using individual models (1T, 2T, vgadem) and instruments (ACIS-S, EPIC, RGS) are presented in Table 2 and the abundance estimates are graphically compared in Fig. A1.

4.1.1 O/Fe bias in the RGS data of low-temperature plasma

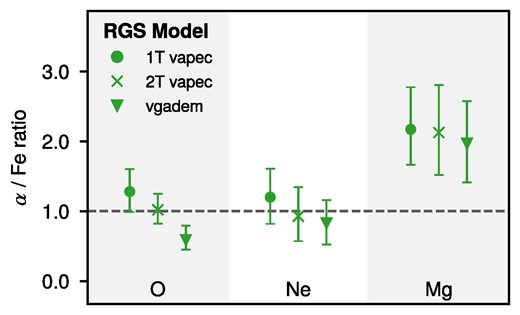

The most prominent discrepancy is that the O/Fe ratio is ∼2 times lower in vgadem compared to 1T vapec model, as presented in Fig. 6. Although not formally significant in our case, we note that this decreasing trend between 1T vapec and vgadem is also present in Ne/Fe and not in Mg/Fe ratios.

We caution the reader that in the vgadem model, kT_μ and σ_kT values are |$0.49_{-0.10}^{+0.08}$| and |$0.41_{-0.19}^{+0.14}$| keV, respectively. As the dispersion of the Gaussian distribution is comparable to the mean, the imperfections in constraining the multitemperature nature may cause additional measurement bias.

As we have different abundance results for each instrument and model, we further check the SNe ratios derived from these values. Our aim is to investigate the bias more extensively.

4.1.2 The relative SNcc contribution

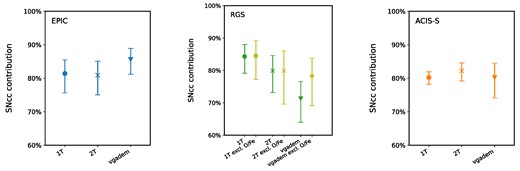

In this section, we calculate the relative supernova contributions to the enrichment via the α/Fe ratios. Considering various approaches to model M89’s hot atmosphere, we fit the abundance ratios obtained from each instrument to a number of SNcc and SNIa nucleosynthesis yield models available from the literature. Our strategy is to compare the obtained best-fitting SNcc yields, checking for any discrepancy between different temperature models. We note that, for the calculation of SNcc fractions, the input elements and their abundance values differ for each instrument. Therefore, when comparing the relative contributions of SNcc between models, it is important to restrict the comparison within each instrument separately.

We aim to recover the total SNcc/(SNcc  + SNIa) fraction contributing to the enrichment. For the calculation, we used SNeratio⁷ code developed by Erdim et al. (2021), used by recent enrichment studies (e.g. Gatuzz et al. 2023). The SNeratio code provides the relative SNe contribution for the observed abundance data for selected yield tables and models.

For SNIa yields, we applied 3D models of near Chandrasekhar-mass with delayed detonation from Seitenzahl et al. (2013) and a pure deflagration model from Fink et al. (2014). For the SNcc yields, we used a model from Nomoto, Kobayashi & Tominaga (2013). For the yield calculation of the latter, we assume a Salpeter initial mass function (IMF) (Salpeter 1955a). The lower zero-age main-sequence mass of stars is adopted with 10 and 50 M_⊙ as the lower and upper limit, respectively. We integrate the yields using the equation,

where M_i is the total yield (also denoted as Y_i) of the ith element, M_i(m) is the ith element mass produced in a star of mass m, and α is the slope of the IMF. For the parameter α, we adopted the value of −2.35 corresponding to the Salpeter IMF.

Furthermore, the number of atoms of element X is given by

where N_{X, SNIa} and N_{X, SNcc} are the number of atoms produced in a single SNIa and SNcc event, respectively, and a and b are the multiplicative factors.

When calculating the SNe fraction with the SNeratio code, we used different initial metallicity values for the SNcc yields of Z  = 0.0, 0.0001, 0.004, 0.008, 0.02, 0.05. The results are presented in Table 2 and Fig. 7.

For EPIC calculations, we used the Mg/Fe, Si/Fe, and S/Fe ratios and found that the SNcc contribution results from different temperature models agree with each other. In this sample, the vgadem result is the largest (⁠|$85.6^{+3.3}_{-4.4}\, \%$|⁠), while the 1T vapec is the smallest (⁠|$81.4^{+4.1}_{-5.8}\, \%$|⁠).

As for the SNe contributions estimated from RGS data, we used O/Fe, Ne/Fe, and Mg/Fe ratios. From these ratios, the obtained results for 1T vapec and 2T vapec are comparable within uncertainties. However, we observe >1σ discrepancy between vgadem and 1T vapec results for SNcc contributions. We also performed the calculation by excluding the biased O/Fe ratio as input. In this case, we observe that all SNcc contributions agree within uncertainties. We also note that, although the results are consistent when excluding the O/Fe ratios, the same aforementioned trend persists, where the 1T vapec and vgadem are, respectively, the largest and smallest.

The ACIS-S calculation used Ne/Fe, Mg/Fe, Si/Fe, and S/Fe ratios. Using these ratios, we again derived comparable SNcc contributions between temperature models. In this case, the 2T vapec  + vapec model gave the highest percentage (⁠|$85.4^{+2.2}_{-2.7}\, \%$|⁠). Nevertheless, we found that SNcc contribution is |$\gt 70~{{\ \rm per\ cent}}$| for all detectors and temperature models.

4.1.3 Summary on systematic uncertainties

The discussion on systematic uncertainties can be summarized as follows:

• The O/Fe ratio changes significantly (>1σ) in the RGS data

  between different multitemperature models.

• We observe a systematic change in the SNcc ratios, with or without the O/Fe ratio.

• The SNcc ratios obtained from RGS data differ by more than 1σ between different temperature models. However, excluding the O/Fe ratio makes the results comparable.

• The SNcc contribution cannot be well constrained with the accessible abundance ratios.

• Due to the relatively low-clean exposure time of XMM–Newton, we observe rather high statistical uncertainties that mask out the true nature of the systematic uncertainties.

• With deeper observations and consequently less statistical error, it would be possible to understand the systematic differences between temperature models more accurately. However, measuring abundance ratios and constraining SNe ratios robustly would still be difficult even if we have deeper observations with the current spectral resolution available.

Consequently, because of the systematic biases and the fact that the σ_kT of the vgadem model (⁠|$0.41_{-0.19}^{+0.14}$| keV) is comparable to the kT_μ value (⁠|$0.49_{-0.10}^{+0.08}$| keV), we conclude that, for RGS, the vgadem model is not adequate to constrain the temperature structure. Therefore, for further analysis in this paper, we use the 1T model for the RGS data, which is also used in de Plaa et al. (2017) for M89.

4.2 Summary on α/Fe ratios

4.2.1 Core

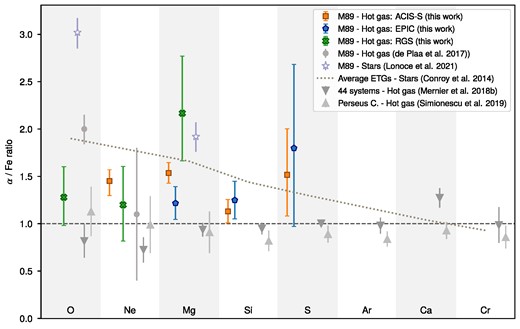

In Fig. 8, we present the best-fitting values of the abundance ratios that are previously discussed. In the plot, the results for EPIC and ACIS data correspond to vgadem model, while for RGS a single-temperature (1T vapec) fit was presented.

We find the overall abundance ratios to be super-Solar. S/Fe and Si/Fe ratios from ACIS-S and EPIC are 1σ larger than the Solar values. Similarly, Mg/Fe for EPIC and RGS are also 1σ larger while the ACIS ratio of Mg/Fe is 5σ greater. The Ne/Fe ratio is again super-Solar for both ACIS-S and RGS. Likewise, the O/Fe ratio is 1σ higher than its Solar value in RGS.

The super-Solar O/Fe and Ne/Fe ratios, also presented in Fig. 8, agree with the results of de Plaa et al. (2017). Moreover, Mernier et al. (2016) showed that Si/Fe is also super-Solar with a value of |$1.4^{+5.3}_{-0.7}$|⁠; however, due to a large positive uncertainty, we exclude it from the plot for visualization purposes. In fact, M89 is the only sample in the CHEERS measurements having super-Solar values for all ratios.

This result differs from the global Solar composition in the elliptical galaxy atmospheres (Mernier et al. 2018b). The results indicate that the composition in M89 hot gas is more similar to the stellar components.

The physical interpretation of these results and the possible scenarios explaining the atmosphere with super-Solar abundance ratios are presented and discussed in the Discussion section.

4.2.2 Tail

For the striped tail of the galaxy, the chemical abundances could only be constrained with the deep Chandra/ACIS-S observation. We found that absolute abundances are lower than in the Core region and thus less than Solar. The ratios, on the other hand, are super-Solar for Mg/Fe and Si/Fe, all comparable with the Core region within uncertainties, presented in Fig. 9. Ne/Fe ratio, on the other hand, is Solar but still comparable with that of the Core region. Regrettably, the uncertainties in the tail region are so large that a robust physical interpretation is not possible.

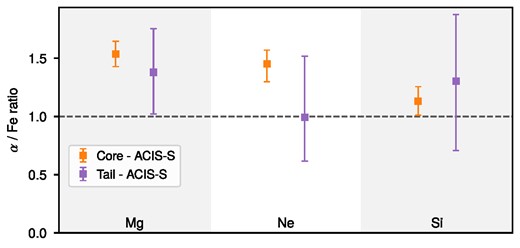

The chemical abundance ratios in the two gas regions are found to be comparable. These results are further discussed in the Discussion section.

4.3 AGN activity

4.3.1 The AGN driven shock front

One of the prominent features of M89 is an ‘hourglass’ structure first noted by Filho et al. (2004) in the inner region of the galaxy. This hourglass shape is composed of two rings of approximately circular shape where each inner edge reaches ∼0.85 kpc while the outer edge reaches ∼1.30 kpc from the centre. These rings of shocked gas have been attributed by past research to the nuclear activity of the central AGN of this galaxy (Machacek et al. 2006b).

To determine the temperature jump across the rim of the shock, we utilized all four Chandra observations with a total observation time of 201.3 ks, in contrast to Machacek et al. (2006b) who used a single 54.4 ks observation. Unlike other studies, we investigate the northern and southern rings separately for the first time. We fit the spectra of the regions NR, NRO, SR, and SRO described in Section 2.3 with a single-temperature (1T vapec) model with abundances fixed to Solar values, focusing only on the hot atmosphere component as described in Section 3. We also tried spectral fitting using the single temperature Fe abundance result obtained by 1T vapec fitting of the Chandra Core region data, which is approximately half of the Solar value. However, we see that changing the abundance value affects the temperature value by less than 0.5 per cent, and we ultimately decided to use the Solar abundances. The resulting temperatures are 0.73 ± 0.01 keV at the rim of the northern ring (NR), with the temperature decreasing to 0.43 ± 0.02 keV on the outside of the northern ring (NRO). For the southern part, the temperature reaches 0.76 ± 0.01 keV at the edge of the shock (SR) and declines to 0.43 ± 0.03 keV on the outside of the rim (SRO).

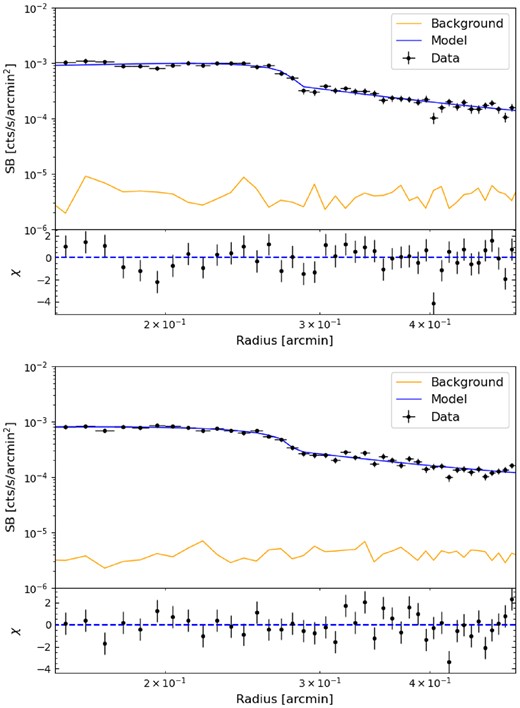

The change in electron density across the edge of the shock can be gauged from the surface brightness profile across these rings. Therefore, we extract the surface brightness profile from the exposure-corrected, background-subtracted image in the energy band of 0.5–2.0 keV and analyse each ring in annular sections encompassing both the NR (SR) and NRO (SRO) regions. For each brightness discontinuity, we model the surface brightness profile using an MCMC analysis and we assume a spherically symmetric broken powerlaw distribution projected along the line of sight for the electron density of

where r_rim is the outer radius of the shock ring, r_out = 3.1 kpc and marks the unshocked region outside of the rim, n_rim, n_out are the normalization inside and outside the rim of the shock, α₁, α₂ are the power-law indices for each region, while J is the discontinuity parameter. The discontinuity parameter is given by

where Λ and n represent the emissivity and electron density of each region.

We find the best-fitting position for the outer rim of the shock to be |$r_{\mathrm{rim}} = 1.31_{-0.01}^{+0.01}$| kpc for the northern ring and |$r_{\mathrm{rim}} = 1.29_{-0.02}^{+0.01}$| kpc for the southern ring. The inferred electron density ratio n_rim/n_out across each ring is |$1.46_{-0.09}^{+0.09}$| (NR) and |$1.41_{-0.08}^{+0.09}$| (SR). By fitting the region inside and outside of the shock rim with a simple power law, we calculate the densities in these regions for the northern (southern) ring to be |$n_{\mathrm{rim}} = 0.06_{-0.01}^{+0.01}~(0.07_{-0.01}^{+0.01})$| cm⁻³ and |$n_{\mathrm{out}} = 0.04_{-0.01}^{+0.01}~(0.04_{-0.01}^{+0.01})$| cm⁻³. The best-fit models of the surface brightness profiles can be found in Fig. 10.

The temperature and density inside the brighter region are higher than those of the fainter surroundings. This confirms the nature of the discrepancy at r_rim ∼ 1.3 kpc as a shock driven by a nuclear outflow as mentioned by Machacek et al. (2006b). Utilizing the T_rim/T_out and n_rim/n_out ratios in the Rankine–Hugoniot (e.g. Landau & Lifshitz 1959) shock conditions for a monatomic ideal gas with adiabatic index γ = 5/3 allows to estimate the speed of the shock’s propagation.

Using the measured temperature discrepancies across each ring, we find the propagation speed of the shock for the northern (southern) ring to be M₁ = 1.67 ± 0.09 (M₁ = 1.74 ± 0.09), while the inferred density discrepancy measured through the change in surface brightness suggests a speed of M₁ = 1.31 ± 0.24 (M₁ = 1.28 ± 0.23). As stated in Machacek et al. (2006b), due to the narrowness of the shock front, the measured surface brightness discontinuity will underestimate the real density discrepancy. Therefore, this method infers the lower limits of the shock speed.

4.3.2 The total energy of the outburst

The speed of the shock front allows us to calculate its age and the power of the outburst that created it. For a mean radius of R ∼ 0.81 kpc estimated from the surface brightness profile, and the lower limit on the speed estimated from the density discontinuity, the age of the shock is ∼1.8 Myr, while the temperature change indicates a somewhat younger age of ∼1.4 Myr. The outburst energy can be expressed as E_shock ∼ p_rimV(p_rim/p_out − 1) ∼ 7.7 × 10⁵⁴ erg, where p_rim and p_out represent the pressure of the shocked and unshocked gas.

By combining the X-ray cavity volumes determined by Plšek et al. (2023) with the thermal pressure profiles from Plšek et al. (2022), we estimated the total radio-mechanical energy released by the central AGN to |$E_{\mathrm{cav}}=1.37_{-0.03}^{+0.02} \times 10^{55}$| erg. The total mechanical energy of the nuclear outburst is E_tot = E_shock + E_cav ∼ 2.14 × 10⁵⁵ erg.

5 DISCUSSION

Super-Solar α/Fe abundance ratios in the hot atmosphere of M89 would suggest that this galaxy is a rare case where the abundance ratios of the hot gas deviate from the Solar value, and are closer to the average stellar abundance ratios. Considering that this is potentially the first atmosphere with reported super-Solar abundance ratios and that M89 is a particularly dynamic system, our result requires careful investigation.

The stellar age of M89 is calculated to be |$8.9_{-2.5}^{+3.4}$| Gyr (McDermid et al. 2006), which corresponds to a formation time of z ∼ 0.7–4.3. The early enrichment scenario, which is briefly explained in Section 1, suggests that the ICM gas has mostly completed its enrichment around z ∼ 2–3. Assuming that the galaxy accumulated most of its hot X-ray emitting gas after the enrichment (i.e. after z ∼ 2–3), M89 should have a hot atmosphere composed of ‘universal’ gas. So far, other similar ellipticals have been found to host hot gas with Solar abundance ratios (e.g. Mernier et al. 2016; Mernier et al. 2022), therefore it is critical to constrain the possible scenarios.

Observational indications for the super-Solar abundance ratios might be explained by the depletion of the original atmosphere due to AGN activity and ram-pressure stripping. M89 may have lost a significant part of the hot gas through turbulent mechanisms, replacing it with accumulated thermalized stellar wind wind material with super-Solar α/Fe abundance ratios.

5.1 Ram-pressure stripping and accretion cut-off

The tailored simulation studies of M89 by Roediger et al. (2015a, b) show that the observable X-ray tail itself is not the subject of stripping. Instead, it is a morphologically deformed atmosphere, shielded from the ICM and preserved by the galaxy up to or beyond pericentre passage. In more general terms, if the ambient medium of an infalling galaxy has sufficient viscosity and/or magnetic field, the Kelvin–Helmholtz instabilities that cause turbulent mixing are suppressed (Chandrasekhar 1961). Therefore, in an ICM that is viscous and has a strong enough magnetic field, the downstream hot atmosphere (i.e. the ‘tail’) is unmixed, dense and therefore X-ray bright, which is believed to be the case of M89. This is confirmed by our measurements, as the elemental ratios of the Tail and Core regions are compatible, and the overall gas content in the tail is similar to that in the core. The less-dense Solar gas, which was once in the outskirts of the galaxy’s original atmosphere, has been relocated at the edges of the tail due to the flow. As the simulations of M89 suggest, this less dense Solar gas at the edges of the tail is the subject of peeling. Consequently, as the motion continues, the Solar gas at the periphery constantly depletes. Moreover, the gas from the surrounding environment is no longer able to fall onto the galaxy because of the large velocity differences between the ICM and the galaxy (Gunn & Richard 1972).

Before the infall, M89 experienced gas inflows and outflows simultaneously. At this unperturbed stage, the galaxy continuously accreted gas with Solar abundance ratios from the surrounding intergalactic medium, while part of its initial atmosphere was lost due to supernova-driven and AGN-induced outflows (for a review on the topic, see e.g. Werner et al. 2018). However, once the galaxy encounters the Virgo ICM, the accretion of external material stops, and the atmosphere begins to be stripped. During its oscillation inside the Virgo cluster, the thermalized stellar mass-loss products, which have super-Solar abundance ratios are accumulated in the galaxy’s atmosphere. As a result, the stellar mass-loss products may become dominant in the hot atmosphere of M89.

We caution the reader that our proposed scenario is not compatible with a similar infalling galaxy NGC 1404 which is also exhibiting an X-ray tail. Mernier et al. (2022) showed that NGC 1404, a satellite galaxy in the Fornax cluster, has Solar chemical composition. It is possible that the difference between the two stripped galaxies is a result of the AGN feedback in M89. Unlike M89 with AGN-induced X-ray cavities, NGC 1404 does not exhibit any AGN activity. Therefore, the initial atmosphere of NGC 1404 might not be uplifted and stripped as effectively.

5.2 Gas displacement by the AGN

The outflow of the initial hot gas with Solar abundance ratios in M89 might be facilitated because of the AGN activity. In Section 4.3.2, we showed that the mechanical energy to evacuate both cavities is greater than 1.5 × 10⁵⁵ erg. The total mechanical energy of the nuclear outburst is ∼2.14 × 10⁵⁵ erg, and the mechanical power of the nuclear outburst is 1.3–1.7 × 10⁴¹ erg s⁻¹. For comparison, the gravitational binding energy of the galaxy is calculated as E_bind = ∼3.97 × 10⁵⁶ erg within a half-light radius (r_e), using the total mass from Cappellari et al. (2013) and X-ray gas mass from Plšek et al. (2022).

Based on these results, the energy released into the galaxy atmosphere from the AGN-induced outflows in M89 is significant. As the atmospheric gas is uplifted to higher altitudes, ram-pressure stripping becomes more effective, facilitating the loss of the original galactic atmosphere.

5.3 Replenishment due to the stellar mass-loss

Internal sources of hot gas in elliptical galaxies are the thermalized stellar mass-loss products (Mathews 1990; Mathews & Brighenti 2003). When the red giant stars orbit supersonically relative to the hot ambient gas, simulations suggest that approximately 75 per cent of the ejected gas is shock-heated and becomes part of the hot atmosphere (Parriott & Bregman 2008). Planetary nebulae are another source of hot gas, although the interaction between the hot ambient medium and a planetary nebula shells thermalizes only a small fraction of the material (Bregman & Parriott 2009).

In the core of M89, due to the lack of ongoing Solar gas accretion, the internal sources of hot gas can dominate the overall chemical composition. The presence of higher-than-average SNcc products in the stars of the galaxy (Lonoce, Feldmeier-Krause & Freedman 2021) supports this scenario. In this section, we focus on the ejected wind material of evolving stars and compare it to the metal masses in the hot gas based on our measured metal abundances.

5.3.1 Total mass budget of metals

We find the individual metal budget in the hot gas phase. The total X-ray emitting hot gas in M89 is derived as |$\sim 1.8 \times 10^{8}\, {\rm M}_{\odot }$| for 2 r_e region (Su et al. 2015). The elemental metal mass in a hot gas region enclosed with radius R can be calculated as

where X_⊙ and X(R) are the Solar abundance of element X, taken from Lodders, Palme & Gail (2009), and the measured abundance of that element, respectively. Their product, (N_X⊙/N_H⊙) × (N_X/N_H)/(N_X⊙/N_H⊙), gives the ratio of number of X atoms over H atoms in the medium. A_X and A_H are the atomic weights of X and H respectively. The obtained mass fraction of element X with respect to H is then multiplied by the |$\chi_{H}$|⁠, the H mass fraction adopted as 0.735, which gives the ratio of X mass over the total mass. M_gas(R) is the total mass in the enclosed volume, consequently, their product gives the mass of element X. Finally, the calculated hot-gas phase metals in the centre of M89 are presented in Table 3.

5.3.2 Stellar wind contribution to the hot gas

The stellar mass-loss rate in an elliptical galaxy with a Salpeter initial mass function (Salpeter 1955b) in a given time t, can be approximated according to (Ciotti et al. 1991) as following:

where L_B is the present B band luminosity and t_H is the Hubble time. From Ellis & O’Sullivan (2006), we adopt the L_B = 1.95 × 10¹⁰L_⊙ for M89. As for determining the time interval for the integral, we investigate the star formation of the galaxy. Using MegaCam observations, Boselli et al. (2022) showed that the H α[N ii] distribution in M89 mostly comes from the diffuse filamentary structures rather than any apparent star-forming region. Moreover, HST observations of the galaxy do not show significant H α[N ii] emission (Temi et al. 2022). Therefore, similar to other elliptical galaxies, we assume that the galaxy experienced a short and brief star formation peak around z ≈ 3 (Thomas et al. 2010). As a result, we integrate the mass-loss equation from z = 3 to z = 0 (t = t_H), and find a total mass of |$10.6 \times 10^{9} \, {\rm M}_{\odot }$|⁠. Notice that, this approximation is very rough and should be taken as an order-of-magnitude estimation for further analysis.

For the next step, we take the average ranges of stellar abundances in M89 from Lonoce, Feldmeier-Krause & Freedman (2021) and calculate the individual metal masses. Using equation (5), the ejected masses via stellar wind are found to be |$(1.2-1.6) \times 10^{7} \, {\rm M}_{\odot }$| for Fe, |$(1.1-1.7) \times 10^{7} \, {\rm M}_{\odot }$| for Mg and |$(1.6-2.1) \times 10^{7} \, {\rm M}_{\odot }$| for O.

Note that, the above calculations are rough predictions for order of magnitude comparison between the observed and theoretically ejected metal masses. None the less, we find 1–2 orders of magnitude more mass is ejected through stellar winds compared to the total observed mass of O, Mg, and Fe. Therefore, it is possible to say that the hot gas with super-Solar ratios could originate from the super-Solar stellar content present in M89.

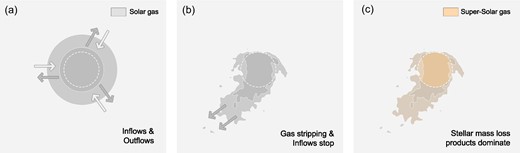

In this scenario, gas outflows and inflows existed simultaneously before the infall (see Fig. 11a). After the infall, the original Solar gas content of M89 begins to be depleted because of the ram-pressure stripping and AGN-induced outflows. Furthermore, during the infall, accretion of the Solar gas from surroundings is restrained (see Fig. 11b). The stars in M89, which have a higher α/Fe ratio than the average elliptical galaxies, eject hot gas into the galaxy via stellar winds. As a result, we argue that the freshly ejected gas is mixed with the remaining original atmosphere and creates a new generation of hot gas with super-Solar abundance ratios (see Fig. 11c).

We note that Mernier et al. (2022) showed that the metal mass produced and ejected through stars in NGC 1404 also exceeds the observed mass: ∼20 and ∼40 times more mass is produced for Fe and Mg, respectively. Interestingly, the hot atmosphere of NGC 1404 is found to be Solar by that study. Therefore, any metal excess caused by stellar winds does not necessarily indicate a super-Solar composition in an X-ray gas. By studying the differences between two ram-pressure stripped galaxies NGC 1404 (which does not harbour an active nucleus) and M89 (which harbours a prominent AGN with bubbles and shocks), we can attempt to derive constraints on the chemical enrichment and the origin of galactic atmospheres. We can address questions such as: (i) is a stellar-like chemical composition in a hot gas a universal feature in galaxies with an accretion cut-off? (ii) Why does NGC 1404 have Solar ratios while M89 has super-Solar ratios? More generally, (iii) is it enough to experience an accretion cut-off to have a stellar-like atmosphere, or is it necessary to undergo a significant loss of original gas? We conclude that, in M89, AGN-induced outflows could have facilitated the stripping of the original galactic atmosphere, which has been replaced with fresh stellar mass-loss material with super-Solar α/Fe abundance ratios, producing the observed difference between M89 and NGC 1404.

Moreover, the metal budget in the ICM gas is measured to be 2 to 10 times larger than what their stars could have produced (e.g. Renzini & Andreon 2014). Similar to the Mernier et al. (2022), we observe an ‘inverse metal conundrum’ in M89 where the metals in the hot gas are 1–2 orders of magnitude less than the stars could have ejected. The two conundra might be comparable. It is possible that the excess metals that are ejected by the stars of elliptical galaxies are mixed with the ICM during the enrichment.

6 CONCLUSIONS

In this paper, we investigated the chemical composition of the infalling elliptical galaxy M89 (NGC 4552), which hosts X-ray cavities and a prominent shock front due to radio mechanical AGN activity. During its voyage into the Virgo cluster, the hot galaxy atmosphere experiences ram-pressure stripping caused by the interaction with the intracluster medium. Due to the stripping, M89 hosts a bright X-ray tail.

Using XMM–Newton and Chandra archival observations, we investigated the chemical composition in the core and the tail of the galaxy. With particular attention to the modelling, we derived O/Fe, Ne/Fe, Mg/Fe, Si/Fe, and S/Fe ratios from EPIC MOS, EPIC pn, RGS, and ACIS-S. Our results can be summarized as follows.

• Our measurements suggest a super-Solar abundance ratios (i.e. α/Fe > 1) in the core. Such a gas content is chemically closer to the stellar population of the galaxy (Lonoce, Feldmeier-Krause & Freedman 2021) rather than the rest of the gaseous content in the universe, which is closer to our Solar system (i.e. α/Fe ∼ 1). In the tail, the results are comparable with the core, however, it is less certain due to large uncertainties.

• We report a fitting bias in the XMM–Newton/RGS data. In low-temperature plasma, the O/Fe ratio changes significantly (>1σ) between different multitemperature models. Because of the bias, we were unable to robustly constrain the SNcc contribution fraction as there is a systematic change in the SNcc ratios. Nevertheless, we found that the SNcc contribution to the hot atmosphere of M89 is greater than 70  per cent for all multitemperature models and instruments.

• We argue that the potential super-Solar abundance ratios might be produced mainly by the stellar population of the galaxy via stellar winds after the infall. During the infall, the low-density Solar gas is stripped from the edges of the tail. Moreover, because of the motion of the galaxy, the continual infall of gas with Solar abundance ratios from the surrounding ICM is stopped. Therefore, a new generation of hot atmosphere with super-Solar abundance ratios might be produced due to the stellar mass-loss products in M89.

• In order to test the stellar contribution to the observed chemical composition, we calculated the mass of the observed hot gas metals and compared them to the metal content that stellar winds possibly eject since z = 3. We showed that the stellar winds alone could possibly produce ∼2 orders of magnitude more metal mass than the metal budget of the hot gas in M89.

• In the AGN activity analysis, we showed that the AGN-induced nuclear outburst energy is ∼2.14 × 10⁵⁵ erg; while the gravitational binding energy is ∼3.97 × 10⁵⁶ erg. We conclude that the comparable energies suggest that AGN significantly facilitates the stripping of the original galaxy atmosphere.

• We state that the chemical enrichment history of galaxies is still a matter of debate. Based on our results, we argue a possible scenario that would explain the potential super-Solar abundance ratios. However, this scenario does not explain such a composition universally. For instance, an atmosphere of similar infalling galaxy NGC 1404 exhibits Solar abundance ratios. We show that in M89 the AGN activity might facilitate ram-pressure stripping, possibly clarifying the differences between the two galaxies.

This work shows the importance of studying low-mass systems in various dynamical states to improve our understanding of the chemical enrichment of the universe. Due to the relatively short exposure time of XMM–Newton, we were unable to investigate the spatial distribution of metals. In order to fully understand the metal mixing between the X-ray tail and the Virgo ICM, as well as the AGN-induced metal distribution in the galaxy core, a deeper observation by XMM–Newton is required. Future missions with higher spectral resolution, such as XRISM and Athena, will help us to significantly improve the systematic uncertainties in the measurements of the abundances of SN_CC products such as O, Ne, and Mg.

ACKNOWLEDGEMENTS

The authors thank the anonymous referee for constructive feedback that helped improve this paper. SK and ENE. would like to thank TUBITAK for the financial support under the 1002 project with code number 121F436. The research leading to these results has received funding from the European Union’s Horizon 2020 Programme under the AHEAD2020 project (grant agreement n. 871158). TP, NW, and J-PB were supported by GACR grant 21–13491X. The material is based upon work supported by NASA under award number 80GSFC21M0002. ENE would like to thank Bogazici University for their support through BAP project number 13760. This work is based on observations obtained with XMM–Newton, an ESA science mission with instruments and contributions directly funded by ESA member states and the USA (NASA). The scientific results reported in this article are based in part on data obtained from the Chandra Data Archive.

DATA AVAILABILITY

The original data discussed in this article can be accessed publicly from the XMM-Newton Science Archive (https://nxsa.esac.esa.int/nxsa-web/) and the Chandra X-ray Center (https://cda.harvard.edu/chaser/). The XMM–Newton and Chandra data are processed using the SAS software (https://www.cosmos.esa.int/web/xmm-newton/sas) and CIAO software (https://cxc.cfa.harvard.edu/ciao), respectively. Additional derived data products can be obtained from the main author upon request.

Footnotes

References

APPENDIX A: ABUNDANCE MEASUREMENT COMPARISON OF DIFFERENT TEMPERATURE MODELS

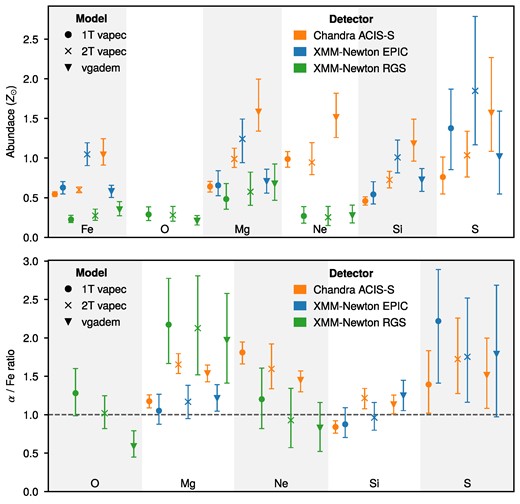

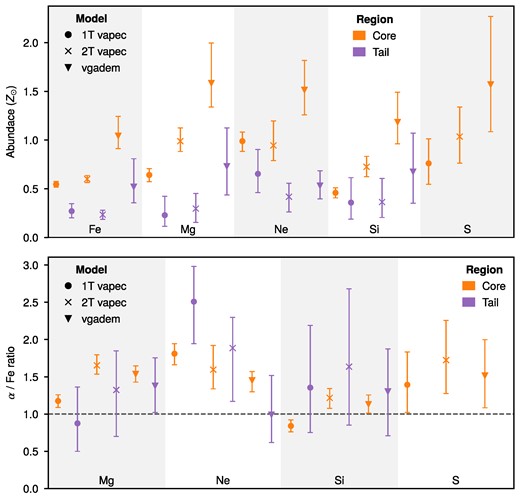

We present the abundance and α/Fe ratios from Table 2 for comparison. In Fig. A1, the abundance and ratios measured with 1T vapec, 1T 2 × vapec, and vgadem temperature models from ACIS-S, EPIC and RGS data are presented. Moreover, similar comparison plots of the Core and Tail regions derived with different temperature models are presented in Fig. A2. In this plot, the derived values are from ACIS-S data.
