The 40 pc sample of white dwarfs from Gaia

ABSTRACT

We present a comprehensive overview of a volume-complete sample of white dwarfs located within 40 pc of the Sun, a significant proportion of which were detected in Gaia Data Release 3 (DR3). Our DR3 sample contains 1076 spectroscopically confirmed white dwarfs, with just five candidates within the volume remaining unconfirmed (> 99 per cent spectroscopic completeness). Additionally, 28 white dwarfs were not in our initial selection from Gaia DR3, most of which are in unresolved binaries. We use Gaia DR3 photometry and astrometry to determine a uniform set of white dwarf parameters, including mass, effective temperature, and cooling age. We assess the demographics of the 40 pc sample, specifically magnetic fields, binarity, space density, and mass distributions.

1 INTRODUCTION

Stars with masses below ≈10 M_⊙ will eventually end their lives as white dwarfs. These stellar remnants have no hydrogen or helium left to burn in their cores, so they cool down for the remainder of their lifetimes. Therefore, the temperature of a white dwarf, which is determined using photometry or spectroscopy, is a proxy for the star’s cooling age (Hansen 1999; Fontaine, Brassard & Bergeron 2001; Althaus et al. 2010; Salaris et al. 2010; Bédard et al. 2020). Total age and therefore stellar formation history can then be reconstructed from the relation between initial stellar mass and white dwarf final mass (Weidemann & Koester 1983; Catalán et al. 2008; Williams, Bolte & Koester 2009; Cummings et al. 2018; El-Badry, Rix & Weisz 2018).

Some of the brightest and closest white dwarfs to the Sun were identified and observed spectroscopically as long ago as the 1910s. However, the white dwarf luminosity function peaks at faint magnitudes, and therefore most white dwarfs are cool and faint. The lack of precise parallax measurements for such faint stars meant that identifying nearby white dwarfs has been historically challenging. Within the last two decades, many local white dwarfs have been discovered through spectroscopic and photometric observations (Bergeron, Ruiz & Leggett 1997; Bergeron, Leggett & Ruiz 2001; Liebert, Bergeron & Holberg 2005; Kawka & Vennes 2006, 2012; Gianninas, Bergeron & Ruiz 2011; Sayres et al. 2012, and others). The Research Consortium on Nearby Stars (RECONS) produced a dedicated series of explicit searches for local white dwarfs based on parallax measurements (Subasavage et al. 2007, 2008, 2009, 2017). Studies of the local white dwarf population within 13, 20, and 25 pc volumes were carried out by Holberg, Oswalt & Sion (2002), Holberg et al. (2008, 2016), and Giammichele, Bergeron & Dufour (2012). The first dedicated effort to identify white dwarfs within a 40 pc volume by Limoges, Bergeron & Lépine (2015) was limited to the northern hemisphere, and resulted in 281 new discoveries for a total of 492 white dwarfs estimated to be within 40 pc.

Following Gaia DR2, the first all-sky Gaia catalogues of white dwarf candidates with precise parallaxes were released (Jiménez-Esteban et al. 2018; Gentile Fusillo et al. 2019). Hollands et al. (2018b) compiled and analysed the volume-complete 20 pc white dwarf sample from Gaia DR2. Gaia DR3 has further improved our understanding of the local stellar population within 100 pc, which is nearly volume-complete (Gaia Collaboration 2021; Gentile Fusillo et al. 2021; Jiménez-Esteban et al. 2023). Meanwhile, almost every white dwarf candidate within the smaller 40 pc volume has now been confirmed with optical spectroscopy at medium resolution (R > 1000) and high signal-to-noise (S/N) of >30.

Tremblay et al. (2020) used the Gaia DR2 white dwarf catalogue from Gentile Fusillo et al. (2019) to confirm 179 new white dwarfs within 40 pc, mostly in the northern hemisphere. O’Brien et al. (2023) used the updated Gaia DR3 white dwarf catalogue from Gentile Fusillo et al. (2021) to confirm 203 new white dwarfs within 40 pc, mostly in the southern hemisphere. With the additional 15 new observations presented in this work, the nature of 1078 Gaia white dwarf candidates out of the 1083 from the Gentile Fusillo et al. (2021) white dwarf catalogue have now been spectroscopically confirmed within 40 pc. Just two of these are main-sequence contaminants (O’Brien et al. 2023) and the other 1076 are white dwarfs. Therefore, the Gaia DR3 40 pc white dwarf sample now has 99.3 per cent spectroscopic completeness. In addition, the completeness of the Gaia DR3 white dwarf selection from Gentile Fusillo et al. (2021) at 40 pc is estimated to be ≈ 97 per cent based on pre-Gaia surveys and population synthesis (Toonen et al. 2017; Hollands et al. 2018b; McCleery et al. 2020, and this work). The 40 pc white dwarf sample is the largest ever volume-limited sample of white dwarfs with medium-resolution optical spectroscopic follow-up. As noted by Gentile Fusillo et al. (2021), reddening effects for white dwarfs closer than 40 pc are essentially negligible, and therefore no correction is made for reddening in this work.

White dwarf volume samples have been found to have several practical advantages for deriving astrophysical relations, despite suggestions that volume samples reflect a highly sub-optimal selection function (Rix et al. 2021). First and foremost, decades of spectroscopic and spectropolarimetric follow-up work for nearby white dwarfs allows the derivation of stellar parameters that are more precise and accurate than white dwarfs at larger distances (Bergeron et al. 2019; McCleery et al. 2020; Bagnulo & Landstreet 2022). Furthermore, white dwarfs with cooling ages >5 Gyr rapidly become fainter than the Gaia magnitude limit at distances larger than 40–100 pc, resulting in increasingly age- and mass-biased samples. Older and heavier white dwarfs that have long cooling ages and short main-sequence lifetimes are intrinsically faint and only seen in the local volume, yet those provide a robust test of old planetary systems (Hollands, Gänsicke & Koester 2018a; Hollands et al. 2021; Kaiser et al. 2021; Blouin & Xu 2022; Elms et al. 2022) and stellar evolution models, e.g. using wide binaries (El-Badry, Rix & Heintz 2021; Qiu et al. 2021; Heintz et al. 2022; Moss et al. 2022).

The star formation history of the disc of the Milky Way has been determined using white dwarfs (Fantin et al. 2019, and references therein). Recently, Cukanovaite et al. (2023) derived the star formation history of the Galactic disc from the 40 pc white dwarf sample. They find that a uniform stellar formation history with one galactic component provides a good fit to the Gaia G-magnitude distribution of the white dwarfs in this local volume. Local white dwarf samples have been used to study the evolution of magnetism in stars and the origin of magnetic white dwarfs (Bagnulo & Landstreet 2020, 2022; Ferrario, Wickramasinghe & Kawka 2020; Hardy, Dufour & Jordan 2023a), the initial–final mass relation (IFMR; El-Badry, Rix & Weisz 2018), core crystallization (Cheng, Cummings & Ménard 2019; Tremblay et al. 2019b; McCleery et al. 2020; Kilic et al. 2020b; Blouin, Daligault & Saumon 2021), white dwarf spectral evolution, convective mixing and carbon dredge-up (Blouin et al. 2019; Cunningham et al. 2020; Ourique et al. 2020; López-Sanjuan et al. 2022a; Camisassa et al. 2023; Blouin, Bédard & Tremblay 2023a; Blouin et al. 2023b), and binary evolution and gravitational wave background predictions (Toonen et al. 2017; Hollands et al. 2018b; Rebassa-Mansergas et al. 2021; Korol, Belokurov & Toonen 2022; Torres et al. 2022; Kupfer et al. 2023).

With the updated Gaia DR3, and the improvement in spectroscopic completeness of the southern 40 pc white dwarf candidates from O’Brien et al. (2023), we now present a study of the full unbiased sample of white dwarfs within 40 pc of the Sun. This follows upon McCleery et al. (2020) who previously used Gaia DR2 to study the 40 pc northern hemisphere sample. Larger 100 pc volume samples have also been studied, including the white dwarf sample in the SDSS footprint (Kilic et al. 2020b; Caron et al. 2023), and the Gaia DR3 sample of low resolution spectra (García-Zamora, Torres & Rebassa-Mansergas 2023; Jiménez-Esteban et al. 2023; Vincent et al. 2023). However, these samples have a significantly lower volume completeness than the present 40 pc sample in terms of high S/N and medium resolution spectroscopy.

Section 2 describes the 40 pc white dwarf sample, considering the Gaia-identified white dwarfs as well as those that are not in the Gentile Fusillo et al. (2021) Gaia-based catalogue. Section 3 discusses aspects of the 40 pc white dwarf sample, including binarity, magnetism, pollution from planetary debris, and space density. We conclude in Section 4.

2 THE 40 PC SAMPLE

The 40 pc white dwarf sample, as discussed in this work, refers to all white dwarf candidates from the Gentile Fusillo et al. (2021) catalogue, selected from Gaia DR3, within 40 pc of the Sun that have been spectroscopically confirmed. The Gaia 40 pc white dwarf sample, with 1076 members, is listed in the online material (Table A1). A description of the contents of the online material is in Table 1. We follow a similar format as the table A1 from McCleery et al. (2020). Unless specified, our analysis in this work only considers the white dwarfs in this main Gaia-identified sample (Gentile Fusillo et al. 2021). We adopt the WD Jhhmmss.ss ± ddmmss.ss naming convention introduced in Gentile Fusillo et al. (2019), and we also use the shorthand notation: WD Jhhmm ± ddmm for simplicity. We make a noise cut in Gaia DR3, and find ≈18 000 sources within 40 pc. We select sources with parallax_over_error > 1 and outside the Galactic plane astrometric_excess_noise < 1.5 but within the Galactic plane astrometric_excess_noise < 1. Therefore, we note that about 6 per cent of stars in the local volume are white dwarfs. This result is consistent with the complete RECONS 10 pc sample, for which 6 per cent (19 out of 316) stars are white dwarfs (Henry et al. 2018).

There are an additional five sources which are white dwarf candidates without spectroscopic follow-up within 40 pc. There are 15 confirmed and candidate white dwarfs within 1σ_ϖ of 40 pc. There are 28 known white dwarfs that did not make the cut of Gentile Fusillo et al. (2021), mostly due to photometric contamination from nearby bright stars. In Sections 3.3 and 3.4, we specify that we will be including all white dwarfs and candidates from these tables alongside the main 40 pc white dwarf sample, for completeness in our analysis. we specify that we will be including all white dwarfs and candidates from these tables alongside the main 40 pc white dwarf sample, for completeness in our analysis.

There are also more general issues with the Gaia photometric parameters caused by the low-mass issue in models, and which we correct for in our Table A1 and discuss in Section 2.1. For our main Gaia-defined 40 pc sample, there are some white dwarfs which are very cool or have contaminated photometry for which we do not include the effective temperature (T_eff) and surface gravity (log (g)) determined from fitting Gaia photometry in Table A1. We discuss the reasons for these issues in Section 2.2. Fig. 1 shows a Gaia Hertzsprung–Russell (HR) diagram of the full 40 pc sample, including evolution models, where candidate white dwarfs and those with unreliable Gaia parameters are highlighted.

The core of a white dwarf is usually comprised of a combination of carbon and oxygen, or oxygen and neon, surrounded by an envelope of helium and hydrogen. It will also have a thin atmosphere dominated by either hydrogen or helium and occasionally contaminated by trace elements. The spectral type of a white dwarf is determined from the strength of atomic lines from optical spectroscopy (Sion et al. 1983). When hydrogen lines are the strongest optical features, it is classified as a DA. Neutral helium gives the classification DB, and a DO implies the detection of ionized helium lines. DQ white dwarfs have detectable carbon, which is typically dredged up from the stellar interior or brought to the surface during a merger (hot DQ), and DZ white dwarfs display metal pollution which is generally attributed to planetary debris. A DC white dwarf has a completely featureless spectrum. Combinations of these letters in an overall spectral type can form a picture of the white dwarf’s atmospheric composition, however they may not reflect the relative abundances of each element, and depend on S/N and resolution of the spectra (Doyle et al. 2023). Additionally, below 10 500 K helium lines are no longer visible, and below 5000 K hydrogen lines also disappear in a white dwarf spectrum. Therefore, the atmospheric composition for a white dwarf cooler than 5000 K, where both hydrogen and helium lines are absent, is generally uncertain.

Every white dwarf in our sample is classified into a spectral type with a published reference which, coupled with a careful inspection of prior spectral modelling (see e.g. Limoges, Bergeron & Lépine 2015; Tremblay et al. 2020; O’Brien et al. 2023) and a comparison with Gaia photometric parameters (Gentile Fusillo et al. 2021), informs the atmospheric composition (H- or He-rich; column 12). We use this composition to identify the appropriate set of Gaia photometric parameters determined by Gentile Fusillo et al. (2021). In Table 2 we show the adopted atmospheric composition for every spectral type in the 40 pc white dwarf sample.

We provide a wide binary catalogue in the online material, for which we show all known 40 pc wide multiple-star systems where at least one component is a white dwarf. Multiple-star systems are discussed in detail in Section 3.3.

We adopt an atmospheric composition of log (H/He) = −5 (in number of atoms) for T_eff > 7000 K white dwarfs with He-dominated atmospheres, as a pure-He composition does not reproduce the B-branch bifurcation seen in the Gaia HR diagram for white dwarfs above this T_eff (Bergeron et al. 2019). The H in this composition is typically below the optical spectroscopic detection limit. Blouin, Bédard & Tremblay (2023a) and Camisassa et al. (2023) have demonstrated that an atmospheric composition of He with trace C below the optical detection limit better reproduces the bifurcation. Both trace C and H contribute to increase the number of free electrons, and hence the strength of the He⁻ free–free opacity at optical wavelengths (e.g. Provencal et al. 2002). Therefore, the effects of C and H are fully degenerate for individual white dwarfs, unless detailed abundances are available, e.g. C/He for DQ stars, or H/He for a handful of He-rich DA or DZA. As a consequence, we continue to adopt the H/He mixed model atmospheres (McCleery et al. 2020) to account for the effect of both H and C in He-rich atmospheres, where log (H/He) = −5 reproduces the median position of the B-branch. We opt to not use models with tailored atmospheric compositions for DZ and DQ white dwarfs for the reasons explained above and homogeneity, as these models change the Teff and mass by less than 3 per cent and 0.05 Msun, respectively, in the majority of cases. See Blouin & Dufour (2019), Coutu et al. (2019) and Caron et al. (2023) for abundances and parameters of DQ and DZ white dwarfs calculated using tailored models, some of which overlap with the 40 pc sample presented in this work. The presence of large abundances of metals in cool He-dominated atmospheres can have a significant effect on the derived T_eff and log (g) (e.g. Dufour et al. 2010; Izquierdo et al. 2023).

Below ≈ 7000 K, models with log (H/He) = −5 composition start to develop bluer colours (Gentile Fusillo et al. 2020; Bergeron et al. 2022) due to collision-induced absorption (CIA), which is not observed in the large majority of white dwarfs in the local sample. This could be a consequence of using H as a proxy for C in the model atmospheres, as carbon is not predicted to contribute to any infrared (IR) opacity. The spectral evolution of trace H and C abundances in He-rich atmospheres at cool temperatures remains only partially understood (Blouin & Dufour 2019; Bergeron et al. 2022). Hydrogen would need to be almost fully removed from He-rich models to fit most Gaia observations, which is at odds with our current understanding of spectral evolution (Blouin, Bédard & Tremblay 2023a), or H₂-He CIA opacity could be modified to match the observations (Bergeron et al. 2022). Instead of using ad-hoc corrections, we continue to employ pure-helium models for He-rich atmospheres below 7000 K, which fit reasonably well to the Gaia white dwarf cooling track (Fig. 1).

Below 5000 K, the large majority of white dwarfs are of the DC spectral type, and the atmospheric composition is unconstrained from spectroscopy alone. Optical and IR photometry shows a single homogeneous cool white dwarf population (Gentile Fusillo et al. 2020), not enabling the separation between H- and He-rich atmospheres from photometry alone. This might be evidence for spectral evolution to H-rich composition for the vast majority of cool white dwarfs (Caron et al. 2023), although there is no direct evidence nor models that predict that spectral evolution takes place in this temperature range. Rather, evidence from the cool DZ population, where the broadening of metal lines depends on atmospheric composition, suggests that both H- and He-rich atmospheres are frequent below 5000 K (Dufour et al. 2007; Blouin et al. 2018; Hollands et al. 2021; Kaiser et al. 2021; Elms et al. 2022), plausibly at the He-rich/H-rich frequency of ≈ 30 per cent seen in the warmer range 7000 ≳ T_eff ≳ 5000 K (Blouin et al. 2019; McCleery et al. 2020; López-Sanjuan et al. 2022a). For simplicity, we use pure-H models for all DC white dwarfs with T_eff < 5000 K as both pure-H and pure-He models predict similar Gaia fluxes in this range (Fig. 1).

2.1 Correction to mass and effective temperature

A population of white dwarfs evolved from single star evolution is expected to have an essentially constant median mass, independent of temperature (Tremblay et al. 2016). This is in contrast with atmosphere-modelled observations, where there is a low-mass issue found when fitting white dwarf optical photometry.

White dwarfs with H-rich and with He-rich atmospheres that are cooler than ≈ 6000 K are found to have significantly lower masses than the canonical ≈ 0.6 M_⊙ value (Hollands et al. 2018b; Bergeron et al. 2019; Blouin et al. 2019; McCleery et al. 2020; Hollands et al. 2021), most likely due to inaccuracies of opacities in the atmospheric models (Caron et al. 2023), for example a problem with the red wing of Ly α. If we assume instead that these cool low-mass white dwarfs are unresolved WD + WD binaries, the implication of a trend to lower masses as a function of age is that more binaries formed at a certain time in the past and dominate only at a specific temperature or age. This is not consistent with binary evolution theory, and therefore it is more likely that the low-mass trend is caused by incorrect opacities.

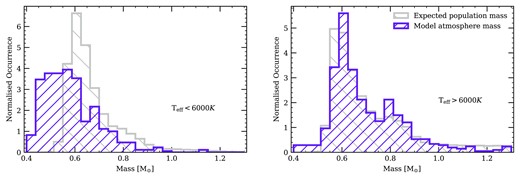

The low-mass issue is demonstrated in Fig. 2, where the 40 pc mass distribution determined from Gaia photometry is compared with synthetic white dwarf masses from Cunningham, Tremblay & O’Brien (2024). The synthetic mass distribution is formed from a Monte Carlo simulation of a Galactic disc population of main-sequence stars put through an IFMR based on the 40 pc sample. There is only a small difference between the synthetic masses for cool and warm white dwarfs, however, in the atmosphere-modelled observations we see a strong excess of lower-mass white dwarfs below 6000 K.

2.1.1 Effect of changing the Ly α opacity

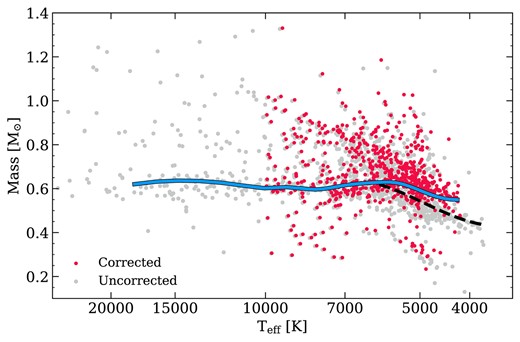

We test the effect of correcting opacities in the atmosphere models on the masses determined from Gaia photometry. The dominant opacities at optical wavelengths (0.3–1.0 μm) for a pure-H atmosphere at ≈ 4000 K (see fig. 17 of Saumon, Blouin & Tremblay 2022) are the red wing of Ly α (Kowalski & Saumon 2006; Rohrmann, Althaus & Kepler 2011) and H⁻ bound-free. CIA opacity is dominant in the IR, and hence can also indirectly influence the overall optical flux by energy redistribution.

We have recomputed our grid of pure-H model atmospheres and spectra by multiplying the overall Ly α H-H₂ opacity of Kowalski & Saumon (2006) by an illustrative factor of five. The resulting Gaia parameters for white dwarfs with T_eff < 10 000 K are shown in Fig. 3. The results of this change in opacity demonstrate that a possible uncertainty in the strength of this opacity at visible wavelengths is a plausible explanation for the low-mass issue observed in cool white dwarfs in the optical. However, despite this, the median mass following this correction, as shown in Fig. 3 is not constant for cooling white dwarfs and therefore would need further tweaking.

2.1.2 Ad-hoc correction

Missing and incorrect opacities in low-T_eff and high-pressure white dwarf atmospheres is a major challenge for the research area (Saumon, Blouin & Tremblay 2022), and it is out of the scope of this work to attempt to solve these issues. Therefore, in order to obtain the expected constant median mass for cooling white dwarfs, we choose to apply an ad-hoc Gaia mass and T_eff correction on all the white dwarfs in our sample that have an initial Gaia T_eff less than 6000 K, the effect of which is shown in Fig. 4. Correcting the mass and T_eff in this way enables us to proceed with meaningful analysis of the volume-complete sample, for which 45 per cent of white dwarfs have T_eff < 6000 K and would otherwise have unreliable masses from photometry.

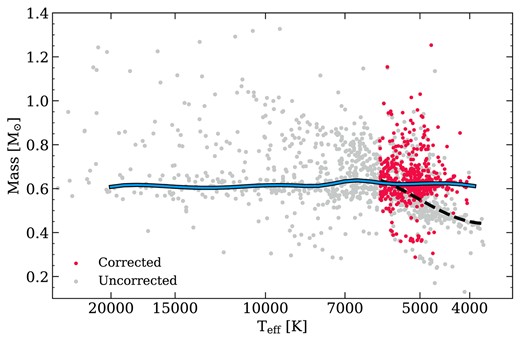

For our correction, we first fit a function to the median mass distribution of white dwarfs with T_eff values below 6000 K (shown by the black dashed line in Fig. 4). When calculating median masses as discussed here, we remove double degenerate candidates and those white dwarfs on the crystallization sequence, to ensure we are correcting to the canonical ≈ 0.6 M_⊙ value. We then fit a correction function so that the median mass as a function of T_eff tends towards the canonical mass, which is the median mass in the stable range of 8000 < T_eff < 13 000 K (shown by the solid blue line in Fig. 4). We then apply this mass correction to all white dwarfs with T_eff < 6000 K.

Once the mass has been corrected, the corresponding T_eff must be corrected according to the white dwarf mass-radius relation (Bédard et al. 2020) and the Stefan–Boltzmann law to reproduce its known luminosity. For all analysis in this paper, Gaia mass and T_eff have been corrected using this method. Given a mass correction, the radius correction will be roughly the same at all masses up to 1.1 M_⊙, which includes every white dwarf with T_eff < 6000 K in our sample, hence we do not include a mass dependence in the correction.

The function we use to correct the Gaia masses for T_eff < 6000 K is a fifth-order polynomial,

where T_{eff, i} is the initial uncorrected T_eff. The corrected mass will therefore be

where M_i is the initial uncorrected mass, M_med is the median of the canonical mass in the stable mass range (0.63 M_⊙ for this sample), and M_c is the final corrected mass.

After applying equations (1) and (2), we then correct the T_eff by combining the white dwarf mass–radius relation and the Stefan–Boltzmann law,

where T_{eff, c} is the corrected T_eff.

Following our correction, the median mass for standard single white dwarfs (solid blue line in Fig. 4) is relatively constant as T_eff decreases, which is as expected. There is a small increase around 7000 K due to the overlap of the crystallization sequence with the canonical-mass white dwarfs.

Due to their the ad-hoc nature, these corrections are only applicable to masses determined from Gaia photometry. The analysis presented in this work relies on Gaia mass and T_eff values that have been corrected in this way. Columns 19 and 20 of Table 1 correspond to these corrected mass and T_eff values respectively, where the statistical uncertainties should be taken to be the same as those without corrections. We also provide mass and T_eff values that have not been corrected in Table 1. Ad-hoc mass corrections have been used in past white dwarf studies, e.g. Bergeron et al. (1994) and Giammichele, Bergeron & Dufour (2012), for other issues that have now been largely resolved with better models (Tremblay & Bergeron 2009; Tremblay et al. 2013).

2.2 White dwarfs with unreliable Gaia masses and temperatures

We do not provide Gaia T_eff, log (g) and mass in our main catalogue for 25 white dwarfs in the 40 pc sample. These white dwarfs are listed in Table A5 and correspond to the purple diamond points in Fig. 1. For some, their Gaia photometry has been contaminated by a bright main-sequence star which is either a companion or a background object.

Many of these white dwarfs display signs of CIA which greatly affects the shape of their spectral energy distributions. White dwarfs displaying strong CIA opacity are classified as IR-faint (Kilic et al. 2020b; Bergeron et al. 2022; Elms et al. 2022). The parameters of these IR-faint white dwarfs are heavily dependent on the atmosphere models used to fit them, since different codes use different microphysics to account for the extremely dense atmospheres of these stars. Due to their positions on the Gaia HR diagram, these white dwarfs are potentially ultracool (T_eff < 4000 K). However, Bergeron et al. (2022) suggest that many IR-faint white dwarfs are warmer than 4000 K. Spectral features caused by metal pollution enable a more accurate determination of parameters in these white dwarfs displaying CIA (Elms et al. 2022), but in most cases their spectra are featureless.

There are also two white dwarfs in for which strong molecular carbon absorption bands dramatically affect the Gaia colours of the white dwarf. Therefore, we do not consider the parameters from Gaia photometric fitting of these white dwarfs to be reliable.

2.3 New spectroscopic observations

We present 16 new white dwarfs within 40 pc for which there are no previous spectroscopic observations at medium resolution or higher. Their parameters are presented in Table 3. We used the following spectroscopic instruments to confirm these new candidates: the High Resolution Echelle Spectrometer (HIRES) on the Keck 10-m telescope (Vogt et al. 1994), the Kast Double Spectrograph on the 3-m Shane telescope, the Magellan Echellete (MagE), and Magellan Inamori Kyocera Echelle (MIKE) instruments on the 6.5-m Magellan telescopes (Marshall et al. 2008), and X-Shooter spectrograph on the VLT (Vernet et al. 2011). We also present new spectra of stars previously confirmed as white dwarfs, where spectral types have been updated following higher-resolution or wider wavelength coverage of the new spectra.

Spectra of the following white dwarfs are shown in the online material: a cool DQpec and a cool DC observed with X-Shooter; two DZ(A)(H) white dwarfs observed with HIRES; hydrogen Balmer lines from DA and DAZ white dwarfs; Ca ii H + K lines in the DAZ white dwarfs; and many new Kast spectra. Following the addition of these 16 new white dwarfs to our sample, the Gaia 40 pc sample has 1076 confirmed white dwarfs out of 1083 candidates from Gentile Fusillo et al. (2021). There are two confirmed main-sequence star contaminants in the sample (O’Brien et al. 2023), designated as WD J092424.45 − 181859.87 and WD J173230.79 − 171033.14 in Gentile Fusillo et al. (2021), which leaves five candidates without spectroscopic follow-up (see Section 2.4 for details).

We determine equivalent widths of the Ca ii K lines in WD J0213 − 3345 and WD J1154 − 6239, as 450 and 220 mÅ, respectively. We present best-fitting results from the combined spectra and available photometry alongside metal abundances for the DAZ white dwarfs in the online material. These Ca ii lines are not likely to be interstellar in origin, given that in both cases the radial velocities of the lines are in agreement with the photospheric velocity as best as it can be determined from H α.

WD J0213 − 3345 had moved to within 1.1 arcsec of an equally bright star during the epoch of the Gaia observations (Hollands et al. 2018b). In Gaia DR3, this star has a renormalized unit weight error (RUWE) of 1.8. Therefore, the Gaia photometry is likely contaminated. In our combined fit, we incorporate APASS photometry from 2012 and 2MASS photometry from 2003, which are likely to be less contaminated given the proper motion of 0.4 arcsec yr⁻¹.

WD J2236 − 0140 was theorized to be a highly magnetic DAH white dwarf in O’Brien et al. (2023), but due to the limited resolution and coverage of the available spectrum, its field strength could not be constrained. Using the Kast spectrum, we confirm that this white dwarf is indeed a high-field DAH.

WD J2317 − 4608 is a DQpec white dwarf with strong carbon features. It has a wide main-sequence companion separated by 330 au (6 arcsec on-sky separation), which has contaminated the infrared photometry of the white dwarf, and the Gaia RP colour is also potentially affected by the companion. For this reason, we fix the log (g) and determine the T_eff (4075 K) and carbon abundance. Our models do not account for the distortions of the carbon Swan bands, which is associated with the DQpec class. Therefore, the model does not accurately trace the carbon features. With an absolute Gaia G value of this white dwarf of 16.40, this star is significantly fainter than any DQ in the Montreal White Dwarf Database (Dufour et al. 2017), and therefore is potentially the coolest confirmed DQ white dwarf with a calculated carbon abundance.

WD J0235 − 3032 is an IR-faint DC white dwarf that displays strong signs of CIA. Only Gaia and Pan-STARRS photometry are available for this white dwarf, so we cannot accurately constrain its T_eff, mass and atmospheric composition without near-IR photometry. Similarly, WD J0506 + 5903 is also a very blue, IR-faint white dwarf.

WD J2141 − 3300 and WD J1927 − 0355 are highly metal-polluted white dwarfs with He-dominated atmospheres. The Gaia photometry of these stars indicates T_eff ≈ 7000 K and log (g) = 8 for both objects, assuming no metals. However, the spectra show very strong features that influence the photometry. WD J2141 − 3300 is commonly known as WD 2138 − 332 and was discovered as a polluted white dwarf by Subasavage et al. (2007). WD J1927 − 0355 was first identified as polluted by the Kast spectrograph, and was followed up with the HIRES instrument.

The HIRES data of WD J2141 − 3300 were reduced using PyRAF following Klein et al. (2010), and those for WD J1927 − 0355 were reduced with the MAKEE pipeline. Both stars are cool DZs with very strong and broad features, especially blueward of 4000 Å, where there is nowhere any continuum. Thus for the echelle spectra we followed Klein et al. (2011), as well as visually comparing with lower resolution spectra to align, trim, and merge the echelle orders to obtain a continuous output spectrum. In particular, continuum fits of the calibration stars BD + 28 4211, G191−B2B, and EGGR 131, were used to model and divide out the instrumental response function. The overall continuum levels and slopes resulting from these procedures are not absolutely calibrated, so we applied large-scale adjustments to absolute flux levels and slopes to improve display with the models. In our best-fitting models, we have set the hydrogen abundance log (H/He) = −3.5. The spectra, best-fitting models, parameters, and metal abundances for these white dwarfs are provided in the online material. Further analysis of the accreted material observed in these two stars will be presented in a future paper.

WD J1719 + 3639 was observed with the Kast spectrograph. It appears to show features resembling carbon Swan bands. The spectrum of WD J1719 + 3639 is similar to that of SDSS J161847.38 + 061155.2, which was designated as a problematic DQpec object by Blouin & Dufour (2019). We also tentatively classify this white dwarf as a DQpec. WD J1029 + 1257 was also observed with the Kast spectrograph. This star has distorted Ca ii H + K-lines that are indicative of a magnetic field, and therefore we classify this star as a DZH.

We present three new cool DC white dwarfs which have high-resolution echelle spectra from the MIKE instrument on the Magellan telescope. One of these is a newly confirmed white dwarf that lies within 1σ_ϖ of 40 pc, WD J1935 − 0725. We confirm that these white dwarfs have the spectral type DC because there is no indication of an H α feature even with such high resolution data.

2.4 White dwarfs missing from our 40 pc spectroscopic sample

There are five candidate white dwarfs in the catalogue of Gentile Fusillo et al. (2021) that are within 40 pc but do not have medium or high-resolution spectroscopic observations to confirm their classification. These are presented in Table A2. Three of these five candidates have low-resolution Gaia spectra available. However, the low S/N of the Gaia spectra mean that spectral features are not resolved and these objects cannot be confirmed as white dwarfs. Therefore, medium-resolution spectroscopy with a higher S/N is still required to confirm these candidates.

Two of these objects have a white dwarf probability factor (P_WD) < 0.75 from Gentile Fusillo et al. (2021). WD J0812 − 2616 has a P_WD of 0.303, and has astrometric noise greater than 5 mas. WD J0413 − 2122 has a P_WD of 0.657. Both candidates have low Gaia log (g) values. Fitting unresolved double degenerate systems as if they are single stars causes their log (g) and mass to be underestimated, so these two candidates are likely unresolved double degenerates.

The other three candidates have P_WD > 0.75. WD J1150 + 2404 is potentially a very red and ultracool white dwarf. The SDSS g − z colour for WD J2246 − 0609 of almost 6.0 is consistent with an isolated brown dwarf and as such it is likely a contaminant in the white dwarf sample. WD J0959 − 5027 is likely to be a standard 7000 K white dwarf, but is in the Galactic plane so is difficult to observe spectroscopically.

There are also 15 known white dwarfs within 1σ_ϖ of 40 pc, 12 of which have been spectroscopically confirmed. We present these white dwarfs in Table A3. All white dwarfs were taken from the catalogue of Gentile Fusillo et al. (2021), except WD J0548 − 7507 (see O’Brien et al. 2023 for details). We include these stars in our statistical analysis of the space density of white dwarfs, for completeness (see Section 3.4).

There are 28 known white dwarfs within 40 pc that are not present in the catalogue of Gentile Fusillo et al. (2021). These objects are presented in Table A4. Not all white dwarfs in this list are spectroscopically confirmed, as some were detected from radial velocity variations in main-sequence stars, rendering spectral classification difficult. Binaries will be discussed further in Section 3.3.

The star WISE 1028 − 6327 is tentatively classified as a DAZ white dwarf in Kirkpatrick et al. (2016), but is missing from the Gentile Fusillo et al. (2021) catalogue. Its very faint absolute magnitude of G_abs = 18.5 is not consistent with a DA white dwarf and the JHK flux is consistent with a M dwarf or brown dwarf. The spectrum shown in Kirkpatrick et al. (2016) is not consistent with a binary (white dwarf + M dwarf) or the Gaia colours. Therefore, we do not include this white dwarf in our 40 pc list.

2.5 Spectroscopic biases

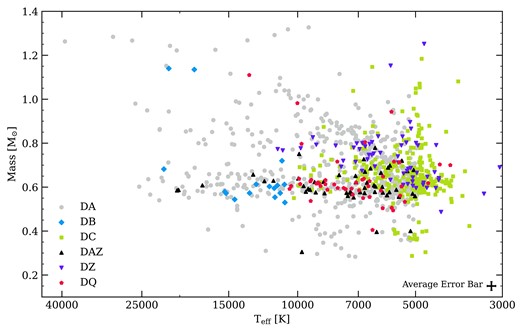

In Fig. 5 we show the full Gaia 40 pc white dwarf sample with spectral types indicated. We include those white dwarfs with Gaia photometric parameters, as well as those with unreliable Gaia atmospheric parameters for completeness, and for which we take parameters from the literature. For the analysis in this paper based on white dwarf mass and T_eff, we only consider white dwarfs that have reliable parameters determined from Gaia photometry, to keep the sample parameters homogeneous.

The 40 pc Gaia white dwarf sample is spectroscopically heterogeneous − spectra confirming the white dwarfs in the sample have been collected from a wide range of instruments with varying resolution and wavelength coverage. In almost all cases, spectral types are taken from optical medium-resolution (R >1000) spectroscopy at S/N > 30. In many cases, the white dwarf has been observed multiple times at different facilities, and not all observations found in public archives are published. Therefore, it is outside of the scope of this work to list the average or best-achieved S/N, instrumental resolution and wavelength coverage for the white dwarfs in the sample.

There are inherent issues with using a spectroscopically heterogeneous sample. Not every white dwarf has been observed with the resolution required to identify very weak signatures of metal pollution in the Ca ii H + K lines, like the kind seen in the high-resolution survey of DA white dwarfs from Zuckerman et al. (2003). Similarly, not every white dwarf has spectropolarimetric observations or has observations at the resolution required to see faint Zeeman splitting of the spectral features, meaning the magnetic subsample is currently incomplete. Some DC, DB, and DZ white dwarfs may display a weak H α feature which would not be detected without coverage of the H α region (O’Brien et al. 2023).

3 DISCUSSION

3.1 Spectral evolution

The atmospheric composition of a white dwarf can change with time due to physical processes including convection, atomic diffusion, and accretion. In Fig. 6, we study the evolution of the fraction of He-rich atmosphere white dwarfs as a function of T_eff. We note that there are few very young and hot white dwarfs in our sample, so we do not extend this study beyond 15 000 K. Below 5000 K there will be no visible H α line in the white dwarf spectrum, so the atmospheric composition cannot be directly constrained. Therefore, in Fig. 6 we also do not extend to T_eff below 5000 K. Our observations are consistent with earlier results for the 40 pc northern hemisphere sample (McCleery et al. 2020). The increase in incidence between 17 000 and 9000 K, which is marginal in the 40 pc sample, has previously been attributed to convective mixing using larger samples (Tremblay & Bergeron 2008; Cunningham et al. 2020; Ourique et al. 2020; Bédard et al. 2022a; López-Sanjuan et al. 2022a).

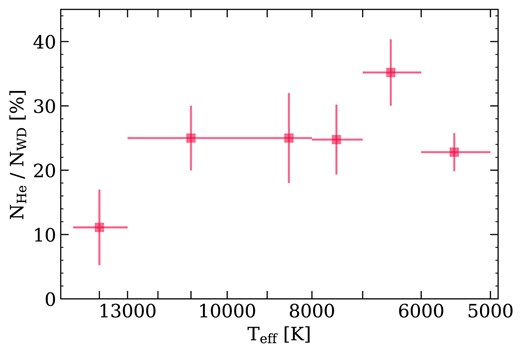

Fig. 6 suggests an increase in the fraction of He-atmosphere white dwarfs in the range 7000 > T_eff > 6000 K, although only at 1σ. This excess could be a consequence of model atmospheres with incorrect trace fractions of C and H (see Section 2), which in turn would result in an incorrect temperature scale. The temperature range 5000–6000 K has been referred to as the ‘non-DA gap’, where a decrease in the fraction of He-rich atmosphere white dwarfs was initially identified by Bergeron, Ruiz & Leggett (1997) and Bergeron, Leggett & Ruiz (2001). However, there is no clear evidence of spectral evolution in our observations at the 2σ level in the 40 pc sample, as shown in Fig. 6.

3.2 Mass distributions

Kilic et al. (2020b) produced a volume-like sample of DA white dwarfs within 100 pc in the SDSS footprint, with T_eff > 6000 K. In Fig. 7 we show that the peak of the mass distribution of our 40 pc sample with corrected photometric Gaia masses is in a similar position to that of the 100 pc SDSS sample, where photometric masses were derived from SDSS u, Pan-STARRS grizy and Gaia DR2 parallaxes (Kilic et al. 2020b).

Kilic et al. (2020b) observe a peak in the 100 pc DA mass distribution at 0.59 M_⊙, and a ‘shoulder’ at 0.7–0.9 M_⊙. In Fig. 7, we similarly fit two Gaussian curves, one to the main peak and one to the prominent shoulder of the 40 pc mass distribution. The main peak in our distribution sits at 0.61 M_⊙ with a standard deviation of 0.07 M_⊙. In Fig. 7 there is a notable secondary intermediate-mass peak, or shoulder, the cause of which remains elusive. Kilic et al. (2020b) have demonstrated, based on binary population synthesis models (Temmink et al. 2020), that the single white dwarfs formed from mergers cannot be the dominant explanation for a shoulder in the white dwarf mass distribution.

Kilic et al. (2020b) have suggested that the shoulder could be attributed to white dwarf core crystallization, although our sample is volume complete and crystallization cooling delays should not influence the mass distribution as we plot all white dwarfs at all T_eff values. Furthermore, samples of warm, non-crystallized white dwarfs show this shoulder (Tremblay et al. 2016; Sahu et al. 2023). Fig. 5 also displays a distinct branch of 0.8–0.9 M_⊙ white dwarfs at 10 000–25 000 K, separated from the main distribution at 0.6 M_⊙, and the crystallization branch at higher masses. Another explanation given by Tremblay et al. (2016, 2019a) and El-Badry, Rix & Weisz (2018) is that the shoulder or secondary peak is caused by a flattening of the IFMR at initial masses |$3.5\le \rm {M}/\rm {M_\odot}\le 4.5$| (Cummings et al. 2018), leading to an accumulation of white dwarf at masses ∼0.8 M_⊙. This is possibly linked to the the onset of the second dredge-up in asymptotic giant branch stars (Marigo & Girardi 2007; Cummings et al. 2015).

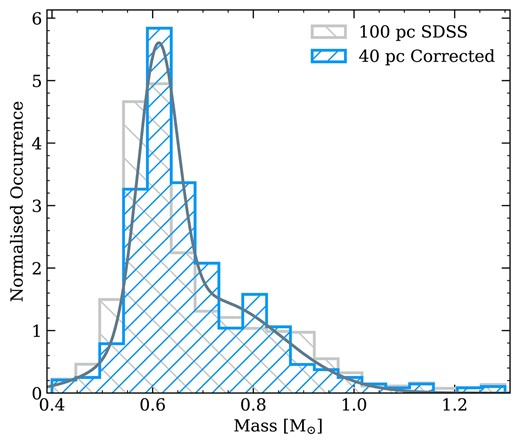

We have artificially corrected the photometric Gaia masses for white dwarfs with T_eff < 6000 K (see Section 2.1). The mean Gaia mass for white dwarfs with T_eff > 6000 K is 0.69 ± 0.01 M_⊙. The mean mass of the 40 pc northern sample from McCleery et al. (2020) for T_eff > 5000 K is slightly lower, 0.66 M_⊙; however, in the current full 40 pc sample the masses were corrected for T_eff < 6000 K so these means cannot be directly compared.

There are 33 white dwarfs in the sample with masses > 1 M_⊙ (3 per cent of the sample). Just over a third of these are magnetic, the impact of which is discussed in Section 3.6. Of these, 79 per cent have H-dominated atmospheres, which is comparable to the 72 per cent of the full sample with T_eff above 5000 K which have H-dominated atmospheres.

3.3 Multiple-star systems containing white dwarfs

Considering all known and candidate white dwarfs within 40 pc (see Section 3.4 for details), and considering all double degenerate candidates, we find that there are 209 multiple-star systems within 40 pc containing at least one white dwarf. Based on binary population synthesis models when considering a constant stellar formation history as was found for the 40 pc sample by Cukanovaite et al. (2023), we predict using Toonen et al. (2017) models that there should be 318–458 binary systems containing a white dwarf within 40 pc. This discrepancy partially originates from the lack of wide double white dwarfs which will be discussed in Section 3.3.1.

3.3.1 Wide binaries

We differentiate between wide and unresolved binaries based on whether they are resolved as separate sources in Gaia DR3 or not, where the Gaia on-sky resolution is 0.4 arcsec. We also discuss triple systems, for which at least one component is resolved in Gaia. In this section, we use WD to denote a white dwarf, MS to denote a main-sequence star, and BD to denote a brown dwarf. All wide binaries and higher order systems with at least one white dwarf companion within 40 pc are presented in the online material.

To search for resolved Gaia common proper motion companions to the white dwarfs in our sample, we used the same strategy as described in Hollands et al. (2018b) and McCleery et al. (2020). In short, we performed a cone-search for each white dwarf with a Gaia parallax greater than 25 mas, scaled by distance, for a projected separation of 1 pc and radial distance within 1 pc of the white dwarf. The tangential velocity difference is obtained using the difference in proper motion for the two stars as given in Gaia DR3. We recover 121 wide binaries and triples from this search, which are displayed in Fig. 8. We also recover 33 contaminant pairs in our search, which we remove. These sources either have large parallax errors, are in crowded regions of the Galaxy, or have unphysical separations in velocity-separation space if they are a binary pair. We show a dashed line on Fig. 8 which indicates the maximum difference in tangential velocity for a WD + MS binary system with component masses 1.4 and 2.5 M_⊙, respectively (Torres et al. 2022).

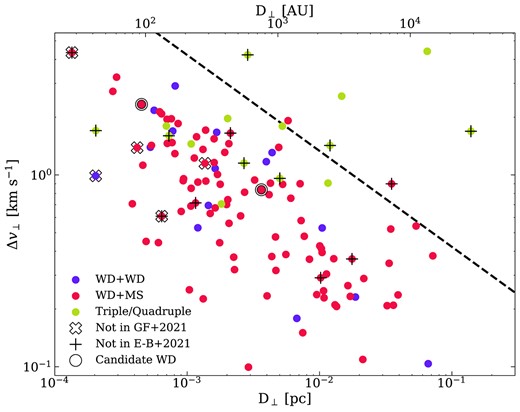

A few systems that are above the dashed line in Fig. 8 are known to be genuine wide systems, where their inconsistent separation and velocity difference is caused by higher-order multiplicity. WD J2101 − 4906 has a main-sequence companion that is itself an unresolved binary (Hollands et al. 2018b), and WD J1702 − 5314 also has an unresolved binary as a companion. WD J2004 + 0109 is a wide companion to a spectroscopic triple main-sequence system (Venner et al. 2023). WD J0103 + 0504 is an unresolved double white dwarf with a double main-sequence binary companion. We inspected systems lying near the dashed line in Fig. 8, and kept three such systems in our final wide binary catalogue for completeness.

There are six WD(+MS) + BD systems where the brown dwarf is not in Gaia DR3 (Leggett et al. 2015; Mace et al. 2018; Meisner et al. 2020; Zhang et al. 2020; Gonzales et al. 2022). There are three known quadruple systems: one of which comprises WD J0103 + 0504 which is a double degenerate, plus K-type stars HD 6101 A + B (McCleery et al. 2020); the other which has two resolved white dwarfs from Limoges, Bergeron & Lépine (2015) that are not in Gentile Fusillo et al. (2021; WD 0727 + 482A and B) with an unresolved pair of M-dwarfs as a wide companion. WD J2004 + 0109 is also part of a quadruple system as mentioned above. We add these to our list, alongside other known systems missing from Gaia, and therefore obtain 132 wide binaries, triples, and quadruples in total within 40 pc. These systems are classified as follows: 97 WD+MS, 15 WD+WD, 9 WD+MS+MS, 1 WD+WD+MS, 1 WD+WD+WD, 2 WD+WD+MS+MS, 1 WD+MS+MS+MS, 5 WD+BD, 1 WD+MS + BD. For eight of these systems, the white dwarf is missing from the catalogue of Gentile Fusillo et al. (2021), because the bright main-sequence companion affects the white dwarf colours or astrometry. These systems are shown as cross symbols in Fig. 8, where proper motions are available.

El-Badry, Rix & Heintz (2021) searched for wide binaries in Gaia DR3, but intentionally removed triple and quadruple systems. They do not recover seven WD + MS systems that we find in our cone search, for which Gaia proper motions were available for both stars. These are shown as plus symbols in Fig. 8. Five of these missing systems have a white dwarf that is in Gentile Fusillo et al. (2021). For one of these systems, the main-sequence star has a candidate close brown dwarf companion, which would make this system a triple (Díaz et al. 2012). Another missing system, ε Reticuli A + B, also has a close gas giant planet orbiting the main-sequence component (Butler et al. 2001).

Toonen et al. (2017) predict 169–228 resolved WD+MS systems within 40 pc, compared to the 97 that we observe, and 119–167 resolved WD+WD systems compared to the 15 that we observe. The notable lack of wide WD + WD systems in volume-limited samples compared to predictions from binary population models is discussed in Toonen et al. (2017), El-Badry, Rix & Weisz (2018), and McCleery et al. (2020).

We find two metal-polluted white dwarfs out of 90 (2 per cent) that are in wide binaries with projected separations between 120 and 2500 au, and two polluted white dwarfs out of 22 (10 per cent) in wide binaries with projected separations greater than 2500 au. The overall fraction of white dwarfs displaying signs of pollution within 40 pc is 11 per cent. Therefore, our findings are in line with predictions made by Zuckerman (2014), indicating that a close secondary star can suppress the formation or retention of a planetary system [see also Wilson et al. (2019) for further discussion].

3.3.2 Unresolved binaries

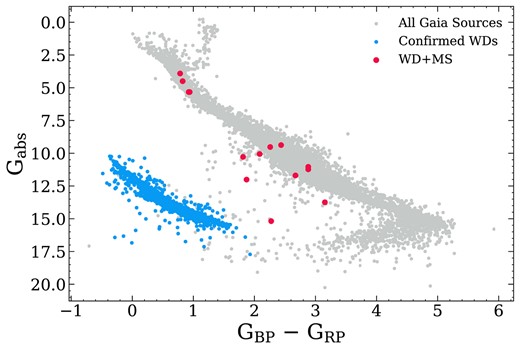

There are five unresolved WD + MS systems in the Gaia 40 pc sample that have white dwarfs in the Gentile Fusillo et al. (2021) catalogue. There are also 19 unresolved WD+MS systems that are not in our main sample, and one extra unresolved WD + MS within 1σ_ϖ of 40 pc. Many of these systems that are missing from Gentile Fusillo et al. (2021) consist of cool white dwarfs with main-sequence companions, such that their Gaia photometry places them on or close to the main sequence (see Fig. 9). These systems have been serendipitously detected in the literature due to an ultraviolet excess from the white dwarf, photometric variability or radial velocity measurements. Regulus A+B, Procyon A+B, and HD 149499 A+B are known WD + MS binaries, but the white dwarf is not in Gaia at all. Our sample is likely to be incomplete until systematic spectroscopic, photometric and astrometric variability searches are performed for all ≈ 20 000 main-sequence stars within 40 pc.

There are 54 white dwarfs within 40 pc that have corrected Gaia masses less than 0.53 M_⊙, which is where the Cummings et al. (2018) IFMR breaks down for single-star evolution. White dwarfs below this mass cannot be produced in isolation within the lifetime of the Milky Way (Marsh, Dhillon & Duck 1995). If the mass estimate is correct, the low-mass systems very likely have a massive unseen companion that did not affect the fit. Another option is that the masses are underestimated because, when the photometry of unresolved WD+WD systems is fitted as if they were single stars, the luminosity and hence radii are overestimated, leading to a mass underestimate. Either way, these 54 systems are likely to be unresolved WD + WD systems, even if they are not genuinely low-mass.

Fourteen of these systems within 40 pc are confirmed as unresolved WD + WD binaries from radial velocity measurements (Napiwotzki et al. 2020; Kilic et al. 2020a; Kilic, Bédard & Bergeron 2021). Two of these binaries also have a third wide companion.

If one of the white dwarfs in a double degenerate system is a low-mass white dwarf, formed through mass transfer in the binary evolution process, only the bright low-mass component may be detectable for both the spectrum and photometry of the system. For a featureless double degenerate spectrum, there is no way of determining the individual white dwarf masses in the binary. However, this is possible for DA spectral types. The mass for WD J0946 + 4354 determined from spectroscopy is 0.45 M_⊙ (Limoges, Bergeron & Lépine 2015) compared to a photometric mass of 0.42 M_⊙, indicating that this system contains a genuine low-mass white dwarf. Similarly, WD J0841 − 3256 has a photometric mass of 0.47 M_⊙ and a spectroscopic mass of 0.45 M_⊙ (Bédard, Bergeron & Fontaine 2017). Due to the heterogeneous nature of the 40 pc sample, not all white dwarfs have parameters determined from spectroscopy, and therefore all WD + WD candidates should be followed up for further study to search for more low-mass white dwarfs.

11 of the candidate double degenerate systems additionally have a Gaia RUWE value above 1.4, indicating poor quality astrometric solutions and a high probability of binarity. Six double degenerates have non-single-star astrometric periods from Gaia ranging from 77–249 d, and these are shown in Table 5. Five of these six are also over-luminous double degenerate candidates.

WD J0948 + 2421, as mentioned in McCleery et al. (2020), has a larger than average Gaia mass of 0.80 ± 0.01 M_⊙, but is a known DA + DAH system comprised of two more massive white dwarfs (Liebert et al. 1993). Similarly, WD J0138 − 1954 is a double-lined DA + DA binary from Napiwotzki et al. (2020) with a large Gaia mass of 0.93 ± 0.01 M_⊙, with the combined low luminosity suggesting a pair of ultramassive white dwarfs.

Based on binary population synthesis models with a constant stellar formation history within 40 pc, Toonen et al. (2017) predict 6–12 unresolved WD+MS systems compared to our 25, and 24–51 unresolved WD + WD systems compared to our upper limit of 54. Furthermore, extrapolating from the Hollands et al. (2018b) 20 pc white dwarf sample predicts the number of unresolved binaries expected in 40 pc relatively well: 16 unresolved WD+MS and 56 unresolved WD+WD systems. The models appear to under-predict the numbers of unresolved WD + MS – however the numbers of these systems are not well constrained by observations as they are difficult to detect.

3.4 Space density

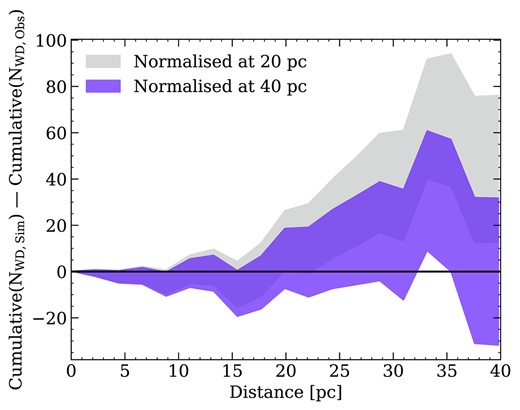

In Fig. 10 we show the results of a Galactic simulation of a single white dwarf population carried out with the same initial conditions as that described in Cukanovaite et al. (2023), with a million white dwarfs simulated within 40 pc. The vertical position of the Sun is set to 20 pc above the Galactic plane in the simulation, while the vertical scale height of the Galactic disk varies according to the observed white dwarf velocity dispersion. However, the absolute value of the vertical scale height is fixed at 75 pc for 1 Gyr because it is difficult to constrain this quantity directly from faint white dwarfs.

In the simulation, white dwarfs are only formed with Gaia masses above 0.54 M_⊙. Therefore, we remove white dwarfs below this mass in our data when comparing to the simulation, resulting in 1010 white dwarfs within 40 pc including those not in the Gentile Fusillo et al. (2021) catalogue. We normalize the simulation both at 20 pc and separately at 40 pc. The simulation over-predicts the number of white dwarfs we would expect at 30–40 pc by up to 2σ. This discrepancy could be an indication that the assumed Galactic scale height in the simulation is incorrect, that the assumed vertical position of the Sun above the Galactic plane is incorrect, or that we have ≈ 50 missing white dwarfs, possibly hidden in close binaries with bright main-sequence companions.

Gentile Fusillo et al. (2021) used the Gaia DR3 catalogue of white dwarfs within 20 pc to infer a local space density of 4.47 ± 10⁻³ pc⁻³ including those missing from Gaia. Unresolved double degenerates are counted as one system in the calculation of space density (see Hollands et al. 2018b). Extrapolating by volume to 40 pc, we would expect 1198 ± 99 white dwarfs. Considering all confirmed DR3 white dwarfs (1076), confirmed white dwarfs within 1σ_ϖ of 40 pc (15), remaining DR3 candidates (5), and known white dwarfs missing from Gentile Fusillo et al. (2021; 28), we count 1124 possible white dwarfs within 40 pc, within 1σ of the extrapolated 20 pc space density.

3.5 Multi-wavelength analysis

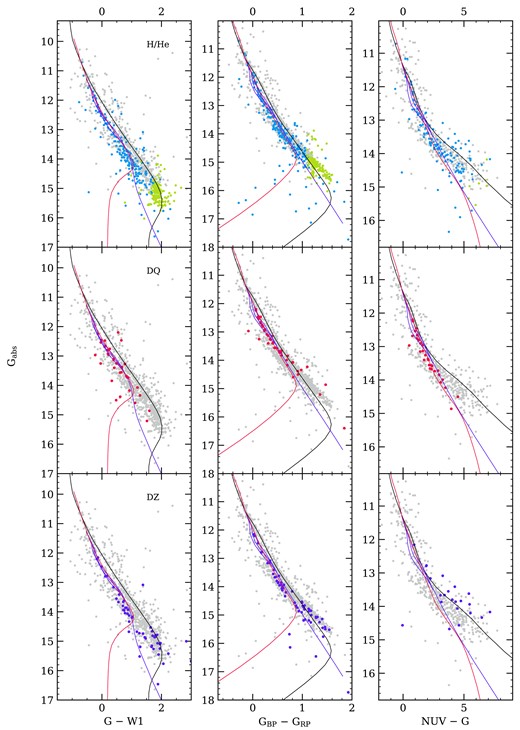

In Fig. 11 we use WISE (Wright et al. 2010), Gaia, and GALEX (Martin et al. 2005) photometry to study the positions of white dwarfs with H and He atmospheres (top panels) on HR diagrams. We also separate out the DQ and DZ spectral types (middle and bottom panels). We apply a linearity correction to the GALEX near-UV photometry, provided by Wall et al. (2019). Cool DC white dwarfs are shown in the top panels of Fig. 11 as green points; they are assumed to have pure-H atmospheres for the purpose of deriving atmospheric parameters but a lack of spectral features means that their composition cannot be constrained.

There is a bifurcation observed between H and He atmosphere white dwarfs in the Gaia HR diagram (Gaia Collaboration 2018; Bergeron et al. 2019; Gentile Fusillo et al. 2019; Camisassa et al. 2023; Blouin, Bédard & Tremblay 2023a), commonly described as DA white dwarfs following the A-branch, and He-rich atmospheres following the B-branch (Gaia Collaboration 2018). It is clear from Fig. 11 that DB, DC, DQ, and DZ white dwarfs indeed follow the B branch. In this work and previous papers in the 40 pc series, we use He-rich models with additional H, with a composition of log (H/He) = −5 (McCleery et al. 2020; Gentile Fusillo et al. 2021; O’Brien et al. 2023). In Fig. 11, the white dwarfs with He-dominated atmospheres (DB, DC, DQ, and DZ) follow this model sequence closely, but deviate from it as they cool (e.g. G_BP − G_RP < 0.8). We note that the bifurcation and its agreement with models are very similar at optical and IR wavelengths, which is expected since He⁻ free–free opacity, which is sensitive to free electrons from trace hydrogen or carbon, dominates at both wavelengths. At cool temperatures, CIA opacity from hydrogen sets in, which explains why mixed H/He models turn bluer.

As discussed in Section 2, He-rich models with trace C below the optical detection limit better reproduce the Gaia HR diagram bifurcation (Camisassa et al. 2023; Blouin, Bédard & Tremblay 2023a; Blouin et al. 2023b). In Fig. 11 we show mixed C/He cooling tracks with three different initial C mass fractions in the envelope of the PG 1159 star progenitor to the white dwarf: 0.2, 0.4 and 0.6 (Blouin, Bédard & Tremblay 2023a). The C abundance is not fixed in these models, but instead follows the evolutionary predictions of Bédard, Bergeron & Brassard (2022b). For T_eff < 7000 K, the C abundance is so low that pure-He models are appropriate. We use pure-He models from Blouin et al. (2018) at these cool T_eff values. These C/He (pure-He) cooling tracks provide a better fit to the Gaia HR diagram than H/He tracks for faint white dwarfs (G_abs ≳ 15). However both cooling tracks fit poorly in the IR for the same regime, suggesting that additional physical issues need to be solved in the models (Saumon, Blouin & Tremblay 2022) before spectral evolution of trace H and C can be studied in low temperature (< 7000 K) He-atmosphere white dwarfs.

In the ultraviolet (UV), cool DA white dwarfs lie below the pure-H sequence for G_abs ≳ 13.5 whereas in the optical they lie above the pure-H sequence for G_abs ≳ 15, corresponding to the Gaia low-mass problem at low temperatures (< 6000 K) discussed in Section 2.1. Re-scaling the Ly α opacity in the models improves the fit to the optical HR diagram but worsens the fit to the UV HR diagram, indicating that a simple multiplication factor of the Ly α opacity is an incomplete solution to the opacity problem of cool white dwarfs.

DZ white dwarfs appear redder than expected in the bottom right panel of Fig. 11, the Gaia−GALEX HR diagram, when compared to H/He cooling tracks. UV flux suppression in DZ white dwarfs compared to He-atmosphere white dwarfs is expected because of the large number of UV metal absorption lines (Wolff, Koester & Liebert 2002). Flux is therefore emitted at redder wavelengths to produce the same overall flux corresponding to the white dwarf T_eff.

3.6 Magnetic white dwarfs

A fraction of local white dwarfs have been observed to host magnetic fields, ranging in strength from 30 kG to several hundreds of MG (Kawka & Vennes 2012; Bagnulo & Landstreet 2021, 2022; Hardy, Dufour & Jordan 2023a,b); and their origin is not well constrained. These fields are usually detected through direct observations of the Zeeman splitting of white dwarf spectral features, although dedicated searches using spectropolarimetry have also discovered many of these magnetic stars (e.g. Bagnulo & Landstreet 2018, 2021). Current ideas to explain magnetic fields in isolated white dwarfs include: the field was generated by a dynamo in the core of the white dwarf during the crystallization process or the merger of two white dwarfs, the field has been generated by a dynamo in the core of the giant or main-sequence progenitors (possibly with binary/planet interaction), or a fossil field has persisted since stellar formation (Briggs et al. 2015, 2018; Cantiello, Fuller & Bildsten 2016; Ferrario, Wickramasinghe & Kawka 2020; Bagnulo & Landstreet 2021, 2022; Schreiber et al. 2021; Ginzburg et al. 2022).

With the 40 pc northern sample, McCleery et al. (2020) demonstrate using UV and IR photometry that the Gaia temperatures and masses are similarly accurate for cool (T_eff ≲ 12 000 K) magnetic white dwarfs as they are for non-magnetic white dwarfs. Hardy, Dufour & Jordan (2023a) find a similar result for cool magnetic white dwarfs. This is also supported by the observation that most of the massive magnetic DA white dwarfs lie on the Gaia crystallization branch (Q-branch; that extends from the upper left corner to about 0.8 M_⊙ and T_eff = 7000 K in Fig. 5). This would be an unlikely coincidence if the Gaia-derived atmospheric parameters were inaccurate.

McCleery et al. (2020) observed in the northern 40 pc sample that magnetic white dwarfs have, on average, a higher mass than non-magnetic white dwarfs. In Fig. 12, we see that non-magnetic white dwarfs have a narrow peak around the canonical mass of 0.6 M_⊙, whereas magnetic white dwarfs have a less prominent peak and a larger dispersion, leading to a larger average mass of 0.75 M_⊙. We also show the resulting magnetic to non-magnetic ratio as a function of mass in Fig. 13. Magnetism is much easier to detect in pure-H DA white dwarfs as they have visible spectral features down to T_eff ≈ 5000 K. We therefore focus on DA white dwarfs above this temperature in the following discussion, but note that the same trends are observed in the full sample. For this analysis, only white dwarfs with corrected Gaia masses greater than 0.49 M_⊙ are considered, to remove contamination from double degenerates (see Section 3.3.2 for details).

Bagnulo & Landstreet (2022) infer that there are two populations of magnetic white dwarfs with very different typical masses. They searched for magnetism using spectropolarimetry for all white dwarfs within 20 pc and white dwarfs younger than 0.6 Gyr within 40 pc. In very massive white dwarfs, they find magnetic fields to be common at short cooling ages. In lower-mass white dwarfs, magnetic fields are rare, but their incidence grows with cooling age. These two populations of magnetic white dwarfs are hinted in Figs 12 and 13. There is a peak in the fraction of magnetic white dwarfs at around 0.8 M_⊙, but there is also a tentative peak at higher masses (>1.1 M_⊙). However, we note that not enough of these massive magnetic white dwarfs have been observed out to 40 pc to constrain the significance of this second peak.

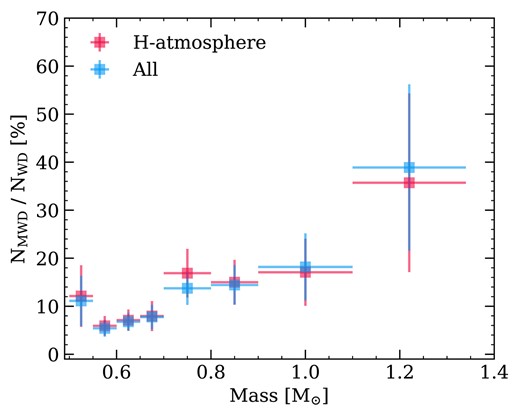

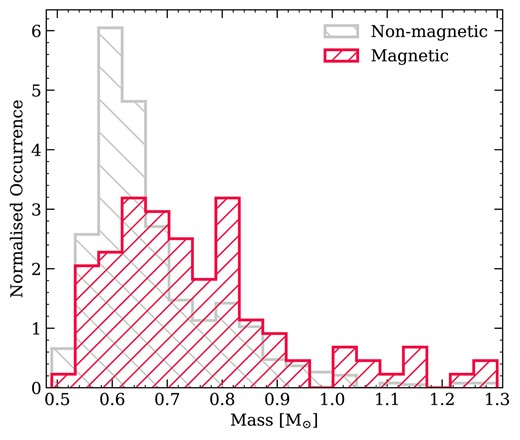

In Fig. 14, we see that for white dwarfs with masses < 0.8 M_⊙, magnetic fields emerge 1–3 Gyr after the star becomes a white dwarf, similar to the observations of Bagnulo & Landstreet (2022). This result was missed by McCleery et al. (2020) due to their smaller sample size and lack of mass cutoff. This age is around the time at which white dwarfs begin to crystallize.

We determine the age of the onset of crystallization for all our magnetic white dwarfs with masses 0.5 M_⊙ < M < 0.8 M_⊙. We test the effect of changing the assumed core oxygen mass fraction, X(O), on the predicted onset of crystallization. For X(O) = 0.60, we find that 55 (± 4) out of 69 systems have already begun crystallizing, while for X(O) = 0.8 we find that 61 (± 2) out of 69 have begun crystallizing, where errors indicate those that are within 3 σ of the age of the onset of crystallization. The earliest possible age at which crystallization could begin according to our models, with X(O) = 0.80 and 0.8 M_⊙, is shown by the black line in in Fig. 14, which was calculated using updated crystallization models from the stelum code (Bédard et al. 2022a; Elms et al. 2023). It is clear that some magnetic systems lie to the left of that line. X(O) = 0.60 is a more standard abundance based on pre-white dwarf evolution models; however, even with more lenient conditions, some white dwarfs that have not begun crystallizing have clearly been observed to harbour a magnetic field.

Hence we conclude, similar to Bagnulo & Landstreet (2022), Elms et al. (2023), and Manser et al. (2023), that a crystallization dynamo cannot be the unique mechanism to explain the magnetic nature of white dwarfs with masses <0.8 M_⊙. Recent theoretical studies have also raised doubts that a crystallization dynamo is efficient enough to explain some or most of the magnetic white dwarfs, due to the small convective velocities, small kinetic energy flux reservoir and long rotation periods (Ginzburg et al. 2022; Fuentes et al. 2023). It could be coincidental that magnetic fields emerge in white dwarfs at a similar age range (1–3 Gyr) to the onset of crystallization, and that crystallization does not explain the generation of magnetism in white dwarfs. These fields may have instead been present in their stars’ red giant progenitors and emerged in the white dwarf.

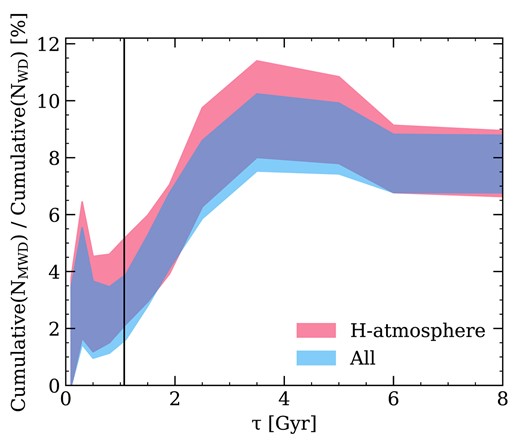

The drop-off in magnetic frequency seen towards larger cooling ages in Fig. 14 is largely due to detection biases − Zeeman splitting of spectral features is harder to detect at lower T_eff. The continuing effort to search for magnetism in DC white dwarfs using broad-band filter polarimetry (e.g. Berdyugin et al. 2022, 2023) provides vital information on whether the drop-off in magnetism as a function of cooling age at late ages is genuine. There may be an elusive population of very highly magnetic DA white dwarfs that have been misclassified due to their spectral features being so broadened and distorted that they resemble featureless DCs, which may further bias our results. There are also observational biases in the population of He-atmosphere white dwarfs, as those with metal lines enable sensitive detections of magnetic fields (Hollands et al. 2017; Bagnulo & Landstreet 2020).

3.7 Metal-polluted white dwarfs

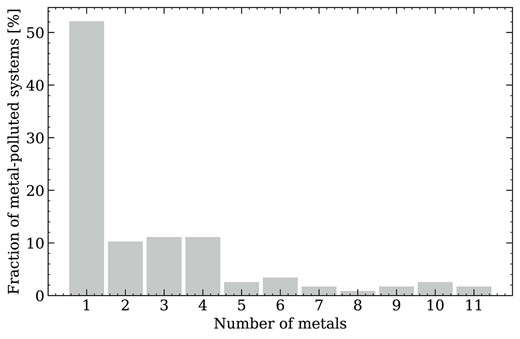

The pollution of white dwarf atmospheres by heavy elements is indicative of the accretion of planetary debris (Zuckerman et al. 2007; Farihi 2016; Veras 2021). Around 11 per cent of white dwarfs in the 40 pc sample are polluted. This fraction is dependent on spectroscopic resolution (O’Brien et al. 2023), as well as both the T_eff range considered and the wavelength coverage (Zuckerman et al. 2003; Koester, Gänsicke & Farihi 2014). Almost all metal-polluted white dwarfs in the 40 pc sample only have optical spectra. In far-UV spectroscopy, Si ii and C ii lines are prominent (Koester, Gänsicke & Farihi 2014). In near-UV spectroscopy, Mg i and Mg ii lines dominate (Allard et al. 2018). In cooler white dwarfs with T_eff < 8000 K, Ca generally has the greatest equivalent width for metals and in many cases is the only metal detected in optical spectra (see Fig. 15). Therefore, targeted high-resolution spectroscopic follow-up around the Ca ii H + K lines for 40 pc white dwarfs should be carried out to improve completeness. We note that high-resolution observations do not always reveal more metals, many white dwarfs observed at very high resolution still only display Ca absorption features (Zuckerman et al. 2003).

3.8 Gaia XP spectra

There are low-resolution Gaia BP/RP (commonly abbreviated to XP) spectra available for 99 per cent of the 40 pc white dwarf sample, which were released as part of Gaia DR3 (Gaia Collaboration 2023). By integrating under a Gaia XP spectrum convolved with the transmission of a desired photometric band, photometry can be generated in any arbitrary band that is within the wavelength coverage of Gaia (Torres et al. 2023).

The u–g colour from SDSS is well known to be sensitive to the Balmer jump for warm white dwarfs, which by its nature is only observed in white dwarfs with H-atmospheres. Therefore, an HR diagram using the u–g colour allows for the separation of H- and He-atmosphere white dwarfs without the need for spectroscopy.

We determine magnitudes from Gaia XP spectra by using the system defined in Holberg & Bergeron (2006) for SDSS, and we differentiate our calculated magnitudes from catalogue SDSS magnitudes with the prime symbol (′).

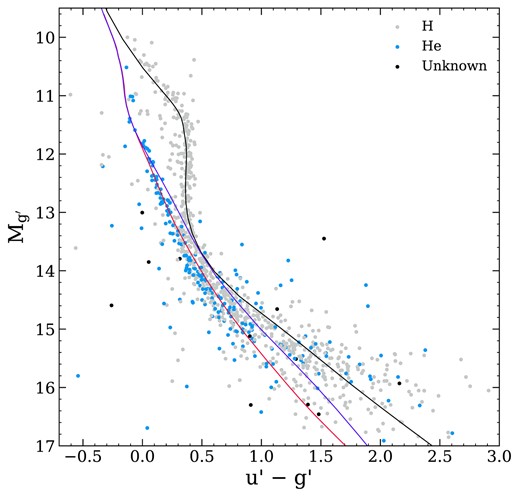

We demonstrate in Fig. 16 that integrating under Gaia XP spectra in u′ and g′ bands separates H- and He-atmospheres from the Balmer jump for bright white dwarfs (⁠|$M_{\rm g^{\prime }} \lesssim 13$|⁠) within 40 pc, as was previously found using catalogue SDSS photometry (see e.g. Caron et al. 2023). However, Fig. 16 becomes noisy for fainter (⁠|$M_{\rm g^{\prime }} \gtrsim 14$|⁠) white dwarfs, as the average S/N of the XP spectra becomes low, resulting in narrow-band u′ and g′ photometry becoming much less reliable than broad-band G_BP and G_RP photometry.

Most Gaia XP spectra are presented in the form of Gauss–Hermite polynomials. A truncation to the number of coefficients in these polynomials is often applied to fainter sources, as higher-order polynomials may attempt to fit noise (Montegriffo et al. 2022). There is a non-negligible effect in the resulting magnitudes when applying a truncation, as some signal is removed. This effect is particularly strong in the SDSS u-band, as cool white dwarfs are fainter in this wavelength region (see also López-Sanjuan et al. 2022b). Therefore, we do not apply a truncation to any of the Gaia XP spectra when calculating photometry.

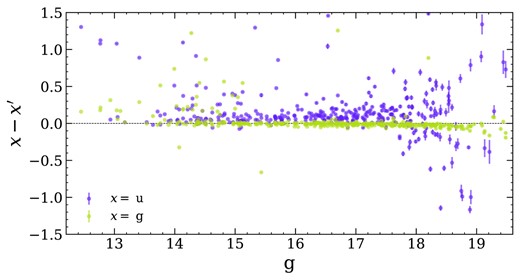

Fig. 17 demonstrates that Gaia XP spectra can accurately recreate SDSS g colours down to faint absolute magnitudes, but the SDSS u colour determination is problematic, and gets worse for fainter sources, which was also demonstrated by Vincent et al. (2023) for a much larger sample of white dwarfs. As a consequence, we make no attempt to test Gaia capabilities in identifying cool and faint DZ or DQ white dwarfs from u′, g′, or other ad-hoc narrow band filters. However, we note that García-Zamora, Torres & Rebassa-Mansergas (2023) and Vincent et al. (2023) have successfully used machine learning methods to classify white dwarfs into spectral types using Gaia XP spectra, which does not rely on the creation of narrow-band photometry.

4 CONCLUSIONS

We have presented the sample of white dwarfs within 40 pc of the Sun, selected primarily from Gaia DR3, complete with spectroscopic follow-up. This is the largest volume-complete white dwarf sample to date, it is unaffected by reddening, and it will be the benchmark white dwarf sample for many years to come, until the era of multi-object spectroscopic surveys such as DESI (Cooper et al. 2023), SDSS-V (Ahumada et al. 2020), 4MOST (de Jong et al. 2019), and WEAVE (Dalton et al. 2020). We find that white dwarfs make up ≈6 per cent of stars in the local volume.

Our sample contains 1076 spectroscopically confirmed white dwarfs selected from the Gaia DR3 catalogue of Gentile Fusillo et al. (2021). Only five candidates from Gentile Fusillo et al. (2021) within 40 pc remain without spectroscopic follow-up. Spectroscopic observations have enabled us to determine the atmospheric composition of each white dwarf with T_eff > 5000 K (90 per cent of the sample); therefore, providing us with accurate T_eff and log (g) from broad-band Gaia photometric fitting. We present a spectroscopic analysis of two heavily polluted white dwarfs − one well-known for decades and one newly discovered in the course of this work. Both stars are newly observed at high-resolution.

We perform a correction on the Gaia T_eff and masses of the sample to remove the effects of the low-mass issue in white dwarfs (Hollands et al. 2018b; Bergeron et al. 2019; McCleery et al. 2020; Cukanovaite et al. 2023). The mass distribution of the sample reveals a main peak with a median mass of 0.61 M_⊙, with a shoulder (or secondary peak) of larger mass white dwarfs in the range 0.7–0.9 M_⊙. The spectroscopic heterogeneity of the sample prevents complete unbiased analyses based on spectral sub-types, such as metal pollution and magnetic white dwarfs. We observe no clear evidence of spectral evolution between H- and He-atmospheres at cool temperatures (T_eff < 9000 K).

We note that there are 28 suspected or confirmed white dwarfs within 40 pc that did not make the cut of the Gentile Fusillo et al. (2021) Gaia white dwarf catalogue. These are mostly in close binaries with main-sequence companions, such that their Gaia colours are blended. Constraining the numbers of these white dwarfs missing from the main selection will improve volume-completeness and inform future binary population models.

Comparison of the 40 pc sample with the binary population models of Toonen et al. (2017) has demonstrated a distinct lack of wide double white dwarf binaries − models predict almost a factor of ten more than we recover from our own search within 40 pc. This deficit was observed in smaller volume-limited samples, but becomes more apparent within the 40 pc volume. The numbers of other types of binary star systems agree well with models.

The space density of white dwarfs within 40 pc of the Sun generally agrees with simulations from Cukanovaite et al. (2023), but predictions from simulations depend on the vertical position of the Sun with respect to the Galactic plane and vertical scale height of the Galactic disk.

We find that the mass distribution of magnetic white dwarfs has a primary peak centring around 0.7 M_⊙ which is larger than the canonical non-magnetic white dwarf mass, and there is a hint of a secondary peak at very high masses (M > 1.1 M_⊙). For white dwarfs with M < 0.8 M_⊙, we find that the incidence of magnetism increases with cooling age, as was observed by Bagnulo & Landstreet (2022). Even the most relaxed constraints on core composition do not produce a good agreement between the increased incidence of magnetism and the onset of core crystallization. Therefore, we argue that a dynamo generated by core crystallization might not explain magnetic field generation in a significant fraction of magnetic white dwarfs.
