ABSTRACT
Many asymptotic giant branch (AGB) and supergiant stars exhibit extended detached shells in the far-infrared, resembling rings or arcs. These structures have long been interpreted as the bow shock formed in the interface between the stellar wind and the interstellar medium (ISM), the astrosphere. To date, only a few AGB stars have been observed showing an extended shell in the ultraviolet (UV): the cometary tail drifting away from o Ceti, and a bubble around IRC+10216, CIT6, and U Hya. This paper describes a search of UV extended shells around AGB stars using archival Galaxy Evolution Explorer (GALEX) far-UV images. After inspecting visually 282 GALEX images, we identified the fourth discovery of a UV bubble around the AGB star R Dor. The bubble is seen as a 26 arcmin × 29 arcmin ring, corresponding to an actual diameter of 0.41 × 0.46 parsec2. The mass of the thin UV bubble is estimated to be ≃0.003 M⊙. The morphological asymmetry (less than ∼20 per cent) and brightness variations of this shell are uncorrelated with the stellar proper motion and thus they can rather be ascribed to inhomogeneities in the ISM. Archival Infrared Astronomical Satellite 60 and 100 μm images reveal that the bubble is filled with cold (i.e. |${\lesssim} 32$| K) dust. All UV bubbles known to date are limited to be within a distance |${\lesssim} 350$| pc and at high Galactic latitudes (|$|b| \gtrsim 35^{\circ }$|), which suggests that their detection is hampered in most cases by the strong UV interstellar extinction.
1 INTRODUCTION
The first large-scale structure detected in the ultraviolet (UV) associated with the mass-loss of an asymptotic giant branch (AGB) star was found around o Cet (Martin et al. 2007). Images obtained by the Galaxy Evolution Explorer (GALEX) observatory showed an arc-like structure opposed to a long cometary tail extending up to 2° from the star (Martin et al. 2007). The arc and the tail are both aligned with the direction of the large stellar proper motion, 225.8 mas yr−1 (HIPPARCOS; Turon et al. 1993). Actually, the arc seen in o Cet (and detached shells in other AGB stars) can be detected over a wide range of wavelengths, from radio wavelengths to UV, and is formed by the shock between the stellar wind and the local interstellar medium (ISM) or gas previously expelled from the star (Libert et al. 2007; Cox et al. 2012). The infrared (IR) radiation emitted by arcs and shells is thermal, after grains are heated by the passage of a shock wave (Cox et al. 2012), whereas the UV emission is probably composed of emission lines of various atomic species. Although the morphology of these structures generally resembles an arc, the fermata symbol or a shell, o Cet is the only case known to date where a drifting or cometary tail is seen trailing behind the star as it moves at large speed (Knapp et al. 2003; Wareing et al. 2007).
Radio and IR observations of AGB stars have revealed a large number of detached shells (often reaching several arc minutes in size) formed by the shock between the stellar wind and the local ISM (Libert et al. 2007; Cox et al. 2012; Brunner et al. 2019; Mečina et al. 2020). However, after o Cet, only three additional detached shells were eventually detected at UV wavelengths to date: IRC+10216 (Sahai & Chronopoulos 2010), CIT 6 (Sahai & Mack-Crane 2014), and U Hya (Sanchez et al. 2015). Differently from o Cet, all these shells are approximately round, and hereafter they will be called ‘bubbles’. In all these cases, the AGB star is located near the centre of the expanding bubble, which follows the proper motion of the star.
This paper reports the fourth discovery of a newly found UV bubble around an AGB star. In Section 2, we describe the sample of AGB stars examined and some characteristics of these images; Section 3 gives a general description of R Dor and its close circumstellar environment; Section 4 describes the bubble around R Dor, both in the UV and IR; in Section 5, we discuss the factors that play a role in the detection of UV shells, as well as those that contribute to their formation and endurance; and in Section 6, we present our conclusions.
2 A SEARCH FOR UV STRUCTURES AROUND NEARBY AGB STARS
The GALEX satellite (Morrissey et al. 2005) constitutes the main data base for this research because it covered large portions of the sky in the near- and far-UV bands. The target sample was composed of: (1) all regular Miras listed in the general catalogue of variable stars (GCVS5.1; Samus et al. 2017); (2) the list of nearby semiregular stars, compiled by Glass & van Leeuwen (2007); and (3) the list of AGB and supergiant stars showing bow shocks and detached shells, detected in the far-IR by Cox et al. (2012). After cross-correlating these lists with the GALEX data base, we were left with a total of 282 stars observed by GALEX in at least one band. Eventually, we inspected visually each image in search of circumstellar features. As a result, we have found one previously unknown bubble, associated with the AGB star R Dor.
2.1 Archival UV and IR data
There is only oneGALEX observation registering R Dor: tilename ais|$\_ 420$|, tilenumber 50420. The images were obtained on 2008 September 28 with total exposure times of 206 s in the two photometric bands: the far-UV (1344–1786 ÅÅ) and the near-UV (1771–2831 ÅÅ). The spatial resolution of the images is 4.5 and 6.0 arcsec, respectively (Morrissey et al. 2005). The inspection of the far-UV image suggested the presence of diffuse emission from a bubble-like structure around R Dor, but at a low signal-to-noise (S/N) ratio. To increase the contrast between the bubble emission and the background, the GALEX images of R Dor were adaptively smoothed (Ebeling, White & Rangarajan 2006) using a circular Gaussian kernel with a size from 1.5 arcsec for pixels with S/N ≥ 4 up to a kernel size of 12 arcsec for pixels with S/N ≤ 2. The maximum kernel size, mostly applied to the background emission, truly reduces its noise, while the minimum kernel size, being smaller than the spatial resolution, preserves the spatial scale of the bubble emission and thus the image quality. The far- and near-UV images are shown in the top panels of Fig. 1.
Greyscale GALEX far-UV (top-left) and near-UV (top-right) and IRAS 60 |$\mu$|m (bottom-left) and 100 |$\mu$|m (bottom-right) images of R Dor. The red cross marks the position of R Dor. Images are shown using a squared-root scale with the side bars in units of counts pixel−1 for the GALEX images and MJy str−1 for the IRAS images. A larger field of view is used for the IRAS images to display the large-scale variations of the background surface brightness. The field of view of the GALEX images is highlighted to ease the comparison. The dashed 26 arcmin × 29 arcmin ellipse centred at R Dor with major axis along PA = 160° marks the position of the shell. North is top, and east is to the left.
Previous observations of bow shocks around red giants and supergiants showed that they are better visualized in the far-IR (Izumiura et al. 1996; Mečina et al. 2020). R Dor has been observed by several IR surveys, from near- to far-IR wavelengths, but the near- and mid-IR images (e.g. 2MASS and WISE) are not very useful because they are dominated by the stellar emission. R Dor becomes fainter in the far-IR, especially beyond 60 |$\mu$|m, providing an observational leverage towards the detection of extended emission from cold dust around it. In this study, we used Infrared Astronomical Satellite (IRAS) observations of R Dor obtained at 60 and 100 |$\mu$|m. The images, scaled at MJy sr−1, were extracted from the IRAS Sky Survey Atlas (ISSA) available at the IRSA website.1 Previous determinations showed that the resolution is variable (3.5–4.9 arcmin at 60 |$\mu$|m and 4.5–6.1 arcmin at 100 |$\mu$|m; Wheelock et al. 2002), depending on the orientation of the long axis of the image, and will be re-evaluated in Section 4.2. The IRAS 60 and 100 |$\mu$|m images are shown in the bottom panels of Fig. 1.
3 MAIN CHARACTERISTICS OF R DOR
3.1 The stellar component
R Dor is an M8 iii semiregular (SRb) pulsating variable, varying its V-band magnitude between 4.8 and 6.6 mag within a period of 338 d (Samus et al. 2017). Apart from its normal magnitude range due to its pulsation, the light curve obtained by the American Association of Variable Stars Observers (AAVSO)2 shows, as observed in some other SR stars, some abnormally intense maxima (4.5 visual mag in 2011 and 2018–2019) and minima (7.2–7.4 visual mag between 1949 and 1952). An analysis of its light curve using the wavelets method showed that the pulsation seems to switch between the first and third overtone modes, corresponding to the periods of 332 and 175 d (Bedding et al. 1998). According to Kerschbaum & Hron (1992), after considering the pulsation period and the JHKLM photometry, R Dor is a ‘red’ semiregular, i.e. an AGB star in the thermal pulse phase, showing characteristics (pulsation period, colour indices, vertical distribution, and number density in the Galaxy) very similar to those of Mira-type stars.
R Dor is situated at the distance of 54.6 parsec (van Leeuwen 2007), which makes it the nearest AGB star to the Sun. Its proximity contributes to its large proper motion: μα = −69.4 mas yr−1, μδ = −75.8 mas yr−1. At the distance of 54.6 pc, the combined proper motion of 102.8 mas yr−1 corresponds to a tangential velocity of 26.6 km s−1 towards PA 222°, i.e. approximately in the south-west direction. Its galactic space velocity relative to the local standard of rest is VUVW= 37.2 km s−1.
The small distance makes its stellar apparent diameter to be the largest ever measured besides the Sun: 58.7 ± 2.6 mas (average value, assuming a uniform disc; Bedding et al. 1997), which corresponds to an actual average radius of 345 R⊙. Its spectrum corresponds to a stellar temperature between 2230 K (Judge & Stencel 1991) and 2710 K (Ohnaka et al. 2019), and its mass has been estimated in the range M*/M⊙ = 0.7–1.5 (Judge & Stencel 1991; Ohnaka et al. 2019).
R Dor was formerly assigned as a binary system, with an 11.9 mag secondary of unknown spectral type at 32.3 arcsec from the primary (Proust et al. 1981), but eventually it was reclassified as an optical pair (Mayer et al. 2013). According to Ortiz & Guerrero (2016), AGB stars showing a far-UV counterpart are binaries because, under normal circumstances, the chromospheric emission is too faint to be detected in the far-UV. R Dor does not have a GALEX far-UV counterpart, which reinforces the absence of a stellar companion. However, there is some evidence that a substellar companion might actually exist. For example, ALMA high-resolution observations of its extended atmosphere showed that R Dor rotates two orders of magnitude faster than the expected for a single AGB star (Vlemmings et al. 2018). Homan et al. (2018) argue that R Dor has a circumstellar disc formed by the interaction with an object with at least 2.5 earth masses, situated at 6 au.
3.2 Circumstellar matter
Khouri et al. (2016) detected the formation of clumpy dust clouds as close as ∼1.5 stellar radii using polarimetric observations. Eventually, Ohnaka et al. (2019) reported the presence of a bright-spot over the surface of the star, which might be associated with convective cells of circumstellar matter (Vlemmings et al. 2019). The mass-loss rate has been estimated to be (6–9) × 10−8 M⊙ yr−1 from visual emission-line spectra (Hagen et al. 1983) and (10–16) × 10−8 M⊙ yr−1 from CO rotational lines (Lindqvist et al. 1992; Olofsson et al. 2002; Maercker et al. 2016). R Dor exhibits a wide variety of circumstellar emission lines, such as SiO (Balister et al. 1977; Olofsson et al. 1998), CO, HCN (Lindqvist et al. 1992; Olofsson et al. 1998), SiS and SO (Olofsson et al. 1998), SO2, CN, PN, and PO (De Beck & Olofsson 2018). The molecular envelope expands at a relatively low velocity: 5.5–6.0 km s−1 (Maercker et al. 2008; Decin et al. 2018). More recently, the modelling of the SiO emission in its close environment with the ALMA facility at high resolution showed evidence of a close circumstellar disc with an outer radius of ∼25 au and an inclination angle of 110° (Homan et al. 2018).
4 RESULTS
4.1 UV emission
The top panels of Fig. 1 show GALEX UV images of R Dor. The bubble is conspicuous in the far-UV image, but mostly indistinguishable in the near-UV one, which will no longer be discussed. The location of R Dor is marked by a red cross and that of the shell is highlighted by a 26 arcmin × 29 arcmin ellipse whose major axis is oriented along PA ≈ 160° (see below).
Fig. 2 shows the far-UV surface brightness profile (i.e. count s−1 pix−1) along radial rectangular apertures 3 arcmin wide from R Dor oriented at selected azimuthal angles from PA = 90° (i.e. eastward) to PA = 360° (northward). Unfortunately, the low S/N ratio and background point sources do not allow us to assure whether the bubble is filled with UV radiation, although this does not seem to be the case as the UV intensities inside and outside the average radius are, considering the uncertainties, similar. The thickness of the bubble is variable: it is sharper (only ∼2 arcmin) at PA = 90° and broader at PA = 270° and 360° (∼4.5 arcmin). The low S/N ratio hampers a reliable determination of the shape of the profile of the bubble along its the pre- and post-shock zones.

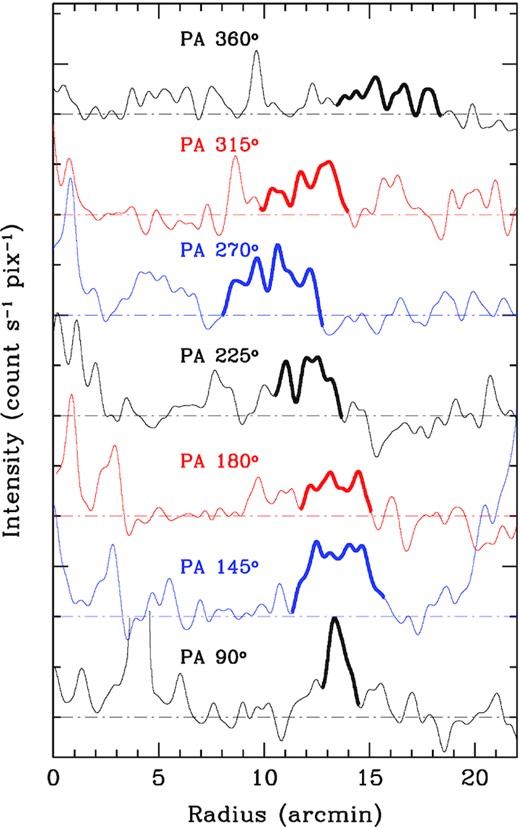

GALEX far-UV surface brightness profiles of R Dor along a number of radial directions. The profile along PA = 45° is not shown due to the strong contamination of a bright star. Similarly, the profile along PA = 135° has been tweaked to 145° to avoid a background star. The vertical tickmarks correspond to 5 × 10−7 cnt s−1 pix−1 and each profile is shifted vertically by 1 × 10−6 cnt s−1 pix−1 with respect to the previous one. The dot–dashed horizontal lines mark the background emission level. The extent of the shell at each profile is highlighted using thick lines.
Fig. 3 shows radial profiles of the bubble along different azimuthal (PA) angles. Its average radius is approximately 13.3 arcmin, with a notable excursion along PA = 360° (radius of ∼16.5 arcmin), which determines the 14.5 arcmin semimajor axis of the ellipse shown in Fig. 1. The shell thickness also varies notably along different PAs, being sharper towards the south–south-east and thicker towards the north–north-west. Fig. 3 also shows the intensity of the GALEX far-UV emission, integrated along its thickness. The bubble looks brighter towards PA = 145° and 270°, which do not correspond to the direction of the proper motion of the star (PA = 222°). This case is similar to U Hya, which has a very round UV bubble, without evidence of asymmetry caused by its proper motion (Sanchez et al. 2015). Therefore, in these two cases the azimuthal asymmetries, like those shown in Figs 2 and 3, are more likely to be due to inhomogeneities in the local ISM, which might affect the expansion of the shell.

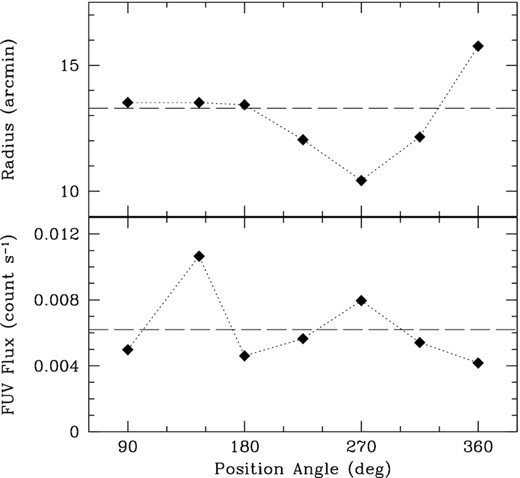

Azimuthal dependence of the flux (bottom) and radius (top) of the GALEX far-UV emission of R Dor derived from Fig. 2. The flux is integrated from a 3 arcmin-wide aperture. The horizontal dashed lines mark the average flux (bottom panel) and radius of the shell (top panel).
4.2 Infrared emission
The far-IR IRAS images of R Dor seem to show diffuse emission with a similar spatial extent to that of the UV bubble (Fig. 1 bottom). This is confirmed by the azimuthally averaged profiles at 60 and 100 |$\mu$|m of IRAS 04361−6210, the IR counterpart to R Dor, which are consistent with a point source with extended shoulders (Fig. 4). As a comparison, an examination of the IRAS 60 and 100 |$\mu$|m spatial profiles of two isolated AGB stars, namely EP Aqr and SW Vir, did not reveal extended shoulders. Instead, these can be fitted by a Gaussian profile with an FWHM of 3.3 arcmin, which is also suitable for the core of R Dor. This comparison then confirms that there is a circumstellar component extending up to ∼13 arcmin from the central position, which matches the radius of the UV bubble. Using the spatial profiles shown in Fig. 4, the flux over the background emission has been integrated in an annular region with an inner radius of 6 arcmin and an outer radius of 13 arcmin to find that the emission in the 100 |$\mu$|m band (10.2 Jy) is indeed brighter than that in the 60 |$\mu$|m band (6.8 Jy). Although the assessment of the inhomogeneous background emission and the contamination of the bright core of the central source make difficult an accurate determination of the IRAS fluxes from the extended component, the noticeably larger 100 |$\mu$|m emission suggests that the dust is cold (T|$_{\rm dust}\lesssim$|32 K).

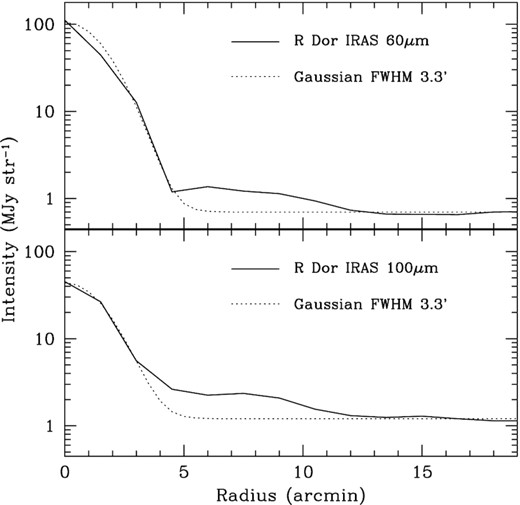

Azimuthally averaged IRAS 60 |$\mu$|m (top) and 100 |$\mu$|m (bottom) spatial profiles of R Dor (solid line). For comparison, the point spread function of a point source, assumed to have a Gaussian profile normalized to the peak intensity with an FWHM of 3.3 arcmin, is shown (dotted lines).
Like R Dor, Sanchez et al. (2015) observed that the UV emission and far-IR emission of the bubble around U Hya generally coincide in position. In the case of U Hya, despite the 70 |$\mu$|m emission is more concentrated along the UV ring, it is also detected in its interior. We conclude that the UV bubble around R Dor might be filled with cold dust, possibly formed after the passage of the shock front.
5 DISCUSSION
5.1 On the detection of UV bubbles around AGB stars
The presence of shells around mass-losing stars has long been associated with episodes of increased mass-loss. Actually, Nhung et al. (2019) argue that R Dor experienced a recent episode of intense mass-loss about 102 yr ago, as they found evidence for strong inhomogeneities in the distribution of SO between 20 and 100 au from the star. Since episodes of enhanced mass-loss happen customarily during the AGB phase, circumstellar structures can be found around numerous AGB stars. These are detected mostly in far-IR observations (Cox et al. 2012), whereas the number of those detected in UV observations is conspicuously small. In this section, we will analyse the observational limitations for their UV detection.
Since the first detection of a UV detached shell in the form of a cometary tail around o Ceti (Martin et al. 2007), it became evident that the detection is better achieved using far-UV images. Apart from the possibility that the bubbles can be intrinsically brighter in the far-UV, the interstellar extinction at this wavelength is actually lower than that in the near-UV. This happens because the GALEX near-UV band is centred at a wavelength very close to the ‘UV bump’ at 2175 Å (Cardelli et al. 1989). For example, the bubble around CIT 6 (Sahai & Mack-Crane 2014) appears very sharp in the far-UV, but it is absent in the near-UV GALEX images, alike R Dor. Sahai & Chronopoulos (2010) estimated the far-to-near-UV brightness ratio IFUV/INUV ≃ 6 at the rim of the bubble associated with IRC+10216. Assuming that this same ratio is valid for R Dor, the near-UV peak intensity at the rim of this bubble should be |$I_{\rm NUV} \lesssim 2 \times 10^{-7}$| count s−1 pix−1, which is within the noise level of the near-UV image (Fig. 2). Unfortunately, the vast majority of GALEX images are in the near-UV, where the bubbles appear fainter. As a result, only a minor fraction of the AGB stars observed by GALEX are candidates for new detections. Increasing the number of far-UV observations of AGB stars could possibly lead to an increase in the number of detections.
Secondly, in order to have its detached shell detected in the UV, the AGB star must be relatively near. Newly born bubbles (i.e. recently ejected by the star), which are expected to be brighter, require high-resolution images to be detected, especially if the star is far (and vice versa). Moreover, UV radiation is severely affected by interstellar extinction, which introduces a strong bias towards the detection of nearby objects. Table 1 and Fig. 5 confirm that o Cet and the four bubbles detected so far are all close, within a distance |$\lesssim 350$| parsec, and have high galactic latitude (|b| > 35°). The farthest object in the list, CIT 6, was not detected in the near-UV, perhaps because of the relatively higher extinction towards it. Moderate-to-high interstellar extinction, which increases with distance and along the Galactic plane, hinders the detection of UV bubbles around AGB stars.
Galactic latitude b (left) and distance D (right) distributions of the AGB stars with large-scale IR (Cox et al. 2012) and UV (this paper and references in Table 1) shells versus their GALEX far-UV exposure times (texp). Empty symbols correspond to sources with IR-only shells and filled symbols correspond to UV shells. The dotted lines mark the loci where UV bubbles are found: |$D \lesssim 350$| parsec, |$|b| \gtrsim 35^{\circ }$|, and |$t_{\rm exp} \gtrsim 150$| s. In the left-hand panel, shells within 350 parsec are marked in blue, whereas in the right-hand panel shells with |b| > 35° are marked in red. Three IR-only shells, namely EP Aqr, TX Psc, and π1 Gru, are within 350 parsec and closer than 35° to the Galactic plane, yet they are not detected in the available GALEX far-UV images.
Main characteristics of UV detached shells around AGB stars known to date, in order of discovery. Except o Cet, all shells are approximately round and are denominated in this work ‘bubbles’. H is the distance from the Galactic plane; <ϕ> and <Diam.> are the apparent and actual diameters, respectively; Vt and Vr are the tangential and heliocentric radial velocities, respectively, extracted from the SIMBAD data base (except IRC+10216); |$V_{UVW} = \sqrt{ U^2+V^2+W^2}$| is the stellar galactic space velocity relative to the local standard of rest (not corrected for the solar motion); texp is the exposure time of the GALEX far-UV images. References in the last column are: M2007 = Martin et al. (2007), SC2010 = Sahai & Chronopoulos (2010), SM2014 = Sahai & Mack-Crane (2014), S2015 = Sanchez et al. (2015), and OG2023 = this work.
| Name | Distance | H | <ϕ> | <Diam.> | b | Vt | Vr | VUVW | texp | Reference |
|---|---|---|---|---|---|---|---|---|---|---|
| (parsec) | (parsec) | (arcmin) | (parsec) | (deg) | (km s−1) | (km s−1) | (km s−1) | (s) | ||
| o Cet | 91.7 | 77.8 | – | – | −58.0 | 103.2 | +63.5 | 121.2 | 11.5 × 103 | M2007 |
| IRC+10216 | 92.7 | 65.7 | 24 | 0.65 | +45.1 | 15.5 | −23.2a | 27.9 | 8.8 × 103 | SC2010 |
| CIT 6 | 314.1 | 260.4 | 15 × 18 | 1.37 × 1.64 | +56.0 | 31.0 | −0.3 | 31.0 | 30.8 × 103 | SM2014 |
| U Hya | 208.3 | 128.5 | 3.7 | 0.22 | +38.1 | 56.2 | −25.8 | 61.8 | 198 | S2015 |
| R Dor | 54.6 | 34.6 | 26 × 29 | 0.41 × 0.46 | −39.3 | 26.6 | +26.1 | 37.2 | 206 | OG2023 |
| Name | Distance | H | <ϕ> | <Diam.> | b | Vt | Vr | VUVW | texp | Reference |
|---|---|---|---|---|---|---|---|---|---|---|
| (parsec) | (parsec) | (arcmin) | (parsec) | (deg) | (km s−1) | (km s−1) | (km s−1) | (s) | ||
| o Cet | 91.7 | 77.8 | – | – | −58.0 | 103.2 | +63.5 | 121.2 | 11.5 × 103 | M2007 |
| IRC+10216 | 92.7 | 65.7 | 24 | 0.65 | +45.1 | 15.5 | −23.2a | 27.9 | 8.8 × 103 | SC2010 |
| CIT 6 | 314.1 | 260.4 | 15 × 18 | 1.37 × 1.64 | +56.0 | 31.0 | −0.3 | 31.0 | 30.8 × 103 | SM2014 |
| U Hya | 208.3 | 128.5 | 3.7 | 0.22 | +38.1 | 56.2 | −25.8 | 61.8 | 198 | S2015 |
| R Dor | 54.6 | 34.6 | 26 × 29 | 0.41 × 0.46 | −39.3 | 26.6 | +26.1 | 37.2 | 206 | OG2023 |
Menzies et al. (2006).
Main characteristics of UV detached shells around AGB stars known to date, in order of discovery. Except o Cet, all shells are approximately round and are denominated in this work ‘bubbles’. H is the distance from the Galactic plane; <ϕ> and <Diam.> are the apparent and actual diameters, respectively; Vt and Vr are the tangential and heliocentric radial velocities, respectively, extracted from the SIMBAD data base (except IRC+10216); |$V_{UVW} = \sqrt{ U^2+V^2+W^2}$| is the stellar galactic space velocity relative to the local standard of rest (not corrected for the solar motion); texp is the exposure time of the GALEX far-UV images. References in the last column are: M2007 = Martin et al. (2007), SC2010 = Sahai & Chronopoulos (2010), SM2014 = Sahai & Mack-Crane (2014), S2015 = Sanchez et al. (2015), and OG2023 = this work.
| Name | Distance | H | <ϕ> | <Diam.> | b | Vt | Vr | VUVW | texp | Reference |
|---|---|---|---|---|---|---|---|---|---|---|
| (parsec) | (parsec) | (arcmin) | (parsec) | (deg) | (km s−1) | (km s−1) | (km s−1) | (s) | ||
| o Cet | 91.7 | 77.8 | – | – | −58.0 | 103.2 | +63.5 | 121.2 | 11.5 × 103 | M2007 |
| IRC+10216 | 92.7 | 65.7 | 24 | 0.65 | +45.1 | 15.5 | −23.2a | 27.9 | 8.8 × 103 | SC2010 |
| CIT 6 | 314.1 | 260.4 | 15 × 18 | 1.37 × 1.64 | +56.0 | 31.0 | −0.3 | 31.0 | 30.8 × 103 | SM2014 |
| U Hya | 208.3 | 128.5 | 3.7 | 0.22 | +38.1 | 56.2 | −25.8 | 61.8 | 198 | S2015 |
| R Dor | 54.6 | 34.6 | 26 × 29 | 0.41 × 0.46 | −39.3 | 26.6 | +26.1 | 37.2 | 206 | OG2023 |
| Name | Distance | H | <ϕ> | <Diam.> | b | Vt | Vr | VUVW | texp | Reference |
|---|---|---|---|---|---|---|---|---|---|---|
| (parsec) | (parsec) | (arcmin) | (parsec) | (deg) | (km s−1) | (km s−1) | (km s−1) | (s) | ||
| o Cet | 91.7 | 77.8 | – | – | −58.0 | 103.2 | +63.5 | 121.2 | 11.5 × 103 | M2007 |
| IRC+10216 | 92.7 | 65.7 | 24 | 0.65 | +45.1 | 15.5 | −23.2a | 27.9 | 8.8 × 103 | SC2010 |
| CIT 6 | 314.1 | 260.4 | 15 × 18 | 1.37 × 1.64 | +56.0 | 31.0 | −0.3 | 31.0 | 30.8 × 103 | SM2014 |
| U Hya | 208.3 | 128.5 | 3.7 | 0.22 | +38.1 | 56.2 | −25.8 | 61.8 | 198 | S2015 |
| R Dor | 54.6 | 34.6 | 26 × 29 | 0.41 × 0.46 | −39.3 | 26.6 | +26.1 | 37.2 | 206 | OG2023 |
Menzies et al. (2006).
The third reason that possibly plays a role in the detection of these UV bubbles is the sensitivity of the observations. Presently, the GALEX images constitute the main data base available for this purpose. However, the exposure time (texp) of the vast majority of these observations is only ∼102 s long. Until the discovery of the UV bubble around U Hya bubble, detected in a shallow GALEX far-UV image, the previous detections of IRC+10216 and CIT 6 were based on observations at least 100 times longer (Table 1). The compact morphology of U Hya might have contributed to its detection, but the present discovery of the largest angular diameter (26.6 arcmin) bubble ever found in a short (only 206 s) GALEX far-UV image casts doubts on the importance of the role of the exposure time in the detection of bubbles. It is worth investigating whether shallow GALEX AIS images can also be efficient to detect these bubbles.
Fig. 5 represents graphically these observational conditions described earlier. The plot shows GALEX far-UV exposure times, galactic latitudes, and distances of the UV bubbles of Table 1 and the IR shells by Cox et al. (2012). A dotted line marks the region in the diagrams where UV bubbles have been found, i.e. |$t_{\rm exp} \gtrsim 150$| s, |$b \gtrsim 35^{\circ }$|, and/or |$D \lesssim 350$| parsec. Only three IR shells without a UV counterpart are found inside the loci of the UV shells: EP Aqr, TX Psc, and π1 Gru. Apart from these few exceptions, all of them with small angular diameters (|${\lesssim} 1\,\text{arcmin}$|), our criteria can explain the detections of UV bubbles among sources with IR shells.
In short, discovering a circumstellar bubble around an AGB star depends on two factors: (1) the observational conditions for its detection, as discussed earlier; and (2) the actual existence of the bubble, which in turn depends on the physical processes that contribute to its formation and endurance. In Section 5.2, we briefly discuss some of these phenomena.
5.2 On the formation of UV bubbles around AGB stars
Cox et al. (2012) report the detection at 70 and 160 |$\mu$|m of numerous bow shocks and detached shells caused by the interaction between the stellar wind of AGB stars and supergiants and the ISM. They also predicted that these structures might be eventually found towards another eight stars within the distance of 500 parsec, namely TW Hor, V Eri, R Dor (this work), R Lep, RS Cnc, HD100764, RY Dra, and RX Boo.
Bubbles are formed from the shock between the stellar wind and the ISM (Sahai & Chronopoulos 2010). The brightness of the shocked gas generally depends, among various factors, on the product of the density of the ISM and the stellar wind. Except for CIT 6, all the other AGB stars with UV bubbles are within 150 parsec from the Galactic plane, which is the H i scale height (Kalberla & Kerp 2009). Therefore, the H i density near those bubbles is in the range between 0.1 and 1 cm−3, which is a narrower interval (1 dex) than that of mass-loss rate values during the AGB phase (3 dex, from 10−7 to 10−4 M⊙ yr−1; Höfner & Olofsson 2018). We conclude that the higher is the mass-loss rate, the brighter is the bubble. IRC+10216 is a nearby AGB star showing a very high mass-loss rate (|$\dot{M}=2 \times 10^{-5}\, \mathrm{ M}_{\odot }$| yr−1; Crosas & Menten 1997; Groenewegen et al. 1998), while the mass-loss rate of R Dor is two orders of magnitude lower [(0.6–1.6) × 10−7 M⊙ yr−1; see Section 3.2 for references] and that of U Hya is even lower (|$\dot{M}=4.9 \times 10^{-8}\,\mathrm{ M}_{\odot }$| yr−1; De Beck et al. 2010). These values, however, refer to the ‘quiet’ mass-loss phase, i.e. a period of time when the star loses mass at a constant rate, which covers over 90 per cent of the time during the AGB phase. Just after a thermal pulse, the AGB star may undergo an episode of intense mass-loss, forming an expanding shell of dense gas. Therefore, the formation of a bubble would depend mainly on the density of the wind during the episode of enhanced mass-loss, and secondly on the density of the local ISM. This can explain why both AGB stars with relatively low (R Dor, U Hya) and high (IRC+10216, CIT 6) mass-loss rates during the quiet phase may exhibit a bubble.
In addition to thermal pulses, with a typical time lapse of ∼105 yr between two consecutive thermal pulses (Vassiliadis & Wood 1993), brief episodes of enhanced mass-loss may occur at time-scales of a few hundred years (Höfner & Olofsson 2018). CIT 6 is the largest bubble known to date (<Diam> = 1.37 × 1.64 parsec2), expanding at a speed of 18 km s−1 (Sahai & Mack-Crane 2014). At this speed, the kinematical age (size divided by velocity) of this bubble implies that it was ejected ∼8.2 × 104 yr ago. The same calculus applied to R Dor, assuming its present-day wind speed of 6.0 km s−1, results in 3.4 × 104 yr. These ages are within the same order of magnitude than the time lapse of ∼105 yr between consecutive thermal pulses, although we note that the present-day measurements of the stellar wind velocity of a few km s−1 during the ‘quiet phase’ (i.e. between the episodes) might not necessarily reflect the enhanced velocity of the stellar wind during those episodes (Vassiliadis & Wood 1993). Since the formation of shells associated with episodes of enhanced mass-loss is expected to be common among AGB stars, the small number of UV bubbles known to date shall be attributed to the observational biases described in Section 5.1.
5.3 The origin of the far-UV emission
When studying the shell around U Hya, Sanchez et al. (2015) argued that scattering of UV photons originated in the central star or in the interstellar radiation field does not account for the necessary photons corresponding to the UV luminosity of the bubble associated with U Hya. Therefore, the excitation of atoms or molecules by the shock between the stellar wind and the local ISM remains the most likely mechanism to explain the UV emission of the shell (Sahai & Chronopoulos 2010).
Some AGB stars with extended shells exhibit significant velocities relative to the local medium. Let us assume that the ISM is not moving relative to the local standard of rest; then, the galactic space velocity can be derived as |$V_{UVW}=\sqrt{U^2+V^2+W^2}$|. Table 1 shows that, except the fast-moving star o Cet, the remaining AGB stars with UV bubbles all move at VUVW= 28–62 km s−1. These values are almost one order of magnitude higher than the typical velocity of the stellar wind of AGB stars. Sanchez et al. (2015) argue that the post-shock temperature can reach Tps ≃ 1.6 × 105 K (μH/1.33)(V*/72 km s−1), for a mean molecular mass μH. This suggests that the relatively high velocity of the star (and its wind) relative to the ISM could be responsible for the rise of temperature necessary to excite the atomic species, and produce the emission lines in the UV.
Unfortunately, no UV spectra of extended shells around AGB stars have been obtained to date; thus, the spectral features associated with the UV emission cannot be unequivocally identified. The GALEX far-UV filter extends from 1344 to 1786 Å, which does not include Lyman α, the strongest emission line in the UV domain. Nevertheless, there are plenty of other species showing emission lines in this spectral interval, such as (1) low-excitation CO emission lines; (2) low-ionization ions, formed at temperatures of T = 10 000–15 000 K (e.g. various Fe ii lines, O i λλ1355, 1640, Si ii λ1529, C i λ1657, and O iii λ1663); and (3) a few higher ionization species, which require higher temperatures (T = 35 000–50 000) like the doublets Si iv λ1400 and C iv λ1550, for example. Most of these features have been identified in the chromospheres of giant late-type stars (Johansson & Jordan 1984; Carpenter et al. 1988; Ortiz et al. 2019), which show temperatures of the same order of magnitude as the post-shock temperatures estimated earlier.
5.4 The mass of the UV thin bubble
The mass of the thin bubble can be roughly estimated assuming that the thin shell seen in the UV corresponds to a zone where a shock wave has been formed after an episode of enhanced mass-loss. The mass-loss during the quiet phase is given by the following equation:
where ρ|$\mathrm{ w}$| and v|$\mathrm{ w}$| are the mass density and velocity of the stellar wind, respectively. For an adiabatic shock of a monoatomic gas (i.e. γ = 5/3), the shock/wind density ratio is
From these two previous equations, we get
Let us assume the UV thin shell has thickness l at radius r. Its mass can be estimated as follows:
Assuming |$\dot{M}\simeq 10^{-7} \,\mathrm{ M}_{\odot }$| yr−1, v|$\mathrm{ w}$|= 6 km s−1, and the angular thickness of the bubble of ∼3 arcmin (from Fig. 2) at a distance of 54.6 parsec, we obtain Ms = 0.0031 M⊙. Therefore, if bubbles like this are formed because of the thermal pulses, after the 10 or 20 episodes expected to happen during the AGB phase the total mass lost due to this phenomenon must not exceed ≈0.06 M⊙. Although this mass-loss may have consequences for the stellar evolution, it is over one order of magnitude less than the total mass-loss during the ‘quiet’ (i.e. non-episodic) AGB phase.
6 CONCLUSIONS
In this paper, we describe the discovery of a bubble around the AGB star R Dor detected in the GALEX far-UV band. This is the fourth detection of a UV bubble around an AGB star after IRC10216, CIT6, and U Hya (o Ceti has a ‘cometary tail’, a morphologically different envelope). Apart from o Ceti, R Dor is the only O-rich star among these to show a UV extended feature. These are the main characteristics of the bubble:
Its shape is approximately round, with an actual diameter of 0.41 × 0.46 parsec2. The angle between the minor axis of this ellipse and the stellar proper motion is ∼28°. Thus, we cannot establish a firm relationship between the shape of the bubble and the movement of the central star relative to the ISM.
Assuming that the UV-emitting region corresponds to a shock zone caused by an episodic mass-loss episode, its mass has been estimated as 0.0031 M⊙. Considering that an AGB star can undergo between 10 and 20 thermal pulses, the total mass-loss due to this phenomenon is less than ≈0.06 M⊙. This is over one order of magnitude less than the total mass-loss during the ‘quiet’ (i.e. between pulses) AGB phase.
The bubble, like other cases previously reported in the literature, is filled with far-IR radiation. The 60 and 100 |$\mu$|m IRAS fluxes are consistent with a colour temperature |${\lesssim} 32$| K. This is compatible with the presence of cold dust, probably formed after the passage of the shock front.
Large-scale bubbles around AGB stars are the consequence of episodes of intense mass-loss. The kinematical ages of these bubbles are consistent with the time lapse between thermal pulses. Accordingly, a significant fraction of the AGB stars can be expected to exhibit a UV bubble. The small number of cases reported in the literature would be the result of observational biases. Since all UV bubbles are found to be within 350 parsec and at high galactic latitudes (|$|b| \gtrsim 35^{\circ }$|), the interstellar absorption in the UV is considered to be the main cause preventing the discovery of more UV bubbles around AGB stars. Deeper far-UV observations can reveal those.
