A targeted search for repeating fast radio bursts with the MWA Free

ABSTRACT

1 INTRODUCTION

Fast radio bursts (FRBs) are impulsive bursts of radio emission with durations ranging from microseconds to milliseconds (e.g. Cho et al. 2020; Nimmo et al. 2021) and fluences from ∼0.01 to 1000 Jy ms (e.g. Petroff et al. 2016; Shannon et al. 2018). Their typically large excess dispersion measures (DMs) with respect to the Galactic contribution in the line of sight suggests an extragalactic origin. This has been confirmed through identifying the host galaxies of a few subarcsecond localized FRBs (e.g. Chatterjee et al. 2017; Macquart et al. 2020). Although dozens of models have been proposed to explain the emission behaviour of FRBs (see Zhang 2020 for a review), their physical origin remains unknown.

Over the last couple years, the FRB population has rapidly expanded, with more than 700 FRBs published so far, mostly thanks to the Canadian Hydrogen Intensity Mapping Experiment (CHIME; CHIME Collaboration et al. 2022) Fast Radio Burst Project (CHIME/FRB; CHIME/FRB Collaboration et al. 2018). In the FRB population there are apparently two classes of FRBs: repeaters (Spitler et al. 2016) and non-repeaters (Petroff et al. 2015; Shannon et al. 2018), and their progenitors and/or emission mechanisms could potentially be different (e.g. CHIME/FRB Collaboration et al. 2019a; Fonseca et al. 2020). The existence of two populations of FRBs is further supported by recent studies using a large sample of CHIME FRBs (CHIME/FRB Collaboration et al. 2021; Pleunis et al. 2021b). Currently, there are 24 sources known to repeat (Spitler et al. 2016; CHIME/FRB Collaboration et al. 2019a,c, 2021; Kumar et al. 2019; Fonseca et al. 2020), and there is evidence for periodic activity from two of them, FRB 20121102A (Rajwade et al. 2020b; Cruces et al. 2021) and FRB 20180916B (CHIME/FRB Collaboration et al. 2020a), which might reflect an orbital (Ioka & Zhang 2020), rotational (Beniamini, Wadiasingh & Metzger 2020), or precession (Levin, Beloborodov & Bransgrove 2020) period. The recent discovery of unusually bright FRB-like emission from the Galactic magnetar SGR 1935+2154 suggests that magnetars could produce at least some of the extragalactic FRBs (Bochenek et al. 2020; CHIME/FRB Collaboration et al. 2020b). This association is further supported by the latest identification of subsecond periodicity from the subcomponents of FRB 20191221A (CHIME/FRB Collaboration et al. 2022).

Repeating and non-repeating FRBs often show different features in their burst properties. For example, on average, repeating FRBs tend to have larger burst widths than non-repeating FRBs (Scholz et al. 2016; CHIME/FRB Collaboration et al. 2019c; Fonseca et al. 2020; Pleunis et al. 2021b). The downward drifting of subpulses in frequency with time, i.e. the ‘sad trombone’ effect, appears to be a common feature among repeating FRBs (CHIME/FRB Collaboration et al. 2019b; Hessels et al. 2019; Pleunis et al. 2021b). While some repeating FRBs share flat polarization position angles within and between bursts, such as FRB 20121102A and FRB 20180916B (Michilli et al. 2018; Nimmo et al. 2021), the bursts of FRB 20180301 show a diversity of position angle swings (Luo et al. 2020). Detailed spectrotemporal and polarimetric studies of more repeating FRBs are needed to confirm and explain these features.

Up until very recently, FRB repeating sources have been detected at frequencies between 300 MHz (Chawla et al. 2020; Parent et al. 2020; Pilia et al. 2020) and 8 GHz (Gajjar et al. 2018). However, simultaneous observations of repeating FRBs in different bands suggest that individual pulses are narrow-band, yet are scattered across a wide range of frequencies with time (Gourdji et al. 2019). For example, FRB 20180916B has been detected up to 5.3 GHz (Bethapudi et al. 2022), yet the absence of simultaneous detections at frequencies 2.3 and 8.4 GHz demonstrates its frequency-dependent activity (Pearlman et al. 2020). While Chawla et al. (2020) detected FRB 20180916B at 300–400 MHz using the Robert C. Byrd Green Bank Telescope, no emission was seen contemporaneously at 110–188 MHz using the Low Frequency Array (LOFAR). Such narrow-band emission has also been demonstrated for FRB 20121102A (Gourdji et al. 2019; Majid et al. 2020) and FRB 20190711A (Kumar et al. 2021a).

To date, there have been many searches for FRB emission below 300 MHz, including simultaneous, multiband, targeted (Law et al. 2017; Sokolowski et al. 2018; Houben et al. 2019), and wide-field blind (Coenen et al. 2014; Karastergiou et al. 2015; Tingay et al. 2015; Rowlinson et al. 2016; Sanidas et al. 2019) searches using LOFAR, the Murchison Widefield Array (MWA), and the Long Wavelength Array. In addition, searches for prompt and dispersed (FRB-like) signals predicted to be associated with gamma-ray bursts have also been conducted with MWA and LOFAR via rapid-response observations (Kaplan et al. 2015; Rowlinson et al. 2019, 2021; Anderson et al. 2021; Tian et al. 2022a,b), none of which have yielded a detection. However, recently Pleunis et al. (2021a) reported the detection of 18 bursts from FRB 20180916B between 110 and 188 MHz using LOFAR, the only detections of any FRB below 300 MHz to date. This confirms the existence and the detectability of low-frequency bursts from repeating FRBs at cosmological distances, which are not limited by propagation effects or the FRB emission mechanism. Additionally, this same repeater appears to undergo chromatic periodic activity where its activity window is wider and occurs later with decreasing frequency. This is demonstrated by the ∼3 d delay in the peak activity between bursts observed by CHIME/FRB at 600 MHz and those observed by LOFAR at 150 MHz (Pastor-Marazuela et al. 2021; Pleunis et al. 2021a).

There are several reasons for the dearth of FRB detections at low frequencies. First is an increase in the sky background temperature at low radio frequencies (e.g. de Oliveira-Costa et al. 2008; Cong et al. 2021). This can increase the noise level in low-frequency observations and reduce the observed signal-to-noise ratio (S/N). As FRB signals propagate through intervening ionized media before reaching the Earth, the effects of scatter broadening of the pulse profiles and intrachannel dispersive smearing, which are more significant at low frequencies, can also reduce the peak S/N. In addition, repeating FRBs are also known to suddenly turn on and enter periods of long-term (>a few years) activity (e.g. FRB 20201124A; Lanman et al. 2022). This makes it difficult to define proper burst rates for sources that exhibit burst clustering, which may be more/less active at higher/lower frequencies (e.g. FRB 20121102A and FRB 20180916B; Josephy et al. 2019; Pearlman et al. 2020). All of these present challenges to FRB searches at low radio frequencies.

None the less, low-frequency FRB searches are very important. A real detection at low frequencies would complement high-frequency detections for broad-band measurements of the FRB spectrum, allowing more reliable studies of the burst energetics and the emission mechanism. It would also allow us to better constrain the local environments of FRBs based on propagation effects such as free–free absorption. As this effect is more obvious at lower frequencies (optical depth scales as τ_ff ∝ ν^−2.1), FRB measurements at low frequencies would place more stringent constraints on the size of the emission site (Pleunis et al. 2021a). Low-frequency FRB emission is also sensitive to other propagation effects such as the dispersion, scattering, and Faraday rotation, and could provide precise measurements of the DM, scattering time-scale, and rotation measure of FRBs (Petroff, Hessels & Lorimer 2022). Therefore, low-frequency FRB searches are well motivated scientifically in spite of the observational challenges.

In this paper, we use the archival MWA observations taken with the voltage capture system (VCS; Tremblay et al. 2015), which has a high temporal resolution of |$100\, \mu$|s, to search for low-frequency (144–215 MHz) FRB signals from known repeating FRBs. In Section 2, we describe our selection of MWA observations in the data archive and the data processing and analysis we used for the FRB search. Our results are then presented in Section 3. We discuss the implications of our results for FRB sources and emission models in Section 4, followed by conclusions in Section 5.

2 OBSERVATIONS AND ANALYSIS

2.1 MWA VCS mode

The MWA is a low-frequency radio telescope with an operational frequency range of 80–300 MHz, an instantaneous bandwidth of 30.72 MHz and a field of view ranging from |${\sim} 300\text{ to }1000\, \text{deg}^2$| (Tingay et al. 2013; Wayth et al. 2018). There are two observing modes of the MWA: the standard correlator with a time and frequency resolution of 0.5 s/10 kHz and the VCS with a resolution of |$100\, \mu$|s/10 kHz. We chose to inspect MWA VCS observations for FRBs from known repeaters due to their high time resolution, making them specifically sensitive to narrow (∼ms) pulsed and therefore dispersed signals, i.e. FRB emission.

The MWA VCS mode has been extensively used for pulsar studies and searches (Bhat et al. 2016; McSweeney et al. 2017; Xue et al. 2017; Meyers et al. 2018; Swainston et al. 2021). In 2018 September, an all-sky pulsar search project, the Southern-sky MWA Rapid Two-meter (SMART) survey (Bhat et al., in preparation), was commenced to search the entire sky south of +30° in declination for pulsars, with regular data collection planned until ∼2023. This survey, along with targeted observations towards a number of already known pulsars, generates a large amount of VCS observations in the MWA archive. These all-sky archival data at the highest time resolution available with the MWA, combined with the MWA’s large field of view, are an invaluable resource to exploit for transient studies and enable the search for low-frequency bursts from known repeating FRB sources. The observations we selected for FRB searches were taken between 2014 September and 2020 May, spanning the MWA Phase I and Phase II, which differ in array configuration, and baseline length and distribution. The MWA Phase I presents an angular resolution of ∼2 arcmin at 185 MHz (Tingay et al. 2013). The MWA Phase II has two configurations: extended and compact configurations with angular resolutions of ∼1 and ∼10 arcmin, respectively (Wayth et al. 2018). Both can be used for FRB searches.

2.2 FRB selection

We used the first complete FRB catalogue¹ [including FRB events published in the Transient Name Server (TNS),² Fast Radio Burst Catalogue (FRBCAT), and the CHIME/FRB Catalogue; Petroff et al. 2016; CHIME/FRB Collaboration et al. 2021] to identify targets for our FRB search, i.e. those repeaters that could be viewed by the MWA. Since the majority of repeaters have been detected by CHIME, which looks at the Northern sky (CHIME/FRB is sensitive to sky locations with declinations >−11°; CHIME/FRB Collaboration et al. 2021), only a few of them are located in the MWA observable sky. We filtered through the population of known repeating FRBs using the criterion of their maximum elevation above the MWA’s horizon of >30° (for the choice of the elevation limit, see Hancock et al. 2019), and obtained a list of five repeating FRBs (see Table 1).

The five repeating FRBs display varying burst widths, fluences, degrees of activity, and repetition rates, as shown in Table 1. FRB 20190711A was first detected by the Australian Square Kilometre Array Pathfinder (ASKAP) in the frequency range 1.1–1.3 GHz (Macquart et al. 2020), and hundreds of hours of follow-up observations with ASKAP and Parkes Observatory detected only one repeat burst at 1.4 GHz in the Parkes observations (Kumar et al. 2021a), indicating an extremely low repetition rate. We do not report a burst rate for this repeater in Table 1. FRB 20190116A, FRB 20190117A, FRB 20190213A, and FRB 20201124A were first detected by CHIME in the frequency range 400–800 MHz, with a burst rate simply estimated by the ratio of the number of detected bursts to the exposure time of the CHIME system on the source (CHIME/FRB Collaboration et al. 2019c; Fonseca et al. 2020). The brightest repeater in this sample, FRB 20201124A, was subsequently detected by multiple instruments including the Karl G. Jansky Very Large Array (VLA) at 1.5 GHz (Law et al. 2021), the ASKAP at 864.5 MHz (Kumar et al. 2021b,c), and the Five-hundred-meter Aperture Spherical radio Telescope (FAST) at 1.2 GHz (Xu et al. 2021), and reported to enter a sudden period of high activity in 2021 March (Piro et al. 2021; Lanman et al. 2022; Marthi et al. 2022). Thanks to these radio observations between 864.5 MHz and 1.5 GHz, FRB 20201124A is the only repeater in our sample that has a measured spectral index |$\alpha =-5.82^{+0.68}_{-0.84}$| (Kumar et al. 2022). For the CHIME repeaters, the burst rates quoted in Table 1 assume an average rate that does not take into account the likely variable nature of a potential activity window, and thus may not apply to the time windows of the MWA observations inspected in our analysis (see discussions in Section 4.1). Note that the CHIME rates in Table 1 are all based on CHIME observations except for FRB 20201124A, which is estimated for the period of high activity after 2021 March while its rate prior to discovery is as low as |${\lt} 3.4\, \text{d}^{-1}$| (Piro et al. 2021; Lanman et al. 2022; Marthi et al. 2022).

We used the MWA All-Sky Virtual Observatory (ASVO)³ to search for all VCS observations that overlap with the positional errors of the five repeating FRBs, and found 61 observations in the MWA data archive. We then estimated the sensitivity of each VCS observation in the directions of the five repeating FRBs based on the Full Embedded Element model of the MWA (Sokolowski et al. 2017). We selected only those observations with at least 20 per cent of the maximum sensitivity in the primary beam. This resulted in a total of 25 observations with integrations between 15 min and 1.5 h (23.3 h in total) and central frequencies between 144 and 215 MHz, as listed in Table 2. Of these observations, 12 were taken in the MWA Phase II compact configuration, and the others were recorded in the higher angular resolution of Phase I and the Phase II extended configuration.

2.3 Data processing

For the data processing we used the VCS data processing pipeline, which was initially developed for pulsar detections (e.g. Bhat et al. 2016, McSweeney et al. 2017, Meyers et al. 2017; Ord et al. 2019). It automates the reduction of MWA VCS data of targeted sources, including downloading, calibration, and beamforming at the target positions. The final data product is a time series of Stokes parameters written into the psrfits format (Hotan, van Straten & Manchester 2004), which can be further analysed by the presto software package⁴ (Ransom 2001). Here we present specific details regarding calibrating the VCS data and beamforming at the positions of the target FRBs.

2.3.1 Calibration

For each MWA observation, we need to determine the direction-independent complex gains, including amplitudes and phases, for each constituent tile (4 × 4 dipole array) through the calibration process (for details see Ord et al. 2019). We selected a bright source that had been observed in the standard correlator mode within 12 h of the VCS observation as the calibrator source. The name of the calibrator source used to calibrate each VCS observation is listed in Table 2. The real-time system (RTS; Mitchell et al. 2008) was used to generate a calibration solution for the amplitude and phase for each of the 24 × 1.28 MHz subbands and each tile from the visibilities. We inspected these solutions and discarded tiles showing poor calibration solutions. We also excised the edge channels (0–7 and 120–127) of each of the 24 subbands to alleviate the aliasing effects resulting from the channelization process. We applied this calibration process to each MWA observation before coherently summing the power from the constituent tiles.

2.3.2 Coherent beamforming

In order to maximize our sensitivity to any millisecond-duration signals from the five repeating FRBs, we coherently summed the voltages from individual MWA tiles to form a tied-array beam in the FRB directions (i.e. coherent beamforming; Ord et al. 2019; Swainston et al., in preparation). This can potentially gain more than an order of magnitude increase in sensitivity for each phase centred beam over incoherent beamforming, which simply sums up the power from each tile to preserve a large field of view (e.g. Bhat et al. 2016). The performance of coherent beamforming is affected by a few factors, such as the quality of the calibration solution and the pointing direction of the telescope.

Here we briefly summarize the beamforming process (for more details see Swainston et al., in preparation). The essential step is converting cable and geometric delays to the pointing centre into phase shifts for each tile. With the knowledge of the delay model and the complex gain information from the calibration solution derived in the calibration process, we can obtain the tile-based gain solution to equalize the tile gains and phase all tiles to the same direction.

We used the coherent beamforming to phase all MWA tiles to the known positions of the five repeating FRBs, as listed in Table 1. The number of coherent beams we needed to form for each FRB depends on the positional error of the FRB and the angular resolution of the MWA observation. The ASKAP repeater, FRB 20190711A, has a small positional error of 0.38 arcsec (Macquart et al. 2020), well within the synthesized beam of the MWA, so we only needed to beamform the VCS data at a single position. The other CHIME repeaters have a positional error of ∼10 arcmin. Depending on the configuration of the MWA, this corresponds to 2–16 beams for the Phase II compact configuration and ∼550 beams for the Phase I and Phase II extended configuration, as shown in Table 2.

2.4 Data analysis

For each of the five repeaters, we used the VCS tied-array beamformer to create a time series with a temporal and frequency resolution of |$100\, \mu$|s and 10 kHz at each of the selected pointing directions that cover the entire FRB positional error. We performed a standard FRB search over the 30.72 MHz bandwidth and a DM range of |$100\, \text{pc}\, \text{cm}^{-3}$| around the nominal DMs of the repeaters listed in Table 1. For the DM ranges searched for each repeater see Table 3.

2.4.1 FRB search

The single-pulse search was performed using the presto software package (Ransom 2001). Compared to other radio telescopes traditionally used for high time-resolution analysis, the MWA is generally less affected by radio frequency interference (RFI), so we did not perform any RFI excision that is usually required at higher observing frequencies (see procedures outlined in Swainston et al. 2021). None the less, any spurious events caused by RFI can be identified from the final candidates via visual inspection.

First we dedispersed the time series using the prepdata routine in presto. We determined the DM search range of each observation based on the nominal DM of the target FRB (see Table 3). Specifically, we searched around the known DM with approximately |${\pm} 50\, \text{pc}\, \text{cm}^{-3}$| but shifted that limit to within the closest multiple of |$10\, \text{pc}\, \text{cm}^{-3}$|⁠, covering a DM range of |$100\, \text{pc}\, \text{cm}^{-3}$|⁠. Given that there is no evidence of DM evolution for the five repeating FRBs analysed in this paper, and the largest DM variation observed for FRB 20190711A and FRB 20201124A is 7 and |$10\, \text{pc}\, \text{cm}^{-3}$|⁠, respectively (likely caused by varying burst morphology; Kumar et al. 2021a, 2022), the DM range we chose is sufficient for the repeat bursts searched for here. We adopted a DM step size of |$0.1\, \text{pc}\, \text{cm}^{-3}$|⁠, resulting in 1000 DM trials for each observation. To reduce the data size, the dedispersed time series were downsampled to a lower time resolution of |$400\, \mu \text{s}$|⁠. This would not affect our search for repeating bursts given the shortest burst width is 0.64 ms in our sample of repeating FRBs (see Table 1) and the general trend of increasing burst widths at lower frequencies (e.g. Chawla et al. 2020; Pleunis et al. 2021a).

We performed a traditional single-pulse search using presto’s single_pulse_search.py, which convolves the dedispersed time series with boxcars of different widths. We chose different pulse width search ranges for the five repeating FRBs based on their brightness and the sensitivity of the MWA observations. While we searched up to a pulse width of 1.3 s (the maximum scatter broadening expected at the MWA observing frequency; see Section 2.4.3 and Table 3) for the two brightest FRBs in our sample, i.e. FRB 20190711A and FRB 20201124A, we only searched up to 150 ms for the other three FRBs as any signals scattered beyond 150 ms are expected to have a flux density of <0.2, <1.4, and <0.2 Jy for FRB 20190116A, FRB 20190117A, and FRB 20190213A, respectively (assuming a spectral index of α = −2; see Table 3), which is below the MWA sensitivity of ∼1.4 Jy on 150 ms time-scales. Single-pulse events detected with an S/N above 6 were classified as candidates (e.g. Bannister et al. 2012; Meyers et al. 2018; Chawla et al. 2020). We then applied a friends-of-friends algorithm (Burke-Spolaor et al. 2011; Bannister et al. 2012) to identify possible false positives. In the case of more than five individual boxcar/DM trials clustering into a candidate (e.g. Kumar et al. 2021a), we reserved it for further inspection (see Fig. 1 for an example candidate).

Figure 1.

An example dynamic spectrum of a candidate burst detected in an MWA observation (Obs ID: 1163853320) beamformed at the position of FRB 20190213A. Data have been dedispersed to a DM of |$635.4\, \text{pc}\, \text{cm}^{-3}$|⁠. The dynamic spectrum has been averaged to a time resolution of 3 ms and a frequency resolution of 0.24 MHz. The frequency-averaged pulse profile is shown on the top panel with the candidate located between the two vertical dashed lines. The time-averaged spectrum is shown on the right-hand panel.

Open in new tabDownload slide

We tested our data processing and FRB detection pipeline by searching for single giant pulses from the Crab Pulsar in a 154 MHz MWA observation listed in Table 2 (Obs ID: 1165246816). We ran our FRB search pipeline over a chosen DM range of |$56.77\pm 5\, \text{pc}\, \text{cm}^{-3}$| [from the Australia Telescope National Facility (ATNF) Pulsar Catalogue⁵; Manchester et al. 2005]. We successfully detected 89 single pulses with S/N > 10 from this 15 min observation (see Appendix  A and Fig. A1 for the dedispersed dynamic spectrum of the brightest Crab pulse). In order to calculate the expected giant pulse rate from the Crab at the observing frequency of 154 MHz, we took the Crab pulse rate of |$0.35\, \text{s}^{-1}$| at 185 MHz for a fluence >520 Jy ms, the spectral index of −0.7 ± 1.4, and the power-law fluence distribution |$N(\gt F_\nu)\propto F_\nu ^{-\beta }$| with β = 2.88 ± 0.12, all calculated by Meyers et al. (2017). We obtained a pulse rate of |$0.03\!-\!0.17\, \text{s}^{-1}$| for a fluence >1000 Jy ms (corresponding to the 10σ sensitivity of the tested observation). Therefore, the expected number of detectable giant pulses from the Crab at 154 MHz within our 15 min observation is 27–153, which is consistent with our detection of 89 pulses, and thus verifying the utility of our VCS data processing and FRB detection pipeline.

2.4.2 Determination of system sensitivity

Bandwidth considerations are needed for the final determination of the minimum detectable flux density in each of the selected MWA observations. As we flagged 16 of the 128 fine channels, the effective bandwidth is reduced to 87.5 per cent of the full 30.72 MHz. To correct for this, we need to apply a scaling factor of 0.875^−1/2 ≈ 1.07 when converting to flux density limits. In the case of bad tiles flagged during the calibration process (see Section 2.3.1), we also need to correct for the corresponding sensitivity loss by assuming the sensitivity scales with the number of tiles. Taking into account the above considerations, we arrived at a 6σ flux density upper limit for each observation, as shown in Table 2. Note that this flux limit is based on the telescope pointing and the source location in the primary beam (with an elevation in the MWA field of >30° as shown in Table 2).

2.4.3 Pulse width and fluence estimates

FRBs also experience scattering. However, given the unknown environment of FRBs the scattering time-scale is largely uncertain. We may infer the lower limit of the scattering time-scale based on the Galactic contribution. Using the NE2001 model of electron density fluctuations (Cordes & Lazio 2002), we obtained a minimum scattering time-scale at 1 GHz of 4.3 × 10⁻⁵, 2.6 × 10⁻⁴, 1.7 × 10⁻⁴, 3.2 × 10⁻⁴, and 5.8 × 10⁻³ ms for FRB 20190116A, FRB 20190117A, FRB 20190213A, FRB 20190711A, and FRB 20201124A, respectively. The upper limits on scattering time-scales have been derived for FRB 20190116A, FRB 20190117A, FRB 20190213A, and FRB 20201124A to be <11, <7.4, <4.0, and <11.1 ms at 600 MHz (CHIME/FRB Collaboration et al. 2019c; Fonseca et al. 2020; Marthi et al. 2022). Given FRB 20190711A has no published scattering measurement due to its complex time-domain structure (Day et al. 2020) or low S/N (Kumar et al. 2021a), we assumed a typical scattering time-scale of <10 ms (CHIME/FRB Collaboration et al. 2021). Assuming the scattering time-scale depends on frequency as ν⁻⁴ (Bhat et al. 2004), we can obtain a range of scattering time-scales at the MWA observing frequency. The final lower and upper limits on the scatter broadening can be found in Table 3. Note that the final range in Table 3 was calculated individually for each observation before being combined for each repeater.

With the estimated dispersion smearing and scattering time-scales, we can derive a range of pulse widths expected for each observation using equation (4), which can be further used to derive the final range of fluence limits for each observation using equation (3). The ranges of fluence limits derived from different observations covering the same repeating FRB were combined to obtain the final range of fluence limits for the repeater, as shown in Table 3.

3 RESULTS

We performed FRB searches on 25 VCS observations at the positions of five repeating FRBs, of which four were discovered by CHIME and one by ASKAP. Following the automated pulse search, we further filtered all candidates with an S/N above 6σ using the friends-of-friends algorithm. The number of remaining candidates at the position of each repeater is listed in Table 2, totalling 543 candidates discovered in 23.3 h of VCS data. We visually inspected their pulse profiles and dynamic spectra, and found no evidence of a dispersion sweep, suggesting they are not real signals. An example dynamic spectrum of a candidate burst detected in an MWA observation (Obs ID: 1163853320) with S/N = 6.59 is shown in Fig. 1.

We derived a flux density limit for each of the 25 MWA VCS observations searched for FRB signals, as shown in Table 2. For FRB 20201124A, the flux density limits ranged between 18.41 and 22 Jy. We also inferred a range of pulse widths of 9.52–1229 ms at the MWA observing frequency of 185 MHz for this repeater. With the derived flux density limits and pulse widths, we finally arrived at a range of fluence limits of 36–488 Jy ms for FRB 20201124A. We did a similar analysis for the remaining FRBs, and present all results in Table 3. Note that the three faint repeaters in our sample, i.e. FRB 20190116A, FRB 20190117A, and FRB 20190213A, were only searched up to a pulse width of 150 ms (see Section 2.4.1). The uncertainties in the final fluence limits span more than an order of magnitude, which can be attributed to the largely uncertain scattering time-scales. In the best case, i.e. minimal scattering, we would have detected any bursts with a fluence ≳50 Jy ms. Note that the low-frequency bursts detected by LOFAR from FRB 20180916B can reach a fluence of 308 ± 10 Jy ms (Pleunis et al. 2021a), much higher than this fluence threshold (see Section 4.5).

In summary, no bursts from the five repeaters were detected in MWA observations. Based on their known properties, we inferred a range of fluence upper limits for each repeater, as shown in Table 3, which can be used to constrain the burst properties of the repeating FRB population.

4 DISCUSSION

We explore implications of the above results for the five repeating FRBs analysed in this paper. Given their burst rates estimated by CHIME/ASKAP observations (see Table 1), we calculated the expected number of bursts during the MWA observations assuming the burst rate is constant and frequency independent, as shown in Table 3. Based on this, there is a non-negligible chance of detecting bursts during the MWA observations of these repeaters, especially for FRB 20201124A, which can potentially emit 30 bursts within 1.9 h (Lanman et al. 2022). Therefore, the fact that we did not detect any bursts could suggest that our assumption of a constant burst rate may be incorrect, the FRB emission has a shallow (broad-band) or highly peaked (narrow-band) spectrum, or the circumburst environment prevents the low-frequency radio emission from escaping. In this section, we discuss the constraints placed on the properties of these repeaters by our non-detections.

4.1 Burst rate

The first explanation for our non-detection may be that the repeaters were not active during the MWA observations. If that is the case, we can further constrain the burst rates of the five repeaters at the MWA observing frequency (185 MHz) to |${\lt} 0.50$|⁠, |${\lt} 0.15$|⁠, |${\lt} 0.24$|⁠, |${\lt} 0.11$|⁠, and |${\lt} 0.53\, \text{h}^{-1}$| for FRB 20190116A, FRB 20190117A, FRB 20190213A, FRB 20190711A, and 20201124A, respectively, assuming the rate is not changing with time. Interestingly, the most stringent constraint on the burst rate of FRB 20190711A, |${\lt} 0.11\, \text{h}^{-1}$|⁠, is comparable to the lowest observed rate for a CHIME repeater (⁠|$0.05\, \text{h}^{-1}$| for FRB 20190212A; Fonseca et al. 2020). Note that the burst rates of FRB 20190711A and FRB 20190212A are measured at different frequencies (154–215 MHz for MWA and 400–800 MHz for CHIME), and there seems to be an increasing trend in burst rates towards lower frequencies though it is not conclusive (e.g. Pearlman et al. 2020; Pleunis et al. 2021a).

There is also another possibility that the repeaters were in quiescence during the MWA observations. That is, the five repeaters may have variable burst rates. This has been shown to be the case for FRB 20201124A. While this FRB has been observed to emit 48 bursts within 3 h (Marthi et al. 2022), its rate prior to discovery is as low as |${\lt} 3.4\, \text{d}^{-1}$| (at the 3σ level assuming a Poisson rate; Lanman et al. 2022). Despite the uncertainties associated with repeater activity, it is worth considering that the repeaters studied here emitted signals during the MWA observations in order to investigate the constraints our observations place on their spectral properties (see Section 4.2) or emission environments (see Section 4.3).

4.2 Spectral properties

Here we consider that our non-detections of FRB emission is due to low fluences in the MWA observing band. In the case of broad-band FRB emission, we can constrain the spectral index using the fluence upper limits we derived for the five repeaters and their observed fluences at higher frequencies. The mean spectral index of FRB emission has been determined to be |$-1.5^{+0.2}_{-0.3}$| from the summed power of 23 ASKAP FRBs over a frequency range of 1.1–1.5 GHz (Macquart et al. 2019) and |${-}1.53^{+0.29}_{-0.19}$| by a simulation on a sample of 82 FRBs detected by Parkes, ASKAP, CHIME, and UTMOST over 0.4–1.5 GHz (Bhattacharyya et al. 2022). Here we extrapolated the fluences observed at higher frequencies to the MWA observing frequency of 185 MHz for three different spectral index values of −1, −1.53, and −2 (the same range of spectral indices explored by Sokolowski et al. 2018) and include them in Table 3 where they can be compared to the fluence upper limits derived from our data. While low-frequency bursts from FRB 20190116A and FRB 20190213A were likely undetectable in the searched MWA data sets based on the assumed mean spectral index, bursts from the other repeaters may well be detectable if they were active during the MWA observations. Although the scatter broadening of pulses can significantly reduce our sensitivity to FRB emission (as demonstrated by the large range of fluence upper limits shown in Table 3), our non-detection of low-frequency bursts from the two brightest repeaters FRB 20190711A and FRB 20201124A cannot be explained by scattering alone unless their spectral indices are α ≳ −1, which is consistent with the conclusion in Sokolowski et al. (2018).

There is another possibility that the spectrum of repeating FRBs needs to be generalized beyond a simple power law. This could be attributed to a low instantaneous bandwidth as has been observed for FRB 20121102A, FRB 20180916B, and FRB 20190711A with a typical fractional bandwidth of |${\sim} 20{{\ \rm per\ cent}}$| (Law et al. 2017; Gourdji et al. 2019; Majid et al. 2020; Kumar et al. 2021a) and/or clustering of spectra of repeat bursts as has been observed for FRB 20121102A (peaking around 1650 MHz) and FRB 20201124A (peaking around 650 and 500 MHz; Aggarwal et al. 2021; Lanman et al. 2022). In the former case, the narrow-band feature is similar to that observed for giant pulses from some pulsars (e.g. Geyer et al. 2021; Thulasiram & Lin 2021), and might hint at similarities in emission mechanisms between repeating FRBs and giant pulses.

4.3 Free–free absorption

A low-frequency break in the spectrum of FRB emission is a plausible explanation for our non-detection. It has been suggested that free–free absorption by electrons in the circumburst environment can suppress low-frequency emission (Ravi & Loeb 2019; Rajwade et al. 2020a). Here we derive an upper limit on the size of a nebula that the repeater may be embedded in in the context of free–free absorption (e.g. Sokolowski et al. 2018).

If free–free absorption is responsible for the absence of low-frequency emission, we can place a constraint on the size of the absorbing medium by requiring τ_ff > ln(F_exp/F_lim), where F_exp is the expected fluence at the observing frequency for a spectral index of |$-1.53^{+0.29}_{-0.19}$| (Bhattacharyya et al. 2022) and F_lim is the fluence upper limit derived from the MWA observation (see Table 3). In the case of minimum scattering, we find |$f_{\text{eff}}\, L_{\text{pc}}\lt 1.00\times (T/10^4\,\text{K})^{-1.35}\, \text{pc}$| (using F_exp = 106 Jy ms), |$0.92\times (T/10^4\,\text{K})^{-1.35}\, \text{pc}$| (using F_exp = 837 Jy ms), and |$[0.22\!-\!2.50]\times (T/10^4\,\text{K})^{-1.35}\, \text{pc}$| for FRB 20190117A, FRB 20190711A, and FRB 20201124A, respectively. Note that the fluence upper limits on the other two repeaters are not sufficient for constraining the size of their absorbing media.

We can compare our constraints on the size of an ionized nebula with those derived for other repeaters, such as FRB 20121102 and FRB 20180916B. The lowest frequency detection of FRB 20121102 was reported at 600 MHz by CHIME (Josephy et al. 2019). However, a search for low-frequency emission from FRB 20121102 with LOFAR resulted in a fluence upper limit of 42 Jy ms at 150 MHz (Houben et al. 2019). If we adopt the DM value derived from Balmer line measurements for the DM contribution from the host galaxy, |$\text{DM}_\text{host}\lesssim 324\, \text{pc}\, \text{cm}^{-3}$| (Tendulkar et al. 2017), the size of the ionized region surrounding FRB 20121102 can be constrained to ≲2.85 pc, which is comparable to the constraints derived above. Different than FRB 20121102 and the repeaters studied here, FRB 20180916B was reported to have low-frequency emission between 110 and 188 MHz, suggesting a lower limit on the size of an ionized nebula |${\gg} 0.16\times (T/10^4\,\text{K})^{-1.35}\, \text{pc}$| (Pleunis et al. 2021a). If the population of repeating FRBs analysed here have a similar environment as FRB 20180916B, we would expect a nebula size of ∼1 pc, comparable to the Crab Nebula.

4.4 Comparison of FRB searches with the MWA

Previously, the MWA has been employed to perform FRB searches in the image domain (Tingay et al. 2015; Rowlinson et al. 2016; Sokolowski et al. 2018). Here we present the first FRB search using MWA VCS observations. Compared to the imaging mode, the VCS data feature a much higher time resolution, increasing our sensitivity to short duration (∼ms) FRB emission that would otherwise be diluted by the 0.5 s coarse sampling of the standard correlator. Table 4 displays a comparison of the fluence sensitivity of our search with previous works. Note that while Tingay et al. (2015) and Rowlinson et al. (2016) performed a blind search for FRB emission in the wide field of view of the MWA, Sokolowski et al. (2018) specifically targeted the bright FRBs detected by ASKAP via a shadowing observing strategy. We can see the VCS observations used in this work demonstrate the best sensitivity. In the case of minimal scattering, the VCS observation is more than an order of magnitude more sensitive than the standard observation, and thus is most promising for searching for FRBs in the future.

4.5 Future prospects

Considering the ongoing searches for FRBs with multiple different facilities, e.g. Parkes (Keane et al. 2018), ASKAP (Bannister et al. 2017), CHIME (CHIME/FRB Collaboration et al. 2018), UTMOST (Caleb et al. 2016), and FAST (Jiang et al. 2019), we expect more repeating FRBs to be discovered that can be observed by the MWA in the future. Since most FRBs are discovered by CHIME, here we focus on the prospect of CHIME repeating FRB follow-up using the MWA. At the location of MWA, we are able to observe only those FRBs with low declinations (≲30°), amounting to ∼20 per cent of the whole population based on the sky distribution of FRBs (see fig. 10 in CHIME/FRB Collaboration et al. 2021). Therefore, given that 18 repeating FRBs have been discovered by CHIME during its first year of operation (CHIME/FRB Collaboration et al. 2019c; Fonseca et al. 2020), we expect to be able to follow up ∼4 new repeating FRBs using the MWA per year assuming that the discovery rate is constant. Note that we would ideally target repeating FRBs that were away from the Galactic plane where the sky temperature is much higher, as well as choose those that show lower levels of scattering.

A very interesting source among the population of repeating FRBs is FRB 20180916B, which features a periodicity of 16.3 d and low-frequency emission detected by LOFAR in the frequency range of 110–188 MHz (Pleunis et al. 2021a), overlapping with the MWA observing band. Note that this FRB is unobservable by the MWA due to its location in the Northern hemisphere. However, the fluences of the bursts from this repeater range between 26 and 308 Jy ms and are therefore close to the fluence upper limits we derived from the MWA VCS observations studied in our analysis. It is therefore instructive to explore the detectability of these bursts by the MWA if they appeared in the MWA field of view. In Fig. 2, we plot the pulse widths and fluences of the 18 detected bursts (black points) and the fluence upper limits derived from the MWA observations included in this work (blue region). Considering the sensitivity of the MWA observations in this work are limited by the low elevations of the targeted FRBs in the MWA field of view, we also plot a typical sensitivity near the zenith of the full MWA for comparison (Meyers et al. 2017, 2018; dashed red line). While the observations in this work would only have been sensitive enough to detect the seven brightest bursts, a typical VCS observation near the zenith could have detected up to 12 bursts, and therefore ∼70 per cent of the bursts reported by Pleunis et al. (2021a) from the repeating FRB 20180916B at low frequencies (<200 MHz). Therefore, if another repeating source with emission properties similar to FRB 20180916B becomes known in the MWA sky in the future, follow-up campaigns with the MWA would be capable of detecting low-frequency bursts.

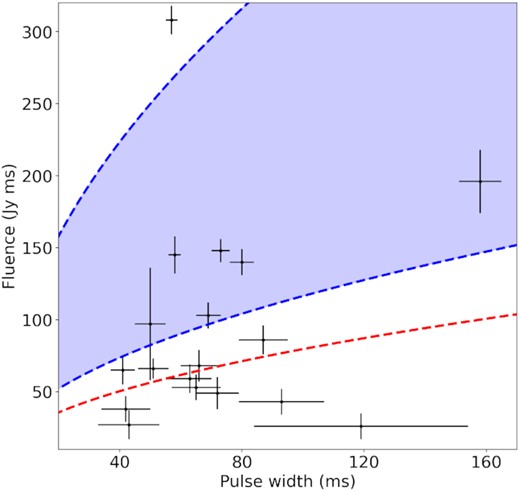

Figure 2.

Fluences of the bursts reported by Pleunis et al. (2021a) from the repeating FRB 20180916B at 110–188 MHz versus their pulse widths. The black points represent the 18 bursts detected by LOFAR, the blue region represents the range of fluence upper limits derived from the MWA observations analysed in this work, and the dashed red line represents a typical VCS sensitivity for near-zenith observations with the MWA.

Open in new tabDownload slide

5 CONCLUSIONS

In this paper, we have searched for low-frequency emission from five repeating FRBs using the VCS observations in the MWA archive. This is the first time that the MWA VCS has been used to search for bursts from repeating FRBs. The 25 MWA VCS observations analysed ranged in integration times between 15 min and 1.5 h (23.3 h in total). As a result of this work, we come to the following main conclusions.

• If FRB 20190711A and FRB 20201124A were active during the MWA observations, then we can constrain their spectral index to α ≳ −1 assuming a broad-band spectrum, shallower than the mean spectral index estimated on a sample of FRBs (Bhattacharyya et al. 2022).

• The fluence upper limits derived from the MWA observations in the case of minimum scattering on the FRB emission (contributed only by the Milky Way) enable us to constrain the size of the absorbing medium to |${\lt} 1.00\times (T/10^4\,\text{K})^{-1.35}\, \text{pc}$|⁠, |${\lt} 0.92\times (T/10^4\,\text{K})^{-1.35}\, \text{pc}$|⁠, and |${\lt} [0.22\!-\!2.50]\times (T/10^4\,\text{K})^{-1.35}\, \text{pc}$| for FRB 20190117A, FRB 20190711A, and FRB 20201124A respectively, which is comparable to the size limit on FRB 20121102 (Tendulkar et al. 2017; Houben et al. 2019) and lower limit for FRB 20180916B (Pleunis et al. 2021a).

• Compared to previous MWA searches for low-frequency FRB emission using the standard correlator with a minimum temporal resolution of only 0.5 s (Tingay et al. 2015; Rowlinson et al. 2016; Sokolowski et al. 2018), our VCS observations with a temporal resolution of |$400\, \mu$|s are more than an order of magnitude more sensitive to FRB signals except in the case of severe pulse broadening due to scattering beyond ∼0.5 s.

• A comparison between the typical sensitivity of the MWA VCS observation at the zenith and the fluences detected by LOFAR from FRB 20180916B reveals that the MWA would be able to detect ∼70 per cent of the low-frequency bursts from a repeater like FRB 20180916B.

In conclusion, our non-detections are likely due to the limited total integration time of our VCS observations, during which the repeaters were likely inactive. However, we cannot rule out the possibility of a shallow spectrum or a dense environment. In order to detect the low-frequency counterparts of repeating FRBs or clearly constrain their burst properties, we need a combination of the reanalysis of archival VCS observations, which will continue to be collected over the duration of the SMART survey, and potentially dedicated VCS observing campaigns. Higher frequency instruments such as CHIME and ASKAP can be used to determine the active windows of repeating FRBs when targeted observations with the MWA will be most useful. Currently, the high time-resolution data set that covers a large part of the Southern Sky, which is only made possible via access to high time-resolution data archives, presents a unique opportunity for transient science. Given this rich data set, a blind search is a logical and efficient way of identifying low-frequency FRBs and repeaters.

ACKNOWLEDGEMENTS

We thank the referee for constructive feedback, which has improved the paper.

This scientific work uses data obtained from Inyarrimanha Ilgari Bundara/the Murchison Radio-astronomy Observatory, operated by CSIRO. We acknowledge the Wajarri Yamatji people as the traditional owners and native title holders of the observatory site. Support for the operation of the MWA is provided by the Australian Government (NCRIS), under a contract to Curtin University administered by Astronomy Australia Limited.

This work was supported by resources provided by the Pawsey Supercomputing Centre with funding from the Australian Government and the Government of Western Australia. We acknowledge use of the CHIME/FRB Public Database, provided at https://www.chime-frb.ca/ by the CHIME/FRB Collaboration.

GEA is the recipient of an Australian Research Council Discovery Early Career Researcher Award (project number DE180100346) funded by the Australian Government.

The following software and packages were used to support this work: astropy (Astropy Collaboration et al. 2013, 2018), numpy (van der Walt, Colbert & Varoquaux 2011), scipy (Jones, Oliphant & Peterson 2001), matplotlib (Hunter 2007), presto (Ransom 2001), and docker⁶/singularity (Kurtzer, Sochat & Bauer 2017). This research has made use of NASA’s Astrophysics Data System.

DATA AVAILABILITY

The MWA data underlying this paper are available in the MWA Long Term Archive at http://ws.mwatelescope.org/metadata/find. The intermediate data products will be shared on reasonable request to the corresponding author.

Footnotes

REFERENCES

APPENDIX A: THE BRIGHTEST PULSE DETECTED FROM THE CRAB PULSAR WITH THE MWA OBSERVATION

In Fig. A1, we present the dynamic spectrum of the brightest pulse detected from the Crab Pulsar with an MWA observation (Obs ID: 1165246816) at a DM of |$56.76\, \text{pc}\, \text{cm}^{-3}$|⁠, S/N of 21.84, and time since the observation start of 319.59 s (see Section 2.4.1).

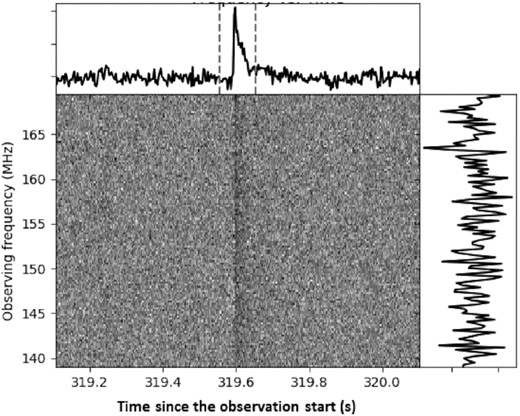

Figure A1.

The dynamic spectrum of the brightest pulse detected with an MWA observation from the Crab pulsar. Data have been dedispersed to a DM of |$56.76\, \text{pc}\, \text{cm}^{-3}$|⁠. The dynamic spectrum has been averaged to a time resolution of 3 ms and a frequency resolution of 0.24 MHz. The frequency-averaged pulse profile is shown in the top panel (between the two vertical dashed lines), and the time-averaged spectrum is shown in the right-hand panel.

Open in new tabDownload slide
