Molecular tracers of planet formation in the atmospheres of hot Jupiters

ABSTRACT

1 INTRODUCTION

The location where a Jupiter-like planet forms around a star can leave traces upon the chemical composition of its atmosphere. Planets are formed out of the dust and gas surrounding their host star. Therefore, any variations in the composition of the gas or dust in the proto-planetary disc that depend on the distance from the star should still be evident in the planet itself, depending on the ratio of dust to gas it is formed from (e.g. Öberg, Murray-Clay & Bergin 2011; Helling et al. 2014; Madhusudhan, Amin & Kennedy 2014b; Cridland, Pudritz & Alessi 2016; Madhusudhan et al. 2016; Mordasini et al. 2016; Venturini, Alibert & Benz 2016; Booth et al. 2017; Eistrup, Walsh & van Dishoeck 2018; Pudritz, Cridland & Alessi 2018; Madhusudhan 2019; Khorshid et al. 2021).

At greater radial distances in the disc, various volatile species pass their snowlines, where they transition from the gas phase into being frozen as ice. In particular, oxygen-rich species such as H₂O and CO₂ have their snowlines at higher temperatures (and therefore closer to the star) than CO: The water snowline in the disc mid-plane is typically at ∼170 K, the CO₂ is at ∼ 80 K, and the CO snowline is at ∼30 K (Martín-Doménech et al. 2014). Thus, the solids throughout most of the disc have sub-solar C/O ratios, and the gas has a supersolar C/O ratio. Furthermore, the C/H and O/H ratios of the gas are sub-solar outside the snowlines of the corresponding molecules. In the same way, the N/H ratio in the gas becomes sub-solar once NH₃ freezes out at ∼100 K (Martín-Doménech et al. 2014).

There are two routes through which a gas giant is expected to form: core accretion closer to the star (Pollack et al. 1996; Lissauer & Stevenson 2007), and gravitational instability further from the star (Boss 2000; Gammie 2001; Boley 2009; Boley & Durisen 2010; Forgan & Rice 2011). In the gravitational instability scenario the planet forms early and quickly, accreting dust and gas almost simultaneously. As such, such planets are typically expected to have a similar bulk composition to that of the disc as a whole, and therefore similar to the stellar metallicity (Boss 1997; Helled & Bodenheimer 2010). However, more recent work has shown that it is possible for planets formed via gravitational instability to have enriched or depleted metallicities based upon the size of the solids being accreted; if most solids are between 0.1 and 100 m the resulting planet can become enriched, while if most solids are above 1 km the planet may end up depleted (Helled et al. 2014). For the core accretion scenario a planet’s resulting atmospheric metallicity is a more complicated function of planet location, being dependent on the solid to gas partitioning of elements. Most models of core accretion require several million years to form a rocky core and accrete a gaseous envelope (e.g. Pollack et al. 1996; Lissauer & Stevenson 2007; Kobayashi, Tanaka & Krivov 2011). The composition of the accreted gas is dependent upon the location of the forming planet within the disc. However, enrichment of the atmosphere by solids can also occur during atmospheric accretion, resulting in a variable overall composition (Pollack et al. 1996).

However, there are challenges to linking gas giant atmospheric composition directly to formation location. The presence of hot Jupiters suggests that giant planets can migrate through their system. This is because gaseous giant planets are not expected to form on such short-period orbits (e.g. Mayor & Queloz 1995; Wu & Murray 2003; Papaloizou et al. 2007; Wu & Lithwick 2011). The accretion of solids (in the form of planetesimals or core erosion) on to the gas giant can result in a significantly different atmospheric composition, especially if solid accretion occurs during migration. Accretion of solids typically results in planetary compositions that are solar or supersolar in O/H and C/H but sub-solar in C/O ratio, since the solids within the CO snow line are oxygen-rich (e.g. Öberg et al. 2011; Madhusudhan et al. 2014b; Mordasini et al. 2016; Venturini et al. 2016). On the other hand, formation of giant planets beyond the H₂O, CO₂, or CO snowlines without significant solid accretion followed by disc-free migration can result in low atmospheric metallicities and high C/O ratios (e.g. Madhusudhan et al. 2014b). Additionally, radial drift of icy grains from the outer disc can supply volatiles to the inner disc (Booth et al. 2017). This results in the enrichment of volatiles at the snowlines of up to 10× C/H or O/H. This allows gas giants to become metal rich by directly accreting metal-rich gas, and opens the possibility of planets with supersolar C/H and supersolar C/O. Recently, studies have also investigated how N/H ratios may vary in a planet’s atmosphere based upon where the planet forms (Bosman, Cridland & Miguel 2019; Öberg & Wordsworth 2019; Turrini et al. 2021). This additional parameter may help to break some of the degeneracy when examining the composition of giant planets, refining the estimates of where a particular planet may have formed.

Some studies have examined how the molecular composition of a hot Jupiter may vary based on its elemental abundances (Madhusudhan 2012; Moses et al. 2013; Tsai et al. 2017), and others have studied how the elemental abundances may change based on where the hot Jupiter formed and how it migrated (e.g. Madhusudhan et al. 2014b; Mordasini et al. 2016; Cridland et al. 2020). However, very few have tried to link these two regimes such that it becomes possible to predict where a hot Jupiter formed based upon its molecular composition. Those that have attempted to do so typically use local thermochemical equilibrium models (Mordasini et al. 2016). However, purely chemical equilibrium models are not adequate to fully represent the atmospheric chemistry of hot Jupiters.

When considering nitrogen-bearing species, thermochemical models of Hot Jupiters with atmospheric temperatures above |$700\, \mathrm{K}$| predict N₂ to be the dominant nitrogen-bearing molecule at around 1 bar (e.g. Moses et al. 2011; Venot et al. 2012). N₂ is not detectable by spectral observations, which in principle makes determining the N/H ratio of hot Jupiter atmospheres challenging. However, there have been potential detections of the nitrogen-bearing molecules NH₃ and HCN in the atmosphere of HD209458b, a planet whose temperature is far above |$700\, \mathrm{K}$| (Giacobbe et al. 2021). This would only be possible if disequilibrium chemical effects, such as diffusion and photochemistry, were impacting the composition of the planet’s atmosphere, as has been expected by some previous works (e.g. MacDonald & Madhusudhan 2017; Kawashima & Min 2021). As such, in this work, we compute a full suite of disequilibrium chemical models over the range of C/H, O/H, and N/H ratios expected from planet formation models. In doing so we aim to more accurately link the observed molecular abundances of hot Jupiter observations to the planet’s elemental composition, and thus to the planet’s formation and migration history.

We acknowledge here some of the limitations that exist within our work. The primary one being that this work is generally meant to present a route that can be taken, with evidence being presented to show its merit, rather than an in-depth model of a single exoplanet. As such, our models use generic physical and atmospheric values, rather than specific values, including choosing to calculate both the P-T profile and K_zz profile from first principles instead of using retrieved profiles.

In Section 2.1, we provide details of the chemical kinetics code we are using to create our models, as well as the atmospheric parameters of the hot Jupiters we are modelling. We present the results of these models in Section 3. In Section 4, we discuss the results of our models, and compare them with different formation scenarios from previous works. We compare our models to observed molecular abundances in some hot Jupiters in Section 5. We discuss our findings and review our work in Section 6.

2 METHODS

2.1 The atmospheric model

To calculate the abundance of HCNO species throughout the atmospheres of hot Jupiters, we choose to use a chemical kinetics code that can model the effects of disequilibrium chemistry in these atmospheres. We previously developed a disequilibrium chemical kinetics code, levi, to model hot Jupiter atmospheres. The full development, testing, and benchmarking of this code can be found in Hobbs et al. (2019). A summary of the salient points from this previous work, and a description of changes made to the model for this work will be provided in this section.

The code, levi, in this work is being used to model the atmospheric chemistry of Jupiter like planets. It does so by calculating the interactions between chemical species, the effects of vertical mixing due to eddy-diffusion, molecular diffusion and thermal diffusion, and photochemical dissociation due to an incoming UV flux. It uses input parameters such as the desired equilibrium temperature of the planet and the planet’s radius, profiles for the UV stellar spectrum, the pressure–temperature (P-T) profile of the atmosphere, and the eddy-diffusion (K_zz) profile. It uses the assumptions of hydrostatic equilibrium, the atmosphere being an ideal gas, and that the atmosphere is small compared to the planet, such that gravity is constant throughout the atmospheric range being modelled.

In this work, as in Hobbs et al. (2019), we will limit our network to exploring the chemistry of H, He, C, N, O species. It is possible that species containing other elements could affect the results produced. There are some cases in which sulphur chemistry (Zahnle et al. 2016; Hobbs et al. 2021) can impact the results of this paper. However, the inclusion of these sulphur species goes beyond the scope of this work.

Here, |$\mu _* = \textrm {cos}\, \theta _* = 1/\sqrt{3}$|⁠, where θ_* is the incidence angle for stellar radiation, γ = κ_v/κ_th is the ratio between the mean visual (κ_v) and thermal (κ_th) opacities, and τ is the optical depth. We chose the values for the visual and thermal opacities to be |$\mathrm{4\,\times \,10^{-3}}$| and |$\mathrm{4\,\times \,10^{-2}\, cm^2\, g^{-1}}$|⁠, respectively, approximately the values for HD 209458b (Guillot 2010). f = 1/2 is a flux factor for isotropic radiation averaged over the day-side of the planet. The interior temperature is set to be |$T_{\textrm {int}}=300\, \textrm {K}$| and the irradiation temperature is |$T_{\textrm {irr}} = \sqrt{2}\, T_{\textrm {eq}}$|⁠, where T_eq is the equilibrium temperature of the planet. For T_eq, we assume the planet has an albedo of 0 and efficient energy redistribution.

We use the values for solar metallicity from Asplund et al. (2009). This gives an elemental ratio, as a fraction of the total number of molecules, of |$X_{{\rm H_2}}=0.5\times X_{{\rm H}}=0.8535$|⁠, X_He = 0.145, X_C = 4.584 × 10⁻⁴, X_O = 8.359 × 10⁻⁴, X_N = 1.154 × 10⁻⁴. In our models, we independently alter the metallicity between 0.1x and 10x these solar values for each of C, O, and N. He is kept constant, and H₂ is altered such that |$X_{{\rm H}_{2}}$|⁠, X_He, X_C, X_O, and X_N sum to unity.

The equilibrium temperatures of the modelled hot Jupiters range across five temperatures between 1000 and |$2000\, \mathrm{K}$|⁠, although we only show the two extremes in this work. To produce a suite of models over the full range of bulk compositions, we ran our model for each point in a 9 × 9 × 9 grid in the C/H, O/H, and N/H parameter space, for each planetary equilibrium temperature being investigated. This produced a total of 729 models per modelled planet, with data points for X/H equally spaced in logspace between 0.1x and 10x the solar values for X/H.

It is worth noting that due to our prescription for K_zz, the different equilibrium temperatures of our hot Jupiter models will result in different K_zz values. While this masks the exclusive effect of temperature as a variable in setting the chemistry of hot Jupiter atmospheres, our primary aim is to model realistic variations in hot Jupiter atmospheric chemistry due to compositional differences. Therefore, a sweep of orbital radius (and therefore temperature and K_zz) explores the range of hot Jupiter atmosphere chemistry for a given composition.

Except for orbital radius (and thus equilibrium temperature) and metallicity, we keep all other planetary and stellar parameters constant throughout all of our models, except where explicitly stated otherwise. These constant parameters are listed in Table 1. The UV spectrum we apply to our models is the solar spectrum, scaled based upon the distance between the star and the planet.

2.2 Planet composition models

In this section, we discuss how different formation and migration mechanisms may lead to different metallicities in the atmosphere of a hot Jupiter. Throughout this work, we use metallicity to refer to the full suite of C/H, O/H, and N/H ratios, and we use the convention that X/H refers to the absolute value, while [X/H] refers to a value normalized to the solar abundances. We use the values for solar from Asplund et al. (2009). The following formation and migration pathways came from three different works: Madhusudhan et al. (2014b), Booth et al. (2017), and Turrini et al. (2021).

The work of Madhusudhan et al. (2014b) does not consider nitrogen composition; however, they do consider the widest range of formation scenarios of the studies we draw from. They model hot Jupiters that formed via core accretion and then migrated via both in-disc and disc-free migration, as well as hot Jupiters that formed via gravitational instability before migrating disc-free. This produces a wide range of potential C/O ratios for a hot Jupiter, based upon its history.

Madhusudhan et al. (2014b) found that hot Jupiters formed by core accretion between 2 and 20 au before undergoing disc migration had 1 < [O/H] < 10, and 1 < [C/H] < 5, with a C/O ratio that was always sub-solar. Hot Jupiters that formed by core accretion but then underwent disc-free migration fall into two regimes. Those that formed closer in have slightly supersolar C/H and O/H, up to [C/H] = 2 and [O/H] = 4, but still sub-solar C/O, while those that formed further away, beyond the CO₂ snowline, had sub-solar C/H and O/H, down to [C/H]=0.6 and [O/H]=0.4, but a supersolar C/O ratio. Lastly, planets that formed beyond the CO₂ snowline but within the CO snowline by gravitational instability and then migrated inwards also tend to have either supersolar metallicity but a sub-solar C/O ratio or sub-solar metallicity with a supersolar C/O ratio. However, if they formed beyond the CO snowline, beyond ∼100 au, they can be any metallicity within our parameter space, but at a solar C/O ratio.

The work of Booth et al. (2017) also does not consider nitrogen in their models. However, their models of chemical enrichment by pebble drift result in compositions in regions of the parameter space that were forbidden by previous works. Through the accretion of metal-rich gas the composition of a gas giant could end up with a [C/H] ratio up to 5, and a C/O ratio between solar (0.55) and 1. For Jupiter-mass planets forming within the CO₂ snowline, Booth et al. (2017) tend to find metallicities of [O/H] = 2 and in the range 2 < [C/H] < 3, thus producing supersolar C/O ratios in these high metallicity planets. For planets forming beyond the CO₂ snowline, most formation locations result in a C/O ratio of 1, along the entire parameter space of metallicities.

Turrini et al. (2021) do not consider as wide a range of migration routes as the previous works we have compared to, but they do include the nitrogen in their models as a possible way of breaking the degeneracy arising from consideration of only the C/O ratio. They consider six different formation locations for a hot Jupiter that forms via core accretion and subsequently migrates through the disc to an orbital radius of 0.04 au, accreting solids along the way. How these formation locations relate to the atmospheric C/H, O/H, and N/H ratios compared to their solar values is summarized in Table 2. While we acknowledge that our planetary models orbit at slightly wider radii (between 0.08 and 0.3 au) compared to the 0.04 au in the work of Turrini et al. (2021), we assume that any change in the atmospheric composition due to these small differences in migration distance will be sufficiently small to ignore.

A summary of the different metallicities expected from these formation models can be seen in Fig. 1.

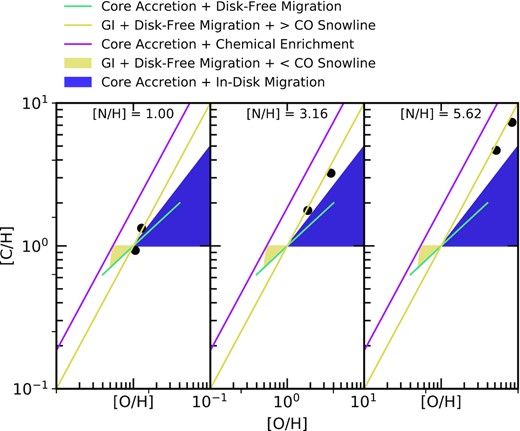

Figure 1.

The different ranges of metallicities expected from several formation models. The indigo, cyan, and yellow lines cover the core accretion and gravitational instability models from Madhusudhan et al. (2014b), the purple lines cover the pebble accretion and enrichment models from Booth et al. (2017), and the black dots are the metallicities expected from the six formation locations for core accretion in Turrini et al. (2021). Gravitational instability from within the CO snowline also covers the entire metallicity range of core accretion with in-disc migration, but cannot be easily seen due to overlap.

Open in new tabDownload slide

3 MODEL RESULTS

In this section, we present the results of our suite of chemical models. We compute models over a grid of C/H, O/H, and N/H ratios for two hot Jupiters. We discuss example hot Jupiters at two limiting equilibrium temperatures: 1000 and |$2000\, \mathrm{K}$|⁠. These planets correspond to an orbital radius of 0.3 and 0.08 au around a Sun-like star, respectively, assuming an albedo of 0 and efficient energy redistribution. We show the resultant P-T profiles for these planets in Fig. 2 and the K_zz profiles in Fig. 3. Additionally, in Figs 4 and 5, we present variations of the strength of the vertical mixing and incident UV by an order of magnitude in the atmosphere of a solar composition hot Jupiter with a |$1000\, \mathrm{K}$| equilibrium temperature, to justify our choice of these values in the rest of this work. In Fig. 4, we see that CH₄, HCN, and NH₃ are all sensitive to variations in the strength of the vertical mixing, with all three abundances varying across around an order of magnitude at 10⁻³ bar. However, in every case, the difference in abundance between the baseline case we use in this work and the case where K_zz is 10x stronger is very small. Thus, while we might overestimate the abundance of these three molecules, if the vertical mixing is weaker than we modelled, it is unlikely that we would have underestimated these molecules’ abundances. As can be seen in Fig. 5, only HCN is strongly sensitive to UV irradiation, varying by nearly two orders of magnitude at 10⁻³ bar. Thus, we must take into account that around strongly irradiating stars that the abundance of HCN could be significantly higher than we would predict.

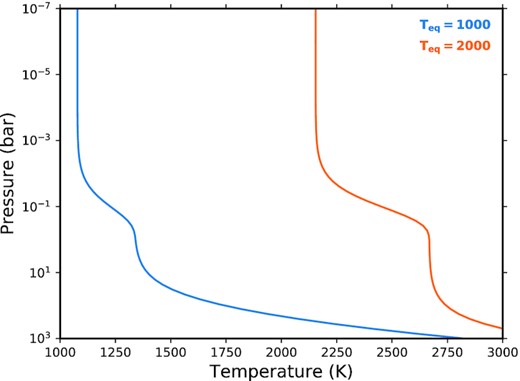

Figure 2.

The P-T profiles being used in this work. Both were created using the expression presented in Section 2.1, with an equilibrium temperature of 1000K or 2000K.

Open in new tabDownload slide

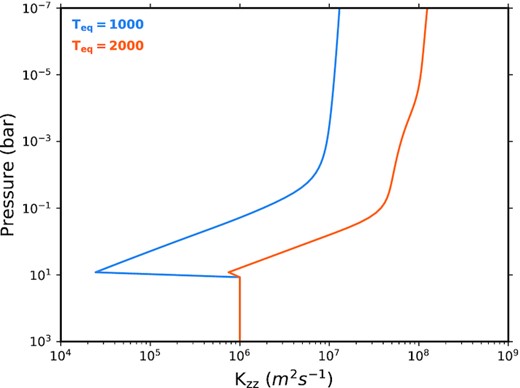

Figure 3.

The K_zz profiles being used in this work. Both were created using the expression presented in Section 2.1, with an equilibrium temperature of 1000K or 2000K.

Open in new tabDownload slide

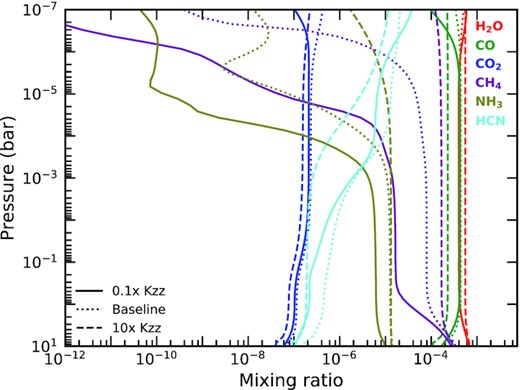

Figure 4.

A comparison of the abundances of six molecules in the atmosphere of a solar composition hot Jupiter with an equilibrium temperature of 1000K across three values of vertical mixing strength.

Open in new tabDownload slide

Figure 5.

A comparison of the abundances of six molecules in the atmosphere of a solar composition hot Jupiter with an equilibrium temperature of 1000K across three values of UV irradiation strength.

Open in new tabDownload slide

Results of the parameter sweep are shown in Figs 6–7. In these figures, we show the C/O ratios of 0.25, 0.54 (solar), and 1 as lines on the figures to assist in determining the abundances at these values. Additionally, we split each figure into three regimes: abundances above 10⁻⁶ which should be detectable, abundances between 10⁻⁶ and 10⁻¹⁰ which we may one day be able to detect, and abundances below 10⁻¹⁰ which we never expect to be detectable (Greene et al. 2016). All these results are shown for a pressure of 10⁻³ bar, the pressure at which observations of the molecules we model are sensitive to in hot Jupiter atmospheres (Madhusudhan 2019). Some observations may come from deeper into the planets atmosphere, but as Figs 4 and 5 show, most molecules have a mixing ratio that is almost unchanging with pressure below 10⁻³ bar, and so would not show significant differences in their measured abundances.

Figure 6.

The abundance of H₂O for two hot Jupiters, one with a |$1000\, \mathrm{K}$| equilibrium temperature (top) and one with a |$2000\, \mathrm{K}$| equilibrium temperature (bottom). The variation in abundance of H₂O is shown against the atmospheric C/H and O/H ratios normalized to solar values. The C/O ratios of 0.25, 0.54 (solar), and 1 are shown on each plot to assist visualization. Additionally, we consider three atmospheric N/H ratios normalized to solar: 1, 3.2, and 5.6. These are shown from left to right on the figures above.

Open in new tabDownload slide

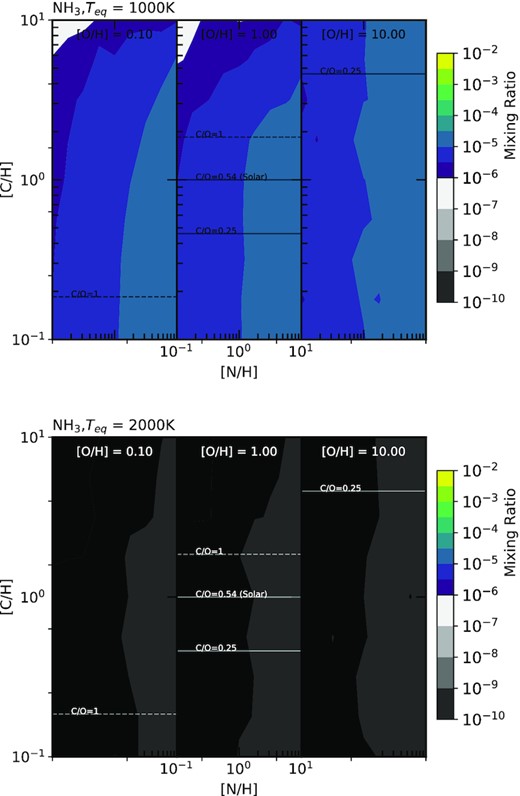

Figure 7.

The abundance of NH₃ for two hot Jupiters, one with a 1000K equilibrium temperature (top) and one with a 2000K equilibrium temperature (bottom). The variation in abundance of NH₃ is shown against the atmospheric C/H and N/H ratios normalised to solar values. The C/O ratios of 0.25, 0.54 (solar) and 1 are shown on each plot to assist visualisation. Additionally, we consider three atmospheric O/H ratios normalised to solar; 0.1, 1 and 10. These are shown from left to right on the figures above.

Open in new tabDownload slide

3.1 H₂O abundance

In Fig. 6, we show how the abundance of water varies over our chosen parameter space. Water’s abundance is primarily determined by O/H; however, for C/O ratio values greater than 1, a decrease in the abundance of water can be seen (Madhusudhan 2012; Moses et al. 2013). This is because water does have a weak dependence on the C/H ratio; as the C/O ratio approaches 1, the fraction of O in CO becomes increasingly significant, leaving less O to form H₂O. While C/O < 1, we see a range in H₂O abundances between 10⁻⁵ at [O/H] = 0.1 and 10⁻² at [O/H] = 10 for both temperature models. For C/O ratios greater than 1, the H₂O abundance on the |$1000\, \mathrm{K}$| hot Jupiter slowly decreases down to 10⁻⁶ as the C/O ratio increases, while on the |$2000\, \mathrm{K}$| hot Jupiter, the H₂O drops by several orders of magnitude immediately.

For planets with a C/O ratio close to 1, H₂O is a good measure of the C/O ratio in our two hot Jupiter models. This is because the H₂O becomes increasingly dependent on the C/O ratio once the ratio approaches or exceeds 1. For C/O ratios that exceed 1 in our 2000 K model, the abundance of H₂O would drop below detectable limits, and would not contribute significantly to the measured C/O ratio. However, water can still act as a diagnostic for the C/O ratio, even for C/O ratios great than 1, since the lack of water is itself a diagnostic. At C/O ratios less than 0.25, the H₂O abundance tends to depend only on the O/H ratio, becoming a worse measure of the C/O ratio. As expected for H₂O, it is independent of the N/H ratio. There are no N-based species that contain O that are of sufficient abundance to impact the sequestration of O in H₂O. Thus, H₂O has no use in determining the N/H ratio.

3.2 CO abundance

Fig. 8 shows how the abundance of CO varies across the composition parameter space. CO is directly dependent upon both the O/H and C/H ratios. However, the way it is dependent can be quite useful for determining planetary composition. For a C/O ratio less than 1, the CO abundance is near independent of the O/H ratio, while for a C/O ratio greater than 1, the CO abundance is near independent of the C/H ratio. This is because for C/O < 1, CO is the primary carbon carrier, and as long as there is more oxygen than carbon, increasing the amount of oxygen does not assist in creating more CO. This relationship is reversed for ratios of C/O > 1. Since there are very few formation models that result in a C/O > 1, we can see that CO provides a good measure of the C/H ratio, especially considering that it is predicted to be one of the most abundant species in hot Jupiter atmospheres. In our modelled atmospheres, we find that the abundance of CO varies between 10⁻⁵ for [O/H] = 0.1 and [C/H] = 0.1, and 10⁻² for [O/H] = 10 and [C/H] = 10. Once again, we see little effect of the N/H ratio on the abundance of CO. While molecules like HCN could theoretically take more of the available carbon as the N/H ratio increases, we find that even with [N/H] = 10, the HCN abundance is still a small fraction of the CO abundance and thus does not diminish the atmospheric CO reservoir in any significant way.

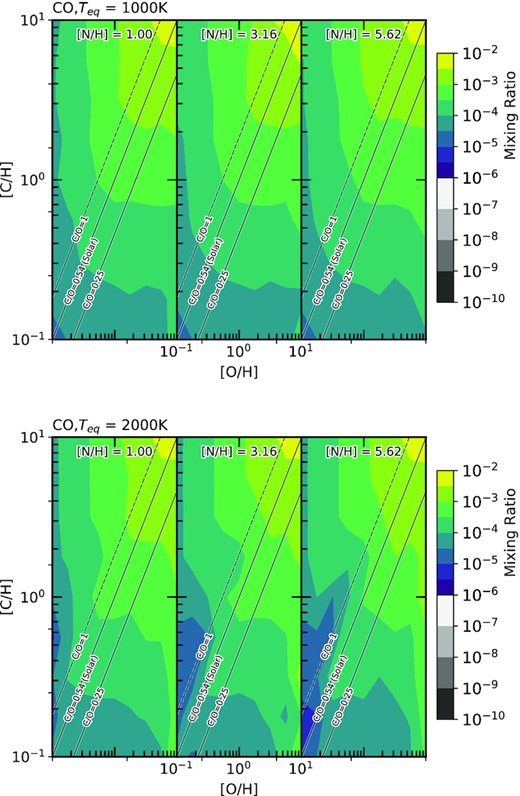

Figure 8.

The abundance of CO for two hot Jupiters, one with a 1000K equilibrium temperature (top) and one with a 2000K equilibrium temperature (bottom). The variation in abundance of CO is shown against the atmospheric C/H and O/H ratios normalised to solar values. The C/O ratios of 0.25, 0.54 (solar) and 1 are shown on each plot to assist visualisation. Additionally, we consider three atmospheric N/H ratios normalised to solar; 1, 3.2 and 5.6. These are shown from left to right on the figures above.

Open in new tabDownload slide

3.3 CH₄ abundance

The variation in the methane abundance across our parameter space is shown in Fig. 9. We find CH₄ has a positive dependence upon the C/H ratio and a negative dependence upon the O/H ratio for the two hot Jupiters we model. This is due to CO sequestering a greater fraction of the carbon as the amount of available O in the atmosphere increases. Unlike H₂O and CO, methane’s abundance also has a strong temperature dependence. At |$1000\, \mathrm{K}$|⁠, CH₄ has a maximal abundance of 10⁻² in the high C/H, low O/H regime, with a minimal abundance of 10⁻⁸ in the low C/H, high O/H regime. By comparison, at |$2000\, \mathrm{K}$|⁠, the maximum and minimum abundance of methane is 10⁻⁶ and 10⁻¹⁶, respectively. Methane’s abundance is approximately unchanging along lines of constant C/O ratio, making it an excellent check to confirm the values of the C/O first expected by examining CO and H₂O. However, it will likely be impossible to detect CH₄ on the hotter hot Jupiters; in our |$2000\, \mathrm{K}$| model, for a C/O < 1, methane’s abundance is typically below 10⁻⁹. This is far below the estimates we have for the detectable limits of molecules. The strong dependence of the CH₄ abundance on temperature does make it a good proxy for the temperature, but a poor tool for examining the metallicity of the very hot Jupiters.

Figure 9.

The abundance of CH₄ for two hot Jupiters, one with a 1000K equilibrium temperature (top) and one with a 2000K equilibrium temperature (bottom). The variation in abundance of CH₄ is shown against the atmospheric C/H and O/H ratios normalised to solar values. The C/O ratios of 0.25, 0.54 (solar) and 1 are shown on each plot to assist visualisation. Additionally, we consider three atmospheric N/H ratios normalised to solar; 1, 3.2 and 5.6. These are shown from left to right on the figures above.

Open in new tabDownload slide

3.4 CO₂ abundance

We show the range of CO₂ abundances in Fig. 10. We find that CO₂ is very strongly dependent on the O/H ratio, but only weakly dependent on the C/H ratio in our models. However, there is a significant decrease in CO₂ abundance when the C/O ratio crosses from less than 1 to greater than 1. This is because, for C/O > 1, the majority of the oxygen is sequestered in the form of CO, leaving little available for other oxygen-bearing species. The range of CO₂ abundances in both temperature cases are similar for C/O ratios less than 1, ranging between 10⁻⁹ and 10⁻⁴. Though for C/O > 1, CO₂ follows a similar pattern to H₂O, for T_eq = |$2000\, \mathrm{K}$| there is a rapid decline in abundance as the C/O ratio increases, while for T_eq = |$1000\, \mathrm{K}$| the decline is much slower. CO₂ is a poor diagnostic tool by itself, with a large range of both C/H and O/H ratios corresponding to a single abundance.

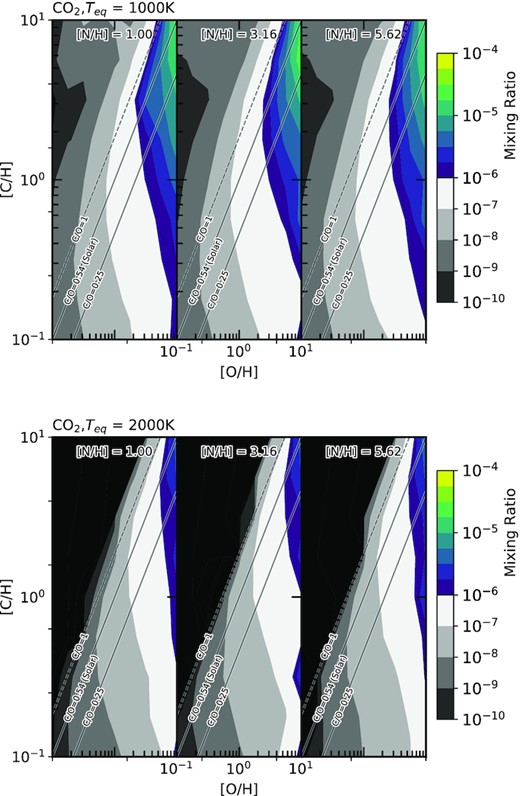

Figure 10.

The abundance of CO₂ for two hot Jupiters, one with a 1000K equilibrium temperature (top) and one with a 2000K equilibrium temperature (bottom). The variation in abundance of CO₂ is shown against the atmospheric C/H and O/H ratios normalised to solar values. The C/O ratios of 0.25, 0.54 (solar) and 1 are shown on each plot to assist visualisation. Additionally, we consider three atmospheric N/H ratios normalised to solar; 1, 3.2 and 5.6. These are shown from left to right on the figures above.

Open in new tabDownload slide

3.5 HCN abundance

In Fig. 11, we present the range of HCN abundances across our parameter space. Unlike in the previous figures in this section, we have replaced the O/H ratio on the x-axis with the N/H ratio, with three values for the O/H ratio chosen to examine. As expected, HCN is strongly dependent on both the C/H and N/H ratios at the temperatures we model. While some dependence on the O/H ratio is also observed, this is merely a consequence of the O/H ratio affecting the overall C/O ratio.

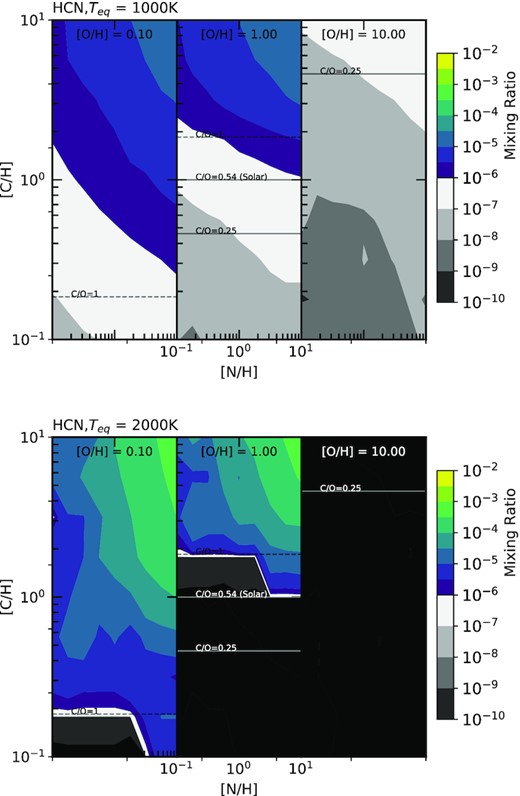

Figure 11.

The abundance of HCN for two hot Jupiters, one with a 1000K equilibrium temperature (top) and one with a 2000K equilibrium temperature (bottom). The variation in abundance of HCN is shown against the atmospheric C/H and N/H ratios normalised to solar values. The C/O ratios of 0.25, 0.54 (solar) and 1 are shown on each plot to assist visualisation. Additionally, we consider three atmospheric O/H ratios normalised to solar; 0.1, 1 and 10. These are shown from left to right on the figures above

Open in new tabDownload slide

We see a rapid increase in the abundance of HCN in the atmosphere for C/O ratios greater than 1. This is because the most abundant carbon carrier, CO, is no longer limited by the available carbon in the atmosphere, but by the available oxygen at these ratios. Thus, additional HCN can form due to the excess carbon available. Both planetary temperatures modelled have similar maximum abundances for HCN, at around 10⁻⁴, at 10 [N/H], and C/O ≫ 1. For C/O less than 1, we find that for lower temperatures we expect HCN abundances around 10⁻⁷. For the hotter temperatures the HCN abundance is much lower, around 10⁻¹¹. The HCN abundance can function as a way of tracing the N/H ratio; however, for C/O < 1, highly sensitive measurements will be needed to detect HCN’s predicted low abundances.

3.6 NH₃ abundance

In Fig. 7, we present how the NH₃ abundance varies across our parameter space. As expected, NH₃ is dependent on the N/H ratio. We find that NH₃ is also dependent on the C/H and O/H ratio to a small extent; however, this is mainly a function of the global C/O ratio, not the individual ratios themselves. Where the C/O ratio is greater than 1, we see large abundances of HCN, limiting the amount of available N to form NH₃. We also see large differences in ammonia abundance between the two temperature models. At lower temperatures, with C/O < 1, the ammonia abundance varies between 10⁻⁵ and 10⁻⁴, while in our higher temperature model we find approximately five orders of magnitude less ammonia in the atmosphere, between 10⁻¹⁰ and 10⁻⁹ for C/O < 1. The abundance of NH₃ is a useful tool to determine the N/H ratio for cooler planets, as long as sufficiently sensitive measurements to detect it in the atmosphere can be made.

4 COMPARISON WITH FORMATION AND MIGRATION MODELS

In this section, we use our results from the previous section in conjunction with the formation models of Madhusudhan et al. (2014b), Booth et al. (2017), and Turrini et al. (2021). We compare the metallicity ranges these works predict for different formation and migration models to the parameter figures in the previous section. This gives us an abundance range, for each of the six molecules investigated previously, for each formation and migration model. Thus, based upon where a hot Jupiter formed and how it migrated, our model can predict what the atmospheric composition of the hot Jupiter will be. One point of consideration is that we do not include cloud formation in our models. Previous works (e.g. Helling et al. 2021) show that clouds can deplete oxygen in the gas reservoir of the atmosphere, thus effectively increasing the C/O ratio.

4.1 Planetary carbon and oxygen abundances due to migration

From the work of Madhusudhan et al. (2014b), for a hot Jupiter formed via core accretion with subsequent disc migration to its current location, we expect [C/H] ratios between 1 and 5, and [O/H] ratios between 1 and 10, and that the C/O ratio is always less than solar. In Table 3, we show the range of expected chemical abundances of the six molecules we investigated in the previous section for this elemental parameter space.

We split planets formed by core accretion that then underwent disc-free migration into two groups: Those that formed beyond the CO₂ snowline, with sub-solar C/H and O/H and those that formed within the CO₂ snowline, with supersolar C/H and O/H. From Madhusudhan et al. (2014b), planets that formed within the CO₂ snowline have allowed metallicities along the straight line between [C/H] and [O/H] equal to 1, and [C/H] = 2 and [O/H] = 4, and planets that formed beyond the CO₂ snowline have allowed metallicities along the straight line between [C/H] and [O/H] equal to 1, and [C/H] = 0.6 and [O/H] = 0.4. Madhusudhan et al. (2014b) did not consider the N/H in their models, and so we choose to use N/H = 1 for the comparisons here. We present the expected abundance for these planets in Table 4.

Lastly, from the work of Madhusudhan et al. (2014b), we consider planets formed via gravitational instability that then migrate inwards disc-free. There are again two regions to consider for this formation-migration mechanism: Those planets that formed within the CO snowline and those that formed outside the CO snowline. The composition of those planets that formed by gravitational instability within the CO snowline is similar to those formed by core accretion with in-disc migration; however, the potential metallicity also extends into sub-solar metallicity with supersolar C/O ratio. Those that formed beyond the CO snowline have a near solar C/O ratio, but with any metallicity within our parameter space, producing a wide range of possible abundances. We present the expected abundance ranges for both of these cases in Table 5.

We summarize the resulting atmospheric chemistry at |$10^{-3}\, \textrm {bar}$| for our 1000 and |$2000\, \mathrm{K}$| hot Jupiters following formation and migration from these five different scenarios in Fig. 12. Overall, what we see is significant overlap between formation location and migration types investigated here. This was expected based upon the overlapping metallicities that we drew from Madhusudhan et al. (2014b). We can still draw some important insights from these data though.

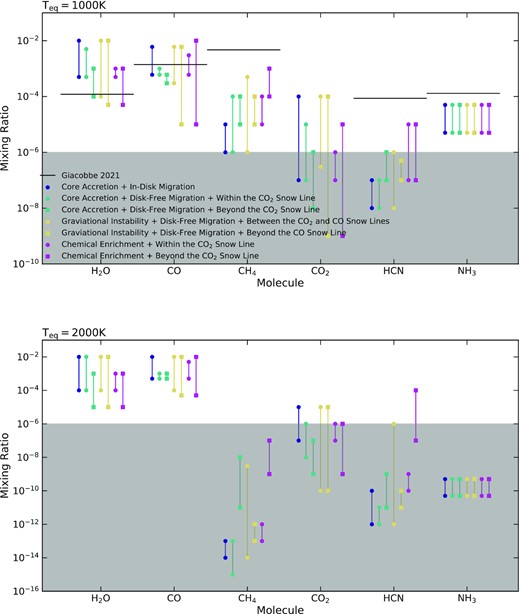

Figure 12.

A comparison of the abundances of six molecules that our models predict, based upon the metallicities resulting from the five different formation and migration mechanisms discussed in Madhusudhan et al. (2014b) and two different formation locations from Booth et al. (2017), for the two different planet temperatures we investigate. The red, blue, and green ranges correspond to work from Madhusudhan et al. (2014b), while the purple ranges correspond to work from Booth et al. (2017). The range of abundances we see for each species for each formation model is due to the spread of metallicity possible from those models. The grey zone below 10⁻⁶ marks the region in which abundances are expected to be too low to be detectable. The black horizontal lines indicated representative abundances for key molecules detected in Giacobbe et al. (2021).

Open in new tabDownload slide

H₂O: We find that high H₂O abundances in our models, between 10⁻² and 10⁻³, can be found for a hot Jupiter that formed at any location, and is independent of the equilibrium temperature of the hot Jupiter. However, very low H₂O abundances were unique to planets that had formed further out, at least beyond the CO₂ snowline for both core accretion and gravitational instability formation models. This is because these formation locations resulted in either low O/H ratio or a high C/O ratio, both of which cause low H₂O abundances.

CO: Similar to H₂O, our model predicts high CO abundances in both cases are able to occur regardless of where the hot Jupiter formed. However, we once again find that very low CO abundances are only expected for planets that formed further out, either by core accretion beyond the CO₂ snowline or by gravitational instability beyond the CO snowline for our 1000 K model, or any location of gravitational instability for our 2000 K model. This is due to low C/H and O/H ratios, irrespective of the C/O ratio.

CH₄: For our 2000 K temperature hot Jupiter, we never expect CH₄ to be detectable, with abundances always far below 10⁻⁶. For our cooler 1000 K hot Jupiter, methane abundances can be high, up to 10⁻⁴ for planets formed by core accretion with disc-free migration or gravitational instability beyond the CO snowline. We expect to see the highest CH₄ levels in the case of the 1000 K hot Jupiter that formed between the CO₂ and CO snowlines, possibly approaching an abundance of 10⁻³. This is because this is the model with the highest C/O ratio, on which the CH₄ ratio strongly depends. For our 1000 K hot Jupiter, we only find methane abundances below 10⁻⁵ for planets that formed close in by core accretion, either within the CO₂ snowline and then migrated disc-free or those that underwent in-disc migration, or formed within the CO snowline by gravitational instability. It is possible then that detections of low levels of CH₄ could also function in helping determine where a hot Jupiter formed.

CO₂: For core accretion, our models find higher levels of CO₂ are associated with a planet that formed further in, with both the maximum and minimum levels of CO₂ increasing by up to two orders of magnitude as we move from the more distant formation models to the closer ones. However, planets that formed by gravitational instability can contain a range of CO₂ levels that encompass the entire range of all the other models, requiring other features to break the degeneracy here.

HCN: For our 2000 K temperature hot Jupiter, we predict HCN abundances below 10⁻⁸, and thus very unlikely to be detectable, for every model except one: We find that our 2000 K hot Jupiter formed by gravitational instability between the CO₂ and CO snowlines can have HCN abundances as high as 10⁻⁶. In the atmosphere of our 1000 K hot Jupiter, we only find high levels of HCN in the model of core accretion and then disc-free migration for planets that formed beyond the CO₂ snowline and gravitational instability within the CO snowline. This is because these are the only models with a significantly supersolar C/O ratio, which favours the production of HCN.

NH₃: Ammonia levels cover the same range in every model, with no expected metallicity to be extreme enough to find significantly different NH₃ levels. However, for our 2000 K temperature hot Jupiter, the abundance of NH₃ in their atmospheres is expected to be below 10⁻⁸, and thus not detectable. For the 1000 K hot Jupiter, NH₃ is expected to be detectable at around 10⁻⁵.

4.2 Chemical enrichment of hot Jupiters

The work of Booth et al. (2017) looks at the chemical enrichment by pebble drift of gas giants formed by core accretion. For planets formed within the CO₂ snowline this results in 2 < [C/H] < 3 and [O/H] = 2 and for planets formed beyond the CO₂ snowline this can result in any metallicity within our parameter space, but with a C/O = 1. The abundances our model predicts for this formation and migration scenario are in Table 6. We summarize the resulting atmospheric chemistry in 1000 and |$2000\, \mathrm{K}$| hot Jupiters following formation and migration from these two different scenarios in Fig. 12.

Overall what we see is that only CH₄ and HCN in chemically enriched planets’ atmospheres can stand out as tracers of these planets’ pasts. Regardless of temperature, H₂O, CO, CO₂, and NH₃ all lie within the ranges of expected abundances discussed in the previous section. For only the 2000 K hot Jupiters, do we find that chemical enrichment of planets formed beyond the CO₂ snowline leads to large elevations in the expected abundance of HCN. Also, our predicted CH₄ abundance in planets that have been chemically enriched by pebble drift having formed beyond the CO₂ snowline, are at least half an order of magnitude above values expected by other formation models, making it the best contender for a chemical enrichment tracer.

There are a number of tracers to distinguish where a planet that was known to have been chemically enriched was formed. Both H₂O and CO abundances in enriched planets that formed beyond the CO₂ snowline are expected to be able to reach significantly lower values than in a planet formed within the CO₂ snowline. In hotter hot Jupiters, HCN can help distinguish two formation areas; however, in cooler hot Jupiters there is a full overlap in the expected abundances of HCN from both locations. CH₄ likely works as the best tracer however. Regardless of temperature, there is no overlap in expected abundance of CH₄ between the two formation areas, with significantly higher CH₄ always being expected for a planet that formed beyond the CO₂ snowline.

4.3 Tracers of nitrogen chemistry

Turrini et al. (2021) select six formation locations in conjunction with a core accretion and in-disc model to produce the final metallicity of a hot Jupiter. These values are shown in Table 2. We tabulate the molecular abundance our model predicts for each planetary formation location in Table 7.

As expected, the monotonic increase in the metallicity of hot Jupiters as formation distance increases translates to a similar monotonic increase for each of the six molecules we examine. This is shown in Fig. 13. Notably, the molecules H₂O, CO, CH₄, and CO₂ all change by approximately an order of magnitude across the range of formation locations. This should be sufficient for detections of these molecules in a planet’s atmosphere to link quite accurately to the planet’s C/O ratio and where it formed. However, HCN and NH₃ have a significantly smaller range of possible abundances. This makes it much harder to be able to link the detection of nitrogen species to the planet’s N/H ratio and where it may have formed, especially due to the current scarcity in nitrogen species detected and HCN being below the detectable limit regardless of planetary temperature.

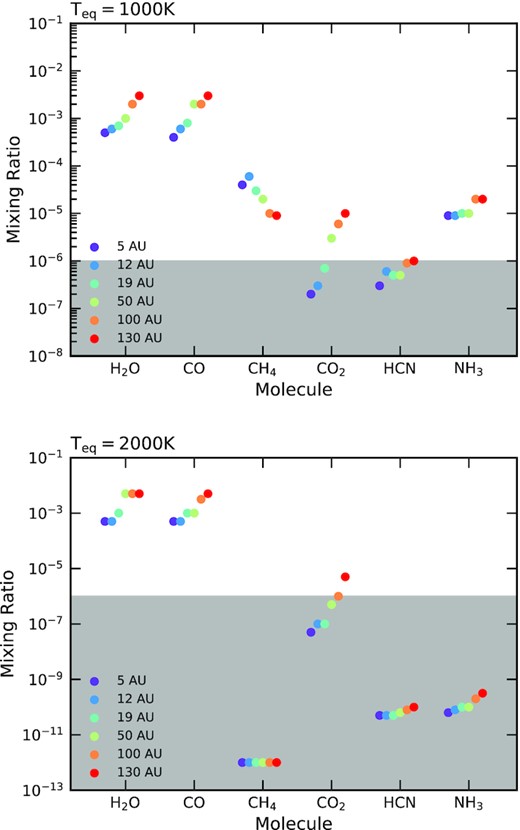

Figure 13.

A comparison of the abundances of six molecules that our models predict for the different formation locations presented in Turrini et al. (2021), for hot Jupiters at two equilibrium temperatures. The grey zone below 10⁻⁶ marks the region in which abundances are expected to be too low to be detectable. The black lines for T_eq = 1000 K correspond to the values taken from Giacobbe et al. (2021), for comparisons made in Section 5.

Open in new tabDownload slide

5 A COMPARISON WITH RETRIEVED ABUNDANCES IN HOT JUPITERS’ ATMOSPHERES

In this section, we examine an ensemble of molecular abundances measured in the atmospheres of hot Jupiters and compare them to our model predictions. We also perform a case study on the hot Jupiter HD 209458b to investigate whether our models can constrain where the planet formed and how it migrated.

5.1 H₂O abundances

H₂O is one of the most measured molecules in hot Jupiter atmospheres (e.g. Kreidberg et al. 2014; Madhusudhan et al. 2014b; Barstow et al. 2017; Pinhas et al. 2019; Welbanks et al. 2019). In Table 8, we show eight hot Jupiters whose H₂O abundances have been determined to within an order of magnitude. The values for these planets were mainly drawn from Welbanks et al. (2019), but similar and generally consistent values for these planets can be found in other works too (e.g. Tsiaras et al. 2018; Pinhas et al. 2019; Min et al. 2020). These mass, radius, and stellar insolation of these planets vary greatly, compared to the single values we have chosen for these parameters in this work. However, these parameters primarily change the way that diffusion or photochemistry affects the abundance of species within the planets atmosphere. As seen in Figs 4 and 5, the strength of the K_zz profile and incident UV irradiation have no significant affect on the abundance of water, and so we can justify using our model to examine only the water abundance of these planets. All eight planets have their H₂O abundance fall within the ranges predicted by our models. However, HD 189773b and HD 209458b have notably lower H₂O abundances than any of the other planets. While the other planets could have formed and migrated by any of the mechanisms discussed in the previous section, our models suggest that HD 189733b and HD 209458b would have had to have formed further out to obtain their current water abundances. Which mechanism is still not precisely determined, but either core accretion, with or without chemical enrichment, beyond the CO₂ snowline, or gravitational instability beyond the CO snowline are the only ways to produce such low water mixing ratios within our models.

5.2 Case study HD 209458b

HD 209458b is one of the most studied hot Jupiters, with multiple molecules potentially detected within its atmosphere. Here, we use the most recent abundance estimates for this planet. In particular, H₂O, CO, and the C/O ratio on the day-side of the planet have been retrieved by Gandhi et al. (2019), and at the day–night terminator we can find values for the H₂O abundance in Welbanks et al. (2019) and the H₂O, CO, CH₄, HCN, and NH₃ abundance from Giacobbe et al. (2021). These values are summarized in Table 9. Based upon General Circulation Models (GCM) of HD 209458b (Showman et al. 2009), we can use our |$2000\, \mathrm{K}$| model as an approximation to the day-side of the planet, and our |$1000\, \mathrm{K}$| model as an approximation to the terminator of the planet. One limitation of using our |$1000\, \mathrm{K}$| model for the terminator is that the K_zz profile would likely behave differently at the terminator compared to the substellar point due to the temperature gradient at terminator. However, for our 1D model this approximation should be sufficient for initial estimates. Comparing the retrieved values from the day-side emission spectra in Gandhi et al. (2019) to our results, we see that the detected values for H₂O and CO fall within the range of any of the formation models we considered. However, their retrieved C/O ratio of approximately 1 was only possible in one of the scenarios we investigated: Chemical enrichment via pebble drift, as discussed in Booth et al. (2017).

Next, we compare our results to the retrieved abundances from the terminator transmission spectra of HD 209458b in Giacobbe et al. (2021). Both the H₂O and CO results are on the boundary of being possible with any formation model, but they do favour core accretion and chemical enrichment beyond the CO₂ snowline or any formation location by gravitational instability. All of the other abundances of retrieved molecules from Giacobbe et al. (2021) are higher than any our models predict. However, this difference is generally no more than half an order of magnitude, and so we will compare to the formation pathways that produce results closest to the retrieved values. It is likely that these differences arise from either margins of error within the retrieved values, or simplifications within our own models when trying to model the complex chemistry of hot Jupiters. The retrieved value for methane in Giacobbe et al. (2021) is approximately half an order of magnitude above our values of CH₄ for chemical enrichment beyond the CO₂ snowline and gravitational instability between the CO₂ and CO snowlines. However, it is several orders of higher than any other formation pathway, thus suggesting that for CH₄, HD 209458b was likely to form via chemical enrichment beyond the CO₂ snowline or gravitational instability between the CO₂ and CO snowlines. The retrieved HCN abundance lies above any of our models predictions, but is within half an order of magnitude of values predicted by core accretion and disc-free migration beyond the CO₂ snowline, any location of chemical enrichment, or gravitational instability between the CO₂ and CO snowlines. Lastly, the NH₃ results from Giacobbe et al. (2021) are also higher than any of our modelled results; however, this could be accounted for by variations in the N/H ratio. Regardless, any formation model could be responsible for producing the observed NH₃ values.

Overall, the likely formation location and migration pathway for HD 209458b is most consistent with forming between the CO₂ and CO snowlines by gravitational instability, since this has the closest fit with every detected feature. However, it is also possible the that HD 209458b formed beyond the CO₂ snowline and was then chemically enriched by pebble accretion.

6 SUMMARY AND DISCUSSION

In this work, we have explored the carbon, oxygen, and nitrogen compositional parameter space for hot Jupiters, and seen how these predicted abundances may relate to their formation location. By expanding upon our previous work in Hobbs et al. (2019), we have run a suite of 1500 models of our chemical kinetics code. We did this for a generic hot Jupiter orbiting at two possible distances from a sun-like star, encompassing a range of atmospheric elemental compositions between 0.1x and 10x the solar values for carbon, oxygen, and nitrogen. We compare our parameter space to the formation and migration models of three previous works (Madhusudhan et al. 2014b; Booth et al. 2017; Turrini et al. 2021) to create a framework of how the abundance of six of the major species in a hot Jupiter atmosphere might be linked to where the planet formed.

We find that, as expected, there is a large degree of degeneracy when trying to link a planet’s atmospheric composition to its formation location; however, we do obtain some insights that may assist in narrowing down the history of a hot Jupiter. Using the relationship between formation and metallicity shown in Madhusudhan et al. (2014b), we find that low CO₂ and H₂O abundances can be expected only in planets forming beyond the CO₂ snowline. We also find that low CH₄ abundances on the cooler hot Jupiters are only expected for a planet forming within the CO₂ snowline or by gravitational instability beyond the CO₂ snowline. Additionally, we find that our models predict high HCN abundance for planets that formed beyond the CO₂ snowline via core accretion or by gravitational instability between the CO₂ and CO snowlines, before undergoing disc-free migration.

We also considered the possibility of chemical enrichment of hot Jupiters as presented in Booth et al. (2017). We find the best way to determine if a hot Jupiter had been chemically enriched was via an elevated CH₄ abundance within the enriched planet’s atmosphere. The formation location of a chemically enriched planet could best be identified via the CO or CO₂ abundance, both of which would be lower in a planet that formed beyond the CO₂ snowline.

Using the work of Turrini et al. (2021), we investigated whether having the N/H ratio as a chemical parameter could allow us to gain insights into where a hot Jupiter formed. In general, we find that this is not the case. Species that do not contain nitrogen are generally unaffected by changes to the N/H ratio. Additionally, the range of N/H ratios predicted by Turrini et al. (2021) only covers in the range 1 < [N/H] < 3, which does not have a very significant impact even on those species that do contain nitrogen.

We compared an ensemble of retrieved H₂O abundances on hot Jupiters from Welbanks et al. (2019) to the H₂O abundances we predicted using our models. We found that all the detected abundances lay within our predictions but, with only the H₂O abundance available, in most cases it was not possible to distinguish which specific formation mechanism may have lead to that abundance. However, in two cases (HD 189733b and HD 209458b) where the H₂O abundances are significantly sub-solar (Madhusudhan et al. 2014a; Barstow et al. 2017; Pinhas et al. 2019; Welbanks et al. 2019), our models suggest their formation beyond the CO₂ or CO snowlines followed by disc-free migration. Our results are consistent with previous studies which used such low H₂O abundances in hot Jupiters to suggest their formation beyond the snowlines and disc-free migration (e.g. Madhusudhan et al. 2014b; Brewer, Fischer & Madhusudhan 2017; Welbanks et al. 2019).

Finally, we performed a case study on the hot Jupiter HD 209458b, using multiple molecular detections from Gandhi et al. (2019), Welbanks et al. (2019), and Giacobbe et al. (2021). Our model predicted formation between the CO₂ and CO snowlines followed by disc-free migration as the most likely origin for this planet. This inference assumed a formation model based on gravitational instability, from Madhusudhan et al. (2014b), but formation by core accretion at the same location may also be possible. Similarly, core accretion beyond the CO₂ snowline followed by chemical enrichment by pebble drift (Booth et al. 2017) also matched with all but one molecular detection, and thus could also be a contender for how HD 209458b was formed.

There are naturally some caveats to our results based upon the assumptions made within our modelling. The first of these is the common assumption that the metallicity of the protoplanetary disc is solar. Combining our model results with a planet that formed in an environment that had a significantly supersolar or sub-solar metallicity would not allow us to accurately trace a planet back to its formation mechanism and location. Additionally, our model used standardized stellar and planetary properties (i.e. The star was solar equivalent, and the planet modelled was always tidally locked and of a constant mass and radius). These values would be needed to run accurate models of a specific planet. Lastly, chemistry due to other elemental species, such as sulphur, has shown to be able to influence the abundances of the species that we have modelled in this work. Thus, the accuracy of these models could be improved by including these additional species.

To improve our ability to predict formation mechanisms further, we need additional, more accurate, molecular abundance measurements on hot Jupiters, and to expand the functionality of our code to consider a wider range of planetary and stellar properties. The upcoming launch of satellites such as the James Web Space Telescope (JWST) should help in providing a more accurate picture of the composition of a hot Jupiter. To improve chemical models of hot Jupiters, inclusion of other elements such as sulphur may assist in making the models more accurate representations of their atmospheric chemistry and breaking degeneracies of formation location.

ACKNOWLEDGEMENTS

RH and OS acknowledge support from the UK Science and Technology Facilities Council (STFC).

DATA AVAILABILITY

The data underlying this article will be shared on reasonable request to the corresponding author.
