Radio detections of IR-selected runaway stellar bow shocks Open Access

ABSTRACT

1 INTRODUCTION

Runaway massive stars are usually early-type stars showing large peculiar velocities, likely caused either by a kick from the supernova explosion of a binary companion (Zwicky 1957; Blaauw 1961) or by dynamical ejection after gravitational interactions with other stars (Poveda, Ruiz & Allen 1967; Gies & Bolton 1986). If the runaway star’s peculiar velocity significantly exceeds the local interstellar medium (ISM) sound speed, it can create a bow shock in the direction of its motion. As these early-type stars tend to launch powerful stellar winds, the bow shock is located at the distance from the star where the wind and ISM ram pressure are in equilibrium (Baranov, Krasnobaev & Kulikovskii 1971). The typical arc-type shape of the bow shock is set by the combination of stellar (wind) properties – i.e. wind and peculiar velocity, mass-loss rate – as well as the local ISM density, the presence of complex structures, and viewing angle (Wilkin 1996).

The bow shocks of runaway massive stars can, in theory, emit brightly across the entire spectrum via various emission mechanisms. The largest number of bow shocks has been identified at IR wavelengths, where the emission of shock-heated dust peaks (see e.g. Peri et al. 2012; Peri, Benaglia & Isequilla 2015; Kobulnicky et al. 2016, for catalogues). Line emission, for instance in H α, has been detected for a subset of these samples (e.g. Gull & Sofia 1979; Kaper et al. 1997). Such line emission highlights the presence of a thermal electron population that may similarly contribute to low-frequency (especially radio) emission via thermal free–free processes. Alternatively, at the shock, diffusive shock acceleration of electrons could create an electron population reaching energies up to the TeV regime (e.g. Del Valle & Romero 2012). The non-thermal emission of this population may contribute both at high and low frequencies, respectively, via inverse-Compton scattering at X-ray energies and beyond, and via synchrotron emission at radio frequencies. To date, however, at high frequencies, no bow shock emission has been detected unambiguously (Schulz et al. 2014; Toalá et al. 2016; De Becker et al. 2017; Toalá, Oskinova & Ignace 2017; H. E. S. S. Collaboration 2018), although two unidentified Fermi sources may be associated with bow shocks (Sánchez-Ayaso et al. 2018).

Searches of synchrotron radio emission could therefore offer a fruitful alternative to study bow shock particle acceleration. At the time of writing, low-frequency bow shock studies have only been slightly more successful, as only two runaway stellar bow shocks have been confidently detected at radio frequencies. The prototype radio bow shock was discovered by Benaglia et al. (2010) around BD+43°3654 and further observed by Brookes (2016) and Benaglia et al. (2021). More recently, MeerKAT observations of the X-ray binary Vela X-1 discovered radio emission from its known bow shock (Van den Eijnden et al. 2022). While the former detection has been identified as synchrotron emission, providing an insight into the non-thermal electron population, the latter source’s radio emission appears to be dominated by thermal free–free emission. Therefore, radio studies of more runaway bow shocks are paramount to understand how often and in what circumstances these sources efficiently accelerate electrons to the point where their non-thermal emission becomes detectable and dominates the low-frequency spectrum. While existing VLA and ATCA data has revealed a handful of possible radio sources at bow shock positions in survey data (Peri et al. 2012; Benaglia et al. 2013; Peri et al. 2015), the sensitivity and spatial resolution of those observations was typically insufficient to confidently assign the radio emission to the bow shock.

The advent of precursors to the Square Kilometer Array (SKA), such as MeerKAT and the Australian SKA Pathfinder (ASKAP) presents an opportunity to search for stellar bow shock radio counterparts at high sensitivity to extended emission. The recent first data release of the Rapid ASKAP Continuum Survey (RACS; McConnell et al. 2020), highlights this development: RACS presents radio images of the entire Southern and part of the Northern sky (i.e. declinations below +41°, at the time of writing) with typical RMS sensitivities of ∼0.25 mJy beam⁻¹. In addition to its sky coverage and sensitivity, its typical resolution of ∼15 arcsec improves upon earlier surveys, facilitating a more effective search for bow shock morphologies. Building on the radio detection of Vela X-1, we therefore searched for radio counterparts of known IR runaway bow shocks in the first and second version of the E-BOSS catalogue (Peri et al. 2012, 2015).

In this paper, we report on the radio detection of three radio bow shock counterparts, as well as three strong candidates and three to-be-confirmed counterparts, which all warrant follow up studies. In Section 2, we will describe the public radio and IR survey data used in our study, while in Section 3, we will discuss all E-BOSS sources where radio emission is identified in RACS. In Section 4, we perform basic analytical calculations to assess whether the radio emission can be explained in existing bow shock frameworks and to better understand whether the radio sources are dominated by bow shock emission. We discuss our findings and turn to future prospects for radio bow shock studies in Section 5, before finally concluding in Section 6.

2 OBSERVATIONS AND TARGET SELECTION

We accessed the publicly available RACS images of the fields containing each of the investigated IR bow shocks via the CSIRO ASKAP Science Data Archive (CASDA; https://research.csiro.au/racs/home/data/). The RACS data were taken with the full ASKAP array, consisting of 36 antennas equipped with a phased array feed to digitally sample a large, 31 deg² field of a view. The images in the first data release are taken at a central frequency of 887.5 MHz with a bandwidth of 288 MHz. For details on ASKAP, we refer the reader to Hotan et al. (2014,2021), and McConnell et al. (2016), while more details about RACS, its first data release, and a comparison with pre-existing radio surveys can be found in McConnell et al. (2020). For multiwavelength comparison of the radio images, we consulted the WISE infrared images in the NASA/IPAC Infrared Science Archive (https://irsa.ipac.caltech.edu/applications/wise/) and SuperCOSMOS H α images (Parker et al. 2005; http://www-wfau.roe.ac.uk/sss/halpha/).

For this first bow shock search in RACS, we selected sources in the first and second E-BOSS catalogues (short for Extensive stellar BOw Shock Survey; Peri et al. 2012, 2015). These catalogues list bow shock and bow shock candidates detected in IR with, predominantly, MSX and WISE. We selected all sources covered by the first data release of RACS, creating a sample of 50 targets. In addition to presenting IR images, the E-BOSS catalogues also measure and list the geometrical properties of the identified bow shocks and use those in combination with stellar (wind) parameters to infer the surrounding ISM density. These estimates are especially useful for our inferences regarding the nature of any detected radio emission (see Section 4). Peri et al. (2012, 2015) also note that a number of sources show hints of radio emission in either NVSS (Condon et al. 1998) or ATCA images; however, the typical ∼0.5 mJy beam⁻¹ noise level in combination with differences between radio and IR morphology yielded these possible radio counterparts challenging to interpret further at the time. Since several of these targets are covered by RACS, which has a higher sensitivity and spatial resolution, we will discuss them in extra detail in this work. Finally we note that, based on Spitzer observations, Kobulnicky et al. (2016) present a larger IR catalogue, that can be explored in follow-up work. Here, we focus on the sources in the E-BOSS samples with listed geometrical and ISM properties.

3 RACS BOW SHOCK SEARCH

For each E-BOSS IR bow shock covered by an RACS field, we started by visually inspecting the source position in the radio image. For the majority of sources, no point source or extended emission was visible at the source position, yielding instead typical 3 − σ upper limits on the peak flux density of ∼0.5–1 mJy. However, for ten IR-detected bow shocks, radio emission can be seen at or close to its position in RACS. In this section, we first walk through these ten targets and then discuss whether this radio emission likely originates from the bow shock, or instead from other, unrelated diffuse structures or background sources. We summarize our assessment and classification of each of the ten considered sources in Table 1. There, we also list their related figures for clarity. The classifications in Table 1 are purely based on morphology – we will include physical calculations in our assessment in later sections. Before discussing individual sources, we stress that any region drawn in the figures in this paper is intended to highlight the discussed features and to compare radio and IR images – they are not used in the actual calculations.

In Fig. 1, we show a large-scale region as observed in RACS covering NGC 6357, a star-forming region (Gvaramadze et al. 2011) that contains eight IR bow-shock candidates in the E-BOSS catalogues. For three of those IR bow-shocks – G1, G3, and G8 in the terminology of Peri et al. (2015) – we show an inset zoom of the 0.2 × 0.2 deg² surrounding their locations, with their radio flux density plotted on a log scale. This scale is different from the main image and tailored for each zoomed inset to show the relevant features; the scale bar is shown for each respective field in the left-hand column of Fig. 2. The insets for G1 and G3 show extended emission with an arc-like morphology, reminiscent of a typical bow shock shape, that we indicate with the black dashed lines to guide the eye. We also show the G8 inset for contrast, as the IR bow shock’s location highlighted by the black dashed circle does not contain any hint of a radio counterpart.

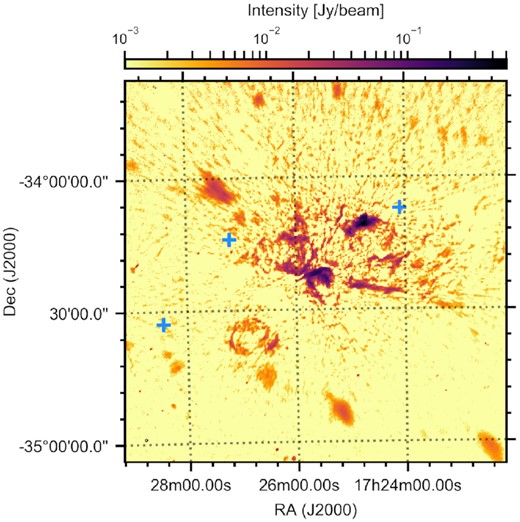

Figure 1.

Logarithmically scaled RACS image of the star-forming region NGC 6357. The position of three known IR bow shocks, G1, G3, and G8, are indicated by the crosses. Zooms of these positions are shown in Fig. 2. The complex field also reveals how the RMS sensitivity can vary significantly with position, explaining why we determine local upper limits for radio non-detected bow shocks.

Open in new tabDownload slide

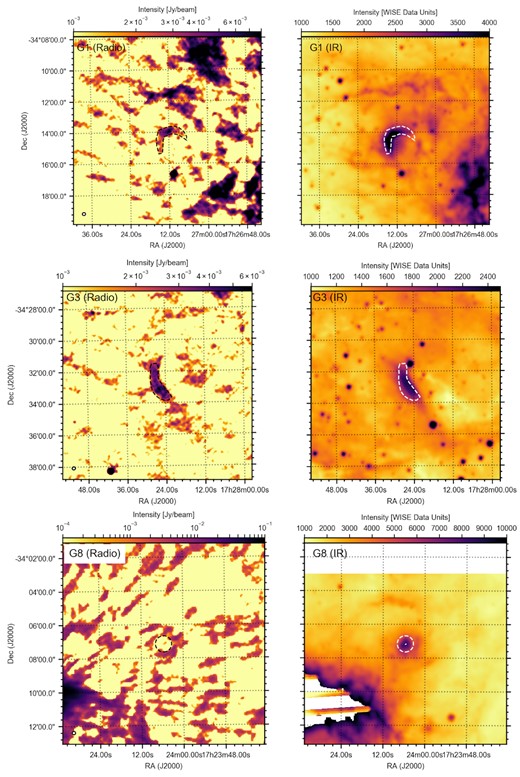

Figure 2.

Radio (RACS; left-hand column) and IR (WISE; right-hand column) images of G1 (top), G3 (middle), and G8 (bottom). The physical scale is the same between the radio and IR images. In both images, the same contours are drawn, based on the radio morphology (G1/G3) or known position of the source (G8). We re-iterate that the contours are intended only to guide the eye in the comparison.

Open in new tabDownload slide

The left-hand column of Fig. 2 shows the same insets as shown in Fig. 1, now including coordinate definitions and colourbars; for each field, the associated right-hand panel shows its WISE Band W3 IR counterpart. The regions plotted in the left-hand panel, defined based on the radio morphology for G1 and G3, are also shown as white dashed regions in the right-hand panels. The fields of view are also matched. It is clear how, for G1 and G3, the extended radio and IR sources overlap in position and are alike in their bow shock-like morphology, although small differences in exact structure appear to be present. The IR source identified as the G8 bow shock in E-BOSS, however, clearly has no associated radio counterpart. Similarly, none of the remaining five bow shocks in this field are radio-detected. Therefore, we conclude that the G1 and G3 radio counterparts are most likely radio detections of the bow shocks. We do however stress that the NGC 6357 region is complicated, both in IR and radio, and especially for G1, many other diffuse structures are present in the field. We will encounter similar issues in the other fields below.

In a similar fashion to NGC 6357, we show the massive star-forming region RCW 49 in Fig. 3. Peri et al. (2015) include three bow-shock candidates – S1, S2, and S3 – in this region, based on the Spitzer GLIMPSE images reported by Povich et al. (2008), although in WISE data, only S1 is not saturated. Earlier, Benaglia et al. (2013) studied a deep ATCA 5.5 GHz image of RCW 49, highlighting radio emission coincident with the bow shock positions of S1 and S3 (for S1, no 9 GHz image was available; at the positon of S3, no significant 9-GHz emission was identified). We again show zoomed insets of the 0.2 × 0.2 deg² around the positions of the three IR bow shock candidates. We see that in RACS, we encountered similar issues as Peri et al. (2015) do with WISE. S1, located significantly offset from the centre of the star-forming region, appears to show a radio counterpart. However, S2 and S3 are located close to the star-forming region’s centre, which makes it challenging to assess the origin of their radio emission.

Figure 3.

Logarithmically scaled RACS image of the star-forming region RCW 49. Similar to Fig. 1, we show the position of three known bow shocks, S1, S2, and S3. Zooms of these positions are shown in Fig. 4.

Open in new tabDownload slide

In Fig. 4, we show S1 in the radio (left-hand panel) and IR (right-hand panel) bands in the top panels. The drawn region is, in these images, based on the IR bow shock, showing how the radio source aligns with the IR structure. Therefore, we identify the RACS source as the radio counterpart of the S1 IR bow shock, noting that the radio source extends further North. This further extension may be an unrelated extended radio source, or part of the noisy background close to the bright RCW 49 region. For S2 (left-hand panel) and S3 (right-hand panel), shown in radio in the bottom panels, the lack of unsaturated WISE data makes it challenging to assess the presence of a radio counterpart. For S3, an apparent gap to the West of the IR bow shock location of S3 can be seen. Therefore, we can very tentatively draw an arc-shaped region at this position, but to identify this as a radio bow shock remains extremely speculative. For S2, indicated by the white cross, a decrease in radio flux can be seen to the South of the bow shock position. However, this decrease is less pronounced than for S3. All combined, we can therefore conclude that radio emission is seen at the position of S2 and S3, but it could conceivably be unrelated to the bow shock.

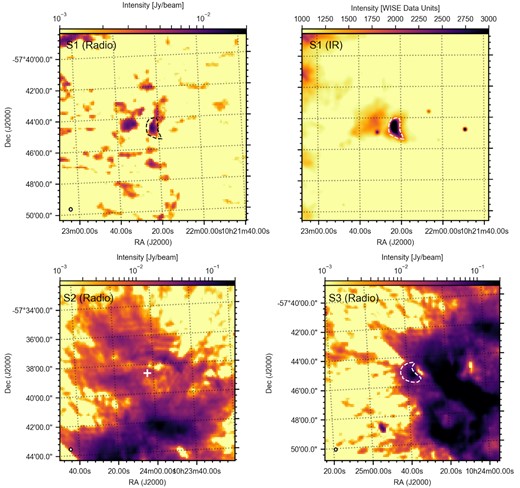

Figure 4.

The top row shows the radio (RACS; left-hand panel) and IR (WISE; right-hand panel) images of S1 in RCW-49. Both images share the same physical scale and contour, which is drawn to guide the eye based on the IR image. The bottom row shows the radio images of S2 and S3. No unsaturated IR images from WISE are available for these bow shocks. The contour for S3 is tentatively drawn based on the radio image. We stress that the bow shock shape of S3 is not known from other wavelengths, and therefore this tentative contour is very speculative. Again, all contours are drawn only to guide the eye. Similarly, no bow shock shape is known for S2 from other wavelengths.

Open in new tabDownload slide

The next four IR bow shocks with radio emission at their position are shown in Figs 5 and 6, in the same fashion as Fig. 2. In all cases, the black and white dashed regions are the same in the left-hand and right-hand columns; in both these figures, all four regions are based on the morphology of the IR bow shock in the right-hand column. The first of the four fields, centred on HIP 88652 (Fig. 5, top) shows a large, extended radio source at the position of the IR bow shock. The brightest region of this extended source appears to follow the arc-like IR shape, although the radio structure extends in both the North and South directions. The radio image is also heavily affected by the presence of two bright point sources to the north-west of the bow shock, that remain incompletely de-convolved and therefore imprint radial streaks of radio residuals that intersect with the bow shock position. Therefore, while the radio morphology and positional overlap suggest that the RACS structure may be the radio counterpart of the HIP 88562 bow shock, this conclusion requires confirmation; either by new radio observations or possibly by re-imaging the ASKAP data tailored specifically for this field.

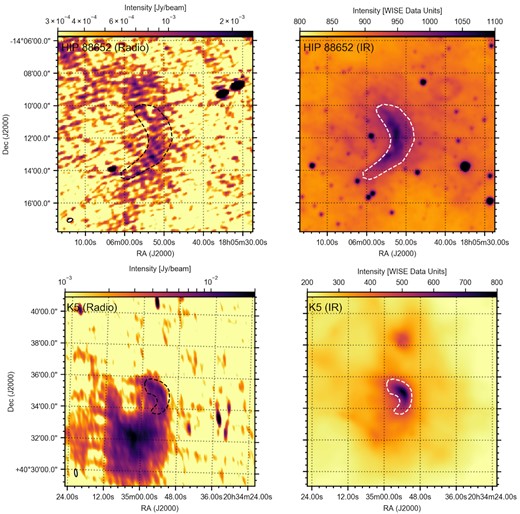

Figure 5.

Radio (RACS; left-hand column) and IR (WISE; right-hand column) images of HIP 88652 (top) and K5 (bottom). The physical scale and contours are the same between the radio and IR images. The contours, in both rows, are drawn based on the IR image and are intended to guide the eye in comparing the two wavebands.

Open in new tabDownload slide

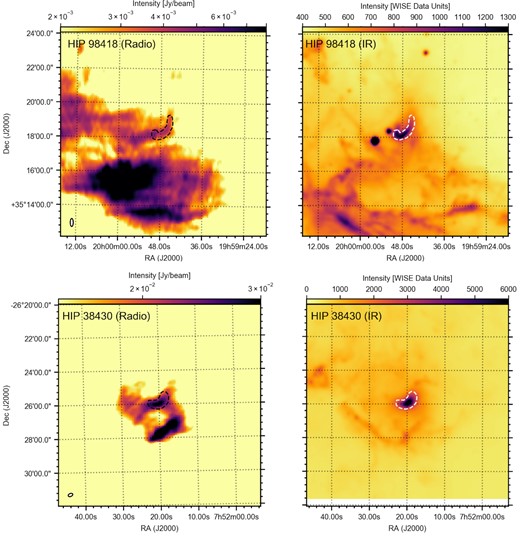

Figure 6.

Radio (RACS; left-hand column) and IR (WISE; right-hand column) images of HIP 98418 (top) and HIP 38430 (bottom). The physical scale and contours are the same between the radio and IR images. The contours in both rows are drawn based on the IR shape of the bow shock; all contours are intended to guide the eye in comparing the two wavebands.

Open in new tabDownload slide

The bottom panels of Fig. 5 show the source called K5 in the second E-BOSS catalogue, located in the Cygnus OB2 association. This association contains a total of 11 bow shocks listed in E-BOSS, including the first radio stellar runaway bow shock BD+43°3654 (which is too far north to be covered by RACS). Of the covered bow shocks, only K5 shows radio emission in RACS. The black dashed region, constructed based on the WISE image, shows how the radio emission broadly traces the bow shock, merging into the extended radio source to the South. Despite the presence of this Southern extended source, the similarity in morphology makes us conclude that the radio emission likely forms the RACS counterpart of K5.

The two fields shown in the radio (left-hand panel) and IR (right-hand panel) bands in Fig. 6 are similar to the case of K5: the regions, based on the IR bow shock morphology, show how radio emission traces the IR morphology. However, for both HIP 98418 (top) and HIP 38430 (bottom), other extended radio emission is located close to the bow shock location. In both cases, the target is located in a complex ISM field, as is visible from the IR images and confirmed with RACS. However, similar to K5, the similarity in morphology and position leads us to conclude that the emission is likely due to the radio counterpart of the IR bow shock.

The complexity of the radio fields, seen in the targets above, makes it challenging to assess beyond doubt whether detected radio emission originates in the bow shock. In the tenth and final E-BOSS target with associated radio emission, we encounter the simplest field in RACS. In Fig. 7, we show the RACS and WISE field containing HIP 24575 (i.e. the star in AE Aur). The region plotted in both panels is based on the shape of the radio source, which is consistent with a point source. While it overlaps with the position of the IR bow shock of HIP 24575, the radio image does not suggest we are looking at a radio bow shock. Especially its point source nature, without any hints for even faint extended emission surrounding it, argues for a coincident interloper. In addition, VLA radio studies at higher radio frequencies also did not detect any radio emission at the position of the bow shock, down to sensitivities below the flux density of the RACS source (Rangelov et al. 2019). Based on the stellar wind properties and distance of HIP 24575 as listed in Peri et al. (2015), we can use the formalism in Wright & Barlow (1975) to estimate the stellar wind’s radio luminosity. We expect a sub-nJy flux density from the massive star’s wind, which cannot be reconciled with the RACS point source flux density in the mJy range. Therefore, we conclude that this radio source is likely unrelated to either the massive star HIP 24575 or its bow shock.

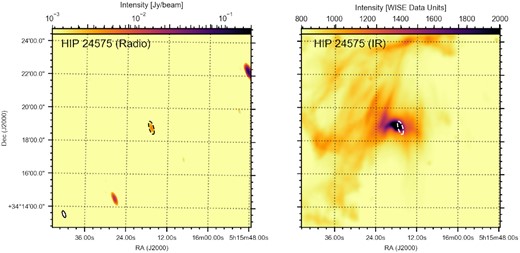

Figure 7.

Radio (RACS; left-hand panel) and IR (WISE; right-hand panel) images of HIP 24575. The physical scale and contours are the same between the radio and IR images. The contours are based on the radio source and intended to guide the eye in comparing the two wavebands. The radio source at the position of HIP 24575 appears to be consistent with a point source.

Open in new tabDownload slide

4 MEASUREMENTS AND CALCULATIONS

Having assessed the presence and morphology of radio emission at the position of the E-BOSS bow shocks, we can turn to estimating their basic observables and physical properties. We will do so for both radio-detected and non-detected targets, but do exclude a number of bow shocks: first, we do not consider Vela X-1, as RACS does not reveal radio emission at its position, while a MeerKAT radio detection is presented in detail in Van den Eijnden et al. (2022). Secondly, the sources referred to as SER1 to SER7 in Peri et al. (2015) do not have an associated distance in the catalogue. Therefore, as none of these sources are radio detected and the lack of distance prevents further physically meaningful constraints to be made, we will ignore these targets in the remainder of this work. Finally, we do not consider RCW 49 S2 and RCW 49 S3 here, as the E-BOSS catalogue does not contain geometrical IR constraints for these two targets. While both do show radio emission at their position (see also Benaglia et al. 2013), the connection between this emission and the bow shock also remains unclear and requires dedicated follow-up observations.

In Table 2, we list the relevant observables for the 40 remaining targets. For each source, we either list the flux density detected in its brightest beam (detected sources) or the RMS measured over a circular region with a 2 arcmin radius centred on the bow shock position (non-detected sources). We also list the full image RMS (column 4), as reported in the RACS data repository, which can be used as an RMS estimate for the radio-detected sources. Alternatively, comparing these image RMSs with the RMS at the source position highlights how for several non-detected targets, locally enhanced noise may have complicated the detection of a radio counterpart. For the detected targets, we only consider the brightest beam, because the bow shock shape is not as well defined as for their IR counterparts or because close-by confusing sources complicate the determination of the region where the bow shock dominates. Therefore, assuming the brightest beam is most clearly dominated by bow shock emission, we will restrict our calculations in this section to that part of the shock. Any physical scenario that can explain the observed emission should be able to explain the most extreme part of the bow shock; therefore, the brightest beam will be most constraining in assessing physical explanations. We also list the beam’s major and minor axis size for each image, as well as the RACS image name for easy data accessibility.

These simple observables, in combination with the geometrical IR measurements, distances, stellar wind properties, and ISM density estimates listed in the E-BOSS catalogues (and partially tabulated in the Appendix as well), allow us to explore two scenarios for the radio emission. As introduced extensively in Van den Eijnden et al. (2022) to investigate the radio emission from the bow shock of Vela X-1, we can consider non-thermal/synchrotron or thermal/free–free emission processes – as well as, naturally, their combination. We summarize the outcome of these considerations in Table 3. The calculations discussed below can be reproduced using the jupyter notebook accompanying this work (see Data Availability).

4.1 Non-thermal/synchrotron emission

Here, we first assess a synchrotron origin. In this scenario, developed over the past decade by many authors (e.g. Benaglia et al. 2010, 2021; Del Valle & Romero 2012; De Becker et al. 2017; Del Palacio et al. 2018; Del Valle & Pohl 2018), a fraction of the kinetic power of the stellar wind powers the acceleration of electrons at the shock into a power-law number density distribution, likely via diffusive shock acceleration. These electrons then gyrate around the magnetic field, originating in the stellar wind but possibly amplified in the shock, therefore losing energy via synchrotron radiation. Importantly, several fundamental parameters cannot be determined directly from the RACS data but can only be estimated: the magnetic field strength B in the shock, the maximum energy of the electrons E_max, and the slope of the relativistic electron number density distribution p (related to the radio spectral index α via p = 2α + 1, where S_ν∝ν^−α). Similarly, the efficiency of injecting energy into the relativistic electron population from the stellar wind’s kinetic power – the fundamental energy source of the electrons in this scenario – is not known nor uniquely measurable. However, for reasonable assumptions of these parameters, we can consider whether a realistic and self-consistent scenario can be constructed, fitting with the observed radio properties.

In the top panel of Fig. 8, we plot the injection efficiency for the considered, radio-detected bow shocks. For the plotted relations, we have assumed a maximum electron energy E_max = 10¹² eV and p = 2 (i.e. α = 0.5). One can immediately observe how for K5 and G1, the efficiency never or only just, respectively, reaches below |$100{{\ \rm per\ cent}}$|⁠, for any magnetic field strength that leaves the wind compressible. On the other hand, HIP 88652, HIP 38438, and HIP 98418 reach required efficiencies below 4 per cent, 1 per cent, and 0.3 per cent, respectively, for their maximum magnetic field strengths. Since the magnetic field strength in the stellar wind scales as one over the distance to the star, it requires significant fine tuning of the wind mass-loss, velocity, and ISM density to expect that the majority of bow shocks are close to their maximum magnetic field. However, for HIP 38438 and HIP 98418, a large range of magnetic field strengths implies realistic efficiencies in the regime below ∼10 per cent.

Figure 8.

Top panel: the injection efficiency, as defined in equation (1), as a function of magnetic field for the seven (candidate) radio bow shocks with known geometrical properties (i.e. excluding S2 and S3 in RCW 49). The grey shaded region indicates where the efficiency reaches above 100 per cent. Only HIP 38430 and HIP 98418 reach below efficiencies of 10 per cent. Bottom panel: the same relation as the top panel, plotted for HIP 38430, varying E_max and α. A higher E_max slightly increases the required efficiencies, while changes in α yield larger increases.

Open in new tabDownload slide

That leaves two sources in between these two extremes, requiring efficiencies between 10 and 100 per cent to explain the observed radio emission: G3 and RCW 49 S1. For those, we find similar results as Van den Eijnden et al. (2022) reported for the Vela X-1 radio bow shock: unexpectedly high injection efficiencies (i.e. >10 per cent) are needed to assign all radio emission a non-thermal origin. We should, however, add three nuances to this statement: first, the non-thermal emission may instead contribute just a fraction of the emission; secondly, one should carefully consider whether this brightest radio beam is indeed representative of and dominated by emission from the bow shock; finally, such quantitative statements may depend on our assumptions regarding the electron population. We assess the final option explicitly in the lower panel of Fig. 8, where we plot the injection efficiency relation for HIP 38430 assuming four different combinations of E_max and p. Clearly, the exact numerical values depend on these assumptions, but E_max = 10¹² and p = 2, as assumed in the top panel, imply the lowest required efficiencies. In other words, if those assumptions are inaccurate, it exacerbates the complications G3 and RCW 49 S1 in the non-thermal model.

4.2 Thermal/free–free emission

In addition to a non-thermal scenario, we can instead consider a thermal/free–free origin of the emission. In such a scenario, we can consider optically thin free–free emission, as typical bow shock densities and widths are insufficient to make the shock optically thick at radio frequencies (Van den Eijnden et al. 2022). Then, the free–free emissivity and therefore observed radio flux are set by the electron temperature and density in the shock. As discussed in detail in Van den Eijnden et al. (2022), we can derive a simple scaling between electron temperature and density for a given observed radio flux; alternatively, for non-detected sources, we can instead plot electron density upper limits as a function of temperature.

If line emission from the thermal electrons is also observed – for instance H α – the degeneracy between n_e and T can be broken and a unique solution can be found. However, in the absence of literature reports of such emission for the majority of bow shocks (but see Section 5.2), we can instead find other constraints. For instance, we expect the post-shock temperature to scale with the shock velocity, equal to the stellar peculiar velocity v_*, as |$kT \approx (3/16)\mu m_p v_*^2$|⁠, where μ ≈ 0.6 for cosmic abundances and m_p is the proton mass (Helder et al. 2009). For typical runaway stellar velocities of 30 and 50 km s⁻¹, this relation implies electron temperatures of T ∼ 1.2 × 10⁴ K and T ∼ 3.4 × 10⁴ K, respectively. A second and consistent constraint on the electron temperature comes from Brown & Bomans (2005), who report temperatures for a set of H  α-detected bow shocks in the range of 6 × 10³ K to 1.4 × 10⁵ K. We will use the latter range as a reference in this analysis.

For all bow shocks considered in this Section, the E-BOSS catalogue lists inferred ISM densities based on the stellar wind properties and the measured standoff distance. We expect a density enhancement in the shock, by a factor 4 predicted by the Rankine–Hugoniot equations (Landau & Lifshitz 1959) up to a factor ∼10 seen in bow shock simulations by Gvaramadze et al. (2018). In order to compare different bow shocks, we can therefore plot their electron density–temperature relation as measured from the radio image, n_e(T; S_ν), divided by their geometrically inferred surrounding ISM density, n_ISM. We expect this overdensity factor n_e(T; S_ν)/n_ISM to lie, roughly, in the range between 1 (i.e. no overdensity) to 10.

In the left-hand panel of Fig. 9, we plot the electron overdensity factor as a function of temperature for the radio-detected targets. The grey area indicates the expected overdensity range, while the black dashed lines enclose the typical shock temperature range from Brown & Bomans (2005). Evidently, four out of the seven plotted sources pass through the region of the plot where the expected overdensity and temperature overlap: HIP 38430, RCW 49 S1, G1, and G3. In other words, their detected peak radio emission can be explained via a thermal scenario. HIP 98418, shown with the red dotted line, lies at lower overdensity factors; therefore, in order to be consistent with an overdense shock compared to the ISM, it should show higher temperatures than typically inferred from H α bow shock detections. Finally, HIP 88652 and K5 show overdensities in the range of ∼30–100, exceeding the expectations for shocks discussed above. In other words, their peak radio flux density greatly exceeds the flux densities that may be expected for a thermal scenario.

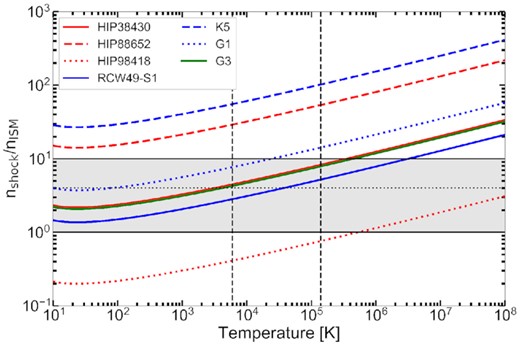

Figure 9.

The relation between electron temperature and overdensity to account for the peak radio flux density of the seven (candidate) radio bow shocks with known geometrical properties (i.e. excluding S2 and S3 in RCW 49). The grey region shows overdensities compared to the ISM between 1 and 10, while the dotted line indicates the theoretically expected value of 4. The dashed black lines enclose the region in electron temperatures derived for a sample of H α bow shock by Brown & Bomans (2005). Four targets pass through the realistic region in this parameter space, enclosed by the black lines and dashed lines. Two sources (K5 and HIP 88652) appear to be too radio-bright, while HIP 98418 appears radio faint.

Open in new tabDownload slide

Finally, for S1 in RCW 49, we can include the radio emission reported by Benaglia et al. (2013) in 5.5 GHz ATCA observations. Benaglia et al. (2013) report a total flux density, integrated over the bow shock, of 70 ± 10 mJy. In the RACS images, we measure a peak brightness of 12.6 ± 0.23 mJy beam⁻¹, while the entire bow shock is approximately five times larger than the ASKAP beam. Therefore, we can roughly estimate a total RACS bow shock flux between ∼50 and 100 mJy; differences between the precise definition of the bow shock size, radio telescope, and array configurations, as well as the level of brightness fluctuations across the RACS radio bow shock, mean that a more precise estimate is not attainable at this stage. An integrated RACS flux density of that order of magnitude is consistent with an α = 0.1 radio spectrum, expected for thermal emission. A non-thermal scenario (α ∼ 0.5) would imply values closer to ∼175 mJy instead. We stress, however, that due to the difficulties in comparing different radio arrays at different frequencies, these estimates should be considered with caution.

4.3 Non-detected bow shocks

Finally, for the radio-non-detected bow shocks, we can use the non-thermal and thermal frameworks to estimate their expected peak radio flux densities in RACS observations. For this purpose, in the thermal scenario, we assume that the source either has a relatively weak magnetic field of |$10\, \mu$|G or its maximum magnetic field B_max. To obtain an optimistic prediction, we assume a high injection efficiency of 10 per cent, in combination with E_max = 10¹² eV and α = 0.5. For the thermal scenario, we assume either T = 6 × 10³ K or T = 1.4 × 10⁵ K and an overdensity of 4 – as these flux density predictions scale with |$n_e^2$|⁠, they can be multiplied by 2.5² to consider overdensities of 10.

In Fig. 10, we plot the predicted RACS flux densities in the brightest beam for the non-thermal (left-hand panel) and thermal (right-hand panel) scenarios. The different markers indicate different magnetic fields (left-hand panel) or temperatures (right-hand panel). In both panels, the red line shows where the two flux densities are equal; points above this line may be expected to be detected with RACS. In the non-thermal scenario, all non-detections can be accounted for if not all bow shocks have their maximum magnetic field. As mentioned earlier, it would require exceptional fine-tuning for each source to be close to B = B_max; therefore, this requirement is likely to be met. In the thermal scenario, however, it appears more complicated to explain all non-detections: for five sources (HIP 75095, HIP 77391, HD 57682, K7, and G4) thermal emission is expected to be detectable for both considered temperatures. A lower density enhancement or overestimated ISM density may move these sources below the sensitivity level – none of the sources exceeds three times the local RMS for an electron density equal to the E-BOSS ISM density. We will, however, return explicitly to these five sources in the Discussion.

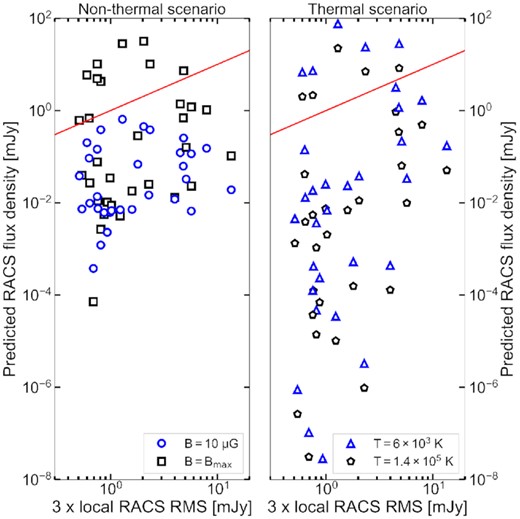

Figure 10.

The predicted peak radio flux density in the RACS beam for radio-non-detected targets, plotted versus three times their local RMS sensitivity. The red line indicates the one-to-one line; sources above this line should, at least, show detectable emission in one beam. The left-hand panel shows the predictions for two non-thermal scenarios, where a weakly magnetized scenario (⁠|$B=10\, \mu$|G) leaves all sources undetectable. The right-hand panel shows two thermal scenarios; in both, five targets would be expected to be detected. We discuss these sources in Section 5.3, where the non-thermal and thermal scenarios are also fully defined.

Open in new tabDownload slide

5 DISCUSSION

5.1 The radio detections and their origin

In this work, we report the RACS detection of three confident and three likely radio counterparts of runaway IR stellar bow shocks, as well as three inconclusive/to-be-confirmed candidates, out of a sample of 50 sources (e.g. Table 1 and Section 3). We then performed simple analytical calculations to assess whether a self-consistent non-thermal or thermal emission scenario can account for the observed radio emission, in order to shed light on the emission’s origin (Table 3 and Section 4). Finally, we briefly assessed how the IR bow shocks without associated radio emission fit into those thermal and non-thermal frameworks.

The three confident radio detections of IR bow shocks – G1 and G3 in NGC 6357, and S1 in RCW 49 – increase the number of radio runaway stellar bow shocks from two (Benaglia et al. 2010; Van den Eijnden et al. 2022) to five. All three of these fit well in a thermal scenario, where a free–free origin is responsible for the radio emission. In contrast, synchrotron emission appears to be unable to explain their detected radio luminosities, requiring unfeasibly high efficiencies of injecting energy into their relativistic electron population. All three sources are located in complex environments with large regions of diffuse radio emission and, possibly, large local variations in ISM densities. Therefore, one may conclude that indeed a complex ISM around the massive runaway star may play an important role in creating the circumstances where thermal radio emission becomes detectable. This conclusion also fits with the thermal origin for the radio bow shock of Vela X-1 proposed in Van den Eijnden et al. (2022), as this system may have recently crossed a local ISM overdensity (Gvaramadze et al. 2018). However, one should be careful: in the NGC 6357 field, only two out of the seven bow shocks that are visible to ASKAP are detected; in Cyg OB2, this ratio is one out of six. Complex ISM environments may therefore be beneficial or even necessary for thermal bow shock radio emission, but are clearly not sufficient; especially if these complex environments are highly structured and even closely separated runaway stars encounter different structures.

The role of a complex ISM environment can also hamper or complicate the detection of radio bow shocks. In K5, the first of the three likely bow shock detections, neither a thermal nor a non-thermal scenario can explain the observed radio luminosity. Possibly, the bow shock emission is observed in superposition with emission from the large-scale diffuse structure to its South (Fig. 5, bottom left-hand panel). As this diffuse structure shows similar flux densities to the shock region, it could explain why we observe a shock luminosity inconsistent with the energetics of the stellar wind and the density in the ISM. More extreme cases of this issue are present for S2 and S3 in RCW 49 – two of the three aforementioned inconclusive counterparts. While both show associated radio emission, their location inside a large-scale, diffuse radio structure prevents a clear identification of a bow-shock-like morphology. This issue may persist even at higher resolution or sensitivity, although spectral index maps may help us to separate bow shock emission from other diffuse structures – especially if any bow shock emission is, at least partially, non-thermal.

That leaves three sources to discuss: HIP 98418, HIP 38430, and HIP 88652. The former two are likely detections, as argued in Section 3. If real, HIP 98418 is best explained as a non-thermal source with a magnetic field above |$\sim 30\, \mu$|G to ensure a reasonable injection efficiency (i.e. below ∼10 per cent); it may include a thermal contribution, but it would require a high electron temperature to explain all emission through a free–free origin. For HIP 38430, if confirmed, both scenarios can explain the emission, individually or combined. Again, to ensure realistic injection efficiencies, the magnetic field should be relatively high at |$B \gtrsim 60\, \mu$|G. This minimum value, naturally, decreases if thermal processes provide a significant portion of the radio luminosity. As we will return to in the discussion of non-detected sources, these results confirm how high magnetic fields (i.e. a significant fraction of the maximum) are essential to ensure non-thermal radio detections at current sensitivities.

In the case of HIP 38430, it is also interesting to note how this source contains a stellar system of high multiplicity, likely consisting of at least two stellar binaries (Lorenzo et al. 2017). This exotic nature may affect several of the assumptions underlying our calculations and bow shock morphology in general (Wilkin 1996): the cumulative wind outflow may not be spherical, the relevant wind kinetic power may be incorrectly estimated due to the presence of several massive stars, and the magnetic field strength may be affected by mergers in the system. Therefore, the exact derived quantities, such as magnetic field or injection efficiency, for this target should be treated with caution. We note that none of the other sources (possibly) detected in this paper have been reported to host binary or higher multiplicity systems.

In addition, the multiplicity of HIP 38430 introduces the possibility that a fraction of the radio emission may originate from colliding stellar winds, similar to colliding wind binaries (CWBs). The position of HIP 38430 is close to the edge of the bow shock region drawn in Fig. 6. For the E-BOSS distance to HIP 38430, the luminosity of the radio counterpart is consistent with other CWBs (De Becker & Raucq 2013). Also, one of the binaries making up HIP38430 was recently found to be a wide, detached binary consisting of two O stars with likely masses of |$30\, \rm M_{\odot }$| each (Lorenzo et al. 2017). Therefore, it is possible that colliding winds contribute to the observed radio counterpart. The system’s multiplicity may also have a second effect: the E-BOSS distance of 900 parsec, estimated from Hipparcos parallaxes, is lower than other estimates in the literature. For instance, Lorenzo et al. (2017) argue for a distance closer to ∼5 kpc, which would render both the non-thermal and thermal bow shock scenario less reasonable by increasing η_e (scaling ∝D²) and n_e (scaling ∝D). Instead, at such larger distances, the radio luminosity of HIP 38430 is similar to the peak luminosity of the radio-brightest CWB Apep at similar wavelengths (Callingham et al. 2019). This scenario can be tested directly through radio follow-up monitoring of HIP 38430: the radio luminosity of CWBs is highly variable along their eccentric binary orbits due to variations in the distance between the massive stars.

Finally, for HIP 88652, the non-thermal scenario can explain the emission for a magnetic field |$B \gtrsim 50\, \mu$|G. The bow shock identification of this source is, however, less confident than that of the aforementioned two sources. From the RACS image, we can see how image artefacts due to two close-by, bright point-like sources strongly affect the region where the bow shock is expected to lie. Therefore, one can wonder whether the brightest beam is representative of the entire region here. While the peak flux density is 2.2 mJy beam⁻¹, the mean value is ∼0.9 mJy beam⁻¹ over the region drawn in Fig. 5 (top; we remind the reader that these regions are mainly intended to guide the eye). Given that the imaging artefacts increase the mean flux density in the region, we may expect that any emission for the bow shock could be less than ∼0.9 mJy beam⁻¹. In that scenario, injection efficiencies in the non-thermal scenario below 10 per cent could be possible at lower magnetic fields. Therefore, to assess this effect, a dedicated observation of this field with ASKAP or MeerKAT, or alternatively a re-imaging of the existing data to remove the image artefacts, is needed to confirm the presence and assess the nature of this radio bow shock.

Using NVSS images at 1.4 GHz, Peri et al. (2012, 2015) also searched for radio emission associated with the bow shocks in the two E-BOSS catalogues. Radio emission was reported at the positions of G2, G3, SER 5, S1, S3, HIP 88652, and HIP 38430 (as well as HIP 11891, which was not covered by RACS). However, these radio sources did not always fully overlap with the bow shock shape and position, nor could the authors conclude whether the radio emission was associated with the bow shock. Out of these radio candidates, we confirm the presence of radio emission at the positions of G3, S1, HIP 88652, and HIP 38430. In all cases, the reported NVSS flux densities are significantly (five to eight times) higher than the RACS peak flux densities. Given the small difference in observing frequency, such differences are unlikely to be dominated by spectral shape, but instead likely caused by the lower spatial resolution of NVSS, different array configuration, and possible positional offsets; the NVSS beam is likely to cover the entirety or a significant fraction of the bow shock, thereby observing its integrated radio flux density. In addition, given the complexity of the direct surroundings of G2, S3, HIP 88652, and HIP 38430, the NVSS images of these shocks may have also picked up (significant) contributions from surrounding diffuse radio emission regions. This comparison highlights the importance of the enhanced spatial resolution of RACS in order to determine the morphology of a possible radio bow shock and to separate it from other radio structures; however, the RACS non-detection of G2, which showed possible faint radio emission at lower resolution in NVSS (at 4 ± 1 mJy beam⁻¹; Peri et al. 2015), also reminds one how such enhanced resolution is only useful if accompanied by sufficient sensitivity to prevent emission being resolved out.

5.2 H α emission in the thermal scenario?

For the four targets where the thermal emission can realistically account for the (likely) observed radio bow shocks (G1, G3, S1, and HIP 38430), we can consider whether H α line emission from the same thermal electron population may be expected. We can apply the formalism introduced by Gvaramadze et al. (2018) and applied in Van den Eijnden et al. (2022) to estimate the H α surface brightness for a given temperature, electron density, and bow shock depth. Following our assumption that the width and depth of the bow shock are similar, and using the theoretical overdensity factor of four, we find that all four targets would show a surface brightness between ∼60 and ∼600 Rayleigh³ (T ≈ 10⁵ K) or ∼500 and ∼5000 Rayleigh (T ≈ 10⁴ K). The Vela X-1 bow shock, for comparison, was detected by Gvaramadze et al. (2018) at a surface brightness of 43 Rayleigh in the SuperCOSMOS H α Survey (Parker et al. 2005).⁴ Therefore, one automatically wonders whether these four bow shocks show up in the SuperCOSMOS images as well.

In Fig. 11, we show the SuperCOSMOS H α images for G1 and G3, overlaid with the same contours as in their radio and IR images (Fig. 2). In the case of G3 (right-hand side), a clear diffuse H α structure can be seen tracing the position (and extending slightly further) of the IR and radio bow shock. This H α detection is strong supporting evidence of a thermal emission origin for the radio emission. In G1 (left-hand side), a diffuse region is observed with significantly larger extent than the bow shock. However, hints of a cavity may be present to the South/south-west of the indicated bow shock region, towards the position of the star. In HIP 38430, similar issues arise: the large-scale diffuse structure also seen in radio (and even weakly in IR; Fig. 6) dominates the image. However, since it is saturated completely, we cannot assess whether there is any emission associated with the likely radio bow shock. These two cases highlight the issue with searching for bow shocks in H α discussed previously by Brown & Bomans (2005) and Meyer et al. (2016), namely the presence of larger-scale H ii regions that can surround the runaway star. Finally, S1 does not show a clear, diffuse H α structure in the shape of a bow shock; however, the field is complex, with both many point sources and other diffusive structures, possibly complicating its detection.

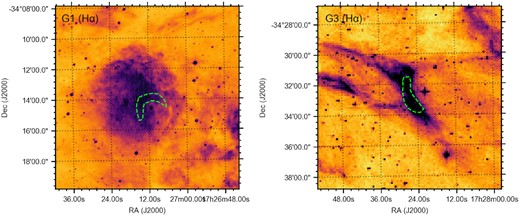

Figure 11.

The SuperCOSMOS H α Survey images of G1 (left-hand panel) and G3 (right-hand panel), with the same contours and on the same physical scale as their radio and IR images in Fig. 2. H α emission is clearly visible for both fields, but only for G3, it clearly traces out a bow-shock like morphology, providing supportive evidence for a thermal scenario underpinning its radio emission. In G1, larger-scale H α emission complicates the search for a bow shock, although hints of a cavity may be present to the South/south-west of the drawn region.

Open in new tabDownload slide

5.3 Future expectations: thermal versus non-thermal detectability

In this work, the majority of radio and candidate radio bow shocks appear to fit better in a thermal rather than non-thermal scenario. The latter scenario has been considered extensively in the literature, due to its possible ability to yield non-thermal sources of very-high energy emission via inverse-Compton scattering of IR or stellar photons (Del Valle & Romero 2012; Schulz et al. 2014; Toalá et al. 2016; De Becker et al. 2017; Toalá et al. 2017). This possibility has motivated searches for radio emission as signatures of such non-thermal electron populations (e.g. Peri et al. 2015; Benaglia et al. 2021), but the results in this work introduce the question whether the radio band is the best place to search: does the free–free/thermal emission complicate this approach?

To assess this question, we turn again to the radio-non-detected sources from the E-BOSS catalogues. For those where the ISM density and geometrical properties are known, we can estimate and compare their free–free and synchrotron emission. Such a comparison will always include a large number of assumptions, for instance regarding the overdensity factor and electron temperature (for free–free emission) or injection efficiency, spectral index, and magnetic field (for synchrotron emission). Therefore, we cannot make one unique comparison, but instead consider two extreme scenarios. In the free–free-favourable case, we assume a density of four times the ISM and a low temperature (T = 6 × 10³ K), combined with a low magnetic field of |$10\, \mu$|G and an injection efficiency of 1 per cent. Alternatively, in the synchrotron-favourable case, we instead assume that T = 1.4 × 10⁵ K, while we change the magnetic field to its maximum value for each source and increase η_e to 10 per cent. All other parameters remain the same; in both cases, we assume p = 2 (α = 0.5) and E_max = 10¹² eV.

In Fig. 12, we plot the predicted thermal and non-thermal RACS radio flux densities against each other; the position of a source with respect to the red dotted line shows which of the two processes dominates. In the synchrotron-favourable case, the synchrotron emission is indeed the main source of emission, although in many cases the free–free emission is barely fainter – despite quite extreme parameters for this scenario, especially regarding the magnetic field. In the free–free-favourable case, however, the thermal emission significantly dominates over non-thermal emission in the majority of sources. Those sources where this is inverted, are typically faint and less likely detectable. Only a few sources reach flux densities above 1 mJy beam⁻¹ in RACS, where they may become detectable with recognizable morphologies. Those are predominantly the filled points, corresponding to the five sources in the right-hand panel of Fig. 10 – i.e. the five non-detected targets where realistic thermal emission may have been expected to be detected in RACS.

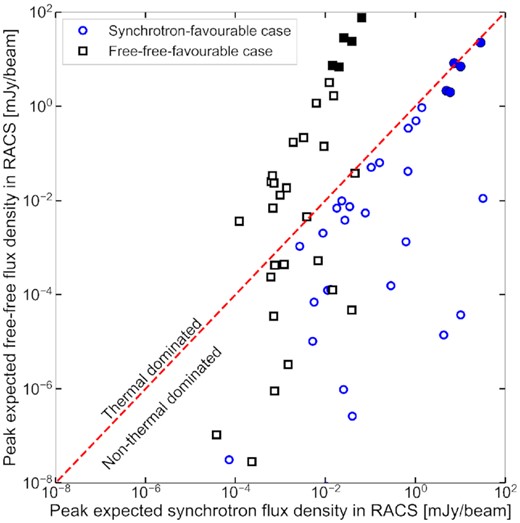

Figure 12.

Comparison between the expected RACS free–free and synchrotron flux density, for free–free-favourable (black squares) and synchrotron-favourable (blue circles) circumstances (see the text for details). In the former scenario, the majority of sources is dominated by thermal emission with a weaker synchrotron contribution. In the latter case, however, the majority of sources lies close to equal contributions of synchrotron and free–free emission (the red dashed line). The filled points show the five sources that showed detectable thermal radio emission in the right-hand panel of Fig. 10.

Open in new tabDownload slide

This leaves us with two conclusions and a note: first, dominant or significant thermal/free–free emission may be expected in most radio-detected bow shocks, given the stellar and ISM properties of the sources in E-BOSS; only extreme non-thermal properties (B, η_e, or available stellar wind kinetic power) appear to result in dominant synchrotron emission. This argues for the determination of reliable radio spectral index maps of these bow shocks as an additional determinant between the two scenarios, especially if one aims to find evidence for non-thermal emission. Secondly, for the five outlier sources in the thermal scenario, our assumed properties likely do not hold; the ISM density or stellar wind properties may be incorrect, or the depth may be significantly less than the bow shock width. Finally, we note that while we have treated the two scenarios independently, their detectability is not: for instance, a higher ISM density increases the shock density and thermal emissivity, but also decreases the standoff distance and thereby increases the stellar wind kinetic power passing through the shock region. This may lead, at higher sensitivity, to the detection of shocks displaying a combination of both types of emission.

5.4 Future recommendations

We briefly turn to the assumptions made in the non-thermal calculation and the role for new observations in testing those. In the bottom panel of Fig. 8, we show the effect of varying the spectral index (or, more explicitly, p) and the maximum electron energy. This shows how especially variations in p can lead us to significantly higher required injection efficiencies. The maximum energy, on the hand, does not have a large quantitative effect. More implicitly, we assume in our analysis that, apart from synchrotron emission, other non-thermal cooling processes (i.e. inverse-Compton scattering, relativistic brehmsstrahlung; Del Valle & Romero 2012; Del Palacio et al. 2018) have negligible effect. Similarly, we assume that, even though synchrotron emission is the dominant non-thermal emission process, it does not dominate the electron losses. Instead, we assume that such losses are dominated by escape, setting the maximum electron energy and injection efficiency.

Most analyses in the literature, for BD+43°3654 (Benaglia et al. 2010, 2021) and Vela X-1 (Van den Eijnden et al. 2022) as well as other studies focused on high-energy bow shock emission (e.g. Del Valle & Romero 2012; Schulz et al. 2014; De Becker et al. 2017), show how synchrotron loss time-scales approach diffusive escape time-scales only at the highest electron energies for typical bow shock properties. However, with more sensitive follow up observations, such calculations can be performed in detail to test these assumption for the sources in this work. In addition, if spectral indices can be measured, the injection efficiency and therefore the non-thermal scenario can be assessed more confidently. Finally, such observations can also help us to understand whether the bow shock has reached steady state – an underlying assumption in all our calculations (see Mohamed, Mackey & Langer 2012) – by measuring the shape of the shock more accurately than IR observations and comparing that to the steady-state shape model by Wilkin (1996).

Two other obvious recommendations for future studies are two expansions of this work: expansion of the number of sources and of the number of Stokes parameters. In this search, we have focused on the E-BOSS catalogue, as it lists ISM and stellar wind properties, as well as distances, for most targets. However, if one is only to perform a search, without necessarily detailed follow up calculations, larger catalogues such as that by Kobulnicky et al. (2016) can be consulted. By including polarization studies, currently only performed for BD+43°3654 (Benaglia et al. 2021), we obtain an additional approach to understand the emission mechanism – beyond emissivity and spectral shape. Such studies likely require pointed observations to reach good sensitivity to low levels of polarization, and targeted data analysis, as publicly available surveys tend to present the Stokes I data.

We end this discussion by emphasizing how, for the two first radio-detected and best-studied runaway stellar bow shocks BD+43°3654 and Vela X-1, sensitive, high-resolution, pointed radio observations have been essential to perform detailed calculations of their energetics, emission processes, and polarization properties. BD+43°3654 showed hints of arc-shaped structure in NVSS images, but dedicated VLA observations where required to confirm its presence (Benaglia et al. 2010). The much fainter radio bow shock of Vela X-1 does not show up in RACS (RMS of |$222\, \mu$|Jy), but was serendipitously detected in pointed MeerKAT observations (RMS of |$40\, \mu$|Jy). The advent of new observatories, such as MeerKAT, ASKAP, and the future SKA and ngVLA, will likely lead us to the detection of more radio bow shocks or strong candidates in survey data, similar to this work. With dedicated follow-up observations of such sources and candidates, we expect that a large sample of well-studied radio bow shocks can be gathered, to ultimately shed light on the particle acceleration efficiencies and high-energy emission of such shocks, as well as their thermal emission properties.

6 CONCLUSIONS

In the work, we have searched for radio emission associated with the massive runaway stellar bow shocks in the E-BOSS catalogue, using the Rapid ASKAP Continuum Survey. In these radio images, we find bow shock counterparts for three bow shocks (G1 and G3 in NGC 6357, and S1 in RCW 49), three strong candidates (HIP 98418, HIP 38430, and K5 in Cyg OB2), and three candidates requiring follow-up observations (S2 and S3 in RCW 49, and HIP 88652). For the seven bow shocks where sufficient geometrical and ISM properties are known to perform simple emission calculations, we find that four (G1, G3, S1, HIP 38430) are likely dominated by free–free emission – although in the latter, synchrotron emission may also contribute significantly. Alternatively, the bow shocks of HIP 98418 and HIP 88652 appear to be dominated by synchrotron emission, while, finally, K5 remains difficult to explain in either scenario. There, instead, we may observe a significant contamination from other diffuse structures, while image artefacts complicate the identification and calculations in HIP 88652.

These radio detections and candidates significantly increase the number of radio counterparts to massive runaway stellar bow shocks, which was only two before this work. Therefore, we also assess whether, with future arrays and surveys, this sample is expected to grow further. Given the expected flux densities, it likely is, although whether those sources will be dominated by thermal or non-thermal processes is challenging to predict. Finally, we recommend that the new counterparts and candidates presented in this paper are studied in more detail with pointed observations, to fully map out their structure, measure their radio spectral index maps, and their polarization. With such detailed information, the nature of the candidate counterparts can be tested, and the nature of the emission can be investigated in more detail. Ultimately, such studies will therefore help us to understand to what extent and with what efficiencies, these bow shock can act as particle accelerators and sources of non-thermal very-high energy emission.
