20 Orbits of binaries based on soar speckle observations

ABSTRACT

New observational data obtained during the 2018, 2019, and 2020 speckle runs with the 4.1-m Southern Astrophysical Research (SOAR) telescope located at Cerro Pachón (Chile) allowed us to recalculate the orbits of the visual binaries: WDS 00277-1625 (YR 1 Aa,Ab), WDS 00462-2214 (RST4155), WDS 03124-4425 (JC 8), WDS 07427-3510 (HDS 1091), WDS 10093+2020 (A2145), WDS 10116+1321 (HU 874 AB), WDS 10217-0946 (BU 25), WDS 11585-2350 (RST 3767 AB), WDS 13117-2633 (FIN 305), WDS 13305+0729 (A 1789), and WDS 16458-0046 (A1141). In addition, we present the first orbits calculated for the following binaries: WDS 07303-5657 (FIN 105), WDS 09110-1929 (I 824), WDS 12111-5302 (HU 1604), WDS 14592-4206 (HDS 2116 Aa,Ab), WDS 15157-2736 (BU 350), WDS 15493+0503 (A 1126), WDS 16402-2800 (VOU 44 AB), and WDS 18126+1224 (HDS 2570). All of them are placed below Dec. + 21° and the majority are main-sequence stars. Except in cases with giant components or close triple systems, the ANAPAR method was used in order to obtain precise dynamical parallaxes and individual masses. These parallaxes were compared with those obtained by Gaia and/or Hipparcos satellites. In the case of FIN 305, we present two different orbital solutions. Also, using the dynamical parallaxes given by these orbits, we have been able to calculate the luminosity of these systems. Said luminosities allow us to indicate an approximate age for the components of these systems, situating them within the Hertzsprung-Russell (HR) diagram. In addition, a commentary for each binary about the physical and dynamical properties of the studied binaries has been included.

techniques: high angular resolution, astrometry, binaries: visual, stars: fundamental parameters

1 INTRODUCTION

Speckle interferometry was discovered and first applied 50 yr ago (Labeyrie 1970), and it continues to yield astrometric and photometric data that are especially important for the study of binary and multiple star systems. The determination of close visual orbits combined with the parallaxes measured by Gaia (Gaia Collaboration 2016, 2018) allows us to calculate the total mass of the system and estimate approximate values for the masses of each component based on the difference of magnitude between the components and their spectral decomposition. Moreover, using the ANAPAR method (Andrade 2019), we cannot only obtain very precise values of the dynamical parallaxes but also the individual masses, except in cases when there is a giant component in a system. In this article, we have used measurements of the Southern Astrophysical Research (SOAR) 2018 (Tokovinin et al. 2019), 2019, and 2020 speckle runs in order to calculate new orbits for 11 systems that need to be improved. The orbits as well as their corresponding physical parameters of another eight systems: FIN 105, I 824, HU 1604, HDS 2116 Aa,Ab, BU 350, A 1126, VOU 44 AB, and HDS 2570 were calculated for the first time. Except in the cases with giant components, the Gaia and the Hipparcos parallaxes have been compared with the dynamical parallaxes.

The HRCam, a fast imager that works either as a standalone instrument or with SOAR Adaptive Module (SAM; Tokovinin et al. 2016) was used in all of those observational speckle runs.

The device is installed at the 4.1-m SOAR telescope located at Cerro Pachón (Chile) and allows for interferometry combined with adaptive optics yielding resolutions in the 0.012–3.37 arcsec range. In a typical observing run, the calibration measurements are characterized by rms errors of 0°1–0°2 in orientation and 0.002–0.004 in scale. SOAR speckle runs were specifically designed to collect a large quantity of relevant data from well known, less known, and even from those systems with undetected subcomponents (Tokovinin 2018a). The SOAR speckle campaigns (Tokovinin et al. 2015, 2018, 2019; Tokovinin 2016) increase the number of measurements and the quality of the samples of the orbits of southern systems year by year. As a matter of fact, these data were used in several orbital calculations (e.g. Tokovinin 2017, 2018b; Mendez et al. 2017; Mason et al. 2018) and consequently, in the precise determination of stellar masses and dynamical parallaxes.

Together with the precise data provided by SOAR, the whole set of previous measurements, those available in the USNO Catalogue of Interferometric Measurements of Binary Stars (Hartkopf, McAlister & Mason 2001b) and also those included in the historical data base of micrometric measurements, (Worley & Douglass 1997), have been used. The weights of the visual observations follow the scheme shown in Docobo & Ling (2003), whereas for the interferometric measurements we have assigned them according to the aperture of the telescope: weight 5 for apertures smaller than 1, 10 for 1-2, 15 for 2-4, 20 for 4-6 m., and 30 for larger apertures. To improve or calculate from the beginning all of those orbits, the well-known analytic method of Docobo (1985, 2012) was used. The method is based on a mapping from the interval (0,2π) into the set of Keplerian orbits whose corresponding apparent orbits pass through three base points (θ_i, ρ_i; t_i) (i = 1, 2, 3). In contrast to the Thiele–Innes–van den Bos method, knowledge of the areal constant is not necessary. In a recent paper by Docobo, Tamazian & Campo (2018), the different selection criteria for the orbit were explained: the solution with minimal rms of the O–C residuals from all of the weighted observations, matching dynamical and trigonometric (Gaia or Hipparcos) parallaxes, and/or the agreement between the calculated masses and those that correspond to the spectral types, etc. The rms error of the residuals is calculated using the following expression:

$$\begin{eqnarray*} rms = \sqrt{\frac{\sum _{i=1}^{n}w_{i}(O_{i} - C_{i})^{2}}{\sum _{i=1}^{n}w_{i}}} , \end{eqnarray*}$$

(1)

where n is the number of observations, O_i and C_i are the observed and the calculated values, respectively, and w_i represents the weight assigned for the corresponding i observation.

For each of the orbits generated by this method, the software yields not only the rms (with weights) both for the position angle (θ) and for the angular separation (ρ) but also the dynamical parallaxes with the individual masses and the total mass calculated from the Hipparcos or Gaia parallaxes. We also obtain for each orbit the residuals for θ and ρ corresponding to the measurements with large weights. With all of these quality controls, the interval of most probable orbits is delimited and the standard errors of each orbital element are deduced.

Dynamical parallaxes and individual masses have been accurately computed using the ANAPAR method, a colour-dependent model comprising an exact analytical theory along with a non-linear mass–luminosity relationship that allows us to take into account the spectral types of the main-sequence components. In addition, their uncertainties have been calculated from uncertainties in the orbital elements and in the apparent magnitudes by means of Monte Carlo simulations. We have compared these dynamical parallaxes with the values provided by Hipparcos and Gaia DR2. In some cases, the Gaia EDR3 provided new values for the parallaxes, and we commented them in the text.

This investigation represents the continuation of the collaboration between the research groups of the Universidad de Chile and the Ramon Maria Aller Astronomical Observatory at the Universidade de Santiago de Compostela for the investigation of binary and multiple stellar systems in the context of the IAU G1 Commission (Gomez et al. 2016; Docobo et al. 2019). A detailed description of the procedure for processing data is described in Tokovinin et al. (2018).

In Section 2, we present the results and discussion with individual comments for each binary. Tables 1–5 summarize the information related to the obtained orbital elements, the ephemerides, the weighted rms quality controls, the masses, and the dynamical parallaxes yielded by previous and new orbits. Figs 1–19 show the apparent orbits along with the available observations. The new orbit is indicated with a solid line and the previous orbit is shown with a broken line. The Fig. 1 caption contains details associated with the plots.

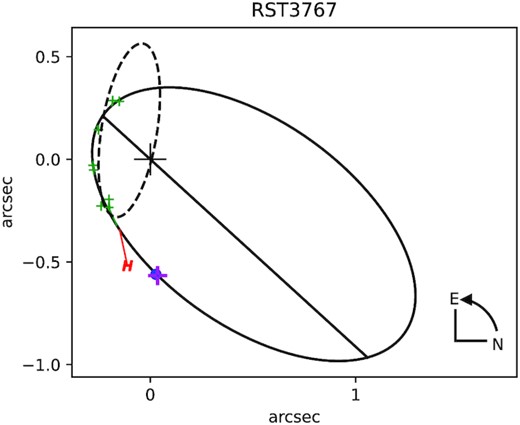

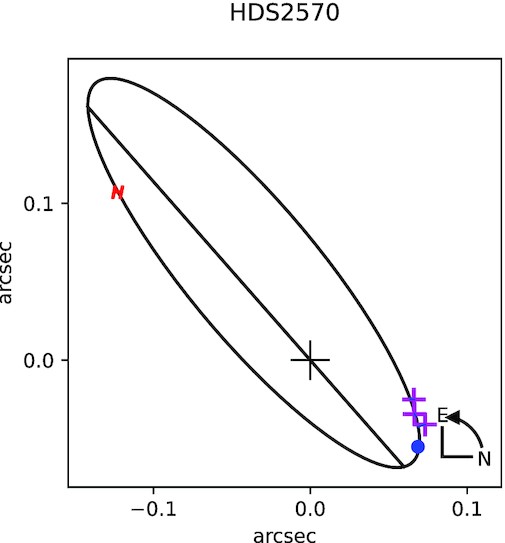

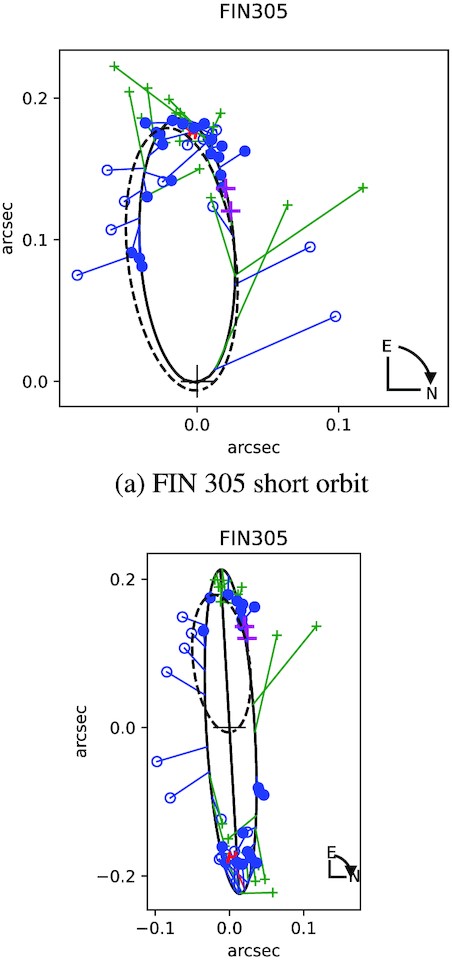

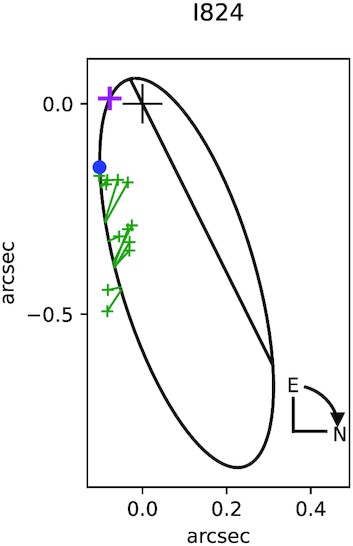

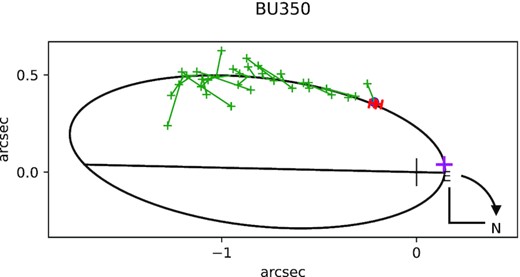

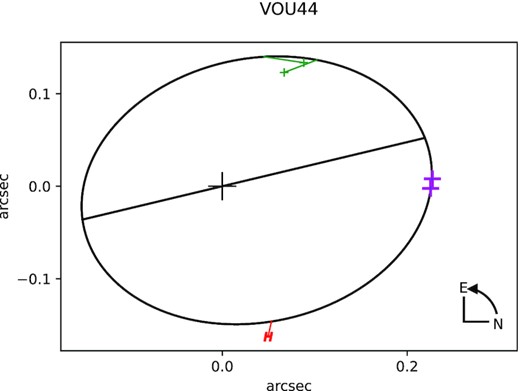

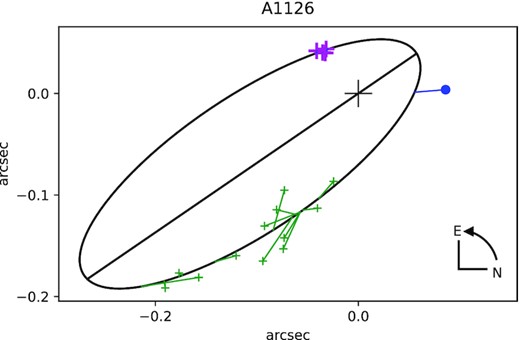

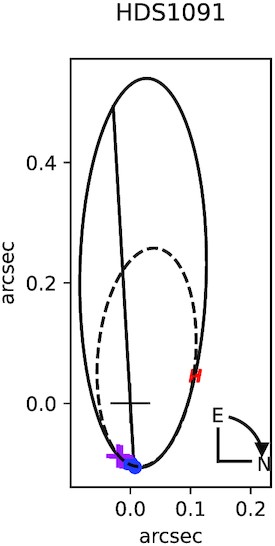

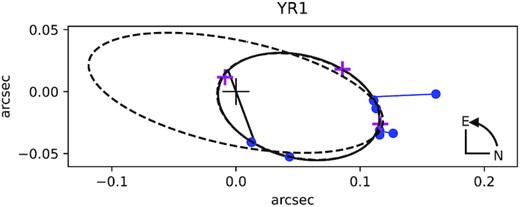

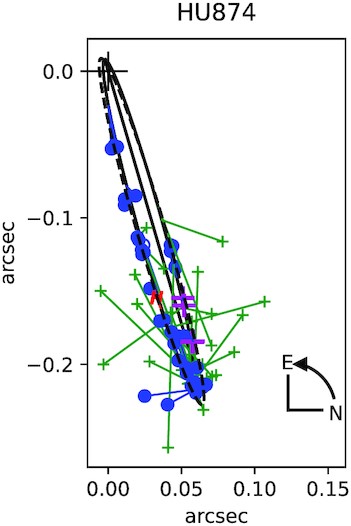

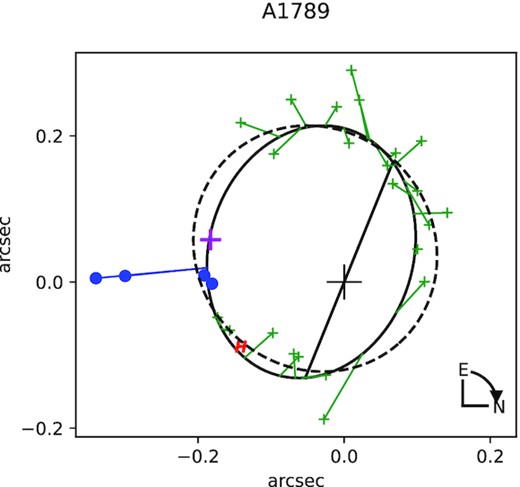

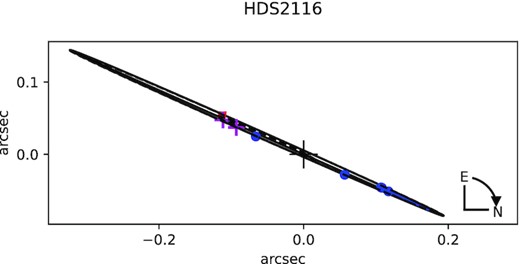

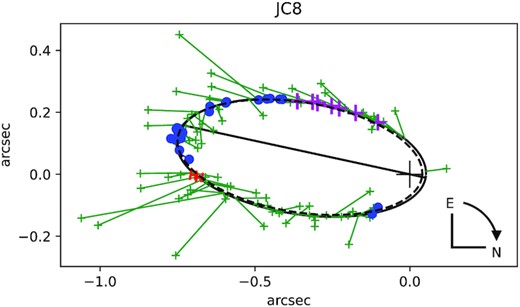

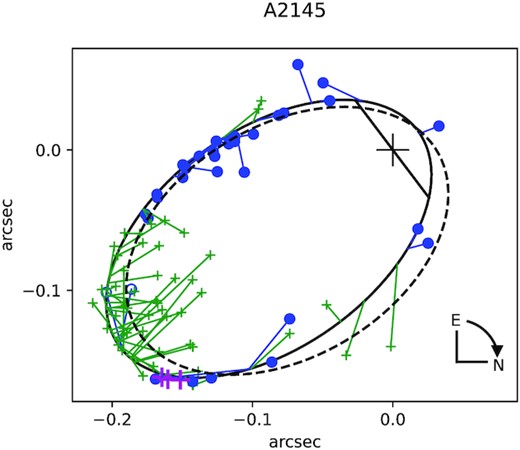

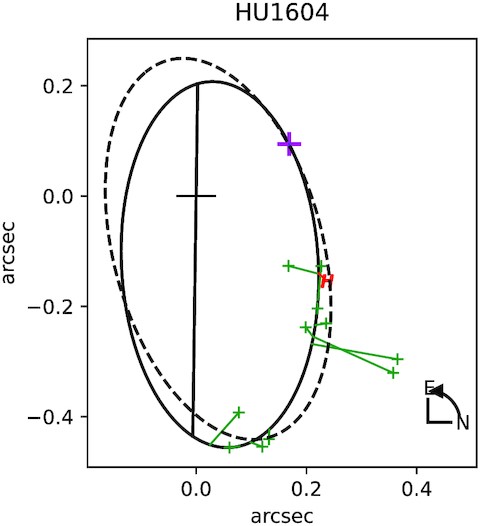

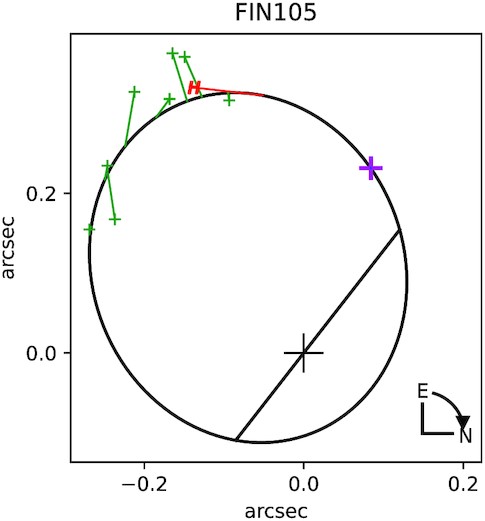

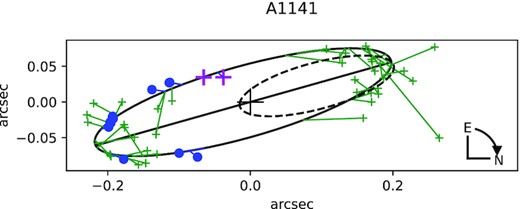

Figure 1.

For all the Figures and following the Sixth Catalogue of Orbits of Visual Binary Stars (ORB6) standards, the micrometric observations are plotted as the green crosses (+), Hipparcos as a red H (H), the interferometric observations are identified by the blue circles, which are filled (•) in the case of speckle interferometry and other high angular resolution techniques, and open (°) for eyepiece interferometry measurements, and the latest ones obtained by SOAR are designated with the magenta crosses (+). All of these symbols are united by their respective colour line to the new orbit, joining the real observation with its expected position according to the time of observation. The previous apparent orbit is represented by a black-dashed line and our new apparent orbit by a solid line. The line of nodes is traced by a solid straight line upon which the position of the primary star can be seen as a large cross. In the right corner, we indicate the orientation of the axes, and the direction of orbital motion. The new orbit of YR 1 Aa,Ab (the shorter period orbit) is compared to the previous one.

Open in new tab Download slide

Table 1.

Open in new tab

Orbital elements.

WDS	P(yr)	T(B1950.0)	e	a(arcsec)	i(°)	Ω(°)	ω(°)	Prec. (°)
name	σ	σ	σ	σ	σ	σ	σ	last obs
00277-1625	6.5343	2020.890	0.7845	0.0674	13.17	110.27	56.98	0.0007
YR 1 Aa,Ab	±0.0210	±0.050	±0.0110	±0.0012	±5.0	±30.0	±30.0	2020.8342
00462-2214	49.13	2003.96	0.261	0.162	143.8	3.1	322.5	0.0012
RST 4155	±0.8	±0.25	±0.002	±0.004	±2.0	±4.0	±5.0	2020.9270
03124-4425	45.35	2022.65	0.872	0.407	156.1	167.8	176.1	0.0058
JC 8	±0.35	±0.20	±0.015	±0.002	±10.0	±25.0	±30.0	2020.8344
07303-5657	170.0	2046.15	0.578	0.244	153.5	52.1	107.1	0.0095
FIN 105	±40.0	±10.05	±0.17	±0.015	±3.0	±35.0	±30.0	2018.2355
07427-3510	275.0	2017.4	0.690	0.332	115.2	93.3	200.2	0.0062
HDS 1091	±50.	±0.4	±0.03	±0.026	±0.5	±1.0	±2.0	2018.8438
09110-1929	940.	2029.37	0.869	0.492	130.3	116.5	18.0	0.0040
I 824	±140.0	±13.23	±0.231	±0.050	±19.7	±28.5	±40.0	2018.2358
10093 + 2020	74.71	1991.86	0.829	0.139	160.6	127.1	91.4	0.0028
A 2145	±1.2	±0.20	±0.010	±0.002	±0.8	±20.0	±20.0	2019.3833
10116 + 1321	17.96	2022.828	0.930	0.117	78.5	106.2	355.2	0.0026
HU 874 AB	±0.35	±0.30	±0.005	±0.001	±0.5	±2.5	±15.0	2019.3816
10217-0946	1340.	1960.53	0.297	2.546	133.9	168.2	20.3	0.0024
BU 25	±60.0	±2.50	±0.025	±0.100	±1.0	±1.0	±2.0	2018.1811
11585-2350	740.0	1950.53	0.661	0.914	44.5	137.6	14.3	0.0000
RST 3767 AB	±50.0	±1.50	±0.015	±0.035	±2.0	±4.0	±2.0	2018.2536
12111-5302	205.0	2049.09	0.431	0.341	55.6	89.2	32.7	-0.0005
HU 1604	±20.0	±14.95	±0.080	±0.003	±2.5	±3.0	±10.0	2018.1621
13117-2633	20.07	2021.801	0.989	0.226	114.4	8.4	91.7	−0.0019
FIN 305^a	±0.50	±0.80	±0.008	±0.002	±1.0	±1.0	±3.0	2019.0494
13117-2633	40.70	2006.5	0.045	0.219	98.6	93.3	304.5	-0.0019
FIN 305^b	±0.80	±1.10	±0.025	±0.002	±1.0	±1.0	±8.5	2019.0494
13305 + 0729	143.44	1962.714	0.420	0.191	137.8	67.9	105.4	-0.0022
A 1789	±1.2	±5.0	±0.024	±0.002	±0.5	±10.0	±5.0	2018.2361
14592-4206	58.52	2011.10	0.304	0.287	90.9	156.1	215.1	-0.0053
HDS 2116 Aa,Ab	±1.50	±0.30	±0.009	±0.008	±0.5	±0.5	±2.0	2019.3798
15157-2736	695.0	2020.82	0.851	0.972	138.0	178.7	188.8	-0.0048
BU 350	±90.0	±1.50	±0.020	±0.035	±1.0	±1.0	±3.5	2018.1814
15493 + 0503	289.0	1999.09	0.647	0.197	63.5	34.4	357.9	-0.0047
A 1126	±14.0	±0.3	±0.015	±0.005	±0.5	±1.0	±2.0	2019.5387
16402-2800	104.67	2067.037	0.204	0.192	41.0	13.4	154.0	-0.0060
VOU 44 AB	±5.0	±19.0	±0.050	±0.015	±5.0	±8.0	±25.0	2019.3773
16458-0046	62.39	2042.46	0.067	0.216	103.4	15.7	46.4	-0.0053
A 1141	±0.50	±2.50	±0.003	±0.002	±0.5	±0.5	±11.5	2018.1832
18126 + 1224	87.33	2010.28	0.457	0.161	73.3	131.3	153.6	-0.0057
HDS 2570	±0.95	±0.40	±0.037	±0.008	±1.0	±1.0	±1.0	2019.5363

WDS	P(yr)	T(B1950.0)	e	a(arcsec)	i(°)	Ω(°)	ω(°)	Prec. (°)
name	σ	σ	σ	σ	σ	σ	σ	last obs
00277-1625	6.5343	2020.890	0.7845	0.0674	13.17	110.27	56.98	0.0007
YR 1 Aa,Ab	±0.0210	±0.050	±0.0110	±0.0012	±5.0	±30.0	±30.0	2020.8342
00462-2214	49.13	2003.96	0.261	0.162	143.8	3.1	322.5	0.0012
RST 4155	±0.8	±0.25	±0.002	±0.004	±2.0	±4.0	±5.0	2020.9270
03124-4425	45.35	2022.65	0.872	0.407	156.1	167.8	176.1	0.0058
JC 8	±0.35	±0.20	±0.015	±0.002	±10.0	±25.0	±30.0	2020.8344
07303-5657	170.0	2046.15	0.578	0.244	153.5	52.1	107.1	0.0095
FIN 105	±40.0	±10.05	±0.17	±0.015	±3.0	±35.0	±30.0	2018.2355
07427-3510	275.0	2017.4	0.690	0.332	115.2	93.3	200.2	0.0062
HDS 1091	±50.	±0.4	±0.03	±0.026	±0.5	±1.0	±2.0	2018.8438
09110-1929	940.	2029.37	0.869	0.492	130.3	116.5	18.0	0.0040
I 824	±140.0	±13.23	±0.231	±0.050	±19.7	±28.5	±40.0	2018.2358
10093 + 2020	74.71	1991.86	0.829	0.139	160.6	127.1	91.4	0.0028
A 2145	±1.2	±0.20	±0.010	±0.002	±0.8	±20.0	±20.0	2019.3833
10116 + 1321	17.96	2022.828	0.930	0.117	78.5	106.2	355.2	0.0026
HU 874 AB	±0.35	±0.30	±0.005	±0.001	±0.5	±2.5	±15.0	2019.3816
10217-0946	1340.	1960.53	0.297	2.546	133.9	168.2	20.3	0.0024
BU 25	±60.0	±2.50	±0.025	±0.100	±1.0	±1.0	±2.0	2018.1811
11585-2350	740.0	1950.53	0.661	0.914	44.5	137.6	14.3	0.0000
RST 3767 AB	±50.0	±1.50	±0.015	±0.035	±2.0	±4.0	±2.0	2018.2536
12111-5302	205.0	2049.09	0.431	0.341	55.6	89.2	32.7	-0.0005
HU 1604	±20.0	±14.95	±0.080	±0.003	±2.5	±3.0	±10.0	2018.1621
13117-2633	20.07	2021.801	0.989	0.226	114.4	8.4	91.7	−0.0019
FIN 305^a	±0.50	±0.80	±0.008	±0.002	±1.0	±1.0	±3.0	2019.0494
13117-2633	40.70	2006.5	0.045	0.219	98.6	93.3	304.5	-0.0019
FIN 305^b	±0.80	±1.10	±0.025	±0.002	±1.0	±1.0	±8.5	2019.0494
13305 + 0729	143.44	1962.714	0.420	0.191	137.8	67.9	105.4	-0.0022
A 1789	±1.2	±5.0	±0.024	±0.002	±0.5	±10.0	±5.0	2018.2361
14592-4206	58.52	2011.10	0.304	0.287	90.9	156.1	215.1	-0.0053
HDS 2116 Aa,Ab	±1.50	±0.30	±0.009	±0.008	±0.5	±0.5	±2.0	2019.3798
15157-2736	695.0	2020.82	0.851	0.972	138.0	178.7	188.8	-0.0048
BU 350	±90.0	±1.50	±0.020	±0.035	±1.0	±1.0	±3.5	2018.1814
15493 + 0503	289.0	1999.09	0.647	0.197	63.5	34.4	357.9	-0.0047
A 1126	±14.0	±0.3	±0.015	±0.005	±0.5	±1.0	±2.0	2019.5387
16402-2800	104.67	2067.037	0.204	0.192	41.0	13.4	154.0	-0.0060
VOU 44 AB	±5.0	±19.0	±0.050	±0.015	±5.0	±8.0	±25.0	2019.3773
16458-0046	62.39	2042.46	0.067	0.216	103.4	15.7	46.4	-0.0053
A 1141	±0.50	±2.50	±0.003	±0.002	±0.5	±0.5	±11.5	2018.1832
18126 + 1224	87.33	2010.28	0.457	0.161	73.3	131.3	153.6	-0.0057
HDS 2570	±0.95	±0.40	±0.037	±0.008	±1.0	±1.0	±1.0	2019.5363

Note.^aShort orbital solution for FIN 305.

^bLong orbital solution for FIN 305.

Table 1.

Open in new tab

Orbital elements.

WDS	P(yr)	T(B1950.0)	e	a(arcsec)	i(°)	Ω(°)	ω(°)	Prec. (°)
name	σ	σ	σ	σ	σ	σ	σ	last obs
00277-1625	6.5343	2020.890	0.7845	0.0674	13.17	110.27	56.98	0.0007
YR 1 Aa,Ab	±0.0210	±0.050	±0.0110	±0.0012	±5.0	±30.0	±30.0	2020.8342
00462-2214	49.13	2003.96	0.261	0.162	143.8	3.1	322.5	0.0012
RST 4155	±0.8	±0.25	±0.002	±0.004	±2.0	±4.0	±5.0	2020.9270
03124-4425	45.35	2022.65	0.872	0.407	156.1	167.8	176.1	0.0058
JC 8	±0.35	±0.20	±0.015	±0.002	±10.0	±25.0	±30.0	2020.8344
07303-5657	170.0	2046.15	0.578	0.244	153.5	52.1	107.1	0.0095
FIN 105	±40.0	±10.05	±0.17	±0.015	±3.0	±35.0	±30.0	2018.2355
07427-3510	275.0	2017.4	0.690	0.332	115.2	93.3	200.2	0.0062
HDS 1091	±50.	±0.4	±0.03	±0.026	±0.5	±1.0	±2.0	2018.8438
09110-1929	940.	2029.37	0.869	0.492	130.3	116.5	18.0	0.0040
I 824	±140.0	±13.23	±0.231	±0.050	±19.7	±28.5	±40.0	2018.2358
10093 + 2020	74.71	1991.86	0.829	0.139	160.6	127.1	91.4	0.0028
A 2145	±1.2	±0.20	±0.010	±0.002	±0.8	±20.0	±20.0	2019.3833
10116 + 1321	17.96	2022.828	0.930	0.117	78.5	106.2	355.2	0.0026
HU 874 AB	±0.35	±0.30	±0.005	±0.001	±0.5	±2.5	±15.0	2019.3816
10217-0946	1340.	1960.53	0.297	2.546	133.9	168.2	20.3	0.0024
BU 25	±60.0	±2.50	±0.025	±0.100	±1.0	±1.0	±2.0	2018.1811
11585-2350	740.0	1950.53	0.661	0.914	44.5	137.6	14.3	0.0000
RST 3767 AB	±50.0	±1.50	±0.015	±0.035	±2.0	±4.0	±2.0	2018.2536
12111-5302	205.0	2049.09	0.431	0.341	55.6	89.2	32.7	-0.0005
HU 1604	±20.0	±14.95	±0.080	±0.003	±2.5	±3.0	±10.0	2018.1621
13117-2633	20.07	2021.801	0.989	0.226	114.4	8.4	91.7	−0.0019
FIN 305^a	±0.50	±0.80	±0.008	±0.002	±1.0	±1.0	±3.0	2019.0494
13117-2633	40.70	2006.5	0.045	0.219	98.6	93.3	304.5	-0.0019
FIN 305^b	±0.80	±1.10	±0.025	±0.002	±1.0	±1.0	±8.5	2019.0494
13305 + 0729	143.44	1962.714	0.420	0.191	137.8	67.9	105.4	-0.0022
A 1789	±1.2	±5.0	±0.024	±0.002	±0.5	±10.0	±5.0	2018.2361
14592-4206	58.52	2011.10	0.304	0.287	90.9	156.1	215.1	-0.0053
HDS 2116 Aa,Ab	±1.50	±0.30	±0.009	±0.008	±0.5	±0.5	±2.0	2019.3798
15157-2736	695.0	2020.82	0.851	0.972	138.0	178.7	188.8	-0.0048
BU 350	±90.0	±1.50	±0.020	±0.035	±1.0	±1.0	±3.5	2018.1814
15493 + 0503	289.0	1999.09	0.647	0.197	63.5	34.4	357.9	-0.0047
A 1126	±14.0	±0.3	±0.015	±0.005	±0.5	±1.0	±2.0	2019.5387
16402-2800	104.67	2067.037	0.204	0.192	41.0	13.4	154.0	-0.0060
VOU 44 AB	±5.0	±19.0	±0.050	±0.015	±5.0	±8.0	±25.0	2019.3773
16458-0046	62.39	2042.46	0.067	0.216	103.4	15.7	46.4	-0.0053
A 1141	±0.50	±2.50	±0.003	±0.002	±0.5	±0.5	±11.5	2018.1832
18126 + 1224	87.33	2010.28	0.457	0.161	73.3	131.3	153.6	-0.0057
HDS 2570	±0.95	±0.40	±0.037	±0.008	±1.0	±1.0	±1.0	2019.5363

WDS	P(yr)	T(B1950.0)	e	a(arcsec)	i(°)	Ω(°)	ω(°)	Prec. (°)
name	σ	σ	σ	σ	σ	σ	σ	last obs
00277-1625	6.5343	2020.890	0.7845	0.0674	13.17	110.27	56.98	0.0007
YR 1 Aa,Ab	±0.0210	±0.050	±0.0110	±0.0012	±5.0	±30.0	±30.0	2020.8342
00462-2214	49.13	2003.96	0.261	0.162	143.8	3.1	322.5	0.0012
RST 4155	±0.8	±0.25	±0.002	±0.004	±2.0	±4.0	±5.0	2020.9270
03124-4425	45.35	2022.65	0.872	0.407	156.1	167.8	176.1	0.0058
JC 8	±0.35	±0.20	±0.015	±0.002	±10.0	±25.0	±30.0	2020.8344
07303-5657	170.0	2046.15	0.578	0.244	153.5	52.1	107.1	0.0095
FIN 105	±40.0	±10.05	±0.17	±0.015	±3.0	±35.0	±30.0	2018.2355
07427-3510	275.0	2017.4	0.690	0.332	115.2	93.3	200.2	0.0062
HDS 1091	±50.	±0.4	±0.03	±0.026	±0.5	±1.0	±2.0	2018.8438
09110-1929	940.	2029.37	0.869	0.492	130.3	116.5	18.0	0.0040
I 824	±140.0	±13.23	±0.231	±0.050	±19.7	±28.5	±40.0	2018.2358
10093 + 2020	74.71	1991.86	0.829	0.139	160.6	127.1	91.4	0.0028
A 2145	±1.2	±0.20	±0.010	±0.002	±0.8	±20.0	±20.0	2019.3833
10116 + 1321	17.96	2022.828	0.930	0.117	78.5	106.2	355.2	0.0026
HU 874 AB	±0.35	±0.30	±0.005	±0.001	±0.5	±2.5	±15.0	2019.3816
10217-0946	1340.	1960.53	0.297	2.546	133.9	168.2	20.3	0.0024
BU 25	±60.0	±2.50	±0.025	±0.100	±1.0	±1.0	±2.0	2018.1811
11585-2350	740.0	1950.53	0.661	0.914	44.5	137.6	14.3	0.0000
RST 3767 AB	±50.0	±1.50	±0.015	±0.035	±2.0	±4.0	±2.0	2018.2536
12111-5302	205.0	2049.09	0.431	0.341	55.6	89.2	32.7	-0.0005
HU 1604	±20.0	±14.95	±0.080	±0.003	±2.5	±3.0	±10.0	2018.1621
13117-2633	20.07	2021.801	0.989	0.226	114.4	8.4	91.7	−0.0019
FIN 305^a	±0.50	±0.80	±0.008	±0.002	±1.0	±1.0	±3.0	2019.0494
13117-2633	40.70	2006.5	0.045	0.219	98.6	93.3	304.5	-0.0019
FIN 305^b	±0.80	±1.10	±0.025	±0.002	±1.0	±1.0	±8.5	2019.0494
13305 + 0729	143.44	1962.714	0.420	0.191	137.8	67.9	105.4	-0.0022
A 1789	±1.2	±5.0	±0.024	±0.002	±0.5	±10.0	±5.0	2018.2361
14592-4206	58.52	2011.10	0.304	0.287	90.9	156.1	215.1	-0.0053
HDS 2116 Aa,Ab	±1.50	±0.30	±0.009	±0.008	±0.5	±0.5	±2.0	2019.3798
15157-2736	695.0	2020.82	0.851	0.972	138.0	178.7	188.8	-0.0048
BU 350	±90.0	±1.50	±0.020	±0.035	±1.0	±1.0	±3.5	2018.1814
15493 + 0503	289.0	1999.09	0.647	0.197	63.5	34.4	357.9	-0.0047
A 1126	±14.0	±0.3	±0.015	±0.005	±0.5	±1.0	±2.0	2019.5387
16402-2800	104.67	2067.037	0.204	0.192	41.0	13.4	154.0	-0.0060
VOU 44 AB	±5.0	±19.0	±0.050	±0.015	±5.0	±8.0	±25.0	2019.3773
16458-0046	62.39	2042.46	0.067	0.216	103.4	15.7	46.4	-0.0053
A 1141	±0.50	±2.50	±0.003	±0.002	±0.5	±0.5	±11.5	2018.1832
18126 + 1224	87.33	2010.28	0.457	0.161	73.3	131.3	153.6	-0.0057
HDS 2570	±0.95	±0.40	±0.037	±0.008	±1.0	±1.0	±1.0	2019.5363

Note.^aShort orbital solution for FIN 305.

^bLong orbital solution for FIN 305.

In Section 3, we calculate the absolute magnitudes and luminosities (Table 6) in order to determine the locations of the systems in the HR diagram as plotted relative to the isochrones generated with MESA Isochrones and Stellar Tracks, MIST (Paxton et al. 2011, 2013, 2015; Choi et al. 2016; Dotter 2016). Absolute luminosities for the A 1126, A 2145, and HDS 2570 systems were not included because they have at least one giant component, and for BU 25 because of the existence of a spectroscopic subcomponent for the primary star. The effective temperature was selected from de Jager & Nieuwenhuijzen (1987) according to the spectral type of each component. We used the metallicity data from Ammons et al. (2006), Gontcharov (2012), Gaspar, Rieke & Ballering (2016), and Netopil (2017) to calculate the isochrones when available. Otherwise, we used the metallicity of the Sun. Table 7 shows the data utilized. Figs 20–35 each present one HR diagram per system in which different MIST-generated isochrones are displayed with the position of the system components. Conclusions are discussed in Section 4.

The orbits of the binaries FIN 105, HDS 1091, I 824, HU 874 AB, BU 25, HU 1604, FIN 305, A 1789, HDS 2116 Aa,Ab, A 1126, VOU 44 AB, and HDS 2570 were announced in the IAUDS No 201 (Docobo et al. 2020), and those of the binaries YR 1 Aa,Ab, RST 4155, JC 8, A 2145, RST 3767 AB, BU 350, and A 1141 are published for the first time in this work.

2 RESULTS AND DISCUSSION

In Tables 1 and 2, each system is identified in the first column by its Washington Double Star Catalogue (WDS) number (Mason et al. ) and by the discoverer code, which is the name of the binary. In Table 1, we list each binary and the corresponding orbital elements with their standard errors (Columns 2–8): period, P, in years; periastron passage, T, in years; eccentricity, e; the semimajor axis, a, in arcseconds; inclination, i; angle of the node, Ω, and the argument of the periastron, ω, in degrees. We include the correction for precession used to refer the position angles to the standard equinox of J2000.0 (column 9). The epoch of the last observation used for the orbit calculation is in the same column. Table 2 lists ephemerides for the next 5 yr with θ values in degrees and those of ρ in arcseconds.

Table 2.

Open in new tab

Ephemerides.

		2021.0		2022.0		2023.0		2024.0		2025.0
WDS	Name	θ	ρ	θ	ρ	θ	ρ	θ	ρ	θ	ρ
		(°)	(arcsec)	(°)	(arcsec)	(°)	(arcsec)	(°)	(arcsec)	(°)	(arcsec)
00277-1625	YR 1 Aa,Ab	233.4	0.019	316.6	0.080	333.3	0.108	344.8	0.118	356.0	0.112
00462-2214	RST 4155	240.2	0.164	234.7	0.169	229.7	0.175	224.9	0.180	220.4	0.184
03124-4425	JC 8	118.9	0.183	84.8	0.093	287.9	0.067	231.0	0.156	215.1	0.235
07303-5657	FIN 105	65.7	0.233	64.0	0.228	62.2	0.223	60.3	0.218	58.3	0.212
07427-3510	HDS 1091	243.1	0.076	234.6	0.069	224.4	0.064	212.7	0.060	199.9	0.058
09110-1929	I 824	156.8	0.074	151.3	0.073	145.7	0.072	139.9	0.071	133.9	0.070
10093 + 2020	A2145	223.2	0.232	222.3	0.234	221.4	0.235	220.5	0.237	219.7	0.238
10116 + 1321	HU 874 AB	289.6	0.112	292.4	0.062	250.0	0.008	278.9	0.075	281.1	0.119
10217-0946	BU 25	127.9	1.535	127.4	1.532	126.9	1.529	126.5	1.525	126.0	1.522
11585-2350	RST 3767 AB	275.7	0.590	276.3	0.597	276.9	0.605	277.5	0.612	278.1	0.619
12111-5302	HU 1604	37.0	0.195	36.7	0.196	42.4	0.197	45.1	0.198	47.7	0.200
13117-2633	FIN 305^a	65.7	0.064	141.9	0.029	119.5	0.076	112.6	0.105	108.5	0.127
13117-2633	FIN 305^b	62.3	0.0630	36.22	0.0401	345.77	0.0356	311.18	0.0545	296.76	0.0811
13305 + 0729	A 1789	158.5	0.196	156.9	0.197	155.3	0.197	153.7	0.198	152.2	0.199
14592-4206	HDS 2116 Aa,Ab	157.1	0.176	156.9	0.205	156.8	0.231	156.6	0.255	156.5	0.276
15157-2736	BU 350	350.5	0.144	341.1	0.142	331.5	0.140	321.8	0.140	312.1	0.141
15493 + 0503	A 1126	143.0	0.061	147.2	0.064	151.0	0.068	154.4	0.071	157.5	0.074
16402-2800	VOU 44 AB	4.8	0.227	6.7	0.227	8.5	0.227	10.3	0.227	12.1	0.226
16458-0046	A1141	79.6	0.058	63.6	0.068	52.5	0.082	44.7	0.098	39.0	0.113
18126 + 1224	HDS 2570	348.6	0.060	357.1	0.054	7.3	0.050	19.2	0.047	32.1	0.046

		2021.0		2022.0		2023.0		2024.0		2025.0
WDS	Name	θ	ρ	θ	ρ	θ	ρ	θ	ρ	θ	ρ
		(°)	(arcsec)	(°)	(arcsec)	(°)	(arcsec)	(°)	(arcsec)	(°)	(arcsec)
00277-1625	YR 1 Aa,Ab	233.4	0.019	316.6	0.080	333.3	0.108	344.8	0.118	356.0	0.112
00462-2214	RST 4155	240.2	0.164	234.7	0.169	229.7	0.175	224.9	0.180	220.4	0.184
03124-4425	JC 8	118.9	0.183	84.8	0.093	287.9	0.067	231.0	0.156	215.1	0.235
07303-5657	FIN 105	65.7	0.233	64.0	0.228	62.2	0.223	60.3	0.218	58.3	0.212
07427-3510	HDS 1091	243.1	0.076	234.6	0.069	224.4	0.064	212.7	0.060	199.9	0.058
09110-1929	I 824	156.8	0.074	151.3	0.073	145.7	0.072	139.9	0.071	133.9	0.070
10093 + 2020	A2145	223.2	0.232	222.3	0.234	221.4	0.235	220.5	0.237	219.7	0.238
10116 + 1321	HU 874 AB	289.6	0.112	292.4	0.062	250.0	0.008	278.9	0.075	281.1	0.119
10217-0946	BU 25	127.9	1.535	127.4	1.532	126.9	1.529	126.5	1.525	126.0	1.522
11585-2350	RST 3767 AB	275.7	0.590	276.3	0.597	276.9	0.605	277.5	0.612	278.1	0.619
12111-5302	HU 1604	37.0	0.195	36.7	0.196	42.4	0.197	45.1	0.198	47.7	0.200
13117-2633	FIN 305^a	65.7	0.064	141.9	0.029	119.5	0.076	112.6	0.105	108.5	0.127
13117-2633	FIN 305^b	62.3	0.0630	36.22	0.0401	345.77	0.0356	311.18	0.0545	296.76	0.0811
13305 + 0729	A 1789	158.5	0.196	156.9	0.197	155.3	0.197	153.7	0.198	152.2	0.199
14592-4206	HDS 2116 Aa,Ab	157.1	0.176	156.9	0.205	156.8	0.231	156.6	0.255	156.5	0.276
15157-2736	BU 350	350.5	0.144	341.1	0.142	331.5	0.140	321.8	0.140	312.1	0.141
15493 + 0503	A 1126	143.0	0.061	147.2	0.064	151.0	0.068	154.4	0.071	157.5	0.074
16402-2800	VOU 44 AB	4.8	0.227	6.7	0.227	8.5	0.227	10.3	0.227	12.1	0.226
16458-0046	A1141	79.6	0.058	63.6	0.068	52.5	0.082	44.7	0.098	39.0	0.113
18126 + 1224	HDS 2570	348.6	0.060	357.1	0.054	7.3	0.050	19.2	0.047	32.1	0.046

Note.^aShort orbital solution for FIN 305.

^blong orbital solution for FIN 305.

Table 2.

Open in new tab

Ephemerides.

		2021.0		2022.0		2023.0		2024.0		2025.0
WDS	Name	θ	ρ	θ	ρ	θ	ρ	θ	ρ	θ	ρ
		(°)	(arcsec)	(°)	(arcsec)	(°)	(arcsec)	(°)	(arcsec)	(°)	(arcsec)
00277-1625	YR 1 Aa,Ab	233.4	0.019	316.6	0.080	333.3	0.108	344.8	0.118	356.0	0.112
00462-2214	RST 4155	240.2	0.164	234.7	0.169	229.7	0.175	224.9	0.180	220.4	0.184
03124-4425	JC 8	118.9	0.183	84.8	0.093	287.9	0.067	231.0	0.156	215.1	0.235
07303-5657	FIN 105	65.7	0.233	64.0	0.228	62.2	0.223	60.3	0.218	58.3	0.212
07427-3510	HDS 1091	243.1	0.076	234.6	0.069	224.4	0.064	212.7	0.060	199.9	0.058
09110-1929	I 824	156.8	0.074	151.3	0.073	145.7	0.072	139.9	0.071	133.9	0.070
10093 + 2020	A2145	223.2	0.232	222.3	0.234	221.4	0.235	220.5	0.237	219.7	0.238
10116 + 1321	HU 874 AB	289.6	0.112	292.4	0.062	250.0	0.008	278.9	0.075	281.1	0.119
10217-0946	BU 25	127.9	1.535	127.4	1.532	126.9	1.529	126.5	1.525	126.0	1.522
11585-2350	RST 3767 AB	275.7	0.590	276.3	0.597	276.9	0.605	277.5	0.612	278.1	0.619
12111-5302	HU 1604	37.0	0.195	36.7	0.196	42.4	0.197	45.1	0.198	47.7	0.200
13117-2633	FIN 305^a	65.7	0.064	141.9	0.029	119.5	0.076	112.6	0.105	108.5	0.127
13117-2633	FIN 305^b	62.3	0.0630	36.22	0.0401	345.77	0.0356	311.18	0.0545	296.76	0.0811
13305 + 0729	A 1789	158.5	0.196	156.9	0.197	155.3	0.197	153.7	0.198	152.2	0.199
14592-4206	HDS 2116 Aa,Ab	157.1	0.176	156.9	0.205	156.8	0.231	156.6	0.255	156.5	0.276
15157-2736	BU 350	350.5	0.144	341.1	0.142	331.5	0.140	321.8	0.140	312.1	0.141
15493 + 0503	A 1126	143.0	0.061	147.2	0.064	151.0	0.068	154.4	0.071	157.5	0.074
16402-2800	VOU 44 AB	4.8	0.227	6.7	0.227	8.5	0.227	10.3	0.227	12.1	0.226
16458-0046	A1141	79.6	0.058	63.6	0.068	52.5	0.082	44.7	0.098	39.0	0.113
18126 + 1224	HDS 2570	348.6	0.060	357.1	0.054	7.3	0.050	19.2	0.047	32.1	0.046

		2021.0		2022.0		2023.0		2024.0		2025.0
WDS	Name	θ	ρ	θ	ρ	θ	ρ	θ	ρ	θ	ρ
		(°)	(arcsec)	(°)	(arcsec)	(°)	(arcsec)	(°)	(arcsec)	(°)	(arcsec)
00277-1625	YR 1 Aa,Ab	233.4	0.019	316.6	0.080	333.3	0.108	344.8	0.118	356.0	0.112
00462-2214	RST 4155	240.2	0.164	234.7	0.169	229.7	0.175	224.9	0.180	220.4	0.184
03124-4425	JC 8	118.9	0.183	84.8	0.093	287.9	0.067	231.0	0.156	215.1	0.235
07303-5657	FIN 105	65.7	0.233	64.0	0.228	62.2	0.223	60.3	0.218	58.3	0.212
07427-3510	HDS 1091	243.1	0.076	234.6	0.069	224.4	0.064	212.7	0.060	199.9	0.058
09110-1929	I 824	156.8	0.074	151.3	0.073	145.7	0.072	139.9	0.071	133.9	0.070
10093 + 2020	A2145	223.2	0.232	222.3	0.234	221.4	0.235	220.5	0.237	219.7	0.238
10116 + 1321	HU 874 AB	289.6	0.112	292.4	0.062	250.0	0.008	278.9	0.075	281.1	0.119
10217-0946	BU 25	127.9	1.535	127.4	1.532	126.9	1.529	126.5	1.525	126.0	1.522
11585-2350	RST 3767 AB	275.7	0.590	276.3	0.597	276.9	0.605	277.5	0.612	278.1	0.619
12111-5302	HU 1604	37.0	0.195	36.7	0.196	42.4	0.197	45.1	0.198	47.7	0.200
13117-2633	FIN 305^a	65.7	0.064	141.9	0.029	119.5	0.076	112.6	0.105	108.5	0.127
13117-2633	FIN 305^b	62.3	0.0630	36.22	0.0401	345.77	0.0356	311.18	0.0545	296.76	0.0811
13305 + 0729	A 1789	158.5	0.196	156.9	0.197	155.3	0.197	153.7	0.198	152.2	0.199
14592-4206	HDS 2116 Aa,Ab	157.1	0.176	156.9	0.205	156.8	0.231	156.6	0.255	156.5	0.276
15157-2736	BU 350	350.5	0.144	341.1	0.142	331.5	0.140	321.8	0.140	312.1	0.141
15493 + 0503	A 1126	143.0	0.061	147.2	0.064	151.0	0.068	154.4	0.071	157.5	0.074
16402-2800	VOU 44 AB	4.8	0.227	6.7	0.227	8.5	0.227	10.3	0.227	12.1	0.226
16458-0046	A1141	79.6	0.058	63.6	0.068	52.5	0.082	44.7	0.098	39.0	0.113
18126 + 1224	HDS 2570	348.6	0.060	357.1	0.054	7.3	0.050	19.2	0.047	32.1	0.046

Note.^aShort orbital solution for FIN 305.

^blong orbital solution for FIN 305.

Table 3 contains the magnitudes, the spectral types, the parallaxes, and the calculated masses. In Column 1, the WDS number and the Hipparcos identifier (ESA 1997) appear. The name of the binary is in column 2. Columns 3 and 4 list the apparent magnitudes for each component that are preferably taken from the WDS catalogue (Mason et al. 2001). If they do not appear in said catalogue, they are obtained using the SIMBAD total magnitude (Wenger et al. 2000) as well as the magnitude difference given by SOAR speckle observations. The same occurs with the spectral types in Columns 5, 6, and 7. We used the WDS data whenever available. Otherwise, the individual spectral type were obtained from the composite spectrum taking into account the calculated magnitude difference for the system. Columns 8 and 9 show the Gaia (Gaia Collaboration 2016, 2018) or the Hipparcos (H) parallaxes (Perryman et al. 1997; van Leeuwen 2007) as well as the total mass deduced using the new orbital parameters. The dynamical parallaxes determined using ANAPAR, appear in Column 10 and the derived individual masses in Columns 11 and 12. All mass values are listed with the associated standard errors. The mass errors were calculated using the propagation of uncertainties. Absolute magnitudes used for calculation were taken from Gray (2005). Both parallaxes are expressed in milliarcseconds (mas) and the masses in solar masses (M_⊙).

Table 3.

Open in new tab

Magnitudes, spectral types, parallaxes, and masses. The Π^Sat column contains Gaia or Hipparcos values of parallaxes, given in miliarcseconds. The H superscript means that the parallax value comes from Hipparcos, no superscript indicates Gaia. M|$^{Sat}_{AB}$| shows the total mass (in units of M_⊙) derived from these parallaxes with the same superscripts.

WDS	Name	m_A	m_B	Sp_AB	Sp_A	Sp_B	Π^Sat	M\|$^{Sat}_{AB}$\|	Π^dyn	M\|$^{dyn}_A$\|	M\|$^{dyn}_B$\|
Hipparcos							σ	σ	σ	σ	σ
00277-1625	YR 1 Aa,Ab	7.51	8.72	F5/6V	F4V	G1V	14.22	2.49	14.33	1.36	1.07
						±0.15	±0.16	±0.31	±0.03	±0.02
00462-2214	RST 4155	9.76	10.03	G0V	F9V	G1V	9.21	2.26	9.53	1.04	0.99
						±0.33	±0.30	±0.30	±0.03	±0.02
03124-4425	JC 8	6.42	7.36	A8V + F3V	A8V	F3V	23.53^H	2.52^H	23.58	1.37	1.13
						±0.62	±0.21	±0.24	±0.03	±0.02
07303-5657	FIN 105	9.55	9.62	F6V	F6V	F6V			5.7	1.35	1.33
								±1.5	±0.13	±0.13
07427-3510	HDS 1091	10.04	10.59	G1V	G0V	G4V	4.86	4.22	6.0	1.20	1.08
37578						±0.30	±1.99	±1.1	±0.10	±0.09
09110-1929	I 824	9.30	9.40	F0	F0V	F0V	3.33	3.64	3.34	1.83	1.79
						±0.20	±1.69	±0.60	±0.16	±0.15
10093 + 2020	A2145	7.30	7.50	G8III + A2m	G8III	A2V	3.63	10.06	–	–	–
49747						±0.56	±4.69	–	–	–
10116 + 1321	HU 874 AB	6.90	7.87	F6V	F4V	G0V	15.48^H	1.34^H	11.75	1.68	1.38
49929						±0.72	±0.20	±0.23	±0.04	±0.03
10217-0946	BU 25	8.41	8.96	G5	G3V	G7V	16.25	2.14	–	–	–
50747						±0.10	±0.32	–	–	–
11585-2350	RST 3767 AB	10.85	11.08	K0	K0V	K1V	9.06	1.88	9.37	0.86	0.83
						± 0.67	±0.53	± 0.66	± 0.03	± 0.03
12111-5302	HU 1604	10.19	10.54	G0	F9V	G1V	7.86	1.94	7.75	1.05	0.98
59395						±0.80	±0.71	±0.62	±0.04	±0.04
13117-2633	FIN 305^a	7.20	7.43	A5V	A5V	A6V	7.08	80.72	23.17	1.18	1.13
64375						±0.72	±25.04	±0.56	±0.04	±0.04
13117-2633	FIN 305^b	7.20	7.43	A5V	A5V	A6V	7.08	17.87	12.89	1.52	1.44
64375						±0.72	±5.52	±0.27	±0.06	±0.05
13305 + 0729	A 1789	9.14	9.39	A5	A5V	A6V	4.83^H	3.01^H	4.79	1.58	1.50
65897						±0.85	±1.59	±0.07	±0.04	±0.04
14592-4206	HDS 2116 Aa,Ab	3.34	4.71	B2V	B2V	B3V	7.46	16.63	8.14	8.38	4.41
73334						±0.70	±4.96	±0.33	±0.27	±0.36
15157-2736	BU 350	7.06	8.58	F2	F0IV	F6V	8.19^H	3.46^H	8.26	1.98	1.39
74675						±0.88	±1.48	±0.71	±0.11	±0.01
15493 + 0503	A 1126	9.40	9.40	K0	K0III	K0III	2.62	5.09	–	–	–
77489						±0.06	0.72	–	–	–
16402-2800	VOU 44 AB	9.19	10.61	F0/2V	A9V	F8V	6.00	2.99	6.44	1.38	1.04
						±0.43	±0.99	±0.64	±0.09	±0.06
16458-0046	A1141	9.10	9.20	F8	F7V	F8V	8.47	4.26	10.49	1.14	1.12
82062						±0.48	±0.90	±0.14	±0.03	±0.02
18126 + 1224	HDS 2570	8.04	8.88	F0	F0III	A6V	4.71	5.237	–	–	–
89235						±0.16	±1.481	–	–	–

WDS	Name	m_A	m_B	Sp_AB	Sp_A	Sp_B	Π^Sat	M\|$^{Sat}_{AB}$\|	Π^dyn	M\|$^{dyn}_A$\|	M\|$^{dyn}_B$\|
Hipparcos							σ	σ	σ	σ	σ
00277-1625	YR 1 Aa,Ab	7.51	8.72	F5/6V	F4V	G1V	14.22	2.49	14.33	1.36	1.07
						±0.15	±0.16	±0.31	±0.03	±0.02
00462-2214	RST 4155	9.76	10.03	G0V	F9V	G1V	9.21	2.26	9.53	1.04	0.99
						±0.33	±0.30	±0.30	±0.03	±0.02
03124-4425	JC 8	6.42	7.36	A8V + F3V	A8V	F3V	23.53^H	2.52^H	23.58	1.37	1.13
						±0.62	±0.21	±0.24	±0.03	±0.02
07303-5657	FIN 105	9.55	9.62	F6V	F6V	F6V			5.7	1.35	1.33
								±1.5	±0.13	±0.13
07427-3510	HDS 1091	10.04	10.59	G1V	G0V	G4V	4.86	4.22	6.0	1.20	1.08
37578						±0.30	±1.99	±1.1	±0.10	±0.09
09110-1929	I 824	9.30	9.40	F0	F0V	F0V	3.33	3.64	3.34	1.83	1.79
						±0.20	±1.69	±0.60	±0.16	±0.15
10093 + 2020	A2145	7.30	7.50	G8III + A2m	G8III	A2V	3.63	10.06	–	–	–
49747						±0.56	±4.69	–	–	–
10116 + 1321	HU 874 AB	6.90	7.87	F6V	F4V	G0V	15.48^H	1.34^H	11.75	1.68	1.38
49929						±0.72	±0.20	±0.23	±0.04	±0.03
10217-0946	BU 25	8.41	8.96	G5	G3V	G7V	16.25	2.14	–	–	–
50747						±0.10	±0.32	–	–	–
11585-2350	RST 3767 AB	10.85	11.08	K0	K0V	K1V	9.06	1.88	9.37	0.86	0.83
						± 0.67	±0.53	± 0.66	± 0.03	± 0.03
12111-5302	HU 1604	10.19	10.54	G0	F9V	G1V	7.86	1.94	7.75	1.05	0.98
59395						±0.80	±0.71	±0.62	±0.04	±0.04
13117-2633	FIN 305^a	7.20	7.43	A5V	A5V	A6V	7.08	80.72	23.17	1.18	1.13
64375						±0.72	±25.04	±0.56	±0.04	±0.04
13117-2633	FIN 305^b	7.20	7.43	A5V	A5V	A6V	7.08	17.87	12.89	1.52	1.44
64375						±0.72	±5.52	±0.27	±0.06	±0.05
13305 + 0729	A 1789	9.14	9.39	A5	A5V	A6V	4.83^H	3.01^H	4.79	1.58	1.50
65897						±0.85	±1.59	±0.07	±0.04	±0.04
14592-4206	HDS 2116 Aa,Ab	3.34	4.71	B2V	B2V	B3V	7.46	16.63	8.14	8.38	4.41
73334						±0.70	±4.96	±0.33	±0.27	±0.36
15157-2736	BU 350	7.06	8.58	F2	F0IV	F6V	8.19^H	3.46^H	8.26	1.98	1.39
74675						±0.88	±1.48	±0.71	±0.11	±0.01
15493 + 0503	A 1126	9.40	9.40	K0	K0III	K0III	2.62	5.09	–	–	–
77489						±0.06	0.72	–	–	–
16402-2800	VOU 44 AB	9.19	10.61	F0/2V	A9V	F8V	6.00	2.99	6.44	1.38	1.04
						±0.43	±0.99	±0.64	±0.09	±0.06
16458-0046	A1141	9.10	9.20	F8	F7V	F8V	8.47	4.26	10.49	1.14	1.12
82062						±0.48	±0.90	±0.14	±0.03	±0.02
18126 + 1224	HDS 2570	8.04	8.88	F0	F0III	A6V	4.71	5.237	–	–	–
89235						±0.16	±1.481	–	–	–

Note. ^aShort orbital solution for FIN 305.

^bLong orbital solution for FIN 305.

Table 3.

Open in new tab

WDS	Name	m_A	m_B	Sp_AB	Sp_A	Sp_B	Π^Sat	M\|$^{Sat}_{AB}$\|	Π^dyn	M\|$^{dyn}_A$\|	M\|$^{dyn}_B$\|
Hipparcos							σ	σ	σ	σ	σ
00277-1625	YR 1 Aa,Ab	7.51	8.72	F5/6V	F4V	G1V	14.22	2.49	14.33	1.36	1.07
						±0.15	±0.16	±0.31	±0.03	±0.02
00462-2214	RST 4155	9.76	10.03	G0V	F9V	G1V	9.21	2.26	9.53	1.04	0.99
						±0.33	±0.30	±0.30	±0.03	±0.02
03124-4425	JC 8	6.42	7.36	A8V + F3V	A8V	F3V	23.53^H	2.52^H	23.58	1.37	1.13
						±0.62	±0.21	±0.24	±0.03	±0.02
07303-5657	FIN 105	9.55	9.62	F6V	F6V	F6V			5.7	1.35	1.33
								±1.5	±0.13	±0.13
07427-3510	HDS 1091	10.04	10.59	G1V	G0V	G4V	4.86	4.22	6.0	1.20	1.08
37578						±0.30	±1.99	±1.1	±0.10	±0.09
09110-1929	I 824	9.30	9.40	F0	F0V	F0V	3.33	3.64	3.34	1.83	1.79
						±0.20	±1.69	±0.60	±0.16	±0.15
10093 + 2020	A2145	7.30	7.50	G8III + A2m	G8III	A2V	3.63	10.06	–	–	–
49747						±0.56	±4.69	–	–	–
10116 + 1321	HU 874 AB	6.90	7.87	F6V	F4V	G0V	15.48^H	1.34^H	11.75	1.68	1.38
49929						±0.72	±0.20	±0.23	±0.04	±0.03
10217-0946	BU 25	8.41	8.96	G5	G3V	G7V	16.25	2.14	–	–	–
50747						±0.10	±0.32	–	–	–
11585-2350	RST 3767 AB	10.85	11.08	K0	K0V	K1V	9.06	1.88	9.37	0.86	0.83
						± 0.67	±0.53	± 0.66	± 0.03	± 0.03
12111-5302	HU 1604	10.19	10.54	G0	F9V	G1V	7.86	1.94	7.75	1.05	0.98
59395						±0.80	±0.71	±0.62	±0.04	±0.04
13117-2633	FIN 305^a	7.20	7.43	A5V	A5V	A6V	7.08	80.72	23.17	1.18	1.13
64375						±0.72	±25.04	±0.56	±0.04	±0.04
13117-2633	FIN 305^b	7.20	7.43	A5V	A5V	A6V	7.08	17.87	12.89	1.52	1.44
64375						±0.72	±5.52	±0.27	±0.06	±0.05
13305 + 0729	A 1789	9.14	9.39	A5	A5V	A6V	4.83^H	3.01^H	4.79	1.58	1.50
65897						±0.85	±1.59	±0.07	±0.04	±0.04
14592-4206	HDS 2116 Aa,Ab	3.34	4.71	B2V	B2V	B3V	7.46	16.63	8.14	8.38	4.41
73334						±0.70	±4.96	±0.33	±0.27	±0.36
15157-2736	BU 350	7.06	8.58	F2	F0IV	F6V	8.19^H	3.46^H	8.26	1.98	1.39
74675						±0.88	±1.48	±0.71	±0.11	±0.01
15493 + 0503	A 1126	9.40	9.40	K0	K0III	K0III	2.62	5.09	–	–	–
77489						±0.06	0.72	–	–	–
16402-2800	VOU 44 AB	9.19	10.61	F0/2V	A9V	F8V	6.00	2.99	6.44	1.38	1.04
						±0.43	±0.99	±0.64	±0.09	±0.06
16458-0046	A1141	9.10	9.20	F8	F7V	F8V	8.47	4.26	10.49	1.14	1.12
82062						±0.48	±0.90	±0.14	±0.03	±0.02
18126 + 1224	HDS 2570	8.04	8.88	F0	F0III	A6V	4.71	5.237	–	–	–
89235						±0.16	±1.481	–	–	–

WDS	Name	m_A	m_B	Sp_AB	Sp_A	Sp_B	Π^Sat	M\|$^{Sat}_{AB}$\|	Π^dyn	M\|$^{dyn}_A$\|	M\|$^{dyn}_B$\|
Hipparcos							σ	σ	σ	σ	σ
00277-1625	YR 1 Aa,Ab	7.51	8.72	F5/6V	F4V	G1V	14.22	2.49	14.33	1.36	1.07
						±0.15	±0.16	±0.31	±0.03	±0.02
00462-2214	RST 4155	9.76	10.03	G0V	F9V	G1V	9.21	2.26	9.53	1.04	0.99
						±0.33	±0.30	±0.30	±0.03	±0.02
03124-4425	JC 8	6.42	7.36	A8V + F3V	A8V	F3V	23.53^H	2.52^H	23.58	1.37	1.13
						±0.62	±0.21	±0.24	±0.03	±0.02
07303-5657	FIN 105	9.55	9.62	F6V	F6V	F6V			5.7	1.35	1.33
								±1.5	±0.13	±0.13
07427-3510	HDS 1091	10.04	10.59	G1V	G0V	G4V	4.86	4.22	6.0	1.20	1.08
37578						±0.30	±1.99	±1.1	±0.10	±0.09
09110-1929	I 824	9.30	9.40	F0	F0V	F0V	3.33	3.64	3.34	1.83	1.79
						±0.20	±1.69	±0.60	±0.16	±0.15
10093 + 2020	A2145	7.30	7.50	G8III + A2m	G8III	A2V	3.63	10.06	–	–	–
49747						±0.56	±4.69	–	–	–
10116 + 1321	HU 874 AB	6.90	7.87	F6V	F4V	G0V	15.48^H	1.34^H	11.75	1.68	1.38
49929						±0.72	±0.20	±0.23	±0.04	±0.03
10217-0946	BU 25	8.41	8.96	G5	G3V	G7V	16.25	2.14	–	–	–
50747						±0.10	±0.32	–	–	–
11585-2350	RST 3767 AB	10.85	11.08	K0	K0V	K1V	9.06	1.88	9.37	0.86	0.83
						± 0.67	±0.53	± 0.66	± 0.03	± 0.03
12111-5302	HU 1604	10.19	10.54	G0	F9V	G1V	7.86	1.94	7.75	1.05	0.98
59395						±0.80	±0.71	±0.62	±0.04	±0.04
13117-2633	FIN 305^a	7.20	7.43	A5V	A5V	A6V	7.08	80.72	23.17	1.18	1.13
64375						±0.72	±25.04	±0.56	±0.04	±0.04
13117-2633	FIN 305^b	7.20	7.43	A5V	A5V	A6V	7.08	17.87	12.89	1.52	1.44
64375						±0.72	±5.52	±0.27	±0.06	±0.05
13305 + 0729	A 1789	9.14	9.39	A5	A5V	A6V	4.83^H	3.01^H	4.79	1.58	1.50
65897						±0.85	±1.59	±0.07	±0.04	±0.04
14592-4206	HDS 2116 Aa,Ab	3.34	4.71	B2V	B2V	B3V	7.46	16.63	8.14	8.38	4.41
73334						±0.70	±4.96	±0.33	±0.27	±0.36
15157-2736	BU 350	7.06	8.58	F2	F0IV	F6V	8.19^H	3.46^H	8.26	1.98	1.39
74675						±0.88	±1.48	±0.71	±0.11	±0.01
15493 + 0503	A 1126	9.40	9.40	K0	K0III	K0III	2.62	5.09	–	–	–
77489						±0.06	0.72	–	–	–
16402-2800	VOU 44 AB	9.19	10.61	F0/2V	A9V	F8V	6.00	2.99	6.44	1.38	1.04
						±0.43	±0.99	±0.64	±0.09	±0.06
16458-0046	A1141	9.10	9.20	F8	F7V	F8V	8.47	4.26	10.49	1.14	1.12
82062						±0.48	±0.90	±0.14	±0.03	±0.02
18126 + 1224	HDS 2570	8.04	8.88	F0	F0III	A6V	4.71	5.237	–	–	–
89235						±0.16	±1.481	–	–	–

Note. ^aShort orbital solution for FIN 305.

^bLong orbital solution for FIN 305.

Tables 4 and 5 show the different quality controls used to compare each orbit. First, we calculated the rms error of the differences between the observed and the calculated values of the θ and ρ coordinates using the data weighting scheme mentioned. We emphasize that the highest weights were assigned to interferometric observations. In Table 5, Column 1 contains the WDS and the Hipparcos designations. Column 2 shows the discoverer code (name of the binary). Column 3 presents the author and the year of the previous orbit and Column 4, the Gaia or Hipparcos parallax value. Columns 5 and 6 show the previous and new values for the dynamical parallaxes, respectively.

Table 4.

Open in new tab

RMS quality controls.

		New orbit		Previous orbit
		RMS		RMS
WDS	Name	Δθ	Δρ	Δθ	Δρ
00277-1625	YR 1 Aa,Ab	0.843	0.0128	18.719	0.0168
00462-2214	RST 4155	3.105	0.0145	8.519	0.0287
03124-4425	JC 8	1.930	0.0427	4.733	0.0421
07303-5657	FIN 105	5.363	0.0262	–	–
07427-3510	HDS 1091	0.414	0.0023	0.433	0.0020
09110-1929	I 824	2.219	0.0369	–	–
10093 + 2020	A2145	4.775	0.0156	8.873	0.0202
10116 + 1321	HU 874 AB	2.871	0.0211	8.240	0.0474
10217-0946	BU 25	0.986	0.0690	1.278	0.0664
11585-2350	RST 3767 AB	4.780	0.0478	6.254	0.0600
12111-5302	HU 1604	3.965	0.0397	–	–
13117-2633	FIN 305^a	5.763	0.0168	6.339	0.0134
13117-2633	FIN 305^b	5.768	0.0270	6.339	0.0134
13305 + 0729	A 1789	5.991	0.0687	9.694	0.0593
14592-4206	HDS 2116 Aa,Ab	0.887	0.0445	–	–
15157-2736	BU 350	2.437	0.0576	–	–
15493 + 0503	A 1126	6.967	0.0167	–	–
16402-2800	VOU 44 AB	1.054	0.0048	–	–
16458-0046	A1141	5.439	0.0193	7.376	0.0218
18126 + 1224	HDS 2570	0.981	0.0025	–	–

		New orbit		Previous orbit
		RMS		RMS
WDS	Name	Δθ	Δρ	Δθ	Δρ
00277-1625	YR 1 Aa,Ab	0.843	0.0128	18.719	0.0168
00462-2214	RST 4155	3.105	0.0145	8.519	0.0287
03124-4425	JC 8	1.930	0.0427	4.733	0.0421
07303-5657	FIN 105	5.363	0.0262	–	–
07427-3510	HDS 1091	0.414	0.0023	0.433	0.0020
09110-1929	I 824	2.219	0.0369	–	–
10093 + 2020	A2145	4.775	0.0156	8.873	0.0202
10116 + 1321	HU 874 AB	2.871	0.0211	8.240	0.0474
10217-0946	BU 25	0.986	0.0690	1.278	0.0664
11585-2350	RST 3767 AB	4.780	0.0478	6.254	0.0600
12111-5302	HU 1604	3.965	0.0397	–	–
13117-2633	FIN 305^a	5.763	0.0168	6.339	0.0134
13117-2633	FIN 305^b	5.768	0.0270	6.339	0.0134
13305 + 0729	A 1789	5.991	0.0687	9.694	0.0593
14592-4206	HDS 2116 Aa,Ab	0.887	0.0445	–	–
15157-2736	BU 350	2.437	0.0576	–	–
15493 + 0503	A 1126	6.967	0.0167	–	–
16402-2800	VOU 44 AB	1.054	0.0048	–	–
16458-0046	A1141	5.439	0.0193	7.376	0.0218
18126 + 1224	HDS 2570	0.981	0.0025	–	–

Note. ^aShort orbital solution for FIN 305.

^bLong orbital solution for FIN 305.

Table 4.

Open in new tab

RMS quality controls.

		New orbit		Previous orbit
		RMS		RMS
WDS	Name	Δθ	Δρ	Δθ	Δρ
00277-1625	YR 1 Aa,Ab	0.843	0.0128	18.719	0.0168
00462-2214	RST 4155	3.105	0.0145	8.519	0.0287
03124-4425	JC 8	1.930	0.0427	4.733	0.0421
07303-5657	FIN 105	5.363	0.0262	–	–
07427-3510	HDS 1091	0.414	0.0023	0.433	0.0020
09110-1929	I 824	2.219	0.0369	–	–
10093 + 2020	A2145	4.775	0.0156	8.873	0.0202
10116 + 1321	HU 874 AB	2.871	0.0211	8.240	0.0474
10217-0946	BU 25	0.986	0.0690	1.278	0.0664
11585-2350	RST 3767 AB	4.780	0.0478	6.254	0.0600
12111-5302	HU 1604	3.965	0.0397	–	–
13117-2633	FIN 305^a	5.763	0.0168	6.339	0.0134
13117-2633	FIN 305^b	5.768	0.0270	6.339	0.0134
13305 + 0729	A 1789	5.991	0.0687	9.694	0.0593
14592-4206	HDS 2116 Aa,Ab	0.887	0.0445	–	–
15157-2736	BU 350	2.437	0.0576	–	–
15493 + 0503	A 1126	6.967	0.0167	–	–
16402-2800	VOU 44 AB	1.054	0.0048	–	–
16458-0046	A1141	5.439	0.0193	7.376	0.0218
18126 + 1224	HDS 2570	0.981	0.0025	–	–

		New orbit		Previous orbit
		RMS		RMS
WDS	Name	Δθ	Δρ	Δθ	Δρ
00277-1625	YR 1 Aa,Ab	0.843	0.0128	18.719	0.0168
00462-2214	RST 4155	3.105	0.0145	8.519	0.0287
03124-4425	JC 8	1.930	0.0427	4.733	0.0421
07303-5657	FIN 105	5.363	0.0262	–	–
07427-3510	HDS 1091	0.414	0.0023	0.433	0.0020
09110-1929	I 824	2.219	0.0369	–	–
10093 + 2020	A2145	4.775	0.0156	8.873	0.0202
10116 + 1321	HU 874 AB	2.871	0.0211	8.240	0.0474
10217-0946	BU 25	0.986	0.0690	1.278	0.0664
11585-2350	RST 3767 AB	4.780	0.0478	6.254	0.0600
12111-5302	HU 1604	3.965	0.0397	–	–
13117-2633	FIN 305^a	5.763	0.0168	6.339	0.0134
13117-2633	FIN 305^b	5.768	0.0270	6.339	0.0134
13305 + 0729	A 1789	5.991	0.0687	9.694	0.0593
14592-4206	HDS 2116 Aa,Ab	0.887	0.0445	–	–
15157-2736	BU 350	2.437	0.0576	–	–
15493 + 0503	A 1126	6.967	0.0167	–	–
16402-2800	VOU 44 AB	1.054	0.0048	–	–
16458-0046	A1141	5.439	0.0193	7.376	0.0218
18126 + 1224	HDS 2570	0.981	0.0025	–	–

Note. ^aShort orbital solution for FIN 305.

^bLong orbital solution for FIN 305.

Table 5.

Open in new tab

Gaia & Hipparcos versus dynamical parallaxes. Π^Sat represents Gaia or Hipparcos values of parallaxes. The H superscript means Hipparcos parallax. No superscript means Gaia parallax.

		Previous orbit		Previous orbit	New orbit
WDS	Name	Author	Π^Sat	Π^dyn	Π^dyn
Hipparcos		(yr)	σ		σ
00277-1625	YR 1 Aa,Ab	Tokovinin	14.22	16.30	14.33
		(2019)	±0.15	–	±0.31
00462-2214	RST 4155	Heintz	9.21	12.18	9.53
		(1984)	±0.33	–	±0.30
03124-4425	JC 8	Soderhjelm	23.53^H	23.90	23.58
		(1999)	±0.62	–	±0.24
07303-5657	FIN 105				5.70
					±1.50
07427-3510	HDS 1091	Tokovinin et al.	4.86	5.89	6.00
37578		(2019)	±0.30	–	±1.10
09110-1929	I 824		3.33	–	3.34
			±0.20	–	±0.60
10093 + 2020	A2145	Mason & Hartkopf	3.63	–	–
49747		(2011)	±0.56	–	–
10116 + 1321	HU 874 AB	Mason & Hartkopf	15.48 ^H	14.64	11.75
15.48 49929		(2011)	±0.72	±1.01	±0.23
10217-0946	BU 25	Tokovinin & Latham	16.25	–	–
50747		(2020)	±0.10	–	–
11585-2350	RST 3767 AB	Josties & Mason	9.06	63.71	9.37
		(2019)	± 0.67	–	±0.66
12111-5302	HU 1604		7.86	–	7.75
59395			±0.80	–	±0.62
13117-2633	FIN 305^a	Tokovinin	7.08	9.72	23.17
64375		(2018)	±0.72	±0.45	±0.56
13117-2633	FIN 305^b	Tokovinin	7.08	9.72	12.89
64375		(2018)	±0.72	±0.45	±0.27
13305 + 0729	A 1789	Heintz	4.83^H	4.36	4.79
65897		(1998)	±0.85	–	±0.07
14592-4206	HDS 2116 Aa,Ab		7.46	–	8.14
73334			±0.70	–	±0.33
15157-2736	BU 350		8.19^H	–	8.26
74675			±0.88	–	±0.71
15493 + 0503	A 1126		2.62	–	–
77489			±0.06	–	–
16402-2800	VOU 44 AB		6.00	–	6.44
			±0.43	–	±0.64
16458-0046	A1141	Heintz	8.47	8.51	10.49
82062		(1982)	±0.48	–	±0.14
18126 + 1224	HDS 2570		4.71	–	–
89235			±0.16	–	–

		Previous orbit		Previous orbit	New orbit
WDS	Name	Author	Π^Sat	Π^dyn	Π^dyn
Hipparcos		(yr)	σ		σ
00277-1625	YR 1 Aa,Ab	Tokovinin	14.22	16.30	14.33
		(2019)	±0.15	–	±0.31
00462-2214	RST 4155	Heintz	9.21	12.18	9.53
		(1984)	±0.33	–	±0.30
03124-4425	JC 8	Soderhjelm	23.53^H	23.90	23.58
		(1999)	±0.62	–	±0.24
07303-5657	FIN 105				5.70
					±1.50
07427-3510	HDS 1091	Tokovinin et al.	4.86	5.89	6.00
37578		(2019)	±0.30	–	±1.10
09110-1929	I 824		3.33	–	3.34
			±0.20	–	±0.60
10093 + 2020	A2145	Mason & Hartkopf	3.63	–	–
49747		(2011)	±0.56	–	–
10116 + 1321	HU 874 AB	Mason & Hartkopf	15.48 ^H	14.64	11.75
15.48 49929		(2011)	±0.72	±1.01	±0.23
10217-0946	BU 25	Tokovinin & Latham	16.25	–	–
50747		(2020)	±0.10	–	–
11585-2350	RST 3767 AB	Josties & Mason	9.06	63.71	9.37
		(2019)	± 0.67	–	±0.66
12111-5302	HU 1604		7.86	–	7.75
59395			±0.80	–	±0.62
13117-2633	FIN 305^a	Tokovinin	7.08	9.72	23.17
64375		(2018)	±0.72	±0.45	±0.56
13117-2633	FIN 305^b	Tokovinin	7.08	9.72	12.89
64375		(2018)	±0.72	±0.45	±0.27
13305 + 0729	A 1789	Heintz	4.83^H	4.36	4.79
65897		(1998)	±0.85	–	±0.07
14592-4206	HDS 2116 Aa,Ab		7.46	–	8.14
73334			±0.70	–	±0.33
15157-2736	BU 350		8.19^H	–	8.26
74675			±0.88	–	±0.71
15493 + 0503	A 1126		2.62	–	–
77489			±0.06	–	–
16402-2800	VOU 44 AB		6.00	–	6.44
			±0.43	–	±0.64
16458-0046	A1141	Heintz	8.47	8.51	10.49
82062		(1982)	±0.48	–	±0.14
18126 + 1224	HDS 2570		4.71	–	–
89235			±0.16	–	–

Note. ^aShort and long orbital solution for FIN 305.

^bLong orbital solution for FIN 305.

Table 5.

Open in new tab

Gaia & Hipparcos versus dynamical parallaxes. Π^Sat represents Gaia or Hipparcos values of parallaxes. The H superscript means Hipparcos parallax. No superscript means Gaia parallax.

		Previous orbit		Previous orbit	New orbit
WDS	Name	Author	Π^Sat	Π^dyn	Π^dyn
Hipparcos		(yr)	σ		σ
00277-1625	YR 1 Aa,Ab	Tokovinin	14.22	16.30	14.33
		(2019)	±0.15	–	±0.31
00462-2214	RST 4155	Heintz	9.21	12.18	9.53
		(1984)	±0.33	–	±0.30
03124-4425	JC 8	Soderhjelm	23.53^H	23.90	23.58
		(1999)	±0.62	–	±0.24
07303-5657	FIN 105				5.70
					±1.50
07427-3510	HDS 1091	Tokovinin et al.	4.86	5.89	6.00
37578		(2019)	±0.30	–	±1.10
09110-1929	I 824		3.33	–	3.34
			±0.20	–	±0.60
10093 + 2020	A2145	Mason & Hartkopf	3.63	–	–
49747		(2011)	±0.56	–	–
10116 + 1321	HU 874 AB	Mason & Hartkopf	15.48 ^H	14.64	11.75
15.48 49929		(2011)	±0.72	±1.01	±0.23
10217-0946	BU 25	Tokovinin & Latham	16.25	–	–
50747		(2020)	±0.10	–	–
11585-2350	RST 3767 AB	Josties & Mason	9.06	63.71	9.37
		(2019)	± 0.67	–	±0.66
12111-5302	HU 1604		7.86	–	7.75
59395			±0.80	–	±0.62
13117-2633	FIN 305^a	Tokovinin	7.08	9.72	23.17
64375		(2018)	±0.72	±0.45	±0.56
13117-2633	FIN 305^b	Tokovinin	7.08	9.72	12.89
64375		(2018)	±0.72	±0.45	±0.27
13305 + 0729	A 1789	Heintz	4.83^H	4.36	4.79
65897		(1998)	±0.85	–	±0.07
14592-4206	HDS 2116 Aa,Ab		7.46	–	8.14
73334			±0.70	–	±0.33
15157-2736	BU 350		8.19^H	–	8.26
74675			±0.88	–	±0.71
15493 + 0503	A 1126		2.62	–	–
77489			±0.06	–	–
16402-2800	VOU 44 AB		6.00	–	6.44
			±0.43	–	±0.64
16458-0046	A1141	Heintz	8.47	8.51	10.49
82062		(1982)	±0.48	–	±0.14
18126 + 1224	HDS 2570		4.71	–	–
89235			±0.16	–	–

		Previous orbit		Previous orbit	New orbit
WDS	Name	Author	Π^Sat	Π^dyn	Π^dyn
Hipparcos		(yr)	σ		σ
00277-1625	YR 1 Aa,Ab	Tokovinin	14.22	16.30	14.33
		(2019)	±0.15	–	±0.31
00462-2214	RST 4155	Heintz	9.21	12.18	9.53
		(1984)	±0.33	–	±0.30
03124-4425	JC 8	Soderhjelm	23.53^H	23.90	23.58
		(1999)	±0.62	–	±0.24
07303-5657	FIN 105				5.70
					±1.50
07427-3510	HDS 1091	Tokovinin et al.	4.86	5.89	6.00
37578		(2019)	±0.30	–	±1.10
09110-1929	I 824		3.33	–	3.34
			±0.20	–	±0.60
10093 + 2020	A2145	Mason & Hartkopf	3.63	–	–
49747		(2011)	±0.56	–	–
10116 + 1321	HU 874 AB	Mason & Hartkopf	15.48 ^H	14.64	11.75
15.48 49929		(2011)	±0.72	±1.01	±0.23
10217-0946	BU 25	Tokovinin & Latham	16.25	–	–
50747		(2020)	±0.10	–	–
11585-2350	RST 3767 AB	Josties & Mason	9.06	63.71	9.37
		(2019)	± 0.67	–	±0.66
12111-5302	HU 1604		7.86	–	7.75
59395			±0.80	–	±0.62
13117-2633	FIN 305^a	Tokovinin	7.08	9.72	23.17
64375		(2018)	±0.72	±0.45	±0.56
13117-2633	FIN 305^b	Tokovinin	7.08	9.72	12.89
64375		(2018)	±0.72	±0.45	±0.27
13305 + 0729	A 1789	Heintz	4.83^H	4.36	4.79
65897		(1998)	±0.85	–	±0.07
14592-4206	HDS 2116 Aa,Ab		7.46	–	8.14
73334			±0.70	–	±0.33
15157-2736	BU 350		8.19^H	–	8.26
74675			±0.88	–	±0.71
15493 + 0503	A 1126		2.62	–	–
77489			±0.06	–	–
16402-2800	VOU 44 AB		6.00	–	6.44
			±0.43	–	±0.64
16458-0046	A1141	Heintz	8.47	8.51	10.49
82062		(1982)	±0.48	–	±0.14
18126 + 1224	HDS 2570		4.71	–	–
89235			±0.16	–	–

Note. ^aShort and long orbital solution for FIN 305.

^bLong orbital solution for FIN 305.

2.1 WDS 00277-1625 (YR 1 Aa,Ab)

This system has a very short period. Orbits for this system were calculated in 2017 (Cvetković, Pavlović & Boeva 2017) and 2019 (Tokovinin 2019). Both show large rms uncertainties in θ, even though all of the available observations of this system are high precision speckle observations (ten observations carried out by E. P. Horch from 1977-2014 and four by A. Tokovinin between 2017 and 2020).

Using the new measurement of 2020.8342 obtained with the HRCam@SOAR, we have achieved a solution that yields a rms of 0°084 in θ and 0″0128 in ρ, whereas the previous orbit was 18°719 and 0″0168 (see Table 4).

Moreover, the dynamical parallax (14.33 ± 0.31 mas) fits the value given by Gaia 14.22 ± 0.15 mas (Gaia Collaboration 2018). The inferred masses of the components (M_A = 1.362 ± 0.033 M_⊙ and M_B = 1.073 ± 0.024 M_⊙) do not differ much from those that correspond to the F4V + G1V spectral decomposition if we use the table of values of Gray (2005). These spectral types are the result of using the spectral decomposition method proposed by Edwards (1976), taking into account the spectral type of the system (F5/6V) and the difference of magnitude among the components given by SOAR (⁠|$\Delta _{m_V}$|∼1.21). The low inclination (∼ 13°, see Fig. 1) may represent a handicap regarding obtaining a spectroscopic orbit.

2.2 WDS 00462-2214 (RST4155)

The orbit presented here represents an improvement of the previous one that was calculated by Heintz (1984). In recent decades, seven more speckle observations were obtained along with that by Hipparcos in 1991 (Perryman et al. 1997). The previous orbit had rms_θ = 8°519 and rms_ρ = 0″0287 while the new orbit decreases them to rms_θ = 3°105 and rms_ρ = 0″0145. The new dynamical parallax of 9.53 ± 0.30 mas is close to that by Gaia, 9.21 ± 0.33 mas (Gaia Collaboration 2018). Using the dynamical parallax, the total mass of the system is M_T = 2.033 M_⊙ with M_A = 1.043 ± 0.026 M_⊙ and M_B = 0.990 ± 0.024 M_⊙. These values are in accord with those expected for a system on the basis of the combined spectrum F9V + G1V assigned by using the previously cited algorithm. In Fig. 2, the previous orbit (Heintz 1984) and that contributed in this paper are shown.

Figure 2.

RST 4155 orbit fits better the speckle observations.

Open in new tab Download slide

Figure 3.

JC 8 previous and new apparent orbits.

Open in new tab Download slide

2.3 WDS 03124-4425 (JC 8)

In 1935, Finsen (1935) calculated an orbital solution for this system for the first time that was followed by those presented by Wierzbiński (1958), Eggen (1965), Starikova (1977a), Heintz (1979), and Söderhjelm (1999). Our solution reduces the rms uncertainty in θ of the orbit of Söderhjelm (1999), from 4°733 to 1°930. In addition, the dynamical parallax associated with the new orbit, 23.58 ± 0.24 mas, approximates the value given by Hipparcos, 23.53 ± 0.62 mas. The spectral decomposition of the system given in Simbad is A8V + F3V, while the masses that we obtain for each component are M_A = 1.365 ± 0.031 M_⊙ and M_B = 1.134 ± 0.024 M_⊙ which correspond with the ranges of F5V-F8V for the main and F8V-G0V for the secondary according to the values given by Gray (2005). This may be due to an incorrect spectral classification of the star. The A8V + F3V decomposition adopted in Simbad comes from (Malaroda 1973), but there are other listed measurements, some of them assigning a combined spectrum of F6III (de Vaucouleurs 1957; Buscombe & Morris 1958; Edwards 1976), F2 (Cannon & Pickering 1918-1924), and F5V (Houk 1978). This last value appears to be more plausible, considering the calculated mass yielded by our orbit, the absolute magnitudes obtained from the Hipparcos parallax (3.28 for the primary and 4.21 for the secondary), and even the colour index, using the values listed in Simbad for the combined B and V magnitudes of the system, B − V = 0.44.

2.4 WDS 07303-5657 (FIN 105)

The first visual observation of this system occurred in mid-1929 (Finsen 1932). Between 1941 and 1983, a total of seven visual observations were reported from 136° to 106°. The Hipparcos reductions resolve the system but do not provide any value for the parallax nor do the measurements of the Gaia satellite.

The last available observation used for the calculation of the orbit (t= 2018.2355, θ = 70°03, ρ = 0″2465) was performed at SOAR. This was the first high precision observation obtained for this system, as we can see in Fig. 4.

Figure 4.

FIN 105 first orbit.

Open in new tab Download slide

Due to the similar magnitudes of the components, the composite spectrum, F6V (Houk & Cowley 1975), can be separated into two F6V stars. For our calculations, we determined that the combined m_V = 8.87 (Høg et al. 2000) value corresponds to m_V = 9.55 for the primary and m_V = 9.62 to the secondary. The dynamical parallax obtained from the new orbit (5.7 ± 1.5 mas) yields values of masses, M_A = 1.35 ± 0.13 M_⊙ and M_B = 1.33 ± 0.13 M_⊙, that agree with those assigned to F6V spectral types in Gray (2005).

The rms uncertainty in position angle and separation, rms(θ, ρ) = (5°363, 0″0262), are relatively small considering the limited amount of measurements available for the determination of the orbital elements. The orbit should be considered to be preliminary until it is possible to obtain measurements when the separations between the components will be smaller in the near future.

2.5 WDS 07427-3510 (HDS 1091)

In this report, we offer an alternative orbit with a considerably greater period, P = 275 yr, as compared to that presented by Tokovinin et al. (2019), P = 120.6 yr, as we can see in Fig. 5. The new orbital elements are quite different from the orbital elements of the previous solution but both yield rms uncertainties that are similar in θ, 0°414 versus 0°433, as well as in ρ, 0″0023 versus 0″0020. The dynamical parallaxes of both orbits are also similar, 5.89 mas for Tokovinin et al. (2019) versus 6.0 ± 1.1 mas, and in agreement with the vales provided by Gaia (4.86 ± 0.30 mas in the DR2 and 5.95 ± 0.31 mas in the EDR3). Future observations will permit more accurate determinations of the orbital elements.

Figure 5.

The apparent orbit of HDS 1091 orbit compared with the previous one.

Open in new tab Download slide

2.6 WDS 09110-1929 (I 824)

The system I824 presents a variability of the delta Scuti type (Smalley et al. 2011), with a parallax that is estimated by Gaia to be 3.33 ± 0.20. The first visual observations were obtained by R. T. A. Innes in the early 1900s (Aitken & Doolittle 1932). In total, there are ten micrometric observations including the last that was conducted by Heintz in 1985. The SOAR observation (t = 2018.2358, θ = 170°63, ρ = 0″0788) is the second speckle observation that was carried out approximately 30 yr after that by McAllister in 1989.

The weight of these two measurements allows us determine the first orbit for this system with a period of 940 yr and a periastron passage estimated for the end of this decade (see Table 1). The dynamical parallax (3.34 ± 0.60 mas) coincides with that given by Gaia DR2 (3.33 ± 0.20 mas), and it is close tothe value of the EDR3 (3.48 ± 0.29 mas). The obtained masses (M_A = 1.83 ± 0.16 M_⊙ and M_B = 1.79 ± 0.15 M_⊙) are slightly superior to that expected for type F0V stars.

The rms uncertainty in position angle and separation, 2°219 and 0″0369, are relatively small but we cannot consider it to be very relevant because of the small arc covered by the available observations. The good fit between the orbit and both the micrometric and speckle observations can be appreciated in Fig. 6. The imminent periastron passage should be taken advantage of in order to obtain new speckle registers that are fundamental for the tracking of this binary.

Figure 6.

I 824 first orbit.

Open in new tab Download slide

2.7 WDS 10093 + 2020 (A 2145)

The first orbit for this system was calculated by Baize (1957) and later orbits were determined by Starikova (1977b), Finsen (1977), Tokovinin (1987), Olevic & Cvetkovic (2004), and Mason & Hartkopf (2011). The first orbits gradually increased the value of the period from 60.0 yr (Baize 1957) to 71.1 yr Tokovinin (1987). Olevic & Cvetkovic (2004) calculated an orbit based on visual observations that was much slower with P = 119.25 ± 3.62 yr. The solution of Mason & Hartkopf (2011) and that presented in this report are based on the most recent high precision observations obtained using speckle interferometry, because of the programs of Calern, SAO, WIYN, and SOAR, and suggest an orbital period that is closer to that given by Tokovinin (1987).

The five new observations at SOAR during the past decade allow the refinement of the orbit of Mason & Hartkopf (2011). Using the new calculation, the period changes from 80.59 to 74.71 yr As a giant component exists within the system (G8III + A2V), the calculation of the dynamical parallax is not reliable and it has not been included in Tables 3 and 5. The new orbit improves the rms yielding a decrease in rms_θ from 8°873 to 4°775 and, in rms_ρ, from 0″0202 to 0″0156. The previous and the new orbits are shown in Fig. 7.

Figure 7.

A 2145 previous and new apparent orbits.

Open in new tab Download slide

2.8 WDS 10116 + 1321 (HU 874 AB)

The system HU 874 AB (34 Leo) has a parallax of 15.48 ± 0.72 mas as given by Hipparcos. The first visual observation took place in 1905 (W. J. Hussey) and the first speckle observation in 1980 (H. A. McAllister). Of the total of 73 measurements, the last four were obtained using the HRCam@SOAR. The first orbit for this system was calculated by Baize (1984) and was improved because of speckle observations by Hartkopf, Mason & McAlister (1996). Measurements obtained since then allow us to determine a new orbit with a period of 17.962 yr and a periastron passage estimated for 2022.828. The dynamical parallax, 11.75 ± 0.23 mas, is lower than that provided by Hipparcos (15.48 ± 0.42 mas).

We should consider that the total mass of the system calculated with the Hipparcos parallax, M_T = 1.338 M_⊙, seems to be too small for this system. Meanwhile, the total mass obtained with the new dynamical parallax, M_T = 3.063 M_⊙, breaks down to M_A = 1.682 ± 0.042 M_⊙ and M_B = 1.381 ± 0.032 M_⊙, both superior to those expected for the type F4V + G0V stars. These spectral types result from applying the previously mentioned spectral decomposition method to the spectral type of the system (F6V) and the difference of magnitude provided by SOAR (∼1.5).

The rms uncertainty in position angle and separation (2°871 and 0″0211, respectively) are smaller than those obtained from the previous orbit calculated by Hartkopf et al. (1996) that shows rms_θ = 8°240 and rms_ρ = 0″0474 (see Fig. 8). The eccentricity of the new orbit (0.93) and also the fact that the periastron passage takes place next year are notable features. For that reason, this binary should be a preferred object of observation.

Figure 8.

New HU 874 orbit compared with previous one.

Open in new tab Download slide

2.9 WDS 10217-0946 (BU 25)

The binary BU 25 has a very long period orbit with an Hipparcos parallax of 16.68 ± 1.18 mas and a Gaia parallax of 16.25 ± 0.10 mas for the DR2, and 15.01 ± 0.08 for the EDR3. The first visual observation was carried out by G. M. Searle in 1867 and the first speckle observation was obtained with the Washington Speckle Interferometer in 1991 (Douglass, Hindsley & Worley 1997). In total, we have 93 available observations of which the last four were conducted using the HRCam@SOAR (see Fig. 9).

Figure 9.

BU 25 previous and new apparent orbits.

Open in new tab Download slide

Due to its slow orbital movement, the first orbit was not calculated until the last decade (Zirm & Rica 2012). In 2019, Izmailov (Izmailov 2019) obtained another solution, and recently, after the calculation of our orbit, an article considering the system as a triple star has been published (Tokovinin & Latham 2020). In this last contribution, the authors present the A component as a SB1, with a orbital period of 8.39 yr and a mass ratio, q = 0.25. Moreover, the postulated masses of the components are: Aa = 1.07 M_⊙, Ab = 0.27 M_⊙, and B = 0.96 M_⊙, which imply, as noted by Tokovinin and Latham, a small but detectable wobble motion in the system. The existence of this spectroscopic subcomponent prevents us from calculating the dynamical parallax of the system, because the ANAPAR algorithm is not calibrated for triple stars.

The corresponding spectral types will be, probably, G3 and M4-5 for the components of the inner binary, and G7 for the B component. Nevertheless, the outer orbit is not currently well defined and the three orbits of Zirm & Rica (circular), Tokovinin & Latham (with small inclination and moderate eccentricity), and that presented herein (with the longest period) remain among the possibilities; they not only yield similar rms uncertainties in theta and rho, but also, when using the Gaia parallax, similar inferred total masses.

2.10 WDS 11585-2350 (RST 3767 AB)

The new orbit presented here has a long period, i.e. P = 740 yr, and supersedes the orbit (P = 122.03 yr) proposed by Josties & Mason (2019).

In addition to improving the rms uncertainty in θ and in ρ, we point out that the dynamical parallax of the new orbit, 9.37 ± 0.66 mas, permits the calculation of a total mass of 1.692 M_⊙, with M_A = 0.864 ± 0.031 M_⊙ and M_B = 0.828 ± 0.030 M_⊙, which approximates that expected for a system that we have resolved as K0V + K1V. The previous orbit does not yield a total mass that is compatible with the component spectral types. Although this system does not have a trigonometric parallax assigned in SIMBAD, the Gaia EDR3 lists two objects located at less than 1 arcsec of the coordinates of the system provided by Simbad, with parallaxes of 9.06 ± 0.67 and 8.72 ± 0.71 mas, which are within 1σ of the calculated dynamical parallax. Their proper motions and the G magnitude also appear to be consistent with the values expected for this binary therefore they are likely to be the components of this system.

As can be seen in Fig. 10, the new orbit fits better with the new high precision speckle measurements obtained by SOAR: (t, θ, ρ) = (2016.9603, 272°80, 0″5611) and (t, θ, ρ) = (2018.2536, 273°60, 0″5675).

Figure 10.

RST 3767 AB orbit using the new speckle measurement.

Open in new tab Download slide

2.11 WDS 12111-5302 (HU 1604)

Although still preliminary, we present the first orbit of this binary using 13 observations performed between 1914 and 2019 of which only the last one measured at SOAR was obtained by speckle interferometry. The resulting solution yields an orbital period of 205 yr.

The corresponding dynamical parallax, 7.75 ± 0.62 mas, is close to the Gaia parallax value of 7.86 ± 0.80 mas and both are considerably lower than the value given by Hipparcos of 9.66 ± 1.78 mas.

The Simbad data base indicates a G0 spectral type which we have resolved as F9V + G1V. Nevertheless, the calculated masses of M_A = 1.045 ± 0.042 M_⊙ and M_B = 0.978 ± 0.039 M_⊙ appear to be slightly inferior to those expected for the spectral types. On the other hand, the rms of the orbital residuals, 3°965 in θ and 0″0397 in ρ, are not too large if we keep in mind that there are two micrometric measurements with high O–C differences as shown in Fig. 11.

Figure 11.

First HU 1604 orbit.

Open in new tab Download slide

2.12 WDS 13117-2633 (FIN 305)

Previous orbits of this system were calculated by Finsen (1968) and later by Docobo & Andrade (2012, 2013) and Tokovinin (2018c). The short period of the new orbit (Fig. 12a), 20.074 yr, is similar to that of the previous orbit, 19.97 yr, nevertheless, the rms uncertainty in θ was improved. In addition, we were able to determine a solution with the long period of 40.70 yr by taking advantage of the small difference in magnitude between the components and flipping some position angles. The rms of the residuals for this solution indicates that this orbit is also feasible, especially for the values obtained for the masses. The values of the dynamical parallax (23.17 ± 0.56 mas for the short period orbit, and 12.89 ± 0.87 for the long period solution) differ from that given by Hipparcos (7.08 ± 0.72), and the mass sum calculated from this last is unrealistic in both cases, although the masses obtained from the dynamical parallax seem to favour the 40.70 yr solution.

Figure 12.

FIN 305 short and long orbits.

Open in new tab Download slide

In the different tables, we have written FIN 305^a for the short period orbit and FIN 305^b for the other. See Figs 12(a) and (b).

2.13 WDS 13305 + 0729 (A 1789)

The first visual observations of this binary were carried out between 1908 and 1926 by R. G. Aitken. Today there are a total of 29 measurements, five obtained via speckle interferometry, and the last one was measured at SOAR in 2018.2361 (see Fig. 13). Heintz (1998) was the author of the previous orbit. The new solution increases the period from 138 to 143.44 yr and clearly improves the rms uncertainty in θ (see Table 4). In spite of that, the obtained masses of M_A = 1.581 ± 0.040 M_⊙ and M_B = 1.503 (0.036) M_⊙ are inferior to those expected for A5V + A6V. However, the dynamical parallax deduced from the new orbit, 4.79 ± 0.07 mas, is in accord with that of Hipparcos, 4.83 ± 0.85 mas.

Figure 13.

The new A 1789 orbit compared with previous orbit.

Open in new tab Download slide

2.14 WDS 14592-4206 (HDS 2116 Aa,Ab)

This binary was not resolved until images contributed by the Hipparcos astrometric satellite were reduced (ESA 1997). Previously, this system was only known to contain the AB pair with an angular separation of almost 4 arcsec. It therefore must be a triple system. For the preliminary orbit calculation, we used nine observations of which six were recently carried out by A. Tokovinin. The solution yielded an orbit with a period of of 58.52 yr and an inclination of almost 90° (see Fig. 14).

Figure 14.

HDS 2116 Aa,Ab orbit with a high inclination.

Open in new tab Download slide

Figure 15.

BU 350 first orbit.

Open in new tab Download slide

Figure 16.

A 1126 first orbit.

Open in new tab Download slide

There is some discrepancy in the literature about the luminosity class corresponding to the combined spectrum of the system. The system has been classified not only as a main-sequence star (Gascoigne 1950; Pagel 1956; Eggen 1961; Buscombe 1962), but also as a subgiant (Hiltner, Garrison & Schild 1969; Houk 1978), or even as a giant (de Vaucouleurs 1957). We considered it as V class (adopting a B2V + B3V decomposition) because on this way a more realistic position of the components on the HR diagram is achieved. Nevertheless, it is necessary to take into account that this star was classified as a slowly pulsating B-type star (Rainer et al. 2016).

The dynamical parallax of 8.14 (0.33) mas is very similar to that of Hipparcos, 8.51 ± 0.54 mas, and both are slightly higher than the Gaia value of 7.46 ± 0.70 mas. With ANAPAR, the following masses were deduced: M_Aa = 8.38 ± 0.27 M_⊙ and M_Ab = 4.41 ± 0.36 M_⊙.

2.15 WDS 15157-2736 (BU 350)

We are dealing with a preliminary orbit of a binary with a very long period and high eccentricity. The periastron passage has just occurred and speckle observations are very important at such a time and during the next years in order to define the orbit. It was precisely a SOAR measurement of 2018.1814 that allowed us to obtain this first orbital solution.

The main component is a subgiant and there exists a certain disparity in the values of the parallax. The calculated orbit presents minimal rms, and the dynamical parallax of 8.26 ± 0.71 mas is slightly larger to that of Hipparcos of 8.19 ± 0.88 mas. On the other hand, the total mass obtained using the parallax of 3.07 ± 0.81 mas given by Gaia seems too high considering that, by using the dynamical parallax, we deduced values that are more in accord with F0IV + F6V, M_A = 1.98 ± 0.11 M_⊙ and M_B = 1.39 ± 0.01 M_⊙.

2.16 WDS 15493 + 0503 (A 1126)

The SOAR speckle observations between 2017 and 2019 after the periastron passage led to a good definition of the arc around this position. They also offer the possibility to calculate a first orbit with certain guarantees for this system with giant components, K0III + K0III. From now on, the angular separation will increase which will favour its tracking and, therefore, the refinement of its orbit.

Presently, the total mass deduced with the Gaia DR2 parallax of 2.62 ± 0.06 mas is 5.0 M_⊙. This value is much larger than expected for its spectral types and luminosities. The value of the parallax has been updated in the EDR3 to 2.60 ± 0.04 mas, which yields a mass of 5.2 M_⊙.

2.17 WDS 16402-2800 (VOU 44 AB)

This is a good example that demonstrates the versatility of the analytic method of orbit calculation of Docobo (1985, 2012). Only with the observations localized in three concrete zones, as shown in Fig. 17, it has been possible to determine a preliminary solution. In this case, we calculated the family of orbits that pass through three points and selected the one that shows a dynamical parallax of 6.45 ± 0.65 mas, which is the closest to the parallax of 6.00 ± 0.43 mas given by Gaia DR2. In the EDR3 the parallax has been changed to 8.89 ± 0.29, although it is advisable to wait until the full DR3, when the multiplicity of the systems will be considered for the solution.

Figure 17.

VOU 44 first apparent orbit.

Open in new tab Download slide

Figure 18.

A 1141 previous and new apparent orbits.

Open in new tab Download slide

Figure 19.

HDS 2570 first orbit.

Open in new tab Download slide

2.18 WDS 16458-0046 (A1141)

Various orbits of this pair have been previously calculated with differences among them, particularly regarding the period. Baize (1976) and Starikova (1981) obtained periods of 62.07 and 64.92 yr. Heintz (1982) flipped the position angle of some measurements by 180° and obtained an orbital period of 30.8 yr, approximately half of each of the two previous values.

Using the solution of Heintz (1982), the dynamical parallax is deduced to be 8.51 mas, which is close to the Gaia parallax of 8.47 (0.48) mas and the masses obtained, M_A = 1.25 M_⊙, M_B = 1.22 M_⊙, are in accord with the F7V + F8V spectral types. However, it is possible to obtain a better fit of the orbit to the latest speckle observations, mainly in θ. We have obtained a new orbit that improves the rms uncertainty in θ and maintains the rms uncertainty in ρ. The period of the newly calculated orbit is 62.39 yr. Masses of the components are deduced to be in the G0-G2 spectral type range: M_A = 1.138 ± 0.025 M_⊙ and M_B = 1.116 ± 0.024 M_⊙. The dynamical parallax of this new orbit (10.49 ± 0.14 mas) is less in agreement with the value provided by Gaia in the DR2, but it is closer to the solution given by Hipparcos (9.35 ± 1.13 mas). The value has been revised for the Gaia EDR3 to 11.65 ± 0.70 mas.

2.19 WDS 18126 + 1224 (HDS 2570)

Four observations have been obtained at SOAR since 2015 that cover the zone of minimum angular separation. Those measurements, along with one given by Hipparcos, have allowed us to determine the first orbit of this system. The combined spectral type, along with the absolute magnitude estimated from the trigonometric parallax, suggest the possibility of a giant component within the system. Using the magnitude difference, we adopt a decomposition of F0III + A6V.

A sixth measurement by the Washington Speckle Interferometer in 2002.6260 exists but, according to the authors, it is not certain. Therefore, it was not included in the calculation.

Using the Hipparcos parallax of 4.42 ± 0.95 mas, a total mass of 6.38 M_⊙ was obtained, dropping to 5.24 M_⊙ if the value of the Gaia DR2 parallax, 4.71 ± 0.16 mas, is used, and to 3.78 M_⊙ with the solution of the Gaia EDR3, 5.25 ± 0.14 mas. The last value of the mass may be compatible with proposed spectral types. As this system may contain a giant component, we have not obtained its dynamical parallax so it is not present in Table 3 nor in Table 5.

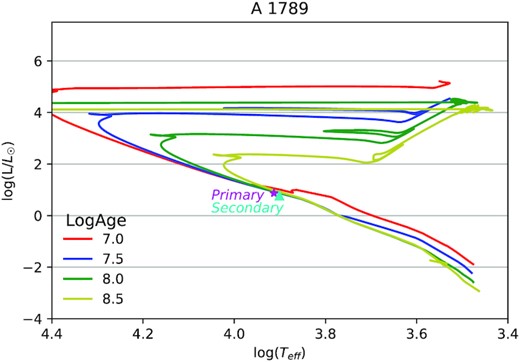

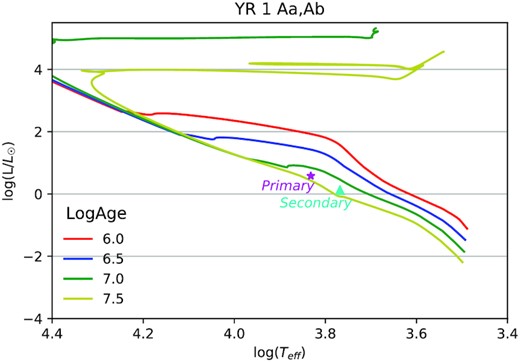

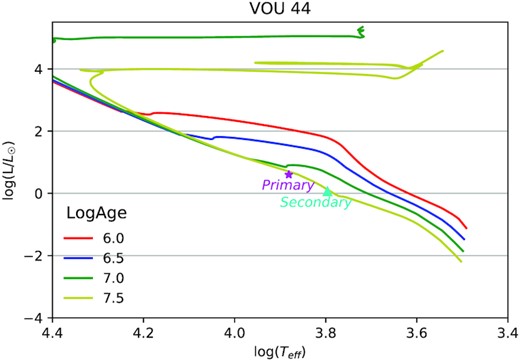

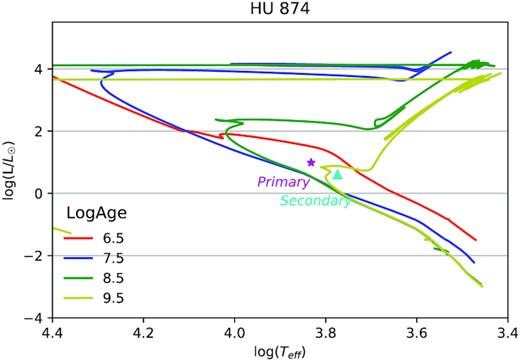

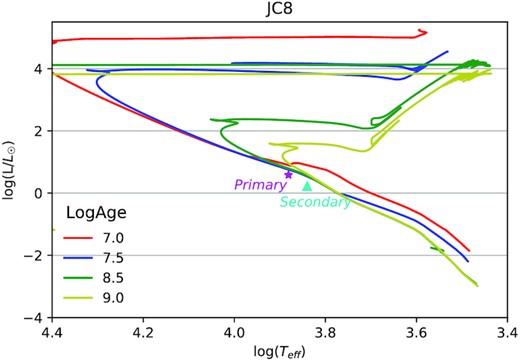

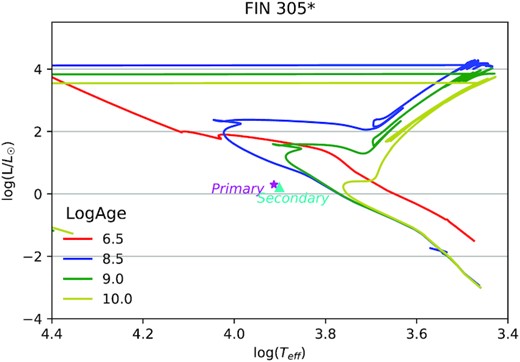

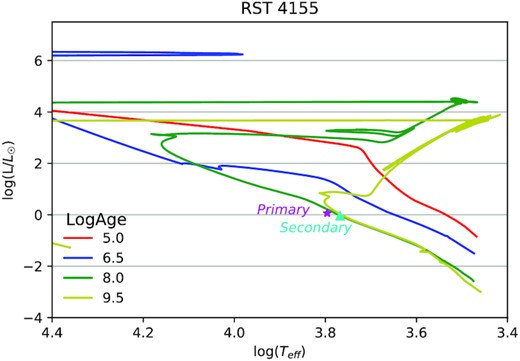

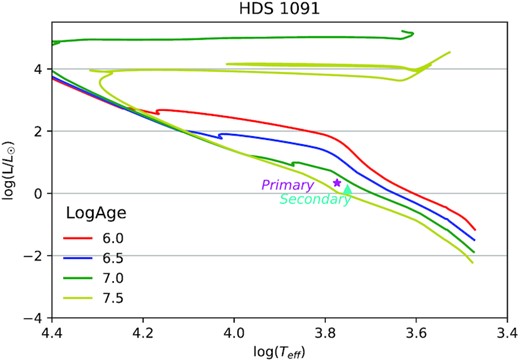

3 LUMINOSITIES AND AGES

The absolute magnitudes of the components were previously obtained, using the dynamical parallaxes, to calculate the luminosities with the expression (Torres 2010):

$$\begin{eqnarray*} \mathrm{ log}\frac{L}{L_{\odot }} = -0.4(M_{V}-V_{\odot }-31.572+(BC_{V}-BC_{\odot })) . \end{eqnarray*}$$

(2)

As ususal, the symbols, L and M_V, represent the luminosity and the absolute V magnitude of the star, L_⊙ and V_⊙ are the luminosity and the apparent visual magnitude of the Sun, and BC_V and BC_⊙ are the bolometric corrections of the star and the Sun in the V band, respectively. We adopted the value of V_⊙ from Torres (2010) and the bolometric corrections from Straizys & Kuriliene (1981). Table 6 shows the name of the star in the first column. The absolute magnitudes of the components appear in the second and third columns and the luminosities are shown in the fourth and fifth columns.

Table 6.

Open in new tab

Absolute magnitudes and luminosities obtained from the dynamical parallax.

Star	M_VA	M_VB	L_A (L_⊙)	L_B (L_⊙)
YR 1 Aa,Ab	3.29	4.50	3.81 ± 0.38	1.32 ± 0.13
RST 4155	4.66	4.93	1.15 ± 0.17	0.91 ± 0.13
JC 8	3.28	4.22	3.84 ± 0.18	1.67 ± 0.08
FIN 105	3.33	3.40	3.69 ± 4.47	3.47 ± 4.21
HDS 1091	3.93	4.48	2.16 ± 1.82	1.34 ± 1.13
I 824	1.92	2.02	13.22 ± 10.93	12.04 ± 9.96
HU 874 AB	2.25	3.22	9.74 ± 0.88	4.05 ± 0.37
RST 3767 AB	5.71	5.94	0.47 ± 0.15	0.39 ± 0.13
HU 1604	4.64	4.99	1.17 ± 0.43	0.86 ± 0.32
FIN 305^a	4.02	4.25	1.99 ± 0.22	1.62 ± 0.18
FIN 305^b	2.75	2.98	6.14 ± 0.59	4.99 ± 0.48
A 1789	2.54	2.79	7.44 ± 5.23	5.92 ± 4.15
HDS 2116 Aa,Ab	−2.11	−0.74	3561.23 ± 664.87	491.06 ± 91.68
BU 350	1.64	3.16	17.31 ± 6.85	4.25 ± 1.68
VOU 44 AB	3.23	4.65	4.00 ± 1.83	1.15 ± 0.53
A 1141	4.20	4.30	1.70 ± 0.10	1.56 ± 0.10

Star	M_VA	M_VB	L_A (L_⊙)	L_B (L_⊙)
YR 1 Aa,Ab	3.29	4.50	3.81 ± 0.38	1.32 ± 0.13
RST 4155	4.66	4.93	1.15 ± 0.17	0.91 ± 0.13
JC 8	3.28	4.22	3.84 ± 0.18	1.67 ± 0.08
FIN 105	3.33	3.40	3.69 ± 4.47	3.47 ± 4.21
HDS 1091	3.93	4.48	2.16 ± 1.82	1.34 ± 1.13
I 824	1.92	2.02	13.22 ± 10.93	12.04 ± 9.96
HU 874 AB	2.25	3.22	9.74 ± 0.88	4.05 ± 0.37
RST 3767 AB	5.71	5.94	0.47 ± 0.15	0.39 ± 0.13
HU 1604	4.64	4.99	1.17 ± 0.43	0.86 ± 0.32
FIN 305^a	4.02	4.25	1.99 ± 0.22	1.62 ± 0.18
FIN 305^b	2.75	2.98	6.14 ± 0.59	4.99 ± 0.48
A 1789	2.54	2.79	7.44 ± 5.23	5.92 ± 4.15
HDS 2116 Aa,Ab	−2.11	−0.74	3561.23 ± 664.87	491.06 ± 91.68
BU 350	1.64	3.16	17.31 ± 6.85	4.25 ± 1.68
VOU 44 AB	3.23	4.65	4.00 ± 1.83	1.15 ± 0.53
A 1141	4.20	4.30	1.70 ± 0.10	1.56 ± 0.10

Note.^aShort orbital solution for FIN 305.

^bLong orbital solution for FIN 305.

Table 6.

Open in new tab

Absolute magnitudes and luminosities obtained from the dynamical parallax.

Star	M_VA	M_VB	L_A (L_⊙)	L_B (L_⊙)
YR 1 Aa,Ab	3.29	4.50	3.81 ± 0.38	1.32 ± 0.13
RST 4155	4.66	4.93	1.15 ± 0.17	0.91 ± 0.13
JC 8	3.28	4.22	3.84 ± 0.18	1.67 ± 0.08
FIN 105	3.33	3.40	3.69 ± 4.47	3.47 ± 4.21
HDS 1091	3.93	4.48	2.16 ± 1.82	1.34 ± 1.13
I 824	1.92	2.02	13.22 ± 10.93	12.04 ± 9.96
HU 874 AB	2.25	3.22	9.74 ± 0.88	4.05 ± 0.37
RST 3767 AB	5.71	5.94	0.47 ± 0.15	0.39 ± 0.13
HU 1604	4.64	4.99	1.17 ± 0.43	0.86 ± 0.32
FIN 305^a	4.02	4.25	1.99 ± 0.22	1.62 ± 0.18
FIN 305^b	2.75	2.98	6.14 ± 0.59	4.99 ± 0.48
A 1789	2.54	2.79	7.44 ± 5.23	5.92 ± 4.15
HDS 2116 Aa,Ab	−2.11	−0.74	3561.23 ± 664.87	491.06 ± 91.68
BU 350	1.64	3.16	17.31 ± 6.85	4.25 ± 1.68
VOU 44 AB	3.23	4.65	4.00 ± 1.83	1.15 ± 0.53
A 1141	4.20	4.30	1.70 ± 0.10	1.56 ± 0.10

Star	M_VA	M_VB	L_A (L_⊙)	L_B (L_⊙)
YR 1 Aa,Ab	3.29	4.50	3.81 ± 0.38	1.32 ± 0.13
RST 4155	4.66	4.93	1.15 ± 0.17	0.91 ± 0.13
JC 8	3.28	4.22	3.84 ± 0.18	1.67 ± 0.08
FIN 105	3.33	3.40	3.69 ± 4.47	3.47 ± 4.21
HDS 1091	3.93	4.48	2.16 ± 1.82	1.34 ± 1.13
I 824	1.92	2.02	13.22 ± 10.93	12.04 ± 9.96
HU 874 AB	2.25	3.22	9.74 ± 0.88	4.05 ± 0.37
RST 3767 AB	5.71	5.94	0.47 ± 0.15	0.39 ± 0.13
HU 1604	4.64	4.99	1.17 ± 0.43	0.86 ± 0.32
FIN 305^a	4.02	4.25	1.99 ± 0.22	1.62 ± 0.18
FIN 305^b	2.75	2.98	6.14 ± 0.59	4.99 ± 0.48
A 1789	2.54	2.79	7.44 ± 5.23	5.92 ± 4.15
HDS 2116 Aa,Ab	−2.11	−0.74	3561.23 ± 664.87	491.06 ± 91.68
BU 350	1.64	3.16	17.31 ± 6.85	4.25 ± 1.68
VOU 44 AB	3.23	4.65	4.00 ± 1.83	1.15 ± 0.53
A 1141	4.20	4.30	1.70 ± 0.10	1.56 ± 0.10

Note.^aShort orbital solution for FIN 305.

^bLong orbital solution for FIN 305.

This methodology was not applied for A 2145, A 1126, and HDS 2570 because ANAPAR is not calibrated for Class III (giants), and for BU 25 due to the presence of an spectroscopic subcomponent therefore those systems do not appear in Table 6 or 7.

Table 7.

Open in new tab

Temperature and metallicity.

WDS	Name	Metalicity	Catalogue	log(T_eff)	v/v_crit
Hipparcos			(yr)
00277-1625	YR 1 Aa,Ab	−0.19	Gaspar +	3.832	0
			(2016)	3.768
00462-2214	RST 4155	0.01	Ammons +	3.796	0
			(2006)	3.768
03124-4425	JC 8	−0.06	Netopil +	3.881	0
			(2017)	3.840
07303-5657	FIN 105	−0.04	Ammons +	3.815	0
			(2006)	3.815
07427-3510	HDS 1091	0.02	Ammons +	3.774	0
37578			(2006)	3.751
09110-1929	I 824	0.29	Ammons +	3.864	0.4
			(2006)	3.864
10116 + 1321	HU 874 AB	0.04	Gaspar +	3.832	0
49929			(2016)	3.774
11585-2350	RST 3767 AB	0.0	Ammons +	3.712	0
			(2006)	3.698
12111-5302	HU 1604	−0.17	Ammons +	3.796	0
59395			(2006)	3.779
13117-2633	FIN 305^a	0		3.913	0
64375				3.901
13117-2633	FIN 305^b	0		3.913	0
64375				3.901
13305 + 0729	A 1789	0		3.913	0
65897				3.901
14592-4206	HDS 2116 Aa,Ab	0.01	Gontcharov +	4.320	0.4
73334			(2016)	4.274
15157-2736	BU 350	−0.15	Ammons +	3.875	0.4
74675			(2006)	3.815
16402-2800	VOU 44 AB	−0.23	Ammons +	3.881	0
			(2006)	3.796
16458-0046	A1141	−0.23	Ammons +	3.815	0
82062			(2006)	3.796

WDS	Name	Metalicity	Catalogue	log(T_eff)	v/v_crit
Hipparcos			(yr)
00277-1625	YR 1 Aa,Ab	−0.19	Gaspar +	3.832	0
			(2016)	3.768
00462-2214	RST 4155	0.01	Ammons +	3.796	0
			(2006)	3.768
03124-4425	JC 8	−0.06	Netopil +	3.881	0
			(2017)	3.840
07303-5657	FIN 105	−0.04	Ammons +	3.815	0
			(2006)	3.815
07427-3510	HDS 1091	0.02	Ammons +	3.774	0
37578			(2006)	3.751
09110-1929	I 824	0.29	Ammons +	3.864	0.4
			(2006)	3.864
10116 + 1321	HU 874 AB	0.04	Gaspar +	3.832	0
49929			(2016)	3.774
11585-2350	RST 3767 AB	0.0	Ammons +	3.712	0
			(2006)	3.698
12111-5302	HU 1604	−0.17	Ammons +	3.796	0
59395			(2006)	3.779
13117-2633	FIN 305^a	0		3.913	0
64375				3.901
13117-2633	FIN 305^b	0		3.913	0
64375				3.901
13305 + 0729	A 1789	0		3.913	0
65897				3.901
14592-4206	HDS 2116 Aa,Ab	0.01	Gontcharov +	4.320	0.4
73334			(2016)	4.274
15157-2736	BU 350	−0.15	Ammons +	3.875	0.4
74675			(2006)	3.815
16402-2800	VOU 44 AB	−0.23	Ammons +	3.881	0
			(2006)	3.796
16458-0046	A1141	−0.23	Ammons +	3.815	0
82062			(2006)	3.796

Note.^aShort orbital solution for FIN 305 are marked with an asterisk, or double asterisk, respectively.

^bLong orbital solution for FIN 305.

Table 7.

Open in new tab

Temperature and metallicity.

WDS	Name	Metalicity	Catalogue	log(T_eff)	v/v_crit
Hipparcos			(yr)
00277-1625	YR 1 Aa,Ab	−0.19	Gaspar +	3.832	0
			(2016)	3.768
00462-2214	RST 4155	0.01	Ammons +	3.796	0
			(2006)	3.768
03124-4425	JC 8	−0.06	Netopil +	3.881	0
			(2017)	3.840
07303-5657	FIN 105	−0.04	Ammons +	3.815	0
			(2006)	3.815
07427-3510	HDS 1091	0.02	Ammons +	3.774	0
37578			(2006)	3.751
09110-1929	I 824	0.29	Ammons +	3.864	0.4
			(2006)	3.864
10116 + 1321	HU 874 AB	0.04	Gaspar +	3.832	0
49929			(2016)	3.774
11585-2350	RST 3767 AB	0.0	Ammons +	3.712	0
			(2006)	3.698
12111-5302	HU 1604	−0.17	Ammons +	3.796	0
59395			(2006)	3.779
13117-2633	FIN 305^a	0		3.913	0
64375				3.901
13117-2633	FIN 305^b	0		3.913	0
64375				3.901
13305 + 0729	A 1789	0		3.913	0
65897				3.901
14592-4206	HDS 2116 Aa,Ab	0.01	Gontcharov +	4.320	0.4
73334			(2016)	4.274
15157-2736	BU 350	−0.15	Ammons +	3.875	0.4
74675			(2006)	3.815
16402-2800	VOU 44 AB	−0.23	Ammons +	3.881	0
			(2006)	3.796
16458-0046	A1141	−0.23	Ammons +	3.815	0
82062			(2006)	3.796

WDS	Name	Metalicity	Catalogue	log(T_eff)	v/v_crit
Hipparcos			(yr)
00277-1625	YR 1 Aa,Ab	−0.19	Gaspar +	3.832	0
			(2016)	3.768
00462-2214	RST 4155	0.01	Ammons +	3.796	0
			(2006)	3.768
03124-4425	JC 8	−0.06	Netopil +	3.881	0
			(2017)	3.840
07303-5657	FIN 105	−0.04	Ammons +	3.815	0
			(2006)	3.815
07427-3510	HDS 1091	0.02	Ammons +	3.774	0
37578			(2006)	3.751
09110-1929	I 824	0.29	Ammons +	3.864	0.4
			(2006)	3.864
10116 + 1321	HU 874 AB	0.04	Gaspar +	3.832	0
49929			(2016)	3.774
11585-2350	RST 3767 AB	0.0	Ammons +	3.712	0
			(2006)	3.698
12111-5302	HU 1604	−0.17	Ammons +	3.796	0
59395			(2006)	3.779
13117-2633	FIN 305^a	0		3.913	0
64375				3.901
13117-2633	FIN 305^b	0		3.913	0
64375				3.901
13305 + 0729	A 1789	0		3.913	0
65897				3.901
14592-4206	HDS 2116 Aa,Ab	0.01	Gontcharov +	4.320	0.4
73334			(2016)	4.274
15157-2736	BU 350	−0.15	Ammons +	3.875	0.4
74675			(2006)	3.815
16402-2800	VOU 44 AB	−0.23	Ammons +	3.881	0
			(2006)	3.796
16458-0046	A1141	−0.23	Ammons +	3.815	0
82062			(2006)	3.796

Note.^aShort orbital solution for FIN 305 are marked with an asterisk, or double asterisk, respectively.

^bLong orbital solution for FIN 305.

To obtain information associated with system ages, we used their metallicity values from Ammons et al. (2006), Gontcharov (2012), Gaspar et al. (2016), and Netopil (2017). We applied the relations between the spectral type and effective temperature given by de Jager & Nieuwenhuijzen (1987). The values utilized to calculate the isochrones can be seen in Table 7. The isochrones were provided by MIST (Paxton et al. 2011, 2013, 2015; Choi et al. 2016; Dotter 2016). MIST uses the value of v/v_crit to model the rotation of the star, where v represents the surface linear velocity of the star and v_crit is a critical value which indicates a significant mass-loss due to the rotation. For low-mass stars, the model does not consider rotation (v/v_crit = 0). We set v/v_crit = 0.4 for I 824, HDS2116 Aa,Ab, and BU 350, and v/v_crit = 0 for all the remaining systems. We plotted the components of the systems in HR diagrams (see Figs 20–35), also showing the isochrones of the most probable ages of the system. In the case of FIN 305, we found that the luminosities derived from the dynamical parallax of the long orbit are more accurate than those obtained from the short orbit as they fit better with the temperatures associated to the spectral decomposition (see Figs 29–30).

Figure 20.

YR 1 HR diagram.

Open in new tab Download slide

Figure 21.

RST 4155 HR diagram.

Open in new tab Download slide

Figure 22.

JC 8 HR diagram.

Open in new tab Download slide

Fig. 32 shows that the luminosity value of the secondary component of HDS 2116 Aa,Ab should be higher. The pulsating nature of at least one of the components of the system could be a possible explanation of this discrepancy.

The data do not support a definitive value for some system ages. However, we can see that the calculated luminosities are consistent with system coevolution indicating that both components have the same origin.

Except for HDS 2116 Aa,Ab, the new orbits calculated show a good fit between the luminosities and the spectra assigned to each component according to the decomposition algorithm employed (see Figs 23, 25, 28, 33, and 34).

Figure 23.

FIN 105 HR diagram.

Open in new tab Download slide

Figure 24.

HDS 1091 HR diagram.

Open in new tab Download slide

Figure 25.

I 824 HR diagram.

Open in new tab Download slide

Figure 26.

HU 874 HR diagram.

Open in new tab Download slide

Figure 27.

RST 3767 AB HR diagram.

Open in new tab Download slide

Figure 28.

HU 1604 HR diagram.

Open in new tab Download slide

Figure 29.

FIN 305* HR diagram.

Open in new tab Download slide

Figure 30.

FIN 305** HR diagram.

Open in new tab Download slide

Figure 31.

A 1789 HR diagram.

Open in new tab Download slide

Figure 32.

HDS 2116 Aa,Ab HR diagram.

Open in new tab Download slide

Figure 33.

BU 350 HR diagram.

Open in new tab Download slide

Figure 34.

VOU 44 HR diagram.

Open in new tab Download slide

Figure 35.

A 1141 HR diagram.

Open in new tab Download slide

4 CONCLUSIONS

This is the third paper on binaries produced by the collaboration between the Universidad de Chile and the Ramon María Aller Astronomical Observatory that began in 2015. Using SOAR speckle measurements collected between 2018 and 2020, we were able to calculate for the first time the orbits of 8 systems and to improve the orbits of 11 more. In one case, FIN 305, we presented two solutions that fit with the observational data available. We also calculated precise dynamical parallaxes for 15 of the systems using the new methodology ANAPAR. Those dynamical parallaxes allowed us to determine the masses and the absolute luminosities for the components of those 15 systems. We used this information together with public data regarding metallicities and effective temperatures to plot their position in the HR diagram against the most suitable isochrones produced by MIST. All of those plots show similar ages for the components and are coherent with a coevolution and common origin context. In the case of HDS 2116 Aa,Ab, the plot shows discrepancies between the luminosities calculated and the effective temperatures expected according to the spectra assigned to each component. Those discrepancies suggest that the dynamical parallaxes must be improved.

The large list of speckle measurements performed by A. Tokovinin, and the quality of them, using the HRCam attached to the 4.1 m. SOAR telescope, confirms the suitability of this instrumentation + telescope in order to continue in the future with this class of observations in benefit of the knowledge of austral close binaries.

ACKNOWLEDGEMENTS

The authors thank Andrei Tokovinin for his collaboration with speckle runs carried out at SOAR in 2018, 2019, and 2020.

We must also express our deep gratitude to the operator and engineer teams of SOAR that were involved with the observation campaigns.

We are very grateful for the continuous support of the Chilean Telescope Allocation Committee: http://www.das.uchile.cl/das_cntac.html under programs CN2018A-1, CN2019A-2, CN2019B-13, and CN2020A-19 and 2020B-10.

This paper was supported by the ‘Xunta de Galicia’ (Spain), under the ED431B 2020/38 grant.

RAM and EC acknowledge support from ANID/FONDECYT grant 1190038.

This work used the SIMBAD service operated by the Centre des Données Stellaires (Strasbourg, France, Wenger et al. 2000); bibliographic references from the Astrophysics Data System maintained by SAO/NASA; the Site Informatique des étoiles Doubles de Nice (SIDONIe, Le Contel, Valtier & Bonneau 2001) compiled principally by Dr. Paul Couteau; the historical data base of micrometric measurements provided by the WDS (Mason et al. 2001) the Catalogue of Interferometric Measurements of Binary Stars (WDS INT4, Hartkopf et al. 2001b) and the Sixth Catalogue of Orbits of Visual Binary Stars (WDS ORB6, Hartkopf, Mason & Worley 2001a), all of them maintained at USNO.

This work has used data from the European Space Agency (ESA) mission Gaia (https://www.cosmos.esa.int/gaia), processed by the Gaia Data Processing and Analysis Consortium (DPAC, https://www.cosmos.esa.int/web/gaia/dpac/consortium). Funding for the DPAC has been provided by national institutions, in particular, the institutions participating in the Gaia Multilateral Agreement.

Based on observations obtained at the Southern Astrophysical Research (SOAR) telescope, which is a joint project of the Ministério da Ciência, Tecnologia, e Inovação (MCTI) da República Federativa do Brasil, the U.S. National Optical Astronomy Observatory (NOAO), the University of North Carolina at Chapel Hill (UNC), and Michigan State University (MSU).

DATA AVAILABILITY

The new measurements used for the calculation will be published in an upcoming article and can be accessed through the Arxiv repository (Tokovinin et al. 2021). The rest of the measurements and the stellar data were obtained from the catalogs and data bases mentioned in the acknowledgements.

REFERENCES

Aitken

R. G.

Doolittle

1932

New General Catalogue of Double Stars within 120° of the North Pole

Carnegie institution of Washington

Washington

Ammons

S. M.

Robinson

S. E.

Strader

Laughlin

Fischer

Wolf

2006

ApJ

638

1004

Month:	Total Views:
September 2021	18
October 2021	7
November 2021	8
December 2021	66
January 2022	33
February 2022	33
March 2022	38
April 2022	20
May 2022	18
June 2022	27
July 2022	22
August 2022	23
September 2022	36
October 2022	20
November 2022	14
December 2022	24
January 2023	7
February 2023	23
March 2023	14
April 2023	19
May 2023	10
June 2023	13
July 2023	12
August 2023	20
September 2023	5
October 2023	11
November 2023	18
December 2023	12
January 2024	23
February 2024	15
March 2024	20
April 2024	14
May 2024	19
June 2024	25
July 2024	37
August 2024	18
September 2024	14
October 2024	16
November 2024	9
December 2024	7

Article Contents

20 Orbits of binaries based on soar speckle observations Open Access

ABSTRACT

1 INTRODUCTION

2 RESULTS AND DISCUSSION

2.1 WDS 00277-1625 (YR 1 Aa,Ab)

2.2 WDS 00462-2214 (RST4155)

2.3 WDS 03124-4425 (JC 8)

2.4 WDS 07303-5657 (FIN 105)

2.5 WDS 07427-3510 (HDS 1091)

2.6 WDS 09110-1929 (I 824)

2.7 WDS 10093 + 2020 (A 2145)

2.8 WDS 10116 + 1321 (HU 874 AB)

2.9 WDS 10217-0946 (BU 25)

2.10 WDS 11585-2350 (RST 3767 AB)

2.11 WDS 12111-5302 (HU 1604)

2.12 WDS 13117-2633 (FIN 305)

2.13 WDS 13305 + 0729 (A 1789)

2.14 WDS 14592-4206 (HDS 2116 Aa,Ab)

2.15 WDS 15157-2736 (BU 350)

2.16 WDS 15493 + 0503 (A 1126)

2.17 WDS 16402-2800 (VOU 44 AB)

2.18 WDS 16458-0046 (A1141)

2.19 WDS 18126 + 1224 (HDS 2570)

3 LUMINOSITIES AND AGES

4 CONCLUSIONS

ACKNOWLEDGEMENTS

DATA AVAILABILITY

REFERENCES

Citations

Views

Altmetric

Email alerts

Astrophysics Data System

Citing articles via

Latest

Most Read

Most Cited

This Feature Is Available To Subscribers Only

20 Orbits of binaries based on soar speckle observations
