Properties of the multiphase outflows in local (ultra)luminous infrared galaxies

ABSTRACT

Galactic outflows are known to consist of several gas phases; however, the connection between these phases has been investigated little and only in a few objects. In this paper, we analyse Multi Unit Spectroscopic Explorer (MUSE)/Very Large Telescope (VLT) data of 26 local (U)LIRGs and study their ionized and neutral atomic phases. We also include objects from the literature to obtain a sample of 31 galaxies with spatially resolved multiphase outflow information. We find that the ionized phase of the outflows has on average an electron density three times higher than the disc (n_e,disc ∼ 145 cm⁻³ versus n_e,outflow ∼ 500 cm⁻³), suggesting that cloud compression in the outflow is more important than cloud dissipation. We find that the difference in extinction between outflow and disc correlates with the outflow gas mass. Together with the analysis of the outflow velocities, this suggests that at least some of the outflows are associated with the ejection of dusty clouds from the disc. This may support models where radiation pressure on dust contributes to driving galactic outflows. The presence of dust in outflows is relevant for potential formation of molecules inside them. We combine our data with millimetre data to investigate the molecular phase. We find that the molecular phase accounts for more than 60 |${{\ \rm per\ cent}}$| of the total mass outflow rate in most objects and this fraction is higher in active galactic nuclei (AGN)-dominated systems. The neutral atomic phase contributes of the order of 10 |${{\ \rm per\ cent}}$|⁠, while the ionized phase is negligible. The ionized-to-molecular mass outflow rate declines slightly with AGN luminosity, although with a large scatter.

ISM: evolution, galaxies: active, galaxies: evolution, galaxies: ISM

1 INTRODUCTION

Massive outflows of gas, driven either by active galactic nuclei (AGNs) or star formation, can inject energy and momentum into the interstellar medium (ISM) and thereby affect the evolution of galaxies. These feedback effects are potentially capable of suppressing or even shutting down star formation in galaxies (e.g. Fabian 2012; Zubovas & King 2012). AGN feedback can also explain the tight correlation between the mass of the central supermassive black hole (SMBH) and the velocity dispersion σ, the mass or luminosity of the host galaxy (e.g. Kormendy & Ho 2013; McConnell & Ma 2013). In simulations of galaxy evolution, AGN feedback is needed to reproduce the lack of massive star-forming galaxies in the local Universe (e.g. Davé, Oppenheimer & Finlator 2011; Vogelsberger et al. 2014; Beckmann et al. 2017), whereas feedback from supernovae and stellar winds is invoked to explain the shape of the stellar mass function at the low-stellar mass end (e.g. Puchwein & Springel 2013).

In recent years, galactic winds and outflows have been observed in several different gas phases, including in the hot highly ionized (using X-ray spectroscopy, Tombesi et al. 2013; Nardini et al. 2015) the warm ionized (e.g. Bellocchi et al. 2013; Cazzoli et al. 2018), the neutral atomic phase through absorption in the sodium doublet (e.g. Perna et al. 2017; Roberts-Borsani & Saintonge 2019), [C ii] emission (e.g Maiolino et al. 2012; Bischetti et al. 2019b) or in H i absorption (Morganti et al. 2016) and the molecular gas phase (e.g. Sturm et al. 2011; Cicone et al. 2014; Fluetsch et al. 2019). These measurements trace outflows at different spatial scales (from sub-pc in the X-ray up to 10–20 kpc in the cold molecular and ionized phases) and in different physical conditions (e.g. they are sensitive to different temperatures and densities). The aim of most of these works was to study the physical mechanisms that drive outflows and to quantify whether some of them can indeed quench star formation in galaxies as suggested by models of galaxy evolution (see e.g. Davé et al. 2011; Somerville, Popping & Trager 2015).

The vast majority of these studies, however, focus on one single outflow phase. Only a small number of works have studied several phases in a single galaxy and found that galactic outflows are multiphase and can be as complex as the normal ISM. For instance, in the Seyfert galaxy IC 5063, a remarkable kinematic similarity between the ionized, neutral atomic, and the molecular phase was found (Morganti et al. 2015; Oosterloo et al. 2017), suggesting a link between the different phases. Similarly, HE 1353−1917 (Husemann et al. 2019) and IRAS F08572+3915 (Herrera-Camus et al. 2020) also display co-spatiallity between the molecular and the ionized outflow phase. In other galaxies, such as Mrk 231 (Feruglio et al. 2015), the interplay between gas phases appears to be much more complex and there might have been several feedback episodes. In a sample of Seyfert I galaxies, it was found that the spatial correlation between neutral atomic outflows traced by the sodium doublet and the ionized outflow varies greatly from galaxy to galaxy, but overall, the different phases seem to be unrelated (Rupke, Gültekin & Veilleux 2017). In addition, some works also complemented such multiphase studies with measurements of the hot, highly ionized phased probed by X-ray observations (Veilleux et al. 2017; Sirressi et al. 2019; Bischetti et al. 2019a).

Despite these efforts to detect multiphase outflows, the connection (if there is any) between the different outflow phases and therefore the physical mechanism driving them remains mostly unknown (Cicone et al. 2018). One major open question is the relative contribution of different phases to the total mass or energy budget of the outflow. It is crucial to know the total outflow mass and energy as only this will enable a thorough comparison to simulations of AGN or star formation-driven feedback (e.g. Biernacki & Teyssier 2018; Nelson et al. 2019) and allow us to distinguish between different driving mechanisms (i.e. energy-driven, momentum-driven, or radiation-pressure driven) (see e.g. Fabian 2012; Costa, Sijacki & Haehnelt 2014).

Several observational studies have suggested that the molecular phase is dominant with a mass that is a factor of 10–100 larger than that in the ionized phase (Carniani et al. 2015; Fluetsch et al. 2019; Ramos Almeida et al. 2019), although the uncertainties in both phases are significant. Fiore et al. (2017) confirmed with disjoint samples that the molecular outflow mass rate is significantly higher than the ionized outflow mass rate, but suggested that at high AGN luminosity, the ionized phase becomes more prominent and almost comparable in outflow rate at luminosities above ∼10⁴⁷ erg s⁻¹. By only selecting objects with measurements of both gas phases instead of disjoint samples, Fluetsch et al. (2019) were unable to reproduce the increasing contribution of the ionized outflow phase at high AGN luminosities. However, most galaxies in Fluetsch et al. (2019) have AGN luminosities below 10⁴⁶ erg s⁻¹ and might therefore not properly test the regime discussed in Fiore et al. (2017).

In this work, we investigate multiphase outflows in a sample of 26 local (z < 0.2) (ultra)luminous infrared galaxies ((U)LIRGs). ULIRGs, formally defined as a class of galaxies with an infrared luminosity >10¹² L_⊙ (ULIRGs) (or >10¹¹ L_⊙ for LIRGs), are galaxies with a strong AGN, starburst activity or a combination of the two. Usually, (U)LIRGs are (advanced) mergers and have large amounts of gas and dust (Lonsdale, Farrah & Smith 2006; Kartaltepe et al. 2010). This makes them suitable laboratories to study feedback as they are likely to exhibit fast and massive outflows (see e.g. Rodríguez-Zaurín et al. 2013; Rose et al. 2017) and resemble massive active galaxies at higher redshift, where we expect feedback processes to be enhanced. Indeed, (U)LIRGs have shown the clearest examples of outflows in the ionized (e.g. Rupke & Veilleux 2013; Arribas et al. 2014), neutral atomic (e.g. Cazzoli et al. 2016), and molecular phase (e.g. Cicone et al. 2014; Pereira-Santaella et al. 2018; Fluetsch et al. 2019). These studies have found that outflow velocities in ULIRGs are high in all three phases, usually between several hundred to a few 1000 km s⁻¹ (Westmoquette et al. 2012; González-Alfonso et al. 2017; Perna et al. 2020a, b). The momentum fluxes (several L/c) and kinetic power especially in the molecular phase indicate that outflows in these objects could significantly affect their hosts (Cicone et al. 2014; González-Alfonso et al. 2017). Furthermore, we supplement our sample with multiphase outflows from the literature, increasing our total sample size to 31 galaxies with multiphase outflows. This makes our work the largest spatially resolved multiphase outflow study to date.

The goal of this study is twofold. First, we aim to characterize the multiphase outflows in our sample of local (U)LIRGs in terms of morphology, kinematics, and outflow properties (e.g. electron density). Secondly, we shed light on the connection between the different gas phases as well as their relative contribution, both on a spatially resolved basis and in terms of global properties such as mass outflow rate or kinetic power of the outflow.

Throughout this work, a H₀ = 70 km s⁻¹ Mpc⁻¹, Ω_M = 0.27, and Ω_Λ = 0.73 cosmology is adopted.

2 METHODS

2.1 Sample and observations

Our sample consists of 26 local (z < 0.2) (U)LIRGs. These galaxies host a strong AGN, significant star formation or a combination of the two. According to their BPT diagrams, 14 galaxies are star forming, 8 AGN-dominated (2 of which are type I AGN) and 4 are classified as composite. The objects span several order of magnitude in AGN luminosity, from ≲10⁴² to ∼10⁴⁶ erg s⁻¹. Out of the 26 galaxies, 2 galaxies (Mrk463 and IRAS 23389+0300) have a radio excess according to Drake et al. (2003), which is defined as log(S_ν(60 µm)/(S_ν(4.8 GHz)) < 1.8. Unfortunately, as discussed later on, both these galaxies only show evidence of ionized outflows, so they cannot be used for the multiphase analysis.

These galaxies were observed as part of several different ESO Multi Unit Spectroscopic Explorer (MUSE) observing programmes at the Very Large Telescope (VLT). 11 galaxies were observed under programme 101.B.0368 (PI: Maiolino). Four galaxies are from the programme 102.B.0617 (PI: Fluetsch). These two programmes targeted (U)LIRGs for which the presence of an outflow, either ionized or neutral atomic has been established by previous studies (Bellocchi et al. 2013; Arribas et al. 2014; Cazzoli et al. 2016). The remaining targets are taken from a variety of different programmes: three targets from 095.B-0049, two targets from each 094.B-0733 and 096.B-0230, and one target from each of the following observing programmes 60.A.9315, 097.B.0165, 097.B-0313, and 094.B-0733. These targets were selected among (U)LIRGs for which there is already a molecular outflow detected (Fluetsch et al. 2019) and by searching MUSE data in the ESO archive. Due to these heterogeneous selection criteria our sample is not necessarily representative of the whole (U)LIRG population. Therefore, it should not be used, for instance, to infer statistics about the occurence of outflows among the (U)LIRG population.

2.2 Data analysis

The MUSE data cubes are used in their reduced form after running the MUSE pipeline. This produces a data cube of about 300 × 300 spaxels with a spatial sampling of 0.2 × 0.2 arcsec². The wavelength coverage of MUSE cubes ranges from 4650 to 9300 Å and, at the redshift of the targets, covers all the main optical emission lines of interest (from H β to [S ii] λλ6716,6731). It achieves a resolution between 1750 (at 4650 Å) and 3750 (at 9300 Å). The field of view (1 arcmin × 1 arcmin) covers between ∼10 and ∼170 kpc of the galaxy depending on its redshift. The average seeing for the observations is about 1 arcsec. The typical observation time for the targets is approximately 40 min. The details of the observations are listed in Table C1 in the Appendix.

In a first step, the data cubes are binned using Voronoi tessellation to achieve an average signal-to-noise ratio (SNR) of 30–40 (this varies from galaxy to galaxy) per wavelength channel in each bin in the r band (5405–6982 Å). In this step, all spaxels with an SNR < 3 in the r band are discarded to avoid noisy spectra in the Voronoi bins.

The stellar continuum is modelled using the MILES stellar library templates, which include about 1000 stars, which range across a large number of atmospheric parameters (such as ages and metallicities) (Sánchez-Blázquez et al. 2006). These templates cover the wavelength range from 3525–7500 Å, which includes all nebular lines which are of interest for our analysis. The fitting is performed using an adapted Penalized Pixel-Fitting (pPXF) routine (Cappellari & Emsellem 2004; Cappellari 2017) and allowing an additive Legendre polynomial to correct the shape of the template continuum. The main emission lines (H β, [O iii] λλ4959,5007, [O i] λλ6300,6366, H α, [N ii] λλ6548,6584 and [S ii] λλ6717,6732) are fitted simultaneously with the stellar continuum to allow optimal recovery of the total flux of emission lines, in particular the Balmer lines (see e.g. Sarzi et al. 2006). We fit with one, two, or three Gaussian emission line components. During this step, we mask five strong sky emission lines (5577.4, 5889.9, 6157.7, 6300.3, and 6363.7 Å) as well as the Na ID absorption lines (at 5889.9 and 5895.9 Å) at the target’s redshift since this might not exclusively originate from stars in these galaxies, but also from absorption by neutral atomic gas in the ISM (see Section 2.4). As the best fit we select the model with the lowest |$\chi _{\rm red}^{2}$|⁠. Next we subtract the stellar continuum from the total spectra in each spaxel, scaling the fit from bin to each spaxel according to their r-band flux. We performed visual checks of the fits for a sub-sample of spaxels to verify that the stellar continuum subtraction works well.

2.3 Ionized gas

The resulting continuum-subtracted data cube is fitted on a spaxel-by-spaxel basis using the python library lmfit (Newville et al. 2014). Lmfit provides non-linear optimization and is built on the Levenberg–Marquardt algorithm (Levenberg 1944; Marquardt 1963). We fit the same emission lines as in the simultaneous fitting with one or two Gaussian components. For Seyfert 1 galaxies (two in our sample: IRAS 00509+1225 and IRAS 23389+0300), we allow a third, very broad component for the Balmer lines to account for emission from the AGN broad line region (BLR). However, the deblending of the very broad component (from the BLR) and the outflow component results in significant uncertainties in the characterization of the latter. Thus, we have decided to discard the information obtained from the outflow of these two Seyfert 1 galaxies. For galaxies with just two components, the width (σ) of the narrow component has to be smaller than 200 km s⁻¹ and the broad component has to have a width of at least 125 km s⁻¹ and has to be larger than the narrow component. For each component (narrow, broad and very broad if needed), we tie velocity centroid and dispersion, while the amplitudes are allowed to vary freely. Exceptions are the amplitudes of [O iii] λλ4959,5007; [O i] λλ6300,6366; and [N ii] λλ6548,6584, for which the ratio of the doublets is given by the Einstein coefficients. The ratio of the two emission lines of the [S ii] doublet is allowed to vary between 0.44 and 1.5 (Osterbrock & Ferland 2006). For each spaxel we employ the reduced χ² (Andrae, Schulze-Hartung & Melchior 2010), |$\chi ^2_{\rm red}$|⁠, to determine whether a model with one, two, or three components is preferred. We then select the model with the lowest |$\chi _{\rm red}^{2}$| value. If based on the |$\chi ^2_{\rm red}$| metric, we find two or more components, we classify the broad component as a signature of an ionized outflow only if it is kinematically clearly distinct from the narrow component. In addition, we require the broad component to be strong enough to appear in the integrated spectrum. For some of the galaxies in our sample additional higher spectral resolution and higher sensitivity data were obtained with X-shooter (programmes 0103.B-0478(A) and 097.B-0918(A)). This data confirm the decomposition of the various components, although limited to the central region (an extensive description of the X-shooter data will be part of a separate paper). Finally, to get the intrinsic fluxes for all emission lines, we use the Balmer decrement and we apply a Calzetti et al. (2000) attenuation curve for a galactic diffuse ISM (R_V = 4.05) to correct for dust reddening. This should account for the mixing between dust and gas emitting regions in star-forming galaxies.

2.4 Neutral atomic gas

To study the neutral atomic gas, we analyse the Na i doublet (at 5889.9 and 5895.9 Å) profile in the data cube obtained by dividing the original data cube by the continuum fit (for details see Rupke, Veilleux & Sanders 2005a). The Na ID line probes neutral gas (i.e. H i), thanks to the low-ionization potential of the associated transition, which is 5.14 eV. One caveat of the sodium absorption technique is that the detection of outflowing gas requires a strong background of stellar continuum light and hence outflows outside the projected stellar disc or far from the galaxy’s bright centre might be missed. Residual stellar contribution (even after running pPXF) to the Na iD as well as contamination from Na ID emission and from the nearby He iλ5876 emission line may further complicate the measurement.

As the sodium absorption feature is rather weak, we apply Voronoi binning to this data cube. We require a typical SNR of >10–15 for all targets on the sodium absorption feature in the stellar-continuum subtracted cube. We then fit the sodium absorption profile in each Voronoi bin.

Our fitting approach is based on a model of partially overlapping Na atoms (see Rupke et al. 2005a) with the analytical form:

$$\begin{eqnarray*} I(\lambda) = 1 - C_{\mathrm{f}} + C_{\mathrm{f}} \times e^{-\tau _{\mathrm{B}}(\lambda) - \tau _{\mathrm{R}}(\lambda)} \end{eqnarray*}$$

(1)

with C_f being the covering fraction and τ_B and τ_R being the optical depths of the blue and the red Na i lines (5889.9 and 5895.9 Å). The optical depth of a line, τ(λ) is given by a Gaussian:

$$\begin{eqnarray*} \tau (\lambda) = \tau _{0}e^{-(\lambda - \lambda _{0} + \Delta \lambda _{\rm offset})^{2}/((\lambda _{0}+\Delta \lambda _{\rm offset})b_{\rm D}/c)^{2}}, \end{eqnarray*}$$

(2)

where τ₀ and λ₀ are the central optical depth and wavelength of each line component and b_D is the Doppler linewidth. Δλ_offset, the wavelength offset, is linked to the velocity offset: Δλ_offset = Δvλ₀/c with c being the speed of light. The doublet is fit with one, two, or three absorption components and up to one sodium emission component. We allow for simultaneous fitting of the emission and absorption components. This simultaneous fitting can lead to degeneracy. In order to minimize that, we tie the width of the Na iD emission component to the He i emission line width. The ratio of the central optical depths of the sodium doublet is fixed to τ_0,B/τ_0,R = 2 for all absorption components which is given by the ratio of the Einstein parameters for the two transitions (Morton 1991). We require the covering fractions to be between 0 and 1. Simultaneously, we also fit the He i emission line (5876 Å). This is important as the sodium absorption profile sometimes extends bluewards and its true amplitude might be underestimated if He λ5876 is not considered. To fit several components, we multiply the different I_i(λ)’s, e.g. for two components I(λ) = I₁(λ) I₂(λ), where I₁(λ) and I₂(λ) are of the form given in equation (1) with different covering fractions and optical depths for each component.

As in the emission line fitting, we use the lmfit library (Newville et al. 2014). The best fit is determined using the Bayesian information criterion (BIC). The BIC selects the best fit while taking into account the complexity of the model (i.e. models with more parameters are penalized, Liddle 2007).

We use the 50th percentile, v₅₀, of the whole sodium absorption profile, as a measure of outflow velocity. Similar to Rupke et al. (2005a), we classify a component as outflowing if it has a velocity shift of Δv < –50 km s⁻¹ relative to the systemic velocity. We adopt this conservative assumption to account for possible errors in the fitting. Redshifted sodium emission may also be additional evidence of receding, outflowing gas (see e.g. Rupke & Veilleux 2015; Roberts-Borsani & Saintonge 2019).

The advantage of this model is that the optical depth can be related to the sodium column density, N(Na I), via:

$$\begin{eqnarray*} N(\mathrm{Na\: I}) = \frac{\tau _{\mathrm{0}}b_{\mathrm{D}}}{1.497\times 10^{-15} \lambda _{\mathrm{0}}f}. \end{eqnarray*}$$

(3)

λ₀ = 5897.55 Å and f = 0.318 are the vacuum wavelength and the oscillator strength, respectively. b_D is the Doppler parameter, which is related to the velocity dispersion via b_D = |$\sqrt{2}\sigma$|⁠.

The hydrogen column density, N(H), is then given by

$$\begin{eqnarray*} N(\mathrm{H}) = N(\mathrm{Na\: I})(1-y)^{-1}10^{-(a+b)}, \end{eqnarray*}$$

(4)

where y is the ionization fraction, a the galaxy’s Na abundance, and b the depletion on to dust. We assume the following values: y = 0.9, a = –5.69, and b = –0.95 (Savage & Sembach 1996; Rupke et al. 2005a). The hydrogen column density can then be used to calculate the outflow mass (see Section 2.6). Typical errors for the covering fraction and the velocity are around 20 |${{\ \rm per\ cent}}$| and 20 km s⁻¹, respectively (Rupke, Veilleux & Sanders 2005b), and we therefore conservatively assume an error of 0.5 dex on the neutral atomic mass outflow rate.

2.5 Ancillary properties

In this paper, we compare the neutral atomic, the ionized, and the molecular outflow phases. The properties of the molecular outflows (velocity, radius, and mass of the outflow as well as derived properties) are taken from Fluetsch et al. (2019). This paper uses the same cosmology, the same definition of mass outflow rate and the same convention for the measurement of outflow radius and velocity as we do here and hence allows direct comparison.

The AGN luminosity, L_AGN, is provided in Fluetsch et al. (2019), who used the absorption-corrected X-ray luminosity in the range from 2–10 keV and the bolometric correction by Marconi et al. (2004) to determine the AGN bolometric luminosity, L_AGN, in most cases. If no X-ray data are available, then the AGN bolometric luminosity is inferred from the extinction-corrected [O iii] luminosity using the relation given in Heckman et al. (2004).

We calculate the AGN contribution, α_bol = L_AGN/L_bol, where L_bol is the bolometric luminosity of the galaxy, which for ULIRGs is given by L_bol ≈ 1.15 L_IR (Veilleux et al. 2009).

The star formation rates (SFRs) from Fluetsch et al. (2019) are used if possible. The calculation is based on the total infrared luminosity (8–1000 µm), taking into account the AGN fraction (α_bol) (Sturm et al. 2011). Otherwise, we calculate the SFR ourselves using the same prescription. There are a few exceptions: for HE 1351–1917, zC400528, 3C 298 we use the SFRs provided in the respective papers (see Table C2) based on spectral energy density (SED) fitting due to the lack of reliable IR data.

The optical classification in star forming, LI(N)ER, and Seyfert galaxies is based on the galaxy’s BPT diagrams, which will be presented in a forthcoming paper. An overview of the sample including ancillary data of the galaxies can be found in Table C2.

2.6 Calculation of outflow properties

In order to perform a comparison to previous outflow studies, we calculate the outflow properties in the integrated spectrum. To calculate the integrated spectrum we sum all spaxels with an r-band SNR > 3. In our analysis, we use the broad H α component to calculate outflow properties. Some studies have used [O iii] instead, which gives lower outflow rate values (Carniani et al. 2015), likely because it does not properly account for the lower ionization phases of the outflow. The ionized outflow mass can be inferred from the H α luminosity in the outflow (i.e. broad component), L_Hα,OF, and the electron density, n_e, as follows (Carniani et al. 2016):

$$\begin{eqnarray*} M_{\mathrm{OF,ion}} [\mathrm{M}_{\odot }] = 6.1\times 10^{8}\left(\frac{L_{\mathrm{H\alpha , OF}}}{10^{44}~\mathrm{erg s^{-1}}}\right)\left(\frac{n_{\mathrm{e}}}{500~\mathrm{cm^{-3}}}\right)^{-1}. \end{eqnarray*}$$

(5)

We then obtain the mass outflow rate at radius r_OF,ion by dividing the outflowing gas mass by the dynamical time-scale, τ_OF:

$$\begin{eqnarray*} \dot{M}_{\rm OF, ion} = \frac{M_{\rm OF, ion}}{\tau _{\mathrm{OF, ion}}} = \frac{M_{\rm OF, ion}v_{\rm OF, ion}}{r_{\mathrm{OF, ion}}}, \end{eqnarray*}$$

(6)

where v_OF,ion and r_OF,ion are the velocity and extent of the ionized outflow, respectively. We define the outflow velocity v_OF = Δv + FWHM_broad/2 to be consistent with previous works (e.g. Rupke et al. 2005a; Fluetsch et al. 2019).

The radius of the ionized outflow is defined as the radius which encompasses 50 |${{\ \rm per\ cent}}$| of the total flux of the broad H α component as observed in the data. This definition is used to have a comparable definition as to the one we used for the molecular outflow phase (Fluetsch et al. 2019). By directly determining the electron density in the outflow (see Section 3.2.1), we can drastically reduce the main uncertainty of this computation. Hence, the typical uncertainty on the ionized mass outflow rate is estimated to be ∼0.3 dex, mainly due to projection effects which affect the velocity and radius measurements as well as uncertainties in determining the electron density. The kinetic power of the outflow is given by 0.5|$v_{\rm OF}^{2}\dot{M}_{\rm OF}$|⁠. The properties (mass, radius, and velocity) of the ionized outflows in our sample and the extended sample can be found in Table C3.

The mass outflow rate of the neutral atomic outflow can be computed using equation (6) and using the neutral outflow velocity and radius and mass. Using the hydrogen column density obtained in Section 2.4, the neutral mass outflow rate is given by

$$\begin{eqnarray*} \dot{M}_{\rm OF,neu} [\mathrm{M}_{\odot }/\mathrm{yr}] &=& 11.5 \sum _{i=1}^{N} \left(\frac{C_{\Omega }}{0.4} C_{\mathrm{f}}\right) \left(\frac{r}{10~\mathrm{kpc}}\right)\nonumber \\ && \times \left(\frac{N \mathrm{(H)}}{10^{20}\: \mathrm{cm^{-2}}}\right)\left(\frac{\Delta v}{200\: \mathrm{km~s^{-1}}}\right), \end{eqnarray*}$$

(7)

where we sum over all outflowing components, from i = 1 to N. C_f and C_Ω are the local (see equation 1) and large-scale covering factor, respectively. Following Rupke et al. (2005a), we assume C_Ω = 0.4 for LIRGs and C_Ω = 0.8 for ULIRGs. The local covering factor is determined through the fitting of the sodium doublet. N(H) is the hydrogen column density along the line of sight and r is the radius. The parameters for the fitting of the Na i D profile are shown in Table C4.

Similar to the ionized outflow, we also calculate the properties of the neutral atomic outflow in the integrated spectrum. The spatial extent of the neutral outflow, r_OF,neu, is calculated as the radius that encompasses 50 |${{\ \rm per\ cent}}$| of the total flux of all outflowing sodium components similar to what was done for the ionized outflow radius. For the Seyfert 1 galaxies (2 objects) we do not fit the sodium absorption doublet because of the degeneracy caused by the strong quasar continuum (see Section D).

2.7 Extended sample

To study the relation between different outflow phases, we include galaxies studied in the literature with outflows detected in several phases. We refer to these galaxies combined with our galaxies with multiphase outflows as the extended sample. In total, the extended sample consists of 31 galaxies with outflows studied in multiple phases. Our extended sample includes the multiphase outflows studied by Rupke & Veilleux (2013), Rupke et al. (2017), Fluetsch et al. (2019), and Husemann et al. (2019). We also add three targets with redshifts z > 1, which all have measurements of outflows in several phases: zC400528 (Herrera-Camus et al. 2019), XID2028 (Cresci et al. 2015; Brusa et al. 2018), and 3C 298 (Vayner et al. 2017).

The outflow measurements in these galaxies are homogenised to allow a fair comparison to our MUSE sample. In particular, to re-calculate the properties of the ionized outflows, we use the same

formula to calculate mass outflow rate (equation 6), i.e. without the factor of 3 as used in some other works,
electron density (n_e = 500 cm⁻³, average electron density of outflows, see below),
definition of outflow velocity if possible (v_OF = Δv + FWHM/2),
attenuation curve to correct for extinction (Calzetti et al. 2000) with R_V = 4.05,
tracer of outflowing gas, i.e. H α instead of [O iii] (see Section 2.6),
conversion from H α luminosity into outflow mass, i.e. equation (5).

For the calculation of neutral atomic outflow properties, we adopt the same

formula to calculate mass outflow rate (equation 6), i.e. without the factor of 3 to be consistent with the calculation of mass outflow rates in other phases,
values for the ionization fraction, galaxy’s sodium abundance, and the depletion on to dust (see Section 2.4).

Finally, to ensure that molecular outflow rates and energetics are calculated consistently across the sample, we assume the same

formula to calculate mass outflow rate (equation 6), i.e. without the factor of 3 as used in some other works,
same conversion factor (α_CO = 0.8 M_⊙/(K km s⁻¹ pc²)⁻¹,
definition of outflow velocity if possible (v_OF = Δv + FWHM/2).

3 RESULTS

3.1 Prevalence of outflows

Out of the 26 galaxies analysed in our MUSE sample, 13 galaxies show clear signs of an ionized outflow and 10 show evidence of neutral atomic outflowing gas, 8 galaxies have outflows in both phases. The number of neutral outflows may be larger than this number as any sodium absorption in Seyfert I galaxies (see Section 2.6) might be overshadowed by broad He i lines. However, we found in other objects a more extended Na ID outflow could partially absorb the He i emission line (see e.g. Fig. D3).

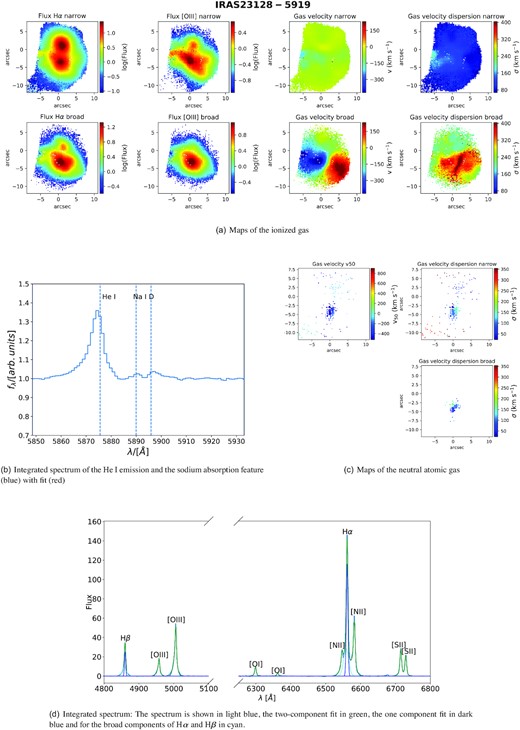

In our study, we find that most galaxies with outflows have outflow signatures in both phases, but there are a few exceptions. For instance, IRAS 23128−5919 (also studied in Maiolino et al. 2017) has a clear ionized outflow, but no detectable neutral atomic gas at high velocity. However, one should be aware, that the discrepancy might be due to sensitivity in the different phases rather than due to the physical properties of the outflow. For each galaxy we present maps of the ionized and neutral atomic phases and the integrated spectra in Appendix D.

3.2 Characterization of outflows

3.2.1 Electron density

We compare the electron density of the outflowing gas and the disc. This not only informs our understanding of the physical conditions of the ionized ISM, but it is also important to calculate the mass and kinetic energy of the ionized outflow (which are both inversely proportional to the electron density n_e, see Section 2.6). Indeed, the electron density has been one of the main uncertainties in these calculations (Harrison et al. 2018).

We estimate the electron density based on the [S ii] λ6717/[S ii] λ6731 ratio, assuming a temperature of T_e = 10⁴ K (Osterbrock & Ferland 2006). The density is calculated for each spaxel in a galaxy using the prescription in Sanders et al. (2015):

$$\begin{eqnarray*} n_{\rm e} = \frac{cR-ab}{a-R}, \end{eqnarray*}$$

(8)

where R = [S ii] λ6717/[S ii] λ6731 and a = 0.4315, b = 2107, c = 627.1. The [S ii] ratio is sensitive to density in the range 50 < n_e < 5000 cm⁻³ (Osterbrock & Ferland 2006). Below and above these limits, the [S ii] ratio varies little and is not suitable to accurately determine densities.

In Fig. 1, we show the electron density distribution of all spaxels of the narrow and broad components which trace dynamically quiescent gas in the disc and gas in the outflow, respectively. The blue and red distribution show the electron density values for the narrow and broad components, respectively. For each [S ii] component we require an SNR of at least 2 for both sulphur lines. We observed very little change in these relative distributions even if we increase the S/N threshold to 3 (or even 5) for each of the sulphur lines [although the statistics becomes (much) poorer]. As mentioned above, densities outside the interval 50–5000 cm⁻³ should be considered as lower/upper limits at the corresponding boundaries, as the [S ii] doublet ratio is little sensitive to the electron density outside this interval. To account for the fact that for nearby galaxies we have more spaxels and therefore the distribution might be biased towards them, we weigh spaxels of each galaxy differently. We do that in such a manner that each galaxy contributes equally to the final histogram regardless of the number of spaxels in the broad and narrow components. This is done by weighing each spaxel by the inverse of the total number of spaxels in the galaxy to which this spaxel belongs. The distributions in Fig. 1 are wide because we add up several galaxies with different densities, but there is also a considerable range of densities in each individual galaxy as well as the uncertainty associated to individual measurements. We fit these distributions with Gaussians (shown as black dashed lines in Fig. 1) and obtain the following centroids: n_e,broad = 490 cm⁻³ and n_e,narrow = 145 cm⁻³, and dispersions σ_broad = 0.41 dex and σ_narrow = 0.52 dex. If the values outside of the range 50–5000 cm⁻³ are ignored, the density of the outflow remains the same and the density of the narrow component is n_e,narrow = 190 cm⁻³. The density of the outflowing gas is on average a factor of 3 higher than the density of the disc. This trend remains even if we do not weigh spaxels differently as described above. The trend is also robust if we consider spaxels where both components are present (i.e. we include only parts of the disc where we also have an outflowing component). The density of the broad component also does not change if we apply more stringent criteria for the identification of the outflowing gas, such as we require a minimum blueshift of –100 km s⁻¹ and a width of σ_broad > 150 km s⁻¹ for the broad component to ensure we only trace outflowing gas with the broad component. The finding is equally clear both in galaxies with higher AGN fraction (α_bol > 0.5) and with lower AGN fraction (α_bol < 0.5). The galaxies with stronger AGN show slightly higher densities (∼0.1–0.2 dex higher) for both the narrow and the broad components. In Appendix A1, we show that AGN host galaxies have on average a higher disc electron density than star-forming galaxies. In a forthcoming paper, we will show the electron densities in several individual galaxies.

Figure 1.

In blue and red, the distribution of the electron densities (n_e) of the narrow (disc) and broad (outflow) components of all galaxies with ionized outflows are shown, respectively. The dashed lines are the Gaussian fit to the distributions. Densities outside the interval 50–5000 cm ⁻³ (outside the grey dashed lines) should be considered as lower/upper limits since the [S ii] doublet ratio is little sensitive to the electron density outside this range.

Open in new tab Download slide

We note that recent studies, based on the investigation of auroral lines have shown that the [S ii] doublet tends to underestimate the gas density in galactic outflows even by 1–2 orders of magnitude (Holt et al. 2011; Rose et al. 2017; Davies et al. 2020). However, this would make our result that outflows are denser than their galactic discs even stronger.

In addition, we observe the trend that outflows are denser than the disc in all individual galaxies apart from IRAS 21453−3511 (discussed below) and IRAS 15115+0208 (although in this galaxy the number of spaxels with sufficient SNR (i.e. >3) is not high enough to definitely confirm this).

This result qualitatively agrees with several previous studies (Holt et al. 2011; Arribas et al. 2014; Villar-Martín et al. 2014; Perna et al. 2017; Rose et al. 2017; Mingozzi et al. 2019; Davies et al. 2020), who all found outflowing gas to be denser than gas in the disc. The simplest explanation for dense gas in the outflow is that the expelled gas is compressed (e.g. Bourne, Zubovas & Nayakshin 2015; Decataldo et al. 2019). Our average values are similar to the ones found by Arribas et al. (2014), who found densities of n_e,broad = 460 ± 70 cm⁻³ and n_e,narrow = 300 ± 30 cm⁻³ also in a sample of (U)LIRGs. Villar-Martín et al. (2014) and Perna et al. (2017) find a higher electron density than this work of ≳1000 cm⁻³ in the outflowing gas, likely because they focus on more extreme objects, considering only AGN hosts or higher redshift targets.

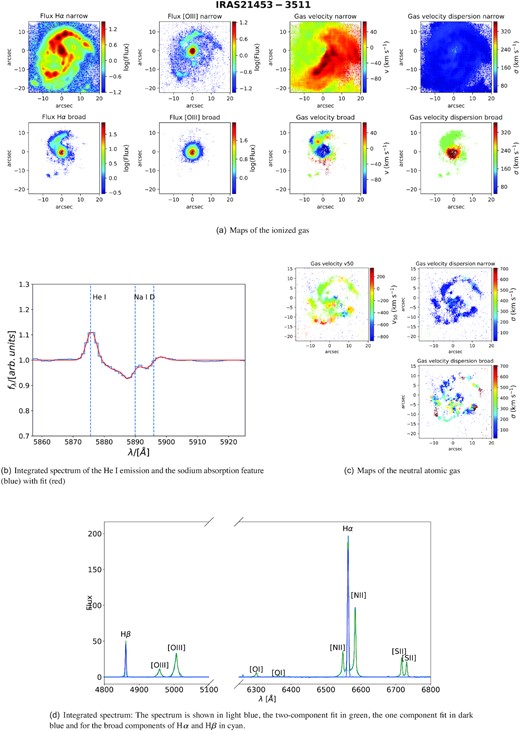

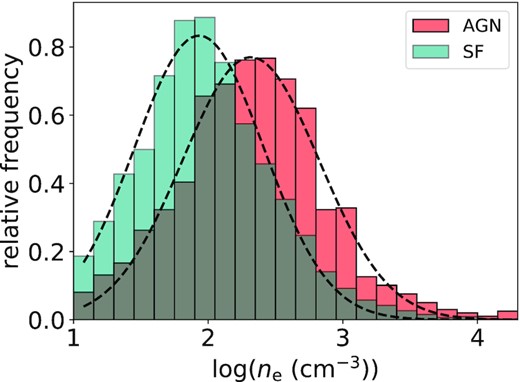

As mentioned above, although this trend seems robust over a range of galaxy properties, there are few rare individual objects, where the density in the disc is similar or higher than in the outflow. For instance, in IRAS 21453−3511, the density of the disc and outflow is very similar. In this galaxy, the electron densities for the two components are n_e,broad = 275 cm⁻³ and n_e,narrow = 288 cm⁻³. Another isolated case is NGC 6810, where some parts of the outflow are less dense than the disc (see Venturi et al., in preparation). We cannot yet explain why some galaxies show this trend, but it seems to be unique to sources that are classified as star-forming galaxies according to their [S ii]-BPT diagrams. We can only speculate that possibly some star formation driven outflows do not lead to enhanced densities in the outflowing gas due to a different mechanism at play.

3.2.2 Dust extinction

We compare the dust extinction, A_V, of the narrow and broad components. We estimate the extinction using the Balmer decrement H α/H β and assuming the Calzetti et al. (2000) attenuation law with R_V = 4.05. The intrinsic flux ratio of H α/H β is little dependent on density and temperature and any significant deviation in the observed ratio can thus by attributed to interstellar dust extinction. We assume an intrinsic H α/H β = 2.86 for T = 10⁴ K (Osterbrock & Ferland 2006). Furthermore, we require the SNR on H β to be >3. As in any external galaxy, the observed Balmer decrement (or colour excess) does not trace a dusty screen but dust in the ISM mixed with the ionized regions emitting H α and H β.

The resulting extinction distributions are shown in Fig. 2 with the narrow component shown in blue and the broad component in red. The narrow component has a visual extinction more than twice as large as the broad component. The centres of the Gaussian fit to the distributions are A_V,broad = 0.68 mag and A_V,narrow = 1.67 mag. The median extinction values for different galaxies range from ∼1 to ∼4 mag in the narrow component and from ∼0.4 to ∼2.7 mag in the broad component. The difference in extinction between narrow and broad components, ΔA_V, varies considerably across the sample and this will be discussed in more detail below. Some works (Rose et al. 2017; Mingozzi et al. 2019) confirm the finding that outflows are less affected by extinction than the disc, others find the opposite result (Holt et al. 2011; Villar-Martín et al. 2014). It should be noted that the studies have used different samples. Villar-Martín et al. (2014) studies type II quasars (with various levels of radio luminosities), while Holt et al. (2011) investigate a type I radio-loud quasar. Also Mingozzi et al. (2019) focusses on Seyfert 2 galaxies and Rose et al. (2017) studies ULIRGs with a mix of type I and type II AGN. These different results regarding the relative dust extinction can be explained by a combination of two effects. First, the near side of the outflow is generally less obscured than the disc, while the far side may be extinct by the disc to such a degree that it cannot be detected at optical wavelengths in many galaxies. This seems to be the main explanation for galaxies with lower extinction in the outflow than in the disc. Secondly, as there are a large number of objects with lower extinction in the disc as e.g. in Villar-Martín et al. (2014), it seems likely that at least some outflows are very dusty, and dustier than the disc. This has indeed been proposed to explain very high UV luminosities as a consequence of dust scattering in the outflows of the starburst galaxies NGC 253 and M82 (e.g. Hoopes et al. 2005). Radiation pressure-driven models of feedback also predict that dusty gas should preferentially be expelled by powerful outflows (Murray, Quataert & Thompson 2005; Ishibashi & Fabian 2016). Unequivocal observational evidence of dust in most or all outflows would also help us greatly to understand molecular outflows. The presence of dust in the outflow is a requisite in many models to explain molecule formation in the outflow (Richings & Faucher-Giguère 2018). To quantify these effects, one would determine the extinction for the approaching and receding outflow part separately. This could be achieved by separate fitting of the red and blue components of the Balmer emission lines (see Venturi et al. 2018). Such an analysis suffers from additional fitting degeneracy and will therefore not be discussed in more detail in this paper.

Figure 2.

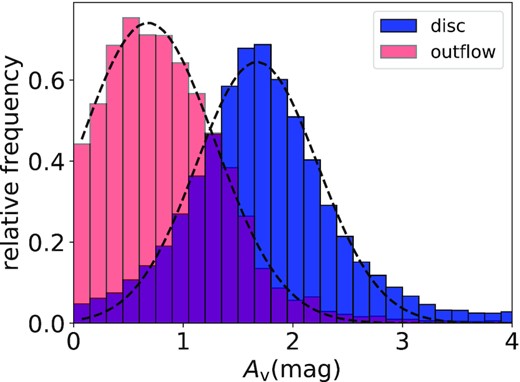

Distribution of the values of visual extinction of the narrow (disc, in blue) and broad components (outflow, in red). The centroids of the Gaussian to these distributions are A_V = 1.67 and A_V = 0.68 mag for the narrow and broad components, respectively.

Open in new tab Download slide

To evaluate the driver of different extinction values in the broad and narrow components, we look at how the galaxy’s median ΔA_V = A_V,broad − A_V,narrow scales with integrated outflow or galaxy properties. There is no clear correlation between ΔA_V and α_bol, SFR, the neutral atomic or the molecular outflow mass or mass rate. However, the ionized mass outflow rate (⁠|$\dot{M}_{\rm OF, ion}$|⁠) correlates with ΔA_V (with a Pearson correlation coefficient of ρ = 0.84) as shown in Fig. 3 on the left. This correlation appears to be driven by the mass of the ionized outflow (right-hand side of Fig. 3), as this leads to an even tighter correlation with ΔA_V (correlation coefficient ρ = 0.93). Intuitively one might assume that this trend is mainly driven by A_V,broad, which is proportional to the outflow mass. Higher A_V,broad gives a higher intrinsic H α luminosity for the same observed H α flux. This H α luminosity in turn is proportional to the outflow mass (see equation 5). In order to test this hypothesis, we plot the extinction of the broad component (A_V,broad) as a function of the ionized mass outflow rate and ionized outflow mass in Fig. 4. The trends in 4 are much weaker than in Fig. 3, hence indicating that the latter are not purely driven by a potential co-variance between the two axes through H α_broad. Part of this might be explained by errors in measuring both the visual extinction and the outflow mass (rate). To quantify the effect of errors leading to a spuriously higher correlation, we run a Monte Carlo simulation, assuming errors of 0.3 dex on outflow mass (rate) and 0.3 dex on A_V and there is only a 2 |${{\ \rm per\ cent}}$| chance that the tighter correlation as seen here with ΔA_V than with A_V,broad is due to errors. Hence, it seems unlikely, that errors are solely responsible for the tighter correlation in Fig. 3. Instead, it seems the ionized outflow mass does drive the difference in extinction between broad and narrow components. In other words, the most massive ionized outflows have comparatively more dust in the outflow than in the disc. In these outflows, mainly dusty gas might be expelled, enhancing the extinction in the outflow while simultaneously lowering the extinction in the disc. This could be further indication that dust plays an important role in outflows, especially for the most massive of them. In particular this finding would support models according to which galactic outflows may be due to radiation pressure on dusty clouds (Fabian 2012; Ishibashi, Fabian & Maiolino 2018).

Figure 3.

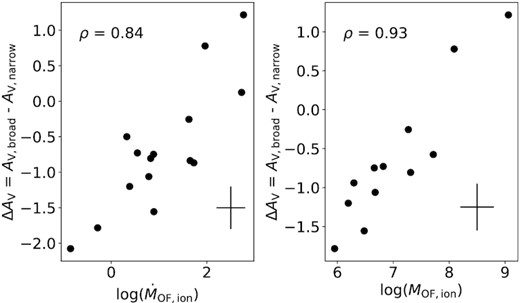

Difference in extinction between the narrow and broad components, ΔA_V = A_V,broad − A_{V, narrow}, as a function of ionized mass outflow rate (left) and ionized outflowing gas mass (right). The typical error is given by the black cross.

Open in new tab Download slide

Figure 4.

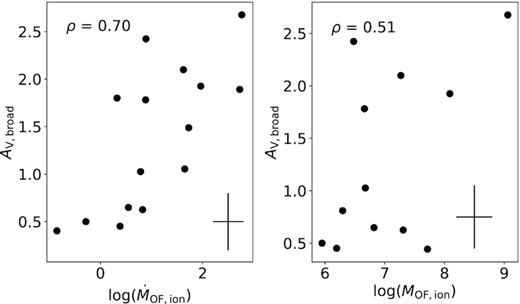

Extinction of the broad component, A_V,broad, as a function of ionized mass outflow rate (left) and ionized gas mass (right). The typical error is given by the black cross.

Open in new tab Download slide

3.3 Comparison of outflow phases

In this subsection, we compare the ionized and neutral atomic outflows to the molecular outflow properties.

For the following analysis, we also add the extended sample described in Section 2.7. which includes 31 galaxies with at least two outflow phases and 13 galaxies with all three outflow phases (excluding galaxies that have only an upper limit in at least one phase).

We first test how much each phase (molecular, ionized, and neutral atomic) contributes to the total outflow rate for galaxies with measurements of all outflow phases. This is important to allow for a fair comparison to predictions of models and simulations of galaxy evolution, which look at the total impact of the outflow, while most observations focus on one single phase instead and thus might underestimate outflow properties. The outflow masses were homogenized according to the procedure outlined in Section 2.7. The relative contributions of different phases to the total outflow rate are shown in Fig. 5, where the molecular contribution is shown in blue, the neutral atomic and the ionized in red and green, respectively. The galaxies are sorted by AGN luminosity which increases from left to right. The molecular mass outflow rate amounts to more than half the total mass outflow rate in 11 out of the 13 galaxies. The two galaxies where this is not the case are both classified as star-forming galaxies. Some star-forming galaxies, whose names are shown in crimson in Fig. 5, display larger mass outflow rate contributions from the ionized and the neutral atomic phase than AGN and LI(N)ER galaxies. The ionized phase is negligible (<5 |${{\ \rm per\ cent}}$| of the total outflow rate) in AGN and LI(N)ER galaxies and is only larger than that in two star-forming objects (NGC 1614 and IRAS 20100−4156). If the gas densities in the ionized outflow are even larger than estimated through the [S ii] doublet, as suggested by the results based on the auroral lines discussed in Section 3.2.1, then this would make our results even stronger. In other words, the fraction of the outflow rate associated with the ionized component would be even lower.

Figure 5.

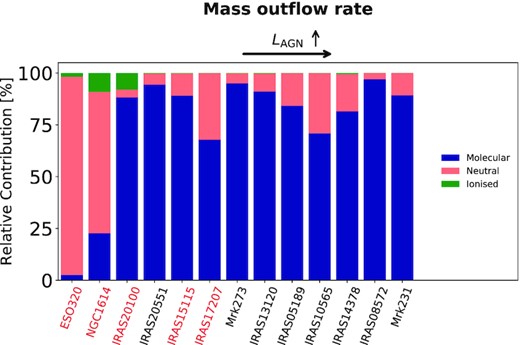

Relative contribution of the molecular (blue), ionized (green), and neutral atomic (red) phases to the total mass outflow rate. The galaxies whose names are in red are star-forming galaxies. The galaxies are sorted by increasing AGN luminosity from left to right.

Open in new tab Download slide

A similar picture emerges if we study the relative contribution of different phases to the total kinetic power. The kinetic power is given by P_OF = |$\dot{M}_{\rm OF} v_{\rm OF}^{2}$|/2. The associated distribution is shown in Fig. 6, where the relative contribution of the molecular (blue), neutral atomic (red), and ionized phases (green) are displayed. Star-forming galaxies have significant contributions from the ionized and neutral atomic phases, ranging from ∼40 to >95 |${{\ \rm per\ cent}}$| of the total kinetic power. In AGN and LI(N)ER galaxies, the molecular component is more dominant than in star-forming galaxies. There is, however, significant variation from galaxy to galaxy. Studying the relative contribution of different phases to the outflow rate and the kinetic power as a function of SFR or α_bol revealed no clear trends (see e.g. Section B1).

Figure 6.

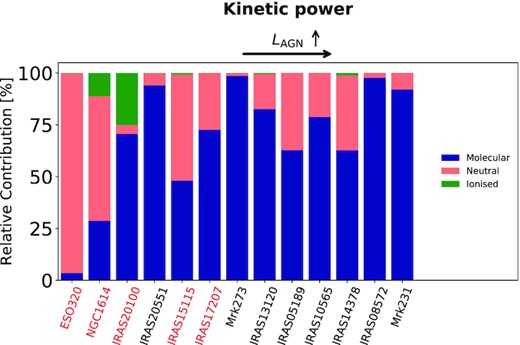

Relative contribution of the molecular (blue), ionized (green), and neutral atomic (red) phases to the total kinetic power of the outflow. The galaxies whose names are in red are star-forming galaxies.

Open in new tab Download slide

Next we investigate the mass outflow rate of the three different phases, ionized, neutral atomic, and molecular for galaxies which have measurements (or upper limits) for at least two phases. This comparison can be seen in Fig. 7, where we plot the different mass outflow rates against each other. The samples in the three plots are slightly different. To increase the statistics, in each plot we show the galaxies with measurements in both of the phases plotted. We distinguish between high-redshift sources (z > 1, green) and low-redshift sources (z < 0.2, black). The data points with a red edge have no reliable extinction correction for the ionized phase and thus should be treated as lower limits. These figures clearly show that the ionized mass outflow rate is much smaller (up to 2–3 orders of magnitude smaller) than the neutral atomic or molecular mass outflow rate. A major caveat is that some ionized outflow rates might be underestimated because of an uncertain extinction correction. But even if these points are ignored, the ionized outflow rates are significantly lower (cf. Fig. 5, which only includes galaxies with proper extinction correction). This confirms previous findings which estimate the ionized phase to contribute only minimally (Rupke & Veilleux 2013; Carniani et al. 2015; Ramos Almeida et al. 2019). The figure on the top right highlights that outflow rates in the molecular and neutral atomic phase are similar (usually within 1 dex). This picture might be slightly skewed, however, as we include upper limits in the molecular and ionized, but not in the atomic neutral outflow phase. However, the relative contribution of the ionized outflow rate to the total outflow rate varies from galaxy to galaxy (from ≤ 1 |${{\ \rm per\ cent}}$| to 10’s of |${{\ \rm per\ cent}}$|⁠) and a simple prescription as in Fluetsch et al. (2019) might not be fully appropriate to determine the total outflow budget. If electron densities from auroral or trans-auroral lines are a better estimate than the densities based on the [S ii] doublet (as suggested by Davies et al. 2020, see Section 3.2.1), then the contribution of the ionized phase would drop even further by additional 1–2 orders of magnitude and hence it would become negligible also in star-forming galaxies.

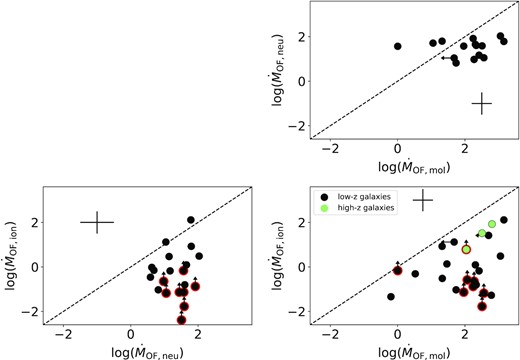

Figure 7.

Comparison between the outflow rates in the ionized, molecular, and neutral gas phases. The black symbols represent the low-redshift (z < 0.2) sources while the green symbols are the high-redshift (z > 1) targets. The dashed black line in all plots shows the 1:1 correlation. Typical errors are given by the black crosses. The data points with red edges have an uncertain or no extinction correction in the ionized outflow phase and should be treated as lower limits.

Open in new tab Download slide

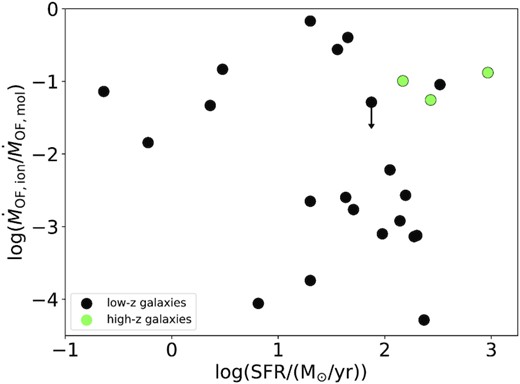

Another open question is also how the relative contribution of ionized and molecular gas to the total outflow rate changes with increasing AGN luminosity. Previous studies suggested that the ionized gas contribution to the total mass outflow rate becomes increasingly important with higher AGN luminosity and is similar to the molecular outflow rate above AGN luminosities of 10⁴⁶ erg s⁻¹ (Fiore et al. 2017; Bischetti et al. 2019a). However, these studies worked with disjoint samples, with a limited number of sources or by restricting the AGN luminosity range. We study this trend in Fig. 8, where we plot the ratio |$\dot{M}_{\rm OF,ion}/\dot{M}_{\rm OF,mol}$| as a function of the AGN luminosity, L_AGN. The green data points represent galaxies above redshift 1, whereas low-redshift objects are shown as black data points. Contrary to some previous studies, we do not find that the ionized phase becomes more prominent at higher AGN luminosities. Instead, there is no clear trend. The contribution of the ionized mass outflow rate might actually decrease at higher L_AGN as initially found by Fluetsch et al. (2019). The three high-redshift sources all seem to have large ionized outflow rates, which are only slightly smaller to their molecular ones. They are also the only objects with L_AGN > 10⁴⁶ erg s⁻¹ and are consistent with the results by Fiore et al. (2017). However, given the small sample, it is impossible to establish whether higher redshifts targets indeed have a fundamentally different outflow composition or whether objects with higher AGN luminosities have comparatively higher ionized outflow rates. An additional factor possibly contributing to the deviation of high-z galaxies is that they suffer from observational limitations, such as reduced sensitivity to low-surface brightness and high-velocity gas.

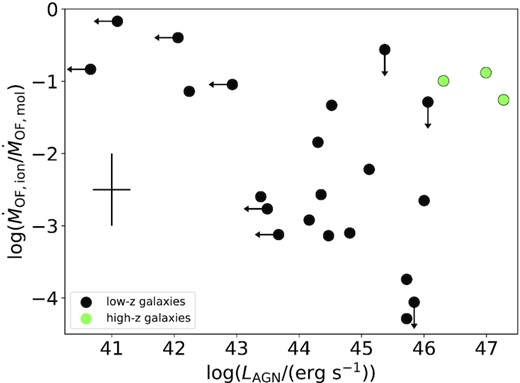

Figure 8.

Ratio of ionized and molecular mass outflow rate as a function of AGN luminosity. The green data points represent the high-redshift sources and the black data points the low-redshift targets.

Open in new tab Download slide

3.4 Spatial and velocity comparison of outflow phases

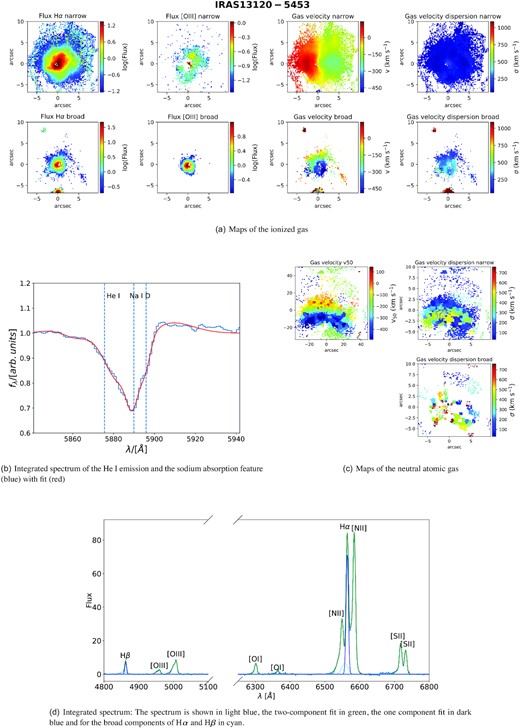

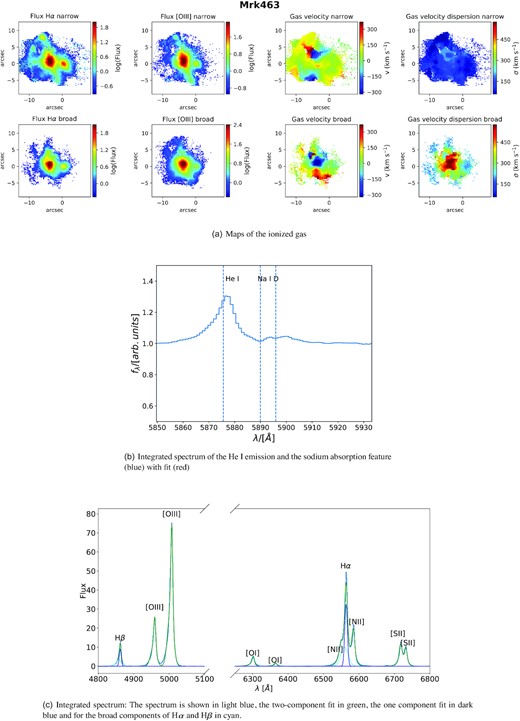

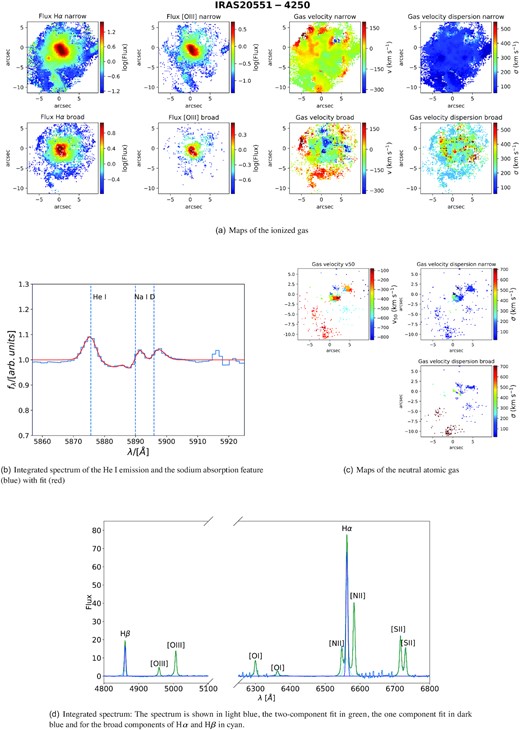

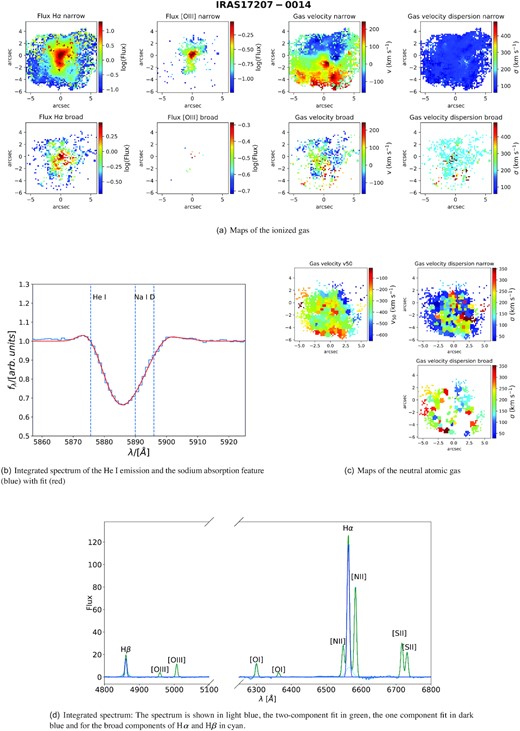

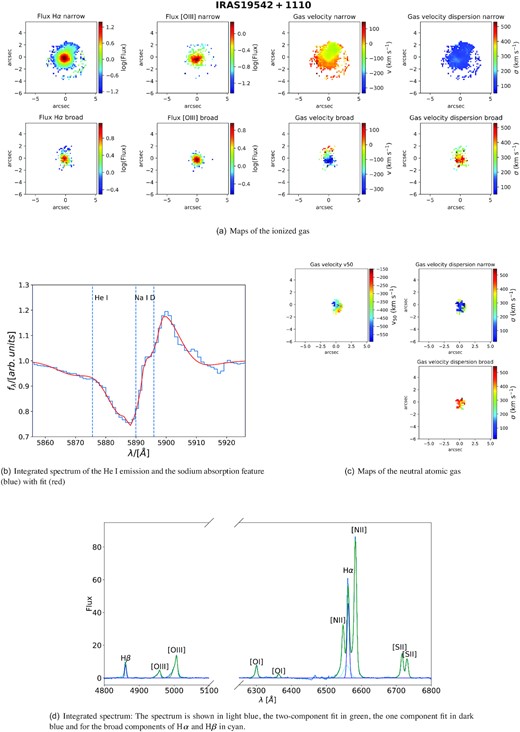

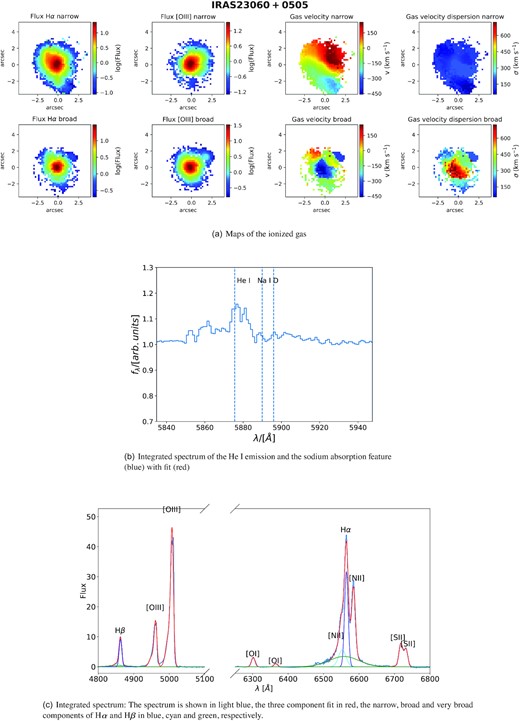

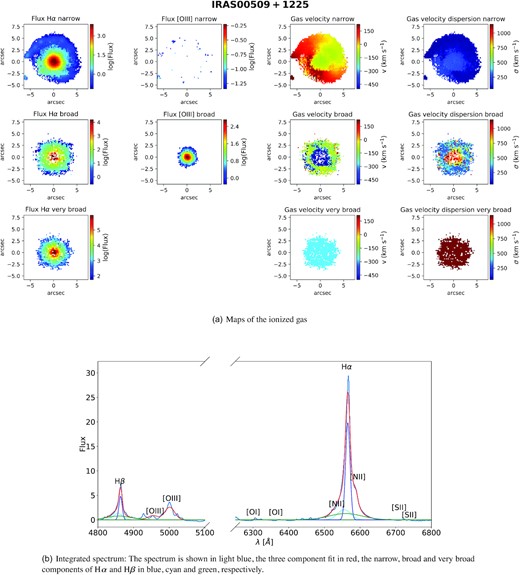

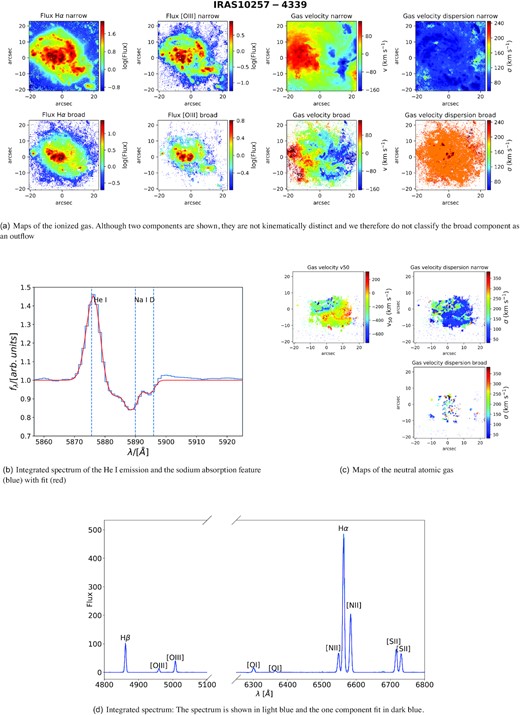

MUSE has the capability to resolve the gas kinematics with excellent spatial resolution and we therefore also attempt to compare the different outflow phases on a spatially resolved basis. The maps of all 13 galaxies (with outflows) are presented in Section D. What is striking is that galaxies with outflows in the ionized and in the neutral atomic phase display similar morphology and kinematic structures. For instance, in IRAS 13120−5453, the velocity gradient across the field of view is very similar for the two phases. In addition, the two phases are co-spatial for large parts of the galaxy, displaying similar blueshifts. This seems to be contradicting an earlier study by Bae & Woo (2018), who finds almost no correlation between the two phases. However, their work is based on SDSS single fibre (3 arcsec) observations that, depending on the distance of the galaxy, provide integrated emission of most of the galaxy. This can blend different velocity components. In other cases, only the central regions are sampled (hence providing only a partial view of large-scale outflows). Concas et al. (2019) also find no multiphase outflows in SF galaxies, but does detect multiphase winds in AGN hosts. They also use SDSS single fibre information [hence affected by the same issues as Bae & Woo (2018)]. In addition, they use the stacking technique which may wash away differences in individual galaxies. However, apart from the technical issues associated with the two works above, a possible explanation is that neutral outflows are mostly driven by star formation feedback while black hole accretion gives rise to ionized outflows, as suggested by Concas et al. (2019). The study by Rupke et al. (2017) supports this explanation to some degree as in some of their type-I AGN with large star formations rates (e.g. IRAS 05189−2524) they also find a correlation between different phases. Similarly, also in the local type-II AGN IRAS 08572+3915 (with an SFR ∼ 70 M_⊙ yr⁻¹) spatial coincidence between different phases (ionized, neutral atomic, and even the cold and warm molecular phases) is found (Herrera-Camus et al. 2020). Hence, in many (U)LIRGs where we find an active AGN as well as star formation, the properties of the atomic neutral and ionized outflows appear to be linked. This is possibly because the AGN and SF driving mechanisms team up to drive (stronger) multiphase outflows, as suggested by some models (Koudmani et al. 2019). In order to quantify this better, in Fig. 9 we compare the outflow velocity of the neutral phase with that of the ionized phase for each spaxel, for which we find outflows in both phases. The dashed black line indicates the 1:1 relation and the dashed green line is the best fit to the data points. We note that the properties of the neutral atomic phase are inferred from binned data, whereas the ionized lines can be fit in the individual spaxel. In order to account for that, we took the average of all ionized outflow velocities for each bin of neutral outflow velocity. Each grey data point represents one spaxels in one galaxy with outflows in both phases. In general, most data points lie below the black lines, i.e. the neutral outflows seem to have a larger blueshift than in the ionized gas. We remind the reader that the outflow velocity of the neutral phase is measured using v₅₀, the 50th percentile of the whole sodium absorption profile, whereas for the ionized outflow phase, the velocity is the blueshift of the broad component (see Section 2.6). It is not possible to use the same definition for the outflow velocity due to the different spectral properties of the two tracers. Thus, we do not expect to see a perfect 1:1 correlation in this plot, but the correlation (although with large scatter) suggests that the two phases are somehow connected.

Neutral outflow velocity (v50) versus ionized outflow blueshift for all spaxels of all galaxies. The coloured isodensity contours correspond to 10, 30, 50, and 70 points in that bin (the parameter space has been divided into 50 bins). The dashed black line indicates the 1:1 correlation, the green dashed line is the best fit to the data points.

Figure 9.

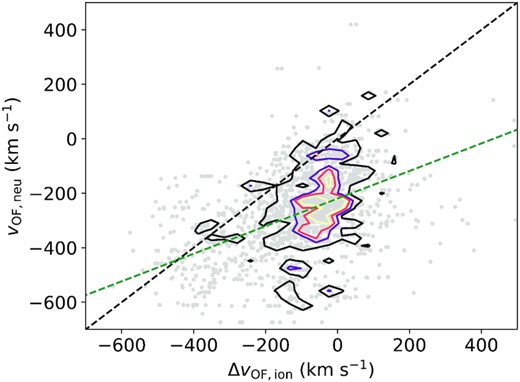

Neutral outflow velocity (v₅₀) versus ionized outflow blueshift for all spaxels of all galaxies. The coloured isodensity contours correspond to 10, 30, 50, and 70 points in that bin (the parameter space has been divided into 50 bins). The dashed black line indicates the 1:1 correlation, the green dashed line is the best fit to the data points.

Open in new tab Download slide

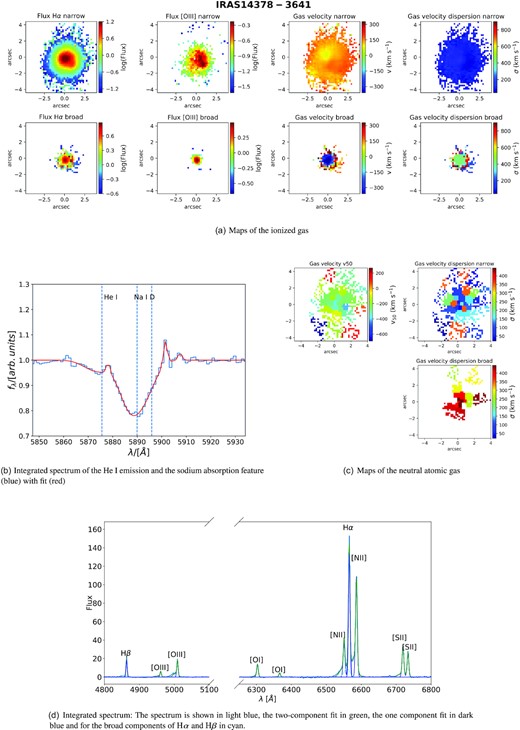

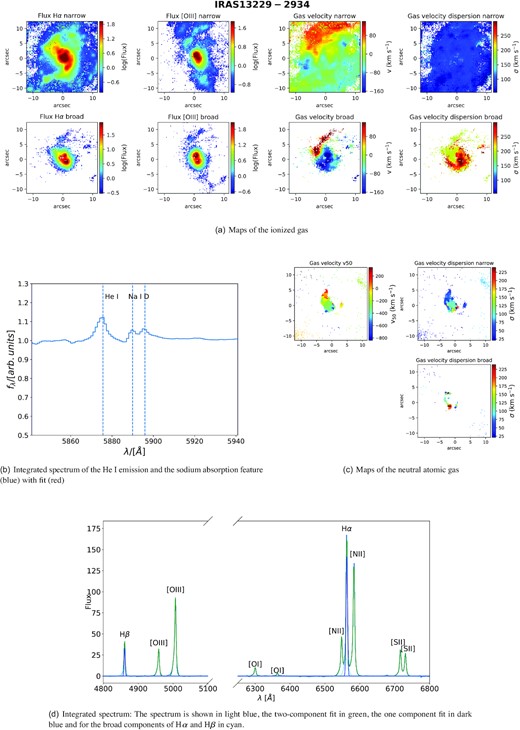

While the ionized and the neutral atomic phases are often co-spaitial, there is no clear trend regarding their relative sizes. In some galaxies, the neutral atomic outflow has a larger radius than the ionized one (e.g. IRAS 14378−3641) while in other galaxies we see the opposite trend (e.g. IRAS 13229−2934). Especially because of the Voronoi binning, which is necessary to characterize the Na ID outflow, the need to have a strong stellar continuum for Na ID detection, different SNRs in both phases, different tracers and also because of the faintness of outflow features, we are unable to draw unbiased conclusions about the relative sizes of outflows in different phases.

4 SUMMARY AND CONCLUSIONS

This study investigates the properties of multiphase outflows in local (U)LIRGs. We used MUSE observations of 26 (U)LIRGs, which include both AGN hosts and starburst-dominated objects, to study the ionized gas phase including estimates of the electron density and visual extinction of the ionized gas. In addition, we investigate the neutral atomic gas phase traced by the Na i doublet. To study the connection between different outflow phases, we supplemented our sample with outflow studies from the literature. This brings our sample of galaxies with outflows detected in at least two phases to 31 objects, out of which 13 galaxies have outflows in all three phases, molecular, neutral atomic, and ionized. This makes it the largest resolved study of multiphase outflows to date. Our main findings are:

Out of the 26 galaxies observed with MUSE/VLT, 12 galaxies show clear signs of ionized outflows, 10 galaxies have neutral atomic outflows and 8 galaxies have outflow in both phases simultaneously.
Outflowing ionized gas has on average an electron density a factor of three higher than the disc (<n_e,disc> = 145 cm⁻³ and <n_e,outflow > = 490 cm⁻³) (see Fig. 1). This is also the case individually for nearly all galaxies. This finding could indicate that cloud compression is more important than cloud dissipation in the outflow. However, some star-forming galaxies show similar densities in the disc and the outflow (e.g. IRAS 21453−3511).
The average visual extinction is twice as high in the narrow component than in the broad component (see Fig. 2). This is interpreted as the approaching side of the outflow (the one most easily detected) being less obscured than the disc. The most massive ionized outflows, however, show higher visual extinction in the outflow, possibly because of their high dust content (inside the outflow).
The difference in extinction between the broad and narrow components increases with higher ionized outflow mass, which could be explained by mainly dusty material being swept up by the outflow. These findings may support scenarios according to which galactic outflows are also driven by radiation pressure on dusty clouds.
The molecular mass outflow rate accounts for the majority of the total outflow rate, amounting from 60 to 95 per cent in 11 out of 13 objects. The atomic phase contributes less than the molecular phase, while the ionized phase is negligible in most objects studied here. Star-forming galaxies have less molecular gas in the outflow and the molecular phase is not always the dominant phase in these galaxies.
In many galaxies, the ionized and neutral atomic phases are co-spatial and show a similar kinematic structure (e.g. correlated velocities), hinting at the possibility that the two phases are linked. This is contrary to some earlier studies which found no link between different outflow phases.
The relative contribution of the ionized and molecular phase varies little with increasing AGN luminosity, but if anything, the ratio of ionized to molecular mass outflow rate declines slightly with higher AGN luminosity (with a large scatter).

ACKNOWLEDGEMENTS

This work was based on data obtained at ESO’s Very Large Telescope through programmes 101.B.0368, 102.B.0617, 095.B-0049, 094.B-0733, 096.B-0230, 60.A.9315, 097.B.0165, 097.B-0313, and 094.B-0733. The authors are grateful to Asa Bluck and Sara Ellison for their useful comments and discussion. RM and AF acknowledge ERC Advanced Grant 695671 ‘QUENCH’ and support by the Science and Technology Facilities Council (STFC). SA acknowledges support from the Spanish Ministerio de Ciencia e Innovación through grant ESP2017-83197-P. S Cazzoli acknowledges financial support from the State Agency for Research of the Spanish MCIU through the ‘Center of Excellence Severo Ochoa’ award to the Instituto de Astrofísica de Andalucía (SEV-2017-0709). AM, GC, and FM acknowledge the grant PRIN 2017PH3WAT|$\_$|003 from the Italian Ministry for University and Research. MP is supported by the Programa Atracción de Talento de la Comunidad de Madrid via grant 2018-T2/TIC-11715. GV acknowledges support from ANID programs FONDECYT Postdoctorado 3200802 and Basal-CATA AFB-170002. EB acknowledges the support from Comunidad de Madrid through the Atracción de Talento grant 2017-T1/TIC-5213. This research has made use of the NASA/IPAC Infrared Science Archive, which is operated by the Jet Propulsion Laboratory, California Institute of Technology, under contract with the National Aeronautics and Space Administration. This publication makes use of data products from the Two Micron All Sky Survey, which is a joint project of the University of Massachusetts and the Infrared Processing and Analysis Center/California Institute of Technology, funded by the National Aeronautics and Space Administration and the National Science Foundation.

DATA AVAILABILITY

This work is based on MUSE data which can be found in the ESO archive (http://archive.eso.org; programme IDs 101.B.0368, 102.B.0617, 095.B-0049, 094.B-0733, 096.B-0230, 60.A.9315, 097.B.0165, 097.B-0313 and 094.B-0733). Further, derived data underlying this article will be shared on reasonable request to the corresponding author.
