BRITE observations of ν Centauri and γ Lupi, the first non-eclipsing members of the new class of nascent binaries Open Access

ABSTRACT

1 INTRODUCTION

Formation of close binaries with massive components is a challenging theoretical problem as the details of the formation processes cannot be tested observationally. This is because massive stars at the pre-main sequence (MS) stage of evolution are embedded in the parent cloud from which the stellar cluster is formed (e.g. Lada & Lada 2003). The stars become observable only after the cloud is dispersed by strong stellar winds of the most massive stars or core-collapse supernova explosions. Assuming coevality or near-coevality of the onset of star formation, one comes to the conclusion that if the binary has a low mass ratio q = M₂/M₁, the system may become visible as a binary consisting of a massive MS primary and a pre-MS companion. Given the overall scarcity of massive stars, their fast evolution and observational selection effects, such systems will be rare and difficult to discover. Recently, using a sample of 174 000 eclipsing binaries in the Large Magellanic Cloud (LMC), selected from the third phase of the Optical Gravitational Lensing Experiment (OGLE-III) database (Graczyk et al. 2011), Moe & Di Stefano (2015) discovered 18 systems with low mass-ratios (0.06 < q < 0.25), consisting of early B-type MS primaries with M₁ ≈ 5–6 M_⊙ and pre-MS secondaries. After correcting the observed number of these systems for selection effects, they found that (2.0 ± 0.6) per cent of early B-type MS stars would have companions with masses of 0.06–0.25 M₁ and orbital periods, P_orb, of 3.0–8.5 d. According to Moe & Di Stefano (2015), this fraction is ≈10 times larger than that observed around solar-type MS stars in the same mass ratio and period interval.

Such systems, referred to by Moe & Di Stefano (2015) as nascent eclipsing binaries with extreme mass ratios (NEBs henceforth), are interesting because it is not known how they were formed. In particular, there is the question whether these systems originate as a close binary from the beginning and both components accrete matter at the same time (see e.g. Sørensen et al. 2018, and references therein) or if they form as a wide binary and the orbit shrinks at a later stage of evolution leaving a much closer system as a product (e.g. Kiseleva, Eggleton & Mikkola 1998; Fabrycky & Tremaine 2007). Equally interesting is the future of these systems after the primary leaves the MS: the stars may coalesce or form a low-mass X-ray binary (Kalogera & Webbink 1998; Kiel & Hurley 2006). Further evolution may produce a Type Ia supernova and a millisecond pulsar.

As discussed by Moe & Di Stefano (2017), early-type binaries identified by various observing techniques, such as spectroscopy, eclipses, interferometry, adaptive optics, common proper motion, etc., are distributed in distinct regions of the q–P_orb plane. Those with low-mass pre-MS secondaries are difficult to select because of the large difference in brightness between components. In the case of a wide binary observed by means of astrometric techniques, the pre-MS status of the secondary is hard to establish due to the limited possibilities of deriving its mass and radius. The systems with the shortest orbital periods can be detected as spectroscopic binaries (SBs) showing a measurable reflection effect. If there are no eclipses, an analysis of the reflection light curves may constrain the radius of the secondary component, revealing its pre-MS status. In the present paper, we announce the discovery of two such systems, ν Cen and γ Lup, non-eclipsing counterparts of the NEBs. The presence of eclipses would be an additional asset allowing to constrain the secondary’s radius even if the reflection effect is marginal or below the detection threshold. Examples illustrating this are the single-lined (SB1) eclipsing binaries 16 (EN) Lac and μ Eri. The B2 IV primary of the former is also a well-known β Cephei variable, while the B5 IV primary of the latter is an SPB star. The pre-MS nature of the secondary of 16 (EN) Lac was suggested by Pigulski & Jerzykiewicz (1988) and confirmed by Jerzykiewicz et al. (2015), while that of μ Eri is established in Section 6 of the present paper.

2 TARGET STARS: |$\nu$| CEN AND |$\gamma$| LUP

ν Cen (HD 120307, HR 5190, and HIP 67464) is a member of the Upper Centaurus Lupus (UCL) subgroup of the association Sco OB2 (de Zeeuw et al. 1999). The MK type is B2 IV (Hiltner, Garrison & Schild 1969). According to Wilson (1915), ν Cen is an SB1 system with P_orb = 2.625 172 d, a circular orbit and the semi-amplitude K = 20.6 km s⁻¹. These parameters were confirmed by Ashoka, Surendiranath & Rao (1985) but Rajamohan (1977) obtained e = 0.26 and K = 29.9 km s⁻¹. In addition, Rajamohan (1977) maintains that the residuals from the orbital radial-velocity (RV) curve show a β Cephei-type variation with at least two periods close to 0.1750 d. This period, albeit a single one, was found by Kubiak & Seggewiss (1982) in their RV and Strömgren u-filter observations. Using residuals from the orbital solution and the RV data of Kubiak & Seggewiss (1982), Ashoka et al. (1985) updated this period to 0.169 0156 d. Subsequently, Ashoka & Padmini (1992) added three nights of RV observations and revised the period to 0.169 6401 d. However, Shobbrook (1978), Percy, Jakate & Matthews (1981), and Sterken & Jerzykiewicz (1983) failed to detect any short-period brightness variations in their Strömgren b-filter observations. Moreover, from a number of 12 Å mm⁻¹ spectrograms, Sterken & Jerzykiewicz (1983) found no evidence for a short-period RV variation. More recently, from a series of high-resolution CCD spectrograms, Schrijvers & Telting (2002) discovered a pattern of moving bumps in the Si III 455.2- and 456.7-nm line profiles, which they attributed to high-degree non-radial pulsations with l ranging from 6 to 10, ruling out low-degree pulsations with a period of 0.17 d. A small-amplitude brightness variation of ν Cen with the orbital period was detected by Waelkens & Rufener (1983); these authors ascribed the variation to a reflection effect. From numerous observations in the Strömgren b filter, Cuypers, Balona & Marang (1989) concluded that:

The observations [...] clearly show a variation with the same period as the orbital period. Minimum light corresponds to maximum positive RV. As discussed by Waelkens & Rufener (1983), the resulting light curve is most probably a reflection effect. A careful investigation did not reveal any signs of a variation at any other frequency with an amplitude exceeding 2 mmag.

In the General Catalogue of Variable Stars (GCVS),¹ ν Cen is classified as BCEP (i.e. a β Cephei-type variable) but Stankov & Handler (2005) have degraded it to the status of a candidate β Cephei variable presumably because of the conflicting evidence for short-period RV and brightness variability summarized above. In the Hipparcos catalogue (ESA 1997), the type of variability is EB (i.e. a β Lyrae-type eclipsing variable), the range is 3.318–3.329 mag, and the period |$P=2.6249\, \pm$| 0.0003 d.

γ Lup (HD 138690, HR 5776, and HIP 76297) is a close visual double with the separation ranging from 0.1 to 0.8 arcsec. It consists of components of very nearly equal brightness: the Hp magnitudes are equal to 3.397 and 3.511 for the A and B component, respectively (ESA 1997). The orbital elements listed in the US Naval Observatory’s Sixth Catalog of Orbits of Visual Binary Stars (ORB6),² computed by Heintz (1990) from the 1836–1988 mainly micrometric observations, include a period of 190 yr, a semimajor axis of 0.655 arcsec, an inclination of 95.˚0, and an eccentricity of 0.51. In Notes to the 5th edition of the Bright Star Catalogue (Hoffleit & Jaschek 1991), an MK type of B2 IV-V is assigned to either component, but Hiltner et al. (1969) give a single MK type of B2 IV. One component is an SB1 system with P_orb = 2.808 05 d and |$e =0.10\, \pm \,$|0.02 (Levato et al. 1987). These authors note that both components fell on the slit of the spectrograph, so that – because of their similar brightness – either can be responsible for the RV variation. The star is listed in the GCVS as ELL: (i.e. a questionable ellipsoidal variable). According to the Hipparcos catalogue, the type of variability is P (i.e. periodic), the range is 2.693–2.711 mag, and the period, |$P ={}2.8511\, \pm \,$|0.0004 d. Note that the frequencies corresponding to the Hipparcos and the spectroscopic period differ by 0.0054 d⁻¹ = 2 yr⁻¹. An excellent summary of the observations of γ Lup throughout 1987 was provided by Baade (1987).

3 THE DATA AND REDUCTIONS

3.1 BRITE and SMEI photometry

The photometry analysed in the present paper was obtained from space by the constellation of five BRIght Target Explorer (BRITE) nanosatellites (Weiss et al. 2014; Pablo et al. 2016) during two runs, in the fields Centaurus I (both stars) and Scorpius I (only γ Lup). These observations were secured by all five BRITEs, three red-filter, UniBRITE (UBr), BRITE-Toronto (BTr), and BRITE-Heweliusz (BHr), and two blue-filter ones, BRITE-Austria (BAb) and BRITE-Lem (BLb). Details of BRITE observations are given in Table 1. The Cen I observations were obtained in stare mode, the Sco I, in the chopping mode of observing (Pablo et al. 2016; Popowicz et al. 2017). The images were analysed by means of two pipelines described by Popowicz et al. (2017). The resulting aperture photometry is subject to several instrumental effects (Pigulski et al. 2018) and needs pre-processing aimed at the effects’ removal. To remove the instrumental effects, we followed the procedure designed by Pigulski et al. (2016) with several modifications proposed by Pigulski & the BRITE Team (2018). The whole procedure includes converting fluxes to magnitudes, rejecting outliers and the worst orbits (i.e. the orbits on which the standard deviation of the magnitudes was excessive), and 1D and 2D decorrelations with all parameters provided with the data (e.g. position in the subraster and CCD temperature) and the calculated satellite orbital phase. The 2014 UBr observations of γ Lup were additionally decorrelated with respect to the frequency of 1 d⁻¹ because they showed a spurious variation with this frequency (see Fig. 1). After decorrelating, the magnitudes were de-trended and deviant magnitudes were rejected by hand.

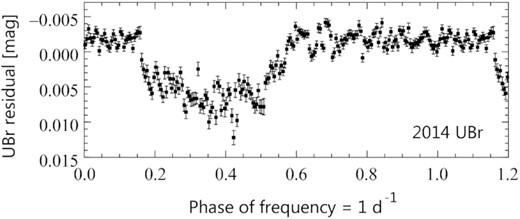

Figure 1.

The spurious 1 d⁻¹ variation of the 2014 UBr magnitudes of γ Lup. Shown are the normal points computed in adjacent intervals of 0.005 phase of the frequency of 1 d⁻¹. The data were the 2014 UBr magnitudes of γ Lup decorrelated with respect to the CCD’s temperature, the X and Y coordinates of the image centre of gravity and the satellite orbital phase, and pre-whitened with the star’s orbital frequency.

Open in new tabDownload slide

The Solar Mass Ejection Imager (smei) time-series photometry has been already employed by a number of workers. For example, Kallinger et al. (2017) used smei time-series photometry to bolster the BRITE data analysis of V389 Cygni, a triple system with an SPB star component. The time-series photometry of ν Cen and γ Lup was downloaded from the SMEI website³ and reduced as described in Section 6 of Kallinger et al. (2017). The details of the photometry are given in Table 1.

3.2 The radial-velocity data

For both target stars, several sets of archival RV data are available in the literature. They are listed in Table 2 as sets (1–15). In addition to sets (1–10) of the archival RVs of ν Cen, and sets (11–15) of γ Lup, we used three archival FEROS spectrograms of γ Lup, obtained in May 2004 and August 2013, to derive the RVs. This was done by least-squares fitting of rotationally broadened template spectra to the observed spectra. The template spectra were calculated using BSTAR2006 grid of models (Lanz & Hubeny 2007), convolved rotationally with the rotin3 program provided on the Synspec⁴ web page. These RVs, together with their estimated standard errors, are listed in Table 3 and are referred to in Table 2 as set (16). In addition to the archival data, new RVs of γ Lup were derived from spectrograms taken by one of the authors (MR) with the BACHES echelle spectrograph (Kozłowski et al. 2016) installed on the 0.5-m robotic telescope Solaris-1 (Kozłowski et al. 2014; Sybilski et al. 2014) located at SAAO. Eight spectrograms each of exposure time of 250 s and signal-to-noise ratios from 100 to 150 were taken between February 29 and May 5 2016. In order to reduce the spectrograms, we used standard IRAF⁵ procedures. The wavelength calibration was performed using the mean of wavelength solutions from the Th-Ar lamp frames taken before and after target frames. IRAF rvsao.bcvcorr task was used for barycentric velocity and time corrections. The RVs were calculated as straight means of the values obtained from Gaussian fitting to four He i lines, 438.79, 492.19, 587.56, and 667.82 nm. Standard errors of these means serve as a measure of uncertainty. The new RVs together with the uncertainties are listed in Table 3 and are referred to in Table 2 as set (17).

4 THE ORBITAL RV AND LIGHT CURVES OF |$\nu$| CEN

4.1 The orbital period

4.2 The RV curve and the spectroscopic orbit

The RVs of ν Cen are plotted in Fig. 2. For the Schrijvers & Telting (2002) points, the error bars (not shown) would be of about the same size as the symbols plotted in the figure because we assumed the standard error to be equal to 0.6 km s⁻¹, the standard deviation of the least-squares fit of the sine-curve to these points (see Section 4.1). In addition to the data referenced in Table 4 (filled symbols), the RV measurements of Sterken & Jerzykiewicz (1983), Kubiak & Seggewiss (1982), and Jilinski et al. (2006), i.e. sets (5, 6, and 10) detailed in Table 2, are shown (open symbols). In the case of Sterken & Jerzykiewicz (1983), we plotted only the first and the last of their 49 data-points with the standard errors provided by them. In the case of Jilinski et al. (2006), we converted the MJD of the exposure beginning (which they call HJD in their table 1) to HJD of the middle of the exposure by adding 240 0000.5 d, the heliocentric correction and half of the exposure time. In addition, we estimated the standard error from the range of the RVs on HJD 2452413 (the two asterisks at phase ∼0.99 in Fig. 2) to be 4.5 km s⁻¹. As can be seen from the figure, most measurements scatter around those of Schrijvers & Telting (2002); the two exceptions are the measurements of Rajamohan (1977) and Kubiak & Seggewiss (1982). The former show a systematic shift towards smaller RVs, the latter, towards greater RVs. Omitting the Rajamohan (1977) and Kubiak & Seggewiss (1982) data, we computed a spectroscopic orbit by means of the non-linear least squares method of Schlesinger (1910) with weights inversely proportional to the squares of the standard errors of the velocities. The parameters of the orbit are determined by RVs of Schrijvers & Telting (2002) but their standard deviations, by the remaining data. The eccentricity of the orbit turned out to be an insignificant |$e=0.009\, \pm \, 0.007$|⁠. We conclude that the orbit is circular, confirming the result of Wilson (1915). The elements of the orbit are listed in Table 6 and the RV curve computed from these elements is shown in Fig. 2 with the solid line.

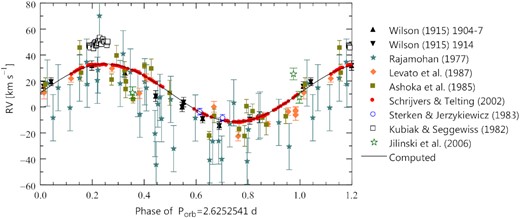

Figure 2.

Archival RVs of ν Cen plotted as a function of orbital phase. The phases were computed from ephemeris (3). The solid line is the RV curve computed from the spectroscopic elements listed in Table 6.

Open in new tabDownload slide

4.3 The orbital light curves and the W–D modelling

The light curves of ν Cen are presented in Fig. 3. The data shown are normal points formed in adjacent intervals of 0.02 orbital phase from the blue and red BRITE magnitudes (the upper and lower panel, respectively). The error bars are not shown because they would barely extend beyond the plotted circles: the standard errors ranged from 0.27 to 0.42 mmag for the blue normal points, and from 0.26 to 0.39 mmag for the red normal points. The lines plotted in the figure are the theoretical light curves, results of the Wilson–Devinney (W–D) modelling to be discussed presently. A least-squares fit of a sum of the f_orb and 2f_orb sines to the normal points yields blue amplitudes of 5.47|$\, \pm \,$|0.22 and 0.11|$\, \pm \,$|0.22 mmag, and red amplitudes of 8.70|$\, \pm \,$|0.16 and 0.14|$\, \pm \,$|0.16 mmag, respectively. The 2f_orb amplitudes are consistent with the conclusion of Appendix A1 that no detectable ellipsoidal light-variation is present. Thus, the orbital light-variation is caused solely by the reflection effect.

Figure 3.

The light curves of ν Cen. Plotted are normal points formed in the adjacent intervals of 0.02 orbital phase from the blue (upper panel), and red (lower panel) BRITE magnitudes. The phases were computed from ephemeris (3). The lines are the theoretical W–D light curves.

Open in new tabDownload slide

The light curves were subject to modelling by means of the 2015 version of the W–D code⁶ (Wilson & Devinney 1971; Wilson 1979). In addition to the light curves, the input data for the code included the orbital elements from Table 6 and the primary component’s fundamental parameters T_{eff, 1} =22 370 K and log g₁ =3.76 from Appendix B1. The T_{eff, 1} was fixed throughout but the final log g₁, used only in deriving the limb darkening coefficients, were taken from the W–D solutions after several iterations. The limb darkening coefficients were from the logarithmic-law tables of Walter V. Van Hamme.⁷ For the primary component, we assumed [M/H] = 0 and used 421 and 620.5 nm monochromatic coefficients for the blue and red data, respectively. A radiative-envelope albedo of 1.0 was assumed. In treating the reflection effect, we used the detailed model with six reflections (MREF = 2, NREF = 6). For the secondary component, bolometric limb-darkening coefficients and a convective-envelope albedo of 0.5 were adopted.

The mass function, f(M), depends on the primary’s mass, M₁, the secondary’s mass, M₂, and the inclination, i, or – alternatively – on M₁, i, and the mass ratio q = M₂/M₁. Once two of these parameters are fixed, the third can be calculated from f(M) given in Table 6. The evolutionary mass |$M_1=8.7\, \pm \,$|0.3 M_⊙ derived for the primary component of ν Cen in Appendix B1 is model dependent. Therefore, in order to be certain that the range of M₁ adopted in the W–D modelling comprises the true primary mass, we assumed a range five times wider than the formal uncertainty of M₁, i.e. 7.2–10.2 M_⊙. In a preliminary run, we found that the range of i should be limited to 30° ≤ i < 75° because for i ≥ 75°, the W–D light curves showed an eclipse not seen in the observed light curves, while for i < 30°, an ellipsoidal effect, also not present in the observed light curves, showed up in the W–D light curves. In the i < 30° models, the distortion of the primary causing the ellipsoidal effect was a consequence of a higher M₂ and a tighter orbit. In addition, a higher M₂ and hence greater brightness would be also inconsistent with the lack of the secondary’s lines in the spectrum. The final W–D modelling was therefore done assuming a grid of (M₁, i) ∈ (7.2–10.2 M_⊙, 35–75°). As it turned out, the q calculated for the whole grid was confined to a rather narrow range of 0.074–0.169.

In the (M₁, i) grid, we fitted the W–D light curves to the normal points shown in Fig. 3 assuming equal weights. The overall standard deviation of the fits were very nearly the same over the whole grid. This is a consequence of the fact that there are three free parameters in the models, the secondary’s effective temperature, T_{eff, 2}, and the components’ radii, R₁ and R₂ (formally, the surface potentials), that can be adjusted to get a satisfactory fit. Thus, the fits do not discriminate between different (M₁, i). The solid lines plotted in Fig. 3 are the W–D light curves computed with M₁ =8.695 M_⊙ and i = 35°. At the resolution of the figure, the light curves computed with other (M₁, i) values would be impossible to distinguish from those shown. The ranges of the parameters of the components obtained from the W–D modelling are given in Table 7; they are an order of magnitude greater than the formal standard deviations of the W–D solutions. It is interesting that the primary’s W–D surface gravity is much better constrained than that derived in Appendix B1 from the photometric indices. In Fig. 4, the components of ν Cen are plotted using the effective temperature and luminosity of the primary from Appendix B1, and those of the secondary from Table 7; the ranges of log T_{eff, 2} and log (L₂/L_⊙) listed in the table define the full lengths of the error bars and the open inverted triangles are placed at their intersection. Also shown in the figure is the zero-age main sequence (ZAMS) for the Z = 0.014 models from Ekström et al. (2012). Given coevality of the components, the position of the secondary relative to the ZAMS indicates its pre-MS status. The secondary’s evolutionary status will be further discussed in Section 6.

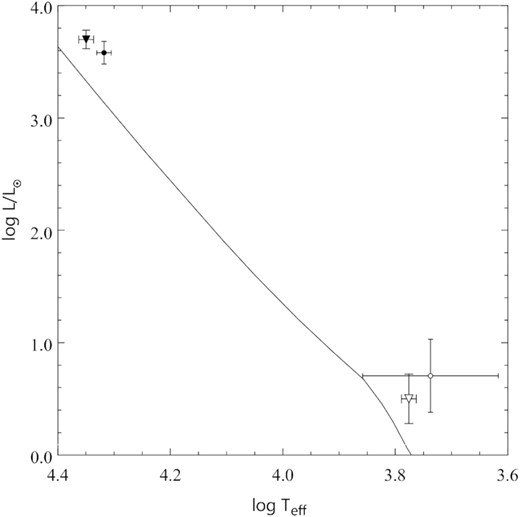

Figure 4.

The components of ν Cen and γ Lup A (inverted triangles and circles, respectively) in the HR diagram. The line is the ZAMS from Ekström et al. (2012) for the Z = 0.014 models with no rotation. For log (L₁/L_⊙) < 1.0, the ZAMS for models with rotation is virtually identical with the one shown.

Open in new tabDownload slide

5 THE TRIPLE SYSTEM OF |$\gamma$| LUP

5.1 The SB1 RV curve

All sets of the RV observations of γ Lup detailed in Section 3.2 and Table 2 can be phased with the photometric orbital frequency of 0.350 90 d⁻¹ provided that 1 d is added to all JD epochs of observations of van Hoof et al. (1963; their UT dates are correct) and a misprint in one epoch of observation of van Albada & Sher (1969) is corrected: in their table 3, April 25.019 should be replaced with April 25.919. In four sets, (11, 14, 15, and 17), the RV measurements are distributed in orbital phase sufficiently well to be fit with the sine curve in which f_orb = 0.350 90 d⁻¹. Using a sine curve is justified because the SB1 orbit of γ Lup is circular (see Section 5.4). In fitting equation (1), we used the method of least squares with weights inversely proportional to the squares of the standard errors of the velocities. For sets (11 and 14), the standard errors were obtained by multiplying the standard error of an equal-weights fit by |$\sqrt{\langle n \rangle /n}$|⁠, where n is the number of lines measured and 〈n〉 is the overall mean of n. For set (15), the standard errors were computed from the probable errors provided by Levato et al. (1987). For set (17), the standard errors are given in Table 3. The fits yielded the γ velocities to be used in Section 5.2, and the epochs of crossing the γ-axis from the smaller to greater RV (i.e. from approach to recession), HJD_γ, to be used in Section 5.3.

5.2 Component A is the SB

Given the elements of the γ Lup AB visual binary orbit, the parallax of the system and the mass ratio of the components, the temporal variation of the RVs of the components A and B can be computed. After Heintz (1990) derived the elements mentioned in Section 2, a number of interferometric determinations of the position angle θ and angular separation ρ of γ Lup B relative to A became available. In order to update the orbital elements, we compiled a list of θ and ρ from the US Naval Observatory’s Fourth Catalog of Interferometric Measurements of Binary Stars,⁸ assigning weights to the measurements depending on the number of observations used in computing θ and ρ, the scatter of the observations and the telescope size. Zero weight was given to the measurements with ρ grossly deviating from the average run; this was never the case for θ. The updated elements were estimated by bootstrapping with 1000 resamplings. The elements are listed in Table 8 and the corresponding apparent relative orbit is plotted in Fig 5. The value of a = 0|${_{.}^{\prime\prime}}$|970 from the table and the revised Hipparcos parallax, equal to 7.75|$\, \pm \,$|0.50 mas (van Leeuwen 2007), yield the semimajor axis of the relative orbit a = 125.2 AU. Inserting this value and the period of the AB system P_AB = 167.3 yr into Kepler’s third law, we get the mass of the system M_A + M_B = 70.1 M_⊙, a value much too large for a pair of B2 stars. The lower bound of the orbital period, P_AB = 160.1 yr, yields a value still greater. Using the upper bound of the orbital period allowed by the solution, P_AB = 188.8 yr, and the corresponding a = 1.394 × 10¹⁰ km, we get M_A + M_B = 22.7 M_⊙, a value still 5.5 M_⊙ greater than the overall mass of the system derived in Section B2.

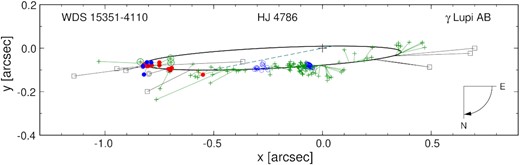

Figure 5.

The apparent relative orbit of the γ Lup AB (HJ 4786) system. The ellipse corresponds to the solution given in Table 8. The individual measurements are plotted with different symbols, depending on the observing technique. The techniques were the following: micrometric measurements (green pluses; the three discovery measurements made by J. F. W. Herschel in 1835–1837 are encircled), visual interferometry (open blue circles), speckle interferometry (filled red circles), CCD, mostly lucky imaging (filled blue circles), Hipparcos and Tycho measurements (black double circles). The data excluded from the fit are plotted as black squares. All measurements are connected with the calculated position in the orbit, corresponding to the epoch of observation. The large plus marks the position of component A and the dashed line is the line of apsides.

Open in new tabDownload slide

Taking the above-mentioned three values of P_AB and the corresponding T, e, i, and ω from Table 8, and assuming γ =0.00 km s⁻¹, we computed the RV curves shown in Fig. 6. Also plotted are the γ velocities from the fits carried out in Section 5.1 decreased by 4.12 km s⁻¹, so that sets’ (14) γ (triangle) coincides with the computed RVs of component A for P_AB = 167.3 yr and q = 1.0 (blue solid line). It is clear from the figure that (i) the γ velocities approximately follow the computed RV variation of component A, justifying this section’s heading, and (ii) the available RV data are insufficient to constrain the elements of the visual binary orbit or the component’s mass ratio.

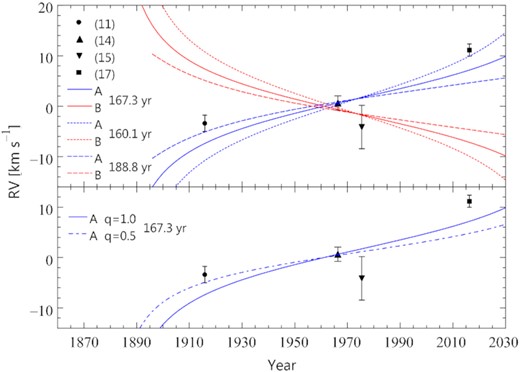

Figure 6.

The RVs of the components A and B of γ Lup, computed from the orbital elements of Table 8 and the revised Hipparcos parallax, for the B to A mass ratio q = 1.0 (upper panel), and the RV of component A for q = 1.0 and 0.5 (lower panel) compared with the γ velocities determined in Section 5.1 from the four RV sets detailed in the text (symbols with error bars).

Open in new tabDownload slide

5.3 The light-time effect

Because of the orbital motion around the centre of mass of the AB system, the epochs of observations of γ Lup A include a term arising from the light-time effect (LiTE). In particular, the epochs of crossing the γ-axis from the smaller to greater RV, HJD_γ, derived in Section 5.1, and the epochs of maximum light, HJD_max, to be derived shortly, will be affected. HJD_γ are listed in the second column of Table 9 while HJD_max, in the first column of Table 10. The latter were computed from the least-squares fits of equation (2) with f_orb = 0.350 90 d⁻¹ to the Hipparcos, SMEI, and BRITE data. The SMEI data were divided into five adjacent segments of approximately equal duration. Before fitting, the 2014 BRITE magnitudes were pre-whitened with the 1.5389 d⁻¹ term, and the 2015 blue magnitudes were pre-whitened with the 1.6913 d⁻¹ term derived in Appendix A3.

In Fig. 7, there are shown the LiTE O–C curves computed for γ Lup A from equation (3) of Irwin (1952) with the 167.3, 160.1, and 188.8 yr elements of Table 8 (the solid, short-dashed, and dashed lines, respectively) for two values of the B to A mass ratio, q = 1.0 (upper panel) and 0.5 (lower panel). Assuming that at a given epoch the orbital phase of HJD_γ is equal to that of HJD_max, i.e. the maximum light of the SB light curve occurs when the secondary is at superior conjunction, one can fit the LiTE O–C curves to the HJD_γ and HJD_max from Tables 9 and 10. In the ephemerides T₀ + P₀E obtained in this way, the period P₀ is equal to the γ Lup SB A orbital period, P_orb, for the epoch of d(O−C)/dE = 0. For the 188.8 yr elements, which yield the smallest value of M_A + M_B we consider (see Section 5.2), the residuals computed with q = 1.0 and 0.5, (O–C)_1.0 and (O–C)_0.5, are listed in Tables 9 and 10 and plotted in Fig. 7. The q = 1.0 residuals fit the computed O–C curve with a slightly smaller standard deviation (0.0071 d) than the q = 0.5 residuals (0.0076 d).

Figure 7.

The LiTE O–C curves for γ Lup A, computed from the orbital elements of Table 8 (lines) for the B to A mass ratio q = 1.0 (upper panel) and 0.5 (lower panel), compared with the (O–C)_1.0 and (O–C)_0.5 residuals from Tables 9 and 10 (symbols with error bars).

Open in new tabDownload slide

5.4 The SB RV and the mean light curves of |$\gamma$| Lup A

The reduced RVs are plotted in Fig. 8 as a function of phase computed using the LiTE-corrected epochs of observations and P_orb from ephemeris (4). These data were then used in computing a spectroscopic orbit by means of the non-linear least squares method of Schlesinger (1910) with weights inversely proportional to the squares of the standard errors. The standard errors of sets (11, 14, 15, and 17) were the same as in Section 5.1 while those of set (16) were taken from Table 3. For set (12), we obtained the standard errors from the probable errors Buscombe & Morris (1960) provide, while for set (13) we estimated the standard error from the scatter in the phase diagram. The eccentricity of the orbit turned out to be equal to an insignificant |$e=0.044\, \pm \,$|0.045. It is thus feasible to assume that the orbit is circular. The elements of a circular orbit are listed in Table 11 and the RV curve computed from these elements is shown in Fig. 8 with the solid line.

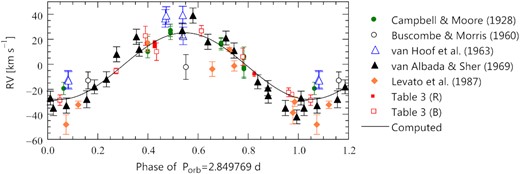

Figure 8.

The RVs of γ Lup, corrected for the LiTE as explained in the text, plotted as a function of the orbital phase. The epoch of phase zero is HJD 2457482. The solid line is the RV curve computed from the spectroscopic elements listed in Table 11.

Open in new tabDownload slide

An anonymous referee has suggested that the orbital period of the AB binary could be obtained from an assumed value of the mass of the system equal to a sum of masses of two B2 stars. We carried out this exercise using the mass of the system of 17.2|$\, \pm \,$|0.7 M_⊙ derived in Section B2 and the same data as in the first paragraph of Section 5.2. We obtained |$P_{\rm AB} ={}198.3\, \pm \,$|5.4 yr and the remaining orbital elements rather close to those of Heintz (1990) mentioned in Section 2. If plotted in the upper panel of Fig. 6, the RVs computed with the P_AB =198.3 yr elements would very nearly coincide with those computed with the P_AB =188.8 yr elements. A similar result is obtained for the O−C shown in Fig. 7. In addition, the elements of the γ Lup A spectroscopic orbit obtained from the HJD and RV corrected for LiTE with the P_AB =198.3 yr elements differ from those in Table 11 by much less than 1σ: K₁, a₁sin i, and f(M) differ by 0.5|$\, \pm \,$|1.4 km s⁻¹, 0.03|$\, \pm \,$|0.08 R_⊙, and 0.0003|$\, \pm \,$|0.0008 M_⊙, respectively. Clearly, there exists an interval of mass of γ LupAB such that for a mass from this interval there is a value of P_AB which accounts for the observed temporal variation of RV and O−C. We believe that more measurements of θ and ρ of the system are needed to narrow down this interval. Whether the model-independent mass of the system derived from the observed orbit will then agree with the model-dependent mass obtained in Section B2 remains to be seen.

Let us now turn to the question whether correcting the epochs of observations for the LiTE would affect results of frequency analysis of the BRITE data. As can be seen from Fig. 7, the LiTE corrections to the epochs of observations over the time interval covered by the BRITE data can be expressed by a linear function of time, a + bt, where a and b are constants. In other words, the LiTE-corrected epochs of observations are shifted by a and scaled by 1 + b. From the well-known properties of the Fourier transform, it follows that the time shift translates in the frequency domain into a phase shift, while the 1 + b scaling, into scaling the frequencies and amplitudes by the reciprocal of 1 + b. Since b ≈ 1.5 × 10⁻⁵, the answer to our question is no. More precisely, the LiTE corrections would have negligible effect on the frequencies and amplitudes derived in Appendices A2 and A3.

Using the 2014 and 2015 blue and red magnitudes (see Appendix A3) with the LiTE-corrected epochs of observations and P_orb from ephemeris (4), we plot the blue and red phase diagrams in Fig. 9. The data plotted in the figure are normal points, computed in the adjacent intervals of 0.01 orbital phase. The standard errors, ranging from 0.25 to 0.35 mmag for the blue normal points and from 0.24 to 0.36 mmag for the red normal points, are not shown. The solid lines are the theoretical light curves, results of the W–D modelling detailed in Section 5.5. A least-squares fit of a sum of the f_orb and 2f_orb sines to the normal points yields the blue amplitudes of 5.92|$\, \pm \,$|0.10 and 0.14|$\, \pm \,$|0.10 mmag, and the red amplitudes of 8.54|$\, \pm \,$|0.12 and 0.44|$\, \pm \,$|0.12 mmag. In the latter case, the phase difference between the f_orb and 2f_orb sines is equal to 0.21|$\, \pm \,$|0.14 rad, excluding ellipsoidal effect as the cause of the 2f_orb term. We conclude that the orbital light-variation is caused solely by the reflection effect. The amplitudes and the phase difference agree with the results presented in Section A3.

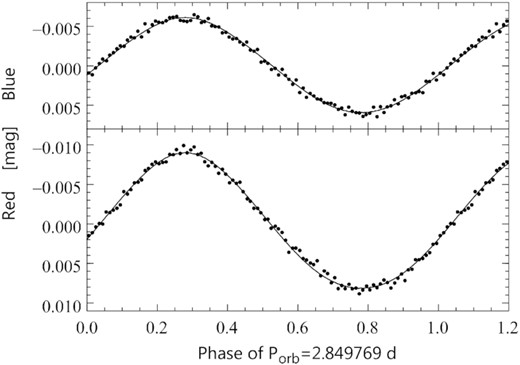

Figure 9.

The orbital light curves of γ Lup. Plotted are normal points formed in the adjacent intervals of 0.01 orbital phase from the combined 2014 and 2015 blue (upper panel) and red (lower panel) BRITE magnitudes. The epoch of phase zero is HJD 2457482. The lines are the theoretical W–D light curves computed with M₁ =8.093 M_⊙ and i = 55°.

Open in new tabDownload slide

5.5 The W–D modelling

In the W–D modelling of the light curves of γ Lup, we used the orbital elements from Table 11 and the fundamental parameters T_{eff, 1} =20 790 K and log g₁ =3.94 from Appendix B2. As in the case of ν Cen, the T_{eff, 1} was fixed throughout but the final log g₁ were taken from the W–D solutions after several iterations. The remaining details of the W–D modelling were also the same as in the case of ν Cen (see Section 4.3), except that a third light was included in order to account for component B. The third light’s brightness was kept as a free parameter because fixing it at a level consistent with the Hp magnitudes of the components (see Section 2) resulted in a divergent solution. As in the case of ν Cen, the range of M₁ was assumed to span five times the uncertainty obtained in Appendix B2. The results of the W–D modelling, listed in Table 7, bear many similarities to the results for ν Cen (Section 4.3): (i) the mass ratio is low, |$q = 0.15^{+0.09}_{-0.05}$|⁠, (ii) the W–D light-curves fit the normal points with very nearly the same overall standard deviation over the whole (M₁, i) grid, (iii) the position of the secondary relative to the ZAMS indicates its pre-MS status (see Fig. 4). The secondary’s evolutionary status will be further discussed in Section 6.

6 DISCUSSION AND CONCLUSIONS

Using stellar parameters and the results of the W–D modelling of the reflection effect in ν Cen and γ Lup A, we concluded in Sections 4.3 and 5.5 that the secondaries in both systems are in the pre-MS stage of evolution. Thus, as we already mentioned in Section 1, the systems can be regarded as non-eclipsing counterparts of the NEBs, to be referred to in the following as NnonEBs. In order to strengthen this conclusion, we compare in Fig. 10 the radii, the age, and the range of reflection effect of ν Cen and γ Lup A with those of the LMC NEBs using the parameters of ν Cen and γ Lup A from Table 7 (the ranges of the parameters are plotted as error bars) and those of the LMC NEBs from tables 1 and 2 of Moe & Di Stefano (2015). First of all, the radii of the secondaries are significantly larger than the ZAMS values for stars with the same masses (upper left-hand panel of the figure). A more convincing argument that ν Cen and γ Lup A are indeed NnonEBs comes from the positions of their secondaries in the mass-age diagram (upper right-hand panel). The ages of the systems in the diagram were taken from Appendices B1 and B2, where they are determined from the position of the primary components in the HR diagram in relation to the evolutionary tracks. As in the case of the LMC NEBs, both secondaries are located on the pre-MS side of the line which divides the pre-MS and MS regions. The two lower panels of Fig. 10 show parameters characterizing the light curves. The NnonEBs ν Cen and γ Lup A can be plotted only in the left-hand panel, in which they occupy a short-P_orb extension of the area occupied by the LMC NEBs. Also shown in Fig. 10 are two SB1 eclipsing binaries 16 (EN) Lac and μ Eri mentioned in Section 1. 16 (EN) Lac is plotted with the parameters from Jerzykiewicz et al. (2015), while μ Eri, with the parameters computed using the data from tables 3 and 4 and fig. 11 of Jerzykiewicz et al. (2013). Because of the ratio of the radii k = R₂/R₁ of only ≈0.25 and a relatively long orbital period of 12.1 d, the range of the reflection effect in 16 (EN) Lac is smaller than 5 mmag. The pre-MS status of the star’s secondary component is based on the analysis of the ground-based eclipse light curve (Pigulski & Jerzykiewicz 1988; Jerzykiewicz et al. 2015) and an unpublished eclipse light curve obtained by one of the authors (MJ) from the NASA Transiting Exoplanet Survey Satellite (tess; Ricker et al. 2015) observations. In the case of μ Eri, the orbital period is about 1.6 times shorter than that of 16 (EN) Lac but the reflection effect is below the detection threshold because of the small k ≈ 0.135. Still, as can be seen from Fig. 10, the pre-MS status of the secondary is evident. We conclude that 16 (EN) Lac and μ Eri should be regarded as bona fide NEBs. Note that since it was the reflection signature in the eclipsing light curves which Moe & Di Stefano (2015) used to single out the NEBs from the OGLE data, objects similar to 16 (EN) Lac and μ Eri would have passed undetected in their search.

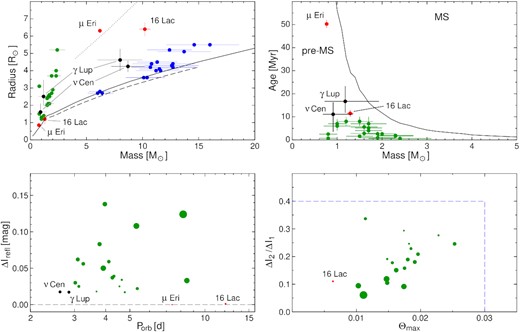

Figure 10.

The stars discussed in the present paper in relation to the LMC NEBs. Upper left: The mass-radius diagram for the primaries (blue) and the secondaries (green) of the LMC NEBs. The components of ν Cen and γ Lup A are plotted as black dots, those of 16 (EN) Lac and μ Eri, as red dots. The solid line is the ZAMS mass-radius relation for the Z = 0.014 models with no rotation from Ekström et al. (2012) for M ≥ 0.8 M_⊙, and from Tognelli, Prada Moroni & Degl’Innocenti (2011) for M < 0.8 M_⊙. The dashed line is the ZAMS relation for the non-rotating Z = 0.006 models (i.e. those with the average metallicity of the LMC) from Georgy et al. (2013). Finally, the dotted line is the terminal-age main sequence relation for the above-mentioned Ekström et al. (2012) models. Upper right: The mass-age relation for the secondaries of the LMC NEBs, ν Cen, γ Lup A, 16 (EN) Lac, and μ Eri. The line defines the border between the pre-MS and MS regions. The values of the pre-MS phase duration were derived from the models of Tognelli et al. (2011). Lower left: The range of the reflection effect in the I band, ΔI_refl, versus orbital period, P_orb for the LMC NEBs (green), ν Cen and γ Lup A (black), and 16 (EN) Lac (red). The diameters of the symbols are proportional to the stellar radii. Lower right: The ratio of the eclipse depth versus the width of the wider eclipse, Θ_max, for the LMC NEBs and 16 (EN) Lac. For the latter, these parameters were derived from an eclipse light curve obtained from the NASA tess (Ricker et al. 2015) observations. The dashed lines contain the LMC NEBs region shown in the central panel of fig. 1 of Moe & Di Stefano (2015).

Open in new tabDownload slide

As far as we are aware, ν Cen and γ Lup A are the only known NnonEBs, i.e early B-type non-eclipsing SB systems such that (i) their observed orbital light-variation is caused solely by the reflection effect, and (ii) the secondary component is in a pre-MS evolutionary phase. In order to verify this and prepare the ground for a future photometric program, we have searched the literature for the light-variability information about all 169 B0 – B5 non-eclipsing SB systems listed in The Ninth Catalogue of Spectroscopic Binary Orbits⁹ (Pourbaix et al. 2004). Apart from ν Cen and γ Lup A, we found only 17 systems with the orbital period equal to the light-variation period, all with primaries of spectral type B3 or earlier. In three cases, the secondary component is known to be a compact object, a neutron star or a white dwarf, while in 13, the light curve is a double wave implying an ellipsoidal variation. Only one system, CX Dra, with an orbital period equal to 6.696 d, exhibits a sinusoidal light-variation of this period, albeit with a large amount of scatter, and the phase relation between the RV and light variation characteristic of the reflection effect (Koubský et al. 1980). The scatter is mainly due to the fact that CX Dra is an interacting Be binary showing variations on time-scales from days to years. Koubský et al. (1980) suggest that a combination of ellipsoidal and reflection effects is responsible for the orbital light-variation. However, using the well-known formula for the amplitude, δm, of the ellipsoidal light-variation (see e.g. Ruciński 1970) and the spectroscopic orbital parameters of the system (Koubský 1978), we find |$\delta m \lessapprox 0.3$| mmag. Thus, CX Dra meets condition (i). Penrod (private communication to Horn et al. 1992) detected the lines of the secondary component and estimated the MK type to be F5 III. The orbit of the secondary component was derived by Horn et al. (1992). These authors concluded that the component is a mid-F luminosity III star filling its Roche lobe. This conclusion is at variance with the result of Guinan, Koch & Plavec (1984), obtained by means of a thorough W–D modelling, that the system is detached. In any case, CX Dra does not meet condition (ii). We conclude that no other NnonEBs than ν Cen and γ Lup A are known. However, there is a number of B0 – B5 non-eclipsing SB systems which in the Hipparcos Epoch Photometry have Hp ranges from two to several mmags but were not classified as periodic variables. Re-observed with satellite photometers, some of these systems may turn out to be NnonEBs.

As discussed in some detail by Moe & Di Stefano (2015), the study of nascent binaries may be of great importance for our understanding of the formation of low-mass-ratio binaries and the origin of such objects as Type Ia supernovae, low-mass X-ray binaries and millisecond pulsars. The discussion would benefit from including Galactic counterparts of the LMC nascent binaries, eclipsing or otherwise. They should be searched for among young binaries. We have already found several candidates in young open clusters and associations but a detailed discussion of these objects is beyond the scope of this paper.

ACKNOWLEDGEMENTS

We are indebted to Professor Jadwiga Daszyńska-Daszkiewicz for computing the evolutionary tracks used in Appendices B1 and B2. This research has made use of the Washington Double Star Catalog maintained at the U.S. Naval Observatory, the Aladin service, operated at CDS, Strasbourg, France, and the SAO/NASA Astrophysics Data System Abstract Service. APi, GM, and DM acknowledge support provided by the Polish National Science Center (NCN) grant no. 2016/21/B/ST9/01126. MR acknowledges support by the NCN grants no. 2015/16/S/ST9/00461 and 2017/27/B/ST9/02727. GH acknowledges support by the Polish NCN grant no. 2015/18/A/ST9/00578. APo was responsible for image processing and automation of photometric routines for the data registered by BRITE-nanosatellite constellation, and was supported by Silesian University of Technology grant nos.: 02/140/SDU/10-22-01 and 02/140/RGJ21/0012. GAW acknowledges support in the form of a Discovery Grant from the Natural Science and Engineering Research Council (NSERC) of Canada. AJFM is grateful to NSERC (Canada) for financial aid.

This study is based on data collected by the BRITE Constellation satellite mission, designed, built, launched, operated, and supported by the Austrian Research Promotion Agency (FFG), the University of Vienna, the Technical University of Graz, the University of Innsbruck, the Canadian Space Agency (CSA), the University of Toronto Institute for Aerospace Studies (UTIAS), the Foundation for Polish Science & Technology (FNiTP MNiSW), and National Science Centre (NCN).

DATA AVAILABILITY

The raw BRITE data are available from BRITE Public Data Archive (https://brite.camk.edu.pl/pub/index.html). The raw SMEI data are available via the link given in Section 3.1. The processed (decorrelated) BRITE and SMEI data are available from the first author upon request. The other data are available from their respective public databases.
