ABSTRACT

We present Atacama Large Millimetre/submillimetre Array observations of the brightest cluster galaxy Hydra-A, a nearby (z = 0.054) giant elliptical galaxy with powerful and extended radio jets. The observations reveal CO(1−0), CO(2–1), 13CO(2–1), CN(2–1), SiO(5–4), HCO+(1–0), HCO+(2–1), HCN(1–0), HCN(2–1), HNC(1–0), and H2CO(3–2) absorption lines against the galaxy’s bright and compact active galactic nucleus. These absorption features are due to at least 12 individual molecular clouds that lie close to the centre of the galaxy and have velocities of approximately −50 to +10 km s−1 relative to its recession velocity, where positive values correspond to inward motion. The absorption profiles are evidence of a clumpy interstellar medium within brightest cluster galaxies composed of clouds with similar column densities, velocity dispersions, and excitation temperatures to those found at radii of several kpc in the Milky Way. We also show potential variation in a ∼10 km s−1 wide section of the absorption profile over a 2 yr time-scale, most likely caused by relativistic motions in the hot spots of the continuum source that change the background illumination of the absorbing clouds.

1 INTRODUCTION

Recent theories and simulations have predicted that supermassive black hole accretion is, to a large extent, powered by the chaotic accretion of clumpy molecular gas clouds (e.g. Pizzolato & Soker 2005; van de Voort et al. 2012; Gaspari et al. 2018). This accretion is just one element of a galaxy-wide, self-regulating fuelling and feedback cycle (Peterson & Fabian 2006; Voit et al. 2015; McNamara et al. 2016; Tremblay et al. 2018). The accreted mass powers radio jets, which in turn produce shocks and turbulence throughout the galaxy, as well as inflating buoyant bubbles of hot, X-ray bright gas. Turbulence, rising bubbles, and pressure waves produced by these shocks cause localized increases in gas densities, lift clouds to higher altitudes, decrease cooling times, and promote the formation of cold molecular gas clouds. The outward velocities of these newly formed clouds of molecular gas are typically much lower than the escape velocity, meaning that significant amounts of this newly formed cold molecular gas eventually returns to the centre of the galaxy to further fuel the feedback loop (for a short review, see Gaspari, Tombesi & Cappi 2020).

Observing gas in the cold molecular phase is essential if we are to understand the wider cycle of accretion and feedback. For many decades, this has been best achieved with molecular emission-line studies (recent examples include García-Burillo et al. 2014; Temi et al. 2018; Olivares et al. 2019). However, the emission lines of individual molecular clouds are relatively weak, so studying the molecular gas in this way can only be used to reveal the behaviour of large ensembles of molecular gas clouds. In recent years, several studies have been able to observe molecular gas in the central regions of brightest cluster galaxies through absorption, rather than emission (David et al. 2014; Tremblay et al. 2016; Combes et al. 2019; Nagai et al. 2019; Rose et al. 2019a,b; Ruffa et al. 2019). The key advantage of these studies is that they are able to detect the presence of molecular clouds in small groups, or even individually because they make use of a bright central core, against which it is possible to observe molecular absorption along very narrow lines of sight.

Absorption line studies can be split into two main groups: intervening absorbers and associated absorbers. Intervening absorbers take advantage of chance alignments between galaxies and background quasars, while associated absorbers use the radio source coincident with a galaxy’s supermassive black hole as a bright backlight. Associated absorber systems are particularly useful because when using a galaxy’s bright radio core as a backlight, redshifted absorption unambiguously indicates inflow and blueshifted lines indicate outflow. In these cases, it is possible to make direct observations of gas with knowledge of how it is moving relative to the supermassive black hole and which may even be in the process of accretion, as has been done by David et al. (2014), Tremblay et al. (2016), and Rose et al. (2019b), where molecular absorption due to clouds moving at hundreds of km s−1 towards their host supermassive black holes has been detected. From the nine associated absorber systems found in brightest cluster galaxies to date, a tendency has emerged for these absorbing molecular gas clouds to have bulk motions towards the host supermassive black holes (Rose et al. 2019b).

Until recently all absorption line studies in brightest cluster galaxies had searched for carbon monoxide (CO). Although the detection of these systems with CO alone is of great value, observing the same absorption regions with multiple molecular species has the potential to reveal the chemistry and history of the gas in the surroundings of supermassive black holes in much more detail, significantly increasing our understanding of the origins of the gas responsible for their accretion and feedback mechanisms. Rose et al. (2019b) recently presented eight absorbing brightest cluster galaxies, which included seven with CO absorption and seven with low-resolution CN absorption. Nevertheless, high spectral resolution observations of these absorption systems with a wider mix of molecular species are still lacking. This paper marks the beginning of a campaign to address this issue.

The observations we present are from an Atacama Large Millimetre/submillimetre Array (ALMA) Cycle 6 survey originally designed to detect the absorption lines of several molecular species in Hydra-A, namely CO, 13CO, C18O, CN, HCN, and HCO+. A multiwavelength view of Hydra-A that highlights its main features can be seen in Fig. 1. The galaxy is already known to have by far the most optically thick CO absorption of this type, caused by clouds of cold, molecular gas lying along the line of sight to the bright radio source which is spatially coincident with the supermassive black hole (Rose et al. 2019a). These clouds are almost entirely composed of hydrogen, though small but significant amounts of these less common molecules are present at sufficient abundances to produce detectable absorption lines.

A multiwavelength view of Hydra-A’s AGN, radio lobes, and edge-on molecular gas disc. Top left: An unmasked 5 GHz Karl G. Jansky Very Large Array (VLA) image showing the galaxy’s AGN and its radio lobes emanating to the north and south, with 0.19 arcsec pixel−1 resolution (Project 13B-088). Top right: A 0.29 arcsec pixel−1 spectral index map of the AGN and radio lobes, produced from continuum images at 92 and 202 GHz which were taken as part of our ALMA survey. Centre: A 0.05 arcsec pixel−1 F814W Hubble Space Telescope (HST) near-infrared image (Mittal, Whelan & Combes 2015). Overlaid is a velocity map that traces the galaxy’s edge-on disc of cold molecular gas, produced using our ALMA observations of CO(2–1) emission. Centre left and right: The spectra of CO(2–1) emission from the red and blueshifted sides of the edge-on disc, also extracted from the ALMA data presented in this paper. Bottom: Some of the principal absorption lines seen against the continuum source at the galaxy centre, which we explore in this paper. The absorption is produced by the cold molecular gas within the disc that lies along the line of sight to the bright radio core.

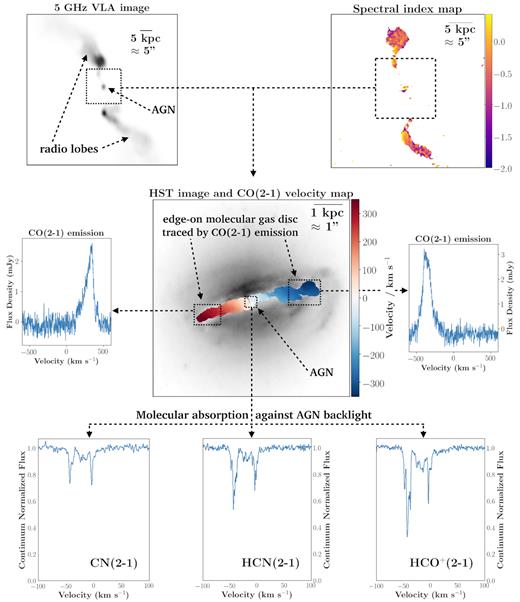

Figure 1.

A multiwavelength view of Hydra-A’s AGN, radio lobes, and edge-on molecular gas disc. Top left: An unmasked 5 GHz Karl G. Jansky Very Large Array (VLA) image showing the galaxy’s AGN and its radio lobes emanating to the north and south, with 0.19 arcsec pixel−1 resolution (Project 13B-088). Top right: A 0.29 arcsec pixel−1 spectral index map of the AGN and radio lobes, produced from continuum images at 92 and 202 GHz which were taken as part of our ALMA survey. Centre: A 0.05 arcsec pixel−1 F814W Hubble Space Telescope (HST) near-infrared image (Mittal, Whelan & Combes 2015). Overlaid is a velocity map that traces the galaxy’s edge-on disc of cold molecular gas, produced using our ALMA observations of CO(2–1) emission. Centre left and right: The spectra of CO(2–1) emission from the red and blueshifted sides of the edge-on disc, also extracted from the ALMA data presented in this paper. Bottom: Some of the principal absorption lines seen against the continuum source at the galaxy centre, which we explore in this paper. The absorption is produced by the cold molecular gas within the disc that lies along the line of sight to the bright radio core.

Although no study of a single source can ever be representative of a whole family of astronomical objects, Hydra-A is a prime target for a study of this type for several reasons, perhaps most importantly because it is a giant elliptical galaxy with a near perfectly edge-on disc of dust and molecular gas, which should readily produce absorption lines in the spectrum of any radio source lying behind it (Hamer et al. 2014). Perpendicular to the disc are powerful radio jets and lobes that propagate out of the galaxy’s centre and into the surrounding X-ray luminous cluster (Taylor et al. 1990). Over several gigayears, the galaxy’s AGN outbursts have created multiple cavities in this X-ray emitting gas via the repeated action of these radio jets and lobes (Hansen, Jorgensen & Norgaard-Nielsen 1995; Hamer et al. 2014). Hydra-A is a particularly useful target for a study of molecular absorption, because it is an extremely bright radio source, with one of the highest flux densities in the 3C catalogue of radio sources (Edge et al. 1959). Combined with its compact and unresolved nature, this high-flux density makes it an ideal backlight for an absorption line survey. This is particularly true in our case where we have aimed to detect molecular species with relatively low-column densities, such as CO isotopologues. Previous observations across several wavelength bands also suggest that the galaxy’s core contains a significant mass of both atomic and molecular gas e.g. CO and CN absorption by Rose et al. (2019a), Rose et al. (2019b), H  i absorption by Dwarakanath, Owen & van Gorkom (1995), Taylor (1996), CO emission by Hamer et al. (2014), and H2 studies by Edge et al. (2002), Donahue et al. (2011), and Hamer et al. (2014).

Throughout the paper, velocity corrections applied to the spectra of Hydra-A use a redshift of z = 0.0544 ± 0.0001, which provides the best estimate of the systemic velocity of the galaxy. This redshift is calculated from MUSE observations of stellar absorption lines (ID: 094.A-0859) and corresponds to a recession velocity of 16294 ± 30 km s−1. At this redshift, there is a spatial scale of 1.056 kpc arcsec−1, meaning that kpc and arcsec scales are approximately equivalent. The CO(2–1) emission line produced by the molecular gas disc also provides a second estimate for the galaxy’s recession velocity of 16 284 km s−1, though this value has a larger uncertainty due to potential gas sloshing.

2 OBSERVATIONS AND TARGET LINES

Observations at the expected frequencies of the CO(1–0), CO(2–1), 13CO(2–1), C18O(2–1), CN(2–1), HCO+(1–0), HCO+(2–1), HCN(1–0), HCN(2–1), and HNC(1–0) rotational lines in Hydra-A were carried out between 2018 July 18 and 2018 December 12. The CO(1–0) observation was carried out as part of an ALMA Cycle 4 survey (2016.1.01214.S), and the remaining were part of an ALMA Cycle 6 survey (2018.1.01471.S). Absorption from all of these lines except C18O(2–1) was detected. Serendipitous detections of SiO(5–4) and H2CO(3–2) were also made during the observations of the target lines. The main details for each observation are given in Table 1. For these observations, Figs 2 and 3 show the spectra seen against the bright radio source at the centre of the galaxy. All are extracted from a region centred on the continuum source with a size equal to the synthesized beam’s FHWM.

Absorption profiles observed against the bright and compact radio continuum source at the centre of Hydra-A, which is spatially coincident with the brightest cluster galaxy’s AGN and supermassive black hole. These spectra have a very narrow velocity range of approximately 80 km s−1 in order to show the absorption features clearly. The full width of the observed spectra is typically 2000 km s−1, though no absorption features outside the velocity range shown are apparent. The spectra are extracted from a region with a size equal to the FWHM of each observation’s synthesized beam. Red and green lines show the individual and combined 12-Gaussian best fits, where each of the 12 Gaussians has a freely varying amplitude across all of the spectra, but a fixed FWHM and central velocity (as indicated by the arrows at the top of the plot). The process by which the best fits are found is described in Section 3. Some of the 12 Gaussian lines may appear weak and unconvincing in some spectra, but all are resolved and detected to high significance in at least one absorption line. No reliable best fits are found for C18O(2–1) or SiO(5–4). Continued in Fig. 3.

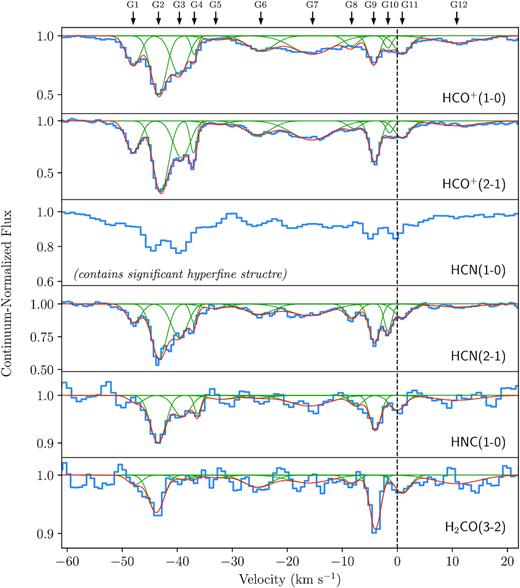

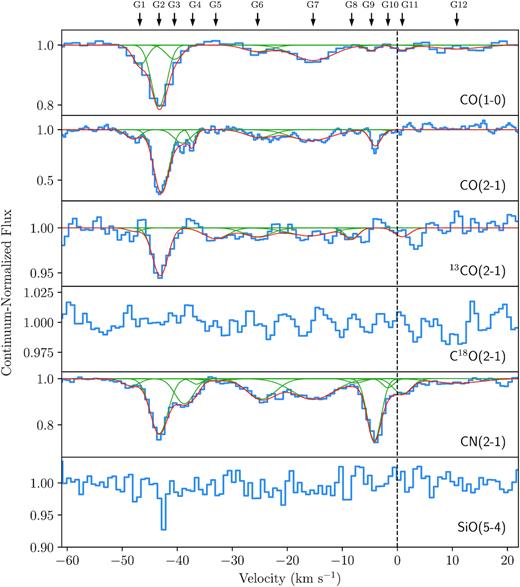

Figure 2.

Absorption profiles observed against the bright and compact radio continuum source at the centre of Hydra-A, which is spatially coincident with the brightest cluster galaxy’s AGN and supermassive black hole. These spectra have a very narrow velocity range of approximately 80 km s−1 in order to show the absorption features clearly. The full width of the observed spectra is typically 2000 km s−1, though no absorption features outside the velocity range shown are apparent. The spectra are extracted from a region with a size equal to the FWHM of each observation’s synthesized beam. Red and green lines show the individual and combined 12-Gaussian best fits, where each of the 12 Gaussians has a freely varying amplitude across all of the spectra, but a fixed FWHM and central velocity (as indicated by the arrows at the top of the plot). The process by which the best fits are found is described in Section 3. Some of the 12 Gaussian lines may appear weak and unconvincing in some spectra, but all are resolved and detected to high significance in at least one absorption line. No reliable best fits are found for C18O(2–1) or SiO(5–4). Continued in Fig. 3.

Continued from Fig. 2. Note that the CN(2–1), HCN(1–0), and HCN(2–1) lines all contain hyperfine structure.
Figure 3.

Continued from Fig. 2. Note that the CN(2–1), HCN(1–0), and HCN(2–1) lines all contain hyperfine structure.

Table 1.

A summary of the observational details for the ALMA data presented in this paper. Each column of the table represents a different observation, with most containing multiple target lines.

CO(1–0)13CO(2–1)CO(2–1)HCO+(1–0)HCO+(2–1)
Target linesC18O(2–1)CN(2–1)HCN(1–0)HCN(2–1)
SiO(5–4)H2CO(3–2)HNC(1–0)
Observation date2018 Jul 182018 Dec 122018 Oct 302019 Sep 242018 Nov 16
Integration time (min)44215954885
Velocity width per channel (km s−1)2.71.40.71.70.9
Frequency width per channel (kHz)977977488488488
Beam dimensions (arcsec)2.3 × 1.60.60 × 0.460.27 × 0.250.47 × 0.290.38 × 0.32
Spatial resolution (kpc)1.710.540.290.440.36
Precipitable water vapour (mm)2.851.590.963.211.04
Field of view (arcsec)56.928.926.163.333.4
ALMA band35635
ALMA configurationC43-1C43-4C43-5C43-6C43-5
Maximum baseline (m)161784140025001400
Noise/channel (mJy beam−1)1.010.27/0.27/0.271.33/0.47/0.470.58/0.56/0.580.57/0.63
CO(1–0)13CO(2–1)CO(2–1)HCO+(1–0)HCO+(2–1)
Target linesC18O(2–1)CN(2–1)HCN(1–0)HCN(2–1)
SiO(5–4)H2CO(3–2)HNC(1–0)
Observation date2018 Jul 182018 Dec 122018 Oct 302019 Sep 242018 Nov 16
Integration time (min)44215954885
Velocity width per channel (km s−1)2.71.40.71.70.9
Frequency width per channel (kHz)977977488488488
Beam dimensions (arcsec)2.3 × 1.60.60 × 0.460.27 × 0.250.47 × 0.290.38 × 0.32
Spatial resolution (kpc)1.710.540.290.440.36
Precipitable water vapour (mm)2.851.590.963.211.04
Field of view (arcsec)56.928.926.163.333.4
ALMA band35635
ALMA configurationC43-1C43-4C43-5C43-6C43-5
Maximum baseline (m)161784140025001400
Noise/channel (mJy beam−1)1.010.27/0.27/0.271.33/0.47/0.470.58/0.56/0.580.57/0.63
Table 1.

A summary of the observational details for the ALMA data presented in this paper. Each column of the table represents a different observation, with most containing multiple target lines.

CO(1–0)13CO(2–1)CO(2–1)HCO+(1–0)HCO+(2–1)
Target linesC18O(2–1)CN(2–1)HCN(1–0)HCN(2–1)
SiO(5–4)H2CO(3–2)HNC(1–0)
Observation date2018 Jul 182018 Dec 122018 Oct 302019 Sep 242018 Nov 16
Integration time (min)44215954885
Velocity width per channel (km s−1)2.71.40.71.70.9
Frequency width per channel (kHz)977977488488488
Beam dimensions (arcsec)2.3 × 1.60.60 × 0.460.27 × 0.250.47 × 0.290.38 × 0.32
Spatial resolution (kpc)1.710.540.290.440.36
Precipitable water vapour (mm)2.851.590.963.211.04
Field of view (arcsec)56.928.926.163.333.4
ALMA band35635
ALMA configurationC43-1C43-4C43-5C43-6C43-5
Maximum baseline (m)161784140025001400
Noise/channel (mJy beam−1)1.010.27/0.27/0.271.33/0.47/0.470.58/0.56/0.580.57/0.63
CO(1–0)13CO(2–1)CO(2–1)HCO+(1–0)HCO+(2–1)
Target linesC18O(2–1)CN(2–1)HCN(1–0)HCN(2–1)
SiO(5–4)H2CO(3–2)HNC(1–0)
Observation date2018 Jul 182018 Dec 122018 Oct 302019 Sep 242018 Nov 16
Integration time (min)44215954885
Velocity width per channel (km s−1)2.71.40.71.70.9
Frequency width per channel (kHz)977977488488488
Beam dimensions (arcsec)2.3 × 1.60.60 × 0.460.27 × 0.250.47 × 0.290.38 × 0.32
Spatial resolution (kpc)1.710.540.290.440.36
Precipitable water vapour (mm)2.851.590.963.211.04
Field of view (arcsec)56.928.926.163.333.4
ALMA band35635
ALMA configurationC43-1C43-4C43-5C43-6C43-5
Maximum baseline (m)161784140025001400
Noise/channel (mJy beam−1)1.010.27/0.27/0.271.33/0.47/0.470.58/0.56/0.580.57/0.63

With such a wide range of molecular lines targeted, the properties of the gas clouds responsible for the absorption can be revealed in significant detail. A short summary of the particular properties each molecular species can reveal about the absorbing gas clouds is provided below, as well as references to more in depth information for the interested reader. The dipole moments for the molecules observed are given in Table 2, along with the critical density and rest frequency of each line.

  • CO (carbon monoxide) has a relatively small electric dipole moment that allows it to undergo collisional excitation easily. This makes it readily visible in emission and as a result it is commonly used as a tracer of molecular hydrogen, which has no rotational lines due to its lack of polarization. CO is relatively abundant within the centres of brightest cluster galaxies and has many rotational lines that are sufficiently populated to produce observable emission and absorption lines. The variation in the absorption strengths of these different rotational lines can be used to estimate the excitation temperature of the gas (Mangum & Shirley 2015). The strength of each absorption line is dependent on the number of CO molecules in each rotational state, which itself is determined by the gas excitation temperature. Therefore, the ratio of the optical depths for various absorption lines of CO can give a direct measure of the gas excitation temperature, assuming that the lines are not optically thick.

  • 13CO, when seen at high column densities, is normally associated with galaxy mergers and ultra-luminous infrared galaxies (Taniguchi, Ohyama & Sanders 1999; Glenn & Hunter 2001), while CO/13CO values have been shown to correlate with star formation and top heavy initial mass functions (Davis 2014; Sliwa et al. 2017). Variation in the CO/13CO ratio is also seen within the Milky Way and other galaxies, with decreasing values associated with proximity to the galaxy centre as a result of astration (Wilson 1999; Paglione et al. 2001; Vantyghem et al. 2017). 13CO is typically at least an order of magnitude less abundant than CO, so the absorption lines of this isotoprolgue can be used to distinguish between optically thick clouds with a low covering fraction and more diffuse clouds that cover an entire continuum source. For example, if a molecular cloud extinguishes 10 per cent of a continuum source’s flux in CO(1–0), it may be an optically thin cloud with τ = 0.1, or an optically thick cloud (i.e. τ ≫ 1) covering 10 per cent of the continuum. 13CO(1–0) could distinguish between these scenarios; its absorption would be much more significant and more easily detected in the case of an optically thick cloud.

  • C18O contains the stable oxygen-18 isotope, which is predominantly produced in the cores of stars above |$8\,{M}_{\odot }$| (Iben 1975). The ratio of the absorption strength seen from 13CO, C18O, and other CO isotopologues can therefore be used as a probe of the star formation history of the molecular gas in which the molecules are observed (see Papadopoulos, Seaquist & Scoville 1996; Zhang et al. 2018; Brown & Wilson 2019).

  • CN (cyanido radical) molecules are primarily produced by photo-dissociation reactions of HCN. Its emission lines are therefore normally indicative of molecular gas in the presence of a strong ultraviolet radiation field (for a detailed overview of the origins of CN, see Boger & Sternberg 2005). Models have shown that the production of CN at high column densities can also be induced by the strong X-ray radiation fields found close to AGN (Meijerink et al. 2007). Observations of CN emission lines from nearby galaxies show internal variation in the CO/CN line ratios of around a factor of 3 (Wilson 2018). System-to-system variation in the CO/CN ratio of at least an order of magnitude is also observed in the absorption lines of brightest cluster galaxies (Rose et al. 2019b).

  • SiO (silicon monoxide) is associated with warm, star-forming regions of molecular gas, where it is enhanced by several orders of magnitude compared with darker and colder molecular gas clouds. As a result, SiO is normally linked to dense regions and shocks, though it has occasionally been detected in low-density molecular gas via absorption (e.g. Peng, Vogel & Carlstrom 1995; Muller et al. 2013).

  • HCO+(formyl cation) and HCN (hydrogen cyanide) are tracers of low-density molecular gas when seen in absorption, since it is only at low densities that the molecules are not collisionally excited to high J-levels. Their absorption lines have been detected in a handful of intervening absorber systems, e.g. Wiklind & Combes (1997a) and Muller et al. (2011). Due to their large electric dipole moments, the molecules have often been detected with relative ease despite being much less abundant than e.g. CO or CN (e.g. Lucas & Liszt 1996; Liszt & Lucas 2001; Gerin et al. 2019; Kameno et al. 2020).

  • HNC (hydrogen isocyanide) is a tautomer of HCN. Thanks to its similar structure, it can be used as a tracer of gas properties in a similar manner to HCN and HCO+. HNC detections may also useful in combination with those of HCN because of an observed dependence of the I(HCN)/I(HCN) ratio on the gas kinetic temperature (Hernández Vera et al. 2017; Hacar, Bosman & van Dishoeck 2019).

  • H2CO (formaldehyde) is highly prevalent towards H  ii regions and has been found throughout the interstellar medium at relatively high abundances that do not vary significantly, even in particularly chaotic regions (Henkel et al. 1983; Downes et al. 1980; Ginard et al. 2012). The molecule has several pathways of formation within the interstellar medium, split into two main groupings. First, it can form on the icy surfaces of dust grains. Second, it can be produced more directly in the gas phase. The formation of H2CO on dust grains requires CO to be frozen on to the surface, so this mechanism mainly contributes to H2CO gas at distances of hundreds of au from stars, where temperatures are low enough for volatile molecules to condense (Qi, Öberg & Wilner 2013; Loomis et al. 2015).

Table 2.

Dipole moments, critical densities, and rest frequencies for the molecules discussed in this paper. The critical densities are calculated at kinetic temperatures of 100 K.

TransitionDipole moment (D)Critical density (cm−3)Frequency (GHz)Detected
CO(1–0)0.1124.1 × 102115.271208Yes
CO(2–1)2.7 × 103230.538000Yes
13CO(2–1)0.1122.7 × 103220.398684Yes
C18O(2–1)0.1122.7 × 103219.560354No
CN(2–1)1.4501.4 × 106226.874783aYes
SiO(5–4)3.0981.7 × 106217.104980Yes
HCO+(1–0)3.3002.3 × 10489.188525Yes
HCO+(2–1)2.2 × 105178.375056Yes
HCN(1–0)2.9801.1 × 10588.631602aYes
HCN(2–1)1.1 × 106177.261117aYes
HNC(1–0)3.0507.0 × 10490.663568Yes
H2CO(3–2)2.3314.5 × 105225.697775Yes
TransitionDipole moment (D)Critical density (cm−3)Frequency (GHz)Detected
CO(1–0)0.1124.1 × 102115.271208Yes
CO(2–1)2.7 × 103230.538000Yes
13CO(2–1)0.1122.7 × 103220.398684Yes
C18O(2–1)0.1122.7 × 103219.560354No
CN(2–1)1.4501.4 × 106226.874783aYes
SiO(5–4)3.0981.7 × 106217.104980Yes
HCO+(1–0)3.3002.3 × 10489.188525Yes
HCO+(2–1)2.2 × 105178.375056Yes
HCN(1–0)2.9801.1 × 10588.631602aYes
HCN(2–1)1.1 × 106177.261117aYes
HNC(1–0)3.0507.0 × 10490.663568Yes
H2CO(3–2)2.3314.5 × 105225.697775Yes

a Intensity weighted mean of hyperfine structure lines.

Table 2.

Dipole moments, critical densities, and rest frequencies for the molecules discussed in this paper. The critical densities are calculated at kinetic temperatures of 100 K.

TransitionDipole moment (D)Critical density (cm−3)Frequency (GHz)Detected
CO(1–0)0.1124.1 × 102115.271208Yes
CO(2–1)2.7 × 103230.538000Yes
13CO(2–1)0.1122.7 × 103220.398684Yes
C18O(2–1)0.1122.7 × 103219.560354No
CN(2–1)1.4501.4 × 106226.874783aYes
SiO(5–4)3.0981.7 × 106217.104980Yes
HCO+(1–0)3.3002.3 × 10489.188525Yes
HCO+(2–1)2.2 × 105178.375056Yes
HCN(1–0)2.9801.1 × 10588.631602aYes
HCN(2–1)1.1 × 106177.261117aYes
HNC(1–0)3.0507.0 × 10490.663568Yes
H2CO(3–2)2.3314.5 × 105225.697775Yes
TransitionDipole moment (D)Critical density (cm−3)Frequency (GHz)Detected
CO(1–0)0.1124.1 × 102115.271208Yes
CO(2–1)2.7 × 103230.538000Yes
13CO(2–1)0.1122.7 × 103220.398684Yes
C18O(2–1)0.1122.7 × 103219.560354No
CN(2–1)1.4501.4 × 106226.874783aYes
SiO(5–4)3.0981.7 × 106217.104980Yes
HCO+(1–0)3.3002.3 × 10489.188525Yes
HCO+(2–1)2.2 × 105178.375056Yes
HCN(1–0)2.9801.1 × 10588.631602aYes
HCN(2–1)1.1 × 106177.261117aYes
HNC(1–0)3.0507.0 × 10490.663568Yes
H2CO(3–2)2.3314.5 × 105225.697775Yes

a Intensity weighted mean of hyperfine structure lines.

3 DATA PROCESSING

The data presented throughout this paper were handled using casa version 5.6.0, a software package which is produced and maintained by the National Radio Astronomy Observatory (NRAO; McMullin et al. 2007). The calibrated data were produced by the ALMA observatory and following their delivery, we made channel maps at maximal spectral resolution. The self-calibration of the images was done as part of the pipeline calibration.

The values used when converting from the frequencies observed to velocities are given in Table 2. The CN absorption profile in Fig. 2 is composed of three unresolved hyperfine structure lines of the N = 2–1, J = 5/2–3/2 transition. We use the intensity weighted mean of these lines as the rest frequency. The full CN(2–1) spectrum, including all of its observed hyperfine structure lines, can be seen in Appendix  A. HCN(2–1) also contains hyperfine structure, though it is closely spaced enough that it does not significantly affect the appearance of the spectrum. HCN(1–0) contains hyperfine structure at separations that make resolving the 12 absorption regions unfeasible.

3.1 Line fitting procedure

Figs 2 and 3 show that the relative strengths of the absorption seen in a given velocity range of the spectrum can vary significantly between the molecular tracers. For example, in the CO(2–1) and H2CO(3–2) spectra, the absorption features represented by G2 and G9 are the strongest. In CO(2–1), the first is significantly stronger than the second, whereas for H2CO(3–2), the reverse is true. The absorption is nevertheless produced by the same two regions of molecular gas, which will have the same velocity dispersion, σ, and central velocity, |$v_{{cen}}$|⁠, since they are determined by the clouds’ gas dynamics and not the abundance of the molecular tracer they are observed with. To reflect this, we find a common multi-Gaussian best-fitting line which is composed of several Gaussian lines. Each has a fixed σ and |$v_{{cen}}$| across all of the spectra, but a freely varying amplitude.

To find the minimum number of Gaussian lines needed for a good fit, and their σ and |$v_{{cen}}$|⁠, we start with the three best resolved absorption lines: CO(2–1), HCO+(2–1), and HCN(2–1). An initial fit was made using 10 Gaussian lines. This is the number which are clearest to the eye on initial inspection of the spectra. In the final fits to the data shown in the plots, these initial 10 are labelled as G1, G2, G3, G4, G6, G7, G8, G9, G10, and G11. G1, G2, G3, G4, G6, and G7 are most easily seen in the HCO+(2–1) profile, while G8, G9, G10, and G11 are clearest in the HCN(2–1) profile. For the three spectra, best fits are found for a range of σ and |$v_{{cen}}$|⁠. The values that provide the lowest reduced χ2 across the three spectra are then used as the basis of the best-fitting line for all of the spectra. With a fixed σ and |$v_{{cen}}$|⁠, the amplitudes of the Gaussian lines are then the only free parameters.

The initial 10 Gaussian fit is found to be insufficient, with >5σ absorption remaining in the residuals across several neighbouring channels. Two more Gaussians are added to the best-fitting line (labelled G5 and G12 in the final fit) to account for this extra absorption. Once again, the values of σ and |$v_{{cen}}$| which provide the lowest reduced χ2 across the three spectra are then used as the basis of the best-fitting line for all of the spectra. The minimum number of Gaussians required to provide a good fit for all of the lines is found to be 12. The σ and |$v_{{cen}}$| of these lines is given in Table 3.

Table 3.

The central velocities, velocity dispersions, excitation temperatures, and corresponding diameters and masses of the absorption regions that make up the 12-Gaussian fit applied to each of the spectra shown in Figs 2 and 3. The fitting procedure by which the central velocities and velocity dispersions are found is described in detail in Section 3. The excitation temperatures are estimated from the HCO+(1–0) and HCO+(2–1) lines using using equation (2), while the sizes and masses are found using a size–linewidth relation and with the assumption of virial equilibrium (see Section 6.2).

Linev|$_{{cen}}$| (km s−1)σ (km s−1)|$T_{{ex}}$| (K)D (pc)M|$_{{tot}}$| (M)
G1−47.71.35.1 |$^{+ 0.5 }_{- 0.4 }$|1.7330
G2−43.11.421.0 |$^{+ 54.6 }_{- 7.6 }$|2.0450
G3−39.11.54.7 |$^{+ 0.3 }_{- 0.3 }$|2.3600
G4−37.20.69.7 |$^{+ 3.8 }_{- 2.4 }$|0.433
G5−33.02.24.3 |$^{+ 4.6 }_{- 1.3 }$|4.82.7 × 103
G6−25.42.54.6 |$^{+ 0.7 }_{- 0.5 }$|6.34.6 × 103
G7−16.03.74.8 |$^{+ 0.3 }_{- 0.3 }$|13.72.2 × 104
G8−8.31.23.4 |$^{+ 0.6 }_{- 0.4 }$|1.0430
G9−4.01.07.2 |$^{+ 1.0 }_{- 0.8 }$|1.0430
G10−1.70.74.9 |$^{+ 1.8 }_{- 1.0 }$|0.540
G110.91.44.5 |$^{+ 0.5 }_{- 0.4 }$|2.0450
G1210.84.03.5 |$^{+ 0.7 }_{- 0.5 }$|16.07.5 × 103
Linev|$_{{cen}}$| (km s−1)σ (km s−1)|$T_{{ex}}$| (K)D (pc)M|$_{{tot}}$| (M)
G1−47.71.35.1 |$^{+ 0.5 }_{- 0.4 }$|1.7330
G2−43.11.421.0 |$^{+ 54.6 }_{- 7.6 }$|2.0450
G3−39.11.54.7 |$^{+ 0.3 }_{- 0.3 }$|2.3600
G4−37.20.69.7 |$^{+ 3.8 }_{- 2.4 }$|0.433
G5−33.02.24.3 |$^{+ 4.6 }_{- 1.3 }$|4.82.7 × 103
G6−25.42.54.6 |$^{+ 0.7 }_{- 0.5 }$|6.34.6 × 103
G7−16.03.74.8 |$^{+ 0.3 }_{- 0.3 }$|13.72.2 × 104
G8−8.31.23.4 |$^{+ 0.6 }_{- 0.4 }$|1.0430
G9−4.01.07.2 |$^{+ 1.0 }_{- 0.8 }$|1.0430
G10−1.70.74.9 |$^{+ 1.8 }_{- 1.0 }$|0.540
G110.91.44.5 |$^{+ 0.5 }_{- 0.4 }$|2.0450
G1210.84.03.5 |$^{+ 0.7 }_{- 0.5 }$|16.07.5 × 103
Table 3.

The central velocities, velocity dispersions, excitation temperatures, and corresponding diameters and masses of the absorption regions that make up the 12-Gaussian fit applied to each of the spectra shown in Figs 2 and 3. The fitting procedure by which the central velocities and velocity dispersions are found is described in detail in Section 3. The excitation temperatures are estimated from the HCO+(1–0) and HCO+(2–1) lines using using equation (2), while the sizes and masses are found using a size–linewidth relation and with the assumption of virial equilibrium (see Section 6.2).

Linev|$_{{cen}}$| (km s−1)σ (km s−1)|$T_{{ex}}$| (K)D (pc)M|$_{{tot}}$| (M)
G1−47.71.35.1 |$^{+ 0.5 }_{- 0.4 }$|1.7330
G2−43.11.421.0 |$^{+ 54.6 }_{- 7.6 }$|2.0450
G3−39.11.54.7 |$^{+ 0.3 }_{- 0.3 }$|2.3600
G4−37.20.69.7 |$^{+ 3.8 }_{- 2.4 }$|0.433
G5−33.02.24.3 |$^{+ 4.6 }_{- 1.3 }$|4.82.7 × 103
G6−25.42.54.6 |$^{+ 0.7 }_{- 0.5 }$|6.34.6 × 103
G7−16.03.74.8 |$^{+ 0.3 }_{- 0.3 }$|13.72.2 × 104
G8−8.31.23.4 |$^{+ 0.6 }_{- 0.4 }$|1.0430
G9−4.01.07.2 |$^{+ 1.0 }_{- 0.8 }$|1.0430
G10−1.70.74.9 |$^{+ 1.8 }_{- 1.0 }$|0.540
G110.91.44.5 |$^{+ 0.5 }_{- 0.4 }$|2.0450
G1210.84.03.5 |$^{+ 0.7 }_{- 0.5 }$|16.07.5 × 103
Linev|$_{{cen}}$| (km s−1)σ (km s−1)|$T_{{ex}}$| (K)D (pc)M|$_{{tot}}$| (M)
G1−47.71.35.1 |$^{+ 0.5 }_{- 0.4 }$|1.7330
G2−43.11.421.0 |$^{+ 54.6 }_{- 7.6 }$|2.0450
G3−39.11.54.7 |$^{+ 0.3 }_{- 0.3 }$|2.3600
G4−37.20.69.7 |$^{+ 3.8 }_{- 2.4 }$|0.433
G5−33.02.24.3 |$^{+ 4.6 }_{- 1.3 }$|4.82.7 × 103
G6−25.42.54.6 |$^{+ 0.7 }_{- 0.5 }$|6.34.6 × 103
G7−16.03.74.8 |$^{+ 0.3 }_{- 0.3 }$|13.72.2 × 104
G8−8.31.23.4 |$^{+ 0.6 }_{- 0.4 }$|1.0430
G9−4.01.07.2 |$^{+ 1.0 }_{- 0.8 }$|1.0430
G10−1.70.74.9 |$^{+ 1.8 }_{- 1.0 }$|0.540
G110.91.44.5 |$^{+ 0.5 }_{- 0.4 }$|2.0450
G1210.84.03.5 |$^{+ 0.7 }_{- 0.5 }$|16.07.5 × 103

It is possible that some of the regions represented by each Gaussian line are made up from absorption due to multiple molecular clouds, rather than an individual one. If this is true a small shift in the central velocity of each Gaussian line across the different molecular transitions may result from any temperature, density or velocity dispersion gradient that exists along the line of sight. This was investigated for each molecular absorption line by allowing the v|$_{cen}$| of each Gaussian line to vary as a free parameter during the fitting process. The v|$_{cen}$| values resulting from this process were consistent with the fixed values, so it is not evident that this issue affects the fits shown in Figs 2 and 3.

When applying the final 12 Gaussian fit to all of the spectra, the σ are fixed while the |$v_{{cen}}$| are pinned to a common value, but allowed to vary by up to an amount equal to the spectrum’s velocity resolution. The amplitude of each Gaussian is the only free parameter and is able to take any value less than or equal to zero.

To find a final best-fitting line and errors for the spectra, we use a Monte Carlo approach. For each spectrum, the noise was estimated from the root mean square (rms) of the continuum emission. This was calculated after excluding the region where any emission or absorption is visible. Following this, 10 000 simulated spectra are created based upon the observed spectrum. To produce each simulated spectrum, a Gaussian distribution is created for each velocity channel. This Gaussian distribution is centred at the intensity in the observed spectrum for that particular velocity channel, and has a variance equal to the rms noise squared. A random value for the intensity is drawn from the Gaussian distribution and when this has been done across all velocity channels, a simulated spectrum is produced. The fitting procedure described above is then applied to each simulated spectrum to estimate the strength of each of the 12 Gaussian absorption regions. The upper and lower 1σ errors are taken from the values that delimit the 15.865 per cent highest and lowest results for each of the fits (i.e. 68.27 per cent of the fitted parameters will therefore lie within this 1σ range).

The |$\sim\!10^{9}\,{M}_{\odot }$| of molecular gas that is present across the disc of the galaxy produces broad CO(1–0) and CO(2–1) emission lines with FWHM of hundreds of km s−1 (Rose et al. 2019a, fig. 2). Since we are primarily interested in the significantly more narrow absorption features that lie at the centre of the emission, the emission is removed from the spectra in the following way. First, a Gaussian fit is made to the emission. During the fitting process, the spectral bins in which absorption can be seen are masked, approximately, −50 to +10 km s−1. This masking region was chosen by performing Gaussian fits to the emission after applying masks to the spectra with limits at every spectral bin between −55 ± 10 and +5 ± 10 km s−1. The chosen range produces a spectrum with the lowest |$\chi ^{2}_{\nu }$| value when the non-masked, emission-subtracted region is fitted to a flat line. Corresponding emission lines are not visible in the other molecular species due to their higher electric dipole moments, which makes collisional excitation less likely. The molecular emission lines are therefore so faint as to be undetectable given the integration times of our observations.

3.2 Optical depth calculations

The apparent optical depth of an absorption line, τ, can be derived according to the equation,
(1)
where |$f_{{c}}$| is the fraction of the background continuum source covered by the absorbing molecular cloud, |$I_{{obs}}$| is the depth of the absorption, and |$I_{{cont}}$| is the continuum level.

We assume a covering factor of 0.7 for the G2 absorption feature at −43.1 km s−1. Simply assuming |$f_{{c}}=1$| gives a relatively high 13CO(2–1) optical depth of τ = 0.07, so for the significantly more ubiquitous CO(2–1), we would expect τ ≫ 1 and for the continuum normalized flux to drop to 0. In fact, the line flattens out when around 30 per cent of the continuum can still be seen, despite being covered by an optically thick cloud. This in turn implies that the G2 feature covers around 70 per cent of the continuum source.

No highly significant |$^{13}{CO}$|(2–1) absorption is detected in the rest of the absorption profile, as would be expected in the case of optically thick clouds which cover a small fraction of the continuum. Hence, we assume a covering factor of |$f_{{c}} = 1$| for the remaining absorption features. It is nevertheless possible that we are observing optically thin clouds which do not cover the entire continuum source, so our estimates of τ are essentially lower limits. Additionally, it is generally assumed that as frequency increases, the emission from an AGN originates closer to its core, so the covering factor may also increase with frequency.

For each spectrum, the implied optical depths of the 12 Gaussian regions are given in Tables 4 and 5. The tables also give their velocity integrated optical depths and the implied line-of-sight column densities, the calculations of which are described in a later section.

Table 4.

The peak optical depths, velocity integrated optical depths, and line-of-sight column densities for the 12-Gaussian fits applied to each of the spectra shown in Figs 2 and 3. A fit composed of 12 individual Gaussian lines (labelled G1 to G12) of fixed v|$_{{cen}}$| and σ, but varying amplitude, is used when fitting to the spectra. Column densities for G2 could not always be reliably calculated because it is optically thick in some of the lines. Continued in Table 5.

G1G2G3G4G5G6
v|$_{{cen}}$| (km s−1)−47.7−43.1−39.1−37.2−33.0−25.4
σ (km s−1)1.31.41.50.62.22.5
CO(1–0)|$\tau _{{max}}$|0.07 |$^{+ 0.02 }_{ -0.02 }$|0.35 |$^{+ 0.04 }_{ -0.04 }$|<0.07<0.04<0.01<0.03
|$\int \,\tau {d}v$| (km s−1)0.10 |$^{+ 0.03 }_{ -0.03 }$|0.52 |$^{+ 0.06 }_{ -0.05 }$|<0.1<0.06<0.02<0.05
N (× 1015 cm−2)0.2 |$_{- 0.1 }^{+ 0.1 }$|13.1 |$_{- 1.3 }^{+ 1.5 }$|<0.2<0.4<0.1<0.2
CO(2–1)|$\tau _{{max}}$|0.10 |$^{+ 0.01 }_{ -0.01 }$|0.15 |$^{+ 0.01 }_{ -0.01 }$|0.13 |$^{+ 0.02 }_{ -0.02 }$|<0.020.086 |$^{+ 0.007 }_{ -0.008 }$|
|$\int \,\tau {d}v$| (km s−1)0.15 |$^{+ 0.02 }_{ -0.02 }$|0.22 |$^{+ 0.02 }_{ -0.02 }$|0.20 |$^{+ 0.03 }_{ -0.03 }$|<0.030.13 |$^{+ 0.01 }_{ -0.01 }$|
N (×1014 cm−2)4.0 |$_{- 0.5 }^{+ 0.3 }$|5.4 |$_{- 0.4 }^{+ 0.4 }$|11.8 |$_{- 1.2 }^{+ 1.8 }$|<0.53.0 |$_{- 0.2 }^{+ 0.3 }$|
13CO(2–1)|$\tau _{{max}}$|<0.030.07 |$^{+ 0.01 }_{ -0.02 }$|<0.02<0.01<0.02<0.02
|$\int \,\tau {d}v$| (km s−1)<0.040.103 |$^{+ 0.022 }_{ -0.022 }$|<0.01<0.01<0.03<0.03
N (×1013cm−2)<9.0224.5 |$_{- 54.5 }^{+ 41.4 }$|<3<1<7<8
CN (2–1)a|$\tau _{{max}}$|0.03 |$^{+ 0.01 }_{ -0.01 }$|0.43 |$^{+ 0.02 }_{ -0.02 }$|0.11 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|<0.030.09 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.04 |$^{+ 0.01 }_{ -0.01 }$|0.64 |$^{+ 0.03 }_{ -0.03 }$|0.17 |$^{+ 0.02 }_{ -0.02 }$|0.04 |$^{+ 0.02 }_{ -0.02 }$|<0.040.14 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)1.0 |$_{- 0.3 }^{+ 0.3 }$|159 |$_{- 8 }^{+ 8 }$|4.1 |$_{- 0.5 }^{+ 0.5 }$|2.3 |$_{- 1.2 }^{+ 1.2 }$|<0.83.3 |$_{- 0.2 }^{+ 0.2 }$|
HCO+ (1–0)|$\tau _{{max}}$|0.29 |$^{+ 0.02 }_{ -0.02 }$|1.29 |$^{+ 0.07 }_{ -0.06 }$|0.40 |$^{+ 0.02 }_{ -0.02 }$|0.18 |$^{+ 0.02 }_{ -0.02 }$|0.04 |$^{+ 0.01 }_{ -0.01 }$|0.13 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.44 |$^{+ 0.03 }_{ -0.03 }$|1.9 |$^{+ 0.1 }_{ -0.1 }$|0.59 |$^{+ 0.03 }_{ -0.03 }$|0.26 |$^{+ 0.04 }_{ -0.03 }$|0.05 |$^{+ 0.02 }_{ -0.02 }$|0.19 |$^{+ 0.02 }_{ -0.02 }$|
N (× 1012 (cm−2)1.8 |$_{- 0.1 }^{+ 0.1 }$|310 |$_{- 20 }^{+ 20 }$|2.3 |$_{- 0.1 }^{+ 0.1 }$|3.1 |$_{- 0.4 }^{+ 0.5 }$|0.1 |$_{- 0.1 }^{+ 0.1 }$|0.6 |$_{- 0.1 }^{+ 0.1 }$|
HCO+ (2–1)|$\tau _{{max}}$|0.36 |$^{+ 0.01 }_{ -0.01 }$|0.44 |$^{+ 0.01 }_{ -0.01 }$|0.37 |$^{+ 0.02 }_{ -0.02 }$|0.03 |$^{+ 0.01 }_{ -0.01 }$|0.14 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.54 |$^{+ 0.02 }_{ -0.02 }$|0.66 |$^{+ 0.02 }_{ -0.02 }$|0.55 |$^{+ 0.03 }_{ -0.03 }$|0.05 |$^{+ 0.01 }_{ -0.01 }$|0.21 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)2.4 |$_{- 0.1 }^{+ 0.1 }$|2.7 |$_{- 0.1 }^{+ 0.1 }$|6.0 |$_{- 0.3 }^{+ 0.3 }$|0.2 |$_{- 0.1 }^{+ 0.1 }$|0.7 |$_{- 0.1 }^{+ 0.1 }$|
HCN (2–1)|$\tau _{{max}}$|0.15 |$^{+ 0.02 }_{ -0.02 }$|0.88 |$^{+ 0.06 }_{ -0.06 }$|0.30 |$^{+ 0.02 }_{ -0.02 }$|0.15 |$^{+ 0.03 }_{ -0.03 }$|0.03 |$^{+ 0.01 }_{ -0.01 }$|0.08 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.22 |$^{+ 0.03 }_{ -0.03 }$|1.31 |$^{+ 0.09 }_{ -0.09 }$|0.45 |$^{+ 0.04 }_{ -0.04 }$|0.23 |$^{+ 0.05 }_{ -0.05 }$|0.05 |$^{+ 0.02 }_{ -0.02 }$|0.12 |$^{+ 0.02 }_{ -0.02 }$|
N (×1012 cm−2)1.1 |$_{- 0.2 }^{+ 0.2 }$|84.6 |$_{- 5.8 }^{+ 5.8 }$|2.2 |$_{- 0.2 }^{+ 0.2 }$|2.9 |$_{- 0.6 }^{+ 0.6 }$|0.2 |$_{- 0.1 }^{+ 0.1 }$|0.5 |$_{- 0.1 }^{+ 0.1 }$|
HNC (1–0)|$\tau _{{max}}$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.15 |$^{+ 0.02 }_{ -0.02 }$|0.04 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.02 }_{ -0.02 }$|0.01 |$^{+ 0.01 }_{ -0.01 }$|0.01 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.02 |$^{+ 0.02 }_{ -0.02 }$|0.23 |$^{+ 0.03 }_{ -0.03 }$|0.07 |$^{+ 0.02 }_{ -0.02 }$|0.03 |$^{+ 0.03 }_{ -0.03 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.01 |$^{+ 0.01 }_{ -0.01 }$|
N (×1011cm−2)0.8 |$_{- 0.8 }^{+ 0.8 }$|114.6 |$_{- 14.9 }^{+ 14.9 }$|2.6 |$_{- 0.7 }^{+ 0.7 }$|3.5 |$_{- 3.5 }^{+ 3.5 }$|0.6 |$_{- 0.3 }^{+ 0.3 }$|0.4 |$_{- 0.4 }^{+ 0.4 }$|
H2CO (3–2)|$\tau _{{max}}$|<0.020.10 |$^{+ 0.01 }_{ -0.01 }$|<0.02<0.02<0.02<0.01
|$\int \,\tau {d}v$| (km s−1)<0.030.15 |$^{+ 0.01 }_{ -0.01 }$|<0.04<0.03<0.02<0.02
N (×1013 cm−2)<455 |$_{- 3 }^{+ 6 }$|<6<9<4<7
G1G2G3G4G5G6
v|$_{{cen}}$| (km s−1)−47.7−43.1−39.1−37.2−33.0−25.4
σ (km s−1)1.31.41.50.62.22.5
CO(1–0)|$\tau _{{max}}$|0.07 |$^{+ 0.02 }_{ -0.02 }$|0.35 |$^{+ 0.04 }_{ -0.04 }$|<0.07<0.04<0.01<0.03
|$\int \,\tau {d}v$| (km s−1)0.10 |$^{+ 0.03 }_{ -0.03 }$|0.52 |$^{+ 0.06 }_{ -0.05 }$|<0.1<0.06<0.02<0.05
N (× 1015 cm−2)0.2 |$_{- 0.1 }^{+ 0.1 }$|13.1 |$_{- 1.3 }^{+ 1.5 }$|<0.2<0.4<0.1<0.2
CO(2–1)|$\tau _{{max}}$|0.10 |$^{+ 0.01 }_{ -0.01 }$|0.15 |$^{+ 0.01 }_{ -0.01 }$|0.13 |$^{+ 0.02 }_{ -0.02 }$|<0.020.086 |$^{+ 0.007 }_{ -0.008 }$|
|$\int \,\tau {d}v$| (km s−1)0.15 |$^{+ 0.02 }_{ -0.02 }$|0.22 |$^{+ 0.02 }_{ -0.02 }$|0.20 |$^{+ 0.03 }_{ -0.03 }$|<0.030.13 |$^{+ 0.01 }_{ -0.01 }$|
N (×1014 cm−2)4.0 |$_{- 0.5 }^{+ 0.3 }$|5.4 |$_{- 0.4 }^{+ 0.4 }$|11.8 |$_{- 1.2 }^{+ 1.8 }$|<0.53.0 |$_{- 0.2 }^{+ 0.3 }$|
13CO(2–1)|$\tau _{{max}}$|<0.030.07 |$^{+ 0.01 }_{ -0.02 }$|<0.02<0.01<0.02<0.02
|$\int \,\tau {d}v$| (km s−1)<0.040.103 |$^{+ 0.022 }_{ -0.022 }$|<0.01<0.01<0.03<0.03
N (×1013cm−2)<9.0224.5 |$_{- 54.5 }^{+ 41.4 }$|<3<1<7<8
CN (2–1)a|$\tau _{{max}}$|0.03 |$^{+ 0.01 }_{ -0.01 }$|0.43 |$^{+ 0.02 }_{ -0.02 }$|0.11 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|<0.030.09 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.04 |$^{+ 0.01 }_{ -0.01 }$|0.64 |$^{+ 0.03 }_{ -0.03 }$|0.17 |$^{+ 0.02 }_{ -0.02 }$|0.04 |$^{+ 0.02 }_{ -0.02 }$|<0.040.14 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)1.0 |$_{- 0.3 }^{+ 0.3 }$|159 |$_{- 8 }^{+ 8 }$|4.1 |$_{- 0.5 }^{+ 0.5 }$|2.3 |$_{- 1.2 }^{+ 1.2 }$|<0.83.3 |$_{- 0.2 }^{+ 0.2 }$|
HCO+ (1–0)|$\tau _{{max}}$|0.29 |$^{+ 0.02 }_{ -0.02 }$|1.29 |$^{+ 0.07 }_{ -0.06 }$|0.40 |$^{+ 0.02 }_{ -0.02 }$|0.18 |$^{+ 0.02 }_{ -0.02 }$|0.04 |$^{+ 0.01 }_{ -0.01 }$|0.13 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.44 |$^{+ 0.03 }_{ -0.03 }$|1.9 |$^{+ 0.1 }_{ -0.1 }$|0.59 |$^{+ 0.03 }_{ -0.03 }$|0.26 |$^{+ 0.04 }_{ -0.03 }$|0.05 |$^{+ 0.02 }_{ -0.02 }$|0.19 |$^{+ 0.02 }_{ -0.02 }$|
N (× 1012 (cm−2)1.8 |$_{- 0.1 }^{+ 0.1 }$|310 |$_{- 20 }^{+ 20 }$|2.3 |$_{- 0.1 }^{+ 0.1 }$|3.1 |$_{- 0.4 }^{+ 0.5 }$|0.1 |$_{- 0.1 }^{+ 0.1 }$|0.6 |$_{- 0.1 }^{+ 0.1 }$|
HCO+ (2–1)|$\tau _{{max}}$|0.36 |$^{+ 0.01 }_{ -0.01 }$|0.44 |$^{+ 0.01 }_{ -0.01 }$|0.37 |$^{+ 0.02 }_{ -0.02 }$|0.03 |$^{+ 0.01 }_{ -0.01 }$|0.14 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.54 |$^{+ 0.02 }_{ -0.02 }$|0.66 |$^{+ 0.02 }_{ -0.02 }$|0.55 |$^{+ 0.03 }_{ -0.03 }$|0.05 |$^{+ 0.01 }_{ -0.01 }$|0.21 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)2.4 |$_{- 0.1 }^{+ 0.1 }$|2.7 |$_{- 0.1 }^{+ 0.1 }$|6.0 |$_{- 0.3 }^{+ 0.3 }$|0.2 |$_{- 0.1 }^{+ 0.1 }$|0.7 |$_{- 0.1 }^{+ 0.1 }$|
HCN (2–1)|$\tau _{{max}}$|0.15 |$^{+ 0.02 }_{ -0.02 }$|0.88 |$^{+ 0.06 }_{ -0.06 }$|0.30 |$^{+ 0.02 }_{ -0.02 }$|0.15 |$^{+ 0.03 }_{ -0.03 }$|0.03 |$^{+ 0.01 }_{ -0.01 }$|0.08 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.22 |$^{+ 0.03 }_{ -0.03 }$|1.31 |$^{+ 0.09 }_{ -0.09 }$|0.45 |$^{+ 0.04 }_{ -0.04 }$|0.23 |$^{+ 0.05 }_{ -0.05 }$|0.05 |$^{+ 0.02 }_{ -0.02 }$|0.12 |$^{+ 0.02 }_{ -0.02 }$|
N (×1012 cm−2)1.1 |$_{- 0.2 }^{+ 0.2 }$|84.6 |$_{- 5.8 }^{+ 5.8 }$|2.2 |$_{- 0.2 }^{+ 0.2 }$|2.9 |$_{- 0.6 }^{+ 0.6 }$|0.2 |$_{- 0.1 }^{+ 0.1 }$|0.5 |$_{- 0.1 }^{+ 0.1 }$|
HNC (1–0)|$\tau _{{max}}$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.15 |$^{+ 0.02 }_{ -0.02 }$|0.04 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.02 }_{ -0.02 }$|0.01 |$^{+ 0.01 }_{ -0.01 }$|0.01 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.02 |$^{+ 0.02 }_{ -0.02 }$|0.23 |$^{+ 0.03 }_{ -0.03 }$|0.07 |$^{+ 0.02 }_{ -0.02 }$|0.03 |$^{+ 0.03 }_{ -0.03 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.01 |$^{+ 0.01 }_{ -0.01 }$|
N (×1011cm−2)0.8 |$_{- 0.8 }^{+ 0.8 }$|114.6 |$_{- 14.9 }^{+ 14.9 }$|2.6 |$_{- 0.7 }^{+ 0.7 }$|3.5 |$_{- 3.5 }^{+ 3.5 }$|0.6 |$_{- 0.3 }^{+ 0.3 }$|0.4 |$_{- 0.4 }^{+ 0.4 }$|
H2CO (3–2)|$\tau _{{max}}$|<0.020.10 |$^{+ 0.01 }_{ -0.01 }$|<0.02<0.02<0.02<0.01
|$\int \,\tau {d}v$| (km s−1)<0.030.15 |$^{+ 0.01 }_{ -0.01 }$|<0.04<0.03<0.02<0.02
N (×1013 cm−2)<455 |$_{- 3 }^{+ 6 }$|<6<9<4<7

aThe values for CN(2–1) are calculated from three overlapping hyperfine structure lines representing ∼60 per cent of the total absorption. The full CN(2–1) spectrum is shown in Appendix  A.

Table 4.

The peak optical depths, velocity integrated optical depths, and line-of-sight column densities for the 12-Gaussian fits applied to each of the spectra shown in Figs 2 and 3. A fit composed of 12 individual Gaussian lines (labelled G1 to G12) of fixed v|$_{{cen}}$| and σ, but varying amplitude, is used when fitting to the spectra. Column densities for G2 could not always be reliably calculated because it is optically thick in some of the lines. Continued in Table 5.

G1G2G3G4G5G6
v|$_{{cen}}$| (km s−1)−47.7−43.1−39.1−37.2−33.0−25.4
σ (km s−1)1.31.41.50.62.22.5
CO(1–0)|$\tau _{{max}}$|0.07 |$^{+ 0.02 }_{ -0.02 }$|0.35 |$^{+ 0.04 }_{ -0.04 }$|<0.07<0.04<0.01<0.03
|$\int \,\tau {d}v$| (km s−1)0.10 |$^{+ 0.03 }_{ -0.03 }$|0.52 |$^{+ 0.06 }_{ -0.05 }$|<0.1<0.06<0.02<0.05
N (× 1015 cm−2)0.2 |$_{- 0.1 }^{+ 0.1 }$|13.1 |$_{- 1.3 }^{+ 1.5 }$|<0.2<0.4<0.1<0.2
CO(2–1)|$\tau _{{max}}$|0.10 |$^{+ 0.01 }_{ -0.01 }$|0.15 |$^{+ 0.01 }_{ -0.01 }$|0.13 |$^{+ 0.02 }_{ -0.02 }$|<0.020.086 |$^{+ 0.007 }_{ -0.008 }$|
|$\int \,\tau {d}v$| (km s−1)0.15 |$^{+ 0.02 }_{ -0.02 }$|0.22 |$^{+ 0.02 }_{ -0.02 }$|0.20 |$^{+ 0.03 }_{ -0.03 }$|<0.030.13 |$^{+ 0.01 }_{ -0.01 }$|
N (×1014 cm−2)4.0 |$_{- 0.5 }^{+ 0.3 }$|5.4 |$_{- 0.4 }^{+ 0.4 }$|11.8 |$_{- 1.2 }^{+ 1.8 }$|<0.53.0 |$_{- 0.2 }^{+ 0.3 }$|
13CO(2–1)|$\tau _{{max}}$|<0.030.07 |$^{+ 0.01 }_{ -0.02 }$|<0.02<0.01<0.02<0.02
|$\int \,\tau {d}v$| (km s−1)<0.040.103 |$^{+ 0.022 }_{ -0.022 }$|<0.01<0.01<0.03<0.03
N (×1013cm−2)<9.0224.5 |$_{- 54.5 }^{+ 41.4 }$|<3<1<7<8
CN (2–1)a|$\tau _{{max}}$|0.03 |$^{+ 0.01 }_{ -0.01 }$|0.43 |$^{+ 0.02 }_{ -0.02 }$|0.11 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|<0.030.09 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.04 |$^{+ 0.01 }_{ -0.01 }$|0.64 |$^{+ 0.03 }_{ -0.03 }$|0.17 |$^{+ 0.02 }_{ -0.02 }$|0.04 |$^{+ 0.02 }_{ -0.02 }$|<0.040.14 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)1.0 |$_{- 0.3 }^{+ 0.3 }$|159 |$_{- 8 }^{+ 8 }$|4.1 |$_{- 0.5 }^{+ 0.5 }$|2.3 |$_{- 1.2 }^{+ 1.2 }$|<0.83.3 |$_{- 0.2 }^{+ 0.2 }$|
HCO+ (1–0)|$\tau _{{max}}$|0.29 |$^{+ 0.02 }_{ -0.02 }$|1.29 |$^{+ 0.07 }_{ -0.06 }$|0.40 |$^{+ 0.02 }_{ -0.02 }$|0.18 |$^{+ 0.02 }_{ -0.02 }$|0.04 |$^{+ 0.01 }_{ -0.01 }$|0.13 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.44 |$^{+ 0.03 }_{ -0.03 }$|1.9 |$^{+ 0.1 }_{ -0.1 }$|0.59 |$^{+ 0.03 }_{ -0.03 }$|0.26 |$^{+ 0.04 }_{ -0.03 }$|0.05 |$^{+ 0.02 }_{ -0.02 }$|0.19 |$^{+ 0.02 }_{ -0.02 }$|
N (× 1012 (cm−2)1.8 |$_{- 0.1 }^{+ 0.1 }$|310 |$_{- 20 }^{+ 20 }$|2.3 |$_{- 0.1 }^{+ 0.1 }$|3.1 |$_{- 0.4 }^{+ 0.5 }$|0.1 |$_{- 0.1 }^{+ 0.1 }$|0.6 |$_{- 0.1 }^{+ 0.1 }$|
HCO+ (2–1)|$\tau _{{max}}$|0.36 |$^{+ 0.01 }_{ -0.01 }$|0.44 |$^{+ 0.01 }_{ -0.01 }$|0.37 |$^{+ 0.02 }_{ -0.02 }$|0.03 |$^{+ 0.01 }_{ -0.01 }$|0.14 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.54 |$^{+ 0.02 }_{ -0.02 }$|0.66 |$^{+ 0.02 }_{ -0.02 }$|0.55 |$^{+ 0.03 }_{ -0.03 }$|0.05 |$^{+ 0.01 }_{ -0.01 }$|0.21 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)2.4 |$_{- 0.1 }^{+ 0.1 }$|2.7 |$_{- 0.1 }^{+ 0.1 }$|6.0 |$_{- 0.3 }^{+ 0.3 }$|0.2 |$_{- 0.1 }^{+ 0.1 }$|0.7 |$_{- 0.1 }^{+ 0.1 }$|
HCN (2–1)|$\tau _{{max}}$|0.15 |$^{+ 0.02 }_{ -0.02 }$|0.88 |$^{+ 0.06 }_{ -0.06 }$|0.30 |$^{+ 0.02 }_{ -0.02 }$|0.15 |$^{+ 0.03 }_{ -0.03 }$|0.03 |$^{+ 0.01 }_{ -0.01 }$|0.08 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.22 |$^{+ 0.03 }_{ -0.03 }$|1.31 |$^{+ 0.09 }_{ -0.09 }$|0.45 |$^{+ 0.04 }_{ -0.04 }$|0.23 |$^{+ 0.05 }_{ -0.05 }$|0.05 |$^{+ 0.02 }_{ -0.02 }$|0.12 |$^{+ 0.02 }_{ -0.02 }$|
N (×1012 cm−2)1.1 |$_{- 0.2 }^{+ 0.2 }$|84.6 |$_{- 5.8 }^{+ 5.8 }$|2.2 |$_{- 0.2 }^{+ 0.2 }$|2.9 |$_{- 0.6 }^{+ 0.6 }$|0.2 |$_{- 0.1 }^{+ 0.1 }$|0.5 |$_{- 0.1 }^{+ 0.1 }$|
HNC (1–0)|$\tau _{{max}}$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.15 |$^{+ 0.02 }_{ -0.02 }$|0.04 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.02 }_{ -0.02 }$|0.01 |$^{+ 0.01 }_{ -0.01 }$|0.01 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.02 |$^{+ 0.02 }_{ -0.02 }$|0.23 |$^{+ 0.03 }_{ -0.03 }$|0.07 |$^{+ 0.02 }_{ -0.02 }$|0.03 |$^{+ 0.03 }_{ -0.03 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.01 |$^{+ 0.01 }_{ -0.01 }$|
N (×1011cm−2)0.8 |$_{- 0.8 }^{+ 0.8 }$|114.6 |$_{- 14.9 }^{+ 14.9 }$|2.6 |$_{- 0.7 }^{+ 0.7 }$|3.5 |$_{- 3.5 }^{+ 3.5 }$|0.6 |$_{- 0.3 }^{+ 0.3 }$|0.4 |$_{- 0.4 }^{+ 0.4 }$|
H2CO (3–2)|$\tau _{{max}}$|<0.020.10 |$^{+ 0.01 }_{ -0.01 }$|<0.02<0.02<0.02<0.01
|$\int \,\tau {d}v$| (km s−1)<0.030.15 |$^{+ 0.01 }_{ -0.01 }$|<0.04<0.03<0.02<0.02
N (×1013 cm−2)<455 |$_{- 3 }^{+ 6 }$|<6<9<4<7
G1G2G3G4G5G6
v|$_{{cen}}$| (km s−1)−47.7−43.1−39.1−37.2−33.0−25.4
σ (km s−1)1.31.41.50.62.22.5
CO(1–0)|$\tau _{{max}}$|0.07 |$^{+ 0.02 }_{ -0.02 }$|0.35 |$^{+ 0.04 }_{ -0.04 }$|<0.07<0.04<0.01<0.03
|$\int \,\tau {d}v$| (km s−1)0.10 |$^{+ 0.03 }_{ -0.03 }$|0.52 |$^{+ 0.06 }_{ -0.05 }$|<0.1<0.06<0.02<0.05
N (× 1015 cm−2)0.2 |$_{- 0.1 }^{+ 0.1 }$|13.1 |$_{- 1.3 }^{+ 1.5 }$|<0.2<0.4<0.1<0.2
CO(2–1)|$\tau _{{max}}$|0.10 |$^{+ 0.01 }_{ -0.01 }$|0.15 |$^{+ 0.01 }_{ -0.01 }$|0.13 |$^{+ 0.02 }_{ -0.02 }$|<0.020.086 |$^{+ 0.007 }_{ -0.008 }$|
|$\int \,\tau {d}v$| (km s−1)0.15 |$^{+ 0.02 }_{ -0.02 }$|0.22 |$^{+ 0.02 }_{ -0.02 }$|0.20 |$^{+ 0.03 }_{ -0.03 }$|<0.030.13 |$^{+ 0.01 }_{ -0.01 }$|
N (×1014 cm−2)4.0 |$_{- 0.5 }^{+ 0.3 }$|5.4 |$_{- 0.4 }^{+ 0.4 }$|11.8 |$_{- 1.2 }^{+ 1.8 }$|<0.53.0 |$_{- 0.2 }^{+ 0.3 }$|
13CO(2–1)|$\tau _{{max}}$|<0.030.07 |$^{+ 0.01 }_{ -0.02 }$|<0.02<0.01<0.02<0.02
|$\int \,\tau {d}v$| (km s−1)<0.040.103 |$^{+ 0.022 }_{ -0.022 }$|<0.01<0.01<0.03<0.03
N (×1013cm−2)<9.0224.5 |$_{- 54.5 }^{+ 41.4 }$|<3<1<7<8
CN (2–1)a|$\tau _{{max}}$|0.03 |$^{+ 0.01 }_{ -0.01 }$|0.43 |$^{+ 0.02 }_{ -0.02 }$|0.11 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|<0.030.09 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.04 |$^{+ 0.01 }_{ -0.01 }$|0.64 |$^{+ 0.03 }_{ -0.03 }$|0.17 |$^{+ 0.02 }_{ -0.02 }$|0.04 |$^{+ 0.02 }_{ -0.02 }$|<0.040.14 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)1.0 |$_{- 0.3 }^{+ 0.3 }$|159 |$_{- 8 }^{+ 8 }$|4.1 |$_{- 0.5 }^{+ 0.5 }$|2.3 |$_{- 1.2 }^{+ 1.2 }$|<0.83.3 |$_{- 0.2 }^{+ 0.2 }$|
HCO+ (1–0)|$\tau _{{max}}$|0.29 |$^{+ 0.02 }_{ -0.02 }$|1.29 |$^{+ 0.07 }_{ -0.06 }$|0.40 |$^{+ 0.02 }_{ -0.02 }$|0.18 |$^{+ 0.02 }_{ -0.02 }$|0.04 |$^{+ 0.01 }_{ -0.01 }$|0.13 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.44 |$^{+ 0.03 }_{ -0.03 }$|1.9 |$^{+ 0.1 }_{ -0.1 }$|0.59 |$^{+ 0.03 }_{ -0.03 }$|0.26 |$^{+ 0.04 }_{ -0.03 }$|0.05 |$^{+ 0.02 }_{ -0.02 }$|0.19 |$^{+ 0.02 }_{ -0.02 }$|
N (× 1012 (cm−2)1.8 |$_{- 0.1 }^{+ 0.1 }$|310 |$_{- 20 }^{+ 20 }$|2.3 |$_{- 0.1 }^{+ 0.1 }$|3.1 |$_{- 0.4 }^{+ 0.5 }$|0.1 |$_{- 0.1 }^{+ 0.1 }$|0.6 |$_{- 0.1 }^{+ 0.1 }$|
HCO+ (2–1)|$\tau _{{max}}$|0.36 |$^{+ 0.01 }_{ -0.01 }$|0.44 |$^{+ 0.01 }_{ -0.01 }$|0.37 |$^{+ 0.02 }_{ -0.02 }$|0.03 |$^{+ 0.01 }_{ -0.01 }$|0.14 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.54 |$^{+ 0.02 }_{ -0.02 }$|0.66 |$^{+ 0.02 }_{ -0.02 }$|0.55 |$^{+ 0.03 }_{ -0.03 }$|0.05 |$^{+ 0.01 }_{ -0.01 }$|0.21 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)2.4 |$_{- 0.1 }^{+ 0.1 }$|2.7 |$_{- 0.1 }^{+ 0.1 }$|6.0 |$_{- 0.3 }^{+ 0.3 }$|0.2 |$_{- 0.1 }^{+ 0.1 }$|0.7 |$_{- 0.1 }^{+ 0.1 }$|
HCN (2–1)|$\tau _{{max}}$|0.15 |$^{+ 0.02 }_{ -0.02 }$|0.88 |$^{+ 0.06 }_{ -0.06 }$|0.30 |$^{+ 0.02 }_{ -0.02 }$|0.15 |$^{+ 0.03 }_{ -0.03 }$|0.03 |$^{+ 0.01 }_{ -0.01 }$|0.08 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.22 |$^{+ 0.03 }_{ -0.03 }$|1.31 |$^{+ 0.09 }_{ -0.09 }$|0.45 |$^{+ 0.04 }_{ -0.04 }$|0.23 |$^{+ 0.05 }_{ -0.05 }$|0.05 |$^{+ 0.02 }_{ -0.02 }$|0.12 |$^{+ 0.02 }_{ -0.02 }$|
N (×1012 cm−2)1.1 |$_{- 0.2 }^{+ 0.2 }$|84.6 |$_{- 5.8 }^{+ 5.8 }$|2.2 |$_{- 0.2 }^{+ 0.2 }$|2.9 |$_{- 0.6 }^{+ 0.6 }$|0.2 |$_{- 0.1 }^{+ 0.1 }$|0.5 |$_{- 0.1 }^{+ 0.1 }$|
HNC (1–0)|$\tau _{{max}}$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.15 |$^{+ 0.02 }_{ -0.02 }$|0.04 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.02 }_{ -0.02 }$|0.01 |$^{+ 0.01 }_{ -0.01 }$|0.01 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.02 |$^{+ 0.02 }_{ -0.02 }$|0.23 |$^{+ 0.03 }_{ -0.03 }$|0.07 |$^{+ 0.02 }_{ -0.02 }$|0.03 |$^{+ 0.03 }_{ -0.03 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.01 |$^{+ 0.01 }_{ -0.01 }$|
N (×1011cm−2)0.8 |$_{- 0.8 }^{+ 0.8 }$|114.6 |$_{- 14.9 }^{+ 14.9 }$|2.6 |$_{- 0.7 }^{+ 0.7 }$|3.5 |$_{- 3.5 }^{+ 3.5 }$|0.6 |$_{- 0.3 }^{+ 0.3 }$|0.4 |$_{- 0.4 }^{+ 0.4 }$|
H2CO (3–2)|$\tau _{{max}}$|<0.020.10 |$^{+ 0.01 }_{ -0.01 }$|<0.02<0.02<0.02<0.01
|$\int \,\tau {d}v$| (km s−1)<0.030.15 |$^{+ 0.01 }_{ -0.01 }$|<0.04<0.03<0.02<0.02
N (×1013 cm−2)<455 |$_{- 3 }^{+ 6 }$|<6<9<4<7

aThe values for CN(2–1) are calculated from three overlapping hyperfine structure lines representing ∼60 per cent of the total absorption. The full CN(2–1) spectrum is shown in Appendix  A.

Table 5.

Continued from Table 4.

G7G8G9G10G11G12
v|$_{{cen}}$| (km s−1)−16.0−8.3−4.0−1.70.910.8
σ (km s−1)3.71.21.00.71.44.0
CO (1–0)|$\tau _{{max}}$|0.05 |$^{+ 0.01 }_{ -0.01 }$|<0.02<0.06<0.04<0.06<0.03
|$\int \,\tau {d}v$| (km s−1)0.08 |$^{+ 0.02 }_{ -0.02 }$|<0.02<0.06<0.06<0.08<0.04
N (×1015 cm−2)0.20 |$_{- 0.04 }^{+ 0.04 }$|<0.1<0.3<0.3<0.3<0.2
CO (2–1)|$\tau _{{max}}$|0.12 |$^{+ 0.01 }_{ -0.01 }$|<0.030.18 |$^{+ 0.01 }_{ -0.01 }$|<0.03<0.02<0.01
|$\int \,\tau {d}v$| (km s−1)0.18 |$^{+ 0.01 }_{ -0.01 }$|<0.050.27 |$^{+ 0.02 }_{ -0.02 }$|<0.06<0.03<0.02
N (×1014 cm−2)4.4 |$_{- 0.2 }^{+ 0.3 }$|<0.511.3 |$_{- 0.9 }^{+ 0.7 }$|<1<0.6<0.2
13CO (2–1)|$\tau _{{max}}$|<0.01<0.3<0.01<0.01<0.02<0.01
|$\int \,\tau {d}v$| (km s−1)<0.02<0.04<0.007<0.01<0.03<0.02
N (×1013 cm−2)<3<7<2<3<10<3
CN (2–1)a|$\tau _{{max}}$|0.10 |$^{+ 0.01 }_{ -0.01 }$|0.03 |$^{+ 0.01 }_{ -0.01 }$|0.32 |$^{+ 0.02 }_{ -0.02 }$|0.04 |$^{+ 0.01 }_{ -0.01 }$|0.07 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.14 |$^{+ 0.01 }_{ -0.01 }$|0.04 |$^{+ 0.02 }_{ -0.02 }$|0.48 |$^{+ 0.02 }_{ -0.02 }$|0.06 |$^{+ 0.02 }_{ -0.02 }$|0.11 |$^{+ 0.02 }_{ -0.02 }$|0.03 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)3.5 |$_{- 0.2 }^{+ 0.2 }$|0.7 |$_{- 0.3 }^{+ 0.3 }$|22.0 |$_{- 0.9 }^{+ 0.9 }$|1.5 |$_{- 0.5 }^{+ 0.5 }$|2.5 |$_{- 0.5 }^{+ 0.5 }$|0.5 |$_{- 0.2 }^{+ 0.2 }$|
HCO+ (1–0)|$\tau _{{max}}$|0.18 |$^{+ 0.01 }_{ -0.01 }$|0.10 |$^{+ 0.02 }_{ -0.02 }$|0.29 |$^{+ 0.02 }_{ -0.02 }$|0.11 |$^{+ 0.02 }_{ -0.02 }$|0.17 |$^{+ 0.02 }_{ -0.02 }$|0.06 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.26 |$^{+ 0.01 }_{ -0.01 }$|0.15 |$^{+ 0.02 }_{ -0.02 }$|0.43 |$^{+ 0.03 }_{ -0.03 }$|0.16 |$^{+ 0.03 }_{ -0.03 }$|0.25 |$^{+ 0.02 }_{ -0.02 }$|0.09 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)0.90 |$_{- 0.01 }^{+ 0.01 }$|0.30 |$_{- 0.01 }^{+ 0.01 }$|3.4 |$_{- 0.2 }^{+ 0.2 }$|0.6 |$_{- 0.1 }^{+ 0.1 }$|0.8 |$_{- 0.1 }^{+ 0.1 }$|0.20 |$_{- 0.01 }^{+ 0.01 }$|
HCO+ (2–1)|$\tau _{{max}}$|0.2 |$^{+ 0.01 }_{ -0.01 }$|0.07 |$^{+ 0.01 }_{ -0.01 }$|0.49 |$^{+ 0.02 }_{ -0.02 }$|0.13 |$^{+ 0.01 }_{ -0.01 }$|0.18 |$^{+ 0.01 }_{ -0.01 }$|0.05 |$^{+ 0.01 }_{ -0.0 }$|
|$\int \,\tau {d}v$| (km s−10.3 |$^{+ 0.01 }_{ -0.01 }$|0.11 |$^{+ 0.01 }_{ -0.01 }$|0.74 |$^{+ 0.02 }_{ -0.02 }$|0.19 |$^{+ 0.02 }_{ -0.02 }$|0.27 |$^{+ 0.01 }_{ -0.01 }$|0.07 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)1.10 |$_{- 0.01 }^{+ 0.01 }$|0.30 |$_{- 0.01 }^{+ 0.01 }$|5.6 |$_{- 0.2 }^{+ 0.2 }$|0.7 |$_{- 0.1 }^{+ 0.1 }$|1.00 |$_{- 0.01 }^{+ 0.01 }$|0.20 |$_{- 0.01 }^{+ 0.01 }$|
HCN (2–1)|$\tau _{{max}}$|0.10 |$^{+ 0.01 }_{ -0.01 }$|0.10 |$^{+ 0.02 }_{ -0.02 }$|0.34 |$^{+ 0.03 }_{ -0.03 }$|0.21 |$^{+ 0.03 }_{ -0.03 }$|0.12 |$^{+ 0.02 }_{ -0.02 }$|<0.04
|$\int \,\tau {d}v$| (km s−1)0.14 |$^{+ 0.02 }_{ -0.02 }$|0.15 |$^{+ 0.03 }_{ -0.03 }$|0.51 |$^{+ 0.05 }_{ -0.04 }$|0.31 |$^{+ 0.05 }_{ -0.05 }$|0.18 |$^{+ 0.03 }_{ -0.03 }$|<0.08
N (×1012 cm−2)0.6 |$_{- 0.1 }^{+ 0.1 }$|0.5 |$_{- 0.1 }^{+ 0.1 }$|4.6 |$_{- 0.4 }^{+ 0.4 }$|1.5 |$_{- 0.2 }^{+ 0.2 }$|0.8 |$_{- 0.1 }^{+ 0.1 }$|<0.3
HNC (1–0)|$\tau _{{max}}$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.08 |$^{+ 0.02 }_{ -0.02 }$|<0.040.03 |$^{+ 0.01 }_{ -0.01 }$|<0.03
|$\int \,\tau {d}v$| (km s−1)0.03 |$^{+ 0.01 }_{ -0.01 }$|0.03 |$^{+ 0.02 }_{ -0.02 }$|0.11 |$^{+ 0.02 }_{ -0.02 }$|<0.040.04 |$^{+ 0.02 }_{ -0.02 }$|<0.04
N (×1011 cm−2)1.1 |$_{- 0.4 }^{+ 0.4 }$|0.7 |$_{- 0.5 }^{+ 0.5 }$|8.1 |$_{- 1.5 }^{+ 1.5 }$|<21.4 |$_{- 0.7 }^{+ 0.7 }$|<0.7
H2CO (3–2)|$\tau _{{max}}$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.10 |$^{+ 0.01 }_{ -0.01 }$|<0.020.03 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.02 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.16 |$^{+ 0.01 }_{ -0.01 }$|<0.020.05 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|
N (×1013 cm−2)3.7 |$_{- 1.4 }^{+ 0.2 }$|3.2 |$_{- 1.7 }^{+ 0.8 }$|29 |$_{- 3 }^{+ 2 }$|<27.0 |$_{- 0.8 }^{+ 2.0 }$|3.3 |$_{- 1.1 }^{+ 0.3 }$|
G7G8G9G10G11G12
v|$_{{cen}}$| (km s−1)−16.0−8.3−4.0−1.70.910.8
σ (km s−1)3.71.21.00.71.44.0
CO (1–0)|$\tau _{{max}}$|0.05 |$^{+ 0.01 }_{ -0.01 }$|<0.02<0.06<0.04<0.06<0.03
|$\int \,\tau {d}v$| (km s−1)0.08 |$^{+ 0.02 }_{ -0.02 }$|<0.02<0.06<0.06<0.08<0.04
N (×1015 cm−2)0.20 |$_{- 0.04 }^{+ 0.04 }$|<0.1<0.3<0.3<0.3<0.2
CO (2–1)|$\tau _{{max}}$|0.12 |$^{+ 0.01 }_{ -0.01 }$|<0.030.18 |$^{+ 0.01 }_{ -0.01 }$|<0.03<0.02<0.01
|$\int \,\tau {d}v$| (km s−1)0.18 |$^{+ 0.01 }_{ -0.01 }$|<0.050.27 |$^{+ 0.02 }_{ -0.02 }$|<0.06<0.03<0.02
N (×1014 cm−2)4.4 |$_{- 0.2 }^{+ 0.3 }$|<0.511.3 |$_{- 0.9 }^{+ 0.7 }$|<1<0.6<0.2
13CO (2–1)|$\tau _{{max}}$|<0.01<0.3<0.01<0.01<0.02<0.01
|$\int \,\tau {d}v$| (km s−1)<0.02<0.04<0.007<0.01<0.03<0.02
N (×1013 cm−2)<3<7<2<3<10<3
CN (2–1)a|$\tau _{{max}}$|0.10 |$^{+ 0.01 }_{ -0.01 }$|0.03 |$^{+ 0.01 }_{ -0.01 }$|0.32 |$^{+ 0.02 }_{ -0.02 }$|0.04 |$^{+ 0.01 }_{ -0.01 }$|0.07 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.14 |$^{+ 0.01 }_{ -0.01 }$|0.04 |$^{+ 0.02 }_{ -0.02 }$|0.48 |$^{+ 0.02 }_{ -0.02 }$|0.06 |$^{+ 0.02 }_{ -0.02 }$|0.11 |$^{+ 0.02 }_{ -0.02 }$|0.03 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)3.5 |$_{- 0.2 }^{+ 0.2 }$|0.7 |$_{- 0.3 }^{+ 0.3 }$|22.0 |$_{- 0.9 }^{+ 0.9 }$|1.5 |$_{- 0.5 }^{+ 0.5 }$|2.5 |$_{- 0.5 }^{+ 0.5 }$|0.5 |$_{- 0.2 }^{+ 0.2 }$|
HCO+ (1–0)|$\tau _{{max}}$|0.18 |$^{+ 0.01 }_{ -0.01 }$|0.10 |$^{+ 0.02 }_{ -0.02 }$|0.29 |$^{+ 0.02 }_{ -0.02 }$|0.11 |$^{+ 0.02 }_{ -0.02 }$|0.17 |$^{+ 0.02 }_{ -0.02 }$|0.06 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.26 |$^{+ 0.01 }_{ -0.01 }$|0.15 |$^{+ 0.02 }_{ -0.02 }$|0.43 |$^{+ 0.03 }_{ -0.03 }$|0.16 |$^{+ 0.03 }_{ -0.03 }$|0.25 |$^{+ 0.02 }_{ -0.02 }$|0.09 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)0.90 |$_{- 0.01 }^{+ 0.01 }$|0.30 |$_{- 0.01 }^{+ 0.01 }$|3.4 |$_{- 0.2 }^{+ 0.2 }$|0.6 |$_{- 0.1 }^{+ 0.1 }$|0.8 |$_{- 0.1 }^{+ 0.1 }$|0.20 |$_{- 0.01 }^{+ 0.01 }$|
HCO+ (2–1)|$\tau _{{max}}$|0.2 |$^{+ 0.01 }_{ -0.01 }$|0.07 |$^{+ 0.01 }_{ -0.01 }$|0.49 |$^{+ 0.02 }_{ -0.02 }$|0.13 |$^{+ 0.01 }_{ -0.01 }$|0.18 |$^{+ 0.01 }_{ -0.01 }$|0.05 |$^{+ 0.01 }_{ -0.0 }$|
|$\int \,\tau {d}v$| (km s−10.3 |$^{+ 0.01 }_{ -0.01 }$|0.11 |$^{+ 0.01 }_{ -0.01 }$|0.74 |$^{+ 0.02 }_{ -0.02 }$|0.19 |$^{+ 0.02 }_{ -0.02 }$|0.27 |$^{+ 0.01 }_{ -0.01 }$|0.07 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)1.10 |$_{- 0.01 }^{+ 0.01 }$|0.30 |$_{- 0.01 }^{+ 0.01 }$|5.6 |$_{- 0.2 }^{+ 0.2 }$|0.7 |$_{- 0.1 }^{+ 0.1 }$|1.00 |$_{- 0.01 }^{+ 0.01 }$|0.20 |$_{- 0.01 }^{+ 0.01 }$|
HCN (2–1)|$\tau _{{max}}$|0.10 |$^{+ 0.01 }_{ -0.01 }$|0.10 |$^{+ 0.02 }_{ -0.02 }$|0.34 |$^{+ 0.03 }_{ -0.03 }$|0.21 |$^{+ 0.03 }_{ -0.03 }$|0.12 |$^{+ 0.02 }_{ -0.02 }$|<0.04
|$\int \,\tau {d}v$| (km s−1)0.14 |$^{+ 0.02 }_{ -0.02 }$|0.15 |$^{+ 0.03 }_{ -0.03 }$|0.51 |$^{+ 0.05 }_{ -0.04 }$|0.31 |$^{+ 0.05 }_{ -0.05 }$|0.18 |$^{+ 0.03 }_{ -0.03 }$|<0.08
N (×1012 cm−2)0.6 |$_{- 0.1 }^{+ 0.1 }$|0.5 |$_{- 0.1 }^{+ 0.1 }$|4.6 |$_{- 0.4 }^{+ 0.4 }$|1.5 |$_{- 0.2 }^{+ 0.2 }$|0.8 |$_{- 0.1 }^{+ 0.1 }$|<0.3
HNC (1–0)|$\tau _{{max}}$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.08 |$^{+ 0.02 }_{ -0.02 }$|<0.040.03 |$^{+ 0.01 }_{ -0.01 }$|<0.03
|$\int \,\tau {d}v$| (km s−1)0.03 |$^{+ 0.01 }_{ -0.01 }$|0.03 |$^{+ 0.02 }_{ -0.02 }$|0.11 |$^{+ 0.02 }_{ -0.02 }$|<0.040.04 |$^{+ 0.02 }_{ -0.02 }$|<0.04
N (×1011 cm−2)1.1 |$_{- 0.4 }^{+ 0.4 }$|0.7 |$_{- 0.5 }^{+ 0.5 }$|8.1 |$_{- 1.5 }^{+ 1.5 }$|<21.4 |$_{- 0.7 }^{+ 0.7 }$|<0.7
H2CO (3–2)|$\tau _{{max}}$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.10 |$^{+ 0.01 }_{ -0.01 }$|<0.020.03 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.02 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.16 |$^{+ 0.01 }_{ -0.01 }$|<0.020.05 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|
N (×1013 cm−2)3.7 |$_{- 1.4 }^{+ 0.2 }$|3.2 |$_{- 1.7 }^{+ 0.8 }$|29 |$_{- 3 }^{+ 2 }$|<27.0 |$_{- 0.8 }^{+ 2.0 }$|3.3 |$_{- 1.1 }^{+ 0.3 }$|
Table 5.

Continued from Table 4.

G7G8G9G10G11G12
v|$_{{cen}}$| (km s−1)−16.0−8.3−4.0−1.70.910.8
σ (km s−1)3.71.21.00.71.44.0
CO (1–0)|$\tau _{{max}}$|0.05 |$^{+ 0.01 }_{ -0.01 }$|<0.02<0.06<0.04<0.06<0.03
|$\int \,\tau {d}v$| (km s−1)0.08 |$^{+ 0.02 }_{ -0.02 }$|<0.02<0.06<0.06<0.08<0.04
N (×1015 cm−2)0.20 |$_{- 0.04 }^{+ 0.04 }$|<0.1<0.3<0.3<0.3<0.2
CO (2–1)|$\tau _{{max}}$|0.12 |$^{+ 0.01 }_{ -0.01 }$|<0.030.18 |$^{+ 0.01 }_{ -0.01 }$|<0.03<0.02<0.01
|$\int \,\tau {d}v$| (km s−1)0.18 |$^{+ 0.01 }_{ -0.01 }$|<0.050.27 |$^{+ 0.02 }_{ -0.02 }$|<0.06<0.03<0.02
N (×1014 cm−2)4.4 |$_{- 0.2 }^{+ 0.3 }$|<0.511.3 |$_{- 0.9 }^{+ 0.7 }$|<1<0.6<0.2
13CO (2–1)|$\tau _{{max}}$|<0.01<0.3<0.01<0.01<0.02<0.01
|$\int \,\tau {d}v$| (km s−1)<0.02<0.04<0.007<0.01<0.03<0.02
N (×1013 cm−2)<3<7<2<3<10<3
CN (2–1)a|$\tau _{{max}}$|0.10 |$^{+ 0.01 }_{ -0.01 }$|0.03 |$^{+ 0.01 }_{ -0.01 }$|0.32 |$^{+ 0.02 }_{ -0.02 }$|0.04 |$^{+ 0.01 }_{ -0.01 }$|0.07 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.14 |$^{+ 0.01 }_{ -0.01 }$|0.04 |$^{+ 0.02 }_{ -0.02 }$|0.48 |$^{+ 0.02 }_{ -0.02 }$|0.06 |$^{+ 0.02 }_{ -0.02 }$|0.11 |$^{+ 0.02 }_{ -0.02 }$|0.03 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)3.5 |$_{- 0.2 }^{+ 0.2 }$|0.7 |$_{- 0.3 }^{+ 0.3 }$|22.0 |$_{- 0.9 }^{+ 0.9 }$|1.5 |$_{- 0.5 }^{+ 0.5 }$|2.5 |$_{- 0.5 }^{+ 0.5 }$|0.5 |$_{- 0.2 }^{+ 0.2 }$|
HCO+ (1–0)|$\tau _{{max}}$|0.18 |$^{+ 0.01 }_{ -0.01 }$|0.10 |$^{+ 0.02 }_{ -0.02 }$|0.29 |$^{+ 0.02 }_{ -0.02 }$|0.11 |$^{+ 0.02 }_{ -0.02 }$|0.17 |$^{+ 0.02 }_{ -0.02 }$|0.06 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.26 |$^{+ 0.01 }_{ -0.01 }$|0.15 |$^{+ 0.02 }_{ -0.02 }$|0.43 |$^{+ 0.03 }_{ -0.03 }$|0.16 |$^{+ 0.03 }_{ -0.03 }$|0.25 |$^{+ 0.02 }_{ -0.02 }$|0.09 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)0.90 |$_{- 0.01 }^{+ 0.01 }$|0.30 |$_{- 0.01 }^{+ 0.01 }$|3.4 |$_{- 0.2 }^{+ 0.2 }$|0.6 |$_{- 0.1 }^{+ 0.1 }$|0.8 |$_{- 0.1 }^{+ 0.1 }$|0.20 |$_{- 0.01 }^{+ 0.01 }$|
HCO+ (2–1)|$\tau _{{max}}$|0.2 |$^{+ 0.01 }_{ -0.01 }$|0.07 |$^{+ 0.01 }_{ -0.01 }$|0.49 |$^{+ 0.02 }_{ -0.02 }$|0.13 |$^{+ 0.01 }_{ -0.01 }$|0.18 |$^{+ 0.01 }_{ -0.01 }$|0.05 |$^{+ 0.01 }_{ -0.0 }$|
|$\int \,\tau {d}v$| (km s−10.3 |$^{+ 0.01 }_{ -0.01 }$|0.11 |$^{+ 0.01 }_{ -0.01 }$|0.74 |$^{+ 0.02 }_{ -0.02 }$|0.19 |$^{+ 0.02 }_{ -0.02 }$|0.27 |$^{+ 0.01 }_{ -0.01 }$|0.07 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)1.10 |$_{- 0.01 }^{+ 0.01 }$|0.30 |$_{- 0.01 }^{+ 0.01 }$|5.6 |$_{- 0.2 }^{+ 0.2 }$|0.7 |$_{- 0.1 }^{+ 0.1 }$|1.00 |$_{- 0.01 }^{+ 0.01 }$|0.20 |$_{- 0.01 }^{+ 0.01 }$|
HCN (2–1)|$\tau _{{max}}$|0.10 |$^{+ 0.01 }_{ -0.01 }$|0.10 |$^{+ 0.02 }_{ -0.02 }$|0.34 |$^{+ 0.03 }_{ -0.03 }$|0.21 |$^{+ 0.03 }_{ -0.03 }$|0.12 |$^{+ 0.02 }_{ -0.02 }$|<0.04
|$\int \,\tau {d}v$| (km s−1)0.14 |$^{+ 0.02 }_{ -0.02 }$|0.15 |$^{+ 0.03 }_{ -0.03 }$|0.51 |$^{+ 0.05 }_{ -0.04 }$|0.31 |$^{+ 0.05 }_{ -0.05 }$|0.18 |$^{+ 0.03 }_{ -0.03 }$|<0.08
N (×1012 cm−2)0.6 |$_{- 0.1 }^{+ 0.1 }$|0.5 |$_{- 0.1 }^{+ 0.1 }$|4.6 |$_{- 0.4 }^{+ 0.4 }$|1.5 |$_{- 0.2 }^{+ 0.2 }$|0.8 |$_{- 0.1 }^{+ 0.1 }$|<0.3
HNC (1–0)|$\tau _{{max}}$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.08 |$^{+ 0.02 }_{ -0.02 }$|<0.040.03 |$^{+ 0.01 }_{ -0.01 }$|<0.03
|$\int \,\tau {d}v$| (km s−1)0.03 |$^{+ 0.01 }_{ -0.01 }$|0.03 |$^{+ 0.02 }_{ -0.02 }$|0.11 |$^{+ 0.02 }_{ -0.02 }$|<0.040.04 |$^{+ 0.02 }_{ -0.02 }$|<0.04
N (×1011 cm−2)1.1 |$_{- 0.4 }^{+ 0.4 }$|0.7 |$_{- 0.5 }^{+ 0.5 }$|8.1 |$_{- 1.5 }^{+ 1.5 }$|<21.4 |$_{- 0.7 }^{+ 0.7 }$|<0.7
H2CO (3–2)|$\tau _{{max}}$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.10 |$^{+ 0.01 }_{ -0.01 }$|<0.020.03 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.02 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.16 |$^{+ 0.01 }_{ -0.01 }$|<0.020.05 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|
N (×1013 cm−2)3.7 |$_{- 1.4 }^{+ 0.2 }$|3.2 |$_{- 1.7 }^{+ 0.8 }$|29 |$_{- 3 }^{+ 2 }$|<27.0 |$_{- 0.8 }^{+ 2.0 }$|3.3 |$_{- 1.1 }^{+ 0.3 }$|
G7G8G9G10G11G12
v|$_{{cen}}$| (km s−1)−16.0−8.3−4.0−1.70.910.8
σ (km s−1)3.71.21.00.71.44.0
CO (1–0)|$\tau _{{max}}$|0.05 |$^{+ 0.01 }_{ -0.01 }$|<0.02<0.06<0.04<0.06<0.03
|$\int \,\tau {d}v$| (km s−1)0.08 |$^{+ 0.02 }_{ -0.02 }$|<0.02<0.06<0.06<0.08<0.04
N (×1015 cm−2)0.20 |$_{- 0.04 }^{+ 0.04 }$|<0.1<0.3<0.3<0.3<0.2
CO (2–1)|$\tau _{{max}}$|0.12 |$^{+ 0.01 }_{ -0.01 }$|<0.030.18 |$^{+ 0.01 }_{ -0.01 }$|<0.03<0.02<0.01
|$\int \,\tau {d}v$| (km s−1)0.18 |$^{+ 0.01 }_{ -0.01 }$|<0.050.27 |$^{+ 0.02 }_{ -0.02 }$|<0.06<0.03<0.02
N (×1014 cm−2)4.4 |$_{- 0.2 }^{+ 0.3 }$|<0.511.3 |$_{- 0.9 }^{+ 0.7 }$|<1<0.6<0.2
13CO (2–1)|$\tau _{{max}}$|<0.01<0.3<0.01<0.01<0.02<0.01
|$\int \,\tau {d}v$| (km s−1)<0.02<0.04<0.007<0.01<0.03<0.02
N (×1013 cm−2)<3<7<2<3<10<3
CN (2–1)a|$\tau _{{max}}$|0.10 |$^{+ 0.01 }_{ -0.01 }$|0.03 |$^{+ 0.01 }_{ -0.01 }$|0.32 |$^{+ 0.02 }_{ -0.02 }$|0.04 |$^{+ 0.01 }_{ -0.01 }$|0.07 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.14 |$^{+ 0.01 }_{ -0.01 }$|0.04 |$^{+ 0.02 }_{ -0.02 }$|0.48 |$^{+ 0.02 }_{ -0.02 }$|0.06 |$^{+ 0.02 }_{ -0.02 }$|0.11 |$^{+ 0.02 }_{ -0.02 }$|0.03 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)3.5 |$_{- 0.2 }^{+ 0.2 }$|0.7 |$_{- 0.3 }^{+ 0.3 }$|22.0 |$_{- 0.9 }^{+ 0.9 }$|1.5 |$_{- 0.5 }^{+ 0.5 }$|2.5 |$_{- 0.5 }^{+ 0.5 }$|0.5 |$_{- 0.2 }^{+ 0.2 }$|
HCO+ (1–0)|$\tau _{{max}}$|0.18 |$^{+ 0.01 }_{ -0.01 }$|0.10 |$^{+ 0.02 }_{ -0.02 }$|0.29 |$^{+ 0.02 }_{ -0.02 }$|0.11 |$^{+ 0.02 }_{ -0.02 }$|0.17 |$^{+ 0.02 }_{ -0.02 }$|0.06 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.26 |$^{+ 0.01 }_{ -0.01 }$|0.15 |$^{+ 0.02 }_{ -0.02 }$|0.43 |$^{+ 0.03 }_{ -0.03 }$|0.16 |$^{+ 0.03 }_{ -0.03 }$|0.25 |$^{+ 0.02 }_{ -0.02 }$|0.09 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)0.90 |$_{- 0.01 }^{+ 0.01 }$|0.30 |$_{- 0.01 }^{+ 0.01 }$|3.4 |$_{- 0.2 }^{+ 0.2 }$|0.6 |$_{- 0.1 }^{+ 0.1 }$|0.8 |$_{- 0.1 }^{+ 0.1 }$|0.20 |$_{- 0.01 }^{+ 0.01 }$|
HCO+ (2–1)|$\tau _{{max}}$|0.2 |$^{+ 0.01 }_{ -0.01 }$|0.07 |$^{+ 0.01 }_{ -0.01 }$|0.49 |$^{+ 0.02 }_{ -0.02 }$|0.13 |$^{+ 0.01 }_{ -0.01 }$|0.18 |$^{+ 0.01 }_{ -0.01 }$|0.05 |$^{+ 0.01 }_{ -0.0 }$|
|$\int \,\tau {d}v$| (km s−10.3 |$^{+ 0.01 }_{ -0.01 }$|0.11 |$^{+ 0.01 }_{ -0.01 }$|0.74 |$^{+ 0.02 }_{ -0.02 }$|0.19 |$^{+ 0.02 }_{ -0.02 }$|0.27 |$^{+ 0.01 }_{ -0.01 }$|0.07 |$^{+ 0.01 }_{ -0.01 }$|
N (×1012 cm−2)1.10 |$_{- 0.01 }^{+ 0.01 }$|0.30 |$_{- 0.01 }^{+ 0.01 }$|5.6 |$_{- 0.2 }^{+ 0.2 }$|0.7 |$_{- 0.1 }^{+ 0.1 }$|1.00 |$_{- 0.01 }^{+ 0.01 }$|0.20 |$_{- 0.01 }^{+ 0.01 }$|
HCN (2–1)|$\tau _{{max}}$|0.10 |$^{+ 0.01 }_{ -0.01 }$|0.10 |$^{+ 0.02 }_{ -0.02 }$|0.34 |$^{+ 0.03 }_{ -0.03 }$|0.21 |$^{+ 0.03 }_{ -0.03 }$|0.12 |$^{+ 0.02 }_{ -0.02 }$|<0.04
|$\int \,\tau {d}v$| (km s−1)0.14 |$^{+ 0.02 }_{ -0.02 }$|0.15 |$^{+ 0.03 }_{ -0.03 }$|0.51 |$^{+ 0.05 }_{ -0.04 }$|0.31 |$^{+ 0.05 }_{ -0.05 }$|0.18 |$^{+ 0.03 }_{ -0.03 }$|<0.08
N (×1012 cm−2)0.6 |$_{- 0.1 }^{+ 0.1 }$|0.5 |$_{- 0.1 }^{+ 0.1 }$|4.6 |$_{- 0.4 }^{+ 0.4 }$|1.5 |$_{- 0.2 }^{+ 0.2 }$|0.8 |$_{- 0.1 }^{+ 0.1 }$|<0.3
HNC (1–0)|$\tau _{{max}}$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.08 |$^{+ 0.02 }_{ -0.02 }$|<0.040.03 |$^{+ 0.01 }_{ -0.01 }$|<0.03
|$\int \,\tau {d}v$| (km s−1)0.03 |$^{+ 0.01 }_{ -0.01 }$|0.03 |$^{+ 0.02 }_{ -0.02 }$|0.11 |$^{+ 0.02 }_{ -0.02 }$|<0.040.04 |$^{+ 0.02 }_{ -0.02 }$|<0.04
N (×1011 cm−2)1.1 |$_{- 0.4 }^{+ 0.4 }$|0.7 |$_{- 0.5 }^{+ 0.5 }$|8.1 |$_{- 1.5 }^{+ 1.5 }$|<21.4 |$_{- 0.7 }^{+ 0.7 }$|<0.7
H2CO (3–2)|$\tau _{{max}}$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.10 |$^{+ 0.01 }_{ -0.01 }$|<0.020.03 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|
|$\int \,\tau {d}v$| (km s−1)0.02 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|0.16 |$^{+ 0.01 }_{ -0.01 }$|<0.020.05 |$^{+ 0.01 }_{ -0.01 }$|0.02 |$^{+ 0.01 }_{ -0.01 }$|
N (×1013 cm−2)3.7 |$_{- 1.4 }^{+ 0.2 }$|3.2 |$_{- 1.7 }^{+ 0.8 }$|29 |$_{- 3 }^{+ 2 }$|<27.0 |$_{- 0.8 }^{+ 2.0 }$|3.3 |$_{- 1.1 }^{+ 0.3 }$|

4 TEMPERATURE ESTIMATES

4.1 Excitation temperature estimates

The absorption profiles seen in Figs 2 and 3 are produced by what we find is best described as the combination of 12 Gaussian absorption regions. Most of the absorption regions have extremely narrow velocity dispersions of |$\sim 1\,{km s}^{-1}$|⁠, which are comparable to those of individual clouds in the Milky Way (Roman-Duval et al. 2010). Therefore, most of the absorption regions detected can be approximated as individual molecular gas clouds, for which the excitation temperature can be estimated. Even for the broader absorption regions (G7 and G12), which are likely small associations of clouds, an average excitation temperature can still be found. We stress that this concept of individual molecular clouds is an approximation, given that there is no clear point where they will start and end, they will have internal structure, and there will always be some interstellar medium that exists between them.

Our observations of HCO+(1–0) and HCO+(2–1) provide two well-resolved absorption profiles from which it is possible to estimate the excitation temperature of the absorption regions represented by each of the 12 Gaussian best-fitting lines. This requires that the gas is optically thin and in local thermodynamic equilibrium, but as we show in Section 4.2 this is not the case, so the values should only be treated as approximations.

Nevertheless, with this assumption the HCO+(1–0) and HCO+(2–1) velocity integrated optical depths are related by
(2)
where h and k are the Planck and Boltzmann constants, ν10 and ν21 are the rest frequencies of the HCO+(1–0) and HCO+(2–1) lines and |$T_{{ex}}$| is the excitation temperature (Bolatto et al. 2003; Godard et al. 2010; Mangum & Shirley 2015). The excitation temperatures found using equation (2) are given in Table 3.

The hyperfine structure components of the HCN(1–0) line are separated by frequencies similar to those of the 12 Gaussian absorption lines seen in this system. It is therefore not possible to estimate the excitation temperature of the individual absorption regions using the HCN(1–0) and HCN(2–1) spectra, though an average can be estimated from the total velocity integrated optical depth of the whole absorption profile. This gives an excitation temperature of 5.5|$^{+ 2.0 }_{- 1.6 }$| K, which compares well with the value of 5.8|$^{+ 0.7 }_{- 0.7}$| K when the same method is applied to the HCO+(1–0) and HCO+(2–1) spectra.

4.2 Kinetic temperature estimate

The relative abundance of the HCN and HNC tautomers is observed to depend upon the gas kinetic temperature, with the ratio HCN/HNC increasing at higher temperatures due to reactions that preferentially destroy the HNC molecule (Hernández Vera et al. 2017; Hacar et al. 2019). Where the intensity ratio satisfies I(HCN)/I(HCN) ≤4, it is found to correlate with kinetic temperature according to
(3)

Due to the HCN(1–0) line’s hyperfine structure, it is only possible to estimate an average kinetic temperature for the absorption profile as a whole, which we find to be |$33^{+9}_{-8}$| K. The errors quoted are determined from the combination of the uncertainty in the velocity integrated intensities of both spectra and the uncertainty given by Hacar et al. (2019) for equation (3). Since |$T_{{ex}}\lt T_{{kin}}$|⁠, the absorbing gas is sub-thermally excited, i.e. it is not in thermal equilibrium.

5 COLUMN DENSITY ESTIMATES

The total line-of-sight column density, |$N_{{tot}}$|⁠, of the absorption regions can be found by using an estimated excitation temperature and assuming that the absorption is optically thin. In general,
(4)
where |$Q(T_{{ex}}$|⁠) is the partition function, c is the speed of light, Aul is the Einstein coefficient of the observed transition, and g is the level degeneracy, with the subscripts u and l representing the upper and lower levels (Godard et al. 2010; Mangum & Shirley 2015). The factor R is the total intensity of the hyperfine structure lines in the absorption profile, where the combined intensity of all hyperfine lines is normalized to 1. As previously stated, this calculation assumes that the absorption is optically thin. However, in some cases where τ⪆1, e.g. G2 of CO(2–1), HCO+(2–1), and HCN(2–1), the true column densities may be significantly higher than calculated. We therefore apply an optical depth correction factor from Mangum & Shirley (2015) to give a more accurate value for the line-of-sight column densities,
(5)

The line-of-sight column densities of the molecular species whose absorption spectra are shown in Figs 2 and 3 are given in Tables 4 and 5, where the assumed excitation temperature for each of the 12 absorption regions is equal to that calculated as described in Section 4.1 and shown in Table 3. Using these bespoke excitation temperatures tightens the correlation seen in the column densities compared with when a fixed excitation temperature is assumed for all absorption regions. A corner plot showing how these column densities correlate to one another can be seen in Fig. 4. Where a molecular species has been observed with multiple rotational lines, e.g. CO(1–0) and CO(2–1), the column densities shown in Fig. 4 are those calculated from the better resolved (2–1) line.

A comparison of the line-of-sight column densities of CO, CN, HCO+, HCN, HNC, 13CO, and H2CO. The column densities are calculated from the 12 Gaussian fits applied to the absorption profiles shown in Figs 2 and 3, using equation (5). The excitation temperature assumed for each absorption region is that estimated in Section 4.1 and given in Table 3. The colour of each point represents the central velocity of the absorption region relative to the stellar recession velocity of the galaxy, which itself is a good approximation for the velocity of the central supermassive black hole. For CO, HCO+, and HCN, which were observed with both the (1–0) and (2–1) rotational lines, the column densities are calculated using the (2–1) line in which the absorption is best resolved.

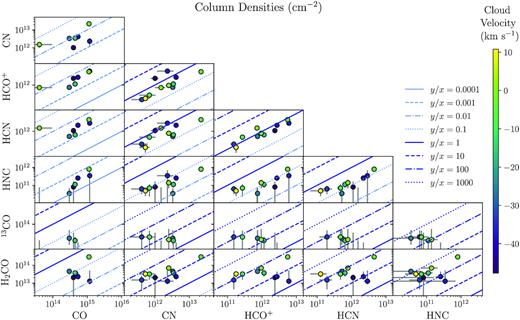

Figure 4.

A comparison of the line-of-sight column densities of CO, CN, HCO+, HCN, HNC, 13CO, and H2CO. The column densities are calculated from the 12 Gaussian fits applied to the absorption profiles shown in Figs 2 and 3, using equation (5). The excitation temperature assumed for each absorption region is that estimated in Section 4.1 and given in Table 3. The colour of each point represents the central velocity of the absorption region relative to the stellar recession velocity of the galaxy, which itself is a good approximation for the velocity of the central supermassive black hole. For CO, HCO+, and HCN, which were observed with both the (1–0) and (2–1) rotational lines, the column densities are calculated using the (2–1) line in which the absorption is best resolved.

6 DISCUSSION

6.1 A comparison to Milky Way and extragalactic absorption profiles

Fig. 5 shows the HCO+, HCN, and HNC column densities of the molecular clouds in Hydra-A, as well as those found in the Milky Way and other extragalactic sources up to relatively high redshifts of z = 0.89. The column densities correlate well with those seen in the Milky Way, but are typically lower than in intervening absorber systems by two to three orders of magnitude. A difference this large is not likely to be due to the high quality of the ALMA observations or lower than assumed covering factors; even if the 12 absorption regions were combined, this would still place the column densities at the low end of the scale.

The column densities of HCO+, HCN, and HNC seen in Hydra-A (circles), Centaurus-A (stars), intervening absorbers i.e. extragalactic sources lying in front of background quasars (squares), Sagittarius B2 (crosses), and the Milky Way (pentagons). The original data are taken from Wiklind & Combes (1997a,1996a, b, 1997b), Muller et al. (2011), Greaves & Nyman (1996), Lucas & Liszt (1994, 1996), Liszt & Lucas (2001), Godard et al. (2010), Ando et al. (2016), and Riquelme et al. (2018).

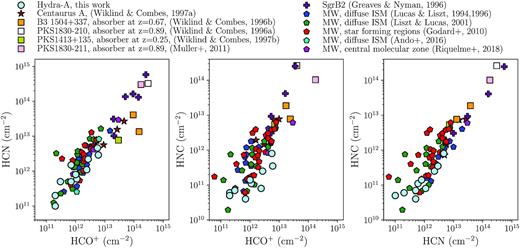

Figure 5.

The column densities of HCO+, HCN, and HNC seen in Hydra-A (circles), Centaurus-A (stars), intervening absorbers i.e. extragalactic sources lying in front of background quasars (squares), Sagittarius B2 (crosses), and the Milky Way (pentagons). The original data are taken from Wiklind & Combes (1997a,1996a, b, 1997b), Muller et al. (2011), Greaves & Nyman (1996), Lucas & Liszt (1994, 1996), Liszt & Lucas (2001), Godard et al. (2010), Ando et al. (2016), and Riquelme et al. (2018).

In Fig. 6, we show a comparison of the velocity dispersion, excitation temperature, and line-of-sight velocity for each of the 12 absorption regions. Included in the top panel are molecular clouds towards the galactic plane of the Milky Way, as well as those at radii of 4–8 kpc. This highlights further similarities between the absorption regions of Hydra-A, which reside in the high pressure environment of a brightest cluster galaxy, and those in the Milky Way. Although we have no strong indication of the distances of Hydra-A’s molecular clouds from the centre of the galaxy, this suggests that the locations in which these two sets of clouds reside are fairly interchangeable and that their self-gravitation is significantly more important than the ambient pressures. The properties of the molecular clouds seen in Hydra-A and the Milky Way are also both similar to those predicted by accretion simulations (e.g. those of Gaspari, Temi & Brighenti 2017).

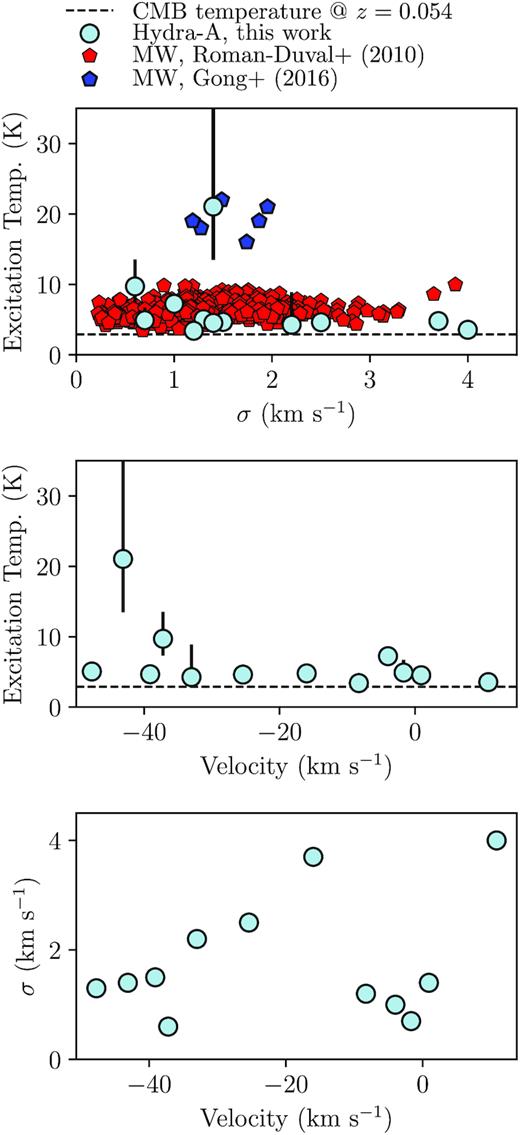

A comparison of the velocity dispersions, σ, excitation temperatures and line-of-sight velocities of the absorbing clouds traced by the absorption profiles shown in Figs 2 and 3. The excitation temperatures are those derived from the HCO+(1–0) and HCO+(2–1) spectra. In the top plot, we show molecular clouds of the Milky Way observed at galactocentric radii of 4–8 kpc (red pentagons, Roman-Duval et al. 2010) and those in star-forming regions towards the galactic plane (blue pentagons, Gong et al. 2016).
Figure 6.

A comparison of the velocity dispersions, σ, excitation temperatures and line-of-sight velocities of the absorbing clouds traced by the absorption profiles shown in Figs 2 and 3. The excitation temperatures are those derived from the HCO+(1–0) and HCO+(2–1) spectra. In the top plot, we show molecular clouds of the Milky Way observed at galactocentric radii of 4–8 kpc (red pentagons, Roman-Duval et al. 2010) and those in star-forming regions towards the galactic plane (blue pentagons, Gong et al. 2016).

If the absorbing regions of molecular gas lie on elliptical orbits, their velocities could have apparent shifts relative to the galaxy’s systemic velocity of up to a few tens of km s−1. In the Keplerian regime, the most blueshifted absorption should lie closest to the galaxy centre. In turn, this could produce a trend between the cloud excitation temperature and velocity as a result of heating from the AGN. Although in Hydra-A the highest excitation temperatures are seen in the most blueshifted clouds, the trend is not especially strong (see the centre panel of Fig. 6). This correlation has been observed within the Milky Way, though it is weak and only visible with the detection of hundreds of molecular clouds (Roman-Duval et al. 2010).

The velocity dispersions of most clouds, shown in the lower plot of Fig. 6, are very narrow and lie between 0.5 and 1.4 km s−1, indicating that they are due to individual molecular clouds. The outlying absorption regions with higher velocity dispersions are likely small associations of molecular clouds that are not resolved by the observations.

The absorption profiles seen in Hydra-A also bear a strong resemblance to those seen in other systems such as Centaurus-A, and the less well-studied brightest cluster galaxy NGC 6868 (Israel et al. 1990; Rose et al. 2019b). In all three cases, there are two deep absorption lines separated by ∼50–100 km s−1, as well as a more extended absorption complex. Like Hydra-A, Centaurus-A also has a close to edge-on molecular gas disc and an extremely compact core (Israel et al. 1990).

6.2 Cloud size and mass estimates

The similarities between the clumpy interstellar medium of the Milky Way and that which we see along our line of sight to the core of Hydra-A allow us derive estimates of the size and mass of the molecular clouds observed. Within the Milky Way, the velocity dispersion, σ, and diameter, D, of molecular clouds are related by
(6)
This relation was first shown by Larson (1981) and its approximate form has been supported by many more recent works (e.g. Solomon et al. 1987; Vazquez-Semadeni et al. 2007; McKee & Ostriker 2007; Ballesteros-Paredes et al. 2011). Hydra-A is a brightest cluster galaxy and so its thermal pressure is many times higher than that of the Milky Way. If the molecular gas behaves in a reactive way to this different environment, then the relation may be less applicable. However, as Fig. 5 shows, the clouds’ environment does not result in significantly higher line-of-sight column densities and so the relation should still hold true. The implied sizes of the 12 absorption regions detected in Hydra-A are given in Table 3.
By further assuming the absorption regions are in virial equilibrium, their total masses, |$M_{{tot}}$|⁠, can be estimated using the virial theorem:
(7)
where D is the cloud diameter and G is the gravitational constant. The total masses of the 12 absorption regions are given in Table 3.

6.3 An estimate of the continuum source’s size

The above estimate of the total cloud mass can be used in conjunction with the line-of-sight column density of molecular hydrogen derived from X-ray observations to estimate the size of the continuum source against which absorption is seen. This will only provide a rough estimate due to the uncertainties in the cloud masses and the likely difference in the size of the continuum source between the frequencies of the X-ray and radio observations.

The total mass inferred from the molecular absorption seen in Hydra-A is 4 × 104M and Russell et al. (2013) find a line-of-sight column density of |$N_{H} = 3.5 \times 10^{22} {cm}^{-2}$| from X-ray observations. These values imply that Hydra-A’s central continuum source has an apparent diameter of 7 pc, assuming it appears circular along the line of sight.

The above value is likely an overestimate because most of the mass we estimate in Section 6.2 comes from the broadest absorption regions. These are unlikely to be individual molecular clouds in virial equilibrium, but rather collections of unresolved molecular clouds. To make some correction for this, we use the very simple assumption that the widest clouds, G7 and G12, are each in fact the combination of two molecular clouds, with a velocity dispersion half of the original value. This reduces their estimated diameters by a factor of 4, and their masses by a factor of 16. There are now twice as many clouds, so the overall mass of these absorption features is reduced by a factor of 8. This new mass results in an estimated continuum diameter of 4 pc. VLBA observations by Taylor (1996) at the lower frequency 1.35 GHz show hints of structure on similar scales.

6.4 Continuum variability

Hydra-A has been attentively studied at a wide range of frequencies over several decades. The left-hand panel of Fig. 7 shows the galaxy’s spectral energy distribution and the right shows the continuum variability of its core and radio lobes, as seen with the ALMA observations presented in this paper.

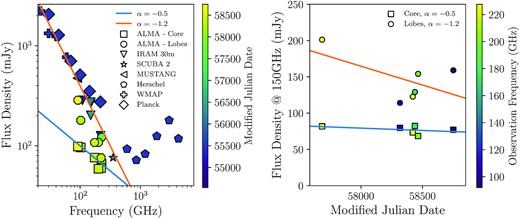

Left: The spectral energy distribution of Hydra-A, produced with data taken since March 2008 using a range of observatories. With the exception of those from ALMA, the observations are of a low angular resolution and consequently include flux from both the radio core and radio lobes. The orange and blue lines show power-law fits to the core plus radio lobes and to the resolved core. The increase in emission at 103 GHz is from infrared emission due to dust heating. Right: Six ALMA flux density measurements of Hydra-A, all adjusted to give the implied flux density at 150 GHz assuming a power-law spectrum with α = −0.5 for the radio core and α = −1.2 for the radio lobes. This shows a stable continuum flux density from Hydra-A’s core and from its lobes (more scatter is seen in the flux density of the lobes because in some cases, they spread out close to the edge of the observation’s the field of view where beam corrections are large).
Figure 7.

Left: The spectral energy distribution of Hydra-A, produced with data taken since March 2008 using a range of observatories. With the exception of those from ALMA, the observations are of a low angular resolution and consequently include flux from both the radio core and radio lobes. The orange and blue lines show power-law fits to the core plus radio lobes and to the resolved core. The increase in emission at 103 GHz is from infrared emission due to dust heating. Right: Six ALMA flux density measurements of Hydra-A, all adjusted to give the implied flux density at 150 GHz assuming a power-law spectrum with α = −0.5 for the radio core and α = −1.2 for the radio lobes. This shows a stable continuum flux density from Hydra-A’s core and from its lobes (more scatter is seen in the flux density of the lobes because in some cases, they spread out close to the edge of the observation’s the field of view where beam corrections are large).

The left-hand panel of Fig. 7 shows that no significant change in the flux density of the core, against which the absorption is detected, has taken place over the 2 yr time range in which the observations were taken. The flux density of the lobes is expected to be constant and the significant scatter present is a result of the limited angular resolution of the observations, with the lobes often spreading out close to the edge of the field-of-view where beam corrections are large.

6.5 Absorption variability

CO(2–1) absorption was first detected in Hydra-A in October 2016 (Rose et al. 2019a), and a repeat observation was carried out in October 2018 as part of the main survey presented in this paper. In Fig. 8, we show the absorption profiles seen against the galaxy’s bright radio core for these two observations. Across the majority of the absorption profile, the two spectra are consistent within the noise levels and there is little hint of variability. However, between −20 and −5 km s−1 a decrease in the absorption strength appears to have taken place over the intervening 2 yr. This velocity range does not correspond well to any component of the multi-Gaussian best fit and so is unlikely to be due to a change in the absorption of any individual molecular cloud. The variability of the spectrum over the velocity range in which absorption is seen (approximately −50 to 10 km s−1) has a combined significance of 3.4σ (calculated from a χ2 distribution test).1

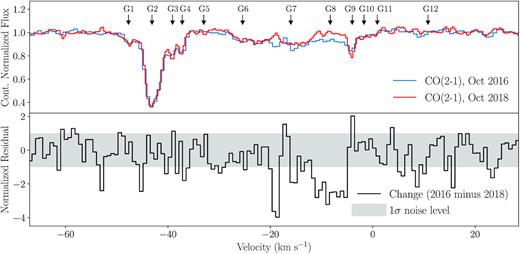

Top: The overlaid absorption profiles of two CO(2–1) spectra taken in October 2016 and October 2018. The two spectra are extracted from a region with a size equal to the synthesized beam’s FWHM centred on Hydra-A’s bright and compact radio core. The absorption is largely consistent given the noise levels, though a small difference appears between −20 and −5 km s−1. The G1-12 markers indicate the central velocities of each component of the 12-Gaussian fit made to the spectra in Figs 2 and 3. Bottom: The change seen in the absorption between the two observations, with the grey band indicating the 1σ noise level of the residual. The variability of the spectrum over the velocity range in which absorption is seen (approximately −50 to 10 km s−1) has a combined significance of 3.4σ, as calculated from a χ2 distribution test.
Figure 8.

Top: The overlaid absorption profiles of two CO(2–1) spectra taken in October 2016 and October 2018. The two spectra are extracted from a region with a size equal to the synthesized beam’s FWHM centred on Hydra-A’s bright and compact radio core. The absorption is largely consistent given the noise levels, though a small difference appears between −20 and −5 km s−1. The G1-12 markers indicate the central velocities of each component of the 12-Gaussian fit made to the spectra in Figs 2 and 3. Bottom: The change seen in the absorption between the two observations, with the grey band indicating the 1σ noise level of the residual. The variability of the spectrum over the velocity range in which absorption is seen (approximately −50 to 10 km s−1) has a combined significance of 3.4σ, as calculated from a χ2 distribution test.

If this apparent change in the absorption profile is real, then it will almost certainly be due to either a change in the continuum source against which the absorption is observed, or due to a movement of the molecular clouds responsible for the absorption. Below we discuss these explanations, both of which are likely to be true to a greater or lesser extent.

The unresolved continuum source we observe the absorption against may be made up of several components, each covered to varying degrees by different gas clouds. This would produce absorption along multiple lines of sight, which then combines to make the single absorption profile we observe against the unresolved continuum source. This is consistent with 1.35 GHz VLBA observations by Taylor (1996), which show the continuum source at high angular resolution. Spatially, resolved H  i absorption is seen, most likely caused by different lines of sight towards the radio core and the knots of the galaxy’s jets. If this is the case, we would detect no absorption that appears to be optically thick, and the reduced strength of the absorption may be due to a decrease in flux from one particular component of the continuum source. This would result in weaker absorption from that line of sight, but leave the remaining absorption unaffected. Although there is no significant change in the continuum’s strength over this time period (see Fig. 7), the dimming required to produce the small decrease in absorption could well be within the noise levels of the measurements of the continuum flux density. Even if the total continuum emission is not varying, relativistic, and transverse motions in the hot spots of the continuum source could change the background illumination of the absorbing clouds.

An angular precession of the continuum source could also result in a change in the background illumination of the molecular gas. Nawaz et al. (2016) found a precession period of ∼1 Myr in Hydra-A from hydrodynamical simulations of its jet-intracluster medium interactions. In a 2 yr time frame this translates to an angular precession of 2.6 arcsec, which sweeps over a transverse distance of 0.01 pc at a radius of 1 kpc from the continuum source, or 0.1 pc at a radius of 10 kpc. Given the typical size of the molecular clouds of around 1 pc (see Table 3) and that they likely have a fractal substructure, the latter seems plausible. However, with a precessing continuum source the level of variability would increase as the distance of the clouds from the nucleus increases. To observe a significant level of variability between −20 and −5 km s−1, but little hint of it anywhere else requires there to be a group of clouds close to the continuum source where the angular change encompasses a negligible linear scale relative to the cloud size, and one group at very large distances, with no clouds in between. Further, the edge on disc of Hydra-A has a radius of around 2.5 kpc, so at 10 kpc the column density of cold molecular gas present is likely low compared with smaller radii.

A variation in the absorption could also be produced by transverse movement of the molecular gas responsible for the absorption between −20 and −5 km s−1. However, even a relatively small molecular cloud with a diameter of 0.1 pc and a large transverse velocity of 500 km s−1 will take ∼200 yr to fully cross the line of sight, assuming a point-like continuum source. Particularly, small and dense, inhomogeneous, or fast moving molecular clouds would therefore be required for this effect to be seen within a 2 yr time frame. The transverse velocities of molecular clouds are orders of magnitude less than the relativistic and potentially superluminal motions of the knots in the jets at the core of the continuum source, so this can be ruled out with a fair degree of confidence.

Alterations in the cloud chemistry could also result in variability. Although this can occur on cosmologically short time-scales on the order of 105 yr (Harada et al. 2019), this is much greater than the 2 yr interval over which we detect variability. Only a change induced by significant alterations to the local cosmic ray field, for example, by a nearby supernova could occur quickly enough. Although physically feasible, this ‘by chance’ explanation in unlikely given that absorption variability has also been seen in several similar intervening absorber systems (e.g. Wiklind & Combes 1997b; Muller et al. 2011).

When considering the above explanations it should be noted that clear absorption is still seen within this velocity range in CN(2–1), HCO+(2–1), and HCN+(2–1), though this may well have been stronger still if all of the observations had been taken in October 2016 rather than October 2018. Further observations of these lines, where this absorption is strongest and any changes would be more evident, would therefore track any variability in more detail and reveal its cause.

7 CONCLUSIONS

We present ALMA observations of CO, 13CO, CN, SiO, HCO+, HCN, HNC, and H2CO molecular absorption lines seen against the bright radio core of Hydra-A. Their narrow velocity dispersions (typically |$\sim 1 {km s}^{-1}$|⁠) are similar to those seen molecular cloud complexes of the Milky Way and indicate that the observations are tracing individual clouds of cold molecular gas. The molecular gas clouds typically have excitation temperatures of 5–10 K, diameters of 1–10 pc, and masses of a few tens to a few thousands of M.

The precise origins and locations of the absorbing molecular clouds within Hydra-A are difficult to constrain, though they are most likely to be within the inner few kpc of the disc where the column densities of molecular gas are highest. The observations are evidence of a clumpy interstellar medium, consistent with galaxy-wide fuelling and feedback cycles predicted by e.g. Pizzolato & Soker (2005), Peterson & Fabian (2006), McNamara et al. (2016), and Gaspari et al. (2018).

Future surveys targeting molecular absorption in brightest cluster galaxies are likely to be most successful when searching for HCO+and HCN lines, which we find to be stronger, more ubiquitous and more consistent tracers than CO. A further advantage of these molecules over CO is a lack of significant emission, which can counteract any absorption and make the true optical depths unclear. HCO+ is particularly useful because it lacks any hyperfine structure.

We have compared the line-of-sight column densities, velocity dispersions and excitation temperatures of the molecular clouds seen in Hydra-A to those of the Milky Way. The two populations are largely indistinguishable, implying that the high pressure environment of a brightest cluster galaxy has negligible effect on the molecular clouds when compared with their self-gravitation.

The line-of-sight absorption seen against Hydra-A’s bright radio core has shown variation at 3.4σ significance between ALMA Cycle 4 and 6 observations. These observations are separated by 2 yr, so if this variability is genuine it is occurring on galactically short time-scales. The first of two likely explanations for the variability is a multicomponent continuum source, one component of which has decreased in brightness or has seen relativistic movement in a hotspot, in turn giving decreased absorption along one particular line of sight. A second possible but less likely explanation is that one of the many absorbing clouds, or groups of absorbing clouds, has significant transverse motion such that it no longer covers the continuum source in the same way.

ACKNOWLEDGEMENTS

We thank the referee for their time and comments, which have helped us to improve the paper. We are grateful to Rick Perley for providing the VLA image used in Fig. 1.

TR is supported by the Science and Technology Facilities Council (STFC) through grant no. ST/R504725/1.

ACE acknowledges support from STFC grant no. ST/P00541/1.

MG is supported by the Lyman Spitzer Jr. Fellowship (Princeton University) and by NASA Chandra GO8-19104X/GO9-20114X and HST GO-15890.020-A grants.

This paper makes use of the following ALMA data ADS/JAO.ALMA#2016.1.01214.S, ADS/JAO.ALMA#2017.1.00629.S, and ADS/JAO.ALMA#2018.1.01471.S. ALMA is a partnership of ESO (representing its member states), NSF (USA), and NINS (Japan), together with NRC (Canada), MOST and ASIAA (Taiwan), and KASI (Republic of Korea), in cooperation with the Republic of Chile. The Joint ALMA Observatory is operated by ESO, AUI/NRAO, and NAOJ.

Footnotes

1

A shift of ∼0.1 mJy has been applied to the spectrum extracted from the 2018 observation. This error appears as a result of the subtraction of the emission from the two spectra, where the degree to which the emission compensates for the absorption cannot be known precisely (see Rose et al. 2019a, fig. 6 for a plot showing the CO(2–1) emission from the core).

REFERENCES

Ando
R.
,
Kohno
K.
,
Tamura
Y.
,
Izumi
T.
,
Umehata
H.
,
Nagai
H.
,
2016
,
PASJ
,
68
,
6

Ballesteros-Paredes
J.
,
Hartmann
L. W.
,
Vazquez-Semadeni
E.
,
Heitsch
F.
,
Zamora-Aviles
M. A.
,
2011
,
MNRAS
,
411
,
65

Boger
G. I.
,
Sternberg
A.
,
2005
,
ApJ
,
632
,
302

Bolatto
A. D.
,
Leroy
A.
,
Israel
F. P.
,
Jackson
J. M.
,
2003
,
ApJ
,
595
,
167

Brown
T.
,
Wilson
C.
,
2019
,
preprint (arXiv:1905.06950)

Combes
,
Gupta
N.
,
Jozsa
G. I. G.
,
Momjian
E.
,
2019
,
A&A
,
623
,
A133

David
L. P.
et al. .,
2014
,
ApJ
,
792
,
94

Davis
T. A.
,
2014
,
MNRAS
,
445
,
2378

Donahue
M.
,
de Messières
G. E.
,
O’Connell
R. W.
,
Voit
G. M.
,
Hoffer
A.
,
McNamara
B. R.
,
Nulsen
P. E. J.
,
2011
,
ApJ
,
732
,
40

Downes
D.
,
Wilson
T. L.
,
Bieging
J.
,
Wink
J.
,
1980
,
A&AS
,
40
,
379

Dwarakanath
K. S.
,
Owen
F. N.
,
van Gorkom
J. H.
,
1995
,
ApJ
,
442
,
L1

Edge
D. O.
,
Shakeshaft
J. R.
,
McAdam
W. B.
,
Baldwin
J. E.
,
Archer
S.
,
1959
,
MmRAS
,
68
,
37

Edge
A. C.
,
Wilman
R. J.
,
Johnstone
R. M.
,
Crawford
C. S.
,
Fabian
A. C.
,
Allen
S. W.
,
2002
,
MNRAS
,
337
,
49

García-Burillo
S.
et al. .,
2014
,
A&A
,
567
,
A125

Gaspari
M.
et al. .,
2018
,
Astrophys. J.
,
854
,
167

Gaspari
M.
,
Temi
P.
,
Brighenti
F.
,
2017
,
MNRAS
,
466
,
677

Gaspari
M.
,
Tombesi
F.
,
Cappi
M.
,
2020
,
Nat. Astron.
,
4
,
10

Gerin
M.
,
Liszt
H.
,
Neufeld
D.
,
Godard
B.
,
Sonnentrucker
P.
,
Pety
J.
,
Roueff
E.
,
2019
,
A&A
,
622
,
A26

Ginard
D.
et al. .,
2012
,
A&A
,
543
,
A27

Glenn
J.
,
Hunter
T. R.
,
2001
,
ApJS
,
135
,
177

Godard
B.
,
Falgarone
E.
,
Gerin
M.
,
Hily-Blant
P.
,
de Luca
M.
,
2010
,
A&A
,
520
,
A20

Gong
Y.
et al. .,
2016
,
A&A
,
588
,
A104

Greaves
J. S.
,
Nyman
L. A.
,
1996
,
A&A
,
305
,
950

Hacar
A.
,
Bosman
A. D.
,
van Dishoeck
E. F.
,
2019
,
A&A
,
635
,
A4

Hamer
S. L.
et al. .,
2014
,
MNRAS
,
437
,
862

Hansen
L.
,
Jorgensen
H. E.
,
Norgaard-Nielsen
H. U.
,
1995
,
A&A
,
297
,
13

Harada
N.
,
Nishimura
Y.
,
Watanabe
Y.
,
Yamamoto
S.
,
Aikawa
Y.
,
Sakai
N.
,
Shimonishi
T.
,
2019
,
ApJ
,
871
,
238

Henkel
C.
,
Wilson
T. L.
,
Walmsley
C. M.
,
Pauls
T.
,
1983
,
A&A
,
127
,
388

Hernández Vera
M.
,
Lique
F.
,
Dumouchel
F.
,
Hily-Blant
P.
,
Faure
A.
,
2017
,
MNRAS
,
468
,
1084

Iben
I.
Jr,
1975
,
ApJ
,
196
,
525

Israel
F. P.
,
van Dishoeck
E. F.
,
Baas
F.
,
Koornneef
J.
,
Black
J. H.
,
de Graauw
T.
,
1990
,
A&A
,
227
,
342

Kameno
S.
et al. .,
2020
,
preprint (arXiv:2004.09369)

Larson
R. B.
,
1981
,
MNRAS
,
194
,
809

Liszt
H.
,
Lucas
R.
,
2001
,
A&A
,
370
,
576

Loomis
R. A.
,
Cleeves
L. I.
,
Öberg
K. I.
,
Guzman
V. V.
,
Andrews
S. M.
,
2015
,
ApJ
,
809
,
L25

Lucas
R.
,
Liszt
H.
,
1994
,
A&A
,
282
,
L5

Lucas
R.
,
Liszt
H.
,
1996
,
A&A
,
307
,
237

Mangum
J. G.
,
Shirley
Y. L.
,
2015
,
PASP
,
127
,
266

McKee
C. F.
,
Ostriker
E. C.
,
2007
,
ARA&A
,
45
,
565

McMullin
J. P.
,
Waters
B.
,
Schiebel
D.
,
Young
W.
,
Golap
K.
,
2007
, in
Shaw
R. A.
,
Hill
F.
,
Bell
D. J.
, eds,
ASP Conf. Ser. Vol. 376, Astronomical Data Analysis Software and Systems XVI
.
Astron. Soc. Pac
,
San Francisco
, p.
127

McNamara
B. R.
,
Russell
H. R.
,
Nulsen
P. E. J.
,
Hogan
M. T.
,
Fabian
A. C.
,
Pulido
F.
,
Edge
A. C.
,
2016
,
ApJ
,
830
,
79

Meijerink
,
Spaans
M.
,
Israel
F. P.
,
2007
,
A&A
,
461
,
793

Mittal
R.
,
Whelan
J. T.
,
Combes
F.
,
2015
,
MNRAS
,
450
,
2564

Muller
S.
et al. .,
2011
,
A&A
,
535
,
A103

Muller
S.
et al. .,
2013
,
A&A
,
551
,
A109

Muller
H. S. P.
,
Schloder
F.
,
Stutzki
J.
,
Winnewisserr
G.
,
2005
,
J. Mol. Struc.
,
742
,
215

Nagai
H.
et al. .,
2019
,
ApJ
,
883
,
193

Nawaz
M. A.
,
Bicknell
G. V.
,
Wagner
A. Y.
,
Sutherland
R. S.
,
McNamara
B. R.
,
2016
,
MNRAS
,
458
,
802

Olivares
V.
et al. .,
2019
,
A&A
,
631
,
A22

Paglione
T. A. D.
et al. .,
2001
,
ApJS
,
135
,
183

Papadopoulos
P. P.
,
Seaquist
E. R.
,
Scoville
N. Z.
,
1996
,
ApJ
,
465
,
173

Peng
Y.
,
Vogel
S. N.
,
Carlstrom
J. E.
,
1995
,
ApJ
,
455
,
223

Peterson
J. R.
,
Fabian
A. C.
,
2006
,
Phys. Rep.
,
427
,
1

Pizzolato
F.
,
Soker
N.
,
2005
,
ApJ
,
632
,
821

Qi
C.
,
Öberg
K. I.
,
Wilner
D. J.
,
2013
,
ApJ
,
765
,
34

Riquelme
,
Bronfman
L.
,
Mauersberger
R.
,
Finger
R.
,
Henkel
C.
,
Wilson
T. L.
,
Cortés-Zuleta
P.
,
2018
,
A&A
,
610
,
A43

Roman-Duval
J.
,
Jackson
J. M.
,
Heyer
M.
,
Rathborne
J.
,
Simon
R.
,
2010
,
ApJ
,
723
,
492

Rose
T.
et al. .,
2019a
,
MNRAS
,
485
,
229

Rose
T.
et al. .,
2019b
,
MNRAS
,
489
,
349

Ruffa
I.
et al. .,
2019
,
MNRAS
,
484
,
4239

Russell
H. R.
,
McNamara
B. R.
,
Edge
A. C.
,
Hogan
M. T.
,
Main
R. A.
,
Vantyghem
A. N.
,
2013
,
MNRAS
,
432
,
530

Sliwa
K.
,
Wilson
C. D.
,
Matsushita
S.
,
Peck
A. B.
,
Petitpas
G. R.
,
Saito
T.
,
Yun
M.
,
2017
,
ApJ
,
840
,
8

Solomon
P. M.
,
Rivolo
A. R.
,
Barrett
J.
,
Yahil
A.
,
1987
,
ApJ
,
319
,
730

Taniguchi
Y.
,
Ohyama
Y.
,
Sanders
D. B.
,
1999
,
ApJ
,
522
,
214

Taylor
G. B.
,
1996
,
ApJ
,
470
,
394

Taylor
G. B.
,
Perley
R. A.
,
Inoue
M.
,
Kato
T.
,
Tabara
H.
,
Aizu
K.
,
1990
,
ApJ
,
360
,
41

Temi
P.
,
Amblard
A.
,
Gitti
M.
,
Brighenti
F.
,
Gaspari
M.
,
Mathews
W. G.
,
David
L.
,
2018
,
ApJ
,
858
,
17

Tremblay
G. R.
et al. .,
2016
,
Nature
,
534
,
218

Tremblay
G. R.
et al. .,
2018
,
ApJ
,
865
,
13

van de Voort
F.
,
Schaye
J.
,
Altay
G.
,
Theuns
T.
,
2012
,
MNRAS
,
421
,
2809

Vantyghem
A. N.
et al. .,
2017
,
ApJ
,
848
,
101

Vazquez-Semadeni
E.
,
Gomez
G. C.
,
Jappsen
A. K.
,
Ballesteros-Paredes
J.
,
Gonzalez
R. F.
,
Klessen
R. S.
,
2007
,
ApJ
,
657
,
870

Voit
G. M.
,
Donahue
M.
,
Bryan
G. L.
,
McDonald
M.
,
2015
,
Nature
,
519
,
203

Wiklind
T.
,
Combes
F.
,
1996a
,
A&A
,
315
,
86

Wiklind
T.
,
Combes
F.
,
1996b
,
Nature
,
379
,
139

Wiklind
T.
,
Combes
F.
,
1997a
,
A&A
,
324
,
51

Wiklind
T.
,
Combes
F.
,
1997b
,
A&A
,
328
,
48

Wilson
T. L.
,
1999
,
Rep. Progr. Phys.
,
62
,
143

Wilson
C. D.
,
2018
,
MNRAS
,
477
,
2926

Zhang
Z.-Y.
,
Romano
D.
,
Ivison
R. J.
,
Papadopoulos
P. P.
,
Matteucci
F.
,
2018
,
Nature
,
558
,
260

APPENDIX A:

HYPERFINE STRUCTURE OF CN(2–1) AND HCN(2–1)

The spectra of the CN(2–1) and HCN(2–1) observations contain absorption features of several hyperfine structure lines. The frequencies of these lines and their relative strengths are given in Tables A1 and A2.

Table A1.

Hyperfine structure lines of CN(2–1) (Muller et al. 2005).

Rest frequency (GHz)CN transitionRelative intensity
226.28741850J = 3/2–3/2, F = 1/2–1/20.0060
226.29894270J = 3/2–3/2, F = 1/2–3/20.0048
226.30303720J = 3/2–3/2, F = 3/2–1/20.0049
226.31454000J = 3/2–3/2, F = 3/2–3/20.0116
226.33249860J = 3/2–3/2, F = 3/2–5/20.0053
226.34192980J = 3/2–3/2, F = 5/2–3/20.0055
226.35987100J = 3/2–3/2, F = 5/2–5/20.0282
226.61657140J = 3/2–1/2, F = 1/2–3/20.0063
226.63219010J = 3/2–1/2, F = 3/2–3/20.0498
226.65955840J = 3/2–1/2, F = 5/2–3/20.1660
226.66369280J = 3/2–1/2, F = 1/2–1/20.0495
226.67931140J = 3/2–1/2, F = 3/2–1/20.0616
226.87419080J = 5/2–3/2, F = 5/2–3/20.1685
226.87478130J = 5/2–3/2, F = 7/2–5/20.2669
226.87589600J = 5/2–3/2, F = 3/2–1/20.1002
226.88742020J = 5/2–3/2, F = 3/2–3/20.0319
226.89212800J = 5/2–3/2, F = 5/2–5/20.0317
226.90535740J = 5/2–3/2, F = 3/2–5/20.0013
Rest frequency (GHz)CN transitionRelative intensity
226.28741850J = 3/2–3/2, F = 1/2–1/20.0060
226.29894270J = 3/2–3/2, F = 1/2–3/20.0048
226.30303720J = 3/2–3/2, F = 3/2–1/20.0049
226.31454000J = 3/2–3/2, F = 3/2–3/20.0116
226.33249860J = 3/2–3/2, F = 3/2–5/20.0053
226.34192980J = 3/2–3/2, F = 5/2–3/20.0055
226.35987100J = 3/2–3/2, F = 5/2–5/20.0282
226.61657140J = 3/2–1/2, F = 1/2–3/20.0063
226.63219010J = 3/2–1/2, F = 3/2–3/20.0498
226.65955840J = 3/2–1/2, F = 5/2–3/20.1660
226.66369280J = 3/2–1/2, F = 1/2–1/20.0495
226.67931140J = 3/2–1/2, F = 3/2–1/20.0616
226.87419080J = 5/2–3/2, F = 5/2–3/20.1685
226.87478130J = 5/2–3/2, F = 7/2–5/20.2669
226.87589600J = 5/2–3/2, F = 3/2–1/20.1002
226.88742020J = 5/2–3/2, F = 3/2–3/20.0319
226.89212800J = 5/2–3/2, F = 5/2–5/20.0317
226.90535740J = 5/2–3/2, F = 3/2–5/20.0013
Table A1.

Hyperfine structure lines of CN(2–1) (Muller et al. 2005).

Rest frequency (GHz)CN transitionRelative intensity
226.28741850J = 3/2–3/2, F = 1/2–1/20.0060
226.29894270J = 3/2–3/2, F = 1/2–3/20.0048
226.30303720J = 3/2–3/2, F = 3/2–1/20.0049
226.31454000J = 3/2–3/2, F = 3/2–3/20.0116
226.33249860J = 3/2–3/2, F = 3/2–5/20.0053
226.34192980J = 3/2–3/2, F = 5/2–3/20.0055
226.35987100J = 3/2–3/2, F = 5/2–5/20.0282
226.61657140J = 3/2–1/2, F = 1/2–3/20.0063
226.63219010J = 3/2–1/2, F = 3/2–3/20.0498
226.65955840J = 3/2–1/2, F = 5/2–3/20.1660
226.66369280J = 3/2–1/2, F = 1/2–1/20.0495
226.67931140J = 3/2–1/2, F = 3/2–1/20.0616
226.87419080J = 5/2–3/2, F = 5/2–3/20.1685
226.87478130J = 5/2–3/2, F = 7/2–5/20.2669
226.87589600J = 5/2–3/2, F = 3/2–1/20.1002
226.88742020J = 5/2–3/2, F = 3/2–3/20.0319
226.89212800J = 5/2–3/2, F = 5/2–5/20.0317
226.90535740J = 5/2–3/2, F = 3/2–5/20.0013
Rest frequency (GHz)CN transitionRelative intensity
226.28741850J = 3/2–3/2, F = 1/2–1/20.0060
226.29894270J = 3/2–3/2, F = 1/2–3/20.0048
226.30303720J = 3/2–3/2, F = 3/2–1/20.0049
226.31454000J = 3/2–3/2, F = 3/2–3/20.0116
226.33249860J = 3/2–3/2, F = 3/2–5/20.0053
226.34192980J = 3/2–3/2, F = 5/2–3/20.0055
226.35987100J = 3/2–3/2, F = 5/2–5/20.0282
226.61657140J = 3/2–1/2, F = 1/2–3/20.0063
226.63219010J = 3/2–1/2, F = 3/2–3/20.0498
226.65955840J = 3/2–1/2, F = 5/2–3/20.1660
226.66369280J = 3/2–1/2, F = 1/2–1/20.0495
226.67931140J = 3/2–1/2, F = 3/2–1/20.0616
226.87419080J = 5/2–3/2, F = 5/2–3/20.1685
226.87478130J = 5/2–3/2, F = 7/2–5/20.2669
226.87589600J = 5/2–3/2, F = 3/2–1/20.1002
226.88742020J = 5/2–3/2, F = 3/2–3/20.0319
226.89212800J = 5/2–3/2, F = 5/2–5/20.0317
226.90535740J = 5/2–3/2, F = 3/2–5/20.0013
Table A2.

Hyperfine structure lines of HCN(1–0) and HCN(2–1) (Muller et al. 2005).

Rest frequency (GHz)HCN transitionRelative intensity
88.63393600J = 1–0, F = 0–10.1111
88.63041600J = 1–0, F = 1–10.3333
88.63184700J = 1–0, F = 2–10.5556
177.25967700J = 2–1, F = 2–20.0833
177.25992300J = 2–1, F = 1–00.1111
177.26111000J = 2–1, F = 2–10.2500
177.26122300J = 2–1, F = 3–20.4667
177.26201220J = 2–1, F = 1–20.0056
177.26344500J = 2–1, F = 1–10.0833
Rest frequency (GHz)HCN transitionRelative intensity
88.63393600J = 1–0, F = 0–10.1111
88.63041600J = 1–0, F = 1–10.3333
88.63184700J = 1–0, F = 2–10.5556
177.25967700J = 2–1, F = 2–20.0833
177.25992300J = 2–1, F = 1–00.1111
177.26111000J = 2–1, F = 2–10.2500
177.26122300J = 2–1, F = 3–20.4667
177.26201220J = 2–1, F = 1–20.0056
177.26344500J = 2–1, F = 1–10.0833
Table A2.

Hyperfine structure lines of HCN(1–0) and HCN(2–1) (Muller et al. 2005).

Rest frequency (GHz)HCN transitionRelative intensity
88.63393600J = 1–0, F = 0–10.1111
88.63041600J = 1–0, F = 1–10.3333
88.63184700J = 1–0, F = 2–10.5556
177.25967700J = 2–1, F = 2–20.0833
177.25992300J = 2–1, F = 1–00.1111
177.26111000J = 2–1, F = 2–10.2500
177.26122300J = 2–1, F = 3–20.4667
177.26201220J = 2–1, F = 1–20.0056
177.26344500J = 2–1, F = 1–10.0833
Rest frequency (GHz)HCN transitionRelative intensity
88.63393600J = 1–0, F = 0–10.1111
88.63041600J = 1–0, F = 1–10.3333
88.63184700J = 1–0, F = 2–10.5556
177.25967700J = 2–1, F = 2–20.0833
177.25992300J = 2–1, F = 1–00.1111
177.26111000J = 2–1, F = 2–10.2500
177.26122300J = 2–1, F = 3–20.4667
177.26201220J = 2–1, F = 1–20.0056
177.26344500J = 2–1, F = 1–10.0833

In Fig. A1, we show the full spectrum of CN(2–1), as well as markers that indicate where absorption would be expected due to the hyperfine structure lines for the strong absorption features at −43.1 and −4.0 km s−1 (see Figs 2 and 3). In the main body of the paper, we focus on the strongest set of absorption features which can be seen at approximately 215.15–215.25 GHz and disregard the rest (note that in Fig. A1 the frequency axis is reversed such that the direction of left to right implies increasing velocity for each of the lines, in keeping with the paper’s other plots). This set of absorption features is produced by the combination of four hyperfine structure lines. However, three of these lines are very close to each other in frequency and the fourth is of negligible strength (5 per cent of the other three lines combined) and so is ignored for simplicity.

The spectrum of CN(2–1) seen against the line of sight to Hydra-A’s bright radio core, which contains absorption from several of the molecule’s hyperfine structure lines. The intensity and rest frequencies of these hyperfine structure lines are given in Table A1. Markers on the plot indicate where absorption would be expected from the dominant hyperfine structure lines due to the two strongest points of absorption at −43.1 and −4.0 km s−1. When analysing the CN(2–1) absorption in the main body of the paper, we focus on the combination of hyperfine structure lines seen between approximately 215.15–215.25 GHz and disregard the rest.
Figure A1.

The spectrum of CN(2–1) seen against the line of sight to Hydra-A’s bright radio core, which contains absorption from several of the molecule’s hyperfine structure lines. The intensity and rest frequencies of these hyperfine structure lines are given in Table A1. Markers on the plot indicate where absorption would be expected from the dominant hyperfine structure lines due to the two strongest points of absorption at −43.1 and −4.0 km s−1. When analysing the CN(2–1) absorption in the main body of the paper, we focus on the combination of hyperfine structure lines seen between approximately 215.15–215.25 GHz and disregard the rest.

Although the three remaining hyperfine structure lines are very close to each other in frequency, the difference between them does have a tangible effect on the apparent velocity dispersion, σ, of the absorption features. We therefore make a slight modification to the rigid Gaussian fitting process used for the other spectra that have no or negligible hyperfine structure. When fitting to all of the other spectra we use a 12-Gaussian line, where each Gaussian has a fixed |$v_{{cen}}$| and σ, but varying amplitude. To estimate the effect of the CN molecule’s hyperfine structure, we simulate each of the 12 Gaussian features, as they would appear due to the three overlapping hyperfine structure lines. This produces what appears to be a single, stronger Gaussian absorption line with a slightly wider σ than the individual lines. This slightly wider σ is due the separation of the hyperfine structure lines. When a single Gaussian is fitted to each of these simulated absorption features, we find the increase in the σ caused by the hyperfine structure (typically 0.1–0.3 km s−1). When making the 12-Gaussian fit to the CN(2–1) spectrum shown in Fig. 3, we therefore increase the σ of each component Gaussian line accordingly. This process has also been tested for HCN(2–1), which contains similar hyperfine structure. However, we find and unmodified fit works best, most likely because for HCN(2–1), around 70 per cent of the flux is contained within two hyperfine lines just 0.0001 GHz apart.

Author notes

Lyman Spitzer Jr. Fellow.

This article is published and distributed under the terms of the Oxford University Press, Standard Journals Publication Model (https://dbpia.nl.go.kr/journals/pages/open_access/funder_policies/chorus/standard_publication_model)
