An ionized accretion disc wind in Hercules X-1 Free

ABSTRACT

1 INTRODUCTION

Highly ionized winds have been well established in the X-ray spectra of a number of stellar mass accretors such as black hole (e.g. Miller et al. 2006; Neilsen & Lee 2009) and neutron star binaries (e.g. Ueda et al. 2004; Miller et al. 2011), with velocities of 100s to 1000s km s⁻¹. Such winds might in fact be a universal phenomenon during the bright soft state of black hole binaries (Ponti et al. 2012). The high ionization state of these winds necessarily means that they are best observed in the Fe K energy band (∼7 keV) located within the X-ray part of the electromagnetic spectrum.

The origin of these outflows is the accretion disc of the compact object, but their driving mechanism and energy budget are currently still in question. As the wind material is highly ionized (usually ξ > 10³), line driving is unlikely to provide enough driving force (Proga, Stone & Kallman 2000), and since the objects in question are accreting below the Eddington limit, the radiation pressure on electrons is likely not sufficient to launch significant winds (although see Neilsen et al. 2016). If the base of the wind is illuminated by the hard X-ray radiation from the inner accretion flow, the material could be Compton heated and launched in form of a thermally driven wind (Begelman, McKee & Shields 1983). This effect was invoked to explain the winds in a number of sources (Neilsen & Lee 2009; Díaz Trigo et al. 2012). Alternatively, the wind could be driven by magnetic forces (Miller et al. 2006, 2008; Fukumura et al. 2017).

Evidence of even faster winds (∼0.2c) has been found in Ultraluminous X-ray sources (Pinto, Middleton & Fabian 2016; Walton et al. 2016; Pinto et al. 2017), which are thought to be powered by super-Eddington stellar mass accretors, including one ULX harbouring a neutron star (Kosec et al. 2018). In these objects, radiation pressure might be the natural driving mechanism of the outflowing material. How these winds in stellar-mass accretors relate to the ultrafast outflows (e.g. Pounds et al. 2003; Reeves, O’Brien & Ward 2003; Parker et al. 2017) and warm absorbers (e.g. Reynolds & Fabian 1995; Lee et al. 2001) observed in active galactic nuclei (AGNs) and tidal disruption events (Miller et al. 2015a; Kara et al. 2018) and whether they are driven by the same phenomenon, is currently not understood. It is, however, certain that accretion disc winds play a major role in the phenomenon of accretion and thus need to be studied in detail.

Here we present the discovery of highly ionized blueshifted absorption in the X-ray spectrum of the neutron star X-ray binary Hercules X-1 in the high state. Previous work found blueshifted ultraviolet (UV) absorption lines attributed to a circumbinary wind launched from the irradiated surface of the secondary (Boroson, Kallman & Vrtilek 2001), but only weak signatures (∼2σ) of an X-ray counterpart were found so far (Leahy & Chen 2019). We significantly detect the outflowing material in most of the high state observations made with XMM–Newton [using Reflection Grating Spectrometer (RGS) and pn instruments], at a velocity of 200–1000 km s⁻¹. We find that the wind is launched from within the accretion disc of the primary, and that the mass outflow rate is of the same order as the mass accretion rate on to the neutron star. We conclude that the wind is most likely driven by magnetic fields or by Compton heating, but at the moment we cannot pinpoint the exact mechanism.

1.1 Hercules X-1

Hercules X-1 (hereafter Her X-1, Giacconi et al. 1972) is one of the most famous, brightest, and most studied neutron star X-ray binaries. The system consists of a highly magnetized neutron star and a 2 M_⊙ secondary HZ Herculis (Middleditch & Nelson 1976). Her X-1 is especially well-known for the three different time-scales of multiwavelength variability.

The shortest is the 1.24 s rotation period (Giacconi et al. 1973) of the neutron star. The neutron star is known to harbour a strong magnetic field of the order of 10¹² G, manifested by a cyclotron scattering feature with an energy of 35–40 keV (Truemper et al. 1978; Staubert et al. 2007).

The second important time-scale is the 1.7-d orbital period of the binary, accompanied by X-ray eclipses (Bahcall & Bahcall 1972), suggesting that the system is observed almost edge-on. The longest time-scale is the 35-d superorbital cycle of high, low, and short-on X-ray flux states (Tananbaum et al. 1972). Each cycle begins by a 10 d high state with a brightness of ∼4 × 10³⁷ erg s⁻¹, followed by a low state during which the flux drops by a factor of 10. This is followed by a short-on state (Fabian, Pringle & Rees 1973) with a flux of ∼1/3 of the maximum flux for a few days and then again by a low state.

Such behaviour can be explained by a model according to which the accretion disc of the neutron star (seen almost edge-on) is warped (Ogilvie & Dubus 2001) and precesses with a 35-d period (Gerend & Boynton 1976). Although accretion on to the compact object continues at a steady rate, inner parts of the disc and the object itself are obscured from our view for extended parts of the cycle. The hard X-ray radiation originates in the accretion column (Ghosh & Lamb 1979) near the surface of the neutron star and is beamed (Scott, Leahy & Wilson 2000). The size of the magnetosphere (Lamb, Pethick & Pines 1973) of ∼2 × 10⁸ cm ≈ 1000 R_G defines the inner edge of the accretion disc. The outer edge of the disc is at about 2 × 10¹¹ cm (10⁶ R_G) and the binary separation is around 3 × 10¹¹ cm (Cheng, Vrtilek & Raymond 1995).

Throughout the manuscript, we adopt a distance of Her X-1 of 6.1 kpc (Leahy & Abdallah 2014). All the uncertainties are stated at 1σ level.

2 OBSERVATIONS AND DATA REDUCTION

XMM–Newton (Jansen et al. 2001) data were used in this study as the observatory offers a combination of good collecting area as well as very good spectral resolution. Furthermore, its archive contains a wealth of data on Her X-1. Initially, we utilize all XMM–Newton observations with good enough statistics for analysis of absorption lines in the RGS grating data. Considering the current archive of Her X-1, this effectively limits us to observations of the object in the high state. Low and short-on state grating observations are individually sufficient for emission line studies (Jimenez-Garate et al. 2002), however the continuum flux is too low for absorption line searches. All of the high state observations of Her X-1 used in this study are listed in Table 1 along with their clean exposures and count rate information. Whenever possible, we use simultaneously RGS (den Herder et al. 2001) data that offer best spectral resolution, as well as European Photon Imaging Camera (EPIC)-pn (Strüder et al. 2001) data to capture the broad-band continuum outside the RGS band. All the available archival XMM–Newton data were downloaded from the XSA archive and reduced using a standard pipeline with sas v16, caldb as of 2017 July.

RGS data were extracted using standard routines with default source and background selection regions. High-background periods were filtered with a threshold of 0.25 counts s⁻¹. Both first- and second-order data were extracted but as the count rate in the second order is much lower, it was only used in selected instances. The second-order RGS 1 spectrum was used during the analysis of observation 0134120101 where RGS 2 detector was not working, and conversely the second order RGS 2 spectrum was used in observation 0153950301 where RGS 1 was not operational. The first-order data were binned by a factor of 3 directly in the spex fitting package to oversample the real grating resolution by about a factor of 3. The second-order data were binned by a factor of 6 to achieve similar spectral binning as the first-order data. The data were used in the spectral range between 7 Å (1.8 keV) and 35 Å (0.35 keV).

The EPIC-pn detector was in the Timing mode during all observations due to very high Her X-1 flux. The calibration accuracy of the Timing mode can be found in the following XMM–Newton Calibration Technical Note.¹ High-background periods were filtered on case-by-case basis as the standard routine thresholds were often below the actual Her X-1 fluxes in the high state. Events of PATTERN < = 4 (single/double) were accepted for pn data, and the background regions were very small rectangles as far from the source position as possible. However, the background was very weak (usually <3 per cent of source flux) compared to the source flux in all of the observations used in this study. The data were grouped to at least 25 counts per bin and also binned by at least a factor 3 using the specgroup procedure. pn data were used in the spectral range of 3–10 keV. Data below 2 keV were not necessary as this range was covered by the RGS instrument with superior spectral resolution. The range between 2 and 3 keV contained in multiple instances strong residuals and was ignored in this study. These residuals were also present in lower flux observations and therefore were not likely caused only by pile-up. They could be a result of incorrect calibration around the Au edge at 2.3 keV (Pintore et al. 2014).

All the reduced data were converted from the OGIP format to spex format using the Trafo tool. We use the spex fitting package (Kaastra, Mewe & Nieuwenhuijzen 1996) for spectral fitting as it contains several useful ionized absorption models such as pion and xabs. Both models calculate the absorption spectrum from physical absorber parameters on the fly and therefore do not require any grid preparation before data fitting (as is necessary with xstar). All the data were fitted with Cash statistic (Cash 1979).

2.1 Orbital and superorbital phases

We determine the exact orbital and superorbital phase of the system for each of the XMM–Newton observations. The phases are listed in Table 2.

The orbital phase of each observation was determined using XMM–Newton GTI files. The starting and ending time of the exposure (in XMM–Newton seconds) was extracted and converted to the Modified Julian Date (MJD). We then used the Her X-1 orbital solution from Staubert, Klochkov & Wilms (2009) to determine the current orbital phase. The error on the MJD and the orbital phase value listed in Table 2 is defined as half the clean exposure time of the observation. All the XMM–Newton exposures are much shorter than the binary orbital period and therefore the orbital phase change during a single observation is relatively small.

The superorbital phase of each observation was calculated by determining the high state turn-on point for the current and the next superorbital cycle. We used the Swift/BAT Hard X-ray Transient Monitor (Krimm et al. 2013) to produce a light curve of Her X-1 between 2007 and present time. The observation times were determined and then the neighbouring turn-on times were estimated from the light curve. The phase was calculated as the time elapsed from the previous turn-on divided by the time difference between the neighbouring turn-on times (the superorbital period is not stable and varies between 33 and 37 d, Leahy & Igna 2010). We assume an uncertainty of 0.5 d for the turn-on point determination, which gives our errorbar on the superorbital phase for each observation. Finally, the superorbital phases of observations 0134120101 and 0153950301 (which happened before Swift was launched) were taken from Leahy & Igna (2010).

3 RESULTS

3.1 Continuum modelling

First we fit the broad-band X-ray spectrum of Her X-1 with an appropriate spectral model. Most of the observations are fitted with the same continuum model, and it will be indicated later where this is not the case. Both RGS and pn data are fitted simultaneously and with the same spectral model within the appropriate energy bands.

A sample pn (3–10 keV) spectrum is shown in Fig. 1. The high-energy (>3 keV) continuum of the object can be very well reproduced by a Comptonization model or a power law with an exponential cut-off of about 25 keV (dal Fiume et al. 1998). At an even harder band, a cyclotron scattering feature is observed with an energy of about 35–40 keV (Fuerst et al. 2013) but this occurs out of the XMM–Newton energy band and thus does not need to be taken into account in this study. We describe the broad-band continuum with the comt model within spex, obtaining a seeding temperature of about 0.05–0.1 keV, an electron temperature of ∼3–4 keV and an opacity of around 10 for all the high state observations.

Figure 1.

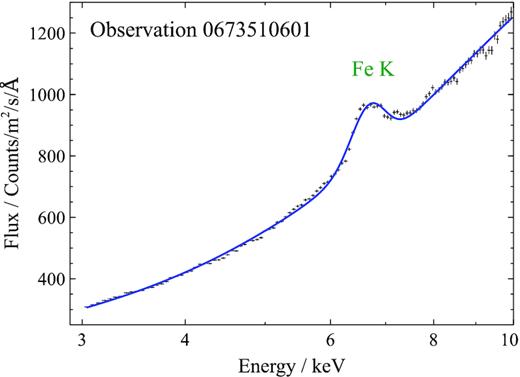

Example 3–10 keV spectrum of Her X-1 with XMM–Newton pn instrument (Obs ID 0673510601). The broad-band shape is reasonably well fitted with a Comptonization model plus a broad iron line at ∼6.6 keV.

Open in new tabDownload slide

The Fe K band of the spectrum also contains a strong emission line whose energy and width changes based on the state of Her X-1. In the low state, its energy is ∼6.4 keV, with a low (∼0.1 keV) width, whereas in the high state, the line energy is closer to 6.6–6.7 keV with a width of 0.3–0.8 keV (Zane et al. 2004). In this study, for simplicity we fit this region with a Gaussian. One exception is observation 0134120101, where we detect both a narrow (0.1 keV) 6.4 keV emission line and also a broad (∼1 keV) 6.5 keV emission feature – we fit each with a Gaussian.

The physical origin of the broad Fe K line is not understood. The width (up to 0.8 keV), if produced by orbital motion, corresponds to velocities of emitting material of ∼0.1c. Such velocities are unlikely to occur in this system given that the accretion disc of Her X-1 is likely truncated by the magnetic field of the neutron star at ∼1000 R_G. Asami et al. (2014) consider different possible origins of the width of the line including line blending, Comptonization from an accretion disc corona or Doppler broadening but do not find a plausible explanation.

The Fe K region in most observations also contains strong residuals that will be well reproduced by highly ionized absorption. Alternatively, they can be fitted with an array of emission lines of iron at various ionization states.

The soft X-ray (RGS) spectrum is much more complicated. An example observation is shown in Fig. 2. A soft (∼0.1 keV) blackbody fits reasonably well the low-energy end of this energy band. However, this is not a signature of the inner accretion disc itself because the spectral component pulses at the pulsar frequency but out of phase compared to the main beam (Endo, Nagase & Mihara 2000; Ramsay et al. 2002; Zane et al. 2004). It is likely that the origin of this component is reprocessed accretion column beam radiation (Hickox, Narayan & Kallman 2004).

Figure 2.

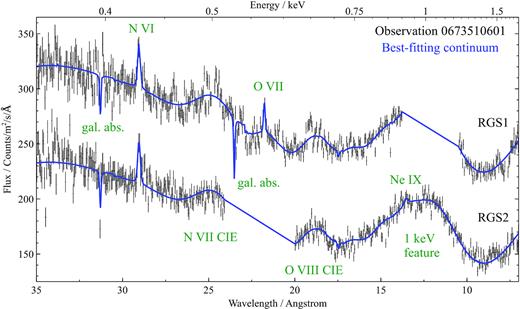

Example 35 Å (0.35 keV) to 7 Å (1.8 keV) spectrum of Her X-1 using RGS 1 and RGS 2 (Obs ID 0673510601). RGS1 data are shifted by a constant amount for plotting purposes and data from both detectors are heavily overbinned for clarity. Individual spectral components are named with green labels. Data between 11 and 14 Å in RGS 1 and between 20 and 24 Å in RGS 2 are missing because of chip gaps.

Open in new tabDownload slide

Secondly, a strong and broad (∼0.4 keV) Gaussian-like feature is observed at 0.95 keV, also pulsing with the pulsar period. Its origin is currently unknown, but it is suggested to be iron L reflection (Endo et al. 2000; Fuerst et al. 2013). We note that the feature is fully resolved in the RGS data and yet its best-fitting spectral model is a simple Gaussian. The feature therefore does not look like an array of unresolved lines, but instead like a single broad feature. Here we describe it with a Gaussian for simplicity.

Additionally, narrow emission lines can be observed at rest-frame energies of |$\rm{N\,{\small VI}}$|⁠, |$\rm{O\,{\small VII}}$|⁠, and |$\rm{Ne\,{\small IX}}$| intercombination lines that suggest the presence of a high-density environment. These are especially prominent in the low state of Her X-1 (Jimenez-Garate et al. 2002, 2005; Ji et al. 2009) but still noticeable in the high state.

Adding all of the above components into a continuum spectral fit results into a relatively good fit, however we noticed broad emission residuals at around 19 and 25 Å (Fig. 2). Their wavelengths correspond to rest-frame positions of |$\rm{N\,{\small VII}}$| and |$\rm{O\,{\small VIII}}$| ions. If the residuals were real, they could correspond to photo- or collisionally ionized plasma with large (10 000–20 000 km s⁻¹) velocity widths. Alternatively, these lines could be a signature of blurred reflection. As we do not see residuals of similar strength centred on the rest-frame energies of other N or O lines and/or lines of other elements, it is not possible to distinguish between the first two potential origins of the residuals. Attempting to fit these features with a physical reflection model is beyond the scope of this work. We thus fit the two broad residuals phenomenologically to describe the overall continuum as well as possible. We choose the collisional ionization emission model cie in spex (which is not computationally expensive to fit). We free the normalization, temperature, velocity width, and nitrogen abundance in the model to obtain a simple model with enough freedom, which results in significant fit improvements (ΔC-stat > 100) in each high state observation.

The temperature of this plasma is ∼0.25 keV in all observations, with a velocity width of ∼15 000 km s⁻¹ and an overabundance of N/O of about 8–10. Both the velocity width and the N/O ratio seem very high to explain within a system like Her X-1. However, we note that previous studies suggest a N/O overabundance of at least 4 (Jimenez-Garate et al. 2005) and that velocities of 10⁴ km s⁻¹ should not be impossible to achieve at the inner accretion disc/magnetosphere boundary of Her X-1. The orbital velocity at the r = 2 × 10⁸ cm magnetosphere boundary (≈corotation radius as the neutron star is likely rotating close to equilibrium) of a canonical 1.4 M_⊙ neutron star is exactly ∼10 000 km s⁻¹. In Fig. 2 it also appears that the velocity width for both |$\rm{N\,{\small VII}}$| and |$\rm{O\,{\small VIII}}$| ions is at least slightly overestimated by our simple model. It is also possible that the N line strength is overestimated compared to the continuum in the 25 Å region. This is the case for multiple high state observations, and could be caused if another spectral component, such as the disc blackbody from the inner accretion disc, is present in the soft X-ray continuum, but is poorly constrained by the present data. If the blackbody temperature is only ∼0.05 keV, it would be hard to distinguish given the current energy band and the number of other spectral components present in the soft X-ray spectrum.

The broad emission line component, if real, could therefore originate on the boundary between the inner accretion disc and the magnetosphere of the neutron star. Further studies with future high-spectral resolution instruments like Arcus (Smith et al. 2017) should offer sufficient data quality to confirm or reject the presence of these lines and show their origin.

All of the continuum components mentioned above are obscured by interstellar absorption, which we describe with a hot model in spex. We set a lower limit of 1.7 × 10²⁰ cm⁻² to the column density of interstellar gas and fix its temperature to 0.5 eV (neutral gas). The column density value was obtained from Kalberla et al. (2005). Finally, we add normalization constants to RGS 2 and pn data sets to account for calibration differences between the three detectors. Their values are usually very close to 1 (in the 0.95–1.05 range). The final spectral continuum model in spex is thus in form of hot×(comt+bb+5×gauss+cie).

3.2 Photoionized wind modelling

In this subsection we model the wind absorption features, measure its physical properties and describe how significant is the wind detection in the X-ray spectrum of Her X-1.

The spectral model used to describe the blueshifted absorption in this section is called pion (see Miller et al. 2015a; Mehdipour, Kaastra & Kallman 2016, for more information about the model and its applications) in the spex fitting package. pion is a powerful photoionization code that uses the current spectral energy distribution (SED) of all components in the spectral model to calculate the ionization balance on the fly and can reproduce a broad range of physical parameters of the absorber. Alternatively, the photoionization absorption model xabs (Steenbrugge et al. 2003) could be used to fit the features. It works in a similar way to pion but uses a predefined (AGN-like) SED shape.

We repeat the same process for each observation. Initially, the spectra are fitted with the continuum model described in Section 3.1. The model parameters as well as the final C-stat value defining the ‘goodness’ of the fit are recovered. Then the pion component is added to the spectral model with appropriate initial parameters. We fit for column density N_H, ionization parameter log ξ, turbulent velocity v, and systematic (outflow) velocity z of the photoionized absorber. In this section we assume Solar abundances for simplicity. Afterwards, the best-fitting wind parameters as well as the fit improvement ΔC-stat over the original continuum spectral model are recovered.

The best-fitting wind parameters for each observation in our study are listed in Table 3. Our results show that the wind velocity varies significantly between the individual observations in the range of 200–1000 km s⁻¹. We also find that the ionization level of the outflowing gas is high with ionization parameters, log ξ, of 3.0 to almost 5.0. The column density also varies alongside with the ionization parameter.

The velocity width of the ionized absorber (from the absorption line widths) is of the order of 100 km s⁻¹ in most observations, with the exception 0783770701, where if freed, it runs away to thousands of km s⁻¹ (likely due to lack of statistics). The width could be introduced by internal turbulent motion within the flow. Alternatively, it could originate if our line of sight intercepts multiple layers of the wind with a gradient in line of sight velocity over a range of radii. In each case, the velocity width (∼100 km s⁻¹) is generally small compared to the line of sight velocity (median value of ∼450 km s⁻¹), suggesting that the turbulence within the wind is not very strong and that the velocity gradient of all wind layers along the line of sight is not large either.

The five observations with the strongest wind features are shown in Figs 3–7. At such high ionization level of the material, the observable features of this wind in our energy band (and considering the CCD resolution of the pn instrument) are only a few high ionization lines, hence we only show plots containing narrow energy bands around |$\rm{N\,{\small VII}}$|⁠, |$\rm{O\,{\small VIII}}$|⁠, |$\rm{Ne\,{\small X}}$|⁠, and |$\rm{Fe\,{\small XXV/XXVI}}$| line energies. Other strong features of plasma at these ionization levels are the absorption lines of |$\rm{Mg\,{\small XII}}$|⁠, |$\rm{Si\,{\small XIV}}$|⁠, and |$\rm{S\,{\small XVI}}$|⁠, which are occasionally observed in other neutron star (GX 13+1, Ueda et al. 2004) and black hole (GRO 1655-40, Miller et al. 2006) binaries with similar winds. However, |$\rm{Si\,{\small XIV}}$| and |$\rm{S\,{\small XVI}}$| are located in the 2–3 keV energy band which is ignored in this study due to instrumental features in the pn data (RGS band only reaches to 7  Å ∼ 1.8 keV). |$\rm{Mg\,{\small XII}}$| (at 8.4 Å ∼ 1.5 keV) is within the RGS band, but at a wavelength where both the spectral resolution and the effective area of the instrument begin to drop. Consequently, the |$\rm{Mg\,{\small XII}}$| line is not strongly detected.

Figure 3.

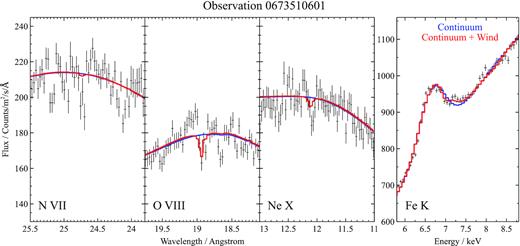

Energy bands around the rest-frame energies of |$\rm{N\,{\small VII}}$|⁠, |$\rm{O\,{\small VIII}}$|⁠, |$\rm{Ne\,{\small X}}$|⁠, and |$\rm{Fe\,{\small XXV/XXVI}}$| ions from observation 0673510501. The first three bands only contain RGS1 and RGS2 data, stacked for plotting purposes only, the fourth band only contains EPIC-pn data. The best-fitting baseline continuum is shown in blue, the final wind solution in red.

Open in new tabDownload slide

Figure 4.

Same plot as Fig. 3 but for observation 0673510601.

Open in new tabDownload slide

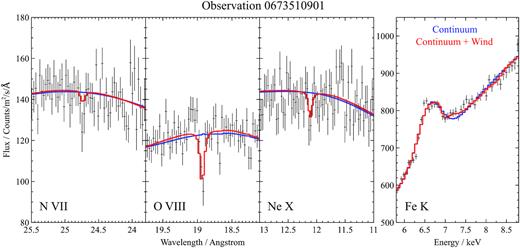

Figure 5.

Same plot as Fig. 3 but for observation 0673510901.

Open in new tabDownload slide

Figure 6.

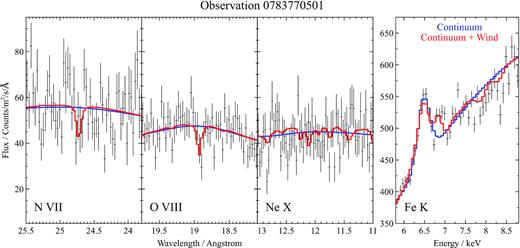

Same plot as Fig. 3 but for observation 0783770501.

Open in new tabDownload slide

Figure 7.

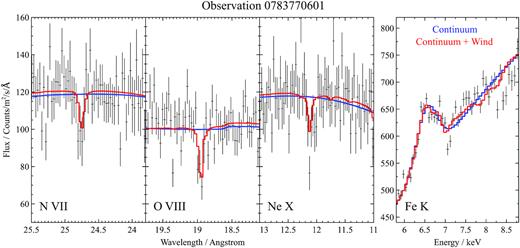

Same plot as Fig. 3 but for observation 0783770601.

Open in new tabDownload slide

Unless the abundances of these elements are significantly lower than expected (which has been observed in GRO J1655−40, Kallman et al. 2009), |$\rm{Mg\,{\small XII}}$|⁠, |$\rm{Si\,{\small XIV}}$|⁠, and |$\rm{S\,{\small XVI}}$| absorption lines should be detectable with the Chandra HETG gratings, offering a broader (0.3–10 keV) energy bandpass than RGS. Analysis of archival Chandra observations of the high state of Her X-1 will be addressed in our future work.

The statistical fit improvements ΔC-stat vary by a large amount between the individual observations but we consider most detections statistically significant. The strongest detections were achieved in observations 0673510501 and 0783770601, in both cases the ΔC-stat values are ∼80. On the other end, the wind was practically undetected in 0673510801 with ΔC-stat = 2.7. Other observations with weak detections were 0134120101 and 0783770701.

The statistical significance of the detection of an additional spectral component, in this case of blueshifted absorption can be inferred from the fit improvement ΔC-stat between the two fits (continuum versus continuum + wind). The crucial parameter here is the number of additional free parameters that the wind spectral models adds (in our case this is 4 – column density, ionization parameter, turbulent and systematic velocity of the absorber). However, since the continuum model is effectively on the edge of the parameter space of the more complicated, continuum + wind model (where the column density of the ionized absorber is simply 0), it is not possible to determine the significance rigorously by a theoretical approach like an F-test (Protassov et al. 2002). The solution is to perform Monte Carlo simulations – first a blind search is ran over the wind parameters using the real data. Then a similar dataset containing only the continuum model spectrum is simulated, and the same wind search is ran on the simulated data. The statistical significance of the detection of a wind in the real dataset is then 1 minus the fraction of occurrences of detections in fake data stronger (with larger ΔC-stat values) than the ΔC-stat of the real detection.

It is not computationally feasible to perform such a search in this situation and assess the detection significance completely rigorously. This is because the underlying spectral continuum of Her X-1 is too complex, causing the simulated blind search to become very computationally expensive. However, we would like to compare the fit improvements seen in this study with the results from Kosec et al. (2018), where a full Monte Carlo simulation suite was performed. In that study a wind with ΔC-stat of ∼27 was detected using four additional free wind parameters (the same number as here). However, they used a much wider parameter space – systematic velocity space of 0–120 000 km s⁻¹, whereas in this study we only assess wind velocities from 0 to a few thousands km s⁻¹. The statistical significance of wind detection in Kosec et al. (2018) was about 3.5σ. We therefore argue that the wind detection in most of the observations of Her X-1 is statistically significant.

Photon pile-up could affect some of our datasets, especially pn and RGS2. We address this issue in Appendix  A. However, it is unlikely that it could introduce absorption features which line up in the velocity space. We conclude that our detection of an ionized wind in the spectrum of Her X-1 is robust.

We also consider a possibility that the outflowing plasma is multiphase, i.e. it has multiple ionization and velocity components. This seems to be the case for other X-ray binaries with wind detections (e.g. Miller et al. 2015b). We can exclude significant absorption by low ionization (log ξ < 2) material, which would have a strong signature in the soft X-ray (RGS) band. Unfortunately, most of our observations do not offer high enough data quality (statistics) to address this hypothesis for the higher ionization levels. This is due to low column densities of the wind given the ionization state and consequently low optical depths of absorption features (e.g. Fig. 5). Additionally, at such high ionization levels (log ξ = 3–5), there is only a small number of strong lines left in the absorption spectrum. In most observations we thus do not have enough photon counts to distinguish multiple wind components, despite the high flux of Her X-1. Future longer exposure observations may address this problem.

We attempt to test the multiphase hypothesis at least in the observations where the wind absorption is the strongest. Choosing the two observations with the highest ΔC-stat fit improvement upon adding the ionized absorption component (0673510501 and 0783770601), we fit the spectra with a double ionized absorption model. We use the pion spectral model to describe the two absorption zones, with all relevant physical parameters decoupled. In the case of observation 0673510501, we find a very small fit improvement of ΔC-stat ∼ 6 compared to the single zone absorption model. In the case of observation 0783770601, the fit improvement is ΔC-stat ∼ 14, larger but still not statistically significant to warrant the addition of a second absorption zone. In conclusion, with the current data quality there is no strong evidence for a multiphase nature of the wind in Her X-1.

3.3 Short-on and low state observations

We checked the low and short-on state observations of Her X-1 for any obvious signatures of blueshifted absorption lines. Naturally, the flux and hence the count rate during these epochs are much lower than in the high state. None of the observations individually can be used to constrain the presence of the wind – the continuum is too weak in the RGS band and only photoionized line emission is detected significantly. We omit the Fe K band as it is more complicated than in the high state, with a 6.4 keV narrow line (⁠|$\rm{Fe\,{\small I}}$|⁠), a possible 6.97 keV line (⁠|$\rm{Fe\,{\small XXVI}}$|⁠) plus an edge at 7.1 keV due to a partial covering absorber (Ji et al. 2009).

To improve the statistics, we stack all the available low state RGS data for observations which are not affected too strongly by background flares, for a clean exposure of roughly 45 ks per detector. This allows us to get a significant detection of the X-ray continuum, nevertheless we do not observe any obvious absorption features at similar systematic velocities (0–1000 km s⁻¹) compared to the ones seen in the high state. The search is naturally complicated by the fact that the stack comes from averaging over several years of observations. If the wind velocity is time variable, even if the absorption is present in the low state, its features would be smeared and difficult to detect using the stacked dataset. The analysis is further complicated by the strong low state line emission, which is challenging to model physically. Any possible absorption features will be difficult to disentangle from the emission lines which are at similar energies (outflow velocity of 1000 km s⁻¹ corresponds to a wavelength shift of just 3 × 10⁻³). A rigorous search of the low state data is beyond the scope of this work.

4 ELEMENTAL ABUNDANCES IN THE WIND

So far we have assumed solar abundances while fitting the wind parameters. However, the outflowing material can serve as a powerful probe to independently determine the composition of the matter accreted on to Her X-1. Previous studies based on line emission in the low state suggested overabundance of N and Ne compared to O (Jimenez-Garate et al. 2005).

The measurement of abundances from blueshifted absorption lines is in principle a much easier task, however given the high ionization level of the wind, the absorption spectrum only contains a few metallic lines and there is very little continuum absorption. This has two important consequences given the current data quality.

First, we choose to perform a simultaneous fit of multiple observations at once to increase the signal-to-noise. We free all of the individual observation model parameters with the exception of wind material abundances (within the pion model) and simultaneously fit five observations with the strongest wind detection – 0673510501, 0673510601, 0673510901, 0783770501, and 0783770601. We could in principle fit all of the available observations simultaneously, but this would be too computationally expensive.

The second important consequence is that this analysis is unable to measure absolute abundances. It can only constrain relative abundances of elements compared to one selected element whose absorption line is strong enough to anchor the spectral fit. The only elements with strong enough lines present in photoionized spectra at this ionization level and in our energy band are N, O, Ne, and Fe (O and Fe being the strongest). We therefore follow two avenues: first, we fix the iron abundance and measure relative abundances of N, O, and Ne compared to Fe; afterwards we fix the oxygen abundance and fit for N, Ne, and Fe. Ideally, these two approaches should result in similar elemental ratios and serve as an independent check.

It is not obvious how to treat the abundances of the remaining elements such as Mg, Si, S, Ni, and others. At Solar abundances, their absorption lines are weak. However, once we free the abundances of the main elements, they might become important. Initially, we freeze their abundance to 1. This effectively means that the abundances of these elements are equal to that of the comparison element (Fe or O).

First, we freeze the abundance of Fe. We recover an overabundance of N, Ne, and Fe of 2–4 compared to O, for a modest fit improvement of ΔC-stat ≈ 20 (first row of Table 4). Secondly, we freeze the abundance of O. In this case we find a much larger fit improvement of ΔC-stat ≈ 120 and also much higher elemental ratios (third row of Table 4). The Fe/O ratio is the highest at |$17.1_{-1.2}^{+1.5}$|⁠. We interpret this significant difference between the fit quality in these two approaches to be caused by the remaining elements whose abundances are frozen. When O is freed, its abundance begins to decrease compared to Fe. However, the |$\rm{O\,{\small VIII}}$| line is the strongest wind absorption line, so to remain fitted correctly, the column density of the wind material must be increased, thus strengthening the absorption lines of all the frozen elements (whose lines are weak in the actual spectrum). We conclude that this suggests that the abundance O is not underabundant compared to these elements, and hence this approach to fitting the abundances is not trustworthy.

We also experiment with setting the abundances of the ‘weak’ elements to 0. While this is an unphysical scenario, it approximates a situation in which the abundance of the comparison element (which is frozen to 1) is much larger than the abundance of the ‘weak’ elements (without adding too much computational cost). We find similar results regardless of whether Fe or O is the comparison element (second and fourth rows of Table 4), as is expected. N and Ne appear to be overabundant compared to O by a factor of 2–4, and the Fe/O ratio is as high as 10.

In conclusion, our results confirm the previous findings of Jimenez-Garate et al. (2002, 2005) regarding the elemental ratios of N/O and Ne/O. We find that the N/O ratio is between 2 and 4 for different approaches to the fitting analysis. Ne is also overabundant compared to O, we find that Ne/O ≈ 2–6, in line with previous results.

Unexpectedly, we also find very high Fe/O ratios. The exact ratio heavily depends on the approach chosen – we obtain Fe/O ≈ 2 for Fe fixed to 1 (but do not trust this result due to reasons given above), Fe/O ≈ 10 for both approaches with the remaining elements fixed to 0, and Fe/O ≈ 17 for O fixed to 1. We suspect that the last value is a strong overestimate, possibly driven by the abundance of the ‘weak’ frozen elements. We prefer the results from the approaches where the ‘weak’ elements are set to 0 and argue that the Fe/O ratio might be as high as 8–10. This is still very high but probably more realistic than >15. We find that these two approaches result in very similar elemental ratios and ΔC-stat fit improvements, as expected because they should be almost equivalent.

We however stress one important point – the Fe abundance measurements at these ionization levels are all based on the Fe K energy band. Our spectral resolution in this band is modest (∼100 eV resolution of the pn instrument) and its modelling is quite simplistic. If the true underlying spectral model is significantly more complicated than assumed in this work (i.e. if there is a range of Fe emission lines at 6.4, 6.7, and 6.97 keV compared to one broad Gaussian line), the Fe/O elemental ratios obtained here must be taken with caution. Finally, we note that we have assumed that the gas is in equilibrium, which might not be entirely true (for example if the wind is driven along magnetic lines).

We conclude that the abundances in Her X-1 are strongly non-Solar. This is evidenced by the large fit improvements (ΔC-stat > 100) upon freeing the abundance parameters.

5 DISCUSSION

We have shown that the X-ray spectrum of Her X-1 during the high state contains strong evidence of blueshifted wind absorption. The Fe K band of the spectrum by itself could be explained by an array of Fe emission lines (at 6.4, 6.7, 6.97 keV) rather than by absorption features (Asami et al. 2014). However, the |$\rm{N\,{\small VII}}$|⁠, |$\rm{O\,{\small VIII}}$|⁠, and |$\rm{Ne\,{\small X}}$| regions unambiguously show blueshifted absorption lines at the same systematic velocity, thus confirming that we are observing an ionized wind. The wind detection is statistically significant in most of the XMM–Newton observations with the exception of 0673510801 and 0134120101, where the evidence for absorption features is weaker. At this moment we do not find evidence for similar blueshifted absorption in the short-on and low states of Her X-1, but the data quality of these observations is much lower. Stacking multiple datasets likely smears the absorption signatures as the wind appears to be variable in time.

We will now investigate how the wind parameters vary across different high state observations. Afterwards, we will estimate the launching radius of the wind as well as the mass outflow rate. Finally, we will attempt to pinpoint its launching mechanism and try to explain the variation of wind parameters in time.

5.1 Wind evolution with luminosity, orbital, and superorbital phases

For these calculations, it is necessary to obtain the luminosity of the ionizing radiation of the object. The wind naturally sees the full energy band of radiation and not just the luminosity in the RGS and pn band (0.3–10 keV, listed in the second column of Table 3). By definition the 1–1000 Ryd energy band is taken when considering the ionizing flux. For this reason we calculate the extrapolated 0.0136–13.6 keV luminosity of Her X-1 for each observation. The errors introduced by this extrapolation should not be large on the upper energy end as pn data reach to 10 keV. At the low-energy end, we neglect the extreme UV radiation from the accretion disc whose spectrum does not reach into the X-ray band and thus cannot be constrained by XMM–Newton. However, given that the disc is truncated at ∼1000 R_G, the systematic error introduced by this simplification should not be huge. The ionizing luminosity estimates are shown in Table 3 (third column). Finally, we also calculate the total luminosity of Her X-1 for each observation by extrapolating between 0.0136 and 80 keV (fourth column of Table 3). These estimates should be taken with some amount of caution.

We plot the ionizing luminosity with respect to the superorbital phase for each observation in Fig. 8. The range of luminosities sampled by XMM–Newton observations nicely reproduces the high state part of the superorbital flux light curve of Her X-1 (e.g. fig. 2 from Leahy & Igna 2010). The only outlier is observation 0673510901, during which the luminosity is around 50 per cent smaller than would be predicted by fitting all the other data points. To investigate this outlier we checked the pn light curve of observation 0673510901 but found no evidence for discrete obscuration events.

Figure 8.

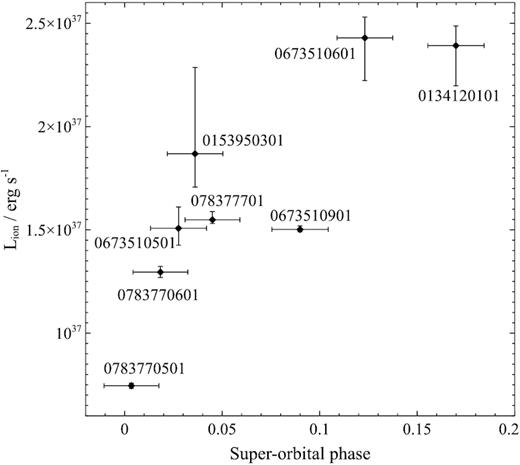

Extrapolated 1–1000 Ryd ionizing luminosity for each of the high state observations versus the superorbital phase.

Open in new tabDownload slide

We note that in the next part of the study we omit observation 0673510801 results as the wind detection is insignificant and its uncertainties are too large for any informative conclusions.

The projected wind velocity spans a range of velocities between 200 and 1000 km s⁻¹ and is inconsistent with being constant across all the observations. Fig. 9 (top plot) shows that there does not seem to be a clear correlation between the outflow velocity and the 1–1000 Ryd luminosity. Observation 0673510501 appears to be an outlier during which the wind was apparently much faster.

Figure 9.

Top plot: Systematic velocity of the ionized absorber with respect to the extrapolated 1–1000 Ryd ionising luminosity of Her X-1 for each observation in the high state. Middle plot: Ionization parameter of the absorber versus the extrapolated 1–1000 Ryd luminosity for each observation in the high state. Bottom plot: Column density of the absorber versus the 1–1000 Ryd luminosity for each observation.

Open in new tabDownload slide

On the other hand, there is a clear positive correlation between the ionization parameter and the luminosity of Her X-1, shown in Fig. 9 (middle plot). Such correlation suggests that the wind responds to the change in luminosity of the object and thus sees similar if not the same luminosity as we observe. This was not a given because the change in Her X-1 luminosity is likely only an obscuration or projection effect and the accretion on to the primary continues at a nearly constant pace.

There is a tentative correlation between the wind column density and the ionising luminosity (Fig. 9, bottom plot), but with clear outliers – observations 0673510901 and 0134120101.

We do not observe any significant correlations between the wind parameters and the orbital phase of each observation. This finding suggests that the wind is not tied in any way to the secondary of the binary system or the motion of the primary and is only related to the accretion disc of the neutron star. The wind parameters with respect to the orbital phase are shown in Fig. 10.

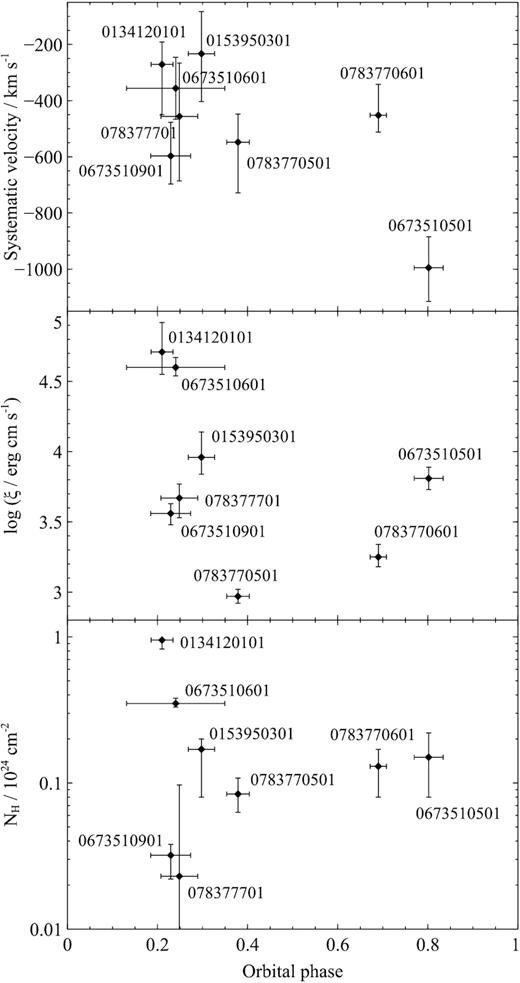

Figure 10.

Top plot: Systematic velocity of the ionized absorber with respect to the orbital phase during each observation. Middle plot: Ionization parameter of the absorber versus the orbital phase during each observation. Bottom plot: Column density of the absorber versus the orbital phase during each observation.

Open in new tabDownload slide

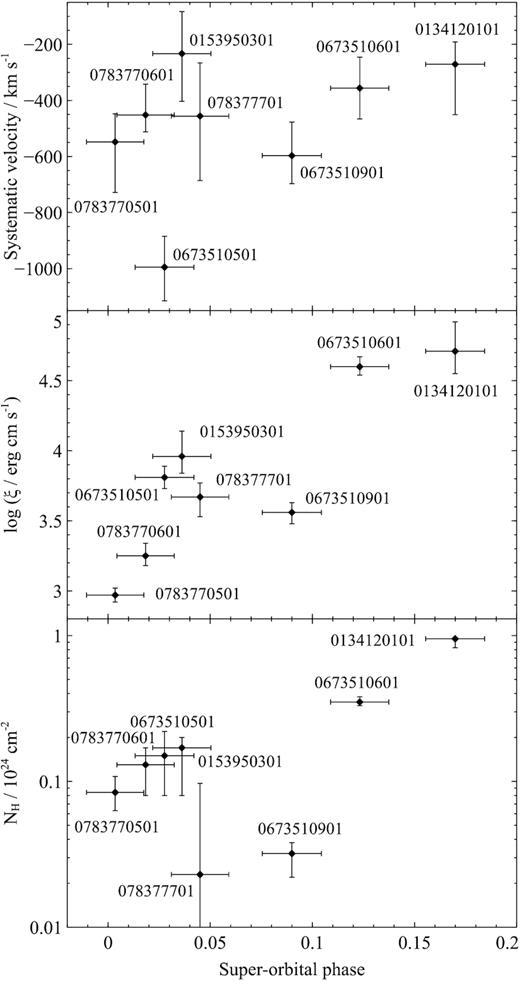

Fig. 11 shows the wind parameters versus the superorbital phase of each exposure. As with the ionising luminosity, we do not find any correlation between the outflow velocity and the superorbital phase. We notice a strong correlation between the ionization parameter and the superorbital phase, with one obvious outlier – observation 0673510901. This correlation comes naturally since the ionising luminosity is correlated with the superorbital phase and the ionization parameter is correlated with the 1–1000 Ryd ionizing luminosity. However, the fact that observation 0673510901 is an outlier in the superorbital plot and not in the luminosity plot could suggest that the ionization parameter depends on the luminosity and not on the superorbital phase. This could mean that we are not only probing different lines of sight from the neutron star (as the superorbital phase progresses), but that the ionising flux on the wind gas must also change in time. Alternatively, observation 0673510901 could be an outlier in the superorbital cycle, an anomalous state. Finally, there is a tentative correlation between the column density of the outflowing material and the superorbital phase, with two outliers being observations 0673510901 and 078377701.

Figure 11.

Top plot: Systematic velocity of the ionized absorber with respect to the superorbital phase during each observation. Middle plot: Ionization parameter of the absorber versus the superorbital phase during each observation. Bottom plot: Column density of the absorber versus the superorbital phase during each observation.

Open in new tabDownload slide

5.2 Location of the wind absorption

Boroson et al. (2001) found blueshifted absorption UV lines in Her X-1 with a velocity of several hundred km s⁻¹ using the FOS and STIS spectrographs onboard the Hubble Space Telescope. They concluded that the wind is likely launched from the X-ray irradiated side of the secondary, and it is observed at larger, circumbinary distances from the system. The conclusion was motivated by the stability of the wind systematic velocity over the orbital cycle of the binary.

We similarly attempt to pinpoint the location of the X-ray absorber and its relation to the UV absorber, as well as the likely launching mechanism. The high ionization level of the gas by itself suggests the proximity of absorption to the ionising (X-ray emitting) source. We can put an upper limit on the distance of the wind absorption from the neutron star by using the ionization parameter and the column density of the absorber.

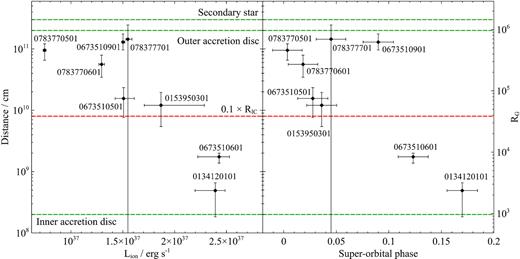

Figure 12.

The estimate of the maximum distance of photoionized absorption from the ionising source versus the ionising luminosity (left subplot) and the superorbital phase (right subplot). The green horizontal lines show the positions of the inner and outer edges of the accretion disc, and the distance of the secondary star from the primary. The red dashed line shows the approximate position of the minimum wind launching radius if the wind is powered by Compton heating of the accretion disc.

Open in new tabDownload slide

All of the results clearly lie within the accretion disc of the primary, and they do not seem to cluster on the inner edge of the disc. A few results (0783770701, 0673510901) are consistent with the outer disc boundary or the secondary star surface, but most are completely inconsistent with this interpretation. We note that even if the correction factor δR is mild (0.1–0.5), it will push most of the outlying results down inside the accretion disc. We therefore argue that the absorption occurs within the size of the accretion disc of the primary. The wind must hence be launched from the accretion disc (or even closer to the neutron star) and cannot originate on the irradiated side of the secondary. Our interpretation is that the wind originates within the accretion disc with a speed higher than the escape velocity and is thus able to leave the system, imprinting UV absorption features on the spectrum of Her X-1 at larger (circumbinary) distances.

On the other hand, unless the thickness of the wind launching region is quite small (δR < <0.1) which does not seem likely (unless the launching region is highly localized such the top point of a warp in the accretion disc), it is difficult to explain all of the results in the context of a wind being launched from close to the inner edge of the disc. We will attempt to pinpoint the launching mechanism of the wind in Section 5.4.

Fig. 12 also shows how the inferred distance depends on the ionising luminosity (left sub-plot) and the superorbital phase (right sub-plot). The distance is strongly anticorrelated with both of these parameters, with one outlier: observation 0673510901. Observation 0783770701 is consistent with a broad range of distances due to the large uncertainty on the wind column density. The fact that observation 0673510901 is an outlier in both plots suggests that the distance does not only depend on the luminosity of the source but also on the superorbital phase, i.e. we are likely probing different lines of sight from the neutron star (different inclinations and vertical heights from the accretion disc).

We also explore the dependence of the inferred absorption distance on the orbital phase but do not find any noteworthy correlation.

5.3 Mass outflow rate

The ionization level, column density and velocity of the wind can also be used to estimate the mass outflow rate in the wind and compare it with the mass accretion rate. We will use two independent approaches, one making use of the ionization parameter, the velocity of the outflowing material and the ionising luminosity of Her X-1, and the second one making use of the systematic velocity and the column density of the wind. In both cases we assume that the wind structure is axisymmetric. Again we assume Solar abundances in this section.

Here we use v as the observed projected velocity, measured from the line blueshift. In principle, if the wind is launched from the disc and is observed close to its launching point (which is probably the case here because Her X-1 is a high inclination system), it will also likely carry a toroidal velocity component from the Keplerian rotation within the accretion disc. Such velocity component is impossible to measure from the absorption line shifts alone. From the absorption distance calculations in Section 5.2 (also shown in Fig. 12), the wind originates at distances of around 10⁵ R_G in the disc, with two exceptions (observations 0134120101 and 0673510601) where it could originate as close as 10³–10⁴ R_G. The corresponding Keplerian velocities at these radii are ∼1000 and ∼5000 km s⁻¹ (taking 3 × 10³ R_G), hence the total wind velocity could be significantly larger.

Nevertheless, unless the wind also carries a considerable vertical speed component (which we will argue against later in this work), the toroidal motion will not affect our calculation of the mass outflow rate because the velocity perpendicular to the surface of integration remains the same as the projected component which is observed.

Figure 13.

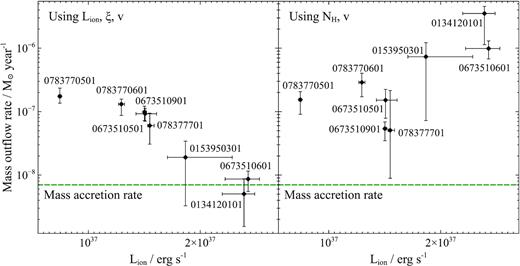

The mass outflow rate of the wind for each observation. The estimate in the left-hand plot was made using the ionizing luminosity of the source, the ionization parameter, and the velocity of the material. The estimate in the right-hand plot was made using the column density and the velocity of the wind. The green horizontal lines show the mass accretion rate through the accretion disc (Boroson et al. 2007).

Open in new tabDownload slide

We find that most of the mass outflow rate estimates are significantly higher than the mass accretion rate, on average more than an order of magnitude larger. Fig. 13 also shows that the two different mass estimates diverge with luminosity. This suggests that the assumption of the outflow velocity being parabolic is most likely incorrect. This fact is also underlined by the apparent lack of correlations between the outflow velocity and the ionising luminosity, orbital, or superorbital phase. Therefore the mass outflow rates estimated by the second method should be taken cautiously.

There is a strong correlation between the mass outflow rates inferred from the ionization parameter and the ionising luminosity of the neutron star. This correlation is necessarily driven by the strong dependence of the ionization parameter on the luminosity.

On the first look, the mass outflow rate estimates appear too high. However, these values do not account for the limited solid angle and volume filling correction factors. I.e. using a modest opening angle of 5° (above and below the accretion disc) into which the wind is outflowing, we obtain |$\frac{\Omega }{4\pi }\approx 0.1$|⁠, bringing down the mass outflow rates by an order of magnitude. Nevertheless, even if the volume filling factor is very small as well (C_V ∼ 0.1), the mass outflow rates are still of the same order as the mass accretion rates on to the primary and hence the wind is an important component of the accretion flow.

Very high wind mass outflow rates, of the same order as the mass accretion rate or higher, were previously found in other X-ray binaries (e.g. Miller et al. 2006; Neilsen & Lee 2009). Similar results were also found in studies of warm absorbers (Blustin et al. 2005) and ultrafast outflows (Nardini et al. 2015) in AGNs. Blustin et al. (2005) find almost one order of magnitude higher median mass outflow rates than the median mass accretion rates using a sample of 23 AGNs with detected warm absorbers.

5.4 Possible wind launching mechanisms

Her X-1 is thought to be consistently in a sub-Eddington mass accretion state with an Eddington ratio of ∼0.1–0.2. The hard X-ray radiation from the accretion column is beamed, but not by an extreme factor hence the beamed flux should not reach Eddington levels. Radiation pressure on electrons therefore should not be sufficient to drive the wind from the accretion disc to ∼1000 km s⁻¹ velocities.

Line driving could enhance the pressure on outflowing material, however the material cannot be overionized as it is being accelerated away from the disc (Proga et al. 2000). The high inclination of Her X-1 suggests that we might be viewing the wind close to the launching site. The very high ionization degree (log ξ > 3) therefore implies that the wind is most likely not driven by line pressure.

The wind could originate in the part of the accretion disc periodically irradiated by the beam of the neutron star. This might be the same region that is present in the soft X-ray spectrum of Her X-1, and pulses with the same period but out of phase of the neutron star. The temperature of this component, found in previous studies and also here is approximately 0.1 keV. The sound speed at this temperature is: |$c_{\mathrm{ s}}=\root \of {\frac{kT}{m_{\mathrm{ p}}}}$|⁠, where k is the Boltzmann constant, T the temperature of the plasma, and m_p is the hydrogen (proton) mass. For T = 0.1 keV ≈1.2 × 10⁶ K, we find c_s ≈ 100 km s⁻¹, much lower than the outflow velocities observed in this study.

Lastly, magnetic driving is also a possible launching mechanism for the wind (Blandford & Payne 1982). Magnetic field of the neutron star (B₀ ≈ 4 × 10¹² G on the star surface, Staubert et al. 2019) could potentially provide the driving force. If the neutron star field is a dipole, at distance R it will decay such as B = B₀(R/R₀)⁻³ where R₀ is the neutron star radius (the strength will decay faster if the field is higher order than a dipole). Thus the field strength at the inner accretion disc radius (∼10⁹ cm) is roughly 10³–10⁴ G, which could be sufficient to drive the wind (Ustyugova et al. 1999; Donati et al. 2007; Miller et al. 2016). If the outflow however originates beyond R ∼ 10¹⁰ cm, which is likely the case for most of our XMM–Newton observations, the field will be of the order of ∼10 G or less, insufficient to launch the material. Alternatively, additional magnetic field could originate in the accretion disc itself. However, as we cannot readily estimate this field, it is difficult to judge whether it can or cannot contribute to or drive the wind in this object.

Winds with similar properties (velocities, ionization parameters) have been discovered in other neutron star binary systems such as GX 13+1 (Ueda et al. 2004), IGR J17480−2446 (Miller et al. 2011), and IGR J17591−2342 (Nowak et al. 2019). The difference between these three and Her X-1 is that the column density observed in Her X-1 is significantly lower during most observations and thus the absorption strength is correspondingly lower. The outflow properties are also comparable to the ionized winds observed in Galactic black hole binaries such as GRO J1655−40 (Miller et al. 2006; Fukumura et al. 2017), GRS 1915+105 (Neilsen & Lee 2009), and other objects where both Compton thermal and magnetic driving were invoked to explain the wind origin.

On the other hand, one important difference between all of the aforementioned examples is that Her X-1 is known to be a highly magnetized (10¹² G) neutron star. To our current knowledge, Her X-1 is the first highly magnetized neutron star to harbour such a wind. The magnetic field effectively puts an absolute lower limit of ∼1000 R_G on the wind launching radius as it truncates the inner accretion disc. This can be used as an effective constraint in theoretical models explaining the appearance of the wind.

5.5 Are observations over the superorbital period probing different lines of sight?

We observe an inverse correlation between the distance at which the wind absorption occurs and the ionizing luminosity of Her X-1 (Fig. 12). The relation could suggest that the wind launching radius decreases with increasing luminosity. Such a correlation would be expected for example if the radiation pressure on the outflowing material played a role. This explanation would come naturally within the framework of a wind driven by a combination of Compton heating and radiative force.

At the same time, the correlation between the distance and luminosity necessarily implies that the absorption distance is correlated with the superorbital phase too (since luminosity and superorbital phases are connected, from Fig. 8). If the superorbital phase is the driver for the correlation instead of the ionizing luminosity, an alternative explanation for the variations is possible. The superorbital period is likely introduced by the precession of a warped accretion disc, which at times obscures our view into the innermost accretion disc and on to the neutron star. But even in the high state, when our view of the inner regions is unobstructed, the disc continues precessing and the angle between different annuli of the disc and our line of sight keeps changing (fig. 3 of Leahy 2002). It is thus possible, that by observing the wind at different superorbital phases, we are probing different heights of the wind above the accretion disc.

If this is the case, we are presented with a rare opportunity to study the vertical structure of a disc wind. We might be able to determine the opening angle of the outflow (except for any wind component which is fully ionized) and consequently obtain an accurate estimate of the wind mass outflow rate. Fig. 14 shows that at the highest ionising luminosities (i.e. at superorbital phases of 0.1–0.2), the mass outflow rate estimates are an order of magnitude smaller than those at superorbital phase equal to 0 (the turn-on point).

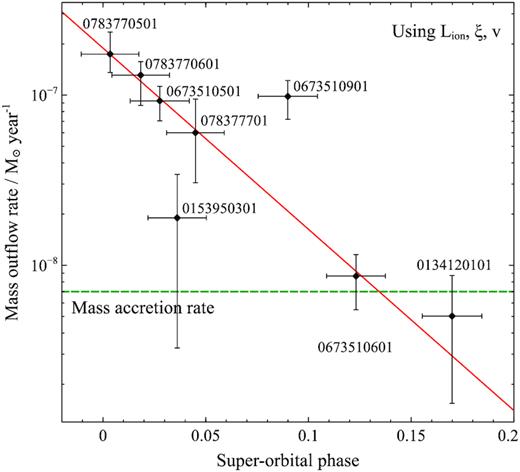

Figure 14.

Wind mass outflow rate versus the superorbital phase of each observation. The red line shows the best log-linear fit to the data, excluding observations 0153950301 and 0673510901 and treating them as outliers.

Open in new tabDownload slide

At this point we can make a zeroth-order effort to calculate the real mass outflow rate which accounts for the limited wind launching solid angle. We can use the fact that the mass outflow rate decreases very steeply with the increasing superorbital phase. We assume that each superorbital phase corresponds (‘maps to’) to a specific angle between our line of sight and the accretion disc plane. We also assume that the dependence between this angle and the phase is linear. This is naturally a gross oversimplification, and in reality the function might resemble a sinusoid (but not necessarily, we again refer to fig. 3 from Leahy 2002). At phase equal to 0, the angle is also zero – the surface of the accretion disc is just about grazing our line of sight towards the neutron star. At the highest luminosity of Her X-1, which occurs roughly around phase equal to 0.12 (Staubert et al. 2013), the angle will then also reach a maximum.

If the superorbital disc precession drives the wind variation, the outflow must have a small solid launching angle with an opening angle of ∼5°. It is possible that fully ionized material, undetectable with X-ray spectroscopy, is launched to larger solid angles. However, at high ionization levels this material contributes little to the overall mass outflow rate budget, unless it is launched at much larger velocities. A small wind opening angle is also supported by the fact that any P-Cygni profiles from outflowing material not along our line of sight are weak or non-existent (as opposed to other binaries where evidence of P-Cygni features was seen, Miller et al. 2015b). This is especially the case for the highest quality observations (0673510501 and 0783770601). Furthermore, at higher superorbital phases, we do not observe any signatures of winds from phases close to 0, which suggests that the wind is launched directly at us, i.e. its vertical velocity component is likely not large.

At the moment it is not clear which of the above possibilities is correct – whether the evolution of the wind is dictated by the ionising luminosity, by the superorbital phase or in fact by some combination of both. Future studies, which will sample wind evolution during the superorbital phase more densely, might be able to answer this question. To conclude, Hercules X-1 is a fascinating system that potentially offers us a unique opportunity to sample the vertical structure of an equatorial accretion disc wind.

6 CONCLUSIONS

We have performed an in-depth X-ray spectral analysis of Hercules X-1 with XMM–Newton combining both broad-band and high-spectral resolution instruments and focusing mainly on the high-flux state of this famous object. The conclusions of our study are as follows:

• We detect a highly ionized blueshifted wind in the high state of Her X-1. The detection is statistically significant in most of the XMM–Newton observations. The wind has a projected outflow velocity of 200–1000 km s⁻¹, varying between different observations, and an ionization parameter in the range of log ξ of 3.0–5.0. Her X-1 can thus be added to a list of known neutron star binaries with detected ionized outflows, such as GX 13+1, IGR J17480−2446, and IGR J17591−2342.

• While photon pile-up due to very high X-ray fluxes might affect a fraction of our datasets, especially pn and RGS 2 data, we conclude that the wind detection is robust and the absorption features are not induced by this instrumental effect.

• We find a clear correlation between the luminosity of Her X-1 and the ionization parameter of the wind, suggesting that the material in the outflow observes a similar X-ray flux as we do. We also observe a correlation between the superorbital phase and the ionization parameter. We do not observe any significant correlations between the outflow velocity and these two parameters.

• The best-fitting wind properties suggest that the absorption takes place within the accretion disc of the primary. It is plausible that the X-ray outflow, launched from the accretion disc, is the progenitor of the UV blueshifted absorption observed in Her X-1, but the latter only occurs at larger, circumbinary distances from the system.

• We find that the mass outflow rate in the wind can easily be of the same order as the mass accretion on to Her X-1. It is thus an important component of the accretion process. We conclude that it is driven either by Compton heating of the outer accretion disc or by magnetic fields.

• If the superorbital phase is the driver for the wind variability instead of the ionising luminosity, the individual observations are likely observing different lines of sight above the accretion disc and sampling the vertical structure of the wind. If this is the case, we can estimate the mass outflow rate corrected by the limited launching solid angle to be 5 × 10⁻⁹ M_⊙ yr⁻¹, approximately 70 per cent of the mass accretion rate.

• Our chemical analysis of elemental abundances in the ionized wind finds a strong overabundance of iron compared to oxygen. We also confirm results of previous studies which found an overabundance of nitrogen and neon compared to oxygen. At the same time, there is evidence that oxygen is not in fact underabundant compared to the remaining chemical elements.

• None of the low state or short-on XMM–Newton observations of Her X-1 are of high enough quality to detect a similarly ionized wind. We stack all of the available low-state data but do not find obvious evidence of blueshifted absorption. Future long exposure observations, or observations with instruments with higher collecting area (such as Athena, Nandra et al. 2013) might be able to detect a wind if present.

ACKNOWLEDGEMENTS

PK acknowledges support from the Science and Technology Facilities Council (STFC). ACF acknowledges support from European Research Council Advanced Grant Feedback 340442. CP is supported by European Space Agency (ESA) Research Fellowships. DJW acknowledges support from STFC Ernest Rutherford fellowships. CSR thanks the UK Science and Technology Facilities Council for support under Consolidated Grant ST/R000867/1. This work is based on observations obtained with XMM–Newton, an ESA science mission funded by ESA Member States and USA (NASA).

Footnotes

REFERENCES

APPENDIX A: PILE-UP

One important issue which needs to be discussed is that of pile-up. Table 1 shows that the count rates in both RGS and pn during most of the observations are indeed very high. Count rates of up to ∼800 counts s⁻¹ in pn are reached during some of the observations, which is close to the pile-up limit for timing mode observations. Furthermore, this does not take into account any variability and especially pulsations of the source. It is therefore not surprising to expect some pile-up in the higher flux observations.

The count rates observed in the RGS cameras are also high, with up to about 20 counts s⁻¹ per camera. The pile-up threshold in RGS is usually defined by a maximum count rate per CCD in RGS 1 or 2. Its effect is to move first-order events to the second order and thus degrade both of these spectra. The threshold is roughly 12 counts s⁻¹ per CCD in RGS 1 and 6 counts s⁻¹ per CCD in RGS2 (because one of the two read-out nodes in RGS 2 is disabled).² This is the maximum summed count rate of all orders per CCD.

Fig. A1 shows the count rate per Ångstrom for both orders and RGS detectors in observation 0673510801, the observation with the highest RGS flux. The figure also shows the approximate CCD edge positions and the width of each chip in Å. The total count rate per CCD can be calculated as the sum of the count rates per Å for each order times the width of each CCD in Å (which is different in each order, the width in the second order is half that of the first order). The figure shows that multiple CCDs between CCD3 and CCD7 could be affected by pile-up. The approximate fluxes per CCD are: CCD 8 – 2.5 cts s⁻¹, CCD 7 – 4.4 cts s⁻¹, CCD6 – 4.6 cts s⁻¹, CCD 5 – 4.5 cts s⁻¹, CCD 4 – 4.5 cts s⁻¹, CCD 3 – 4.2 cts s⁻¹, and CCD 2 – 2.8 cts s⁻¹. These values are hence below the 6 cts s⁻¹ RGS 2 limit, but again, the are only the average count rates for a variable and pulsating source. It is not inconceivable to imagine a 50 per cent flux spike (e.g. during the pulse) during which the count rate in some CCDs would exceed 6 cts s⁻¹. We thus conclude that while RGS 1 should be unaffected by pile-up, RGS 2 might be partially affected in the highest flux observations (but probably less than pn).

Figure A1.

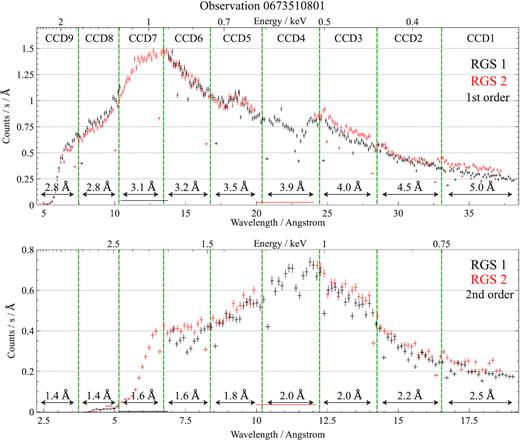

The average count rate per Å in the first and the second order of both RGS 1 and 2 instruments during the highest count rate observation 0673510801. The top plot contains the first-order count rates and the bottom plot contains the second-order count rates. RGS 1 data are in black, while RGS 2 data are red. Green vertical dashed lines show the approximate positions of chip gaps and the labels list the approximate chip sizes in Å. CCD numbers are listed on the top of the figure. The count rate per CCD can be approximated as the sum of the count rates per Å times the CCD width (in Å) of both orders.

Open in new tabDownload slide

It is unlikely that pile-up could introduce a series of narrow absorption features in both the pn and the RGS spectra that line-up in velocity space. Nevertheless, we perform two checks to show that the wind features are indeed real in at least some of the observations in this study. First, we exclude pn data from the analysis and only look at RGS1 and RGS 2 (first order) data, performing a similar fit as described in 3.2. Secondly, we also exclude RGS 2 from the analysis and only use RGS 1 first- and second-order data to show that the wind is still significantly present at least in one observation with the highest data quality.

A1 Analysis with RGS 1 and 2

The spectral model has to be modified after ignoring the pn data. The hard band (3–10 keV) data are unavailable and hence the overall broad-band spectral shape cannot be constrained. We thus replace the comt Comptonization continuum model with a simpler powerlaw. Naturally the 6.6 keV Gaussian line is omitted as it is out of the current energy band (0.35–1.8 keV). The remaining model components are identical as before. The continuum model is therefore: hot×(powerlaw+bb+4×gauss+cie). Since we do not have access to a broad-band 0.3–10 keV SED while only using the RGS data, we also have to resort to using the xabs photoionization absorption model with the default SED.

The data are first fitted with the continuum model, after which we add the wind absorption. We fit for the wind parameters and also recover the fit improvement. The results are listed in Table A1. For this check we only use the five observations with the strongest significance of the wind detection. It is evident that while for some observations, there is a large decrease of significance after ignoring the pn data set, multiple still show strong evidence for the wind absorption. Most importantly, observations 0673510501 and 0783770601 show a ΔC-stat of more than 40 which confirms the reality of the absorption features.

We also notice (Table A1) that the RGS only analysis predicts very high ionization levels of the outflowing gas, much higher than the full broad-band analysis. This is because of the absence of the crucial Fe K band containing the |$\rm{Fe\,{\small XXV}}$| and |$\rm{Fe\,{\small XXVI}}$| ions. These transitions are necessary for putting upper limits to the ionization parameter of plasma at high ionization levels.

A2 Analysis with RGS 1 only

The most stringent test is to only use RGS 1 data, being the instrument that is the least affected by pile-up. Unfortunately, CCD 7 is disabled in RGS 1 so important 10–13 Å waveband containing the |$\rm{Ne\,{\small X}}$| absorption line is lost. We therefore also use the second-order RGS 1 data, which has access to this part of the spectrum, although we note that the data quality is significantly lower.

Here we only use data from observation 0673510501 (which has the strongest wind features) to show that even in the worst case of pile-up, there is at least one observation with a statistically significant wind detection. We use the same continuum and wind spectral models as in the previous section. The best-fitting spectra are shown in Fig. A2. The recovered wind parameters are column density of (0.16 ± 0.04) × 10²⁴ cm⁻², ionization parameter of log ξ = 4.2 ± 0.2, systematic velocity of −1140 ± 120 km s⁻¹, and a turbulent velocity of |$280_{-90}^{+120}~$| km s⁻¹. The fit improvement ΔC-stat is 33.12. This is a large enough fit improvement to consider the wind detection significant (although we note again that extensive Monte Carlo simulations would be necessary to prove it rigorously).

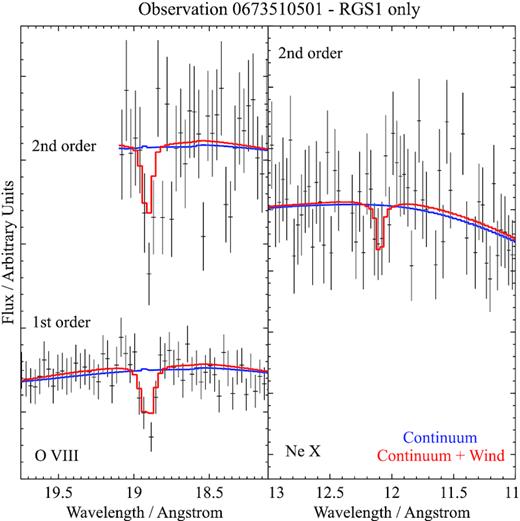

Figure A2.
