Two sub-millimetre bright protoclusters bounding the epoch of peak star-formation activity Free

ABSTRACT

We present James Clerk Maxwell Telescope Submillimetre Common-User Bolometer Array 2 (SCUBA-2) 850 and 450 |$\mu$|m observations (σ₈₅₀ ∼ 0.5 mJy, σ₄₅₀ ∼ 5 mJy) of the HS1549+19 and HS1700+64 survey fields containing two of the largest known galaxy overdensities at z = 2.85 and 2.30, respectively. We detect 56 sub-millimetre galaxies (SMGs) with SNR > 4 over ∼50 arcmin² at 850 |$\mu$|m with flux densities of 3–17 mJy. The number counts indicate overdensities in the 3-arcmin diameter core region (∼1.5 Mpc at z = 2.5) of |$6^{+4}_{-2}\times$| (HS1549) and |$4^{+6}_{-2}\times$| (HS1700) compared to blank field surveys. Within these core regions, we spectroscopically confirm that approximately one-third of the SMGs lie at the protocluster redshifts for both HS1549 and HS1700. We use statistical identifications of other SMGs in the wider fields to constrain an additional four candidate protocluster members in each system. We combine multiwavelength estimates of the star-formation rates (SFRs) from Lyman-break dropout- and narrow-band-selected galaxies, and the SCUBA-2 SMGs, to estimate total SFRs of 12 500 ± 2800 M_⊙ yr⁻¹ (4900 ± 1200 M_⊙ yr⁻¹) in HS1549 (HS1700), and SFR densities (SFRDs) within the central 1.5-Mpc diameter of each protocluster to be 3000 ± 900 M_⊙ yr⁻¹ Mpc⁻³ (1300 ± 400 M_⊙ yr⁻¹ Mpc⁻³) in the HS1549 (HS1700) protocluster, ∼10⁴ × larger than the global SFRDs found at their respective epochs, due to the concentration of star-forming galaxies in the small volume of the dense cluster cores. Our results suggest centrally concentrated starbursts within protoclusters may be a relatively common scenario for the build-up of mass in rich clusters assembling at z ≳ 2.

1 INTRODUCTION

In the local Universe, galaxy clusters represent some of the densest environments where mostly passive galaxies reside, with the most massive elliptical galaxies known residing at their centres (e.g. Bower, Lucey & Ellis 1992; Ellis et al. 1997; Stanford, Eisenhardt & Dickinson 1998; van Dokkum, Franx & Dokkum 2001; Holden et al. 2005). Therefore, massive galaxy clusters must have formed the bulk of their member galaxies’ stellar mass at early times (e.g. Archibald et al. 2001; Hopkins & Beacom 2006). At high redshift, a significant amount of enhancement of star-formation is observed in galaxies residing in candidate protoclusters – the progenitors of massive local galaxy clusters (e.g. Steidel et al. 2000; Geach et al. 2005; Chapman et al. 2009; Capak et al. 2011; Muzzin et al. 2011; Webb et al. 2013; Clements et al. 2014; Smail et al. 2014; Casey et al. 2015; Ma et al. 2015; Daddi et al. 2017; Umehata et al. 2017; Stach et al. 2017, 2018; Strazzullo et al. 2018). Thus, there is some evidence that at high redshift, galaxy evolution is accelerated at early times in regions of strong overdensity.

Lyman break galaxies (LBGs) have been used to identify some of the densest known protoclusters at z > 2, both from blind redshift surveys (e.g. Steidel et al. 1998, 2000, 2005, 2011) and from pointed follow-up to other beacons of early structures such as luminous radio galaxies (e.g. Kurk et al. 2000; Pentericci et al. 2000; Hayashino et al. 2004). Sub-millimetre (submm) surveys of high-redshift galaxy protoclusters traced by LBGs or radio galaxies have shown evidence of enhanced star-formation rates (SFRs) within protoclusters (e.g. Stevens et al. 2003; Chapman et al. 2009; Capak et al. 2011; Dannerbauer et al. 2014; Smail et al. 2014; Casey et al. 2015). Recent Submillimetre Common-User Bolometer Array 2 (SCUBA-2) observations of protoclusters have shown that sub-millimetre galaxies (SMGs) in these systems tend to be centrally concentrated and reside in overdense environments, suggesting rapid galaxy evolution in high-density environments in the early Universe (e.g. Casey et al. 2015; Ma et al. 2015; Umehata et al. 2015; Alexander et al. 2016; Stach et al. 2017).

In this paper, we present deep Sub-Millimetre Common-User Bolometer Array 2 (SCUBA-2, Holland et al. 2013) observations of two protocluster fields that were uncovered through the identification of redshift overdensities of LBGs: HS1549+19 (Steidel et al. 2011) and HS1700+64 (Steidel et al. 2005) (hereafter HS1549 and HS1700). These target fields were chosen from the 15 survey fields of the Keck Baryonic Structure Survey (KBSS – e.g. Rudie et al. 2012), a field galaxy survey at z > 2 aimed at understanding the relation of galaxies to their circumgalactic medium. The HS1549 and HS1700 fields contain the strongest redshift overdensities found in the survey. In HS1549, the galaxy overdensity is even larger than that of HS1700, exhibiting a factor of 13 times that of the field in a volume of ∼5000 Mpc³, and has almost 10× the surface density of Ly α emitters (LAEs) compared to the average among 20 fields covered to a similar depth, representing one of the richest fields of Ly α-selected objects ever observed, at any redshift (Steidel et al. 2011 & Steidel et al. in preparation).

In Section 2 we summarize the details of our submm, and optical/infrared (IR) observations for each field. In Section 3 we present our submm detections, quantify the submm number counts, and present candidate IR counterparts. In Section 4 we determine the cluster membership for a selection of submm detections using spectroscopic and photometric redshifts, and then estimate the total SFR for each protocluster. Finally, we present our conclusions in Section 5. Throughout this paper, we use the Vega magnitude system, and assume a flat concordance cosmology with |$\rm (\Omega _m,\Omega _\Lambda ,H_0) = (0.3,0.7,70$| km s⁻¹ Mpc⁻¹). In this cosmology, the Universe is 2.9 and 2.3 Gyr old and 1.0 arcsec corresponds to 8.4 and 8.0 kpc in physical length at z = 2.3 and 2.85, respectively.

2 OBSERVATIONS AND DATA REDUCTION

This work is primarily based on submm imaging using SCUBA-2 mounted on the James Clerk Maxwell Telescope (JCMT). We also use existing multiwavelength imagery and photometry within our fields from various archives [e.g. Spitzer Infrared Array Camera (IRAC) and Multiband Imaging Photometer (MIPS), and Hubble Space Telescope (HST)] (see Section 2.4).

2.1 SCUBA-2 observations

Observations were conducted in Band 1–2 weather conditions (τ_225GHz ∼ 0.04–0.07) over four nights between 2012 May 26 and 2013 April 20 totalling 9.8 h of on-sky integration time (HS1549), and over five nights between 2013 April 10 and 2013 September 18, totalling 19.7 h of on-sky integration (HS1700). The mapping centre of the SCUBA-2 H1549+19 field was (RA, Dec.) = (15^h51^m53^s, +19°11′04″), and the mapping centre for HS1700+64 field was (RA, Dec.) = (17^h01^m00|${^{\rm s}_{.}}$|6, +64°12′09″), and both fields are surveyed over ∼155 arcmin². The mapping centres for the SCUBA-2 observations correspond to the position of the most luminous QSOs in the corresponding KBSS field. A standard 3-arcmin diameter daisy mapping pattern was used (e.g. Kackley et al. 2010), which keeps the pointing centre on one of the four SCUBA-2 sub-arrays at all times during exposure. The coverage of the SCUBA-2 observations in HS1549 is wider than the optical coverage, and thus the SMG distribution is wider than the LBG distribution in the field.

Individual 30 min scans are reduced using the dynamic iterative map-maker of the smurf package (Chapin et al. 2013; Jenness et al. 2013). Maps from independent scans are co-added in an optimal stack using the variance of the data contributing to each pixel to weight spatially aligned pixels. Finally, since we are interested in (generally faint) extragalactic point sources, we apply a beam matched filter to improve point source detectability, resulting in a map that is convolved with an estimate of the 450 |$\mu$|m beam. The average exposure time over the nominal 3-arcmin daisy mapping region (in practice there is usable data beyond this) is approximately 9 ksec per 2 arcsec × 2 arcsec pixel for HS1549 and 18 ksec per 2 arcsec × 2 arcsec pixel for HS1700.

The sky opacity at JCMT has been obtained by fitting extinction models to hundreds of standard calibrators observed since the commissioning of SCUBA-2 (Dempsey et al. 2012). These maps have been converted from pW to Jy using the standard flux conversion factors (FCFs) of FCF₄₅₀ = 491 Jy beam⁻¹ pW⁻¹ and FCF₈₅₀ = 547 Jy beam⁻¹ pW⁻¹, with effective 450 and 850 |$\mu$|m beam sizes of 10 and 15 arcsec (Dempsey et al. 2013), respectively.

To determine the accuracy of the absolute pointing accuracy of the 850 |$\mu$|m catalogue, we compare the coordinates of 850 |$\mu$|m sources (detected at >4σ, see Tables 1 and 2) with the closest matched counterparts at 24 |$\mu$|m (similar as to what is described in Ma et al. 2015). Upon removing 9 (7) sources in HS1549 (HS1700) (outliers, non-detections, or foreground galaxy contamination), the mean offset of the remaining 20 (20) HS1549 (HS1700) counterparts at 24 |$\mu$|m are ΔRA = 0.8 arcsec ± 0.6 arcsec (1.1 arcsec ± 0.8 arcsec) for HS1549 (HS1700) and ΔDec. = 0.4 arcsec ± 0.4 arcsec (0.7 arcsec ± 0.6 arcsec) for HS1549 (HS1700). Hence, there are no significant offsets between the SCUBA-2 850 |$\mu$|m and infrared astrometry.

The variance map was derived from the pixel integration (e.g. Koprowski et al. 2015). The RMS within the central 3-arcmin diameter regions are 0.6 and 4.6 mJy beam⁻¹ (HS1549) and 0.45 and 4.3 mJy beam⁻¹ (HS1700) at 850 and 450 |$\mu$|m, respectively. Our depths reached at both 850 and 450 |$\mu$|m and smaller beam sizes allow us to probe sources at these redshifts more effectively than the confusion-limited Herschel maps (e.g. Kato et al. 2016).

2.2 SMA observations

The SMA was used to resolve the central elongated submm source 1549.1 (Table 1). The details of these observations are given in Chapman et al. (in preparation), and are briefly discussed here. A mosaic of three SMA pointings were obtained on 2013 August 15 and 2013 September 7 in the compact configuration (synthesized beam size ∼2 arcsec with natural weighting) in good weather (τ_225GHz ∼ 0.08) with a total on-source integration time of approximately 12 h through the three tracks, yielding a final RMS₈₇₀ of 0.8 mJy beam⁻¹ in the central regions. The astrometric uncertainties are Δα = 0.24 arcsec (0.20 arcsec systematic; 0.13 arcsec statistical) and Δδ = 0.22 arcsec (0.19 arcsec systematic; 0.10 arcsec statistical). The data were calibrated using the mir software package (Scoville et al. 1993), modified for the SMA.

2.3 Gemini spectroscopy

Near-infrared spectra of 13 of our identifications for proto-cluster SMGs were obtained using the cross-dispersed mode of the Gemini Near-Infrared Spectrograph (GNIRS) on the Gemini North 8.1 m telescope (1700.4, 1700.5_2, 1700.7_1,_2,_3,_4, 1700.8_1, 1700.9, 1700.14, 1700.15_1,_2, and 1700.16, Table 2). This GNIRS configuration provides a continuous spectral coverage from ∼0.84 to 2.48 |$\mu$|m at a spectral resolution of ∼1500 with a spatial scale of 0.15 arcsec per pixel. The 1.0 arcsec × 7 arcsec slit centred on the peak of the 2.2 |$\mu$|m emission. The seeing during the observations was ∼0.8 arcsec as measured from the telluric A1V standard HIP 58616, observed right before the science targets at a similar airmass. The strongest emission features we expect to observe are |${}[\text{O}\, \rm \small {II}]$| 3727, |${}[\text{O}\, \rm \small {III}]$| 5007, [N ii] 6548, [N ii] 6583, and H α.

The observations used an object-sky-sky-object pattern, with the sky position 50 arcsec away from the science target, free of extended emission or background stars. Eight individual on-source integrations of 240 s each were carried out.

The spectral reduction, extraction, and wavelength and flux calibration procedures were performed using version 1.9 of the ‘xdgnirs’ code detailed in Mason et al. (2015). Briefly, the processing consists of removing cosmic ray-like features, dividing by a flat field, subtracting sky emission, and rectifying the tilted, curved spectra. Wavelength calibration is achieved using argon arc spectra, and then a spectrum of each order is extracted, divided by a standard star to cancel telluric absorption lines, and roughly flux-calibrated using the telluric standard star spectrum. The pipeline merges the different spectral orders for each extraction window into a single 1D spectrum from 0.84 to 2.48 |$\mu$|m. In all cases the agreement in flux between the overlapping regions of two consecutive orders was very good, and scaling factors of |$\lt 3 \rm {\,per\,cent}$| were necessary. See Section 3.4.3 for the spectroscopic redshifts obtained.

2.4 Ancillary data

We also draw on previous imaging taken in these fields. For the HS1700 field we obtained additional data from: The William Herschel 4.2m Telescope (WHT) on La Palma with the Prime Focus Imager (see Steidel et al. 2004), Spitzer-IRAC images (see Shapley et al. 2005), Spitzer-MIPS images (see Reddy et al. 2006), HST/ACS images (see Peter et al. 2007), HST/WFC3 F160W images (see Law et al. 2012), Palomar/WIRC for near-IR photometry (see Erb et al. 2006), and Ly α and H α narrow-band images from Palomar LFC (see Steidel et al. 2011 and Bogosavljevi 2010). Additionally, for the HS1549 field we obtained data from: Spitzer-IRAC 24 |$\mu$|m images (see Reddy et al. 2010), Spitzer-MIPS images (see Reddy et al. 2006), HST/F160W images (see Law et al. 2012), Palomar/WIRC for near-IR photometry (see Erb et al. 2006), and Ly α imaging from Keck/LRIS (see Steidel et al. 2011 and Mostardi et al. 2013). Finally, we obtain 250, 350, and 500 |$\mu$|m fluxes from Kato et al. (2016) archival Herschel-SPIRE maps for 21/27 SCUBA-2 sources in the HS1700 field. We estimate the uncertainties for each flux measurement from the quadrature sum of the confusion noise and instrumental noise.

3 ANALYSIS AND RESULTS

3.1 Submm source detection

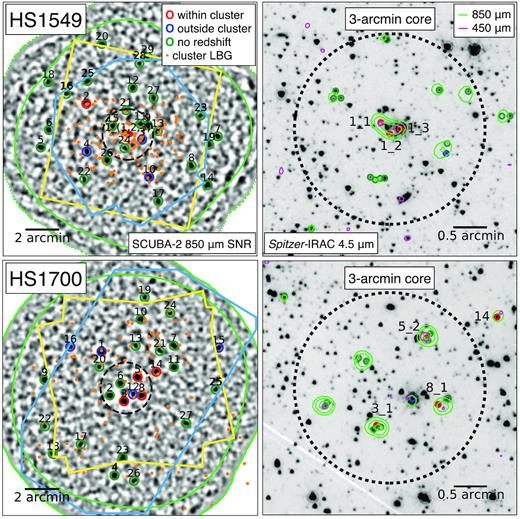

We have generated submm source catalogues from our 850 |$\mu$|m SCUBA-2 maps, using the data and variance maps produced from oracdr’s pipeline process via the Starlink package. We removed the high noise regions near the edge of the map, where the on-sky exposure time was less than 20 per cent that of the centre of the map. The regions we selected sources from had RMS₈₅₀ ≤ 1.5 mJy beam⁻¹ (HS1549) and RMS₈₅₀ ≤ 0.9 mJy beam⁻¹ (HS1700).

We used a peak-finding algorithm to choose sources whose flux per beam exceeded 4× the local RMS noise in the variance map. We then found the position of these sources by fitting centroids to their peak position. Within our 850 |$\mu$|m SCUBA-2 maps we have detected 29 > 4σ sources (HS1549) and 27 > 4σ sources (HS1700), as shown in Tables 1 and 2, listed in decreasing SNR. Fig. 1 shows the 850 |$\mu$|m SCUBA-2 images for each field and Spitzer-IRAC 4.5 |$\mu$|m image of the 3-arcmin diameter core regions. The core regions are defined as the central 3-arcmin regions of our SCUBA-2 maps, the deepest regions of our maps where there is uniform noise. The source at the centre of the HS1549 field has been resolved by the SMA at 870 |$\mu$|m into three components with fluxes of (9, 9, and 6 mJy). These are sufficiently separated to allow for the smaller 7 arcsec beam of SCUBA-2 at 450 |$\mu$|m to provide useful photometry at each SMA position (see Section 3.3). Multiwavelength cut-outs of each of our SCUBA-2 detections may be seen in Figs C1 and C2.

3.2 Number counts

When estimating the cumulative number counts we only consider flux measurements that have been corrected for statistically boosting effects, such as a submm source being boosted by positive noise and faint line of sight and background galaxies. We correct for such selection biases by deboosting measured flux densities according to an empirical measure of flux boosting from the SCUBA-2 Cosmology Legacy Survey (S2CLS) (Geach et al. 2017). We show the cumulative number counts for all >4σ 850 |$\mu$|m sources within each protocluster field in Fig. 2. We compute the counts within each deboosted flux bin and divide by the area over which we find these sources. If the flux bin is less than the average RMS of the entire field then the area is adjusted to the part of the map which is sensitive enough to detect these sources, and only sources that reside within these adjusted areas are counted.

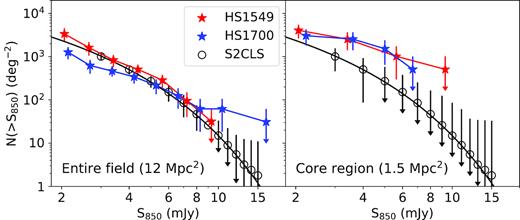

We compare our counts to that of the S2CLS, the largest 850 |$\mu$|m survey to date with ∼3000 detected submm sources over ∼5 deg² with an average 1σ₈₅₀ sensitivity of 1.2 mJy beam⁻¹. We estimate sampling uncertainties on the S2CLS counts (which are larger than published Poisson uncertainties) by randomly sampling (N = 10⁵) the deboosted source catalogues for sources which lie within the inner 50-arcmin diameter of S2CLS-UDS field with apertures the size of the field and core, 12 and 3-arcmin diameter, respectively, and measuring the 1σ deviation from the mean. The S2CLS-UDS field was chosen for measuring uncertainties, as it was generated from PONG observations, where the RMS remains relatively constant throughout the map (Dempsey et al. 2013). Over the entire HS1549 SCUBA-2 field we do not find any overdensity for sources brighter than 4 mJy (see Fig. 2), compared to S2CLS sampled on the same scale of 12-arcmin diameter (∼6 Mpc at z ∼ 2.5). Sampled on the same scale, we discover a possible overdensity between 5 and 100× for sources brighter than 8 mJy in the HS1700 SCUBA-2 field, compared to the S2CLS field. However, these measures are highly uncertain, as there are few sources per bin.

We then quantify the number counts only in a core region of each protocluster field to assess whether the protoclusters show a more centrally concentrated overdensity in SMGs. We select a 3-arcmin diameter region where the deepest sensitivity limit is reached in the DAISY mode of SCUBA-2, and where the noise is relatively constant over the full area. The core regions were selected based on the mean optical positions of the LBGs within each field. The number counts over the 3-arcmin diameter core regions shown in Fig. 2 indicate that both fields are significantly overdense (at >3σ considering the full flux range of the counts) compared to the average counts of the S2CLS, even considering our Monte Carlo derived uncertainties in the 3-arcmin aperture, which are significantly larger than the Poisson errors on the S2CLS counts themselves. Our protocluster regions show overdensities within their ∼1.5 Mpc core regions of |$6^{+4}_{-2}\times$| (HS1549) and |$4^{+6}_{-2}\times$| (HS1700).

This analysis reveals that above survey depth the large 12-arcmin diameter SCUBA-2 fields are likely diluted by line-of-sight SMGs and are not statistically overdense, similar to many known protocluster fields (e.g. SSA22 Steidel et al. 1998, 2010, HDF1.99 Chapman et al. 2009, COSMOS Casey et al. 2013). However, there appears to be a clear active (SMG luminous) core region in both protoclusters.

Since SCUBA-2 has a relatively large beam compared to the size of a high-redshift galaxy, there is the possibility that the submm emission from multiple galaxies is being blended and identified as a single submm source (e.g. Younger et al. 2009; Hodge et al. 2013; Karim et al. 2013; Simpson et al. 2015; Hill et al. 2018; Stach et al. 2017, 2018). Therefore, the number counts presented in Fig. 2 are upper limits at bright 850 |$\mu$|m fluxes and lower limits at fainter fluxes. This could lead to an even stronger centrally dominated overdensity of fainter sources once the sources are resolved by interferometry.

The SMG overdensity in HS1700 has a distribution that peaks near the mean optical galaxy cluster centre (Steidel et al. 2005), but is offset ∼40 arcsec (320 kpc) to the north compared to the optical galaxies. Kato et al. (2016) have suggested a central protocluster position ∼2.1 arcmin north using seven Herschel-SPIRE sources having colours consistent with z ∼ 2.3, although only one of their sources confirmed to lie within the protocluster, 1700.5, which has a spectroscopic line detections and photometric redshifts locating the source at z = 2.3 (see Sections 3.4.3 and 3.4.5). When applying our SCUBA-2 overdensity analysis at the Kato et al. (2016) offset position, we find no such evidence for excess. The optical centroid of the protocluster is likely the most reliable tracer of the mass distribution, as the optical sources have longer duty cycles than the more active SMGs, even though the latter are likely to be more massive on average (e.g. Chapman et al. 2009). However, the submm observations can be useful tracers of peak activity periods within the protocluster, and can thus reveal the formation modes.

3.3 Counterpart identification

There are 10 (HS1549) and two (HS1700) SCUBA-2 sources lacking any viable IRAC IDs due to either the lack of coverage of the IRAC data, obscuration by a foreground star or galaxy, or there being no IRAC-detected galaxies residing within the SCUBA-2 error circle. These sources have been excluded from Tables 1 and 2. There are four (one) SCUBA-2 850 |$\mu$|m sources in HS1549 (HS1700) which appear significantly elongated, even with the large 15 arcsec beam (1549.1, 1549.3, 1549.7, 1549.25, 1700.15), suggesting they may have multiple submm counterparts. In the first case, 1549.1, the SMA observations (described in Section 2) directly resolve three components at >5σ, consistent with the elongated SCUBA-2 morphology (fluxes and positions in Table 1).

We also use MIPS 24 |$\mu$|m data which provides an alternative route to identify star-forming galaxies, and can be a useful aid to confirming the identification to the SMGs. However, there are four cases in HS1549 (1549.12, 1549.22, 1549.24, 1549.27) and five cases in HS1700 (1700.2, 1700.3, 1700.7 1700.10, 1700.27) where IRAC identifications cannot be reliably measured with MIPS 24 |$\mu$|m because the large point spread function of a nearby bright 24 |$\mu$|m source overlaps the IRAC position. In HS1700 we do not have MIPS 24 |$\mu$|m data for seven of 27 SCUBA-2 sources, making ID’s more uncertain. Furthermore, in HS1549 there is no coverage with MIPS or IRAC for eight of 29 sources, making IR identification impossible for these sources. We exclude these sources from our protocluster membership analysis.

Finally, we consider whether any of the SCUBA-2 sources are gravitationally lensed by searching for counterpart IDs that appear to be very low-redshift, massive foreground galaxies. While there are two foreground galaxy clusters (of modest mass) in the HS1700 field, we find no evidence for strong galaxy–galaxy gravitational lensing for our SCUBA-2 sources or IRAC IDs (consistent with the expected rate of lensing of typical SMGs of ≃ few per cent, Chapman et al. 2002). The counterpart to 1549.16 shows a bright IRAC and optical ID, offset 2 arcsec from the 850/450 |$\mu$|m centroids, which may suggest weak gravitational lensing of our SCUBA-2 ID.

3.4 Cluster membership

To assess the redshifts of the SCUBA-2 source IDs, we used several spectroscopic and photometric data sets. Using one or more of ¹²CO(3-2) detections, near-IR and optical spectroscopy, we confirm three (four) SMG candidates residing in the protocluster of HS1549 (HS1700), one (two) SMG(s) likely being members (the primary ID is not confirmed at the protocluster redshift, but nearby sources in the SCUBA-2 beam are). Further, we confirm three (four) SMGs definitely residing outside of the protoclusters. We note that although CO is an unambiguous tracer for the the SCUBA-2 IDs, the optical/NIR spectroscopic sources could be uncorrelated with the S2 sources, as they might be other foreground/background sources along the same line of sight, rather than the actual SMG. Since there are many galaxies at the protoclusters’ redshifts in these protocluster fields, finding that an IRAC ID with a statistically reliable P-value at the protocluster’s redshift, does not guarantee necessarily it is the SMG ID.

3.4.1 IRAM-NOEMA CO(3-2)

The most secure way of determining the redshift of an SMG is by detecting the associated molecular reservoir directly (e.g. as described in Bothwell et al. 2013). In HS1549, the core region was observed with IRAM-NOEMA detecting CO(3-2) lines at z ∼ 2.85 centred on each of the three SMA identified sources (Chapman et al. in preparation). At the redshift 2.85, the 4.5σ CO line detection threshold if L_lim = 7 × 10⁹ K km s⁻¹ pc², comparable with the faintest CO detections reported so far from 3mm observations at these redshifts (Bothwell et al. 2013; Tacconi et al. 2013).

The positions of the 870 |$\mu$|m sources are consistent within 0.2 arcsec with the centroid of the line measurements from NOEMA for all three counterparts. All three sources are clearly in the protocluster: 1549.1_1 (z = 2.856), 1549.1_2 (z = 2.851), and 1549.1_3 (z = 2.847). The same IRAM-NOEMA programme also showed that 1549.3 resides at redshift z = 2.918, which is close to the protocluster redshift (Δv_rest = 20 400 km s⁻¹), but is too far from the peak redshift distribution to be in the same collapsing structure. 1549.3 does not reside at a statistically robust redshift peak, but may represent a structure which will eventually merge with the primary z = 2.85 cluster. Additionally, 1549.10 was found to not be detected in CO(3-2), suggesting this source lies at a redshift other than the protocluster’s redshift or is gas poor.

In the HS1700, no SMGs have been proven to be physically related to the HS1700 protocluster based on the NOEMA CO(3-2) observations. The CO(3-2) followups have been undertaken by Tacconi et al. (2013) and Chapman et al. (2015). In the latter study, the brightest SMG in the HS1700 field, 1700.1, was identified at z = 2.816, residing behind the protocluster. The same PdBI programme also showed 1700.15 was not detected in CO(3-2), again suggesting this source lies at a different redshift. The Tacconi et al. (2013) observations include 1700.11 within the primary beam, failing to detect any CO line, but the narrow bandwidth of these older observations does not preclude 1700.11 still lying within the protocluster.

3.4.2 Optical spectroscopy

In HS1549, two of the three central sources detected in CO(3-2), 1549.1_1, and 1549.1_3 had previously known redshifts from the optical. 1549.1_1 is associated with an active galactic nucleus (AGN), MD17 in Steidel et al. (in preparation) (z = 2.856), while 1549.1_3 is the central hyper-luminous QSO itself (z = 2.847), both detecting the standard type-1 AGN high-ionization emission lines. The source 1700.12 is associated with the central QSO in HS1700. Redshifts for these QSOs were identified at z_HS1700 = 2.72 (behind the protocluster) and z_HS1549 = 2.85 (within the protocluster) in the Hamburg Quasar Survey (Reimers et al. 1989).

3.4.3 Near-IR spectroscopy

We have followed up 13 submm sources within HS1700 using Gemini GNIRS and the details of these observations are found in Section 2.3. With five detections and eight non-detections, we have confirmed four of 13 sources as protocluster members. The remainder do not detect emission lines, but this is not conclusive of the source not being at the protocluster redshift as their counterparts are sufficiently faint in the near-IR continuum that the non-detection of nebular emission lines is still consistent with expected equivalent widths in star-forming galaxies. We found 1700.4 (z = 2.318), 1700.5_2 (z = 2.303), 1700.7_1 (z = 2.313), and 1700.17 (z = 2.306) show prominent H α, [N ii] detections and lie in the protocluster, while 1700.16 was found to reside out of the protocluster at z = 1.575 (see Fig. B1). In all cases, the redshift is for the most probable IRAC identification to the SMG, and is either a likely identification (P ≤ 0.05) or a tentative association (0.05 < P ≤ 0.10). We note that the GNIRS spectra for 1700.4, 1700.5_2, and 1700.17 have strong sky line residuals surrounding the main spectral features, and as a result they may have systematic offsets of a couple hundred km s⁻¹, resulting in somewhat uncertain IDs. The spectra for the five positive detections are found in Appendix  B.

3.4.4 LBGs and NB-imaging

Where possible, we determine cluster membership from IRAC IDs discussed in Section 3.3, which we cross-correlate against existing catalogues of spectroscopically identified LBGs, and narrow-band sources targeting the protocluster redshift.

For the SCUBA-2 ID 1549.2 we found three existing spectroscopic detections within the SCUBA-2 15 arcsec beam which all reside within the protocluster at z = 2.837, z = 2.835, and z = 2.842. Although none of these LBGs are associated with the IRAC ID, the LBGs may still be associated with the SCUBA-2 ID.

Using the same technique, we found the SCUBA-2 ID 1549.4 is possibly associated with two different galaxies separated by 3 arcsec, a BX-selected galaxy residing at z = 2.388, outside of the protocluster, and an IRAC ID. Although both galaxies are at similar angular offsets to the SCUBA-2 ID, the density of IRAC galaxies is significantly higher than that of BX-selected galaxies for the limiting magnitude of the map. Therefore, the BX-selected galaxy is more likely associated with the SCUBA-2 ID, with P = 0.004, suggesting 1549.4 likely resides outside of the protocluster.

3.4.5 Photometric redshifts

For the most part, our IRAC IDs do not have photometric redshifts in the catalogues, due to very faint fluxes in the optical bands. Deeper optical imaging would allow for additional constraints from photometric redshift analysis. However, we have identified two colour-selected LBGs which have red infrared colours, J − K > 2.3, that align with IRAC IDs in HS1700 with no recorded redshift [1700.5_1: DRG46 (also an H α-NB detection), 1700.5_3: DRG44]. As shown in large IR surveys, these photometric detections and colour-selected criteria suggest possible identification with the protocluster redshift (e.g. Simpson et al. 2014). While robust photometric redshifts are not feasible at this point, as an additional assessment of the redshifts of our IRAC identifications, we compare the IRAC colours for our IDs with those of SMGs from Simpson et al. (2014) for the ALESS survey. This analysis is detailed in Appendix  A, and reveals a reasonable consistency of many of our IDs with the redshifts of the protoclusters.

In addition, we determine photometric redshifts for SCUBA-2 IDs by measuring the SPIRE flux ratio, as shown in Appendix  A, Fig. A2. In general, the photometric redshift determined by the SPIRE colours are in agreement with the SCUBA-2 IDs known redshifts, with the exception of 1700.12. However, it can be said that since 1700.12 is a known QSO at z = 2.84, therefore raising its dust temperature, thereby shifting its SED peak such that S₅₀₀ > S₃₅₀ > S₂₅₀. Using the SPIRE colours, we uncover eight new candidate protocluster members: 1700.2 (z = 2.8 ± 0.6), 1700.3 (z = 2.1 ± 0.5), 1700.9 (z = 2.2 ± 0.3), 1700.10 (z = 2.0 ± 0.3), 1700.13 (z = 1.3 ± 1.1), 1700.15 (z = 2.3 ± 0.7), 1700.23 (z = 2.4 ± 0.6), 1700.26 (z = 2.3 ± 0.4).

3.5 Stacking protocluster galaxies at 850 |$\mu$|m

To provide measures of the overall dust obscured star-formation activity in each protocluster, we measure the submm flux at the position of each known cluster member (LBGs and narrow-band line emitters) in the 850 |$\mu$|m beam-convolved map, discarding any positions too close to individually detected SMGs where there is a peak with S₈₅₀ detected at ≥+4σ. We choose an exclusion radius of twice the SCUBA-2 beam (30 arcsec) as we found that the negative flux of the bowling regions (artefact from the matched filtering) around each SMG was negatively biasing the stacked 850 |$\mu$|m measurements. Each 850 |$\mu$|m flux is weighted by the inverse of the variance, as measured in the noise map. We then stack the weighted fluxes and compute the stack as ∑_i(S_i/σ_i)/∑_i(1/σ_i).

We find the 850 |$\mu$|m stacks to be 〈S₈₅₀〉 = 0.25 ± 0.05 mJy (HS1549: 114 protocluster galaxies) and 〈S₈₅₀〉 = 0.21 ± 0.05 mJy (HS1700: 83 protocluster galaxies); the typical protocluster member galaxy has an SFR of ∼20 M_⊙ yr⁻¹, as derived directly from the rest frame ∼230 |$\mu$|m. Multiplied by the number of stacked protocluster members, this results in integrated 850 |$\mu$|m derived SFRs in each protocluster of 2100 ± 500 M_⊙ yr⁻¹ (HS1549) and 1300 ± 300 M_⊙ yr⁻¹ (HS1700), by using equation (2). These results show that there is a statistically significant detection of submm activity associated with star-formation among protocluster galaxies.

4 DISCUSSION

From our analysis of the 850 |$\mu$|m properties of each protocluster in Section 3, we have ascertained that the overdensities defined from LBG redshift spikes in HS1549 and HS1700 are mirrored in the dusty SMG population as well. We have spectroscopically confirmed that in each protocluster, at least four of these SMGs are at the protocluster redshift, and statistically from the counts (or less robustly with photometric redshift identifications) many other SMGs must lie at the protocluster redshifts. In both protoclusters, the statistically significant SMG overdensity is confined to the core (∼1.5 Mpc diameter) region, consistent with other submm studies of protoclusters that find an overabundance of dusty luminous galaxies in the cluster core (e.g. Stach et al. 2017).

The HS1549 field also shows a higher count over the entire SCUBA-2 field than the HS1700 field, and higher than the published S2-CLS count in Geach et al. (2017). However, compared to our Monte Carlo sampling of the S2CLS-UDS map, the HS1549 field is not significantly overdense. None the less, the elevated count of HS1549 over HS1700 is consistent with the HS1549 field showing a higher density contrast than HS1700 in optically selected LBGs and NB-selected line-emitting galaxies (Steidel et al. in preparation).

By applying equation (3) to all known protocluster galaxies undetected at 850 |$\mu$|m we find the total SFR from protocluster members not individually detected at 850 |$\mu$|m, to be 10 200 ± 500 M_⊙ yr⁻¹ (HS1549) and 2800 ± 200 M_⊙ yr⁻¹ (HS1700). These SFR values are consistent with the analysis previously conducted by Reddy et al. (2006) for both protocluster fields. The addition of 24 |$\mu$|m undetected LBGs only add ∼510 ± 70 M_⊙ yr⁻¹ (HS1549) and ∼360 ± 60 M_⊙ yr⁻¹ (HS1700) to the total SFR, assuming these all have SFR ∼10 M⊙ yr⁻¹ (consistent with being undetected at 24 |$\mu$|m).

The uncertainty of 850 and 24 |$\mu$|m derived SFRs are dominated by the uncertainties in their measured fluxes. However a further systematic uncertainty exists for each wavelength. At 850 |$\mu$|m, the dust temperature is the dominant uncertainly, yielding a 20 per cent systematic error on the SFR based on the well-constrained sample of SMGs at similar redshifts in Swinbank et al. (2014), which is captured by the error in equation (2). At 24 |$\mu$|m, the location of the polycyclic aromatic hydrocarbon (PAH) emission in the Spitzer-MIPS band requires a template fit adjustment. To adjust for the position of the PAH line at z = 2.85 the 24 |$\mu$|m derived SFR for HS1549’s LBGs has been boosted by a factor of two (Rieke et al. 2008). An additional uncertainly for the brightest 24 |$\mu$|m sources (S_{24 |$\mu$|m} > 0.2 mJy) is AGN heating. However weak or non-detection at 850 |$\mu$|m for these 24 |$\mu$|m bright sources is a good way to ascertain whether they are powered by AGN, rather than driven by star-formation, as S_{24 |$\mu$|m} > 0.2 mJy should be well detected >3σ at 850 |$\mu$|m. Additionally, faint AGN would not be detected at 850 |$\mu$|m, unless they had a large starburst accompanying the AGN, as the 850 |$\mu$|m is too cold on the spectral energy distribution (SED).

We also compare the 24 |$\mu$|m total SFR calculations with our stacked 850 |$\mu$|m derived SFRs for protocluster galaxies not individually detected at 850 |$\mu$|m using equation (2). For these fainter optical protocluster members, stacked 850 |$\mu$|m SFRs will be a less precise measure, since the 24 |$\mu$|m SFRs are based on detecting many more of the sources individually. We find that for our LBGs, the stacked 850 |$\mu$|m derived SFRs are systematically lower than our 24 |$\mu$|m derived SFRs (∼5 × for HS1549 and ∼2 × for HS1700). While the difference in HS1700 is within the errors of the stacking method, the large difference in the HS1549 may be due to a few known factors specific to this field and redshift. There are more 24 |$\mu$|m bright galaxies (with S₂₄ > 0.1 mJy) in HS1549, which may indicate a higher AGN presence. In addition, the 24 |$\mu$|m band becomes less precise measure of SFR at the higher redshift of HS1549 as the strong PAH feature is no longer present in the band, and the calibration of the SFR_{24 |$\mu$|m} is more uncertain and variable with environment and galaxy type. We may therefore have overestimated the total SFR using the 24 |$\mu$|m measurements in HS1549. Assuming 50 per cent of the 24 |$\mu$|m flux is contaminated by AGN heating and other systematics associated with the 24 |$\mu$|m to SFR conversion, without the PAH lines in the band (Rieke et al. 2008), a more conservative estimate of the 24 |$\mu$|m derived SFR would be 5100 ± 300 M_⊙ yr⁻¹.

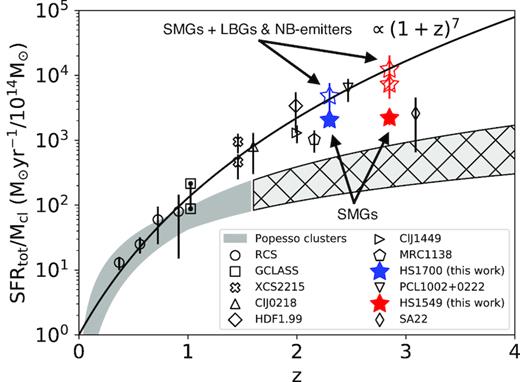

In Table 3, we present calculations of the total SFRs of each protocluster. In Fig. 3 we show the mass-normalized integrated SFR as a function of redshift for HS1549 and HS1700, compared to other galaxy clusters from the literature (SA22 Steidel et al. 1998; Chapman et al. 2005; Geach et al. 2005; HDF1.99 Chapman et al. 2009; AzTEC-3 Capak et al. 2011; GCLASS Muzzin et al. 2011; RCS Webb et al. 2013; Cl0218.3-0510 Smail et al. 2014; MRC1138 Dannerbauer et al. 2014; PCL1002+0222 Casey et al. 2015; XCSJ2215 Ma et al. 2015; ClJ1449+0856 Strazzullo et al. 2018). In addition, Clements et al. (2014) find similar trends with their overdensities of dusty, star-forming galaxies uncovered by Planck and Herschel.

Both protoclusters are estimated to have a total cluster mass of ∼10¹⁴ M_⊙ (Steidel et al. 2005 & Steidel et al. in preparation). We adopt a 50 per cent systematic uncertainty in the cluster halo mass in our error bars, which is likely a significantly larger source of uncertainty than our SFR estimates. Combining SMGs and less luminous protocluster members we measure central star-formation rate densities (SFRDs) of 3000 ± 900 M_⊙yr⁻¹Mpc⁻³ (HS1549) and 1300 ± 400 M_⊙yr⁻¹Mpc⁻³ (HS1700). These SFRDs are ∼10⁴× larger than the global SFRDs found at their respective epochs (Madau & Dickinson 2014). The SFRD found for HS1700 is comparable to the SFRD computed by Kato et al. (2016) using their Herschel-SPIRE sources.

There must have been large amounts of star-formation in the early Universe to have formed the massive galaxies we see today at z = 0. Star-formation activity peaked around z ∼ 2 (e.g. Hopkins & Beacom 2006), thus we would expect the SFR_tot/cluster mass–redshift relation to be steeper for higher z and begin to flatten out at z ∼ 2. Our findings show that the HS1549 and HS1700 protoclusters generally seem to follow a trend extending from z < 1 rich clusters (Popesso et al. 2012), with a (1 + z)⁷ relation (e.g. Geach et al. 2006; Casey et al. 2015; Kato et al. 2016).

Finally, to better put our results in context, we consider how these KBSS protoclusters were chosen. The selection function of these protoclusters is not free from bias. While they were uncovered in a uniform and well-defined spectroscopic survey, the fields were chosen to be centred on some of the most luminous QSOs in the Universe (L_UV > 10¹⁴ L_⊙), and as such might serve as beacons to large-scale overdensities in the galaxy distribution. Indeed the HS1549 LBG overdensity is at the redshift of the hyper-luminous QSO (HLQSO), and is the only one of 15 HLQSO fields to show a protocluster at the QSO redshift. By contrast, the HS1700 HLQSO is not at the protocluster redshift, and is not biasing the selection of this protocluster. Trainor & Steidel (2012) have demonstrated that in general, HLQSOs do not inhabit especially massive haloes, and instead are rare events in comparable mass haloes to less luminous QSOs.

Other protoclusters we compare to were found from high-redshift radio galaxy (HzRG) beacons of overdensities (e.g. Stevens et al. 2003; Dannerbauer et al. 2014) or from SMG overdensities themselves (e.g. Chapman et al. 2009; Casey et al. 2015), which have their own associated biases (e.g. De Breuck et al. 2004; Ivison et al. 2013).

An interesting aspect of our findings is that our two massive protoclusters (HS1549 and HS1700) reveal mass-weighted total SFRs comparable to two systems which show much less significant overdensities in LBGs (HDF1.99 Chapman et al. 2009 and PCL1002 Casey et al. 2015). Our protoclusters are plausibly hosted by much more massive dark matter haloes than these latter SMG-dominated systems, which may highlight more active periods in less massive clusters. Two other protoclusters showing comparable LBG overdensities to HS1549 and HS1700 ate the SSA22 and MRC1138 protoclusters. Both are apparently less active in ongoing star-formation, suggesting that a range of activities and assembly histories are possible for massive protoclusters at z ∼ 2–3.

5 CONCLUSIONS

We have presented an analysis of a SCUBA-2 sub-millimetre follow-up survey for the HS1549 and HS1700 protocluster fields, containing two of the largest know galaxy overdensities at z > 2. We conclude:

• We detect 56 SMGs at 850 |$\mu$|m in the deep SCUBA-2 maps over ∼50 arcmin² covering both HS1549 and HS1700 survey fields, containing two of the largest galaxy overdensities at z > 2. The number counts indicate significant overdensities in the ∼1.5 Mpc core region for each protocluster field, |$6^{+4}_{-2}\times$| (HS1549) and |$4^{+6}_{-2}\times$| (HS1700).

• IR counterparts are identified for the SMGs via multiwavelength identification using near- and mid-IR archival data. We employ P-values to each IR counterpart and identify one possible member within each protocluster. Using CO detections, near-IR and optical spectroscopy we determine three (four) SMGs solidly identified in the HS1549 (HS1700) protocluster. With the addition Herschel-SPIRE colours, we uncover eight additional candidate protocluster members to the HS1700 protocluster.

• Stacking all known protocluster galaxies and field galaxies we have found a statistically significant increase in submm activity of protocluster galaxies.

• Combining SCUBA-2 detected SMGs within the protoclusters and less luminous members we find both protocluster have large integrated mass-normalized SFRs that are consistent with a ∝ (1 + z)⁷ trend. Both protoclusters have SFRDs ∼10⁴× larger than the global SFRDs found at their respective epochs.

ACKNOWLEDGEMENTS

KL acknowledges NSGS and OGS for support. SCC acknowledges NSERC and CFI for support. IRS acknowleges support from the ERC advanced Grant DUSTYGAL (321334), STFC (ST/P000541/1), and a Royal Society/Wolfson Merit Award. This work is based on observations carried out with the the James Clerk Maxwell Telescope. The James Clerk Maxwell Telescope is operated by the East Asian Observatory on behalf of The National Astronomical Observatory of Japan, Academia Sinica Institute of Astronomy and Astrophysics, the Korea Astronomy and Space Science Institute, the National Astronomical Observatories of China and the Chinese Academy of Sciences (Grant No. XDB09000000), with additional funding support from the Science and Technology Facilities Council of the United Kingdom and participating universities in the United Kingdom and Canada. The James Clerk Maxwell Telescope has historically been operated by the Joint Astronomy Centre on behalf of the Science and Technology Facilities Council of the United Kingdom, the National Research Council of Canada and the Netherlands Organization for Scientific Research. Additional funds for the construction of SCUBA-2 were provided by the Canada Foundation for Innovation. IRAM is supported by INSU/CNRS (France), MPG (Germany), and IGN (Spain). The Submillimeter Array is a joint project between the Smithsonian Astrophysical Observatory and the Academia Sinica Institute of Astronomy and Astrophysics and is funded by the Smithsonian Institution and the Academia Sinica. Based on observations obtained at the Gemini Observatory, which is operated by the Association of Universities for Research in Astronomy, Inc., under a cooperative agreement with the NSF on behalf of the Gemini partnership: the National Science Foundation (United States), the National Research Council (Canada), CONICYT (Chile), Ministerio de Ciencia, Tecnología e Innovación Productiva (Argentina), and Ministério da Ciência, Tecnologia e Inovação (Brazil).

Facilities: James Clerk Maxwell Telescope (JCMT) (Holland et al. 2013), Submillimeter Array (SMA), and Gemini.

Software: starlink (Currie et al. 2014), smurf (Chapin et al. 2013; Jenness et al. 2013), python version 2.7, matplotlib (Hunter 2007), astropy (Astropy Collaboration 2013), and aplpy (Robitaille & Bressert 2012).

REFERENCES

APPENDIX A: COMPARISON TO OTHER SMG SAMPLES

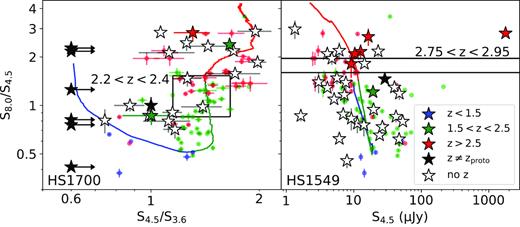

As an additional assessment of the redshifts of our IRAC identifications, we compare the ratio of IRAC fluxes for the IRAC IDs in both of our fields, HS1700 and HS1549, to 77 ALESS SMGs from Simpson et al. (2014) and an SED track from SMM J2135−0102, a z = 2.3259 SMG (Swinbank et al. 2010). In Fig. A1 we show a colour–colour plot for HS1700 and a colour–magnitude diagram for HS1549, since the IRAC 3.6 |$\mu$|m / 5.6 |$\mu$|m bands do not cover much of the HS1549 field. All six IRAC IDs in HS1549 with redshifts have both IRAC fluxes. However, in HS1700 only three of seven submm sources (one of four cluster sources) with spectroscopic redshifts have all measurable fluxes in all three IRAC wavebands [1700.3_1 (z = 2.318), 1700.12 (z = 2.72), 1700.16 (z = 1.575)]. We define regions where ALESS SMGs have redshifts of z_proto ± 0.1. We measure the contamination rate of ALESS SMGs residing within the region defined by z_proto ± 0.1 and we find ∼1/3 of ALESS SMGs are within these regions, while ∼2/3 of the ALESS SMGs are either foreground or background sources, for both protocluster redshift bins. Though we lack redshift data for many of the IRAC IDs in HS1549 and HS1700, we conclude that many of our SMG IDs have colours consistent with the relevant redshift range of ALESS SMGs and the SMM J2135−0102 SED track.

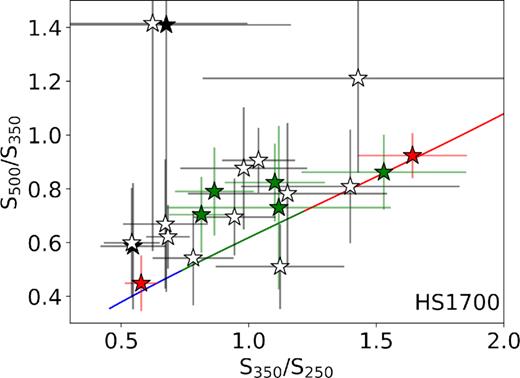

Using archival Herschel-SPIRE data from Kato et al. (2016) we measure SPIRE colours S₅₀₀/S₃₅₀ and S₃₅₀/S₂₅₀ for 21/27 SCUBA-2 IDs in the HS1700 field (see Fig. A2). The photometric redshifts determined by the SPIRE colours correlate to their known redshifts, with the exception of are in agreement with the known redshifts, for the exception of the QSO 1700.12. Using the SPIRE data, we uncover eight new candidate protocluster members.

APPENDIX B: GEMINI GNIRS SPECTRA

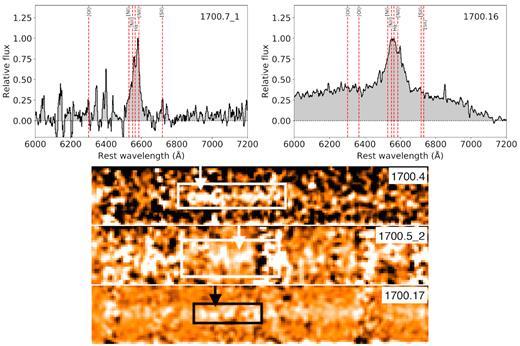

In this section we present Gemini GNIRS spectra for 1700.4, 1700.5_2, 1700.7_1, 1700.17, and 1700.16. We find that 1700.7_1 and 1700.16 have very strong 1D spectra. Although 1700.4, 1700.5_2, and 1700.17 have ∼3–4 sigma line detections at the expected λ_obs ∼21660 |$\mathring{\rm A}$|⁠, the strong sky line residuals in the surrounding regions mean that our IDs are still somewhat uncertain, and as a result the three IDs may have systematic offsets of a couple hundred km s⁻¹ due to sky line residuals.

APPENDIX C: MULTIWAVELENGTH CUT-OUTS

30 × 30-arcsec² multiwavelength cut-outs of each 850 |$\mu$|m SCUBA-2 source. From left to right: SCUBA-2 850 |$\mu$|m, SCUBA-2 450 |$\mu$|m, Spitzer-MIPS 24 |$\mu$|m, Spitzer-IRAC 8.0 |$\mu$|m, Spitzer-IRAC 4.5 |$\mu$|m, 1.2 |$\mu$|m J-band. We use Spitzer-IRAC 5.6 |$\mu$|m and Spitzer-IRAC 3.6 |$\mu$|m when 8.0 and 4.5 |$\mu$|m are unavailable. LBGs are shown as red circles if they reside within the protocluster, otherwise they are shown as cyan coloured circles. The IRAC ID galaxies are represented as green circles. The white contours represent SNR₈₅₀ = (4, 5, 6, 8, 10, 12). The large black dashed circle represents SCUBA-2’s 15 arcsec beam at 850 |$\mu$|m. The yellow contours shown in 1549_1 represent SNR_SMA = (3.5, 4.5, 5.5).
