A stochastic propagation model to the energy dependent rapid temporal behaviour of Cygnus X-1 as observed by AstroSat in the hard state Free

Abstract

1 INTRODUCTION

In the last two decades, there have been extensive studies on the rapid temporal behaviour of X-ray binaries primarily using Rossi X-ray Timing Explorer (RXTE) data. These studies have considerably broadened the understanding of behaviour of matter in the strong gravity regime of innermost regions of accretion disc. The X-ray variability of these sources are characterized by their power density spectra (PDS) which show broad-band continuum noise like features and sometimes peaked features known as quasi-periodic oscillations (QPOs). The origin of the broad-band continuum noise could be due to perturbations which occur throughout the disc and propagate inwards causing the X-ray variation (Lyubarskii 1997). Since these variations occurring at different radii are expected to have a multiplicative effect on the accretion rate of inner disc, the scenario provides an explanation for the linear relationship of the rms variability with the flux (Uttley & McHardy 2001; Gleissner et al. 2004). Additionally, the model also makes predictions on energy dependent temporal properties of the system. In particular, the variation of the fractional rms and time-lag as a function of energy can provide clues to the geometry of the system within this paradigm (Böttcher & Liang 1999; Misra 2000; Kotov, Churazov & Gilfanov 2001). The origin of QPOs is not yet clear as to whether they are arising due to resonances in the disc or precision of inner regions.

Recently, there have been efforts to develop simple models based on propagation of fluctuations which attempt to make quantitative predictions for the energy dependent PDS and time-lag (Ingram & Done 2011, 2012; Ingram & van der Klis 2013; Rapisarda et al. 2016). The time-lag between the different energy bands is attributed to the time taken for the fluctuations to propagate, which is taken to be of the order of the viscous timescales. To explain the frequency dependence of the observed time-lags, these models generally invoke that photons of different energies arise primarily from the different regions of the disc. This is taken into account by an empirical emissivity index (Kotov et al. 2001) or that there are multiple different Comptonization regions producing hard X-rays (Rapisarda, Ingram & van der Klis 2017; Axelsson & Done 2018). If the high energy photons are produced by thermal Comptonization from a region having optical depth of order unity, it is not clear how such multiple different temperature regions may exist and whether the emissivity would be a strong function of radius. A radically different view, where hard X-ray photons arise from an optically thick disc with a rapidly varying temperature profile, has been evoked to explain the frequency dependent time-lags (Misra 2000).

The behaviour of the propagating fluctuations and their effect on the radiative processes active in the disc need to be understood from first principles by simulating realistic accretion disc models. Magnetohydrodynamic simulations for fluctuations propagating in standard disc have proved the basic principles of the model (Cowperthwaite & Reynolds 2014; Hogg & Reynolds 2016). However, one interesting feature of these simulations is that the propagation timescales can be frequency dependent and are not necessarily the same as the viscous ones. Using simple time-dependent standard disc equations, Ahmad et al. (2018) also showed that this is the case and quantify the frequency dependent behaviours. However, these results are for standard outer discs extending to the last stable orbit and it is not clear how the results would change if the standard outer disc is truncated at some distance from the black hole and has a hot inner flow (Yuan & Narayan 2014). Nevertheless, it is important to consider the possibility of a single radiative region with frequency dependent propagation timescales and to see if such a model can also explain the observations.

These theoretical concepts have to be tested by comparing their predictions with the observational data from X-ray binaries. The data should, not only provide detailed timing information but also simultaneous wide band spectral coverage to constrain the spectral parameters. Such an opportunity has been provided by the Indian multiwavelength observatory AstroSat (Agrawal 2006; Singh et al. 2014). The Large Area X-ray Proportional Counter (LAXPC; Yadav et al. 2016a; Agrawal et al. 2017) onboard AstroSat has a larger effective area at energies above 30 keV as compared to its predecessor RXTE. LAXPC can measure the arrival time of each photon accurately to about 10 |$\mu$|s. It always provides event mode data, which allows for detailed energy dependent study of rapid temporal behaviour (Yadav et al. 2016b). Preliminary analysis of LAXPC data of Cygnus X-1 has already demonstrated these capabilities (Misra et al. 2017). Another important advantage is the Soft X-ray Telescope (SXT; Singh et al. 2016, 2017) onboard AstroSat which provides simultaneous soft X-ray spectral coverage. Thus, AstroSat’s ability to provide wide band spectral coverage along with rapid variability information, makes it an ideal observatory to test stochastic propagation models for X-ray binaries.

In this work, we report the results from our analysis of six observations of Cygnus X-1 by AstroSat’s LAXPC and SXT. The results for one of the observations by LAXPC have been reported earlier (Misra et al. 2017) when Cygnus X-1 was in its hard state. First, we attempt to empirically quantify the energy dependent temporal behaviour of the source. Then, we interpret the results in terms of a propagation model wherein the high energy emission is assumed to be emitted from a single zone.

A description of the AstroSat observations and the data analysis is given in the next section. This is followed by the presentation of the LAXPC spectral and timing results in Section 2.1 and Section 2.2 respectively, where the energy-dependent rms and time-lag for different frequencies are fitted using empirical functions. The parameters of these empirical functions provide a model-independent representation of the data. Section 2.3 describes the propagation model used in this work and the details of how the rms and time-lag are computed within the framework, while in Section 2.4 the model is tested against the data. Since the propagation model used in this work differs from earlier ones, Section 2.5 provides a comparison of this model with earlier ones and highlights the advantages and limitations of the model. Finally in Section 3, we discuss the results.

2 DATA AND ANALYSIS

2.1 Spectral analysis

We have analysed six observations of Cygnus X-1 by LAXPC and SXT onboard AstroSat during 2016 as listed in Table 1. Of these, the LAXPC analysis of 2016 January data (Obs ID: 9000000258) has been reported earlier by Misra et al. (2017). The Level 1 PC mode data of SXT were processed through an sxt pipeline software¹ to produce Level 2 event files. The sxt event merger tool¹ was used to create a merged event file from all the clean events files. The heasoft tool xselect was then used to extract the spectra using source regions within an annulus of inner radius of 1 arcmin and outer radius of 12 arcmin. This was done to account for the pile-up effect in the charged coupled device (CCD) due to the high flux of the source.

Analysis of LAXPC and SXT data were carried out using laxpc software¹ and xselect respectively. The laxpc software generates a standard GTI file which removes Earth occultation and the South Atlantic Anomaly (SAA) passes. We have verified that all the three proportional counters (LAXPC 10, 20, and 30) were on by visually examining each light curve at 10 second time bins. For SXT data, the images were visually checked to ensure that the drift corrections were applied and a single-point source was seen. SXT images of few orbits from January and July which showed multiple points indicating multiple sources were discarded.

LAXPC spectra were fitted using xspec 12.9.0 in the energy range 4–80 keV. The response and background files used for the fitting were obtained from laxpc software (Antia et al. 2017). The uncertainties in the response calibration require a systematic error of 3 per cent to be added to the analysis. The background uncertainty of 3 per cent was also taken into account. We considered the SXT spectra only in the energy range 1–7 keV, since for lower energies there are uncertainties in the effective area and response. Off-axis auxiliary response file (ARF) ‘sxt_pc_excl01_v03.arf’ and response matrix file (RMF) ‘sxt_pc_mat_g0to12.rmf’, appropriate for the source location on the CCD were obtained using sxtmkarf¹ tool. SXT observations of the blank sky were used to extract the background spectrum. A 3 per cent systematic error and an offset gain correction were applied to the SXT data. The relative normalization was allowed to vary between the LAXPC and SXT data.

The spectral analysis was performed using data from LAXPC 20 and SXT following the procedure adopted by Misra et al. (2017). A relatively simple model with the thermal Comptonization (nthcomp) (Zycki, Done & Smith 1999) as the primary component, a reflection component(reflionx), disc emission (diskbb) and an interstellar absorption (tbabs) was used. The disc emission was taken to be the seed photons for the Comptonization. The electron temperature of the Comptonizing medium was fixed to 70 keV. The representative spectral fits are shown in Fig. 1 and the best-fitting parameters are listed in Table 2. The residuals seen in Fig. 1 may be due to uncertainties in the response and background.

Figure 1.

Spectra and residuals for 2016 January (Obs ID: 9000000258) (Left-hand panel) and June (Obs ID: 9000000476) (Right-hand panel).

Open in new tabDownload slide

The high energy spectral indices (Γ ∼ 1.5) found are harder than the usually observed hard state spectral index (Γ ∼ 1.6) of Cygnus X-1 (Ibragimov et al. 2005). The interstellar hydrogen absorption column density (N_H ∼3 × 10²¹ cm⁻²), was found to be similar to that obtained by earlier studies (Xiang et al. 2011; Tomsick et al. 2014). While the temperature and normalization of the disc emission are ∼1 and ∼50 keV, respectively, for five of the data sets, the January data reveals a cooler disc at ∼0.5 keV and a larger normalization of ∼2000.

The large systematics (3 per cent) used in the fitting of SXT and LAXPC spectra do not allow for more sophisticated spectral models and the spectral parameters obtained here are approximate. For example, use of a different reflection model like ireflect changes the spectral index by ∼0.1 and the inner disc temperature by ∼0.1 keV. Moreover the degeneracy between the inner disc temperature and normalization (i.e. a smaller inferred temperature may lead to a large normalization estimate) is inherent in these spectral analysis. We discuss the impact of these uncertainties later when we describe the model fits to the timing analysis. Nevertheless, we note that, the spectra for all five observations are similar, except for an interesting difference with regard to January data (9000000258). Note that the LAXPC spectra (i.e. in the 4–80 keV range) are similar for all the observations and the difference is observed primarily in the low-energy SXT spectra.

2.2 Timing analysis

The standard LAXPC data analysis procedure was used to obtain the PDS in the energy range 4–80 keV. These spectra have been fitted using representative Lorentzian functions, renormalized and a systematic error of 2 |${{\ \rm per\ cent}}$| added. The PDS of Cygnus X-1 in its hard state is reported to exhibit 2–4 peaks depending upon the frequency range studied and the spectral state of the source (Nowak 2000; Pottschmidt et al. 2003; Axelsson, Borgonovo & Larsson 2005). The PDS for January and June data are shown in Fig. 2. As reported by Misra et al. (2017), the January data shows only two peaks in the PDS, whereas three peaks are observed for all other observations. Our results are consistent with the results of Axelsson et al. (2008). For the frequency range up to 10 Hz, only two components (peaks) are present in the PDS and the third component is observed only when the spectrum is relatively harder.

Figure 2.

The frequency times the PDS of Cygnus X-1 for photons in the 4–80 keV energy band. For 2016 January, the spectra has been fitted with two Lorentzian components (Left-hand panel) and for 2016 June, the spectra has been fitted with three Lorentzian components (Right-hand panel). The spectra for other observations are similar to that of 2016 June.

Open in new tabDownload slide

Energy dependence of the temporal behaviour can be studied by computing the PDS in three or four broad energy bins as has been reported for RXTE data (Wilms et al. 2004). The complete event mode data of LAXPC allows for the fractional rms to be integrated over a certain frequency range with finer energy bins. Moreover, time-lag as a function of these energy bins can also be obtained for a particular frequency. Such an approach has the advantage that the results can be more directly compared with radiative components. The trade-off here is that the energy dependent rms and time-lag have to be computed at a frequency, f (Hz) by integrating over a large frequency range to ensure sufficient statistics. Experimenting with different values of Δf, we found that taking Δf ≈ 0.4f is optimal as lower values do not constrain the time-lag well and larger ones do not allow for a meaningful frequency dependence.

We have computed time-lags and fractional rms from the time-averaged cross-spectrum using the methods discussed in Nowak et al. (1999) for all the data sets and plotted them as a function of energy for different frequencies. Figs 3 and 4 show the energy dependent rms and time-lag for two representative data sets (January and June) at three representative frequencies (0.1, 1, and 10 Hz). The rms either increases or decreases with energy depending on the frequency under consideration, while the time-lag increases with energy indicating that they are hard time-lags where the high energy photons lag the soft ones. The time-lags were computed with respect to the reference energy band 4.15–4.39 keV.

Figure 3.

Fractional rms and time-lag for three different frequencies 0.1 Hz (top panel), 1 Hz (middle panel), and 10 Hz (bottom panel) for 2016 January.

Open in new tabDownload slide

Figure 4.

Fractional rms and time-lag for three different frequencies 0.1 Hz (top panel), 1 Hz (middle panel), and 10 Hz (bottom panel) for 2016 June.

Open in new tabDownload slide

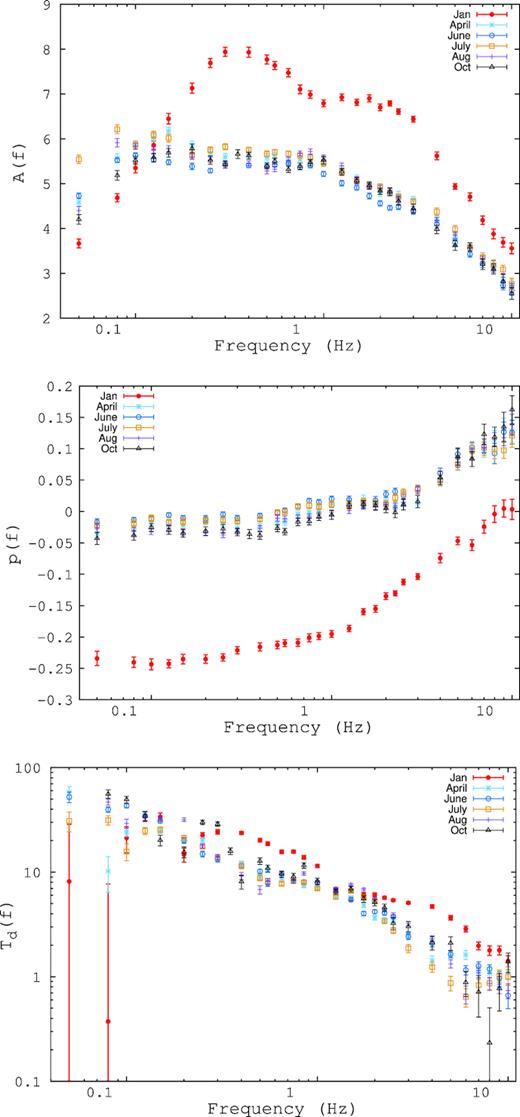

Figure 5.

Empirical fit parameters – A(f) (Top panel), p(f) (Middle panel), and T_d(f) (Bottom panel) as a function of frequency for all the observations.

Open in new tabDownload slide

Note that while Fig. 5 gives a complete description of the temporal behaviour of the source in frequency and energy space, it is however difficult to interpret physically the behaviour of the system and its connection to the time-averaged energy spectra. To make such a connection, a physical model has to be developed and the energy dependent rms and time-lag have to be compared with its prediction. In the next section, we present one such model.

2.3 Energy-dependent time-lag and fractional rms from an inner hot disc

We consider the geometry of the hard state of Cygnus X-1 to be that of a standard accretion disc truncated at a large radius with an inner hot accretion disc. The inner disc which is assumed to be homogeneous and having a uniform temperature T_e, Comptonizes the seed photons arising from the outer cold standard disc producing the primary emission observed by the LAXPC in the energy range 4–80 keV. Thus, the Comptonized spectrum, S_c(E, T_e, T_s) is characterized by the input soft photon source S_s(E, T_s), the optical depth τ and electron temperature T_e, where T_s is the seed photon temperature. The spectral shape of the soft photon source is that of a truncated standard disc and its luminosity L_s is proportional to |$R_{\mathrm{ T}}^2T_{\mathrm{ D}}^4$|⁠, where R_T is the truncation radius and T_D is the temperature at that radius.

Fig. 6 shows the response of the Comptonized spectrum when either the seed photon temperature or the inner disc temperature (electron temperature) is varied. The responses are qualitatively different for the two. For the seed photon temperature variation, the spectrum pivots at high energies and hence the fractional rms decreases with energy in the LAXPC band (Top panel of Fig. 6). On the other hand, variation of the inner disc temperature causes the spectrum to pivot at low energies giving rise to a fractional rms which increases with energy (Bottom panel of Fig. 6). When only one of the temperatures is varied, the response is frequency independent and there is no energy-dependent phase-lag, since in this model, the time delays due to light traveltime effects have been neglected.

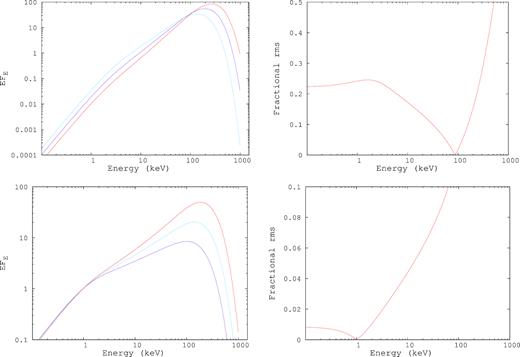

Figure 6.

Figures to illustrate the response of the Comptonized spectrum to variation in the seed photon temperature, T_s (Top left-hand panel) and the electron temperature, T_e (Bottom left-hand panel). The top left-hand panel shows three spectra with different seed photon temperature showing that the spectra pivot at high energy (∼90 keV) which reflects in the fractional rms (Top right-hand panel) decreasing with energy in the LAXPC band. On the other hand, for the electron temperature variation, the three representative spectra on the bottom left-hand panel show pivoting at low energy (∼1.0 keV) causing the fractional rms to increase with energy in the same band (Bottom right-hand panel).

Open in new tabDownload slide

When there is coherent variation of the soft photon and inner disc temperatures, the energy dependent variability of the Comptonized spectrum is more versatile. The fractional rms can either decrease or increase with energy depending on the relative strengths of the temperature variation and the time delay between the two gives rise to energy dependent time-lag. For fiduciary values, Fig. 7 shows the fractional rms and the phase-lag as a function of energy. In the next section, we formally fit the observed energy dependent fractional rms and phase-lag using this model.

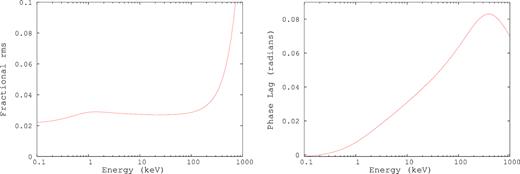

Figure 7.

Example of the response of the spectrum to coherent variations in the seed photon and inner disc temperatures. The fractional rms can increase/decrease with energy (Left-hand panel), while phase-lags can occur between two energy bands for non-zero time delay between the temperature variations (Right-hand panel). The parameters used for these plots are fiduciary.

Open in new tabDownload slide

2.4 Fitting the energy dependent temporal properties of Cygnus X-1

The motivation here is to quantitatively model the energy and frequency-dependent fractional rms and phase-lag measured by LAXPC as described in Section 2.2. We associate the variability only to the dominant thermal Comptonization spectrum and neglect the disc and reflection components in the LAXPC in the energy range 4–80 keV band. The time-averaged spectrum is characterized by the electron temperature, the optical depth, and the soft photon temperature which have been obtained from the spectral fitting described in Section 2.1.

Once the time-averaged spectral parameters are known, the energy dependent fractional rms and phase-lag depend only on three variables: The normalized variations of the seed photon temperature (δT_s = ΔT_s/T_s), the inner disc temperature (δT_e = ΔT_e/T_e) and the phase angle between them (ϕ_D = 2πfτ_D, where f is the frequency under consideration). Instead, it is convenient to fit using the three parameters, δT_e, τ_D and the ratio δT_s/δT_e. Note that these are the same number of parameters as used in the empirical fits described in Section 2.2. Indeed, in the 4–80 keV energy range being considered, the functional form of the fractional rms as predicted by the model is similar to a power law and the time-lags increase roughly with the logarithm of the energy (Fig. 7). Hence it may not be surprising that the reduced χ² obtained from the fits of the physical model are similar to the empirical ones (Fig. 8). Thus, the equations (1) and (2) defined in Section 2.2 are found to be satisfactory.

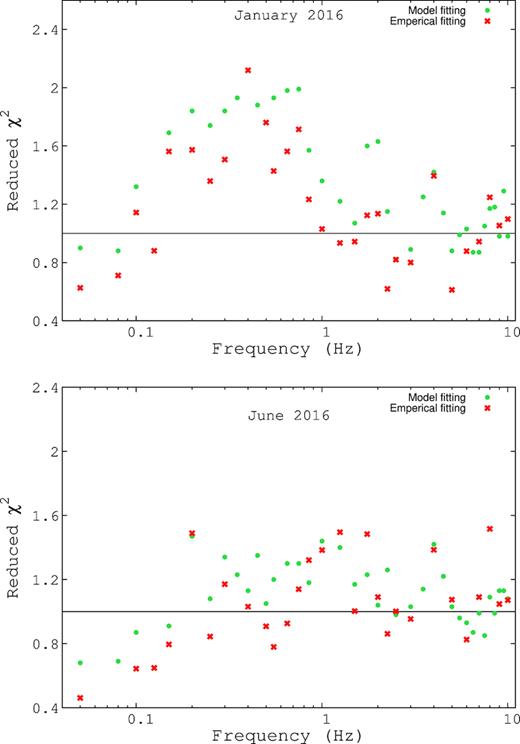

Figure 8.

Comparison between the model and empirical fits for time-lags as a function of frequency for January (Top panel) and June (Bottom panel).

Open in new tabDownload slide

However, it is important to realize that the behaviour of the energy-dependent rms and time-lags as predicted by the model, depend on the time-averaged spectral fit parameters, the inner disc temperature kT_e, and the photon index Γ. Here we discuss the sensitivity of the model fitting to these spectral parameters. As an example, for the August data, kT_e ∼ 1.06 keV and Γ ∼ 1.46 from spectral fitting and the reduced χ² obtained for the temporal fitting at 1 Hz is ∼1.5. We find that the reduced χ² is insensitive to lower values of kT_e and increases sharply for values greater than ∼1.4 keV. Similarly, the reduced χ² is insensitive to the precise value of Γ, but rises steeply if Γ is taken to be larger than 2. While these results are qualitatively same for all observations, there is a difference for the January data. The best-fitting spectral parameters are kT_e ∼ 0.46 keV and Γ ∼ 1.56 and the temporal fitting is insensitive to these values except if kT_e > 0.8 keV, where the reduced χ² becomes larger than 2. On the other hand, the temporal fitting is insensitive to large values of Γ and the reduced χ² becomes larger than 2, for Γ < 1.4. It is interesting to note that the temporal modelling requires a smaller kT_e ∼ 0.5 keV as compared to the other data sets (kT_e ∼ 1.0 keV) and this is borne out by the spectral fitting. Note that this was possible only due to low energy coverage provided by SXT onboard AstroSat. In other words for the January data, based on the temporal behaviour as recorded by LAXPC, the model requires a lower inner disc temperature, which is confirmed by the SXT spectral analysis.

The results of the model fitting are presented in Fig. 9, where δT_e, τ_D and the ratio δT_s/δT_e are plotted as a function of frequency. The variation of δT_e shows two peaks for January data and three peaks for the rest, which resembles the features exhibited by their respective PDS. The time delay (τ_D) between the variation of the disc temperature and that of the Comptonizing cloud is a function of frequency. The ratio δT_s/δT_e represents the attenuation of the propagation from the disc to the corona. The ratio is roughly flat and falls slightly at higher frequencies.

Figure 9.

Stochastic propagation model fit parameters δT_e (Top panel) τ_D (Middle panel), and δT_s/δT_e (Bottom panel) plotted as a function of frequency.

Open in new tabDownload slide

The magnitude of δT_e for the January data is less compared to the other observations, especially for low frequencies. On the contrary, the ratio δT_s/δT_e is significantly higher at low frequencies as compared to the other observations. Thus the decrease in δT_e seems to be due to higher attenuation of the cold disc variation as it propagates to the inner hot disc. Also, τ_D between the variations is larger for the January data as compared to the rest.

All these suggest a possible scenario where for the January observation the disc is truncated at a larger radius than for the others giving rise to (i) a lower inner disc temperature (0.5 rather than  1 keV), (ii) higher attenuation as reflected in a larger δT_s/δT_e and (iii) a larger time-lag between the cold disc variation and the hot inner flow. This is different from earlier interpretation (e.g. Axelsson et al. 2005) where for spectral states similar to the January observations it has been argued that the disc truncates at a smaller radii because the PDS extends to higher frequencies (Fig. 2). However, we consider the above three reasons to be a stronger indication that the inner radius is truncated at a larger radius.

2.5 Comparison with other propagation models

The basic idea of stochastic fluctuations propagating from outer radii to the inner region has been the primary model to explain the energy dependent continuum variability (as opposed to the quasi-periodic variability) of X-ray binaries (Rapisarda et al. 2017; Mahmoud & Done 2018). The primary difference between the model presented here and the earlier works (Shapiro, Lightman & Eardley 1976; Honma 1996), is that here we consider the Comptonized spectrum to arise from a single region (i.e. one zone), while in the others an emissivity profile in the radius had to be assumed. The energy dependent time-lags arise because the radial emissivity profile is assumed to be different for low and high energy photons. In the model presented here, we say that they arise due to the intrinsic time-lag between the seed photon fluctuations and the subsequent variation of the heating rate of the inner disc. In this section, we discuss the strengths and limitations of these two approaches.

The primary spectral component for the hard state is thermal Comptonization by a high temperature medium having a scattering optical depth of the order unity. A typical photon scatters several times and since the optical depth is small, the scattering sites would be located all over the region and not localized. This suggests heuristically that the spectrum arises from all over the region. Moreover, such a hot region would perhaps be isothermal (Shapiro et al. 1976), especially if conductivity is taken into account (Honma 1996). Hence it is not clear whether a strong energy dependent emissivity profile would arise in such a medium and such assumptions maybe considered ad hoc till detailed simulations including the radiative process shows that would happen.

Thus the assumption of single zone region for the spectrum seems to be a better justifiable simpler assumption. However, the price one pays for this is that now the frequency dependent time-lags have to be intrinsic to the propagation model. If one assumes that there is an energy dependent emissivity profile then the frequency and energy dependence of the time-lag between energy bands arise because the different frequencies arise from different regions of the disc and hence the propagation time between them changes. On the other hand, in the model presented here, it has to be assumed that the propagation delay between the truncation radius and the inner region is intrinsically frequency dependent. However, frequency dependent propagation times are expected in cylindrical geometry for simple sound wave (Misra 2000). Even for the standard viscous diffusion process in accretion flow this seems to hold true as revealed by numerical simulations.

According to Cowperthwaite & Reynolds (2014), the time-lag expected in stochastic propagation is frequency dependent. Ahmad et al. (2018) have shown that for standard stable gas pressure dominated disc the propagation timescale is frequency dependent for frequencies higher than the local viscous timescale. While these results are indicative, one should bear in mind that they are for standard optically thick discs, and it is not certain how quantitatively different would the results be for a hot optically thin, geometrically thick flow and when the propagation time being considered is from the transition region onwards. Nevertheless, there seems to be evidence that the propagation time is frequency dependent and the observed frequency dependence of the time delay between energy bands may be caused by this intrinsic dependence as assumed in this work. Clearly, more detailed numerical simulation of the temporal response of a truncated disc with a hot inner flow, should be able to justify these assumptions further.

Another difference between the present model and earlier ones is that in earlier works (Rapisarda et al. 2017; Mahmoud & Done 2018), low-frequency component seen in the PDS is thought to be generated in the outer cold disc, while the high-frequency one originates in the hot inner flow. This identification is not completely satisfactory since for some hard state observations of Cygnus X-1, the PDS are better represented by three and not two components (Section 2.2) and it is not clear where the third component arises in this spectrum. In the model presented here, all the variability originates at or beyond the transition radius and no explanation for the shape of the PDS is offered. The PDS here may be due to the complex structure of the transition radius causing different frequencies to propagate through at different dampened levels.

Earlier studies have shown that frequency-dependent time-lag between two energy bands is not really a power law but shows step-like behaviour coincident with the shape of the PDS as shown in Fig. 2 (Kotov et al. 2001; Misra et al. 2017). It should be noted that none of the propagation models provide a reasonable explanation for this behaviour, which implies that the model lacks perhaps several important physical effects. In the next section, we highlight some of the features which have been neglected in the model presented here and speculate that some of them may be the key to make a more quantitative comparison with the data.

3 DISCUSSION

We report on the analysis of AstroSat observations of Cygnus X-1 in the standard hard state, during 2016 January–October. The broad-band spectrum (1–80 keV) observed by SXT and LAXPC is well represented by a dominant thermal Comptonization component with reflection and disc emission. The LAXPC reveals a PDS which can be modelled roughly as having three (or two) components, which is a known characteristic of the system in the hard state. For a range of frequencies, LAXPC provides an unprecedented view of the energy dependent fractional rms and time-lag from 4–80 keV. AstroSat’s capability of measuring the broad-band time-averaged spectrum and the energy-dependent temporal behaviour of the system allows one to quantitatively fit both the spectral and temporal data.

We introduce a simple stochastic propagation model to quantitatively fit the energy-dependent fractional rms and time-lag at different frequencies. The geometry is that of a truncated standard disc and an hot inner flow which produces the primary spectral component by Comptonizing the outer disc photons to higher energies. An oscillation which originates in the outer regions causes the temperature of the truncation radius to vary causing variations in the Comptonized spectrum. Subsequently, after a time delay, the perturbation reaches the inner region causing a change in the electron temperature of the inner region and hence a variation in the spectrum. We show that this simple model which is characterized by only three parameters, (the normalized amplitudes of temperature of the truncation, inner radii and the time-lag between them) can quantitatively explain the observed energy dependent rms and time-lag.

There are several, perhaps important physical effects which have not been included in this simple picture, which in the very least would make quantitative if not qualitative difference to the results presented here. These are pointed out below with a brief discussion:

(i) The contribution of the reflection and disc components have been neglected in the timing analysis. While the disc contribution is small in the LAXPC 4–80 keV band, the flux ratio of the reflection component to the total one varies from 10 to 50 per cent for different observations. Effect of the reflection component on timing analysis is complex and future improved analysis should consider this issue.

(ii) The light traveltime effects, especially due to multiple scattering of photons in the inner flow have been neglected. For a 10 |$\mathrm{ M}_{ \odot}$| black hole and if the truncation is located at say 50 Schwarzchild radius, the light crossing timescale through the region would be around ∼5 ms. Scattering effects may delay the photons relative to each other by a few times this timescale. While this should not be important for low frequencies (<1 Hz) where the time-lag is much larger, this may seriously affect the high-frequency results, unless the size of the inner flow is much smaller than 50 Schwarzchild radius.

(iii) The linear analysis undertaken here is valid when the amplitudes of oscillations are small. However, the fractional rms variability of the flux is as high as 20 per cent and hence non-linear effects may be important.

(iv) In contrast to the earlier works which have assumed an emissivity profile, we assume here that all the Comptonized photons arise from a single homogeneous zone. In reality, both the spatial emissivity profile and the time-lag between the temperatures of the seed photon and Comptonizing plasma, may be contributing to the observed time-lag.

(v) Irradiation of the outer disc by the Comptonized spectrum has been neglected. Variation of the Comptonized spectrum may change the temperature at the truncation radius and this would lead to decrease in the observed time-lags and other effects.

Despite these and may be other limitations, it is heartening to see that the simple model is able to quantitatively fit the energy-dependent temporal features. The fitting also provides physical measures of the time a perturbation takes to travel from the truncation radius to the inner regions as well as the normalized variation of the temperatures. Future AstroSat’s observations of Cygnus X-1 and other X-ray binaries will allow such analysis to be undertaken and warrants improvement of the simple model. The result obtained would become a benchmark to test the predictions of time-dependent numerical simulations of a truncated accretion disc.
