Deep long asymmetric occultation in EPIC 204376071 Free

Abstract

1 INTRODUCTION

In recent years, owing to the advent of precise and continuous photometric monitoring from space, a substantial number of stars exhibiting ‘dusty occultations’ have been discovered. And, it seems, quite a range of physically diverse systems can display such dusty occultations. The first illustrative class of such objects are the so-called ‘dippers’ (see e.g. Alencar et al. 2010; Morales-Calderón et al. 2011; Cody et al. 2014; Ansdell et al. 2016; Hedges, Hodgkin & Kennedy 2018).¹ The dips are typically ∼10–50 per cent deep and cannot be attributed to rotational spot modulation or to other intrinsic stellar variability. These dips can last from hours to days and may be aperiodic, quasi-periodic, or periodic (Cody et al. 2014; Ansdell et al. 2016). The dips have been associated with occultations by dusty material near the inner edge of circumstellar discs or even corotating with the stellar magnetosphere itself (e.g. McGinnis et al. 2015). The dippers are mostly young M stars and the ones reported by Ansdell et al. (2016) show large infrared excess and evidence for debris discs. Many of the dippers are found in young stellar associations such as Upper Scorpius and the ρ Ophiuchus complexes (Cody et al. 2014; McGinnis et al. 2015; Ansdell et al. 2016; Hedges et al. 2018).

A different kind of dust occulter is KIC 8462852 (Boyajian et al. 2016; aka ‘Boyajian’s star’). In the discovery paper, there were 10 dips reported over the 4-yr interval of the Kepler observations, ranging in depth between a fraction of a per cent and 21 per cent. The dips are irregular in shape, can last for days, and are not easily modelled in any simple way. More recent observations firm up the idea that the occultations are due to dusty material (Boyajian et al. 2018), and suggest that the appearance of the dusty material may be associated with a periodicity of ∼1500 d (Bourne, Gary & Plakhov 2018; Boyajian et al. 2018). A key difference between KIC 8462852 and the ‘dippers’ is that the host star in KIC 8462852 is a main-sequence field F star rather than an M star.

More recently, Rappaport et al. (2018) reported plausible exocomet transits in two Kepler stars: KIC 3542116 and KIC 11084727. The candidate exocomet dips are only ∼0.1 per cent deep, but have a shape that might be expected from dusty trailing comet tails.

Another category of dusty occultations involves the so-called ‘disintegrating planets’: KIC 1255b, K2-22b, and KOI-2700b (see van Lieshout & Rappaport 2018, and references therein). These three objects produce transits that are periodic, but of variable depths, and are thought to be due to dusty material that is being continually emitted by a quite small planet; the hard body transits of the underlying objects themselves have not yet been seen (Rappaport et al. 2012; Perez-Becker & Chiang 2013).

A thus-far unique object exhibiting dusty occultations is WD 1145+017 (Vanderburg, Johnson & Rappaport 2015). This 17th magnitude white dwarf was observed with K2 to exhibit a number of periodicities with periods between 4.5 and 4.8 h. The dips had characteristic depths of only ∼1 per cent and duty cycles within these periodicities of ∼30 per cent of the orbit. The dips are thought to arise from dust clouds anchored or produced by orbiting asteroids (see e.g. Vanderburg et al. 2015; Rappaport et al. 2016), and numerous ground-based follow-up observations revealed dips of up to 60 per cent depth (see e.g. Gänsicke et al. 2016; Rappaport et al. 2016; Gary et al. 2017; Rappaport et al. 2018).

An intriguing object with a deep and long dip is 1SWASP J140747.93–394542.6 (hereafter ‘J1407’; see Mamajek et al. 2012; Kenworthy et al. 2015a; Kenworthy & Mamajek 2015b). This star is a member of the Upper Centaurus–Lupus subgroup of the Sco–Cen association of stars (age of 16 Myr). J1407 undergoes a dip that reaches a depth of ∼3 mag and lasts for ∼45 d. Kenworthy & Mamajek (2015b) proposed that the overall long dip seen in the sparsely sampled superWASP photometry was due to a large (0.6 au) 37-ring system transiting across the host K star.

Another class of dippers are young T Tauri stars that exhibit month to year long dimming events with depths of up to a couple of magnitudes (e.g. Rodriguez et al. 2017a; Rodriguez et al. 2017b). Some of these events are interpreted as being due to occultations by tidally disrupted discs due to binary interactions (e.g. Rodriguez et al. 2018).

Among this list of illustrative occultations by ‘soft bodies’ (i.e. dust) is the following interesting object. Osborn et al. (2017) report two long dips in the star PDS 110 that are 30 per cent deep, are roughly ‘V’ shaped, last for ∼25 d, and are separated by an 808-d interval. The observations were made with KELT and WASP photometry. The 808-d interval between the dips was interpreted as being due to transits by an ‘unseen low-mass planet or brown dwarf with a large circum-secondary disc of diameter 0.3 au’ orbiting at ∼2 au (Osborn et al. 2017; however their originally claimed periodicity has been withdrawn: Osborn et al. 2019).

Finally, we can add to this list the possible detection of a ringed planet around the M star KIC 10403228 (Aizawa et al. 2017). These authors studied the transit shapes of 89 Kepler objects with either a single transit or just a few transits, indicating very long-period planets. They searched for small asymmetries in the transit profiles and found one suggestive case where a ringed planet fits the transit profile better than a naked planet.

In this work, we report the discovery of a one-day-long, 80 per cent deep, occultation of a young star in the Upper Scorpius stellar association: EPIC 204376071. Three things that make this very deep and long dip somewhat unique are: (1) the continuous coverage with 1/2-h sampling of the flux, (2) the very clearly mapped out asymmetry in the occultation profile, and (3) the lack of pronounced WISE 3 and 4 band emission. In Section 2 we report on the K2 observations of this target, leading to its discovery. The available archival data for this object are presented in Section 3. Section 4 discusses the two ground-based spectra that we obtained for this star. The target exhibits a distinct stellar rotational modulation, and we present a detailed spot model in Section 5. In Section 6 the large dip in flux is modelled as an occultation by either an inclined, uniform-density disc or, a dust cloud or dust sheet with a gradient of optical depth passing in front of the host star. In Section 7 we offer several different interpretations for the occultation. Sections 7.1 and 7.3 give some constraints on allowed orbits of an orbiting occulter as well as the required dust mass. In Section 7.4 we discuss the alternate scenario that this occultation is part of the dipper phenomena. We summarize our findings in Section 8.

2 K2 OBSERVATIONS

The Kepler spacecraft (Koch et al. 2010) observed EPIC 204376071 twice during its K2 mission (Howell et al. 2014), initially in Campaign 2 (C2) (Proposal: GO2063, A.L. Kraus) and subsequently in Campaign 15 (C15) (Proposals: GO15023, L.A. Hillenbrand; GO15043, A.C. Rizzuto). We downloaded the corresponding data from the Barbara A. Mikulski Archive for Space Telescopes (MAST)² and created light curves (Vanderburg & Johnson 2014) which were manually scrutinized with the lctools examination software (Kipping et al. 2015).  Stand-alone events from K2-photometry (e.g. Borkovits et al. 2019; Zhou et al. 2018) are rarely recovered by automated searches for periodic signals such as the BLS (Kovács, Zucker & Mazeh 2002), unless being coincidentally revealed by additional periodicities from the target star (e.g. EPIC 212813907.01; Crossfield et al. 2018). Akin to other discoveries of non-repeating events, we detect a single occultation-like event in the C15 light curve of EPIC 204376071 located at 3168.5 BKJD (defined as BJD – 2454833), and blocking up to ∼80 per cent of the light for an entire day.

After identifying the deep eclipse, we produced a custom light curve for EPIC 204376071 with a handful of modifications from the standard procedures described by Vanderburg & Johnson (2014). First, instead of extracting light curves from stationary apertures, we used a circular moving aperture to reduce the amplitude of systematics due to aperture losses for this particularly faint target. We allowed our procedure to model higher frequency stellar variability than we typically do, using a spline with break points spaced every 0.4 d instead of our typically used 1.5-d spacing. We also increased the length of the ‘divisions’ of the light curve on which we perform our one-dimensional systematics correction, which yielded a better correction near the long, deep occultation. The resulting light curves are shown in Fig. 1 and used throughout the rest of this paper in our analysis.

Figure 1.

K2 light curve for EPIC 204376071 during Campaign 15. The top panel shows the 80-d light curve during Campaign 2. No occultations are seen; the low-amplitude modulation has a period of 1.63 d, which we interpret as a stellar spot rotation period. The middle panel is the 85-d light curve in perspective with a single deep occultation at around KBJD ≡ BJD – 2454833  = 3168. The bottom panel is a zoom-in on the 3 d around the deep occultation, showing that it has a distinctly longer egress than ingress. Stellar flares have been edited out; see Fig. 5. Note the difference in flux scales between the top panel and the middle and bottom panels.

Open in new tabDownload slide

The full C2 light curve is shown in the top panel of Fig. 1. Aside from an unremarkable 1.6-d periodicity (see Section 5; Rebull et al. 2018) with a ∼1 per cent amplitude the flux is rather constant and without any occultations. The full C15 light curve is shown in the middle panel of Fig. 1 where there is an obvious single large drop in flux about 10 d into the campaign. The bottom panel of Fig. 1 shows a zoom-in on 3 d of the light curve centred on the occultation. Here one can see that the depressed flux lasts for about a day, is extremely deep, and is quite noticeably asymmetric with an egress that is about twice as long as the ingress.³

The lack of any occultations in the C2 light curve indicates a lower limit to any period for the occultations of P ≳ 79 d. Solely using the two K2 observations, separated by almost exactly 3 yr (C2 ranging from 2014 August 23–2014 November 10 and C15 ranging from 2017 August 23–2017 November 19), we can further constrain any allowed periods. We simply note here the first five allowed windows in period for a potentially orbiting body: P ≃ 79 d, 85 d, 93 d, 101–103 d, and 111–114 d.

The astrophysical nature of the occultation event is supported by a target pixel file animation of the event, using custom software similar to k2flix: a Kepler pixel data visualization tool,⁴ in which EPIC 204376071 clearly dims dramatically⁵ and thereby indicates that a data anomaly is not the explanation for the dip. To further ensure the astrophysical origin of this occultation event, we checked for systematics and found a significant centroid shift of ≃0.3 pixels during the occultation in the direction transverse to K2’s roll. We believe this is an artefact of the backgrounds; when the flux of the star decreases by a factor of 5, if there is any uneven background, that could introduce a shift this large. Finally, we noticed a photometric peak near the occultation event at BKJD = 3171.7, with a 40 per cent rise in flux, but this is clearly identified as an inner main belt contaminant ‘Hawke (3452)’ using skybot (Berthier et al. 2016), and this peak was removed.

3 ARCHIVAL DATA

We have collected the available photometric data on the target-star in Table 1.

Gaia DR2 places the object at a distance of 135 ± 4 pc (Lindegren et al. 2018). They also list a much fainter nearby star that is 2 arcsec to the south of the target star and has ΔG = 4.26. This faint companion is likely physically unrelated to the target star because the proper motions of the two stars in RA and Dec. differ by 11.7 ± 3.5 and 20.6 ± 1.5 mas year⁻¹, respectively.

We were able to use the PanSTARRS g- and r-band images (Chambers et al. 2016) to show that the faint companion star has 8 per cent and 5 per cent of the fluxes of the target star, respectively. By contrast, the faint companion has only 2 per cent of the Gaia broad-band flux. Thus, we take the occultation depth of the target star in the Kepler band to be increased from |${\simeq }78{{\ \rm per\ cent}}$| to |${\simeq } 80{{\ \rm per\ cent}}$| after taking into account the small dilution effect of the faint neighbor star.

The distance, proper motion, and radial velocity suggest that EPIC 204376071 is a member of the Upper Scorpius association of stars, which is a subgroup of the Scorpius–Centaurus OB association. The age of Sco–Cen has historically been assumed to be approximately 5 Myr (de Geus, de Zeeuw & Lub 1989), but has recently been suggested to be 11 ± 3 Myr (Pecaut & Mamajek 2016); we adopt the latter age in this work. Some of the properties of the Upper Sco group, in particular the location on the sky, the distance, and the common proper motion are summarized in Table 2, along with the same attributes for the target star. As is readily apparent, the target star sits well within the Upper Sco association in position and velocity space. We have also utilized the online tool banyanΣ,⁶ the multivariate Bayesian algorithm that identifies membership in young stellar associations out to 150 pc (Gagné et al. 2018). The probability that EPIC 204376071 is a member of the Upper Scorpius association assigned by banyan Σ is 99.9 per cent, which is a strong indication of membership. Therefore, from hereon out we will assume that EPIC 204376071 is indeed a member of Upper Sco and therefore has an age of ∼10 Myr (Pecaut, Mamajek & Bubar 2012; Feiden 2016).

This adopted age seems consistent with the inferred rotation period of 1.63 d (Irwin et al. 2011; McQuillan, Aigrain & Mazeh 2013; Reinhold, Reiners & Basri 2013; Rebull et al. 2018). While rapid rotation can be caused by tidal synchronization with a close binary companion (Simonian, Pinsonneault & Terndrup 2018), we currently have no photometric or spectroscopic indications that EPIC 204376071 is a binary.

We have checked various other archival data bases (e.g. ASAS, Pojmanski 1997; SWASP, Pollacco et al. 2006; DASCH, Grindlay et al. 2009; HATSouth, Bakos et al. 2013; ASAS-SN, Shappee et al. 2014) searching for additional occultations. However, we found that the source was either not observed or is sufficiently faint that only unusable upper limits were obtained.

4 SPECTRA

We obtained low- and high-resolution spectra of EPIC 204376071 to estimate its stellar properties and activity level. We used the Wide Field Spectrograph (WiFeS; Dopita et al. 2007) on the ANU 2.3 m telescope at Siding Spring Observatory in Australia. The WiFeS spectra were obtained at a spectral resolution of λ/Δλ ≡ R = 3000, over the wavelength range of 6000–9000 Å, and the spectral extraction and flux calibration follow the procedures laid out in Bayliss et al. (2013). The WiFeS spectrum of EPIC 204376071 is consistent with that of an M5 star, and is compared against that of Barnard’s star (GJ 699) and Proxima Centauri (GJ 551) in Fig. 2.

Figure 2.

Low-resolution spectrum of EPIC 204376071 from the ANU WiFeS spectrograph (black; see Section 4), compared against the spectra of Barnard’s star (M4, blue) and Proxima Centauri (M5.5, red). Inset: The TRES spectrum over the H α region showing the strong single-cored emission feature.

Open in new tabDownload slide

A spectrum of EPIC 204376071 was also obtained with the Tillinghast Reflector Echelle Spectrograph (TRES; Szentgyörgyi & Fűrész 2007; Fűrész 2008) on the 1.5 m telescope at Fred Lawrence Whipple Observatory in Arizona, USA. TRES is a fibre-fed spectrograph that yields a spectral resolution of R = 44 000. Due to the faintness of the target star, our TRES spectrum (with 3600 s exposure) is of low signal to noise over most of the spectral range. However, we were able to identify strong single-lined emissions over the Balmer series, with the H α emission having an equivalent width of 14 Å, and derive a barycentric velocity for the star of −8.7 km s⁻¹ using the TiO lines at ∼7100 Å. An examination of the same spectral region yields an estimated stellar rotational broadening velocity of |$v \sin i \simeq 17 \, \mathrm{km\, s}^{-1}$|⁠, though the uncertainties in the measurement are difficult to derive due to the low SNR nature of the spectrum. The H α emission as seen from TRES is shown in the inset panel in Fig. 2.

To determine the physical parameters of EPIC 204376071 (luminosity, radius, and T_eff) we used the observed spectral energy distribution (SED). We used photometric magnitudes from Gaia G_BP and G_RP (Brown et al. 2018), 2MASS J, H, Ks bands (Cutri et al. 2003), and WISE W1, W2, W3 (Cutri et al. 2013) to describe the SED of EPIC 204376071 (Fig. 3 and Table 1).

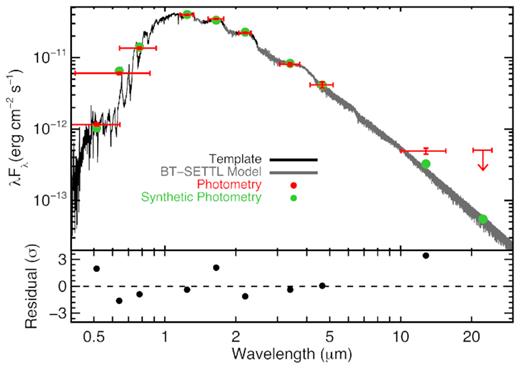

Figure 3.

SED of EPIC 204376071, with the optical defined by the Gaia G_BP and G_RP, and the infrared by the 2MASS and WISE magnitudes. The observed magnitudes are shown in red, with vertical errors corresponding to the observed magnitude uncertainties (including stellar variability) and the horizontal errors corresponding to the width of the filter. The synthetic magnitudes from the best-fitting template spectrum (black) and BT-SETTL model (grey) are shown as green circles.

Open in new tabDownload slide

We then compared this SED to a set of un-reddened optical and near-infrared spectra from the TW Hydra or β Pic moving groups (10–25 Myr, Bell, Mamajek & Naylor 2015), following the method from Mann et al. (2016), which we briefly summarize here. We restricted our comparison to templates with spectral types consistent with EPIC 204376071, which we determined to be M5.3 ± 0.7 by comparing TiO and CaH indices from Lépine et al. (2013) in the observed WiFeS spectrum to those measured from the young spectra in Herczeg & Hillenbrand (2014). Spectral types for the SED-fitting templates were determined in an identical manner, and hence were on the same overall scale, and depend only weakly on the overall reddening. The gaps in the coverage of each template were filled with PHOENIX BT-SETTL models (Allard, Homeier & Freytag 2012). We inflated the uncertainties on Gaia magnitudes by 2–3 per cent to reflect stellar variability observed in the Kepler bandpass. No template could reproduce the observed W3 magnitude and Gaia optical photometry simultaneously, possibly due to the presence of dust/debris past a few au,⁷ so we excluded it from the fit.

For each template, we found the best-fitting reddening value (R_V assumed to be 3.1) to reproduce the observed photometry, and integrated over the un-reddened template to determine the total bolometric flux. We calculated the luminosity (L_*) using the bolometric flux and the Gaia-measured parallax. Each template had a T_eff assigned based on the fitting method described in (Mann et al. 2013), which reproduces empirical T_eff estimates from long-baseline optical interferometry (Boyajian et al. 2012; Mann et al. 2015) and young eclipsing binaries (Kraus et al. 2015). We computed the corresponding radius (R_*) for each template using our assigned L_* Stefan–Boltzmann relation (⁠|$L_*=4\pi \sigma R_*^2T_\mathrm{eff}^4$|⁠). Lastly, we determined a stellar mass (M_*) by interpolating the estimated L_* and T_eff on to a grid of magnetic models optimized for the age of Upper Scorpius (Feiden 2016).

Final uncertainties in each parameter account for the range of possible template fits (each of which yields a slightly different T_eff, E(B − V), luminosity, and radius), as well as measurement uncertainties in the templates and SED. We also took into account errors introduced from filling gaps with models, calibration errors in the T_eff scale, and uncertainties in the photometric zero-points. The M_* uncertainties also accounted for a range of possible ages in Upper Scorpius due to age spreads (±5 Myr), although in practice, ages more ≃3 Myr off were inconsistent with either the assigned L_*, T_eff, or un-reddened photometry, and hence were down-weighted in the analysis.

These properties of EPIC 204376071 are summarized in Table 3.

The historical definition for the boundary between weak-lined and classical T Tauri stars of a 10-Å equivalent width has been updated numerous times to apply for later spectral types. For example, White & Basri (2003) define an H-α equivalent width boundary of 20 Å for M3 to M5.5 spectral types, which places EPIC 204376071 as a weak-lined T Tauri star consistent with no accretion. This is also consistent with the lack of an inner disc excess in the W1 and W2 bands. The WISE W3 excess of 0.47 ± 0.15 mag appears to be genuine, as there is no nearby background source in the WISE images that could cause the excess. EPIC 204376071 then arguably has a debris disc, with the W4 upper limit putting it outside the typical excess range of late-type transitional discs (Cieza et al. 2012).

5 FLARES AND SPOTS

The 1.6-d periodic flux modulation of EPIC 204376071 (see also Rebull et al. 2018) is very stable, indicating long-lived active regions on its surface. Its mass, about 0.16 M_⊙, is well below the fully convective limit of 0.30–0.35 M_⊙ (Chabier & Baraffe 1997). Stable spot configurations are typical of low mass, fully convective stars. A good example is the M4 dwarf V374 Peg which has a mass of 0.30 M_⊙, just below the fully convective limit, has a rotation period that is close to 0.5 d, and has a stable light curve for 16 yr with only minor changes (Vida et al. 2016).

Rapidly rotating, fully convective M-dwarfs can show spots at all latitudes, as were found on two stars via Doppler imaging (Barnes et al. 2015). One of the two stars, the primary of a wide binary, the M4.5-dwarf GJ791.2A, rotates faster (0.31 d) and is a bit more massive (0.29 M_⊙) than EPIC 204376071. It has a photospheric temperature of 3000 K, the same (within the errors) as our star, and from the Doppler maps Barnes et al. (2015) found the temperature difference between the photosphere and spots to be ΔT = 300 K.

The ‘spot temperature’ signifies a temperature mixture of cool (spots) and hot (faculae) regions, which cannot be resolved. Therefore the area on the stellar surface covered by spots in the models shows up with the average temperature of the hot and cool regions. The very active M dwarfs have numerous hot regions in addition to the cool spots. In the case of V374 Peg, the spot properties result from 4-colour photometry, and the spot temperature value is just 150 K below the photosphere (Vida et al. 2016).

We produced an average rotational light curve from all the K2 observations of EPIC 204376071 (Fig. 4) and fitted it (Ribárik, Oláh & Strassmeier 2003) with a simple two-spot model consisting of two circular spots. On the basis of the known spot temperatures of other, fully convective stars (Barnes et al. 2015; Vida et al. 2016) we adopted a spot temperature that is cooler than the photospheric temperature of ≈3000 K by ∼200 K. The best fit was found for an inclination angle of 60°. The resulting fit yields spots that are of similar size at medium latitudes (≈30°–40°) on the star and separated by ∼130° in longitude. The spot model configuration for EPIC 204376071 is shown as an inset to Fig. 4. We note that the model accounts for only those spots which cause the rotational modulation itself. There may well be more spots on the stellar surface, at the poles and/or evenly distributed, and in this way not causing any additional rotational modulations in flux. Since the unspotted brightness of the star is not known, the total spotted area on the star cannot be estimated.

Figure 4.

The K2 light curve of the low-amplitude modulations in EPIC 204376071 during C2 and C15 folded about a period of 1.629 d. The green points are the folded data; smooth red curve is the fit to a two-spot model (see the text for details). The inset is a visual representation of the spot model. The rms scatter per bin in the fold is close to 0.005 while the formal standard error per bin is 0.0006; the blue error bar (0.001) reflects the empirical rms scatter about the model fit.

Open in new tabDownload slide

Acceptable fits to our average light curve can be found from high to medium inclinations and with spot temperature differences with respect to the photosphere of 100 K up to 1000 K, due to the lack of colour-dependent rotational light curves which can constrain the spot temperature. The uncertainties in the rotational inclination angle and the spot temperature directly affect the latitudes and spot sizes as well. In summary, due to the uncertain inclination angle and spot temperature, and the unknown unspotted brightness, the resulting spot configuration (except the longitudes which follow directly from the observations) is not well constrained, but still shows that with cool spots the rotational light variation can be well modelled.

Besides spots, flares are another typical feature of active M dwarf stars, and these are also found in the light curve of EPIC 204376071, as for all of the stars studied by Morin et al. (2008), for example. Those objects were well-known flare stars well before magnetic modelling of their surface came into prominence. An illustrative set of flares from EPIC 204376071 is shown in Fig. 5, with flare amplitudes up to |${\approx } 6{{\ \rm per\ cent}}$|⁠.

Figure 5.

A zoom-in on 30 d of the C15 data showing a dozen significant flares, in addition to the 1.63-d rotational modulation. The same rate of flaring persists throughout C2 and C15. The statistical uncertainties per data point are indicated by the blue point with error bar.

Open in new tabDownload slide

The mass of EPIC 204376071 is ≃0.16 M_⊙ whereas its radius is 0.63 R_⊙ indicating that the star has not reached the main sequence. Stars with such a low mass remain fully convective during their entire evolution. Standard evolutionary models would yield a younger age for a star with this mass and radius than that of the Upper Sco association as a whole. However, including magnetic fields in the evolutionary models can resolve this discrepancy, allowing the low-mass stars to be coeval with the rest of the stars in Upper Sco (see Feiden 2016; MacDonald & Mullan 2017). MacDonald & Mullan (2017) have tested this scenario using an eclipsing binary in Upper Sco, with two low-mass components of 0.12  and 0.11 M_⊙ with radii of 0.42 and 0.45 R_⊙, respectively. The precise stellar parameters of an eclipsing binary make the comparison to the models more reliable. The results show that radial magnetic fields of a few hundred Gauss would make the age of these stars consistent with that of Upper Sco. Adopting the results of MacDonald & Mullan (2017) we can state that EPIC 204376071 is a low-mass, magnetically active star in Upper Sco, with an age of about 11 ± 3 Myr reported by Pecaut et al. (2012).

6 MODEL FITS TO THE OCCULTATION

6.1 General considerations

We believe that the deep asymmetric occultation of EPIC 204376071 is likely caused by dust obscuration. However, we first discuss, and then discard, the idea that this may be some kind of hard-body eclipse by one star blocking the light of another. Consider a binary system with constituent main-sequence (‘MS’) stars of masses |${\lesssim } 2 \, \mathrm{ M}_{\odot }$|⁠. The largest fraction of blocked system light occurs during the eclipse of the more massive star, assuming an equatorial eclipse. When the two MS stars are of comparable mass, that maximum fraction is ∼50 per cent. If one of the stars is somewhat evolved, then an even smaller fraction of the system light can be eclipsed. If we add more complicated structure to the system by considering triple and quadruple star systems,⁸ this only makes it harder to block more than 50 per cent of the system light via eclipses due to the dilution effect of the non-eclipsing stars. Finally, if the stars have undergone mass transfer then the result may be an Algol-like system where the mass-losing star might be both larger and less luminous than the accreting star, thereby allowing for eclipses |$\gt 50{{\ \rm per\ cent}}$|⁠. However, the EPIC 204376071 system appears to house a dominant M star of bloated radius (i.e. not having yet settled on to the main sequence), and therefore we are likely safe in assuming that this is the primordial system, unaltered by mass transfer.

We therefore invoke two models involving dust: an inclined disc producing an elliptical shape in projection, and a dust cloud or sheet (hereafter ‘dust sheet’) whose geometry need not be defined very precisely. We note here that a small amount of dust can remove a sizable fraction of the system light without requiring a large mass in dust – we quantify this statement below.

6.2 Disc occulter model

The first model for the occulter that we consider is an intrinsically circular disc of uniform optical depth. Presumably such a disc is orbiting another ‘anchor’ body in the system such as a brown dwarf or large planet. The orientation of the disc can be described for our purposes simply by first specifying the apparent semiminor axis of the projected disc, which is just the semimajor axis multiplied by |$\cos \, i$|⁠, where i is the usual inclination angle. The second angle which specifies the disc’s orientation will be the angle that the semimajor axis makes with the orbital plane, hereafter the ‘tilt’ angle.

There are eight free parameters to be fit: the semimajor and semiminor axes; the tilt angle; v_t, the transverse speed of the disc across the host star; b, the impact parameter; τ, the optical depth of the disc; t₀, the time of closest approach between the disc and host star; and DC, the out-of-occultation background level. We utilize a Markov Chain Monte Carlo (‘MCMC’) code (Ford 2005; Madhusudhan & Winn 2009; Rappaport et al. 2017) to fit this disc model to the deep occultation event in EPIC 204376071. For each choice of parameters, we generate a model light curve by integrating over the stellar disc, including the disc transmission and limb darkening, and then repeating this in increments of 10 min as the disc crosses the stellar disc. The model light curve is then convolved with the ∼30 min integration time of the Kepler long-cadence sampling. Each model is then evaluated via the χ² value of the fit to the data, and the code then decides, via the Metropolis–Hastings algorithm, whether to accept the new set of parameters or to try again. Each MCMC chain has 10⁵ links, and we have run a half-dozen chains.

The result of the fit to the disc occultation model is shown in the top panel of Fig. 6, and the best-fitting parameters are summarized with uncertainties in Table 4. The geometry of the occultation of the host star by the inclined and tilted disc is illustrated in Fig. 7. It is relatively clear from the figure how such a disc can produce the desired highly asymmetric occultation.

Figure 6.

Two model fits to the occultation. Top panel: model consisting of an inclined and tilted disc of uniform optical depth (blue curve; see the text) fit to the deep occultation of EPIC 204376071 (red data points). Bottom panel: simple dust sheet model. The optical depth behind the knife-edge is assumed to fall off with a generalized Gaussian profile (with p ≃ 2.17). See the text for details. The two models have eight and six free parameters associated with them, respectively. The residuals from the best-fitting model are shown at the bottom of each plot to the same scale as the data.

Open in new tabDownload slide

Figure 7.

Schematic, to scale, of a inclined and tilted disc, elliptical in projection, crossing its host star. The snapshots at five different times illustrate how this geometry results in a distinctly asymmetric occultation. Each snapshot is shifted vertically for clarity. The dashed horizontal lines mark the trajectory of the disc centre.

Open in new tabDownload slide

In spite of the excellent quality of the fitted model, we can quickly see a potential physical problem with such a model. The transverse speed during the occultation is 7.5 host star radii per day, which translates to 38 km s⁻¹. For an assumed circular orbit this corresponds to an orbital period for the anchor body and disc of only ∼28 d⁹ with an orbital radius of only 0.10 au. The problem, of course, is that orbital periods of ≲80 d are ruled out. Moreover, an anchor body of brown-dwarf proportions would be required so that the size of its Hill sphere for a circular orbit could accommodate such a large disc. It is, of course, quite possible for the anchor body and disc to be in an eccentric orbit and have the occultation occur at periastron. The potential problems with the Hill sphere and too short orbital period are conveniently mitigated in the case of eccentric orbits. See Sections 7.1 and 7.2 for a detailed discussion of the eccentricities and periods required for the anchor-body companion to accommodate such a disc within its Hill sphere.

6.3 Dust sheet model

We next test a more generic occulter that involves a dust outflow made of small particles. In this case, one would still require an orbiting body (e.g. a planet or brown dwarf) to either be the source of, or provide the anchor for, the dusty effluents.

For the orbiting dust occulter we assume that the orbital period of the putative dust-trapping or dust-emitting body is substantially longer than the transit duration (∼1 d), so that the transverse velocity, v_t, during the transit is essentially a constant. For lack of more detailed information, we further assume that the dust ‘sheet’ is wider than the size of the host star (otherwise, an 80 per cent occultation is difficult). Finally, we assume that the optical depth profile in the dust sheet is a simple function of distance from the leading edge of the dust sheet (see e.g. Brogi et al. 2013; Sanchis-Ojeda et al. 2016 for a related geometry). The geometry we are considering here is illustrated in the schematic of Fig. 8. Of all the possibilities, we have experimented with only single-sided exponential, Gaussian, and generalized Gaussian profiles.

Figure 8.

Artist’s conception of the knife-edge dust sheet passing in front of EPIC 204376071 (Credit: Danielle Futselaar; http://www.artsource.nl/.).

Open in new tabDownload slide

We utilize the same MCMC code discussed above to fit a dust-sheet model to the occultation event. In this case, there are five or six free parameters to be fit: τ₀, λ, v_t, t₀, DC, and possibly p for the case of the generalized Gaussian, where the ‘DC’ term is again the background flux level away from the occultation. For each choice of parameters, we generate a model light curve by integrating over the stellar disc, including where the dust sheet overlaps the disc, and repeating this in increments of 6 min as the dust sheet crosses the stellar disc. The model light curve is then convolved with the ∼30 min integration time of the Kepler long-cadence sampling. Here, each MCMC chain has 10⁵ links, and we have run a half-dozen chains.

The first conclusion we reached is that the exponentially distributed optical depth model does not produce an occultation profile that comes even close to matching the observed profile. In fact, it produces a distinct shark-tooth-shaped profile such as those that can sometimes be found in dipper sources (Ansdell et al. 2016) and were used to fit transits of candidate exocomets (Rappaport et al. 2018). By contrast, the Gaussian optical depth profile gives a respectable, though imperfect, fit to the occultation. The generalized Gaussian profile for the optical depth provides the best fit to the occultation (Fig. 6; Table 5). The best-fitting power is p ≃ 2.17. The main shortcoming of this fit is that the model egress ends a bit more gradually than the profile seen in the K2 data (Fig. 6). None the less, for a simple six-parameter model, it seems to account for much of the occultation profile. In principle, it is straightforward to adjust the optical depth profile with further parameters so as to match the data more perfectly; however, that seems unwarranted at this early stage of investigation.

The best-fitting parameters and their uncertainties for the exponential, Gaussian, and generalized Gaussian optical-depth profiles are summarized in Table 5. In spite of the different quality of the fits for the different optical-depth profiles, the interesting physical parameters, such as v_t, λ, and τ₀, do not vary very much. In the following section we utilize the parameters derived from the generalized Gaussian model.

7 CONSTRAINTS ON THE SYSTEM

The fits we have done for both an elliptically projected disc occulter and a dust sheet each yield a value for the transverse orbital speed during the occultation (see Tables 4 and 5), while the K2 photometry requires that the orbital period be ≳80 d. As we will discuss here, there is also a constraint on the distance of closest approach to the host star that the dust can make before it is tidally shorn from its anchor body. The goal here will be to use these values and constraints to determine what system parameters are allowed for the anchor body and host star.

7.1 Allowed orbital parameters

The most challenging parameter to accommodate is the relatively high transverse speed during the occultation for the disc model. For a circular orbit, that speed (∼38 km s⁻¹) leads to a prohibitively short orbital period. Thus, we would need to invoke an eccentric orbit. The least demanding orientation is then one where we observe the occultation when the disc anchor body is at periastron passage (with its largest orbital speed). Thus, from hereon we work under the assumption that we are viewing the orbit with an argument of periastron equal to 270°, i.e. with the transit taking place at periastron.

For the model fit to a dust sheet, Table 5 indicates that v_t ≃ 23 km s⁻¹ in the best-fitting model. Applying that value to equation (4) yields P ≳ 130 d for any orbital eccentricity. In turn, equation (3) indicates that |$d_{\rm per} \gtrsim 58 \, R_{\odot } = 0.27$| au. As we discuss below, this is sufficient for the instantaneous Hill sphere radius of a super-Earth to accommodate the hypothesized dust sheet.

In the case of the elliptically projected disc occulter (see Fig. 7) the situation is not as simple. Application of the best-fitting transverse velocity of 38 km s⁻¹ to equation (4) yields P ≃ 28.3((1 + e)/(1 − e))^3/2 d, which requires a substantial eccentricity. In particular, for P to exceed the minimum value of 80 d, e ≳ 0.33. In turn, plugging this eccentricity into equations (3) yields |$d_{\rm per} \simeq 28.3 \, R_{\odot } \simeq 0.13$| au.

7.2 Hill sphere radius of anchor or shepherding body

7.3 Inferred dust mass and mass-loss rates

We now proceed to make a simple estimate of the mass required in small particles (dust to pebble size) that is required to obscure up to ∼80 per cent of the host star’s light for a whole day. We define three quantities from which everything else follows: the mass column density of the dust sheet, Σ, the bulk density of the small particles, ρ, and the characteristic size of the particles, a. The column number density, mass, and cross-section of the particles are: N = Σ/μ, μ = 4πρa³/3, and σ = ξπa², respectively, where ξ is the cross-section normalized to the geometric area of a particle.

We note in passing that the mass in Saturn’s rings is estimated to be ∼1000 times the value we infer for |$\mathcal {M}_d$|⁠. Moreover, Saturn’s rings would barely be large enough to block 10 per cent of the light of EPIC 204376071 even if they were all optically thick. However, much of the mass in Saturn’s rings are in particles that are |$\gg 1 \, \mu$|m (see e.g. Zebker, Marouf & Tyler 1985), and therefore very inefficient, per unit mass, of blocking light.

This mass is a factor of ∼3 lower than required for the dusty disc, largely because the disc was found to be several times larger in linear dimension that the dust sheet.

7.4 Possible ‘dipper’ scenario

Because EPIC 204376071 is a member of the Upper Sco association, and many of the so-called ‘dipper stars’ are found there (see e.g. Cody et al. 2014; Ansdell et al. 2016), the possibility arises as to whether the large occultation event we have found is also related to the ‘dipper’ phenomena. In that case, the occultation would probably occur near the star and be due to some dusty material orbiting near the corotation radius of the host star. While we cannot rule out that possibility, there are three properties of EPIC 204376071 which make it quite different from the other ‘dippers’.

First, if we examine the numerous dipper stars presented in Cody et al. (2014) and Ansdell et al. (2016) we see that the dips in flux in those stars are typically 10–30 per cent deep, with a few reaching depths of 50–60 per cent. However, we note that the dipper-like behaviour of HQ Tau (Rodriguez et al. 2017b) has dips that equal or exceed the depth of the occultation in EPIC 204376071, and their durations are two to three orders of magnitude longer than for EPIC 204376071. Second, almost all the dippers show some activity during much of their light curves which typically span 40–80 d in duration with satellite observations, or up to a decade with ground-based photometry. None of them exhibits a single dip in flux, though that may be a selection effect, i.e. the reason they might not have been chosen for inclusion as a dipper. Finally, many of the dipper host stars exhibit clear excess emission in the WISE 3 and 4 bands (see e.g. Ansdell et al. 2016). EPIC 204376071 has weak WISE 3 band emission and only an upper limit in the WISE 4 band (see Section 4).

8 SUMMARY AND CONCLUSIONS

In this work we report the discovery of a deep depression in the flux (by 80 per cent) of EPIC 204376071 that lasts for a full day. The light curve of EPIC 204376071 is otherwise quiet for a total of 160 d of observation during the K2 campaigns C2 and C15.

The host star is a low-mass M-star (∼0.16 M_⊙) with a radius of ∼0.63 R_⊙ that is almost certainly in the Upper Scorpius stellar association with an age of ∼10 Myr. The large radius compared to its nominal MS radius indicates that the star has not yet settled on to the main sequence. The rotation period of 1.6 d is consistent with the star’s youth.

We have explored two basic scenarios for producing a deep asymmetric occultation of the type observed in EPIC 204376071. In the first we considered an intrinsically circular disc of dusty material anchored to a minor body orbiting the host star. The disc is inclined to the observer so that, in projection, it appears as a highly elliptical occulter. If taken to be of uniform optical depth, for simplicity, we find that the disc has a diameter of ≃4.2 times the radius of the host star. Such a disc contains ≳3 × 10¹⁹ g of material. The fit to the measured occultation profile is excellent. The body that anchors such a disc would have to be in an eccentric orbit and have a mass of ∼|$3\, \mathrm{ M}_\mathrm{ J}$|⁠. It is interesting to note that the other occultation event for which a disc yields a good fit (1SWASP J140747 discussed in the Introduction; see Kenworthy et al. 2015a) is also in the Scorpius–Centaurus association. The disc models for J1407 had to contend with the same issue, namely that the best fit appears to necessitate eclipses near periastron passage in a substantially eccentric orbit.

Second, we considered a dust sheet of material of basically unknown origin, though we do assume that the source of the dust is in a quasi-permanent orbit about the host star. In such a model we take the optical depth of the dust sheet to vary systematically with distance behind its leading edge (see Fig. 8 for an artist’s conception). The fit to the occultation profile using this simple model also yields a good fit, but with small systematic deviations. Such a dust sheet requires somewhat less material at ∼10¹⁹ g of material.

The possibility of a dust tail streaming from a minor body (e.g. such as KIC 1255b, Rappaport et al. 2012) is hard to accept in the case of EPIC 204376071 given that there would be so little radiant flux at distances of ≳1/4 au from a host star with L ≲ 0.027 L_⊙ [see van Lieshout & Rappaport (2018), for a discussion of dust production from small planets]. The equilibrium temperature, T_eq, in such an environment would be ≈230 K, which would be sufficiently low that the region would be closer to habitable than being prone to producing dusty effluents.

Any possible period to the dips, if there is one, is quite long (i.e. ≳100 d), and since the star is relatively faint, unfortunately the prospects for long-term ground-based monitoring of this K_p = 15 and V  = 16.3 mag star are not great. Therefore, it will be quite difficult to prove one way or the other whether the dip observed in EPIC 204376071 is part of a periodic set of dips, or an isolated event.

Some possible shortcomings of a quasi-permanent orbiting dusty feature (see Section 7) have led us to also consider the possibility that this dip is ‘simply’ an accretion event containing a large amount of dusty material. After all, the target star is part of a stellar association replete with many other ‘dipper’ stars. A range of dipper-like stars and related objects was discussed in the Introduction (Section 1). It is true that the light curve of EPIC 204376071 is fairly unique among the group of dippers in that it is quiet for so long, and is only punctuated by a well-defined large drop in flux for just one day. None the less, we have to allow for the possibility that this dip is ‘merely’ a large dusty accretion event. It would certainly be more exciting if there is a quasi-permanent orbiting dusty structure in the system, but this remains to be proven.

Long-term ground-based monitoring for subsequent dips is not very likely in the medium term. The two K2 campaigns observed dips in EPIC 204376071 with a probability of ∼1 in 160. With ∼1000 visits per field in the nominal LSST survey (Ivezić et al. 2008), this large survey would expect to see another dip in its 10 yr of operations, unless the K2 campaigns were particularly lucky in catching the single dip. In addition, TESS may observe EPIC 204376071 during an extended mission (Ricker et al. 2014; Bouma et al. 2017). In any case, it would be possible to make some very helpful radial velocity measurements to search for evidence of an orbiting body, and adaptive optics observations to search for scattered-light from disc structures or evidence of low-mass wide companions. Orbiting bodies of 1 M_J, 10 M_J, and 40 M_J in a 100-d orbit would yield RVs amplitudes of 150 m s⁻¹, 1.5 km s⁻¹, and 5 km s⁻¹, respectively. Such measurements would require a large telescope with a red-sensitive spectrograph for radial velocity observations given the host star’s K_p = 15 mag, and laser guide star or infrared wavefront sensor measurements in the case of adaptive optics, but would be worth the investment if an orbiting body is found.
