IFU spectroscopy of southern PNe – VII. Photoionization modelling of intermediate excitation class objects Free

ABSTRACT

We present integral field unit spectroscopic observations of southern Galactic planetary nebulae (PNe) IC 2501, Hen 2-7, and PB 4. The goal of studying these objects together is that, although they have roughly similar intermediate excitation and evolution of central stars (CSs), they display very different evolution in their nebular structure that needs to be understood. The morphologies and ionization structures of the objects are investigated using a set of emission-line maps representative of the different ionization zones. We use those in order to construct two-zone self-consistent photoionization models for each nebula to determine new model-dependent distances, progenitor luminosities, effective temperatures, and CS masses. The physical conditions, chemical compositions, and expansion velocities and ages of these nebulae are derived. In Hen 2-7 we discover a strong poleward-directed jet from the presumed binary CS. Oxygen and nitrogen abundances derived from both collisionally excited and recombination lines reveal that PB 4 displays an extreme abundance discrepancy factor, and we present evidence that this is caused by fluorescent pumping of the O ii ion by the EUV continuum of an interacting binary CS, rather than by recombination of the O iii ion. Both IC 2501 and PB 4 were classified by others as Weak Emission Line Stars (WELS). However, our emission-line maps show that their recombination lines are spatially extended in both objects, and are therefore of nebular rather than CS origin. Given that we have found this result in a number of other PNe, this result casts further doubt on the reliability, or even the reality, of the WELS classification.

1 INTRODUCTION

Photoionization modelling of planetary nebulae is vital to understanding of their central stars (CSs) and their evolution. On one hand, such models enable us to derive reliable abundances especially for elements observed in only one ionization zone or those that are observed only in weak emission lines, such as the recombination lines of heavy elements. On the other hand, such models enable us to determine the nebular temperature and density in the different nebular ionization zones. Furthermore, they can provide information on the distance and evolutionary age of the nebula and are necessary to determine the temperature, luminosity, mass, and radius of the CSs. The location of CS on the luminosity-temperature plane overlaid by the H-burning or He-burning post asymptotic giant branch (AGB) tracks such as those of Vassiliadis & Wood (1994) and/or Miller Bertolami (2016), provide us with the mass of the precursor star, so that the chemical composition can be related directly to the nature of the precursor star. Reviewing the literature, photoionization modelling of PNe has been carried out by, for example, Henry et al. (2015), Bohigas et al. (2015), Bohigas, Rodríguez & Dufour (2013), Yuan et al. (2011), Pottasch, Surendiranath & Bernard-Salas (2011), Pottasch et al. (2009), Morisset & Georgiev (2009), Pottasch & Surendiranath (2005), Surendiranath & Pottasch (2008), Surendiranath, Pottasch & García-Lario (2004), Hyung, Pottasch & Feibelman (2004), and Ercolano et al. (2003) but up to now relatively few of these are based on integral field spectroscopy of the full nebula.

Although Weidmann & Gamen (2011) identified ∼13 per cent of CSs in a sample of slightly over 3000 PNe, the fundamental difficulty in observing the CSs is that they are weak in visible light since most of their radiation is in the ultraviolet range. Furthermore, the observed spectra of these stars are often contaminated with nebular emission which may lead to errors in their classification. Therefore, high-resolution spectra integral field unit (IFU) are important to be able to properly subtract the contaminating nebular mission and to correctly classify the PN CS.

IFU spectroscopy of PNe also provides an excellent opportunity for constructing accurate nebular models. In particular, we can directly compare the global spectrum to a theoretical model using the size, nebular flux, and morphology to constrain the distance, the photoionization structure, and to define the inner and outer boundaries of the nebula. In addition, we can directly compare measured electron temperatures and densities in the different ionization zones to constrain the pressure distribution within the ionized material.

In this series of papers, our group has provided IFU images, spectra and detailed PNe photoionization models for a number of southern PNe. To briefly summarize the key results, self-consistent photoionization and shock models were constructed to interpret the physics of the interacting planetary nebula PNG342.0-01.7 (Ali et al. 2015b). Basurah et al. (2016) introduced self-consistent modelling for a sample of high-excitation non-Type I PNe with supposed weak emission-line CSs, showing these lines to arise in the nebula rather than the CS. A detailed self-consistent model was developed for the compact, young, and low excitation class (EC) PN IC 418 using high spectral resolution IFU spectra covering the spectral range 3300–8950 Å (Dopita et al. 2017). This model consists of three separate zones: an inner photoionized shock driven by the accelerating stellar wind of the CS, a photoionized nebular shell, and an outer shock in the AGB wind driven by the overpressure of the strong D-Type ionization front. Very recently, Dopita et al. (2018) have developed a set of self-consistent radiative shock models to investigate the physical conditions and peculiar chemo-dynamics of the N-rich fast-moving knots associated with the bipolar PN Hen 2-111.

In this article, we continue our program of obtaining IFU spectra with both high resolution and very high dynamic range and building detailed photoionization models. Here we study IC 2501, Hen 2-7, and PB 4. These PNe were chosen to be studied together because, although having both very similar ECs and luminosities of the CSs, they display remarkably heterogenous morphologies, possibly related to the binarity or otherwise of their CSs.

A long-slit spectrum of IC 2501 has been obtained by Milingo et al. (2002a) in the spectral range 3600–9600 Å with wavelength dispersions of 2.8 Å. The plasma diagnostics and abundances determination were given in a companion paper (Milingo, Henry & Kwitter 2002b). An echelle spectrum was obtained by Sharpee et al. (2007) to identify emission lines of the s-process elements Br, Kr, Xe, Rb, Ba, and Pb in this nebula. Their spectrum cover the spectral ranges 3280–4700 Å and 4590–7580 Å at very high resolution (λ/Δλ = 28 000 and 22 000, respectively). Also, a few krypton lines at [Kr iii] 6826 Å, [Kr iv] 5346 Å, and [Kr iv] 5868 Å were detected in the spectrum of IC 2501 by Sterling, Porter & Dinerstein (2015). In addition to the emission lines in optical band, infrared features at 17.4 and 18.9 |${\mu m}$| of C₆₀ were detected in IC 2501 (Otsuka et al. 2014). Cuisinier, Acker & Koeppen (1996) obtained long-slit spectra for Hen 2-7 and PB 4 in the wavelength range 3600–7400 Å with a spectral resolution of ∼ 4.0 Å. Based on these observations, they derived the physical conditions, ionic abundances, and total elemental abundances of both nebulae. Hα + [N ii] and [O iii] narrow-band images of IC 2501 and PB 4 were presented by Schwarz, Corradi & Melnick (1992). Both images reveal circular and elliptical morphologies for IC 2501 and PB 4, respectively. Another set of Hα + [N ii] and [O iii] images for PB 4 were presented by Corradi et al. (2003) which show a double PN halo. The inner halo is brighter and structured in Hα + [N ii] while the outer halo is more asymmetrical and fragmentary. A narrow-band image in [N ii] filter, with bandpass filter 18 Å, was given by Weidmann et al. (2016) for Hen 2-7. The image shows ‘a well-defined elliptical nebula with a high surface brightness and a prominent CS’.

Peimbert (1978) originally divided PNe into four types according to their chemical composition, spatial and kinematic characteristics. Type I objects are helium and nitrogen rich, Type II intermediate population, Type III high velocity, and Type IV halo population. Type I objects are those that satisfy the condition He/H ≥ 0.14 or N/O ≥ 1.0. Subsequently, Peimbert & Torres-Peimbert (1983) relaxed the Type I condition to include all objects with He/H ≥ 0.125 or N/O ≥ 0.5. Later, Maciel & Quireza (1999) considered a more strict condition, defining Type I as those objects have He/H > 0.125 and N/O > 0.5. Members of Type II are characterized by He/H < 0.125 and N/O < 0.5. Faundez-Abans & Maciel (1987) further subdivided Type II PNe into two types according to their nitrogen abundance. Quireza, Rocha-Pinto & Maciel (2007) reanalysed the Peimbert classes through a statistical study of a large sample of PNe to remove the confusion concerning the objects that cannot be defined as belonging to a single type. They define the limits between the four Peimbert types on the basis of helium and nitrogen abundances, nitrogen to oxygen ratio, the height above the Galactic disc, and the peculiar velocity of each object (see table 2, Quireza et al. 2007).

The main objective of this paper is to provide IFU spectra for the Galactic PNe IC 2501, Hen 2-7, and PB 4 at high resolution (R ∼ 7000), to present a detailed spectroscopic and morphological study and to construct self-consistent photoionization models for these objects. This paper is structured as follows: the observations and data reduction are explained in Section 2. Section 3 provides analysis of the plasma diagnosis while Section 4 is devoted for describing the morphologies, expansion velocities, and distances of the sample in addition to the binarity of the PB 4 CS. Section 5 discusses the misclassification of IC 2501 and PB 4 CSs as weak emission-line stars type. The photoionization modelling of IC 2501, Hen 2-7, and PB 4 are presented in Section 6 and the conclusions are given in Section 7.

2 OBSERVATIONS & DATA REDUCTION

The IFU spectroscopic observations of Hen 2-7, IC 2501, and PB 4 were acquired at 2016 January 12, 2016 April 4, and 2016 April 6, respectively, and cover the wavelength range 3300–8950 Å. The observations were obtained with single pointings using the Wide Field Spectrograph (WiFeS) instrument (Dopita et al. 2007, 2010) mounted on the 2.3-m ANU telescope at Siding Spring Observatory. This instrument delivers a field of view of 25 × 38 at a spatial resolution of either 1.0 × 0.5 or 1.0 × 1.0, depending on the binning on the CCD. Using a series of exposures stepped in integration times, a very high dynamic range (∼ 10^5–6) can be achieved. Also, the high resolution R∼7000 gratings were employed, providing a full width at half-maximum resolution of ∼45 km s⁻¹ (∼0.9 Å). Observations are made simultaneously in two gratings. For the U7000 & R7000 gratings, the RT480 dichroic was used, which cuts at 480 nm and for the B7000 & I7000 gratings, the RT615 was employed, which cuts at 615 nm. Therefore, each waveband is observed in a region of high dichroic efficiency. A suitably wide overlap in wavelength coverage is ensured between each of the gratings (Dopita et al. 2007), giving a contiguous wavelength coverage from ∼3300 to ∼8950 Å. A summary of the WiFeS observations is presented in Table 1.

The data reduction was carried out using the PyWiFeS pipeline (Childress et al. 2014). The nebular fluxes were calibrated using the STIS spectrophotometric standard stars HD 111980 and HD 031128. The wavelength scale was calibrated using observations of the Ne–Ar arc Lamp throughout the night. Furthermore, a telluric standard star HIP 41423 was used to improve the removal of the OH and H₂O telluric absorption features in the red. The separation of these features by molecular species allows for a more accurate telluric correction by accounting for night-to-night variations in the column density of these two species. For further details on this process, please refer to Childress et al. (2014).

Each of these nebulae are fairly compact and fall well within the WiFeS field of view, having angular diameters (in their largest dimension) of 10 arcsec (IC2501), 17 arcsec (Hen 2-7), and 12.5 arcsec (PB 4). The global spectra of each PN were extracted from the reduced data cubes utilizing a circular aperture matched to the observed size of the PN using QFitsView v3.1 software.¹ The spectra from the four gratings U, B, R, and I were combined applying the scombine task of the iraf software.

3 PLASMA DIAGNOSIS

3.1 Line fluxes and excitation class

Emission-line fluxes and their uncertainties were measured from the final combined flux-calibrated U, B, R, and I spectra using the alfa code (Wesson 2016). The uncertainties are estimated using the noise structure of the residuals. A double check was done using the splot task in the iraf software.

The computation of the interstellar reddening coefficients and the subsequent plasma diagnoses steps used the Nebular Empirical Abundance Tool (neat; Wesson, Stock & Scicluna (2012)). The line fluxes were treated for the reddening effect applying the extinction law of Howarth (1983). The reddening coefficient c(H β) was determined from the weighted mean ratios of the Hydrogen Balmer lines H α, H β, H γ, and H δ in an iterative method, assuming Case B at T_e = 10⁴ K. The observed and de-reddened line fluxes and their uncertainties are given in Table 2.

The He ii λ4686/H β line ratio probably provides the best estimator for the nebular EC. Here, we applied the scheme of Reid & Parker (2010) to determine the EC of IC 2501, Hen 2-7, and PB 4. The He iiλ4686 line is marginally present in both IC 2501 and Hen 2-7. All three of these PNe are of intermediate EC class (EC ∼6). This result is compatible with the absence of high-excitation lines, such as [Ar v] and [Ne v], in the spectra.

The systemic velocity RV_sys of the sample was determined using the iraf external package RVSAO (emsao task), from numerous nebular emission lines. The heliocentric radial velocity RV_hel was calculated by correcting the RV_sys for the effect of Earth’s motion. The results of IC 2501 and Hen 2-7 reveal good agreement with those of Durand, Acker & Zijlstra (1998). It appears that there are no previous measurements for the radial velocity of PB 4.

Table 3 lists the H α and H β integrated fluxes, c(H β), EC, RV_hel and distance (Section 4.4) of each PN. Almost all measurements are well consistent with those in the literature.

3.2 Temperatures and densities from CELs

The electron temperatures and densities for IC 2501, Hen 2-7, and PB 4 are calculated from their collisional excitation lines (CELs) using the neat code. The emission lines that are detected in the PNe spectra allow us to measure both electron temperatures and densities for several stages of ionization. The nebular temperatures are determined from the line ratios [O iii] (λ4959 + λ5007)/λ4363, [Ar iii] (λ7135 + λ7751)/λ5192, [N ii] (λ6548 + λ6584)/λ5754, [S ii] (λ6717 + λ6731)/(λ4068+ λ4076), [O ii] (λ7319 + λ7330)/(λ3726+ λ3729), and [O i] (λ6363 + λ6300)/λ5577 while nebular densities were determined from the line ratios [O ii] λ3727/λ3729, [S ii] λ6716/λ6731, [Cl iii] λ5517/λ5537, and [Ar iv] λ4711/λ4740. In Table 4, we list the temperatures and densities of IC 2501, Hen 2-7, and PB 4, and compare these values with those available in the literature and with those derived from their photoionization models presented in Section 6, below. There is generally good agreement between the literature values and those presented here.

3.3 Temperatures and densities from ORLs

The PNe spectra declare few optical recombination lines (ORLs), convenient for electron temperature and density diagnostics. The temperatures were derived from the diagnostic ratios of He I 5876/4471, 6678/4471, 6678/5876, and 7281/5876, and O ii 4649/4591, 4649/4189, and 4649/4089. Further, the densities were derived from the diagnostic ratios of O ii 4649/4662 and 4076/4070 and N ii 5679/5666. The average temperature and density that determined from each ion were listed in Table 4, providing the diagnostic lines are available in the nebular spectra.

Jointly with the temperatures and densities derived from both CELs and ORLs, Table 4 also gives the Paschen jump temperature and the Paschen decrement density applying the neat code. We ignored here the Balmer jump temperature and the Balmer decrement density as the S/N is too low in the UV spectral region of the three nebulae.

Rubin (1986) has examined the effects of the recombination processes in addition to the collisional excitations on the energy level populations of species e.g. nitrogen and oxygen. The recombination contributions of N²⁺ and O²⁺ in the strength of the auroral [N ii] λ5754 and the [O ii] λλ7320, 7330 lines were estimated following equations (1) and (3) of Liu et al. (2000), respectively. For the [N ii] weak line λ5754, we estimate recombination contribution of |$4{{\ \rm per\ cent}}$| and |$70{{\ \rm per\ cent}}$| of the observed intensity of λ5754 in IC 2501 and PB 4, respectively. For the [O ii] line λλ7320, 7330, we estimate recombination contribution of |$4{{\ \rm per\ cent}}$| and |$65{{\ \rm per\ cent}}$| in the observed intensity of λλ7320, 7330 in IC 2501 and PB 4, respectively. It is apparent there is a high recombination contribution in the strength of lines λ5754 and λλ7320, 7330 in case of PB 4 compared to IC 2501. This result has a significant effect on the temperatures of PB 4 which were 2016 Apr 04derived from both [N ii] and [O ii] line ratios. Subtracting the recombination contribution, we obtain temperatures of 9500 K from corrected [N ii] (λ6548 + λ6584)/λ5754 line ratio and 17 600 K from corrected [O ii] (λ7319 + λ7330)/(λ3726 + λ3729) line ratio.

3.4 Ionic and elemental abundances

In Table 6, we present the ionic and elemental abundances of IC 2501, Hen 2-7, and PB 4 as derived using the neat code. The ionic abundances of nitrogen, oxygen, neon, argon, sulphur, and chlorine are derived from the CELs, while helium and carbon are calculated from the ORLs using the appropriate temperature and density for their ionization zone. When several lines are observed for the same ion the average abundance was adopted. The total elemental abundances were determined from the ionic abundances applying the ionization correction factors (ICFs) given by Delgado-Inglada, Morisset & Stasińska (2014). Following the Peimbert classification scheme of PNe as modified by Quireza et al. (2007), none of the three nebulae studied here are of Type I. We classify IC 2501 as of Type IIa, Hen 2-7 as Type IIb, and PB 4 as Type IIb/III.

The oxygen and nitrogen ionic and total abundances in IC 2501 and PB 4 are also computed using the ORLs. The O ii abundance of IC 2501 was determined from V1, V5, V10, V19, V28, and V48 multiplets, which mostly agree well with each other excepting multiplets V5 and V28 which give higher values. We used the remaining multiplets (V1, V10, V19, and V48) to compute the fractional and overall oxygen abundance. The N ii abundance of IC 2501 was determined from V3, V5, and V20 multiplets. We ignored a few blended lines in these multiplets, which gave higher abundance compared to other components. The abundance of each multiplet was computed from a flux-weighted average of its components and the overall abundance are determined as the average of the multiplet abundances.

In the case of PB 4, we calculate the O ii abundance from V1, V10, V28, and V92 multiplets, which display very good agreement with each other, and the N ii abundance from V3 and V28 multiplets. Table 5 lists the fractional ionic and overall abundances of O ii and N ii along with the average of each multiplet. The number of O ii and N ii lines detected in Hen 2-7 is not sufficient to calculate their abundances.

The |$\rm O^{2+}$| adf is defined as the ratio of ORL abundance of |$\rm O^{2+}$| to CEL of |$\rm O^{2+}$| and N adf as the ratio of ORL abundance of |$\rm N^{2+}$| to the total CEL nitrogen abundance. The resultant abundance discrepancy factors (adfs) are given in Table 5, for both oxygen and nitrogen. No abundance discrepancy appears in IC 2501, where the oxygen and nitrogen abundances determined from both CELs and ORLs are roughly equal; adf(⁠|$\rm O^{2+}$|⁠) ∼ 1.1 and adf(N) ∼ 1.0. On the contrary, PB 4 displays an extreme abundance discrepancy; adf(⁠|$\rm O^{2+} \sim 18$|⁠) and adf(N)∼27.

The derived adf of oxygen in case of PB 4 is to be more trusted than that of nitrogen. The reason for this is that the ORL nitrogen abundance is determined mainly from |$\rm N^{2+}$| abundance while the nitrogen abundance from the CELs is determined only from |$\rm N^{+}$| lines and relies heavily on the estimated on the ICF . This becomes particularly uncertain for CELs where a small amount of nitrogen (∼ 16 per cent) is in the form of |$\rm N^{+}$|⁠. This result of high O adf joins PB 4 to the group of PNe with extreme adfs (adf > 10, Wesson et al. 2018).

4 EMISSION-LINE MAPS AND EXPANSION VELOCITIES

4.1 Emission-line maps

To study the morphology and ionization structure of the PNe sample, we extracted a number of emission-line maps representing different ionization zones from their data cubes. In Fig. 1, we present three images of IC 2501 in the [S iii], [S ii], and [Ne iii] emission lines. The nebula displays a featureless roughly elliptical shape with a fainter outer shell visible in the green and blue colours. The outer shell is only marginally distinguishable from the background sky emission.

Fig. 2 displays three surprisingly different morphologies of the Hen 2-7 nebula in six emission-line maps. This shows a butterfly shape with an equatorial density enhancement forming a dense torus of gas around the CS, best seen in the [N ii], [S ii], and [O ii] lines. The two lobes are oriented at PA ∼ 120 with somewhat brighter emission in SE lobe compared to NW lobe. The object shows an elliptical morphology in the [O iii] and He ii emission lines with a roughly round central dense emission. In general, the surface brightness decreases in both maps from the centre to the outer boundary.

The [Fe iii] emission-line map is remarkable, showing a jet-like morphology with point-symmetric condensations of emissions along the polar axis. Purely from the point of view of photoionization theory, the morphology of [Fe iii] should be similar to that of [O ii], since the ionization potential (IP) of [Fe ii] is 16.19 eV, that of [Fe iii] is 30.65 eV while the IP of [O i] is 13.62 eV and that of [O ii] is 35.12 eV. The great difference of morphology between the [Fe iii] and [O ii] emission can only be explained by invoking a jet, either excited through shocks in a jet, or in a mass-loaded polar-directed stellar wind. The idea that the [Fe iii] emission arises in a jet is confirmed by the kinematics, since relative to the systemic velocity, the SE jet is approaching at +51 ± 5 km s⁻¹ at its tip, while the NW jet is receding at −44 ± 5 km s⁻¹. The strength of the [Fe iii] emission in the jets strongly suggests that the Fe-containing dust has been destroyed within them. This points to the origin of the outflowing gas being close to the CS, within the dust sublimation radius, suggestive of a mass-loaded outflow from an interacting binary CS.

Fig. 3 displays the morphology of PB 4 nebula in five different emission-line maps and one composite RGB colour image. In general, the object shows an elliptical morphology, except O ii map, with two symmetric maximum of brightness along the minor axis (likes a barrel with open ends) in the H γ, [O ii], and [O iii] maps. In the [N ii] emission-line map, the nebula has an elliptical ring-like shape with two symmetric knots, in yellow colour, located at the ends of the nebular major axis. The [S ii]–He i–[S iii] composite colour image of PB 4 shows the same morphology that is seen in the [N ii], with the two symmetric knots which appear in magenta in the (B + R) colour image.

4.2 Does PB 4 host a close binary central star?

Corradi et al. (2015) have reported a possible relation between the largest adfs and the CS binarity of PNe. They studied three nebulae (A 46, A 63, and Ou 5) with a post common-envelope binary star. A 46 and Ou 5 show |$\rm O^{2+}/H^{+}$| adfs larger than 50, and this ranges as high as 300 in the inner regions of A 46. A 63 shows a smaller adf around 10. Jones et al. (2015, 2016) have strengthened the case for a correlation between elevated or extreme adfs and CS binarity in PNe through their study of Hen 2-155, Hen 2-161, and NGC 6778. Sowicka et al. (2017) suggested a possible correlation between low adfs and intermediate-period post-common-envelope CSs. Very recently Wesson et al. (2018) confirmed the link between CS binarity and extreme adfs in PNe. They presented deep spectra for seven PNe host close binary CSs and found several of them with extreme adfs. Further they analysed a small statistical sample of 15 PNe showing elevated or extreme adfs and found no link between CS surface chemistry and nebular discrepancy, but a clear link between binarity and the abundance discrepancy. Their analysis also revealed an anticorrelation between abundance discrepancy and nebular electron densities. Furthermore this study discovered that the PNe with binary CSs of a period <1.15 d have adfs exceeding 10, and an electron density less than ∼ 1000 cm⁻³ while the longer period binaries have adfs <10 and much higher densities. Thus they conclude that the adf can be used as a trusted tool in identifying the presence of a binary CS. We might speculate that this is because the UV spectrum of the companion star induces strong fluorescent pumping of the recombination lines, as found in the case of the relatively cool CS of IC 418 by Morisset & Georgiev (2009). Other possible explanations are discussed below.

The CS of PB 4 nebula was classified as a true WELS type Weidmann, Méndez & Gamen (2015), but we proved her this classification is in erroneous (see Section 5) due to most WELS feature lines arise in the nebula. Miszalski et al. (2011) and references therein, pointed out that many of the characteristic WELS emission lines are observed in close binary CSs of PNe. Based on the morphology of a sample of 458 PNe, Soker (1997) introduced a classification scheme to characterize the evolution of binary progenitors of PNe. The basis of the classification is that axisymmetrical, bipolar, and elliptical PNe morphology arise from axisymmetrical mass-loss from progenitor star as a result of the interaction of the progenitors with binary companion where the companion can be stellar or substellar (brown dwarfs or planets). According to this scheme, the progenitor star of PB 4 was classified (with low confidence) as a progenitor which is interacting with substellar companion.

Our results show that PB 4 nebula has a particularly strong recombination line spectrum (Table 2) with de-reddened line fluxes of 6.1, 3.2, and 2.2 for C ii λ4267.15, N iii λ4640.64, and O ii λ4649.13 on the scale of F(H β) = 100, respectively. A comparison between the oxygen and nitrogen abundances computed from the ORLs and CELs, confirms that PB 4 displays an extreme adf.

The map in O ii line at λ4649.13 (Fig. 3) shows that the spatial distribution of |$\rm O^{2+}$| recombination emission roughly matches those of |$\rm C^{2+}$| λ4267.15 and |$\rm N^{3+}$| λ4640.64, despite the much lower signal to noise in these other ions (Fig. 4). However, the O ii λ4649.13 map has a spatial distribution which is remarkably different than that of the supposed parent ion emitting in the [O iii] λ5006.84 CEL for which the emission is distributed through the entire object (Fig. 3). A similar result was achieved by García-Rojas et al. (2016) where they found the O ii ORL emission in NGC 6678 is concentrated inside the [O iii] CEL emission or H i emission. Paradoxically, the O ii λ4649.13 map much more closely resembles the [O ii] λ7319.99 map, strongly suggesting that the O ii ‘recombination’ lines do not arise from recombination at all, but from fluorescent pumping of excited states in the |$\rm O^{+}$| ion. The fluorescent path for pumping the O ii λ4649.13 transition is from the ground state through the UV3 λ430 line to the 3d⁴P state, which can then decay via the V11, V19, and V28 multiplets. The path through the V11 multiplet then decays through the O ii λ4649.13 line.

In PB4, the fact that the O ii λ4649.13 and the [O ii] λ7319.99 maps are extended in the polar direction, while the [N ii] λ6583.5 map shows only an elliptical ring seems to show that the EUV radiation which is doing the pumping is preferentially directed in the polar direction, suggesting that the central binary is an interacting system, which would be consistent with a short-period binary CS, according to the conclusions of the Wesson et al. (2018) study. The presence of a fairly hot binary companion is further suggested by the relatively strong continuum emission seen in our spectra. Apart from the NaD interstellar absorption lines, this spectrum is featureless. This enhanced stellar continuum results in the derivation of a very low Zanstra Temperature of 46 000 K (Gleizes, Acker & Stenholm 1989), while our photoionization modelling (presented below) results in a stellar effective temperature T_eff = 93 000 ± 3000 K.

In conclusion, we infer that the CS of PB 4 is almost certainly an interacting binary with a sub-dwarf O-type companion, and that a poleward-directed EUV continuum produced in the interaction is fluorescently pumping excited states in the |$\rm O^{+}$| ion to produce the extreme adf seen in the polar regions of this object. However, a photometric variability study and spectroscopic radial velocity observations would be essential to confirm the binary nature of the CS.

4.3 Expansion velocities

The expansion velocities of the sample were measured, following Gieseking, Hippelein & Weinberger (1986), from a number of emission lines of different ionization levels. The IP of each emission line is presented alongside the expansion velocity (V_exp) in Table 7. It is obvious from the results that there is a general trend for increasing expansion velocity with decreasing the IP, as would be expected from the ionization stratification of these nebulae.

Reviewing the literature, no measurements are found for IC 2501 and PB 4. Hen 2-7 has three velocity measurements of 15.3, 18.3, and <6 km s⁻¹ derived from [O iii], [O ii], and He ii emission lines, respectively (Meatheringham, Wood & Faulkner 1988). The uncertainties in the previous values were not calculated by the authors but they reveal statistical errors of ∼ 10 per cent in the measurements of the full width at half-maximum. Our velocity measurements of Hen 2-7 (Table 7) indicate higher values compared with those given by Meatheringham et al. (1988). This could be attributed to the different spectral resolution and the different spectroscopic techniques which have been employed.

4.4 Distances

None of IC 2501, Hen 2-7, and PB 4 has a reliable individual distance based upon trigonometric parallax, spectroscopic parallax of the CS, cluster membership, or angular expansion distances. Therefore, we must rely here on the statistical distance methods. We adopted the average distance deduced from the two recent statistical distance scales of Frew et al. (2016) and Ali et al. (2015a). The results are given in Table 3. On the basis of these distances, we derived absolute luminosities L_H β: 6.82 × 10³⁴ erg s⁻¹, 1.33 × 10³⁴ erg s⁻¹, and 1.22 × 10³⁴ erg s⁻¹ for IC 2501, Hen 2-7, and PB 4 respectively. However, the detailed photoionization modelling is capable of providing an independent distance estimate, as discussed in Basurah et al. (2016). Based upon these, improved distance estimates are presented below.

5 MISCLASSIFICATION OF THE IC 2501 AND PB 4 CENTRAL STARS

Through the analysis of ∼80 emission-line CSs, Tylenda, Acker & Stenholm (1993) found that about half belongs to the [WR] star class while others display emission lines at the same wavelengths as [WR] stars but having narrower line widths and weaker line intensities. They termed the latter group Weak Emission Line Stars (WELS). The spectral lines that characterize the WELS class are the recombination lines of C and N. These lines are N iii λλ4634, 4641, C iii λ4650, C iv λ4658, and C iv λλ5801, 5812. The emission line of C iii λ5696 is either very weak or absent.

It is hard to discriminate the width of these lines from the nebular lines, although on low dispersion spectra the group of lines around 4650 Å and the C iv doublet around 5805 Å may appear somewhat broader. Miszalski (2009) claimed that many of WELS are likely to be misclassified close binaries. Further, Miszalski et al. (2011) indicated that many of the characteristic WELS emission lines have been observed in close binary CSs of PNe and originate from the irradiated zone on the side of the companion facing the primary. Basurah et al. (2016) discovered that, for few objects, the WELS classification may well be specious, since the WELS features originated in the nebula, rather than in the CS. Additionally, in Ali et al. (2016), we successfully extracted the CS spectrum of the M3-6 nebula from its 3-D data cube. On the basis of the observed CS spectral lines, we reclassified it as a hydrogen-rich star of spectral type O3 I(f*) rather than its prior WELS type.

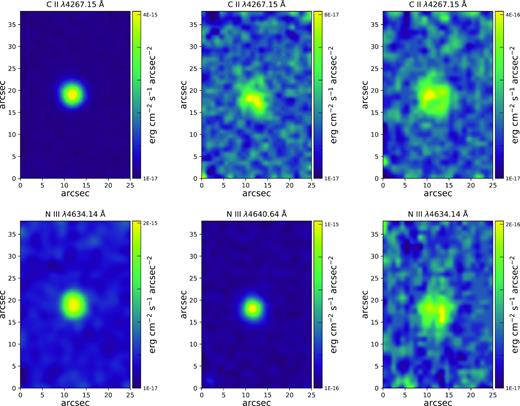

The appearance of the proposed WELS features in the low dispersion (3.4 Å pixel⁻¹) CSs spectra of IC 2501 and PB 4 encouraged Weidmann & Gamen (2011) and Weidmann et al. (2015) to classify both CSs as probable WELS and true WELS types, respectively. Very recently, Weidmann et al. (2018) reclassified the CS of IC 2501 as O-type star. Further, they suggested that the CS could be a binary system due to the presence of a shift between the nebular emission lines and their corresponding stellar features. This result supports the above conclusion that most weak emission-line stars are indeed close binary stars. Inspecting the literature, the CS of Hen 2-7 was not detected yet.

Unfortunately, we are unable to extract the CS spectra at adequate S/N for any of this PNe sample from their data cubes, but it is clear that the WELS classification for IC 2501 and PB 4 are erroneous for these nebulae. In Fig. 4, we present emission-line maps of IC 2501, Hen 2-7, and PB 4 in two proposed CS recombination lines of WELS type. It is obvious that the emission of both lines are spatially distributed over a large nebular area, therefore they are of nebular rather than CS origin.

6 SELF-CONSISTENT PHOTOIONIZATION MODELLING

The details of our self-consistent photoionization modelling have been adequately presented in our earlier papers (Basurah et al. 2016; Dopita et al. 2017), so we will only present a brief summary here. For the photoionization modelling we use mappingV version 5.1.12 code (Sutherland & Dopita 2017). ² For the UV spectrum of the CS, we use the model atmospheres from Rauch (2003). We assume that heavy elements are depleted on to dust. For the initial depletion factors we use the Jenkins (2009) scheme, with a base depletion of Fe of −1.00 dex, but these are adjusted by individual element to best fit the observations. We allow for both grain charging, and photoelectron emission, which can be an important heating process in these nebulae (Dopita & Sutherland 2000).

At the same time, we seek to match both the observed physical size and the absolute H β flux, assisted by the physical appearance and structure of the nebula in the IFU emission line images. In general, the models consist of an optically thick component (in which lines such as [O i], [O ii], [N i], [N ii], and [S ii] mostly arise), as well as an optically thin component which gives rise to emission lines of He ii [O iii], [Ne iii], [Ar iii] as well as lines of higher ionization stages. The schematic geometry of our model is shown in Fig. 5. The outer radius of the optically thick zone is determined by the ionization parameter at the inner boundary U_in, the EUV luminosity of the CS, and the nebular pressure P. For the optically thin region, the outer radius is determined by these three parameters as well as the adopted optical depth at the Lyman limit, τ.

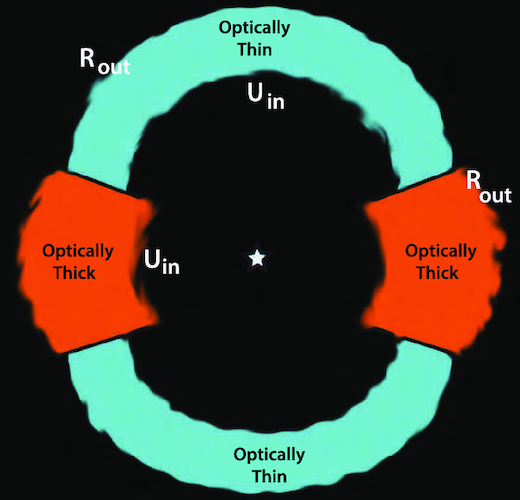

The fractional contributions of the optically thick and optically thin components are determined by line ratios such as He iiλ4686/He Iλ5876 and [O iii]λ5007/H β, which are commonly used to define the EC of planetary nebulae. These ratios are also sensitive to the effective temperature (T_eff) of the CS, but the ambiguity can be addressed by examination of the strengths (relative to H β) of the low-excitation species such as [O i], [N i], or [S ii], since in high excitation, high T_eff and optically thick nebulae, these lines would be relatively strong, while in optically thin nebulae with similar EC but with lower T_eff these lines are much weaker.

The pressure in the ionized plasma is determined by matching the density determined by the density-sensitive [O ii] and the [S ii] lines in the optically thick component, and the [Cl iii] and [Ar iv] lines in the high excitation zone; see Table 4. The electron temperature produced by the model should also match the values measured in Table 4, however, the temperature is strongly dependent on the chemical abundances adopted, and the very important carbon line cooling in the UV.

In the iterative L1-norm minimization process, after we have have matched the nebular size, excitation, pressure, T_eff of the CS, and the H β flux (which constrains the luminosity of the CS, L_*), we adjust the abundances of individual elements in order to provide an optimum fit for all observed ionization stages of each element.

We now describe the detailed photoionization fitting to each nebula.

6.1 IC 2501

The images of IC 2501 in Fig. 1 show a smooth featureless elliptical shell. From the strength of the [O i] doublet λλ6300, 6363 it is evident that this nebula is optically thick. We have therefore modelled this nebula as a single optically thick shell with a mean radius equal to the average of the major and minor axes. At the assumed distance of 2.64 kpc, this corresponds to a radius of 1.55 × 10¹⁷ cm.

Given that the nebula is optically thick, the extreme weakness of the He ii λ4686 line provides a tight constraint on the stellar effective temperature, 50 < T_eff < 60 kK. The detailed model fit gives T_eff = 55 ± 3 kK with an inner ionization parameter log U_in = −2.15, corresponding to a nebular inner radius of 1.0 × 10¹⁷ cm. The stellar luminosity is L_* = (1.15 ± 0.2) × 10³⁷ erg s⁻¹, or 2990 ± 520 L_⊙.

The full photoionization model parameters for this and the other nebulae are given in Table 8, and the derived chemical abundance sets are listed in Table 5. The abundances given here are the gas-phase abundances, and do not include the faction of the heavy elements trapped in grains. To estimate the total (gas + solid phase) abundances, one should multiply the abundances listed in Table 5 by the following factors: He 1.00, C 1.32, N 1.00, O 1.05, Ne 1.00, Ar 1.00, and Cl 1.00. Table 4 gives the modelled temperatures and densities for the various ions observed.

6.2 He2-7

This nebula presents more of a challenge to model, due to its ‘butterfly’ structure, and the evidence presented in Section 4.1 that it is powered by a strong bipolar outflow. In this object we treat the equatorial ring as one region, and the bipolar structure as a second region. These two regions have quite different densities (and hence gas pressures). This is clearly shown by a map of the density-sensitive ratio; [S ii]λλ6731/6717, presented in Fig. 6. This map was prepared by extracting the individual line images using QTFitsView as .fits files, using the irafimrepl task to trim the [S ii]λ6731 image to remove noisy pixels, and then dividing one image by the other using the imarith task.

From Fig. 6, we deduce that the nebula can be modelled as an inner ellipse of radius 5.5 arcsec, and an electron density of 1050 ± 130 cm⁻³, while the outer butterfly wings at PA ∼ 120^o have a radius of 9.5 arcsec and a mean electron density of 400 ± 100 cm⁻³. Again the He ii line strength provides a good constraint on the stellar effective temperature; T_eff = 83.5 ± 1.5 kK.

In order to determine the luminosity, we used the procedure described in Basurah et al. (2016) by varying the assumed distance to obtain a simultaneous fit for the nebular radius in the two zones of the model, as well as the absolute H β flux. This procedure yields a somewhat larger distance than given in Table 3; 4.3 ± 0.5 kpc, giving an outer radius of 3.3 × 10¹⁷ cm for the inner ellipse (versus 3.8 × 10¹⁷ cm for the model), and 6.3 × 10¹⁷ cm for the butterfly wings, versus 6.8 × 10¹⁷ cm for the model. With relative flux weighting factors of 0.32 for the central ellipse versus and 0.68 for the butterfly wings (which minimizes the L1-norm of the fit), the H β flux is predicted to be log L_H β = 34.35, versus the observed value (at an assumed distance of 4.3 kpc) of log L_H β = 34.3. The implied luminosity of the CS is L_* = (4.5 ± 1.1) × 10³⁶ erg s⁻¹, or 1175 ± 300 L_⊙.

6.3 PB 4

This nebula is quite optically thin, especially in the polar direction to the main elliptical ring (in which most of the flux is concentrated). However, an inspection of Fig. 3 reveals a surprising anomaly. While the [O iii] image is very similar to the Hγ image in its morphology, and [N ii], as expected is confined to the elliptical ring, the temperature-sensitive [O ii] λ7219.99 line image brings out the polar extension of the nebula, seen clearly in the high-excitation lines, such as [Ar iv] λ7237.26 and in the O ii λ4649.13 transition. On the other hand, the image in the [O ii] doublet λλ3727.0, 3728.8, although of very poor quality due to the heavy reddening, shows a morphology resembling that of [N ii]λ6583.5. This suggests that the plasma in the polar axis (PA ∼ 160^o) is of much high temperature than that in the elliptical ring.

To investigate this possibility further, we constructed a line ratio image, as described above, in the [N ii]λλ5754.6/6583.5 ratio. This is shown in Fig. 7. It is clear that this temperature-sensitive [N ii] ratio is strongly enhanced along the polar axis. There are two possible explanations, either that the plasma has an enhanced N ii temperature in the polar cone, or that the plasma emitting the [N ii]λ5754.6 has an extremely high density such that the [N ii]λ6583.5 and the [O ii]λ3727, nine lines are collisionally de-excited. At the measured electron density of the nebula (n_e ∼ 2000) the observed [N ii]λλ5754.6/6583.5 line ratio ∼0.085 would imply an electron temperature of 30–40 kK for the polar regions. If on the contrary the electron temperature is ∼10 kK, then the electron density would need to be in the vicinity of n_e ∼ 10⁵ cm⁻³. Unlike the O ii λ4649.13 transition, the [N ii]λ5754.6 line cannot be pumped by UV fluorescence directly from the ground state, so Fig. 7 is clear proof of an enhanced N ii temperature in a polar cone. Further, we subtracted a spectrum from the polar region to show the recombination contribution of N⁺² in the strength of the [N ii]λ5754 line. The results show an enhancement of |${\sim } 70{{\ \rm per\ cent}}$| in the strength of the [N ii]λ5754 line. This value resemble that deduced from the spectrum of the entire nebula (Section 3.3).

Again, we used the procedure described in Basurah et al. (2016) by varying the assumed distance to obtain a simultaneous fit for the nebula radius in the two zones of the model, as well as the absolute H β flux. However, in this case, we required a very small optical depth in the H-ionizing continuum to fit the polar region (τ = 1.3), and we also require that the elliptical disc is somewhat optically thin to the escape of H-ionizing photons (τ = 10). This procedure gave a distance in good agreement with that given in Table 3; 3.1 ± 0.3 kpc, giving an outer radius of 2.7 × 10¹⁷ cm for the inner ellipse (versus 2.4 × 10¹⁷ cm given by the model), and 1.9 × 10¹⁷ cm for the butterfly wings, versus 1.9 × 10¹⁷ cm as predicted by the model. At this distance, the absolute Hβ flux is 1.3 × 10³⁴ erg s⁻¹ versus 1.4 × 10³⁴ erg s⁻¹ for the model. The implied stellar luminosity of the CS is L_* = (5 ± 1.5) × 10³⁶ erg s⁻¹, or 1300 ± 390L_⊙, and the stellar temperature T_eff = 93 ± 3.0 kK. The central disc contributes ∼57 per cent of the total flux.

The L1-norm for the fit is 0.098 dex. This fit is poorer than the other PNe because the strength of the temperature-sensitive lines of [O ii], [N ii] are underestimated by the model, while the [O iii]λ4363 line is overestimated. This points to the extra source of heating in the polar direction being due to stellar-wind driven shocks, rather than photoionization acting alone. This is in addition to the evidence of EUV fluorescence derived from the morphology in the O ii λ4649.13 transition.

An alternative explanation for these discrepancies, and for some of the recombination line abundance anomaly in this object could be that the electron distribution is a κ-distribution rather than a Classical Maxwell–Boltzmann distribution in the polar regions of this nebula, as a consequence of mechanical energy transport in the outflow (Nicholls, Dopita & Sutherland 2012). Recently, Livadiodis (2018) has proved that κ-distributions are the most general, physically meaningful, distribution function that particle systems are stabilized into when reaching thermal equilibrium, and that the Classical Maxwell–Boltzmann distribution simply represents a limiting case. As shown by Nicholls et al. (2012), the high-energy tail of a κ-distribution can enhance the temperature-sensitive collisionally excited lines, while at the same time the excess of low-energy electrons in the κ-distribution enhances the recombination lines.

6.4 Model fits to observations

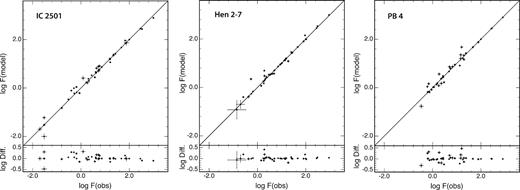

Overall the photoionization models described above provide an excellent fit to the observations. In Fig. 8, we show both the theoretical model fluxes and the residuals plotted against the observed line fluxes, all on a logarithmic scale. In Table 9, we list the observed fluxes and model fluxes of the lines used in the fitting process. The full observed line list and their observational errors are given in Table 2. Overall the model fits are excellent. However, it is clear that the models systematically overestimate [S iii]λ6312, and the [N i]λ5198, 5200 doublet for reasons that are obscure to us.

6.5 Inferred progenitor masses and nebular ages

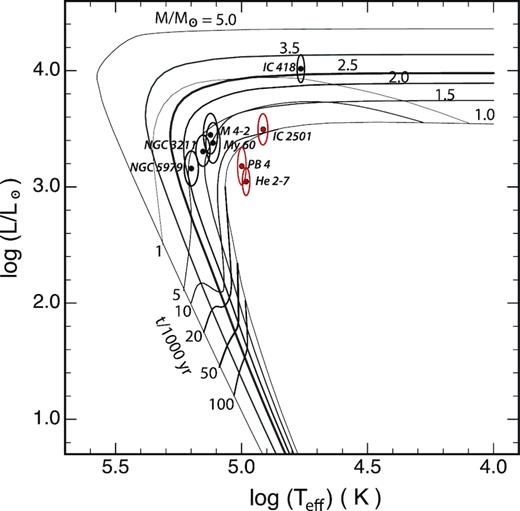

In Fig. 9, we show the positions of these objects on the Hertzprung–Russell (H–R) diagram compared with the tracks for Hydrogen-burning objects from Vassiliadis & Wood (1994), along with the objects which we previously analysed by these techniques (Basurah et al. 2016, Dopita et al. 2017). The implied mass for the three PNe studied here is M ∼ 1.0 M_⊙, or less, if these are interpreted as hydrogen-burning objects. However, it is more likely that they represent higher mass Helium burners which are less luminous in this part of the H–R diagram. If helium-burning, then these objects have masses in the range 1.0 ≤ M/ M_⊙ ≤ 1.5. From their expansion velocities we deduce nebular ages of 3200 yr (IC2501), 4500 yr (He 2-7), and 4130 yr (PB 4). These ages would be consistent with M ∼ 1.5 M_⊙ helium-burning nuclei (Vassiliadis & Wood 1994).

7 CONCLUSIONS

In this paper, we have analysed three Galactic PNe using high-resolution integral field spectroscopy, performed detailed photoionization analyses using classical ICF techniques, and constructed two-zone photoionization models to reproduce both the dimensions and the absolute H β fluxes of these objects. Although all three objects studied here are almost at the same evolutionary state as far as the PN is concerned, they are strikingly heterogeneous in term of their structure and morphology. One is almost spherical and dense, the second is an elongated bipolar with a strong ionized jet in rapid expansion, and the third has a high-temperature polar conical region with strongly enhanced permitted lines in N ii and O ii. The calculated oxygen abundance from recombination lines for PB 4 nebula is found to be discrepant by a factor of ∼ 18 relative to that calculated from collisionally excited lines. This result places PB 4 nebula in the select class of PNe that display extreme adfs, which Wesson et al. (2018) has identified as possessing short-period interacting binary CSs. From the comparison of the nebula morphology in several ions we suggest that this adf is probably in major part due to EUV fluorescence in the O⁺ ion, rather than as the result of recombination of O²⁺ to O⁺. In this case, the EUV radiation field from the presumed binary nucleus appears to be strongly beamed in the poleward direction.

Furthermore, both He 2-7 and PB 4 show evidence of a strong polar-directed stellar wind. In the case of He 2-7, we can infer the velocity of outflow from the [Fe iii] dynamics, using the ellipticity of the equatorial ring to determine the angle of inclination to the line of sight. This gives v_w = 88 ± 10 km s⁻¹. In the case of PB 4, the very high electron temperature deduced from the [N ii] lines (which also seems to apply to the [O ii]) suggests the operation of shocks at the boundary layer of a polar-directed stellar wind. No such enhancement is seen in the [O ii] lines, and additionally, we find no evidence of an enhanced expansion rate in the high-temperature plasma.

ACKNOWLEDGEMENTS

The authors would like to thank the anonymous referee for drawing attention to the extreme abundance discrepancies in the PB4 nebula and also for valuable and constructive comments that have greatly improved the manuscript. MD acknowledges the support of the Australian Research Council (ARC) through Discovery project DP16010363. Parts of this research were conducted by the Australian Research Council Centre of Excellence for All Sky Astrophysics in 3 Dimensions (ASTRO 3D), through project number CE170100013.
