A submillimeter polarization analysis of Frosty Leo Free

Abstract

We present a polarimetric investigation of the protoplanetary nebula Frosty Leo performed with the Submillimeter Array. We were able to detect, in the low continuum level (peak at 14.4 mJy beam⁻¹), a marginal polarization at 2.6σ. The molecular line investigation based on the CO J = 3 → 2 emission shows a peak emission of 68.1 Jy beam⁻¹ km s⁻¹ and the polarization detection in this CO line is also marginal, with a peak at 3.8σ. In both cases, it was therefore not possible to use the electric vector maps (⁠|$\boldsymbol {E}$| field) to accurately trace the magnetic field (⁠|$\boldsymbol {B}$| field) within the PPN. The spatio-kinematic modelling realised with the different velocity channel maps indicates three main structures: a distorted torus accompanied by a bipolar outflow or jet aligned with its axis and a flattened spherical ‘cap’. The comparison of the CO polarization segments with our model suggests that the polarized emission probably arises in the first two components.

1 INTRODUCTION

Many observational efforts towards polarimetric measurements, have been performed to understand the role of magnetic fields in (the geometry of) evolved intermediate mass stars such as proto-planetary nebulae (PPNe) and planetary nebulae (PNe) (Bains et al. 2004; Vlemmings & van Langevelde 2008; Gómez et al. 2009; Rodríguez et al. 2017). Following our previous works aiming at detecting and mapping magnetic fields via the linear polarization of both the dust continuum and molecular line emission¹ (see Sabin, Zijlstra & Greaves 2007; Sabin et al. 2014, 2015), we present in this article a polarization analysis of the PPN Frosty Leo (IRAS 09371+1212) performed with the Submillimeter Array (SMA).

Classified as a bipolar post-AGB star or a PPN by Forveille et al. (1987) and Rouan et al. (1988), Frosty Leo was named after the presence of a sharp peak at 60 μm indicative of cold icy grains. Forveille et al. (1987) also showed the presence of a strong CO (J = 1 → 0) emission in the envelope with a V_LSR = −10 km s⁻¹ and an expansion velocity of 25 km s⁻¹ indicative of an outflow. Located at a distance estimated between 1 and 4 kpc by (Mauron, Le Borgne & Picquette 1989) and 3.08 ± 0.71 kpc by (Vickers et al. 2015), Frosty Leo has been the subject of various morphological studies. Kwok, Langill & Hrivnak (1993) and Langill, Kwok & Hrivnak (1994) noticed that the bipolar nebula is surrounded by a nearly spherical envelope of material approximately of 30 arcsec in diameter. Beuzit et al. (1994) identified the disc-like structure of the equatorial plane and Roddier et al. (1995) showed the presence of a companion to the K7III type Central Star (CS). In addition, they showed that the central region of the PPN is not heavily obscured and that the CS lies in a 10³ au thick disc of 4 × 10³ au in diameter (they assumed a distance of 1.27 kpc) for their calculations. The lobes are found to extend up to 15 × 10³ au. The authors found that the collimated ejected material from the centre of the nebula seemed to be distributed within a disrupted cone. Subsequently, Sahai et al. (2000), using optical HST data, reported a complex bipolar nebula displaying multiple jets close to the equatorial plane and two bright ansae, one on each side of an edge-on disc. The ¹²CO molecular line observations realized by Castro-Carrizo et al. (2005, hereafter CC05) reveal a rather compact configuration of which two main attributes are a ring like structure and high speed jets showing an expansion velocity 75 km s⁻¹. The latter are also tracing the optical jets.

The main objectives of this investigation are to determine (i) if a polarization signature is present in the circumstellar envelope of Frosty Leo, (ii) if/how the polarization pattern could be associated to the occurrence of a magnetic field, and (iii) if/how the morphological features mentioned above can be, entirely or partially, linked to these polarization patterns and a possible action of the magnetic field. The article is organized as follows: in Section 2 we describe the observations and data reduction process, in Section 3 and Section 4 we present the continuum and line polarization results respectively. The modelling of the CO emission is shown in Section 5. Finally, the concluding remarks are presented in Section 6.

2 OBSERVATIONS

The polarimetric observations were performed with the Submillimeter Array (SMA²; Ho, Moran & Lo 2004; Rao & Marrone 2005) on 2016 January 28. The observations, which lasted 12 h including calibration, were performed using the compact configuration. However out of eight available antennas only six were operating due to technical issues. The weather conditions were excellent during the run with τ ≃ 0.03 at 225 GHz and relatively stable phases during the observations. The total frequency coverage was from 334 GHz to 346 GHz with a gap between 336 and 342 GHz marking the division between the lower and upper side bands (LSB and USB, respectively). It was therefore possible to target the usually strong ¹²CO J = 3 → 2 line at rest frequency 345.796 GHz. This setting is suitable to make some comparison with the CO findings of CC05 for example. The quasar J0854+201 was used as the gain calibrator and 3C 84 as a bandpass and polarization calibrator. The data reduction process, which involves flux, gain and bandpass calibration, was performed with the software package mir³ and then exported to the Multichannel Image Reconstruction, Image Analysis and Display software miriad (Wright & Sault 1993; Sault, Teuben & Wright 2011) for polarization calibration and imaging. The data were also corrected for polarization leakage; we found consistent leakage terms of a few per cent in the LSB and USB.

3 DUST CONTINUUM ANALYSIS

3.1 Thermal continuum

In each spectral band the continuum was carefully selected and both LSB and USB data sets were combined. During the data reduction process, we used the robust weighting and obtained a synthesized beam with FWHM of 2.20 arcsec ×1.85 arcsec and a position angle of −73.9°. The calculated rms noise for the different Stokes images were σ_I = 1.67 mJy beam⁻¹ and σ_{Q, U} = 1.24 mJy beam⁻¹.

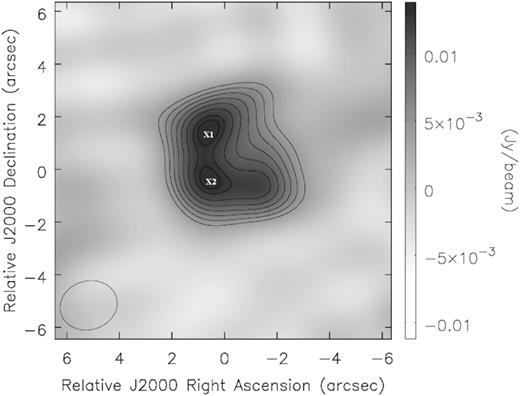

The thermal continuum emission extends over a relatively square area of 4.9 arcsec² (see Fig. 1). The internal structure displays two bright compact clumps centred at α₁(J2000)  = 09^h 39^m 54|${^{\rm s}_{.}}$|000, δ₁(J2000)  = +11° 58′ 54|${^{\prime\prime}_{.}}$|07 and α₂(J2000)  = 09^h 39^m 53|${^{\rm s}_{.}}$|893, δ₂(J2000)  = +11° 58′ 51|${^{\prime\prime}_{.}}$|95 and with intensity peaks of 14.2 mJy beam⁻¹ (x1) and 14.4 mJy beam⁻¹ (x2), respectively. We measured a mean intensity of 8.1 mJy beam⁻¹ over the whole area. These values confirm the low continuum emission in Frosty Leo, which are much fainter than those found for other PPNe such as CRL 618 and OH 231.8+4.2 (see Sabin et al. 2014).

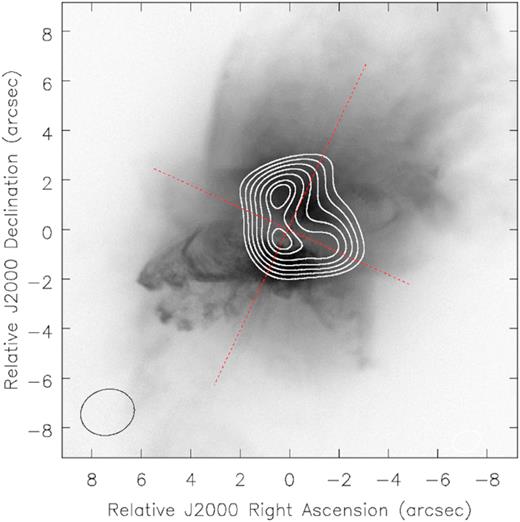

Fig. 2 shows the distribution of the SMA map compared to observations performed with the Hubble Space Telescope. The figure presents an optical composite image of Frosty Leo using F606W filter (λ_c = 5997 Å, Δλ = 1502 Å) taken with the Wide Field Planetary Camera 2 (WFPC2) as part of the program ID:6816 (PI: R. Sahai), and F814W filter (λ_c=8115.4 Å, Δλ = 702.4 Å) taken with the Advanced Camera for Surveys (ACS), as part of the program ID:9463 (PI: R. Sahai).

The submillimeter continuum emission is located in the central region of the PPN. The line joining the 2 submillimeter emission peaks is not fully coincident with any axes of the optical emission. For instance, we have estimated a deviation of 23° ± 1° between such line and the major axis of the PPN.

3.2 Polarization

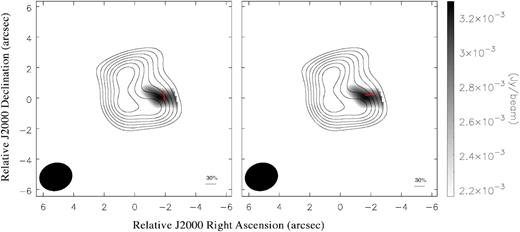

The linear polarization analysis shows that the main polarized emission is extended over an elongated area of 3.1 arcsec ×1.8 arcsec. Due to a beam size of 2.20 arcsec ×1.85 arcsec, the ‘polarized’ region is therefore barely spatially resolved (in Fig. 3 we therefore only show a single polarization segment). For the same reason, the smaller polarized spot located in the southern area of the continuum emission (Stokes I) can be discarded as it is not a meaningful structure.

We measured a peak polarization of 3.2 mJy beam⁻¹ (2.6σ) and a mean of 2.7 mJy beam⁻¹ over the polarized area. Assuming a minimum value of 3σ for a detection to be considered as more robust, we can only infer that, if real, a marginal continuum polarization is present in Frosty Leo. Hence, all the results obtained relative to the percentage polarization will show an upper limit of |$33{{\ \rm per\ cent}}\pm 13{{\ \rm per\ cent}}$| (measured at the peak percentage polarization), and those related to the position angles (PA) have errors from 12° to 17°. If we compare the distribution and maximum value of the polarized emission from Frosty Leo with that of other PPN studied with SMA (namely, CRL 618 and OH 231.8+4.2), we observe that Frosty Leo seems to mirror the polarization pattern of OH 231.8+4.2 in the sense that it is not located in the central region of the nebula, but mostly on the edge. In addition, the peak polarization intensity of Frosty Leo, has a smaller value compared to the PPNe aforementioned (3 and 5 times smaller, respectively), but this result is expected given the small value of the total continuum flux intensity (Stokes I). The peak polarization and the peak continuum emission do not coincide spatially. Such behaviour is not unusual and can be due to the difference either in opacity, grain size or grain distribution (see Hildebrand et al. 1999; Hull et al. 2017), the inefficiency of grain alignment but also due to geometrical effects, i.e. the projection of magnetic fields (Frau, Galli & Girart 2011). Gonçalves, Galli & Walmsley (2005) show in their fig. 6 how the degree of polarization varies as function of the peak intensity at 850 μm for different inclination angles.

With only a marginal detection one has to be cautious regarding the interpretation of the results, particularly when dealing with the electric field polarization (⁠|$\boldsymbol {E}$| field) and the related magnetic field orientation, based on the theory of dust alignment (Lazarian 2003; Lazarian & Hoang 2011). While we assumed that the dust polarization is connected to the presence of magnetic fields, another process has been recently invoked to explain the polarization of dust grains: self-scattering from randomly aligned dust particles (Kataoka et al. 2015; Yang et al. 2016). In the case of Frosty Leo, the data in hand do not allow us to clearly separate the two processes, although the polarization vector distribution appears to indicate that dust scattering is not the main process at work. Higher resolution and multiwavelength data are required for a more definitive assessment of the polarized emission.

4 MOLECULAR LINE ANALYSIS

4.1 Kinematics

The only molecular line clearly detected in the spectrum of Frosty Leo, in the range 334–346 GHz, is the CO J = 3 →2. We measured an rms noise σ_I = 75.4 mJy beam⁻¹ and σ_{Q, U} = 33.9 mJy beam⁻¹ per 5 kms⁻¹ channel. Theses values are, as expected, much larger that the continuum ones. The FWHM Gaussian synthesized beam obtained from the robust weighting was 1.89 × 1.69 arcsec² with PA = −72.3°.

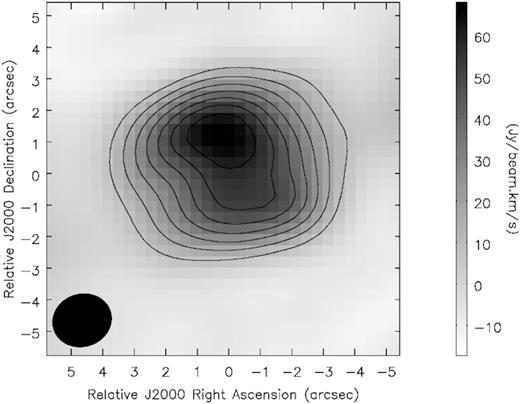

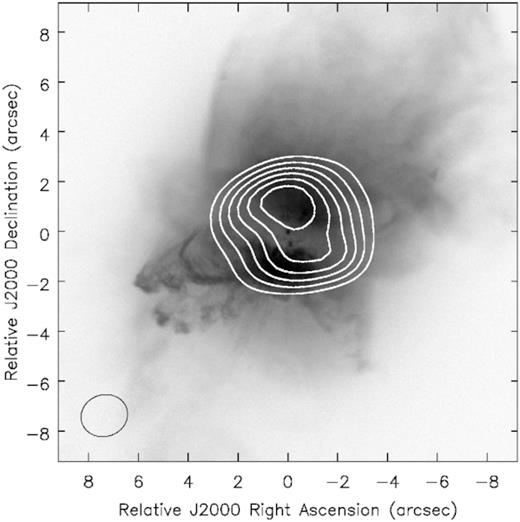

The analysis of the double peak emission line indicated a systemic velocity V_LSR = −10 km s⁻¹ for the nebula, in agreement with the literature. Fig. 4 shows the full CO emission (0-moment map) which peaks at 68.1 Jy beam⁻¹ km s⁻¹ (with a mean of 39.1 Jy beam⁻¹ km s⁻¹ on the whole area) and extends over 8.1 × 6.8 arcsec². This distribution is also presented in Fig. 5, where we compare it to an optical HST image (Fig. 2). We observed that the CO peak emission is coincident with the northern inner bright region of the nebula, as well the northern continuum peak intensity.

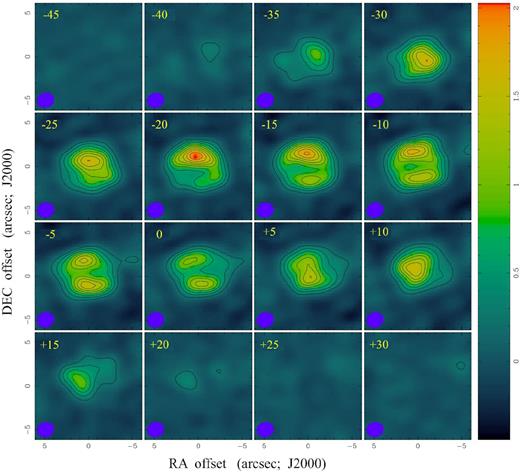

In Fig. 6, we show contour maps of different velocity channels of the CO J = 3 →2 emission of Frosty Leo. The maps correspond to a velocity range from −45 to +30 km s⁻¹, in steps of 5 km s⁻¹ and a peak emission of 2.03 Jy beam⁻¹ is observed at −20 km s⁻¹. The change in the shape of the CO molecular line can be observed along the different panels with the more symmetric pattern appearing at −10 km s⁻¹, i.e. the systemic velocity. Our data are compatible with the CO J = 2 →1 emission observed with the IRAM interferometer by CC05 (their figs 2 and 6), and also with the predictions they show in their fig. 8.

4.2 Polarization

As discussed by Sabin et al. (2014), the Goldreich–Kylafis effect (Goldreich & Kylafis 1981, 1982; Kylafis 1983) is generally invoked when investigating the emission from (rotating) molecules in the presence of a magnetic field. The polarization percentage is generally low, on the order of few per cents, occurring when anisotropic radiation disturbs the molecular magnetic sub-levels.

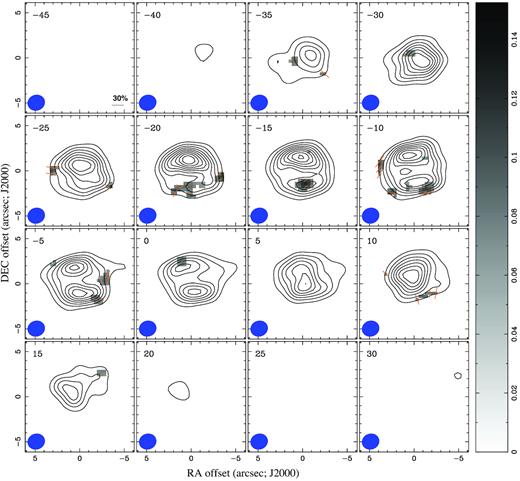

The results of the molecular line polarization analysis conducted for the CO line are presented in Fig. 7. Polarization is seen in several channels and we measured a peak of P_peak = 0.13 Jy beam⁻¹ corresponding to a 3.8σ detection at channel −15 km s⁻¹. Similarly to the dust continuum, the molecular polarized emission can also be considered a marginal detection assuming that we would expect a minimum of 4σ–5σ detection to qualify the detection as ‘robust’. Hence, the polarization percentage obtained are here again upper limits.

However, we observe that, with the velocity interval used, the most internal channels centred at −15 and −20 km s⁻¹ indicate the southern section of the molecular emission as the location of the strongest polarization intensity (above 3σ). Also, the overall picture tends to show that the mean PA of the corresponding polarization segments is 122 ± 11°. This direction seems correlated with that of an outflow/jet in the PPN within the errors.

4.3 Implications for the magnetic field

While the polarization of the thermal dust emission is known to reflect and indicate the presence and direction of magnetic fields (via the 90° rotation of the electric field), the same cannot be said for the polarization of molecular line. Thus, according to the Goldreich–Kylafis effect, the polarization directions (or position angles) are linked to the magnetic field direction on the plane of the sky. Most importantly, the optical depth (and hence the velocity gradient) at which the polarization process is occurring is a fundamental parameter as it will determine if the observed polarization is parallel or perpendicular to the magnetic field. In their study of the protostellar core NGC 1333 IRAS 4A and its outflows, Ching et al. (2016) measured the difference in position angle between the magnetic segments indicated by the dust polarization analysis and the electric segments obtained by the CO polarization observations (see their fig. 4). The fundamental assumption being the magnetic field direction is given by the polarized dust emission, they were able to assess the direction of the CO polarization lines with respect to the field.

Thus, we compared the CO polarization maps in Fig. 7 with the dust polarization map rotated by 90° in Fig. 3. We focused on the brightest regions of the polarized molecular emission and as a result we measured a mean PA of 122 ± 11° with respect to the channel centred at −15 km s⁻¹. The mean PA. of the magnetic vector is 96 ± 13°. Therefore, the mean deviation between both data sets is 26 ± 17°. In this case, due to the combined uncertainties in the PA of all the parameters involved, as well as the size of the beam, we conclude that it is not possible to infer the direction of the CO polarized emission with respect to the magnetic field (e.g. parallel or perpendicular).

5 CO MODELLING

shape (Steffen et al. 2011) is an interactive morpho-kinematic modelling software which allows to choose a structure from its catalogue (spheres, tori, cones, etc.), and change location, size, and orientation of such structure, among many other variables, including the velocity law and density. Generally, the shape user proposes a structure and interactively moves its parameters (graphically), until the morphology and kinematics from the model are in good agreement with observations. New structures can be added to complete the model. The higher spectral and spatial resolution, the better fit can be achieved.

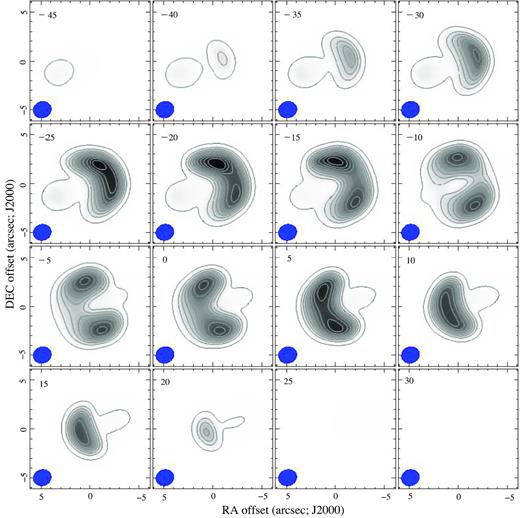

In order to gain a better insight of the molecular system and the relationship with the marginal polarization emission, we have used shape to build a ‘toy-model’ of Frosty Leo based on the observed CO data. Such a model would therefore correspond to and describe the observed channel maps mosaic. The resulting channel map mosaic (Fig. 8), presents the following features: (a) we identified two maxima of the emission, better seen in the centre channels. This double-peak feature tends to become one peak in the most extreme channels, both blueshifted and redshifted and (b) in addition, a marginal evidence of a collimated bipolar outflow can be traced.

To model these features using shape, we have proposed the existence of three morphological structures: an expansive cylindrical ring, a bipolar outflow, and finally a dense small region (hereafter referred to as ‘cap’), which is separated by 5 arcsec from the central star towards the North, de-projected, and misaligned with respect to the main axis.

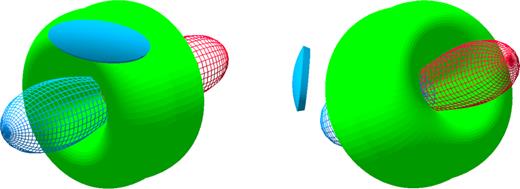

Thus, our final model for CO J = 3 →2 corresponds to a structure formed by an asymmetrically distorted torus and a collimated outflow emerging from the centre (Fig. 9). The axis of the torus is aligned with the outflow, similarly to the proposition by CC05 in their fig. 7 for CO J = 2 →1 and J = 1 →0 (the so called jets). The torus has a size from 3 to 5.8 arcsec in diameter (the inner and outer size, respectively), and an expansion velocity around 20 km s⁻¹. The position angle of the torus axis is PA = 110°, and its inclination angle is i = 40°. Distortions in the structure of the torus, must be caused by a non-uniform development of the mass-loss process.

It is important to note that, we have measured the same systemic velocity as CC05, as well as estimated a similar expansion velocity for the torus, and also detected the presence of an outflow (jet) aligned to the torus axis. The small structure called the ‘cap’ was introduced to reproduce the enhanced emission in the surroundings of the North peak, inferred from the contour maps in channels from −20 to −10 km s⁻¹ (Fig. 6). This structure could be an isolated off-axis ejection from the nucleus of the nebula, but it is hard to explain the mechanism that produces such ejection. Another possibility is that this ‘cap’ is a clump of gas from the interstellar medium, with an enhanced density with respect to its environment. Such structure could be excited by the interaction with the stellar mass loss from the Frosty Leo’s nucleus. Certainly, we need a higher spatial and spectral resolution to figure out the real nature of this structure.

Thanks to this qualitative model, it is now possible to disentangle the different components of the CO emission and therefore associate them to the polarized emission. When comparing Figs 7 and 8, we observe that the CO polarization is mostly linked to the torus and marginally to the outflow/jet.

6 CONCLUSIONS

We present the SMA polarization observations of Frosty Leo. We measured peaks of 14.4 and 68.1 Jy beam⁻¹ km s⁻¹ for the dust continuum and the CO J = 3 →2 emission in Stokes I, respectively. The polarized emission detection, in both cases, can be considered ‘marginal’ with peaks at 2.6σ (dust) and 3.8σ (CO). Therefore the subsequent results have to be taken with caution.

In the case of the dust continuum, if the polarization information is real, the |$\boldsymbol {B}$| segments would likely be parallel to the equatorial plane of Frosty Leo and would therefore trace (part of) a toroidal magnetic field. The emission from CO J = 3 →2 is in total agreement with those detected by (Castro-Carrizo et al. 2005) in CO J = 2 →1. The comparison of the molecular channel polarization maps with the dust polarization map (rotated by 90°) indicates that the |$\boldsymbol {E}$| segments associated to the most polarized area displays a 23° difference in position angle with respect to the |$\boldsymbol {B}$| segment derived from the dust polarization. A conclusion would be that the |$\boldsymbol {E}$| segments are likely parallel to the magnetic field in this area. But again, the uncertainty of the PA has to be acknowledged.

Finally, using the kinematical information from the CO J = 3 →2 emission, we were able to generate a toy model indicating the various components at play. We identified a distorted torus, a bipolar outflow or jet aligned with the torus’ axis and a flattened spherical ‘cap’. The comparison of the location of the CO polarization segments with our model suggests that the polarized emission are mostly linked to the torus and in a lesser extent to the jet/outflow.

The low detection levels are preventing us from drawing a clearer picture of the polarization state of Frosty Leo and making more speculation on the magnetic field structure; but the observations presented here give us a starting point which would greatly benefit from deeper (larger collecting area, higher resolution) polarimetric observations.

ACKNOWLEDGEMENTS

The authors would like to thank the referee for carefully reading our manuscript and for her/his comments which helped improving the quality of the article. We also thank the SMA staff for supporting the observations. LS acknowledges support from PAPIIT grant IA-101316 (Mexico). WS was supported by a grant from UNAM PAPIIT 104017. The Submillimeter Array is a joint project between the Smithsonian Astrophysical Observatory and the Academia Sinica Institute of Astronomy and Astrophysics and is funded by the Smithsonian Institution and the Academia Sinica. Some of the data presented in this paper were obtained from the Mikulski Archive for Space Telescopes (MAST). STScI is operated by the Association of Universities for Research in Astronomy, Inc., under NASA contract NAS5-26555. Support for MAST for non-HST data is provided by the NASA Office of Space Science via grant NNX09AF08G and by other grants and contracts.
