The abundance of satellite galaxies in the inner region of ΛCDM Milky Way sized haloes

ABSTRACT

1 INTRODUCTION

The lambda cold dark matter model (ΛCDM) has been extremely successful to predict various observational properties and the evolution of the large-scale structure of the Universe. However, it is not equally well to predict the galaxy properties on the galactic scale and below. For instance, there has been a long debate on whether the ΛCDM theory can accommodate the observed abundance and internal structure of satellite galaxies in our Milky Way (MW), namely the so-called ‘missing satellite’ (Klypin et al. 1999; Moore et al. 1999), ‘core and cusp’ (Simon et al. 2005; de Blok 2010; Strigari, Frenk & White 2010; Walker & Peñarrubia 2011; Martinez 2015), and ‘too big to fail’ (Boylan-Kolchin, Bullock & Kaplinghat 2011, 2012) problems.

Gao et al. (2010) (hereafter G10) put forward a related problem in this regard. In G10, the authors use a set of ultra-high resolution dark-matter-only simulations of MW-sized haloes, and find that there are quite abundant dark matter subhaloes residing in the inner 40 kpc of their host haloes; among these about 20–30 should be relics of the first galaxies shining light at present day because they were massive enough to cool by atomic hydrogen cooling before reionization. On the contrary, among the observed MW satellite galaxies from Sloan Digital Sky Survey (SDSS), Dark Energy Survey (DES), and other surveys (PanSTARRS, MagLiteS) combined, 12 are within the same distance at present time, including not conclusively confirmed ones. Hence, the results may point out a discrepancy in the abundance of satellites in the inner region of the MW between observation and theory.

The galaxy formation model used in G10 is robust yet simple by using atomic cooling argument to judge whether or not a halo can form stars, but make no prediction on properties of the satellite galaxies. In this short paper, we compensate G10 by taking advantage of the power of a sophisticated galaxy formation model galform (Bower et al. 2006; Font et al. 2011) to make more detailed predictions of properties of inner satellite galaxies in the MW-sized dark matter haloes, and compare with observations to investigate whether or not the abundance of inner satellite galaxy is a problem of ΛCDM cosmology. Moreover, we will take into account the impact of a stellar disc in the centre of MW halo on the survivability of these inner satellite galaxies. Hydrodynamic simulations from previous studies on this subject often have a much poorer resolution; we compensate these studies by performing a sequence of ideal simulations with varying resolutions in order to carry out numerical convergence study.

The organization of this paper is as follows: in Section 2, we briefly introduce the numerical simulations and galaxy formation model used in this study. In Section 3, we use galform to predict the satellite population within 40 kpc of MW and compare them with observations. In Section 4, we present ideal simulations in order to assess the impact of a stellar disc on the survivability of the model inner satellite galaxies. In Section 5, we summarize our results and draw conclusions.

2 THE COSMOLOGICAL SIMULATIONS

Numerical simulations used in this work comprise high-resolution re-simulations of five individual MW-sized dark matter haloes and their surroundings from the AQUARIUS project (Springel et al. 2008). These dark matter haloes have masses in the range 1–2 × 10¹² M_|$\odot$|, comparable to typical values of our MW. These haloes are randomly selected samples from a large cosmological simulation, imposing a weak isolation criterion by requiring the candidate halo to have no companion with the mass greater than half of its own at a distance less than |$1\ h^{-1}\, \mathrm{Mpc}$| at z = 0 (Navarro et al. 2010). No further additional constraints [e.g. the chance to find MW-like haloes with Large Magellanic Cloud and Small Magellanic Cloud like satellites in a cosmological simulation (Busha et al. 2011a, b)] are applied.

Each AQUARIUS halo has been re-simulated with ‘zoom in’ technique with various resolutions to carry out numerical convergence studies. Here we use the simulations with level 2 resolution which contains about 10⁸ particles inside the virial radius of each halo. Five of the six haloes (Aq-A to Aq-E) are used for our analysis, except for Aq-F which experienced a recent major merger event at z ∼ 0.6 (Wang et al. 2015).

The AQUARIUS simulation suits assume cosmological parameters as Ω_m = 0.25, Ω_Λ = 0.75, σ₈ = 0.9, n_s = 1, and h = 0.73. These values deviate from the latest Planck results (Planck Collaboration 2014, 2016), but this small offset has a negligible effect on our main results.

At each recorded snapshot, dark matter haloes are identified with the friends-of-friends (FoF) algorithm by linking particles separated by 0.2 times the mean inter-particle separation (Davis et al. 1985). Based upon the FoF group catalogue, the subfind (Springel et al. 2001) is applied to identify local overdense and self-bound dark matter subhaloes; merger trees are constructed by linking each subhalo at successive snapshots to its unique descendant using the algorithm described in Helly et al. (2003). We follow the baryonic evolution using the semi-analytic model galform developed by Font et al. (2011). The model explicitly follows the evolution of the dark matter halo within which a galaxy forms, and after the halo is accreted to a larger object and becomes a satellite galaxy.

Compared to an earlier version of galform (Bower et al. 2006), there are quite a few improvements in Font et al. (2011), including the use of a higher yield, a modified supernova feedback model, and an earlier reionization epoch model. The model (fbk:sat/rei:G+L) matches a large body of observational data on the MW satellite galaxies, while the authors did not carry out a detailed comparison of the inner satellite galaxy population in observation and their model as we study it here.

3 THE INNER SATELLITE GALAXIES IN SIMULATIONS AND OBSERVATIONS

In Fig. 1, we present the cumulative V-band luminosity function and the spatial distribution of the model satellite galaxies within 40 kpc of five AQUARIUS haloes. The dark solid line shows the averaged count and the light shaded area displays the whole scatter of five haloes. We also show results for the known satellite galaxies within the same distance in the same figure with orange solid line. These known satellite galaxies are collected from SDSS (tables 1–3 in McConnachie 2012), DES (Drlica-Wagner et al. 2015; Koposov et al. 2015; Koposov et al. 2018), PanSTARRS (Laevens et al. 2015a,b), and MagLiteS (Torrealba et al. 2018). We list the properties of these satellite galaxies in Table 1. Note, three of them are not conclusively confirmed as dwarf galaxies. Including these three, the luminosity function of the observed inner satellite galaxies is shown as orange dashed line. The vertical yellow shaded area indicates the observational detect limits of satellite galaxy of the SDSS survey (Koposov et al. 2008, 2009; Tollerud et al. 2008).

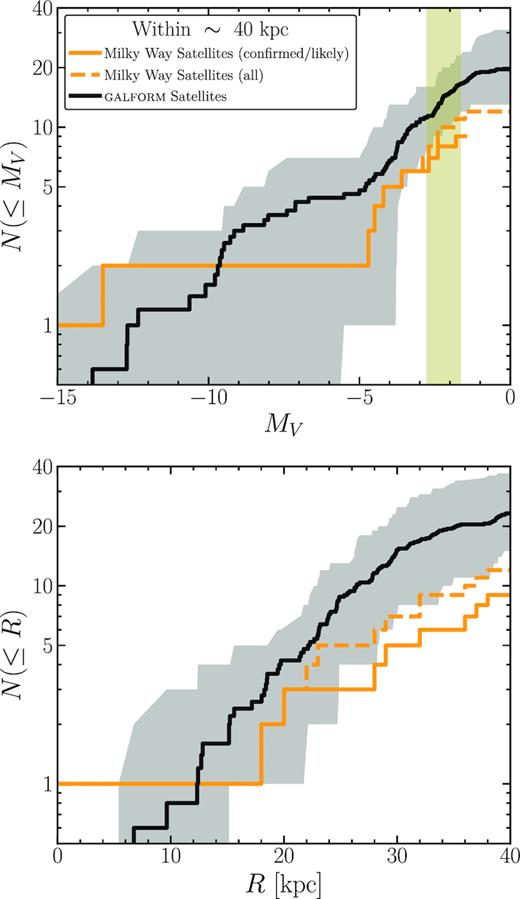

Figure 1.

V-band luminosity function (top panel) and spacial distribution (bottom panel) of the model satellite galaxies within 40 kpc of the AQUARIUS haloes. The thick black line shows the averaged value of five AQUARIUS haloes, while the grey region displays the halo-to-halo variation. The thick orange lines show the results for the observed MW satellites which are listed in Table 1. The solid and dashed orange lines distinguish the confirmed (or most likely) and the full satellite samples. The vertical spanned region in the top panel indicates the V-band detection limit at 40 kpc from the MW centre, computed with equation (2) in Tollerud et al. (2008).

Open in new tabDownload slide

Apparently, most of these inner model satellite galaxies are detectable with SDSS survey. On average, our simulations predict about 20 satellite galaxies within 40 kpc of the MW, in agreement with the simple model of G10. Five of them are as bright as classic satellites identified in observations with M_V < −5. Comparing with observations, our simulations predict two times more inner satellite galaxies than the known ones in current observations. In particular, our model predicts about two times more satellite galaxies more bright than M_V < −5.

The cumulative spatial distribution of these model and observational inner satellite galaxies are presented in the lower panel of the same figure. Comparing the two, they only roughly agree with each other within 20 kpc. But the model predicts much more satellite galaxies beyond it. Note, almost no satellite galaxies are founded within this distance in the latest highest resolution hydrodynamic simulations of the MW, e.g. the APOSTLE project (Sawala et al. 2016, 2017) and the LATTE simulation (Wetzel et al. 2016; Garrison-Kimmel et al. 2017). In the later section, we will show that this is very likely due to a poor numerical resolution of these simulations.

The AQUARIUS haloes are simulated with dark-matter-only simulations, without considering the central giant disc like MW. The presence of a disc may have a substantial impact on the abundance of satellite galaxies, especially in the inner region at which we are discussing in this paper. The impact of a disc on the abundance of inner satellite galaxies has been investigated in previous studies (e.g. D’Onghia et al. 2010; Yurin & Springel 2015; Jethwa, Belokurov & Erkal 2016; Errani et al. 2017; Garrison-Kimmel et al. 2017). We compensate these studies in the following sections by performing a series of much higher resolution numerical experiments.

Before resorting to the numerical experiments, we first make a rough assessment of the impact of disc on the tidal disruption of these model inner satellite galaxies by examining their orbit parameter distribution. If their pericentric radius is within the size of the MW disc, the impact due to disc is expected to be strong and vice versa (Errani et al. 2017; Nadler et al. 2017). In Fig. 2, we present the cumulative distribution function of the orbital properties for the inner satellite galaxies in AQUARIUS simulations. Here we characterize the orbit properties with the first pericentric radius R_per since infall, and R_circ(E)/R_vir, the radius of the circular orbit corresponding to the orbital energy of the satellite at the time of infall, expressed in virial radius of the host halo.¹

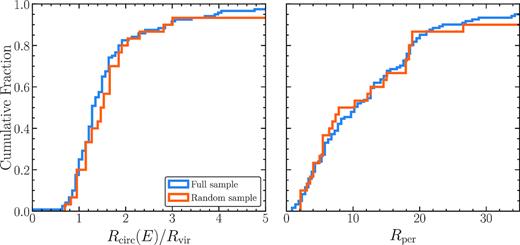

Figure 2.

Cumulative distribution functions of orbital energy parameter R_circ(E)/R_vir at infall (left) and the first pericentric radius R_per since infall (right) of the AQUARIUS inner satellite galaxies. The blue solid lines are for the full sample, and the orange solid lines are for the randomly selected 30 satellite galaxies.

Open in new tabDownload slide

Clearly, about 50 per cent of satellite galaxies have their first pericentric radius R_per within 10 kpc, indicating that these satellites are prone to be affected by the disc. Apart from the pericentre, orbital energy is also an important parameter to the tidal disruption of satellite galaxy; we show the orbital energy distribution of our whole sample in the right-hand panel of the same figure.

4 THE IMPACT OF A STELLAR DISC ON THE ABUNDANCE OF INNER SATELLITE GALAXIES

4.1 Models and numerical experiments

The coordinate system is centred on the MW halo. The disc potential is fixed on the X−Y plane. The N-body simulations presented in this study were carried out with the p-gadget3 code (Springel 2005) under isolated boundary conditions.

4.2 Resolution test

It is important to first identify the required numerical resolution to reliably resolve the dynamics of satellite galaxies. To this end, we evolve a satellite galaxy at varying numerical resolutions and assume two sets of orbital parameters. The mass and orbital energy parameter of the satellite are assumed to be m_vir = 10⁸ M_|$\odot$| and R_circ(E)/R_vir = 1.34, respectively. These parameters are chosen to closely match the typical values of the satellite galaxies in the AQUARIUS simulation suits. We adopt two pericentres for the tests by choosing values of R_per to be 10 and 50 percentiles of the distribution function shown in the right-hand panel of Fig. 2, representing an extreme and a typical case to examine the impact of the disc on the tidal disruption of the galaxy.

We assume the total mass profile of the galaxy following an NFW profile. Note, some observational results suggest that MW satellite galaxies may have cored profiles (e.g. Gilmore et al. 2007; Adams et al. 2014; Oh et al. 2015). As shown by Peñarrubia et al. (2010) and Errani et al. (2017), the survivability of satellite galaxy in numerical simulations does depend on the inner profile of their dark matter halo. Galaxies with cored inner density profile are more prone to be disrupted than their cuspy counterparts. However, some recent theoretical works (Fattahi et al. 2016; Genina et al. 2018) argued that the results of the cored profiles suggested in observation are not convincing. Hence we adopt the cuspy NFW profile in this study for simplicity. The concentration parameter of the halo is set to be c_vir = 13.1, corresponding to the value estimated by the halo mass–concentration relation given by Duffy et al. (2008).

The model galaxies are starting from the virial radius of the MW halo with the coordinates (x, y, z) = (1, 0, 0) R_vir, and are evolved for 10 Gyr which corresponds to the typical infall redshift z = 2 of satellite galaxies in the AQUARIUS simulation suits.

We carried out numerical experiments with different particle numbers, N_part = 10⁴, 10⁵, 10⁶, and 10⁷. For the galaxy, we follow its evolution in the MW halo model with and without a disc component under two sets of orbital parameters. All related parameters are listed in Table 2, 3. subfind is applied to calculate the residual bound mass of each galaxy.

In Fig. 3, we present the evolution of the bound mass fraction of the satellite galaxy with different resolutions and different orbital parameters. The upper panels show results for the extreme orbit case Orbit I and bottom panels are for the typical one, Orbit II. The simulations excluding and including the disc are shown in the left-hand and right-hand panels, respectively. In both cases, the numerical resolution has a large effect on the tidal distribution of the satellite galaxy. Using a number of particles like 10⁴, as similar to the most up-to-date highest resolution hydrodynamic simulations, severely underestimate the survivability of the galaxy, particularly in the cases including the disc. For the extreme orbital parameter, our numerical experiments converge at a particle number 10⁶. The particle number for the convergence is less for the typical case of Orbit II, which is about 10⁵. From a conservative consideration, in the follows, we will perform all our experiments with a particle number 10⁶ for each satellite galaxy. This number is compatible with that used in previous works (Chang, Macciò & Kang 2013; Errani et al. 2017; Frings et al. 2017) and is much larger than the highest resolution hydrodynamic simulation in the community. This should partially account for the fact that these simulations nearly have no satellite galaxies near the centre.

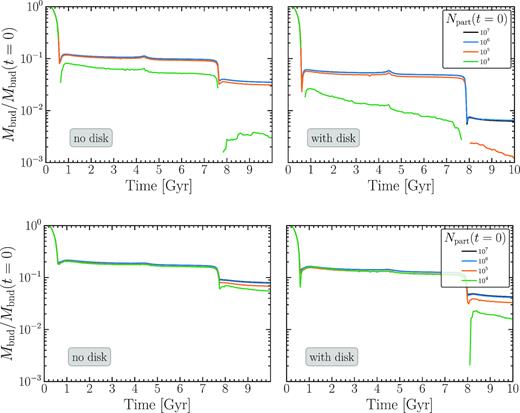

Figure 3.

The evolution of the bound mass fraction of a satellite galaxy with an initial mass 10⁸ M_|$\odot$| in the MW model without (left) and with (right) a disc component. The top and bottom rows show the results for Orbit I and Orbit II, respectively. The lines with different colours distinguish simulations with different resolutions.

Open in new tabDownload slide

4.3 The impact of the MW disc on the abundance of the inner satellite galaxies

To explore the impact of the disc on the tidal disruption of the model inner satellite galaxies, we randomly select 30 galaxies from our full 121 inner satellite galaxy sample. The orange lines in Fig. 2 display distributions of orbital parameters of this subsample. As can be seen, they agree very well with the whole sample suggesting that they are a fair representative sample of the AQUARIUS inner satellite galaxies. For each galaxy in the randomly selected sample, we follow its evolution from its infall time with 10⁶ particles in the MW model with the disc we described in the previous section. The mass distribution of each galaxy is assumed to follow an NFW profile. Its mass, orbital parameters, concentration parameter, and position are set to be the corresponding values at infall extracted from the AQUARIUS simulation suits. The disc is fixed on the X−Y plane. We also rerun 10 of these galaxies by varying the disc plane to be X−Z and Y−Z, and find the results hardly change. In the final outcome of our 30 simulations, 12 (40 per cent) galaxies are completely disrupted due to the presence of the disc. Here we define a galaxy is completely disrupted when subfind is not able to find more than 32 bound particles. Applying the result to the whole AQUARIUS inner galaxy sample, 73 out of 121 model inner satellite galaxies should survive to the present day. Namely on average, each AQUARIUS halo contains 14 inner satellite galaxies after taking into account the effect of the disc. We present the corrected cumulative V-band luminosity function of the model satellite galaxy in Fig. 4, it agrees with observations reasonably well when considering the scatter among five AQUARIUS haloes.

Figure 4.

The same as the top panel in Fig. 1, but adding a curve showing the luminosity function of the inner model satellites after taking into account of the effect of the MW disc.

Open in new tabDownload slide

5 CONCLUSIONS

In this work, we use the AQUARIUS project, a set of ultra-high resolution simulations of MW-sized dark matter haloes combined with a sophisticated semi-analytical galaxy formation model galform, to investigate the abundance of satellite galaxies residing within 40 kpc of halo centre. Using a simple atomic cooling argument, G10 suggested that the abundance of MW inner satellite galaxies may be incompatible with observations. We use galform to predict properties of these ΛCDM model inner satellite galaxies. On average, about 20 satellite galaxies reside within 40 kpc of each halo, about a factor of two times exceeding the observed number. Most of these model inner satellite galaxies are brighter than the detection limit of SDSS survey, five of them are as bright as classic satellite galaxies.

Given the apparent inconsistency between the ΛCDM prediction and observations, we perform a series of numerical experiments to examine the impact of the disc on the abundance of the inner model satellite galaxies. To this end, we randomly select a quarter of the AQUARIUS inner satellite galaxies. For each of them, we follow its evolution from the infall time to the present day, with the orbital parameters and positions taken from the original AQUARIUS simulation suits. Our finding is that the MW disc has a strong effect to disrupt satellite galaxies with very close pericentric parameters. As a result, in the presence of the disc, the number of the model inner satellite galaxies can be reduced by 40 per cent when compared with the case without the disc. For each AQUARIUS halo, the model predicts 14 satellite galaxies within 40 kpc, in reasonable well agreement with observations.

Note, when we evolve each galaxy in the simulation, we assume static potentials for the MW halo and the disc with present-day values during its entire evolution. This neglects the facts that the MW acquires only a fraction of its present-day mass by then and the MW disc may grow significantly after the infall of the satellite galaxy. Hence, our results may overestimate the impact of the disc on the disruption of the inner satellite galaxies. On the other hand, we may underestimate the tidal disruption of satellite galaxies due to baryonic effect as discussed in Garrison-Kimmel et al. (2017). However, the strong impact on the disruption of satellites by the disc shown in this work certainly reduces the number of the model inner satellite galaxies by a large factor, which significantly relieves the large discrepancy between the theory and observations. A fully convincing work on this requires an ultra-high resolution and realistic hydrodynamic simulation of the MW galaxy. According to our numerical experiments, at least 10⁵ particle is required to follow each satellite galaxies; thus in order to resolve a typical MW inner dwarf galaxy with a mass 10⁸ M_|$\odot$|, a dark matter particle mass resolution 1000 M_|$\odot$| is required, far beyond the highest resolution achieved at present day.

ACKNOWLEDGEMENTS

We appreciate the help of the anonymous referee to improve this manuscript. We thank Andrew Cooper for providing us galform galaxy catalogue of the simulation suits. We are grateful to Josh Simon for clarifying the abundance of the inner MW satellite galaxies. We are also grateful to Juntai Shen for useful discussions. We acknowledge support from the National Key Program for Science and Technology Research and Development (2015CB857005,2017YFB0203300) and NSFC grants (11390372,11425312,11503032,11573031,11851301 and 11873051). ML also acknowledges support from CPSF-CAS joint Foundation for Excellent Postdoctoral Fellows No.2015LH0014.
