Statistical analysis of probability density functions for photometric redshifts through the KiDS-ESO-DR3 galaxies Free

ABSTRACT

1 INTRODUCTION

Redshifts, by allowing the calculation of distances for large samples of galaxies, are at the core of most extragalactic and cosmological studies and are needed for many purposes, such as, to quote just a few, to constrain the dark matter and dark energy contents of the Universe through weak gravitational lensing (Serjeant 2014; Hildebrandt et al. 2017; Fu et al. 2018), to reconstruct the cosmic large-scale structure (LSS; Aragon et al. 2015), to identify galaxy clusters and groups (Capozzi et al. 2009; Annunziatella et al. 2016; Radovich et al. 2017), to disentangle the nature of astronomical sources (Brescia et al. 2012; Tortora et al. 2016), to map the galaxy colour–redshift relationships (Masters et al. 2015), and to measure the baryonic acoustic oscillations spectrum (Gorecki et al. 2014; Ross et al. 2017).

The last few years have seen a proliferation of multiband photometric galaxy surveys, either ongoing (see KiDS – Kilo-Degree Survey, de Jong et al. 2015, 2017; DES – Dark Energy Survey, Annis et al. 2013) or planned (LSST, Ivezic 2009, LSST Science Book 2009 and Euclid, Laureijs et al. 2014, Euclid Red Book 2011). All these surveys require redshift estimates for hundreds of millions or billions of galaxies that cannot be observed spectroscopically and therefore must be obtained via multiband photometry (photometric redshifts or zphot). This is possible due to the existence of a highly non-linear correlation between photometry and redshift, caused by the fact that the stretching introduced by the redshift induces the main spectral features to move through the different filters of a photometric system (Baum 1962; Connolly et al. 1995).

In a broad but widespread oversimplification, there are two main classes of methods commonly used to derive zphot: the spectral energy distribution (SED) template-fitting methods (e.g. Arnouts et al. 1999; Bolzonella, Miralles & Pello 2000; Ilbert et al. 2006; Tanaka 2015) and the empirical (or interpolative) methods (e.g. Firth, Lahav & Somerville 2003; Ball et al. 2008; Carrasco & Brunner 2013b; Brescia et al. 2014b; Graff et al. 2014; Cavuoti et al. 2015a,b; Masters et al. 2015; Sadeh, Abdalla & Lahav 2016; Soo et al. 2017; D’Isanto & Polsterer 2018), both characterized by their advantages and shortcomings. There are also recent experiments that try to combine these two zphot estimation classes, in order to merge their respective capabilities (e.g. Cavuoti et al. 2017b; Duncan et al. 2017; Hoyle & Rau 2018).

SED template-fitting methods are based on a fit (generally a χ² minimization) to the multiband photometric observations of the objects. The starting point is a set of template (either synthetic or observed) spectra covering different morphological types and physical properties. Each of these template SEDs is convolved with the transmission functions of any given filters, in order to create synthetic magnitudes as a function of the redshift.

SED fitting methods are capable to derive all at once the zphot, the spectral type, and the probability density function (PDF) of the error distribution of each source. However, these methods suffer from several shortcomings: the potential mismatch between the templates used for the fitting, the properties of the selected sample of galaxies (Abdalla et al. 2011), colour/redshift degeneracies, and template incompleteness. Such issues are stronger at high redshift, where galaxies are fainter and photometric errors larger. Furthermore, at high redshifts there are fewer or no empirical spectra available to build a reliable template library.

Among empirical methods, those based on various Machine Learning (ML) algorithms are the most frequently used. They infer (not analytically) the complex relation existing between the input, mainly multiband photometry (i.e. fluxes, magnitudes, and/or derived colours) and the desired output (the spectroscopic redshift, hereafter zspec). In supervised ML, the learning process is regulated by the spectroscopic information (i.e. redshift) available for a subsample of the objects, whereas in the unsupervised approach, the spectroscopic information is not used in the training phase, but only during the validation phase. There are many ML algorithms that have been used for zphot estimation. To quote just a few: neural networks (Tagliaferri et al. 2002; Collister & Lahav 2004; Brescia et al. 2013; Sadeh, Abdalla & Lahav 2015), boosted decision trees (Gerdes et al. 2010), random forests (Carrasco & Brunner 2013a), and self-organized maps (Carrasco & Brunner 2014a; Masters et al. 2015). ML techniques are endowed with several advantages: (i) high accuracy of predicted zphot within the limits imposed by the spectroscopic knowledge base (hereafter KB); (ii) ability to easily incorporate external information in the training, such as surface brightness, angular sizes, or galaxy profiles (Tagliaferri et al. 2002; Cavuoti et al. 2012; Soo et al. 2017; Bilicki et al. 2018).

On the other hand, ML methods have a very poor capability to extrapolate information outside the regions of the parameter space properly sampled by the training data that, for instance, implies that they cannot be used to estimate redshifts for objects fainter than those present in the spectroscopic sample. Furthermore, supervised methods are viable only if accurate photometry and spectroscopy are available for a quite large (few thousands of objects at least) number of objects. See Hildebrandt et al. (2010), Abdalla et al. (2011), Sánchez et al. (2014) for reviews about the zphot estimation techniques.

Finally, due to their intrinsic nature of self-adaptive learning models, the ML based methods do not naturally provide a PDF estimate of the predicted zphot, unless special procedures are implemented.

In recent years, it has been demonstrated in several studies that PDFs can increase the accuracy of cosmological parameter measurements. For example, Mandelbaum et al. (2008) have shown that most common statistics (bias, outlier rate, standard deviation etc.) are not sufficient to evaluate the accuracy of zphot required by weak-lensing (WL) studies. In particular, the measurement of the critical mass surface density requires a reliable PDF estimation to remove any calibration bias effect.

Over the last few years, particular attention has been paid to develop techniques and procedures able to compute a full zphot PDF for an astronomical source as well as for an entire galaxy sample (Bonnet 2013; Carrasco & Brunner 2013a, 2014a,b). The PDF contains more information than the single-redshift estimate, as it is also confirmed by the improvement in the accuracy of cosmological and WL measurements (Mandelbaum et al. 2008; Viola et al. 2015), when PDFs are used rather than zphot point estimates. However, to the best of our knowledge, the positive role played by the PDFs has been demonstrated only for zphot obtained with SED fitting methods.

In this paper, we perform a comparative analysis of zphot and associated PDF performance among different methods. The data used for this analysis were extracted from the KiDS ESO (European Southern Observatory) Data Release 3 (hereafter, KiDS-ESO-DR3), described in de Jong et al. (2017). In that work, three different methods for photometric redshifts were used and the corresponding catalogues made publicly available:¹ two ML methods, respectively, Machine-learning Estimation Tool for Accurate PHOtometric Redshifts (METAPHOR; Cavuoti et al. 2017a) and ANNz2 (Sadeh et al. 2016; Bilicki et al. 2018), plus one template-fitting method, the Bayesian photometric redshifts (hereafter, BPZ, Benitez 2000). For the purpose of this paper, we also build a dummy PDF, independent of method errors and photometric uncertainties, useful to compare and assess the statistical estimators used to evaluate the reliability of PDFs.

The paper is structured as follows: In Section 2, we present the KiDS-ESO-DR3 data used for the analysis. In Section 3, we give a general overview about the calculation of PDFs, and we describe the methods as well as the statistical estimators involved in our analysis. In Section 4, we perform the comparison among the PDF methods and a critical discussion about the statistical estimators. Finally, in Section 5 we draw our conclusions.

2 THE DATA

The sample of galaxies used to estimate zphot and their individual and stacked PDFs was extracted from the third data release of the ESO Public Kilo-Degree Survey (KiDS-ESO-DR3, de Jong et al. 2017). When completed, the KiDS survey will cover 1500 deg² (de Jong et al. 2017), distributed over two survey fields, in four broad-band filters (u, g, r, i). Compared to the previous data releases (de Jong et al. 2015), the DR3 not only covers a larger area of the sky, but it also relies on an improved photometric calibration and provides photometric redshifts along with shear catalogues and lensing-optimized image data. The total DR3 data set consists of 440 tiles for a total area covering approximately 450 deg², with respect to the 160 deg² of the previous releases.

The DR3 provides also an aperture-matched multiband catalogue for more than 48 million sources, including homogenized photometry based on Gaussian Aperture and point spread function (hereafter GAaP) magnitudes (Kuijken 2008). All the measurements (star/galaxy separation, source position, shape parameters) are based on the r-band images due to their better quality (see table A.2 of de Jong et al. 2017).

KiDS was primarily designed for WL studies, in order to reconstruct the LSS of the Universe. Indeed, the first 148 tiles of the first two data releases produced their first scientific results on WL for galaxies and groups of galaxies in the Galaxy And Mass Assembly (GAMA, Driver et al. 2011) fields (de Jong et al. 2015), as the reader can find in Viola et al. (2015).

The photometry used in this work consists of the ugri GAaP magnitudes, two aperture magnitudes, measured within circular apertures of 4 and 6 arcsec diameter (20 and 30 pixels, referred in Table 1 as |$MAG\_APER\_20\_X$| and |$MAG\_APER\_30\_X$|⁠), respectively, corrected for extinction and zero-point offsets and the derived colours, for a total of 21 photometric parameters for each object.

The original data set was cleaned by removing objects affected by missing information (the performance of ML methods may degrade if data are missing) and by clipping the tails of the magnitude distributions in order to ensure a proper density of training points in the sampled regions of the parameter space. The lower and upper cuts, applied to exclude the tails of the distributions, are reported in Table 1.

Furthermore, as we shall specify in Section 3.1, the fundamental concept of the PDF estimation in METAPHOR is the perturbation of the data photometry, based on a proper fitting function of the flux errors in specifically defined bins of flux. Therefore, in the preparation phase, we excluded from the KB all entries with a photometric error higher than a given threshold (e.g. 1 magnitude) in order to provide a data set used for the polynomial fitting of the errors, as prescribed by the mixture perturbation law (see Section 3.1).

In order to perform a zphot comparison through a common spectroscopic base in the work of de Jong et al. (2017), each of the three zphot catalogues (obtained, respectively, by METAPHOR,² ANNz2, and BPZ) has been cross-matched in coordinates with the spectroscopic information extracted from the second data release (DR2) of GAMA (Liske et al. 2015), containing spectroscopy in the KiDS-North field (composed of |$77{{\ \rm per\ cent}}$| objects from GAMA; |$18{{\ \rm per\ cent}}$| from SDSS/BOSS, Ahn et al. 2014; and |$5{{\ \rm per\ cent}}$| from 2dFGRS Colless et al. 2001). For what concerns this paper, since the ANNz2 catalogue released with DR3 does not include individual PDFs (Bilicki et al. 2018), these have been derived for the purposes of this work, by uniforming the training and test sets with those used by METAPHOR in de Jong et al. (2017). Finally, since in this work we were interested in performing the zphot PDF comparison among the two mentioned ML methods and BPZ using a uniform data sample, we followed the same approach as de Jong et al. (2017), based on the cross-matching between KiDS-DR3 photometry and SDSS DR9 + GAMA DR2  + 2dFGRS spectroscopy. As described in section 4.2 of de Jong et al. (2017), we performed a random shuffling and split procedure, obtaining a training set of |${\sim } 71\, 000$| and a blind validation set of |${\sim } 18\, 000$| objects. The final comparison test among methods has been done on a supplementary blind set of |${\sim } 64\, 000$| galaxies, as detailed in section 4.4 of de Jong et al. (2017).

3 THE METHODS

In general terms, a PDF is a way to parametrize the uncertainty on the zphot solution. In the context of zphot estimation, a PDF is strictly dependent both on the measurement methods and on the physical assumptions. This simple statistical consideration renders the real meaning of PDFs quite complex to grasp in the case of zphot error evaluation.

Furthermore, a PDF should provide a robust estimate of the reliability of an individual redshift. The factors affecting such reliability are photometric errors, intrinsic errors of the methods, and statistical biases. In fact, under the hypothesis that a perfect reconstruction of the redshift is possible, the PDF would consist of a single Dirac delta. However, since the zphot cannot be perfectly mapped to the true redshift, the corresponding PDF represents the intrinsic uncertainties of the estimate. In other words, as anticipated in Section 1, PDFs are useful to characterize zphot estimates by providing more information than the simple estimation of the error on the individual measurements.

In the following paragraphs, we shortly summarize the characteristics of the methods used in our study. Besides the already mentioned ML methods (METAPHOR, ANNz2) and BPZ, we introduce also a special way to assess the validity of the statistical estimators used to measure the PDF reliability, called dummy PDF.

3.1 METAPHOR

The METAPHOR (Cavuoti et al. 2017a) method is a modular workflow, designed to produce both zphot and related PDFs. The internal zphot estimation engine is our model Multi Layer Perceptron trained with Quasi Newton Algorithm (MLPQNA; Brescia et al. 2013, 2014a). METAPHOR makes available a series of functional modules:

• Data pre-processing: data preparation, photometric evaluation of the KB, followed by its perturbation based on the given magnitude error distributions,

• zphot prediction: single photometric redshift estimation, based on training/test of the KB with the MLPQNA model;

• PDF estimation: production of the individual zphot PDFs and evaluation of their cumulative statistical properties.

As anticipated in the introduction, in the context of ML techniques, the determination of individual PDFs is a challenging task. This is because we would like to determine a PDF starting from several estimates of zphot, embedding the information on the photometric uncertainties on those estimates. Therefore, we derived an analytical law to perturb the photometry by taking into account the magnitude errors provided in the catalogues.

Indeed, the procedure followed to determine individual source PDFs consists of a single training of the MLPQNA model and the perturbation of the photometry of the given blind test set in order to obtain an arbitrary number N of test sets, each characterized by a variable photometric noise contamination. The decision to perform a single training is mainly motivated by the idea of excluding the contribution of the intrinsic error of the method itself from the PDF calculation. Appendix A is dedicated to the analysis of error contributions.

In this work, the selected perturbation function (F_ij) is the mixture, i.e. a function composed of a constant threshold (in this case heuristically fixed to 0.03) and a polynomial fitting of the average magnitude errors computed in several magnitude bins for each given photometric band. The role of the constant function is to act as a threshold under which the polynomial term is too low to provide a significant noise contribution to the perturbation (see Cavuoti et al. 2017a for further details; in that paper the mixture function was called bimodal). This choice was made in order to take into account that there are very low average errors for the brighter objects within the catalogues. These perturbations were applied to both GAaP and aperture–magnitude types.

For the calculation of the individual PDFs, we submit the N + 1 test sets (i.e. N perturbed sets plus the original one) to the trained model, thus obtaining N + 1 zphot estimates. Then, we perform a binning in zphot, thus calculating the probability that a given zphot value belongs to each bin. We selected a binning step of 0.01 for the described experiments and a value of N equal to 1000. The same binning step has been adopted by all three methods compared in this work.

In Fig. 1, we can see the mixture functions F_ij for the homogenized magnitudes |$mag\_gaap\_x$| (with x = u,g,r,i).

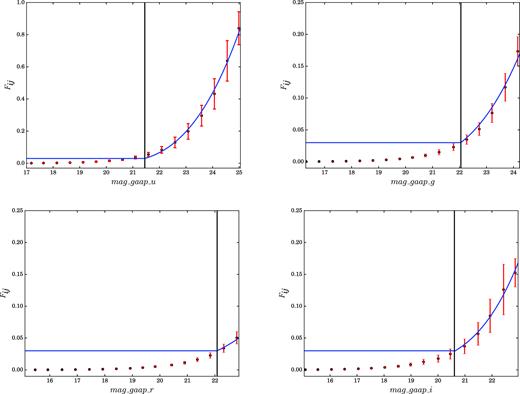

Figure 1.

Mixture perturbation function F_ij in equation (1) for the KiDS GAaP magnitudes, composed of a flat perturbation for magnitudes lower than a selected threshold (black solid lines) and a polynomial perturbation p_i(m_ij) for higher magnitude values (see Section 3.1). The switching thresholds between the two functions are, respectively, 21.45 in u band, 22.05 in g, 22.08 in r, and 20.61 in i band. The black points are the average of the magnitude errors for each magnitude bin. The red lines report the corresponding standard deviation.

Open in new tabDownload slide

Concerning the zphot production, the best-estimate zphot values are not always corresponding to the given unperturbed catalogue estimate of zphot (hereafter photo-|$z$|₀), as calculated by MLPQNA. In particular, it coincides with photo-|$z$|₀ if this measurement falls into the interval (or bin) representing the peak (maximum) of the PDF; otherwise, it coincides with the zphot estimate (among the N + 1 zphot estimates mentioned above) closest to photo-|$z$|₀ and falling in the bin to which corresponds the PDF peak.

3.2 ANNz2

ANNz2 may generate two types of PDFs, depending on how the |$\mathcal {C}$| function is chosen. In the first case, denoted as PDF_0, the CDF is based on |$z$|_spec from the validation sample; in the second option, PDF_1, the results of the best ML solution are used as reference. In this work, we use the PDF_1 option as we found it to perform generally better than the other one.

3.3 BPZ

Individual PDFs are a natural by-product of every SED fitting method. In the case of BPZ for the KiDS-DR3 data, the PDFs are obtained by multiplying the probability by the used priors and then performing a summation over all the templates, in order to obtain the full posterior probability. The theory, implemented in the BPZ code, is expressed by equations (6–12) in the paper of Benitez (2000). This method has been used to obtain BPZ KiDS-DR3 zphot and PDFs, by utilizing the priors specified in Hildebrandt et al. (2012).

Finally, the reference to the selected re-calibrated template set (Capak 2004), as well as more details about the use of BPZ, are provided in de Jong et al. (2017).

3.4 Dummy PDF

In order to have a benchmark tool useful to analyse and compare the statistical validity of previous methods, we set to zero the multiplicative constant parameter α_i of equation (1) for all bands in order to produce a dummy perturbation law.

The relative dummy PDF obtained by METAPHOR is made by individual source PDFs, for which the one hundred per cent of the zphot estimates (coincident with photo-|$z$|₀, i.e. the unperturbed estimate of zphot) fall in the same redshift interval (by fixing the binning step at 0.01, as described in Section 3.1).

The main goal in determining the dummy PDFs is to assess the reliability of several statistical estimators used to evaluate an ensemble of PDFs.

3.5 Statistical estimators

This section is dedicated to describing the set of statistical estimators adopted to evaluate zphot estimates and relative PDFs performance.

The cumulative performance of the stacked PDF on the entire sample is evaluated by means of the following three estimators:

• f_0.05: the percentage of residuals Δz within ±0.05;

• f_0.15: the percentage of residuals Δz within ±0.15;

• 〈Δ|$z$|〉: the average of all the residuals Δz of the stacked PDFs.

Here, by stacked PDFs we mean the individual zphot PDFs transformed into the PDFs of scaled residuals Δ|$z$| defined in equation (4), and then stacked for the entire sample.

Furthermore, the quality of the individual PDFs is evaluated against the single corresponding zspec from the test set, by defining five categories of occurrences:

• zspecClass  = 0: the zspec is within the bin (see Section 3.1) containing the peak of the PDF;

• zspecClass  = 1: the zspec falls in one bin from the peak of the PDF;

• zspecClass  = 2: the zspec falls into the PDF, e.g. in a bin in which the PDF is different from zero;

• zspecClass  = 3: the zspec falls in the first bin outside the limits of the PDF;

• zspecClass  = 4: the zspec falls out of the first bin outside the limits of the PDF.

By definition, the zspecClass term depends on the chosen bin amplitude (see Section 3.1), which also determines the accuracy level of PDFs. The quality evaluation of the entire PDF can be hence measured in terms of fractions of occurrences of these five categories within the test data set. In particular, these quantities should be regarded as complementary statistical information, useful to complete the PDF reliability analysis. For example, classes 3 and 4 could quantify the amount of objects falling outside the PDF. The distinction between the two classes gives the supplementary information about how far from the PDFs is their zspec, thus contributing to evaluate their reliability.

Finally, we use two additional diagnostics to analyse the cumulative performance of the PDFs: the credibility analysis presented in Wittman, Bhaskar & Tobin (2016) and the probability integral transform (PIT), described in Gneiting, Balabdaoui & Raftery (2007).

The credibility test should assess if PDFs have the correct width or, in other words, it is a test of the confidence of any method used to calculate the PDFs. In particular, the method is considered overconfident if the produced PDFs are too narrow, i.e. too sharply peaked; underconfident otherwise. In order to measure the credibility, rather than the Confidence Intervals (hereafter CI), the highest probability density confidence intervals (HPDCI) are used (Wittman et al. 2016).

The credibility is then tested by calculating the cumulative distribution F(c), which should be equal to c. F(c) resembles a q–q plot, (a typical quantile–quantile plot used for comparing two distributions), in which F is expected to match c, i.e. it follows the bisector in the F and c ranges equal to [0,1]. Therefore, the overconfidence corresponds to F(c) falling below the bisector, otherwise the underconfidence occurs. In both cases, this method indicates the inaccuracy of the error budget (Wittman et al. 2016).

A strongly U-shaped PIT histogram indicates a highly underdispersive character of the predictive distribution (Baran & Lerch 2016).

4 COMPARISON AMONG METHODS

A preliminary comparison among the three methods METAPHOR, ANNz2, and BPZ, only in terms of zphot prediction performance, has been already given in de Jong et al. (2017). That comparison was based on statistics applied to the residuals defined by the equation (4), reported in table 8 and fig. 11 of de Jong et al. (2017). In that figure, the upper panel shows the plots of zphot versus GAMA-DR2 spectroscopy, while in the bottom panel residuals versus r-magnitude are shown for the three methods.

More recently, in Bilicki et al. (2018) a comparison among the three methods has also been presented on KiDS-DR3 data, more in terms of zphot estimation quality at the full spectroscopic depth available, confirming the better behaviour of ML methods at bright end of KiDS data sample (⁠|$z$| < 0.5), as well as comparable quality of ML methods and BPZ at higher redshift (⁠|$z$| ∼ 1).

4.1 Statistics on zphot and stacked PDFs

The statistical comparison among the three methods on the data set obtained by cross-matching KiDS-DR3 and GAMA data (see Section 2) summarized in Table 2. It shows a better performance in terms of bias and fraction of outliers for METAPHOR, while BPZ and ANNz2 obtain, respectively, a lower σ and NMAD of the errors.

In Figs 2 and 3, we show the comparison on the GAMA field between METAPHOR and, respectively, BPZ and ANNz2, in terms of graphical distributions of predicted zphot and stacked PDFs of the residuals.

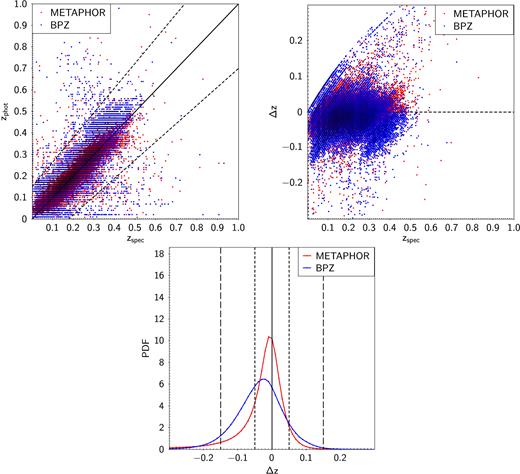

Figure 2.

Comparison between METAPHOR (red) and BPZ (blue). Upper row: scatter plot of photometric redshifts as function of spectroscopic redshifts (left-hand panel) and scatter plot of the residuals as function of the spectroscopic redshifts (right-hand panel). Lower row: stacked representation of the residuals of PDFs (with redshift bin equal to 0.01).

Open in new tabDownload slide

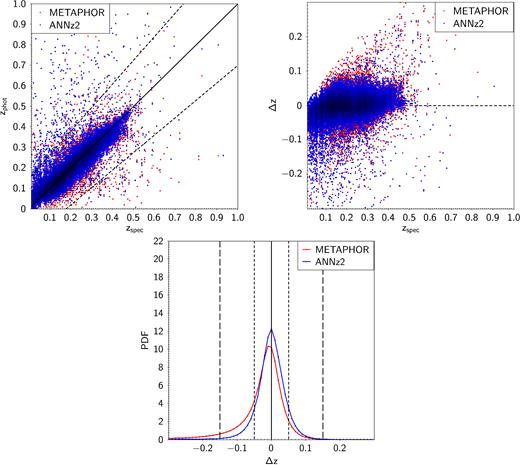

Figure 3.

Comparison between METAPHOR (red) and ANNz2 (blue). Upper row: scatter plot of photometric redshifts as function of spectroscopic redshifts (left-hand panel) and scatter plot of the residuals as function of the spectroscopic redshifts (right-hand panel). Lower row: stacked representation of the residuals of PDFs (with redshift bin equal to 0.01).

Open in new tabDownload slide

From Fig. 2, it is apparent that the correlation between zphot and zspec is tighter for METAPHOR than for BPZ. In terms of stacked PDF, the distributions are in agreement with statistics of Table 3 since the BPZ PDF is more enclosed within the ±0.15 residual range.

Fig. 3 shows a tighter photospectro redshift correlation for ANNz2 as well as a better symmetry of the stacked PDF.

The effects of kurtosis and skewness are evident from Fig. 4. The kurtosis is a measure of the shape of the residual distribution, particularly suitable for characterizing its tails. From Fig. 4 and Table 2, all three methods show a leptokurtic behaviour. This means that the distributions asymptotically approach zero faster than the Gaussian distribution therefore indicating a small amount of outliers with respect to the Gaussian limit at 2σ (⁠|${\sim } 0.2{{\ \rm per\ cent}}$| for METAPHOR, |${\sim } 0.0005{{\ \rm per\ cent}}$| for BPZ, and |${\sim } 1.5{{\ \rm per\ cent}}$| in the case of ANNz2). This also implies that in this case the standard deviation could be considered a poor estimator for the zphot prediction performance.

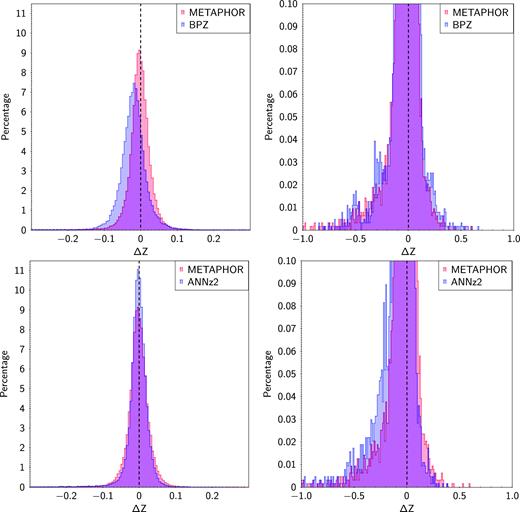

Figure 4.

Top panels: comparison between METAPHOR (red) and BPZ (blue); bottom panels: comparison between METAPHOR (red) and ANNz2 (blue). Left-hand panels show the histograms of residual distributions, zoomed in the right-hand panels in order to make more visible the skewness effect. The values are expressed in percentage, after normalizing the distributions to the total number of objects of the blind test set (see Section 2).

Open in new tabDownload slide

The skewness is a measure of the symmetry around zero of the Δ|$z$| distribution. All the three compared methods show a negative value (see Table 2), mostly due to a longer tail towards negative than to positive Δ|$z$|⁠. This is more pronounced in the case of METAPHOR and ANNz2 (right-hand panels of Fig. 4), but a negative skewness is expected in zphot residual distributions because of an inherent tendency to overestimate the redshift. By calculating the residuals through equation (4), all methods naturally tend towards negative zspec−zphot in the low-redshift regime because negative photometric redshifts are removed (meaningless), introducing the above negative bias in zspec−zphot.

In Table 3, we report the fraction of residuals in the two ranges [−0.05, 0.05] and [−0.15, 0.15] and the average of residuals for all the probed methods. The last column shows such statistics also for the dummy PDF. Table 4 summarizes the distribution of fractions of samples among the five categories of individual PDFs, obtained by the evaluation of their spectroscopic redshift position with respect to the PDF.

From Table 3, it appears evident that in terms of PDFs, ANNz2 performs quantitatively better than the other two methods, while the dummy PDF, derived from METAPHOR, obtains the best estimates. This demonstrates that the statistical estimators adopted for the stacked PDF show low robustness in terms of quality assessment of zphot errors and that there is a need for a deeper understanding of the real meaning of a PDF in the context of zphot quality estimation as well as a careful investigation of the statistical evaluation criteria.

The former statement about ANNz2 performance is also supported by Table 4, where ANNz2 shows a percentage of 49.4 |${{\ \rm per\ cent}}$| of samples falling within one bin from the PDF peak (the sum of fractions for zspecClass 0 and 1) against, respectively, the 40.5 |${{\ \rm per\ cent}}$| and 22.8 |${{\ \rm per\ cent}}$|⁠, of the other two methods.

However, for all the stacked PDF estimators, the dummy PDF obtains better statistical results than all other methods. By construction, the dummy PDFs are non-zero only at a single value therefore it is not worth to report its statistics regarding the zspecClass estimator (see Section 3.5) since, as expected, most of the spectroscopic redshifts fall outside the PDF. Furthermore, the zspecClass estimator for the dummy PDF is equal to 0 and 4, i.e. the zspec falls either in the bin which corresponds to the PDF peak or outside the PDF. The dummy PDF method is then particularly suitable to verify that the residual fractions reported in Table 3 are not sufficient to quantify the performance of a PDF. In Fig. 5, we superimpose the stacked distribution of PDFs, derived by the three methods plus the dummy PDF, on the photometric and spectroscopic redshift distributions. The stacked trend of the dummy PDF method reproduces the photometric distribution since it does not take into account the redshift error contribution arising from the photometric uncertainties introduced through the perturbation law in equation (1). Very close to the spectroscopic redshift distribution is the stacked PDF of dummy and ANNz2, while BPZ and METAPHOR, although still able to follow the spectroscopic distribution, differ from the first two methods. Nevertheless, METAPHOR and ANNz2 PDFs show a better agreement with the individual photometric redshift distributions.

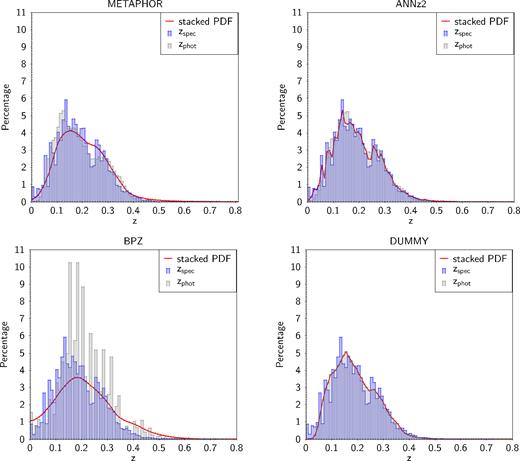

Figure 5.

Superposition of the stacked PDF (red) and estimated zphot (grey) distributions obtained by METAPHOR, ANNz2, BPZ, and for the dummy (in this last case the zphot distribution corresponds to that of the photo-|$z$|₀ estimates, Section 3.4) to the zspec distribution (in blue) of the GAMA field.

Open in new tabDownload slide

4.2 Credibility analysis and PIT

We also show in a graphical form the two estimators introduced in Section 3.5, namely the credibility analysis on the cumulative PDFs and the PIT. Figs 6 and 7 show these two respective diagrams for the three methods and the dummy PDF. The credibility analysis trend of METAPHOR (top left-hand panel of Fig. 6) reveals a higher degree of credibility with respect to ANNz2 and BPZ (respectively, top right-hand and bottom left-hand panels of Fig. 6), the latter being characterized by a higher underconfidence. However, the credibility diagram of the dummy PDF (bottom right-hand panel of Fig. 6) is identically unitary for each galaxy of the data set. This is evidence of the inability to evaluate the credibility of a zphot error PDF in an objective way. In other words, according to the construction of the HPDCI for the credibility analysis (see Section 3.5), the dummy PDF method shows that the 100 |${{\ \rm per\ cent}}$| of the photo-|$z$|₀’s fall in the 100 |${{\ \rm per\ cent}}$| of the HPDCI, thus the predictions are entirely overconfident.

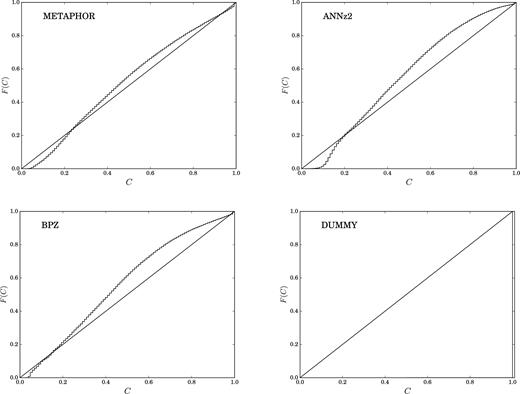

Figure 6.

Credibility analysis (see Section 3.5) obtained for METAPHOR, ANNz2, BPZ, and the dummy PDF.

Open in new tabDownload slide

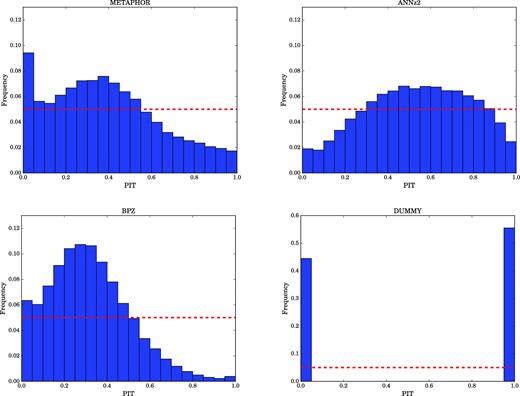

Figure 7.

PIT obtained for METAPHOR (top left-hand panel), ANNz2 (top right-hand panel), BPZ (bottom left-hand panel), and for the dummy PDF (bottom right-hand panel).

Open in new tabDownload slide

The statistical evaluation of the three methods and the dummy PDF based on the PIT diagram is shown in Fig. 7. We observe a better behaviour of ANNz2 (top right-hand panel) than the two other methods, METAPHOR (top left-hand panel) and BPZ (bottom left-hand panel). For ANNz2, the overdispersive and underdispersive trends appear less pronounced than for the other cases, especially BPZ. However, the PIT histogram for dummy PDFs shows an entirely degraded (i.e. underdispersive) behaviour of the zphot distribution (bottom right-hand panel of Fig. 7). This result was expected since by definition its CDF is a step function, thus allowing only values 0 or 1, corresponding to the two bars in Fig. 7. This is in some contradiction to the previous statistics, shown for the quantitative estimators for the dummy PDFs (Tables 3 and 5), which were indicating the best behaviour for the dummy stacked PDF.

4.3 PDF tomography

Finally, in order to analyse the stacked PDFs obtained by the four estimation methods in different ranges of magnitude, we performed a binning in |$mag\_gaap\_r$| in the range [16.0, 21.0] with a step Δmag = 0.5, resulting in a tomography of 10 bins. The range has been chosen in order to ensure a minimum amount of objects per bin to calculate the statistics. The results in terms of the fraction of residuals and the overall average for the stacked PDFs are reported in Table 5, while the fraction of residuals f_0.05 is shown as a function of r-band magnitude in Fig. 8.

Figure 8.

Residuals fraction in the range [−0.05, 0.05] of the PDFs versus magnitude |$mag\_gaap\_r$| in the range [16.0, 21.0], used for the tomographic analysis shown in Table. 5 From top to bottom, dummy (blue), ANNz2 (violet), METAPHOR (red), and BPZ (green).

Open in new tabDownload slide

Given the statistics in Tables 5 and 6, we observe that for BPZ the zspec falls within the PDF in practically all bins and that the highest concentration of PDFs is within f_0.15. This behaviour indicates a broad shape of the PDFs, also confirmed by the underconfidence shown in Fig. 6 and by the overdispersion in Fig. 7. The latter figure also shows the presence of a high bias, visible from the unbalanced trend. Furthermore, the PIT tomography, reported in Figs 9 and 10, shows a high variability and confirms the general overdispersion and bias of the PDFs. Turning to the HPDCI tomography, the overall trend of Fig. 6 indicates a general underconfidence, but Figs 11 and 12 show an inversion, from a high underconfidence to a lower overconfidence, compatible with the general variability of BPZ PDFs.

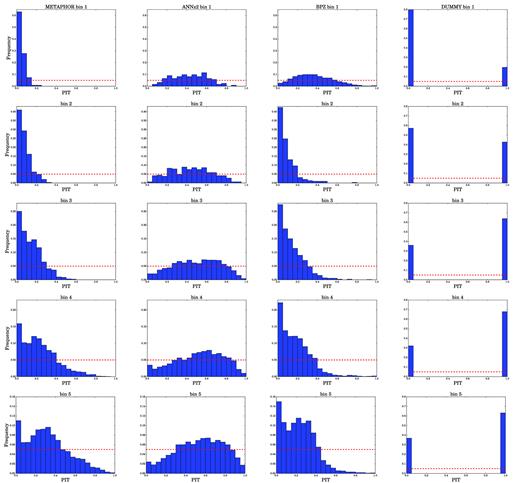

Figure 9.

PIT obtained for METAPHOR (first column panels), ANNz2 (second column panels), BPZ (third column panels), and for the dummy PDF (fourth column panels) in the first five magnitude tomographic bins from Table 5.

Open in new tabDownload slide

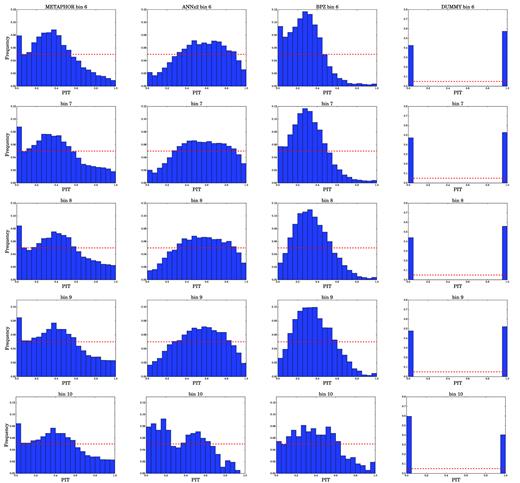

Figure 10.

PIT obtained for METAPHOR (first column panels), ANNz2 (second column panels), BPZ (third column panels), and for the dummy PDF, calculated by METAPHOR (fourth column panels) in the second five magnitude tomographic bins from Table 5.

Open in new tabDownload slide

Figure 11.

Credibility analysis (see Section 3.5) obtained for METAPHOR, ANNz2, and BPZ for the first five magnitude tomographic bins from Table 5. The credibility plots for the dummy PDF are the same as the bottom right-hand panel of Fig. 6 in all the bins.

Open in new tabDownload slide

Figure 12.

Credibility analysis (see Section 3.5) obtained for METAPHOR, ANNz2 and BPZ for the second five magnitude tomographic bins from Table 5. The credibility plots for the dummy PDF are the same as the bottom right-hand panel of Fig. 6 in all the bins.

Open in new tabDownload slide

ANNz2 shows a similar behaviour as BPZ for f_0.15 but has a higher percentage of f_0.05, which indicates PDFs more centred around zspec. Furthermore, the values of zspecClass equal to 3 and 4 show that zspec mostly falls within the PDFs, thus indicating that also in the case of ANNz2 the PDFs have a broad shape, albeit to a lesser extent. This is also confirmed by the overdispersive trend of the PIT diagram in Fig. 7 as well as by the underconfidence in Fig. 6. In terms of PIT and HPDCI tomography, ANNz2 shows a more regular behaviour than BPZ.

METAPHOR shows a stacked PDF with a more pronounced average 〈Δ|$z$|〉 than BPZ and ANNz2 in Table 5, due to the larger tails of its Δ|$z$| distribution. Moreover, both Tables 5 and 6 indicate that the METAPHOR and especially the BPZ PDFs have a broader shape than those of ANNz2, for example by looking at the percentages for zspecClass = 2. This is also reflected by the PIT diagram of Fig. 7, which reveals highly biased and overdispersive PDFs. In contrast with previous statistics, the HPDCI diagram indicates that METAPHOR is less underconfident than BPZ and ANNz2. The tomographic analysis of the PIT diagram reports highly biased PDFs for the bins of Fig. 9, while in the other bins of Fig. 10 METAPHOR shows similar characteristics as ANNz2, albeit with different types of defects. Finally, in terms of HPDCI tomography, Figs 11 and 12 reveal a general coherence in the behaviour of METAPHOR, except in the first and last bin, which are least populated.

5 CONCLUSIONS

Due to the increasing demand for reliable zphot and the intrinsic difficulty to provide reliable error PDF estimation for ML methods, a plethora of solutions has been proposed. The derivation of PDFs with ML models is in fact conditioned by the mechanism used to infer the hidden flux–redshift relationship. In fact, this mechanism imposes the necessity to disentangle the contributions to the zphot estimation error budget, by distinguishing the intrinsic method error from the photometric uncertainties. Furthermore, due to the large variety of methods proposed, there is also the problem of finding objective and robust statistical estimators of the quality and reliability of the derived PDFs.

We believe that it is extremely useful to estimate the zphot error through the intrinsic photometric uncertainties, by considering that the observable photometry cannot be perfectly mapped to the true redshift. Furthermore, the evaluation of a statistically meaningful PDF should consider the effective contribution of the intrinsic error of the method.

In Cavuoti et al. (2017a), we presented METAPHOR, a method designed to provide a PDF of photometric redshifts calculated by ML methods. METAPHOR has already been successfully tested on SDSS (Cavuoti et al. 2017a) and KiDS-DR3 (de Jong et al. 2017) data, and uses the neural network MLPQNA (Brescia et al. 2013, 2014a) as the internal zphot estimation engine.

Main goal of this work is a deeper analysis of zphot PDFs obtained by different methods: two ML models (METAPHOR and ANNz2) and one based on SED fitting techniques (BPZ), through a direct comparison among such methods. The investigation was focused on both cumulative (stacked) and individual PDF reliability. Moreover, the methods were subjected to a comparative analysis using different kinds of statistical estimators to evaluate their degree of coherence. Exactly for this reason, by modifying the METAPHOR internal mechanism, we also derived a dummy PDF method (see Section 3.4), helpful to obtain a benchmark tool to evaluate the objectivity of the various statistical estimators applied on the presented methods.

Regarding the dummy PDF (Table 3), the more the PDF is representative of an almost perfect mapping of the parameter space on the true redshifts, the better are the performances in terms of stacked PDF estimators. However, we have shown that the PIT histogram and the credibility analysis provide important complementary statistical information, the first showing the total underdispersive trend of the reconstructed photometric redshift distribution; the second reporting an overconfidence of all zphot estimates. Both the underdispersion and the overconfidence are related to the narrowness of the PDFs: the narrower they are, the more the PIT histogram is underdispersed and the results, as determined by the credibility analysis, overconfident.

Thus, it appears clear that the statistical estimators used for the stacked PDF (for instance f_0.05, f_0.15, and 〈Δ|$z$|〉), are not self-consistent and should be combined with other statistical estimators, such as the PIT diagrams and credibility analysis.

Although the credibility analyses of the different methods, based on the Wittman diagram (Fig. 6) and the PIT diagram (Fig. 7), appear comparable in terms of overall results, their tomography (Figs 9, 10, 11, and 12) shows different behaviours at different redshift regimes.

Summarizing the results for the three PDF estimation methods analysed, considering the combination of statistical estimators, ANNz2 is favoured by the f_0.05, f_0.15, 〈Δ|$z$|〉, and the PIT diagram. However, METAPHOR is more competitive, in particular when considering the confidence analysis. BPZ has the best PDFs in the faintest magnitude bin. Moreover, all three methods show a generally broad shape of their PDFs, albeit to a different extent, with also a bias in the case of BPZ and METAPHOR. However, they show occasional fluctuations in their tomographic analysis. For instance, BPZ reverses its overconfidence trend at fainter magnitudes, while METAPHOR and BPZ show a high level of variability along the magnitude bins in terms of underdispersion and bias. In the specific case of our method METAPHOR, all mentioned defects require further investigation in terms of the photometric perturbation function.

It should be noted that the current comparison is preliminary since the methods explored in this paper deal with different sources of errors. In fact, ANNz2 takes into account only the internal errors of the method, METAPHOR only those induced by the photometry, BPZ includes both these error sources and, finally, the benchmark (dummy PDF) does not include either of these two.

All considerations together lead us to affirm that a detailed analysis of the performances, based on a combination of independent statistical estimators, is key to unraveling the nature of the estimated zphot PDFs and to assess the objective validity of the method employed to derive them.

ACKNOWLEDGEMENTS

We would like to thank the anonymous referee for all the comments and suggestions that improved the manuscript. Based on data products from observations made with European Southern Observatory (ESO) telescopes at the La Silla Paranal Observatory under programme IDs 177.A-3016, 177.A-3017, and 177.A-3018, and on data products produced by Target/OmegaCEN, Istituto Nazionale di AstroFisica (INAF)-Osservatorio Astronomico di Capodimonte Napoli (OACN), INAF-Osservatorio Astronomico di Padova (OAPD) and the KiDS production team, on behalf of the KiDS consortium. OmegaCEN and the KiDS production team acknowledge support by NOVA and NWO-M grants. MBr acknowledges financial contribution from the agreement ASI/INAF I/023/12/1. MBr acknowledges also the INAF PRIN-SKA 2017 program 1.05.01.88.04 and the funding from MIUR Premiale 2016: MITIC. MBi is supported by the Netherlands Organization for Scientific Research, NWO, through grant number 614.001.451. GL and MBr acknowledge partial support from the H2020 Marie Curie ITN - SUNDIAL. CT is supported through an NWO-VICI grant (project number 639.043.308). SC acknowledges support from the project ‘Quasars at high redshift: physics and Cosmology’ financed by the ASI/INAF agreement 2017-14-H.0. JTAdJ is supported by the Netherlands Organisation for Scientific Research (NWO) through grant 621.016.402. DAMEWARE has been used for this work (Brescia et al. 2014a).

Footnotes

REFERENCES

APPENDIX A: ANALYSIS OF METAPHOR ERROR SOURCES

In this appendix, we investigated the possibility to quantify the contribution of the method error to the zphot estimation. For instance, such error, in the case of METAPHOR, mostly depends on the random initialization of the neural connection weights in the MLPQNA neural network, used as internal engine to determine the zphot point estimates.

Through a test performed on the SDSS DR9 data (Cavuoti et al. 2017a), we already showed that N different trainings did not degrade the PDF performance: de facto the error introduced by the method appears negligible. On the other hand, N network trainings are very time consuming. Here, we deepened this exercise with METAPHOR pipeline for the KiDS-DR3 data, by performing two different experiments described next.

We created 100 training samples, namely 100 random extractions from the training set used to obtain the KiDS-DR3 PDFs (see Section 2). Each of the 100 training sets contains |$10\, 000$| objects. The experiments are the following:

1. Experiment (i): 100 training + test executions by keeping unchanged both training and test sets. The single training set has been randomly selected from among the 100 sets available and the test set corresponds to the sample obtained by cross-matching the KiDS-DR3 photometry with GAMA DR2 spectroscopy (see Section 2);

2. Experiment (ii): 100 training + test executions by varying the training set each time and by keeping unchanged the test set (same set as previous experiment).

In both experiments, all other set-up parameters of the full METAPHOR pipeline have been left unchanged. Therefore, the difference between the two experiments is only the training set-up of the internal engine MLPQNA (weights initialization is left random and photometry is fixed at each training of the experiment (i), while weights initialization is left random and training photometry is variable in the experiment (ii). In other words, in the experiment (i) we isolated the effect of the random weights initialization, while in the second experiment we kept the sum of the two effects (weights initialization and variable training photometry). Both experiments lasted ∼11  on a 8-core pentium i7.

In Table A1, we report the stacked PDF statistics for the two experiments, while the credibility and PIT analyses are shown in Figs A1 and A2, respectively. The results, as expected, are comparable to those obtained for the dummy PDF (see Table 3) since in both cases we did not introduce any photometry perturbation. The degradation of the stacked PDF performance (compared to that of the dummy PDF) is of the order of |$1{{\ \rm per\ cent}}$| and |$0.6{{\ \rm per\ cent}}$| for the residual fractions, respectively, f_0.05 and f_0.15, while 0.002 for 〈Δ|$z$|〉. Also, the comparison with the credibility and PIT diagrams of the dummy PDF (right-bottom diagrams of Figs 6 and 7, respectively) reveals only the small differences induced by the 100 trainings in experiments (i) and (ii), instead of the single training in the dummy case. Such statistical variations can be considered negligible if compared to those obtained by the photometry perturbation of the test set (see Section 4 and Table 3), where instead the computational cost for experiments (i) and (ii) becomes prohibitive (increasing computing time by |${\sim } 70{{\ \rm per\ cent}}$|⁠).

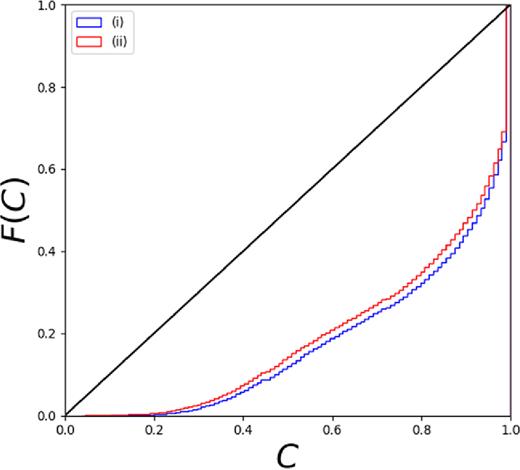

Figure A1.

Credibility analysis obtained for the experiments (i) (blue) and (ii)(red).

Open in new tabDownload slide

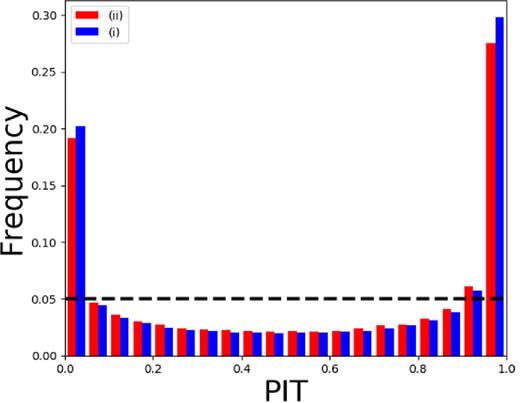

Figure A2.

PIT obtained for the experiments (i) (blue) and(ii)(red).

Open in new tabDownload slide

A comparison between experiments (i) and (ii) in terms of credibility and PIT diagrams shows very similar results. In particular, by overlapping the two kinds of diagrams (Figs A1 and A2), it appears evident that the sum of contributions of the variable photometry within the training set plus the random weights initialization differ very little from the case in which the photometry is kept unchanged.
