Quiescent NIR and optical counterparts to candidate black hole X-ray binaries

ABSTRACT

We present near-infrared and optical imaging of 15 candidate black hole X-ray binaries. In addition to quiescent observations for all sources, we also observed two of these sources (IGR J17451−3022 and XTE J1818−245) in outburst. We detect the quiescent counterpart for 12 out of 15 sources, and for the remaining 3, we report limiting magnitudes. The magnitudes of the detected counterparts range between K_s  = 17.59 and K_s  = 22.29 mag. We provide (limits on) the absolute magnitudes and finding charts of all sources. Of these 12 detections in quiescence, 7 detections represent the first quiescent reported values (for MAXI J1543−564, XTE J1726−476, IGR J17451−3022, XTE J1818−245, MAXI J1828−249, MAXI J1836−194, Swift J1910.2−0546), and 2 detections show fainter counterparts to XTE J1752−223 and XTE J2012+381 than previously reported. We used theoretical arguments and observed trends, for instance between the outburst and quiescent X-ray luminosity and orbital period P_orb to derive an expected trend between ΔK_s and P_orb of |$\Delta K_{\rm s} \propto \log P_{\rm orb}^{0.565}$|⁠. Comparing this to observations, we find a different behaviour. We discuss possible explanations for this result.

1 INTRODUCTION

An X-ray binary (XRB) is defined as a system in which a neutron star (NS) or a black hole (BH) is accreting matter from its companion star. These systems can be classified according to the mass of the donor star, where we find high-mass X-ray binaries (HMXBs) and low-mass X-ray binaries (LMXBs). HMXBs are accreting mass through stellar winds or Roche lobe overflow from a massive star (M ≥ 10|$\, \mathrm{M}_{\odot }$|⁠) with typical spectral types of O and B for main-sequence stars. The donor companion for LMXBs is typically of K-M spectral type low-mass star and has M ≤ 1|$\, \mathrm{M}_{\odot }$|⁠, which transfers mass by Roche lobe overflow (Charles & Coe 2003). XRBs with spectral type A-F donor stars have also been identified, commonly referred to as intermediate-mass XRBs (IMXBs; Pfahl, Rappaport & Podsiadlowski 2003). These are thought to be the progenitors of some LMXBs (Podsiadlowski, Rappaport & Pfahl 2002).

Whether an XRB is a (semi) persistent source or shows outburst – quiescence cycles depends on the mass transfer rate and the orbital period P_orb (King, Kolb & Burderi 1996). Persistent sources typically have X-ray luminosities from |$1\hbox{ to }100{{\ \rm per\ cent}}$| of the Eddington limit, causing the accretion disc to dominate the optical spectrum, hiding the companion star in most cases, except a few giant star mass donors (e.g. Jonker et al. 2005; Steeghs et al. 2013). On the other hand, X-ray transients (XRTs) are characterized by episodic outbursts caused by mass transfer instabilities in the accretion disc (Dubus, Hameury & Lasota 2001); between these outbursts, they decay back to the quiescent state (L_X < 10³³ erg s⁻¹; e.g. Garcia et al. 1998; Lasota 2000; Jonker 2008; Guillot et al. 2009; Plotkin, Gallo & Jonker 2013; Bernardini et al. 2016; Mata Sánchez et al. 2017), where the optical detection of the donor star is often, though not always (e.g. Torres et al. 2015), possible. This gives the opportunity to perform radial velocity measurements that allows us to study the orbital period evolution and to measure dynamically the mass of the compact accretor (Casares & Jonker 2014). The latter is the best way to determine its nature since BH and NS systems display similar outburst properties such as hysteresis patterns in their hardness-intensity diagrams (Muñoz-Darias et al. 2014), though the X-ray timing properties do show differences between NS and BH accretors (see for instance the overview of Lewin & van der Klis 2010). It is also possible to use the radio properties as BHs are more radio-loud than NSs (Fender & Kuulkers 2001; Fender, Gallo & Jonker 2003).

XRTs are often first detected at X-ray wavelengths in outburst thanks to all-sky X-ray monitoring programmes, for instance through the RXTE satellite before 2012 (Bradt, Rothschild & Swank 1993), INTEGRAL (Kuulkers et al. 2007), Neil Gehrels Swift Observatory (Krimm et al. 2013), and MAXI (Matsuoka et al. 2009) missions. Until today, we have 19 dynamically confirmed Galactic stellar-mass BHs (Casares & Jonker 2014 and references therein, Mata Sánchez et al. 2015, Tetarenko et al. 2016b), where 18 of these are in L/IMXBs and one in an HMXB (Cyg X-1, Orosz et al. 2011b). There is a concentration towards the Galactic bulge and plane in the spatial distribution of these sources (i.e. 340° < l < 20° and ∣b∣ < 10°, e.g. Jonker & Nelemans 2004). Around 50|${{\ \rm per\ cent}}$| of these, 19 sources are located within about 4.5 kpc from the Sun, which indicates that the dynamical mass measurements are challenging observationally due to the faintness of the mass donor stars, in part due to the sometimes high interstellar extinction towards sources located in the plane/bulge regions. Additionally, about 40 black hole X-ray binary (BHXB) candidates are known, which even though they do not have an estimate for their mass, present similar outburst properties to already classified BHXBs (see Belloni, Motta & Muñoz-Darias 2011 for a review). The number of BHXB candidates grows at an approximate rate of 2 objects per year (Corral-Santana et al. 2016).

As mentioned before, the quiescent state of XRTs is the ideal starting point to perform dynamical studies of these binary systems. The more dynamically confirmed black holes are known, the more information we have about the mass distribution of BHs in our Galaxy. This is important for understanding the physics of supernova explosions, the equation of state of nuclear matter (Casares, Jonker & Israelian 2017) and the survival of interacting binaries, including those that might eventually merge and produce bursts of gravitational wave radiation (e.g. Abbott et al. 2016a,b). The mass distribution of BHs is expected to be smooth (Fryer & Kalogera 2001); however, observations have shown a gap between NSs and BHs in the range of 2–5|$\, \mathrm{M}_{\odot }$| (Özel et al. 2010; Farr et al. 2011). The existence of the gap is still under debate. Some argue that the observed distribution may be biased by selection effects (i.e. Özel et al. 2010) and biases in the mass measurement procedure. For instance, Kreidberg et al. (2012) claim that there might be a systematic trend in the inclination angle determinations that lead to an underestimate of the inclination, and thus, an overestimate of the BH mass (see also van Grunsven et al. 2017). Others state that the gap is real and could shed light on supernovae explosion models (i.e. Belczynski et al. 2012; Fryer et al. 2012). With Gaia (Gaia Collaboration et al. 2016), we will be able to obtain accurate distances and proper motions for several XRBs, necessary to determine BH natal kicks (e.g. van Paradijs & White 1995; Jonker & Nelemans 2004; Miller-Jones et al. 2009; Reid et al. 2011, 2014; Repetto & Nelemans 2015; Mandel 2016) and hence, constrain the formation and evolution of BHXBs.

In this paper, we report the quiescent magnitudes, or upper limits, of the counterparts to 15 BHXB candidates in the near-infrared (NIR) and optical bands. For seven of them our measurements are the first reported to date. We provide also outburst magnitudes for two of these 15 sources (XTE J1818−245 and IGR J17451−3022); moreover, we detected for the first time the counterpart for IGR J17451−3022. We describe our sample in Section 2, the observations in Section 3 and the data reduction and analysis in Section 4. Our results are presented in Section 5 and discussed in Section 6, and we end with the conclusions of our work in Section 7. We report values taken from literature as found in the original work, i.e. if uncertainties were originally not given, we report the value without uncertainties (this includes points without error bars in our plots).

2 SAMPLE

Our sample consists of 15 BHXB candidates (see Table 1 for discovery dates, coordinates, and distances). With the exception of MAXI J1957+032 and MAXI J1807+132, the sources can be found in either the BlackCAT (Corral-Santana et al. 2016) or WATCHDOG (Tetarenko et al. 2016a) catalogues for BHXB candidates. Both MAXI J1957+032 and MAXI J1807+132 are NS candidates (Ravi 2017; Shidatsu et al. 2017a) reported after we had observed them; however, their spectral features are also consistent with them being BH XRTs as no type I X-ray bursts or pulsation have been found (Mata Sánchez et al. 2017; Munoz-Darias et al. 2017; Shidatsu et al. 2017b). Thirteen sources are located at latitudes ∣b∣ < 7°, whereas MAXI J1957+032 is at b ∼ 13° and MAXI J1807+132 is at b ∼ 15°. All 15 sources are observed during quiescence: 7 sources in the K_s band (XTE J2012+381, XTE J1752−223, Swift J174510.8−262411, MAXI J1828−249, MAXI J1836−194, MAXI J1957+032, and XTE J1856+053), XTE J1726−476 in the J and K_s bands, MAXI J1543−564 in the H and K_s bands, MAXI J1807+132 in the i′ band, Swift 1910.2−0546 in the K_s, r′, i′ bands and two sources (XTE J1650−500 and Swift J1539.2−6227) in the g′, r′, i′, z′, J, H, K_s bands. XTE J1818−245 and IGR J17451−3022 are observed both in quiescence and in outburst, both in the K_s band (see Table 2).

3 OBSERVATIONS

We obtained NIR and optical observations for this project using five different telescopes. To acquire JHK_s-band images, we used the William Herschel Telescope with the Long-slit Intermediate Resolution Infrared Spectrograph (WHT/LIRIS), the Keck I Telescope on Mauna Kea with the Multi-Object Spectrometer for Infra-Red Exploration (Keck/MOSFIRE, McLean et al. 2010, 2012), the Walter Baade Magellan Telescope with the Persson’s Auxiliary Nasmyth Infrared Camera (Magellan/PANIC, Martini et al. 2004), and the Very Large Telescope Unit 4 with the High Acuity Wide field K-band Imager (VLT/HAWK-I, Pirard et al. 2004). To obtain the optical (r′i′ band) data, we used the William Herschel Telescope with the auxiliary-port camera (WHT/ACAM). Finally, we got NIR and optical observations in seven filters (g′, r′, i′, z′, J, H, K_s) using the Gamma-Ray Burst Optical/Near-Infrared Detector (MPI/GROND, Greiner et al. 2008) at the MPI/ESO 2.2 m telescope at the ESO La Silla Observatory.

LIRIS has a pixel scale of 0.25 arcsec pixel⁻¹ and a field of view of 4.27 arcsec × 4.27 arcsec; MOSFIRE provides a pixel scale of 0.18 arcsec pixel⁻¹ and a field of view of 6.1 arcmin × 6.1 arcmin; and PANIC has a pixel scale of 0.125 arcsec pixel⁻¹ and a field of view of 2.0 arcmin × 2.0 arcmin. HAWK-I provides a pixel scale of 0.106 arcsec pixel⁻¹ and a field of view of 7.5 arcmin × 7.7 arcmin  ACAM has a pixel scale of 0.25 arcsec pixel⁻¹ and a circular field of view with a diameter of 8.0 arcmin and GROND provides a pixel scale in the optical(NIR) channels of 0.158 arcsec (0.60 arcsec) pixel⁻¹, and a field of view in the optical(NIR) channel of 5.4 arcmin × 5.4 arcmin (10 arcmin × 10 arcmin). The NIR observations with LIRIS, PANIC, and MOSFIRE were performed using multiple repetitions of a 5-position-dither pattern where several images were taken at each dither position, while the HAWK-I observations¹ were done with 8 pointings of 60 s each for the H band and 7 pointings of 60 s each for the K_s band. The optical observation with WHT/ACAM was done with 6 different pointings of 300 s each; additionally, the GROND observations² in the g′, r′, i′, z′ filters were done with 8 pointings of 62 s each at different offset positions, while the observations in the J, H, K_s filters were done with 48 pointings of 10 s, dithered only for the K_s band and at different positions for the J, H bands.

We targeted two sources in the K_sband with PANIC: XTE J1818−245 was observed in outburst in 2005 September and then in quiescence in 2006 May, and XTE J1726−476 was observed in quiescence in 2006 August in both J and K_s bands. Five sources were observed in the K_s band with LIRIS: IGR J17451−3022 was observed in outburst in 2015 April and then in quiescence in 2016 March, and four other sources (XTE J2012+381, XTE J1752−223, Swift J174510.8−262411, and Swift J1910.2-0546) were observed in quiescence in 2017 April. The last source, Swift J1910.2−0545, was also observed in quiescence with ACAM in both r′ and i′ bands, in 2015 July. We took K_s-band images with Keck/MOSFIRE for four sources (MAXI J1828-249, MAXI J1836-194, MAXI J1957+032, and XTE J1856+053) in quiescence in June 2017, MAXI J1807+132 was observed in quiescence with ACAM in the i′ band in July 2017, two sources in quiescence (XTE J1650−500 and Swift J1539.2−6227) were observed with GROND in September 2017, and finally, MAXI J1453−564 was observed in quiescence in both H and K_s bands with HAWK-I in 2018 April. For a full observing log see Table 2, where also the average seeing is provided, as a measure of the image quality during the observations.

4 DATA REDUCTION AND ANALYSIS

4.1 Data reduction

For the images taken with GROND, the data reduction was done with the standard tools and methods described in Krühler et al. (2008). The PANIC data were processed with iraf scripts implemented by Martini et al. (2004) for the reduction of data from that instrument. These procedures included dark and flat-field correction as well as sky subtraction. In the data reduction process, the raw frames were first dark subtracted. Master flat-fields were built by combining twilight flat-field frames scaled by the mode and these were applied to the target images. A sky image was made by masking out stars from each set of dithered target frames and was subtracted from the associated set of frames. Finally, a single target image was obtained by average combining the sky-subtracted images.

The LIRIS, ACAM, MOSFIRE, and HAWK-I data were reduced using the data reduction software theli (Schirmer 2013). In order to flat-field correct the NIR data, we produced a master flat with theli by median combining the sky flat images taken during twilight. Additionally, a sky background model is generated by median combining the observations without correcting for the offsets introduced by the dithering, which then is subtracted from the individual data frames. After this, theli detects sources in the images using SExtractor (Bertin & Arnouts 1996) and obtains astrometric solutions with scamp (Bertin 2006). The astrometric solution is obtained by matching the detected positions to sources from different catalogues. The global astrometric solution is then used for the coaddition of all the frames using swarp (Bertin et al. 2002).

4.2 Astrometry

To improve the accuracy of the global astrometric solution of the coadded images, we used the starlink tool gaia, fitting at least five star positions from the 2 Micron All Sky Survey (2MASS; Skrutskie et al. 2006) or from the fourth US Naval Observatory CCD Astrograph Catalog (UCAC4; Zacharias et al. 2013) in order to build a local astrometric solution around the position of the sources. The rms errors of these fits are indicated in Table 2 as WCS (World Coordinate System) uncertainties, where the intrinsic systematic error of the catalogue with respect to the International Celestial Reference System (ICRS) is also listed (15 mas for 2MASS and 20 mas for UCAC4).

4.3 Photometry

For seven sources (Swift J1910.2−0546, XTE J1726−476, MAXI J1807+132, XTE J1752−223, MAXI J1543−564, Swift J1539.2−6227, and XTE J1650−500), we used SExtractor for the source detection and photometry, making sure that each detection was more than 3σ above the local background. We performed aperture photometry to determine instrumental magnitudes. We determined the full width at half-maximum of point-like objects in each image with the starlink tool gaia and we used it as the aperture size. We performed point spread function (PSF) photometry for the eight remaining images using the daophot package in iraf³ because the source density warrants this. The photometric zero-points of our NIR images were measured by using isolated 2MASS objects (or VVV⁴ objects, when possible) in the field of view, and for our optical images, we used isolated Panoramic Survey Telescope and Rapid Response System 1 (Pan-STARRS 1, Chambers et al. 2016; Flewelling et al. 2016) objects. We calibrated the instrumental magnitudes of those isolated sources with the magnitudes reported by their respective surveys, thus calculating the photometric zero-points (see Table 2). We ignore the colour term in our calibrations, as this term is small compared to other uncertainties in the photometry (Augusteijn 1992). Instrumental magnitudes for all detected sources were converted to apparent magnitudes using these zero-points. It should be noted that the formal uncertainty in the 2MASS/Pan-STARRS 1 photometric calibration that we employ is the largest contributor (⁠|$90{-}95{\,\rm per cent}$|⁠) to the uncertainty in the apparent magnitudes. For the images in which we did not detect a counterpart, we estimated the limiting magnitude by simulating 10 000 stars at the position of the XRB using the iraf task mkobjects and then detecting them with the task daofind. We use the faintest magnitude at which the objects were detected at the 3σ level as our limiting magnitude. For the five sources (XTE J1752−223, Swift J174510.8−262411, MAXI J1836−194, MAXI J1957+032, and XTE J1650−500) for which we determine a limiting absolute magnitude, we assumed R_V = 3.1 (Fitzpatrick 1999), |$R_{K_{\rm s}} = 0.306$| (Yuan, Liu & Xiang 2013), and N_H = 1.87 × 10²¹ atoms cm⁻² mag⁻¹A_V (Bohlin, Savage & Drake 1978) to correct for extinction. We use the distances indicated in Table 1, and although these estimates have large uncertainties (one value is a lower limit), even an underestimate of the distance by a factor of 2 would only result in a difference of 1.5 mag in absolute magnitude. This is the difference between spectral types K0V and K7V, or between M0V and M2V. All the magnitudes are given in the AB system, unless indicated otherwise; the conversion between the Vega and AB systems was done following Blanton & Roweis (2007), i.e. J_AB = J_VEGA + 0.91, H_AB = H_VEGA + 1.39, K_sAB = K_sVEGA + 1.85.

5 RESULTS

5.1 Sources observed in outburst

5.1.1 IGR J17451−3022

This source was discovered by INTEGRAL/JEM-X on 2014 August 22 (Chenevez et al. 2014). Suzaku observations done in 2014 September revealed eclipses in the light curve of IGR J17451−3022 (Jaisawal et al. 2015), from which they estimated a P_orb of ∼6.3 h. We performed an NIR observation of IGR J17451−3022 during its outburst and detected two sources (labelled A and B in Fig. 1a) in the 99.7 |${{\ \rm per\ cent}}$| confidence radius around the X-ray position. The source returned to quiescence in 2015 May (Bahramian et al. 2015). We observed it for a second time using the same telescope and instrument and filter on 2016 March 28 and detected again the same two sources (see Fig. 1b) in the 99.7 |${{\ \rm per\ cent}}$| confidence radius around the X-ray position (Chakrabarty et al. 2014). As is visible in Figs 1(a) and (b), these two sources are close to a bright star (2MASS J17450681−3022456, K_s  = 13.16). To estimate the apparent magnitudes of the fainter sources minimizing contamination of this bright star, we subtracted it and then performed PSF photometry on the image. Then, using differential photometry we found that the apparent magnitude of the source labelled B varied between outburst and quiescence at the level of 7.8σ (see Fig. 2).

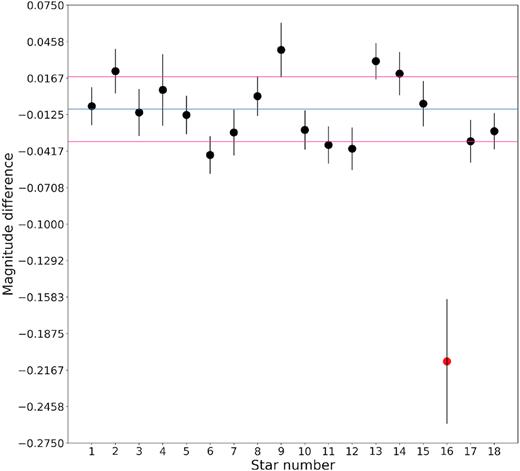

The outburst and quiescent magnitudes are K_s = 17.39 ± 0.16 and K_s = 17.59 ± 0.14, respectively (see Table 3). Whereas these values are the same within the errors, the formal uncertainty in the 2MASS photometric calibration that we employ is the largest contributor to the uncertainty (0.13 mag in both cases). Our differential photometry where we calibrate one frame against the magnitudes of the second shows that the source in quiescence is significantly fainter by 7.8σ. Given that the source is eclipsing (Jaisawal et al. 2015), the projected surface area of the accretion disc is small, possibly resulting in a similar magnitude for any combination of disc plus star during outburst and quiescence.

5.1.2 XTE J1818−245

The X-ray transient XTE J1818−245 was discovered on 2005 August 12 (Levine et al. 2005a) with the RXTE all-sky monitor. Steeghs et al. (2005a) observed it a few days after the outburst and detected an optical candidate counterpart with R ∼ 17.71 mag that was later confirmed by Zurita Heras et al. (2011). We observed this source a month after the outburst discovery and detected a NIR counterpart with an apparent magnitude of K_s = 16.18 ± 0.02; this is consistent with the result from Cadolle Bel et al. (2009). They observed XTE J1818−245 in the NIR 2 months after the outburst start and detected a counterpart with apparent magnitude K = 16.9 ± 0.2. We observed this source also during quiescence, approximately 10 yr after the outburst ended, and we detected the NIR counterpart as well, with K_s = 19.99 ± 0.22 (see Table 3). As can be seen from Figs 3(b) and (a), it is evident that the NIR source is bright during outburst and fades during quiescence. Hence, this is the quiescent NIR (K_s band) counterpart to XTE J1818−245.

5.2 Sources observed in quiescence

5.2.1 Swift J1539.2−6227

Swift J1539.2−6227 was discovered on 2008 November 24 by Swift/BAT (Krimm et al. 2008). UV/optical observations made a month later revealed a counterpart with magnitudes of uvw2 = 18.07 ± 0.03 and uvm2 = 17.96 ± 0.04 (Krimm et al. 2009), which continued until at least until 2009 March (Torres et al. 2009a). The optical spectrum of the counterpart revealed no Balmer lines, nor evidence for HeII 4686 Å  or Bowen blend emission (Torres et al. 2009a). We observed this source with GROND and did not detect the counterpart down to limiting magnitudes of g′ > 19.6, r′ > 20.1, i′ > 19.8, z′ > 18.9, J > 18.9, H > 16.8, and K_s > 17.6 (see Table 3).

5.2.2 MAXI J1543−564

Negoro et al. (2011a) discovered this source on 2011 May 8. UV/optical observations with Swift revealed no counterpart to this source down to limiting magnitudes of V > 19.47 and U > 20.85 (Kennea et al. 2011a), which is consistent with the large absorption column towards this source. Russell et al. (2011) detected a possible counterpart with a magnitude of i = 19.5. Two days after the outburst was reported, Rau et al. (2011b) detected the same optical counterpart (called source A) with GROND, and reported outburst magnitudes of g′ > 22.8, r′ = 20.7 ± 0.1, i′ = 19.4 ± 0.1, z′ = 18.7 ± 0.1, J = 17.1 ± 0.2, H = 16.8 ± 0.2, and K_s = 17.0 ± 0.2. Additionally, Rau et al. (2011b) reported the detection of two other sources, called sources B and C, with magnitudes z′ ∼ 20.7 and z′ ∼ 20.5, respectively. No measurements in the JHK_s bands are reported, as they are strongly affected by the blending of sources A, B, and C. A Chandra localization of MAXI J1543−564 (Chakrabarty et al. 2011) showed that the optical source detected by Russell et al. (2011) and Rau et al. (2011b) was not likely the counterpart but instead, the source identified as source B by Rau et al. (2011b) is a better candidate counterpart. We observe this source with HAWK-I and detect two sources inside the 3σ confidence radius around the position of source B from Rau et al. (2011b) in both H and K_s bands (see Fig. 1c). We label the sources B1 and B2 and estimate magnitudes of H = 20.5 ± 0.2 and K_s = 20.68 ± 0.16 for B1 and H = 21.7 ± 0.2 and K_s = 21.8 ± 0.2 for B2. Further observations are required in order to determine which one is the true counterpart (if any).

5.2.3 XTE J1650−500

This XRT was discovered on 2001 September 5 by RXTE and optical observations revealed a counterpart with V = 17 (Castro-Tirado et al. 2001). A month later, with observations from ESO NTT, NIR/optical magnitudes were derived (Curran, Chaty & Zurita Heras 2012): V = 17.1 ± 0.2, R = 16.9 ± 0.4, I = 16.14 ± 0.13, J = 15.33 ± 0.11, H = 15.18 ± 0.11, and K_s = 15.14 ± 0.13 mag. It was observed ∼ 10 months later (2002 August 10) in the optical with the Magellan telescope, and the counterpart was detected in quiescence, with magnitudes of R ∼ 22 and V ∼ 24 (Garcia & Wilkes 2002). We observed this source with GROND and did not detect the counterpart down to limiting magnitudes of g′ > 20.3, r′ > 20.5, i′ > 19.4, z′ > 18.5, J > 18.4, H > 16.8, and K_s> 17.8 (see Table 3), resulting in an outburst amplitude of >2 mag in the JHK_s bands. With a distance of d = 2.6 ± 0.7 kpc given by Homan et al. (2006) and N_H = 0.5 ± 0.1 × 10²² cm⁻² (Miniutti, Fabian & Miller 2004), we calculate an extinction of |$A_{K_s} = 0.270$|⁠, which gives a limiting absolute magnitude of M_K > 5.4, making the donor star an M0V spectral type or later.

5.2.4 XTE J1726−476

XTE J1726−476 was discovered with RXTE by Levine, Lin & Remillard (2005b) on 2005 October 4. Optical I-band observations revealed a counterpart with I  = 17.42 ± 0.11 mag days after the outburst start (Maitra et al. 2005). Additionally, Steeghs et al. (2005b) observed XTE J1726−476 in the NIR and detected the counterpart with K_s = 18.05. We observed this source in quiescence in both J and K_s bands (see Table 3). Our observation in the K_s band yielded a non-detection down to a limiting magnitude of K_s > 17.9, whereas in the J band we just detect a faint candidate counterpart with J = 21.0 ± 0.3 (see Fig. A1a).

5.2.5 Swift J174510.8−262411

This XRT went into outburst on 2012 September 16 (Cummings et al. 2012) and was observed with GROND 1 d after (Rau et al. 2012b), where they found a candidate counterpart with an apparent magnitude of i′ ∼ 17.8 and J ∼ 16.5 ± 0.5, which was then spectroscopically confirmed by de Ugarte Postigo et al. (2012). Subsequent optical observations were performed by Hynes et al. (2012) and Russell et al. (2012); the former did not detect the counterpart, whereas the latter detected the source previously identified by Rau et al. (2012b), this time with a magnitude of i′ = 17.59 ± 0.07. We observed this source 5 yr after its outburst and detect the counterpart in the NIR (see Fig. A1b) with a magnitude of K_s = 18.63 ± 0.15 (see Table 3) with a position consistent with that reported in Rau et al. (2012b). Muñoz-Darias et al. (2013) estimated a distance of d > 7 kpc (see Table 1) and with N_H = 1.70 ± 0.04 × 10²² cm⁻² (Tomsick, DelSanto & Belloni 2012), we get an extinction of |$A_{K_{\rm s}} = 0.918$|⁠, which we use to estimate a limiting absolute magnitude of M_K > 3.4. This would make the donor star a K0V star or later (Tokunaga 2000; Drilling & Landolt 2000), consistent with the hydrogen emission lines detected by de Ugarte Postigo et al. (2012).

5.2.6 XTE J1752−223

This source was discovered on 2009 October 23 (Markwardt et al. 2009) and later confirmed to be a strong accreting BH candidate (Nakahira et al. 2010; Muñoz-Darias et al. 2010; Shaposhnikov et al. 2010; Curran et al. 2011). An optical counterpart was identified by Torres et al. (2009b), later confirmed by optical spectra and an NIR detection (Torres et al. 2009c) with a magnitude of K_s = 15.83 ± 0.01. Approximately 9 months after the outburst, Russell et al. (2010) reported optical and NIR quiescent magnitudes for the counterpart of V = 21.2 ± 0.3 and K_s = 17.1 ± 0.1, respectively. However, Ratti et al. (2012) showed that the source had not yet reached the quiescent state at the point in time related to the observations of Russell et al. (2010), as they did not detect the source 10 months later down to a limiting magnitude of i′ > 24.77, making the difference between the source brightness in outburst and in quiescence at least 8 mag. We obtained NIR observations of this source 6 yr after its outburst and did not detect any source at the position of the outburst counterpart, down to a limiting magnitude of K_s > 19.6. This is 2.5 mag fainter than reported before by Russell et al. (2010). With a distance of d = 6 ± 2 kpc, derived by Ratti et al. (2012) (see Table 1), and using N_H = 4.5 × 10²¹ cm⁻² (Dickey & Lockman 1990), we get an extinction of |$A_{K_{\rm s}} = 0.243$|⁠, which results in a limiting absolute magnitude of M_K > 5.3, which means that the donor star is a main-sequence star with spectral type M0 or later (Drilling & Landolt 2000; Tokunaga 2000). This is consistent with the constraints on the spectral type given in Ratti et al. (2012) and with the hydrogen emission lines found in the spectra by Torres et al. (2009c).

5.2.7 MAXI J1807 +132

MAXI J1807+132 was discovered on 2017 March 13 by MAXI/GSC (Negoro et al. 2017). A UV/optical counterpart was detected soon after by Kennea et al. (2017b) and Denisenko (2017), who reported magnitudes of B = 18.3 ± 0.2 and V = 17.82, respectively. Furthermore, Denisenko (2017) reported the quiescent magnitude of this optical counterpart as r′ = 21.19 ± 0.09 and i′ = 21.38 ± 0.04 from PanSTARRS-1 archival images. Spectroscopy taken with GTC/OSIRIS revealed spectral features consistent with that of an LMXB (Munoz-Darias et al. 2017; Shidatsu et al. 2017b). Tachibana et al. (2017) detected in the optical a decay in magnitude of ∼0.4 mag d⁻¹, which coincided with a decay in the X-ray (Armas Padilla et al. 2017). Furthermore, after the X-ray fading phase of MAXI J1807+132, the optical counterpart varied its magnitude from r′ = 20.76 ± 0.07 to r′ = 19.34 ± 0.02 in a 5-d interval (Kong et al. 2017). We observed this X-ray source in the i′ band (see Fig. A1c) 4 months after its outburst started, and detected the optical counterpart reported by Kennea et al. (2017b) with an magnitude of i′ = 20.26 ± 0.05. This is 2.3 mag brighter than the archival magnitude from PanSTARRS-1, which implies that the source had not fully returned to quiescence yet at the time of our observations.

5.2.8 MAXI J1828−249

Nakahira et al. (2013) discovered MAXI J1828−249 in a soft state on 2013 October 15. An uncatalogued UV point source was detected with Swift as a possible counterpart, with a magnitude of uvm2 = 18.64 ± 0.04 ± 0.03 (with 0.04 and 0.03 being statistical and systematic uncertainties, respectively, Kennea et al. 2013). Follow-up observations by Rau, Tanga & Greiner (2013) detected a counterpart at H = 16.9 ± 0.1 and K_s = 17.2 ± 0.2. A month later, another NIR observation (D’Avanzo et al. 2013) revealed fading of this counterpart, with a magnitude of H = 18.7 ± 0.1, which implies that this source is the counterpart. We detect this source in our NIR observations with K_s = 20.82 ± 0.09 (see Table 3), 3.6 mag fainter than in outburst (see Fig. A1d).

5.2.9 MAXI J1836−194

MAXI J1836-194 was first detected on 2011 August 29 by MAXI/GSC and Swift/BAT, as a hard X-ray transient (Negoro et al. 2011b). Swift observations revealed an optical counterpart with a magnitude of V = 16.22 ± 0.04 (Kennea et al. 2011b). GROND observations detected the optical counterpart with magnitudes of g′ = 16.21 ± 0.05, r′ = 15.92 ± 0.05, i′ = 15.53 ± 0.01, z′ = 15.09 ± 0.05, J = 14.77 ± 0.05, H = 14.34 ± 0.05, and K_s = 14.00 ± 0.07 mag (Rau et al. 2011c). This XRB has a face-on accretion disc with an inclination between 4° and 15°, and a lower limit on the compact object mass of 1.9 |$\, \mathrm{M}_{\odot }$| (Russell et al. 2014). Six years after the first discovery outburst, we just detect the NIR counterpart at the position given by Kennea et al. (2011b), with a magnitude of K_s = 20.9 ± 0.3 (see Fig. A1e). This source has an estimated distance of d = 7 ± 3 kpc (Russell et al. 2014, see Table 1) and an N_H = 2.0 ± 0.4 × 10²¹ cm⁻² (Kennea et al. 2011b), which results in an extinction of |$A_{K_{\rm s}} = 0.108$| and an absolute magnitude of M_K > 6.5. This would make the donor star a M2 main-sequence star or later (Drilling & Landolt 2000; Tokunaga 2000).

5.2.10 XTE J1856+053

This BHXB candidate was discovered on 1996 September 17 (Marshall et al. 1996), with a new outburst observed 9 yr later on 2007 February 28 (Levine & Remillard 2007). It seems that the source was already in outburst around 2007 February 22 (Krimm et al. 2007). Days after the 2007 outburst detection, NIR observations were performed and yielded a counterpart with an apparent magnitude of K_s = 18.28 ± 0.05 (Torres et al. 2007) that had faded 2 months after the outburst to K_s = 19.7 ± 0.1. In 2015, a new outburst from XTE J1856+053 was detected by MAXI/GSC (Suzuki et al. 2015; Negoro et al. 2015b) and Swift/XRT (Sanna et al. 2015). Two years later, we observed this source in the NIR (see Fig. A1f). We detect the same counterpart reported by Torres et al. (2007), this time with a magnitude of K_s = 20.09 ± 0.26, which is consistent at the 1σ level with the quiescent value reported in 2007 (see Table 4).

5.2.11 Swift J1910.2−0546

An outburst from Swift 1910.2−0546 was discovered on 2012 May 31 (Usui et al. 2012). Optical/NIR observations made 1 d after by Rau et al. (2012a) revealed a counterpart with g′ = 16.1 ± 0.1, r′ = 15.7 ± 0.1, i′ = 15.6 ± 0.1, z′ = 15.3 ± 0.1, J = 15.5 ± 0.1, H = 15.5 ± 0.1, and K_s = 15.6 ± 0.1 mag. That same day, Cenko & Ofek (2012) also detected this counterpart at R = 16.11. The optical spectra reported by Charles, Cornelisse & Casares (2012) are typical of an LMXB. In our K_s-band observations (see Fig. A1g), we detect the quiescent counterpart with an apparent magnitude of K_s = 20.43 ± 0.11, while in our optical observations, the counterpart is detected with an apparent magnitude of r′ = 23.46 ± 0.07 and i′ = 22.18 ± 0.04.

5.2.12 MAXI J1957+032

Discovered on 2015 May 11 (Cherepashchuk et al. 2015; Negoro et al. 2015a), MAXI J1957+032 was classified as an LMXB (Munoz-Darias et al. 2017). Subsequent optical and NIR observations revealed a candidate counterpart with magnitudes r′ = 20.03 ± 0.14 and J = 19.75 ± 0.14 (Rau et al. 2015). In the K_s band there was no detection, down to a limiting magnitude of K_s > 19.0. A day later the source had faded to r′ = 21.36 ± 0.14, and since this quick decay was similar to the one observed in X-rays (Molkov et al. 2015), it is most likely that the NIR source is the counterpart. This source seemed to have brightened approximately 1 mag when observed in the optical some months later (Guver et al. 2015), coinciding with a new outburst from MAXI J1957+032 (Sugimoto et al. 2015). Optical spectra were taken (Buckley et al. 2016), which turned out to be featureless. This is consistent with a high-inclination compact system, where the optical spectra have almost undetectable emission lines (Baglio et al. 2016). MAXI J1957+032 shows short duration outbursts (<5 d) and it has a high recurrence rate (4 in 16 months). Mata Sánchez et al. (2017) found not only that the optical spectra is consistent with MAXI J1957+032 being a short-period LMXB but also that the short duration and short recurrence time of the outburst are reminiscent of an accreting millisecond X-ray pulsar. We detect an NIR source (see Fig. A1h), at the position indicated by Rau et al. (2015), with K_s = 22.29 ± 0.15 mag. Using the distance estimate of d ∼ 6 kpc and the column density N_H = 1.7 × 10²¹ cm⁻² from Mata Sánchez et al. (2017) (see Table 1), we get an extinction of |$A_{K_s} = 0.091$|⁠, and thus, an absolute magnitude of M_K > 8.3, making it consistent with an M6 main-sequence star or later (Tokunaga 2000; Drilling & Landolt 2000).

5.2.13 XTE J2012+381

This source went into outburst on 1998 May 24 (Remillard et al. 1998). A radio source was identified as a possible counterpart (Hjellming, Rupen & Mioduszewski 2000), along with an optical source (V = 17.22 ± 0.2 mag, Hynes et al. 1998) and an NIR source (K  = 16.2 ± 0.1 mag, Callanan et al. 1998). Subsequent optical and NIR observations (done on 1998 August 14) revealed that the NIR source faded by 1.8 mag, from K = 16.2 ± 0.1 to K_s = 17.96 ± 0.04 (Hynes et al. 1999) in 71 d. Moreover, this source was identified as the optical counterpart to the radio source identified by Hjellming et al. (2000). In our NIR observations (see Fig. A1i), performed 8 yr after the outburst, we detect the same source, with a magnitude of K_s = 20.08 ± 0.22. We report this as the quiescent magnitude of the counterpart (see Table 4).

6 DISCUSSION

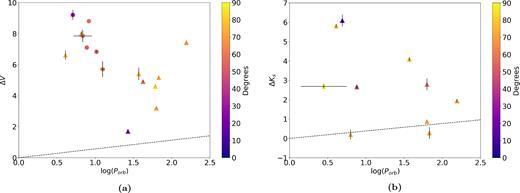

Shahbaz & Kuulkers (1998) derived an empirical relation between ΔV and P_orb for 8 BH XRTs, where P_orb < 1 d. The relation is an inverse linear correlation, which they suggest is explained by the fact that at longer P_orb, the secondary star is larger and hence, more luminous than a system with shorter P_orb, making the outburst amplitude smaller. As already mentioned in Miller-Jones et al. (2011b) and Revnivtsev, Zolotukhin & Meshcheryakov (2012), the inclination i is an important parameter as well. We searched the literature and found i for 6 of these 8 sources (see Table A1) and plot ΔV versus i and P_orb in Fig. 4(a). We also include other sources for which ΔV, i, and P_orb have become available since the work of Shahbaz & Kuulkers (1998) (see Table A1). Since many of the sources analysed are known to have had multiple outbursts (e.g. XTE J1550-564, GX 339-4, GS 2023+338), we take the brightest outburst magnitude and the faintest quiescent magnitude reported. The latter is because there are sources like A 0620-00 whose mean brightness varies even while in quiescence (‘active’ and ‘passive’ states; Cantrell et al. 2008). However, note that the outburst amplitudes are probably lower limits, to account for the fact that one may have missed the peak magnitude in the sparsely sampled outbursts and that there could be a brightness variation in quiescence.

Another factor is that the quiescent X-ray luminosity shows a dependence on P_orb as well (i.e. Lasota 2000; Garcia et al. 2001; Jonker et al. 2007; Lasota 2008; Degenaar et al. 2009; Rea et al. 2011; Jonker et al. 2012) of the form |$L_{X,Q} \propto P_{\rm orb}^{1.77}$|⁠. Moreover, the quiescent magnitude M_{V, Q} might be the result of (a) the contribution from the light of disc, which, like in outburst, can in principle be due to reprocessing of the X-ray light on its surface (van Paradijs & McClintock 1994), but also due to energy generation on the disc itself, although we ignore this below; and (b) the light from the donor star M_{V, donor}, which in outburst is difficult to detect. In some cases, the donor star is not even detected in the quiescent state (e.g. Torres et al. 2015). Thus, |$M_{V,Q} \propto \log (P_{\rm orb}^{2/3}L_{X,Q}^{1/2}) + M_{V,{\rm donor}}$|⁠. If we ignore irradiation of the donor star in both outburst and quiescence, filling in all the dependences and relations given above, we derive |$\Delta V = M_{V,Q} - M_{V,O} \propto \log P_{\rm orb}^{0.565}$| (we plot this correlation as a dash line in Fig. 4). Therefore, for a given i, the same L_X,O, and q, systems would be expected to have slightly larger outburst amplitudes for longer P_orb, counter to the relation reported in Shahbaz & Kuulkers (1998). A factor not included above is that in the NIR, emission from a non-thermal component, like a jet (e.g. Corbel & Fender 2002; Russell et al. 2006; Russell, Fender & Jonker 2007; Russell & Fender 2008), possibly contributes to the observed NIR light.

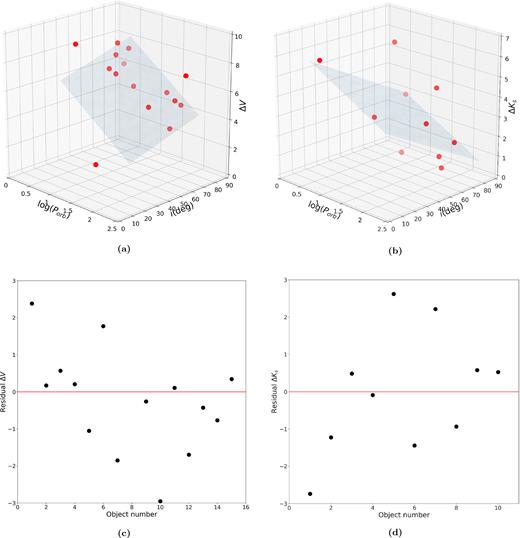

In order to try and assess the influence that the low number of sources involved in the work of Shahbaz & Kuulkers (1998) (and also to a lesser extent in the work presented here), we determine the probability of randomly selecting 8 systems and finding a correlation between ΔV and P_orb. We find that it ranges between 17.5 |${{\ \rm per\ cent}}$| and 30.5 |${{\ \rm per\ cent}}$| (based on selecting 1000 different samples of 8 elements from a simulation of 100 systems with a flat distribution between 0 < P_orb < 12 and 0 < ΔV < 10). We conclude that the correlation reported by Shahbaz & Kuulkers (1998) was probably caused by small number statistics.

We do note that some of the observational correlations used above to determine the expected relation between P_orb, i, and ΔV (ΔK_s) may suffer from low number statistics themselves implying that the predicted correlation between ΔV and P_orb itself is uncertain.

7 CONCLUSIONS

We observed 15 BHXB candidates in quiescence in the NIR and optical in order to investigate which of these sources would be promising targets for BH mass determinations. We detected 2 with K_s < 20 (AB magnitude) out of our sample, which depending on their P_orb, may allow for time-resolved spectroscopic observations to be taken with 8–10 m class telescopes. Such measurements for fainter systems will have to await the arrival of larger or space-based telescopes. Of our 15 observed sources, XTE J1818-245 and IGR J17451-3022 were observed in quiescence and in outburst, while the other 13 were observed only in quiescence. XTE J1818-245 presents an outburst–quiescence magnitude difference of about ∼4 mag in the K_s band. IGR J17451-3022 was analysed with differential photometry, as it was not clear which, if any, of the two sources inside the 99.7|${{\ \rm per\ cent}}$| confidence radius around it is the counterpart. One source has a magnitude change consistent in direction with the fading in the X-rays. However, the outburst–quiescence magnitude difference is small. It is conceivable that this is due to the fact that the system has a high inclination, so the projected surface area of the disc is small. Out of the 13 sources observed only in quiescence, we detect NIR and optical counterparts for ten of them, while for the remaining three sources we report the limiting magnitudes. Of the ten sources with detected quiescent counterparts, we present measurements for the first time for five of them, and in contrast, two of them had previously published quiescent magnitudes that we update now with fainter magnitudes, showing that these BHXBs had not yet reached their quiescent states at the epoch of the observations reported in the literature before. We analysed the K_s-band and V-band outburst amplitudes with respect to P_orb and i of the system for sources in our sample and for BHXBs for which we could find published values of ΔK_s, ΔV, P_orb, and i. We find best fits to the data although the fits are not formally acceptable, showing that probably additional parameters to P_orb and i are important (e.g. emission from a jet, energy generation on the disc, light contribution from the donor star). Using theoretical arguments and observed relations, we further derive a correlation between ΔV and P_orb of |$\Delta V \propto \log P_{\rm orb}^{0.565}$|⁠; however, such a correlation also provides no good fit to the data, probably due to the observed relations being affected by low number statistics, which could make our derived correlation less certain, and reinforcing the idea that additional parameters to P_orb and i should be considered.
