Spectral and timing analysis of the bursting pulsar GRO J1744−28 with RXTE observations Free

Abstract

1 INTRODUCTION

GRO J1744−28 is a transient low mass X-ray binary (LMXB) system discovered near the Galactic centre by Fishman et al. (1995). Three main outbursts have been reported since its discovery, i.e. from the end of 1995 to the beginning of 1996, from the end of 1996 to 1997 April, and from 2014 January to June. The X-ray luminosity during the outbursts reaches |${\rm {10}^{37}\hbox{-}{10}^{38}\, ergs\ s^{-1}}$| (Nishiuchi et al. 1999; Degenaar et al. 2014; D’Aì et al. 2015; Younes et al. 2015), which is several orders of magnitude brighter than that in the quiescent state (⁠|${\rm {10}^{33}\hbox{-}{10}^{34}\, ergs\ s^{-1}}$|⁠) (Daigne et al. 2002; Wijnands & Wang 2002). Plenty of X-ray bursts have been reported for GRO J1744−28, which have been attributed to spasmodic accretion, making the source the second object showing so-called type-II bursts besides the Rapid Burster (Kouveliotou et al. 1996). A truncated accretion disc has been reported (Degenaar et al. 2014; D’Aì et al. 2015), which might be related to these bursts (van den Eijnden et al. 2017). The magnetic field of GRO J1744−28 is thought to be ∼10¹¹–10¹² G as it follows from the detection of a cyclotron resonance scattering feature (CRSF) between 4 and 5 keV (D’Aì et al. 2015; Doroshenko et al. 2015). A similar consistent value has been as well obtained considering the interaction between the accretion disc and the magnetosphere (Cui 1997; Degenaar et al. 2014; Younes et al. 2015).

The X-ray spectrum of the source has been investigated using observations of ASCA, Chandra, XMM–Newton, NuSTAR, and BeppoSAX (Nishiuchi et al. 1999; Degenaar et al. 2014; D’Aì et al. 2015; Doroshenko et al. 2015; Younes et al. 2015). Generally, the spectrum can be fitted with a phenomenological model, consisting of a cut-off power law and sometimes an additional blackbody component with a temperature of <1 keV. A broad emission line around 6–7 keV has been reported. This has been suggested to be a reflection component due to iron lines reprocessed in the accretion disc (Nishiuchi et al. 1999; Degenaar et al. 2014; D’Aì et al. 2015). Soon after the discovery of the source, coherent pulsations, with a frequency of ∼2.1 Hz, were found (Finger et al. 1996). Pulsations show almost a perfect sinusoidal modulation, with a small harmonic content harmonics (see e.g. Giles et al. 1996; D’Aì et al. 2016). Generally, the pulsed fraction increases with energy, except for the energy range of 6–7 keV, due to the contribution of the non-pulsed iron line (D’Aì et al. 2015; Doroshenko et al. 2015). D’Aì et al. (2016) reported an energy-dependent phase lag of the hard X-rays (2.3–10 keV) with respect to the soft 0.3–2.3 keV energy band. The hard X-ray lag increases with the energy, and reaches 12 ms between 6 and 6.4 keV, and then drops to 7 ms followed by a plateau of ∼9 ms when the energy is larger than 8 keV (for details, see fig. 2 in D’Aì et al. 2016). The authors have explained the lags by using a Compton reverberation mechanism, i.e. they have suggested the existence of a Compton cloud with a size of ∼120 R_g, compatible with the magnetospheric radius, in which hard X-rays would scatter before escaping. Extensive observations of the source revealed, therefore, rich phenomenology, however, the relationship between the spectral and timing properties of GRO J1744−28 is still largely unexplored, especially regarding to their co-evolution along the outbursts. This information is helpful for constraining the radiation process in accreting pulsars and could shed light on properties of the emission region and their evolution with luminosity. In this paper, we attempt to close this gap and systematically study the spectral and timing properties of the source over a wide luminosity range during the outbursts.

2 OBSERVATIONS AND DATA ANALYSIS

To achieve this goal, we use the RXTE/PCA observations of GRO J1744−28 during its first two outbursts in 1995–1997 (see Fig. 1). Many X-ray bursts were identified (see e.g. Kouveliotou et al. 1996) during this period. However, here we focus on the analysis of persistent emission properties, so the bursts were filtered out in the following analysis. To avoid the influence of bursts on the persistent emissions (e.g. Stark et al. 1996), we ignored data between 100 s prior to a burst peak and 500 s after the burst peak. In the timing analysis, a data mode with a high time resolution (compared to its spin 2.1 Hz) was required. Therefore, only observations, having Event (‘E_125_μs_64’) or Generic Binned (‘B_16ms_64M’) data mode, were used. Totally, 100 observational IDs were selected, with an averaged exposure time of ∼3000 s. During the analysis, we used heasoftv.6.19 to extract the light curves and spectra and to estimate the corresponding background. The spectral analysis was performed by using xspecv.12.9.0. For the spectral analysis, the energy band of 3–30 keV was used. A systematic error of 1 per cent was added. All uncertainties quoted are at a 90 per cent confidence level, unless indicated otherwise.

Figure 1.

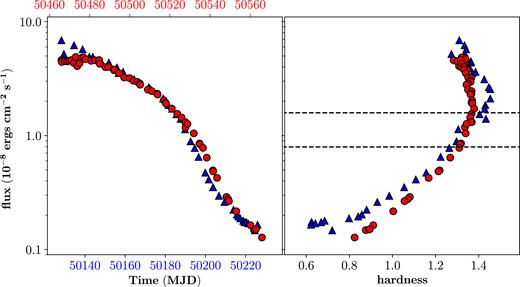

Long-term light curve (left) and hardness-intensity diagram (right) of GRO J1744−28. We show the data of the first and second outbursts in blue and red, respectively. In the left-hand panel, their time-scales are the same but with an offset of 337.75 d. The energy range of the flux is 3–30 keV. The hardness is defined as the count rate ratio of 10–20 and 4–10 keV. The dashed lines represent the flux equals to 0.8 and 1.6 × 10⁻⁸|$\rm ergs\ cm^{-2}\ s^{-1}$|⁠, respectively, corresponding to the transitional flux in the timing analysis.

Open in new tabDownload slide

3 RESULTS

The long-term evolution of outbursts in GRO J1744−28 is shown in Fig. 1, where the flux is estimated by fitting the spectrum of each observational ID in the energy range of 3–30 keV (see below). We overplotted the light curves of the two outbursts for the sake of comparison, and found that they were similar. There is another short outburst around MJD 50280 having a much weaker peak flux. However, considering the distinct behaviour, we cannot exclude that this weak outburst might originate from other sources located in the field of view of PCA, close to the GRO J1744−28. So we exclude these data in the following. First, we investigated the hardness-intensity diagram as a robust probe of the spectral evolution along the outbursts, where the hardness is defined as the (background subtracted) count rate ratio from 10–20  to 4–10 keV. We note that since our sample spans different gain epochs of PCA, a slightly different energy-to-channel conversion¹ has to be considered. In practice, we used the units of Crab, i.e. normalized the light curves by using the nearest Crab observation in the same energy band and gain epoch. This method is widely used to extract light curves and to produce colour–colour diagram (e.g. Zhang, Méndez & Altamirano 2011; Bak Nielsen, Patruno & D’Angelo 2017). In addition, we note that some X-ray sources close to GRO J1744−28 located in the field of view of PCA may contribute to the background. So we also assumed the background as the real observation when the source was in a very faint state (although it would be overestimated), and found that this only had a slight influence on the following results. In the hardness-intensity diagram, the hardness gradually increases with the increasing of the flux when the flux is lower than ∼|$\rm 10^{-8}\ ergs\ cm^{-2}\ s^{-1}$|⁠. At a higher flux, the hardness remains almost constant. This suggests that the spectral shape changes during outbursts, showing a spectral transition around flux ∼|$\rm 10^{-8}\ ergs\ cm^{-2}\ s^{-1}$|⁠.

3.1 Spectral analysis

The broad-band X-ray spectrum of GRO J1744−24 has been studied by Nishiuchi et al. (1999), Degenaar et al. (2014), D’Aì et al. (2015), Doroshenko et al. (2015), and Younes et al. (2015). Doroshenko et al. (2015) described the BeppoSAX data of 1997 in the energy range of 1–100 keV by using typical accreting pulsar models, i.e. a Gaussian line plus a power law with a high energy exponential rolloff (gauss  |$+$| cutoffpl). Degenaar et al. (2014) used a phenomenological model (a Gaussian line |$+$| a blackbody |$+$| a power law, i.e. ‘gauss |$+$| bbodyrad  |$+$| powerlaw’) to describe the Chandra observation in 2014. D’Aì et al. (2015) fitted the 1–70 keV spectrum at the peak of the outburst in 2014 using XMM–Newton and INTEGRAL observations, and they found that the spectrum can be described with ‘a Gaussian line |$+$| a multitemperature blackbody + thermally Comptonized continuum (i.e. gauss+diskbb + nthcomp)’ model. In addition, a CRSF was reported around ∼4–5 keV (D’Aì et al. 2015; Doroshenko et al. 2015). The energy resolution of PCA does not allow, however, to constrain the CRSF parameters or even detect it. To verify that the influence of the CRSF is negligible, we produced a simulated spectrum by using PCA’s response files and the spectral parameters reported in D’Aì et al. (2015) (around the outburst peak in 2014), in which the CRSF was included. Then, we fitted the simulated spectrum by using the same model but excluding the CRSF. We could not find a clear residual around the line, and the remaining best-fitting parameters were consistent with the input model. Therefore, in the following analysis, we ignored the contribution from the CRSF. To take into account the interstellar photoelectric absorption, we used the ‘wabs’ model, in which the hydrogen column density has been fixed to 6.3 × 10²² atoms cm⁻² (D’Aì et al. 2015).

We tried to fit all PCA data with the same model. First, we have tested several phenomenological models typically used to describe spectria of X-ray pulsars, i.e. gauss |$+$| bbodyrad |$+$| powerlaw, gauss|$+$|nthcomp/cutoffpl, and gauss |$+$| highecut*powerlaw. All models are acceptable when the flux is below a few |$\rm 10^{-9}\ ergs\ {cm}^{-2}\ s^{-1}$| (3–30 keV), which may imply that the spectra are dominated by a power law-like/thermal Comptonization component. On the other hand, only the phenomenological model ‘wabs*(bbodyrad |$+$| powerlaw  |$+$| gauss)’ results in a acceptable χ² around the outburst peak. We show the results in Table 1 and Fig. 2. In the faint state (⁠|$\rm \lesssim\!10^{-8}\ ergs\ s^{-1}\ {cm}^{-2}$|⁠), the photon index (Γ) and the blackbody temperature (kT_bb) seem to respectively decrease and increase with the increasing of the flux, although points are rather scattered. The flux of the blackbody component increases faster than the power-law component. The latter dominates the spectra when the source is very faint, and the former becomes gradually important with the increasing of the flux. In the bright state, the Γ and kT_bb are relatively constant, and the fluxes of the two components are comparable. However, as discussed later, we note that the best-fitting parameters of the blackbody component are not consistent with either the accretion disc or the hotspot on the surface of the neutron star, so the interpretation of this component is unclear. In fact the best-fitting parameters of the blackbody components are different from those reported in literature. This is most likely due to systematic uncertainties arising from the limited response at low energies of the RXTE/PCA in comparison with the other instruments used in studies found in literature. We have also used a physical model, i.e. ‘wabs*(gauss  |$+$| comptb)’, to fit the spectra again, and obtained acceptable results. The ‘comptb’ model is a hybrid model including thermal and bulk Comptonization (Farinelli et al. 2008), which has been widely used in X-ray millisecond pulsars (e.g. Farinelli et al. 2009; Trümper et al. 2010). It can describe the Comptonization spectrum of soft photons off electrons which are either purely thermal or additionally subjected to an inward bulk motion. The model includes seven free parameters: the temperature of the seed photons (kT_s), the index of the seed photon spectrum (γ), the energy index of the Comptonization (α), the efficiency of bulk over thermal Comptonization (the bulk parameter, δ), the temperature of the electrons (kT_e), the illuminating (logA, a factor indicating the importance of the Comptonization compared to the seed photons), and the normalization factor. For the fits, only some of the parameters could be well constrained, while others had to be frozen. In this paper, we assume that the seed photons obey a blackbody distribution, and thus that γ equals to 3. We found that the PCA data was very insensitive to logA and kT_s, and generally only a upper limit of kT_s and a lower limit of logA could be obtained, because PCA does not have the enough sensitivity below 3 keV, which is needed to constrain the soft photons not subjected to the Compton scattering. Therefore we have frozen them at logA = 1 and kT_s = 0.3 keV. We confirmed that the logA and kT_s only had a very little influence on the other parameters. We show the spectral fitting results in Fig. 2. The kT_e parameter is ∼5–6 keV when the source is faint (although the scattering is relatively large), and slightly smaller around the outburst peak. The parameter α, instead, decreases from 1 to 0.5 with the increasing flux when the flux is ≲10⁻⁸ ergs cm⁻² s⁻¹, and remains almost unchanged afterwards. The δ parameter is ∼1 when the source is bright, while only an upper limit can be obtained when the source is faint. It seems that the bulk Comptonization might be only important in the bright state, which is consistent with our conclusion, i.e. the spectra can be well described as a power law-like component when the flux is low. We show examples of spectra in bright/transitional/faint states in Fig. 3. They are indeed visibly different.

Figure 2.

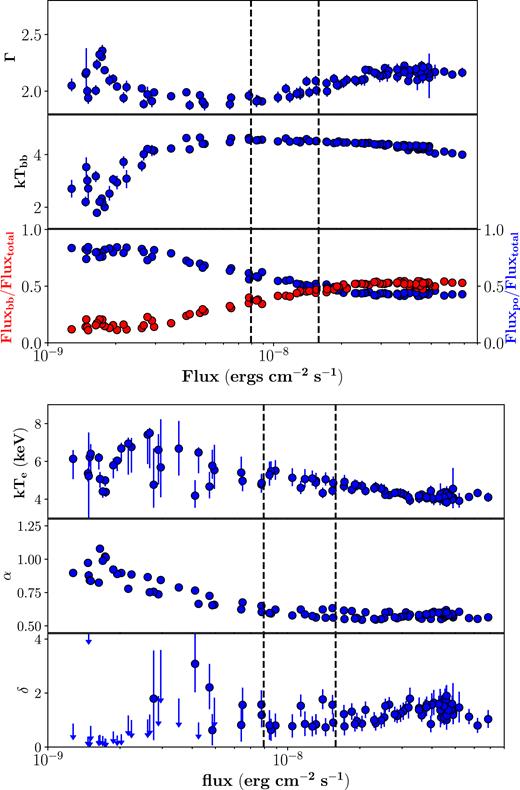

The parameters of spectral fittings by using the wabs*(gauss|$+$|powerlaw|$+$|bbodyrad) (top panel) and wabs*(gauss  |$+$| comptb) model (bottom panel). The dashed lines represent the flux equals to 0.8 and 1.6 × 10⁻⁸|$\rm ergs\ cm^{-2}\ s^{-1}$|⁠, respectively, corresponding to the transitional flux in the timing analysis.

Open in new tabDownload slide

Figure 3.

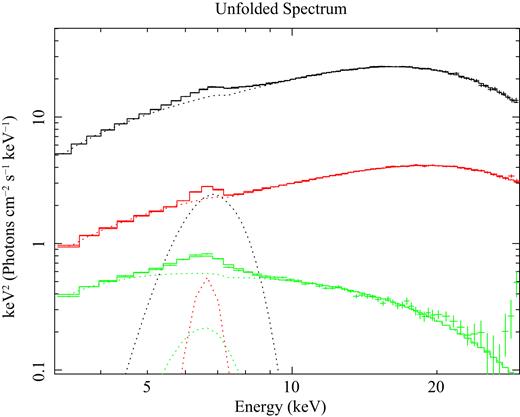

Examples of unfolded spectra in the bright state (black), around the transitional flux (red), and in the faint state (green), respectively.

Open in new tabDownload slide

In general, we also found a broad emission line at ∼6.6 keV, whose width and normalization smoothly increase with the flux. However, we caution that this effect might be due to changes of the continuum, since the PCA’s energy resolution does not allow us to well constrain the line feature and its flux in the spectrum.

3.2 Timing analysis

In this section, we mainly concentrate on the evolution of the timing properties in different energy bands during outbursts. As mentioned in Section I, GRO J1744−28 is a pulsar that has a spin of ∼2.1 Hz. In each observational ID, we estimated its accurate spin frequency by locating the peak of the Rayleigh power (nR² = |$\frac{1}{n}{\left|\sum _{i=0}^{n-1}\mathrm{ exp}\lbrace 2\pi \nu t_i\rbrace \right|}^2$|⁠), by using the ‘Event’ or ‘Binned’ data in the energy band of 3–30 keV. The barycenter correction was carried out by the Ftools command faxbary. The ephemeris adopted from Finger et al. (1996) were used to correct the orbital motion of this source. Then we extracted light curves in different energy bands, i.e. 3–4, 4–5 , 5–6, 6–7, 7–8, 8–10, 10–13 , 13–16, and 16–20 keV, and folded them based on the period detected above. We fitted the pulse profile as a combination of two sinusoids and a constant, i.e. |$\mathrm{ const} + A_1 \mathrm{ sin}(2\pi \frac{t}{T} + \phi _1) + A_2 \mathrm{ sin}(4 \pi \frac{t}{T} + \phi _2)$|⁠, where the const represents the non-pulsed component, and the two sinusoids are the fundamental and second harmonic components of pulsations, and T is the detected period. Such a function can describe the pulse profile quite well, resulting in an averaged χ² of 58.93 (dof 59). We show an example in Fig. 4. We note that in most of cases, the second harmonic is too weak to be constrained except for a few observations around the outburst peak. Therefore, unless stated otherwise, we only studied the fundamental component, i.e. A₁. We defined the fractional pulsed amplitude (or pulsed fraction) as the ratio of A₁ to const. As shown in Figs 5 and 6, the fractional pulsed amplitude of A₁ is correlated with both energy and the outburst flux . In general, A₁ is larger in a brighter state and at hard energies. The A₁ parameter at 16–20 keV, during the outburst peak, reaches ∼20 per cent. In addition, it seems that the positive correlation between the flux and A₁ is more significant in the faint state.

Figure 4.

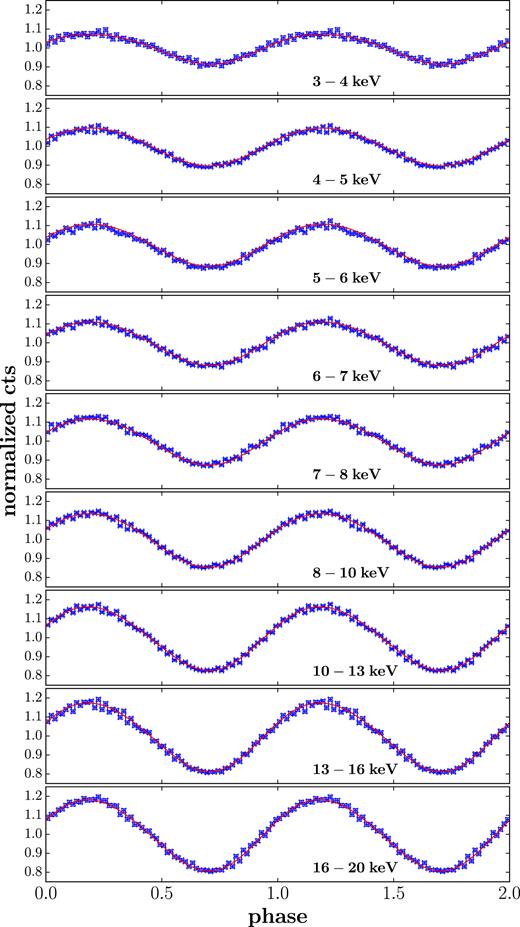

An example of folded light curves of different energy bands in observational ID 10401-01-04-00, which are fitted by a function of |$\mathrm{ const} + A_1 \mathrm{ sin}(2\pi \frac{t}{T} + \phi _1) + A_2 \mathrm{ sin}(4\pi \frac{t}{T} + \phi _2)$|⁠.

Open in new tabDownload slide

Figure 5.

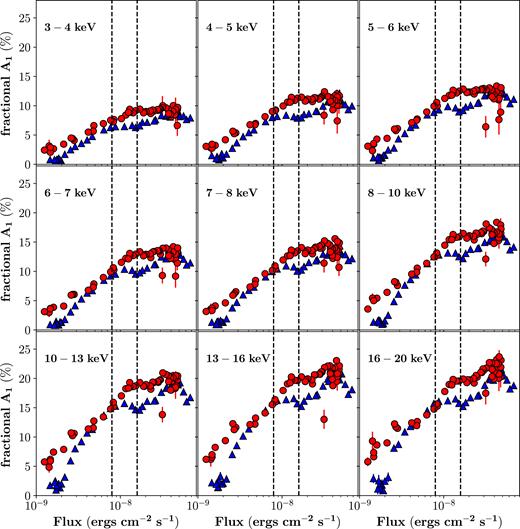

The relation between the flux and the fractional pulsed amplitude of A₁ in different energy bands. The dashed lines represent the flux equals to 0.8 and 1.6 × 10⁻⁸|$\rm ergs\ cm^{-2}\ s^{-1}$|⁠, respectively, corresponding to the transitional flux in the spectral and timing analysis.

Open in new tabDownload slide

Figure 6.

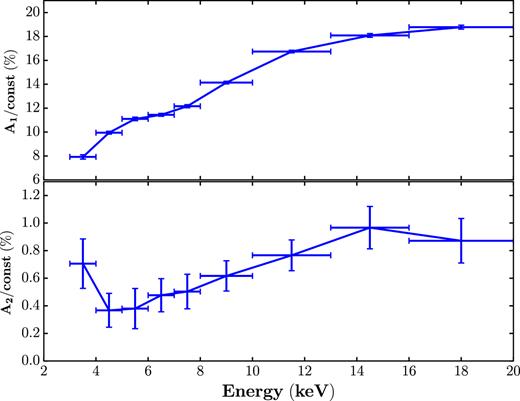

An example of the relation between the pulsed amplitude (fundamental and harmonic) and energy around outburst peaks.

Open in new tabDownload slide

Figure 7.

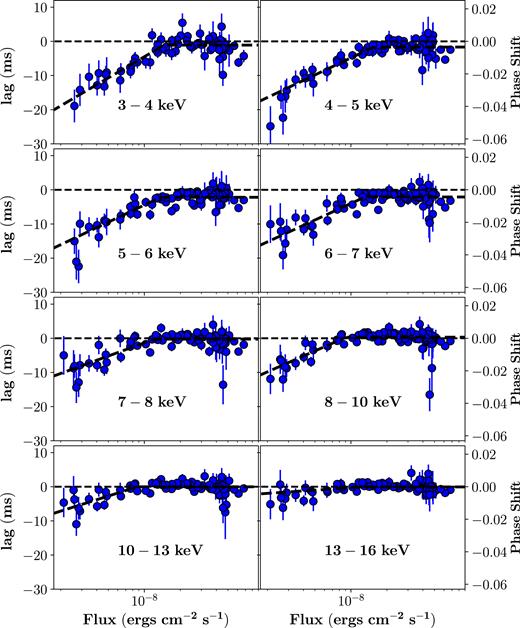

Hard X-ray lags (and the corresponding phase shifts) in different energy bands (with respect to 16–20 keV) versus the flux at 3–30 keV.

Open in new tabDownload slide

Figure 8.

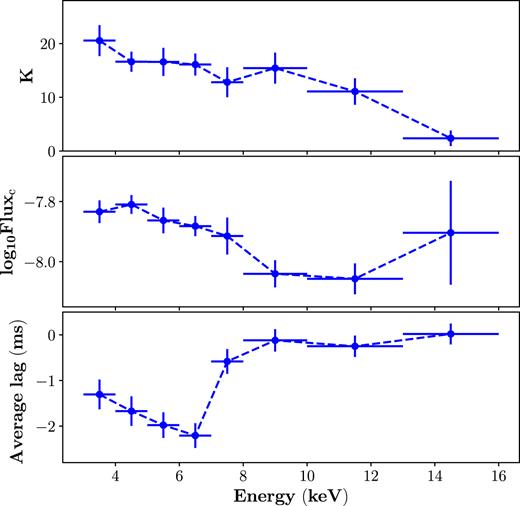

The upper and middle panels represent slopes (K) and transitional fluxes of the fittings shown in Fig. 7, respectively. The lower panel shows the averaged lags when the flux is larger than the transitional fluxes.

Open in new tabDownload slide

4 DISCUSSION AND CONCLUSIONS

We systematically analysed RXTE/PCA data to investigate the spectral and timing evolutions along two outbursts of GRO J1744−28. Their light curves are quite similar, showing a duration of a 100 d and a peak flux of |$\rm \sim 5\times {10}^{-8}\, ergs\ {cm}^{-2}\ {s}^{-1}$| (3–30 keV). From the intensity-hardness diagram, we have found a clear spectral transition around |$\rm \sim 10^{-8}\, ergs\ {cm}^{-2}\ s^{-1}$|⁠. Therefore, in this paper, we define the bright (faint) state as the flux larger (smaller) than this threshold. In the faint state, the hardness is positively correlated to the flux, while remains rather constant in the bright state. The transitional luminosity is ∼7.6 or 1.9 |$\rm \times 10^{37} ergs\ s^{-1}$| assuming a distance of 8 or 4 kpc (corresponding to the study of the absorption and the accretion torque (Kouveliotou et al. 1996; Sanna et al. 2017), respectively) and an isotropic radiation. Similar transitions have been reported in Be/X-ray pulsars by Reig & Nespoli (2013). In these systems, however, the hardness is anticorrelated with the flux in the bright state instead of being independent.

In the timing analysis, we find that the pulsed fraction is positively correlated to both the energy band (at 3–30 keV) and luminosity. This result is well in agreement with the reports by D’Aì et al. (2015), Doroshenko et al. (2015), Younes et al. (2015), D’Aì et al. (2016), and Cui (1997). In addition, thanks to the stable pulse profiles in different energy bands, we studied the energy-dependent lags with respect to the 16–20 keV band. We find that the lag (the soft X-rays precede the hard X-rays) is more significant when the flux is ≲|$\rm {10}^{-8}\ ergs\ s^{-1}\ {cm}^{-2}$|⁠. The hard X-ray lags depend on the energy band, which is consistent with the results reported by D’Aì et al. (2016). The drop in the lag spectrum around 6.4 keV is not significant (see the upper panel in Fig. 8) based on PCA observations, which is likely due to its poor energy resolution. The lag between 3–4 and 16–20 keV is up to ∼20 ms in the faint state. However, the lag is much smaller (≲2 ms) in the bright state.

It has been suggested that the hard X-ray lag is due to the Compton reverberation-like process (Lightman, Giacconi & Tananbaum 1978; Payne 1980; Guilbert, Fabian & Ross 1982; D’Aì et al. 2016). In a nutshell, in a hot, thermal plasma hard X-rays can be produced by repeated Compton scattering, because the energy of the incident photons can be amplified by a factor of ∼1 + |$\frac{4kT}{m_{\rm e}c^2}$| for non-relativistic electrons per scattering, where the kT is the temperature of the hot plasma. In this case, the harder photons need more scattering times, and then lead to more delays. In theory, the hard X-ray lags depend on both the optical depth (τ) and the Compton region’s size (l). Therefore, the suppressed hard X-ray lags in the bright state might be due to the increasing τ or the decreasing l. By assuming a Comptb model, we found an increasing of τ by a factor of 2, which may qualitatively explain the reduced hard X-ray lags. However, we note that the energy budget is a big issue for the Compton scattering model. Because the soft photons have to gain energy from the Comptonization cloud though up-scatterings, high temperature plasma is required. While the temperature of electrons obtained from the spectral analysis is quite low (a few keV), which cannot boost the seed photons to a few tens of keV. On the other hand, we speculate that the hard X-ray lags might originate from a geometry effect. In this scenario, the soft and hard X-rays are actually independently emitted in different angular distribution. The maximum hard X-ray lag (20 ms, between 3–4 and 16–20 keV) corresponds to a phase shift of ∼4 per cent, which means a projection distance of ∼2.5 km on the neutron star by assuming a 10 km neutron star radius. A simple configuration is that the photons escaping from the accretion column may irradiate and heat the surface of the neutron star (see e.g. Fig. 1 in Poutanen et al. 2013). The reflection region may be a few kilometers away from the polar cap, and result in this phase shift. The reflection region is predicted to be visibly not axis-symmetric, otherwise the phase shift will be cancelled out. However, our conjecture to be proven true, requires more detailed physical models, which are still missing.

What is interesting is that the flux at which the transition of the timing property is observed, i.e. the hard X-ray lags, exactly equals the critical flux of the spectral transition. This means that the timing and spectral transitions actually could arise from same physical processes. The morphology of the accreting structure on to the neutron star surface depends on luminosity. If the luminosity is larger than a critical value L_c, the infalling matter will be stopped by a radiation-dominated shock and then sinks on to the neutron star surface. On the contrary, if the luminosity is smaller than the L_c, the accreted matter can free fall almost down to the surface of the neutron star, and form an accretion mound (Basko & Sunyaev 1975; Basko & Siuniaev 1976). The transition flux between the two accreting regimes is |$L=2.72\times {10}^{37} \left({\frac{{{\sigma _T}}}{{\sqrt{{\sigma _\parallel }\sigma \bot } }}} \right)\left({\frac{{{r_0}}}{R}} \right)\left({\frac{M}{{M_{\odot }}}} \right) \sim {\rm {10}^{36} - {10}^{37}\, ergs\, s^{-1}}$| (Basko & Siuniaev 1976; Becker 1998; Becker et al. 2012; Mushtukov et al. 2015a). Assuming a distance of 4 kpc, this value is marginally consistent with the transitional luminosity of the spectral and timing properties that we found. It is, however, too small if the source’s distance is 8 kpc. Another possibility could be that this transitional luminosity might derive from two different states of the accretion disc (Mushtukov et al. 2015b). The accretion disc is dominated by the gas and radiation pressure at the low- and high-accretion rates, respectively. Suleimanov, Lipunova & Shakura (2007) proposed that the geometry of the accretion disc at the magnetospheric radius may have an influence on the accretion structure on the neutron star. Therefore, the transition between the two disc states may lead to the spectral and timing transitions in GRO J1744−28. As shown in Mushtukov et al. (2015b, fig. 4), for a magnetic field of ∼10¹¹ G, the transitional flux for disc states is |$\rm \sim 10^{38}\, ergs\ s^{-1}$|⁠, which is consistent with our observations assuming a distance of 8 kpc. In addition, based on this model a maximum luminosity of a few |$\rm 10^{38}\, ergs\ s^{-1}$| is predicted for low magnetic fields, which is also consistent with the largest luminosity around the outburst peaks of GRO J1744−28. The transition of the accretion structure on the surface of the neutron can naturally explain the changes of the spectral and timing properties, although detailed theoretical models are still missing.
