Is there really a debris disc around ζ² Reticuli? Free

ABSTRACT

1 INTRODUCTION

|$\zeta ^2\, \mathrm{Reticuli}\,$| (HR 1010, HIP 15371, HD 20807) is a 3 Gyr-old G1V solar-type star (Eiroa et al. 2013; Sierchio et al. 2014) located at 12 pc (van Leeuwen 2007; Gaia Collaboration et al. 2016, 2018). The presence of a debris disc surrounding |$\zeta ^2\, \mathrm{Reticuli}\,$| was first suggested by observations carried out with Spitzer/MIPS (Rieke et al. 2004), which detected a 5 per cent infrared excess of this star compared to the predicted photospheric flux at 24 microns, as well as a more significant, 77 per cent infrared excess at 70 microns (Trilling et al. 2008). |$\zeta ^2\, \mathrm{Reticuli}\,$| was later observed with Herschel/PACS (Poglitsch et al. 2010) and SPIRE (Griffin et al. 2010) in the frame of the Herschel Open Time Key Programme DUst around NEarby Stars (DUNES). While Herschel/SPIRE’s resolution is insufficient to discern much structural detail, that of Herschel/PACS at 70 and 100 microns, ∼6–7 arcsec, allowed the resolution of a double-lobed structure at these wavelengths. The lobes are seen asymetrically distributed on each side of the star, with the lobe closest to the star (south-east) being brighter than its north-west counterpart (Eiroa et al. 2010; Faramaz et al. 2014).

This feature was interpreted as a debris disc extending from |${\sim } 70\,$| au (6 arcsec) to |${\sim } 120\,$| au (10 arcsec), seen close to edge-on and significantly eccentric (e ≥ 0.3). This interpretation was supported by several arguments.

• The inclination of the star’s rotation axis with respect to the line of sight, which was found to be |$65^{\circ \, +24.5}_{-31.5}$| (Appendix B, Faramaz et al. 2014). Indeed, since observations suggest that debris disc orientations differ little from that of their host star (Watson et al. 2011; Greaves et al. 2014), a debris disc surrounding |$\zeta ^2\, \mathrm{Reticuli}\,$| would be expected to be seen close to edge-on.

• The position asymmetry of the lobes. Indeed, stars surrounded by an eccentric debris disc are offset from the disc centre of symmetry, as exemplified by the debris discs of Fomalhaut (Kalas, Graham & Clampin 2005; Marsh et al. 2005), HD 202628 (Krist et al. 2012; Faramaz et al., in preparation), and HR4796 (Schneider et al. 2009; Thalmann et al. 2011).

• The brightness asymmetry. At (far) infrared wavelengths, eccentric debris discs are expected to show a ‘pericentre-glow’ at the inferred position of periastron (Wyatt et al. 1999), as material closer to the star is expected to be hotter and brighter, again exemplified by observations of the debris disc of Fomalhaut (Stapelfeldt et al. 2004; Acke et al. 2012), HD 202628 (Faramaz et al., in preparation), and HR 4796 (Telesco et al. 2000; Moerchen et al. 2011).

At longer (sub)mm wavelengths, the brightness asymmetry of such eccentric debris discs is expected to reverse, with the apocenter being this time brighter than the pericenter. This phenomenon, called ‘apocentre-glow’ (Pan, Nesvold & Kuchner 2016) is due to the fact that eccentric debris discs naturally exhibit an overdensity at apoastron, because lower orbital velocities at this location make material spend a larger part of their orbital period there. At (sub)mm wavelengths, apocenter brightness due to this overdensity is expected to become predominant over that of the pericenter, which was indeed observed in the debris disc of Fomalhaut with ALMA observations at 1.3 mm (MacGregor et al. 2017). As the ALMA/Atacama Compact Array (ACA) performs (sub)mm observations with resolutions similar to that of Herschel/PACS, we proposed to resolve the double-lobed feature around |$\zeta ^2\, \mathrm{Reticuli}\,$| with the ALMA/ACA in both Band 6 and Band 7, that is, at 1.3mm and 870 microns, respectively. Our goal was to reveal this apocenter-glow and study the evolution of the lobes’ brightness asymmetry from one wavelength to another, as it provides crucial information on the debris disc dust grains population (Pan et al. 2016). However, because of Herschel’s large beam size, the possibility of background contamination of Herschel’s observations is by no mean negligible, which led Sibthorpe et al. (2018) to suggest that the lobes seen in Herschel/PACS observations are likely background objects. In addition, a final reduction of the Spitzer/MIPS data by Sierchio et al. (2014) found that there was no infrared excess at 24 microns. Therefore, our ALMA observations, which were carried out nearly 8 yr after the Herschel ones, were also potentially expected to assess critically the debris disc interpretation of the Herschel/PACS observations. Indeed, as |$\zeta ^2\, \mathrm{Reticuli}\,$| exhibits a high proper motion, the double lobe structure would retain its position relative to the star if it were a debris disc, while background objects would instead retain their absolute position.

2 OBSERVATIONS

We present here ALMA/ACA observations of |$\zeta ^2\, \mathrm{Reticuli}\,$| in Band 6 (230 GHz, 1.3 mm), which were carried out from 2017 November 4 to 2017 November 18, and in Band 7 (345 GHz, 870 microns), which were carried out from 2017 October 27 to 2017 November 22, both under the project 2017.1.00786.S (PI: V. Faramaz).

Our Band 7 and Band 6 data comprised eight and nine separate observations, respectively, for which we summarize the characteristics in Table 1 and 2. These were both taken using baselines ranging from 8.9 to 48.9 m. In Band 7, these correspond to angular scales of 20.14 arcsec and 3.67 arcsec, respectively. Given the distance of the star (12 pc), this means that the spatial scales that were probed ranged from 44 to 242 au. In Band 6, these baselines correspond to angular scales of 30.21 arcsec and 5.5 arcsec, respectively, which in turn translates into probed spatial scales ranging from 66 to 363 au.

The spectral setup in Band 7 consisted of three 2 GHz-wide spectral windows, centred on 334, 336, and 348 GHz, each one divided into 128 channels of width 15.625 MHz |$({\sim}14\, \mathrm{ km\, s^{-1}})$|⁠. Although we did not expect primordial gas to be present in a system as old as |$\zeta ^2\, \mathrm{Reticuli}\,$|⁠, we nevertheless used the fourth spectral window to probe CO gas, via the J = 3-2 emission line, as CO can be released from collisions among planetesimals. Therefore, this 1 GHz-wide spectral window was centred on 346 GHz, and set with a larger number (2048) of finer channels, leading to a spectral resolution of 0.5 MHz |$({\sim}0.5\, \mathrm{km\, s^{-1}})$|⁠. Following the same strategy, the spectral setup in Band 6 consisted of four spectral windows, each 2 GHz-wide, with three of them centred on 232.5, 245.5, and 247.5 GHz, and divided into 128 channels of width 15.625 MHz |$({\sim}20\, \mathrm{km\, s^{-1}})$|⁠, while the fourth spectral window was set to search for CO gas via the J = 2-1 emission line and was centred on 230.5 GHz, with a larger number (2048) of finer channels, leading to a spectral resolution of 1 MHz |$({\sim}1.3\, \mathrm{km\, s^{-1}})$|⁠.

Since in Band 7, the primary beam has a diameter of 41 arcsec and the presumed apocenter of the debris disc surrounding |$\zeta ^2\, \mathrm{Reticuli}\,$| on Herschel images is located approximately 15 arcsec from the star, we expected it to fall outside the central third of the primary beam, where sensitivity decreases. Therefore, we requested mosaic observations, and chose to set a pointing offset by 11.2 arcsec from the star along the major axis in the direction of the presumed apocenter of the disc, and set another pointing towards the presumed pericenter, while adjusting the distance between both pointings to be half of the primary beam Half Power Beamwidth. The total on-source time was 6 h in Band 7. In the case of our Band 6 observations, the primary beam has a diameter of 62 arcsec and the presumed apocenter of the debris disc surrounding |$\zeta ^2\, \mathrm{Reticuli}\,$| was expected to fall within the central third of the primary beam. Therefore there was no need for mosaic observations and we requested single-pointing observations. The total on-source time was 6.8 h in Band 6.

The data were calibrated using the pipeline provided by ALMA. We used the TCLEAN algorithm and task in CASA version 5.1.1 (McMullin et al. 2007) to perform the image reconstruction of the continuum emission, that is, to obtain the inverse Fourier transform of the observed visibilities. In both cases, we combined the four spectral windows in order to recover the maximum signal-to-noise ratio, and used a Briggs weighting scheme with robustness parameter set to 0.5. We further corrected the images for the primary beam, and show the results in Fig. 1, where the position of |$\zeta ^2\, \mathrm{Reticuli}\,$| is marked with a black star. For our Band 7 image, we used a cell size of 0.2 arcsec, and an image size of 286 × 286 pixels in order to cover the primary beam. The resulting synthesized beam has dimensions 4.77 arcsec × 3.2 arcsec, with position angle 88°. The RMS was measured in a large region far from the sources present in the field of view, and was found to be |$\sigma =150\, \mu \mathrm{Jy\,beam}^{-1}$|⁠. For our Band 6 image, we used a cell size of 0.3 arcsec, and an image size of 210 × 210 pixels. The resulting synthesized beam has dimensions 6.62 arcsec × 4.60 arcsec, with position angle 88°, while the RMS was found to be |$\sigma =66\, \mu \mathrm{Jy\,beam}^{-1}$|⁠.

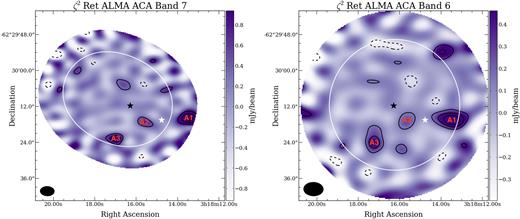

Figure 1.

Left-hand panel: ALMA/ACA 870 microns continuum observations of |$\zeta ^2\, \mathrm{Reticuli}\,$|⁠. Contours show the ±2, 4, 6,... σ significance levels, with |$\sigma =150\, \mu \mathrm{Jy\,beam^{ -1}}$|⁠. The synthesized beam, shown on the lower left side of the image, has dimensions 4.77 arcsec × 3.2 arcsec, with position angle 88°. Right-hand panel: ALMA/ACA 1.3 continuum observations of |$\zeta ^2\, \mathrm{Reticuli}\,$|⁠. Contours show the ±2, 4, 6,... σ significance levels, with |$\sigma =66\, \mu \mathrm{Jy\,beam^{ -1}}$|⁠. The synthesized beam, shown on the lower left side of the image, has dimensions 6.62 arcsec × 4.60 arcsec, with position angle 88°. In both images, the position of the star is marked with a black star, while its position at the time of Herschel/PACS observations is marked with a white star. The white line indicates the 50 per cent response of the primary beam, and the colourbars show the fluxes in mJy per beam.

Open in new tabDownload slide

3 RESULTS

We recover a double-lobe structure similar to that seen in Herschel/PACS data both in Band 6 and Band 7, and with the presumed apocenter West lobe being brighter than the East lobe. Nevertheless, it appears that |$\zeta ^2\, \mathrm{Reticuli}\,$| is not surrounded by this double-lobe structure.

|$\zeta ^2\, \mathrm{Reticuli}\,$| possesses a high proper motion of |$1331.15 \pm 0.36\, \mathrm{mas\, yr}^{-1}$| in Right Ascension and |$648.52 \pm 0.43\, \mathrm{mas\, yr}^{-1}$| in Declination (Gaia Collaboration et al. 2016, 2018). Therefore, it is expected to have displaced by 11.5 arcsec in the north-east direction (position angle of 64°) since it was observed with Herschel in 2010 February, that is, 7.75 yr before our ALMA observations. We show the position of |$\zeta ^2\, \mathrm{Reticuli}\,$| at the time of Herschel observations with a white star in Fig. 1. We find that this position falls in the middle of the double-lobe structure visible both in Band 7 and Band 6, and closer to the East lobe (A2) than to the West one (A1), which strikingly resembles the configuration seen in Herschel observations. We further show a comparison of this double-lobe structure position seen in our ALMA observations with that seen in Herschel observations in Fig. 2.

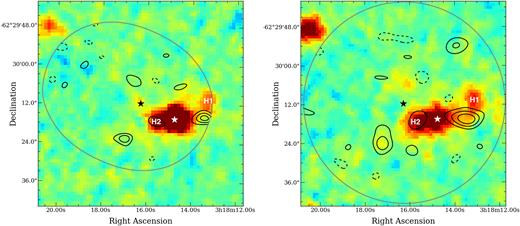

Figure 2.

Comparison of the double lobe structure position between Herschel/PACS and ALMA/ACA observations. Left-hand panel: ALMA/ACA 870 microns ±2, 4, 6,... σ significance levels contours (with |$\sigma =150\, \mu \mathrm{Jy\, beam^{-1}}$|⁠), overlayed on Herschel/PACS colourmap at 70 microns. Right-hand panel: ALMA/ACA 1.3 mm ±2, 4, 6,... σ significance levels contours (with |$\sigma =66\, \mu \mathrm{Jy\, beam^{-1}}$|⁠), overlayed on Herschel/PACS colourmap at 100 microns. In both images, the position of the star in ALMA observations is marked with a black star, while its position at the time of Herschel/PACS observations is marked with a white star. The grey line shows the limits of the ALMA images.

Open in new tabDownload slide

The A1 lobe is found to have a peak brightness of |${\sim } 1\, \mathrm{mJy\, beam}^{-1}$| at 870 microns, with an integrated flux of |${\sim } 1\, \mathrm{mJy}$|⁠, and is unresolved. However, these measurements should be taken with great caution, as A1 is far from the phasecentre of the ALMA image at this wavelength, where uncertainties are very large and fitting difficult. This is not the case at 1.3 mm, where A1 is found to have a peak brightness of |${\sim } 565\pm 47\, \mu \mathrm{Jy\, beam^{-1}}$|⁠, with an integrated flux of |$794 \pm 106\, \mu \mathrm{Jy}$|⁠, and is found to be marginally resolved. We modelled it with a Gaussian ellipse, which once deconvolved from the beam, is found to have major axis 5.83 arcsec ± 1.53 arcsec, minor axis 1.54 arcsec ± 0.79 arcsec, and position angle 87 ± 12°.

A1 has a position that is ∼5 arcsec in the south-east direction compared to the West lobe seen in Herschel/PACS images (labelled H1 in Fig. 2). Consequently, if A1 and H1 emission comes from the same source, it possesses a proper motion and therefore, is not an extragalactic source. However, it does not share proper motion with |$\zeta ^2\, \mathrm{Reticuli}\,$| and is then unrelated to it. On the other hand, sources seen at Herschel wavelengths do not necessarily possess counterpart emission at ALMA wavelengths, and vice-versa. For instance, the source labelled A3 in Fig. 1 and seen at ALMA wavelengths, does not show far-IR counterpart emission in Herschel observations, as can be seen in Fig. 2. Therefore, it is not impossible either that A1 and H1 emissions are unrelated, with the H1 having no emission at ALMA wavelengths, and A1 having no emission at Herschel wavelengths.

The A2 lobe seen in our ALMA observations is marginally resolved in Band 7, and fitted by a Gaussian ellipse which once deconvolved from the beam, has a major axis 5.11 arcsec ± 1.33 arcsec, minor axis 1.19 arcsec ± 0.92 arcsec, and a position angle 63 ± 15°. The larger beam size in Band 6 does not allow to resolve this source. We measure a peak brightness of |$735\pm 75\, \mu \mathrm{Jy\, beam^{-1}}$| at 870 microns, with an integrated flux of |$1.20\pm 0.19 \, \mathrm{mJy}$|⁠, and a peak brightness of |$336\pm 21 \, \mu \mathrm{Jy\, beam^{-1}}$| at 1.3 mm, with an integrated flux of |$511\pm 50\, \mu \mathrm{Jy}$|⁠. It shares common location with the East lobe H2 seen in Herschel observations, and therefore, if both emissions come from the same object, then it is an extragalactic source. However, it is not excluded either that these two emissions are unrelated.

Overall, the possibility for far-IR sources to be too faint for ALMA to detect, and ALMA sources to be too faint for Herschel to detect does not allow us to tell for certainty whether the A1 and H1, and A2 and H2 emissions are related or not. It also means that the double-lobe structure seen with Herschel/PACS really could be a debris disc, which is too faint at ALMA wavelengths to be detected. We test this hypothesis extrapolating the flux of such a disc from Herschel/SPIRE photometric measurements at 250 microns, adopting a spectral index of 2.6. This choice was made based on statistics of the spectral indices derived from debris discs SED modelling for which SCUBA-2 photometry at 850 microns was available, and which show that the majority of debris discs have a spectral index of 2.6 or smaller (Holland et al. 2017). Assuming that the disc surface brightness is uniform, and that such a disc is an extended structure which requires four ALMA-ACA beams in Band 6 and six beams in Band 7 to be covered, it should have been detected in our observations at SNR of at least 2.5 in Band 7 and at least 3 in Band 6. In addition, the surface brightness of such a hypothesized eccentric (e ≳ 0.3) disc is not expected to be uniform: the pericenter and apocenter of the disc are expected to be the brightest portions of the disc, with the apocenter being in addition up to 30 per cent brighter than the pericenter due to the apocenter-glow phenomenon at these wavelengths (see equation 8 of Pan et al. 2016). Hence the SNR quoted above are very conservative lower limits, and we should have detected such a disc in our observations if it truly existed. Therefore, we exclude this scenario.

Finally, no CO line emission was detected in Band 6, nor in Band 7.

4 CONCLUSIONS

The position of the A2 lobe seen with ALMA coincides with the H2 lobe seen with Herschel. If these two emissions are related, then it is stationary and most likely a background source, but they might as well not be related. It is also difficult to say whether the A1 lobe seen with ALMA and the H1 lobe seen with Herschel are related emissions. If they are, then it is a nearby source that has displaced south-east since Herschel observations, and thus is not co-moving with |$\zeta ^2\, \mathrm{Reticuli}\,$|⁠. If they are not related, then the source H1 has become too faint at ALMA wavelengths while A1 appeared south-east to the Herschel location of H1.

Nevertheless, we can exclude the possibility that the double-lobe feature seen with Herschel really is a debris disc, as even a very faint counterpart (sub-)mm emission should have been detected at the sensitivities achieved in our ALMA observations. Therefore, our ALMA/ACA observations show without ambiguity that the double lobe structure seen in Herschel observations was not the signature of an eccentric debris disc.

Revisiting the Herschel/PACS photometry and SED reported in Eiroa et al. (2010) in the light of our findings, then |$\zeta ^2\, \mathrm{Reticuli}\,$|possesses no detectable infrared excess above its expected photospheric flux. These results are in accordance with those of Sibthorpe et al. (2018), who found no significant infrared excess to |$\zeta ^2\, \mathrm{Reticuli}\,$| at Herschel/PACS wavelengths, and thus concluded that the features seen near this star are the result of background confusion.

As the photometric measurement of Herschel/PACS at 70 microns is in accordance with that of Spitzer, we further conclude that Spitzer observations at 70 microns were contaminated as well.

In conjunction with our ALMA data, and since |$\zeta ^2\, \mathrm{Reticuli}\,$| has been observed with sensitivities of |$\sigma =66\, \mathrm{\mu Jy\,beam}^{-1}$| and |$\sigma =150\, \mathrm{\mu Jy\,beam}^{-1}$| in Band 6 and Band 7, respectively, we conclude that if there is any debris disc around |$\zeta ^2\, \mathrm{Reticuli}$|⁠, then its surface brightness falls below the 3σ detection limits, that is, it does not exceed |$5.7\, \mathrm{\mu Jy\, arcsec^{-2}}$| at 1.3 mm, and |$26\, \mathrm{\mu Jy\, arcsec^{-2}}$| at 870 microns. It would be one and two orders of magnitude dimmer than the well-studied discs around HD 202628 (Faramaz et al., in prep.) and Fomalhaut (MacGregor et al. 2017), respectively.

Although these observations report a non-detection around |$\zeta ^2\, \mathrm{Reticuli}$|⁠, this study overall demonstrates that using the ALMA/ACA can be a powerful technique to clarify the effects of background confusion for Herschel-detected debris discs. In particular, peculiar Herschel/PACS observations of infrared excesses peaking at 160 microns among the DUNES sample have been interpreted to be ‘cold debris discs’ (Eiroa et al. 2011; Krivov et al. 2013), whereas Gáspár & Rieke (2014) showed that this hypothesis was indistinguishable from background confusion. Therefore, we advocate the use of ALMA-ACA to disentagle these two hypothesis.
