KiDS-SQuaD: The KiDS Strongly lensed Quasar Detection project Free

ABSTRACT

1 INTRODUCTION

Strongly lensed quasars can provide unique insights into major open issues in cosmology and extragalactic astrophysics, but they are an intrinsically rare class of objects, as they require close alignment of quasars (typically at redshifts |$z$|_s ≈ 2 or beyond) with galaxies (⁠|$z$|_l ≈ 0.7) acting as deflectors or lenses. While the details depend on the population properties of quasars and galaxies, roughly one in 10⁴ quasars is expected to be strongly lensed. In particular, Oguri & Marshall (2010) estimated a density of ∼0.4 lensed quasars per square degree. These estimates are further affected by the surveys: the image quality, the observed bands, the depth, and by performance of the techniques used to find these systems.

With the KiDS Strongly lensed QUAsar Detection project, or KiDS-SQuaD, we set out to find as many previously undiscovered gravitational lenses as possible in the Kilo Degree Survey (KiDS), taking advantage of the high-quality imaging provided by thesurvey.

To reach our aims, we apply different methods to the KiDS data within the current footprint in order to increase the completeness of our search, which we can estimate by testing our methods blindly on already discovered lenses. Our final goal is to increase the number of known lensed quasars and build up a statistically relevant number of lensing systems, spanning a wide range of parameters, such as the mass of the deflector, the redshift and nature of the source, and the lensing geometrical configuration.

In preparation for the final release of KiDS, here we focus on the search for lensed quasars and Nearly Identical Quasar pairs (NIQs) in the third KiDS Data Release (440 deg²), adopting different search techniques and comparing their outcomes and performance. Given the exquisite image quality of KiDS, and the bottleneck of colour selection that affected previous searches (e.g. Williams, Agnello & Treu 2017; Agnello et al. 2018a), here we consider two techniques that mostly exploit morphological information, with colour information being used only at the very first stage of catalogue pre-selection. We also use a third technique that uses optical colour selection directly from KiDS but whose cuts are very loose and complemented with direct image analysis.

A systematic, and truly blind, comparison of different methods applied to the same data set has also never been performed before but is necessary. Every single method can be biased, given its set of assumptions and selection criteria, and only by comparing different methods it is possible to understand and quantify these biases, to maximize the final performance and to find the largest possible number of new lenses.

The paper is organized as follows. In Section 2 we provide a brief introduction to the Kilo Degree Survey and we present the samples we use in the paper. In Section 3 we introduce and detail each of the search methods highlighting limitations, strength points, and possible biases. In Section 4 we present a quantitative test on the recovery of already known quasar lenses and NIQs that are covered by the KiDS-DR3 footprint. In Section 5 we discuss our results, including a list of ’high-rank candidates’ awaiting spectroscopic confirmation as well as spectroscopic data of KiDS 1042+0023, which is the first new lensed quasar discovered by our team in KiDS. We also briefly describe some tests we ran on the second Gaia data release to access how and if it would improve our results. In Section 6 we discuss future developments highlighting, in particular, possible alternative quasi-stellar objects (QSOs) pre-selection criteria or ways to improve our current ones to uncover all the uncovered lenses once KiDS will be completed. Finally, we present our final conclusions and a summary of the results of the paper in Section 7.

2 THE DATA

All strong lensed quasars searches share a similar structure and rely on multiband survey catalogues as well as image cutouts. In what follows, we use the same nomenclature already introduced by Agnello et al. (2018a), hereafter A18a: objects are selected at query level from wide-field surveys, targets are a sub-sample of objects selected based on their catalogue properties, and candidates are a sub-sample of targets further selected based on their images either via visual inspection or cutout modelling. Whenever needed, for consistency with previous work, magnitudes are used in their native survey definition, i.e. AB for KiDS and Vega for Gaia, WISE, and 2MASS.

For KiDS we always refer to r-band coordinates.

2.1 The Kilo Degree Survey

The Kilo Degree Survey (KiDS, de Jong et al. 2015, 2017) is one of the public surveys selected by ESO for the VLT Survey telescope (VST, Capaccioli & Schipani 2011), operating from Cerro Paranal (Chile) and equipped with the 1 square degree camera OmegaCAM (Kuijken 2011). Once completed, KiDS will cover 1350 deg² over u, g, r, and i bands split in two stripes (one in the Northern Galactic cap and one in the Southern cap).

KiDS has been primarily conceived for weak lensing studies (Kuijken et al. 2015, Hildebrandt et al. 2017), given the high-spatial resolution of VST (0.2 arcsec pixel⁻¹) and the quite stringent seeing constraints requested for the r-band images (always below 1 arcsec, with mean of 0.7 arcsec). This band is also the deepest observed one with 1800 s exposure and a limiting magnitude of 25.1 (5σ in 2 arcsec aperture). In all other bands the seeing constraints are less stringent, but sub-arcsec mean seeing is also obtained (de Jong et al. 2017).

The resulting image quality required for weak lensing turns out to be optimal for other studies like surface photometry (Roy et al. 2018) and search for rare systems like ultra-compact massive galaxies (Tortora et al. 2016), ultra-diffuse galaxies (van der Burg et al. 2017), galaxy clusters (Radovich et al. 2017), and strong gravitational lenses (Napolitano et al. 2016; Petrillo et al. 2017).

In this paper we use the multiband images and aperture-matched source catalogue encompassing all the survey tiles of the first three KiDS data releases (440 deg², de Jong et al. 2017)¹ with the final aim of combining different search methods in order to increase completeness and to find a large number of still undiscovered lensed quasars. The work of Petrillo et al. (2017) focusses on galaxy–galaxy lensing using morphological classification method based on a Convolutional Neural Network (CNN) and as such complements our work.

2.2 Ancillary Surveys: Gaia-DR1 and WISE

To complement the KiDS data, we make use of the Gaia Data Release 1 (DR1) catalogue, consisting of astrometry and photometry for over 1 billion sources brighter than magnitude G = 20.7, and the Wide-Infrared Survey Explorer (WISE, Wright et al. 2010) catalogue. The WISE mission provides an all-sky catalogue of astrometry and photometry at 3.4 |$\mu \mathrm{m}$|⁠, 4.6 |$\mu \mathrm{m}$|⁠, 12 |$\mu \mathrm{m}$|⁠, and 22 |$\mu \mathrm{m}$| mid-infrared bandpasses (hereafter W1, W2, W3, and W4), for 747 million objects, with angular resolution of 6.1, 6.4, 6.5, and 12.0 arcsec respectively for the four bands.

The WISE and Gaia-DR1 catalogues have been queried through the NASA/IPAC Infrared Science Archive.² The cross-matches with Gaia-DR2 (discussed in Section 5.3) have used the CDS-Xmatch service.³

3 THE METHODS

Our lens search approach is ”source-based”, which means that it prioritizes lensing systems where the multiple images of the source give a larger contribution to the light with than the deflector. In particular, we use three methods all based on broad-band spectral energy distribution (SED) properties, to isolate quasars-like objects from the tens of millions of extended, extragalactic objects, on the basis of optical and/or infrared colours. More specifically, the first two methods are based on the same mid-infrared magnitude/colour pre-selection of quasar-like objects from WISE, and are developed starting from the work presented in A18a. The third method instead relies on optical (KiDS) ugr colour pre-selection.

After isolating quasars from stars and galaxies with the colour and magnitude cuts, it is necessary to find, among the selected quasars, the very rare ones whose light has been deflected by a galaxy or a cluster and therefore resulted in multiple images. To this purpose, we use three approaches which mostly rely on morphological information, with the aim of reducing the colour pre-selection to a minimum, also because the deflector, although not dominant, can still alter the colour of the source quasar.

In the following subsections, we provide a detailed description of each of the methods, explaining their selection criteria and assumptions, in order to quantify their performance and the complementarity of them. In fact, one of the goals of this paper is to re-define and improve the selections and procedures in preparation for the final KiDS data release and of future wider/deeper imaging surveys.

3.1 WISE+KiDS+Gaia Multiplets

Following A18a, we have combined mid-infrared colour selection from WISE and the high-spatial resolution of KiDS and Gaia, to identify multiplets of objects with quasar-like colours. The use of WISE colours to separate quasars from galaxies and stars, have been already successfully employed by several authors (e.g. Stern et al. 2012; Assef et al. 2013; Jarrett et al. 2017). For instance, Stern et al. (2012) showed that the W1 - W2 colour, ([3.6] - [4.5] micron) can be used to distinguish quasars from stars based on the fact that the AGN spectrum is generally redder than the blackbody Rayleigh–Jeans stellar spectrum which peaks at rest frame 1.6 |$\mu$|m.

Figure 1.

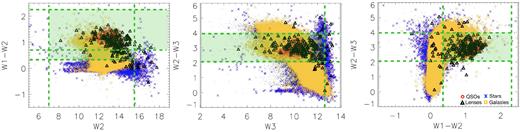

Examples of WISE magnitude- colour-colour plots used to select QSO-like objects. The green lines and boxes show the regions that fulfil the selection criteria of equation (1). Points are all the objects from the 6dFGS Survey, with different symbols and colour according to their spectral types: QSO objects are plotted as red circles, stars are plotted as blue crosses and finally galaxies are plotted as yellow squares. Black triangles are all known gravitational QSO lenses and NIQs.

Open in new tabDownload slide

The selection criteria are shown as green regions in Fig. 1, where we check our selection against a sample of objects spectroscopically classified by the 6dF Galaxy Survey (6dFGS, Jones et al. 2004, 2009) and known lenses. In the Figure, data points are 6dF objects colour-coded by spectral type, whereas the black triangles are already discovered QSO lenses and NIQs in a catalogue of ≈260 objects across the entire sky that we assembled from the CASTLES data base,⁴ The Sloan Digital Sky Survey Quasar Lens Search (SQLS; Oguri et al. 2006), and recent publications (e.g. Sergeyev et al. 2016; More et al. 2016).

Finally, we further restricted our selection to objects with small uncertainties on the WISE magnitudes (δW1 < 0.25, δW2 < 0.3 and δW3 < 0.35). This is the strongest constraint we applied to our object catalogues, but it is necessary to exclude most of the contaminants.

Overall, the magnitudes and colour cuts are still quite generous, e.g. towards the redder W1-W2 colours or lower values for W3 and W2 magnitudes. On the other hand, there is nevertheless room for some improvement since there are still some known quasar lenses (and legitimate quasars in the first place) that escape the cuts applied above. A quantitative discussion of recovery of the known lenses is detailed in Section 4. In Section 6 we will discuss how to optimize the WISE colour/magnitude cuts in order to cover the largest possible number of known lenses, while also limiting contamination.

After the WISE colour pre-selection, we restricted the search first to the KiDS final footprint, which yielded 278 994 targets. We then cross-matched this table with Gaia-DR1. We lose at this stage ∼72 per cent of the selected objects but this step is necessary to overcome the large (in same cases up to ≈3 arcsec) positional errors in the WISE catalogue.

In order to identify KiDS counterparts to the above targets, we matched the WISE-Gaia table with the catalogue of all sources in KiDS-DR3 (de Jong et al. 2017), which covers an area of 440 deg² in the four ugri bands. This match produced a list of 78 377 targets with WISE and optical photometry, Gaia-DR1 coordinates, and a counterpart in KiDS.

From the WISE-Gaia-KiDS table we then isolated multiplets, i.e. WISE objects that resulted in multiple Gaia or KiDS source entries. Based on previous investigation (e.g. A18a), the remaining singlets may be truly isolated quasars, or quasars with faint line-of-sight companions, or lenses that are not suitably resolved by the Gaia or KiDS source-extraction pipelines. For this reason, in this search we selected both WISE-Gaia and WISE-KiDS multiplets.

Our final list comprises 5245 targets for WISE+KiDS and 1277 targets for WISE+Gaia. Given the manageable final number, rather than basing our candidate-selection on automatic, colour-based procedures with the risk of losing many interesting objects due to scatter in their population properties, we decided (at least for this pilot program) to visually inspect all targets and assemble a list of graded candidates, which will be presented in Section 5.1. To assign a grade to the candidates, three different members of our team inspected the list of candidates independently, assigning to each of them a grading from 1 (low possibility to be a lens) to 4 (sure lens or known lens). The final grade for a given system is then the average of the three grades. The same grading procedure has been repeated also for the other methods.

There are three main limitations of this first method. First, in order to have multiple matches in KiDS or Gaia, the different components must be deblended by the Source Extractor routine used to create the source catalogues. Second, we set up a maximum separation between the components of 5 arcsec, motivated by the average separation of known lenses and by the WISE image quality. In this way, we might lose some lenses with a wider separation, but we note that these are extremely rare cases. Third, we required that the objects satisfying the WISE selection criteria are bright enough to have a Gaia counterpart.

The final list of candidates accepted after visual inspection comprises ≈20 very promising candidates, with grade ≥1.

3.2 BaROQuES: Blue and Red Offsets of Quasars and Extragalactic sources

If the deflector and quasar images contribute differently in different bands, this should result in centroid offsets of the same object among different surveys. While this morphological selection was proposed in the past (e.g. Agnello et al. 2015), the astrometric accuracy of ground-based survey catalogues prevented any practical application. This changed with the advent of Gaia: exploiting a cross-match of Gaia-DR1 and SDSS (see Deason et al. 2017), Lemon et al. (2017) examined astrometric offsets of quasars in order to isolate lens candidates. However, the astrometric solutions depend on the astrometric standards that are adopted (typically, bright stars). Thus, quasars and other extragalactic objects with different spectral energy distributions (SEDs) will have high offsets even if they are not lensed, as a consequence of atmospheric differential refraction (ADR). Reportedly, significant contamination by isolated quasars is present in the search by Lemon et al. (2017). In order to resolve this, we concentrate exclusively on extragalactic sources (in particular, photometrically selected quasars) and re-compute a local astrometric solution based directly on these. Despite the variety of SEDs exhibited by WISE-selected quasars, this choice is sufficient to mitigate the spurious offsets induced by ADR.

Identical to the previous method, we pre-selected QSO-like objects based on WISE cuts and we cross-matched this table with the Gaia-DR1 and KiDS catalogues. We therefore start from the previously obtained table with 78 377 targets satisfying the WISE colour cuts, having a counterpart in Gaia-DR1 and covered by the KiDS DR3 footprint. Then, we used our own scripts: the Blue and Red Offsets of Quasars and Extragalactic Sources (BaROQuES) scripts⁵ to compute detrended offsets between the positions of WISE-selected objects among different surveys. In order to compute field-corrected offsets, we either used KiDS versus Gaia, or 2MASS versus Gaia. For each object in a survey cross-match, we considered all neighbouring objects within a chosen window (a radius of 0.5 deg for KiDS-Gaia and 1.0 deg for 2MASS-Gaia), such that ∼40 objects per patch are present, ensuring robust statistics.⁶

We then computed the average offset in right ascension and declination over that patch, and subtracted it from the offset computed on the considered object. We then retained just those objects that have an average-subtracted offset greater than a prescribed threshold (0.3 arcsec for 2MASS-Gaia, 0.2 arcsec for KiDS-Gaia). The choice of threshold is mainly dictated by the accuracy of KiDS/2MASS, and is such that most (if not all) of known lenses are still recovered after the cuts in field-corrected offsets.

The final sample of KiDS-Gaia ‘baroques’ comprises 8180 targets (10 per cent of the original table), of which only 594 (7 per cent of the targets) are also multiplets. Also in this case, we proceeded with visual inspection and grading to build the final list of candidates. Contamination by isolated quasars is null. This zeroeth-order, local astrometric solution is already sufficient to cull isolated quasars, even though in general astrometric solutions can be non-linear on degree-wide scales.

The main limitation of this second method is that it mainly selects systems where both lens and source give a non-negligible contribution to the light, whereas it would most probably lose lenses where one of the components dominates. On the contrary, the multiplets method is in principle able to find pairs where the lens is not visible (or not there at all, i.e. NIQs) and also objects where the lens is more dominant, as long as the QSOs are deblended and resolved as multiple objects in the KiDS/Gaia catalogue. This is why the combination of these two WISE+KiDS methods is important towards maximizing completeness.

After visual inspection, the BaROQuES method produced 40 candidates with grade >1, of which five in common with the multiplet method (see Table 2).

3.3 Direct Image Analysis (DIA)

This method is based on direct analysis of KiDS images, without any cross-match with other surveys. A pre-selection of QSO-like candidates is also performed, but based on optical colours, as we will detail later.

We begin with considering all the objects extracted from the u-band catalogue (i.e. 4915119). For each of them we look for multiple detections within a circular aperture radius of 5 arcsec in the r-band images, since they have the best depth and resolution, finding 104 045 matches.

As second step, we separate the systems into point-like and extended sources. We estimate from the r-bands a “point-like-magnitude” for each object under the assumption of a Gaussian distribution, centred on the pixel with maximum flux and matching the full-width half maximum (FWHM) of the image. We then compared this ”Gaussianized-magnitude” with the aperture magnitude obtained within the FWHM and target the object as ”extended” when the two values differ by more than one magnitude with respect to the locus of the sure stars in the same image (de Jong et al. 2017).

At this point, we calculated the magnitudes in ugr-bands and the (u − g) and (g − r) colours for all the multiple point-like objects and we used them to select QSO-like candidates according to the following cuts: (u − g) < 1.5 and (g − r) < 0.7. We calculated that these cuts select 89 per cent of the QSOs in the Sloan Digital Sky Survey IV (SDSS, Blanton et al. 2017). Despite a slight difference in the SDSS and KiDS colours (0.05 mag), we decided to adopt the same criteria for our data set, at least in this pilot program. A shortcoming of these colour criteria is that we might lose systems with redshifts |$z$| > 3, which have (g − r) > 1. The limitations of these assumptions and different ways to improve our selection criteria will be discussed in Section 6.

The 12 396 candidates of the colour-selected list () are finally processed with a semi-automatic PSF-subtraction procedure to check for the presence of the deflector (residuals between the multiple subtracted components). For this task we used the pyraf package.⁷ In particular, from the r-band images we detected all sources within 10 arcsec radius from the central object and we fit a PSF model to them. We generated subtracted images which we visually inspected to check for the presence of residuals from the deflector. For completeness we also visually inspected the corresponding combined colour (ugr) images to check that all of the QSO multiple images have similar colours, that the geometrical configuration is compatible with a strong lensing configuration and that there are no starburst areas or star-forming regions near by. Finally, as additional sanity check, we extended the visual inspection also to the sources that were initially tagged as “extended” to ensure that we did not mis-classify quadruplets and low-separation multiple systems that were not deblended in the KiDS catalogue. We did not find any misclassified object.

The final list of candidates accepted after visual inspection comprises ≈30 very promising candidates, with only six already selected by our previous methods.

4 RECOVERY OF KNOWN LENSES

The zeroeth-order benchmark of the methods discussed in the previous paragraphs is given by the fraction of the known lensed quasars and NIQs that we have ”blindly” recovered by our techniques.⁸

Among the ≈260 confirmed lenses, 10 are in the KiDS-DR3. In Table 1 we report their coordinates and their discovery papers. Of course, the full assessment of the overall true selection process efficiency and of the purity of our methods will come only with a significant spectroscopic sample, which we have started to assemble as detailed in Section 5.

As already anticipated, looking at the missed lenses, the main failure point is the WISE pre-selection. With the selection criteria of equation (1), four lenses would have been lost in the colour pre-selection on the basis of their magnitudes and colours. One of them (HSC1152+0047), however, has been found by the DIA method, which is not based on WISE pre-selection.

We repeated the test for the 22 known lenses that will be covered by the final KiDS footprint finding that seven of them will not pass the pre-selection criteria, mainly because of their W1-W2 colour. This could be caused by the fact that, in case the lens and the source are blended in WISE and the deflector gives a large contribution to the light, the colours of this effective source may be not quasar-like anymore and move indeed toward lower W1-W2 values. Thus, allowing for a lower threshold in W1-W2 would help in selecting some of the lost known lenses, including one already observed in KiDS-DR3 (2QZJ1427-0121A).

Finally, we run an analogous test for the entire catalogue of known lenses, showed as black triangles in Fig. 1, to increase the number statistics and above all to assess the purity/completeness trade-off in our WISE pre-selection. Roughly one fourth (40 out of 260) of all the known lensed quasars and NIQs do not pass the WISE pre-selection. This is due primarily to missing entries for the WISE magnitude errors, which are part of the WISE-Gaia pre-selection.

We conclude that our selection criteria must be optimized if we aim at finding a large number of new gravitational lenses covered by KiDS, once completed, and by the DR2 of Gaia. We will discuss more flexible WISE pre-selections or possible alternatives to it in Section 6.

As highlighted in Table 1, seven out of 10 known lenses have been found by at least one of our methods, and only two have been recovered by all of them. Singularly, the three methods performed equally well, recovering four lenses each, and they resulted very complementary since the combination of them bring completeness from 40 per cent to 70 per cent.

In the following, we examine each known, recovered lens, highlighting by which method it was found/missed and providing an explanation. Finally, in Fig. 2 we show 25 arcsec × 25 arcsec KiDS cutouts (colour combination of g, r, and i bands). For some lenses, we also show a zoom-in of 5 arcsec × 5 arcsec to highlight the exquisite image quality of KiDS that enables a clear recognition of multiple images and, in most cases, also the deflector.

Figure 2.

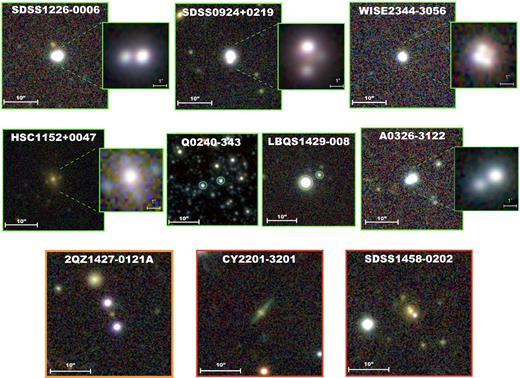

KiDS colour cutouts (g, r, i) of known lenses. 25 arcsec × 25 arcsec cutouts of KiDS images of the known gravitational lenses already observed by KiDS-DR3. For the systems with low separation between components, we also show a zoom-in of 5 arcsec × 5 arcsec centred on the system. The first two rows show the known lenses that we found with at least one of our method. The last row shows instead the three lenses that we did not recover. The leftmost lens (orange box) would have been recovered with the new criteria on WISE magnitude and colours presented in Section 6.

Open in new tabDownload slide

4.1 The easiest cases: SDSS1226-0006 and SDSS0924+0219

SDSS1226-0006 is a doublet discovered by Pindor et al. (2003) and with a separation within the two QSO images of ≈1.2 arcsec, whereas SDSS0924+0219 is a quadruple system, discovered by Inada et al. (2003), with a maximum separation between components of ≈1.8 arcsec. Both systems have a separation large enough to be deblended into multiple components by the KiDS catalogue and with a deflector bright enough to cause an offset in the centre positions between KiDS and Gaia. We therefore easily recovered these two candidates with all our methods.

4.2 Overcoming the catalogues limitations: WISE 2344-3056 and HSC 1152+0047

More difficult is the case of WISE 2344-3056, recently discovered in the VLT-ATLAS Survey by Schechter et al. (2017), which has a very small separation between the multiple images and thus it has not been classified as a multiplet in KiDS. Moreover, unfortunately this quad does not have a match in Gaia-DR1 and therefore we could not recover it with the BaROQuES method. The only method that could, and did, recover this lens was the DIA and it succeeded in finding it.

Another ”difficult case” is HSC1152+0047, the quadruplet serendipitously discovered in the Hyper Suprime-Cam (HSC) Survey (More et al. 2017). The source at |$z$|_s = 3.76 is lensed by an early-type galaxy at |$z$|_l = 0.466 and a satellite galaxy and it is unusually compact and faint. This causes the deflector to dominate the WISE colours and therefore the exclusion from our colour and magnitude pre-selection criteria.

In this two last cases, the lenses have been recovered only by DIA, which is not based on WISE nor on catalogue cross-matching. However, in other cases, as the ones described in the next section DIA is not able to recover known lenses found instead by the BaROQuES or the Multiplet methods. Thus, we wish to highlight the complementarity of our methods, based on different assumptions and techniques.

4.3 Nearly Identical Quasar pairs: A0326-3122, QJ0240-343, and LBQS1429-008

NIQs are pairs of quasars exhibiting the same lines at the same redshift and uniform flux-ratios with wavelength. These could be multiple images of the same object deflected by a very faint detector or truly physical pairs. In the case of nearly identical quasar pairs the DIA method is not ideal. Given that the deflector is either too faint to be detected or simply not there, these systems would be automatically discarded when analysing the PSF subtracted images (since no residuals would be identified) although they might passed the colours pre-selection and be triggered by the automatic pipeline.

A0326-3122 was found by Schechter et al. (2017) in the VLT-ATLAS DR2 survey, QJ0240-343 was identified by Tinney (1995) as a |$z$| = 1.406 candidate gravitational lens system behind the Fornax dwarf spheroidal galaxy, and LBQS1429-008 is a wide-separation binary quasar (≈5″) discovered by Hewett et al. (1989).

The first two NIQs have been found by our multiplets method. LBQS1429-008 has a separation between the components larger than 5 arcsec, which is the limit we set for Multiplet and DIA. This system and A0326-3122 have been found by the BaROQuES. This might indicate the presence of a deflector, which is however very faint and therefore not visible from the KiDS images. Deeper spectroscopic follow-up or higher resolution imaging are necessary to assess the lensing nature of these systems.

5 RESULTS

The KiDS Strongly lensed QUAsar Detection project (KiDS-SQuaD) aims at finding strong gravitational lensing events in the Kilo Degree Survey (KiDS). Here, we focus on finding lensed quasars with the goal of optimizing the filter criteria in a combination of infrared colours from WISE and optical colours from KiDS to get to the closest number of confirmed quasars to the expected one.

5.1 High-grade targets, and the first spectroscopically confirmed lens

To further demonstrate that the methods are producing valuable results, we provide in Table 2a list of high-graded candidates in KiDS-DR3 found with more than one method (grade > 2.5, with a maximum of four for known lenses). A more complete list of candidates with grade≥1 found also by only one of the methods is given in Table 3. Three of the most promising candidates are also shown in Fig. 3.

Figure 3.

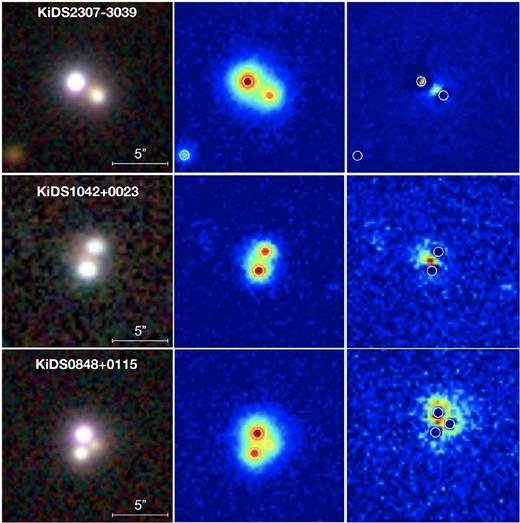

Three of the most promising candidates found by our methods. The left panel of each row shows the g-r-i combined image from KiDS, the middle panel shows the KiDS image in r-band only and the rightmost panel shows the same image after PSF subtraction of the QSO images, revealing the presence of the deflector.

Open in new tabDownload slide

A spectroscopic confirmation of the targets selected with the combination of the three methods is beyond the purpose of this first paper. A dedicated, spectroscopic campaigns over a sizeable candidate sample is already planned for future papers of the series and will enable us to quantify the performance of our multimethod strategy. Nevertheless, we were able to obtain long-slit spectra from the Telescopio Nazionale Galileo (TNG) for the candidates KiDS1042+0023 and KIDS0834-0139. We observed both systems with DOLORES (Device Optimized for the LOw RESolution) in long-slit mode (slit width of 1.5 arcsec) using the LR-B grism (wavelength range: |$0.3\, \mu \mathrm{m}\lt \lambda \lt 0.843\, \mu \mathrm{m}$|⁠, dispersion: 2.52 Å/px) for a total integration time per target of 1200 s.

The spectra of KiDS1042+0023 (R.A. = 10:42:37.255, Dec. = 00:23:02.064), although of very low signal-to-noise (S/N ≈ 3–5 per pixel) show features typical of lensed quasars, confirming the very first lensed QSO discovered in the KiDS survey. We extracted a 1D spectrum at the position of the two multiple images as well as a spectrum in the middle, where the lens lies.⁹ Despite the very poor S/N, the presence of two quasar spectra at the same source redshift is clear, with uniform flux-ratio f ≈ 1.25 over |$0.45\, \mu \mathrm{m}\lt \lambda \lt 0.75\, \mu \mathrm{m}.$| The spectra of quasar images (red and light blue with a smoothed version superimposed as black lines) and lens (black spectrum) are shown in Fig. 4, in units of normalized, not calibrated flux, with some possible emission lines highlighted with blue vertical lines corresponding to |$z$| ≈ 2.26. The two quasars spectra have been vertically shifted for visualization purposes.

Figure 4.

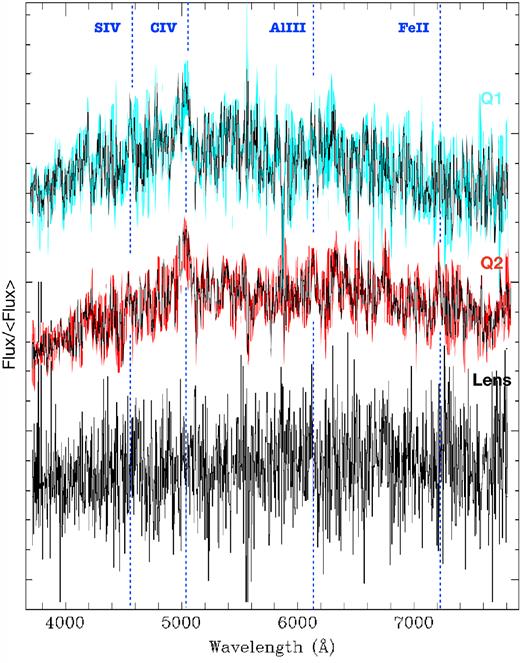

TNG spectra of KIDS1042. The light blue and red spectra at the top represent the QSO traces while the black spectrum on the bottom is extracted at the position of the deflector. The spectra have been normalized and plotted with an ad hoc shift for visualization purposes. For the two QSO spectra, a smoother version (boxcar of 3 pixels) is also overplotted for clarity. The blue dotted vertical lines highlight possible emission lines, corresponding to |$z$| ≈ 2.26 for the source.

Open in new tabDownload slide

Unfortunately, instead, KIDS0834-0139 turned out to be a line-of-sight pair of two white dwarfs stars.

5.2 Spectroscopic Surveys and KiDS

All the methods described here were based on colour pre-selection of point-like, extragalactic objects (through infrared colours from WISE or optical from KiDS). An alternative approach is to select these objects on the basis of their spectra. To test this, we extracted all the objects from the 6dFGS with spectroscopic redshift |$z$| > 0.5 and good quality flag (quality ≥ 3, i.e. all the red points in Fig. 1). Then, we cross-matched them with the KiDS catalogue and proceeded to visually inspecting the 400 resulting objects. We found three objects already found by other methods and no other very good candidates. We repeated the experiment using the 2dF QSO Redshift Survey (2QZ, Boyle et al. 2000), finding 8164 targets, classified as QSOs, and, after visual inspection, again no ”new” promising (grade > 2) candidates. Further tests with other spectroscopic surveys (e.g. GAMA, Driver & Gama Team 2008; Driver et al. 2011) will be performed in future papers.

5.3 Gaia-DR2

The recent second Data Release of Gaia has made colours and proper motions available, and should have a nominal resolution of 0.4 arcsec. To check the improvements with respect to Gaia DR1 and to exploit the possibility of using proper motion to separate stars from quasars, we ran a cross-match query between WISE, Gaia-DR1, and Gaia DR2.

We imposed very generous constraints on WISE magnitudes and colours, in order to exclude stars without penalizing extragalactic objects. To this purpose, we also updated the selection criteria on the WISE errors, using the interpolating formulae given in equations (3)–(4), in order to circumvent missing entries.

We took the coordinates of our singlet BaROQuES candidates (in KiDS-Gaia DR1), and queried Gaia-DR2 on these to check how many objects which were not resolved as ”multiplets” in DR1 are now with the new Gaia release. A small fraction (3–5 per cent) of the DR1 ‘baroque singlets’ are recognized as multiplets by DR2. A puzzling outcome is that some Gaia-DR1 sources, bright enough to have perfectly trustworthy 2MASS magnitudes, have now disappeared in Gaia-DR2.

Moreover, for completeness, we also ran some tests on recovery of known lenses for Gaia-DR2. Of 260 known lenses/pairs in our list, 43 are missing from DR2; of the 171 that are detected, 124 are resolved in two sources, 15 into three sources, and six into four sources. An interesting feature is that known lenses can have significant proper motions (as determined by the Gaia pipeline). This is valid also for the DR1 baroque singlets (lens candidates), and prevents further separation between lenses and contaminants (e.g. line-of-sight alignments of quasars and stars) based on Gaia-DR2 proper motions alone.

6 FUTURE PROSPECTS

In order to further improve the lens search, it will be certainly necessary to work on the WISE pre-selection cuts, al largely shown in this paper. To this purpose, we highlight four possibilities.

• Looser pre-selections cuts.

  Magnitude errors are sometimes missing from the WISE catalogues. One might think of relaxing the cuts completely removing the constraints on the uncertainties, but in this case, the number of targets would be too large for visual inspection (more than seven millions of objects at pre-selection stage), and would include an overwhelming fraction of galactic and extragalactic contaminants. We notice that when errors are available they are well fitted by

  \begin{eqnarray*} \delta W1 &=& 0.024\times \sqrt{1.0 + \exp {[1.5\times (W1-15.0)]}}, \nonumber \\\delta W2 &=& 0.021\times \sqrt{1.0 + \exp {[1.5\times (W2-13.3)]}}, \nonumber \\\delta W3 &=& 0.016\times \sqrt{1.0 + \exp {[1.7\times (W3-8.6)]. }} \end{eqnarray*}

  (3)

  This partially relieves the issues with criteria relying on magnitude errors. Also smoother cuts in WISE magnitudes can be used in order to exclude stars at some prescribed confidence level. From the fitting formulae above, a simple (and currently used) alternative to the original WISE pre-selection is

  \begin{eqnarray*} W1-W2\gt 0.2&+&\sqrt{(\delta W1)^{2}+(\delta W2)^{2}}, \nonumber \\ W2-W3\gt 2.0&+&\sqrt{(\delta W2)^{2}+(\delta W3)^{2}}; \end{eqnarray*}

  (4)

  once tested on the 6dFGS catalogue, this criterion eliminates most of the stars and retains most of the extragalactic sources. Despite the improvement, however, some systems with W1 − W2 ≈ W2 − W3 ≈ 0 (e.g. CY2201-3201) are still lost at pre-selection.

• Estimation of magnitudes from WISE fluxes.

  The cases when an error estimate is not provided correspond to either a low S/N (<2) in the given band (mostly) or artefacts. For S/N < 2 sources, the WISE public data base reports upper limits in magnitudes which are significantly biased. A possible way of getting the proper magnitude instead of the upper limit for sources with low S/N, is by using the flux from the WISE data base, translating them into magnitudes.

• Population-mixture classification (e.g. Williams et al. 2017), which can be used to exclude the most abundant contaminant classes combined with a looser WISE pre-selection without any constraints on the errors on the magnitudes.

• Forced-photometry.

  WISE catalogue magnitudes become quickly unreliable beyond W1 = 17.0, W2 = 15.6, W3 = 11.8, where |${\approx }20{{\ \rm per\ cent}}$| of known lenses lie. Furthermore, we note that if one uses the public WISE data base, then the source selection will be limited. This is because the IPAC data base requires that each source listed has a 5σ detection (S/N ≥ 5) in at least one of the four WISE bands. This means that hypothetical sources having a detection in all thee bands only slightly lower than the threshold will be discarded. This is a major limitation for surveys such as KiDS, whose depth and image quality would justify a forced-photometry effort (e.g. Lang, Hogg & Schlegel 2016), which will increase the number of detections.

The current optical colour pre-selection (used in the DIA) mostly loses high-redshift QSOs (⁠|$z$| > 3, which typically have (g − r) > 1.5). However, including these objects will also include a very large contamination from extended sources such as galaxies. Twopossibilities for improvement, for optical-based pre-selection, would be a variability criterion and the use of machine learning techniques for quasar selection (some of which are already available, e.g. Chehade et al. 2016).

Furthermore, we note that the KiDS Survey is twinned with the NIR survey VIKING (Edge et al. 2013) from VISTA/VIRCAM also located in Cerro Paranal. VIKING covers the same area of KiDS in ZYJHK, making the multiband data set from the two surveys ideal to perform object selection based on a wide baseline that would efficiently pinpoint high-redshift systems. Thus, KiDS+VIKING, together, provide a unique sensitive, 9-band multicolour survey, which will lead to the detection of a statistically significant number of new strong lenses.

Finally, spectra of most Gaia sources will be available upon mission completion (2020). In principle, this will allow for a complete by-passing of colour-magnitude cuts, provided quasars are suitably recognized by the Gaia classification pipelines.

7 SUMMARY AND CONCLUSIONS

In this first paper of the KiDS Strongly lensed QUAsar Detection Project we have performed a truly blind comparison of different methods to find lensed quasars on an homogeneous data set. We have used the state-of-art-techniques based on mid-infrared photometry from WISE, cross-matched with wide surveys (e.g. Gaia, 2MASS), optical colour pre-selection and PSF-analysis, all of them followed by visual inspection of high-resolution multiband KiDS images. We have applied all these methods to the KiDS DR3 footprint, with the goal of overtaking the limitation of each method alone and increasing the efficiency of our search for gravitationally lensed quasars.

In particular:

• we have described each method, providing pre-selection criteria and assumptions, and highlighting its strength and limitations;

• we have tested the methods on the recovery of known lenses to estimate the success rate of our suite of methods. We have used a list of 10 known lenses (and NIQs) located in the current KiDS footprint (KiDS-DR3). Each method applied alone is able to recover only four out of 10 of these lenses, but all three combined have reached, without any particular calibration, 70 per cent of success rate. We adopt this number as the performance benchmark to catch them all once the KiDS Survey is completed. Looser colour-cuts at pre-selection stage bring the recovery fraction to 80 per cent.

• we have provided a list of good to excellent candidates recovered by one or more of our searching methods (Tables 2 and 3);

• we have confirmed the first of these high-graded new KiDS candidates (KiDS 1042+0023) in a spectroscopic run.

• Finally we have discussed future prospects and ideas on how to improve the pre-selection criteria adopted in this paper. In particular we lists four different possibilities to minimize the number of lenses lost due to WISE infrared colours, without dramatically increase the number of contaminants and two possibilities to improve the optical pre-selection criteria. We will soon repeat the same analysis applying the methods with the improved pre-selection criteria described in Section 6 to the KiDS-DR4, which will cover about 900 deg², and thus doubling the area, we will theoretically double the number of lensed quasar candidates.
