Abstract

Upon entering a star system, light sails are subject to both gravitational forces and radiation pressure, and can use both in concert to modify their trajectory. Moreover, stars possess significant magnetic fields, and if the sail is in any way charged, it will feel the Lorentz force also. We investigate the dynamics of so-called ‘photogravimagnetic assists’ of sailcraft around α Centauri A, a potential first destination en route to Proxima Centauri (the goal of the Breakthrough Starshot programme). We find that a 10-m2 sail with a charge-to-mass ratio of around 10 μC  g−1 or higher will need to take account of magnetic field effects during orbital manoeuvres. The magnetic field can provide an extra source of deceleration and deflection, and allow capture on to closer orbits around a target star. However, flipping the sign of the sailcraft's charge can radically change resulting trajectories, resulting in complex loop-de-loops around magnetic field lines and essentially random ejection from the star system. Even on well-behaved trajectories, the field can generate off-axis deflections at α Centauri that, while minor, can result in very poor targeting of the final destination (Proxima) post-assist. Fortunately for Breakthrough Starshot, nanosails are less prone to charging en route than their heavier counterparts, but can still accrue relatively high charge at both the origin and destination, when travelling at low speeds. Photogravimagnetic assists are highly non-trivial, and require careful course correction to mitigate against unwanted changes in trajectory.

magnetic fields, methods: numerical, space vehicles, solar neighbourhood

1 INTRODUCTION

It has been clear since the beginning of the Space Age that effective interstellar travel is impossible using chemical rocket technology. Our most distant probes achieve maximum velocities of the order of tens of kilometres per second – the transit time to the nearest star, Proxima Centauri, is measured in hundreds of thousands of years (Wertheimer & Laughlin 2006; Kervella, Thévenin & Lovis 2017).

The recent detection of a close-to Earth mass planet in the radiative liquid water zone around Proxima (Anglada-Escudé et al. 2016) fires the imagination, and raises the possibility that the star system next door could play host to a viable biosphere (Barnes et al. 2016; Meadows et al. 2016; Ribas et al. 2016; Turbet et al. 2016; Dong et al. 2017). Assays of Proxima b's habitability from Earth will be challenging, as the planet does not appear to transit the star (Kipping et al. 2017). Atmospheric characterization via direct imaging and phase curve variations (either in reflected starlight or thermal emission) remains possible, in principle, with the James Webb Space Telescope (Kreidberg & Loeb 2016).

Despite our best efforts, it may be the case that the possibility of life on Proxima b can only be confirmed by in situ measurements (Crawford 2017). If this is so, an interstellar mission whose travel time is measured in years, not millenia or megayears, is essential.

Nuclear propulsion designs, such as the external pulse design (Everett & Ulam 1955) made famous by Project Orion (Mallove & Matloff 1989) or the internal fusion generator design of Daedalus (and Icarus) (e.g. Bond 1978), generate significantly higher exhaust velocities than current rocket technology, and can thus achieve much greater cruise velocities, ranging from 0.03 to 0.1c, where c is the speed of light in vacuo (Matloff 2006). Both designs still require a significant proportion of fuel to be placed aboard the craft, even with ramjet technologies (Bussard 1960; Bond 1974), not to mention the legal barriers to detonating small fission bombs in space, and the confinement problem in thermonuclear fusion generators. If antimatter could be synthesized in large quantities, then matter–antimatter annihilation is an extremely powerful energy source from which to develop thrust, but the large-scale synthesis of such fuel currently remains in the realms of science fiction.

Light sails have long been proposed as an energy efficient alternative to matter-based propulsion systems. Employing the radiation pressure generated by photons, light sails can undergo weak but continuous acceleration to high velocities (for low-mass spacecraft). The source of photons can either be the host star (solar sails, Tsander 1961) or powerful, highly collimated lasers (laser sails, Marx 1966).

Forward (1984) described what we now call a ‘heavy sail’ concept for the laser sail. A one metric ton lightsail is illuminated by a laser focused by a 1000-km diameter Fresnel zone lens. The laserlight provides a constant acceleration of 0.36 m s− 2 over a 3-yr period, attaining a cruise velocity of 0.11c.

Technological advances, both in the miniaturization of electronics and in the materials science regarding the sail fabric, permit the construction of extremely light sailcraft with high cruising velocities. The Breakthrough Starshot programme is considering such a ‘nanosail’ approach, designing a ground-based laser from a phased array of transmitters, and a factory producing a number of 1g ‘StarChip’ sailcraft, which can each be accelerated to velocities around 0.1–0.2c, reaching Proxima in 20–40 yr. When this speed is achieved, waiting for further technological innovation will not get us to Proxima at an earlier date (Heller 2017).

Althoughsuch acceleration is extremely beneficial at the beginning of an interstellar mission, it has a corresponding cost at the destination. Sailcraft travelling at 0.2c will traverse an astronomical unit (au) in around 40 min, and the orbit of the Moon around the Earth (0.002 57 au) in around 6 s, reducing the mission's ability to carry out scientific investigations of the Proxima system.

Ideally, an interstellar mission profile would include a deceleration phase, so that the craft can remain in the Proxima system for longer and conduct a fuller investigation, and transmit data to Earth. For propulsion methods, this requires substantially more fuel, and reduces the maximum cruise velocity as a result. Light sails carry minimal fuel reserves, so that the sail can be re-oriented, and must rely on local radiation fields to produce significant Δv.1

Heller & Hippke (2017) demonstrated that lightsails could use the destination star system as a source of photons to decelerate. Combining this photon deceleration with the gravitational force exerted by the star, they showed that a sail travelling at 0.046c could achieve a parking orbit around Proxima by using what they dub ‘photogravitational assists’ from α Centauri (Cen) A and B. Further tuning of the trajectory can reduce the travel time between α Cen A and Proxima from 95 to 75 yr (Heller, Hippke & Kervella 2017).

Radiation pressure and gravity are not the only forces acting on a sail as it approaches a star system. If a sail has accumulated a net charge, then the stellar magnetic field will also exert a force on the sailcraft. If this charge results in a current, then the craft's own magnetic field may be used as a decelerant (Zubrin & Andrews 1991; Matloff 2009; Freeland 2015). In this paper, we consider photogravimagnetic (PGM) assists, where the dynamical evolution of a sail depends on the combination and interplay of radiation, gravity and magnetic forces. Section 2 describes the form of these three forces, and the simulations used to explore sail trajectories; Section 3 shows some benefits (and costs) from allowing the craft to be charged and using the magnetic field as an extra force; Section 4.

2 METHODS

We expand on the calculations of Heller & Hippke (2017). The magnetic force is inherently 3D, and as such we will be required to generalize their 2D equations, which we describe below. Throughout, we define the sail as a craft of mass M, and sail area A, with the sail's orientation defined by the unit normal vector |$\hat{\boldsymbol {n}}$|⁠. The sail is located at position |$\boldsymbol {r}$| relative to the star, with velocity |$\boldsymbol {v}$|⁠.

2.1 Radiation pressure force

The radiation pressure measured at distance r from a star, luminosity L* and radius R* is (McInnes & Brown 1990; Heller & Hippke 2017):
(1)
where we have assumed a uniformly bright finite stellar disc. The radiation pressure force is then
(2)
and achieves its maximum magnitude when |$\hat{\boldsymbol {n}}$| is parallel to |$\boldsymbol {r}$|⁠.

2.2 Gravitational force

We assume tidal forces on the sail are negligible, and that the sail can be treated as a single pointmass, hence we can use Newton's Law of Gravitation:
(3)
General relativistic corrections are unlikely to be important, as our sail trajectories have a sufficiently large closest approach distance (for a full general relativistic treatment see Kezerashvili & Vázquez-Poritz 2010).

2.3 Magnetic force

The force on a sheet with uniform surface charge density σq moving at velocity |$\boldsymbol {v}$| in a magnetic field |$\boldsymbol {B}$| is given by the Lorentz Force (we assume the electric field |$\boldsymbol {E}=0$| throughout):
(4)
where |$\text{d}\boldsymbol {A}$| is the surface area element, with direction vector given by |$\hat{\boldsymbol {n}}$|⁠. We assume no velocity differential along the sail, and that the magnetic field is uniform across the sail area, and hence we recover the Lorentz force for a point particle with charge q:
(5)
It should be emphasized that |$\boldsymbol {F}_{\rm mag}$| is always a deflective force. Gravitational and radiative forces can align/anti-align with the velocity, whereas the Lorentz force is constrained to operate perpendicular to it. The sign of the charge is also clearly important, as is the orientation of the magnetic field to the approach vector. These factors can result in both beneficial and hazardous outcomes to a flyby, as we will demonstrate.

2.4 Optimizing sail orientation

If we wish to maximize the deceleration of our craft due to photon pressure, then we must minimize the component of |$\boldsymbol {F}_{\rm rad}$| along the velocity vector, i.e.:
(6)
We can discard the P(r)A component from |$\boldsymbol {F}_{\rm rad}$| and hence the minimization problem becomes
(7)
At large distances from the star, the sail will approach the system along a trajectory essentially parallel to its separation vector – hence, |$\hat{\boldsymbol {r}} \cdot \hat{\boldsymbol {v}}\approx 1$|⁠, and we can simply demand that |$\left(\hat{\boldsymbol {n}}\cdot \boldsymbol {v}\right)$| be minimized, i.e. |$\hat{\boldsymbol {n}}\approx -\hat{\boldsymbol {v}}$|⁠. As we approach the star and velocity decreases, the |$\left(\hat{\boldsymbol {n}}\cdot \boldsymbol {r}\right)$| requirement dominates and |$\hat{\boldsymbol {n}}\approx -\hat{\boldsymbol {r}}$|⁠.

This condition results in a set of linear homogeneous equations that can, in principle, be solved analytically by Gaussian elimination. The analytic solutions for this system (in 2D and 3D) are given in Appendix A. In practice, we use the sequential least-squares algorithm provided by the Python module scipy.optimise.minimise to determine the optimal |$\hat{\boldsymbol {n}}$|⁠.

3 RESULTS

3.1 When will magnetic fields be important?

It is instructive to consider the regimes when the three forces will dominate, given fixed stellar properties (M*, R*, L*, |$\boldsymbol {B}_*$|⁠). Throughout this paper, we will assume a pure dipole magnetic field:
(8)
where |$\hat{\boldsymbol {m}}$| is the dipole moment (i.e. the orientation) of the field. Unless stated otherwise, we tune B0 such that the magnetic field strength at 1 au resembles that of the solar field measured by Voyager ∼5 nT (Burlaga 2002). The typical force (in Newtons) will scale as
(9)

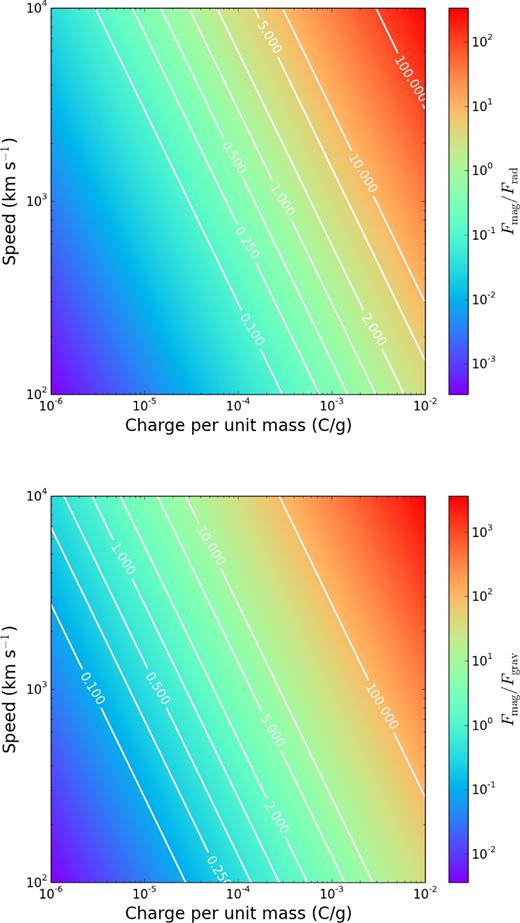

In Fig. 1, we compute Fmag/Frad and Fmag/Fgrav at 5 R⊙ from the Sun. The magnetic moment of the Sun is fixed at |$\hat{\boldsymbol {m}}=(0,0,1)$|⁠, and the velocity vector |$\boldsymbol {v}$| is parallel with the negative y-axis.
The relative strengths of the gravitational, radiation and magnetic forces on a sail, area 10  m2, at a distance of 5 solar radii from the Sun, as a function of its charge per unit mass and speed. In both cases, it is clear that craft with more than 10 μC  g−1 of charge per unit mass will experience strong magnetic forces.
Figure 1.

The relative strengths of the gravitational, radiation and magnetic forces on a sail, area 10  m2, at a distance of 5 solar radii from the Sun, as a function of its charge per unit mass and speed. In both cases, it is clear that craft with more than 10 μC  g−1 of charge per unit mass will experience strong magnetic forces.

Open in new tabDownload slide

As the charge on the sail craft exceeds 10  μC per gram, the magnetic force becomes a sizeable fraction of the radiative and gravitational forces, and dominates at charges above 100  μC per gram, regardless of the sail velocity.

3.2 Beneficial effects of photogravimagnetic assists

3.2.1 Extra Deceleration

Judiciously adding an extra force can result in charged sailcraft undergoing increased deceleration compared to the uncharged case. As an example, we repeat an example trajectory from Heller & Hippke (2017, their fig. 2a). The sail approaches a star with the mass, luminosity and radius of α Cen A, with magnetic field defined by a dipole with unit moment |$\hat{\boldsymbol {m}}=(0,0,1)$| and a field strength of 5 nT at 1 au. The sail's initial velocity vector is
(10)
and its initial position vector
(11)
We run a series of flights with increasing positive charge from 10  μC to 1  mC. The Lorentz force in this case is
(12)
In this scenario, the first term on the right-hand side is directed along the positive z-axis, and the second term is directed along the positive x-axis (with the second term dominating). Fig. 2 shows that an increasing charge boosts this deflection in the x-axis significantly, resulting in a deflection of δ = −64° for a charge of 1  mC, as opposed to δ = 15° for the uncharged case (dotted line in Fig. 2).
The effect of increasing positive charge on the PGM assist [from 10  μC (red) to 1 mC (blue)] for all other sail and star parameters held fixed. The dotted line indicates a zero charge trajectory. The numbers I–IV indicate the types of possible trajectory described in Heller & Hippke (2017): catastrophic loss of the sail (I), full stop (II), bound elliptical orbits (III) and flyby (IV).
Figure 2.

The effect of increasing positive charge on the PGM assist [from 10  μC (red) to 1 mC (blue)] for all other sail and star parameters held fixed. The dotted line indicates a zero charge trajectory. The numbers I–IV indicate the types of possible trajectory described in Heller & Hippke (2017): catastrophic loss of the sail (I), full stop (II), bound elliptical orbits (III) and flyby (IV).

Open in new tabDownload slide

3.2.2 Closer Close Approaches

Fig. 3 shows a similar approach to the previous section, but we now decrease the initial x from 3R* to 2R*. In the absence of magnetic forces, the sail would experience a catastrophic deceleration, resulting in its impacting the star. Adding a positive charge of 0.1 mC allows the craft to be injected into a highly elliptic, precessing orbit (Fig. 3).

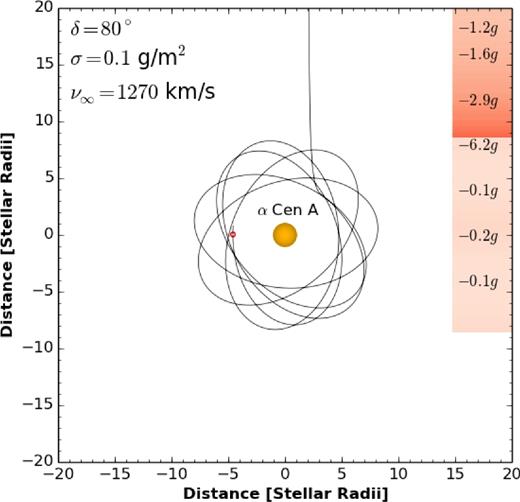

Orbit injection at closer approaches, thanks to the Lorentz force. A trajectory that would result in collision with the star for chargeless sails becomes an elliptical orbit for q = 0.1 mC.
Figure 3.

Orbit injection at closer approaches, thanks to the Lorentz force. A trajectory that would result in collision with the star for chargeless sails becomes an elliptical orbit for q = 0.1 mC.

Open in new tabDownload slide

This precession could be corrected with judicious angling of the sail, which we have not attempted here. Ejection from the system on a desired trajectory could also be triggered with appropriate tacking of the sail (in principle).

3.3 Detrimental effects of photogravimagnetic assists

3.3.1 Growing z offsets in trajectories

We are unlikely to achieve precisely 2D trajectories on approach to α Cen (i.e. z = 0, vz = 0). Even if small offsets in either parameter are present as we enter the star system, we find that it can be significantly amplified on approach. In Fig. 4, we plot the evolution of the z-coordinate for the runs displayed in Section 3.2.1, with z = 1 cm, and vz = 1 cm s− 1. As positive charge is increased, the z offset can reach a few stellar radii at distances of 1–5 au from the target (i.e. an angular offset of up to 3 arcmin). This z offset will continue to grow as the sail moves towards its intended target of Proxima, most likely resulting in missing its target by tens to hundreds of au depending on the charge.

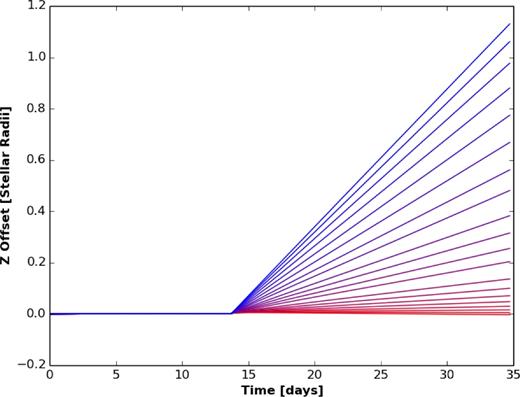

Growing z offsets in trajectories as (positive) charge is increased from 10μC (red) to 1 mC (blue). The sailcrafts’ distance from the star approximately 3 d post-assist ranges between 1 and 5 au depending on charge.
Figure 4.

Growing z offsets in trajectories as (positive) charge is increased from 10μC (red) to 1 mC (blue). The sailcrafts’ distance from the star approximately 3 d post-assist ranges between 1 and 5 au depending on charge.

Open in new tabDownload slide

3.3.2 Photogravimagnetic loop-de-loops

The awkward nature of PGM assists becomes clear when we repeat the set of flights in Section 3.2.1, but instead allow the charge to be negative as opposed to positive. The x-component of Fmag becomes negative, allowing for some complicated loop-de-loop trajectories as the sail begins to orbit the field lines (Fig. 5). The sail experiences large accelerations, which grow as the sail's speed increases. The final trajectory of the sail is extremely difficult to predict, and indeed may be ejected at a higher velocity than which it entered the system.

The effect of increasing negative charge on the PGM assist [from 10μC (red) to 1 mC (blue)] for all other sail and star parameters held fixed.
Figure 5.

The effect of increasing negative charge on the PGM assist [from 10μC (red) to 1 mC (blue)] for all other sail and star parameters held fixed.

Open in new tabDownload slide

Depending on the mission profile, this extra acceleration might be a benefit, especially if the target is a more distant star, or Galactic exploration is the goal (cf. Nicholson & Forgan 2013). However, achieving an ejection from the system on a desired trajectory is highly non-trivial. In our case, we wish to decelerate the craft, so it is immediately clear that for this injection geometry, a negative charge is best avoided. If the craft's initial trajectory was flipped in the y-axis (i.e. x → −x), or the magnetic field's dipole moment was reversed, we would reproduce the better behaved trajectories seen in Section 3.2.1.

3.3.3 Large variances in possible trajectories on approach

Given that we are limited in our ability to specify the approach vector of the sailcraft at parsec distances from Earth, how does this affect our ability to place the sailcraft on a desired trajectory after a PGM assist? The properties of our target star are likely to fluctuate with time, particularly the luminosity, and magnetic field strength/orientation.

To answer this question, we execute a series of flights where we randomly sample sail and star properties from uniform distributions. We allow the magnetic field strength to vary between B0 = [2.5, 7.5] nT to reflect the evolution of field strength over the 12–15 yr magnetic cycle of α Cen A (Robrade, Schmitt & Favata 2012). We also allow the field orientation to vary via rotations in the x- and z-axis by angles between [−5,5]°. The Sun's luminosity only varies by around 0.1 per cent over these cycles (Krivova, Balmaceda & Solanki 2007), which we will also assume for α Cen A. Hence, we randomly sample luminosities in the range [0.999,1.001]L*.

We allow the sail's charge to vary between 0 and 1 mC, and the initial position vector is
(13)
with x = [2.5 − 3.5]. Fig. 6 shows the results of 15 flights, with either positive charge (left-hand panel) or negative charge (right-hand panel). In both cases, we can see that the final outcome of the close approach to α Cen A can vary widely between capture into an elliptical orbit, a deceleration and deflection (the intended aim), and highly erratic trajectories with almost random ejection vectors (in the negatively charged case).

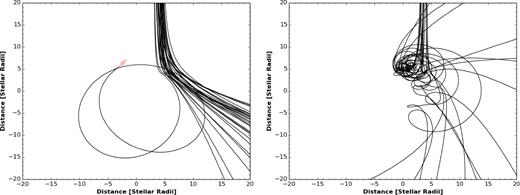

Variance in sail trajectories due to uncertainties in stellar and sail parameters. Left-hand panel: possible trajectories for positively charged sailcraft. Right-hand panel: possible trajectories for negatively charged sailcraft.
Figure 6.

Variance in sail trajectories due to uncertainties in stellar and sail parameters. Left-hand panel: possible trajectories for positively charged sailcraft. Right-hand panel: possible trajectories for negatively charged sailcraft.

Open in new tabDownload slide

4 DISCUSSION

4.1 What is the expected charge on a sail?

There are various natural surface charging mechanisms that our sail will encounter on its route to Proxima (see for example Garrett & Whittlesey 2012). We identify two classes of environment in which charging should be considered – the first is in the vicinity of the Sun (or Proxima) and the second is in the interstellar medium between both stars.

4.1.1 Charging in the Solar system/at Proxima

In geosynchronous Earth orbit (GEO), surface charging may occur where GEO exits the Earth's plasmasphere (Mikaelian & Tsoline 2009). This depends on the Sun's activity and the geomagnetic response, but in the worst case scenario, a spacecraft can be bombarded with high energy electrons with no protection from the plasmasphere, and undergo strong charging. If the craft is illuminated by the Sun, these effects can be ameliorated by photoelectron emission.

On the other hand, photoelectron emission can also generate strong positive charges. As most of our flight plan relies on the collection of large quantities of photons, we must be certain that our sail is not being overly charged by photoelectron production. This essentially relies on low absorption levels, which is already a stringent technical requirement of any viable Starshot mission. Nanosail designs hope to achieve absorption levels of 10 parts per million or less (Lubin 2016).

Most studies of spacecraft charging quote the electric potential generated. An object immersed in a plasma will achieve a floating potential given by
(14)
where Te is the electron temperature, kB is the Boltzmann constant, mi and me are the ion and electron mass, respectively, and e is the electron charge. The potential can be as large as vf = 20  kV for spacecraft in orbit around the Earth depending on which process is doing the charging (Mikaelian & Tsoline 2009).
A simple estimate for a spherical object of radius L suggests that the typical charge in this case would be
(15)
We can therefore expect charges of the order of a few μC for a sail of length/width L = 1 m (at least near to the Earth). Vf increases linearly with electron temperature. In the solar wind, this temperature is around 104–105 K, but increases by an order of magnitude beyond the solar termination shock, accompanied by strong fluctuations in Te across the heliosheath (Richardson 2008; Chashei & Fahr 2013). These estimates suggest that our sail may already achieve sufficient charge for Lorentz forces to be important before exiting the Solar system, although it is important to note that the above equation is only valid for when the craft is moving at velocities much lower than the electron thermal velocity given by Te.

We can therefore expect that during the pre-launch phase, a 10-m2 sail may be charged up to an order of 10μC if it is initially released outside the Earth's plasmasphere. Once the sail is accelerated to relativistic speeds, the charging time-scale becomes long compared to the interaction time of the sail with the plasma, so subsequent charging as the sail leaves the Solar system is reduced. Equally, as the craft decelerates on entry to the Proxima system, the interaction time increases until it is (likely) comparable to the charging time. It is therefore at the very beginning and end of the mission that charging becomes important.

4.1.2 Charging in the ISM

As the sail traverses the interstellar medium, it will encounter a range of different charged particles, from electrons to highly porous dust grains. The dominant charging process for the sail is electron bombardment (Hoang & Loeb 2017), as the energy density of ultraviolet photons in the ISM is too low for photoelectron emission.

One could imagine the sail collecting a layer of charged dust grains in transit to Proxima. This would not only increase the Lorentz force on the craft, but also its absorption coefficient, with potentially fatal results. Lubin (2016) estimate the total dust column along the sail trajectory to be approximately 4 × 107 m− 2 (for grain sizes greater than a micron). An edge-on sailcraft can expect of the order of a thousand grain collisions (depending on its thickness), suggesting a relatively weak charge. At relativistic speeds, grain collisions are unlikely to result in sticking, but instead piercing the sail. This results in little to no charging, and fortunately a little effect on the sail velocity, but can introduce inhomogeneities in the sail, reducing the sail's ability to produce stable flight (Hoang 2017), or in the case of dust grains larger than 15 μm, complete destruction of the spacecraft (Hoang et al. 2017).

At relativistic speeds, the maximum potential achieved by the spacecraft depends on its speed, not the plasma's properties. Consequently, the spacecraft will not achieve the floating potential of the plasma, and assume a much lower value, typically less than a μV per gram (Hoang 2017).

4.1.3 So what is the charge?

In the Solar system, simple energy arguments would indicate that due to their lower mass, electron charging is more likely than ionic charging, suggesting a typically negative charge. However, en route to Proxima, collisional emission of electrons is likely to generate a positive charge.

Throughout, we have discussed charge in absolute terms, and assumed that the spacecraft charge density was uniform. Differential or relative charging is likely to occur, especially when the craft is composed of materials of varying dielectric properties. If the surface charge density of our sail is non-uniform, the Lorentz force will introduce a stress across the sail surface. Weak stresses can result in tumbling motions as regions of the sail are accelerated at different rates, which can result in rotation periods as short as ∼30 min (Hoang & Loeb 2017). If the stress exceeds the strength of the sail material, this can result in irreparable damage.

The initial total charge of our sail (generated before the craft is accelerated) seems to depend most strongly on the space environment in the immediate region of the Sun, and similarly at its destination as the craft decelerates to non-relativistic velocities. It seems to be the case that the sail may achieve a sufficiently large charge for PGM assists to be important at the beginning of the mission, but that the net charge will be reduced as it traverses the ISM.

However, we still lack detailed knowledge of the charge content of the intervening ISM along our proposed flight plan. Also, it is clear that the ambient magnetic field plays a role in trapping surface charge via the Lorentz force, or allowing it to stream away from the craft along field lines. Most importantly, all this implies that the surface charge is likely to be a function of not only distance from Proxima, but also the sail normal on approach!

4.2 What is the preferred charge on a sail?

We have seen that the sign of the charge affects its resulting trajectory profoundly. This change is entirely grounded in the sign of the magnetic force. If the magnetic force acts away from the star, then a stable trajectory is obtained (like those seen in the left-hand panel of Fig. 6). If the magnetic force is attractive, then we recover erratic trajectories such as those seen in the right-hand panel of Fig. 6.

The preferred charge depends on how the sail approaches the star. We have seen negative charges providing hazardous trajectories because the sail approaches the star in the positive x-axis, positive y-axis quadrant. If the flight is carried out in the negative x, positive y quadrant, then a positive charge produces loop-de-loop trajectories.

If we want to avoid erratic flights, we should therefore be aiming to either (a) approach the star in such a way that the magnetic force is repulsive or (b) charge the sail in such a way that the magnetic force is repulsive. If we know what the charge is expected to be (and its sign) from natural processes, we can adjust our ingress trajectory to ensure that the egress trajectory is well-behaved, or we can deliberately charge the sail to achieve the same effect.

What methods are there for charging sails? Given that the most likely source of charging en route is emission of electrons as a result of particle bombardment (Hoang & Loeb 2017), we should expect that our craft will typically be positively charged. If the craft is negatively charged, orienting the sail to stimulate photoelectron emission (if we are near a strong UV source) can reduce an accrued negative charge. Reducing a positive charge would most likely require a collection of electrons in transit to Proxima, and is unlikely to be achievable. Electrons will pass through the sail as their penetration length is long compared to the sail thickness. The sail would require some kind of charge capture system that could decelerate the electrons sufficiently for capture (such as a magnetic field generator of its own).

4.3 Limitations of the analysis

We have focused entirely on one optimization scheme for sail orientation (which maximizes the component of force antiparallel to velocity). It is quite possible to implement other schemes, such as using the sail to attempt to cancel the magnetic force contribution, i.e.
(16)
which would mitigate against more erratic trajectories, but does not guarantee maximal deceleration during the encounter.

We have also focused largely on pure dipole magnetic fields, where all field lines are entirely closed. This is a heavy oversimplification of realistic stellar magnetic fields, which typically contain higher order spherical harmonics than the pure dipole, and also contain open field lines at large distance from the star. A probe traversing one of these ‘real’ magnetic fields might feel very little Lorentz force until it reaches the region where field lines begin to close.

The configuration of stellar magnetic fields also evolves with time. Magnetic reconnection and coronal mass ejections are common around G stars like α Cen A, and flaring is a key characteristic of low-mass stars such as Proxima. These eruptive events will add extra time dependence to the magnetic field, and hence the Lorentz force experienced by the sail. Of course, a sail that directly encounters a coronal mass ejection during close approach will most likely be damaged beyond repair.

We have also ignored magnetic fields in the ISM en route. If the level of ionization is sufficiently high, magnetic fields tend to ‘freeze in’ to the turbulent density structures in the diffuse gas. At large scales, this turbulent structure is a complex mix of filaments, sheets and knots, with the field tending to align with these structures except in regions of poor ionization (McClure-Griffiths 2006; Begum et al. 2010; Clark, Peek & Putman 2014). We should therefore expect that our sailcraft will be experiencing Lorentz forces along its entire flight path. The direction of this force will be extremely sensitive to the density structure of the ISM it passes through. Further work is needed to determine the level of deflection a craft might experience as it traverses a turbulent magnetic field environment, and what level of charge mitigation is required to avoid substantial changes in trajectory (cf. Gros 2017; Hoang & Loeb 2017).

Finally, we have ignored the more ‘standard’ uses of electromagnetic fields in sail navigation. Indeed, the literature is replete with works on ‘magsails’ that generate their own fields to deflect either interstellar ions (Zubrin & Andrews 1991; Freeland 2015) or charged particles entrained in the stellar wind (Matloff 2009). This produces a drag force on the craft, providing an effective means of deceleration. The magnitude of the deceleration depends on the effective field geometry, in particular its cross-section to the wind-flow, as well as the sail's velocity relative to the stellar wind. Electric sails are composed of tethers deliberately charged to maintain a high positive voltage, deflecting high energy protons (Janhunen 2004). A two stage magsail /electric sail combination has been shown to be an effective deceleration strategy for high mass spacecraft (Perakis & Hein 2016). Electric sails require high voltage (and possibly significant charging), and it is unclear how this would interact with Lorentz forces. On the other hand, generating a magnetic field may be useful for mitigating excess charging and permitting charge escape. Combining PGM assists with stellar wind deceleration may provide a highly effective means of generating Δv, and should be explored further.

5 CONCLUSIONS

We have simulated the trajectories of light sails under the combined forces of gravity, radiation pressure and magnetic fields. If wafer sails, such as those proposed by the Breakthrough Starshot programme, obtain a greater charge than around 10 μC (per gram of mass) during flight, magnetic fields begin to significantly affect their final trajectory.

The Lorentz force generated by the magnetic field can be either beneficial or hazardous depending on the inbound trajectory. In the best case, the sail can use PGM assists to generate even greater Δv than achievable with only gravity and radiation. This allows for craft to perform stellar flybys at even closer approaches, and to attain a higher cruise velocity on leaving Earth and still be able to achieve a successful flyby of Proxima.

On the other hand, the worst case scenario can result in highly erratic loop-de-loop trajectories, which either result in impact on to the star or ejection at high speed on highly unpredictable outbound trajectories. Even if these trajectories can be avoided, small changes in trajectory at ingress can be multiplied into large offsets at egress, requiring large course corrections if our sail is to reach its intended target. Deflections can even be generated on departure by the Sun's magnetic field, if the craft is charged during launch.

The contingent nature of these PGM trajectories suggests that sail missions should be prepared to send multiple craft to boost their probability of executing a PGM assist that delivers a preferred trajectory – that is, a trajectory towards Proxima at relatively low velocity.

PGM assists are something of a mixed blessing, and their effects on navigation must be considered carefully. We recommend that planning for Breakthrough Starshot commits resources to (a) monitoring sailcraft charging and Lorentz force strengths during Solar system tests, (b) mapping sources of sailcraft charging between the Solar system and α Cen, and (c) mapping the magnetic field of α Cen A, B and C, as well as the interstellar environment along the route.

Acknowledgements

DF gratefully acknowledges support from the ECOGAL project, grant agreement 291227, funded by the European Research Council under ERC-2011-ADG. This work was supported in part by the German space agency (Deutsches Zentrum für Luft- und Raumfahrt) under PLATO Data Center grant 50OO1501. The authors warmly thank Craig Stark and the anonymous reviewer for stimulating discussions on spacecraft charging.

Footnotes

1

It is worth noting Forward's (1984) ingenious scheme for deceleration of laser sails using the Earthbound laser. This is achieved by separating the craft into two sails, to reflect the photons against the direction of travel and decelerate. This two-sail deceleration requires very careful station keeping between both parts, and the laser light cannot be adjusted without several years of time lag.
