ASASSN-16fp (SN 2016coi): a transitional supernova between Type Ic and broad-lined Ic Free

Abstract

We present results based on a well-sampled optical (UBVRI) and ultraviolet (Swift/UVOT) imaging, and low-resolution optical spectroscopic follow-up observations of the nearby Type Ic supernova (SN) ASASSN-16fp (SN 2016coi). The SN was monitored during the photospheric phase (−10 to +33 d with respect to the B-band maximum light). The rise to maximum light and early post-maximum decline of the light curves are slow. The peak absolute magnitude (M_V = −17.7 ± 0.2 mag) of ASASSN-16fp is comparable with broad-lined Ic SN 2002ap, SN 2012ap and transitional Ic SN 2004aw but considerably fainter than the gamma-ray burst/X-ray flash associated SNe (e.g. SN 1998bw, 2006aj). Similar to the light curve, the spectral evolution is also slow. ASASSN-16fp shows distinct photospheric phase spectral lines along with the C ii features. The expansion velocity of the ejecta near maximum light reached ∼16 000 km s⁻¹ and settled to ∼8000 km s⁻¹, ∼1 month post-maximum. Analytical modelling of the quasi-bolometric light curve of ASASSN-16fp suggests that ∼0.1 M_⊙⁵⁶Ni mass was synthesized in the explosion, with a kinetic energy of 6.9|$^{+1.5}_{-1.3}$| × 10⁵¹ erg and total ejected mass of ∼4.5 ± 0.3 M_⊙.

1 INTRODUCTION

A large fraction of massive stars undergo catastrophic explosions at the end point of their lives due to the gravitational collapse of their cores (e.g. Woosley & Weaver 1986; Heger et al. 2003; Smartt 2009). Such events are recognized as core-collapse supernovae (CCSNe). Various physical mechanisms play a crucial role during the evolutionary phases of these progenitor stars, and consequently, the post-explosion observational features (e.g. light-curve shapes, luminosities, spectral evolution, etc.) exhibit heterogeneity. Among the larger group of CCSNe (see Minkowski 1941; Filippenko 1997), Type Ib, Ic and IIb constitute the ‘stripped-envelope, SE’ (Clocchiatti & Wheeler 1997) subcategory where the progenitor's outer envelope of hydrogen and/or helium is partially or completely removed before they explode. A radiation-driven stellar wind (Puls, Vink & Najarro 2008), eruptive mass-loss (Smith & Owocki 2006) and/or mass transfer with a companion star (Wheeler & Levreault 1985; Podsiadlowski, Joss & Hsu 1992; Yoon, Woosley & Langer 2010) are the likely mechanisms for the stripping of the outer envelopes. A subpopulation of Type Ic (He poor or absent) SNe is differentiated with very broad absorption lines in their spectra that signify high expansion velocities of the ejecta (≳14 000 km s⁻¹, a few days after the explosion). These events are commonly designated as ‘broad-line’ Ic SNe (BL-Ic). A small fraction of them are linked with long-duration gamma-ray bursts (GRBs) and X-ray flash (XRF), e.g. SN 1998bw/GRB 980425 (Galama et al. 1998; Patat et al. 2001) and SN 2006aj/XRF 060218 (Pian et al. 2006), while no such association is observed in a majority of the BL-Ic events, e.g. SN 2012ap (Milisavljevic et al. 2015), SN 2009bb (Pignata et al. 2011), SN 2007ru (Sahu et al. 2009), SN 2003jd (Valenti et al. 2008a), SN 2002ap (Gal-Yam, Ofek & Shemmer 2002; Mazzali et al. 2002) and SN 1997ef (Iwamoto et al. 2000).

In recent attempts, using large data samples, several groups have investigated the observational properties of different SE-SNe using single as well as multiband photometry (cf. Richardson, Branch & Baron 2006; Drout et al. 2011; Cano 2013; Bianco et al. 2014; Pritchard et al. 2014; Richardson et al. 2014; Taddia et al. 2015; Lyman et al. 2016; Prentice et al. 2016). Matheson et al. (2001) compared spectra of different SE-SNe and characterized individual SNe types in detail. More recently, Modjaz et al. (2016) and Liu et al. (2016) have, using an updated larger spectroscopic data set, provided with an identification scheme that helps constrain the progenitors of different kinds of SE-SNe. All these studies indicate that both Type Ic and BL-Ic SNe exhibit diversity in terms of their explosion parameters (e.g. mass of ejecta, mass of newly synthesized ⁵⁶Ni and kinetic energy of the explosion). There are a few SE-SNe such as SN 2004aw which are known to have properties between Type Ic and BL-Ic SNe. These Ic events, termed as transitional Type Ic (Taubenberger et al. 2006), are just a few in number. In order to understand them better, detailed studies of similar events are needed. The nearby SN ASASSN-16fp exhibits properties similar to SN 2004aw and provides an opportunity to explore the observational properties of the transitional Ic events.

ASASSN-16fp was discovered (Holoien et al. 2016) in the outskirts of the nearby galaxy UGC 11868 (Type: Sm) on 2016 May 27.6 ut (JD 2457536.1) by the Brutus telescope of the All Sky Automated Survey for SuperNovae (ASAS-SN¹) project. The SN was located approximately 31.7 arcsec north and 7.9 arcsec west from the centre of the host galaxy. The apparent brightness of the SN at the time of discovery was reported as ∼15.7 mag (V-band). It was classified as a broad-line Type Ic similar to SN 2006aj a few days before the maximum brightness (Elias-Rosa et al. 2016). Additional spectroscopic data obtained from various telescopes confirmed the broad-line nature of this object. The absorption features at 5550, 6300 and 6700 Å present in the spectrum were identified as He i 5876, 6678 and 7065 lines, respectively, indicating possible presence of helium in the ejecta of ASASSN-16fp (Yamanaka et al. 2016). This transient was also detected in the X-ray, UV (Grupe et al. 2016) and the radio domain (Argo et al. 2016; Mooley et al. 2016; Nayana & Chandra 2016). Table 1 lists some of the basic parameters of ASASSN-16fp.

We present in this paper the results of photometric (optical and UV) and low-resolution optical spectroscopic observations of ASASSN-16fp during the early phase.

2 OBSERVATIONS AND DATA REDUCTION

2.1 Photometric observation

Optical monitoring of ASASSN-16fp began on 2016 May 29 (JD 2457538.4). The observations were carried out in Bessell UBVRI bands with the Himalayan Faint Object Spectrograph Camera (HFOSC) mounted on the f/9 Cassegrain focus of the 2 m Himalayan Chandra Telescope (HCT) situated at the Indian Astronomical Observatory, Hanle, India. HFOSC is equipped with a liquid nitrogen cooled 2 k × 4 k pixels SITe CCD chip (pixel size 15 × 15 μm). The gain and readout noise of the detector are 1.22 e⁻/ADU and 4.87e⁻, respectively. With a plate scale of 0.296 arcsec pixel⁻¹, the central 2 k × 2 k region covers a field of 10 arcmin × 10 arcmin on the sky and the same was used for imaging purpose. We obtained several bias and twilight flat frames in addition to the science frames. The pre-processing of raw data (bias-subtraction, flat-fielding and cosmic ray removal) was performed using the standard tasks available in the data reduction software IRAF.² In order to increase the signal-to-noise ratio, on some of the nights, multiple frames were taken and co-added in respective bands after alignment of the images.

To calibrate a sequence of secondary standards in the SN field, we observed Landolt photometric standard fields (Landolt 1992) PG 1633+009, PG 2213−006 and SA 110 on four nights under good photometric conditions along with the SN field. The point spread function photometry on all frames (including the SN and Landolt fields) was done using the stand-alone version of DAOPHOT³ (Stetson 1987, 1992). The average atmospheric extinction values in U, B, V, R and I bands for the site were adopted from Stalin et al. (2008). The observed Landolt field stars having a brightness range of 12.02 ≤V ≤ 16.25 mag and colour range of −0.22 ≤ B − V ≤ 2.53 mag were chosen for the calibration. Using these stars, transformation to the standard system was derived by applying the average colour terms and the photometric zero-points. 16 secondary standard stars calibrated in this way are marked in Fig. 1 and their respective UBVRI magnitudes averaged over four nights are listed in Table 2. Since the location of SN in its host galaxy is fairly isolated, we did not consider host galaxy flux contamination to the SN. Final results of the SN photometry in UBVRI bands are listed in Table 3.

The Swift UVOT data on ASASSN-16fp, downloaded from the Swift data base (http://www.swift.ac.uk/swift_portal/), are also used in this work. The SN was monitored in the UVOT uvw2, uvm2, uvw1, u, b and v bands (see Poole et al. 2008). These observations began on JD 2457536.2 and continued up to JD 2457581.4. The prescriptions of Brown et al. (2009) were adopted to reduce the UVOT data. Aperture photometry was performed to estimate the SN magnitudes, using uvotsource task in heasoft (High Energy Astrophysics Software). It is recommended using an aperture size of 5 arcsec to estimate the magnitudes. However, since the SN was faint, we used a smaller aperture size of 3 arcsec, and applied aperture corrections as listed by Poole et al. (2008). The background counts were determined from the nearby region having an aperture size similar to that used for the SN. Final Swift magnitudes (in Vega-system) are listed in Table 4.

2.2 Spectroscopic observation

Low-resolution optical spectroscopic observations of ASASSN-16fp were obtained at 17 epochs during 2016 May 30 (JD 2457539.4) to 2016 July 11 (JD 2457581.4). All spectra were obtained using grisms Gr#7 (3500–7800 Å) and Gr#8 (5200–9250 Å) with the HFOSC, having a resolution of ∼7 Å. The journal of spectroscopic observations is given in Table 5. Calibration frames such as spectra of arc lamp and spectrophotometric standards were also obtained. Spectroscopic data reduction was done under the IRAF environment. Bias and flat-field corrections were performed on each frame, and the one-dimensional spectra extracted using the optimal extraction method. The dispersion solutions obtained using arc lamp spectra were used for wavelength calibration. To secure the wavelength calibration, night-sky emission lines were used, and wherever necessary small shifts were applied. Instrumental response curves, derived using the spectrophotometric standards observed on most of the nights, were used for flux calibration. For those nights where standard star observations were not available, the response curves obtained during nearby nights were used. To construct a single flux-calibrated spectrum, the flux-calibrated spectrum in each grism was combined. The spectra were then scaled with respect to the calibrated UBVRI fluxes to bring them to an absolute flux scale. Finally, the SN spectra were corrected for the host galaxy redshift of z = 0.0037 (from NED), and de-reddened by a total reddening E(B − V) = 0.074 mag (see Section 3.3).

3 LIGHT CURVE PROPERTIES

A discussion on the epoch of explosion, the multiband light curves, colour evolution and absolute V-band light curve of ASASSN-16fp are provided in this section. These properties are compared with other well-studied Ic and BL-Ic events.

3.1 Explosion epoch

Given the fact that we have good cadence of data points during the pre-maximum phase, we estimated the explosion epoch by fitting a power law of the form L(t) = C × (t − t₀)^α to the initial data points (pre-maximum). Here, L denotes the luminosity at time t, the parameter C defines the rising rate, t₀ is the time of explosion and α is a free parameter. The best fit to the observed data points provides an explosion date of 2016 May 26.8 ± 0.6 (JD 2457535.3). ASASSN-16fp was detected on 2016 May 27.6 (see Section 1), with pre-outburst last non-detection reported on 2016 May 21.5 (see Holoien et al. 2016). Assuming the SN exploded between the last non-detection and the date of discovery, the explosion date may be estimated as 2016 May 25 (JD 2457533.5 ± 3). We adopt an average of the above two, i.e. 2016 May 25.9 (JD 2457534.4) as our estimate to the date of the explosion of ASASSN-16fp. This is consistent with the explosion epoch of JD 2457533.0 estimated by Yamanaka et al. (2017).

3.2 Light-curve features

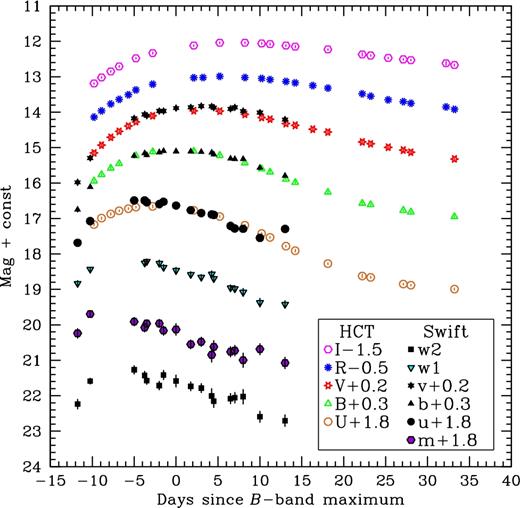

The UBVRI and Swift UVOT light curves of ASASSN-16fp are shown in Fig. 2. The follow-up observations began on 2016 May 29 (JD 2457638.4) and continued until around 30 d after B-band maximum. During this time span, we obtained photometric observations at 24 epochs with the HCT, and at 17 epochs with Swift satellite.

The epoch of maximum magnitude in different bands and their corresponding brightness were determined by fitting a low-order polynomial to the observed data points around the maximum light. The derived values are listed in Table 6. The light-curve evolution of ASASSN-16fp follows the behaviour exhibited by other Ic/BL-Ic SNe, i.e. the peak in the bluer bands appears earlier than the redder bands, which is attributed to the underlying spectrum and/or cooling of the photosphere (Taddia et al. 2015). The maximum in the B-band occurred on JD 2457548.2 ± 0.4 (i.e. around 14 d after the explosion) with an apparent magnitude of 14.76 ± 0.01 mag while, in the U-band, it peaked 3.4 d earlier. It took around 2.5, 5 and 7 d after B-band maximum to reach to maximum light in the V, R and I bands, respectively (cf. Table 6).

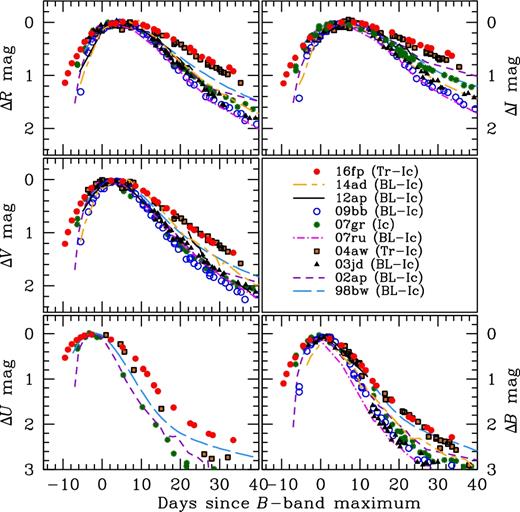

In Fig. 3, the UBVRI light curves of ASASSN-16fp are plotted along with those of other well-studied Type Ic and BL-Ic SNe (see Table 7). The light curves of SNe used for the comparison were shifted in time axis to match the epoch of B-band maxima of ASASSN-16fp, and normalized with respect to their peak magnitudes. For the purpose of comparison, only those objects that have densely sampled light curves, with coverage around maximum light were considered. The U-band light curve of ASASSN-16fp is compared with those of SN 2002ap, SN 2004aw, SN 2007gr and SN 1998bw, as only these objects fit in our criteria.

A careful inspection of Fig. 3 reveals that the light curve of ASASSN-16fp is broad in all the bands. Both the rise and decline of the light curves are slower than most of the objects used in comparison. The evolution of U-band light curve of ASASSN-16fp between 0 and +20 d is slower than SN 1998bw, 2002ap, 2004aw and 2007gr. The post-maximum evolution of BVRI band light curves of SN 2004aw and ASASSN-16fp are similar. The Δm₁₅ (decline in magnitude after 15 d post-maximum) parameters of ASASSN-16fp and SN 2004aw are comparable, except for U-band. The respective Δm₁₅ values in U, B, V, R and I bands for ASASSN-16fp are 1.06 ± 0.04, 1.01 ± 0.03, 0.60 ± 0.02, 0.42 ± 0.02 and 0.32 ± 0.02 and for SN 2004aw 1.62 ± 0.25, 1.09 ± 0.04, 0.62 ± 0.03, 0.41 ± 0.03 and 0.34 ± 0.03 (Taubenberger et al. 2006). The Δm_{15, R} of ASASSN-16fp is slightly lower than the mean Δm_{15, R} computed by Drout et al. (2011) for a sample of BL-Ic (0.6 ± 0.14 mag) and normal Ic (0.73 ± 0.27 mag) events. This emphasizes the slow decline of ASASSN-16fp light curves compared to normal Ic and BL-Ic events, while being similar to the transitional Ic SN 2004aw.

In Fig. 4, we compare the peak absolute magnitudes in V-band (M_V) for various well-studied Ic and BL-Ic SNe. The M_V is estimated after correcting for extinction and adopting distance measurements from the respective studies as listed in Table 7. In case of the host galaxy UGC 11868 of ASASSN-16fp, a precise distance measurement (e.g. Cepheid distances) is unavailable. However, for the present study, we have adopted a distance⁴ of 18.1 ± 1.3 Mpc (μ = 31.29 ± 0.15 mag, H₀ = 73 km s⁻¹ Mpc⁻¹). With M_V = −17.70 ± 0.2 mag, the absolute V-band luminosity of ASASSN-16fp is comparable with BL-Ic SN 2012ap (M_V = −17.9 ± 0.10 mag; Milisavljevic et al. 2015), SN 2002ap (M_V = −17.37 ± 0.05 mag; Foley et al. 2003; Pandey et al. 2003) and transitional Ic SN 2004aw (M_V = 18.02 ± 0.39 mag; Taubenberger et al. 2006). From Fig. 4, it is evident that there are several BL-Ic events considerably brighter than ASASSN-16fp, while BL-Ic SN 1997ef (M_V = −17.14 mag; Mazzali et al. 2004) and normal Ic SN 2007gr (M_V = −17.22 ± 0.18 mag; Hunter et al. 2009) are ∼0.5 mag fainter than ASASSN-16fp. The absolute R-band luminosity of M_R = −17.96 ± 0.15 mag for ASASSN-16fp is ∼1 mag fainter than BL-Ic sample (M_R = −19.0 mag) of Drout et al. (2011), but only slightly fainter than their normal Ic sample (M_R = −18.3 mag).

3.3 Extinction and colour evolution

The Galactic reddening towards ASASSN-16fp is E(B − V) = 0.074 ± 0.002 mag (Schlafly & Finkbeiner 2011). The strength of Na i D absorption lines is found to be coupled with the reddening (Barbon et al. 1990; Turatto, Benetti & Cappellaro 2003), though exceptions exist (Poznanski et al. 2011). In the low-resolution spectra presented in this work, a weak Na i D absorption due to the interstellar medium in the Milky Way is seen, while none detected at the redshift of the host galaxy. The absence of Na i D line at rest wavelength of the host indicates negligible extinction within the host galaxy. A similar conclusion has also been arrived at by Yamanaka et al. (2017). We have used E(B − V) = 0.074 mag for further analysis in this paper.

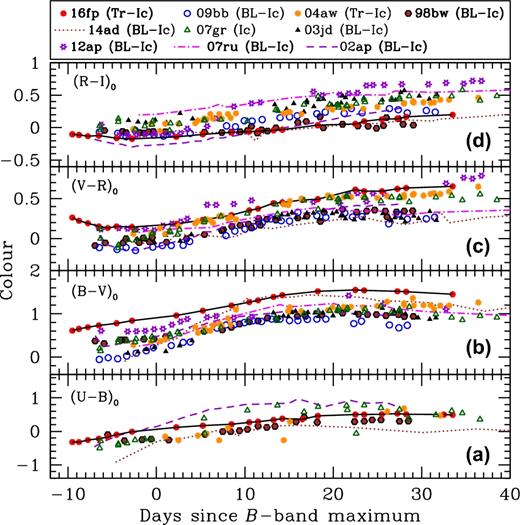

Fig. 5 presents the evolution of the reddening-corrected U − B, B − V, V − R and R − I colours for SNe ASASSN-16fp, 2014ad, 2012ap, 2009bb, 2007gr, 2007ru, 2004aw, 2003jd, 2002ap and 1998bw. The extinction values for these events have been taken from the references as mentioned in Table 7. The diverse nature of colour evolution is likely due to the varying nature of the expansion and cooling of the SN photosphere. Both (U − B)₀ and (B − V)₀ colours of majority of the SNe follow a blue to red trend until about ∼+10 d, and beyond that the colour evolution is almost flat (cf. panels a and b in Fig. 5). It is to be noted that among the compared events, the (B − V)₀ colour of ASASSN-16fp is redder by ∼0.6 mag and continues to be so till the last epoch of data presented here. The (V − R)₀ and (R − I)₀ colours are shown in panels (c) and (d) of Fig. 5, respectively. The (V − R)₀ colour of ASASSN-16fp exhibits red-blue-red transition between −10 d and +10 d, a colour variation not evident in the other events used for comparison. Drout et al. (2011) have examined the multiband light curve of Ibc SNe in the local universe (distance ∼150 Mpc). They have shown that the (V − R)₀ colour of Ibc SNe around 10 d past V-band maximum shows very small scatter, ranging between 0.18 and 0.34 mag [with a mean (V − R)₀ colour 0.26 ± 0.06 mag]. Using a set of theoretical models, Dessart et al. (2016) have confirmed the findings of Drout et al. (2011). At similar epoch, the (V − R)₀ colour of ASASSN-16fp is ∼0.43 ± 0.02 mag indicating it to be intrinsically redder. The (R − I)₀ colour evolution of compared SNe shows considerable dispersion.

3.4 Bolometric light curve and explosion parameters

The bolometric light curve is crucial for calculation of various explosion parameters such as amount of ejecta mass expelled during the explosion (M_ej), kinetic energy (E_k), mass of ⁵⁶Ni synthesized in the explosion. These in turn help to infer the nature of the progenitor. The quasi-bolometric light curve of ASASSN-16fp was constructed using the optical (UBVRI) and Swift UVOT magnitudes presented in Section 3. The data were interpolated wherever it was necessary and observed magnitudes were corrected for extinction E(B − V) = 0.074 mag. The extinction-corrected magnitudes were then converted to monochromatic flux at the filter effective wavelength, using the magnitude to flux conversion zero-points from Bessell, Castelli & Plez (1998) and Poole et al. (2008). The fluxes were then interpolated using the spline fitting. To obtain the quasi-bolometric luminosity, fluxes from 0.31 to 0.93 μm were integrated. Additionally, when Swift data was available (between JD 2457536.2 and JD 2457561.0), flux was integrated from 0.16 to 0.93 μm. The quasi-bolometric luminosities estimated from both optical and optical + Swift UV magnitudes are shown with different symbols in Fig. 6. The bolometric light curves of several other well-studied Ic and BL-Ic SNe estimated in a similar way have also been plotted in the same figure. The bolometric light curve of ASASSN-16fp peaked at JD 2457559.5 with log(L_bol) = 42.26 erg s⁻¹. It is fainter than GRB associated SN 1998bw, BL-Ic SNe 2014ad, 2009bb, 2007ru and transitional Ic SN 2004aw. It is also brighter than BL-Ic SN 2002ap, and comparable to BL-Ic SN 2012ap and normal Ic SN 2007gr. During the post-peak phase, the evolution of bolometric light curve of ASASSN-16fp is slower than SN 2002ap, 2007gr and 2012ap.

In SE-SNe, the bolometric luminosity peak is mainly dominated by the decay of ⁵⁶Ni and the shape is determined by kinetic energy (E_k) and total mass of the ejecta (M_ej). To derive explosion parameters for ASASSN-16fp, we followed the analytical model originally proposed by Arnett (1982) and later updated by Valenti et al. (2008a). This model is valid only during the photospheric phase where ejecta is optically thick. The model involves various assumptions such as spherically symmetric and homologous expansion of the ejecta, centrally located and unmixed ⁵⁶Ni, small stellar radius (at the onset of explosion) and a constant opacity (κ_opt).

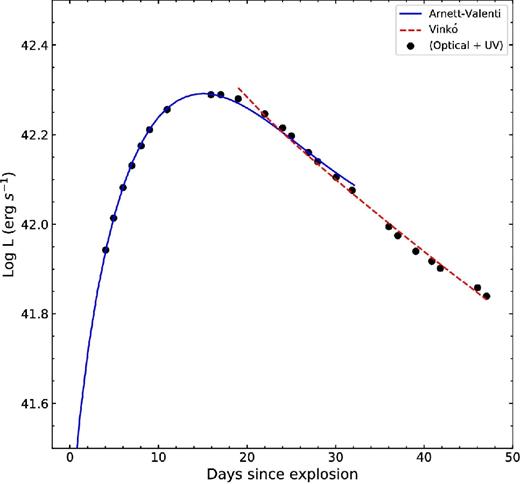

The bolometric light curve (optical + Swift UV) till 35 d after explosion was used for fitting the analytical model. The best-fitting values obtained using model fit are M_Ni = 0.10 ± 0.01 M_⊙ and τ_m = 15.9 ± 0.1 d. The photospheric velocity around the bolometric maximum is estimated as v_ph = 16 000 ± 1000 km s⁻¹ (see Section 4.1). Using equations (1) and (2), the values of M_ej and E_k are estimated as 4.50 ± 0.33 M_⊙ and 6.87|$^{+1.46}_{-1.27}$| × 10⁵¹ erg, respectively. The best-fitting model is shown in Fig. 7.

In order to verify the consistency of the derived parameters, the observed bolometric light curve (optical + Swift UV) is also fit with the analytical model proposed by Vinkó et al. (2004). Similar to the Arnett–Valenti model, this model has also several assumptions, e.g. homologous expansion of the ejecta, spherical symmetric explosion and constant opacity etc. This model is applicable only during the post-maximum phase. We used their model C that assumes a core-shell density structure with a constant density core of fractional radius (x₀), and density of the surrounding shell decreasing outwards as a power law with exponent n. With a fixed x₀ (= 0.15), the best-fitting (Fig. 7) physical explosion parameters are M_Ni = 0.12 ± 0.01 M_⊙, M_ej = 4.3 ± 0.2 M_⊙ and E_k = 7.0 ± 1.3 × 10⁵¹ erg. M_ej, M_Ni, γ-ray opacity (κ_γ), positron opacity (κ₊), v_ph and n were kept as free parameters for the fitting. The explosion parameters estimated by both methods are mutually consistent.

It should be noted that no correction has been applied for the missing flux in the IR-bands. Near-infrared (NIR) flux contribution to the bolometric flux is found to be significant and varying with SN age, e.g. near the maximum brightness NIR contributes to ∼20–25 per cent which increases to ∼40–50 per cent one month later (Tomita et al. 2006; Valenti et al. 2008a; Cano et al. 2011). Including an NIR contribution of 20 per cent in pre-maximum, 25 per cent between 0 and +10 d, and 31–45 per cent between +10 and +35 d in the UV-optical bolometric light curve of ASASSN-16fp, both analytical models were re-fitted. The explosion parameters including the NIR are, i.e. Arnett–Valenti model: M_Ni = 0.15 ± 0.01 M_⊙, M_ej = 5.8 ± 0.5 M_⊙ and E_k = 8.9 ± 1.6 × 10⁵¹ erg and Vinkó model: M_Ni = 0.15 ± 0.01 M_⊙, M_ej = 5.4 ± 0.2 M_⊙ and E_k = 8.8 ± 1.9 × 10⁵¹ erg.

4 SPECTRAL ANALYSIS

In the following sections, we present the spectral evolution of ASASSN-16fp, thanks to densely sampled spectroscopic data obtained during the photospheric phase (cf. Table 5). Spectral comparison with other well-studied events at different epochs is also presented. The spectroscopic data of SN 2007gr used for comparison purpose in this study have been obtained with HCT and these are unpublished.

4.1 Pre-maximum spectral evolution

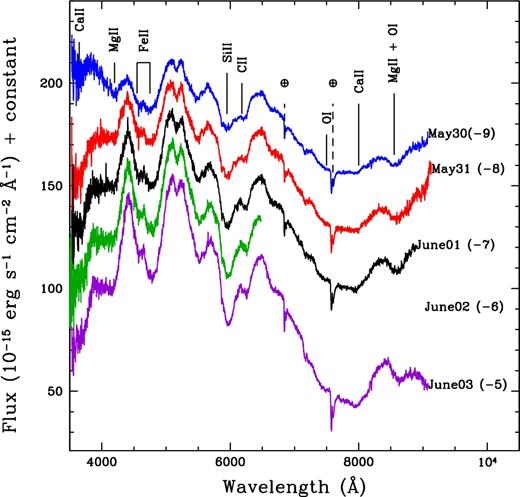

SN ASASSN-16fp was monitored extensively during the pre-maximum and early post-maximum phases. The spectral evolution during the pre-maximum phase is presented in Fig. 8. The first spectrum obtained at ∼−9 d shows a blue continuum, with well-developed features due to Ca ii H & K, Mg ii, Fe ii, O i and Ca ii NIR triplet. The features due to various species are broad, indicating high expansion velocity of the ejecta. The pre-maximum spectra of ASASSN-16fp also show a shallow absorption at ∼5150 Å, and broad absorptions at ∼5500, 6000 and 6250 Å . The shallow absorption at ∼5150 Å was also noticed in the spectrum of SN 2004aw obtained around maximum light (Taubenberger et al. 2006), which was unidentified. The absorption at ∼6000 Å can be associated with Si ii 6355 Å (Foley et al. 2003; Valenti et al. 2008a; Hunter et al. 2009; Sahu et al. 2009; Pignata et al. 2011; Drout et al. 2016). The absorption blueward of Si ii line has been identified with Na i possibly contaminated by He i in other BL-Ic SNe (Pandey et al. 2003; Valenti et al. 2008a; Hunter et al. 2009; Sahu et al. 2009).

The absorption feature at 6250 Å redward of Si ii 6355 Å is prominently seen in the pre-maximum spectra obtained till −5 d. The next spectrum taken at +2 d shows only a small kink and beyond that the feature is not seen. This absorption feature was also detected in the early-phase spectrum of SN 2007gr (Valenti et al. 2008b), SN 2004aw (Taubenberger et al. 2006) and SN 2013ge (Drout et al. 2016). In SN 2004aw and SN 2013ge, its possible association with C ii 6580 Å has been indicated. In some other cases, this line has also been identified with He i 6678 Å line. It is argued by Valenti et al. (2008b) that due to increased diffusion of γ-rays with time (Mazzali & Lucy 1998), the intensity of lines due to He i is expected to increase. The fact that this line was seen in the pre-maximum spectra of SN 2007gr and disappeared in the spectra taken close to maximum led them to identify this line as C ii 6580 Å . They have confirmed detection of carbon by identifying C ii 7234 Å in the early phase optical spectra of SN 2007gr and strong C i line (at 8335, 9094 and 9405 Å ) in the optical and (at 10 400 Å ) NIR spectrum at around two weeks past B-maximum. As the expected position of C ii 7234 Å line in ASASSN-16fp is very close to the telluric absorption, it is difficult to identify this line. However, we do see a broad absorption around 9000 Å in the spectra of around two weeks after maximum light (see Section 4.2). It is suggested by Hunter et al. (2009) that the broad absorption seen ∼9000 Å in the spectrum of SN 2004aw and SN 2003jd may be due to blending of the C i lines (at 8335, 9094 and 9405 Å ). If the absorption redward to Si ii is identified with C ii 6580 Å, the velocity estimated using this line is always found to be lower than the velocity measured using Si ii 6355 Å line (cf. Fig. 9, top panel).

In the early phase spectra, the absorption features at 5500, 6300 and 6850 Å are identified as He i (5876, 6678 and 7065 Å ) by Yamanaka et al. (2017) at an expansion velocity of ∼18 000 km s⁻¹. Assuming this identification, the velocities estimated from our spectra are plotted in the top panel of Fig. 9. It is evident from the figure that the velocities estimated using these lines match well with those inferred using the Si ii 6355 Å line. It is shown by Parrent et al. (2016) that ambiguity is always present in identifying the absorptions at ∼5500 Å with Na i and He i, at ∼6200 Å with Si ii and H i, and at ∼6300 Å with C ii and He i. This degeneracy can partially be removed with the help of NIR spectra. Unfortunately, we do not have NIR spectra of ASASSN-16fp for a firm identification.

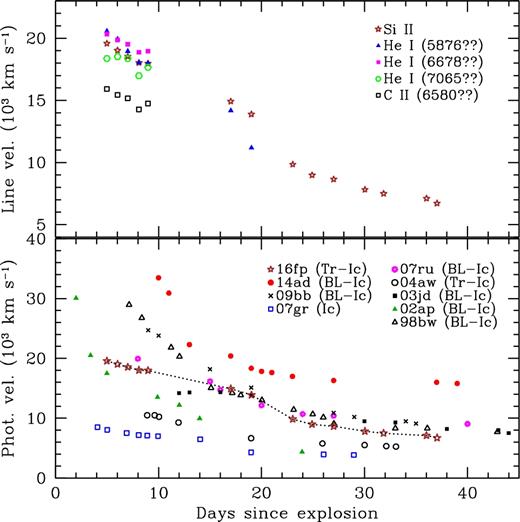

The Fe ii lines provide a good estimate of the photospheric velocity, but usually, these are blended. Therefore, Si ii 6355 Å line is considered as the tracer of the photospheric velocity of the ejecta (though contamination of some ions may persist, e.g. detached He i 6678 Å, detached C ii 6580 Å and detached H α, see Clocchiatti et al. 1996; Branch et al. 2006; Elmhamdi et al. 2006). We used Si ii line to estimate the photospheric velocity by fitting Gaussian profile to the absorption trough in the redshift-corrected spectra. The resulting velocities of ASASSN-16fp along with other well-observed SNe are overplotted in Fig. 9 (bottom panel). It is worth mentioning that among BL-Ic, SN 1998bw (GRB associated), 2002ap and 2014ad show very high expansion velocities (reaching around 30 000 km s⁻¹) few days after the explosion. In the post-maximum phase (>20 d), the velocity dispersion is small and a majority of the BL-Ic events stay around ∼8000 km s⁻¹. The photospheric velocity of ASASSN-16fp declined from ∼19 500 km s⁻¹ to ∼14 000 km s⁻¹ during ∼5 to ∼20 d after the explosion and beyond ∼25 d, it flattened around 8000 km s⁻¹. The photospheric velocities of SN 2004aw and SN 2007gr are low, and evolve at a slower rate as compared to BL-Ic. Among the samples presented here, the velocity of ASASSN-16fp lies between BL-Ic and Ic (normal and transitional) events.

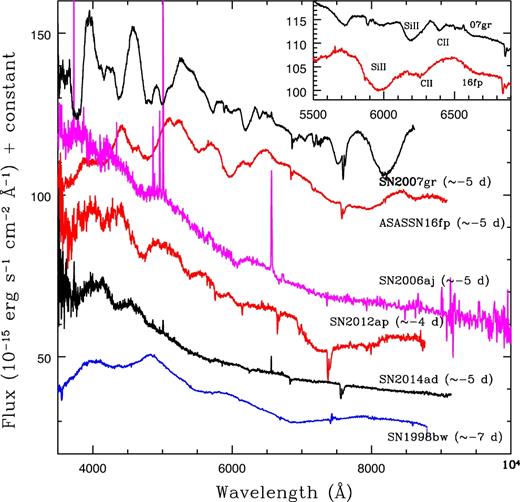

In Fig. 10, the spectrum of ASASSN-16fp at ∼−5 d is compared with the similar epoch spectra of other BL-Ic and Ic SNe. Though ASASSN-16fp has been classified as BL-Ic, the difference between the spectrum of ASASSN-16fp and other BL-Ic SNe is obvious. The spectra of other BL-Ic events, obtained ∼−5 d, show just a few broad absorption features, superimposed on a blue continuum. In the spectrum of ASASSN-16fp, features due to various species are well developed and the continuum is relatively red. The spectral features of ASASSN-16fp appear to be broader than the normal Type Ic SN 2007gr and narrower than other BL-Ic SNe. However, because of the high expansion velocity of the ejecta, features of ASASSN-16fp are more blueshifted and the O i and Ca ii NIR triplet are heavily blended. The O i and Ca ii NIR triplet are not developed in the spectra of SN 1998bw, SN 2006aj and SN 2014ad taken around the same epoch. The spectrum of SN 2002ap shows some signature of these lines at ∼−4 d.

4.2 Post-maximum spectral evolution

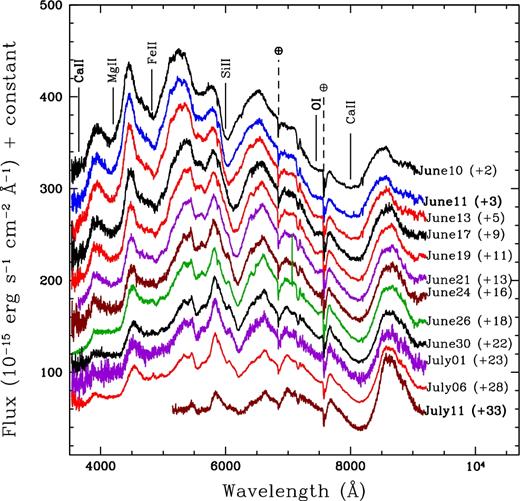

The post-maximum spectral evolution of ASASSN-16fp is displayed in Fig. 11. It includes spectra obtained between +2 and +33 d relative to B-band maximum. The spectral evolution during this phase is characterized by the presence of continuum and absorption troughs. The appearance of such features in the last spectrum presented here (+33 d) implies that the SN remained in the photospheric phase until then. Similar to the light curve, the spectral evolution is also found to be slow. Most of the features observed in the pre-maximum spectra continue to be present. The feature redward of Si ii 6355 Å line disappeared in the spectra obtained during the post-maximum phase. The Si ii 6355 Å absorption starts becoming narrow. The blending of O i with Ca ii NIR triplet reduces and by ∼30 d, both lines appear separated, though the O i line is contaminated by the telluric absorption. The blend of Fe ii lines (4924, 5018 and 5169 Å ) seen as broad absorption at ∼5000 Å in the pre-maximum spectra is getting resolved into its components. Similarly, the absorption at ∼5500 Å starts splitting possibly into He i and Na i. After ∼+15 d, some new lines start appearing around the Si ii 6355 Å line, which have been identified by Parrent et al. (2016) as due to O i, Fe ii and Ne i (Valenti et al. 2008b). In the red part of the spectrum, the Ca ii NIR triplet is dominating the spectrum and progressively the emission component becomes stronger.

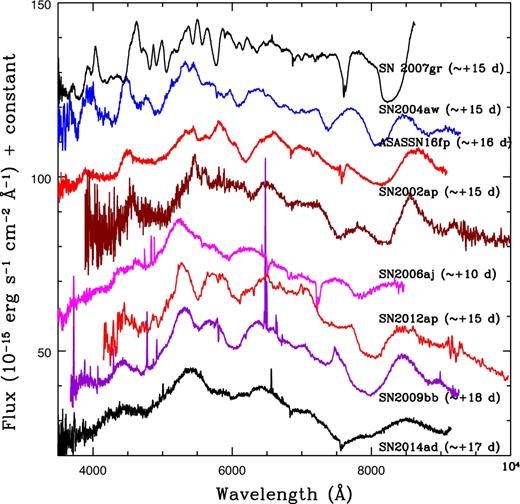

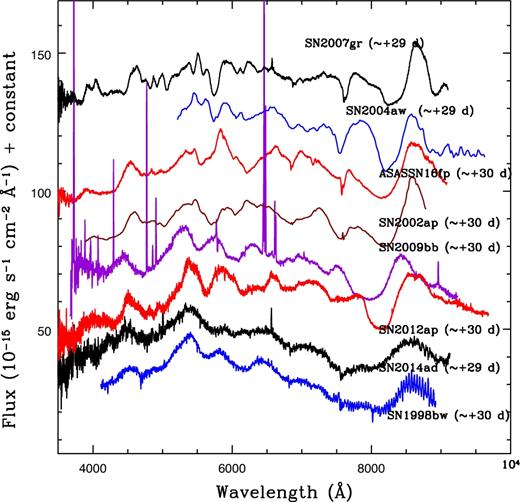

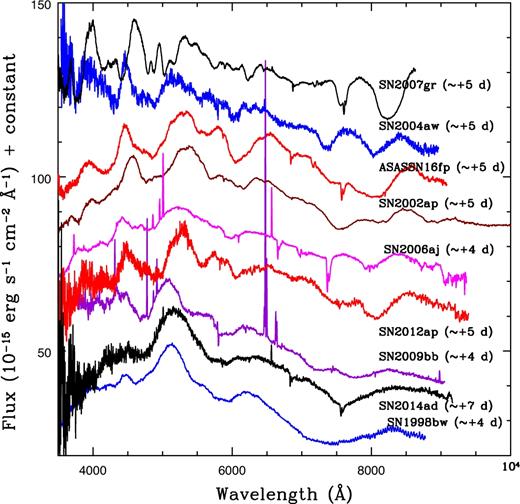

In Figs 12 –14, the post-maximum spectra of ASASSN-16fp obtained at ∼+5, ∼+15 and ∼+30 d have been compared with other well-studied Type Ic and BL-Ic SNe. As ASASSN-16fp evolved, the difference between its spectra and other less energetic BL-Ic events reduces. The spectrum of ASASSN-16fp obtained at ∼+5 d is overall very similar to the spectrum of SN 2002ap, SN 2009bb and SN 2012ap. All the spectral lines in ASASSN-16fp are broader than those in SN 2007gr and narrower than SN 1998bw and SN 2014ad. This trend continues until the last spectrum presented here. The features in the spectrum of ASASSN-16fp are better resolved than in other BL-Ic SNe and are marginally broader and blended than in SN 2004aw. The spectra of ASASSN-16fp at ∼+15 and ∼+30 d continue to show the strong feature at ∼6300 Å identified with Si ii in the pre-maximum spectrum. In the spectra of other objects, the width and strength of this feature is relatively weak. The Na i line in the BL-Ic SNe ∼ +30 d shows broad absorption, while SN 2007gr and SN 2004aw show a sharp absorption feature. The width of Na i line in ASASSN-16fp seems to lie in between the BL-Ic and transitional Type Ic SN 2004aw.

5 SUMMARY AND CONCLUSIONS

We have presented the results based on photometry (optical and Swift UV) and optical spectroscopy of the transitional Type Ic SN ASASSN-16fp. The pre-maximum rise and early decline of the light curves are slow, making them broader in all the bands. There is no established co-relation between rise and decay time for SE-SNe. However, the light-curve evolution of ASASSN-16fp follows a general trend of slow risers being also slow decliners (see also Prentice et al. 2016).

The peak in I band is significantly delayed (∼7 d) with respect to B-band maximum, which is found to be longer than the offset between B- and I-band maximum for Type Ic and BL-Ic SNe (cf. Drout et al. 2011; Taddia et al. 2015). In case of SN 2004aw, the delay was ∼8 d (Taubenberger et al. 2006). It is noticed that light-curve evolution of ASASSN-16fp and transitional Ic SN 2004aw (Taubenberger et al. 2006) exhibit similarities in all bands (cf. Fig. 3) including the similar Δm₁₅ values in BVRI bands (see Section 3). In addition to ASASSN-16fp and SN 2004aw, there are just a handful of SE-SNe that have remarkably broad light curves with much longer rise times. The BL-Ic SN 1997ef (Iwamoto et al. 2000; Mazzali et al. 2004), normal Type Ic SN 2011bm (Valenti et al. 2012) and iPTF15dtg (Taddia et al. 2016) have a rise time of ∼35 d. The long rise time in these events suggests large ejecta mass, indicating massive Wolf–Rayet stars as their progenitor.

A combination of gradual cooling of the expanding ejecta and variation in the ionization states of different species results in flux change, which consequently appear in the form of temporal evolution of the colour. The colour evolution of SE-SNe shows large dispersion (cf. Fig. 5). The slow evolution and relatively redder B − V colour of ASASSN-16fp suggest a low photospheric temperature and/or a slower cooling rate of the ejecta. The absolute luminosity of SE-SNe also shows a large variation, the BL-Ic are generally found to be brighter than the normal Ic events (cf. Lyman et al. 2016; Prentice et al. 2016). The absolute V-band luminosity of ASASSN-16fp lies towards the fainter end of the absolute luminosity distribution of BL-Ic SNe. Its luminosity is comparable to transitional Type Ic SN 2004aw and brighter than normal Type Ic SN 2007gr. A detailed discussion on the bulk photometric properties of SE-SNe can be found elsewhere (e.g. Drout et al. 2011; Bianco et al. 2014; Taddia et al. 2015; Prentice et al. 2016). It appears that the light-curve evolution pattern does not have a direct impact on colour curves and absolute luminosity values. Nonetheless, such distribution points towards different progenitor channels and explosion mechanisms.

The spectral evolution of ASASSN-16fp exhibits a similarity with the transitional Type Ic SN 2004aw. The width of the spectral lines of ASASSN-16fp are intermediate between transitional Type Ic SN 2004aw and BL-Ic SN 2002ap (Gal-Yam et al. 2002; Mazzali et al. 2002; Foley et al. 2003). Most of the well-developed spectral features were present in the first spectrum obtained ∼−9 d and were found to evolve slowly. The initial photospheric velocity of ASASSN-16fp was moderately high (∼20 000 km s⁻¹), comparable to SN 2007ru at similar epochs. In the pre-maximum phase, C i lines were detected but with weaker strength than SN 2007gr.

Recently, Yamanaka et al. (2017) have presented their results on ASASSN-16fp. They have identified He i lines in their pre-maximum spectra and classified this event as broad-lined Type Ib SN. However, they also mentioned that in many respects ASASSN-16fp is similar to a BL-Ic SN (see their section 3.1). The classification of SNe Ib and Ic (BL-Ic) is based on presence or absence of He i lines in their spectra, though it is debatable. Some theoretical models predict that progenitors of Ic SNe may contain helium (e.g. Dessart et al. 2012), but others argue in favour of helium-free SN Ic progenitors (e.g. Hachinger et al. 2012; Frey, Fryer & Young 2013). In some of the Ic and BL-Ic SNe, He i lines have been detected, e.g. SN 1994I (Clocchiatti et al. 1996), SN 2004aw (Taubenberger et al. 2006), SN 2009bb (Pignata et al. 2011) and SN 2012ap (Milisavljevic et al. 2015). In case of SN Ib, the strength of the He i lines increases with time (Mazzali & Lucy 1998; Matheson et al. 2001). Yamanaka et al. (2017) have shown that around 15 d after explosion, the He i lines became very weak in ASASSN-16fp. The identification of He i 20 587 Å in the NIR spectrum is another strong clue to confirm the presence of the helium (Taubenberger et al. 2006). A better follow-up of NIR spectrum along with non-local thermodynamic equilibrium spectral codes (to properly treat non-thermal excitations) could help identify the helium features more robustly, shedding some light on evolutionary stages of massive stars (e.g. Yoon & Langer 2005; Langer 2012).

The light curve and spectral evolution of ASASSN-16fp indicate that it is a transitional Type Ic SN (similar to SN 2004aw), having spectral properties between normal Type Ic and broad-lined Type Ic. The synthesized radioactive ⁵⁶Ni powers the SN light curve. The ⁵⁶Ni mass in BL-Ic/GRB-SNe is generally high (Drout et al. 2011; Cano 2013; Lyman et al. 2016; Prentice et al. 2016), making them more luminous than other SE-SNe. However, it may also be possible that even if a similar amount of ⁵⁶Ni is produced, the slow expanding SNe may be fainter (Cano et al. 2017). Furthermore, the location and degree of mixing of nickel will also affect the observational features. The occurrence of late peak and slow evolution of the light curve of ASASSN-16fp may possibly be due to the shallow distribution and deeply located ⁵⁶Ni in the ejecta (see Piro & Nakar 2013).

The explosion parameters of ASASSN-16fp were estimated by fitting Arnett–Valenti analytical model to the bolometric light curve (see Section 3.4). The derived value of mass of the ejecta (M_ej) ∼4.5 ± 0.3 M_⊙ and kinetic energy (E_k) |${\sim }6.9^{+1.5}_{-1.3}$| × 10⁵¹ erg are comparable to those of other BL-Ic events (Lyman et al. 2016). However, mass of ⁵⁶Ni (M_Ni) 0.10 ± 0.01 M_⊙ for ASASSN-16fp is found to be lower than the median value estimated for BL-Ic SNe (Cano 2013; Lyman et al. 2016). We also estimated physical parameters of ASASSN-16fp using Vinkó's analytical model and the derived values were found to be consistent with those obtained from Arnett–Valenti model.

The observed diversity in Ic/BL-Ic SNe has been attributed to the asphericity of the ejecta and/or jet-induced explosions (e.g. Khokhlov et al. 1999; Kawabata et al. 2002). The spectropolarimetric/polarimetric data will be helpful in constraining the geometry of the explosion. The spectral evolution during the nebular phase will reveal the deeper layers of the ejecta. The line profile in the nebular phase also provides clues about the geometry of the ejecta. Mazzali et al. (2005) suggested that double-peaked emission-line profiles of [O i] may be indicative of asymmetric geometry of the explosion. Such features have been found in many SNe (Maeda et al. 2008; Modjaz et al. 2008; Taubenberger et al. 2009; Milisavljevic et al. 2010). A critical analysis of the nebular phase spectra of ASASSN-16fp will be useful for understanding the observed properties in greater detail.
