Quantitative spectroscopy of extreme helium stars Model atmospheres and a non-LTE abundance analysis of BD+10°2179 Free

Abstract

Extreme helium stars (EHe stars) are hydrogen-deficient supergiants of spectral type A and B. They are believed to result from mergers in double degenerate systems. In this paper, we present a detailed quantitative non-LTE spectral analysis for BD+10°2179, a prototype of this rare class of stars, using UV-Visual Echelle Spectrograph and Fiber-fed Extended Range Optical Spectrograph spectra covering the range from ∼3100 to 10 000 Å. Atmosphere model computations were improved in two ways. First, since the UV metal line blanketing has a strong impact on the temperature-density stratification, we used the atlas12 code. Additionally, We tested atlas12 against the benchmark code sterne3, and found only small differences in the temperature and density stratifications, and good agreement with the spectral energy distributions. Secondly, 12 chemical species were treated in non-LTE. Pronounced non-LTE effects occur in individual spectral lines but, for the majority, the effects are moderate to small. The spectroscopic parameters give T_eff =17 300±300 K and log g = 2.80±0.10, and an evolutionary mass of 0.55±0.05 M_⊙. The star is thus slightly hotter, more compact and less massive than found in previous studies. The kinematic properties imply a thick-disc membership, which is consistent with the metallicity [Fe/H] ≈ −1 and α-enhancement. The refined light-element abundances are consistent with the white dwarf merger scenario. We further discuss the observed helium spectrum in an appendix, detecting dipole-allowed transitions from about 150 multiplets plus the most comprehensive set of known/predicted isolated forbidden components to date. Moreover, a so far unreported series of pronounced forbidden He i components is detected in the optical-UV.

1 INTRODUCTION

Extreme helium stars (EHe stars) are a rare class of hydrogen-deficient supergiant of spectral types A and B. The atmospheres are strongly enriched in helium, carbon, nitrogen and neon. Helium is the most abundant element, carbon is often the second most abundant, while hydrogen is highly depleted by a factor of 100 or more. Only 18 bona fide EHe stars are known today,¹ which means that they have to be produced by an unusual process or they represent a very short-lived stage of evolution, or both (Jeffery 2008a). No known EHe star shows evidence of any binary companion (Jeffery, Drilling & Heber 1987), widespread radial velocity variations result from small-amplitude pulsations (Jeffery 2008a).

The chemical composition indicates highly processed material produced by hydrogen and helium burning. The origin and evolution of these stars remained a puzzle over the decades. Two different evolution models emerged. The double degenerate model (DD) calls for a white dwarf merger in a close binary system (Webbink 1984; Iben & Tutukov 1984). The other, the final flash model (FF), evokes a late or very late thermal flash in a post-asymptotic giant branch (post-AGB) star which forces the star to expand and start the post-AGB sequence again (e.g. Schönberner 1977; Iben et al. 1983).

Webbink (1984) and Iben & Tutukov (1984) introduced the DD model involving the merger of a carbon/oxygen and a helium white dwarf due to the decay of their orbit. The initial system consists of a binary system of two main-sequence stars. The more massive star in the binary system evolves first to become a red giant and fill its Roche lobe. Unstable mass transfer will lead to a common envelope (CE) phase. Friction, loss of orbital energy and therefore a decay of the binary orbit forces the ejection of the CE. After that, the less massive star will evolve to become a red giant and another CE will be formed which leads to a further shrinkage of the orbit. Left over is a short period binary system consisting of a carbon/oxygen and a helium white dwarf. Because of gravitational wave radiation the orbit of the binary system decays until the helium white dwarf fills its Roche lobe. Due to tidal forces the helium white dwarf will be disrupted. A debris disc around the CO white dwarf is created. When a sufficient amount of helium has been accreted, the helium ignites and forces the star to expand and become a yellow supergiant. The star will probably appear as an R Coronae Borealis star. Due to contraction the star will evolve to become an EHe star and ends up as a massive carbon/oxygen white dwarf. A detailed model was developed by Saio & Jeffery (2002) and Jeffery, Karakas & Saio (2011) from which the surface abundances of the resulting EHe star were predicted. The absence of close companions, observed abundances and number densities prefers the merger of a carbon/oxygen and a helium white dwarf as the origin of the observed EHe stars.

The FF model corresponds to a late or very late thermal pulse when the star is already on the post-AGB sequence. Helium burning in an AGB star is unstable and results in so-called thermal pulses. If the pulse happens when the star is already on the post-AGB sequence the remaining envelope mass is small enough (≲10⁻⁴ M_⊙) that the pulse has a significant impact on the outer layers and forces the star to become a cool supergiant (Bloecker 2001). A convection zone mixes the processed material to the surface. The models predict a remaining hydrogen abundance of about 2 per cent. The enrichment of carbon, oxygen and helium depends strongly on the position where the late thermal pulse takes place, how effectively the convective zone brings processed material to the surface and whether overshooting does or does not occur (Bloecker 2001). When the star reaches the supergiant phase again a stable helium burning shell is established and the star starts the post-AGB evolution once more. The FF model predicts much higher oxygen and carbon abundances than observed in EHe stars (Herwig et al. 1999).

The best-studied EHe star is BD+10°2179 (DN Leo, HIP 52123) which was identified as an extreme helium star by Klemola (1961). The first abundance analysis was carried out by Hill (1965), and the first fine analysis by Hunger & Klinglesmith (1969). The latter found the atmosphere to be dominated by carbon (55 per cent by mass) and helium (45 per cent by mass), with hydrogen being only a trace element (0.01 per cent). Heber (1983) re-analysed BD+10°2179 from photographic optical spectra and high-resolution UV spectra and found that the carbon abundance is closer to 1 per cent by number whereas the helium abundance is much higher at 98.9 per cent by number, with effective temperature T_eff = 16 800 ± 600 K and surface gravity log g = 2.55 ± 0.2. The abundances of Ti, Cr, Mn, Fe, Co and Ni were found to be about one-tenth solar, only, indicating that BD+10°2179 belongs to an old stellar population. A contemporary analysis of the flux distribution alone yielded T_eff = 17 700 ± 600 K (Drilling et al. 1984). The most recent analysis of BD+10°2179 in which the spectrum was calculated entirely under the approximation of local thermodynamic equilibrium (LTE) was by Pandey et al. (2006). They found T_eff = 16 900 K and log g = 2.55±0.2 from the UV spectra but T_eff = 16 400 K and log g = 2.35 ±0.2 from the optical. Their helium and carbon abundances are similar to those of Heber (1983), but some of the other elements are highly discrepant, up to 0.82 dex for Mg. Jeffery & Hamann (2010) employed hydrodynamical non-LTE model atmospheres in spherical geometry as computed with the powr code to investigate mass-loss in EHe stars. For BD+10°2179 they adopted T_eff = 18 500 K – a significantly higher value than found in all other studies – and log g = 2.6. Pandey & Lambert (2011) carried out a hydrostatic non-LTE analysis of BD+10°2179 using the model atmosphere program tlusty including H, He, C, N, O and Ne in non-LTE. They found T_eff = 16 375 ± 250 K and log g = 2.45 ± 0.2, which is similar to former LTE analyses.

The aim of this work is to carry out a quantitative spectral analysis for BD+10°2179 using a high-resolution spectrum and comprehensive non-LTE techniques. The observations and data reduction are described in Section 2. Before the spectroscopic analysis was carried out using atlas12 models a detailed comparison against the benchmark code sterne3 was mandatory since atlas12 has never before been applied to such unusual conditions. Section 3 describes the model atmospheres. Section 4 shows the results of the comparison of sterne3 and atlas12. The quantitative spectral analysis is described in Section 5, while the fundamental stellar parameters and the kinematic properties are discussed in Section 6. Finally, the results are discussed in the context of previous analyses (Section 7) and conclusions are drawn in Section 8. Details on the observed helium spectrum are collected in an appendix.

2 OBSERVATIONS AND DATA REDUCTION

The spectra of BD+10°2179 used for this work were observed on 2006 April 12 with Fiber-fed Extended Range Optical Spectrograph (feros; Kaufer et al. 1999) on the Max Planck Gesellschaft/European Southern Observatory (MPG/ESO) 2.2-m telescope in La Silla, Chile, and on 2006 May 16 with UV-Visual Echelle Spectrograph (uves; Dekker et al. 2000) on the ESO Very Large Telescope (VLT) at Paranal, Chile. The resolving power R = Δλ/λ provided by feros is 48 000, covering a useful wavelength range from 3800 up to 9200 Å. The uves observations employed the dichroic mode #2 to cover the optical-UV region in a useful range ∼3200–3850 Å in the blue and ∼6650–8540 Å and ∼8650–10 240 Å in the red simultaneously. A measured R ≈ 37 500 was achieved with a 1 arcsec slit. Good atmospheric conditions (0.8 arcsec seeing) and an exposure time of 2820 s yielded a signal-to-noise ratio S/N ≈ 300 pixel⁻¹ near 5000 Å of the feros data. A S/N ≈ 200 was achieved in the 1000 s exposure with uves at 8700 Å (0.9 arcsec seeing). Note that we largely discarded the optical-UV and IzY-band spectra for the present quantitative analysis, as the spectral region is dominated by the high-series members of the He i lines originating from the 2p^{1, 3}P^o and 3s^{1, 3}S, 3p^{1, 3}P^o and 3d^{1, 3}D levels, respectively, which we cannot model because of the lack of appropriate line-broadening data.

Data reduction was accomplished using ESO-midas pipelines and our own recipes. It covered the usual steps of bad pixel and cosmic correction, bias and dark current subtraction, removal of scattered light, optimal order extraction, flat-fielding, wavelength calibration using Th-Ar exposures and merging of the échelle orders. Finally, large-scale variations of the spectral response functions were removed by using the featureless spectrum of the DC white dwarf WD1917-07 as continuum tracer (for the uves data; for details of the method see Koester et al. 2001), and the (well-modelled) subdwarf B star HD188112 in the case of the feros spectrum, yielding a well-normalized spectrum of BD+10°2179.

Overall, our observational data are comparable in quality to the optical spectra employed by Pandey et al. (2006) and Pandey & Lambert (2011) for the analysis of BD+10°2179, but having a much wider wavelength coverage. The slightly lower spectral resolution of our data has no consequences for the quantitative analysis, as the instrumental width is negligible compared to rotational/macroturbulent broadening in this star.

For additional He i line identifications blueward of our spectra, Hubble Space Telescope Space Telescope Imaging Spectrograph (HST STIS) spectra were extracted from the Mikulski Archive for Space Telescopes (MAST) archive,² a high-resolution spectrum obtained with the E230M grating (R ≈ 30 000) with wavelength coverage ∼1840–2674 Å (data set O6MB01020, as STARCAT high-level science product; Ayres 2010) and a low-resolution spectrum obtained with the G230LB grating (R ≈ 700) with wavelength coverage ∼1670–3074 Å (data set O66V14010). The latter data were originally discussed by Jeffery & Hamann (2010).

Finally, in order to assess the spectral energy distribution (SED) of BD+10°2179 we have extracted flux-calibrated spectra obtained with the International Ultraviolet Explorer (IUE: exposures SWP04825 and LWR04168) from the MAST archive. These low-dispersion/large-aperture data were first described by Heber (1983). Wide-band photometry in the Johnson UBV passbands was adopted from Mermilliod (1997) and in the 2MASS JHK passbands from Cutri et al. (2003). The magnitudes were converted to fluxes using the zero-points described by Heber et al. (2002).

3 MODEL ATMOSPHERES AND SPECTRUM SYNTHESIS

The unusual chemical composition of EHe stars requires care in the computation of appropriate stellar model atmospheres. To date, the majority of modern abundance analyses of EHes (for a review see Jeffery 2008a) have been carried out using the line-blanketed model atmosphere code sterne, together with the line-formation code spectrum, see Jeffery, Woolf & Pollacco (2001) for an overview. Classical assumptions are made, i.e. a chemically homogeneous stratification in plane-parallel geometry and hydrostatic and radiative equilibrium is considered, with the thermodynamic state of the plasma described by LTE. Line opacities are accounted for using an opacity distribution function (ODF) computed for a hydrogen-deficient mixture by Möller (1990) from the Kurucz & Peytremann (1975) line list. In a more recent version of the code, sterne3 (Behara & Jeffery 2006), improved continuous opacities were introduced,³ as well as an opacity-sampling (OS) procedure to deal with the line opacities, accounting for atomic transitions from Kurucz & Bell (1995). This resulted in significantly modified temperature structures of hydrogen-deficient OS models in comparison to the older ODF models. Models computed with sterne3 are one basis for the investigations here.

A second, widely distributed, code for the computation of classical line-blanketed LTE model atmospheres for chemically peculiar stars is atlas12 (Kurucz 1993, 1996). atlas12 employs the full set of Kurucz line lists, both the observed set of Kurucz & Bell (1995) as well as predicted lines, but some less state-of-the-art sources of continuous opacities. We use the code with He i photoionization cross-sections updated as described by Przybilla et al. (2005) as the second basis for our investigation. A comparison of sterne3 and atlas12 atmospheres will be made in Section 4.

In addition to the model atmospheres, which are held fixed in the following steps, non-LTE line-formation computations are performed with the package detail and surface (Giddings 1981; Butler & Giddings 1985). The former solves the coupled statistical and radiative transfer equations, providing non-LTE level populations, which are used by the latter to calculate the emergent flux from the formal solution, considering detailed line-broadening theories. The codes have undergone substantial extension and improvements over the years. Most important in our context are (i) the implementation of OS in analogy to Kurucz’ method in order to facilitate a realistic treatment of line blocking also for chemically peculiar stars, and (ii) the inclusion of an Accelerated Lambda Iteration scheme (Rybicki & Hummer 1991), which allows elaborate non-LTE model atoms to be used while keeping computational expenses moderate. Line formation calculations in LTE are performed with surface if non-LTE populations are not provided, with all other input data (background opacities, oscillator strengths, broadening data, etc.) being identical.

An overview of the non-LTE model atoms employed in this work is given in Table 1, which summarizes the number of explicit non-LTE levels in the different ionization stages, the number of radiative bound–bound transitions and the reference to the model atom. Typically, the levels are terms and the transition multiplet transitions. In some cases, additional ‘superlevels’ were considered (indicated by the ‘+’ sign), which were packed over many levels. Additional ionization stages were also considered, typically consisting either of the ground state of the next higher ionization stage only, or of simple models of low complexity. In the case of Ne i, the levels are fine-structure components. Several of the model atoms have been updated recently, mostly by consideration of improved oscillator strengths and collisional data. A major source of oscillator strengths are Froese Fischer & Tachiev (2004) and Froese Fischer, Tachiev & Irimia (2006), based on extensive computations using the multiconfiguration Hartree–Fock method that included relativistic effects through a Breit-Pauli Hamiltonian, which improve over earlier Opacity Project and IRON project data both in accuracy and precision. Sources of the data used in the quantitative analysis are summarized in Table A3. Note that the original input data for line-formation computations of Fe iii were corrected according to Nieva & Przybilla (2012).

Both the hybrid non-LTE approach as well as the model atoms were thoroughly tested and successfully applied in environments similar to those encountered in supergiant B-type extreme helium stars: massive BA-type supergiants (which in particular have similar luminosity-to-mass ratios to supergiant EHes; Przybilla et al. 2006) and He-strong B-stars (Przybilla et al. 2016). In these cases, significantly better modelling of the observed spectra was achieved than was possible with LTE techniques. We expect non-LTE effects to be significant here as well. However, in contrast to these previous cases, hydrogen is almost completely absent here and therefore does not contribute significantly to the continuous opacity. Helium also provides little opacity between the ultraviolet region long-ward of the He i ionization threshold. Instead, the metals take over the role of main opacity sources, with carbon being the most important. Consequently, the trace species approach – assuming that the individual metals can be treated separately, because they do not affect the atmospheric structure – does not hold here any longer. We therefore solved the rate equations and radiative transfer for most of the chemical species simultaneously in order to account for mutual interactions. In order to keep the resulting equation systems and run times manageable, three combinations of model atoms were realized: HHeCNOMgAlSiSAr, HHeCNONeMgSi and HHeCNOMgSiFe. This was driven by the high complexity of the current model atoms for neon and iron, and facilitated by the trace-species character of Al, S and Ar because of their lower abundances.

An a posteriori check of the departure coefficients of the energetically low-lying states of the main ionization stages of the abundant metals shows that these are close to LTE at depths relevant for continuum formation, i.e. the continuous opacities are not driving the atmospheric structure significantly out of LTE. Concerning the line opacities, non-LTE effects strengthen some and weaken other transitions. Overall, the LTE OS used for the atmospheric structure calculations should therefore give a statistically meaningful average opacity. In consequence, we expect our hybrid non-LTE approach to provide a realistic approximation to full non-LTE model atmosphere calculations, which, however, are beyond the scope of present capabilities if model atoms as complex as ours should be used. On the other hand, exactly this complexity is required to reproduce the minute details of the observed spectrum.

A comment has also to be made on line broadening. In a largely ionized plasma like the atmosphere of BD+10°2179 line broadening occurs through the Stark and Doppler effect. Contributors to the Stark effect are electrons and protons in stars of normal composition. Few protons are present in this case, replaced by single-ionized helium and ionized carbon. It may therefore seem at first glance that the standard treatment based on tabulations of broadening coefficients due to electrons and protons are inapplicable. However, one has to recall that (i) collisions with protons provide only a minor contribution to the dominating broadening by electron collisions, and (ii) the mass ratio between electrons on the one hand and helium or carbon particles on the other hand is larger for protons, resulting in heavy particle velocities lowered by a factor 2 to ∼3.5. The contribution of heavy particles to the line broadening is therefore neglected in this case.

A powerful fitting routine was used for a semi-automatic comparison of the observed and theoretical spectra in order to derive atmospheric parameters and elemental abundances. spas⁴ provides the means to interpolate between model grid points for up to three parameters simultaneously and allows instrumental and rotational broadening functions to be applied to the resulting theoretical profiles. The program uses the downhill simplex algorithm (Nelder & Mead 1965) to minimize χ² in order to find a good fit to the observed spectrum. The chemically peculiar nature of EHe stars prohibits the use of large pre-computed grids for the analysis as we have employed in previous work (Nieva & Przybilla 2012; Irrgang et al. 2014). Instead, microgrids for a small part of parameter space were computed, starting around an initial model based on an LTE analysis of BD+10°2179, and iteratively refined to bring the various parameters and abundance indicators into agreement, see Section 5 for a discussion.

4 COMPARISON BETWEEN Atlas12 AND Sterne3

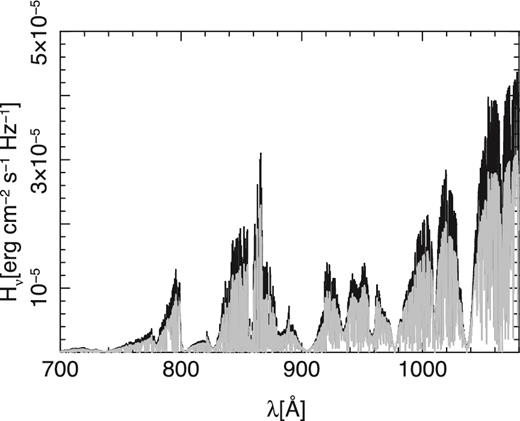

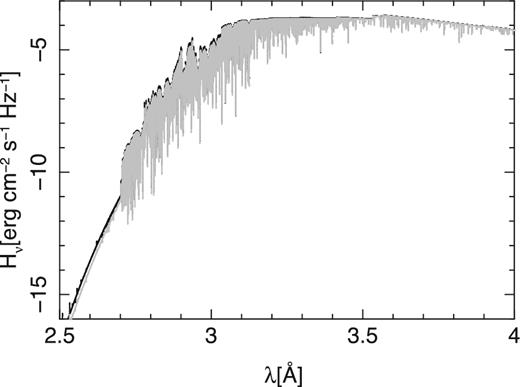

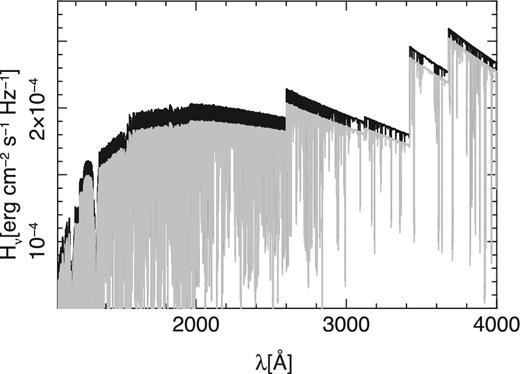

Stars with chemical compositions similar to BD+10°2179 place high requirements on programs which model the atmospheric stratification. With lower continuous opacities, the observed spectrum samples layers at much higher densities than in the usual H-rich atmospheres. Therefore, these stars are good testbeds for a comparison between different model atmosphere codes. Before we describe the spectral analysis of BD+10°2179 a comparison between the model structures obtained with atlas12 and sterne3 and including a non-LTE formal solution with detail was done for a chemical composition typical of that found in EHe stars. Behara & Jeffery (2006) compared sterne3 and atlas9 for solar composition and found good agreement between both codes. Note that because of different normalizations for the abundances a small error in abundance notations could not be avoided.⁵

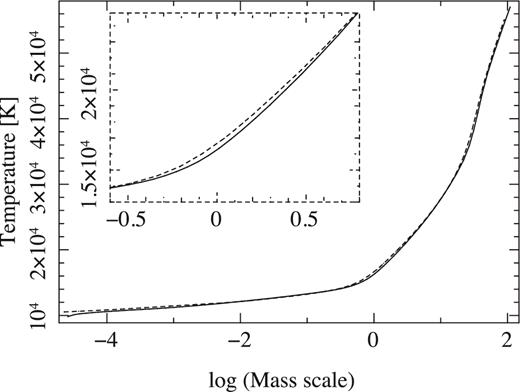

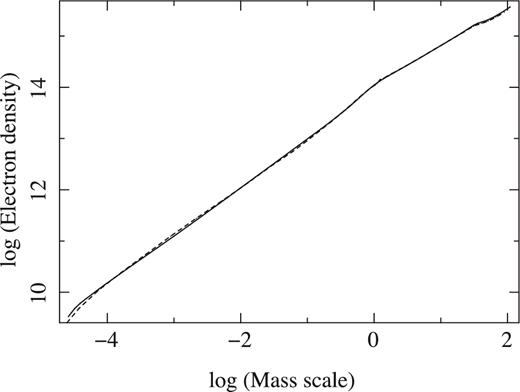

We compare the model atmosphere structures obtained with atlas12 and sterne3 by examining the temperature and electron density stratification as a function of mass. Fig. 1 shows the electron density stratification. Both codes match each other well. Small discrepancies can be seen in the temperature stratification (Fig. 2) especially in the region where line formation takes place, amounting to 2–3 per cent at maximum. The reason is likely due to the different opacities employed and other details in the model assumptions. From our previous experiences of normal B-type stars (Nieva & Przybilla 2007; Przybilla, Nieva & Butler 2011) one could expect that non-LTE effects on the atmospheric structure appear similarly small. Indeed, Pandey & Lambert (2011) find for the case of BD+10°2179 that the introduction of fully consistent non-LTE modelling (model atmosphere plus line analysis) has small effects on the atmospheric parameter determination as well as minor effects on many of the derived abundances when compared to a full LTE approach.

The structure from the atlas12 and sterne3 models are the input for the non-LTE calculation which was done using the code detail. The comparison of the non-LTE flux distribution based on the sterne3 and atlas12 structures overall matches (Fig. 3). A closer inspection shows that the Sterne3-based flux is in some regions only slightly higher than the atlas12-based flux (Fig. 4), while it is systematically higher in other regions (Fig. 5). The latter differences are explained by the higher local temperatures of the Sterne3 model at the depths where the UV/optical continuum is formed (see Fig. 2). The differences between the detail non-LTE fluxes on the one hand and the atlas12 and sterne3 LTE fluxes on the other hand are larger.⁶ The reasons for these are the non-LTE departures of the C i–iii levels that determine the continuous opacity and the resolved resonance structure of the photoionization cross-sections that is accounted for in the detail computations but not in the atlas12 calculations. These lead to the jagged appearance of the extreme-UV flux, while the atlas12 LTE flux based on parametrized photoionization cross-sections is much smoother (broad resonance structures are accounted for in the sterne3 LTE computations). We want to note that far-/extreme-UV spectroscopy of BD+10°2179 would offer a unique opportunity to investigate resonance structures in the photoionization cross-sections of carbon, which dominates the continuous opacity at these wavelengths.

For a comparison of the line profiles, surface was employed to compute synthetic spectra based on the sterne3 and atlas12 model atmospheres. Including/excluding the detail calculation leads to non-LTE/LTE line profiles for otherwise exactly the same input data. We focused on two issues. First, how large are the non-LTE effects, and secondly, how well matched are the line profiles when using either atlas12 or sterne3 models.

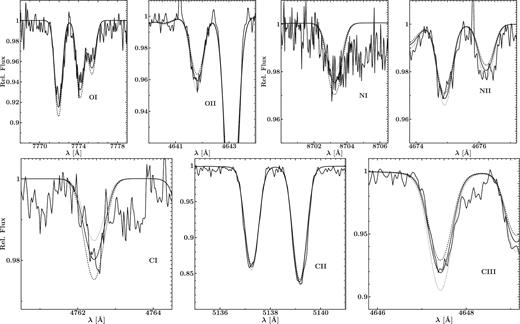

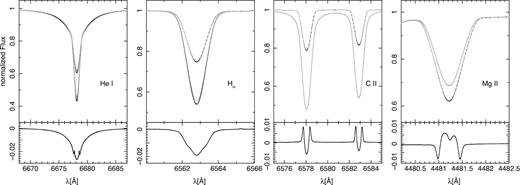

BD+10°2179 is a blue supergiant and our calculations show that non-LTE effects can be quite strong, at least for some spectral lines (Fig. 6). In non-LTE H α appears to be twice as strong as in LTE. Not only are hydrogen and helium lines affected, lines of heavier elements are also susceptible to non-LTE effects. The strong C ii doublet close to H α is one example for a significant change in the line profile. Another interesting line is Mg ii at 4481 Å (Fig. 6). Note that these are examples with strong non-LTE effects and that this is not the case for every line. Many features show only moderate to small non-LTE effects. Spectral lines experience both, a non-LTE increase of equivalent width (the majority of cases), as shown in Fig. 6, as well as a reduction of equivalent width in a few cases. Overall, the non-LTE effects become more pronounced towards the red. A comprehensive comparison between LTE and non-LTE profiles for the analysed spectral lines will be made in the next section.

The differences between non-LTE line profiles using sterne3 or atlas12 are very small (lower panels of Fig. 6). Hence, the small discrepancies in the temperature stratification and the flux distribution have a small impact on the line profiles which means that the results from a quantitative spectroscopic analysis should not show significant differences using atlas12 instead of sterne3 models. In the following section, the quantitative non-LTE analysis of BD+10°2179 using atlas12 models is described in full.

5 SPECTRAL ANALYSIS OF BD+10°2179

The helium-rich composition of BD+10°2179 changes the line-to-continuum opacity ratio and together with the high abundances of some key elements (see below) leads to a very rich line spectrum compared to a supergiant of similar stellar parameters with a normal (hydrogen-rich) composition. A large number of indicators is therefore available for the atmospheric parameter determination of the star. The hydrogen Balmer lines H α to H δ were used to constrain the hydrogen abundance, all major helium lines in the optical spectrum and the ionization equilibria of C i/ii/iii, N i/ii, O i/ii, Al ii/iii, Si ii/iii and Fe ii/iii (requiring that the same elemental abundance is derived from each ion within the uncertainties) were employed simultaneously to determine the effective temperature and surface gravity in an iterative way. At all stages, line-profile fits to the observation were used, with each spectral line given the same weight. A good match of all indicators was found for T_eff = 17 300 ± 300 K and log g = 2.80 ± 0.10. Fig. 7 visualizes the process to establish ionization balance. The different lines from the individual ionization stages react differently to modifications of T_eff, in this case to variations of ±300 K. Similar reactions were found with respect to log g-changes. Other parameters like the microturbulent velocity ξ, the (projected) rotational velocity v_rot sin i and the (radial-tangential) macroturbulent velocity ζ (e.g. Gray 2005, p. 433 ff.) also had to be constrained within the iterative procedure. Standard techniques were used for these, such as requiring elemental abundances to be independent of the strengths of the lines and minimizing residuals from the comparison of synthetic with observed line profiles for varying v_rot sin i and ζ (Firnstein & Przybilla 2012). Finally, abundances for all remaining elements were derived, again using line-profile fits. In total, we derived non-LTE abundances for 12 elements, so far, the most comprehensive non-LTE study of an EHe star. This covers almost all chemical species that show lines in the optical spectrum except for calcium and phosphorus.

The atmospheric parameters and average abundances for the measured ions, plus values for the total elemental abundance, are summarized in Table 2, where results from this work are also compared with data from the literature (Heber 1983; Pandey et al. 2006; Jeffery & Hamann 2010; Pandey & Lambert 2011), and with solar abundances (Asplund et al. 2009, on the usual abundance scale). The uncertainties stated are 1σ standard deviations that, with values of typically 0.04 to 0.10 dex, are comparable to those obtained for other object classes using the same analysis techniques. Systematic uncertainties of the abundance values due to uncertainties in the atmospheric parameters, continuum normalization and atomic data (oscillator strengths, photoionization and collisional cross-sections) can be expected to be of the same order of magnitude, based on our experiences for related objects (see e.g. Przybilla et al. 2000, 2001a,b; Przybilla & Butler 2001). Note that the standard error of the mean abundance – often stated in the context of abundance analyses – would be much lower in many cases, as typically many lines are analysed per ion. Results from the line-by-line analysis are summarized in Table A1 which is available in the electronic version of the article. There, the transitions are listed by ascending wavelength λ per ion. Excitation energies χ of the lower level of the transition are given, as well as the oscillator strength log gf, an accuracy indicator for the log gf-value and the source of the oscillator strength is identified. The final entry is the non-LTE line abundance ε normalized to log ∑μ_Xε(X) = 12.15, where μ_X is the atomic weight of element X. Note that apparently empty entries have been computed as blends, such that only one abundance value is derived from multiple components (only blends with lines from the same ion were considered in this case). Sources of Stark broadening parameters are also summarized in Table A1.

For comparison with Sun, mass fractions were also calculated, see Table 3. The chemical composition is dominated by helium and carbon, by ∼95 per cent and ∼5 per cent in mass fraction, followed by nitrogen and neon, both contributing about 0.1 per cent in mass fraction. All other elements are trace species. Using iron as a metallicity substitute, BD+10°2179 is confirmed to be in fact a metal-poor star of about one-tenth solar metallicity, showing signatures of α-enhancement to a degree characteristic for Population II stars. An exception is oxygen, which is depleted, probably because of nuclear processing.

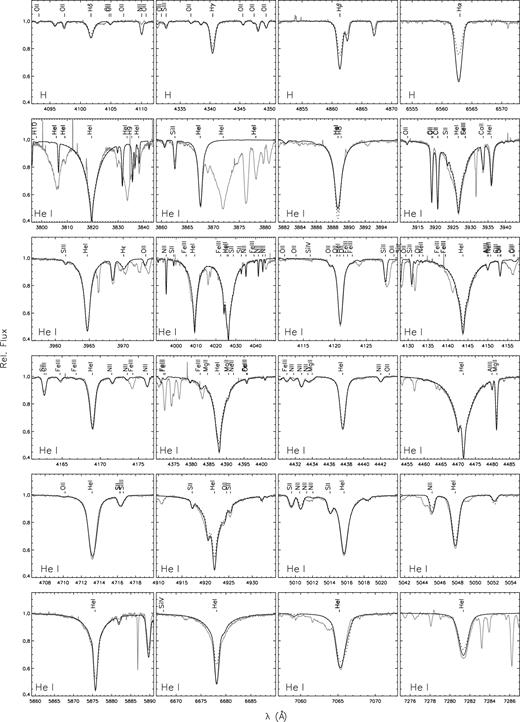

A consequence of the tightly constrained atmospheric parameters and the low scatter of abundance values within the individual elements is a close match of the resulting synthetic and observed spectra over wide wavelength ranges. Examples centred around the hydrogen Balmer and the classical optical He i lines are shown in Fig. 8. One has to stress that the comparison is based on one model spectrum based on one set of atmospheric parameters and elemental abundances. Nevertheless, the quality of the agreement between model and observation is good to excellent. In particular, the broadening of the He i lines in the optical is described well by the data provided by Griem et al. (1962), Griem (1964), Barnard, Cooper & Shamey (1969), Shamey (1969) and Dimitrijevic & Sahal-Brechot (1990).

For comparison, the corresponding LTE line profiles are also shown in Fig. 8. Non-LTE effects strengthen the hydrogen Balmer lines, with the effect diminishing towards the higher series members. Non-LTE effects on the He i line spectrum are more complex in BD+10°2179: while the sharp lines in the optical blue are virtually unaffected, the diffuse lines are slightly broader, the red lines are markedly deepened and He i λ3889 Å becomes shallower.

The broader picture, comprising the metal lines investigated in such detail for the first time, is shown in Figs A1–A4 which is available in the electronic version. The C i lines are systematically weakened in non-LTE (even weak lines), a consequence of the overionization of this species. Depending on the lower and upper levels involved in the C ii transitions, one may find non-LTE strengthening or weakening, while some lines are unaffected. The few observed C iii lines are overall strengthened by non-LTE effects. Lines of N i and O i, and about half of the N ii lines are strengthened by non-LTE effects, while the remainder of the N ii and the O ii are close to LTE. The overall largest non-LTE effects are found for Ne i, with the lines systematically strengthened by large amounts. The majority of the (weak) lines of the heavier elements are close to LTE, with the exceptions of several stronger lines, see in particular Figs A4 and A5 in the electronic version. We note that the non-LTE effects found here for BD+10°2179 cannot be generalized to the whole parameter space spanned by the class of EHe stars.

On the other hand, the observed spectrum contains many lines not included in the model, a situation different to B-type stars of normal composition (see e.g. figs 8–11 of Nieva & Przybilla 2012). Among the metal lines the reason is the large number of C ii lines that appear because of the high-carbon abundance and because of the unusual line-to-continuum opacity ratio in this star. These are transitions between high-lying energy levels, which are missing in the available model atom (Nieva & Przybilla 2006, 2008). An extension of the model atom is beyond the scope of this work. This needs to be addressed in a separate study. Another large number of transitions missing in the spectrum synthesis stems from He i. Again, missing energy levels in the available model atom (Przybilla et al. 2005) play a role – lines to upper levels with principal quantum number n = 20 are observed, whereas the model atom considers levels up to n = 8 only. The absence of reliable line-broadening data for these transitions in the literature is also crucial. Examples in the optical blue can be seen in the first two panels of the second row of Fig. 8 while the blue wing of He i λ7065 Å is an example of the deficits in the optical red spectrum. Otherwise, only the forbidden He i components predicted by Beauchamp & Wesemael (1998) are missing in the model of the optical spectrum. Their line-broadening tabulations for the appropriate low densities are not available to us. A detailed description of the He i spectrum of BD+10°2179 outside the classical optical range can be found in the appendix, which is available in the electronic version. In total dipole-allowed transitions from almost 150 multiplets are detected within our spectrum, plus 11 more in the HST STIS range. In addition, 23 forbidden components of He i are identified – many for the first time (see appendix).

Other observed lines not accounted for by the modelling are a few narrow interstellar lines like the Na D and Ca H&K lines, and the telluric absorption spectrum. Narrow features near H α and He i λλ 7065 and 7281 Å are examples of the latter in Fig. 8.

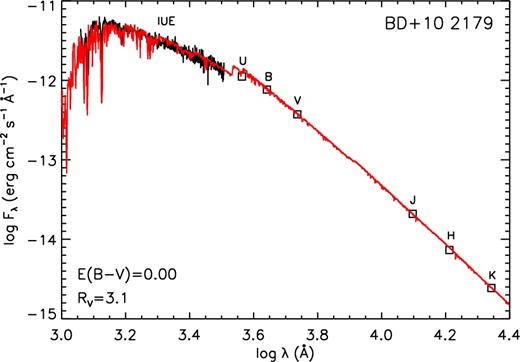

Finally, one can also verify the choice of the correct atmospheric parameters by comparison of the predicted with the observed SED on a global scale. The non-LTE flux as computed with detail is compared to the observed SED in Fig. 9. Good agreement is found under the assumption of zero reddening, strengthening the conclusions obtained on atmospheric parameters from the analysis of the He i line wings and metal line ionization equilibria. The very weak interstellar lines – equivalent widths of the Na D₁ and D₂ lines are e.g. 104 and 57 mÅ, respectively – are indeed consistent with a very low reddening. Schlafly & Finkbeiner (2011) give an E(B − V) = 0.02 towards the direction of BD+10°2179 obtained from a recalibration of the Milky Way foreground measured by the Cosmic Background Explorer (COBE), which sets an upper limit.

6 FUNDAMENTAL PARAMETERS AND KINEMATICS

Currently, a meaningful parallax measurement, and therefore the distance d of BD+10°2179 is unavailable. As a consequence, we cannot infer the fundamental parameters mass M, radius R and luminosity L directly on the basis of our atmospheric parameters alone. Only the luminosity-to-mass ratio L/M and the angular diameter θ can be determined. The latter is obtained from the scaling factor required to normalize the theoretical fluxes obtained from a stellar atmosphere calculation to those observed (Fig. 9). Our values for log L/M and θ (see Table 4) are both somewhat smaller than those derived by Heber (1983), a consequence of our higher log g and T_eff, respectively.

In a second step, one can constrain the mass by comparison with predictions from stellar models. The observed surface abundances indicate the presence of both CNO- and 3α-processed material. Therefore, stellar models based on the accretion of an He white dwarf by a CO white dwarf, such as those of Saio & Jeffery (2002), might be considered. The next section discusses this more fully. A comparison in the log T_eff–log g diagram (see Fig. 6 of Saio & Jeffery 2002) requires a small amount of extrapolation, as the surface gravity is higher than that of the lowest mass model available (the merger of a 0.5 M_⊙ CO with a 0.1 M_⊙ He white dwarf), yielding ∼0.55 M_⊙. In order to account for possible systematics because of model limitations for this complex evolutionary scenario, we estimate the mass uncertainty to be 0.05 M_⊙. This together with the atmospheric parameters constrains R and L, see Table 4.

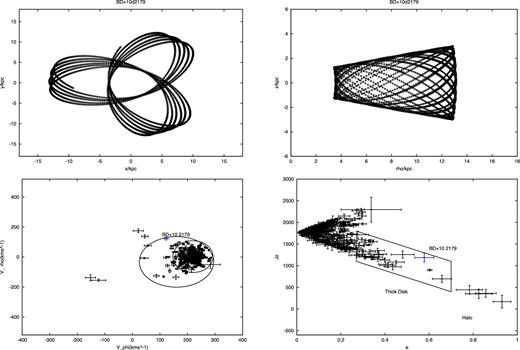

Further constraints on the nature of BD+10°2179 can come from the analysis of its kinematics. The input data for the orbital calculations in the Galactic potential are summarized in the left columns of Table 5: equatorial coordinates α, δ, d, radial velocity v_rad, and proper motions μ_α, μ_δ. The distance was computed following Ramspeck, Heber & Edelmann (2001). We employed the approach of Pauli et al. (2006). The code of Odenkirchen & Brosche (1992) was used for the computation of the orbit and the kinematic parameters; it uses a Galactic potential by Allen & Santillan (1991) as revised by Irrgang et al. (2013). The orbit was integrated from the present to 3 Gyr into the past. The right columns of Table 5 summarize the output, Galactic coordinates X, Y, Z and the velocity components V_ρ, V_ϕ, W. The kinematics of BD+10°2179 are visualized in Fig. 10, where the upper two panels show the orbit projected on to the X–Y and the ρ = |$\sqrt{X^2+Y^2}$|–Z planes. The lower two panels show the projection of the velocity components of BD+10°2179 in the V_ϕ–V_ρ plane and in the e–J_Z plane, where V_ϕ is the velocity component in the direction of Galactic rotation, V_ρ is the component in Galactic radial direction.⁷J_z is the component of the angular momentum of the star’s Galactic orbit perpendicular to the Galactic disc and e is the eccentricity of the Galactic orbit. In both cases, a comparison with the kinematic properties of the white dwarf sample of Pauli et al. (2006) is made in order to further constrain the population membership of BD+10°2179. We conclude that BD+10°2179 is a member of the Galactic thick disc population, which is also consistent with our inferred metallicity [Fe/H] ≈ −1 and α-enhancement.

7 DISCUSSION

7.1 Reassessment of surface properties

Overall, the present reanalysis of BD+10°2179 based on improved spectra and models is consistent with the findings of previous work (see Table 3), Only the present values for T_eff and log g are slightly higher than inferred earlier, as is the carbon abundance. The evolutionary mass is slightly lower than indicated previously. A significantly lower microturbulence value is found, a consequence of the consistent non-LTE modelling where increasingly stronger non-LTE effects in stronger lines remove the need for large microturbulences found in LTE analyses (see Table 2).

In the cases where spectral features are included in our line-formation calculations, a good simultaneous reproduction of the observed spectrum is achieved (Figs 8 and A1–A4). This level of agreement between model and observation is certainly the most satisfactory outcome of this study. However, contrary to stars with normal chemical composition, it became apparent that many observed spectral features are still unaccounted for by our model computations. The very high abundances of helium and carbon produce a plethora of lines that are unobservable under any other circumstances. The particular case of helium is addressed in detail in the appendix. The quantitative modelling of the complete He i spectrum present in our observational data has to await an extension of the neutral helium model atom to include all levels up to at least principal quantum number n = 20 (and all transitions – radiative and collisional – connecting them) and the provision of appropriate line-broadening data. The atomic data required are largely unavailable at present and their calculation will be a considerable challenge to atomic physicists. Also, a level-dissolution formalism in analogy to that of Hubeny, Hummer & Lanz (1994) will need to be implemented for an improved treatment of the He i line overlap near the series limits.

Detailed studies of BD+10°2179 covering over half a century open up the possibility to look for secular changes in the spectrum associated with its suspected rapid evolution. Indeed, comparing the values of equivalent widths published by Heber (1983) and based on a photographic spectrum taken in 1975, with data published by Pandey et al. (2006), based on a CCD spectrum taken in 1998, one may suspect atmospheric parameter changes. For example, equivalent widths of the Si ii λλ 3853 Å and 3862 Å and the Si iii λλ 4567 Å and 4574 Å lines differ by more than 50 per cent. However, such pronounced changes are not supported by model calculations within reasonable atmospheric parameter variations. Moreover, when we measured equivalent widths from a 1985 Cassegrain ESO Echelle Spectrograph spectrum (as discussed by Jeffery & Hamann 2010) and in our 2006 FEROS spectrum, employing the same criteria for continuum placement and integration limits, consistent values resulted within the measurement uncertainties. We conclude that a decisive answer cannot be given here and suggest that this issue should be addressed based on a consistent reassessment of published high-quality spectra (which are not all available here), plus additional future observations to cover a timeline of a few decades with CCD spectroscopy.

7.2 Evolutionary inferences

The problem posed by BD+10°2179 and other EHes is the question of their evolutionary status and origin. Analyses by Hunger & Klinglesmith (1969), Heber (1983) and Pandey et al. (2006); Pandey & Lambert (2011) providing effective temperature, surface gravity and surface abundances established that BD+10°2179 is a hydrogen-deficient supergiant. Our current measurements imply log L/M ≈ 3.6 (solar units). Evidence that there are no pulsations (Hill, Lynas-Gray & Kilkenny 1984; Grauer, Drilling & Schönberner 1984) requires log L/M < 4 (solar units; Jeffery & Saio 2016).

From its Galactic position, apparent magnitude, effective temperature and observed L/M ratio, BD+10°2179 must necessarily be a low-mass star, and cannot therefore be in a long-lived core or shell-burning phase of evolution. It must be either expanding towards or contracting away from the giant branch, and its rate of evolution must be governed primarily by the thermal time-scale of the envelope, being that part of the star lying outside any degenerate or inactive core. Absence of evidence for a binary companion (Jeffery et al. 1987) rules out models comprising a stripped helium star following a mass-transfer episode.

The expansion of a helium star after shell helium ignition depends on the nature of the progenitor and the mode of ignition. A core helium-burning star will evolve to become a shell-helium burning giant if sufficiently massive (Paczyński 1971; Weiss 1987), but only if the mass exceeds about 0.8 M_⊙. The track for a double white dwarf merger (Webbink 1984) depends on the progenitor white dwarfs and on the post-merger accretion rate. The evolution of a star which has a helium-shell flash whilst contracting depends on how late the flash occurs (Herwig et al. 1999). In either case, the expansion may be rapid and not in hydrostatic equilibrium (cf. V4334 Sgr: Jeffery & Pollacco 2002).

The contraction of a post-giant branch helium star (Paczyński 1971; Schönberner 1977; Weiss 1987; Saio 1988) has been studied in the context of a post final helium-shell flash (Schönberner 1979; Iben et al. 1983; Herwig et al. 1999) and in the context of a post-double white dwarf merger (Saio & Jeffery 2000, 2002; Zhang & Jeffery 2012; Zhang et al. 2014). Once a helium-burning shell ceases to be capable of supporting a giant envelope, a star contracts at constant luminosity on a roughly thermal time-scale determined by the mass (or total thermal energy) of the envelope and the luminosity. In cases where the precursor has reached hydrostatic and nuclear equilibrium (e.g. as an RCrB star), the luminosity should be linked to the shell luminosity of the helium shell-burning giant as it leaves the giant branch, and hence to the mass of the carbon–oxygen core (cf. Jeffery 1988). In the case of post-merger models, the luminosity is also governed by the mass of the surviving white dwarf core (Zhang et al. 2014). The rate of evolution depends on the residual envelope mass.

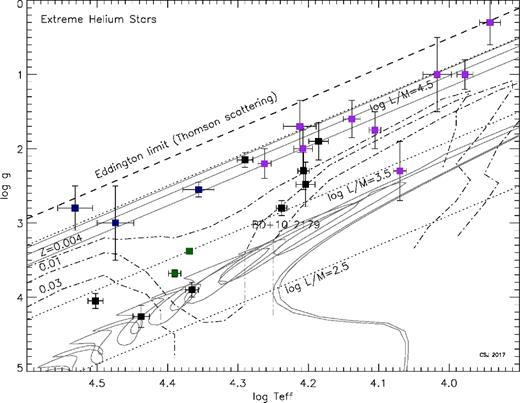

Comparing the observed surface gravity with post-giant branch evolution tracks in order to estimate a mass (e.g. 0.6 M_⊙: Heber 1983, or 0.55 M_⊙ above) depends on the model adopted. Additional constraints on the evolution are provided by the surface composition, which also depends on history.

The flash-driven convection which accompanies a post-AGB late thermal pulse mixes helium- and carbon-rich nuclear products part of the way to the surface; opacity-driven convection may complete the process when the star becomes a giant. In a very late thermal pulse, the flash-driven convection provides prompt enrichment of the entire envelope through to the surface. The extent to which surface layers are depleted in hydrogen depends on the relative masses of the residual hydrogen envelope and the helium intershell, and the lateness of the thermal pulse (Schönberner 1977; Herwig et al. 1999), but appears to be inversely correlated with carbon enrichment. Most FF models predict too much carbon for the amount of hydrogen remaining on the surface of BD+10°2179.

The merger of a carbon–oxygen plus helium white dwarf binary exhibits multiple nuclear episodes. Temperatures exceeding 10⁸ K during merger produce carbon, oxygen (¹⁸O), some neon, and p-capture products, amongst other nuclides (Clayton et al. 2005). Helium-shell ignition produces additional carbon and strong flash-driven convection, enabling fresh carbon to reach the surface when the star becomes a giant (Zhang et al. 2014). At the same time, any hydrogen remaining from the pre-merger white dwarfs is diluted throughout the helium-rich envelope.

Jeffery et al. (2011) argued that a double white dwarf merger could account for much of the surface chemistry of EHes, including BD+10°2179. Assuming an initial composition scaled to the current iron abundance, the transformation of initial carbon, nitrogen and oxygen, to nitrogen, via CNO burning, and then of helium to carbon and oxygen (¹⁶O) and of nitrogen to oxygen (¹⁸O) and neon (²²Ne) can account for present day observations. There is too little carbon (or not enough hydrogen) for the late thermal pulse model. Meanwhile, models for carbon–oxygen plus helium white dwarf mergers remain hard to build (Hall & Jeffery 2016; Zhang et al. 2017).

At 0.55 ± 0.05 M_⊙, the mass inferred for BD+10°2179 from the Saio & Jeffery (2002) tracks is at the lower limit for a CO+He WD merger. Until recently, the presence of carbon in the photospheres of EHes argued against an origin in the merger of two helium white dwarfs. However, Zhang & Jeffery (2012) demonstrated that, at the upper limit of the mass range for He+He white dwarf mergers, carbon produced during the hot phase of the merger could be mixed to the surface in sufficient quantity to explain the carbon-rich surface compositions of the pulsating low-mass EHe star BX Cir and some helium-rich sdO stars. Indeed, the revised L/M ratio for BD+10°2179 and that measured for BX Cir are remarkably similar (Drilling, Jeffery & Heber 1998; Woolf & Jeffery 2000, 2002). So we must now also consider the more likely possibility that BD+10°2179 was produced in a double helium white dwarf merger.

8 CONCLUSION

We have carried out a detailed fine analysis of high-quality optical spectra of the prototype extreme helium star BD+10°2179. For the model atmospheres we have used the LTE OS code atlas12, which we have benchmarked against the equivalent code sterne3, finding good agreement between them. We have treated the line spectrum using a detailed non-LTE approach, which has resulted in greater internal consistency between results from different spectral lines, and a reduction in the required microturbulent velocity. The resulting global parameters (T_eff, g) are slightly modified over previous analyses; the star appears to be hotter and smaller. Chemically, only small differences in the abundances of most elements are found compared with previous analyses, all of which can be attributed to the small change in T_eff and improved microphysics. The exception is carbon which appears to be about 0.3 dex richer than previously inferred.

The low metallicity and Galactic position remain consistent with the membership of an old stellar population. The origin of BD+10°2179 is more difficult to establish; models favour an origin in a double white dwarf merger, but whether this is an He+He or a CO+He merger is not clear, as the models remain far from mature.
