The no-spin zone: rotation versus dispersion support in observed and simulated dwarf galaxies Free

Abstract

1 INTRODUCTION

Dwarf spheroidal (dSph) galaxies comprise the largest population of galaxies in the Local Group, consisting of nearly 60 confirmed members (Kleyna et al. 2005; Muñoz et al. 2006; Martin et al. 2007; Simon & Geha 2007; Adén et al. 2009; Belokurov et al. 2009; Carlin et al. 2009; Geha et al. 2009; Koch et al. 2009; Walker et al. 2009, 2015a; Collins et al. 2010, 2011; Kalirai et al. 2010; Koposov et al. 2011, 2015a,b; Willman et al. 2011; Tollerud et al. 2012; Collins et al. 2013; Kirby et al. 2013; Tollerud et al. 2013; Kim & Jerjen 2015; Kim et al. 2015; Kirby, Simon & Cohen 2015a; Kirby et al. 2015b; Laevens et al. 2015a,b; Simon et al. 2011, 2015; Martin et al. 2016, 2015). These objects are characterized by their low luminosities, spheroidal shapes, high mass-to-light ratios, and by the absence of appreciable gas or recent star formation (Ferguson & Binggeli 1994; van den Bergh 1999; Mateo 1998; Dalcanton, Yoachim & Bernstein 2004; Yoachim & Dalcanton 2006; McConnachie 2012). Line-of-sight velocity measurements suggest that dSphs have little to no rotation in their stellar populations and velocity dispersion profiles that are nearly flat with radius (Wilkinson et al. 2004; Muñoz et al. 2005, 2006; Walker et al. 2006, 2007; Koch et al. 2007a,b; Mateo, Olszewski & Walker 2008).

In the Local Group, dSphs tend to occupy regions close to either the Milky Way or M31 (Mateo 1998; Grebel 1999). At greater distances from the two massive galaxies, the population of dSphs dwindles and gives way to a different class of low-mass galaxies called dwarf irregulars (dIrrs). These galaxies have similar luminosities to dSphs, but are distinct most notably in that they have retained some of their gas. Many dIrrs also demonstrate disky features and rotation in their H i content (Mateo 1998; McConnachie 2012). This ‘Local Group morphology–density relation’, with dSphs found close and dIrrs found far from MW and M31, respectively, mimics similar relationships between galaxy shape and distance from the local barycentre found in clusters (Oemler 1974; Dressler 1980). This, and the fact that both dSphs and dIrrs can be fitted with exponential light profiles (Faber & Lin 1983; Ferguson & Binggeli 1994; Mateo 1998), is often used to argue in favour of a dIrr transformation-based origin for dSphs (Faber & Lin 1983; Mayer et al. 2001a). If, as is commonly understood from classical galaxy formation theory, all galaxies initially form as thin, angular-momentum-supported discs (White & Rees 1978; Fall & Efstathiou 1980; Blumenthal et al. 1984), then significant transformation must occur to convert these rotationally supported galaxies into the puffy, dispersion-dominated dSphs we see today.

The currently favoured mechanism for bringing about this transformation is known as ‘tidal stirring (Mayer et al. 2001a,b). According to this model, rotationally supported dwarfs with exponential stellar discs and high gas fractions are repeatedly tidally shocked at the pericentres of their orbits. While ram pressure is primarily responsible for removing gas from the dwarf, it is the repeated tidal shocks that produce the morphological transformation. In general, for low-mass dwarfs (the majority of those found in the Local Group), this involves the creation of a tidally induced bar, which transports high angular momentum material to the outer regions of the galaxy where it is subsequently stripped. This reduces the rotation of the system and transforms the galaxy into a spheroidal, dispersion-supported system (Mayer 2010, and references therein). In the tidal stirring model, a galaxy is generally considered to have been transformed into a dSph if it has no (or very little) gas, an ellipticity within a specific range (usually 0.1 < e < 0.5; greater values of ellipticity indicate a more elongated shape), and if the ratio of its line-of-sight rotational velocity to its velocity dispersion, v_rot/σ, is below some value – usually 1, but as low as 0.5. A number of early simulations investigating this effect had considered infalling dIrr models with extremely cold discs (v_rot/σ ≃ 5) but more recent simulations involve somewhat hotter initial discs¹v_rot/σ ≃ 3 (e.g. Kazantzidis et al. 2011a).

While tidal stirring simulations have been successful at producing systems with v_rot/σ ≲ 1 (Mayer et al. 2001a,b, 2006; Klimentowski et al. 2009; Mayer 2010; Łokas, Kazantzidis & Mayer 2011; Kazantzidis et al. 2011a; Kazantzidis, Łokas & Mayer 2013; Łokas et al. 2015; Tomozeiu, Mayer & Quinn 2016), historically it has been difficult to reduce v_rot/σ to values <0.5 found for many observed dwarf satellites (Mastropietro et al. 2005). The most complete transformations occur for highly eccentric orbits (Mayer et al. 2001a,b), at low inclination, and that are mildly prograde (Kazantzidis et al. 2011a; Łokas et al. 2015, but see Mayer et al. 2006). The high eccentricity, in particular, allows for shorter orbital times and repeated pericentre passages (typically 3–5, but as many as 8). Short orbital times (⁠|$1\text{--}3\,\rm \, Gyr$|⁠) and close pericentre distances (⁠|$10\text{--}70\,\rm \, kpc$|⁠) have been shown to be particularly important to the transformation (Kazantzidis et al. 2011a). Interestingly, these simulations have often found that the accreted dIrr galaxies need to orbit within a Milky Way host potential for ∼ 10  Gyr in order to be able to complete the required number of pericentre passages (Klimentowski et al. 2009; Mayer 2010; Łokas et al. 2011; Kazantzidis et al. 2011a, 2013; Łokas et al. 2015; Tomozeiu et al. 2016).

One major issue with any scenario that requires ∼10 Gyr in order to transform a dIrr to a dSph is that this is quite long compared to the expected accretion times for satellites derived from cosmological simulations of Milky Way and Local Group analogues. Specifically, the overwhelming majority of Milky Way satellites are predicted to have fallen in less than 10  Gyr ago (Rocha, Peter & Bullock 2012; Garrison-Kimmel et al. 2014; Fillingham et al. 2015; Wetzel, Deason & Garrison-Kimmel 2015), with ∼40 per cent accreted within the last 4 Gyr. Only 2 of the 11 classical Milky Way dwarf satellites are dIrrs (which appear to have fallen in very recently; Besla et al. 2007), and they are significantly more massive than the dSph satellites. This suggests that any environmental transformation associated with dSph formation needs to occur within ∼2 Gyr of accretion (Fillingham et al. 2015; Wetzel et al. 2015). Furthermore, at least two dSphs, Cetus and Tucana, currently exist at large distances from either the Milky Way or Andromeda (681 and 882  kpc from the closest giant; McConnachie 2012). They, like the dSphs much closer to their hosts, have little to no gas and their stars are dispersion-supported rather than rotationally supported (see below). Explaining the existence of such distant objects as the result of tidal stirring poses a particularly difficult challenge to the model. Because of this difficulty, Kazantzidis et al. (2011a) predict that distant dSphs should have systematically higher values of v_rot/σ. Alternatively, it has been shown that dwarfs with highly cored dark matter profiles undergo faster transformations (after just 1–2 pericentre passages; Kazantzidis et al. 2013; Tomozeiu et al. 2016). This reduction in required time spent near the host would be particularly useful in explaining the lack of rotation in an object like Leo I, which has undergone only a single pericentre passage at a distance of ∼ 100  kpc from the Milky Way (Boylan-Kolchin et al. 2013; Sohn et al. 2013).

There are other alternative mechanisms for transforming a dIrr into a dSph that require the initial galaxy to interact with another object. Dwarf–dwarf mergers can create dSphs (Moore et al. 1996; Kazantzidis et al. 2011b), and the mechanism is satisfyingly similar to models proposed for transforming massive discs into giant ellipticals (Icke 1985). Starkenburg, Helmi & Sales (2016) propose that the spheroidal shapes of dSphs can be reproduced by mergers between dwarf galaxies and lower mass dark haloes, but do not discuss rotation support. Another model, ‘resonant stripping’, posits that a fly-by between a dwarf and a galaxy 100 times its mass can instigate resonances in the smaller dwarf that preferentially strip the stellar material (D'Onghia et al. 2009). Interactions between dwarfs in the Local Group are common (Deason et al. 2014), but merger-based transformation scenarios fail to explain the ‘Local Group morphology–density relation’, and so are not likely to account for a large fraction of observed dSphs.

Given the strict requirements for the tidal stirring mechanism to be effective, it seems reasonable to question the initial conditions used for dwarf galaxies in these models. The traditional picture of disc galaxy formation was developed for massive galaxies (Fall & Efstathiou 1980; Blumenthal et al. 1984) with virial temperatures T_v ∼ 10⁶ K, which is well above the expected bulk ISM temperature of a cooled gas in a galaxy, T_g ∼ 10⁴ K. In this case, the pressure support radius of cooled gas will be tiny compared to the angular momentum support radius.² It is in this sense that the disc of a massive galaxy is expected to be ‘cold’. However, Kaufmann et al. (2007, hereafter KWB) show, using a simple analytic approximation and hydrodynamic simulations, that low-mass galaxies with shallow potential wells and modest virial temperatures (T_v ≲ 10 T_g) will tend to have pressure support radii that are comparable to their angular momentum support radii. KWB did not look at v_rot/σ explicitly, but showed that at low virial mass (M_vir ≲ 10¹¹ M_⊙), the dispersion-supported component of a galaxy should begin to rival the rotationally supported component (see also, e.g. Dalcanton & Stilp 2010). As first suggested by Read, Pontzen & Viel (2006), the above arguments only strengthen if one considers additional ISM pressure imparted on small galaxies from internal feedback effects and turbulent motions. Moreover, stars, unlike gas, can never re-cool after their orbits are disturbed by potential fluctuations or mergers. Taken together, these arguments suggest that the stellar populations of dwarf galaxies residing in the field are not necessarily expected to exhibit well-ordered, disc-like motions as seen in their larger cousins.

Recently, large samples of stellar kinematic data for local dIrr galaxies have become available (Simon & Geha 2007; Fraternali et al. 2009; Leaman et al. 2009, 2012; Kirby et al. 2014). These data enable more detailed studies of the pressure support in field dwarfs. In particular, Kirby et al. (2014) present a stellar kinematic analysis of seven (non-satellite) dwarf galaxies in the local volume (LV), and showed that only one among them (Pegasus) demonstrates a clear sign of rotation in its stellar population. While they did not explicitly rule out rotation in the other objects, the work of Kirby et al. provides some suggestion that a high degree of rotation support is not the rule among isolated dwarfs.

In what follows, we conduct a systematic search for stellar rotation in Local Group dwarfs. We use a Bayesian analysis on a large observational sample of dwarfs consisting of 28 MW and M31 dSphs, 2 dwarf ellipticals (dEs), and 10 dwarfs beyond the virial radii of either the MW or M31 (including 2 isolated dSphs and 8 dIrrs) to estimate v_rot/σ. We confirm previous findings that both the MW and M31 dSphs, with few exceptions, have stellar populations that are not rotating. We show further that isolated dwarfs in the Local Group are also largely dispersion-supported, with only 2 of 10 showing strong Bayesian evidence for rotation, and 7 of 10 failing to show even moderate evidence in favour of rotation. We propose an alternative formation scenario for dSph galaxies: most dwarf galaxies form initially puffy, dispersion-supported or slowly rotating systems, and gas removal via ram pressure stripping (enabled by internal feedback) is likely the main process that leads to the formation of dSphs. We demonstrate the feasibility of this in a ΛCDM scenario by using the same Bayesian analysis to measure the rotation support in four hydrodynamic cosmological zoom-in simulations of isolated dwarf galaxies run with fire/gizmo. The star particles in our simulated isolated dwarf galaxies are dispersion-supported, without any interaction with a more massive galaxy, and their ellipticities are also similar to the known dSph population without the need for harassment.

In Section 2, we highlight our observational sample. Our simulated dwarfs and their characteristics are described in Section 3. Section 4.1 is used to explain the Bayesian analysis we perform on each galaxy. The results of our systematic search for stellar rotation are given in Section 5. We discuss these findings in Section 6 and conclude in Section 7.

2 OBSERVATIONS

We analyse spectroscopic data for 40 Local Group galaxies, which are listed by name in Table 1 (column 1) along with the number of stars used in our analysis (column 10). We use measured line-of-sight velocities for each star as well as the associated errors kindly provided by the authors in the references listed below.

Among Milky Way satellites, our sample includes all nine of the classical dwarfs: Carina, Fornax, Sculptor, Sextans (Walker et al. 2009), Draco (Walker et al. 2015b), Leo I (Mateo et al. 2008), Leo II (Koch et al. 2007a), Sagittarius (Frinchaboy et al. 2012), and Ursa Minor (Pace 2016). For the ultra-faint dSphs of the Milky Way we examine Canes Venatici I, Canes Venatici II, Coma Berenices, Hercules, Leo IV, Ursa Major I, Ursa Major II (Simon & Geha 2007), and Boötes I (Koposov et al. 2011).

For the M31 system we examine 14 satellites: And II (Ho et al. 2012), And I, And III, And V, And VII, And IX, And X, And XIII, And XIV, And XV (Tollerud et al. 2012), And VI (Collins et al. 2013), Cassiopeia 3 and Lacerta 1 (Martin et al. 2014), NGC 147, and NGC 185 (Geha et al. 2010).

Finally, we study 10 isolated Local Group galaxies: Tucana (Fraternali et al. 2009), Leo T (Simon & Geha 2007), NGC 6822, IC 1613, VV 124, Pegasus dIrr, Leo A, Cetus and Aquarius (Kirby et al. 2014), and WLM (Leaman et al. 2009, 2012). The dwarf galaxies Phoenix (Irwin & Tolstoy 2002) and Antlia (Tolstoy & Irwin 2000) have spectroscopic samples that are too small to search for rotation.

The authors of these spectroscopic studies have taken care to remove foreground contamination. We adopt those same selection criteria here. All samples are homogeneous except for WLM, which consists of data from two distinct observations (one with Keck and the other with the VLT). The analysis includes all stars in each sample, and the samples span varying degrees of spatial extent within the galaxy (the majority go out to ∼1.5 effective radii). All stars analysed are either red giant branch (RGB) or horizontal branch stars.

A subset of our analysis includes an allowance for proper motion (see below). This effect is only important for the satellites of the Milky Way. We specifically use proper motion measurements from Hubble Space Telescope (HST) observations when available. In the standard frame (μ_α, μ_δ) and in units of mascentury⁻¹, these are: Carina (22 ± 9, 15 ± 9; Piatek et al. 2003), Draco (17.7 ± 6.3, −22.1 ± 6.3; Pryor, Piatek & Olszewski 2015), Fornax (47.6 ± −4.6, −36.0 ± 4.1; Piatek et al. 2007), Leo I (11.40 ± 2.95, −12.56 ± 2.93; Sohn et al. 2013), Leo II (10.4 ± 11.3, −3.3 ± 15.1; Lépine et al. 2011), Sagittarius (−254 ± 18, −119 ± 16; Massari et al. 2013), Sculptor (9 ± 13, 2 ± 13; Piatek et al. 2006), and Ursa Minor (−50 ± 17, 22 ± 16; Piatek et al. 2005).

3 SIMULATIONS

Our simulations were previously presented in Wheeler et al. (2015), and consist of four³ cosmological zoom-in simulations of isolated dwarf galaxy haloes. Two were run at the mass of the haloes believed to host classical dwarf galaxies (M_vir ≃ 10¹⁰ M_⊙) and two at lower mass (M_vir ≃ 10⁹ M_⊙; see Wheeler et al. 2015 for details). All of our simulations were run with the fully conservative cosmological hydrodynamic code gizmo (Hopkins et al. 2014) in ‘PSPH-mode, with the standard fire feedback implementation. Every run uses a gas particle mass of |$m^{\rm gas}_{\text{p}} = 255\,\rm \, M_{{\odot }}$| except for lowest mass halo, which uses |$m^{\rm gas}_{\text{p}} = 499\,\rm \, M_{{\odot }}$|⁠. The gas force resolution varies from |$\rm \epsilon ^{min}_{gas} = 1.0 \text{--} 2.8\,\rm \, pc$|⁠, and the stellar masses of the resultant galaxies span |${\sim } 10^{3.9} \text{--} 10^{6.3} \rm \, M_{{\odot }}$|⁠.

All of these cosmological simulations are of isolated dwarfs, that is, with no large neighbours in either the high- or low-resolution regions. All but one of the (M_vir ≃ 10⁹ M_⊙) dwarfs were selected from 5 h^{− 1} Mpc boxes to have typical values of spin parameter λ, concentration, and formation time for their mass range, and also to have small Lagrangian volumes (Oñorbe et al. 2014). The lowest mass (M_vir ≃ 10⁹ M_⊙) dwarf was selected from a 25 h^{− 1} Mpc box and required to have no other haloes of 50 per cent or more of its mass within 4 R_vir at z = 0 and a small Lagrangian volume. All analysis was performed on the z = 0 snapshot of each simulation.

4 MEASURING ROTATION

4.1 Bayesian analysis

Note that if the galaxy's angular momentum vector is inclined relative to us with an angle i, then |$v_{\rm {rot}}= v^{{\rm intrinsic}}_{{\rm rot}} \sin {i}$|⁠, where |$v^{{\rm intrinsic}}_{{\rm rot}}$| is the magnitude of the intrinsic rotation. In what follows, we quote results for v_rot (rather than |$v^{{\rm intrinsic}}_{{\rm rot}}$|⁠) because sin i is poorly constrained for the stars. The value of v_rot is a lower limit on the intrinsic value of |$v^{{\rm intrinsic}}_{{\rm rot}}$|⁠. We discuss the possible effects of inclination in Section 5.1.

For nearby dwarfs, the line-of-sight velocities as measured from Earth will not project along parallel directions. One implication is that if a galaxy is moving in the transverse direction, a significant component of this proper motion can be observed as a gradient in the line-of-sight motions of stars across the face of the galaxy (Feast, Thackeray & Wesselink 1961; van der Marel et al. 2002). This perspective proper motion effect can be important for interpreting the dynamics of local galaxies (Kaplinghat & Strigari 2008; Walker, Mateo & Olszewski 2008) and we therefore include it when possible here. All classical dSphs except Sextans have proper motion measurements from HST observations. For these galaxies, we include the perspective proper motion effects on the relative velocity as v_rel → v_rel + v_perspec, marginalizing over the proper motion using Gaussian priors centred on the reported measurements (see below). We do not include the (currently unmeasured) proper motion parameters in Sextans or any of the Ultra Faint dSphs. The isolated and the M31 systems are too distant for proper motions to have a measurable effect.

The denominator in equation (3), |$Z= \mathcal {P}(\bf {D}, H)$|⁠, is referred to as the Bayesian evidence. It is a normalization factor that is commonly ignored, but will be used for model comparison in our analysis. To test whether the radially varying rotation model is favoured over the flat rotation model, we compute the natural log of the Bayes factor, which is defined as the ratio of the evidence for each model: ln B_rad = ln (Z_{rot, rad}/Z_{rot, flat}). A value greater than zero favours the radially varying model. Then, for the preferred model, we compute the natural log of the Bayes factor for the rotating model compared to a model with no rotation: |$\ln {B_{\rm rot}}=\ln ({Z_{\rm rotating} / Z_{\rm non\text{-}rotating})}$|⁠. A value greater than zero here favours the rotating model. The significance of the preference for each model (radially varying versus flat; rotating versus non-rotating) is based on the magnitude of ln B_rad (ln B_rot) on Jeffery's scale: (0–1), (1–3), (3–5), (5+), corresponds to inconclusive, weak, moderate, and strong evidence in favour of the radially varying (rotating) model. Likewise, the corresponding negative values offer varying degrees of evidence in favour of the flat (non-rotating) model. ln B_rad and ln B_rot for each galaxy in this work can be found in columns 10 and 11 of Table 1. For all other parameters estimated by our model, we list the parameter corresponding to the preferred model (flat versus radially varying). Note that only two galaxies (Aquarius and NGC 6822) prefer the flat rotation model.

We compute the posterior distribution with a multinested sampling routine (Feroz & Hobson 2008; Feroz, Hobson & Bridges 2009). This method directly calculates the evidence and, as a by-product, samples the posterior distribution (for a review of Bayesian method and model comparison, see Trotta 2008). We marginalize over the prior ranges: |$-20 < \overline{v} - v_\mathrm{g} < +20\,{\rm km \, s}^{-1}$|⁠, 0 < σ < +75 km s⁻¹, −50 < v_o < +50 km s⁻¹, 0 < θ < +π, |$-300 < \mu _{\alpha } - \bar{\mu }_{\alpha ,{\rm HST}} < +300\ {\rm mas \, century}^{-1}$|⁠, and |$-300 < \mu _{\delta } - \bar{\mu }_{\delta ,{\rm HST}} < +300\ {\rm mas \, century}^{-1}$|⁠, where v_g, |$\bar{\mu }_{\alpha ,{\rm HST}}$|⁠, and |$\bar{\mu }_{\delta ,{\rm HST}}$| are the values for each galaxy taken from the literature. For the radially varying model, −1 < log₁₀(R_o/kpc) < log₁₀(1.5 × R_{spectra max}). For several galaxies, we examine larger ranges of |$\overline{v}$|⁠, μ_α, and μ_α. This is significant only for Sagittarius, where its close position causes its best-fitting HST proper motions to be well outside the range considered for other dwarfs. For galaxies with rotation axes near 0 or π, we marginalize over − π/2 < θ < +π/2. All priors are uniform except μ_α and μ_δ, which are Gaussian and centred on the HST measurements. We test our method with mock data sets and verify that the input parameters are recovered.

Properties taken from the literature and parameter estimates for each observed galaxy in our analysis, given observational data set D(v_j, ε_j, θ_j) for each star, can be found in Table 1. Before moving on to our broad results (Section 5) we will first comment on several galaxies of particular interest in comparison to past work in the literature.

4.2 Comments on individual galaxies

Draco: Two recent proper motion measurements for Draco differ by several standard deviations: 17.7 ± 6.3, −22.1 ± 6.3 (Pryor et al. 2015) and − 28.4 ± 4.7, −28.9 ± 4.1 (Casetti-Dinescu & Girard 2016). Casetti-Dinescu & Girard (2016) discuss possible reasons for the discrepancy, but are unable to determine one. We run our analysis with both measurements, which lead to v_rot values of |$2.62_{0.90}^{+0.86}$| and |$v_{\rm {rot}}/ \sigma =0.29_{-0.10}^{+0.10}$|⁠, respectively. The two measurements of v_rot/σ are within 1σ of one another and have roughly the same kinematic position angle (⁠|$101^{\circ}$| versus |$105^{\circ}$|⁠). We use the HST measurement to be consistent with the reminder of the classical dSph.

Sagittarius: Peñarrubia et al. (2010) predict significant rotation in this galaxy based on simulations aimed at reproducing the Sagittarius stream. However, they assumed its progenitor was a late-type disc galaxy (v_rot ≈ 20 km s⁻¹). Follow-up work by Peñarrubia et al. (2011) did not detect rotation of this magnitude and could only reproduce the line-of-sight velocities observed today using progenitor models with no or little rotation. Similar searches for rotation in Sagittarius have made no conclusive detection (Ibata et al. 1997; Frinchaboy et al. 2012).

Our result show very strong evidence for some rotation (⁠|$v_{\rm {rot}}/ \sigma \simeq 0.28_{-1.33}^{+0.89}$|⁠; ln B_rot = 80.26) but this determination is complicated by the large field of view occupied by Sagittarius on the sky. There are three different proper motion measurements (Dinescu et al. 2005; Pryor, Piatek & Olszewski 2010; Massari et al. 2013). All three are discrepant and were obtained by analysing different fields within Sagittarius. It is possible that the discrepancy is due to the 3D perspective motion or the internal motions of stars within the galaxy. In our analysis, we use the transform of the three measurements into the centre-of-mass frame computed by Massari et al. (2013): −301 ± 11, −145 ± 11 mas century⁻¹.

The kinematic axis preferred in our analysis is |$\theta =-64\pm 6^{\circ}$|⁠, which is offset from the photometric major axis of |$\theta =102\pm 2^{\circ}$| (McConnachie 2012). A velocity gradient along the major axis is expected based on the 3D motion of Sagittarius (Peñarrubia et al. 2011; Frinchaboy et al. 2012). It is peculiar, then, that our model favours attributing part of the gradient to rotation instead of the perspective motion. Part of the signal could be induced by tidal interactions, but a more in-depth analysis of the Sagittarius system is required to make a strong conclusion. Another origin of this problem could be the fact that Sagittarius may suffer from a higher degree of foreground contamination from Milky Way stars. We distrust our v_rot/σ analysis for these reasons, and exclude Sagittarius from all figures. However, we note that our estimated value suggests that Sagittarius is not rotationally supported, and it would lie in the same general region as most of the dSphs analysed in this work.

And II: Ho et al. (2012) detect v_rot = 8.6 ± 1.6 km s⁻¹ along the minor axis and a maximum v_rot = 10.9 ± 2.4 km s⁻¹ located at θ = 113 ± 9° (the photometric position angle is |$\theta = 46\pm 6^{\circ} ;$| Ho et al. 2012). Our kinematic axis is offset from this value: |$v_{\rm {rot}}/ \sigma =1.43_{-0.17}^{+0.18}$|⁠; |$v_{\rm {rot}}=11.43_{-1.33}^{+1.31}\,{\rm km \, s}^{-1}$|⁠; |$\theta =-26\pm 4^{\circ}$|⁠. We detect stellar rotation at strong significance near the minor axis, which could have been caused by a minor merger (Amorisco, Evans & van de Ven 2014).

Tucana: Fraternali et al. (2009) suggest that a flat rotation curve with v_rot ≈ 15 km s⁻¹ along the major axis is consistent with their data (⁠|$\theta =97^{\circ}$|⁠, Saviane, Held & Piotto 1996). Our analysis finds no evidence for rotation and prefers a value consistent with zero: |$v_{\rm {rot}}/ \sigma =0.22_{-0.39}^{+0.44}$|⁠; |$v_{\rm {rot}}=4.79_{-8.64}^{+8.99}\,{\rm km \, s}^{-1}$|⁠; ln B_rot = −0.25. The position angle is quite unconstrained: |$\theta =-6_{-49}^{+59}$|⁠. If Tucana is rotating, a larger sample size will be required to uncover it.

Aquarius: This galaxy has one of the largest preferred v_rot/σ values in our sample (⁠|${\simeq } 1.70_{-1.01}^{+1.23}$|⁠), though the error is large and the Bayesian evidence is weak (ln B_rot = 0.62). As with Leo A, a larger sample size will be required to make a stronger statement about the rotation and to confirm that it is indeed rotationally supported. The kinematic axis of the H i gas is at |$\theta \approx 70^{\circ}$| (Begum & Chengalur 2004). Our kinematic axis is misaligned at |$\theta \approx -1^{\circ}$|⁠. The magnitude of the stellar rotation is similar to the observed gas rotation.

Leo A: Although our model prefers a fair amount of rotation in this galaxy (⁠|$v_{\rm {rot}}/ \sigma =1.99_{-1.09}^{+0.99}$|⁠), our analysis yields only weak evidence for rotation in Leo A compared to a non-rotating model (ln B_rot = 1.50). There is no rotation seen in H i gas (Young & Lo 1996). Our potential rotation at |$\theta \approx 33^{\circ}$| is almost perpendicular to the H i disc at |$\theta =102^{\circ}$|⁠. A larger kinematic sample size will be required to make a stronger statement about the rotation.

Pegasus: Stellar rotation in Pegasus was first measured in Kirby et al. (2014) with a magnitude of ∼10 km s⁻¹ across the major axis (located at a position angle of 122|$^{\circ}$|⁠; Hunter & Elmegreen 2006). We measure a larger value that is |$20^{\circ}$| offset from the major axis: |$v_{\rm {rot}}=16.25_{-2.24}^{+2.56}$|⁠, |$\theta =146^{+16}_{-20}$|⁠. A velocity gradient is observed in H i across the major axis. It has been suggested that this gradient could be the result of random motions (Young et al. 2003), but since the stellar rotation is detected at such high significance (ln B_rot = 29.09), it seems likely that the gas is rotating as well. This is in general agreement with the conclusions of Kirby et al. (2014).

WLM: We measure: v_rot = 14 ± 1.6 km s⁻¹, σ = 15.6 ± 0.9 km s⁻¹, and |$\theta =163_{-19}^{23}$|⁠. The position angle we prefer agrees well with the value of |$\theta =173^{\circ}$| reported by Leaman et al. (2012). In addition, Leaman et al. (2012) measure a velocity dispersion for WLM that is broadly consistent with our value (σ ≈ 15 km s⁻¹), and they report a stellar rotation and v_rot/σ that are also consistent with our measured values (v_rot ∼ 15 km s⁻¹; |$v_{\rm {rot}}/ \sigma = 1.01_{-0.15}^{+0.17}$| with strong evidence).

IC 1613: Rotation support in IC 1613 is quite unconstrained in our model, |$v_{\rm {rot}}/ \sigma =0.48_{-0.63}^{+0.39}$|⁠. Our measured rotation is roughly half as large as that suggested by its H i kinematics (Oh et al. 2015). IC 1613 is currently undergoing substantial star formation (Hunter et al. 2012; Zhang et al. 2012) and has H i bubbles and shells (Lozinskaya 2002; Silich et al. 2006). The lack of clear rotation support may be due to this starburst phase (Read, Agertz & Collins 2016).

NGC 6822: We find moderate evidence for stellar rotation in RGB stars in this galaxy (ln B_rot = 3.30) but the rotation is subdominant to the velocity dispersion with |$v_{\rm {rot}}/ \sigma = 0.41_{-0.15}^{+0.12}$|⁠. The rotation axis is offset from the photometric position angle (located at |$\theta =65^{\circ}$|⁠; Battinelli, Demers & Kunkel 2006) by |${\approx } 40^{\circ}$|⁠: |$v_{\rm {rot}}=9.38_{-3.46}^{+2.77}\,{\rm km \, s}^{-1}$|⁠, |$\theta =108_{-11}^{+9}$|⁠, and |$\sigma = 22.62_{-0.92}^{+0.99}$|⁠. Stellar rotation in carbon stars was previously detected along the major axis (Demers, Battinelli & Kunkel 2006). As the H i disc is perpendicular to the stellar component, they label NGC 6822 as a polar ring galaxy. N-type carbon stars have variable velocity, limiting the precision of the Demers et al. (2006) measurements to ±15 km s⁻¹. In addition, their sample was created from two telescopes, with a velocity offset of 46 km s⁻¹ between each measurement and |$\Delta \overline{v} \approx 20$| between the RGB stars and C stars. With these caveats, it is intriguing that the different tracers all have different kinematic axes, possibly hinting at past mergers. Valenzuela et al. (2007) model NGC 6822 using a tilted ring analysis and show that the presence of a bar can artificially decrease the rotation signal for some projections. We do not account for bars in our model, instead opting to use the same analysis for each galaxy in our sample.

4.3 Simulation analysis

5 RESULTS

Fig. 1 shows v_rot/σ versus e (ellipticity) for all objects in our study. v_rot/σ is a standard diagnostic for detecting rotational support in more massive systems (Bender, Burstein & Faber 1993) as well. Observed Milky Way and M31 satellites are shown as open triangles; observed isolated dwarfs are shown as cyan stars; and simulated (isolated) galaxies are shown as grey rectangles. The black line shows the expectation for self-gravitating objects flattened by rotation (Binney 1978). For the sake of concreteness, we consider objects that lie above this line to be at least marginally rotationally supported. The galaxy ellipticity values were drawn from the literature.

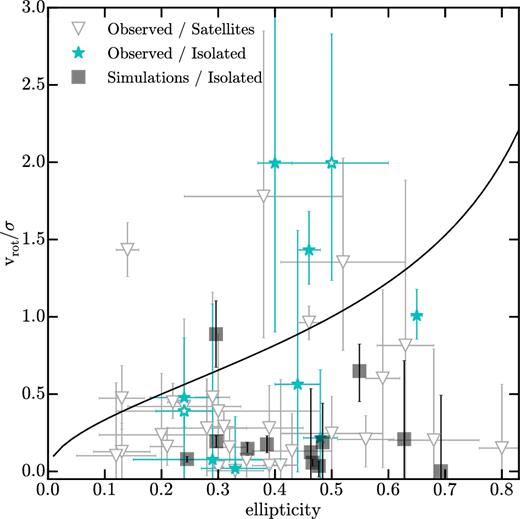

Figure 1.

Stellar rotation support v_rot/σ versus e (ellipticity) for observed satellites of the Milky Way and M31 (open grey triangles), isolated Local Group dwarfs (cyan stars), and simulated isolated (dIrr) galaxies (grey squares). Open stars show the two galaxies for which a flat rotation model is preferred. The solid line shows the approximate value of v_rot/σ for self-gravitating objects that are flattened by rotation (Binney 1978). The (5/30) observed satellite galaxies (open triangles) that lie above the curve are Andromeda VII, Andromeda II, Coma Berenices NGC 147, and Canis Venatici II. Only three isolated observed galaxies lie above the curve. Those are Leo A, Pegasus, and Aquarius.

Open in new tabDownload slide

Of all the galaxies in our sample, eight have v_rot/σ values that are consistent with being supported by rotation, rather than dispersion: Coma Berenices, Canis Venatici II, Andromeda II, Andromeda VII, NGC 147, Aquarius, Leo A, and Pegasus. Of these, only And II (dSph), NGC 147, and Pegasus (dIrr) show rotation at strong significance. The Bayesian evidence that Aquarius and Leo A are rotating is inconclusive or weak – the small sample sizes prohibit a stronger statement. We also detect subdominant rotation at strong significance in NGC 185, Sagittarius, and WLM. We detect some (subdominant) rotation in NGC 6822, but at a lower significance.

Perhaps the most striking feature of Fig. 1 is the distribution of isolated galaxies. Around 7/10 of the isolated dwarfs in our analysis have v_rot/σ versus ellipticity values that are consistent with being dispersion-dominated, while 6/10 have v_rot/σ ≲ 1.0. All have v_rot/σ ≲ 2.0. This is in stark contrast to the common assumption that dIrrs have stellar discs that are smaller versions of their more massive, rotating counterparts. Even the three rotation-dominated systems are only modestly so, with v_rot/σ ≃ 1.5–2, which is significantly less rotation than a canonical cold disc, and below the values typically assumed as initial conditions for tidal stirring scenarios for dSph formation (v_rot/σ ≳ 3; Kazantzidis et al. 2011a).

Our simulated dwarfs are shown as filled grey squares, each displayed at three orthogonal (but random) orientations (for a total of 12 points). The range of simulated ellipticities is consistent with the range of the observed dwarfs. Our simulated dwarfs also have v_rot/σ values that are broadly consistent with the data.⁵ We will need more simulations (Fitts et al., in preparation) to determine whether we can ever achieve the modest fraction of isolated galaxies (3/10) with v_rot/σ ≃ 1.5–2 that we see among isolated Local Group dwarfs. If not, then this may suggest that the star formation is too bursty, or that the specific feedback implementation causes too much coupling between the injected energy and both the stellar populations and the dissipationless dark matter at the hearts of dwarf galaxies (Oñorbe et al. 2015; Chan et al. 2015).

Fig. 2 shows v_rot/σ versus stellar mass for all of the objects in our sample. No obvious trend with stellar mass is seen, though we note that 4/6 systems with v_rot/σ > 1 all have M_⋆ > 10⁶M_⊙. Kormendy et al. (2009) show that more luminous (−23.24 < M_V < −15.53) dSphs in the Virgo cluster form an extension of Local Group dSphs in the Sérsic index-M_V plane, and Toloba et al. (2014) find a wide range of v_rot/σ values for subset of the Virgo dwarfs (−19.0 < M_r < −16.0), but both of these studies rely on photometry from diffuse light. Extending our analysis (using resolved stellar populations) to higher mass objects, both observed and simulated, would be useful in detecting either a trend between of v_rot/σ and M_⋆ at higher mass, or a discontinuity between dSphs/dEs and rotating discs. However, at least on the observational side, this analysis may have to wait for the next generation of telescopes. An initial analysis of one slightly more massive (M_⋆ ∼ 10⁹  M_⊙) simulated dwarf run, with the same code at slightly lower resolution, shows that it is also dispersion-supported (v_rot/σ ≲ 0.25), but more runs at higher mass are needed in the simulations to make a stronger statement about mass trends.

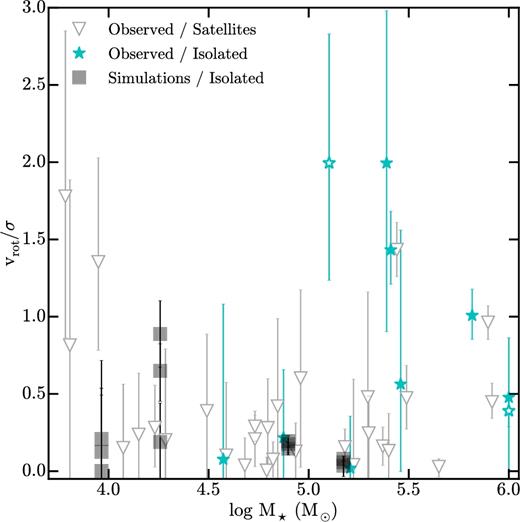

Figure 2.

Stellar rotation support (v_rot/σ) versus stellar mass for observed satellites of the Milky Way and M31 (open grey triangles), isolated Local Group dwarfs (cyan stars), and our simulations (grey squares). No clear trend with stellar mass is seen in the data, although there could be a slight upward turn at the highest masses observed.

Open in new tabDownload slide

5.1 Inferring 3D rotation

The v_rot/σ values estimated by our model and listed in Table 1 are lower limits to the intrinsic amount of rotation support for each galaxy. This is due to the fact that the line-of-sight velocity we measure is |$v_{\rm {rot}}= v^{{\rm intrinsic}}_{{\rm rot}} \sin {i}$|⁠. We can correct for the actual measured inclination of at least those (6/10) galaxies with measured inclination angles in H i: Aquarius (66| $_{.}^{\circ}$|7), Pegasus (69| $_{.}^{\circ}$|4), WLM (74| $_{.}^{\circ}$|0), IC1613 (48| $_{.}^{\circ}$|0) (Oh et al. 2015), Leo A (60| $_{.}^{\circ}$|3) (Hunter et al. 2012), and NGC 6822 (⁠|$60^{\circ}$|⁠) (Weldrake, de Blok & Walter 2003). Additionally, Read et al. (2016) estimate an inclination of |$20^{\circ}$| for Leo T by matching their simulations to the galaxy's photometric light profile. With these inclination values, the estimated v_rot/σ value for Aquarius changes from 1.99 to 2.17, for IC 1613 from 0.48 to 0.64, for Leo A from 1.99 to 2.30, for NGC 6822 from 0.39 to 0.45, for Pegasus from 1.43 to 1.53, for WLM from 1.01 to 1.05, and for Leo T from 0.08 to 0.22. None of the estimated v_rot/σ values move from <1 to >1 and, of the four galaxies without measured inclinations, VV 124 has the highest v_rot/σ value (0.56), and would still have v_rot/σ < 1 for inclination as low as |$35^{\circ}$|⁠. Therefore, it is unlikely that inclination severely affects the primary result presented in this work – that dwarf galaxies do not form as cold, rotating discs with v_rot/σ ≳ 2.

Another way of evaluating the effect of inclination on the estimated line-of-sight v_rot/σ values is to infer something about the distribution of 3D rotation in our sample by comparing the observed distribution (⁠|$v_{\rm {rot}}/ \sigma = v^{{\rm intrinsic}}_{{\rm rot}} \sin {i} / \sigma$|⁠) to what would be measured for a given |$v^{{\rm intrinsic}}_{{\rm rot}}$| viewed in projection from random orientations.⁶ As can be seen in Fig. 3, the observed distribution of v_rot/σ for satellite galaxies (thick solid black line) closely matches the distribution of |$v^{{\rm intrinsic}}_{{\rm rot}} / \sigma = 0.7$| (dashed magenta line), but with a slight tail out to higher intrinsic rotation values. The multiple (1000) grey lines indicate the possible distributions of v_rot/σ if each data point is selected from a Gaussian distribution centred on the v_rot/σ values from our model, and with standard deviations also taken from the model (1σ errors).⁷ The distribution of line-of-sight v_rot/σ values for the isolated dwarfs (thick dash-dotted cyan line) lies just outside of this ‘error band’ for satellite galaxies, with a distinct excess at v_rot/σ ∼ 0.7–2.0. The isolated galaxy distribution more closely matches a distribution of |$v^{{\rm intrinsic}}_{{\rm rot}}/ \sigma \approx 1\text{--}2$| (dotted magenta line at |$v^{{\rm intrinsic}}_{{\rm rot}}/ \sigma = 2$|⁠), but falls far short of matching the (thin dash-dotted magenta) |$v^{{\rm intrinsic}}_{{\rm rot}}/ \sigma =3$| line. While it appears that the isolated sample has more intrinsic rotation than the satellite sample, the isolated sample remains only marginally rotationally supported, with none as cold as |$v^{{\rm intrinsic}}_{{\rm rot}} / \sigma \sim 3$|⁠, the value commonly used in tidal stirring simulations.

6 DISCUSSION

A clear prediction made by the tidal stirring model of dSph formation is the increase of v_rot/σ with increasing distance from a more massive galaxy (Kazantzidis et al. 2011a). Because the most distant galaxies in the Local Group could have had no more than one pericentre passage in a Hubble time (and most are expected to have had none, e.g. Garrison-Kimmel et al. 2014), we would expect those galaxies that lie beyond the virial radius of either giant to have larger v_rot/σ values if tidal stirring plays the primary role in shaping dwarf galaxy dynamics.

Fig. 4 explores this possibility by showing v_rot/σ versus distance from the closest massive Local Group galaxy (MW or M31). We do not see any clear trend between v_rot/σ and distance to a massive galaxy, as would be expected if multiple close pericentre passages were necessary for removing rotation from dwarf galaxies.

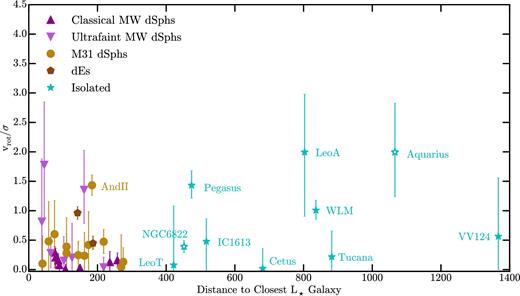

Figure 4.

Rotation support v_rot/σ versus |${\rm d} _{L_\star }$|⁠, distance from the dwarf to the closest L_⋆ galaxy (either the Milky Way or M31), for observed classical Milky Way dSphs (up-facing dark magenta triangles), ultra-faint dSphs (down-facing light magenta triangles), M31 dSphs (gold circles), isolated Local Group dwarfs (cyan stars), and dEs (brown pentagons). There is no clear trend between v_rot/σ and |${\rm d}_{L_\star }$|⁠, as predicted by tidal stirring models.

Open in new tabDownload slide

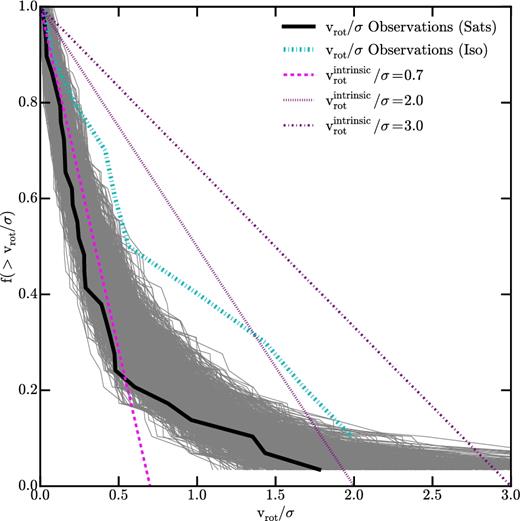

Figure 3.

Distribution of measured v_rot/σ on the sky if all galaxies are assumed to have an intrinsic v_rot/σ value of 0.7 (dashed magenta line), 2.0 (dotted magenta line), or 3.0 (thin dash-dotted magenta), but are viewed with a random inclination. The thick solid black (thick dash-dotted cyan) line shows the distribution of estimated median v_rot/σ values for the satellites (isolated dwarfs) in our sample. The error in the satellite distribution is illustrated with 1000 thin grey lines, each consisting of points drawn randomly from Gaussian distributions with parameters taken from the estimated values for each of the 29 dSphs in our sample. For clarity, the error is not shown for the distribution of isolated galaxies, but has a wider spread than the lines for the satellite population. The isolated distribution is distinct from the satellite distribution, and more closely tracks |$v^{{\rm intrinsic}}_{{\rm rot}} / \sigma \sim 1\text{--}2$|⁠. However, it is clear that the |$v^{{\rm intrinsic}}_{{\rm rot}} / \sigma$| values for the isolated galaxies are much less than 3, the commonly used value in tidal stirring simulations.

Open in new tabDownload slide

Given the lack of trend between v_rot/σ and distance, we are more inclined to suspect that the stars in small galaxies are formed in a medium with marginal rotation support, and undergo merely a modest transformation to become dSphs. Some further evidence for this comes from Sánchez-Janssen, Méndez-Abreu & Aguerri (2010), who study 11 753 galaxies from the Sloan Digital Sky Survey and Karachentsev et al. (2004). They suggest the existence of a critical stellar mass, M_⋆ = 2 × 10⁹  M_⊙, below which all galaxies become systematically thicker. One important question that will need to be investigated with future simulations is whether or not galaxies that start out with v_rot/σ ∼ 1–2 can undergo enough of a transformation to match the near zero values observed for the smallest dwarf satellites within the infall time constraints provided by cosmological simulations. Although it is likely that a mild transformation in v_rot/σ would take much less than 10  Gyr required by tidal-stirring simulations, it would be instructive to use mildly dispersion-dominated dwarfs – in particular, at slightly higher mass than those presented here – as the initial conditions for those models. An initial study has been performed by Mayer (2011), who perform tidal stirring simulations on a gas-dominated, cosmological dwarf with a larger vertical scaleheight (aspect ratio ∼3:1) resulting from stellar feedback-driven turbulence in the star-forming gas. In this work, the thicker dwarf reaches v_rot/σ < 0.5 in just under 2 pericentre passages, without the typical bar formation and subsequent buckling common in tidally induced transformations. Additional work along these lines should prove particularly informative.

We have checked to see if the four observed ‘rotating’ systems are distinct in other properties that might help explain why they have v_rot/σ values that are >1. These objects do not appear to be significant outliers in metallicity, inner density, star formation history, or star formation rate, but a more thorough search for galaxy properties that do correlate with v_rot/σ would be useful. In addition to explaining the small number of outlying observed dwarfs, it could further explain why most of the simulated galaxies fail to demonstrate an elevated v_rot/σ – perhaps all simulated haloes were selected in a way that disfavours the property that best correlates with rotation support. Gallart et al. (2015) do find that Aquarius and Leo A qualify as ‘slow’ dwarfs, having formed in a low-density environment which leads to a small fraction of their stars forming early, followed by continues star formation until the present time. This is in contrast to ‘fast’ dwarfs that form the majority of their stars in a single, early burst. However, our simulated dwarfs were preferentially selected to inhabit low-density environments, and yet have low v_rot/σ values. Additional simulations selected from a variety of environments would be useful to test these effects.

All stars analysed in this work are either RGB or horizontal branch stars, so it is unlikely that we are biasing our sample due to stellar ages. A separate analysis of stellar populations with varying ages – in both the observations and the simulations – would likely be informative, but is beyond the scope of this paper.

7 SUMMARY AND CONCLUSION

We have performed a systematic Bayesian search for stellar rotation in 40 dwarf galaxies (⁠|$10^{3.5} \rm \, M_{{\odot }}< M_{\rm \star }< 10^{8} \rm \, M_{{\odot }}$|⁠) in the Local Group, using resolved stellar kinematic data from the literature. We find that the vast majority of these galaxies (∼80 per cent) have v_rot/σ values that imply dispersion-supported kinematics. In particular, we find that 6/10 isolated dwarfs in our sample have v_rot/σ < 1.0, and all have v_rot/σ ≲ 2 (see Fig. 1 and Table 1). This result for the most distant LG dwarf galaxies contrasts the common assumption that dwarf galaxies form with cold, rotationally supported stellar discs (with v_rot/σ ∼ 3). We find no strong trend of v_rot/σ with M_⋆ within the mass range studied (Fig. 2), nor any trend of v_rot/σ with distance from large host galaxy in the Local Group (Fig. 4), as would be expected if tidal stirring scenarios drive a kinematic transformation of stars in dIrr galaxies to dSph galaxies over multiple pericentre passages.

Taken together, our results suggest that dwarf galaxies form as puffy stellar systems that are either dispersion-supported or only mildly rotation-dominated. The conversion of a dIrr galaxy into dSph galaxy may involve little more than the removal of its gas, and a resulting mild decrease of its v_rot/σ. Specifically, the process of gas stripping itself may be enough to shock the potential, transforming a stellar system with v_rot/σ ∼ 1.5 into a system with v_rot/σ ∼ 0.5. Detailed simulations of this kind will be needed to test this hypothesis.

The formation of initially dispersion-supported systems is more likely to occur within dark matter haloes with shallow potential wells (KWB), especially if explosive feedback effects act to dynamically heat stellar populations after the stars form. We have examined v_rot/σ in four cosmological zoom-in simulations of isolated dwarf galaxies that include such explosive feedback events (Muratov et al. 2015; Oñorbe et al. 2015; Wheeler et al. 2015). These simulated dwarfs have M_⋆ − M_halo values that lie very close to extrapolated abundance-matching relations (Hopkins et al. 2014; Oñorbe et al. 2015; Wheeler et al. 2015), so the total amount of energy injected to the surrounding medium is likely appropriate. However, the strength and frequency of bursts could modify the fraction of energy that couples to stars and dark matter, and so could be driving the stellar kinematics. All but 2 of the 12 viewing angles for the simulated dwarfs show (mock-observed) stellar dispersion-supported values v_rot/σ ≃ 0–0.8 (and ellipticities ≃ 0.2–0.7), and all are completely consistent with our derived properties of observed satellite dwarfs and isolated dwarfs without a significant need for harassment from a massive neighbour. While these simulations are certainly not the final word on the formation of dwarf galaxies, the result suggests that it is at least reasonable to posit that dwarf galaxies are generally born moderately hot and are never strongly rotationally supported.

The comparison between our model's isolated dwarfs and the data did reveal one source of potential tension: none of our simulated dwarfs have stellar rotations that are as high as the highest in our sample (the 3/10 isolated galaxies with v_rot/σ ≃ 1.5–2). This is not particularly surprising, given the small number of simulations analysed here, but if this discrepancy holds in the face of better data and more simulations, it could point to a new test for feedback models. In particular, it is via bursty and violent feedback episodes that the dark matter cores in these haloes are reduced in density, thus alleviating potential problems with ΛCDM like the Too Big to Fail problem (Boylan-Kolchin, Bullock & Kaplinghat 2011). As first pointed out by Teyssier et al. (2013), the same outbursts also inject significant random energy into the stellar populations (see also Kawata et al. 2014; Chan et al. 2015). A more detailed comparison between simulated and observed v_rot/σ values may offer an interesting direction in testing models that attempt to solve dark matter problems via explosive feedback episodes (e.g. Governato et al. 2012; Teyssier et al. 2013; Brooks & Zolotov 2014; Chan et al. 2015; Oñorbe et al. 2015). Can these same models preserve the mild stellar rotation that is seen in some isolated dwarfs? Or, is stellar rotation only seen in galaxies with cuspy density distributions, which would be an important prediction of such models? The analysis of observational data provided here will hopefully provide an important benchmark for this question going forward.

Acknowledgments

We thank the anonymous referee, for comments that made the paper clearer and more robust. We also thank Josh Simon, Marla Geha, Ngoc Nhung Ho, Nicolas Martin, Serge Demers, Evan Kirby, and Ryan Leaman for generously providing their data for this project. We further thank Ryan Leaman and Evan Kirby for very helpful discussions. This work used computational resources granted by NASA Advanced Supercomputing (NAS) Division, NASA Center for Climate Simulation, Teragrid, and by the Extreme Science and Engineering Discovery Environment (XSEDE), which is supported by National Science Foundation grant numbers OCI-1053575 and ACI-1053575, the latter through allocation AST140080 (PI: Boylan-Kolchin). CW acknowledges support from the Josephine de Karman Fellowship Trust. CW and JB were supported in part by Hubble Space Telescope grants HST-AR-13921.002-A and HST-AR-13888.003-A. MBK acknowledges support from NASA through Hubble Space Telescope theory grants (programs AR-12836 and AR-13888) from the Space Telescope Science Institute (STScI), which is operated by the Association of Universities for Research in Astronomy (AURA), Inc., under NASA contract NAS5-26555. MBK and AF acknowledge support from NSF grant AST-1517226. OE acknowledges funds from NSF grant NSF-AST 1518291 and Hubble Space Telescope grant HST-GO-13343.09-A. Support for PFH was provided by an Alfred P. Sloan Research Fellowship, NASA ATP Grant NNX14AH35G, and NSF Collaborative Research Grant #1411920 and CAREER grant #1455342. Some numerical calculations were run on the Caltech compute cluster ‘Zwicky’ (NSF MRI award #PHY-0960291) and allocation TG-AST130039 granted by the Extreme Science and Engineering Discovery Environment (XSEDE) supported by the NSF. DK received support from XSEDE allocation TG-AST-120025 (PI: Kereš) National Science Foundation grant number AST-1412153, and funds from the University of California, San Diego.
