Abstract
It is largely recognized that gamma-ray burst (GRB) jets involve ultrarelativistic motion. However, the value of the Lorentz factor Γ0 is still not clear and only lower limits are known for most bursts. We suggest here a new method to obtain upper limits on Γ0. The early high-energy synchrotron afterglow flux depends strongly on Γ0. Upper limits on GeV emission therefore provide upper limits on Γ0. Applying this method to 190 Fermi GRBs which have not been detected by the Fermi-LAT, we place upper limits on the high-energy afterglow flux, and in turn on Γ0. For bursts at a typical redshift z = 2, we find values of the order of 200 (and above) for a homogeneous density medium, and in the range 100–400 for a wind-like medium. These upper limits are consistent with (and are very close to) lower limits and direct estimates inferred using other methods, suggesting that the typical Lorentz factors of GRB jets are of the order of a few hundred.
1 INTRODUCTION
Gamma-ray burst (GRB) jets move at relativistic velocities with Lorentz factors Γ0 much in excess of unity. The properties of the emission (such as time-scales and typical frequencies) measured in the observer frame appear very different from the intrinsic ones in the comoving frame of the fluid. Only by estimating Γ0 it is possible to infer the intrinsic properties of the emitting region. Unfortunately, it is difficult to place significant constraints on Γ0 from observations. As a consequence, a lot of useful information (such as the location of the dissipation region, the ejecta mass, the typical frequencies of the emitted photons), fundamental for discriminating among different theoretical scenarios, suffer from large uncertainties. Improving the estimates of the Lorentz factor is then essential for understanding the nature of the central engine and outflow, the conditions at the emitting region and the nature of the radiation process.
It was realized earlier that an ultrarelativistic motion is needed in order to avoid the so-called compactness problem and to explain detections of γ-ray photons on short variability time-scales (Ruderman 1975; Krolik & Pier 1991; Fenimore, Epstein & Ho 1993; Piran 1995; Baring & Harding 1997). The highest photon energy detected during the prompt emission can then be used to compute the minimum value of Γ0 required to avoid γ–γ opacity within the emitting region. Using this method, lower limits in the range 100–400 have been derived by Lithwick & Sari (2001) for a sample of 13 BATSE bursts. Much larger lower limits (in the range 900–1200) have been derived for GRBs detected by the Fermi-LAT (Abdo et al. 2009a,b; Ackermann et al. 2010), due to the extension of the accessible range to GeV energies. These large lower limits pose severe constraints on the baryon load of the ejecta, favouring Poynting flux dominated jets. However, the formula used to derive these extreme values has been questioned by Hascoët et al. (2012), who proposed a more detailed calculation of γ–γ opacity and suggested that the simpler formula overestimates Γ0 by a factor of 2–3. Moreover, Zou, Fan & Piran (2011) pointed out that these limits rely on the one-zone model, where GeV and sub-MeV photons are emitted from the same region and are produced by internal shocks. The long-lasting nature of the GeV emission suggests a different origin and dissipation radius for the high-energy component. A two-zone model (where the collisions between the GeV and MeV photons occur at larger radii than the prompt emission radius) implies much weaker constraints (about one-fifth to one-half of the one-zone values).
Another widely used technique for estimating Γ0 is based on the onset of the afterglow emission (Sari & Piran 1999). A few efforts have been made to collect samples of GRBs displaying a peak in their early-time optical lightcurve and to derive the value of Γ0, assuming that the peak time marks the outflow deceleration time. Liang et al. (2010, 2015) derived values in the range 90–600. Smaller values, between 30 and 300 (and between 20 and 200 for a wind-like density medium) were instead inferred by Ghirlanda et al. (2012). When the onset is not observed (i.e. observations start when the flux is already decaying), an upper limit can be placed on the deceleration time and then a lower limit on the value of Γ0. The lower limits derived using this method are in the range 40–300 (Hascoët et al. 2014).
Zou & Piran (2010) suggested that flux limits on the early afterglow can also be used to constrain Γ0. For large Γ0, indeed, the afterglow emission starts at an earlier time and has a higher peak luminosity. A lack of detection can then be translated into an upper limit on the brightness of the afterglow, and then on the value of Γ0. They considered early X-ray observations in a sample of 16 GRBs and derived upper limits on Γ0 of several hundreds. We suggest that a similar method can be applied also to high-energy (GeV) observations. In the standard afterglow model, the early-time afterglow emission is expected to extend up to GeV energies. A lack of GeV emission can then be translated into an upper limit on Γ0.
In this paper, we propose to exploit LAT flux upper limits derived on time-scales longer than the prompt duration to place limits on the brightness of the synchrotron afterglow component, and in turn on Γ0. We have already applied this method to a sample of 28 GRBs observed by AGILE (Longo et al. 2012), deriving values between 100 and a few thousands (for a typical redshift z = 2). The LAT allows us to place more stringent constraints, thanks to its higher sensitivity, and to significantly increase the sample of GRBs to which this analysis can be applied (190 events).
The paper is organized as follows. In Section 2, we calculate the synchrotron afterglow flux in the range 0.1–10 GeV, and provide equations which can be used to place upper limits on Γ0 from the upper limits on the LAT flux. In Section 3, we consider a sample of 190 GRBs with no LAT detection and compute the upper limits on Γ0. Some implications for GRBs detected by the LAT are discussed in Section 4. Conclusions are summarized in Section 5.
2 EXPECTED HIGH-ENERGY AFTERGLOW EMISSION
A coasting phase (Γ = Γ0): the luminosity has a strong dependence on the value of Γ0 and is proportional to n0 (we consider here and elsewhere in this work that εe has more or less the same value for all GRBs; see below for a discussion). In a constant density medium (s = 0), the luminosity rises as t2, while it is constant for a wind-like medium (s = 2).
A deceleration phase: Γ decreases according to Γ2 ∝ Ek/m(r) (Blandford & McKee 1976), where Ek is the blastwave energy (we are assuming an adiabatic evolution, i.e. Ek=constant), and m(r) is the total mass collected up to the radius r. Regardless of the radial density profile, the luminosity decreases with time as |$L^{\rm aft}_{\rm bol}\propto \epsilon _{\rm e} E_{\rm k}t^{-1}$|. Since Ek is related to the prompt radiated energy Eγ,iso through the prompt efficiency ηγ (Ek=Eγ,iso[1 − ηγ]/ηγ), we can write |$L^{\rm aft}_{\rm bol}\propto \epsilon _{\rm e} E_{\rm \gamma ,iso} (1-\eta _\gamma )/\eta _\gamma t^{-1}$|.
The energies we are interested in (>0.1 GeV) are most likely larger than the cooling and synchrotron characteristic frequencies νc and νm. Electrons radiating at such energies are rapidly cooling, and the equations describing the luminosity of the emitted radiation are similar to equations governing the bolometric luminosity, with minor corrections to the exponents and with the introduction of a weak dependence on the fraction of energy εB in the amplified magnetic field. In particular, during the deceleration (Sari, Piran & Narayan 1998) |$L^{\rm aft}_{\rm [0.1-10]}=k\,\epsilon _{\rm e}^{p-1}\epsilon _B^{\frac{p-2}{4}} [E_{\rm \gamma ,iso} (1-\eta _\gamma )/\eta _\gamma ]^{\frac{p+2}{4}} t^{-\frac{3p-2}{4}}$|, where the numerical factor k depends only on p (the power-law index of the electron injection spectrum, |$N_{\rm inj}(\gamma )\propto \gamma _{\rm e}^{-p}$|) and varies less than a factor 1.5 for p in the range 2.1–2.8.
This latter equation implies that, during the deceleration, the ratio between the high-energy afterglow luminosity, at a fixed rest-frame time, and the prompt energy Eγ,iso depends only on two parameters, εe and ηγ (Kumar 2000; Freedman & Waxman 2001). Nava et al. (2014) found that for LAT GRBs with temporally extended emission, the value of this ratio is narrowly clustered, implying that the product |$\epsilon _{\rm e}^{p-1} [(1-\eta _\gamma )/\eta _\gamma ]^{\frac{p+2}{4}}$| has more or less the same value in different GRBs and does not introduce a significant scatter (see Nava et al. 2014 for a more detailed discussion). Hereafter, we will assume that both εe and ηγ do not vary by a significant amount, but we explicitly write how our estimates depend on these two parameters, so that the effects of a different assumption can be easily computed. While during the deceleration phase the value of Γ0 does not affect the flux (which is rather determined by the blast wave energy), Γ0 plays an important role during the coasting phase and in determining the deceleration time, i.e. the time of the transition from a constant to a decreasing Lorentz factor. For small Γ0, the deceleration occurs at late times and the peak flux is smaller. To clarify this point, Fig. 1 illustrates the afterglow lightcurves of two GRBs which have the same parameters except for the initial Lorentz factors Γ0. Even though they have the same energy Eγ,iso (and hence same afterglow luminosity after deceleration), the chances to detect emission are very different in the two cases. Depending on the temporal window of observation as compared to the time of the peak, the afterglow of the low-Γ0 GRB might be completely missed. For a GRB observed within the first few hundred seconds, chances of detection are larger for high-Γ0 events. When observations extend to times longer than the peak time, where the luminosity is proportional to Eγ,iso, the chances are dominated by the GRB energetics, and are larger for GRBs with a large Eγ,iso. From this example, it is clear that three quantities play a fundamental role: the prompt energy Eγ,iso, the observation time and Γ0. When the first two quantities are known, a limit on Γ0 can be inferred from the non-detection of the expected radiation.

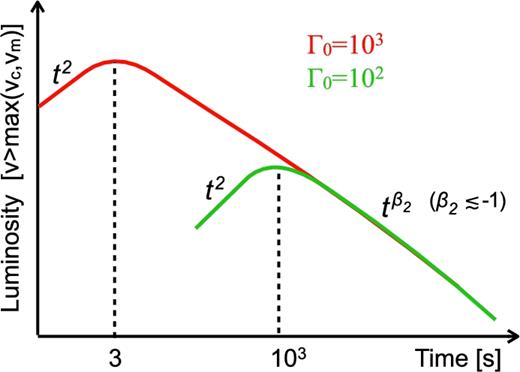

Examples of synchrotron afterglow lightcurves at a frequency ν > max (νc, νm) for a constant density profile of the surrounding medium. The afterglow parameters are the same in both cases, except for the initial Lorentz factor Γ0. At large Γ0 ∼ 103, the lightcurve peaks at early times (see equation 4), while the peak is shifted at much later times when Γ0 ∼ 102.
2.1 Synchrotron fluence at ν > max (νc, νm)
Since the LAT is a photon-limited instrument, for a fixed spectral index α the detection capability is directly related to the fluence. We then estimate the synchrotron afterglow fluence |$S^{\rm aft}_{\rm [0.1-10]}$| in the energy range 0.1–10 GeV (observer frame) under the assumption max (hνc, hνm) < 0.1 GeV. In this spectral range, the spectral slope α (in the notation Fν ∝ να) is α = −p/2. We model the external shock dynamics starting from the coasting phase, following Nava et al. (2014), and the radiation output following Sari et al. (1998) and Nappo et al. (2014). The choice of computing the afterglow fluence in the range 0.1–10 GeV is motivated by the fact that available estimates of LAT flux upper limits have been computed in this energy range (Ackermann et al. 2012). Moreover, this is also the energy range chosen in the First Fermi-LAT GRB catalogue (Ackermann et al. 2013) to quote fluxes and fluences of LAT-detected GRBs which can be directly compared to the estimates provided in the following. We also note that, if extended up to higher energies (>10 GeV), the estimates of the expected afterglow flux might significantly depend on the possible presence of a spectral cutoff, caused for example, by the maximum synchrotron energy. Limiting the estimates at energies smaller than 10 GeV reduces these uncertainties (see the discussion in Section 2.2).
In what follows, we give analytic approximations of the numerical results for the computation of |$S^{\rm aft}_{\rm [0.1-10]}$| (equation 2) for different orders of the times ti, tf and tdec. We consider the general case ti ≠ 0, to account for cases where the GRB enters the LAT field of view (FoV) after the trigger time.
2.1.1 Homogeneous medium: n = constant
- tdec > tf:In this first regime, the dependence on Γ0 is very strong and there is no dependence on Sγ,iso. Moreover, the fluence depends nearly linearly on n0.(5)\begin{eqnarray} S^{\rm aft}_{\rm [0.1-10]}&=&2.5\times 10^{-7}t^3_{\rm f,3}\Gamma _{0,2}^{(2p+4)}\epsilon _{\rm B,-2}^{\frac{p-2}{4}}n^{\frac{p+2}{4}}_0\epsilon _{\rm e,-1}^{p-1}\nonumber\\ &&\times\, (1+z_2)^{-\frac{p+2}{2}} d^{-2}_{\rm L,2} \left[1-\left(\frac{t_{\rm i}}{t_{\rm f}}\right)^3\right]\,\rm erg\,cm^{-2}\,. \end{eqnarray}
- ti < tdec < tf:The dependences on n0, εB and z are very weak and can be neglected. Also, according to observations of GRBs with temporally extended emission, the term |$\epsilon _{\rm e}^{p-1}\left[\frac{1-\eta }{\eta }\right]^{\frac{p+2}{4}}$| has a similar value for all GRBs (Nava et al. 2014). The main parameters determining the afterglow fluence are then Sγ,iso and (depending on the value of p) Γ0.(6)\begin{eqnarray} &&{S^{\rm aft}_{\rm [0.1-10]}=10^{-5} {\rm erg\,cm^{-2}}\, S_{\rm \gamma ,iso,-4}\Gamma _{0,3}^{2(p-2)}\epsilon _{\rm B,-2}^{\frac{p-2}{4}}}\nonumber\\ &&{\quad n^{\frac{p-2}{4}}_0\epsilon _{\rm e,-1}^{p-1}\frac{1-\eta _{\gamma }}{\eta _{\gamma }}(1+z_2)^{\frac{2-p}{2}}}\nonumber\\ &&{\quad \times \left\lbrace \left[1-\frac{4}{p+2}\left(\frac{t_{\rm f}}{t_{\rm dec}}\right)^{-\frac{3}{4}(p-2)}\right]- \frac{3(p-2)}{(p+2)}\left(\frac{t_{\rm i}}{t_{\rm f}}\right)^{-\frac{p-4}{2}}\right\rbrace \,.}\nonumber\\ \end{eqnarray}
- tdec < ti:In this last regime, the synchrotron fluence is proportional to Sγ,iso but, contrary to the previous regime, it is independent of Γ0.(7)\begin{eqnarray} S^{\rm aft}_{\rm [0.1-10]}&=&3\times 10^{-5} S^{\frac{p+2}{4}}_{\rm \gamma ,iso,-4}\epsilon _{\rm B,-2}^{\frac{p-2}{4}}\epsilon _{\rm e,-1}^{p-1}\left[\frac{1-\eta _{\gamma }}{\eta _{\gamma }}\right]^{\frac{p+2}{4}}\nonumber\\ &&\times \,d^{\frac{p-2}{2}}_{\rm L,2} t_{\rm i,3}^{-\frac{3(p-2)}{4}}\left[ 1-\left( \frac{t_{\rm f}}{t_{\rm i}} \right)^{-\frac{3(p-2)}{4}} \right]\rm erg\,cm^{-2}\,. \end{eqnarray}
The results are summarized in Fig. 2, which shows curves of |$S^{\rm aft}_{\rm [0.1-10]}$| as a function of Γ0. These have been derived for ti = 0, but they hold as long as ti < min (tdec, tf), since for n = constant most of the emission is radiated at t ≳ tdec, and the initial integration time does not significantly affect the fluence estimates. Each shaded stripe corresponds to a different value of the final integration time tf (from left to right: tf = 5 × 103, 300, 20 s). We chose tf = 5 × 103 as maximum value because this roughly corresponds to the maximum time-scale over which observations can be performed without temporal gaps. For each stripe, three different curves (corresponding to three different values of the redshift) are marked with a solid line: z = 0.5 (upper boundary), z = 2 (central thick line) and z = 4 (lower boundary). All curves have been derived for Sγ,iso = 10−4 erg cm−2, εe=0.1, εB=0.01, ηγ = 0.2 and n = 1 cm−3.
![Synchrotron afterglow fluence integrated from ti = 0 to tf in the range 0.1–10 GeV (observer frame). The three different stripes correspond to three different integration times tf = 20, 300, 5 × 103 s (from right to left). For each stripe, the solid lines correspond to different redshifts: z = 0.5 (upper boundary), z = 2 (central thick line) and z = 4 (lower boundary). The filled dots show the Lorentz factor for which the light-curve peak time is equal to the integration time: tdec = tf. All the curves have been derived assuming εe=0.1, εB=0.01, ηγ=0.2, n=1 cm−3 and Sγ,iso=10−4 erg cm−2. Different values of Sγ,iso and n0 significantly affect the curves, as indicated by the vertical arrows: in the first regime, $S^{\rm aft}_{\rm [0.1-10]}$ depends almost linearly on the external density (see equation 5), while in the second regime the LAT fluence $S^{\rm aft}_{\rm [0.1-10]}$ depends linearly on the prompt fluence Sγ,iso (see equation 6).](https://oup.silverchair-cdn.com/oup/backfile/Content_public/Journal/mnras/465/1/10.1093_mnras_stw2771/3/m_stw2771fig2.jpeg?Expires=1750235072&Signature=T-6fFEM~zu0UR4Do1FbuGbM0g0wNg1vYyeJfma1hnKGe5eRdHlAUNJRIiH~ltDNaeRKz~BNlL6VWX9y7lsD8KivlbOqisejp8H-BdGL0MzKbpKFBya2cWg0EiqEUPGBWBOLmJJc4an4O4T-yajuvJ5lCq9IxT7UF~VrBul1xvCqf~ZUU8zm74xgi8EiygonnYH2JYP7vUJkQePRjVP79596NfRTGIZ9I2Yiq1RaOJ7qzMCLmWStGwKOqpPwwGO5ShHT-x7URcxrBqwtS~eDhGfOs1OgnR~T6i~tQAee95ZHBHB4n4OdbS5eTW7WOYtguVUcRnVTW-8~7akaQ9J8E0g__&Key-Pair-Id=APKAIE5G5CRDK6RD3PGA)
Synchrotron afterglow fluence integrated from ti = 0 to tf in the range 0.1–10 GeV (observer frame). The three different stripes correspond to three different integration times tf = 20, 300, 5 × 103 s (from right to left). For each stripe, the solid lines correspond to different redshifts: z = 0.5 (upper boundary), z = 2 (central thick line) and z = 4 (lower boundary). The filled dots show the Lorentz factor for which the light-curve peak time is equal to the integration time: tdec = tf. All the curves have been derived assuming εe=0.1, εB=0.01, ηγ=0.2, n=1 cm−3 and Sγ,iso=10−4 erg cm−2. Different values of Sγ,iso and n0 significantly affect the curves, as indicated by the vertical arrows: in the first regime, |$S^{\rm aft}_{\rm [0.1-10]}$| depends almost linearly on the external density (see equation 5), while in the second regime the LAT fluence |$S^{\rm aft}_{\rm [0.1-10]}$| depends linearly on the prompt fluence Sγ,iso (see equation 6).
Low values of Γ0 correspond to late peak times. In this first regime, |$S^{\rm aft}_{\rm [0.1-10]}$| strongly depends on Γ0 and on the redshift (see equation 5). Moreover, it depends nearly linearly on the density: the curves should be moved up/down for increasing/decreasing density, as indicated by the arrows. The prompt fluence plays no role in this regime.
For increasing Γ0, the peak time decreases. For each curve, the Γ0 at which tdec = tf is marked by a filled dot. At larger Γ0, we switch to the regime tdec < tf. In this second regime, the afterglow fluence depends very weakly on all the unknown parameters, except Sγ,iso. All the curves (for different tf and redshifts) flatten (i.e. the dependence on Γ0 is weaker) and converge to a similar value, as predicted by equation (6). This value is proportional to Sγ,iso: the curves should be moved up/down for increasing/decreasing prompt fluence, as indicated by the arrows.
If a LAT observation results in a non-detection, and the upper limit on the LAT average flux is estimated on a time [ti, tf], these plots and equations (5)–(7) can be used to set an upper limit on Γ0. Under favourable observing conditions, the most stringent limits which LAT can place on the 0.1–10 GeV fluence are around a few× 10−7 erg cm−2 (Ackermann et al. 2012, 2013). Our calculations show that strong limits (≲200) on Γ0 can hence be placed only if the GRB is observed for at least several hundred seconds (green stripe in Fig. 2).
While the curves in Fig. 2 have been derived under the assumptions that LAT observations start at the trigger time and that there are no temporal gaps in the observations, equations (5)–(7) can also be used in the more general case where ti ≠ 0 and/or in the case of gaps during observations, for example caused by Earth occultation. In this latter case, the equations should be applied to each time interval where observations are performed, and the total fluence can then be estimated as the sum of contributions from each interval.
2.1.2 Wind-shaped environment: n ∝ r−2
Also in this case, we consider all three possibilities for the order of ti, tf and tdec. Similar considerations to the case s = 0 can be derived.
- tdec > tf:(9)\begin{eqnarray} S^{\rm aft}_{\rm [0.1-10]}&=&3.7\times 10^{-6}t^{\frac{4-p}{2}}_{\rm f,3}\Gamma _{0,2}^{(p+2)}\epsilon _{\rm B,-2}^{(p-2)/4}A_{\rm \star }^{(p+2)/4}\nonumber\\ &&\times\, \epsilon _{\rm e,-1}^{p-1}d^{-2}_{\rm L,2}\left[ 1-\frac{t_{\rm i}}{t_{\rm f}}\right]^{\frac{4-p}{2}}\,{\rm erg\,cm^{-2}}\,. \end{eqnarray}
- ti < tdec < tf:(10)\begin{eqnarray} &&{S^{\rm aft}_{\rm [0.1-10]}=10^{-5} \rm {\,erg\,cm^{-2}}\, S^{\frac{4-p}{2}}_{\rm \gamma ,iso,-4}\Gamma _{0,2}^{3(p-2)}}\nonumber\\ &&{\quad\quad\quad\quad \times \,\epsilon _{\rm B,-2}^{\frac{p-2}{4}}A_{\rm \star }^{\frac{3(p-2)}{4}}\epsilon _{\rm e,-1}^{p-1}\left[\frac{1-\eta _{\gamma }}{\eta _{\gamma }}\right]^{\frac{4-p}{2}}d^{2-p}_{\rm L,2}}\nonumber\\ &&{\quad \times \left\lbrace \left[1-\frac{2(4-p)}{p+2}\left(\frac{t_{\rm f}}{t_{\rm dec}}\right)^{-\frac{3}{4}(p-2)}\right]- \frac{3(p-2)}{(p+2)}\left(\frac{t_{\rm i}}{t_{\rm f}}\right)^{-\frac{p-4}{2}}\right\rbrace ,}\nonumber\\ \end{eqnarray}
- tdec < ti:(11)\begin{eqnarray} S^{\rm aft}_{\rm [0.1-10]}&=&3\times 10^{-5} S^{\frac{p+2}{4}}_{\rm \gamma ,iso,-4}\epsilon _{\rm B,-2}^{\frac{p-2}{4}}\epsilon _{\rm e,-1}^{p-1}\left[\frac{1-\eta _{\gamma }}{\eta _{\gamma }}\right]^{\frac{p+2}{4}}\nonumber\\ &&\times \,d^{\frac{p-2}{2}}_{\rm L,2} t_{\rm i,3}^{-\frac{3(p-2)}{4}}\left[ 1-\left( \frac{t_{\rm f}}{t_{\rm i}} \right)^{-\frac{3(p-2)}{4}} \right]{\rm erg\,cm^{-2}}\,. \end{eqnarray}
The results are summarized in Fig. 3, which shows |$S^{\rm aft}_{\rm [0.1-10]}$| as a function of Γ0, for the case ti = 0. Each shaded stripe corresponds to a different value of the final integration time tf. Since the dependence on tf is weaker as compared to the case n = n0, only two cases are shown: tf = 5 × 103, 10 s (from left to right). All curves have been derived for Sγ,iso = 10−4 erg cm−2, εe=0.1, εB=0.01, ηγ = 0.2 and A⋆ = 1. As in the constant density case, in the first regime (tf < tdec) the afterglow fluence depends on Γ0 and z, although the dependence on Γ0 is weaker (see equation 9). Moreover, it depends nearly linearly on the density: the curves should be moved up/down for increasing/decreasing density. The prompt fluence plays no role in this regime. For increasing Γ0, the deceleration time decreases and we switch to the regime tdec < tf. For each curve, the Γ0 at which tdec = tf is marked by a filled circle. In the second regime, the fluence depends very weakly on all the unknown parameters, except Sγ,iso. All the curves converge to a similar value, as predicted by equation (10). This value is roughly proportional to Sγ,iso.
In the wind density scenario, LAT upper limits as deep as a few× 10−7 erg cm−2 lead to place stronger limits on Γ0, as compared to the constant density case, even in the case of relatively short observation times tf.
2.2 Caveats
The estimates presented in the previous section neglect possible physical processes that might decrease the expected flux. The high-energy synchrotron afterglow emission might indeed be affected by the following.
Inverse Compton scattering: in this case, the synchrotron luminosity at frequencies larger than max (νc, νm) is suppressed by a factor (1+Y), where Y is the Compton parameter. This can be relevant for small values of εB, a very uncertain parameter in GRB studies. However, at high-energies, the Compton scattering is in Klein–Nishina regime, and the relevance of inverse Compton effects is strongly reduced. Beniamini et al. (2015) have shown that Y at 0.1–10 GeV is of order unity, even for very small values (<10−5) of εB;
The maximum synchrotron photon energy: this is limited by the maximal energy up to which electrons can be shock-accelerated. The limit is estimated to be around Γ × 70 MeV (de Jager & Harding 1992; Piran & Nakar 2010). This means that the maximum photon energy is constant during the coasting phase and then it decreases. For Γ < 150, this limit is then expected to produce a cutoff in the afterglow synchrotron spectrum around the energies relevant for this study. The extrapolation of the synchrotron spectrum with index α = −p/2 up to 10 GeV, might then be incorrect. In this case, the flux is smaller than what estimated before, especially at late times, when Γ has significantly decreased. Since we will apply our estimates to early-time observations (tf = 100 s, see Section 3) and since α < −2, for the application presented here, this effect, if present, introduces a flux suppression at most of a factor of 2–3;
γ–γ absorption: for LAT observations performed simultaneously to the prompt emission, it might be relevant to include γ–γ absorption of GeV photons passing the shell of lower energy, prompt photons. Even though afterglow photons are produced at much larger radii as compared to prompt photons, Zou et al. (2011) have demonstrated that opacity might still arise and partially suppress the GeV flux.
All these processes, if relevant, lower the expected synchrotron fluence, as compared to estimates presented in the previous section. This would lead to higher upper limits on Γ0 (i.e. if the expected flux is smaller, non-detections are consistent with theoretical expectations also for higher Γ0, leading to less stringent upper limits on Γ0). This might be regarded as a weakness of the method. On the other hand, this can be used to check consistency by comparing the upper limits derived with this method with lower limits and direct estimates derived with different methods. If the comparison does not outline any inconsistency, the assumption that the GeV afterglow flux is not strongly suppressed is well supported. On the other hand, an inconsistency between this and other methods would reveal the need for at least one of the mentioned processes to be at work. As we will show later, inconsistencies are not found.
3 UPPER LIMITS ON Γ0
As of 2016 January, the GBM has detected prompt emission from almost 18001 GRBs. Around 105 have been detected also by the LAT,2 corresponding to around 13 per cent of the GRBs falling within the nominal LAT FoV, i.e. at an angle of 65° from the LAT boresight (see also Vianello et al. 2015).
Ackermann et al. (2012) have considered all GRBs with no evidence of emission above 100 MeV, which fell within the LAT FoV during the first 2.5 years (288 events). The upper limits on the average flux in the range 0.1–10 GeV have been estimated on three different integration times: during the prompt emission, and for fixed 30 s and 100 s integration times, starting from the trigger time (i.e. ti = 0). We consider here the upper limits estimated for tf = 100 s. For each burst in this sample, we have computed the prompt fluence Sγ,iso in the energy range 1–104 keV using the best-fitting model reported in the Fermi GBM burst online catalogue3 (Bhat et al. 2016). The fit models used in the catalogue include a simple power law (PL), a power-law with an exponential cutoff (CPL), a smoothly broken PL (SBPL) and the so-called Band function. We have considered only those GRBs for which the best-fitting model is a peaked (in νFν) function (i.e. either the CPL, SBPL or Band models), otherwise a model extrapolation down to 1 keV and up to 10 MeV would be unsafe. The final sample includes 190 GRBs. In this sample, we find that the limits on the LAT fluence |$S^{UL}_{\rm [0.1-10]}$| in the first 100 s range from 5 × 10−7 erg cm−2 to 8 × 10−5 erg cm−2.
For this sample, ti = 0, and tf, Sγ,iso and |$S^{UL}_{\rm [0.1-10]}$| are known. Imposing |$S^{\rm aft}_{\rm [0.1-10]}$||$<S^{UL}_{\rm [0.1-10]}$|, equations (5) and (6) (or 9 and 10 for the wind case) can then be inverted to find the upper limit on Γ0. We assume εe=0.1, ηγ=0.2, n0 = 1 (or A⋆ = 1 for the wind density case), εB=0.01 and p = 2.2 (but εB and p do not affect the estimates, and the density is important only at small values of Γ0). Since the redshift is known only for a small fraction of the sample, we derive the upper limits on Γ0 as a function of z. The results are shown in Fig. 4 both for a constant density medium (left-hand panel) and a wind medium (right-hand panel), for z in the range 0.1–10 (blue and light-blue curves). Red arrows mark those bursts for which the redshift is known. Only cases resulting in upper limits smaller than 2000 are shown. To emphasize the role of the prompt fluence, we use different colours for different values of Sγ,iso: brighter (in the GBM range) bursts are marked with lighter colours. It is evident that stringent limits on Γ0 can be derived only for the brightest GRBs. For a typical redshift z ∼ 2, the limits on Γ0 lie above 200 and in the range 100–400 for a constant and wind-like medium, respectively.
Upper limits on Γ0 for bursts with no LAT detection, as a function of the redshift, for a constant density medium (left-hand panel) and a wind shaped medium (right-hand panel). Only upper limits smaller than Γ0 = 2000 are shown. Different colours of the curves refer to different values of the prompt GBM fluence: lighter colours are used for brighter bursts (see the colour bar). Red arrows: upper limits for GRBs with measured redshift. Star symbols: GRBs for which Γ0 has been estimated from the peak of the early optical lightcurve (green stars) and GeV lightcurve (yellow stars), taken from Ghirlanda et al. (2012).
These limits can be compared with limits and direct estimates available in the literature and computed with different methods. Ackermann et al. (2012) derived upper limits for six bright GRBs for which a high-energy cutoff in the prompt spectrum at energies <100 MeV is implied by the LAT non detection. Their upper limits on Γ0 as a function of z are shown in their fig. 11. The curves are similar to those derived here, with limiting values around ∼150 at z = 0.5 and ∼500 at z = 5. Upper limits on Γ0 have been computed also from early-time X-ray observations, resulting in maximum values around several hundreds, by Zou & Piran (2010). They have also shown that when these are combined with lower limits required to avoid the compactness problem, values of Γ0 are in the range 102–103.
Concerning direct estimates (rather than limits) of Γ0, a spectral break in the prompt component has been observed only in a few cases (Ackermann et al. 2011; Tang et al. 2015). Most of the available estimates of the value of Γ0 have been inferred from the detection of an early peak in the afterglow lightcurve. Ghirlanda et al. (2012) collected all GRBs with known redshift and with an early peak in the optical lightcurve, and inferred Γ0 under the assumption that the peak corresponds to the blast wave deceleration time. The Γ0 values have been derived both for a constant and wind-like medium, and are shown in Fig. 4 as star symbols (the green colour refers to optical lightcurves, while the yellow colour refers to a similar analysis applied to GeV lightcurves of LAT GRBs with temporally extended GeV emission).
The most stringent limits derived in this work lie above most of the values inferred from GRBs with an optical peak. This implies that the non-detection of synchrotron afterglow radiation is consistent with the simplest model, and there is no evidence that mechanisms producing a suppression of the GeV flux (see Section 2.2) are at work. The possibility of testing the relevance of these processes is however limited by the instrument sensitivity. We can conclude that present instrument capabilities are not pointing to the need for a relevant suppression of the high-energy afterglow synchrotron flux.
On the other hand, the upper limits lie not far from (and sometimes below) the estimated values of Γ0. This suggests that the LAT should be able to detect the synchrotron afterglow component for those GRBs with the largest bulk Lorentz factors and largest energetics. A fraction of the LAT-detected GRBs are indeed characterized by the presence of an emission above 100 MeV lasting much longer than the prompt radiation, whose flux decays in time as a PL (Ackermann et al. 2013). These are the brightest GBM GRBs, and a large Lorentz factor Γ0 > 500 has been inferred for them. An association with synchrotron afterglow radiation has been claimed to be consistent also with their spectral and temporal properties (Kumar & Barniol Duran 2009, 2010; De Pasquale et al. 2010; Ghirlanda, Ghisellini & Nava 2010; Ghisellini et al. 2010; Lemoine, Li & Wang 2013; Nava et al. 2014; Beniamini et al. 2015), although photons with particularly large energies (>10 GeV) detected at late times (>102 s) are in excess of the synchrotron limit and require a different explanation (Piran & Nakar 2010; Wang, Liu & Lemoine 2013; Ackermann et al. 2014).
Finally, we comment on the dependence of these results on the unknown parameters εe and ηγ, with reference to a homogeneous density medium (similar considerations hold also for a wind-shaped density medium). In the first regime, where observations stop before the lightcurve reaches the peak (equation 5), our estimates of Γ0 do not depend on ηγ, and they depend very weakly on εe (Γ0|$\propto \epsilon _{\rm e}^{0.1}$|). In the second regime (equation 6), the Lorentz factor appears also in the definition of tdec, and it is then less obvious to understand how different assumptions on ηγ and εe affect the results. From numerical estimates, we find that if the value of εe(1 − ηγ)/ηγ increases by a factor of 5 compared to our fiducial value of 0.4, the upper limits on Γ0 are smaller, by a factor of 1.5. They lie closer to the direct values estimated from the peak of optical lightcurves (green star symbols in Fig. 4). Conversely, if the value of εe(1 − ηγ)/ηγ is decreased by a factor of 10, the upper limits increase by a factor of ≲3, and the most stringent values are now at the level of the direct estimates derived from GeV lightcurves of GRBs with LAT temporally extended emission (yellow star symbols in Fig. 4).
4 IMPLICATIONS FOR GRBs WITH DETECTED GeV TEMPORALLY EXTENDED EMISSION
As discussed in Section 2.1, also the theoretical estimate of |$S^{\rm aft}_{\rm [0.1-10]}$| cannot be fully determined, because it depends on a few unknown parameters, such as Γ0, z (which is not measured in most cases) and possibly n (depending on the interval time ti − tf during which the event is observed). However, for a typical tf (of at least few hundred seconds) and for reasonably large Lorentz factors (Γ0 > 100), the main parameter determining the afterglow fluence in the LAT range is the prompt fluence Sγ,iso (see Figs 2 and 3, and equations 6 and 10), if εe and ηγ do not vary significantly. The condition for having a detectable afterglow fluence can then be roughly translated into a condition on the prompt fluence. Keeping in mind that this is true only in the regime tf > tdec > ti and that also Γ0 plays a role in determining the afterglow fluence, the prediction is that, when the emission detected by LAT is indeed afterglow radiation, these events should also be the ones with the largest prompt fluences. A correlation between the prompt sub-MeV fluence and the GeV fluence arises also if both emissions are related to the prompt component, but in this case it is not trivial to explain why the GeV radiation extends in time significantly beyond the prompt phase.
Following these considerations we collect all GRBs detected by Fermi up to 2016 January and plot their distribution in the plane Sγ,iso–θ (Fig. 5, left-hand panel), to verify if LAT-detected GRBs with temporally extended emission show indeed a tendency to have larger prompt fluences. For each burst in this sample, the prompt fluence Sγ,iso has been estimated in the energy range 1–104 keV using the best-fitting model reported in the Fermi GBM burst online catalogue.4 Grey empty circles are GRBs detected by the GBM but with no emission detected by the LAT. GRBs also detected by the LAT5 are instead marked with a square symbol. Note that, when GeV radiation is detected, there is a possibility that this radiation is not synchrotron afterglow emission, i.e. there are cases where the afterglow fluence is too faint, and photons of a different origin (for example, the high-energy extension of the prompt spectrum) are responsible for the LAT detection. To account for this possible contamination, we classify LAT GRBs according to the duration of the LAT emission as compared to the duration of the prompt detected by the GBM. According to information derived either from the GRB LAT catalogue (Ackermann et al. 2013), the GCN archive, or literature, we divide the sample into three categories: (i) GRBs with temporally extended emission (filled squares), (ii) GRBs with no LAT emission after the end of the prompt emission (empty squares) and (iii) GRBs for which the classification is uncertain, since a few photons have been detected by the LAT after the end of the prompt emission, but on time-scales comparable to the prompt duration (squares with a plus symbol inside).

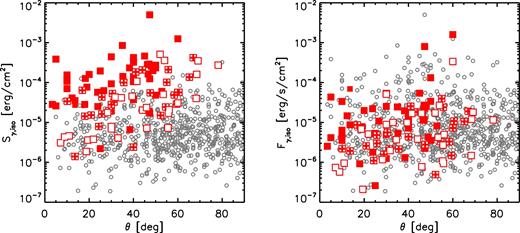

Prompt fluence (left-hand panel) and peak flux (right-hand panel) in the energy range 1–104 keV versus the angle θ to the LAT boresight. Grey dots represent Fermi GRBs detected only by the GBM. Square symbols represent GRBs detected also by the LAT: filled symbols refer to those with temporally extended emission, empty symbols refer to those with no evidence for extended emission, and empty symbols with a cross inside refer to cases for which the classification is uncertain.
LAT GRBs with temporally extended emission and non-LAT GRBs clearly populate two different regions of the plane, with LAT GRBs to clustered in the high-Sγ,iso/low-θ region (Fig. 5, left-hand panel). We check if this tendency is present also when the prompt fluence is replaced with the prompt peak flux Fγ,iso. The right-hand panel in Fig. 5 shows, for the same sample, the prompt peak flux as a function of θ. GRBs detected by the LAT now span almost all the range of peak fluxes, and no clear separation is present between LAT and GBM-only GRBs, indicating that the prompt peak flux does not influence the possibility of having a bright long-lasting high-energy component. The separation between LAT and non-LAT bursts is instead evident in terms of prompt fluence, consistently with the afterglow model.
5 DISCUSSION AND CONCLUSIONS
The luminosity of the early afterglow emission strongly depends on the value of the initial Lorentz factor Γ0. This parameter indeed affects the expected emission in two ways: (i) it is the main parameter determining the deceleration time, i.e. the transition between the coasting phase (where the Lorentz factor is constant) and the deceleration phase, and (ii) it is the main parameter determining the luminosity of the radiation during the initial coasting phase. Large values of Γ0 imply a short deceleration time and a large peak flux. Afterglows of high-Γ0 GRBs are then easier to detect (Fig. 1). Early-time flux upper limits can then be translated into upper limits on the afterglow luminosity, and in turn on the value of Γ0.
In principle, this method can be applied to optical and X-ray observations. The optical band, however, likely lies below the cooling frequency, where the flux depends on very uncertain parameters, especially εB. Recent afterglow modelling on different samples selected in different energy bands (radio, optical, X-ray and GeV) have showed that εB probably spans a large range of values, covering at least 4–5 orders of magnitude (Lemoine et al. 2013; Barniol Duran 2014; Santana et al. 2014; Beniamini et al. 2015; Zhang et al. 2015), making the predictions of the optical flux very uncertain. The X-ray band, instead, lies most likely above the cooling frequency, but, for small values of εB, this part of the synchrotron spectrum is strongly affected by inverse Compton scattering (Beniamini et al. 2015; Beniamini, Nava & Piran 2016). Again, the very uncertain value of εB would reflect on a large uncertainty on the expected X-ray flux, and then in not very robust limits on Γ0. Higher (approximately GeV) energies are less affected by these issues: first, we can safely assume that the LAT energy range is above the cooling frequency, and second, the Klein–Nishina cross-section strongly limits the effects of the inverse Compton scattering on this part of the synchrotron spectrum.
We have modelled approximately GeV synchrotron afterglow emission during the coasting and deceleration phases, and compared model expectations with LAT observations. Since the LAT is a photon-limited instrument, for a fixed photon index the relevant quantity for the detection is the fluence. We have presented equations to estimate the synchrotron afterglow fluence in the range 0.1–10 GeV (observer frame) as a function of all afterglow parameters, prompt fluence, redshift and initial (ti) and final (tf) observation times (see equations 4–7 for a homogeneous density medium, and equations (8)–(11) for a wind-like density medium). For the case ti = 0 (i.e. for GRBs which are inside the LAT FoV at the trigger time) the results are summarized in Fig. 2 and 3 (for a constant and a wind-like density profile, respectively). The fluence is shown as a function of Γ0 for different observing times tf and for fixed εe=0.1, εB=0.01 and p = 2.2 (the last two parameters however play a very little role in modifying the estimates), while the dependence on n, z, and Sγ,iso are shown in the figures. These curves and the equations provided in Section 2.1 can be used to set a limit on Γ0, if the upper limit on the LAT average flux from ti to tf is known.
We have applied these equations to a sample of 190 GRBs with no evidence for GeV emission (Ackermann et al. 2012). We have used the upper limits on the average LAT flux (estimated in the first 100 seconds after the GRB trigger) to place upper limits on Γ0 (Fig. 4). For a typical redshift z = 2, the inferred values are above 200 for a homogeneous medium, and in the range 100-400 for a wind-like density medium. These values are consistent with estimates (and lower limits) available in literature and inferred with different methods.
These estimates rely on the assumption that processes such as the existence of a limit on the maximal synchrotron photon energy, γ–γ absorption with lower energy, prompt photons and inverse Compton scattering, do not significantly lower the expected high-energy synchrotron flux (see Section 2.2 for a discussion). The lack of conflict between our results inferred from high-energy observations and estimates inferred (with other methods) from observations at lower frequencies implies that there is no need to invoke a suppression of the high-energy afterglow flux. An improved instrument sensitivity is required to probe the presence and relevance of the mentioned processes.
On the other hand, the fact that most of the inferred upper limits lie very close to Γ0 values (and lower limits) estimated with different methods (see Fig. 4, star symbols) implies that the synchrotron afterglow radiation from GRBs with the highest Γ0 should be bright enough to be detected by the LAT. For very large Γ0, the deceleration time is small, and the afterglow luminosity is a good proxy for the blastwave energy. In turn, for a fixed value of the prompt efficiency ηγ, the blastwave energy is a proxy for the energy radiated during the prompt, Eγ,iso, implying that the GeV synchrotron radiation should be detectable for the GRBs with the highest prompt fluences. This scenario is consistent with the detection, in a considerable fraction of the LAT GRBs, of a slowly fading GeV radiation on time-scales much longer than the prompt emission, whose luminosity is tightly correlated with the prompt energy (Nava et al. 2014).
The synchrotron afterglow scenario is then consistent not only with detections, but also with non-detections of GRBs by the LAT, and offers a method to place upper limits on Γ0. This method, in combination with other estimates (mostly lower limits), provides a tool to restrict the acceptable range of values for the still uncertain parameter Γ0.
