New H i 21-cm absorbers at low and intermediate redshifts Free

Abstract

1 INTRODUCTION

Observing atomic hydrogen in absorption is an extremely powerful probe of galaxies at all redshifts: the detection sensitivity is not dependent on many of the properties of the system under study but depends rather on the unrelated characteristics of the background source. Detection of the Ly α line with absorption techniques in the optical and ultraviolet wavelengths has been very successful in the past (e.g. Péroux et al. 2003; Prochaska, Herbert-Fort & Wolfe 2005; Meiring et al. 2011, and references therein), providing information on the physical state of a wide variety of media: from the low-density intergalactic medium to high-redshift galaxies. The damped Ly α (or DLA) systems in particular, with H i column densities in excess of |${N_{\rm H{\,\small {I}}}}=2\times 10^{20}\ { \rm cm^{-2}}$| are thought to trace gas-bearing galaxies and contain most of the neutral hydrogen atoms at all redshifts (e.g. Wolfe, Gawiser & Prochaska 2005). Indeed, these absorption line systems provide the most detailed information on the dense, pre-star-forming interstellar medium in galaxies at z > 0. However, DLAs suffer from selection effects associated with optically selected background sources against which the redshifted Ly α lines are observed, such as limitations due to the atmospheric cut-off at z = 1.65 and the potential loss of dusty DLA systems due to the selection of quasars in optical colours (Vladilo, Prochaska & Wolfe 2008; Curran et al. 2011).

The H i hyperfine 21-cm line presents several advantages over Ly α: it does not saturate and the radio continuum is unaffected by dust. Furthermore, the 21-cm line enables a determination of the kinematics and gas distribution in the intervening absorbers, which should then allow us to directly link these systems to their z = 0 galaxy counterparts (e.g. Briggs, de Bruyn & Vermeulen 2001). Comprehensive reviews of 21-cm absorption line studies of redshifted high column density gas are given by Kanekar & Briggs (2004) and more recently by Morganti et al. (2015). The combination of H i 21-cm and Ly α absorption spectra yields a measurement of the H i spin temperature (e.g. Wolfe & Davis 1979), which is a good indication of the kinetic temperature of cold clouds. Hence, H i spin temperatures measured over a range of redshifts provide information on the evolution of the temperature of dense gas over cosmic time (e.g. Kanekar & Chengalur 2003; Kanekar et al. 2014). There is evidence of a correlation between spin temperature and redshift, indicating a lower fraction of the cold neutral medium (CNM) in the ISM of galaxies at higher redshifts (z > 2; Kanekar et al. 2014), although Curran et al. (2005), Curran (2012) and Curran & Webb (2006) have argued that the apparent evolution of spin temperature is largely a geometrical effect. Despite the clear advantages of the 21-cm line, it has one marked complication: there is a degeneracy between spin temperature and covering factor, which implies that high-resolution radio continuum data are needed to understand the absorption profile in detail.

Because of the atmospheric cut-off for Ly α, very few optically selected DLAs are currently known at redshifts z < 1 (e.g. Meiring et al. 2011; Som et al. 2015). 21-cm absorption studies are potentially a good means of increasing the sample of low redshift DLAs as these studies are relatively successful: there are currently ∼20 detections of intervening H i 21-cm absorption at redshifts z < 1 (Curran et al. 2010; Ellison et al. 2012; Gupta et al. 2013, and references therein). A more complete sampling of low-redshift H i absorbers will eventually help in accurately determining the evolution of the cosmic mass density of neutral hydrogen |$\Omega _{\rm H\,\small {I}}$| over half the age of the Universe, especially when the results of large-scale 21-cm absorption line surveys from the Square Kilometre Array and its pathfinders will become available. The star formation rate density and the optical luminosity density are much better constrained over this redshift range (z < 1), and they are observed to decline rapidly (e.g. Hopkins & Beacom 2006; Madau & Dickinson 2014). To fully understand the evolution of the stellar and interstellar content of the universe, it is essential that |$\Omega _{\rm H\,\small {I}}$| is also measured more precisely. Larger samples of H i absorbers also assist a more solid interpretation of the evolution of cosmic metallicity at low redshifts, which is currently based on ∼eight z < 1 DLAs with good metal abundance measurements (Kulkarni et al. 2005; Kulkarni et al. 2007; Som et al. 2015).

Also on much smaller physical scales low-redshift 21-cm absorption line studies are important. The study of apparent pairs of foreground galaxies and background radio-bright quasars can constrain the covering factor and clumpiness of cold gas in galaxies (see e.g. Reeves et al. 2015). In particular, very long baseline interferometry (VLBI) 21-cm absorption line studies allow measurements of small-scale structure in the ISM if the background radio source is sufficiently resolved on VLBI scales (Srianand et al. 2013). In order to find these interesting cases that show spatially resolved H i absorption, searches for low-redshift H i absorbers are essential.

In this paper, we present the results of a Green Bank Telescope¹ (GBT) survey for new H i 21-cm absorbers at low and intermediate redshifts. We selected our targets to be either known Ca ii or Mg ii absorbers, or galaxies with small impact parameters to radio bright background sources.

A complementary part of our survey consisted of searching for OH absorption lines with the GBT at low and intermediate redshifts. The systems selected to be observed in the OH 1667 MHz line are a subset of those observed in the 21-cm line, concentrating on the galaxies with small impact parameters to background radio sources. The purpose of this survey was to identify molecular absorption lines in the centres of galaxies, where it is known that the ratio of atomic to molecular gas density is higher (e.g. Leroy et al. 2009). Previous observations of the OH line in known molecular absorbers indicate that OH is an excellent tracer of molecular gas in intermediate redshift absorbing systems, and its detection also enables an accurate H₂ column density measurement (Liszt & Lucas 1999; Kanekar et al. 2005).

The approach of this paper is to first concentrate on the H i part of the survey. Section 2 describes in detail the selection of our sample and in Section 3 we report on the data taking and data reduction. In Section 4, we describe the detected H i 21-cm absorption systems individually in some detail, and in Section 5 we discuss the statistics of low-redshift H i absorbers. The results and implications of the OH absorption part of our survey are described in Section 6. Finally, Section 7 presents the conclusions. Throughout this paper we adopt |$H_0=75 \,{\rm km\, s^{-1}\, Mpc^{-1}}$|⁠, |$\Omega _\Lambda =0.70$|⁠, and Ω_M = 0.30.

2 H i21-CM TARGET SELECTION

Three different selection techniques were used to identify candidates for 21-cm absorption observations. We briefly describe all three methods here. The complete list of targets is presented in Table 1, where the column ‘selection’ indicates which of the selection methods was used to include the target. Note that some targets meet the selection criteria of more than one method.

Our first set of objects consists of Mg ii absorbers. It has been known for many years that a large fraction of Mg ii absorbers show 21-cm absorption (e.g. Briggs & Wolfe 1983; Lane, Briggs & Smette 2000), and it has been argued that this fraction rises when those Mg ii absorbers are selected that show the highest equivalent widths. In particular, Lane et al. (2000) claimed that almost all Mg ii systems with W₀(2796) > 2 Å show 21-cm absorption and Curran (2010) find a weak correlation between the 21-cm line strength normalized by the column density and the Mg ii equivalent width. However, Kanekar et al. (2009) do not confirm a statistically significant relation between Mg ii equivalent width and 21-cm detectability and report an overall detection rate of 21-cm absorption in 25 per cent of the Mg ii systems. The lack of a strong correlation between Mg ii absorption properties and 21-cm absorption is somewhat surprising, as it has been shown that H i column density measured through Ly α absorption does correlate with Mg ii equivalent width. Rao et al. (2006) showed that the fraction of DLA systems among Mg ii systems rises to 42 per cent when those systems are selected for which W₀(2796) > 0.5 Å and W₀(2796)/W₀(Fe2600) > 2 and Ménard & Chelouche (2009) report an 8σ correlation between the mean Ly α H i column density and W₀(2796) over the redshift range 0.5 < z < 1.4.

In order to increase the sample of Mg ii absorbers with H i 21-cm absorption, we cross-correlated Mg ii absorbers identified in the Sloan Digital Sky Survey (SDSS) with background sources brighter than 200 mJy at 1.4 GHz in the FIRST data base (Becker, White & Helfand 1995). The Mg ii sample was drawn from the compilations of Rao et al. (2006), York & et al. (2006), Prochter et al. (2006), and Sardane et al. (2014). Four systems from this list fulfil the DLA criterion of Rao et al. (2006) and have a background source brighter than 200 mJy at 1.4 GHz. We added to this sample one absorber from the list of Rao et al. (2006), which is a strong Ly α absorber. The total sample of Mg ii absorbers is listed in Table 1, with the original reference indicated.

Ca ii absorbers form our second group of objects. These systems probably form a dustier and more chemically evolved subset of DLAs. Wild & Hewett (2005) argue that the average E(B − V) values and Zn ii column densities combined with conservative assumptions regarding metallicities and dust-to-gas ratios point to Ca ii systems having H i column densities above the DLA limit. Selection by Ca ii absorption is an effective way of identifying high column densities of neutral hydrogen, and thus samples of DLAs at low redshift. The SDSS provides an ideal data base of quasar spectra to search for these systems. Here, we use the method described by Zych et al. (2009) to select Ca ii absorbers. Five of these systems are found to be in sight lines towards radio-loud background sources (>200 mJy).

The third group of targets consists of galaxies with small impact parameters to background radio sources. For this list, we assembled targets using two methods: (i) we assembled galaxies from the literature that are identified with known quasar absorption lines at intermediate redshift and have a radio loud background source; (ii) we cross-correlated SDSS galaxies with spectroscopic redshifts with the FIRST catalogue to identify quasar galaxy pairs. The impact parameters of the selected systems range from 9 to 20 kpc. Table 1 summarizes the details of our sample.

3 OBSERVATIONS AND DATA REDUCTION

Observations were carried out with the NRAO GBT during various observing runs between April 2006 and September 2007. For the back-end we used the spectral processor, with a bandwidth of 1.25 or 2.5 MHz, two polarizations, 1024 channels and a 5 s integration time. This set-up results in a spectral resolution of approximately 0.5(1 + z) km s^{− 1} or 1.0(1 + z) km s^{− 1}. The receivers used for this programme were the prime focus instruments PF1-3 (600 MHz), PF1-4 (800 MHz), and PF2 (1 GHz), with system temperatures of T_sys = 48 K, 25 K, and 22 K, respectively, and the L-band receiver with T_sys = 20 K. The observations were taken in standard on-off mode, with 5 min on and 5 min off scans. On-source integration times ranged from 1 to 5 h, depending on the flux of the background radio continuum source.

Unfortunately, observations in the frequency range much below 1400 MHz are plagued by intermittent strong radio frequency interference (RFI). The targets that could not be observed because of strong RFI were usually visited again several days later. For four targets we have not been able to acquire any good quality data, namely B1239+606, SDSS 1445+0347, PKS 2003−025, and PKS 2355−106, at sky frequencies of 634.6, 631.8, 642.2, and 653.8 MHz, respectively. All these cases of strong RFI occurred with observations using the PF1-3 receiver, illustrating the difficulty of achieving high-quality data around 600 MHz (corresponding to the H i 21-cm line at z ∼ 1.2) with the GBT.

Data reduction was carried out with the dish data reduction tool, which is based on the aips++ package. dish allows for a flexible editing of the data in order to remove data sections with RFI or obvious correlator problems. Initial data editing was done with the autoflag tool, after which all data were scrutinized by eye. Data taken in one session were median filtered and a baseline was removed by making a third-order polynomial fit to the line- and RFI-free channels. Data taken over different days were averaged and any residual baselines were removed by means of a final second-order polynomial fit.

4 DETECTED H i LINES

By replacing ΔS with the rms flux density of the spectrum, we can calculate the rms of τ, or σ_τ. We conservatively assume that an absorption line is significant if it is detected with a strength of 5σ over a velocity width of 10 km s^{− 1}. The integrated optical depth corresponding to this detection limit is defined as τdV_{5, 10}.

Eight of our targets have been observed by Helmboldt et al. (2007) as part of their 5 GHz Very Long Baseline Array (VLBA) Imaging and Polarimetry Survey of flat radio spectrum sources. Fig. 1 shows a reproduction of their VLBA maps of these eight targets. The covering factors f were estimated from these maps by dividing the flux from the central point source component by the total flux measured in the map. Since these maps are made at 5 GHz, while our observations are at much lower frequencies, we note that the calculation of the covering factors is intrinsically uncertain and should be taken as an estimate only. The results are tabulated in Table 2.

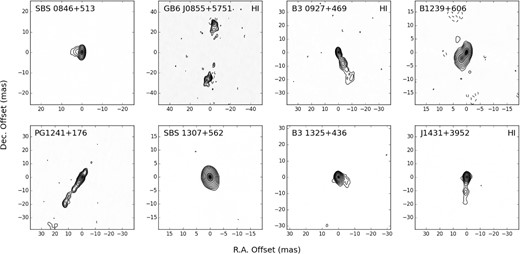

Figure 1.

VLBA maps of eight of the background sources from our survey. The label ‘H i’ in the top-right corner of three maps indicates that 21-cm H i absorption has been detected against these targets. The data have been taken from Helmboldt et al. (2007).

Open in new tabDownload slide

Neutral hydrogen 21-cm absorption features were searched for by eye in the final spectra. We identify four significant 21-cm absorbers. In the following we describe these detections is some detail. Table 3 summarizes the characteristics of the reduced H i spectra that do not show any H i absorption. This table lists the values of σ_τ, as well as the upper limits to the integrated optical depth τdV_{5, 10} and the channel width dV in km s^{− 1}. A summary of the detections is given in Table 4.

4.1 Intermediate redshift H i absorbers

We identify two significant absorption features at intermediate redshifts: the Mg ii-selected absorber at z = 0.602 towards J1431+3952 and the Ca ii absorber at z = 0.621 towards B3 0927+469. The spectra of both detections are presented in Figs 2 and 3, where we show the antenna temperature T_A in K in the top panel, and the observed optical depth in the lower panel. In Fig. 5, we show multicolour SDSS images of the two fields, centred on the position of the background radio sources. In the next two subsections, the characteristics of these absorbers at z ∼ 0.6 are described in more detail.

Figure 2.

Top: GBT spectrum of the H i 21-cm absorber at z = 0.621 against B3 0927+469. RFI is severe in this spectrum, as indicated by the noisy signatures redwards of the absorption line. Due to this strong RFI, we cannot confirm whether the tentative second absorption component at a frequency of 875.9 MHz is real. The vertical lines indicate the frequencies corresponding to the H i line redshifted to the Mg ii and Ca ii lines detected in this system. The error bars give an indication of the redshift uncertainties of these lines. Middle: optical depth distribution of this spectrum. The peak optical depth is 3.2 per cent. A single Gaussian fit to the absorption profile is shown as a solid line and the baseline is indicated by a dashed line. The scale bar indicates the velocity relative to the redshift corresponding to peak optical depth. Bottom: the residual optical depth spectrum after subtracting the Gaussian fit.

Open in new tabDownload slide

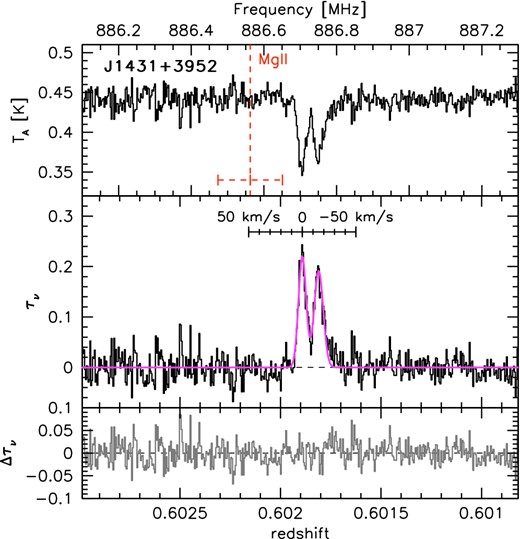

Figure 3.

Top: GBT spectrum of the H i 21-cm absorber at z = 0.602 against J1431+3952. The vertical line indicates the frequency corresponding to the H i line redshifted to the Mg ii line detected in this system. The error bar gives an indication of the redshift uncertainties of this line. Middle: optical depth distribution of this spectrum. The peak optical depth is 22 per cent. A double Gaussian fit to the absorption profile is shown as a solid line and the baseline is indicated by a dashed line. Bottom: the residual spectrum after subtracting the double Gaussian fit.

Open in new tabDownload slide

4.1.1 B3 0927+469

The absorption feature seen in the spectrum of B3 0927+469 has a single component with a peak optical depth of 0.032. We can fit the absorption line with a single Gaussian with a centre frequency of 876.005 MHz, corresponding to a barycentric redshift of z = 0.6214, and a velocity dispersion of |$\sigma =3.8 \pm 0.8\ {\rm km\, s^{-1}}$|⁠. The integrated optical depth of the line is |$\tau {\rm d}V=(0.36 \pm 0.05) \ {\rm km\, s^{-1}}$|⁠. There is tentative evidence for a second absorption component at a frequency of 875.9 MHz, but due to strong RFI we cannot confirm this detection. Note that this system was also observed with the WSRT by Gupta et al. (2012), but not detected, although the upper limit on the integral optical depth they quote (τdV = 0.24 km s^{− 1}) is lower than the value we measure. The rms noise in our spectrum is approximately 20 per cent lower than what Gupta et al. (2012) achieved. To confirm the reality of our detection, we plot in Fig. 4 separate spectra for each polarization and for each of the two observations of this target, separated by three days. It can be seen that the absorption feature is detected in each of the four independent spectra.

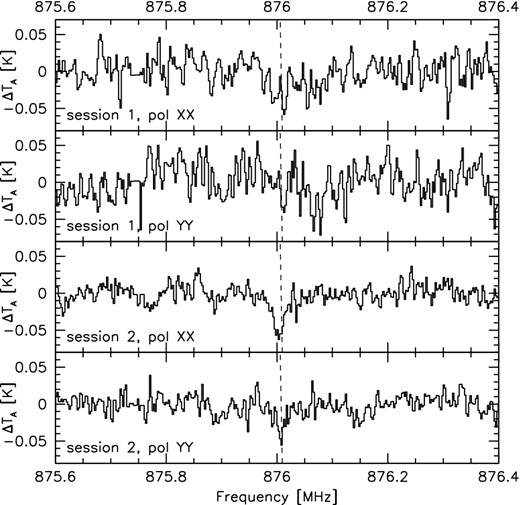

Figure 4.

GBT spectra of B3 0927+469 for each polarization product (XX and YY), and for each of the observing sessions, separated by three days. The absorption feature around 876 MHz is apparent in each of the four independent spectra.

Open in new tabDownload slide

This system was first identified as a Ca ii and Mg ii absorber in the SDSS data base. The measured redshifts of these lines are z = 0.621 26 and 0.621 39, respectively. The uncertainties on these measurements are approximately 30 km s^{− 1}, indicating that there is no evidence for a redshift offset between the 21-cm line and the Ca ii and Mg ii lines. From the 5 GHz VLBA maps of Helmboldt et al. (2007) we estimate that f = 0.55 (see Table 2). The H i column density of the system is therefore 1.1 × 10¹⁸T_s cm^{− 2}, which is on the low end of the distribution of known redshifted 21-cm absorbers (Curran & Webb 2006). Assuming that Ca ii systems are DLAs, which implies that |${N_{\rm H{\,\small {I}}}}>2\times 10^{20}\ { \rm cm^{-2}}$|⁠, we can put a lower limit to the spin temperature of T_s > 180 K. The assumption that this absorber has an H i column density above the DLA limit is corroborated by the results of Ménard & Chelouche (2009), who find a strong correlation between the Mg ii equivalent width and the H i column density. Using their relation and the measurement of Mg ii|$W_0^{2796}=3.255$| Å (Table 1), we find that |${N_{\rm H{\,\small {I}}}}=(2.4\pm 0.5)\times 10^{20}\ { \rm cm^{-2}}$|⁠. Furthermore, Ellison (2006) and Ellison, Murphy & Dessauges-Zavadsky (2009) defined the so-called D-index as the ratio of the Mg ii equivalent width and the total velocity spread of the Mg ii λ2796 profile × 1000, to identify DLAs. For B3 0927+469 we find D = 8.1, which puts it in the zone where the probability of the system being a DLA is 54 per cent (Ellison et al. 2009).

The SDSS image of the field around B3 0927+469 in Fig. 5 shows several possible galaxy candidates that could be responsible for the 21-cm absorption. We used the SDSS photometry and the le phare³ software (Arnouts et al. 1999; Ilbert et al. 2006) to determine photometric redshifts, and found one candidate for which the derived redshift is consistent with that of the 21-cm absorption: SDSS J093034.22+464426.8 at |$z=0.67_{-0.28}^{+0.20}$|⁠. However, the impact parameter would be ∼150 kpc, which renders it very unlikely that this galaxy is hosting the gas that is causing the H i absorption.

Figure 5.

Multicolour SDSS images of the fields around B3 0927+469 (left) and J1431+3952 (right). In both images the background source is in the centre and marked with ‘Q’. The candidate absorbing galaxies that are discussed in the text are marked with ‘A’. The axes are in arcsec, offset from the positions given in Table 1. The colour images are based on a combination of g-, r-, and i-band images, following Lupton et al. (2004).

Open in new tabDownload slide

4.1.2 J1431+3952

After our observations of this system, the same H i absorption line was detected in new GBT observations reported by Ellison et al. (2012). The quality of our data and the Ellison et al. (2012) data is comparable: they report an rms noise of 4.5 mJy per 0.83 km s^{− 1} channel, while we measure a noise level of 5.0 mJy. We measure a peak optical depth of τ = 0.22 in the spectrum of J1431+3952. This system shows a double structure, which we fit with parameters z₁ = 0.601 89, z₂ = 0.601 81, |$\sigma _1=(3.5 \pm 0.8) \,{\rm km\, s^{-1}}$|⁠, |$\sigma _2=(4.2 \pm 0.8) \,{\rm km\, s^{-1}}$|⁠, and peak optical depth values of τ₁ = 0.22, τ₂ = 0.19. The peak-to-peak velocity difference between the two peaks is |$15.3 \,{\rm km\, s^{-1}}$|⁠. For the integrated optical depth of the absorption feature we measure |$(4.0 \pm 0.3) \,{\rm km\, s^{-1}}$|⁠, while Ellison et al. (2012) report |$(3.07 \pm 0.34) \,{\rm km\, s^{-1}}$|⁠. Also for this system the redshift of the 21-cm line is consistent with that of z = 0.602 15 for the Mg ii system, given the uncertainty in the redshift of the latter.

This absorption line system was first identified as an Mg ii system by Quider et al. (2011). Ellison et al. (2012) use archival HST Space Telescope Imaging Spectrograph (STIS) measurements of the Ly α line to measure a column density of |$\log ({N_{\rm H{\,\small {I}}}}/{ \rm cm^{-2}})=21.2\pm 0.1$|⁠. From the 5 GHz VLBA maps of Helmboldt et al. (2007) we estimate that the covering factor is f = 0.95, but the 1.4 GHz maps presented in Ellison et al. (2012) suggest a much lower covering factor of f ≈ 0.30. Ellison et al. (2012) claim that the resulting spin temperature of T_s = (90 ± 23) K is the lowest measured value to date. However, using our optical depth measurement, the spin temperature would even be lower: T_s = (65 ± 17) K. Note that Curran et al. (2007) reported a measurement of T_s = 60 K in an absorbing system at z = 0.656 towards 3C336.

There is one galaxy candidate to the west of the background radio source, at an impact parameter of ∼5 kpc. Also for this field we attempted to use the SDSS photometry to determine photometric redshifts, but the galaxy candidates are too faint to determine any useful redshift estimates.

4.2 Low-redshift H i absorbers

In addition to the two intermediate redshift absorbers, we identify two new strong H i absorbers at very low redshifts. These are a detection at z = 0.026 in the galaxy SDSS J085519.05+575140.7, seen against the background source GB6 J0855+5751, and a detection at z = 0.096 in the galaxy SDSS J135400.69+565000.2, seen against 4C +57.23. The GBT H i spectra of these detections are shown in Figs 6 and 7 and multicolour SDSS images of the two fields are shown in Fig. 8.

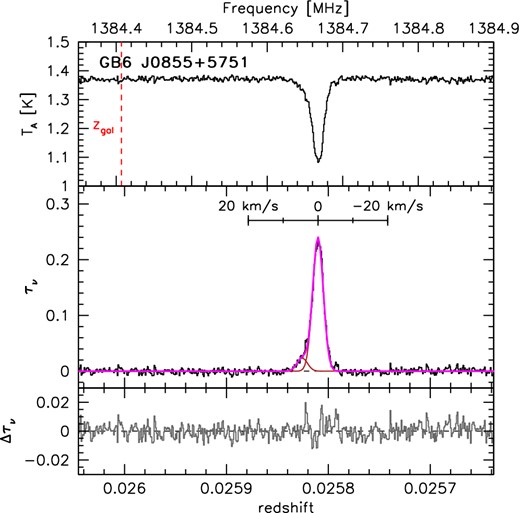

Figure 6.

Top: GBT spectrum of the H i 21-cm absorber at z = 0.026 associated with the galaxy SDSS J085519.05+575140.7, seen against the background source GB6 J0855+5751. The vertical line indicates the frequency corresponding to the H i line redshifted to the systemic velocity of the galaxy. Middle: optical depth distribution of this spectrum. The peak optical depth is approximately 24 per cent. A double Gaussian fit to the absorption profile is shown as a solid line and the individual Gaussian components are shown by thin solid lines. Bottom: the residual spectrum after subtracting the fitted model.

Open in new tabDownload slide

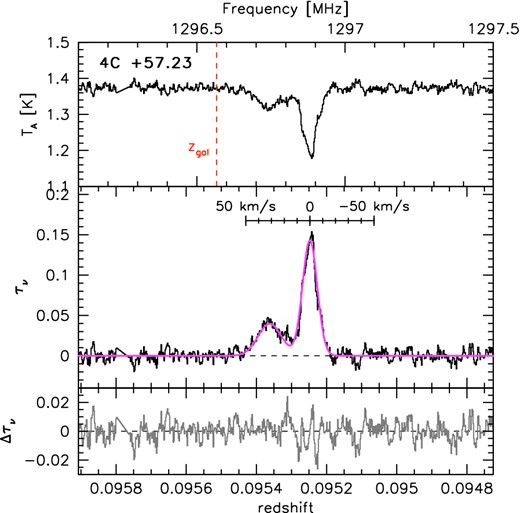

Figure 7.

Top: GBT spectrum of the H i 21-cm absorber at z = 0.096 associated with the galaxy SDSS J135400.69+565000.2, seen against the background source 4C +57.23. The vertical line indicates the frequency corresponding to the H i line redshifted to the systemic velocity of the galaxy. Middle: optical depth distribution of this spectrum. The peak optical depth is approximately 14 per cent. A double Gaussian fit to the absorption profile is shown, and the baseline is indicated by a dashed line. Bottom: the residual spectrum after subtracting the fitted model.

Open in new tabDownload slide

Figure 8.

Multicolour SDSS images of the fields around GB6 J0855+5751 (left) and 4C +57.23 (right). In both images, the background source is in the centre and marked with ‘Q’. The foreground galaxies can be easily identified, and are marked with ‘G’. The axes are in arcsec, offset from the positions given in Table 1. The colour images are based on a combination of g-, r-, and i-band images, following Lupton et al. (2004).

Open in new tabDownload slide

4.2.1 GB6 J0855+5751

The absorption spectrum against GB6 J0855+5751 shows a very narrow profile, which we fit with a Gaussian with central redshift z = 0.025 810 ± 0.000 002, velocity dispersion |$\sigma =(1.51 \pm 0.09)\,{\rm km\, s^{-1}}$| and peak optical depth of τ = (0.24 ± 0.01). However, the profile is asymmetric at the base and a second component is required to make a satisfactory fit. We fit this second component with an offset velocity of |$+4.61 \, {\rm km\, s^{-1}}$| and a dispersion of |$\sigma =(1.50\pm 0.20)\,{\rm km\, s^{-1}}$|⁠. The integrated optical depth in the absorption seen against J0855 is |$\tau {\rm d}v=(1.02\pm 0.04)\,{\rm km\, s^{-1}}$|⁠.

Braun (2012) recently investigated the correlation between integrated optical depth and column density from emission and absorption lines studies from the literature. It was found that the relation between the two quantities, τdv and H i, can be fitted very well with a model with a ‘sandwich geometry’ of cool gas with properties surrounded by layers of warm gas. Interestingly, based on our total opacity of τdv = 1.02 this model would predict a total H i column density of 6.0 × 10²⁰ cm^{− 2}, very close to the value that we determine above.

The absorption profile reaches a peak at z = 0.025 81, which corresponds to a velocity offset of 66 km s^{− 1} bluewards of the optical redshift (z = 0.026 03) of the galaxy SDSS J085519.05+575140.7. This galaxy is a blue, low luminosity, low surface brightness system (Fig. 8), with an absolute Petrosian r-band magnitude of −17.8 mag. The axis ratio as measured by the SDSS is b/a = 0.7 ± 0.1, implying an inclination of i = 45°. The angle between the major axis of the galaxy and the vector from the centre of the galaxy to the background radio source is ϕ = 45°. Under the assumption that the 21-cm absorption arises in a rotating gas disc, this would imply that the rotational velocity of the disc at a radius of 9.5 kpc is equal to |$66/ \sin (i)\cos (\phi )=172\ {\rm km\, s^{-1}}$|⁠. However, the expected rotational velocity of this galaxy from the Tully–Fisher relation is V_rot= 63 km s⁻¹ (Pizagno et al. 2007). Therefore, we conclude that the cold gas clouds we measure are probably not part of an ordered rotating gas disc, but rather are part of a warped disc or otherwise irregular gaseous structure.

From the SDSS spectrum of the galaxy, we measure F(H α) = 25.3 × 10^{− 17}ergs^{− 1}cm^{− 2}Å^{− 1}, from which we derive a very low star formation rate of 0.0025 |${{\rm M}_{\odot }}\rm yr^{-1}$|⁠, assuming a Chabrier (2003) initial mass function (IMF) and no correction for dust. We measure a metallicity of 12+log(O/H) = 8.54, using the N2 index of Pettini & Pagel (2004). Based on the SDSS photometry, we can estimate the stellar mass of this galaxy. We apply the method detailed in Hatziminaoglou, Fritz & Jarrett (2009), which uses the Bertelli et al. (1994) simple stellar population models, and find that SDSS J085519.05+575140.7 is a very low-mass galaxy with a stellar mass of |$\approx 2.0 \times 10^9\ {{\rm M}_{\odot }}$| (converted to a Chabrier 2003 IMF). The stellar mass and metallicity are consistent with the mass–metallicity relation of Tremonti et al. (2004).

4.2.2 4C +57.23

The spectrum against 4C +57.23 has a very different shape, displaying two spectrally separated components. The stronger component has a peak optical depth of τ = 0.14 and can be fitted very well with a Gaussian with |$\sigma =(5.8\pm {0.3})\ {\rm km\, s^{-1}}$|⁠. The weaker component reaches a peak optical depth τ = 0.038, and has |$\sigma =(9.1\pm {0.5})\ {\rm km\, s^{-1}}$|⁠. The integrated optical depth in the absorption seen against 4C +57.23 is |$\tau {\rm d}v=1.17\pm 0.08\,{\rm km\, s^{-1}}$|⁠. After subtracting the two components, some residual structure is present, in particular in between the peaks of the two components, at z = 0.0953. However, the signal to noise in the spectrum is not sufficiently high to fit a third component.

The peak optical depth is seen at a velocity |$70\ {\rm km\, s^{-1}}$| bluewards of the optical redshift of the galaxy SDSS J135400.69+565000.2. This appears to be an edge-on spiral galaxy, probably of morphological type Sa. The SDSS spectrum of the galaxy does not show any strong emission lines. The sightline to the background radio source intercepts this galaxy along its minor axis in a region where some low surface brightness star light can be seen. We note that most other galaxies that have been seen in 21-cm absorption are of late morphological type, the only exception being J0849+5108 at a redshift of z = 0.3, discovered by Gupta et al. (2013).

5 LOW-REDSHIFT GALAXY–QUASAR PAIRS

With the two new local 21-cm absorbers reported in this paper, the total sample of intervening 21-cm absorption systems arising in low-z galaxies rises to 14. Table 5 gives an overview of all known low-redshift systems, listing the redshifts, impact parameter between the identified galaxy and the background radio source, and the integral optical depth τdV. We somewhat arbitrarily adopted a redshift limit of z < 0.5 to include the two systems recently presented in Gupta et al. (2013), and the system at z = 0.43 identified by Kanekar, Athreya & Chengalur (2002). Gupta et al. (2013) reported a weak correlation between impact parameter and τdV, with a Spearman rank coefficient of r = −0.3. Adding our two new systems and two systems from the literature that Gupta et al. (2013) did not consider (J074110.85+311154.7 and KAC2002), we find a slightly higher value of r = −0.39, with an associated significance level of 0.81.

Under the assumption that low-redshift 21-cm absorbers arise in the gas discs of galaxies, such a correlation with a large scatter is expected. H i emission line maps of local galaxies typically show a declining H i column density towards larger galactocentric radii, but for a sample of H i absorbers the distribution of absorption strength versus impact parameter is a convolution of H i profiles and the H i size distribution function of galaxies. In Zwaan et al. (2005) local galaxies are used to calculate the probability function of H i cross-section in the column density versus impact parameter plane for absorption selected systems. The conditional probability distribution shows that the median impact parameter b at a column density of |$\log {N_{\rm H{\,\small {I}}}}=20.3$| (which defines the DLA limit) is 10 kpc, whereas the most likely impact parameter is b = 5 kpc.

It is interesting to compare the sample of low-redshift intervening 21-cm absorption systems arising in galaxies with the likelihood distribution of H i emission in the |${N_{\rm H{\,\small {I}}}}{\rm -}b$| plane. However, equation (2) shows that for the calculation of column densities from optical depths, a measurement of the spin temperature is required, which is unknown for most of the systems in Table 5. Chengalur, Kanekar & Roy (2013) use simulations to show that the isothermal estimator (Dickey & Benson 1982) can be used to calculate H i column densities from optical depth measurements with an accuracy of a factor of 2. In order to arrive at a more accurate relation between optical depth and column density, Braun (2012) used a sandwich model of cool gas, surrounded by layers of warm gas. Using their relation, and the assumption that the total velocity width of the absorption profile is 15 km s^{− 1}, we can transform the τdV values in Table 5 to column densities. This calculation uses the assumptions that the ‘threshold column density’, for which the optical depth approaches zero, is |$N_0=1.25\times 10^{20}\ { \rm cm^{-2}}$| and the saturation column density, where the optical depth reaches infinity, is |$N_\infty =7.5\times 10^{21}\ { \rm cm^{-2}}$|⁠.

In Fig. 9, we plot the measured impact parameters b against these derived column densities. Also shown is the conditional probability distribution of impact parameter as a function of column density as measured by Zwaan et al. (2005) in local galaxies. Shown are the median impact parameter and the 25 and 75 percentiles. Note that the measured distribution of absorbing systems follows the general trend that is expected from a random incidence of sight lines through local galaxies. However there is a dearth of low impact parameter systems. This effect is expected as quasar–galaxy pairs can only be identified if the angular separation between the galaxy and the background source is sufficiently large so that the two sources can be separated. Even if the background source is taken from a radio catalogue, the pair would only be identified was larger than several arcseconds, or otherwise the background source could possibly be associated with the foreground galaxy.

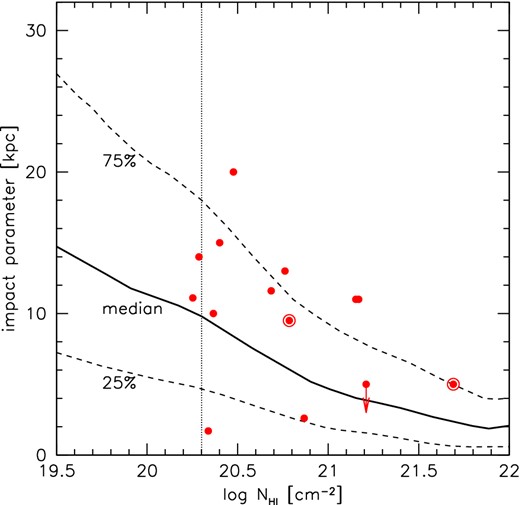

Figure 9.

Impact parameter versus derived H i column density (using the conversion per Braun 2012) of low-redshift quasar–galaxy pairs. The ringed points indicate the two new low redshift absorbers reported in this paper. The lines indicate the probability distribution functions of impact parameter derived by Zwaan et al. (2005), based on a large sample of local H i 21-cm emission line maps. The solid line is the median impact parameter as a function of H i column density, and the long-dashed lines are the 25 and 75 percentiles. The vertical line indicates the DLA column density limit.

Open in new tabDownload slide

Reeves et al. (2015) recently presented a survey for 21-cm absorption and emission in a sample of six nearby, gas-rich galaxies. The impact parameters between the background radio sources and the foreground galaxies ranged between 10 and 20 kpc. No H i 21-cm absorption was detected in any of their galaxies, while in our sample of five galaxies, absorption was detected in two cases. Although the statistics are poor, the difference between our results and the Reeves et al. (2015) results are probably due to the fact that (1) the continuum flux of the background sources in our study was higher, and (2) our sample includes systems with smaller impact parameters. In fact, we find that out of our sample of five, 21-cm absorption was detected in the two galaxy–quasar pairs with the smallest impact parameters (∼10 kpc). Reeves et al. (2015) also note that the detection rate of 21-cm absorption is probably strongly correlated with the structure of the background source, with compact radio sources producing higher absorption line sensitivity.

Similar relations between impact parameter and H i column density of DLA galaxies have been found at higher redshifts. Using optical imaging of a large sample of DLAs, Rao et al. (2011) find an anticorrelation between impact parameter and H i column density at redshifts 0 < z < 1. They find a median impact parameter of 16.2 kpc for the DLA galaxy sample. Péroux et al. (2011) apply the integral field unit technique to detect redshifted H α emission associated with DLAs, and find indications of an anticorrelation at redshifts 1 < z < 2. At redshifts z > 2, Krogager et al. (2012) combine their own observations of three DLA systems with literature results. The combined sample of 10 identifications shows a Spearman rank coefficient of r = −0.6 between |$N_{\rm H{\,\small {I}}}$| and impact parameter, with an associated significance level of 93 per cent (our calculation). Using stacking, Noterdaeme et al. (2014) find Ly α emission in a sample of extremely strong DLA systems with |${N_{\rm H{\,\small {I}}}}>0.5 \times 10^{22}\ { \rm cm^{-2}}$| at 2 < z < 4. They conclude that the impact parameter of these high column density systems must be smaller than 2.5 kpc, again confirming the anticorrelation between impact parameter and |$N_{\rm H{\,\small {I}}}$| for DLAs. Interestingly, the median impact parameter for DLA galaxies does not seem to evolve strongly. While Zwaan et al. (2005) quote a median impact parameter of 8 kpc at z = 0, Krogager et al. (2012) find a value of 7 kpc at z ∼ 2.5. Hydrodynamic simulations at z = 3 can reproduce the anticorrelation between impact parameter and H i column density (Rahmati & Schaye 2014).

6 OH ABSORPTION LINE RESULTS

In addition to our search for H i absorption lines, we observed a subset of our targets in the OH 1667 MHz line. For these observations, we selected the group of small impact parameter quasar–galaxy pairs and the Ca ii absorbers. The motivation to search for molecular lines in small impact parameter systems is the observation that local galaxies usually show CO emission only in their central regions. From CO imaging of nearby galaxies (e.g. Helfer et al. 2003; Leroy et al. 2009), we see that the area over which CO is detectable is much smaller than the H i area above the DLA limit. In addition, the regions where the CO columns are highest (⁠|${N_{\rm H_2}}>$| a few |$\times 10^{21}\ { \rm cm^{-2}}$|⁠) often show a depression in H i column density, in many cases below the DLA limit. Furthermore, Liszt & Lucas (1999) demonstrated by comparing Galactic absorption spectra of several poly-atomic molecules with that of H i that the molecules generally avoid the deepest H i features and often the high column density molecules have no corresponding H i. Presumably, in the regions where the molecular column densities are highest, most of the H i has been converted to H₂ (Schaye 2001).

Wild & Hewett (2005) found that Ca ii absorbers have relatively high dust content and typically high H i columns. In a subsequent paper (Wild, Hewett & Pettini 2006), they showed that the Ca ii systems have highly depleted refractory elements and high dust-to-metals ratios with values close to, or even larger than, those observed locally. These properties suggest that a substantial fraction of the Ca ii absorbers are more chemically evolved than typical DLAs. The combined results of Wild & Hewett (2005), Wild et al. (2006), Nestor et al. (2008), and Zych et al. (2009) lead to an interpretation of the Ca ii absorbers arising in the inner parts of galaxies, preferentially regions of high gas density, with cross-sections only 20–30 per cent of those of DLAs. These arguments make them excellent candidates for molecular absorption line studies.

Liszt & Lucas (1999) showed that the abundances of OH and HCO⁺ are the best tracers of molecular hydrogen, demonstrating a near constant relation between their column densities. Arguably, OH is a more accurate indicator of H₂ column density than molecules observable in the millimetre regime, including the often used tracer CO. Furthermore, in all five cases where molecular absorption has been seen in redshifted absorption line systems, corresponding OH absorption has subsequently been detected: B3 1504+377 (z = 0.673) and PKS 1413+135 (z = 0.247; Kanekar & Chengalur 2002), B 0218+357 (z = 0.685; Kanekar et al. 2003), 1830−211 (z = 0.886; Chengalur, de Bruyn & Narasimha 1999), and PMN J0134−0931 (z = 0.765; Kanekar et al. 2005).

Table 6 lists the systems that were observed in the OH line. The observational set-up was the same as that described in Section 3, and data reduction was identical to what was done for the H i observations. Unfortunately, none of the systems we observed were detected in absorption in the 1667 MHz OH line. We should note that seven of the spectra were severely affected by RFI. In particular for the low-redshift quasar–galaxy pairs that were observed in the frequency range of 1500–1600 MHz, no useful data could be obtained.

In Fig. 10, we plot the upper limits to the H₂ column densities as a function of impact parameter. We also show the measurements in the five Ca ii systems, for which we have no measurement of the impact parameter because the host galaxies of the Ca ii absorption have not been identified. Our |${N_{\rm H_2}}$| upper limits are typically a few |$\times 10^{21} { \rm cm^{-2}}$|⁠. It is interesting to compare these values to the cumulative distribution function of impact parameters of H₂ cross-section-selected systems, as derived by Zwaan & Prochaska (2006). There it is shown that, based on the analysis of CO maps of local galaxies, it is expected that H₂ column densities of |$\log {N_{\rm H_2}}>21$| are only detected if the impact parameter is less than 10 kpc. Our non-detections are consistent with these expectations.

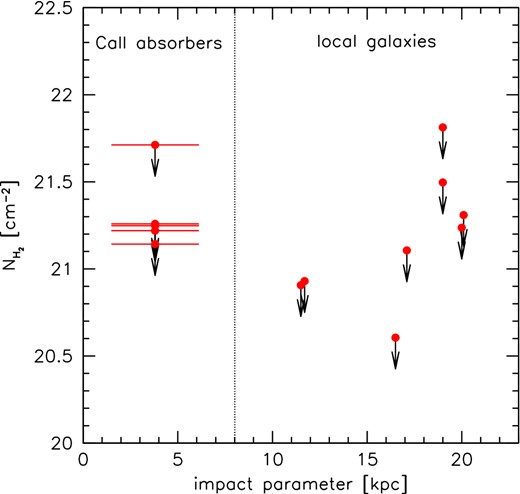

Figure 10.

Upper limits on the H₂ column densities, derived from the OH absorption non-detections. For the local galaxy–quasar pairs, the upper limits are plotted against their impact parameter. The Ca ii absorbers are plotted at a fixed impact parameter of 4 kpc.

Open in new tabDownload slide

Also for the Ca ii systems at intermediate redshifts, we reach upper limits of |${N_{\rm H_2}}\approx 2 \times 10^{21} { \rm cm^{-2}}$|⁠. At z = 0, we would expect to detect these column densities at a median impact parameter of 3 kpc (Zwaan & Prochaska 2006). As stated earlier, Wild & Hewett (2005) interpret the Ca ii absorbers as the inner parts of galaxies, with cross-sections only 20–30 per cent of those of DLAs. Adopting a median impact parameter of low-redshift DLAs of 7.6 kpc (Zwaan et al. 2005), we would expect that the median impact parameter of Ca ii systems is therefore ∼3.8 kpc. Using this line of reasoning, we could expect to have detected OH absorption in one or two Ca ii systems in our small sample of five. Now that larger samples of Ca ii absorbers are available, it would be very interesting to repeat the experiment of detecting molecular gas – OH or other molecules such as CO – in these systems.

7 CONCLUSIONS

We present the combined results of several GBT surveys for intervening H i and OH absorption at low and intermediate redshifts (0 < z < 1.2). We obtained good quality data for 17 out of 24 systems – observations of the remaining seven systems were severely affected by RFI. The total sample of observed systems consists of Ca ii absorbers, Mg ii absorbers, apparent quasar–galaxy pairs with small impact parameters at low redshift, and Mg ii and Ly α absorbers with identified host galaxies. Our conclusions are as follows.

• Out of five low-redshift (z < 0.17) quasar–galaxy pairs, we detected strong H i 21-cm absorption in two systems. The maximum 21-cm optical depths are 14 and 24 per cent, respectively. Both absorption profiles are very narrow, the narrowest has a velocity dispersion of only 1.5 km s^{− 1}, which puts an upper limit on the kinetic temperature of T_k < 270 K. Combining these two systems with 21-cm absorbers from the literature, we measure a tentative anticorrelation between impact parameter and integral optical depth. Using a sandwich model for the cool gas, we convert optical depth measurements into column densities. The resulting correlation between impact parameter and H i column density is in good agreement with what is expected if 21-cm absorbers arise in the gas discs of galaxies that are seen in 21-cm emission.

• Of the sample of five Ca ii and Mg ii systems for which good data were obtained, we measure 21-cm absorption in one Mg ii system, and one Ca ii system, both at z ≈ 0.6. Since some of the Ca ii absorbers are also Mg ii absorbers, in total three Mg ii systems have been observed. The detection rate is in agreement with previous studies of Mg ii systems. Given the indications that Ca ii systems are on average higher H i column density absorbers, we would expect a higher detection rate for these systems, but unfortunately, the statistics are too poor to draw any conclusions on this.

• No OH absorption was detected in any of our systems. Comparing our results with the expected strong anticorrelation between column density and impact parameter based on what is observed in local galaxies, our non-detections are fully consistent with the expectations. To increase the sample of known intervening molecular absorption lines, even smaller impact parameter systems (b < 10 kpc) need to surveyed. When larger samples of Ca ii absorbers become available, we recommend observations of molecular absorption lines in these systems with radio or millimetre bright background sources.

By following up known optical quasar absorption line systems in the radio, the total sample of 21-cm absorbers has increased steadily over the last few decades. However, the next big step in the study of 21-cm absorption systems is expected with the appearance of wide field blind surveys with upcoming instruments such as MeerKAT (Booth et al. 2009), ASKAP (DeBoer et al. 2009), and APERTIF (Oosterloo et al. 2009). For example, the ASKAP FLASH⁴ survey will search for 21-cm absorption features in approximately 150 000 sight lines to background radio sources brighter than 50 mJy at 800 MHz. The full southern sky survey will increase the number of known intervening 21-cm absorbers in the range |${N_{\rm H{\,\small {I}}}}\sim 10^{19}$| cm^{− 2} to 10²² cm^{− 2} between 0.4 < z < 1.0 with a factor of 20. The very first pilot results of FLASH (Allison et al. 2015) resulted in the detection of a new absorber at z = 0.44 and demonstrate the ability to efficiently perform wide-field H i absorption surveys. Surveys with APERTIF and MeerKAT will probe lower down the column density distribution function, but will cover smaller areas. Together, the result of these surveys will lead to a much better understanding of the global evolution of cold gas in the z < 1 Universe, but will also turn up many interesting instances of galaxies at intermediate redshifts in which the ISM can be studied in great detail. The examples presented in this paper illustrate the type of intervening absorption systems that will be detected routinely in these surveys, and eventually with the Square Kilometre Array.⁵

We thank the anonymous referee for their useful comments on the manuscript. We also thank Stephane Arnouts for help with running the le phare photometric redshifts code and Evanthia Hatziminaoglou for measuring the stellar mass of the galaxy SDSS J085519.05+575140.7 from SDSS photometry. The data presented in this paper have been collected as part of programmes GBT06A-061, GBT06A-063, GBT06B-022, GBT06C-053, and GBT06C-055. We are grateful to the NRAO staff for their support with the GBT observations.
