Impact of magnetic fields on molecular cloud formation and evolution Free

ABSTRACT

1 INTRODUCTION

Stars and stellar systems form within the densest regions of molecular clouds, in gravitationally unstable cores which reside at the junctions of filaments (e.g. André et al. 2014a, 2014b). Prior to gravitational collapse the build-up of filaments and the respective substructures is primarily controlled by magnetic fields and supersonic turbulence (e.g. Shu, Adams & Lizano 1987; Mac Low & Klessen 2004; Crutcher, Hakobian & Troland 2010). But, the importance of magnetic fields for star formation is still debated (see e.g. Li et al. 2014; Padoan et al. 2014). On the one hand, the idea of supersonic turbulence controlling the star formation process assumes less important magnetic fields and thus primarily supercritical states. In such a scenario, the magnetic field lines are dragged along with the flow and density enhancements will collapse as soon as they become Jeans unstable. Furthermore, the turbulence is then not only supersonic but also superalfvénic (e.g. Padoan & Nordlund 1999; Padoan et al. 1999). This leads to highly twisted field lines and the resulting molecular clouds and clumps will not be coherent entities. The morphology instead will be influenced by the statistics/nature of the turbulence.

On the other hand, Mestel & Spitzer (1956) first quantified the influence of magnetic fields on star formation by introducing the mass-to-magnetic flux ratio μ ≡ M/Φ as a measure of the relative importance of gravitational and magnetic energies. Usually, this quantity is normalized to its critical value |$\mu _{\rm c}\simeq 0.13/\sqrt{G}$| [or |$\mu _{\rm c}\simeq 0.16/\sqrt{G}$| for more sheet-like clouds (Nakano & Nakamura 1978)]. If the magnetic field is strong enough, accretion on to the cloud complex is mediated by the Lorentz force and mainly parallel to the field lines (e.g. Kudoh et al. 2007; Inoue & Inutsuka 2008; Kudoh & Basu 2011; Hennebelle 2013). In the cloud interior, strong fields stabilize the filaments and clumps against gravity. This also results in a reduced fragmentation efficiency.

Observationally, it has been shown in recent years that the magnetic field is indeed crucial for the star formation process (e.g. Beck 2001; Crutcher et al. 2010; Li et al. 2010; Crutcher 2012; Li et al. 2014; Pillai et al. 2015). Li et al. (2010) used sub-mm polarization measurements to retrieve the morphology of the magnetic field in molecular clouds and Galactic spiral arms. The authors have shown that the overall morphology of the field does not change significantly from the large scales down to the inner parts of molecular clouds. By using H i, OH, and CN Zeeman measurements, Crutcher et al. (2010, see also Crutcher 2012, fig. 7) have shown that nearby molecular clouds and cloud cores can be separated into two regimes according to their column density and magnetic field strength. At low column densities, the magnitude of the field almost does not change for roughly two orders of magnitude with a median value of B_LOS ≈ 5 − 6 μG. This regime also coincides with magnetically subcritical H i clouds. As was pointed out by Crutcher (2012, and references therein), these data are primarily diffuse H i clouds that are not self-gravitating, but are rather in pressure equilibrium with their surroundings. Note, that the total magnetic field strength will even be larger. E.g. recent studies give average values of 5 − 15 μG (Beck 2001; Crutcher et al. 2010).

At higher column densities, the field strength increases close to linear with increasing column density. At this stage, almost all measurements indicate (super-)criticality. Conversion of these data points to volume density shows that the scaling in the latter region is B ∝ n^0.65, which perfectly fits to conditions of frozen-in magnetic field lines and isotropic collapse (which gives a relation B ∝ n^0.66).

Numerically, the issue of magnetic fields and their relevance for molecular cloud formation has been investigated by many authors (e.g. Inoue & Inutsuka 2008; Price & Bate 2008, 2009; Kudoh & Basu 2011; Vázquez-Semadeni et al. 2011; Inoue & Inutsuka 2012; Chen & Ostriker 2014). Most of them concentrated on the initial stages of the formation process. Already at this early temporal stage, the magnetic field was shown to be crucial. Price & Bate (2008) conducted smoothed particle hydrodynamics simulations of a 50 M_ȯ molecular cloud of radius R = 0.375 pc including magnetic fields of different strength (parametrized by critical mass-to-flux ratios of ∞, 20, 10, 5, and (3). They found that strong fields tend to suppress fragmentation on the one hand and the formation of stars on the other hand. However, as they point out, strong fields generate voids within the molecular cloud, which are magnetically supported with plasma-β > 1. In addition, on very small scales, magnetic tension is able to prevent multiple fragments from merging, thus promoting fragmentation.

More consistent with this study is the work by Heitsch, Stone & Hartmann (2009). They have used magnetohydrodynamics (MHD) simulations of converging flows to analyse the impact of magnetic field strength and orientation on the formation of (molecular) clouds. Specifically, they looked at the extreme cases of the magnetic field being either aligned with or perpendicular to the flow direction. The flows were driven continuously due to the choice of inflow boundary conditions. Hence, the mass-to-flux ratio in their study would approach infinity in the limit of infinite time-scales. Note that the authors have not included self-gravity in their simulations. Thus, every overdense substructure is pressure confined. However, they identify filaments and clumps that form due to turbulent compression, with clouds becoming more filamentary if magnetic fields are included. But, it is the alignment of the magnetic and (initial) velocity field that controls the formation of dense structures. As the authors point out, clouds are able to condense out of the WNM, if the fields are aligned. In case the magnetic field is perpendicular to the inflows, magnetic pressure suppresses the formation of dense structures, which could be termed molecular. However, there exist regions, which merge to form a filamentary network of diffuse gas.

Inoue & Inutsuka (2009) studied the evolution of the shocked slab between two converging flows in the interstellar medium (ISM) by means of two-fluid MHD simulations in a 30 × 10 pc box. The authors varied the angle between the mean magnetic field and the flows. From analytical estimates they found a critical velocity, which depends on the magnetic field strength and the mentioned angle. If the flow velocity is larger than the critical velocity only H i clouds are able to form because of dominating magnetic pressure. If it is less than the critical velocity, dense molecular clouds condense out of the WNM within the shocked slab. As the authors also point out, the dependence on the angle is crucial for the evolution of the gas within the slab, since the critical velocity goes to zero for angles approaching 90°.

Most recently, Chen & Ostriker (2014) studied the formation of prestellar cores due to the convergence of gas flows within molecular clouds. In detail, their simulation box was about 1 pc, representing a collapsing molecular clump. In order to analyse the core formation process, they used ideal MHD as well as non-ideal MHD via ambipolar diffusion (AD). In all of their models core formation was initiated by the collision of gas streams along the background magnetic field. With AD only the later stages were seen to differ from the ideal MHD models, since the density regimes where AD is becoming efficient are build up via accumulation of gas by colliding flows. The mass-to-flux ratio of the cores formed in their simulations is in the range μ/μ_c ∼ 0.5–7.5 with a median value of μ/μ_c ≈ 3. Thus, most of the cores are supercritical.¹

In this study we tie in with the work of Vázquez-Semadeni et al. (2011) by determining molecular cloud formation under different initial conditions. In Section 2, we therefore introduce our numerical model and the initial conditions. Section 3 deals with the formation and evolution of clouds formed by head-on converging WNM streams under varying initial conditions. The following Section 4 then introduces the tilt of one flow with respect to the magnetic field and discusses in detail the evolution of the clouds and their subsequent star formation activity. This study is closed by a brief summary in Section 5.

2 NUMERICAL SETUP AND INITIAL CONDITIONS

2.1 Details of the numerics

For this study we use the finite volume AMR code flash (Fryxell et al. 2000; Dubey et al. 2008). During each timestep, a Riemann problem is solved at the cell interfaces, yielding the respective fluxes for the hyperbolic partial differential equations. The MHD fluxes are computed by a multiwave Riemann solver developed by Bouchut, Klingenberg & Waagan (2007, 2009) and implemented in flash by Waagan, Federrath & Klingenberg (2011), which preserves positive states for density and internal energy.

We apply periodic boundary conditions for the (magneto-)hydrodynamics and isolated ones for gravity. In addition to the basic (ideal) MHD equations, we include self-gravity as well as heating and cooling. The latter is treated as a source term in the energy equation and we follow the recipe by Koyama & Inutsuka (2000, with modifications by Vázquez-Semadeni et al. (2007)) for the radiative cooling of the gas. Since we are interested in the process of star formation, we also include sink particles to follow truly collapsing regions (Federrath et al. 2010) and the local Jeans length is resolved with at least 10 grid cells to fulfil the Truelove criterion (Truelove et al. 1997). In order to replace a certain gas volume by a sink particle, the gas has to pass several checks, which are described in great detail in Federrath et al. (2010). We use a density threshold of n ≈ 2 × 10⁶ cm⁻³. Once a sink particle has been created, it is only allowed to accrete gas. Feedback is not included.

The numerical grid is refined when the local Jeans length is resolved with less than 10 grid cells and derefined if it consists of more than 100 cells.

2.1.1 Treatment of ambipolar diffusion

We have conducted one simulation including the non-ideal MHD effect of AD. The AD module was implemented in flash and extensively tested by Duffin & Pudritz (2008). It uses the strong coupling approximation [like Chen & Ostriker (2012, see also Chen & Ostriker (2014))], which was shown to be valid in the physical regime we are analysing (see appendix in Vázquez-Semadeni et al. 2011). However, since we are using a slightly different density threshold than in Vázquez-Semadeni et al. (2011) and different turbulent Mach numbers, the validity has to be proven again.

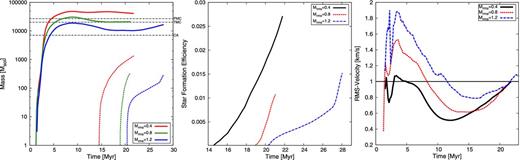

Figure 1.

Left: evolution of cloud (solid) and sink particle (dashed) masses for three turbulent velocity fields. The onset of star formation is clearly seen to be delayed due to the action of turbulent motions that keep dissolving dense structures. The horizontal dash–dotted, black lines denote the masses of observed molecular clouds, like the Perseus MC (PMC; Lombardi, Lada & Alves 2010), the Taurus MC (TMC; Lombardi et al. 2010), and the Corona Australis complex (CA; Alves, Lombardi & Lada 2014). Middle: star formation efficiency for B3M…I… runs. Right: corresponding root mean square velocity of the dense gas. The RMS–velocities converge after turbulence has decayed and global collapse of the cloud has begun. Before this point, the amplitude of the resulting turbulent velocities is determined by the initial conditions.

Open in new tabDownload slide

The fluxes are computed using a central differencing scheme and the numerical timestep is primarily controlled by AD. Note that the implementation by Chen & Ostriker (2012) uses super-timestepping to speed up the simulation (see also Choi, Kim & Wiita 2009).

2.2 Initial conditions

Our numerical setup is very similar to that of Vázquez-Semadeni et al. (2007, see also Vázquez-Semadeni et al. (2011) and Banerjee et al. (2009)). The physical size of the numerical box is 256 pc and the two cylindrical flows collide at the centre of the domain (see Fig. 2), that is, at L_x = 128 pc. Each flow has a linear dimension of l = 112 pc and a radius of r = 64 pc, thus twice as large as in the aforementioned studies (see Table 1 for the runtime details). The heating and cooling prescription by Koyama & Inutsuka (2000) gives a thermally unstable regime in the density range 1 cm⁻³ ≤ n ≤ 10 cm⁻³, corresponding to a temperature interval of 500 K ≤ T ≤ 5000 K if thermal equilibrium conditions are applied. According to these restrictions we have chosen the initial density to be n = 1 cm⁻³ and the temperature as T = 5000 K. With this temperature, we can define a sound speed of the warm neutral medium and we choose the velocity of every single flow in such a way that the resulting isothermal sonic Mach number is |$\mathcal {M}_\mathrm{f}=2$|⁠. In addition, we add a turbulent velocity field to the flows to mimic the general turbulent behaviour of the ISM (Mac Low & Klessen 2004). The turbulent fluctuations are calculated in Fourier space with a Burger's type spectrum, i.e. E(k) ∝ k⁻² for k ≥ k_inj, where k_inj is the energy injection scale. Furthermore, these turbulent fluctuations trigger the onset of dynamical instabilities such as the non-linear thin-shell instability (Vishniac 1994) or the Kelvin–Helmholtz instability (e.g. Heitsch et al. 2005; Heitsch, Hartmann & Burkert 2008). The initially uniform magnetic field has a strength of |$\left|\underline{B}\right|=\left\lbrace 3,4,5\right\rbrace \,\mu \mathrm{G}$| and is aligned with the flows, that is, |$\underline{B}\propto \hat{\underline{x}}$|⁠, where |$\hat{\underline{x}}$| is the unit vector in the x direction. Using the description for the critical mass-to-flux ratio by Nakano & Nakamura (1978), i.e. |$\mu _{\mathrm{crit}}=0.16/\sqrt{G}$|⁠, the two streams in total are initially subcritical, but can become supercritical very fast due to accretion of mass along the field lines (see Table 1). The numerical resolution is adjusted to give a maximum refinement level of |$\mathcal {L}_{\mathrm{max}}=13$|⁠, which corresponds to a maximum physical resolution of |$\Delta x_{\mathrm{max}}\approx 0.007\,\mathrm{pc}\approx 1600\,\mathrm{{\rm au}}$|⁠.

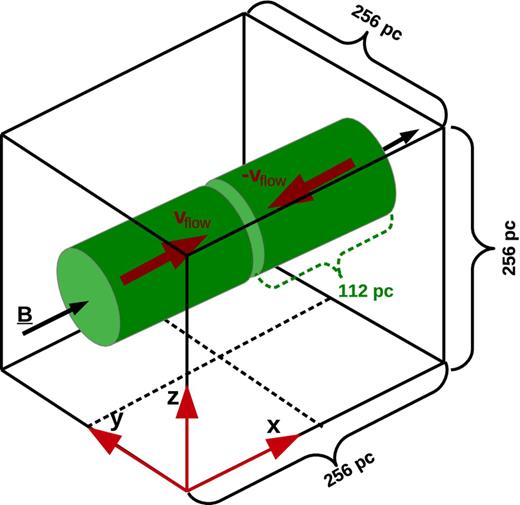

Figure 2.

Setup of the initial conditions. The black dashed lines denote the flow axes and the position of the collision layer, respectively. Adapted from Vázquez-Semadeni et al. (2007).

Open in new tabDownload slide

3 MC FORMATION BY HEAD-ON COLLIDING FLOWS

Colliding streams of gas are ubiquitous in the ISM (e.g. due colliding supernovae shells, Inoue & Inutsuka 2008) as well as in the interior of molecular clouds (e.g. in filaments or the junctions of filaments, Hennebelle et al. 2008; Chen & Ostriker 2014). Therefore, the dynamics and the structure can vary significantly, depending on the galactic or local environment or the respective driving mechanism (e.g. Inoue & Inutsuka 2008, 2012). In this section, we summarize the evolution of molecular clouds, which are being formed by head-on colliding flows. For more thorough analyses, we refer the reader to the studies of e.g. Banerjee et al. (2009), Vázquez-Semadeni et al. (2006); Vázquez-Semadeni et al. (2011), Hennebelle & Pérault (1999); Hennebelle et al. (2008), Heitsch et al. (2008). An overview of the main initial physical parameters of the respective simulations is given in Table 1.

3.1 Varying the turbulent velocity

The dynamics of molecular clouds which formed in the compression zone of two colliding streams strongly depend on the initial kinematics of the individual flows. On the one hand, the flows are supersonic with respect to the WNM and thus generate strong shocks and compressions (Vázquez-Semadeni et al. 2007; Banerjee et al. 2009). On the other hand, large-scale instabilities as well as stellar feedback inject energy into the ambient ISM. This energy, if not already in the form of kinetic energy, can be converted to kinetic energy and thus a turbulent regime is produced, where the turbulence cascades down until it is dissipated on atomic/molecular scales. This turbulence is primarily supersonic (e.g. Mac Low & Klessen 2004). These random motions generate a certain level of anisotropy within the bulk flows and the respective contribution to the process of molecular cloud formation is twofolded. First, turbulence contributes an effective ram pressure, which can help to stronger compress fluid elements. Secondly, the inhomogeneous velocity field distorts the overall bulk flow and reduces the mass flux, which then directly translates to the build-up of less massive clouds (see Fig. 1).

If the collision of the WNM streams is along the magnetic field lines, the early stages (t ≤ 3 Myr) of cloud formation can be understood as being nearly independent of the magnetic field. The first phases during the collision are thus controlled by the bulk and turbulent velocity (see Table 1).

Fig. 1 shows the evolution of the dense gas (n ≥ 100 cm⁻³) for different initial turbulent Mach numbers. The compression by the flows induces the formation of a molecular cloud by the combined action of dynamical and thermal instability (e.g. Vázquez-Semadeni et al. 2007; Heitsch et al. 2008; Banerjee et al. 2009). Due to the onset of runaway cooling of thermally unstable gas, the cloud becomes more massive with time. At the same time it assembles mass by accretion of gas along the field lines. Independent of the degree of turbulence, the onset of dense gas formation starts at the same time indicating the dominance of the ram pressure by the bulk flows. Only at slightly later times around t ≈ 2–3 Myr, the effects of different turbulent Mach numbers are seen. Flows of higher turbulent Mach numbers reduce the mass flux and hence reduce the final mass of the cloud. This is seen in Fig. 3. The stronger the turbulence, the less compact is the resulting cloud. The mass concentrates in pressure confined filaments, which are further immersed in a diffuse, warm medium, with a steep density and temperature gradient between the WNM and CNM that can be interpreted as a phase-transition front rather than a contact discontinuity due to the ambient mass flux across the transition layer (Banerjee et al. 2009).

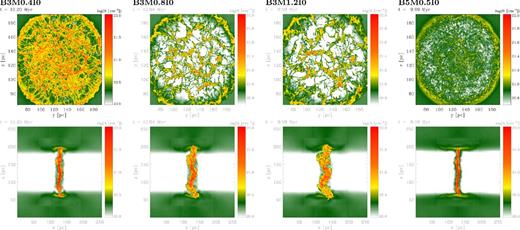

Figure 3.

Slices of column density along two different axes for different simulations at t ≈ 10 Myr. Top: along x-axis (i.e. face-on view). Bottom: along y-axis (i.e. edge-on view).

Open in new tabDownload slide

At later stages, the initial turbulence has decayed and the presence of turbulent motions is due to self-gravity (see e.g. Ballesteros-Paredes et al. 2007). Once self-gravity dominates, certain regions then proceed to collapse to form a star. The onset of star formation is clearly delayed by the presence of stronger initial turbulence (see Fig. 1).

3.2 Dependence on the magnetic field strength

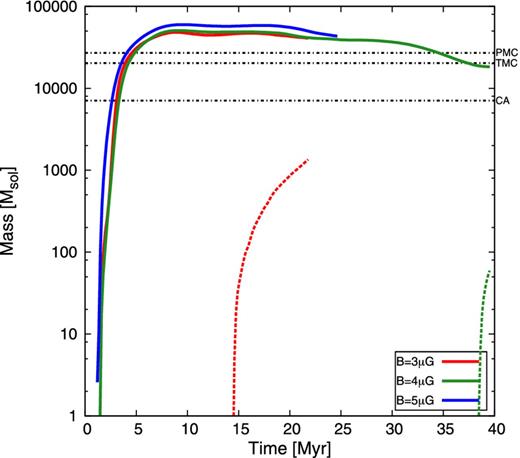

Figure 4.

Evolution of cloud (solid) and sink particle (dashed) masses for three magnetic field strengths. The clouds assemble similar final masses, but some slight differences in the accretion phase are seen. More prominent is the lack/delay of star formation for simulations with |$\left|{\underline{B}}\right|> 3\,\mu \mathrm{G}$|⁠. The horizontal dash–dotted, black lines denote the masses of observed molecular clouds, like the Perseus MC (PMC; Lombardi et al. 2010), the Taurus MC (TMC; Lombardi et al. 2010), and the Corona Australis complex (CA; Alves et al. 2014).

Open in new tabDownload slide

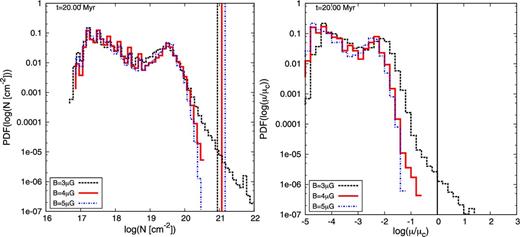

Figure 5.

Left: column density PDF for different initial magnetizations at 20 Myr. The weaker magnetic field allows for the development of a power-law tail, which indicates gravitational collapse. The vertical lines denote the respective threshold column densities for magnetic criticality after equation (3). Right: corresponding μ-PDF. Here, the vertical line indicates the critical ratio.

Open in new tabDownload slide

The results from simulations with higher magnetization now raise the question, how stars can form in such highly magnetized media.

4 INCLINED WNM FLOWS

Here we probe the influence of inclined colliding flows. Inclined collisions are easily justified by assuming the emergence of a supernova shock wave and its propagation through a Galactic spiral arm or by non-uniform large-scale gravitational forces. The motion of the flow at an inclination with respect to the magnetic field results in an enhanced diffusivity of the latter and this process thus can be thought of as a non-ideal MHD process (e.g. Heitsch et al. 2005; Inoue & Inutsuka 2008; Heitsch et al. 2009).

4.1 The setup

The initial geometry can be seen in Fig. 6. The basics are the same as for the head-on case, but now one flow is inclined at an angle φ with respect to the x-axis. The initial background magnetic field is kept constant and aligned with the x-axis. The figure may imply that there might be a region where quiescent gas resides, but this is not the fact. The two flows still collide in the centre of the simulation box and since the magnetic field is still uniform, the collision will induce a normal shock. Table 1 lists the initial parameters for this study.

Figure 6.

Setup of the initial conditions with inclined flow. The box and physical parameters are the same as in Fig. 2, but now one flow is inclined at an angle φ with respect to the background magnetic field. The inclined axis is shown as the red dashed line. Note, the collision still occurs at the centre of the simulation domain, in contrast to what is schematically shown here.

Open in new tabDownload slide

4.2 Magnetic flux reduction and star formation

We commence with the thermally dominated case, i.e. |$\left|\underline{B}_0\right|=3\,\mu \mathrm{G}$|⁠. The inclination of one flow increases the diffusivity (see Table 1 and Appendix A) where larger angles lead to larger magnetic diffusivity. Fig. 1 has already shown the evolution of the cloud mass as function of time. The mass crucially depends on the strength of the initial turbulent velocity fluctuations. In addition, if one applies an inclined flow, shearing motions and magnetic effects have to be taken into account. The magnetic field is able to slow down the inclined flow so that the collision will end soon and no gas is driven into the thermally unstable regime. But the final masses of the formed clouds are very similar, only varying by a factor of a few (see Fig. 7). This indicates that at later times, the information of the initial conditions is completely lost.

Figure 7.

Temporal evolution of mass for runs B5M0.5I…. The horizontal black,dash–dotted lines have the usual meaning.

Open in new tabDownload slide

More interesting is the way how the cloud evolves. For small inclinations (φ ≤ 30°), no significant distortions occur and the mass accumulation and the final mass are comparable to cloud masses formed by purely head-on collisions (within factors of 2–3). The inclined flow is aligned with the magnetic field very fast. For highly inclined streams the condensation from the WNM to the CNM sets in later due to the above-mentioned processes. At the same time, mass growth is stopped and a short phase of mass-loss is evident as a direct consequence of strong shearing motions (see Fig. 7).

But as soon as the strongest unstable fronts have vanished, the cloud turns back to a stabilized state with continuous accretion of matter. Fig. 8 shows the resulting molecular cloud structure for run B3M0.5I50. Shown is the column density along the z-axis, that is, perpendicular to the background magnetic field. The black dot resembles a sink particle. The global morphology of the cloud is mainly influenced by the geometry of the colliding WNM streams with additional impact by the misalignment of the flow. It resembles a sheet-like shape with trailing arms with the one at the near side of the tilted flow being more elongated. This elongation is due to the later collision of the flows when the bulk of the mass has already been compressed. The resultant motion of the cloud yields that the still streaming gas interacts with the outer edges of the compressed gas by ‘pushing’ it away from the actual molecular cloud complex, thereby forming this observed elongated structure. At this time the flow is already too slow to significantly compress the gas, implying that the gas in the trailing arm is not able to sufficiently cool down by thermal instability. It is therefore not able to become gravitationally unstable. These shear flows and the resulting occurrence of trailing arms are possibly seen in observations of e.g. the Taurus molecular cloud, i.e. the non-star-forming low column density arm (Alves et al. 2014).

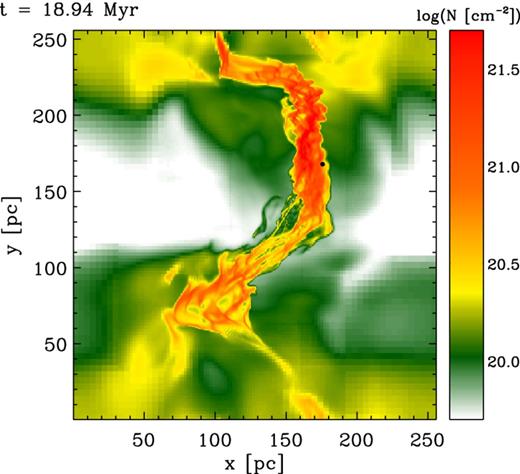

Figure 8.

Column density map for run B3M0.5I50. The total integration length is 60 pc. The resulting global cloud structure is due to the initial compression by the flows.

Open in new tabDownload slide

In contrast to the evolution of the total mass of the molecular cloud, the evolution of the stellar (sink particle) mass is greatly influenced by inclining one flow. The most obvious indication is the delay of star formation with increasing misalignment (see Fig. 9). Due to the misalignment, magnetic pressure and magnetic tension act as opposing agent against gravity. In addition, the shear flows disrupt density enhancements and thus the transition from the WNM to dense, cold structures is hampered. Once, the turbulence has fully vanished, the cloud is still subject to its fast bulk motion. Clumps within the complex can only grow by accretion of matter from the immediate environment, because of the lack of turbulent compression, which could provide the seeds for gravitational unstable cores. The shear due to the misalignment also yields a less compact cloud. The material is not fully compressed by the two flows. Instead, a great amount is at first compressed and enters a phase of oscillating motions and dispersion due to shearing motions. The accumulation of enough Jeans masses to render the gas gravitationally unstable is delayed and also very inefficient, since the denser regions are greatly scattered and do not possess enough mass.

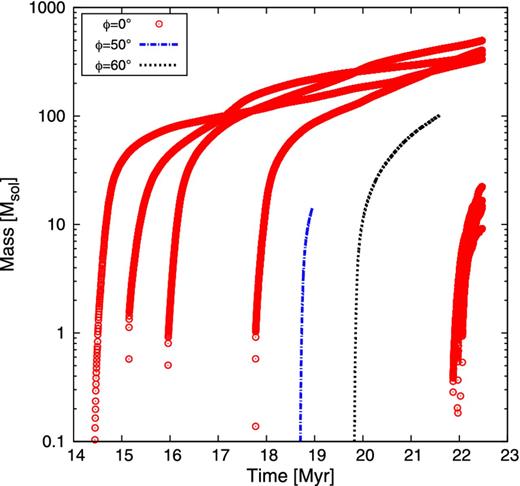

Figure 9.

Evolution of individual sink particle masses for three inclinations of runs B3M…I…. The higher the inclination, the later star formation begins. In addition, the star formation rate and efficiency are strongly influenced (see also Fig. 1).

Open in new tabDownload slide

As can be seen from Fig. 8, there is at least one sink particle, indicating ongoing star formation. We stopped the simulation here, because star formation proceeds from there on (as can be seen e.g. from run B3M0.4I0).

4.3 Comparing cloud dynamics in magnetically differing environments

Fig. 10 shows the column density in the direction perpendicular to the background magnetic field for three different initial magnetic field strengths (from left to right: |$\left|\underline{B}\right|=3\,\mu \mathrm{G}, \left|\underline{B}\right|=4\,\mu \mathrm{G, and}\left|\underline{B}\right|=5\,\mu \mathrm{G}$|⁠) with an initial tilt of φ = 60°. The weakest field case shows a strong distortion of magnetic field lines as well as the onset of star formation. In comparison, the stronger fields show a more ordered magnetic field, which shows no clear deviation from its initial uniform alignment. For |$\left|\underline{B}\right|=4\,\mu \mathrm{G}$|⁠, one can infer some large-scale modulation of the field due to global dynamics as a resulting imprint of the large inclination. The morphology of all three molecular clouds is very similar, although some local differences occur. The main cloud (having a sheet-like shape) is more compact for weaker fields, whereas the difference between the two strong magnetizations is negligible. This attribute results from the thermally dominated gas. The magnetic field does not control the gas dynamics and thus is forced to follow the motion of the fluid. Once, local density enhancements condense out, the magnetic field is dragged inwards together with accreting material. In the cases of more realistic fields, it is the magnetic field that dominates the fluid motion and that keeps the cloud coherent (see e.g. Hennebelle 2013). At the same time the trailing arms now occur to be slightly denser. These arms are magnetically supported and thus more stable against shear flows and mixing by large-scale fluid instabilities.

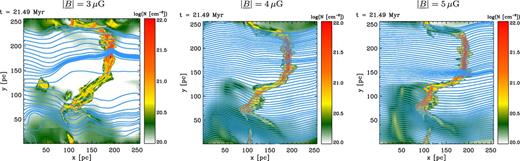

Figure 10.

Column density map with overlayed magnetic field lines for B = 3 μG,B = 4 μG, and B = 5 μG from left to right. Initial inclination is Φ = 60°.

Open in new tabDownload slide

In contrast to a 3 μG-field, there is no star formation for the cases of 4 μG and 5 μG, yet, although Fig. 4 indicates that these highly magnetized clouds are also more massive. The greater total masses and the lack of star formation combine to a picture of a fragmented cloud (see Fig. 14). Any intrinsically driven turbulence is subalfvénic and the magnetic field thus stays coherent. Such a field configuration has also been observed via polarized emission from CO (e.g. Li et al. 2010, 2014). So, what is the basic impact of the magnetic field on the star formation process? As long as accretion happens along the magnetic field, the influence of the latter can be safely ignored. Once, the gas begins to fragment, subcritical regions are produced, as long as the parental fragment was only slightly supercritical. Thus, accretion along field lines has to continue in order to generate supercritical fragments. Otherwise, magnetic pressure will drive the gas out of the potential well and the fragments stay subcritical and star formation stops.

The temporal evolution of the line-of-sight component of the magnetic field as function of column density is shown in Fig. 11. Different colours or linestyles denote different evolutionary stages. The straight lines indicate different criticality conditions according to various studies and using different approaches for deriving this condition (McKee et al. 1993; Shu et al. 1999; Crutcher et al. 2010; Li et al. 2014). From left to right the initial magnetic field becomes stronger and from top to bottom the inclination increases in steps of 30°, starting at φ = 0°. All cases have in common that the column density gradually increases at constant magnetic field magnitude, indicating gas accumulation along the field lines (see also Crutcher et al. 2010).

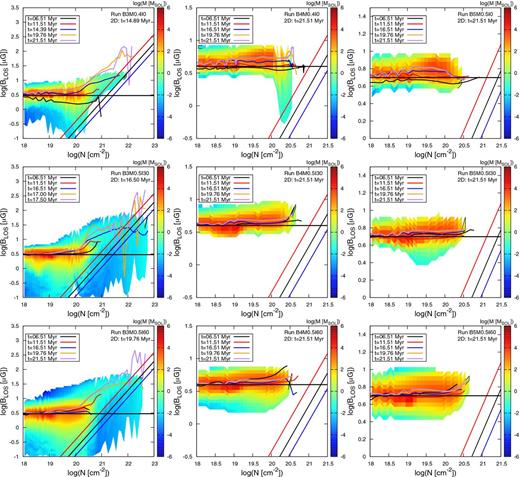

Figure 11.

Evolutionary path of the cloud in N-B_LOS space. In this case, B_LOS = B_x. From left to right: B = 3μG,B = 4μG, and B = 5μG, respectively. From top to bottom: Φ = 0°,Φ = 30°,Φ = 60°. Different colours denote different times. Note the different data range for the stronger fields. Also shown are the criticality condition (Crutcher et al. 2010; Crutcher 2012, dot–dashed black line), corrected for projection effects (Shu et al. 1999, solid straight black line), and assuming equipartition of turbulent and magnetic fields (McKee et al. 1993, dashed black line). Colour coded is the mass as function of column density, N, and line-of-sight magnetic field B_LOS.

Open in new tabDownload slide

The thermally dominated case shows signs of early fragmentation and field compression, giving rise to an increase of the magnitude at relatively low column densities. These effects render the whole cloud magnetically subcritical. The clouds then undergo different dynamical phases with varying contribution of the magnetic field, i.e. times of pure accretion along the field lines, twisting of the field by collapse and compression, and finally amplification of the field by large-scale collapse and increasing column density. In between there exist stages, where the cloud shows signs of supercriticality. We here point out that the ordinate only shows the average line-of-sight component, i.e. there exist indeed supercritical regions that are not significant in terms of mass or volume fraction (see 2D histogram). Comparison with the weakest field shows that star formation is immediately initiated, when the gas becomes supercritical. The collapse proceeds and more material is dragged into the potential well. The resulting magnetic field amplification is still too low and finally it diffuses out of the central region. After the sink particle has formed, some of the field lines relax, thereby decreasing the density in some regions. As time proceeds, the cloud becomes more compressed due to its global gravitational collapse.

For better visualization, the columns for B = 5 μG and B = 4 μG are shown in the column density range 19.5 ≤ log N ≤ 21 and |$1\,\mu \mathrm{G}\le \left|\underline{B}\right|_\mathrm{LOS}\le 25\,\mu \mathrm{G}$|⁠, since there occurs no significant amplification of the magnetic field during the evolution of the molecular cloud. This is indeed very intriguing, because observed magnetic fields are far larger in magnitude. We only see motion along the field lines, as has already been mentioned before, but we do also see no sign of gravitational contraction. Only some small modulations are seen, especially in the case of the cloud formed by head-on collision and B = 4 μG, but this amplification is less than a factor of 2 and thus not significant. At low column densities instead one can infer a slight ‘global’ amplification of a view percent. This can be accounted for accretion of mass from the diffuse halo surrounding the dense cloud. These data already indicate that the uniform component of the magnetic field is the leading component and no clear tangling of the field is observed. Furthermore, every process of gas accumulation perpendicular to the field lines is instantaneously balanced by magnetic forces (see Fig. 12). The flow cannot become dynamically important in order to bend the field lines and to render the magnetic field supercritical.

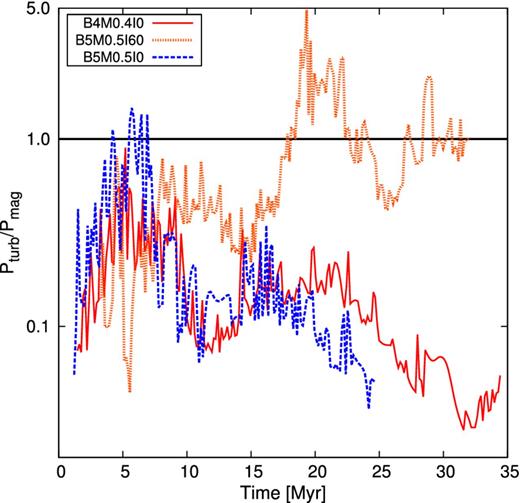

Figure 12.

Temporal evolution of the ratio of turbulent ram pressure to magnetic pressure for three different runs. On average the magnetic field dominates and the ram pressure is not sufficient to induce motions perpendicular to the field lines.

Open in new tabDownload slide

Even in the case of high diffusivity or large inclination, there is no amplification and/or tangling seen, indicating that diffusion processes might play only a minor role in rendering the field supercritical. If one takes a look at Fig. 13, it is obvious that the gas is highly subcritical. Shown are mass histograms as function of the normalized mass-to-flux ratio for the three magnetic fields at three late evolutionary stages. It is only for the weakest magnetic field that the gas shows some sign of evolution. One can clearly identify the power-law tail (which can be accounted for the N-PDF) and its growth as more mass enters the supercritical regime. In contrast, the higher magnetization cases show roughly no evolution. Once a given distribution of the gas has developed it is seen to be globally stationary. The difference between the 4 μG and 5 μG cases are small, i.e. the 4 μG case develops some larger mass-to-flux ratios. However, both regimes are far from being even critical.

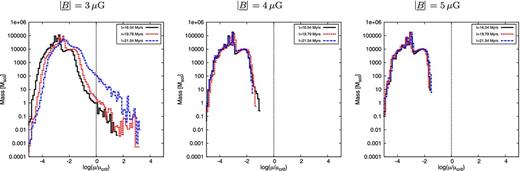

Figure 13.

Mass as function of the mass-to-flux ratio for B3M0.5I60, B4M0.5I60, and B5M0.5I60 (from left to right). Different colours denote different times. The vertical line again indicates the critical value.

Open in new tabDownload slide

Run B5M0.5I60AD includes the process of AD in addition to an initial tilt. As was already mentioned in the remarks of Table 1, the simulation was stopped at t ≈ 12 Myr. The subsequent evolution of the cloud showed no significant difference to the runs without AD. Also in this case, the shear flows tend to suppress the formation of dense cores, where AD would be most efficient.

4.4 Dynamics of dense cores

Due to turbulence, overdensities occur which become gravitationally bound. Fig. 14 shows the evolution of the densest regions within the formed molecular clouds, i.e. of these with minimum density of n = 1000 cm⁻³. The left-hand image shows the evolution of mass, the right-hand panel the evolution of thermal and magnetic Jeans numbers. The temporal evolution is shown for the whole simulation, thus earlier ending graphs indicate the complete lack of gas with the respective minimum density from this time on.

Figure 14.

Temporal evolution of the gas with minimum density of n = 1000 cm⁻³, resembling the densest parts deeply embedded in the cloud. Left: temporal evolution of mass. Note that for runs B4M0.4I0 and B5M0.5I60 there are stages where no dense material exists [indicated by the linear increasing (B4M0.4I0) and the non-varying stages (B5M0.5I60). The former is just the line connecting two data points!] between 10 and 20 Myr. Right: evolution of the number of thermal and magnetic jeans masses. Colours correspond to the left figure.

Open in new tabDownload slide

For all runs with zero inclination, the compression by the two converging streams induces a transition to dense material with a few thousand solar masses. But as soon as the ram pressure of the confining flows becomes weaker these dense regions re-expand, showing that the regions were only pressure-confined entities. For run B3M0.4I0, a phase of increasing mass follows, which is mainly due to the accretion of matter along the magnetic field lines. In the end, the densest regions of the molecular cloud reach a total mass of a few hundred solar masses. Comparison with run B3M0.5I60 shows a difference of only a factor of a few in the end of the simulation.

The most striking difference is the first evolutionary phase, where the cores of run B3M0.5I60 undergo strong variations, because of the additional shearing motions, after they have first formed at far later times.

Run B4M0.5I0 already shows the influence of the stronger magnetic field. The decrease in external ram pressure by the converging flows also induces a re-expansion of the dense material within the cloud complex. But now the magnetic field is already strong enough to ensure a less efficient mass accretion. At around t ≈ 10 Myr no dense material exists. This stage lasts until t ≈ 20 Myr, where the global collapse of the molecular cloud yielded strong enough compression to form dense material again.³ Strong internal variations of the cloud then lead to a highly varying mass evolution. In the end, masses similar to run B3M0.4I0 are reached, and stars start to form. Interestingly it takes roughly 20 Myr for stars to form after the reoccurrence of dense cores. This already indicates that for shearing flows the onset of star formation with magnetic and thermal energies in equipartition is further delayed to far later times. But during such a long evolution, the clouds would then be subject to large-scale Galactic processes and our setup would not be appropriate.

Further increase of the initial magnetic field strength shows even more dramatic changes in the overall evolution of the densest regions within the molecular clouds. In run B5M0.5I0, the existence of dense cores ends after t ≈ 12 Myr, showing the complete lack of unstable cores after the compression by the bulk flows. Although a molecular cloud forms, it does not possess any region, which could possibly undergo gravitational contraction to form stars. However, the first evolutionary stages during the compression of the flows shows that the strong fields lead to higher masses of the dense gas due to the influence of the field. Inclining one WNM stream now shows striking difference. At first, the build-up of dense cores starts out at later times as in the case of run B3M0.5I60. But the diffusive nature of this formation mechanism leads to the build-up of denser regions up to the end of the simulation, although there are stages where no dense cores exist. The evolutionary track of the dense gas is mainly influenced by the cloud motion and the magnetic forces. The whole dense material is thermally and magnetically highly stable, with the latter being the dominant aspect. Thus, although far more diffusive, the magnetic field is still able to suppress the formation of unstable cores and the subsequent star formation.

The stability of the dense regions is also indicated by the mass-to-flux ratio (see Fig. 15). Only if the magnetic field is sufficiently weak, gravitational energy dominates over magnetic energy and the inner regions of the molecular clouds are rendered magnetically supercritical. In case of a 4μG field a great spread of mass-to-flux ratios is observed with all being subcritical at the stages shown. During the further evolution of the cloud, magnetically supercritical cores form. Additionally, by inclining one stream, low-mass cores are generated, which have approximately the same mass-to-flux ratio as in the case of head-on colliding streams, indicating that the magnetic field diffuses out of the regions.

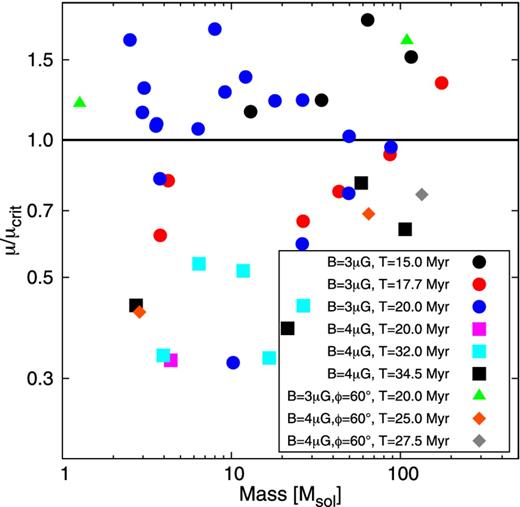

Figure 15.

Normalized mass-to-flux ratio as function of core mass for runs B3M0.4I0 (circles), B3M0.5I60 (triangles), B4M0.4I0 (squares), and B4M0.4I60 (diamonds) at different evolutionary stages. Note that a comparison of equal temporal stages is not possible due to the lack of cores with densities of n ≥ 1000 cm⁻³. For runs B5M…I… no such cores were found! The mass-to-flux ratio is normalized to |$\mu _{\rm c}=0.16/\sqrt{G}$| (Nakano & Nakamura 1978).

Open in new tabDownload slide

4.4.1 Analysis of the densest cores

Now we analyse the three densest cores in more detail. For simplicity, we have assumed that the cores are spherical entities. Fig. 16 shows the normalized mass-to-flux ratio, the turbulent sonic and the turbulent Alfvén Mach number as function of radial distance from the centre of mass.

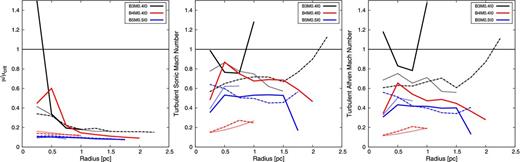

Figure 16.

Radially averaged profiles of the three (indicated by different line styles) densest cores within the molecular clouds for runs B…M…I0. Left: mass-to-flux ratio. Middle: turbulent isothermal Mach number. Right: turbulent Alfvén Mach number. The radial distance is evaluated with respect to the centre of mass. For runs B3M0.4I0 and B4M0.4I0, respectively, the data are shown shortly before the first star appears. The values for the turbulent Mach numbers mimic the initial conditions, i.e. that the turbulence is still subsonic and subalfvénic. Note, the masses of these cores range from ≈4 M_ȯ (third massive in run B5M0.5I0) to ≈250 M_ȯ (most massive in run B3M0.4I0).

Open in new tabDownload slide

For run B5M0.5I0, the mass-to-flux ratio is subcritical and constant throughout the whole core. This has two implications: (1) Magnetic support is sufficient to keep the core stable and (2) there is no evidence for accretion of matter along the field lines (which would increase the ratio locally). Besides being higher, the mass-to-flux ratio for run B3M0.4I0 shows some variation as function of radial distance for all three cores. The centre of the densest core (solid line) is seen to make a transition to a supercritical state surrounded by a subcritical halo. Although the other two cores are subcritical as a whole, they show the same signature. The cores in run B4M0.4I0 show a state between these of runs B3M0.4I0 and B5M0.5I0. As expected, the mass-to-flux ratio of the densest core decreases with increasing radius. The two other cores show only a roughly constant ratio. The mass-to-flux ratio of the first core is still subcritical, but the transition to a supercritical state is achieved at slightly later times. Note that the location of the maximum mass-to-flux ratio in this core does not coincide with the centre of mass.

The dynamics of the cores can be analysed by looking at the turbulent Mach numbers (see middle and right-hand panel). The cores are subsonic and subalfvénic, hence showing that (1) no strong compressions within the dense material occur and (2) the magnetic field prevents the gas from accumulating into denser unstable fragments. This is true for all clouds and can be interpreted as an imprint of the initial conditions. Only for the densest core in run B3M0.4I0, the outskirts are seen to be slightly supersonic and superalfvénic, indicating turbulent accretion on to the core. The difference between the two Mach numbers is less for the weakest field, since it is not able to fully prevent collapse. If the field strength is higher, magnetic tension will accelerate the gas, while relaxing the field lines. This is why the sonic Mach number is slightly higher, but nevertheless the motions only reach subsonic or at most transonic states. At these densities (n ≈ 10³ cm⁻³), the flow seems to be mediated by the magnetic field lines, which in every case tends to suppress the build-up of turbulent vortices.

5 SUMMARY AND DISCUSSION

In this study, we have presented the results of MHD simulations of colliding flows with varying initial conditions. The strength of the turbulent velocity fluctuations, of the background magnetic field as well as the alignment of one of the WNM streams with the magnetic field was changed. We have shown that dense clouds can form independent of the initial conditions, but that their final mass and dynamics are mainly controlled by these (see Table 2). Increasing initial turbulence lead to lower cloud masses due to less coherent gas streams. Oblique flows still lead to clouds with masses comparable to what has been observed recently and stronger magnetic fields will generally lead to more massive molecular clouds. The first point seems at first a contradiction to Inoue & Inutsuka (2009) who stated that for larger inclined flows no dense, molecular clouds can form. However, here the cloud accretes mass and becomes molecular with time. As can be seen from Fig. 7, the onset of the formation of dense gas is delayed with increasing inclination. This is indeed consistent with Inoue & Inutsuka (2009), because the first few Myr are characterized by H i gas with densities below the threshold density of n = 100 cm⁻³.

Molecular clouds are able to condense out of the WNM, independent of the magnetic field strength. However, only in the cases of fairly weak initial magnetic fields, the formation of stars could be initiated. Starting with subcritical H i flows, the magnetic flux loss is in no cases sufficient to allow the build-up of supercritical cloud cores. The tendency of the magnetic field to realign itself with the initial direction is a crucial factor for the overall evolution. In order to circumvent this problem, non-ideal MHD was resembled by means of tilted collisions. Increasing inclination leads to increased diffusivity of the magnetic field. The variation of the inclination as well as the flow dynamics showed no tendency for faster accumulation of gas or faster transition to thermally dominated regions, since the flow dynamics is rather controlled by the appearing shear flows than magnetic diffusion.

We therefore stress the role of magnetic fields in the context of molecular cloud and star formation. We point out the complete lack of supercritical regions for realistic initial field strengths. As was shown in Fig. 15, the normalized mass-to-flux ratio ranges from 0.3 to 1.7 (B = 3μG) and 0.3 to 0.7 (B = 4 μG), respectively. At least the former case for weak fields compares well with the results of Chen & Ostriker (2014, μ/μ_c ∼ 0.5–7.5) as well as with observations (μ/μ_c ≈ 2, Troland & Crutcher 2008). From the observational side, H i clouds may be supercritical as a whole, but their observed, dense subregions be subcritical.

The question remains, how clouds achieve the transition from sub- to supercritical.

ACKNOWLEDGEMENTS

BK and RB thank Enrique Vázquez–Semadeni for useful discussions and the referee for invaluable comments, which helped to improve the quality of this paper. BK acknowledges hospitality at Centro de Radioastronomía y Astrofísica, Universidad Nacional Autónoma México, during the initial stages of this study. The simulations were run on HLRN–III under project grant hhp00022. RB acknowledges funding by the DFG via the Emmy-Noether grant BA 3706/1-1, the ISM-SPP 1573 grants BA 3706/3-1 and BA 3706/3-2, as well as for the grant BA 3706/4-1. The software used in this work was in part developed by the DOE-supported ASC/Alliance Center for Astrophysical Thermonuclear Flashes at the University of Chicago.

REFERENCES

APPENDIX A: ESTIMATE OF THE EFFECTIVE MAGNETIC DIFFUSION

We here give a simple estimate for the dependence of the AD coefficient on the magnetic field strength and the inclination of the flow. Specific numerical values are not of special interest here.

The AD diffusion parameter is η_AD ∝ B². The respective numerical diffusivity is given by the product of the grid size and the Alfvén speed. The ratio η_AD/η_num estimates the influence of magnetic to numerical diffusion. In order to receive the diffusion for tilted flows, we make use of the fact that inclined flows will generate tilted field lines. This tilting can be interpreted as impact of magnetic diffusion. The perturbed field δB (which is here important for the diffusion coefficient) and the initial background field are then related by δB = B₀sin(φ), where the tilting angle of the perturbed field, χ, and the inclination of the flows, φ, are related by χ = 90° − φ. The resultant AD coefficient is then modified to |$\eta _\mathrm{AD}\propto B_0^{2}\sin ^{2}\left(\varphi \right)$|⁠, which gives zero diffusion for aligned flows and maximum diffusion for the perpendicular case (see Fig. A1).

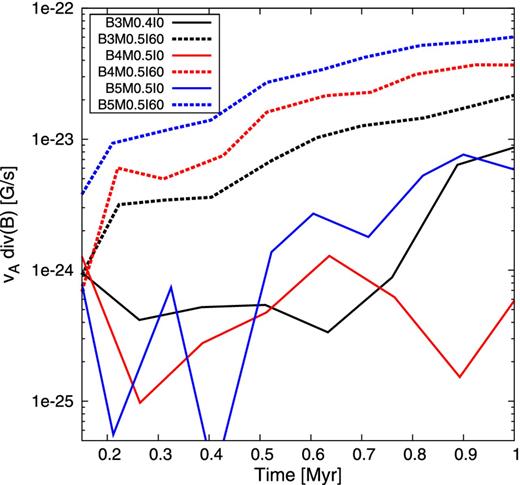

Figure A1.

Shown is the deviation from the induction equation due to diffusion in the ideal MHD limit for inclinations of 0° (solid) and 60° (dashed). Different colours indicate different initial magnetic field strengths.
